Additional Information

Accommodations

Single Berths: 4

Staterooms: 1

Heads: 1

Galley: 1

Specifications

Length: 34.2 ft

Beam: 12.5 ft

Draft: 3.0 ft

Weight (approx.): 19,000 lbs

Speed Cruising: 24 kts

Speed Maximum: 29 kts

Fuel Tank (port fiberglass): 120 gal

Fuel Tank (stbd fiberglass): 120 gal

Fuel Tank (center aluminum): 55 gal

Water Tank (center fiberglass): 70 gal

Holding Tank (plastic): 15 gal

Hot Water Tank (stainless steel): 6.4 gal

Hull Material: Fiberglass

Hull Shape: Modified-V Planing

Keel Type: Full Built-down

Hull

Hull is constructed of solid fiberglass

Hull has original Hatteras built-down keel

Hull painted in AwlCraft-2000 Aquamist

Boot Stripe painted in AwlCraft-2000 Jade-mist-green (2023)

Hull Bottom is barrier coated

Hull Bottom sanded and painted with Sea-Hawk BioCop-TF (2025)

Trim tab plates and cylinders recessed into hull

Deck House

Deck House painted in Awlcraft-2000 Stark-white

Deck House forward windshield glass removed and finished flush in fiberglass

Deck House side windows removed and replaced with fiberglass frame and recessed glass

Deck House windows are tinted gray glass

Original Hatteras grab rails and logos restored

Original Hatteras Double-door Deck House Entry

Fore Deck

Fore Deck and Tow Rail painted in AwlCraft-2000 Stark-white

Bow Anchor Pulpit in fiberglass, integrated into tow rail

Fore deck and side gunnels finished in light non-skid

Maxwell Anchor Windlass with Flybridge controls

400 ft of anchor line with 20 ft of anchor chain

Polished Aluminum Bow Rail

Original Hatteras fiberglass front deck hatch

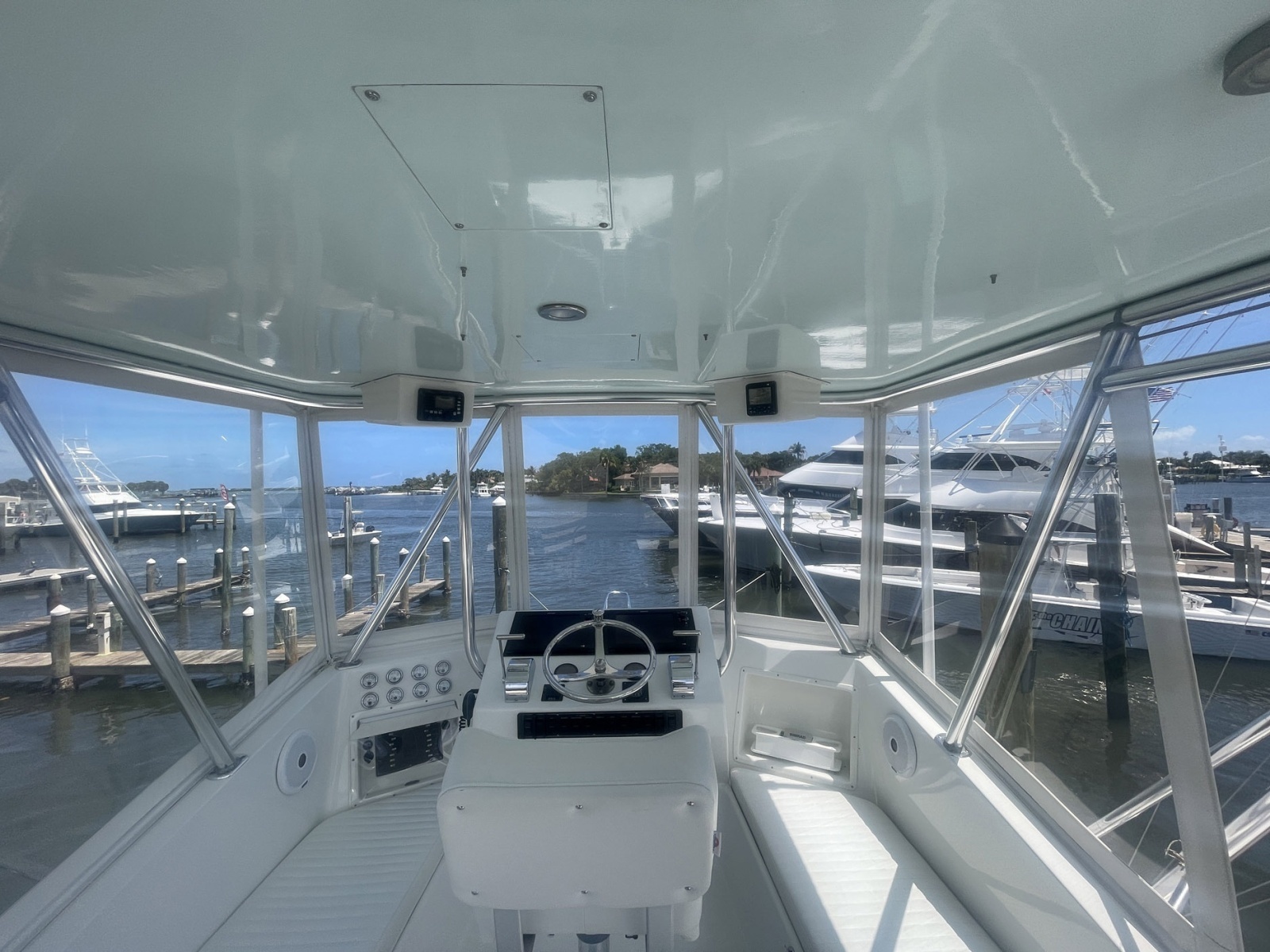

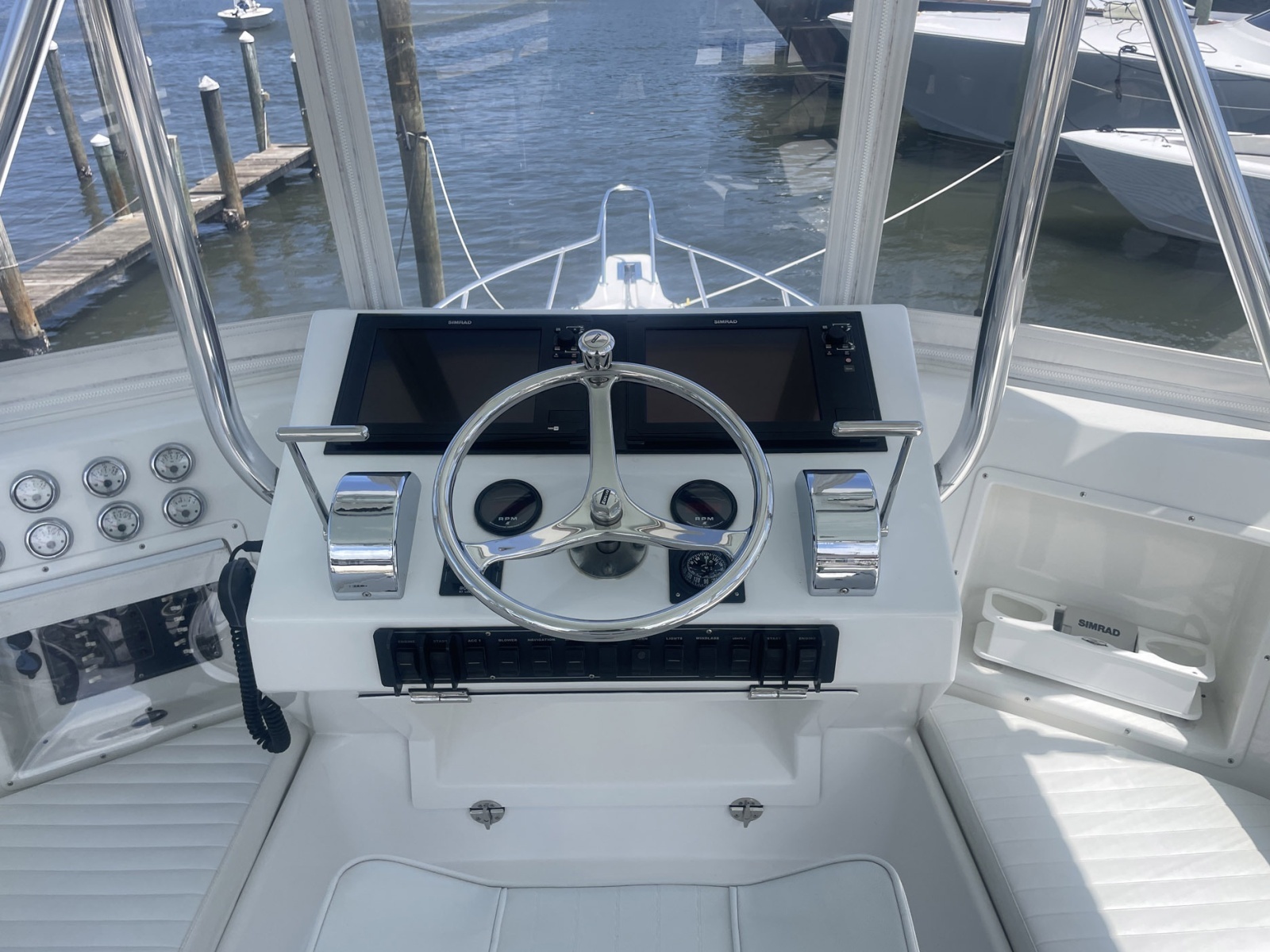

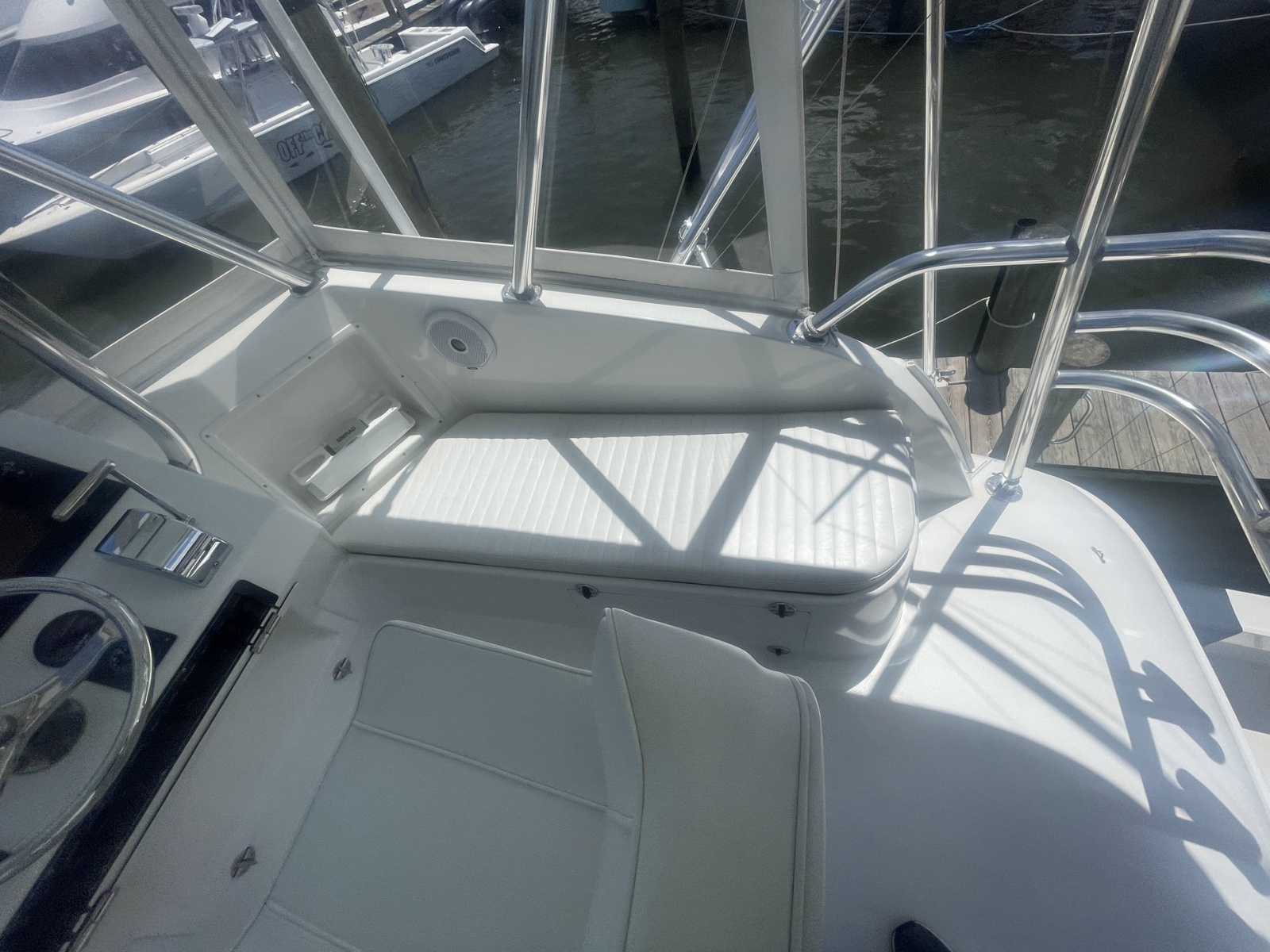

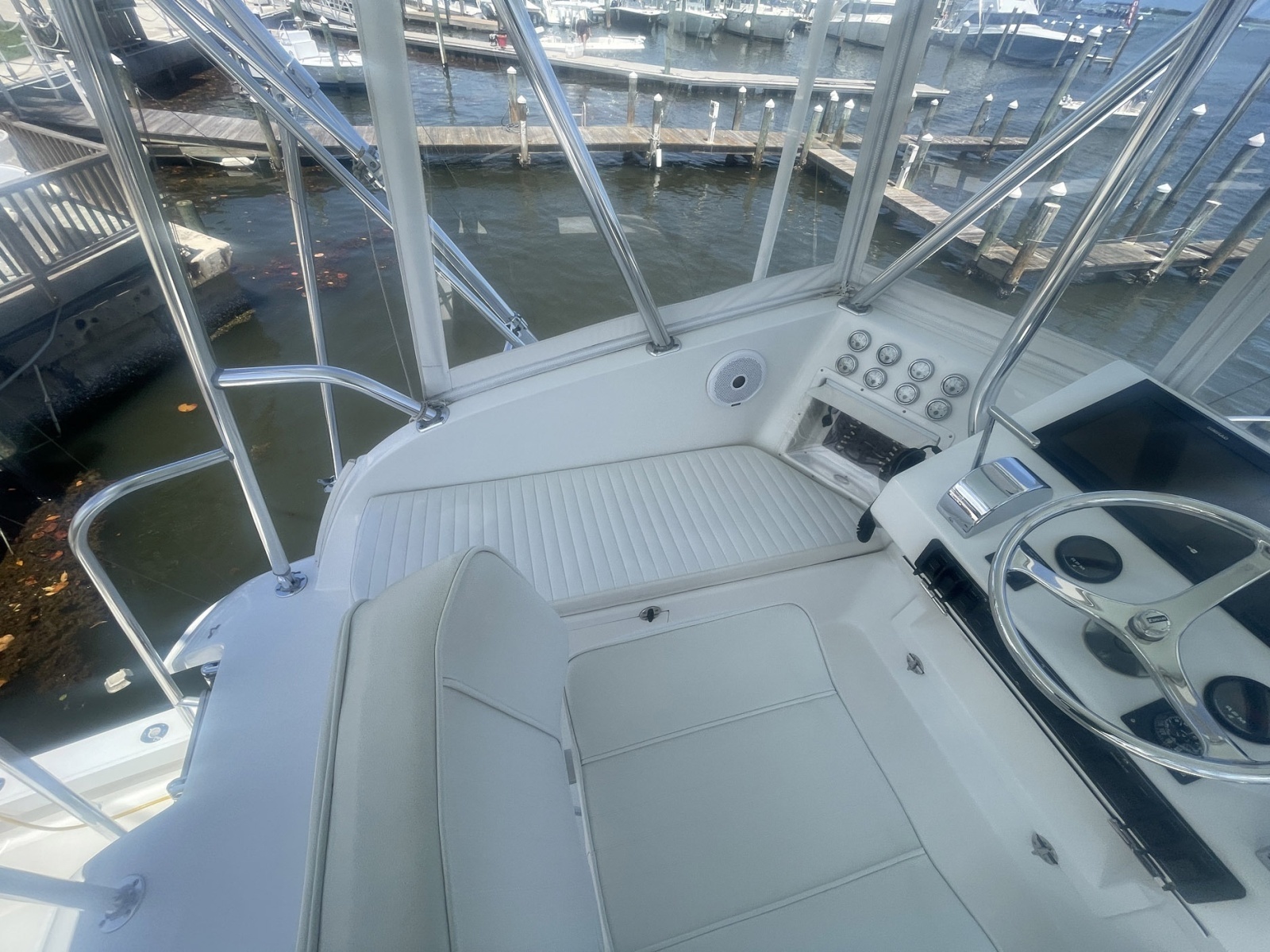

Flybridge

Flybridge interior and exterior painted in AwlCraft-2000 Stark-white

Flybridge shell, seating, and helm, bonded and coved to deck house roof

Kobelt Single Lever Engine Controls (2023)

Hynautic Hydraulic Steering

Edson polished stainless steel 3-spoke steering wheel

Boat-Leveler Trim Tab controls

Boat-Leveler Trim Tab Hydraulic Pump (2024)

Digital Engine Tachometers

Compass (2023)

Buell Air Horn

Custom switch panel with engine-start/stop, lights, horn, windlass-control, accessories

Helm Seat and removable Pedestal (2024)

Bench seating with cushions and storage under

Fiberglass Hardtop with polished aluminum Hardtop Frame

Hardtop integrated running lights

Anchor Light mast

3-sided hard-panel enclosure

Polished aluminum bridge railing with 10 rod holders

Polished aluminum bridge ladder with teak treads

Two LED Cockpit Spreader Lights, 12-volt

Additional Information

Flybridge Electronics

Two Simrad NSS12 Color Touch-screen 12”-diagonal Multi-function Displays

Two external GPS Antenna’s

Simrad 6KW Open-array Radar

Simrad BSM-1 Sounder with Airmar 1KW-transducer

Simrad LSS-1 Structure Scan with twin transducers

Simrad AP24 Autopilot

Simrad NEP-2 Network Expansion Port

iCom M504 VHF with Remote Mic

Shakespeare VHF antenna (port connected, stbd no connection)

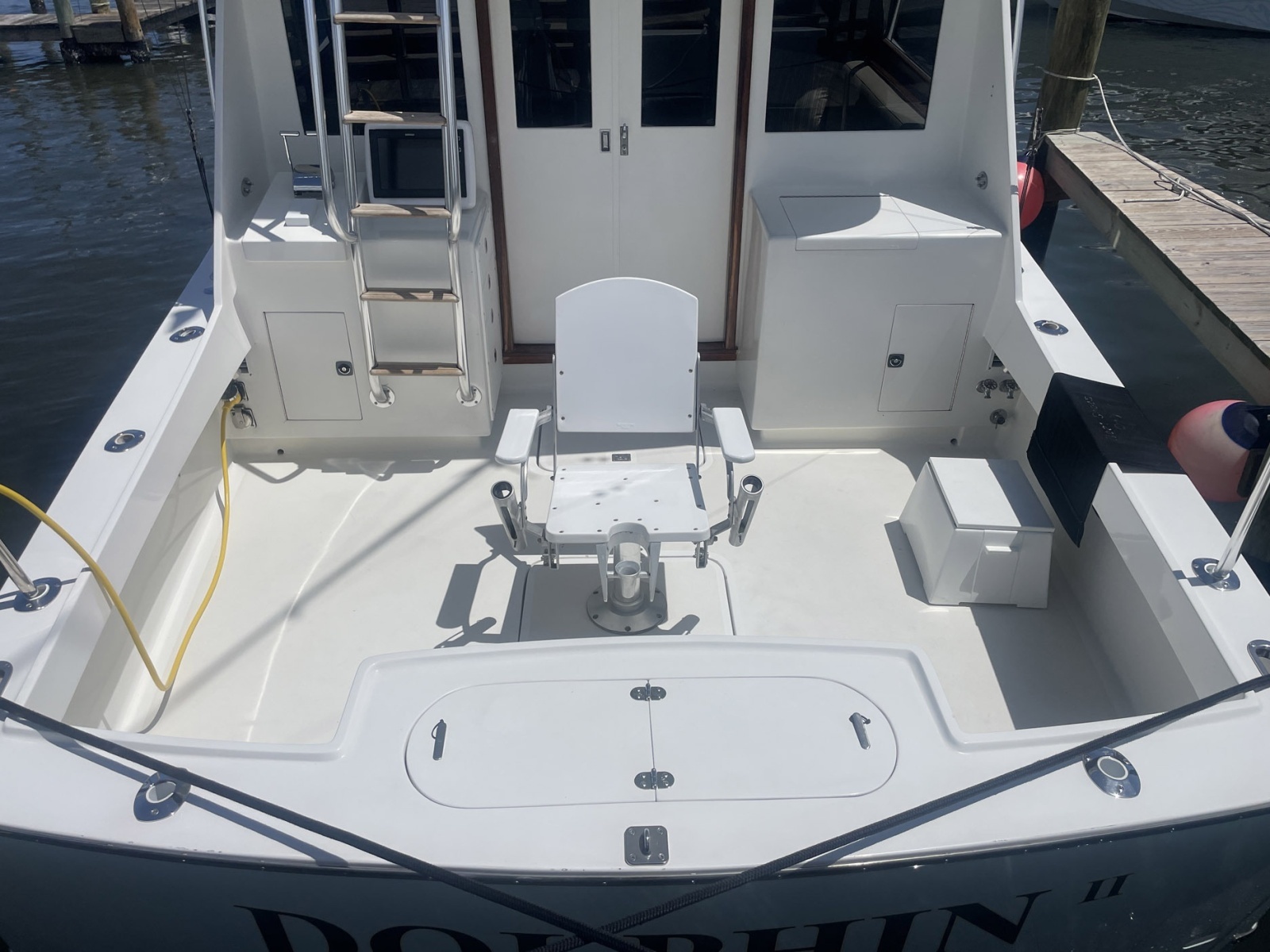

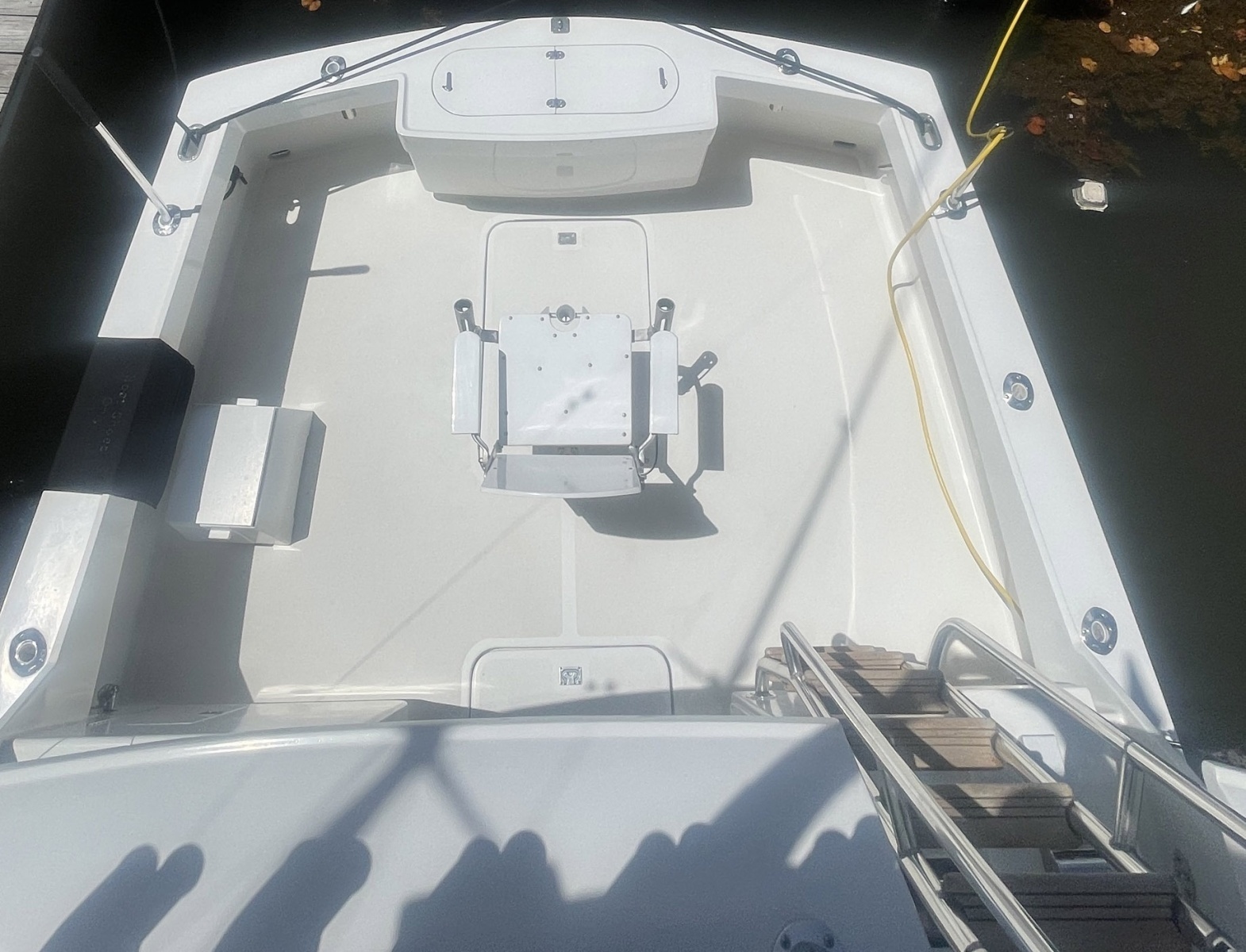

Cockpit and Fishing Equipment

Cockpit deck painted in AwlCraft-2000 Stark-white with non-skid

Cockpit waist, gunnels, and bulkhead painted in AwlCraft-2000 Stark-white

Deck Access Hatch with overboard drain gives access to Engine Fuel Valves with Cross-overs

Deck Access Hatch with overboard drain gives access to Lazarette

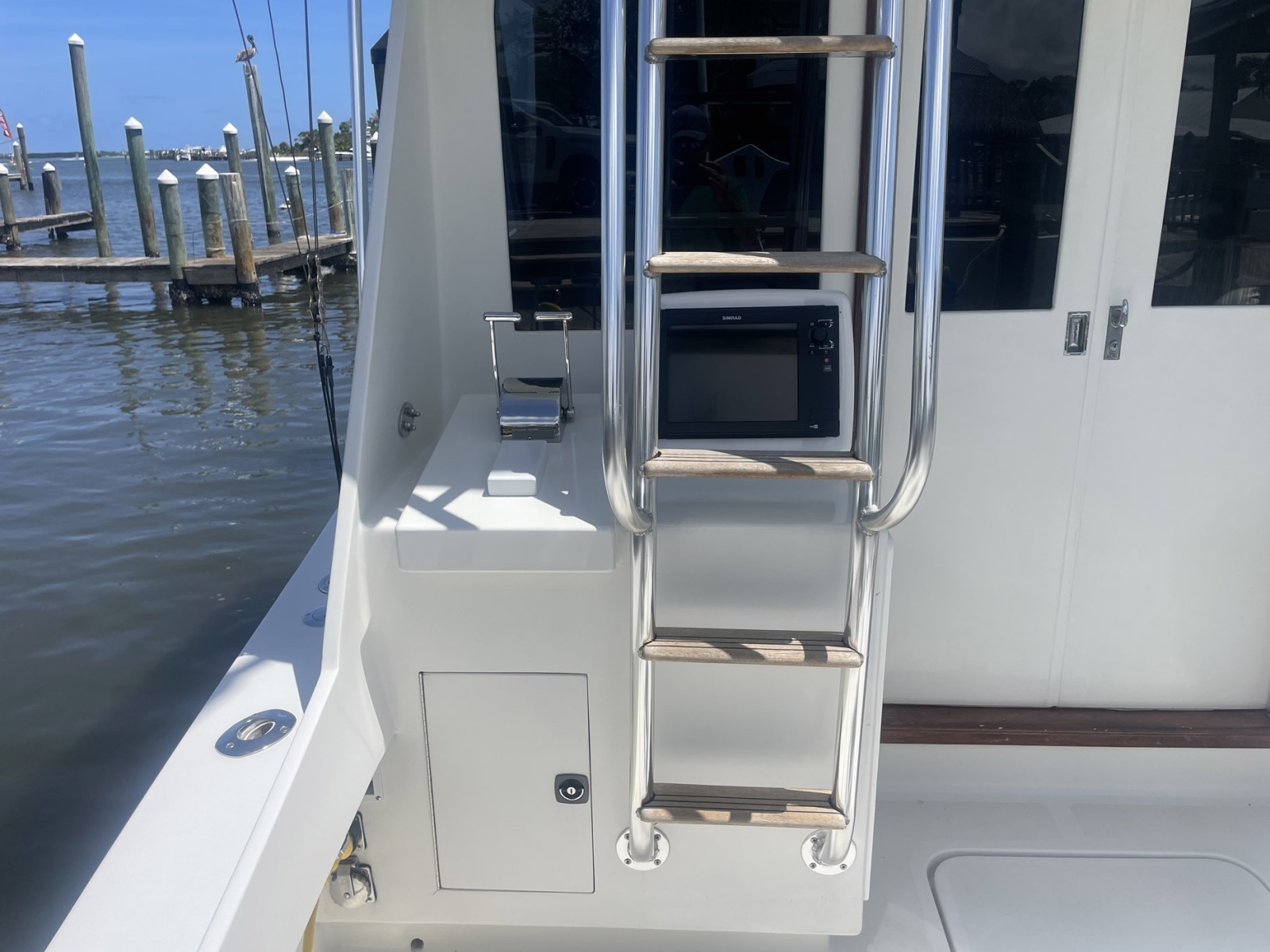

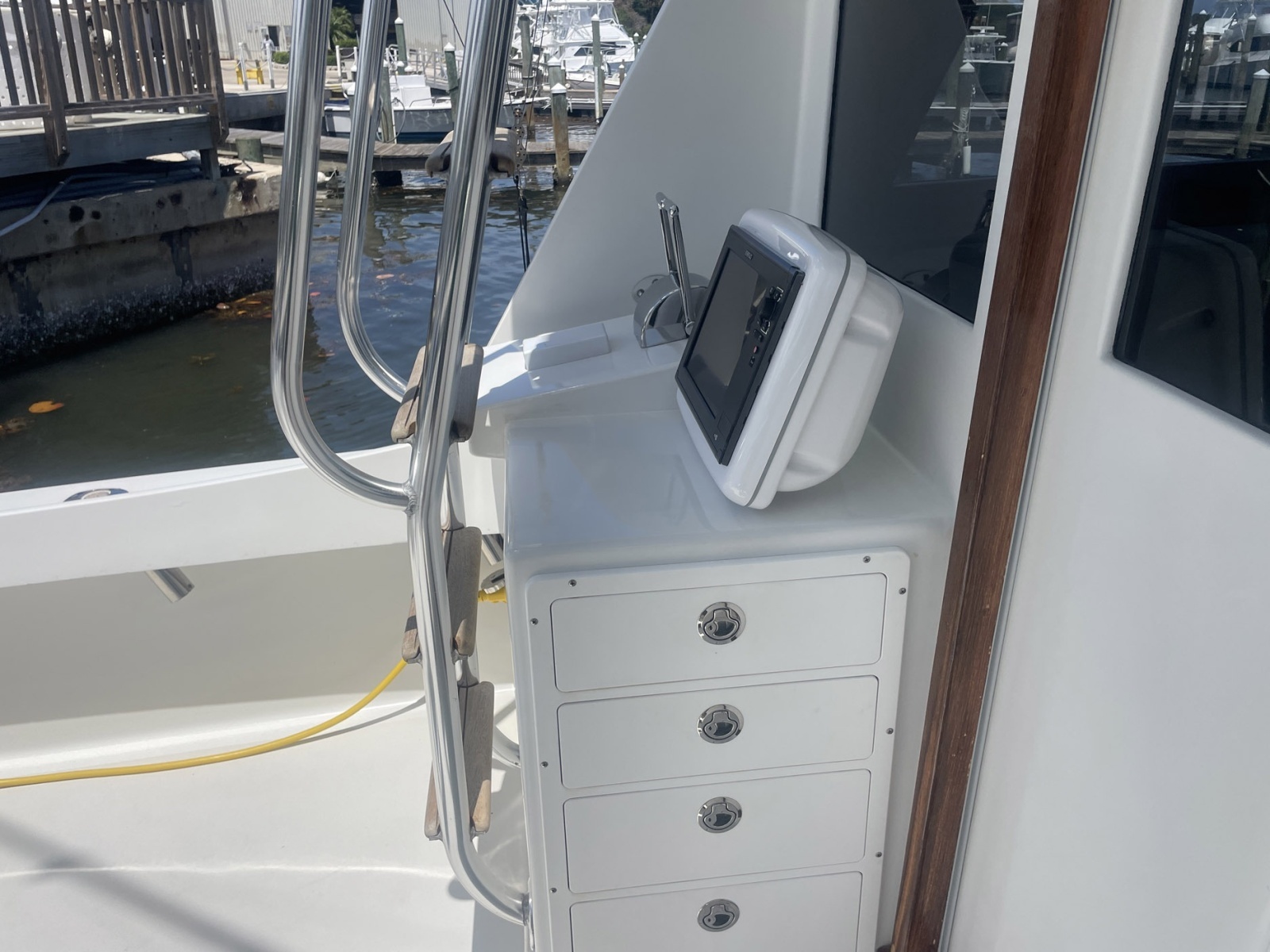

Cockpit Control Station (2023)

Kobelt Single Lever Engine Controls (2023)

Simrad FU-80 Autopilot Control with Rudder-Control-Lever (2023)

Simrad NSS12 Color Touch-screen 12”-diagonal Mult-function Display (NavPod 2023)

Port Tackle Center with tackle drawers and storage under

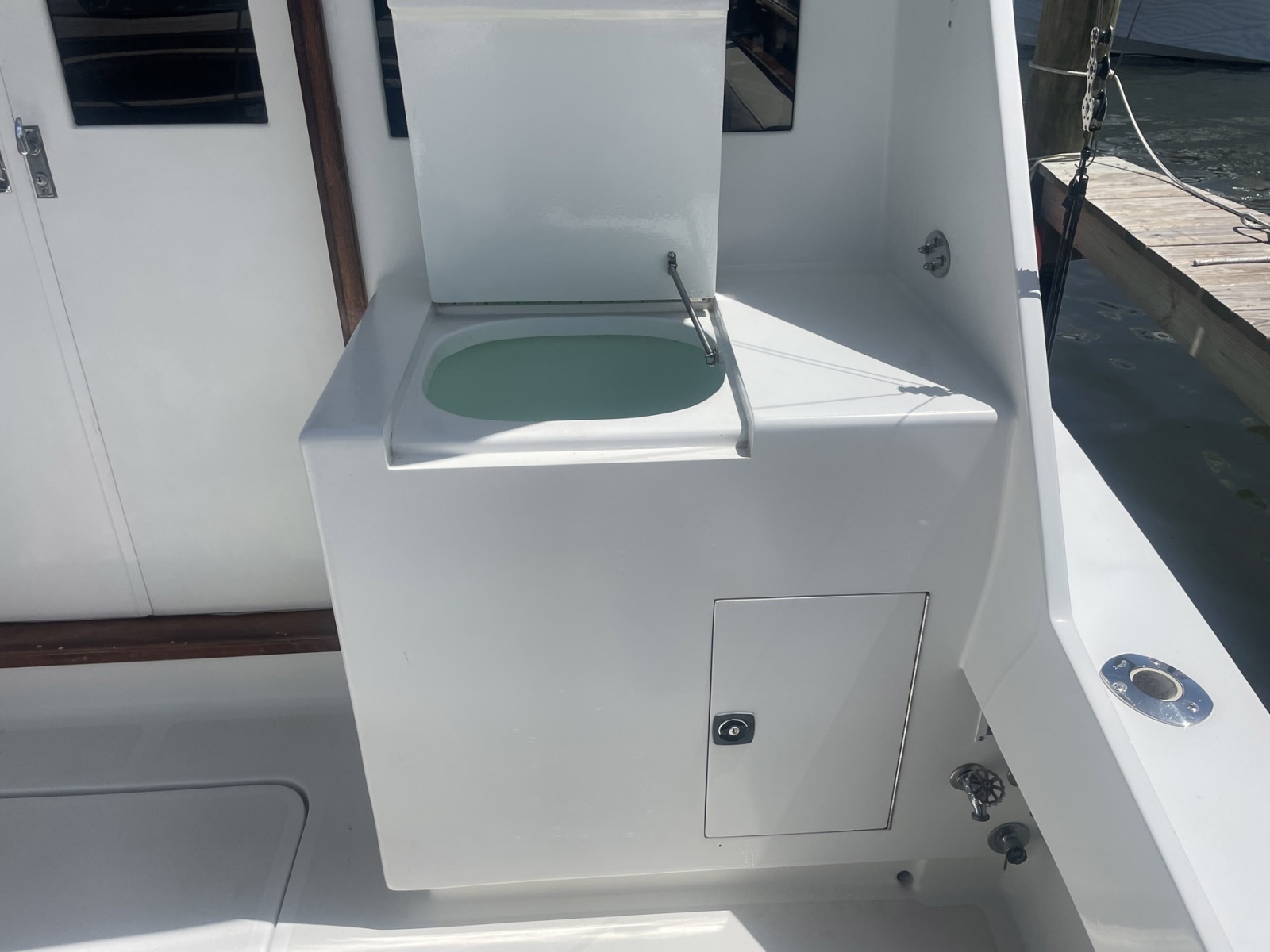

Stbd Tackle Center with Live Well and storage under (new pump 2024)

Pedestal mounted vintage Fighting Chair with Footrest

Eight gunnel mounted rod holders

Two under-gunnel 12-volt electric reel outlets

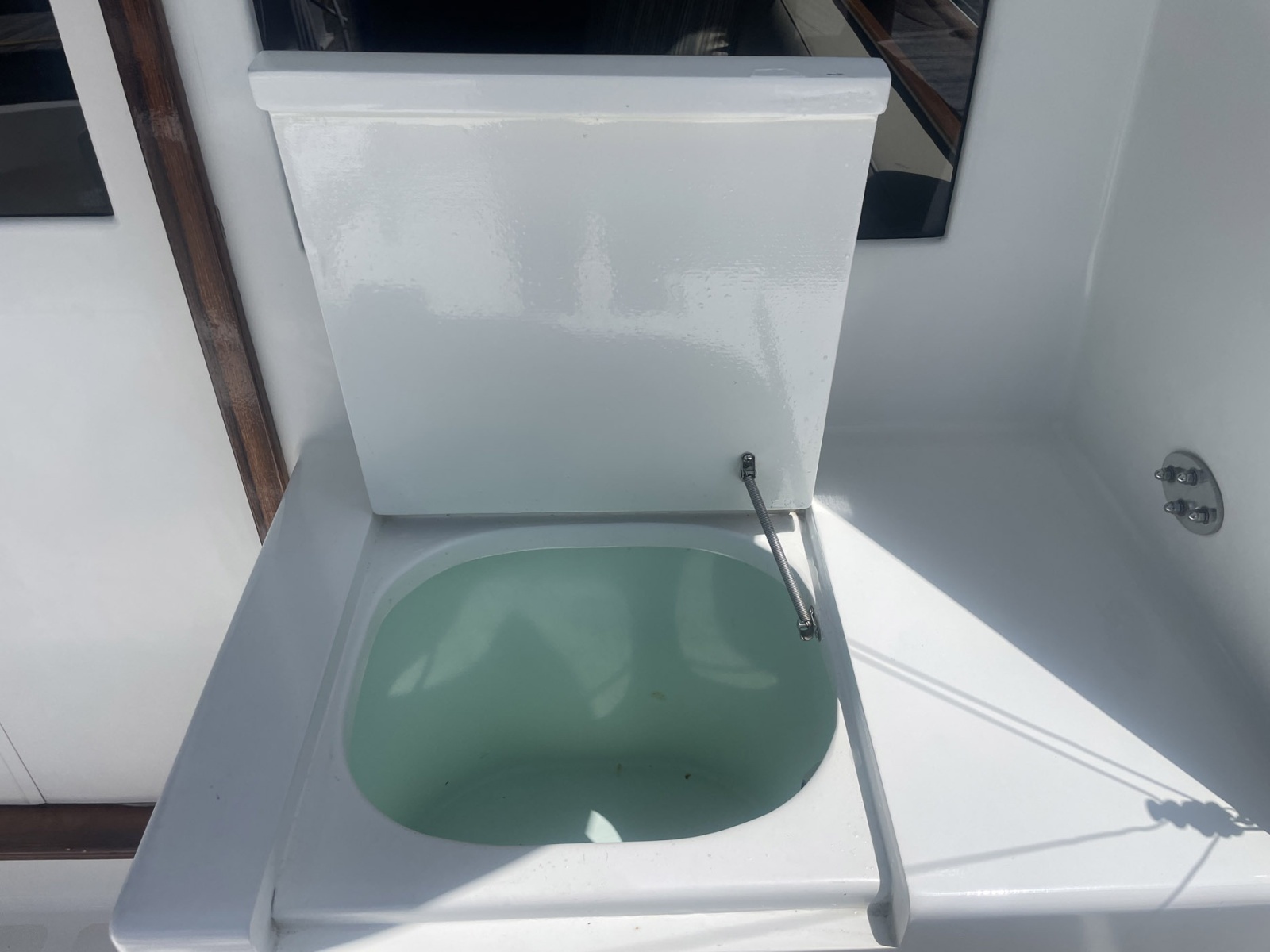

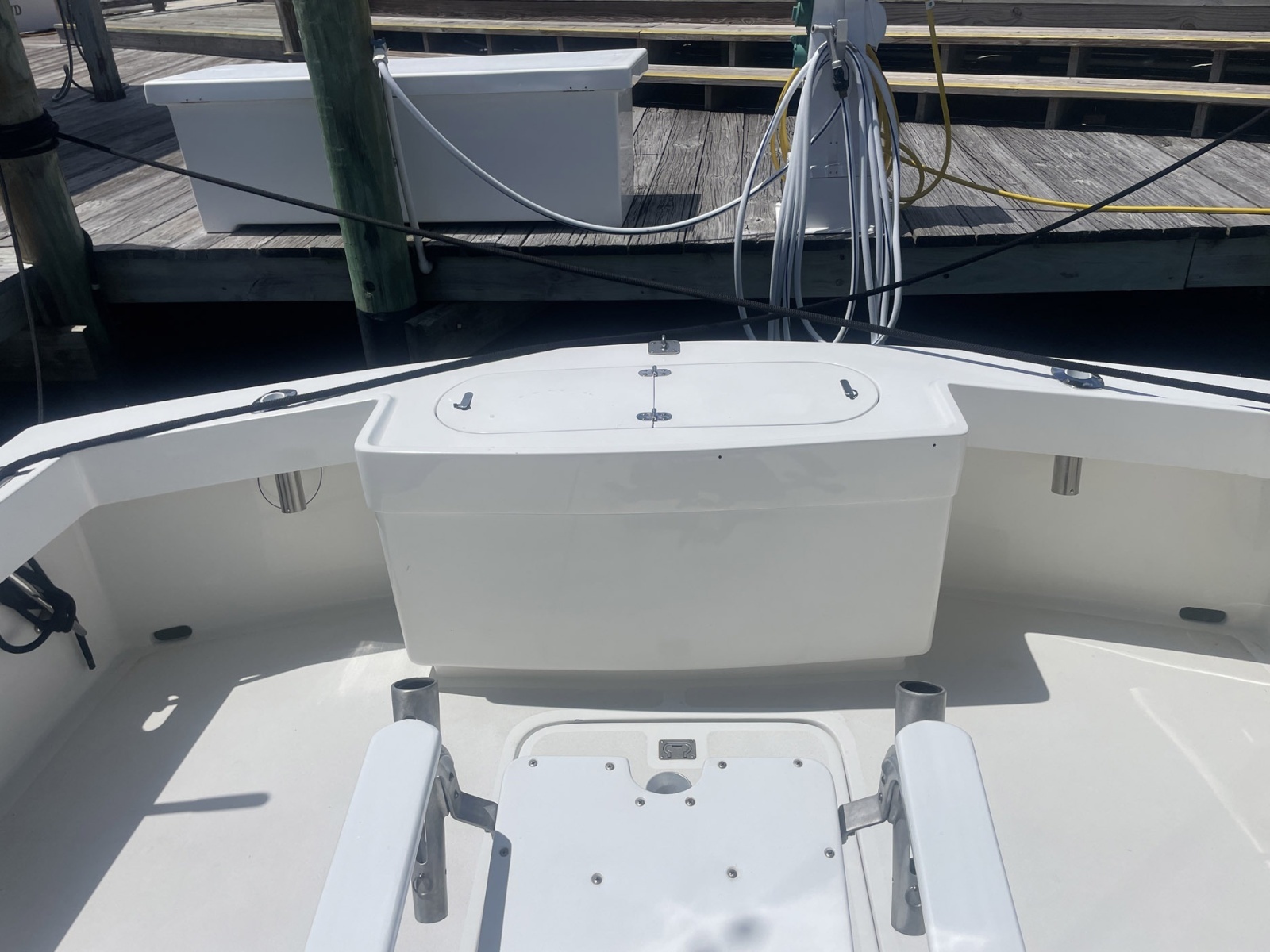

Transom Fish Box, insulated and plumbed as Live Well

Fresh Water Washdown connection

Courtesy lighting

Lumishore transom-mounted Under Water LED lights

Two 30-amp shore power connections with breakers

Two 30-amp shore power cords (2025)

ELCI 30-amp breaker protection shore power connections 1 and 2 (2025)

Rupp Double Spreader Outriggers with collapsible back bars

Accommodations

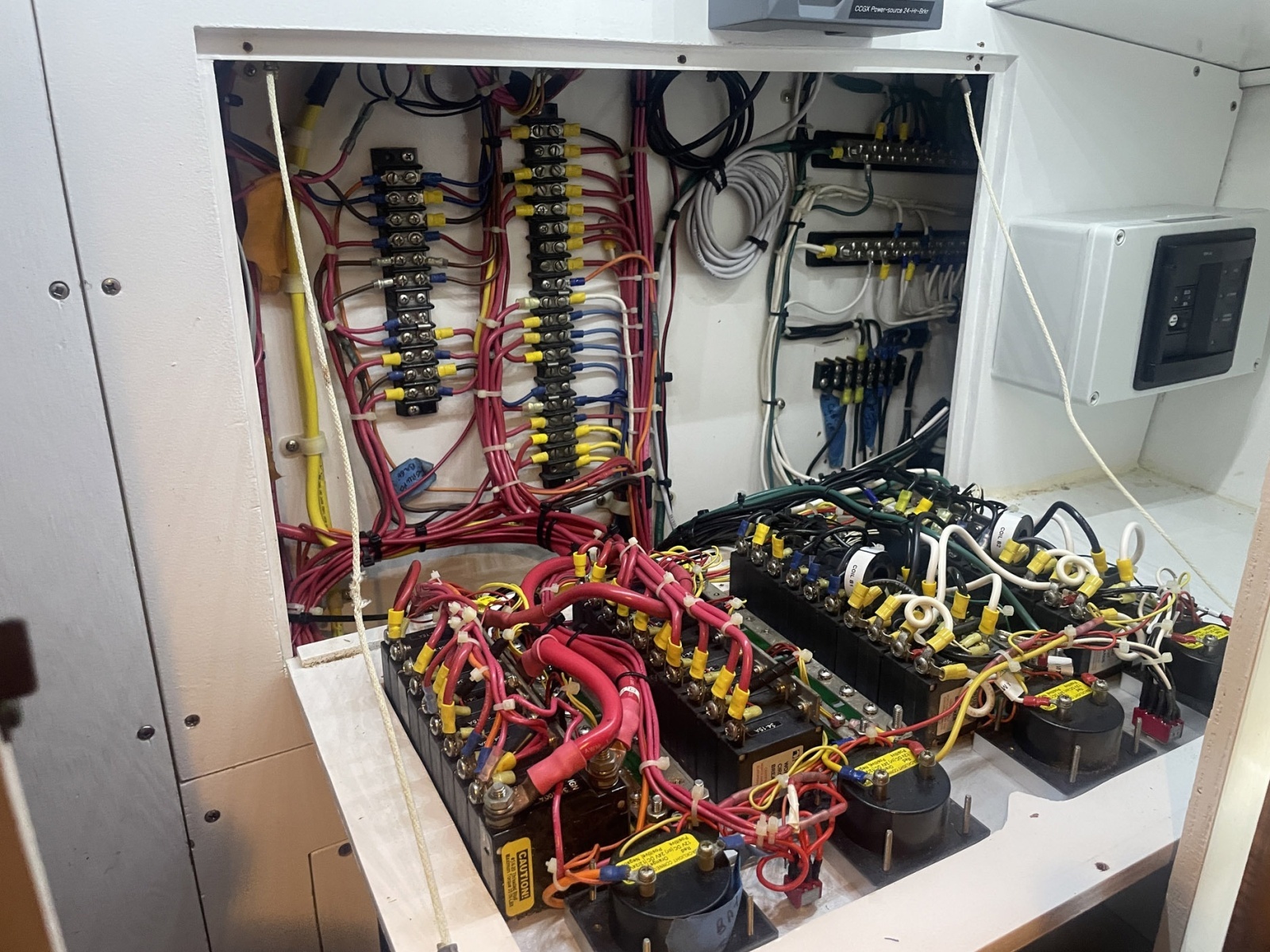

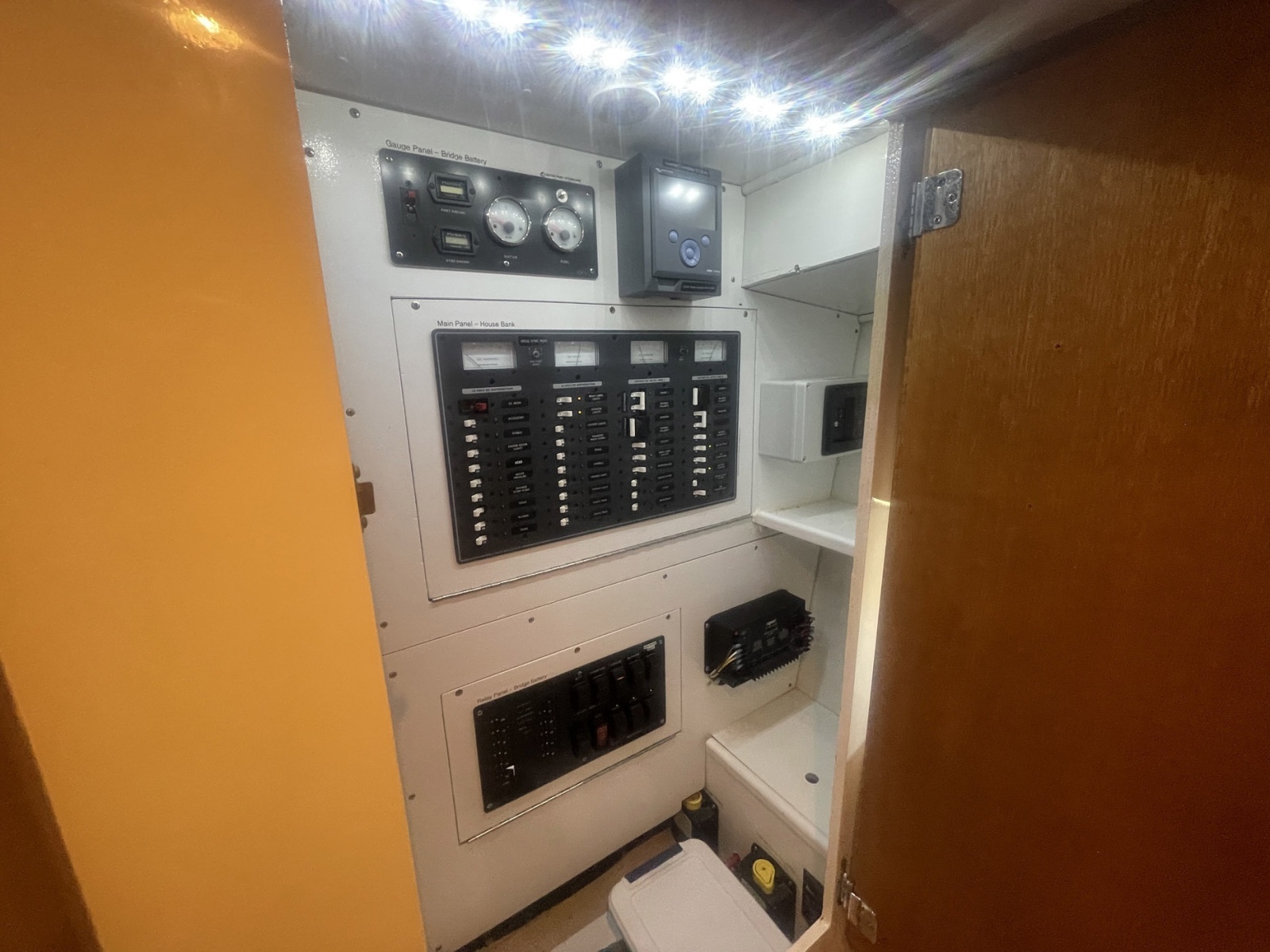

Electrical

Updated electrical system wiring, panels, and components

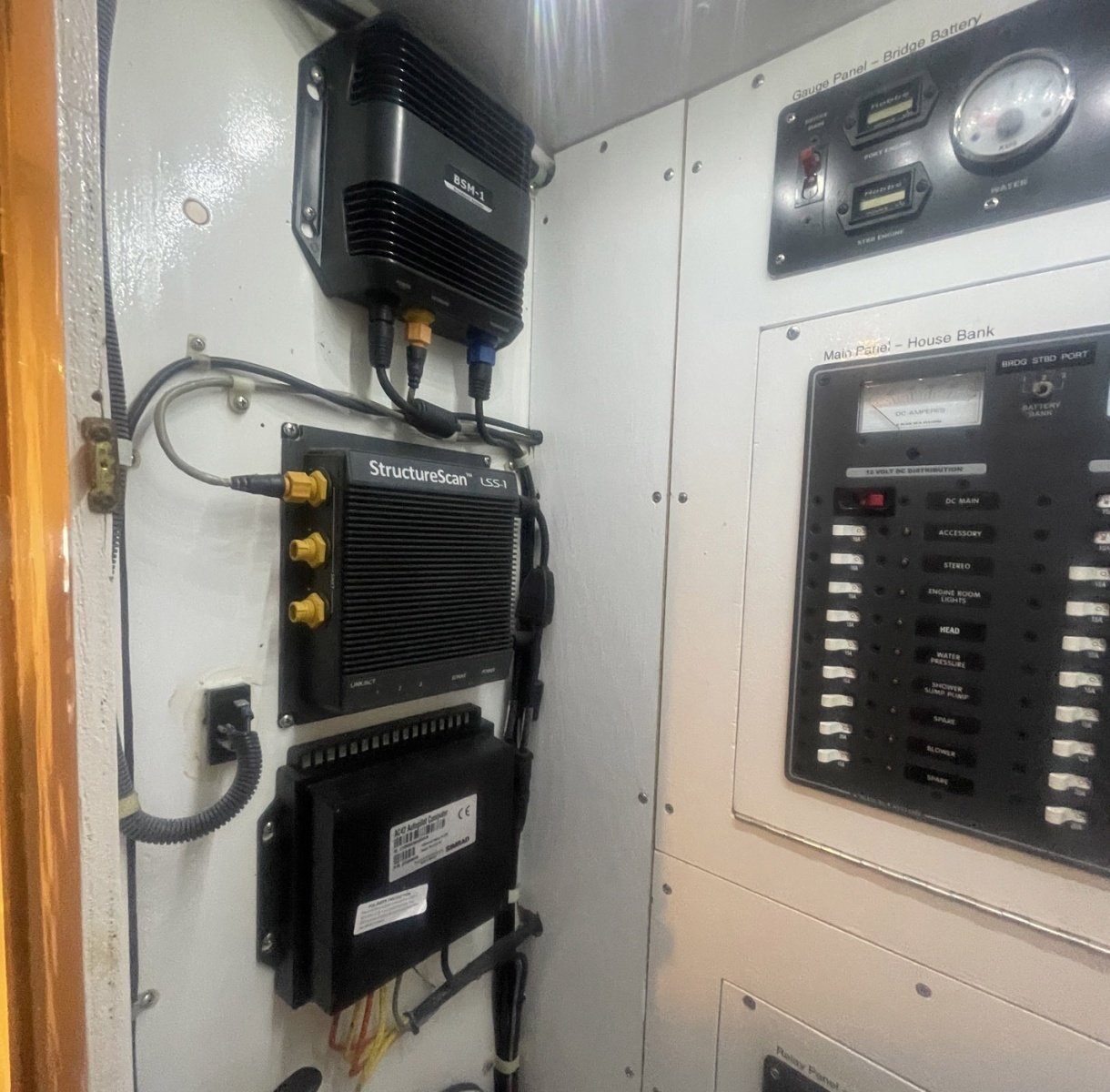

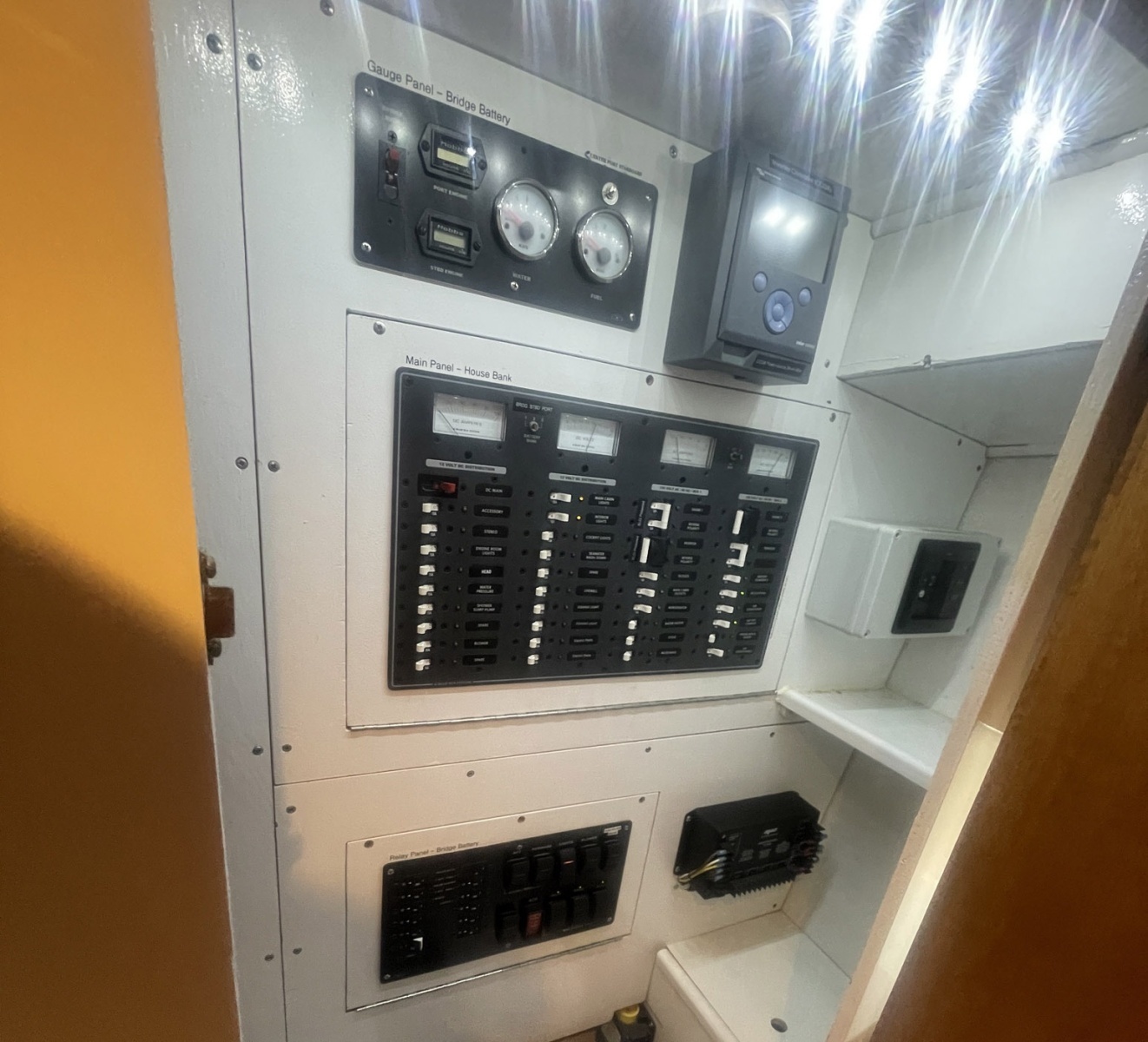

Main Panel – Blue Sea 3-source AC & DC with built-in multi-source transfer switch

Relay Panel – Remote switches for batteries, pumps, and lighting

Transfer Panel – Breaker for bridge sub-panel and gauges for engine-hours, fuel and water levels

Bridge Panel – Breakers for bridge systems and electronics; vessel lite and sounded alarms

ELCI 30-amp Breakers for Shore Power Lines 1 and 2 (2025)

ELCI 30-amp Breaker for Inverter Line (2025)

Blue Sea Remote Battery Switches (RBS) for Engine and Bridge batteries

House Battery Bank manual On/Off switches (2023)

Victron Phoenix 12/3000 25-amp DC to AC Inverter (2025)

Victron Color Control GX Inverter Control Display (2025)

Victron Smart Battery Sense (2025)

Victron Smart Shunt IP65 (2025)

Victron 30-amp (one-channel) Blue-smart IP22 Battery Charger (2025)

ProMariner Pronauctic 1230P 30-amp (3-channel) Battery Charger (2025)

Air Conditioner Salon - Dometic DTU-10 10,000 btu with digital control (2024)

Air Conditioner Accommodations - Dometic DTU-8 8,000 btu with digital control (2022)

March-Pumps Air Conditioner circulating pump (2025)

Bilge Blower (2024)

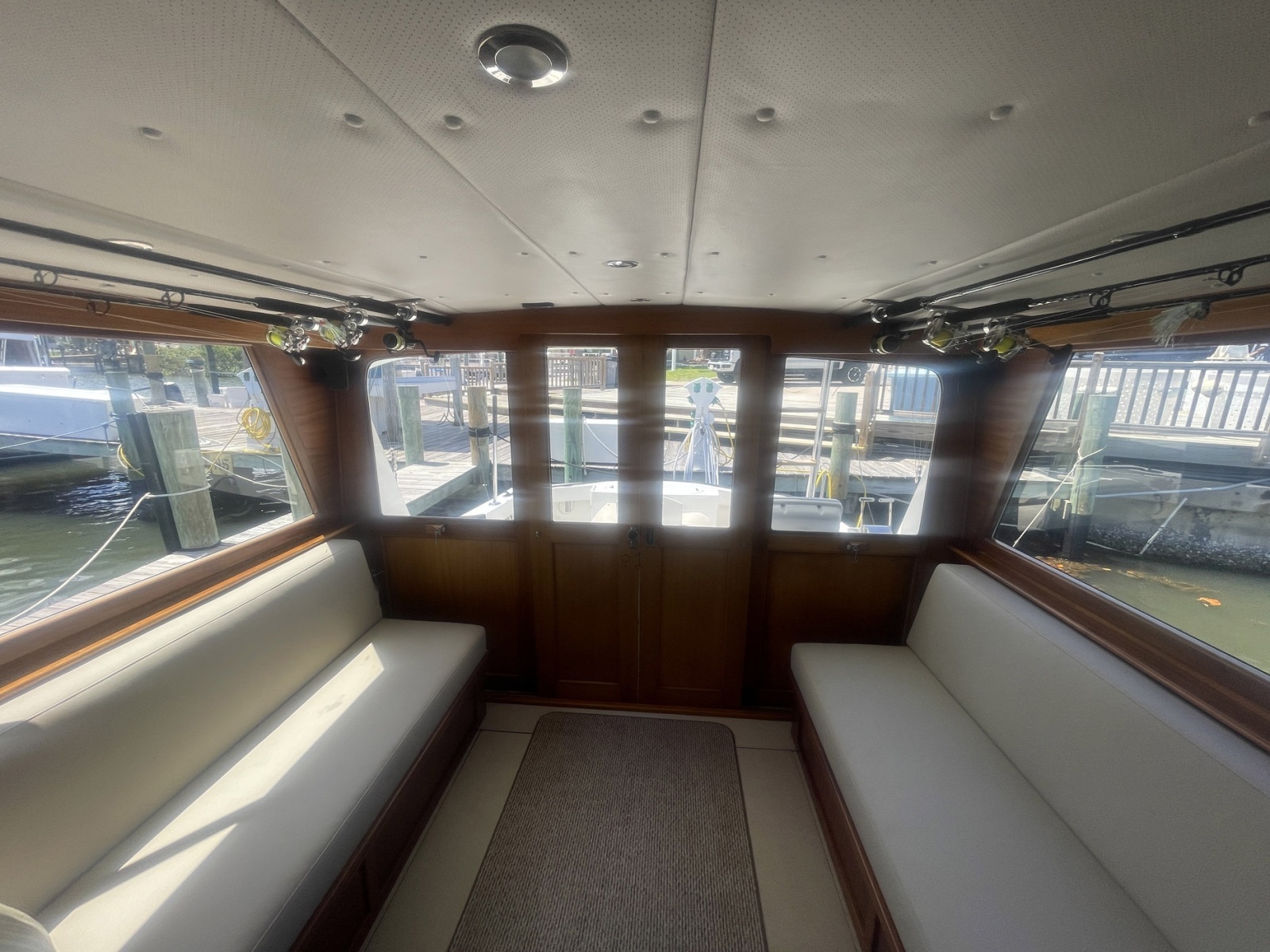

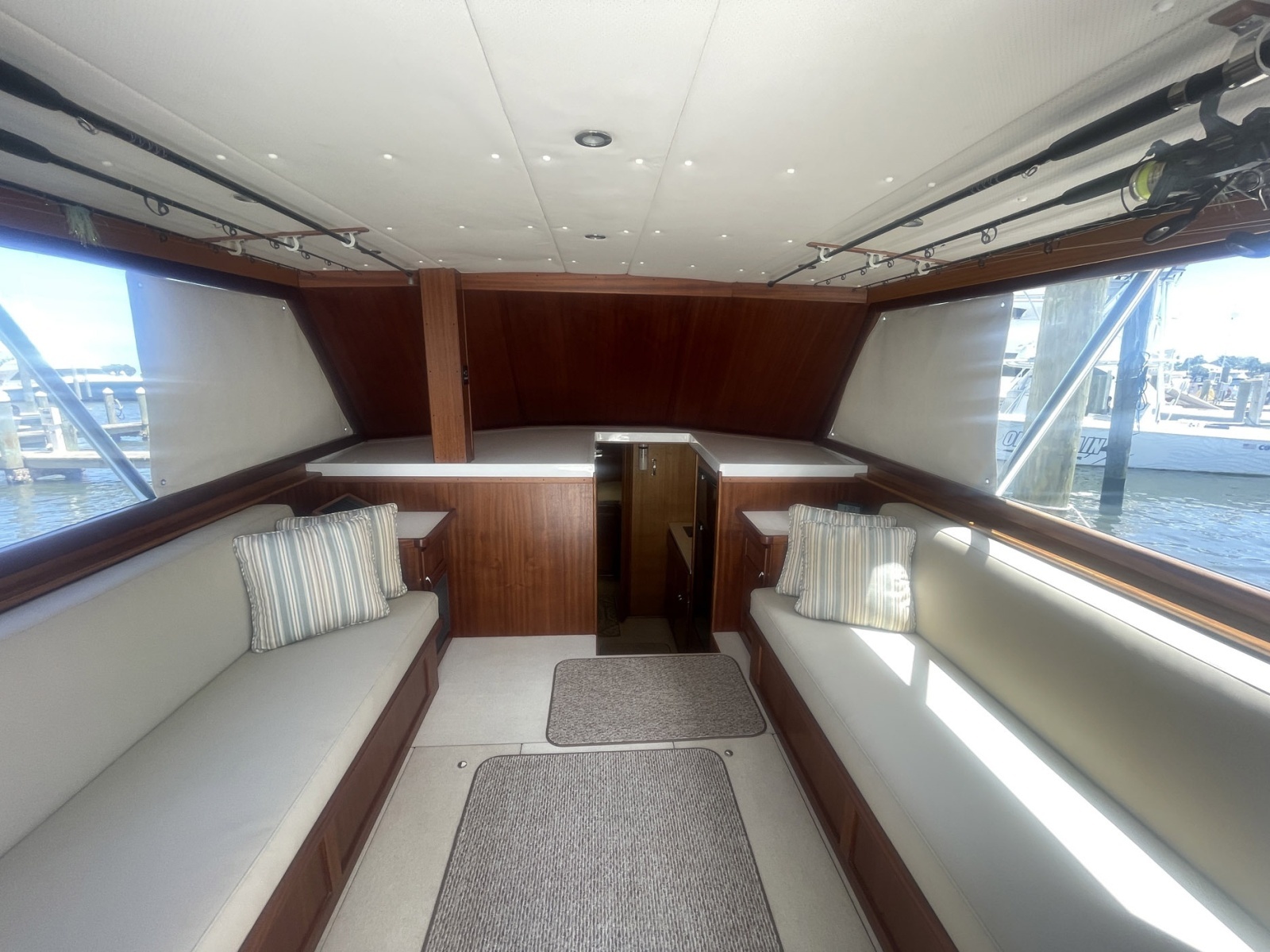

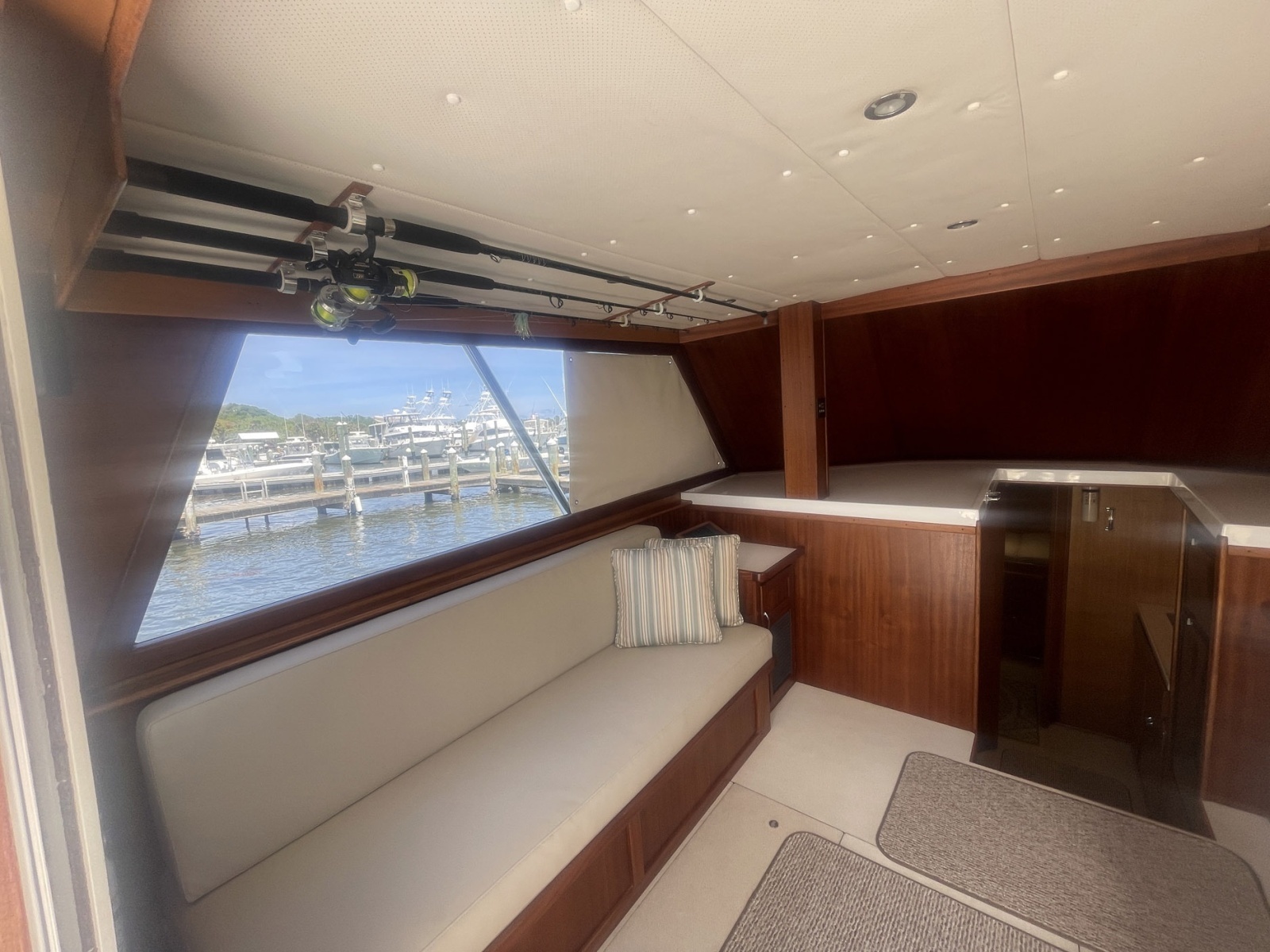

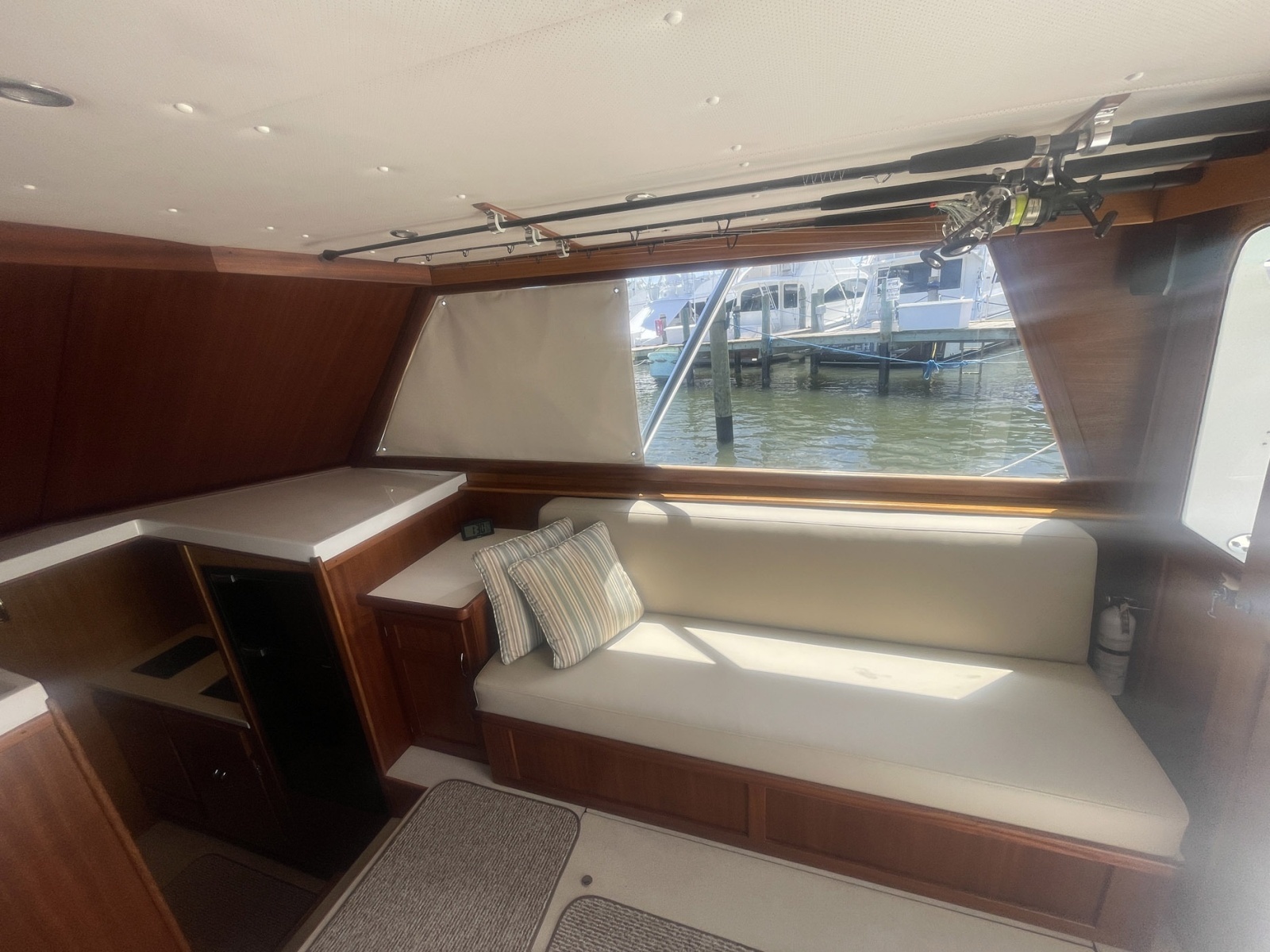

Salon

Salon has been renovated

LED overhead lighting

Redesigned engine hatches, hatch pulls, and support structure (full engine access) (2024)

Sapele Mahogany quarter-sawn veneer paneling (2024)

Salon floor covering by Evercore in Cork-Hybrid (2025)

Sapele Mahogany hard-wood and veneer twin sofas with storage under (2025)

Sofa base Cushions and Seat-backs in faux-leather vinyl covering and new foam (2025)

Sapele Mahogany hard-wood and veneer end cabinets with storage and air conditioner (2025)

Overhead fishing rod storage for 6 fishing rods (2024)

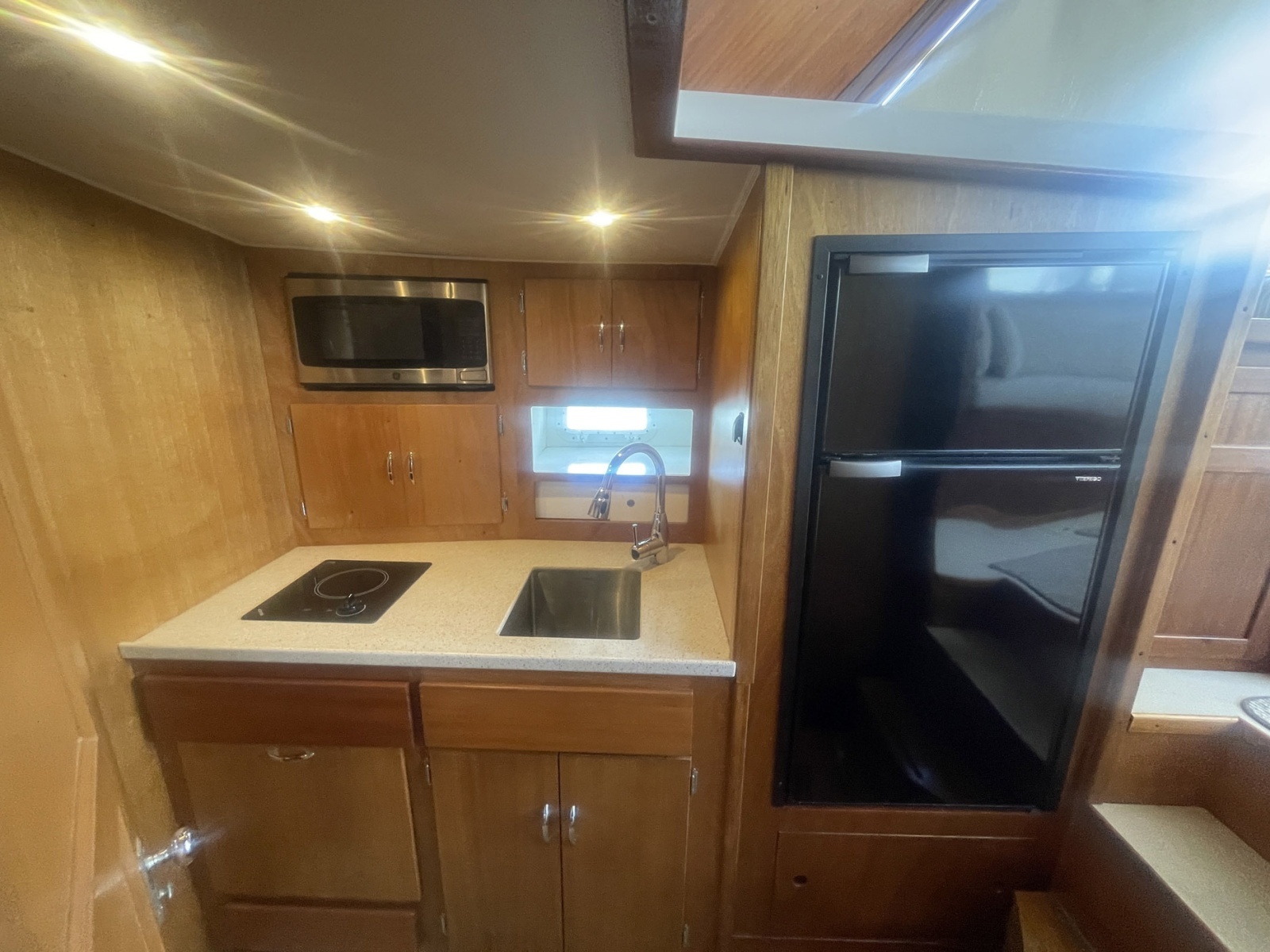

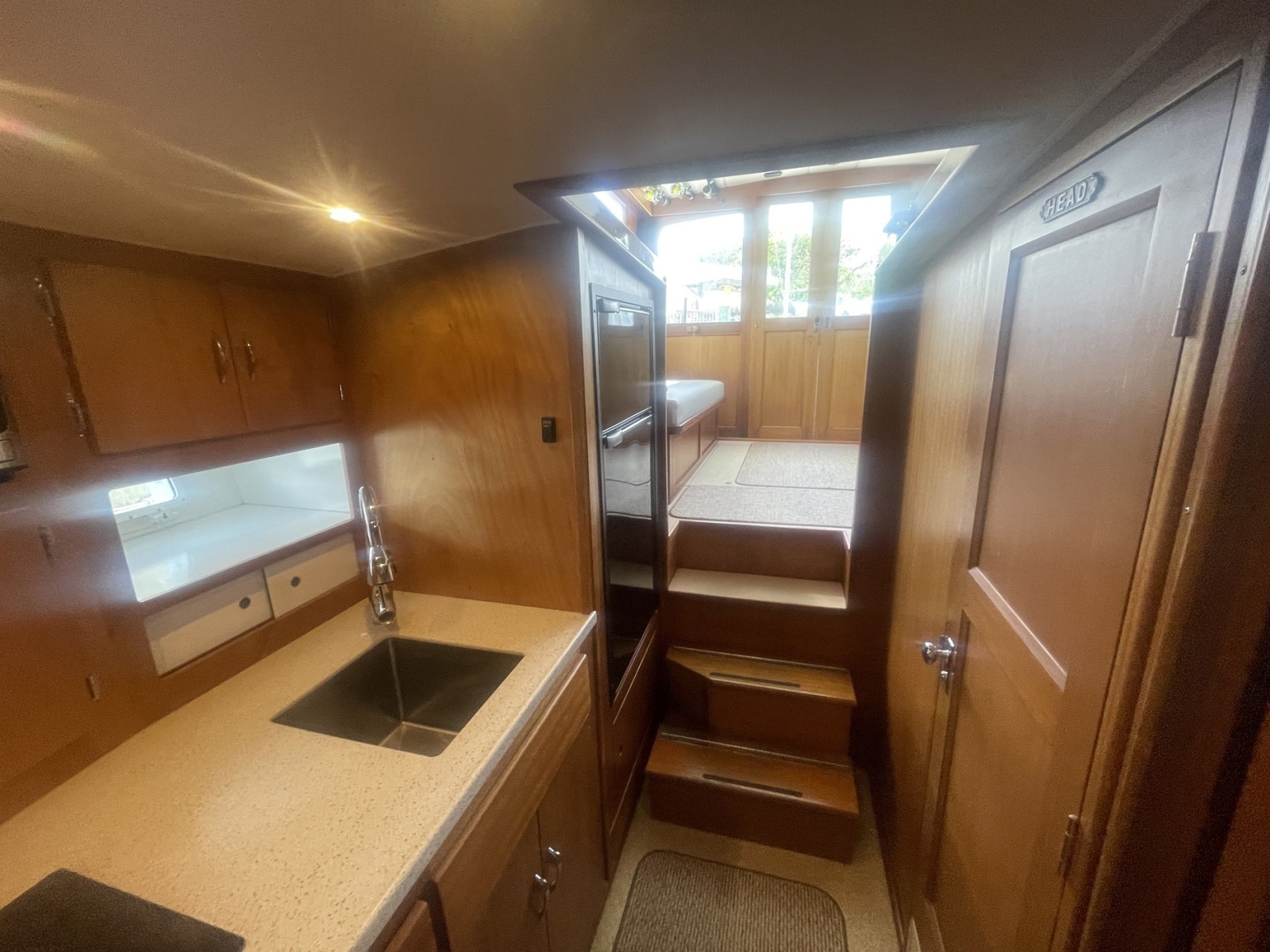

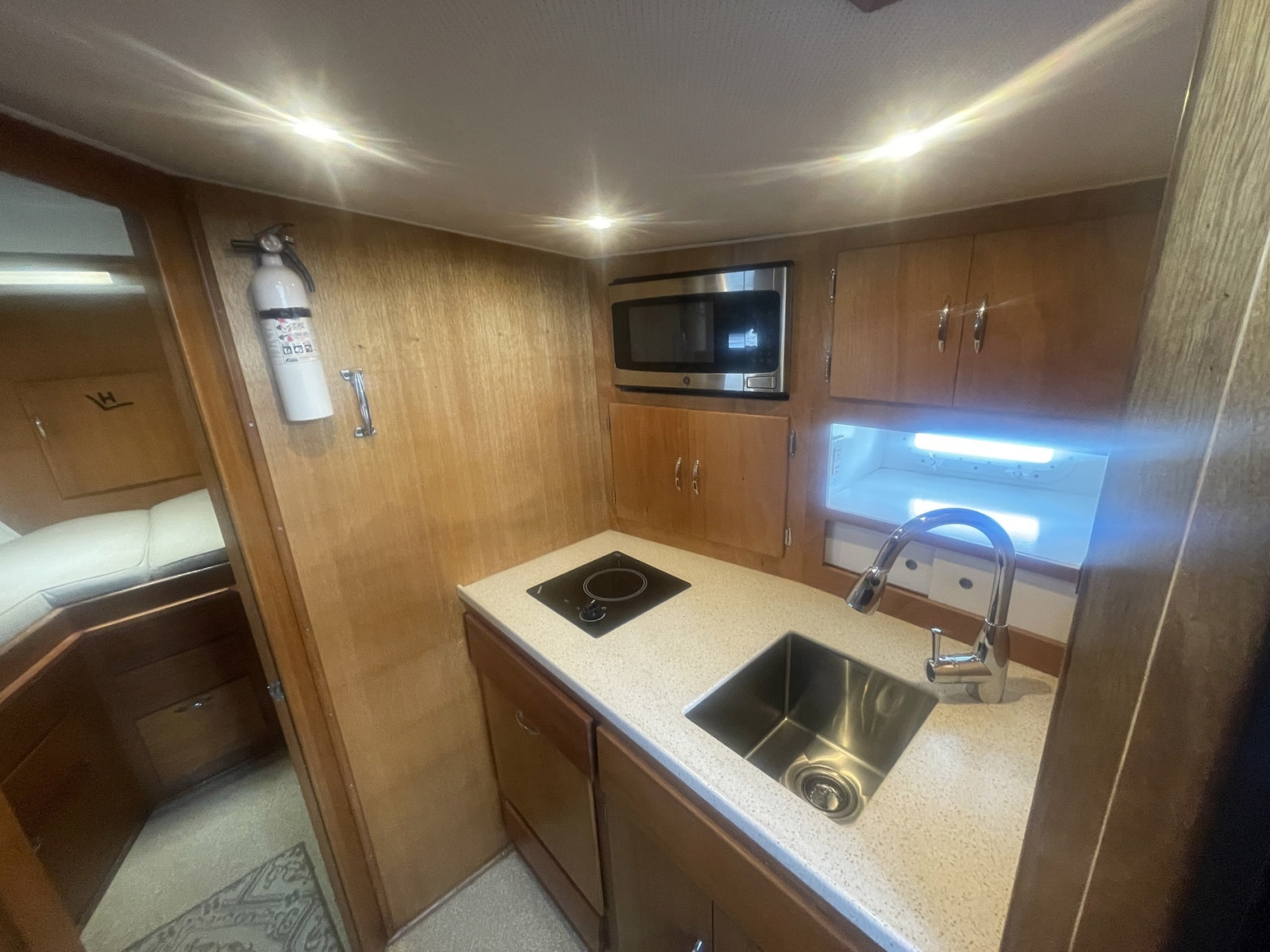

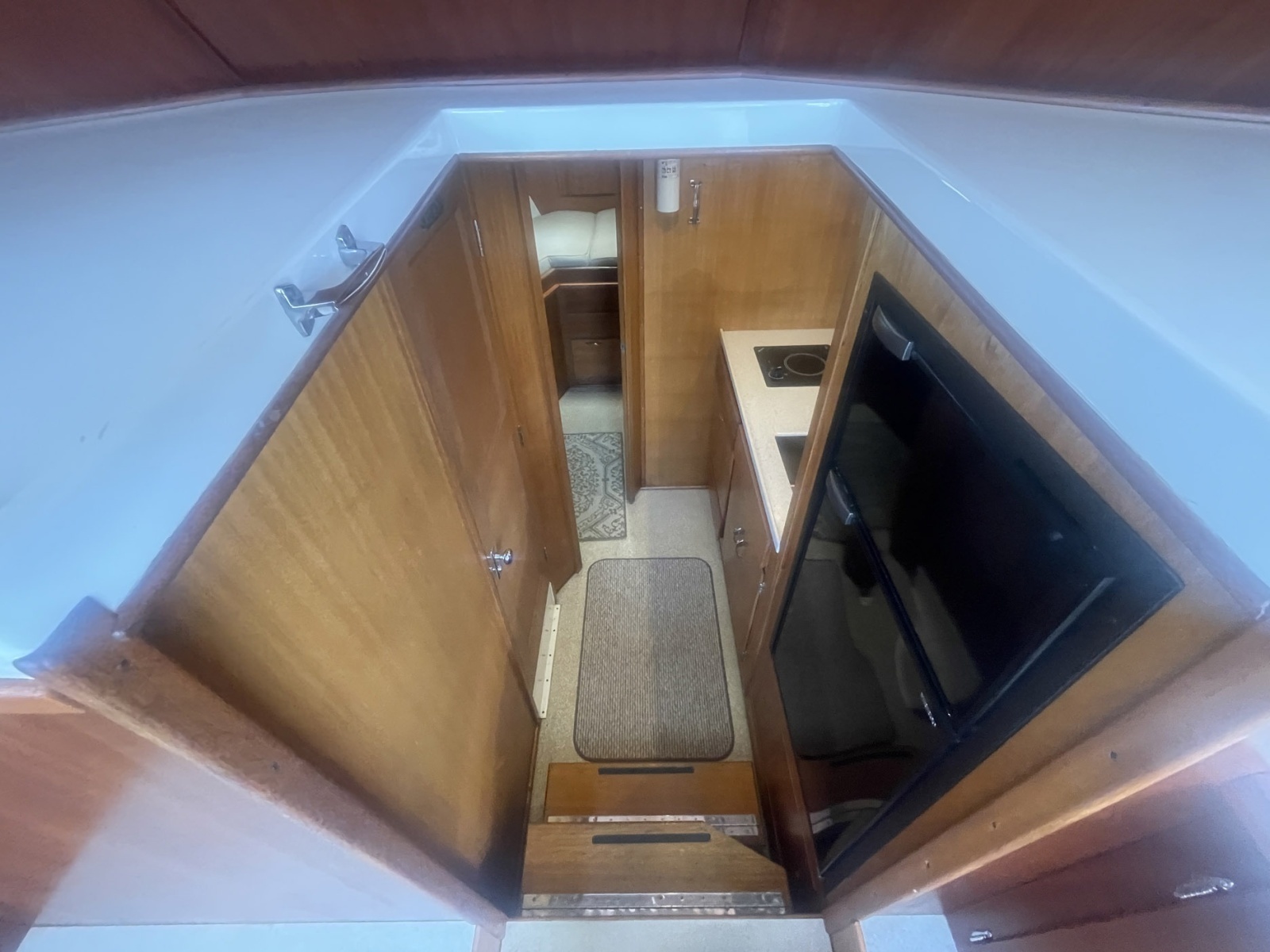

Galley

Galley has been renovated

LED overhead lighting

Mahogany veneer Cabinetry with upper and lower cabinets

Solid Surface Counter

Stainless Steel under mount sink with combination sprayer/faucet

Cabinet mounted GE Stainless Steel Microwave oven (2023)

Vitrifrigo Sea-Classic 5.3-cuin refrigerator freezer AC/DC (DC not connected) (2023)

Kenyon single burner glass top stove (electric)

Custom Bottle Storage drawer under counter

One opening port light

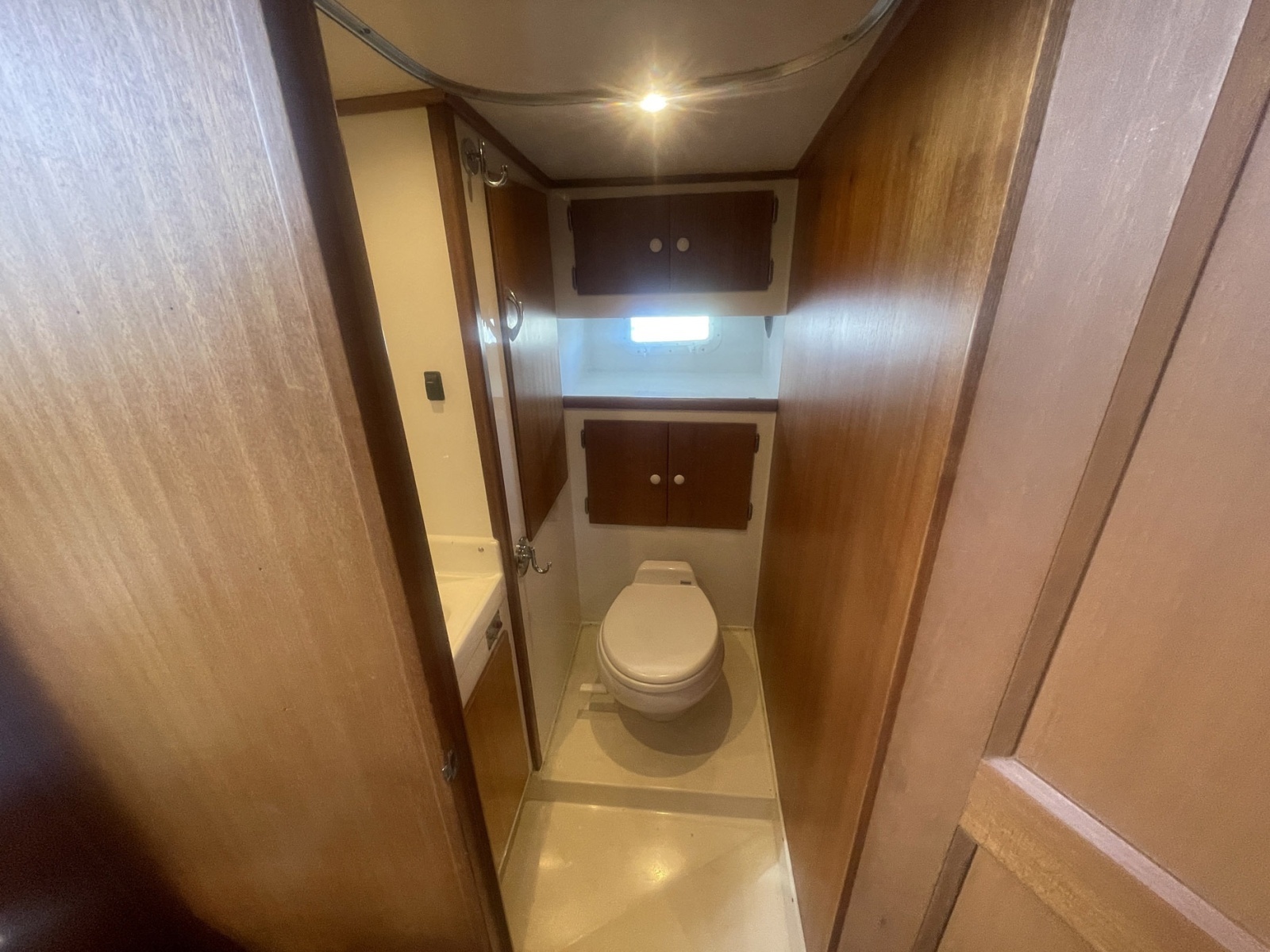

Head

Head has been renovated

LED overhead lighting

Original Hatteras sink refinished and plumbed with new faucet and plumbing

Sink base cabinet for storage

Two outboard storage cabinets

Original Hatteras medicine cabinet

Dometic VacuFlush toilet system with fresh water plumbing

Floor drain and shower sump pump

Shower Curtain

RV-type sink/shower wand

One opening port light

Additional Information

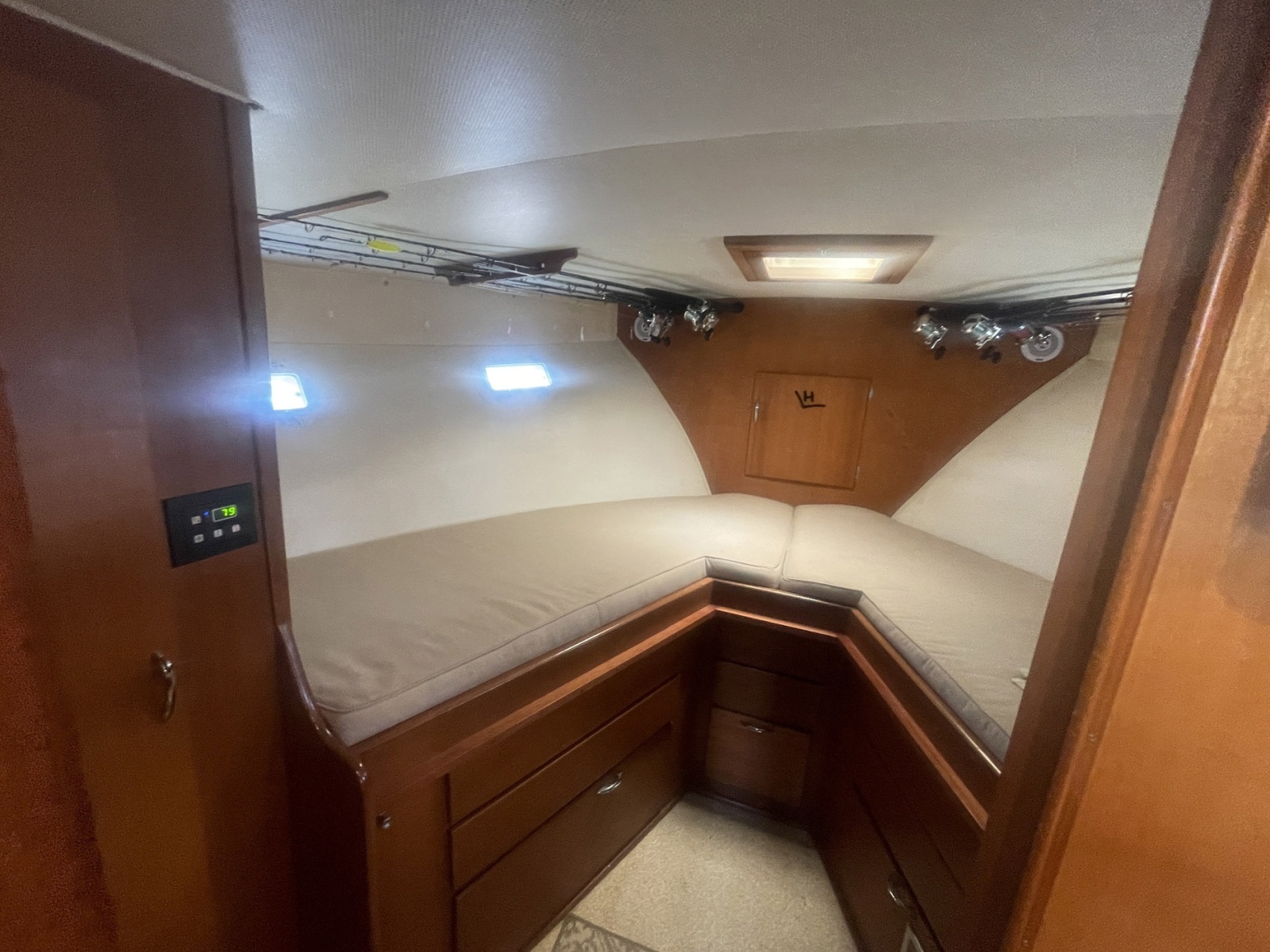

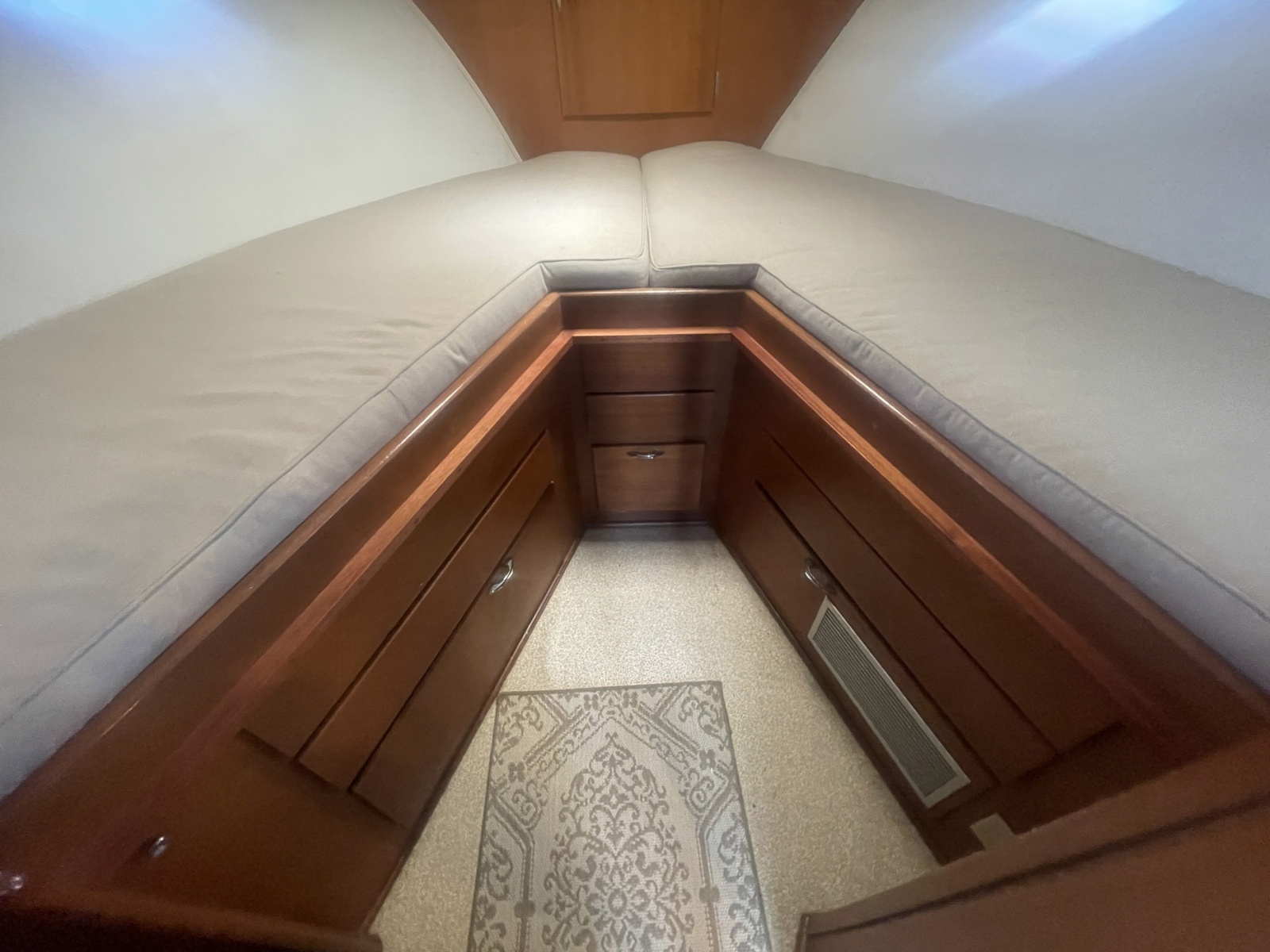

Stateroom

Original V-berth and cabinetry with V-filler cushion

LED Brass reading lights

Full height closet

Original Hatteras anchor locker door

Four opening port lights

Overhead fishing rod storage for 8 fishing rods

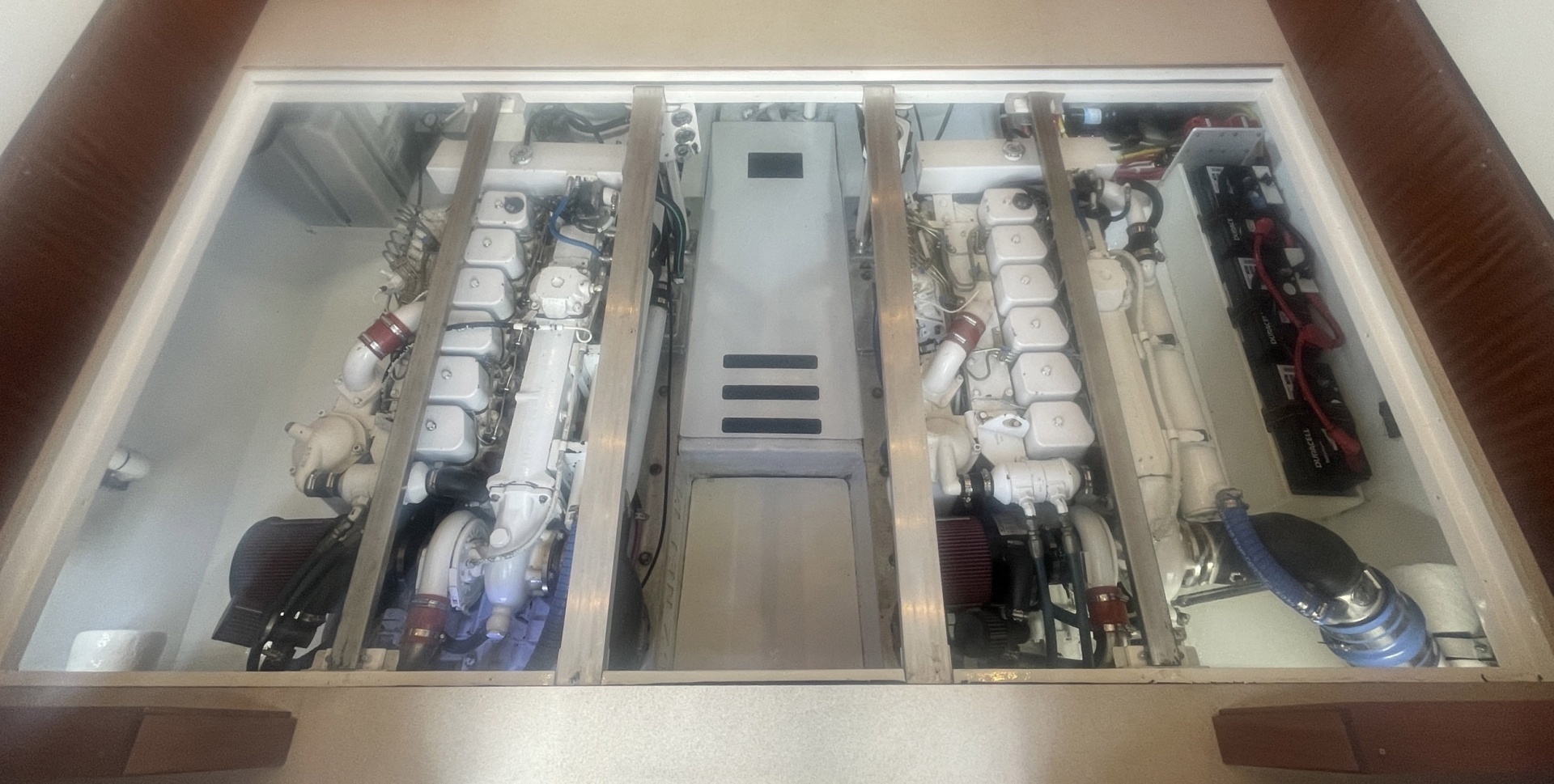

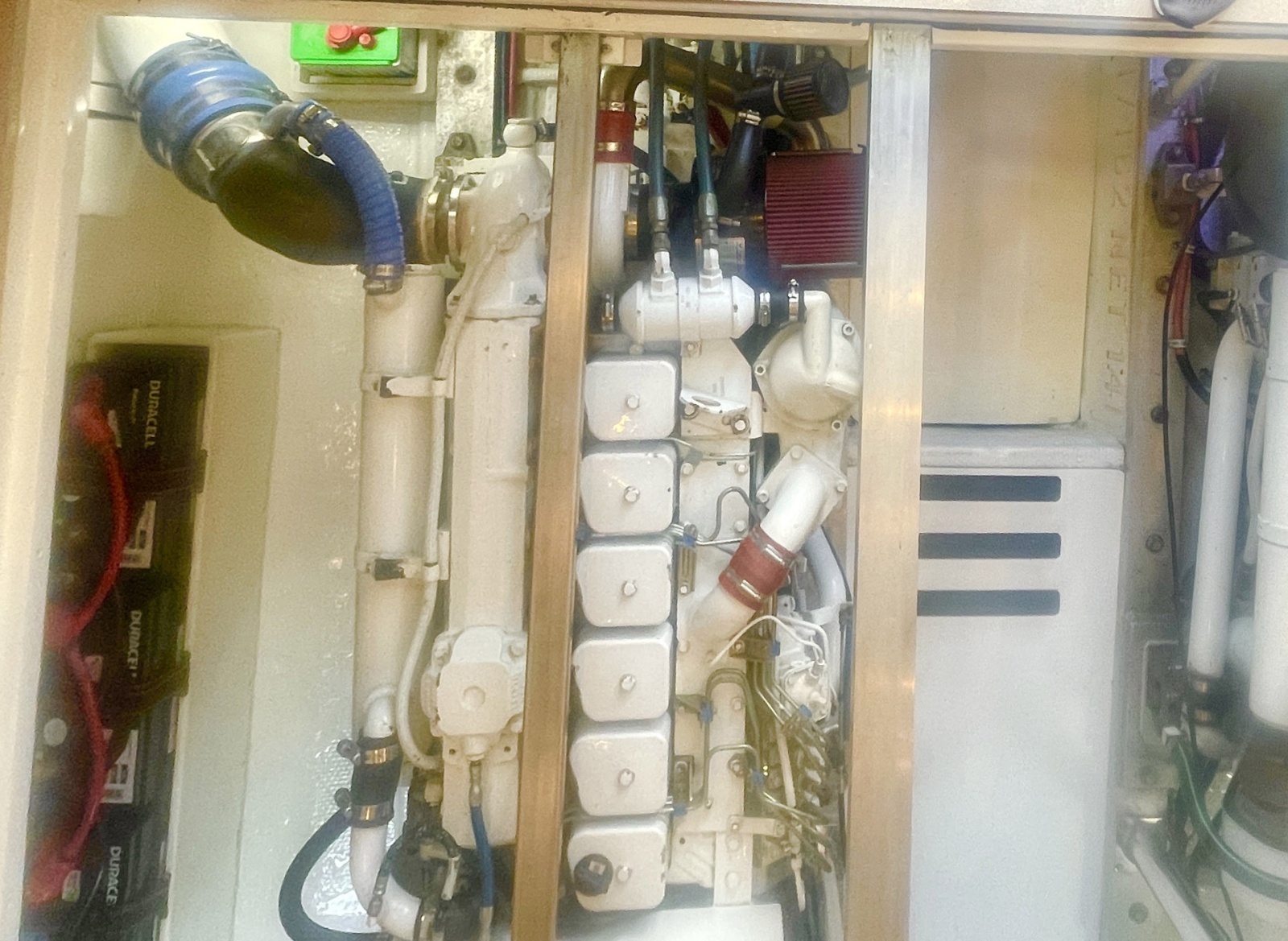

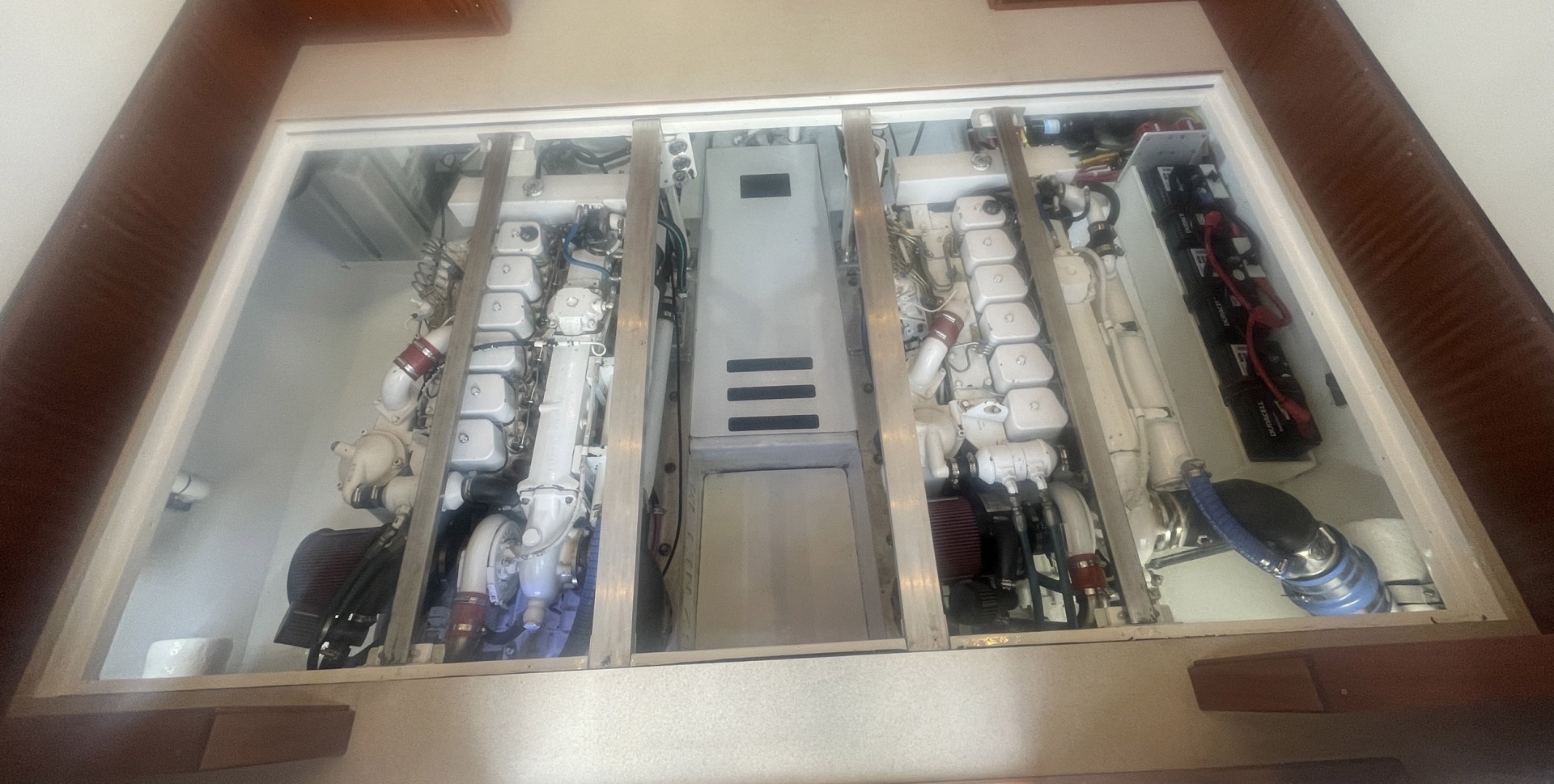

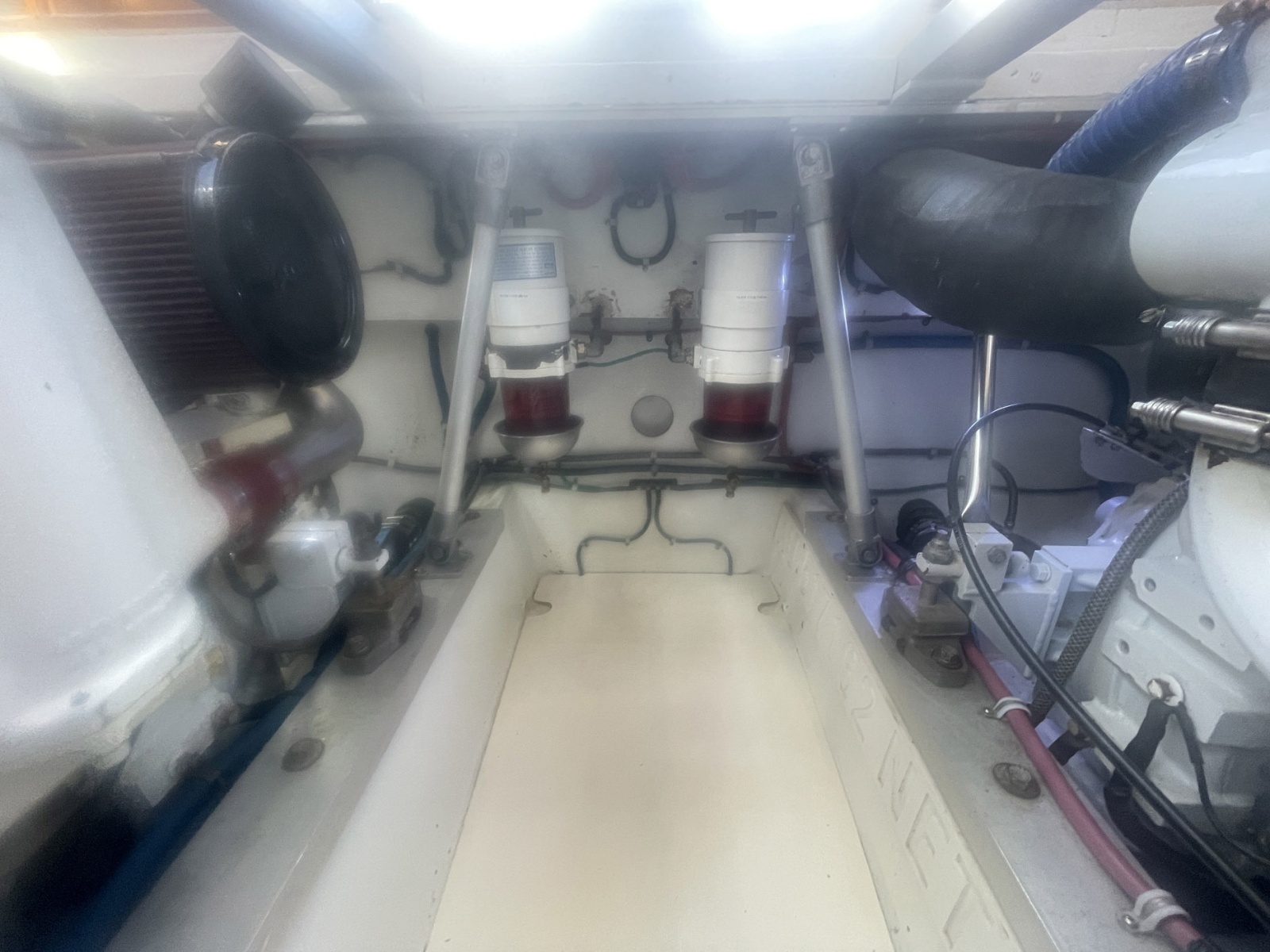

Engine Room and Mechanical Systems

Engine room lighting

Engine access between engines and outboard of engines (without removing engine hatches)

Batteries – House Bank, three Group-31 deep cycle (2025)

Batteries – Engines, two Group-31 dual purpose (2025)

Battery – Bridge, one Group-31 deep cycle (2025)

Alternator – Port Engine 65-amp Wilson-Bosch-K1 (2025)

Alternator – Stbd Engine 120-amp Wilson-Bosch-K1 (2025)

Automatic Charging Splitter – port and stbd Sterling-Power-ProSplit-R 120-amp each (2025)

Indel IsoTemp 6.4 gal water heater

Jabsco fresh water system pump (2023)

Updated fresh water plumbing hoses and fittings

Fuel Tank Port – original Hatteras fiberglass tank at 120 gal

Fuel Tank Stbd – original Hatteras fiberglass tank at 120 gal

Fuel Tank Center – reserve epoxy-coated aluminum tank at 55 gal

Fuel supply and return valves for all 3 fuel tanks with cross-over valves

Racor Model 900MA Fuel Filters one each port and stbd

Water Tank Center – original Hatteras fiberglass tank at 70 gal

Holding Tank – Dometic VacuFlush system plastic tank at 15 gal

1-1/2” stainless steel propeller shafts

PSS propeller shaft seals

Propeller shaft running gear with I-struts and intermediate struts

Veem Conquest 4-blade propellers (installed) (2023)

Michigan Hi-torq 4-blade Propellers (spare)

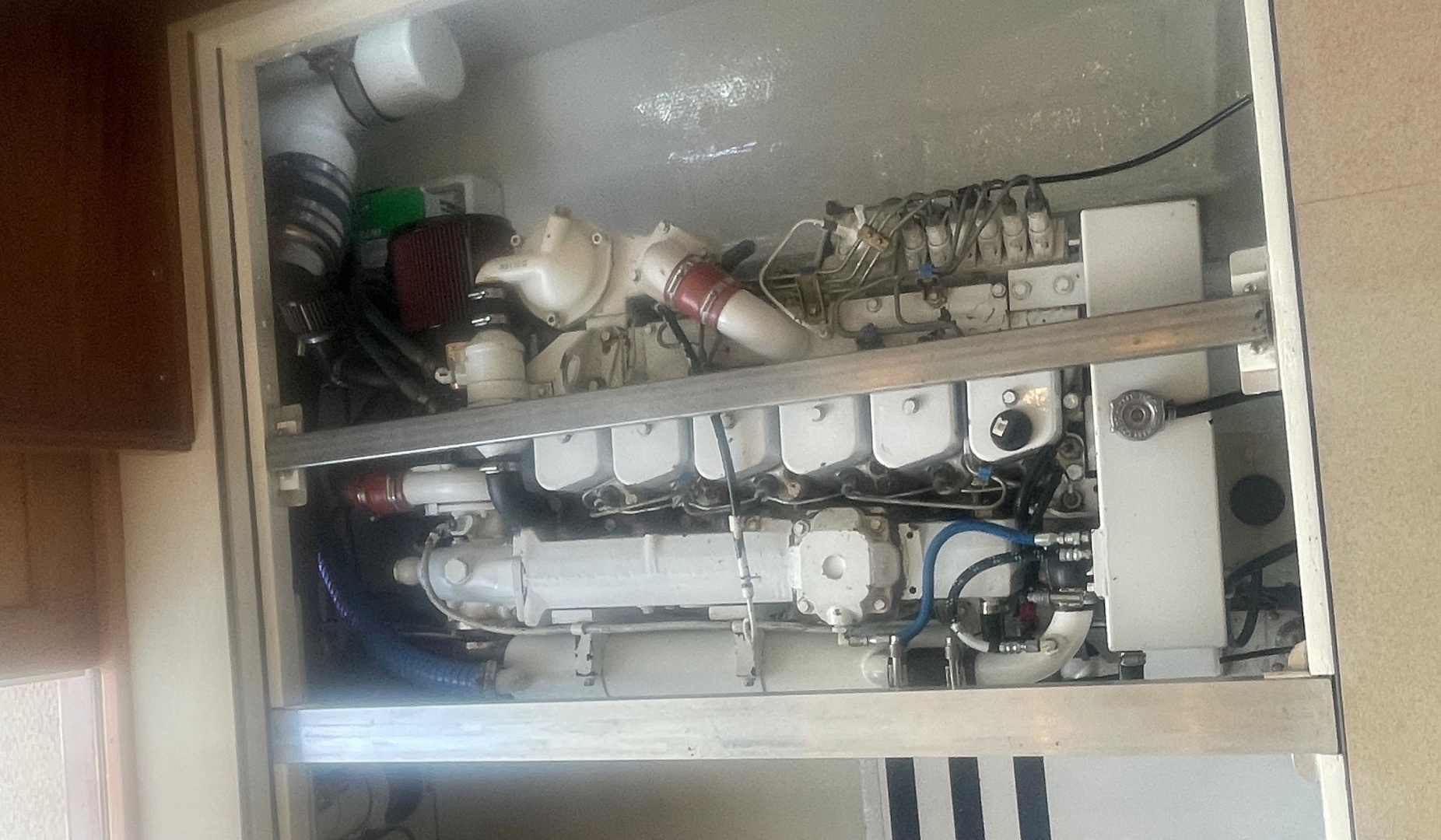

Engines

Propulsion

Engine Port

Engine Make: Cummins

Engine Model: 6BTA5.9-M2

Horsepower: 300 Hp

Fuel Type: Diesel

Engine Date: 07/90

Engine S/N: 44503507

Engine Hours: 1,172

Engine Type: Inboard

Transmission: Twin Disc MG502A

Reduction Gear: 1.5:1

Engine Stbd

Engine Make: Cummins

Engine Model: 6BTA5.9-M2

Horsepower: 300 Hp

Fuel Type: Diesel

Engine Date: 05/89

Engine S/N: 44364625

Engine Hours: 1,020*

Engine Type: Inboard

Transmission: Twin Disc MG502A

Reduction Gear: 1.5:1

Engine Updates Port

Fuel System

Fuel Injectors Rebuilt (2024)

Fuel Injector High Pressure Lines New (2023)

Fuel Injector Return Lines New (2024)

Fuel return Check Valve New (2024)

Fuel Lift Pump New (2024)

Fuel Injector Timing Pump Rebuilt (2024)

Air Charge System

Turbo Charger New (2024)

After Cooler Core (SMX) New (2026)

Cooling System

Seawater Pump (SMX) New (2026)

Thermostat New (2025)

Temperature Gauge Sender New (2025)

Serpentine Belt Tensioner New (2023)

Oil System

Valve Cover Gaskets New (2023)

Front Crankshaft Seal New (2025)

Charging System

Alternator Remanufactured (2025)

Engine Updates Stbd

Fuel System

Fuel Injectors Rebuilt (2024)

Fuel Injector High Pressure Lines New (2024)

Fuel Injector Return Lines New (2024)

Fuel return Check Valve New (2024)

Fuel Lift Pump New (2024)

Air Charge System

Turbo Charger Rebuilt Blue-printed (2024)

After Cooler Core (SMX) New (2026)

Cooling System

Seawater Pump (SMX) New (2026)

Thermostat New (2025)

Temperature Gauge Sender New (2025)

Serpentine Belt Tensioner New (2023)

Oil System

Valve Cover Gaskets New (2023)

Front Crankshaft Seal New (2025)

Charging System

Alternator Remanufactured (2025)

Engine Service Status on port and stbd engines includes:

Serpentine Belts 3/23

Transmission Oil changed 04/24

Valves adjusted 07/25

Heat Exchangers flushed and pressure tested 08/25

Secondary Fuel Filters changed 12/25

Racor Fuel Filters changed 01/26

Coolant System flushed and coolant changed 02/26

Walker Air-sep Filters cleaned 03/26

Crankcase Oil and Filter changed 03/26

Engine Zincs replaced 03/26

New Fire Boy

All receipts to Proved the work was done.

Engine Regular Service Summary - 1968 Hatteras 34 Dolphin II

Cummins 6BTA5.9-M2 CPL-970

Engine Hours since Purchase 266.2 246.7 19.5

In-Service

Engine

PORT - S/N: 44503507 STBD* - S/N: 44364625 PORT STBD Delta

Part Date Hours Source Date Hours Source Hours Hours Hours

Serpentine Belt New 3/15/2023 912.0 MPS Cummins (Virginia Beach) 3/15/2023 773.0 MPS Cummins (Virginia Beach) 260.2 246.7 139.0

Transmission Oil Changed 4/8/2024 1023.2 Rotella T1 SAE-40 4/8/2024 871.3 Rotella T1 SAE-40 149.0 148.4 151.9

Adjust Valves 7/17/2025 1091.1 Shearwater Cummins 7/22/2025 938.1 Shearwater Cummins 81.1 81.6 -

Heat Exchanger Serviced/Tested 8/22/2025 1110.7 BK-Radiator (Riviera) 8/22/2025 957.6 BK-Radiator (Riviera) 61.5 62.1 153.1

Coolant Flush 1 9/23/2025 1117.6 Water 9/23/2025 965.1 Water 54.6 54.6 152.5

Coolant Flush 2 Coolant Changed 9/23/2025 9/23/2025 1117.8 1118.0 Water ES-Compleat-OAT Red 9/23/2025 9/23/2025 965.3 965.5 Water ES-Compleat-OAT Red 54.4 54.2 54.4 54.2 152.5

152.5

Fuel Filter Secondary New 12/31/2025 1139.6 FF5052 12/31/2025 987.0 FF5052 32.6 32.7 152.6

Fuel Filter Racor New 1/17/2026 1142.0 Parker 2040PM-OR 1/17/2026 989.4 Parker 2040PM-OR 30.2 30.3 152.6

Seawater Impeller New 1/21/2026 1142.0 SMX Seaboard Marine 1/21/2026 989.4 SMX Seaboard Marine 30.2 30.3 152.6

Coolant Changed 2/7/2026 1146.0 ES-Compleat-OAT Red 2/7/2026 993.6 ES-Compleat-OAT Red 26.2 26.1 152.4

Heat Exchanger Zincs New 3/3/2026 1168.9 BOW 3/3/2026 1016.5 BOW 3.3 3.2 152.4

Oil Crankcase Changed 3/8/2026 1168.9 15W40 Prem-Blue 3/8/2026 1016.5 15W40 Prem-Blue 3.3 3.2 152.4

Oil Filter New 3/8/2026 1168.9 LF3959 3/8/2026 1016.5 LF3959 3.3 3.2 152.4

Walker Air Seperators 3/8/2026 1168.9 Cleaned/Oiled 3/8/2026 1016.5 Cleaned/Oiled 3.3 3.2 152.4

After Cooler Zincs New 3/12/2026 1168.9 East Coast Marine (Stuart) 3/12/2026 1016.5 East Coast Marine (Stuart) 3.3 3.2 152.4

PSS Propeller Shaft Seals Adjusted 3/19/2026 1170.7 3/16" MJD-NA 3/19/2026 1018.2 3/16" MJD-NA 1.5 1.5 152.5

Engine Hours at Purchase 1/25/2023 906.0 1/25/2023 773.0 133.0

Engine Hours Current 4/5/2026 1172.2 4/5/2026 1019.7 152.5

*Note: see Survey Report on Stbd Temperature Gauge. Stbd gauge inoperable at purchase (loose ground); Stbd Hour-meter also inoperable, same ground circuit. Stbd hour meter circuit repaired 4/8/2023

25/2023 906.0 1/25/2023 773.0 133.0

Engine Hours Current 4/5/2026 1172.2 4/5/2026 1019.7 152.5

Engine Hours since Purchase 266.2 246.7 19.5

In-Service

Engine

PORT - S/N: 44503507 STBD* - S/N: 44364625 PORT STBD Delta

Part Date Hours Source Date Hours Source Hours Hours Hours

Fuel System

Fuel Injectors Rebuilt 3/24/2024 1017.0 Fuel Injection International 3/24/2024 865.0 Fuel Injection International 155.2 154.7 152.0

Fuel Injector Feed Lines New 3/15/2023 912.0 MPS Cummins (Virginia Beach) 3/24/2024 865.0 Shearwater Cummins 260.2 154.7 -

Fuel Injector Return LInes New 5/12/2024 1029.0 Shearwater (Reliable) 5/12/2024 877.0 Shearwater (Reliable) 143.2 142.7 152.0

Fuel Lift Pump New 5/12/2024 1029.0 Shearwater (Interstate) 5/12/2024 877.0 Shearwater (Interstate) 143.2 142.7 152.0

Fuel Return Check Valve New 5/12/2024 1029.0 Shearwater (Reliable) 5/12/2024 877.0 Shearwater (Reliable) 143.2 142.7 152.0

Fuel Timing Pump Rebuilt 5/12/2024 1029.0 Everglades Diesel (Alliant) 143.2 -

Fuel Timing Pump Rebuilt 'Spare' 5/12/2024 877.0 Everglades Diesel (Alliant) 142.7 -

Air Charge System

Turbo Charger New 3/24/2024 1017.5 DMS Turbo Blueprinting 154.7 -

Turbo Charger Rebuilt 3/24/2024 865.5 DMS Turbo Blueprinting 154.2 -

After Cooler Housing Serviced 3/12/2026 1168.9 East Coast Marine (Stuart) 3/12/2026 1016.5 East Coast Marine (Stuart) 3.3 3.2 152.4

After Cooler Core New 3/12/2026 1168.9 SMX Seaboard Marine 3/12/2026 1016.5 SMX Seaboard Marine 3.3 3.2 152.4

Cooling System

Seawater Pump New 1/21/2026 1142.0 SMX Seaboard Marine 1/21/2026 989.4 SMX Seaboard Marine 30.2 30.3 152.6

Thermostat New 9/6/2025 1110.7 Cummins OEM 9/6/2025 957.6 Cummins OEM 61.5 62.1 153.1

Serpentine Belt Tensioner New 3/15/2023 912.0 MPS Cummins (Virginia Beach) 3/15/2023 773.0 MPS Cummins (Virginia Beach) 260.2 246.7 139.0

Temperature Gauge Sender New 8/30/2025 1110.7 Lauderdale Speedometer 8/30/2025 957.6 Lauderdale Speedometer 61.5 62.1 153.1

Oil System

Valve Cover Gaskets New 3/15/2023 912.0 MPS Cummins (Virginia Beach) 3/15/2023 773.0 MPS Cummins (Virginia Beach) 260.2 246.7 139.0

Front Crankshaft Seal New 7/15/2025 1091.1 Shearwater Cummins 7/22/2025 938.1 Shearwater Cummins 81.1 81.6 153.0

Gear Housing Dowel Pin Keeper 7/15/2025 1091.1 Shearwater Cummins 7/22/2025 938.1 Shearwater Cummins 81.1 81.6 153.0

Electrical System

Alternator Remanufactured 8/30/2025 1110.7 65-amp Wilson-Bosch-K1 11/8/2025 977.0 120-amp Wilson-Bosch-K1 61.5 42.7

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
