1979 Ocean Winds 33'

“Grayling” is an Ocean Winds 33 catamaran designed by Pat Patterson and built by

Symon’s Boatyard in Plymouth England in 1979. Patterson took an Ocean Winds and followed Drakes circumnavigation route around the world, via Magellan Straits. This is documented in book of voyage, “In The Wake Of Drake”, which is included in onboard library. It is a very study boat and comfortable for a cruising couple or live aboard with a surprising amount of room and storage for a 33 ft boat. Size makes it easier and less expensive to find dock space and to repair. It will fit most marina travel lifts.

 Shallow draft and shorter mast allows access to places many sailboats can’t go. Well protected cockpit and large deck space are appreciated under sail and at anchor. “Grayling” has often been a popular gathering spot for sundowners and shared meals when sailing with groups. 2 stateroom design with one that can be converted to office/workshop space.

LOA - 33 ft

Beam - 16’ 4”

Draft - 3’ 4”

Net wt. - 8 ton

Doc# - 618760

Propulsion

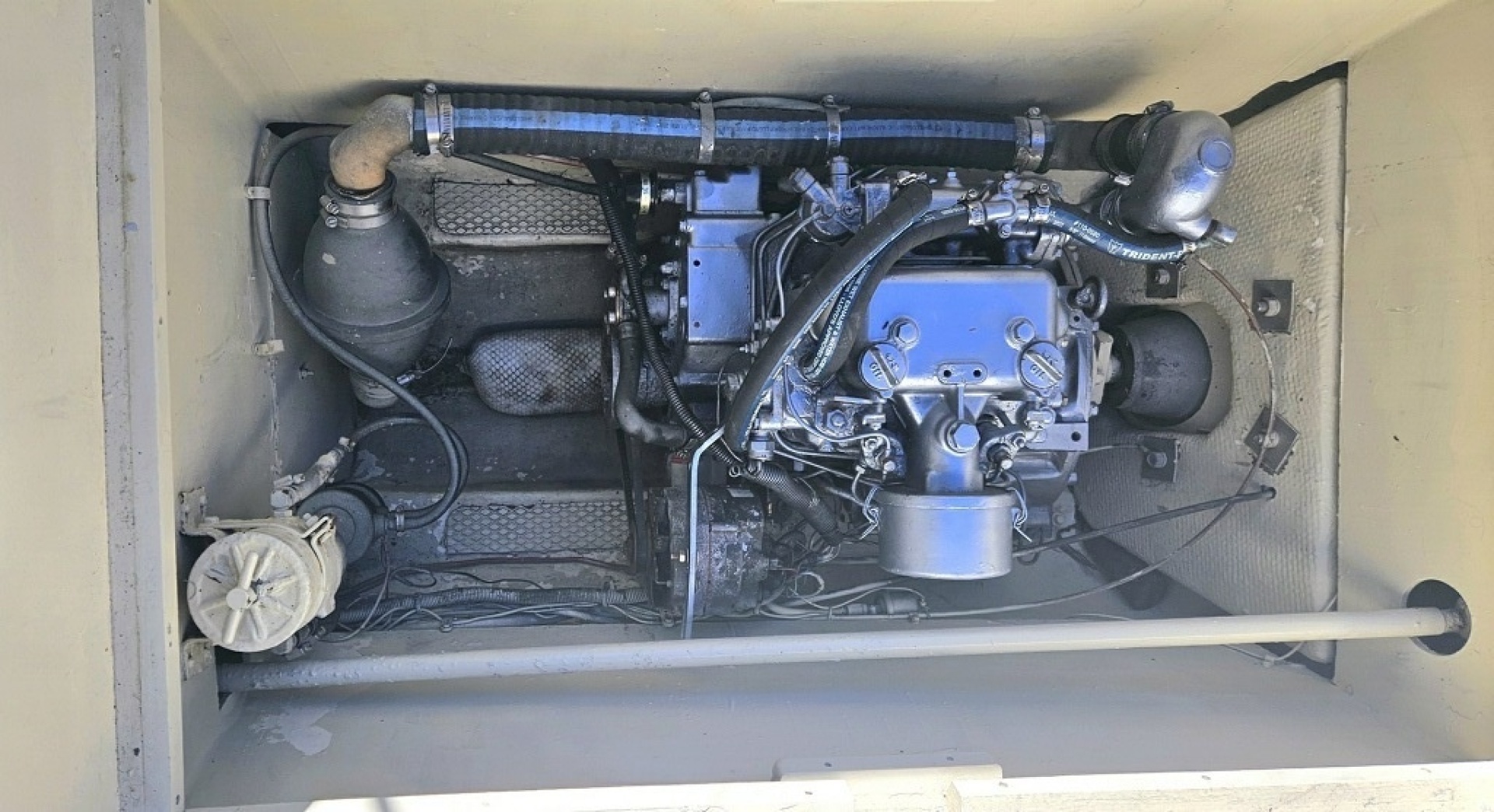

Engine - Yanmar 2QM20 2 cylinder diesel Rated horsepower -20 hp Raw water cooled.

Reported total rebuild in 1998.

Outdrive - Sillette Sonic Cat 1 with transmission in outdrive, manual lift for sailing and inspection

(outdrive rebuilt in 2014)

Cutter rig with full batten Mainsail, hank on Staysail and Genoa on Rotostay furler

Double headstay with hank on Drifter for double headsail downwind sailing

Whisker pole

Deck stepped anodized aluminum mast

Mast removed and supporting bulkhead and mast step rebuilt 5/24

Standing rigging replaced by Ocean Rigging in 12/19

Mast and rigging surveyed and new VHF antenna, anchor light and all internal wiring replaced

by Lister Marine in 5/24

Winches - 2 Lewmar # 44 self tailing and 5 Lewmar #6

Galley equipment

Three deep stainless steel sinks

Pressure freshwater and manual salt water faucets

Pressure filtered freshwater faucet

Top loading Adler Barber refrigerator/freezer with vertical ice cube trays

Magic Chef three burner propane stove with oven

Two 40 pound aluminum propane tanks in vented locker with Trident propane control near stove

Paloma propane water heater

Microwave oven

Head

Groco HF marine toilet with 2 spare pump assemblies.

25 gal holding tank with deck pump out and Jabsco macerator pump for offshore discharge, spare macerator pump

Trionic vent filter with refillable filter media

Stainless steel sink with pressure freshwater and manual saltwater faucets

Floor drain with manual shower discharge pump, hand held shower and solar shower

Tankage

300 liters diesel in bladders under floor in staterooms

75 gal fresh water in bladders under floor

Two 6 gal fresh water Jerry jugs and two 6 gal diesel Jerry jugs

PUR Power Survivor 80 water maker, installed but never used

5 gal gas tank for outboard

Bilge pumps

2 Par Manual diaphragm pumps that can access all divided bilge compartments

Rule 750 12 volt portable bilge pump

Tenders

10 ft folding Portabote with 5 hp Nissan outboard

Can be stored folded along side cabin or hung from Garhauer davits on transom

8 ft Motomar roll up inflatable with electric and manual pumps

Ground Tackle

35 lb Manson Supreme with 60 ft G4 1/4 inch galvanized chain and 150 foot 5/8 nylon rode through Anchorlift bow roller to Lewmar electric windlass with helm and deck controls.

Manson chain lock with 1/2 in nylon snubber to each bow cleat

35 lb Lewmar Claw with 25 ft 3/8 galvanized chain and 150 ft 5/8 nylon rode

25 lb CQR anchor

Fortress FX-37 and FX-16 breakdown anchors with adjustable flukes

Guardian G-16 and G-11 anchors with several 1/2 in rode and chain setups

10 lb mushroom and folding grapple anchor for dingy

Electrical system

Four 6 volt Trojan 105 golf cart batteries for house bank

IBX 24M starting battery

West Marine 70 amp battery combiner

Balmar 60 amp high output alternator

Balmar Max Charge MC-614 multistage voltage regulator

Xantrex Link-Lite battery monitor

Promariner True Power Combi 1500 watt inverter and multi stage charger

Two 75 watt solar panel on adjustable mount with Morningstar regulator

Air marine wind generator with mast (dismounted)

Spare Airmarine wind generator

Small Balmar 612 backup inverter

Navigation and anchor lights are LED and all interior lights are LED or fluorescent

Radios and Electronics

Standard Horizon Eclipse GX1400 VHF with GPS

Metz VHF antenna with new cable 5/24

Icom IC-721 SSB /Ham radio with Icom antenna tuner and insulated back stay antenna

2 Dynaplate grounding plates mounted to hull

Ritchie helm compass

Seafarer depth sounder

Garmin 425 GPS/chartplotter/depthsounder

Autohelm 3000 wheel pilot and Navico Wheelpilot 5000 autopilots

Ventilation

6 Passport hatches, 4 forward opening, 2 rear opening

4 large Lexan sliding windows

4 Marino solar vent fans mounted in hatches

5 Caframo Bora 3 speed adjustable fans

1 12 volt oscillating fan over stove

1 passive vent over stove

Custom Velcro mosquito and no-see-um screens for all hatches, windows and door

White solar screen for all hatches

Reflectex covers for all windows

Safety Equipment

6 fire extinguishers

Fire blanket by stove

Lifesling with mainsheet lifting tackle

PFD’s - 2 type 1, 2 type 2, 4 type 3, 3 type 4 and 2 type 5 inflatable harness with tethers, strobe beacons and whistles

Current handheld and 12 gauge flares

ACR strobe

Whistle and manual and compressed air horn

Marpol and oil discharge signs posted

Wooden plugs mounted at all Marlon seacocks

Cable cutters

Old bottom paint sandblasted to fiberglass in 2023

2 coats epoxy barrier coat and 2 coats Pettit HRT multi season anti fouling in 4/24 by Safe Cove boatyard.

Cabin top and rear deck repainted with Interlux Brightside and non skid with Sherwin Williams 2 part polyurethane industrial coating with Softsand texture in 5/24

Bimini with full cockpit enclosure

Folding SS swim/boarding ladder with port and starboard mounts

Inflatable 2 step ladder/bumper, fenders, balls and rafting mats

Overboard drop-down emergency ladder

Double Dyneema lifelines

Radar reflector

50 ft 30 amp shorepower cord

Docklines, spare jib sheets, halyards and miscellaneous line, hose and chain

Fishing gear, cast net, landing net and gaff hook, Hawaiian sling and spears

Full kitchen, pots, pans, pressure cooker, utensils, cups, plates

Selection of freeze dried camping meals and ingredients

All engine and outdrive service manuals and parts lists

Large collection of repair guides, cruising guides and charts and chart books

Masks, fins and snorkeling gear

West Marine 6.9 quart oil change pump

Hoistable sail track mast ladder

Large and small interchangeable salon tables

Large forward facing chart table, easily accessible to helm

Inside steering handle available in nav station

Oil lanterns for heat and light

Extensive collection of tools and spare parts including:

Complete Yanmar cylinder head

Exhaust manifold with mixing elbow

Motor mounts

2 starters

2 alternators

Balmar alternator repair kit

Voltage regulator

Yanmar mechanical fuel pump

2 electric fuel pumps

Yanmar injector pump

High pressure fuel line

Oil return line

Trident propane control unit

LP gas regulator

3 Shurflo pressure water pumps

Shurflo pump rebuild kit

2 Whale manual pump, 1 hand, 1 foot control

Water maker filter and connectors

Nissan outboard water pump kit

Nissan outboard fuel filter, zincs, spark plugs

Spare Yanmar water pump with speed seal

Impellers, alternator belts, thermostat, fuel filters

Jabsco impeller puller tool

Spare boot for Sonic outdrive

Lewmar winch service kit

Marino 30 amp power inlet fitting

2 spare Groco toilet pump assemblies

Large supply of SS screws, nuts, bolts, clamps, staples etc.

SS and aluminum plate and angle stock

Plumbing fittings and hose

Wire, connectors, terminals, soldering supplies

Sail hardware, blocks, rope clutches, stalock fittings

Sail repair tape and supplies, lazy jack fittings and instructions to set up

Davis Mark 15 sextant, WM bearing compass, Davis wind speed meter

Round port hole replacement for stateroom

Rain water collectors or rain covers for side wind

Call Bud Mueller to make an appointment to see this well built Cat. 248 343 0599.
