ACCOMODATIONS

ACCOMMODATIONS/STORAGE

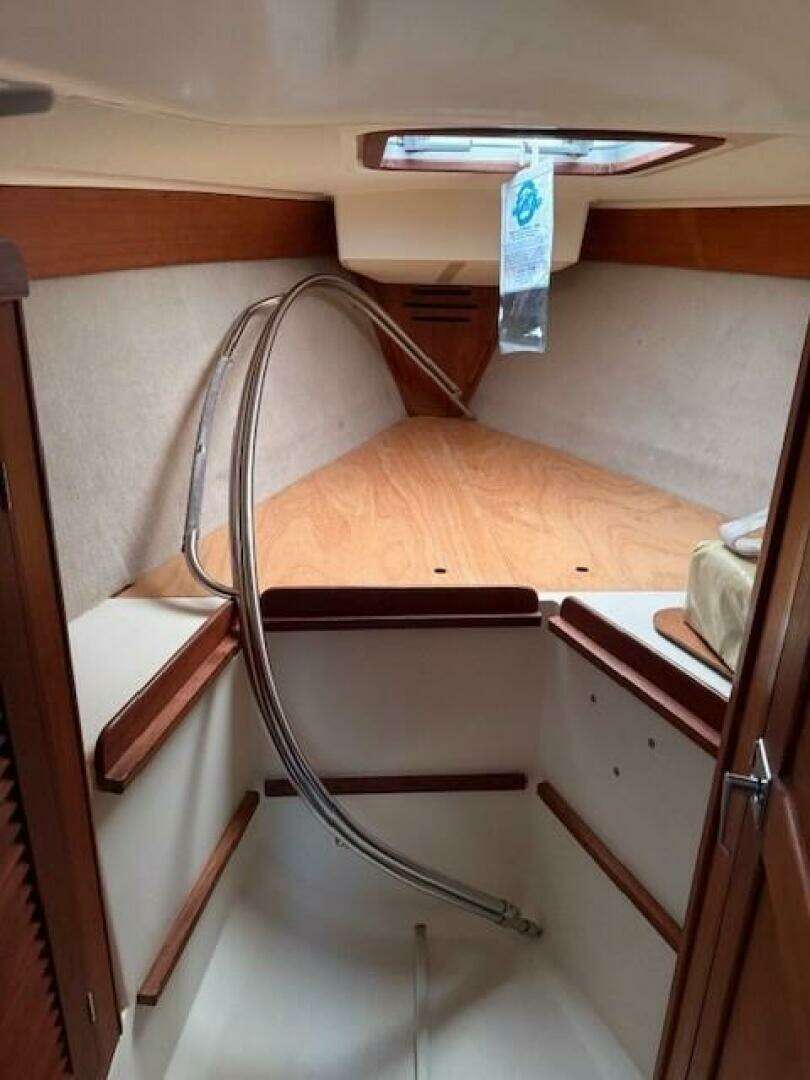

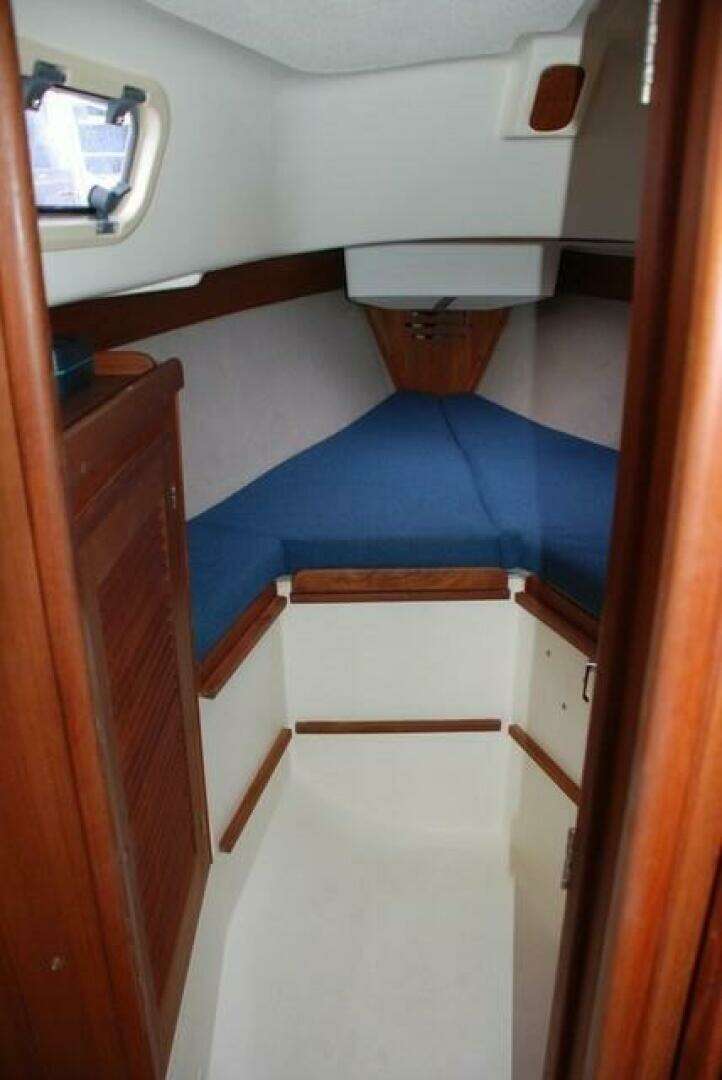

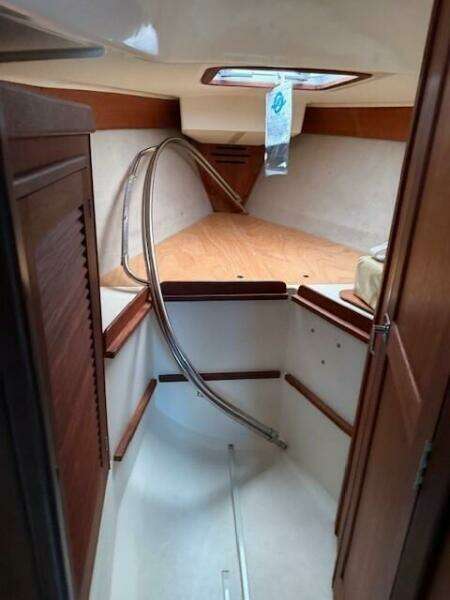

• Forecabin with lockers and hanging locker

• Furniture grade bunk cushion

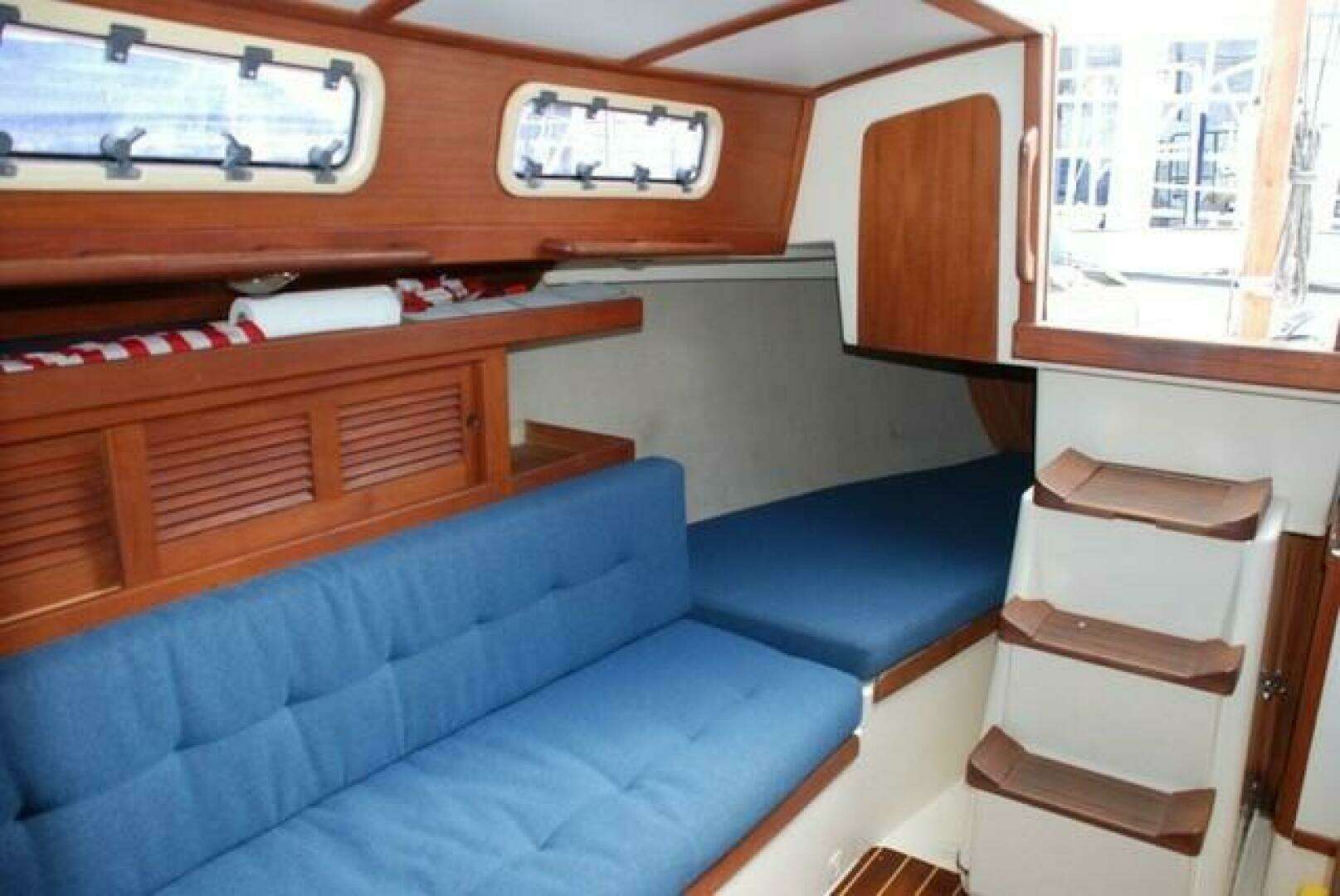

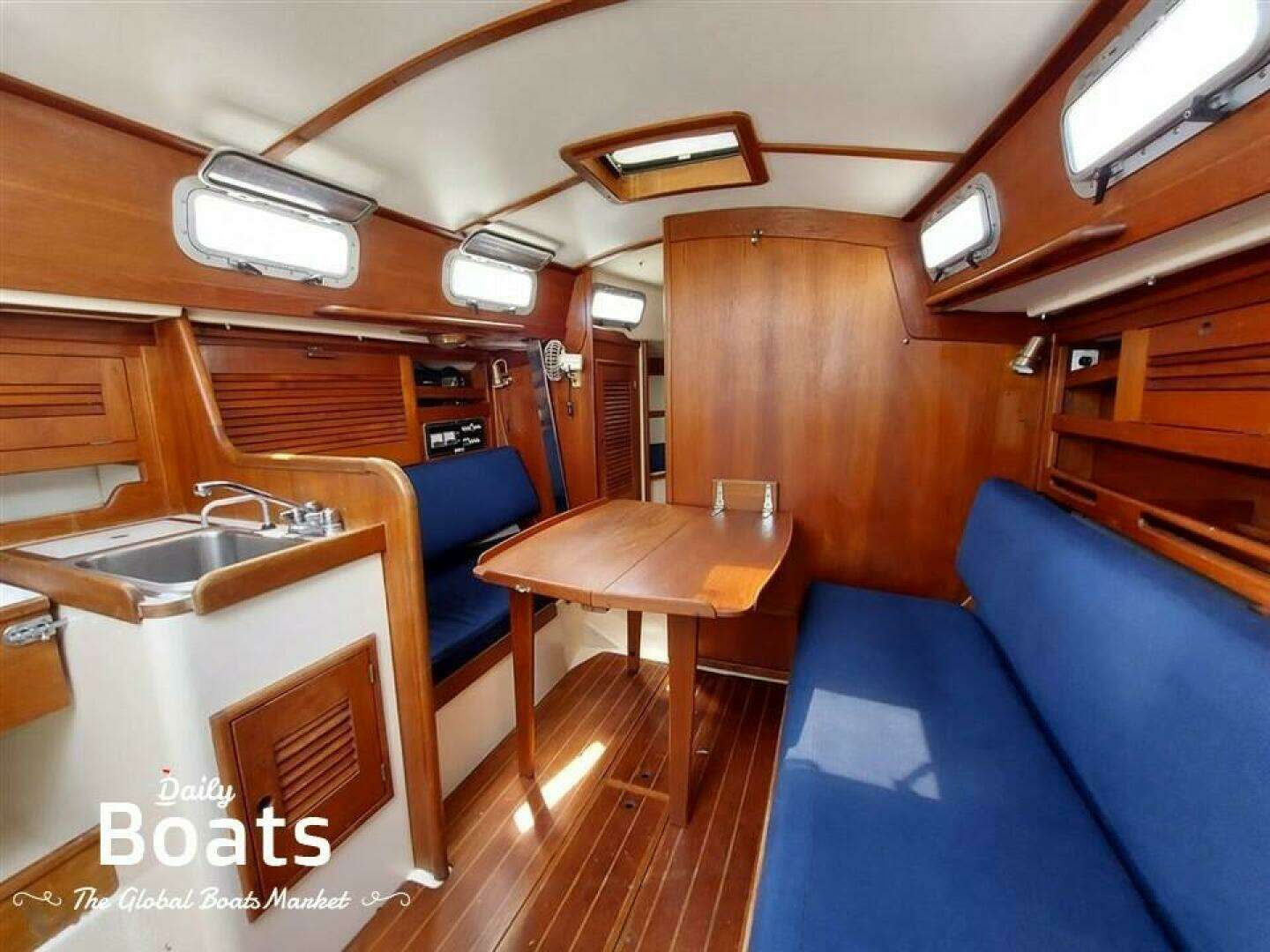

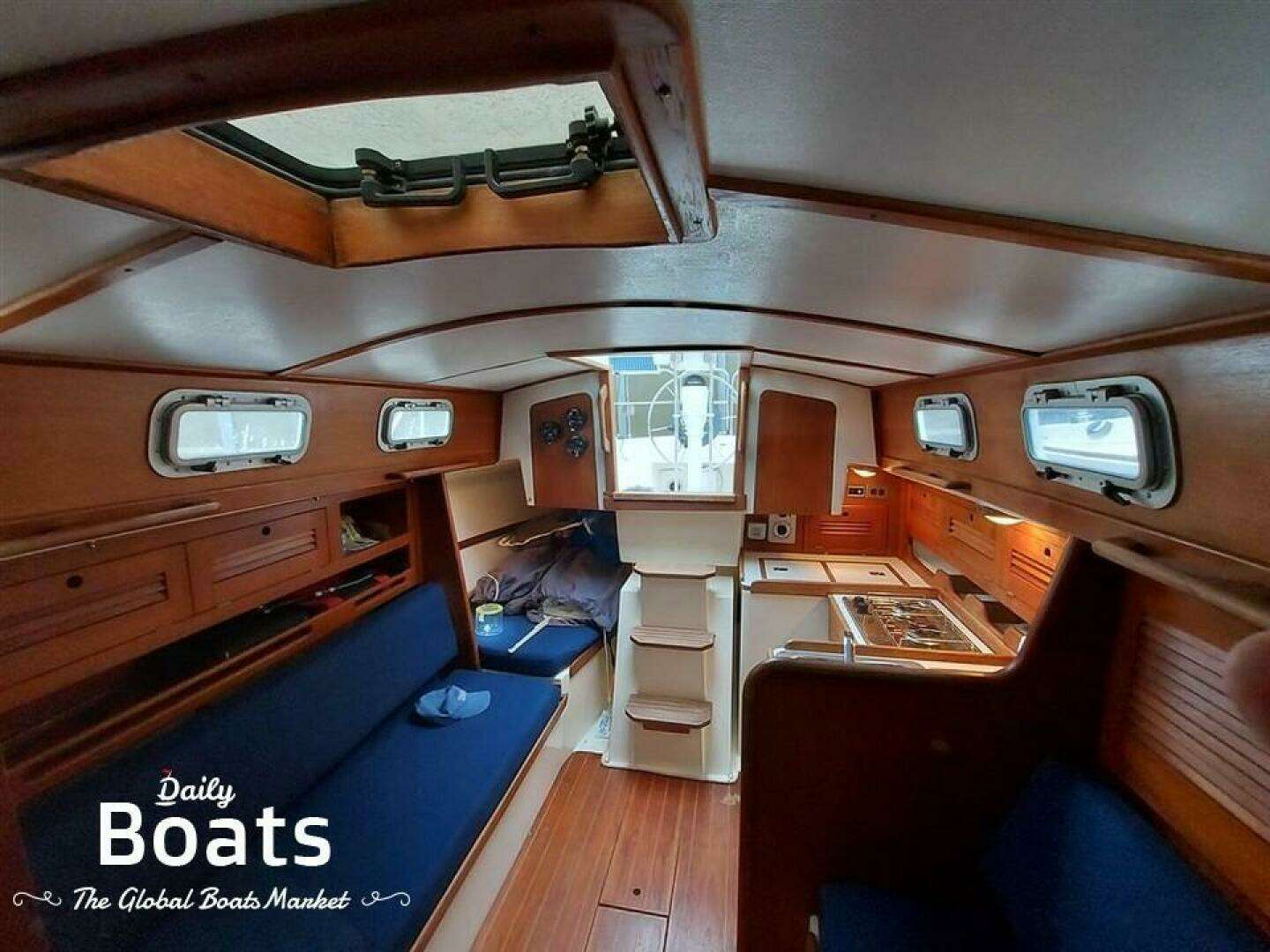

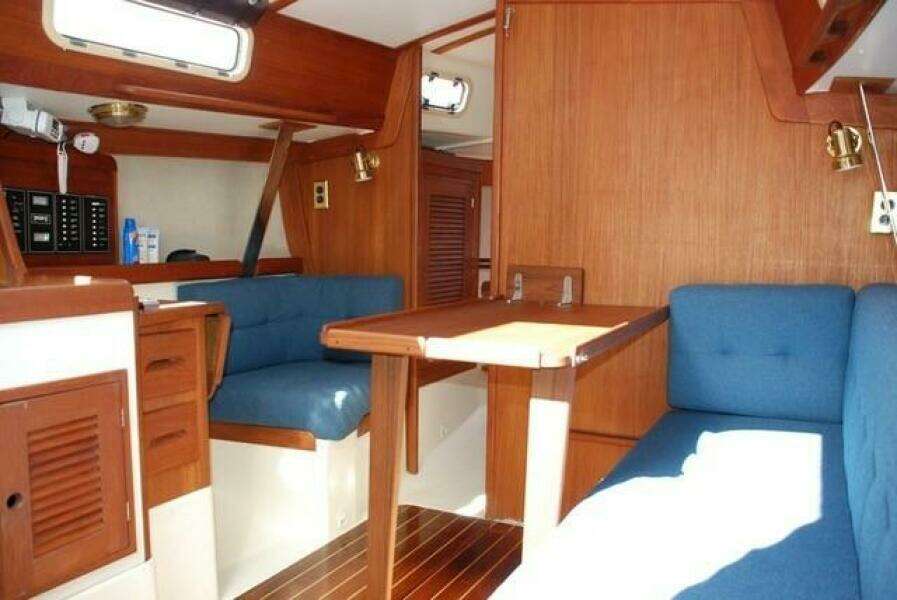

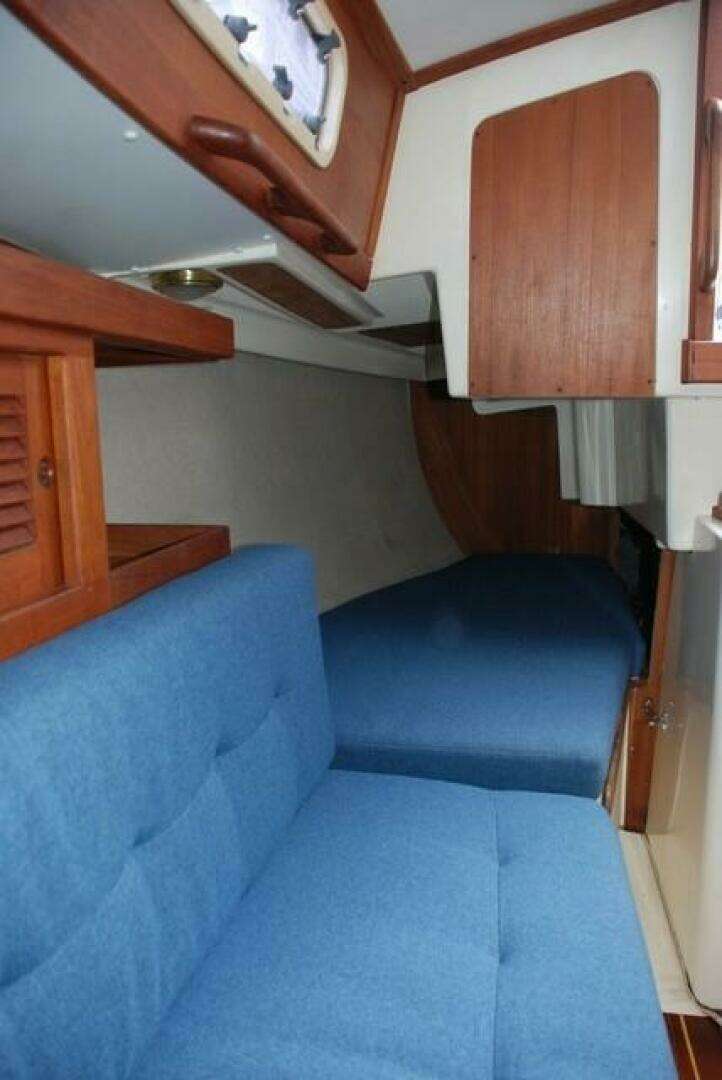

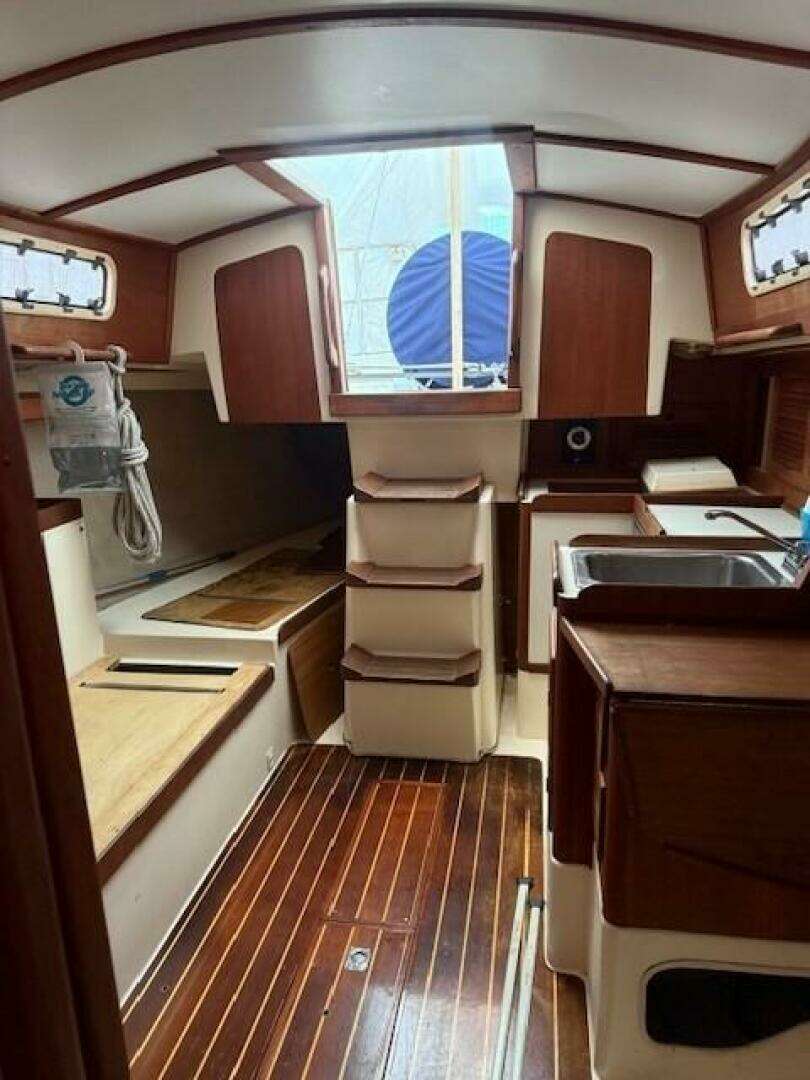

• Main cabin with teak hardwood cabinets

• Main cabin settees (Settee folds out to sleep two)

• Large storage area outboard of main cabin seatbacks

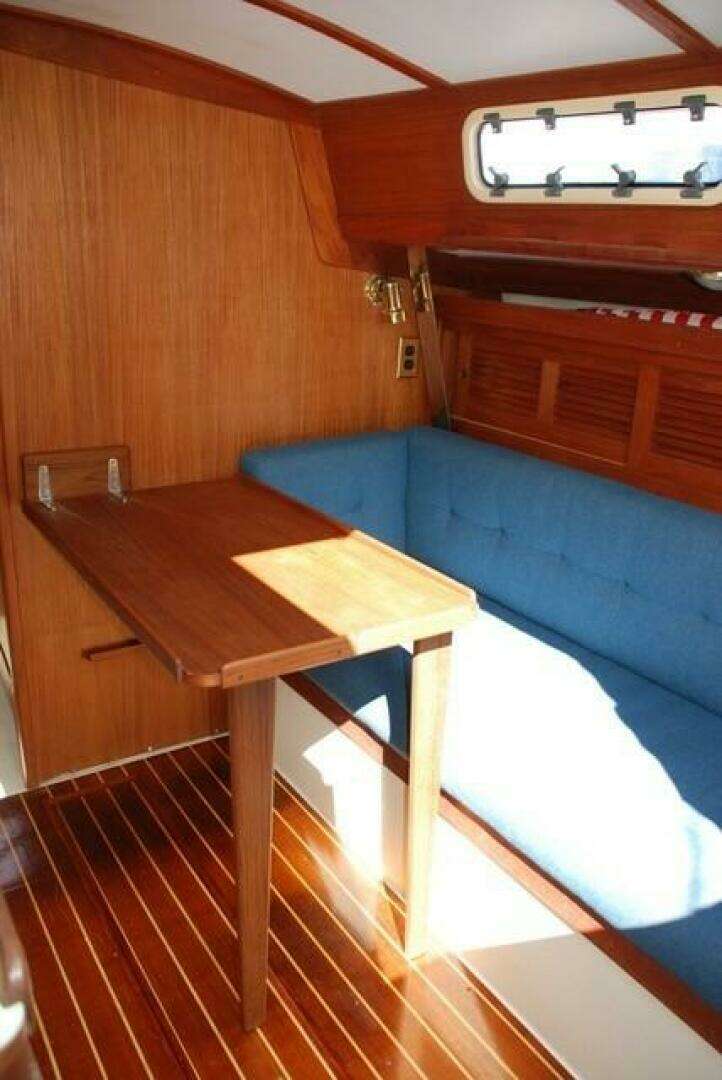

• Main cabin bulkhead mount table

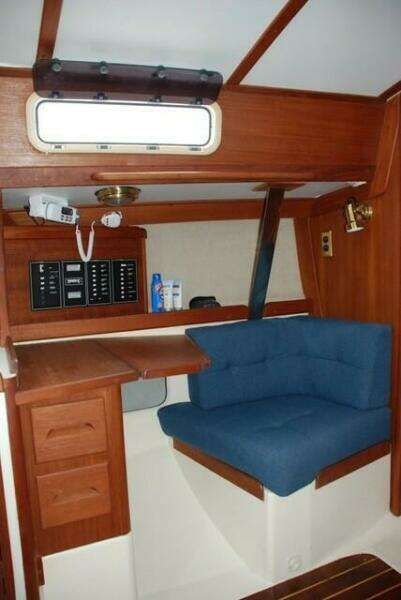

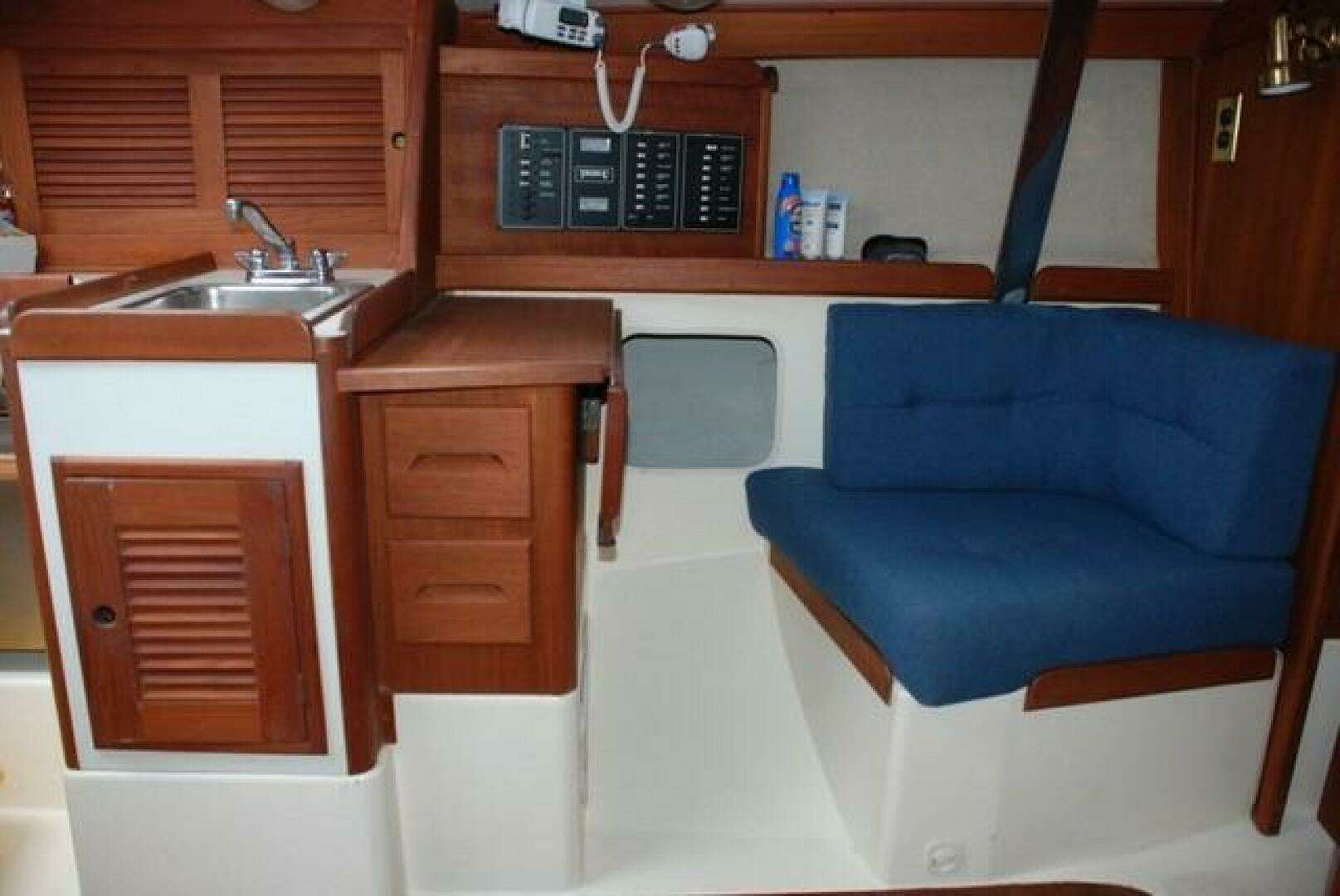

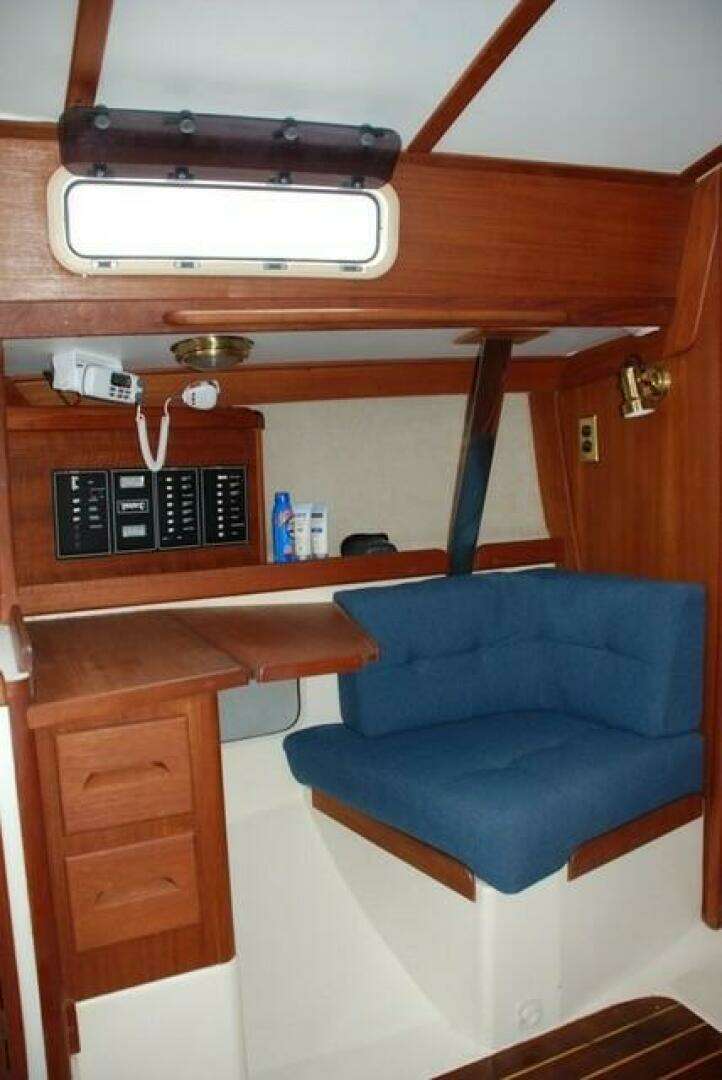

• Full navigation station

• Navigation locker with storage space for electronics

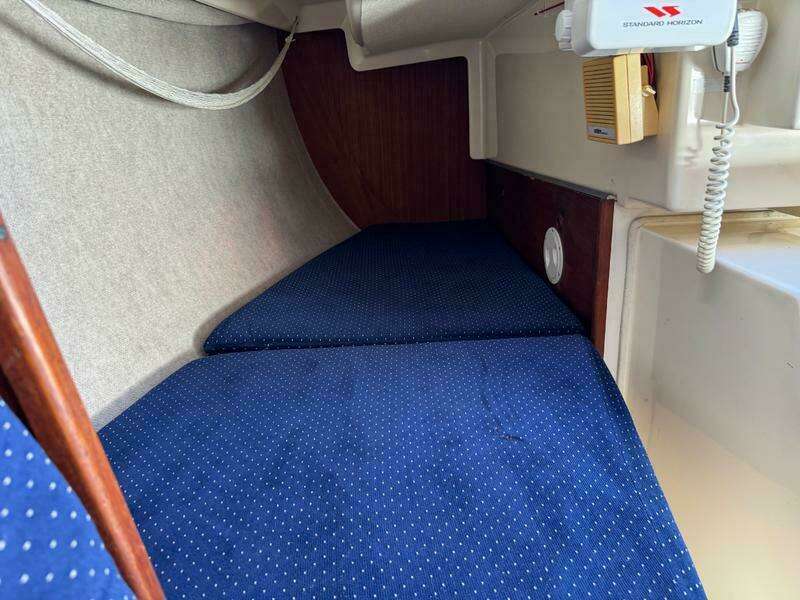

• Aft quarterberth with furniture quality cushion

• Storage below quarterberth

• Cockpit seat locker to port

• Helmseat

INTERIOR

• Off-white structural hull liner and grid bonded to hull. Bulkheads and risers are teak faced or

pressure laminate faced plywood. Cabinetry and trim of hand rubbed teak. Cabin sole is teak and

holly. The overhead liner is teak battened vinyl with strategically placed access panels.

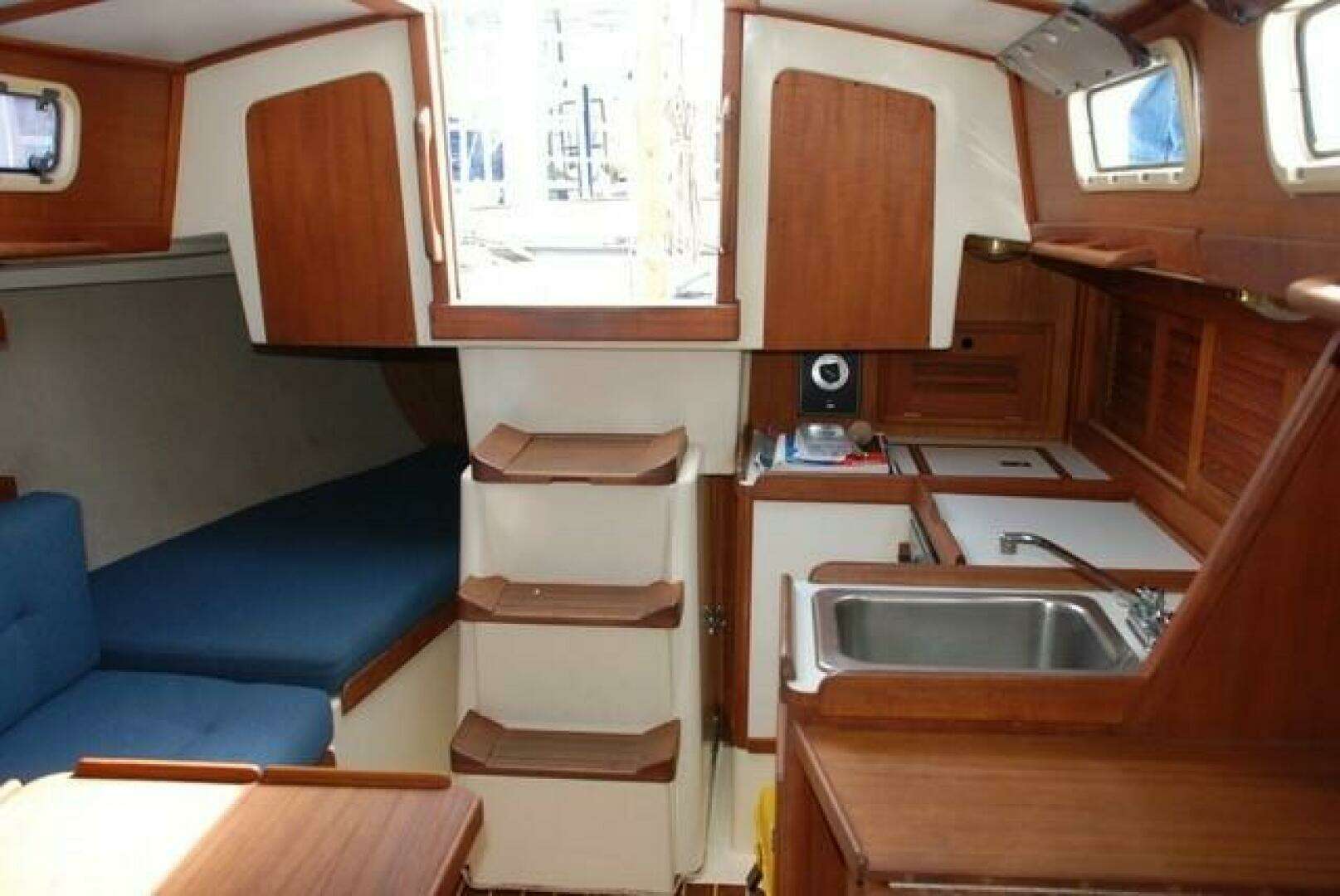

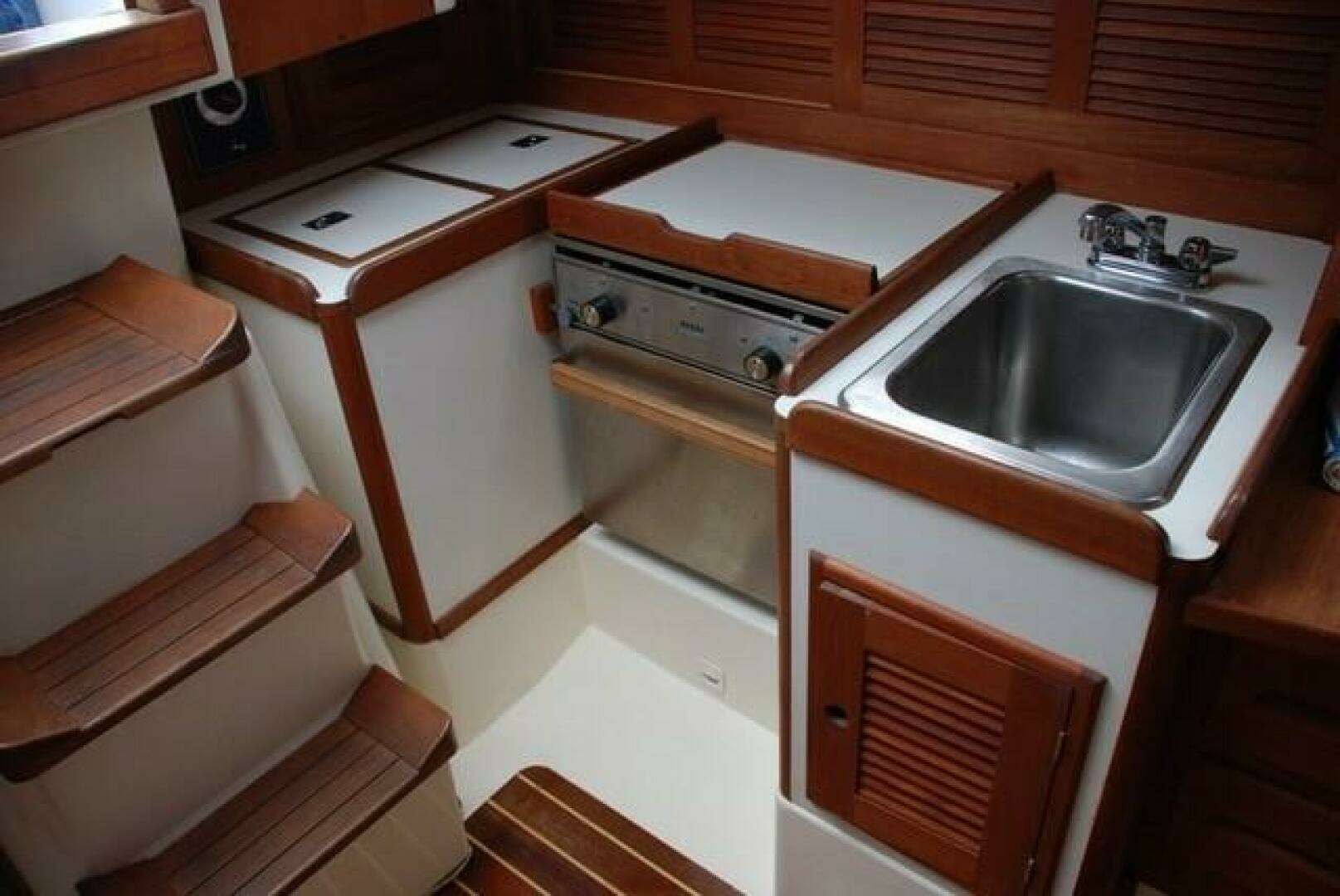

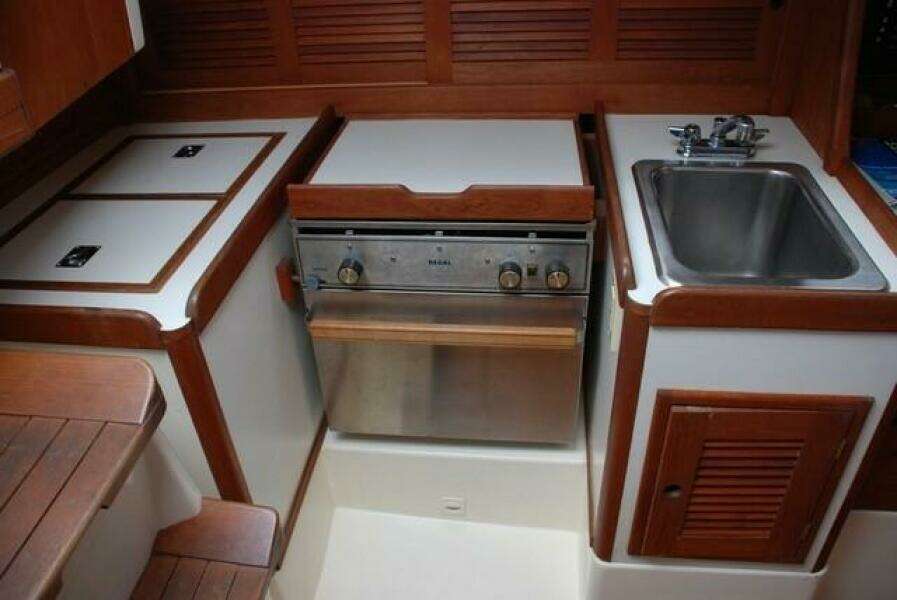

GALLEY

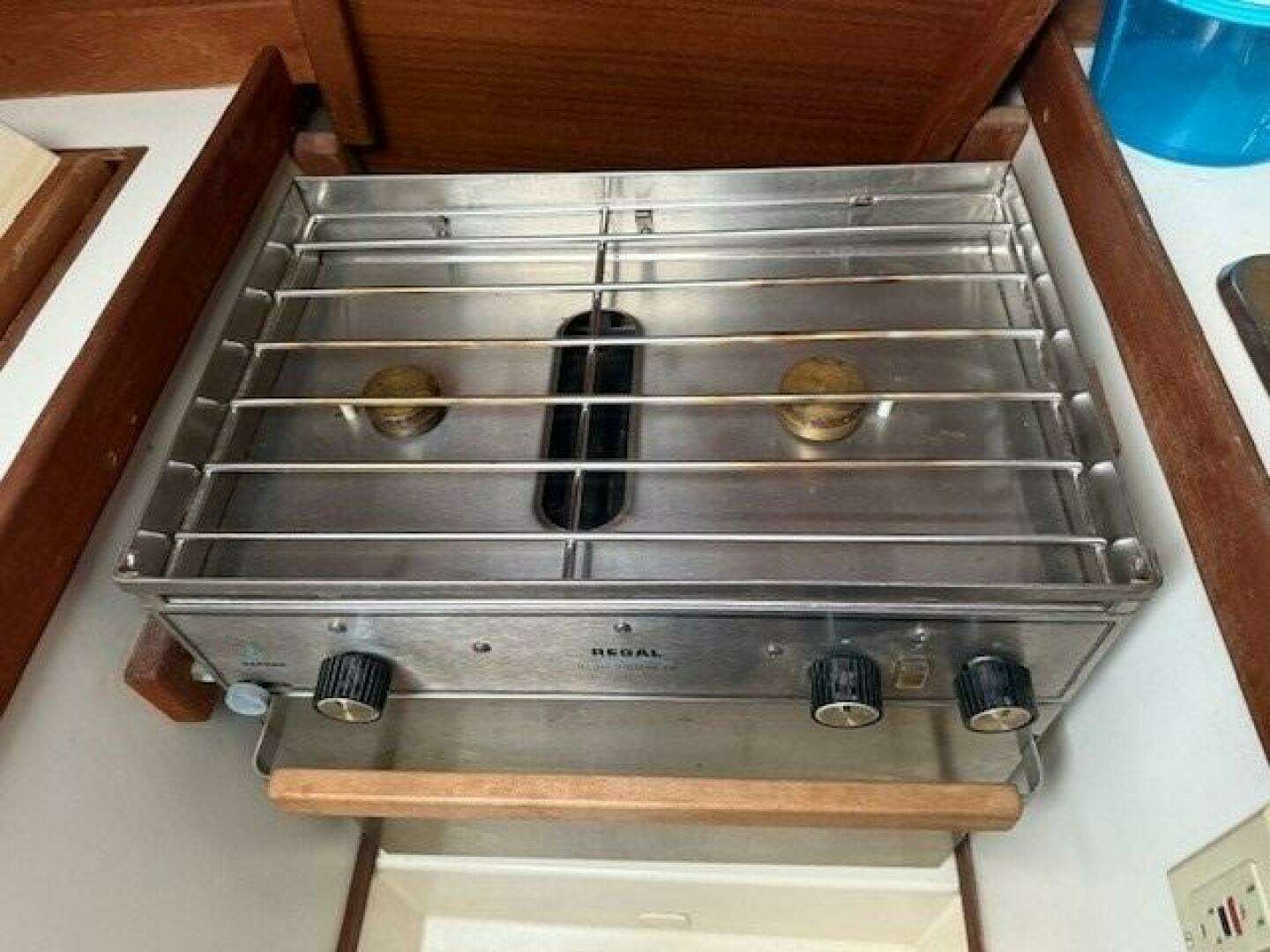

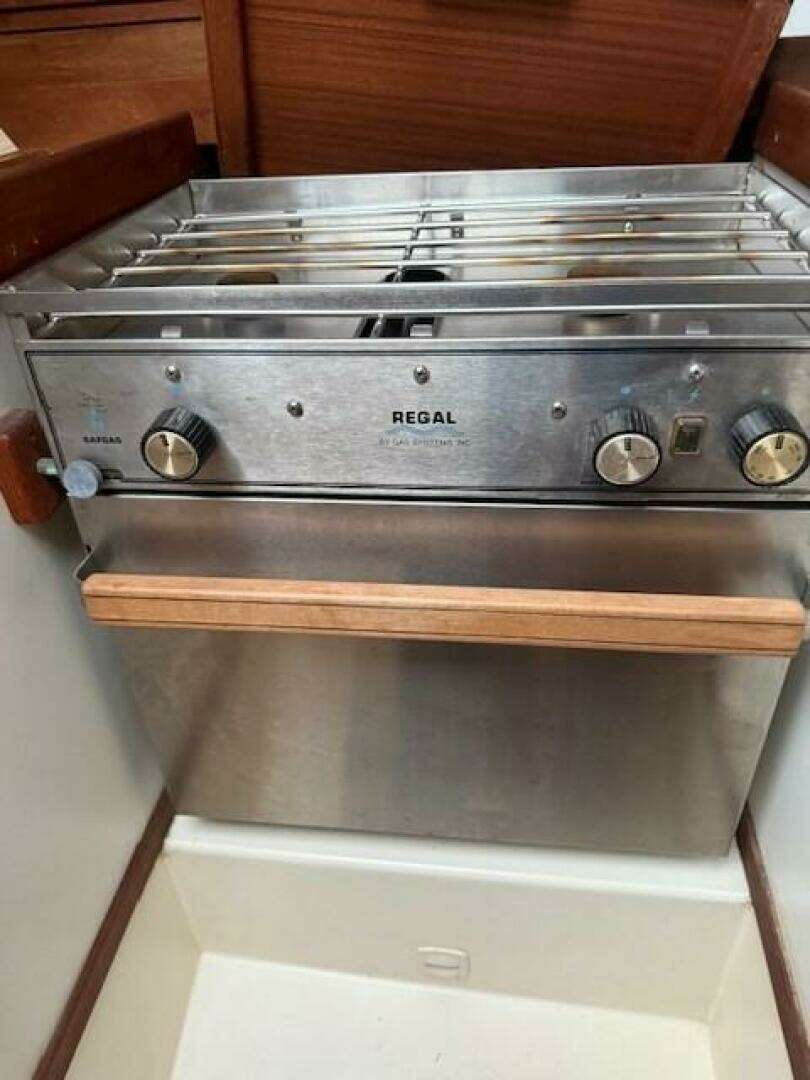

• 2 burner Regal LNG stove with storage under (Needs New Tank)

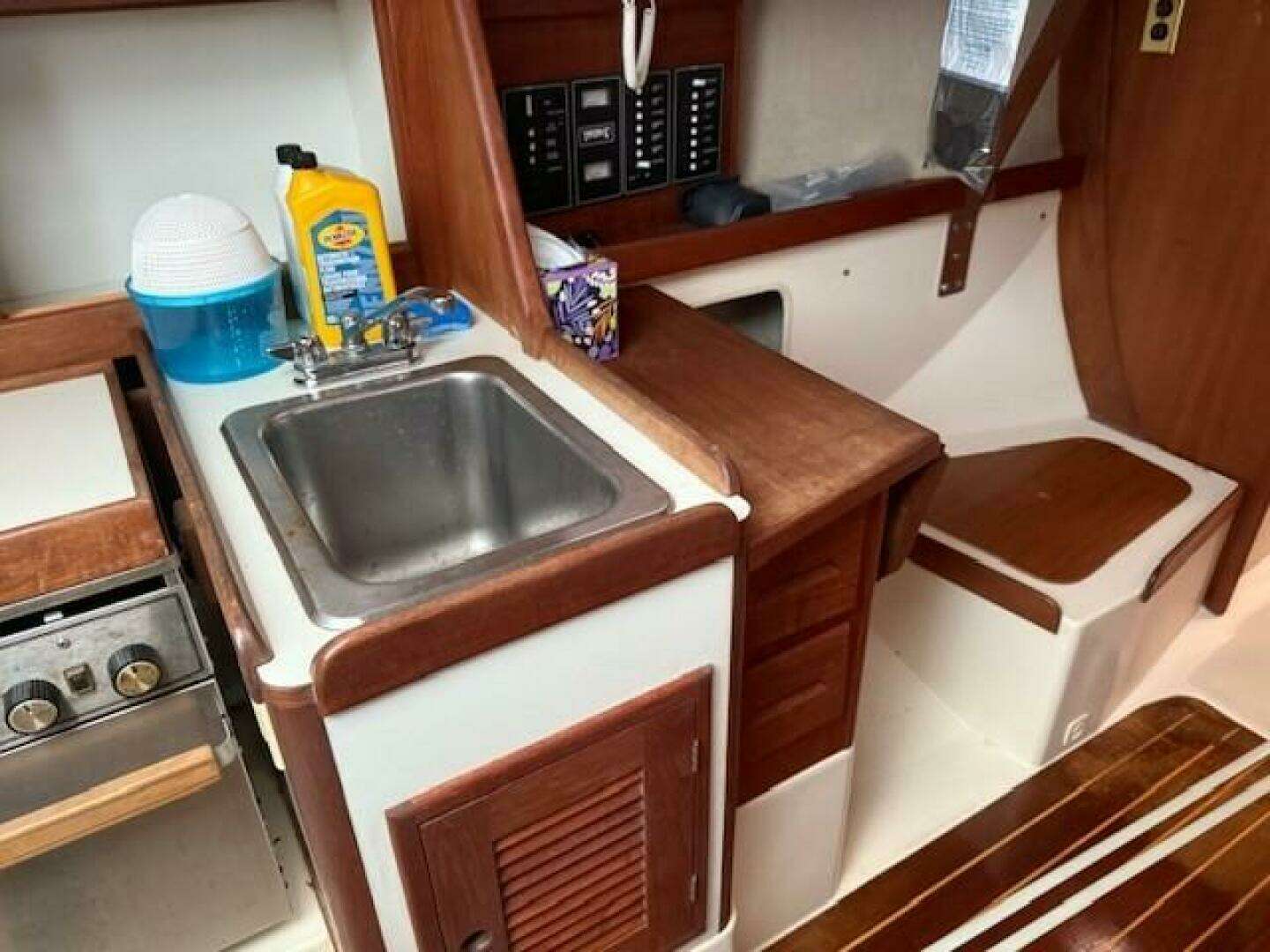

• Stainless st°f!el galley sink - 9" deep •

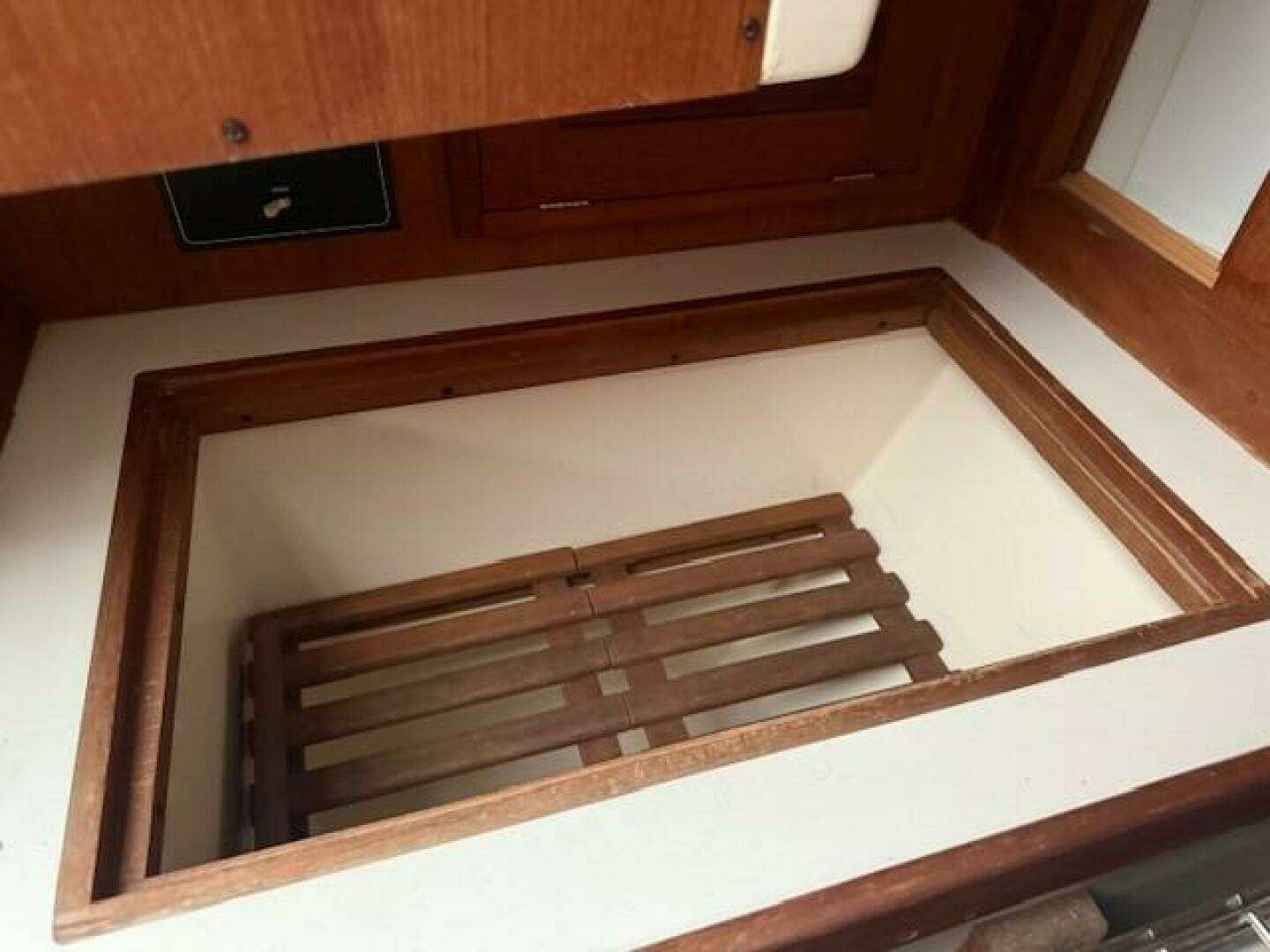

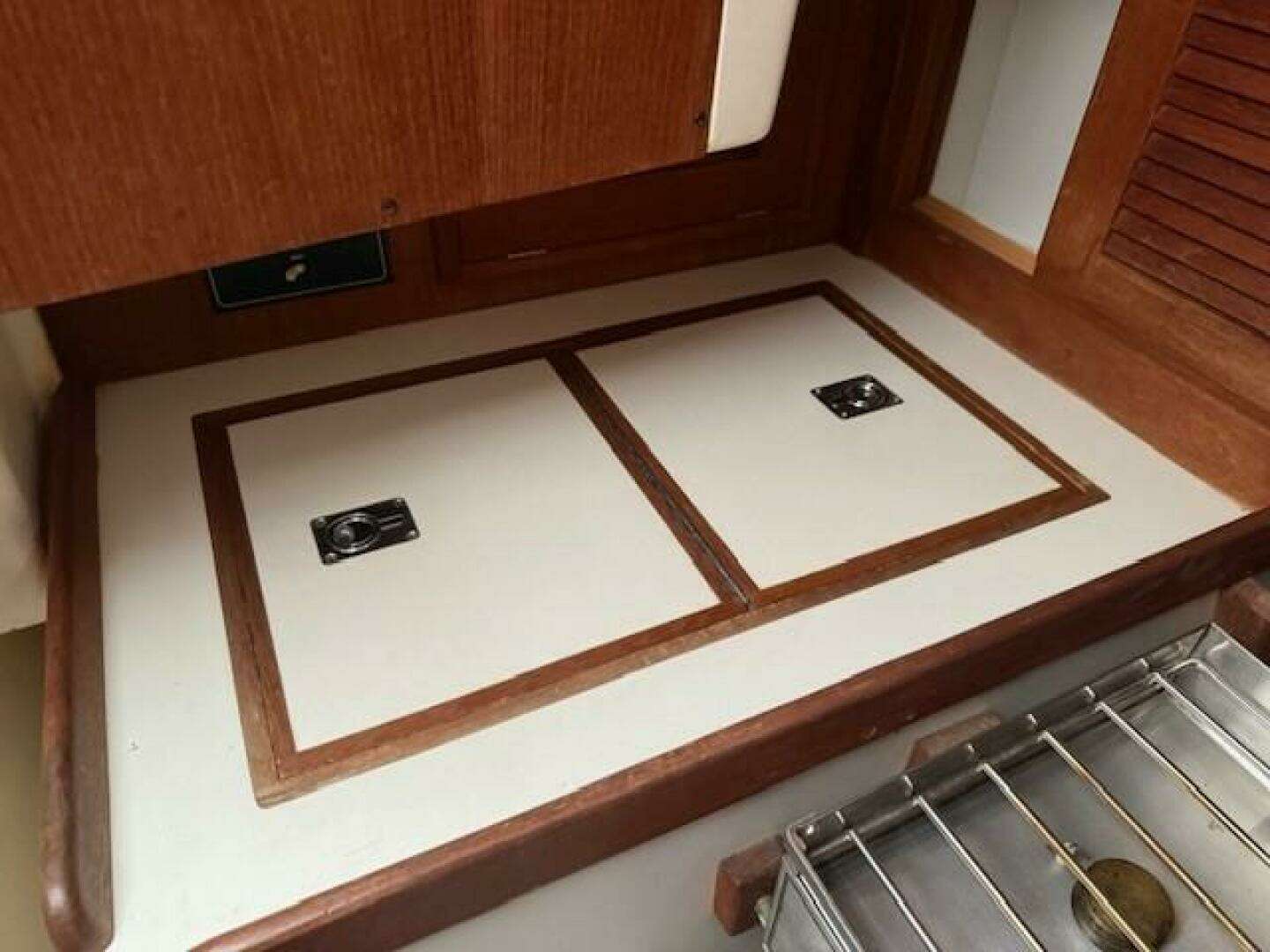

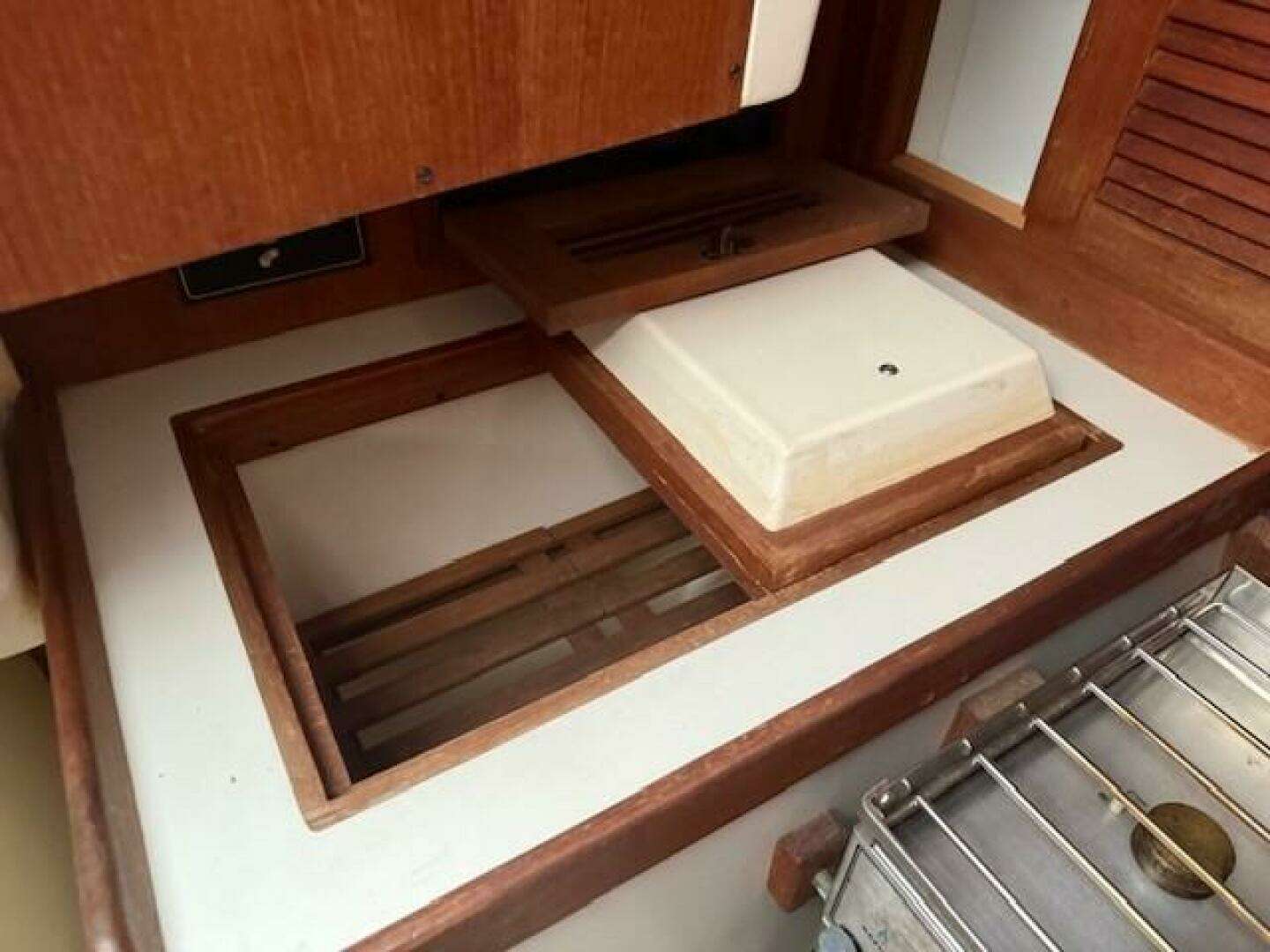

• Molded top load icebox, 4" foam insulated

• Built-in trash bin

• Hot and cold pressure water

• Extensive lockers, shelves and drawers. Teak louvered doors and teak hardwood

• 30 gallons Aluminum fresh water tank

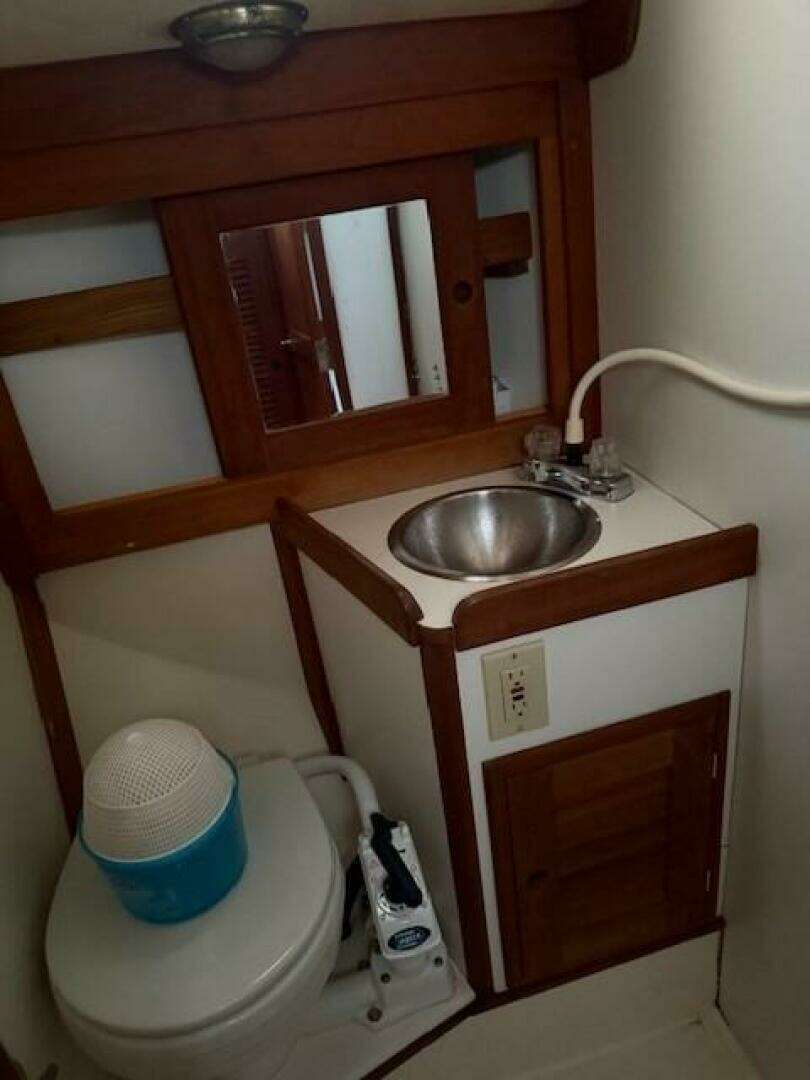

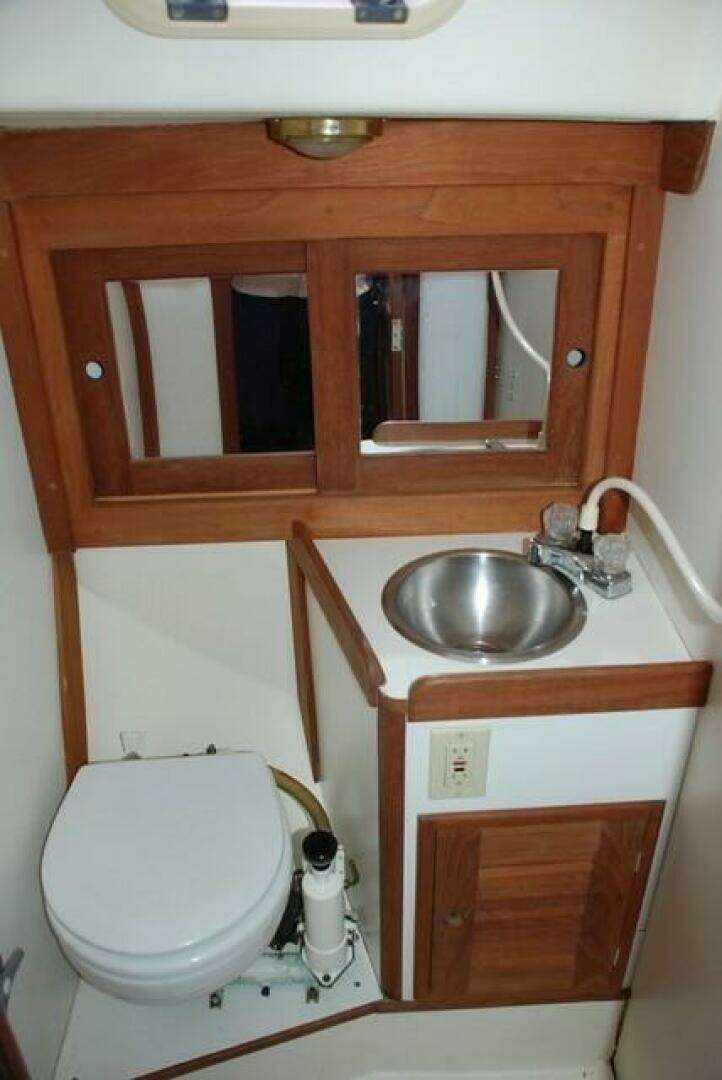

HEAD

• Marine head with 16 gallon holding tank with deck pumpout

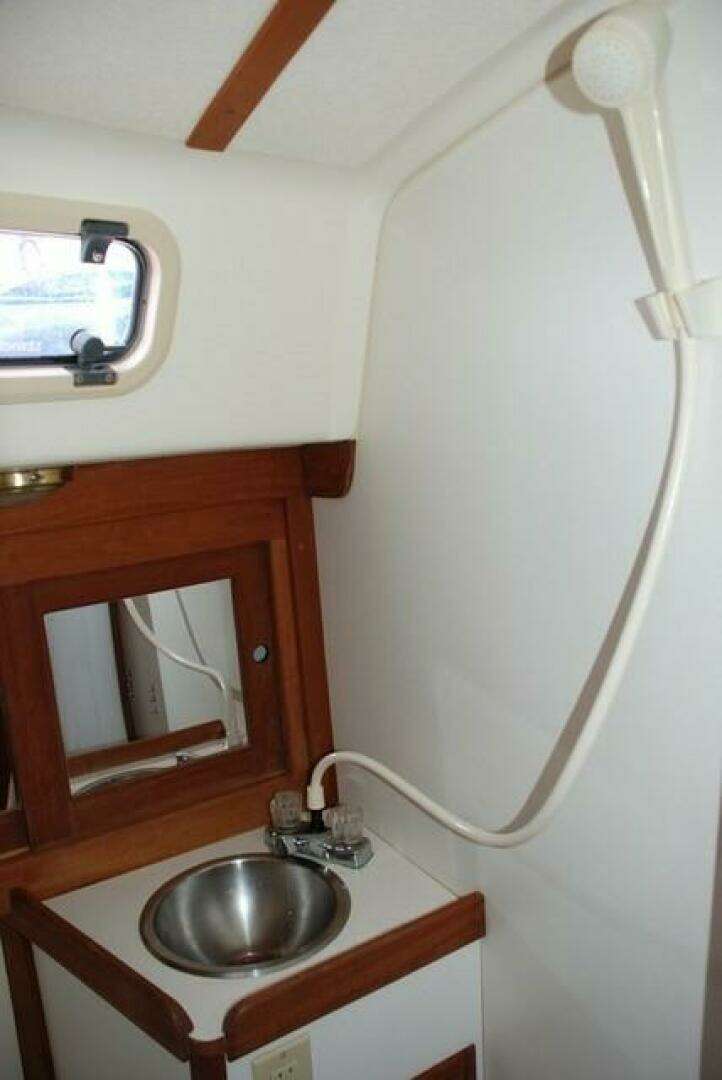

• Shower fixture in head with drain to sump

• SS Sink

VENTILATION

Forward Stateroom:

19" x 19" Lewmar Deck Hatch

(1) 4" x 1O" Lewmar Portlight

Head:

4" x 1 O" Lewmar Portlight

Main Cabin:

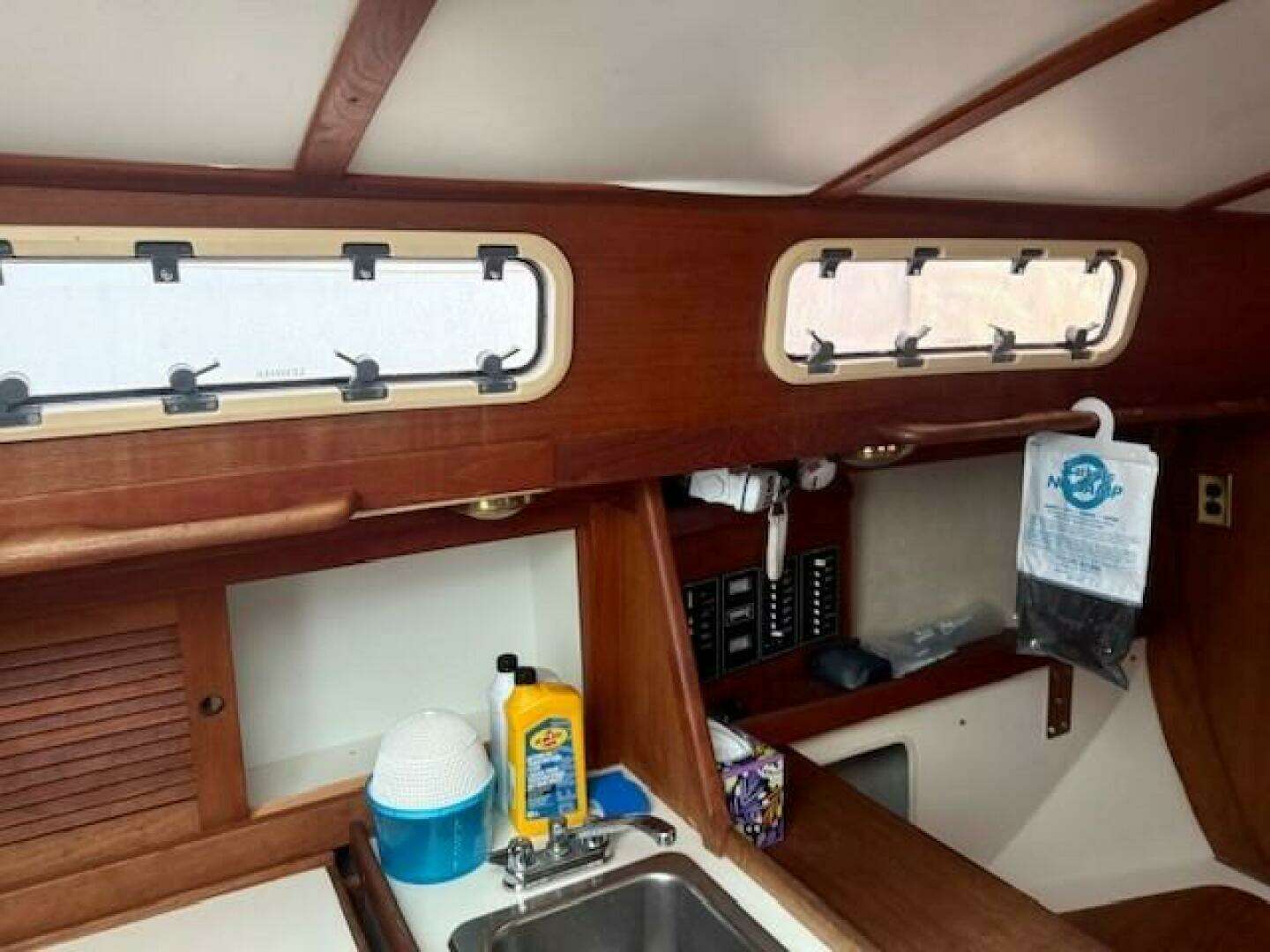

(4) 5" x 23" Lewmar Portlights

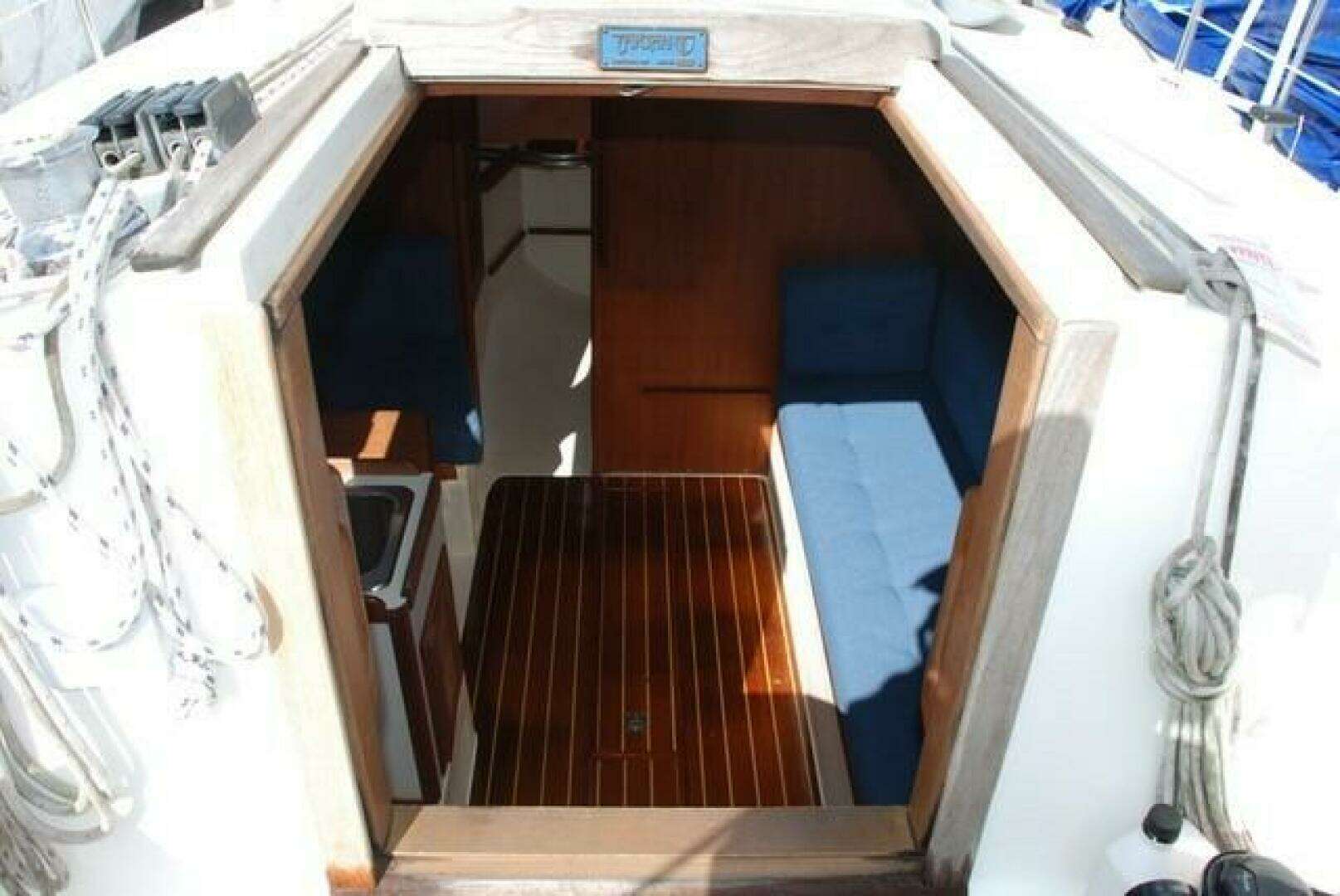

(2) Dorade Ventilators Companionway Hatch

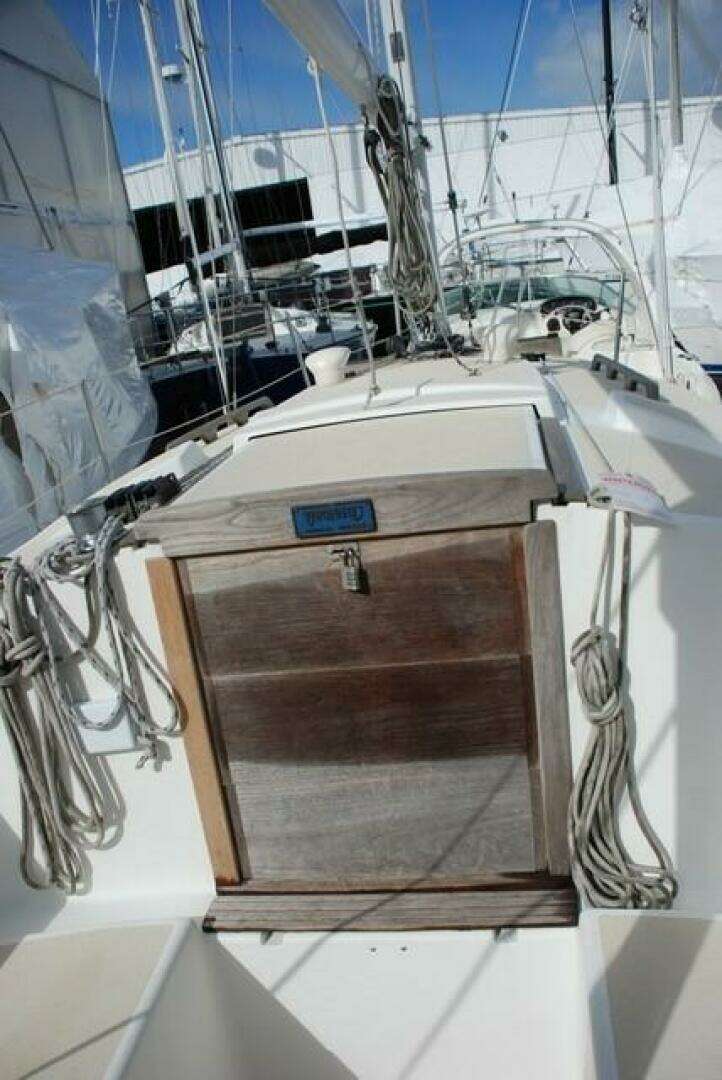

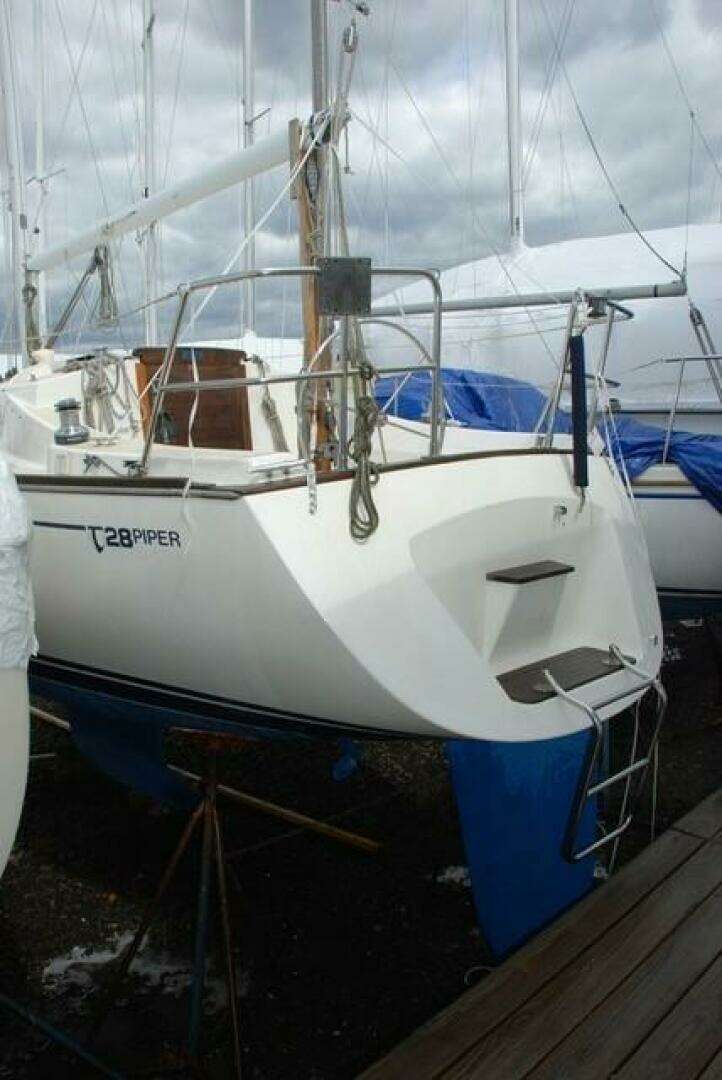

HULL AND DECK

HULL

• White, off-white or sand NGP/1SO gelcoated hull, hand laminated with alternating layers of strand

mat and uni-directional "E" glass. Partially balsa cored for stiffness. Gel-coat back-up layer is

laminated using vinylester anti-corrosive resin for blister resistance.

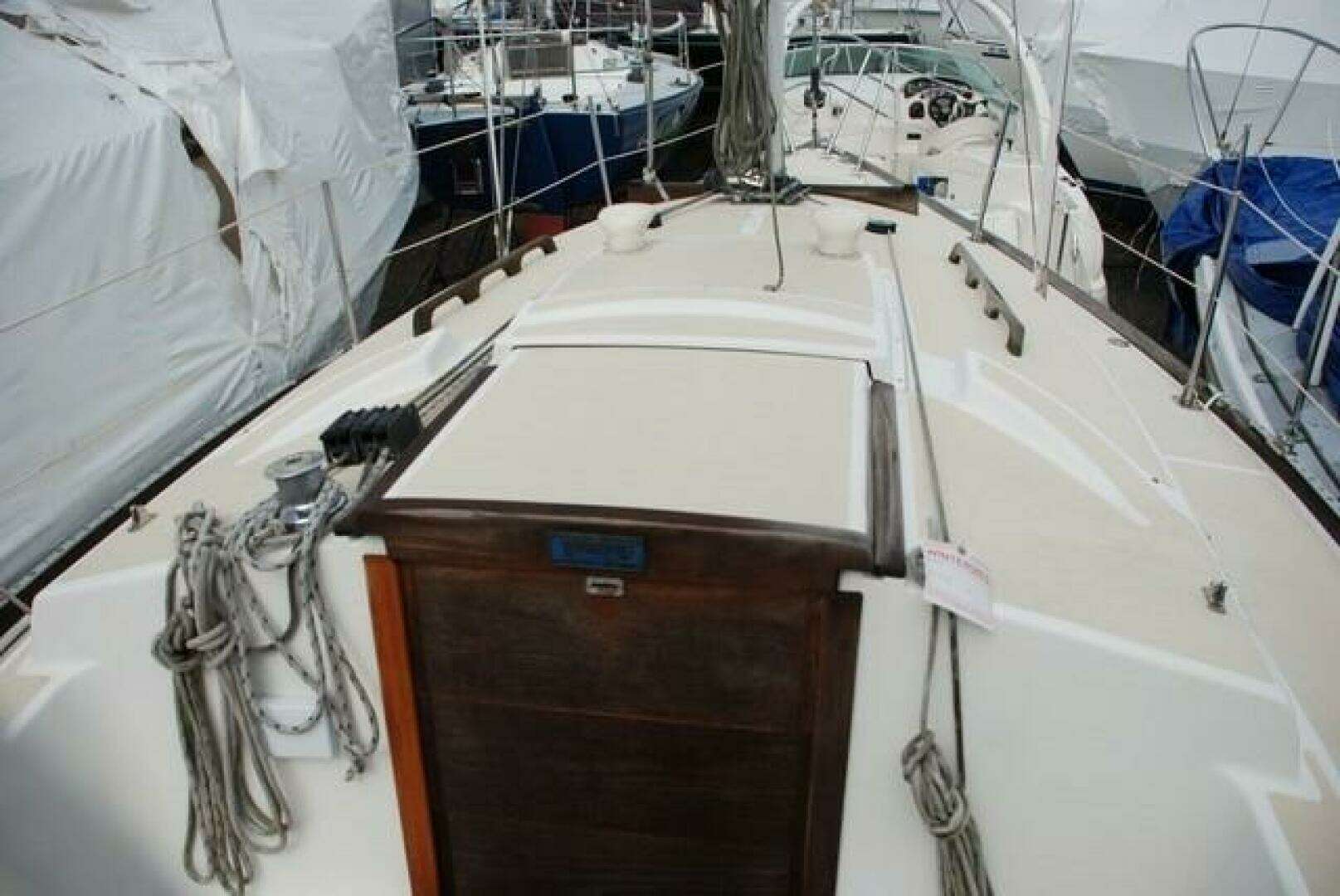

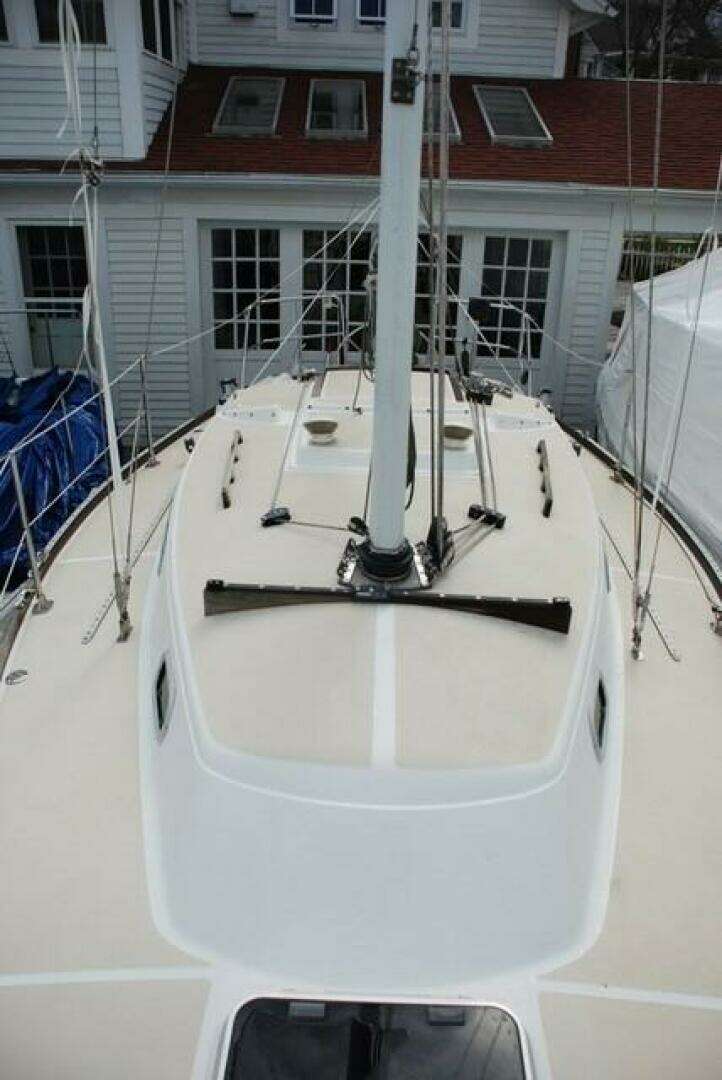

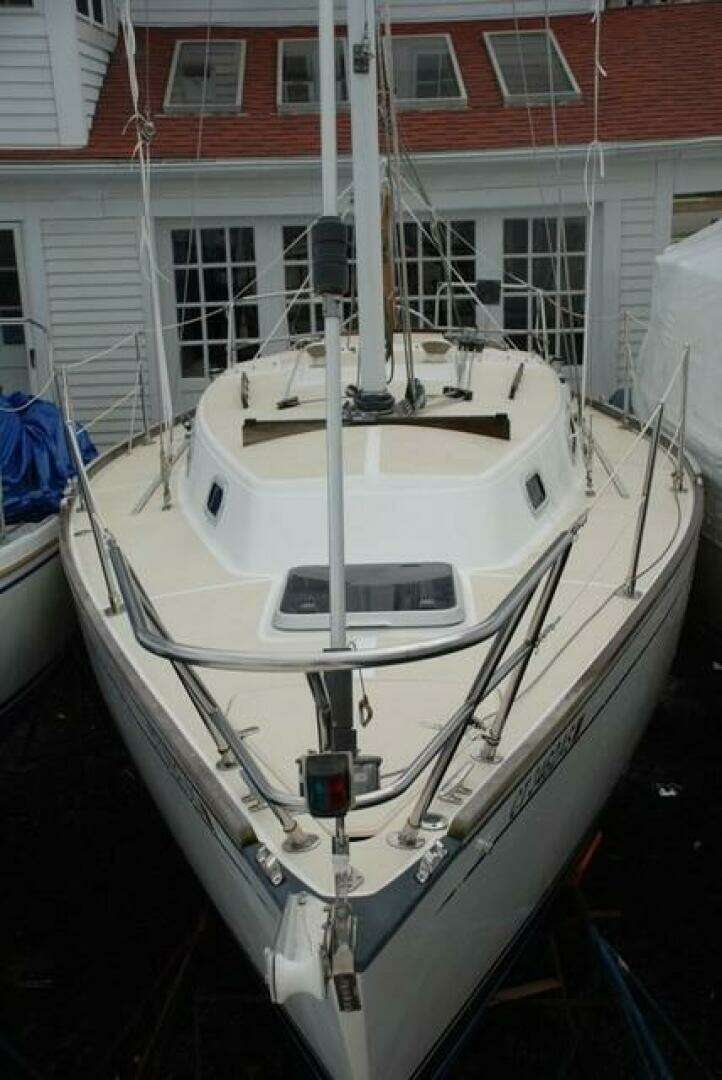

DECK

White, off-white or sand gelcoat with a patterned non-skid deck, consisting of a balsa cored unidirectional

"E" glass laminate. Hand laid with polyester resin. Solid glass laminate at deck

hardware installations.

KEEL/BALLAST

• 2300 lb. high lift lead beavertail bulb keel. Attatched to hull with stainless steel bolts.

RUDDER

• Elliptical foam cored rudder blade with unidirectional

FRP skins. 304 stainless steel rudder

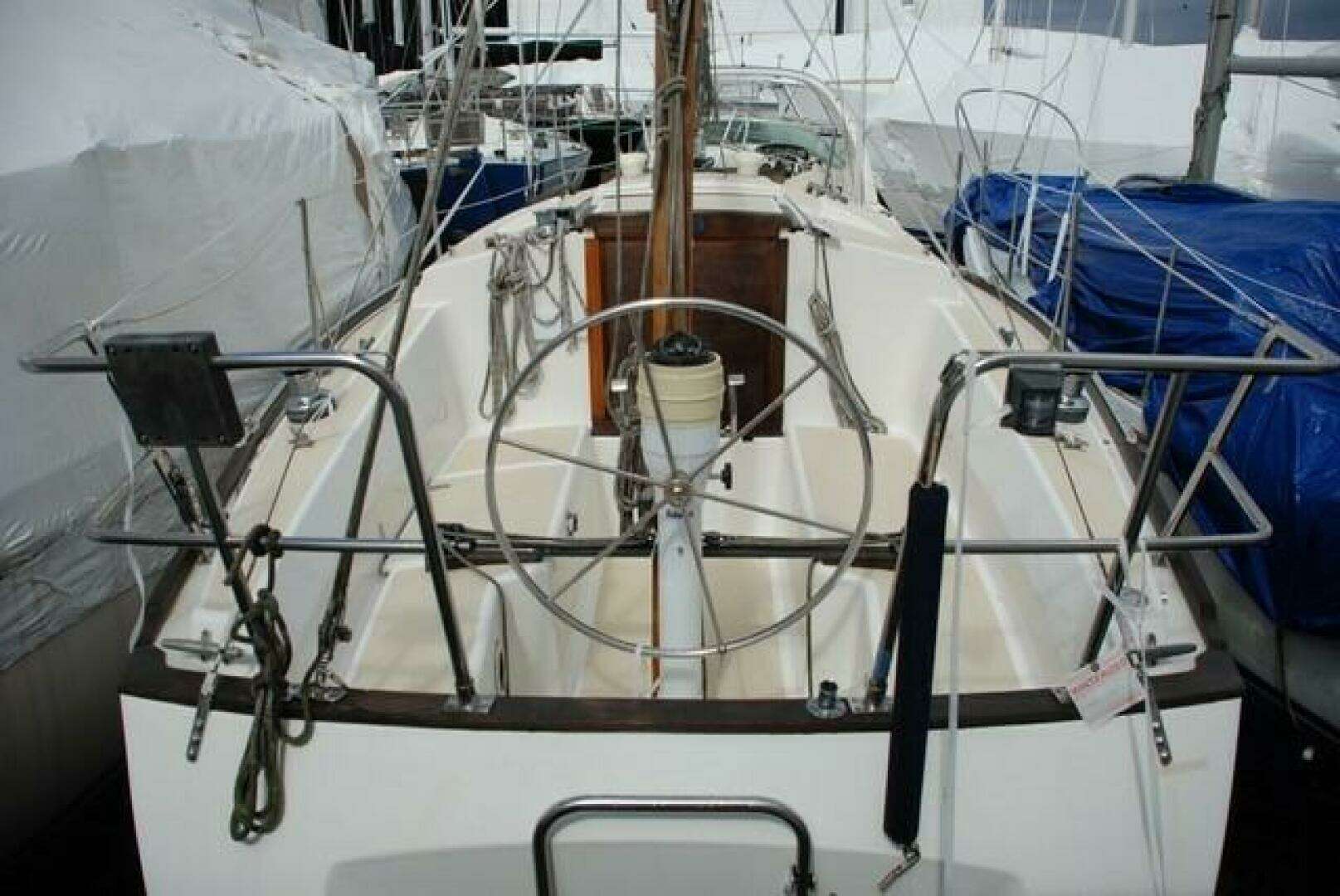

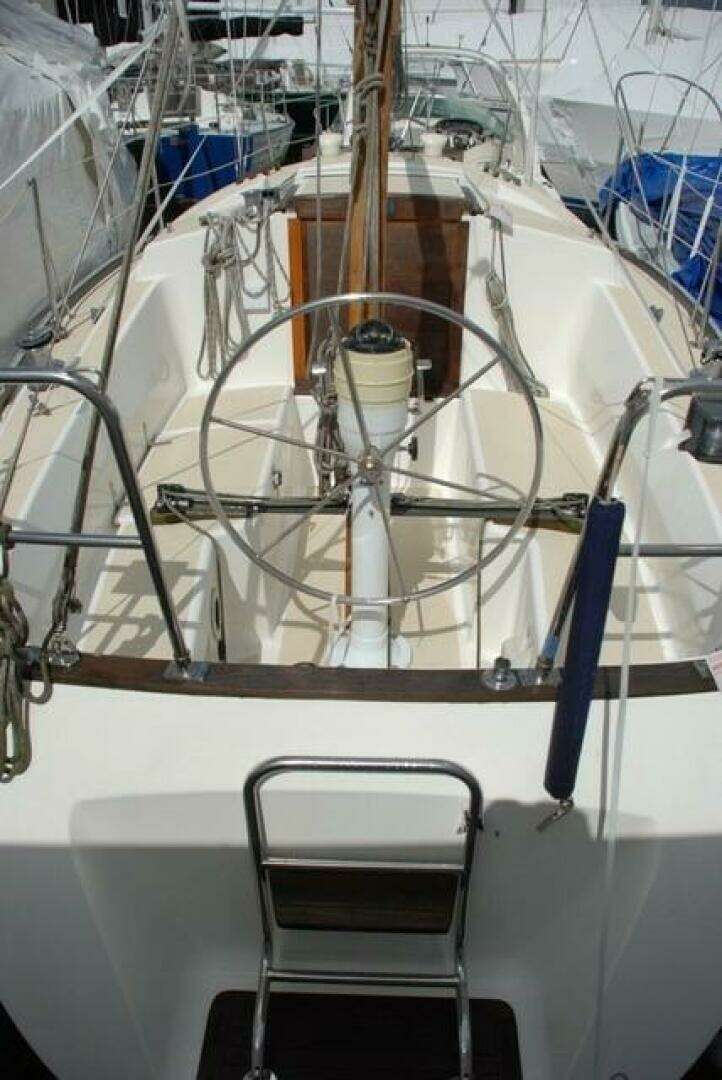

post. Pedestal steering with 32" s.s. wheel. Emergency tiller supplied.

DECK HARDWARE

Two (2) Harken #32 ST Primary Winches

Two (2) Lewmar #20 Cabin Top Halyard Winches

Double stainless steel bow and stern rails

Double lifelines

Boarding Gates Port & Starboard

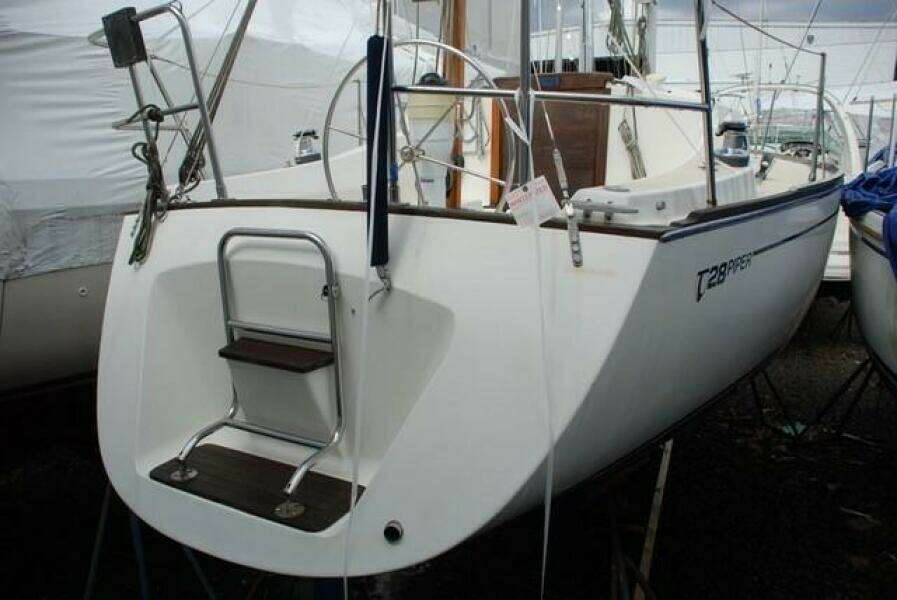

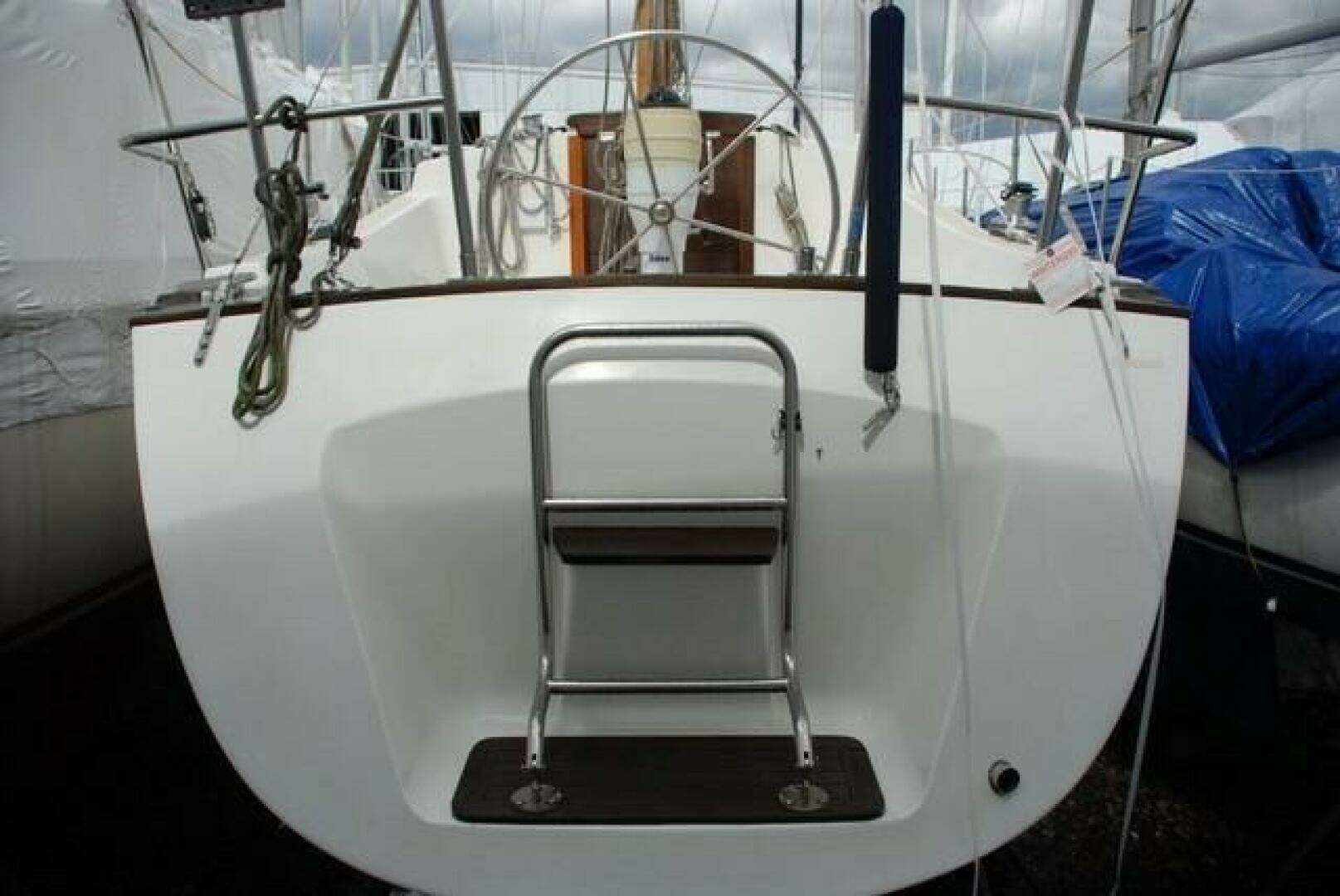

Swim ladder

Custom stainless steel stemplate with tack fitting

Molded foredeck anchor locker with overboard drain

Teak toerails

Bow Mooring Cleats with Chocks P&S

Mid-ship Cleats P&S

Stern Cleats P&S

FRP taffrail

Two (2) Lewmar winch handles

Three (3) Spinlock rope clutches for aft leads

Deck turning blocks for halyards and aft leads

Harken 4-part mainsheet system

Mainsheet traveler with tagline adjustment

Lewmar deck hatches and opening ports

Cast aluminum mast collar with stainless aft lead plates

Housetop teak handrails

Manual deck mount bilge pump

Ritchie compass

SPARS - RIGGING - SAILS

MAST

Mast, Boom and Rigging pulled and inspected 2023.

• Polyurethane finished single swept, tapered mast

• 1" x 19" stainless steel standing rigging with turnbuckles

• Bow light/foredeck illumination light

• Masthead light

• Mast wiring conduit

• Internal halyards

BOOM

• Aluminum boom

• Single line slab reefing - one line reefs both luff and leach

• Internal outhaul

• (3) sheave outboard end

• (3) sheave inboard endcap

• 2-part boom topping lift

RUNNING RIGGING

• (1) wire/rope genoa halyard

• (1) low stretch main halyard

• (2) Dacron self tack jib sheet

• (1) Dacron mainsheet

• (2) traveler taglines

• (1) reef line

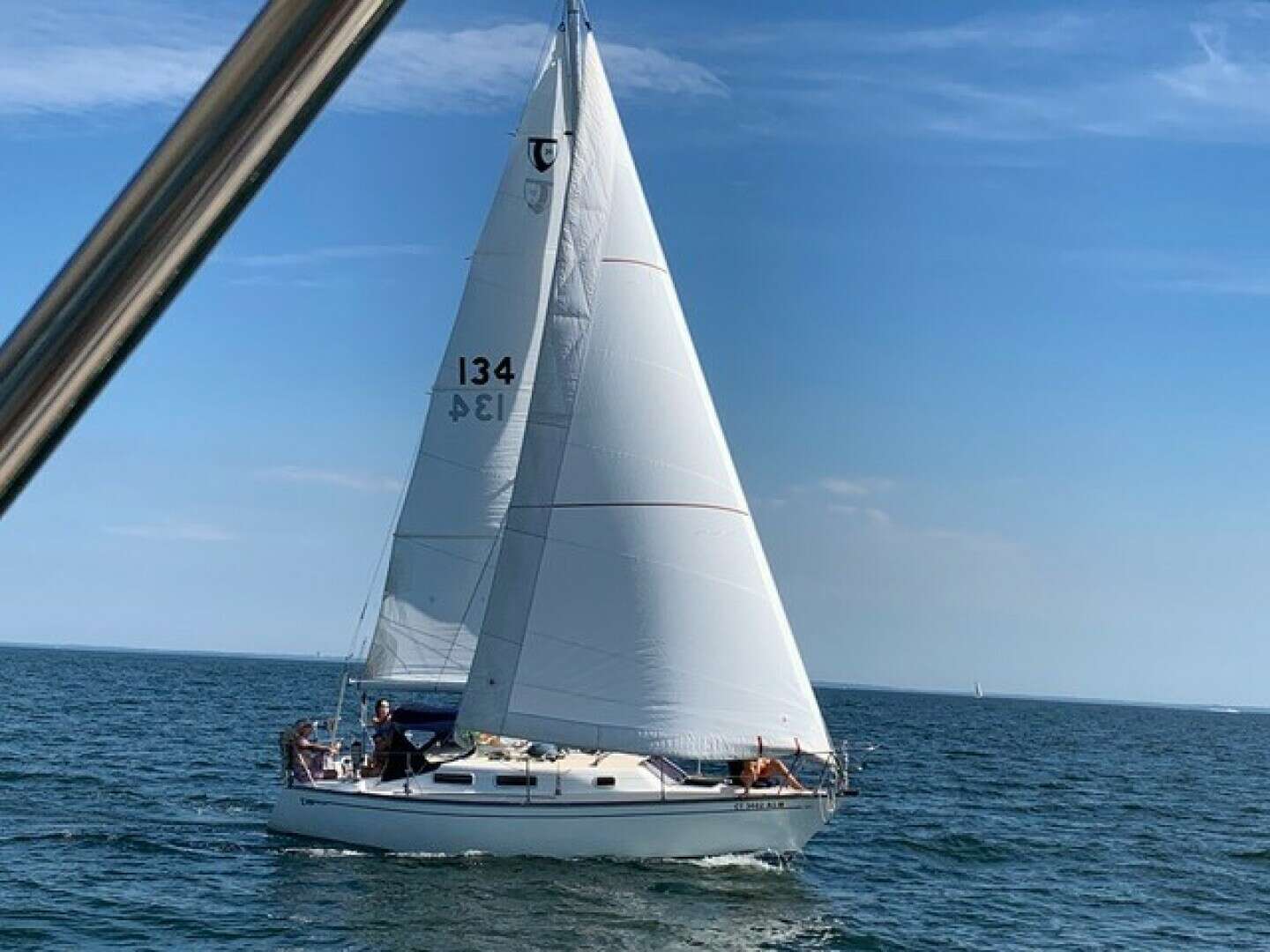

SAILS:

North Fully Battened Main Sail

Bacon Furling Genoa

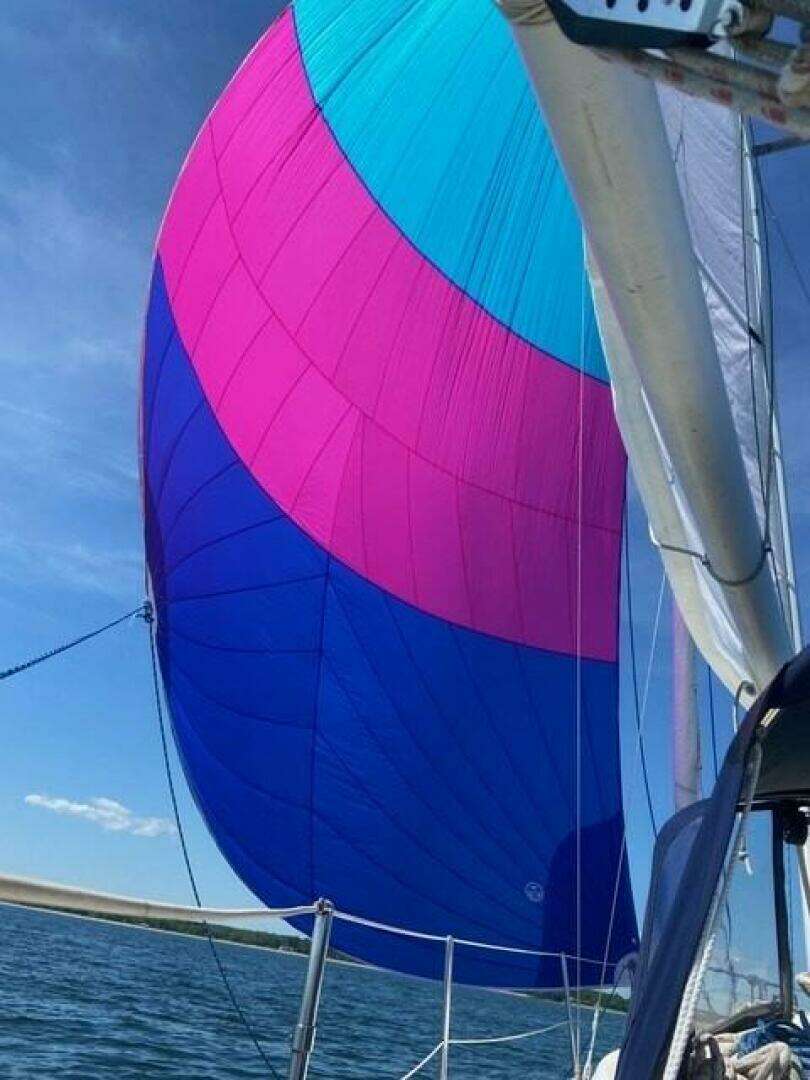

Asymmetrical Spinnaker (Lightly used)

MEASUREMENTS:

I - 36' J - 11'6" P - 31' E -11'6'

TOATAL SAIL AREA: 385.25 FT2

ENGINE AND ELECTRICAL

ENGINE/ELECTRICAL

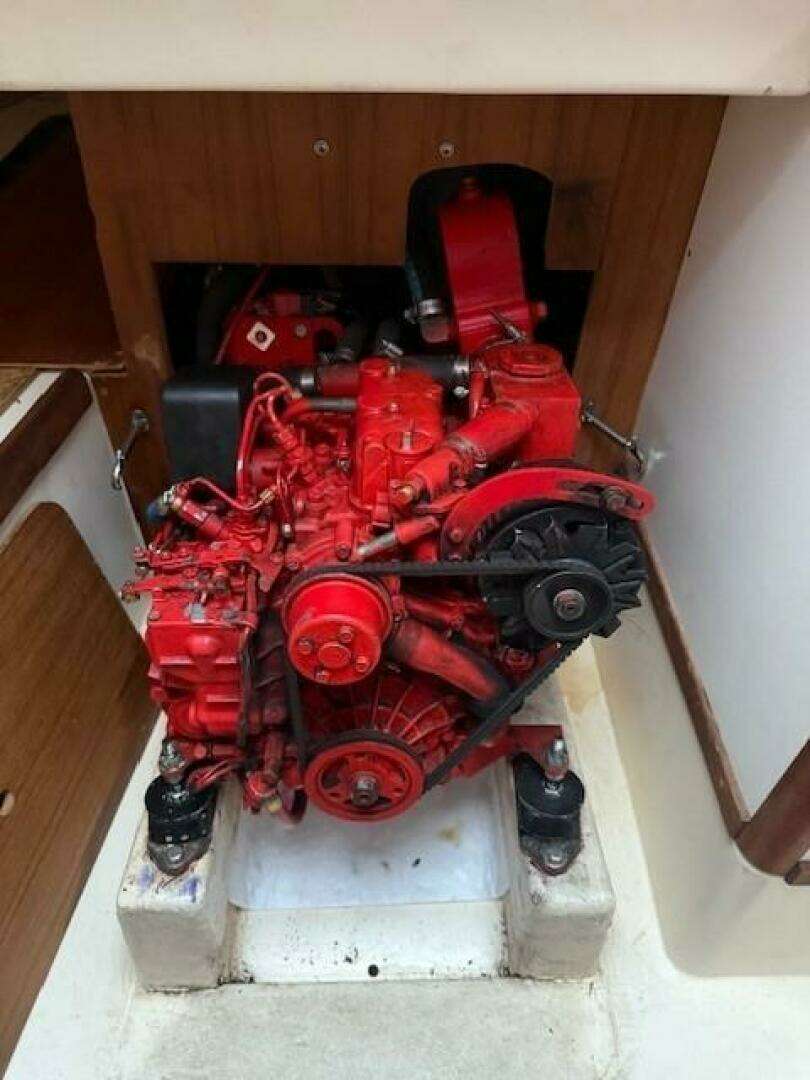

• 18 HP Westerbeke diesel with pedestal mount controls and instrument panel

• 16 gallon fuel capacity (approximately) with Racor fuel filter

• 14" fixed propeller on bronze shaft

• (1) 105 amp hour batteries with battery selector switch

• Interior cabin dome lights and berth directional lights

• Courtesy night lighting

• Navigation lights

• Electric bilge/auto-sump pump

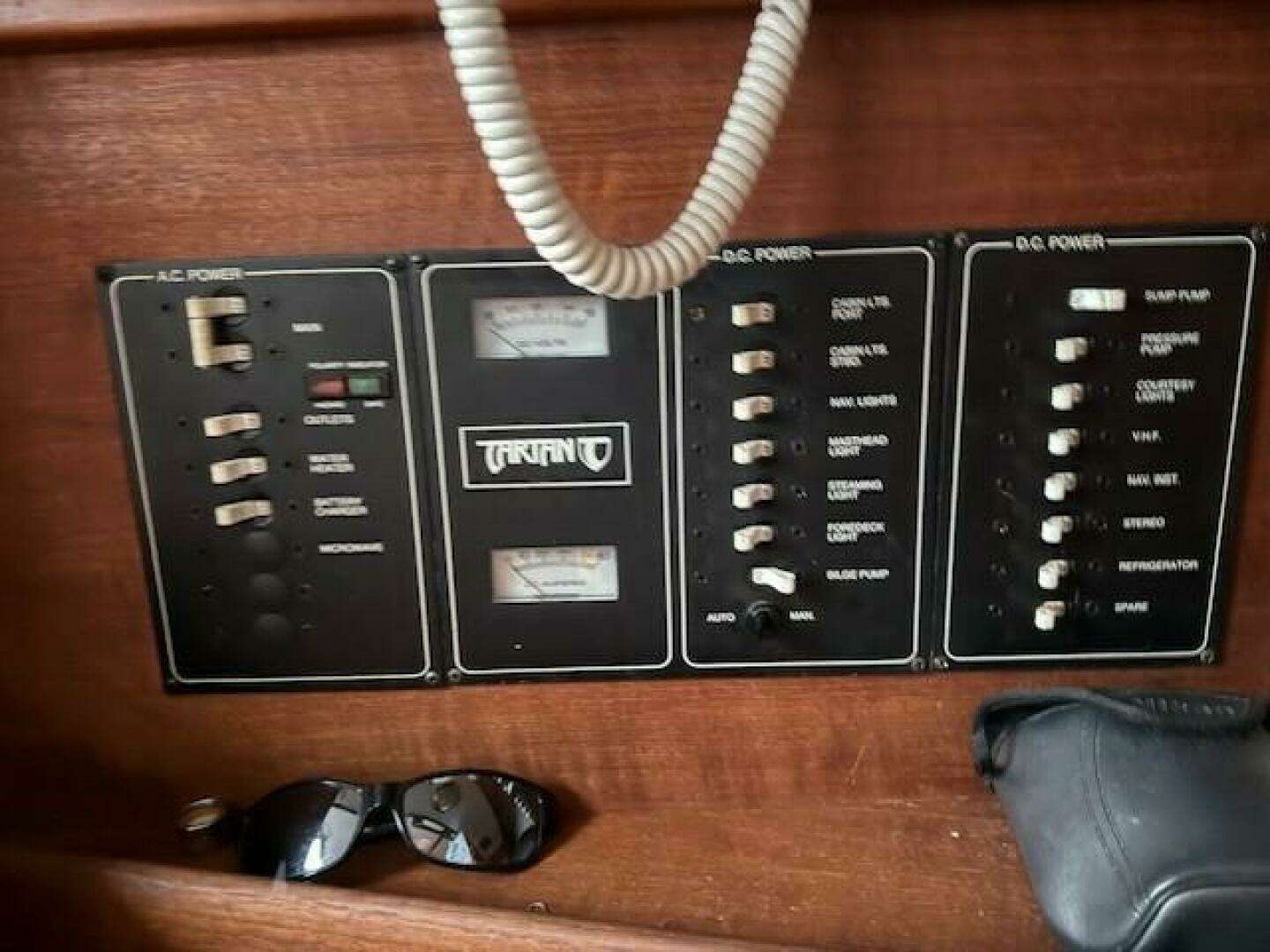

• 12V DC metered panel

• 110V AC shore power with distribution panel

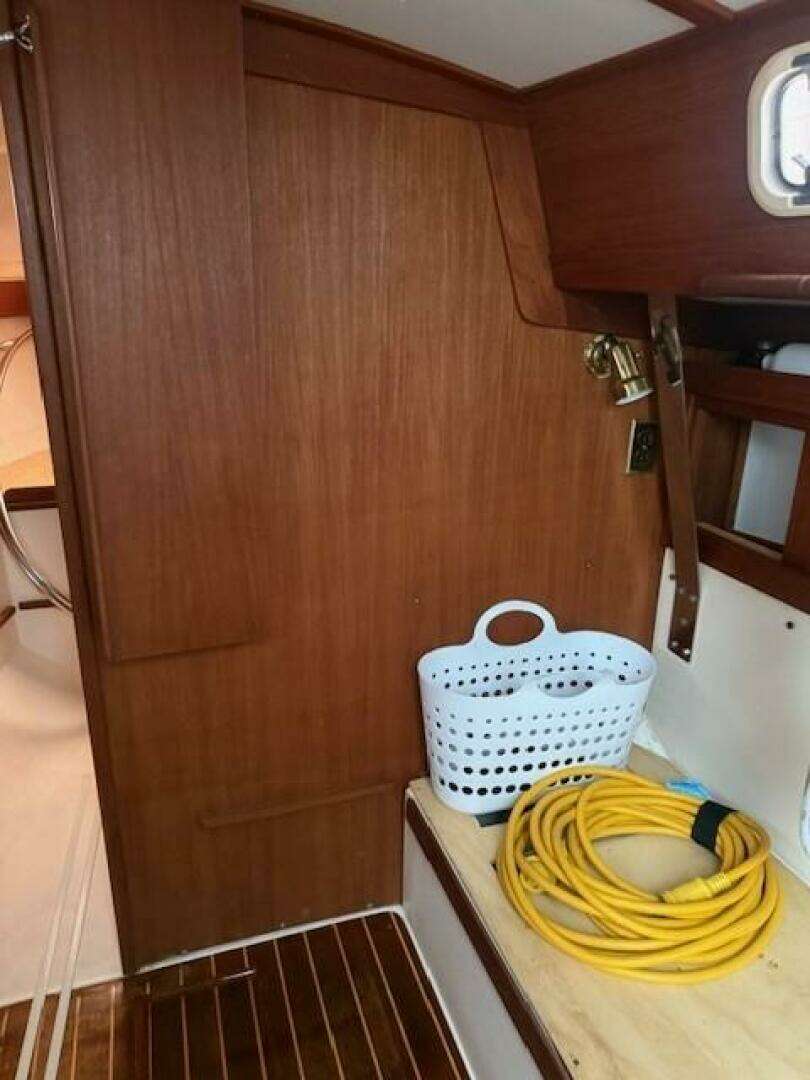

• 30' shore power cord

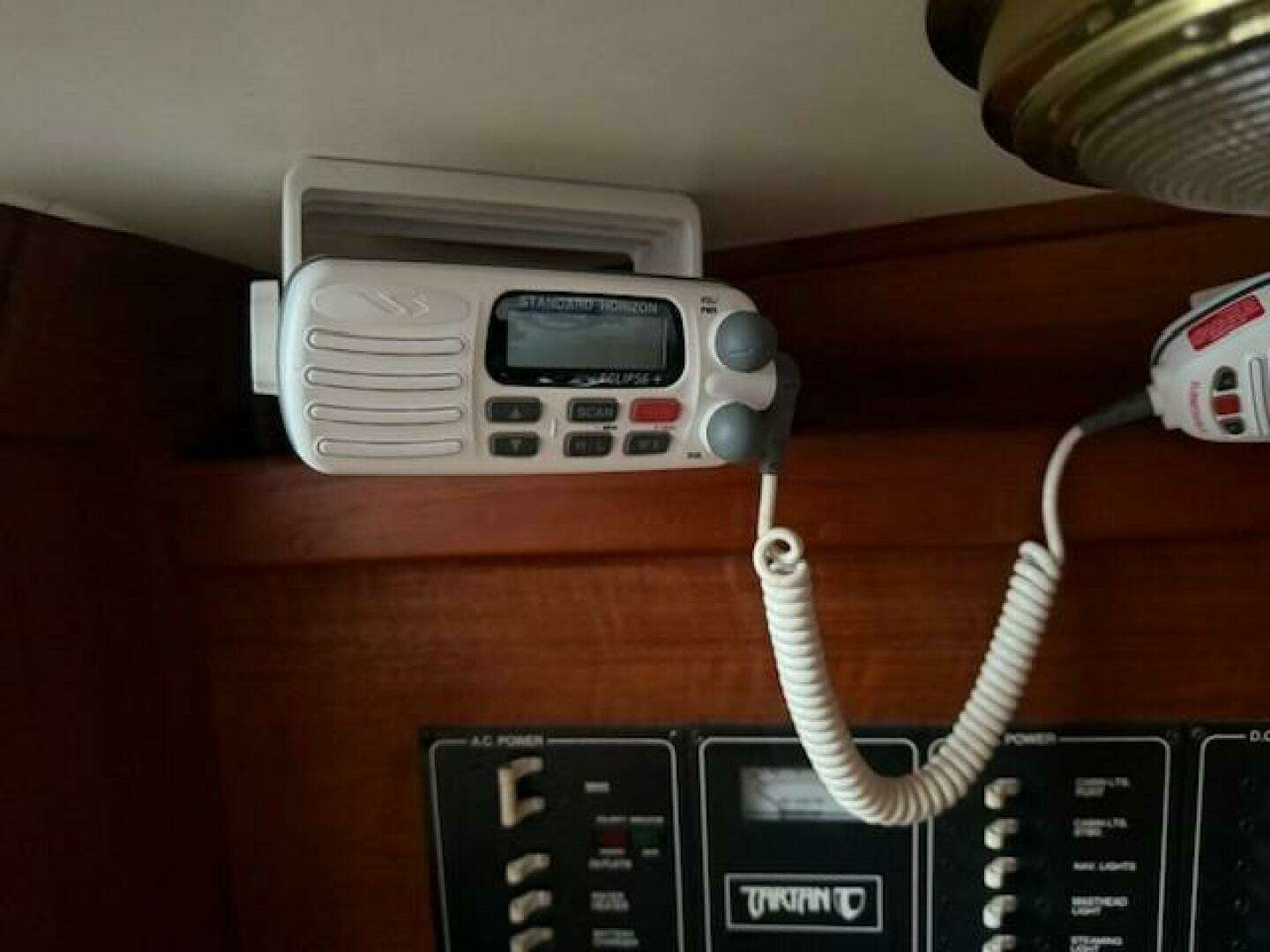

Standard Horizon VHF

Autohelm Speed & Depth

Ritchie Binnacle mounted Compass

ADDITIONAL EQUIPMENT

• Four (4) Life Jackets
• Four ($) Fenders
• Four (4) Dock lines
• Fire Extinguisher
• Air Horn
