Specs

• LOA: 23' 5"
• LOA w/ Bracket & Engines: 27' 6"
• Beam: 8' 6"
• Height in Head: 71"
• Bridge Height*: 110"
• Height from Keel*: 131"
• Dry Weight w/ Engines: 7,120 lbs
• Fuel Capacity: 149 gal
• Deadrise: 24 Degrees
• Draft: 21" Engines Up
• Draft: 33" Engines Down
• Forward Seat Fishbox/Dry Storage (2): 240 qts ea
• In-Deck Fishbox/Locking Rod Storage: 350 qts
• Console Cooler Seat: 69 qts
• Optional Head w/Holding Tank: 9 gal
• Freshwater Tank: 20 gal
• Transom Fishbox/Livewell: 46 gal

Standard Equipment

POWER OPTIONS

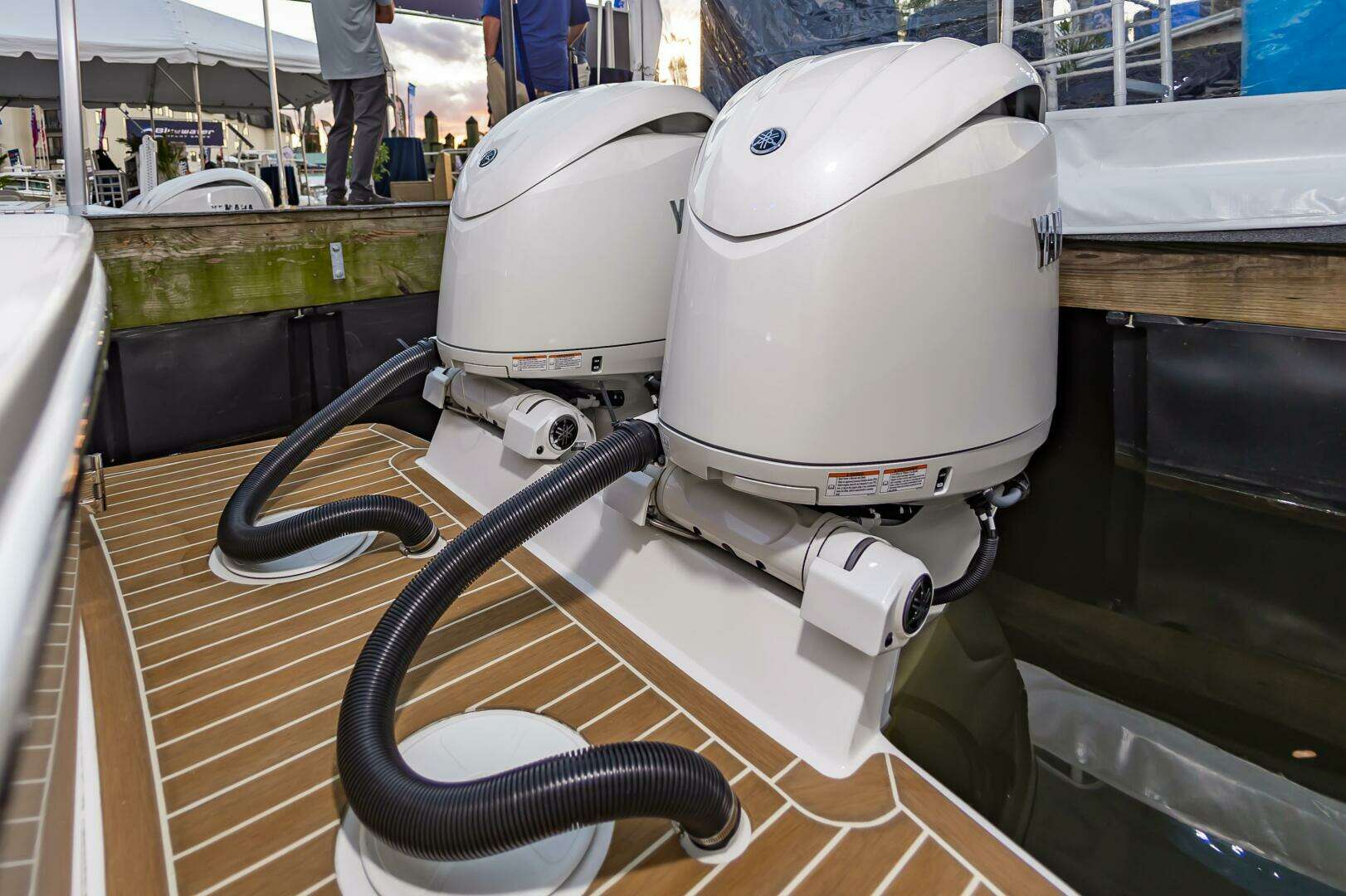

• Twin White Yamaha F150 4-Stroke Engines with DEC, Integrated Electro-Hydraulic Steering with Tilt Helm, and Electronic Key Switch with Wireless Key Fob

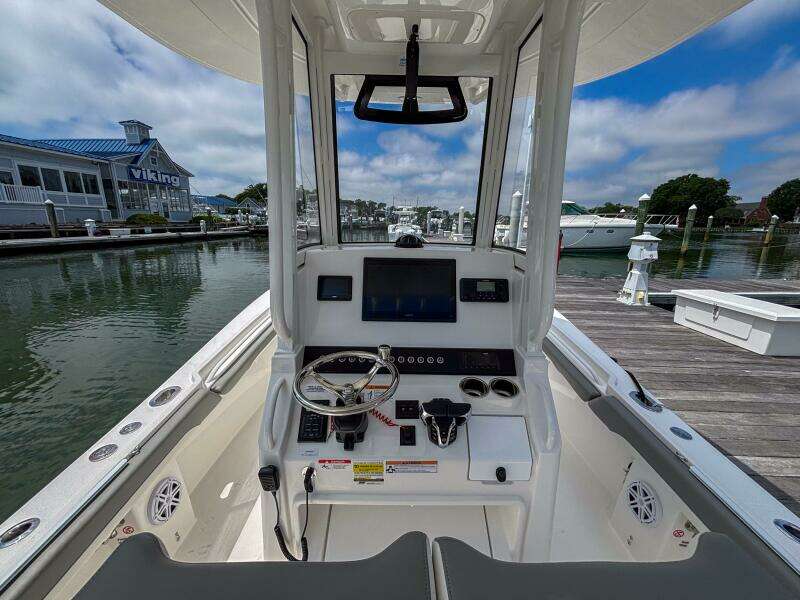

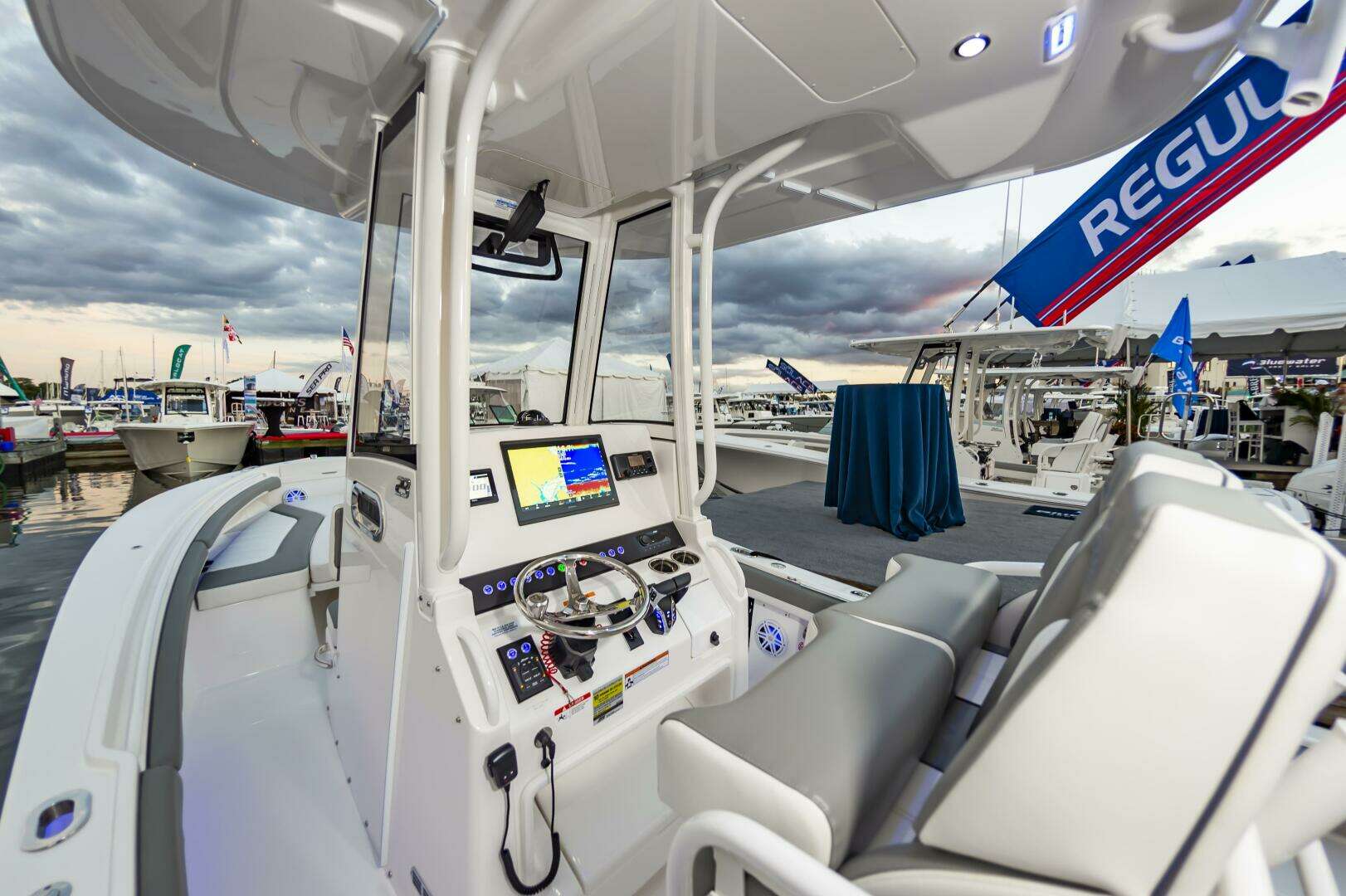

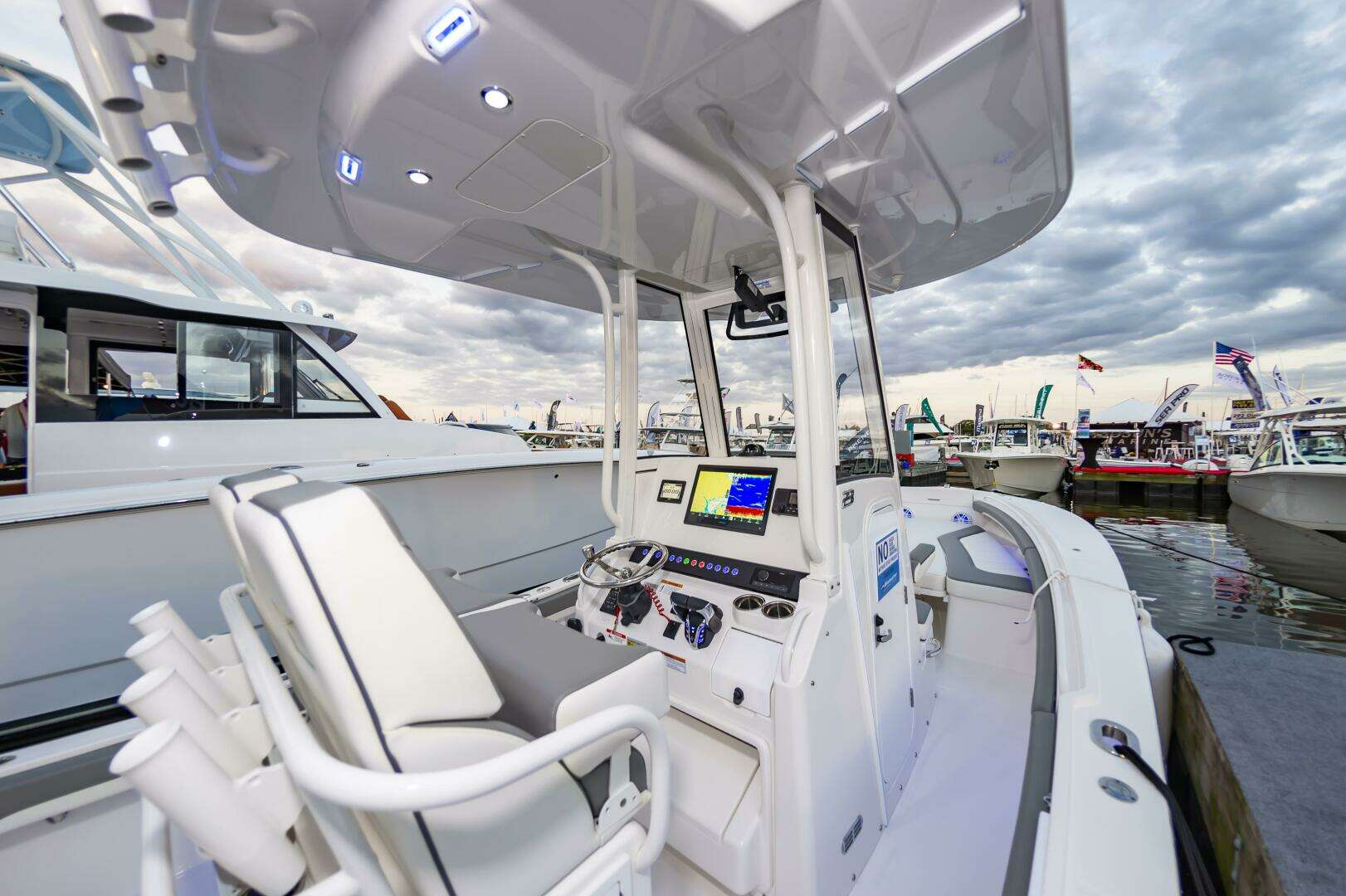

T-TOP, HELM & ELECTRONICS

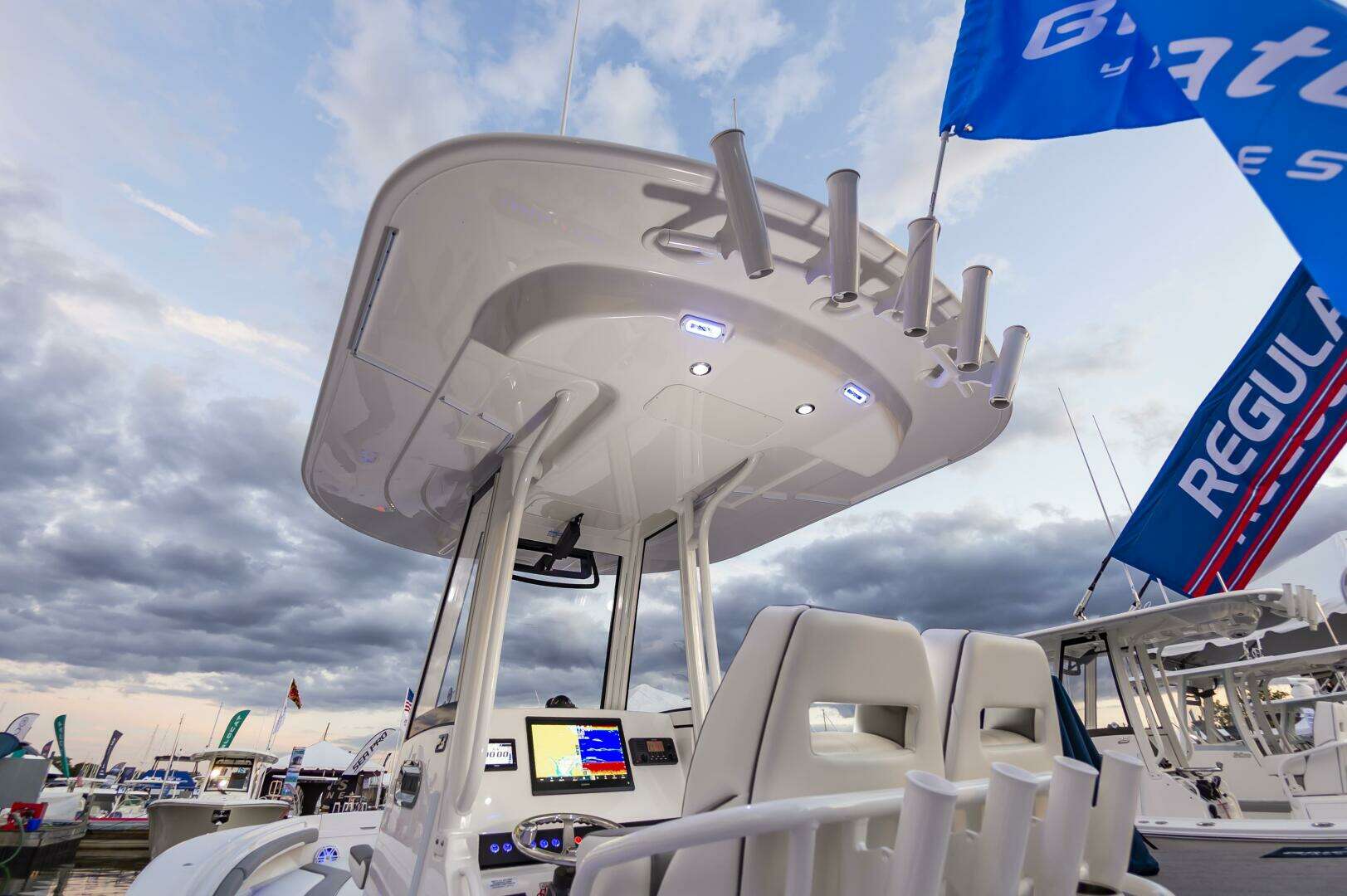

• Fiberglass T-Top with Surfboard Edges, Spreader Lights, and Multi-Colored LED Lights–Complete with Integrated, Vented, Wraparound Windshield and Windshield Wiper/Washer
• White Powder Coat Package

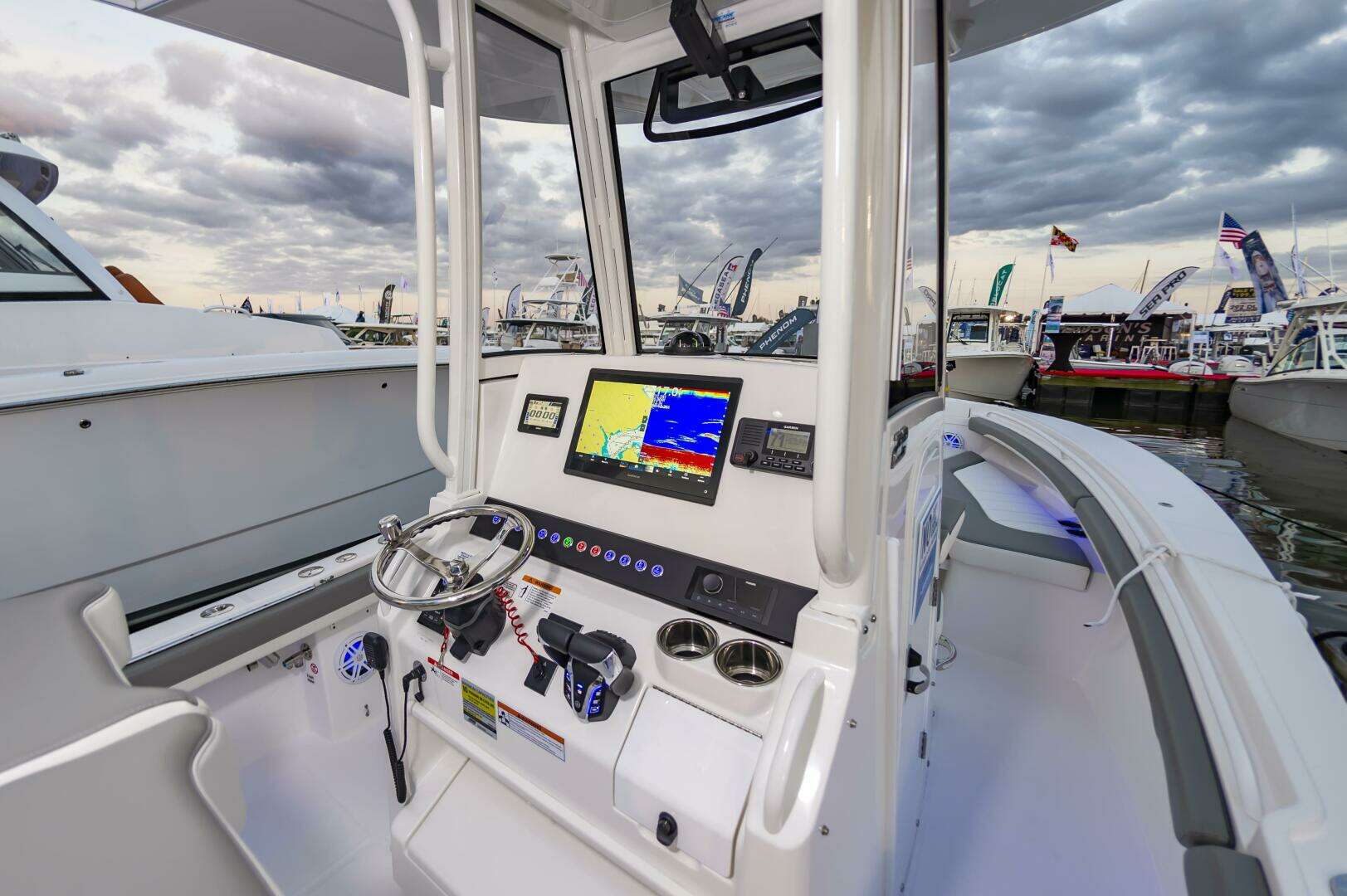

• Factory-Installed Garmin® 16 Fish Package: One 16” GPSMAP® 1643XSV Multi-Touch Widescreen Chartplotter/Sonar Display, VHF 215 Radio with Dual 8’ Antennas, Garmin® GT12M-THF CHIRPTransducer, and Remote Mic
• Yamaha Multifunction Digital Electronic Controls (DEC), Integrated Electro-Hydraulic Steering, ElectronicKey Switches (EKS) with Wireless Fob, and CL5™ Multifunction Touchscreen Display
• Ritchie® SuperSport Compass
• Fusion® Apollo 670 Marine Stereo with AM/FM/WB, SiriusXM® Ready, Wi-Fi Audio Streaming, AppleAirPlay 2, Bluetooth®, Integrated DSP, and (4) Backlit Speakers throughout Deck and Cockpit
• EZ-View Flushmount Electronic Mounting Face with Access in Head Compartment
• Illuminated Glove Box with Fiberglass Lid
• Switch Panel with LED Push Button Switches
• USB Charging Ports

CONSOLE INTERIOR

• Dual Battery System with Switches and Marine Batteries
• Vented Port Light with Console

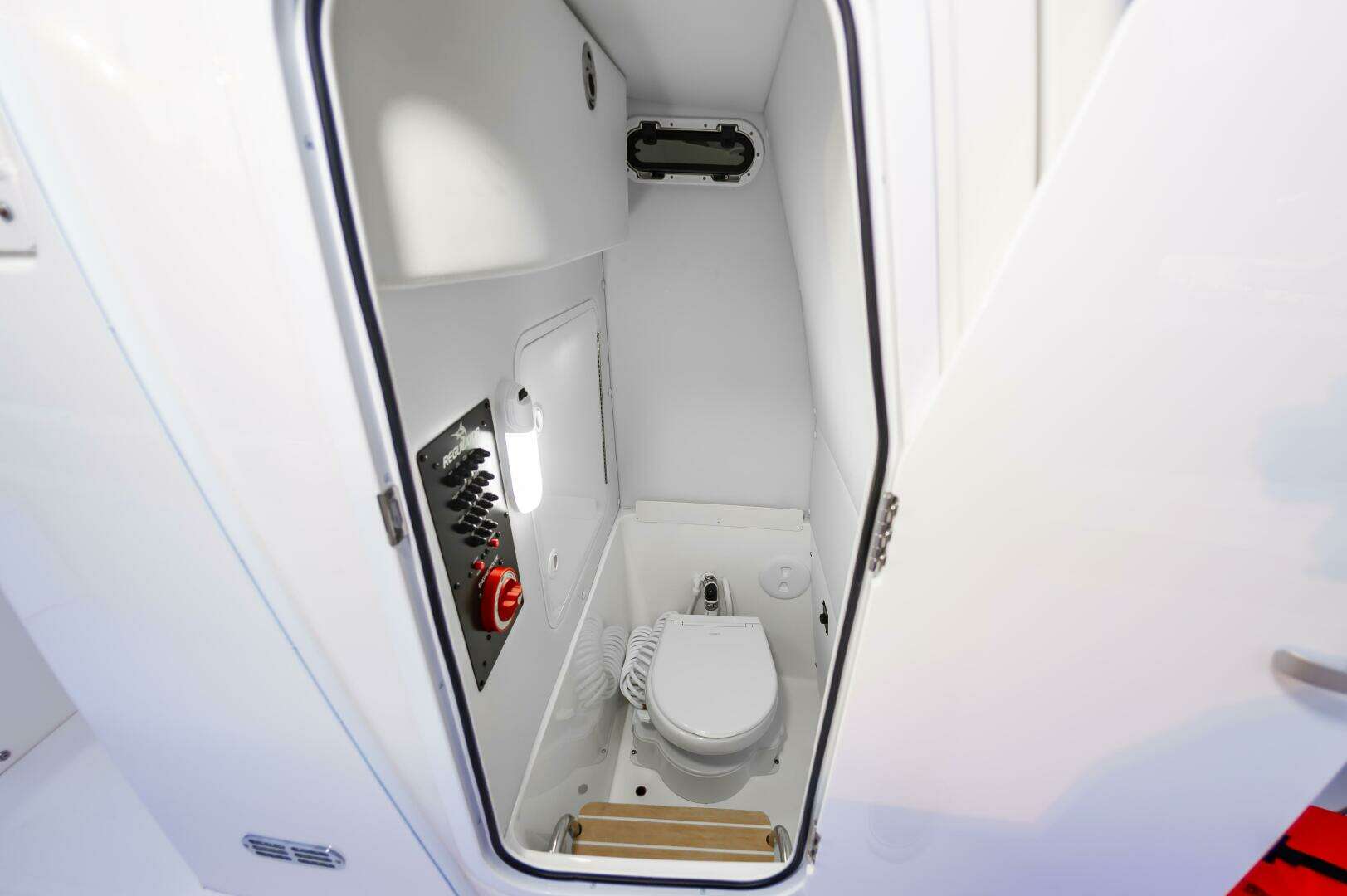

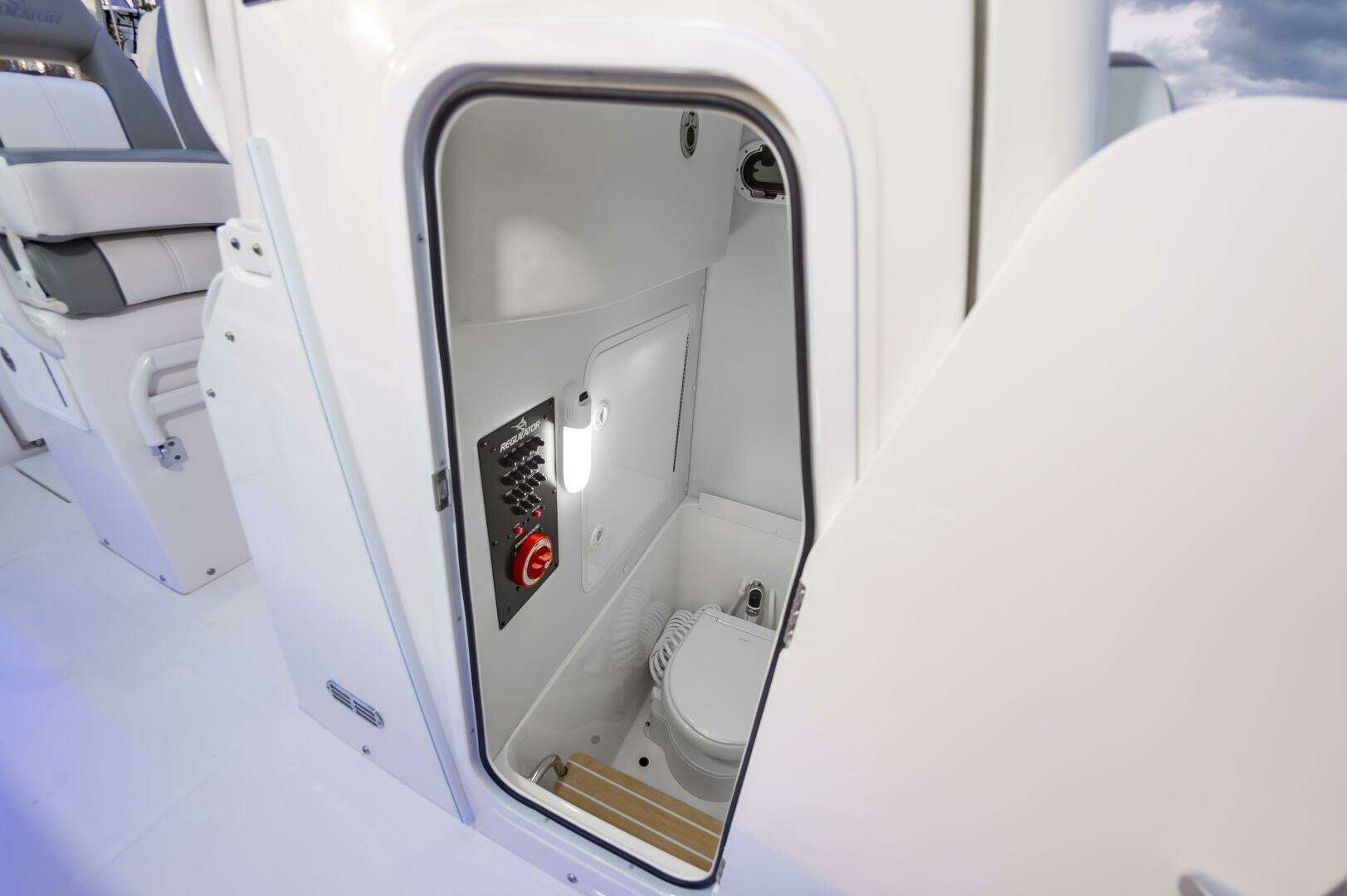

• Stand-Up Head Compartment with Portable Marine Toilet

DECK & COCKPIT

• 360° Coaming Pads
• Stainless Steel 12x16 Trim Tabs with Indicator Switch
• Pull-Up Bow Cleats
• Stainless Steel Hardware Through-Bolted with Elastic Stop Nuts
• Stop Nuts
• Stainless Steel Through-Hull Fittings
• Forward Deck Anchor Lock
• Molded Non-Skid Horizontal Surfaces
• Engine Bracket with Ladder
• Stainless Steel Scuppers

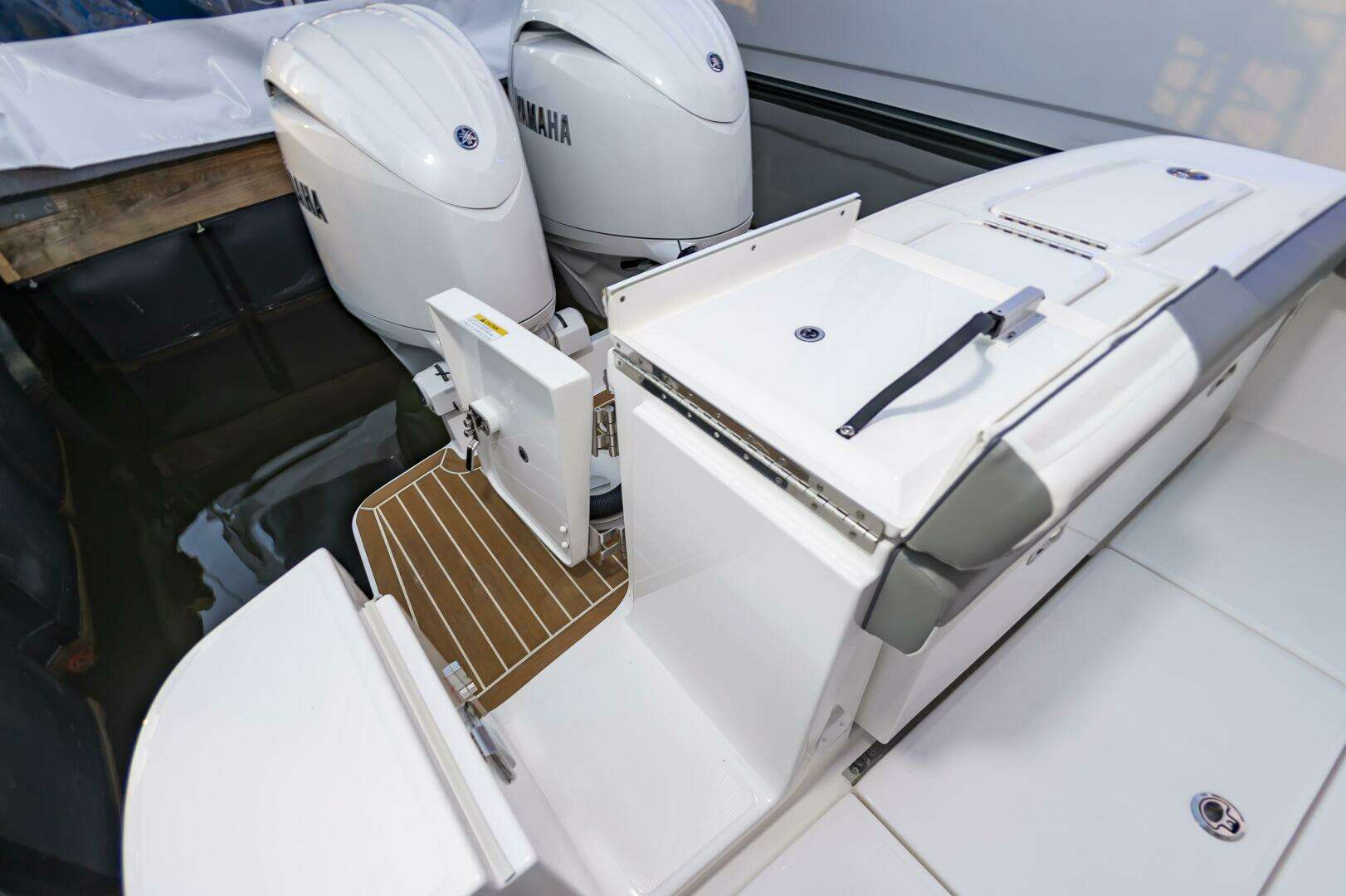

• Transom Walkthrough Tuna Door
• USB Charging Ports (FS Area)
• Four (4) JL Audio® Backlit Speakers

SEATING

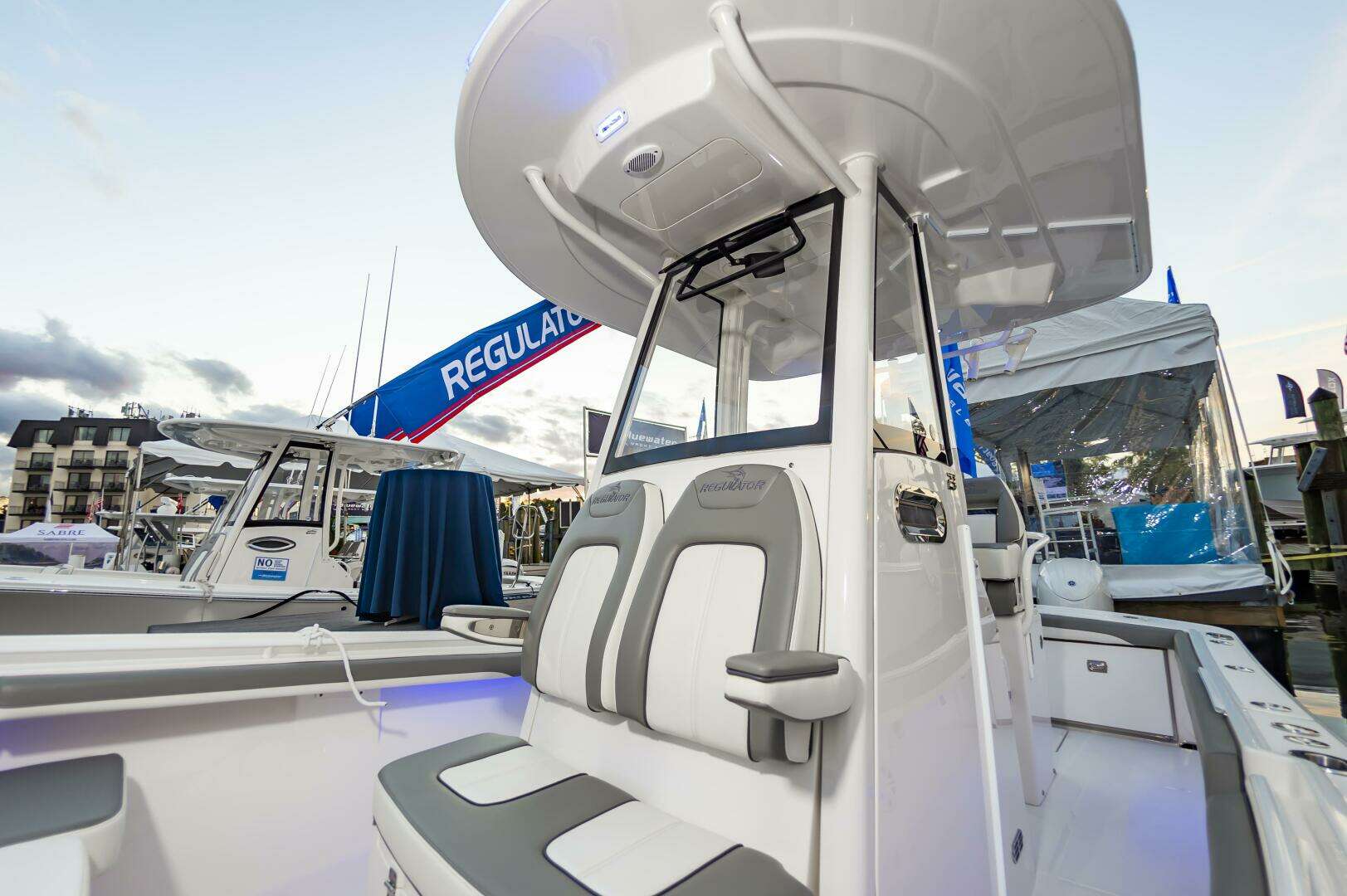

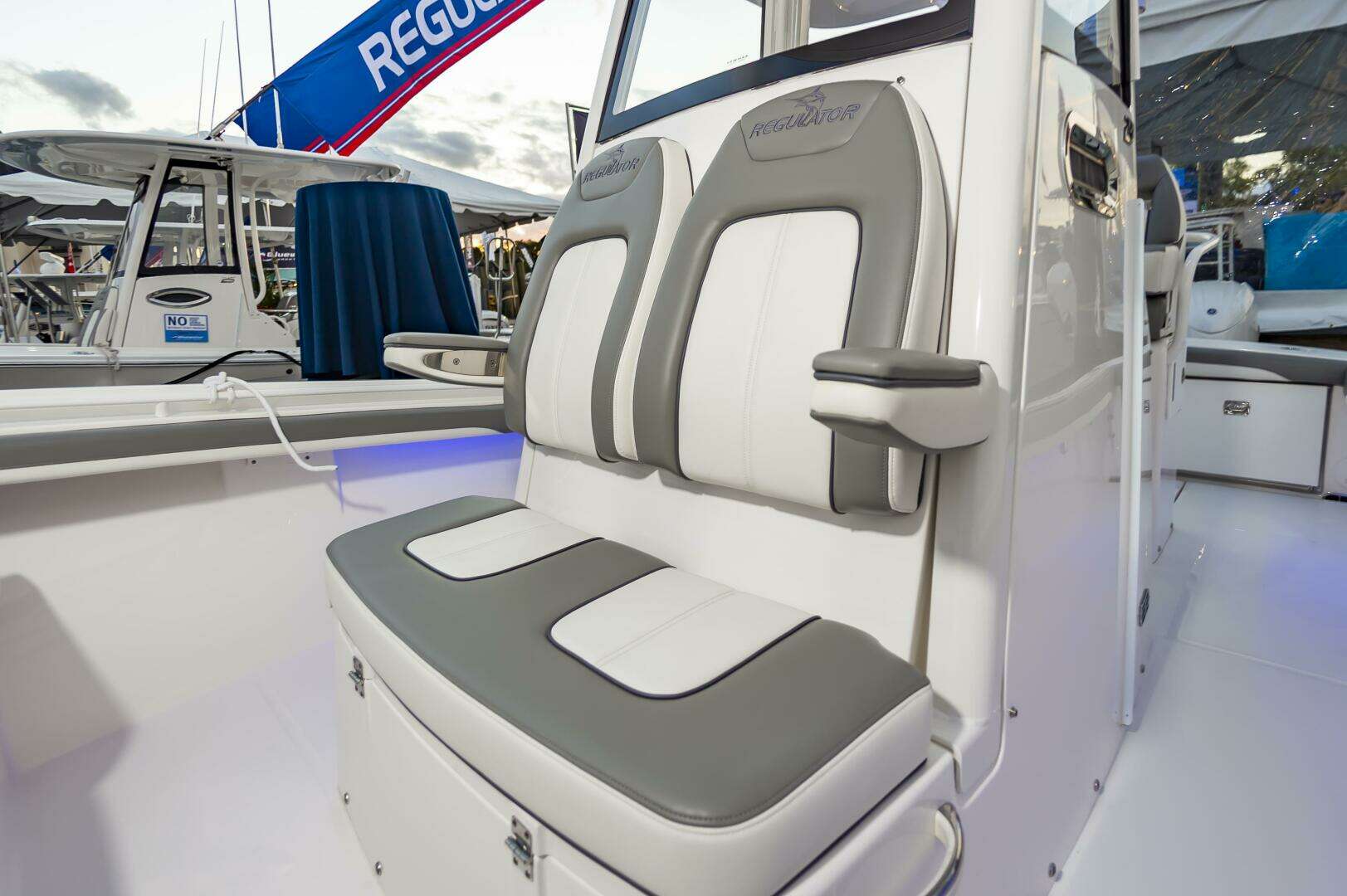

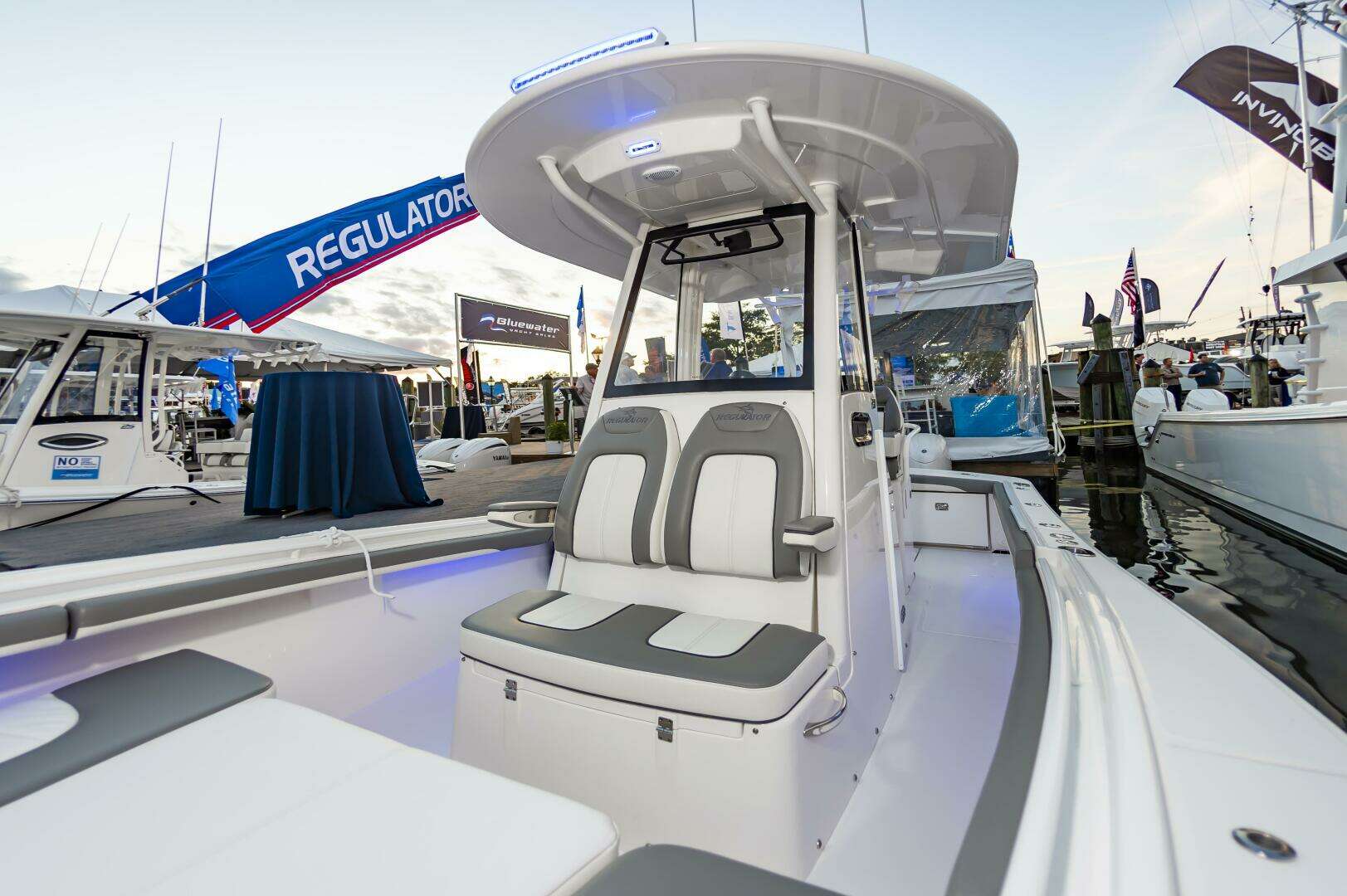

• Upholstered Forward Console Seating for Two

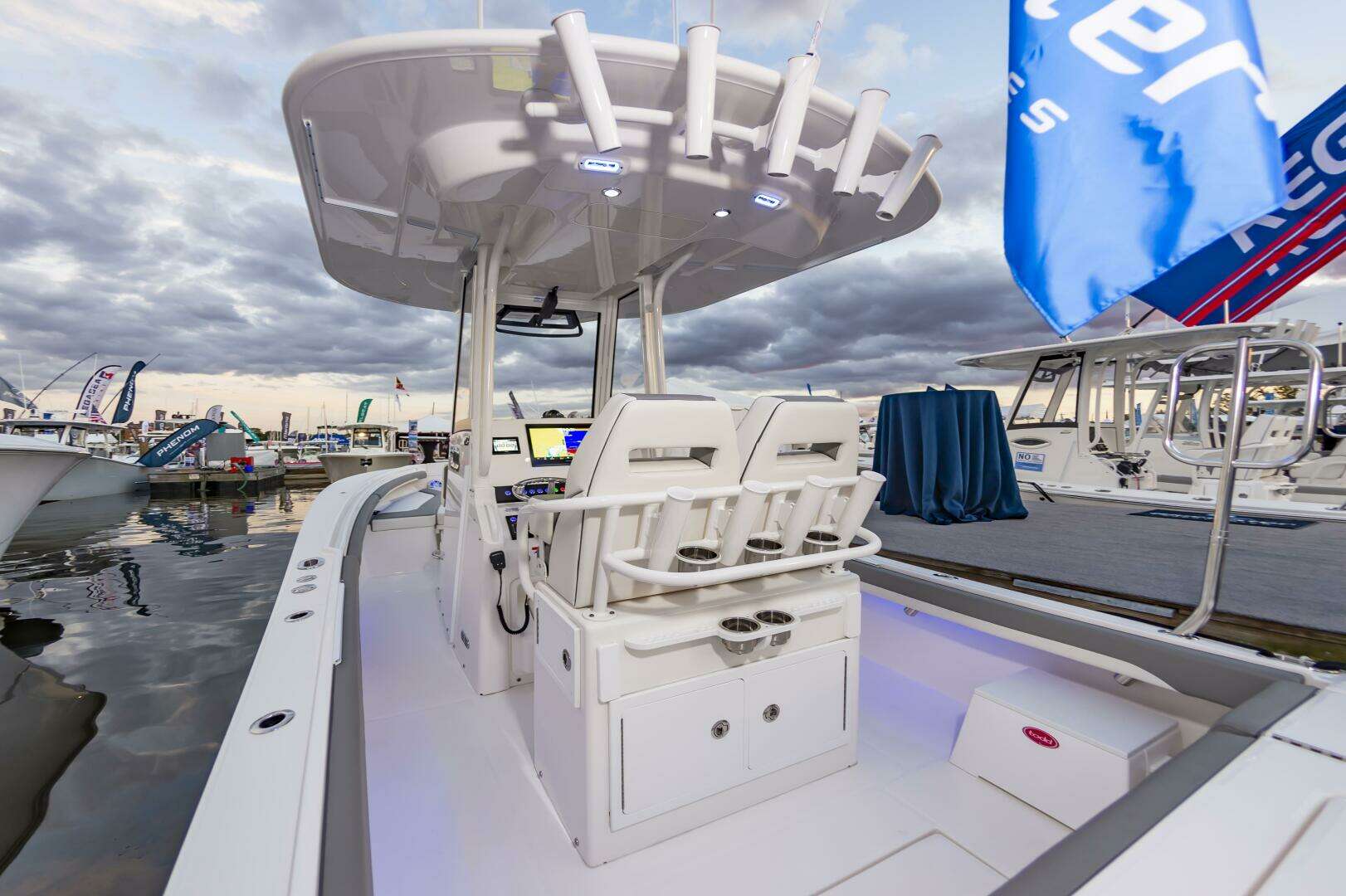

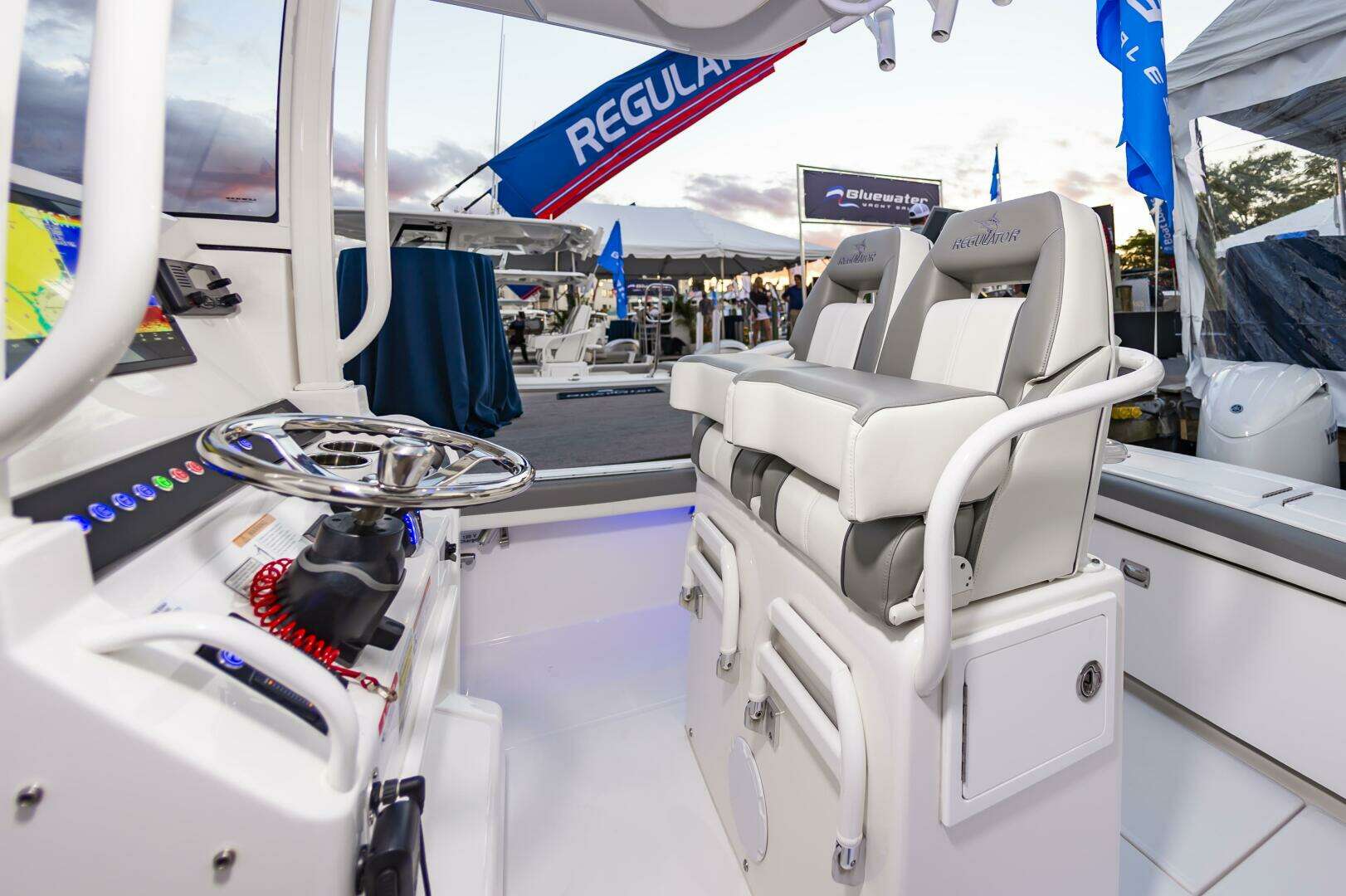

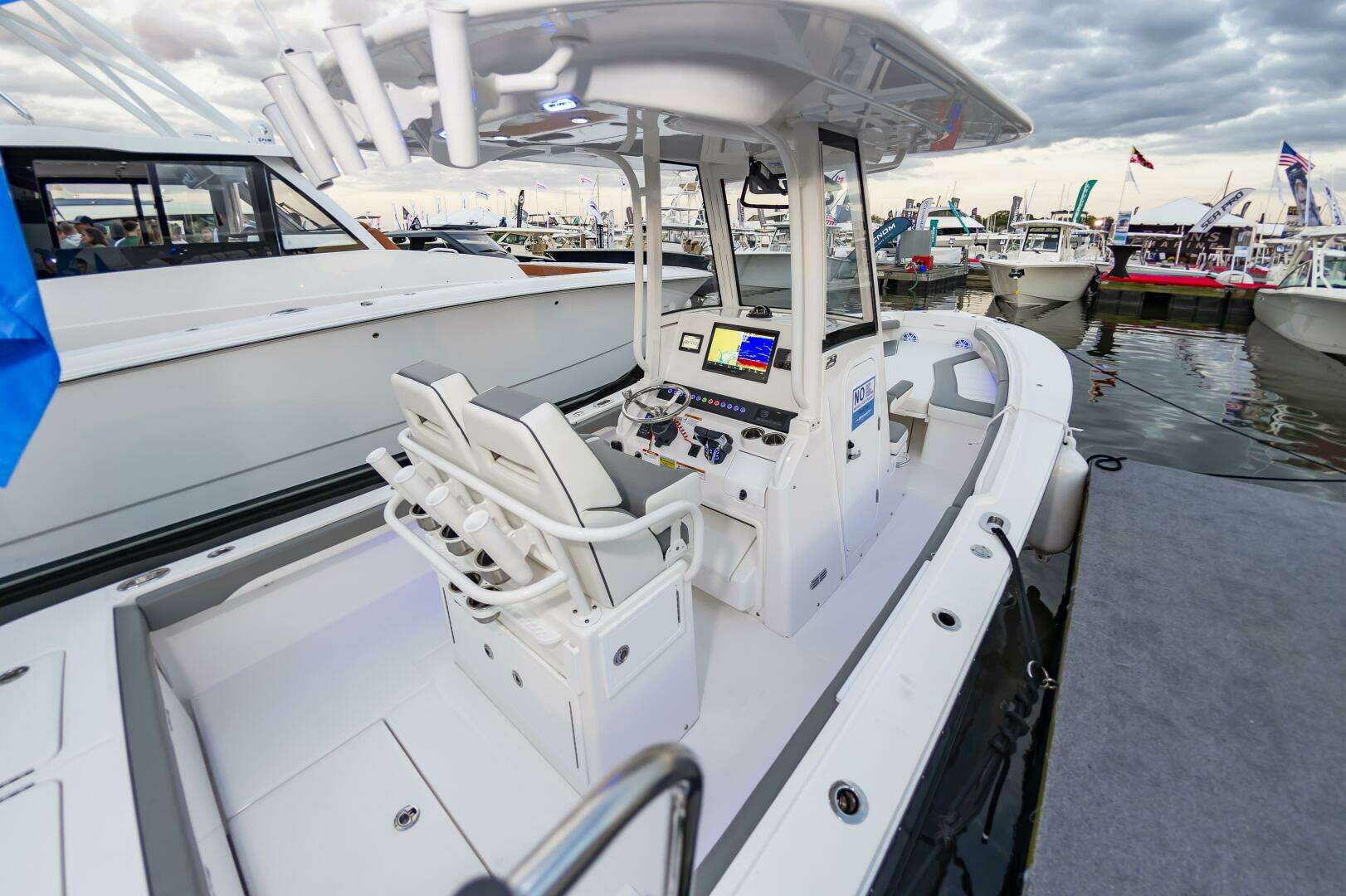

• Signature Series Tackle Center/Leaning Post with Seatback Rocket Launcher, Handrail, (3) Cup Holders, and TackleStorage, Including (8) Plano Trays Below Seating

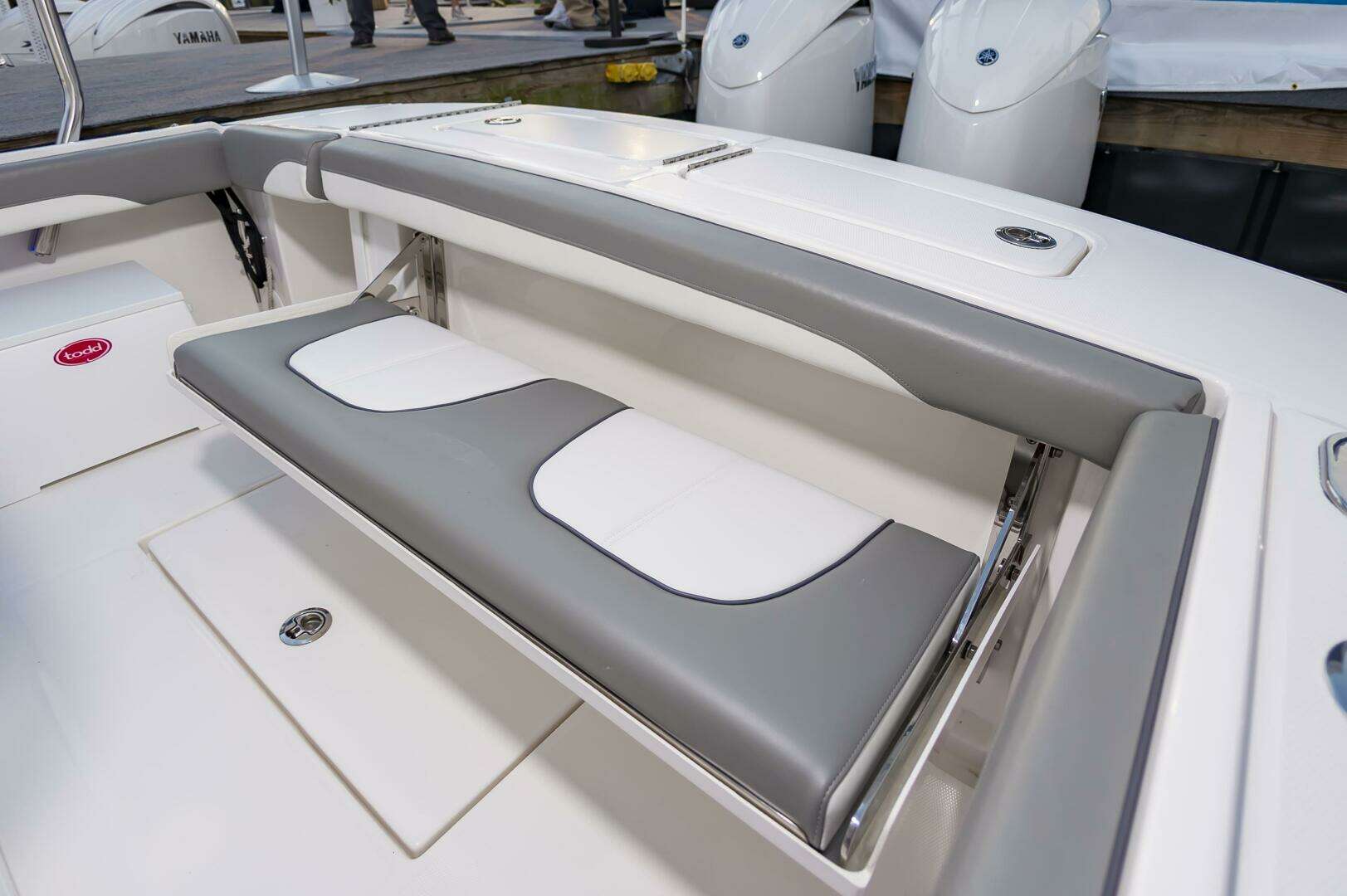

• Integrated Flush-Folding Transom Seat
• 69 qt. Insulated Cooler Under Forward Console Seat

FISHING EQUIPMENT

• Raw Water Wash Down and Livewell Plumbing
• Insulated, Illuminated Forward Fishbox (2)
• In-Deck Illuminated, Macerated Fishbox/Locking Rod Storage
• 20 gal Freshwater System with Washdown and Transom Shower

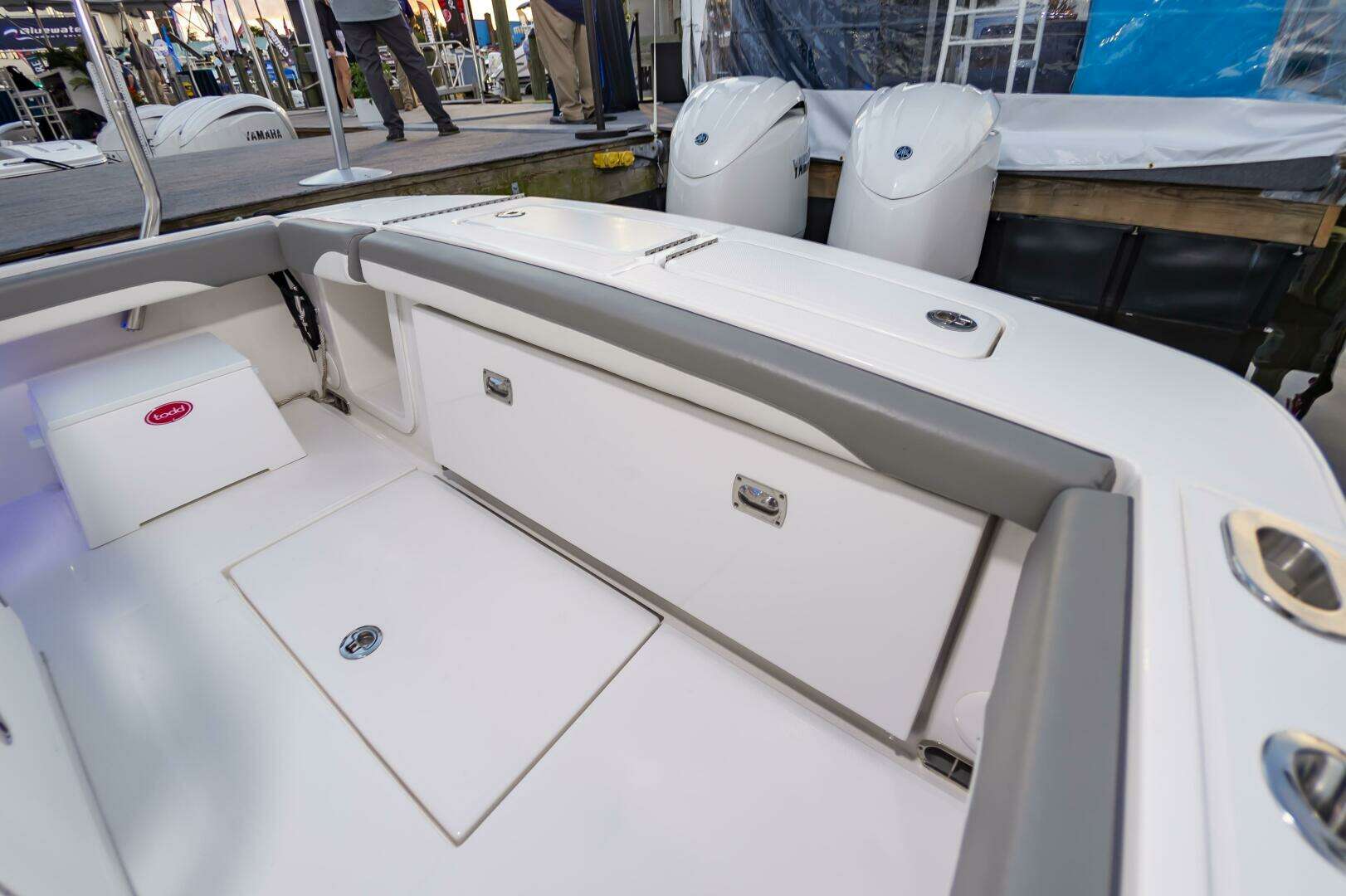

• Insulated, Illuminated Transom Fishbox/Livewell
• (6) Stainless Steel Aft Gunwale Conventional Rod Holders

*Some standards may be upgraded based on the options you choose.

Customized Options

EXTERIOR COLORS

• Featured or Custom Gel Color - Entire Hull or Sides Only
• Bracket with Matching Gelcoat Color
• Bracket with Synthetic Teak Marine Decking

POWER & SYSTEMS

• 20-Amp Battery Charger with 25' Cord

T-TOP & TOWER

• GEMLUX® Deluxe Outrigger Bases with 18’ Collapsible Poles and GEMLUX® Double Rigger Kit
• T-Top Underside to Match Hull Sides
• T-Top Underside Different than Hull Sides
• T-Top Rocket Launcher

SEATING & UPHOLSTERY

• 2X Deluxe Tackle Center with Upholstered Helm Seating for Two with Flip-Up Bolster, Individual Folding Footrests with SoftGrip Foot Rail; Seatback Rocket Launcher with (3) Cup Holders; and Tackle Storage**

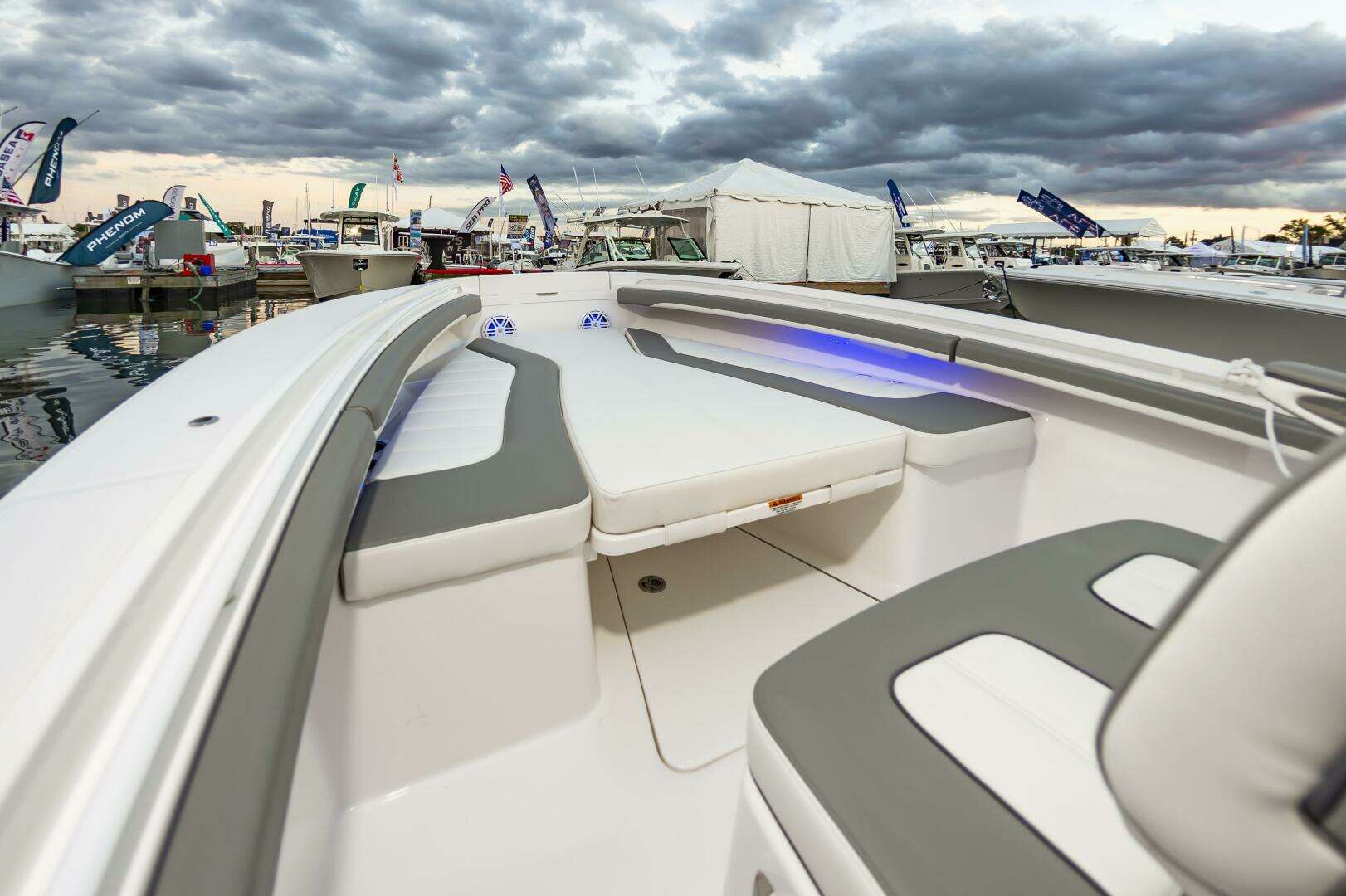

• Removable Forward Seating Backrests (2) Fiberglass Sun Bed with Filler Cushion and Convertible Pedestal Table
• Dove Gray Upholstery
• Sandbar Upholstery
• Diamond Quilted Upholstery

ELECTRONICS

• Factory-Installed Garmin® GXM™ 54 SiriusXM® Marine Weather Receiver Upgrade
• Factory-Installed Garmin® GT36UHD-TM Ultra High-Def ClearVü and SideVü Side Scan Transducer
• Electric Anchor Light and Antenna Mounts
• LED Light Bar

FISHING UPGRADES

• (6) Aft Gunwale Cup Holder Rod Holders (Converted from Standard)
• (6) Additional Forward Gunwale Conventional Rod Holders OR (6) Additional Forward Gunwale Cup Holder Rod Holders

COMFORT & CONVENIENCE

• Through Stem Bow Roller with Anchor Windlass, Freshwater Anchor Wash, Remote Switch, Chain, and Anchor Edson™
• Edson™ Wheel with Power Knob**
• Cockpit Freshwater Engine Flush
• Phender Pro™with (4) Quick-Release Fender Cleats

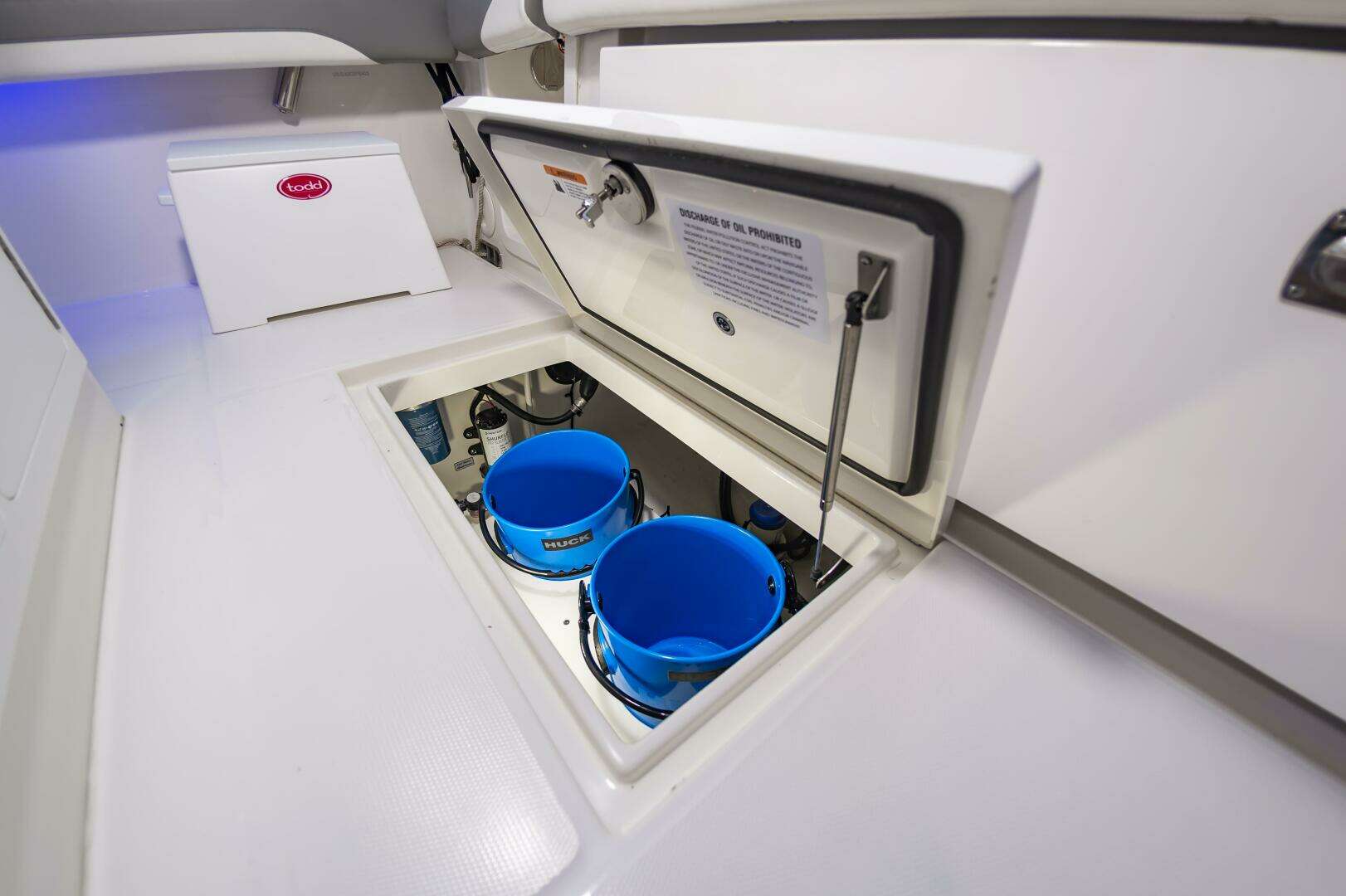

• Bucket Holder with (2) Buckets
• Hose Coil Racks (2) for Raw Water and Freshwater Wash Downs
• Removable Watersports Tow Bar
• Head with Holding Tank and Electric Tank Pumpout
• Gray Helm Pad with Black Regulator Logo

SHADES & CANVAS

• Forward Sun Shade (Various Colors)
• All-Weather Spray Curtain Enclosure
• Helm, Console and Seating Canvas Covers (Various Colors)
• Engine Canvas Covers (Various Colors)

** In Lieu of Standard
