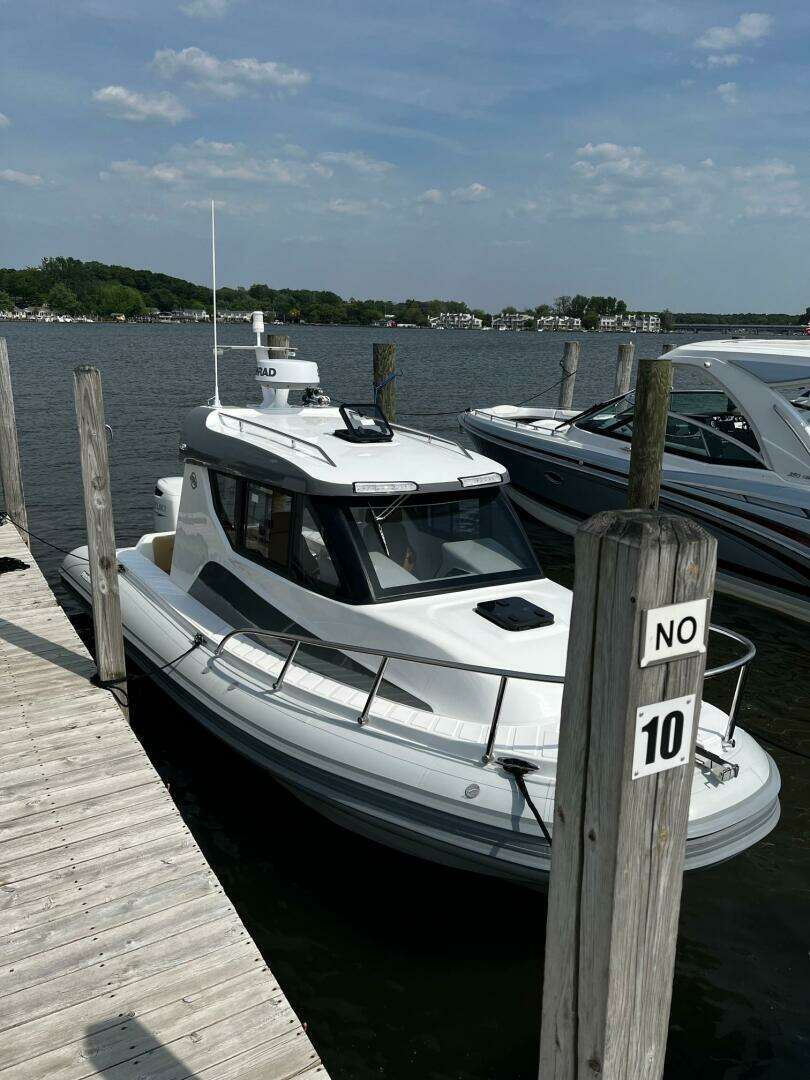

Boat Specifications

• LOA: 22’ 4” with no engine
• Beam: 9’ 2”
• Inside Beam: 5’ 7”
• Cabin Ceiling Height: 6’ 7”
• Head Ceiling Height: 4’ 11”
• Weight: 3450 lbs with no engine
• Capacity: 7 Passengers

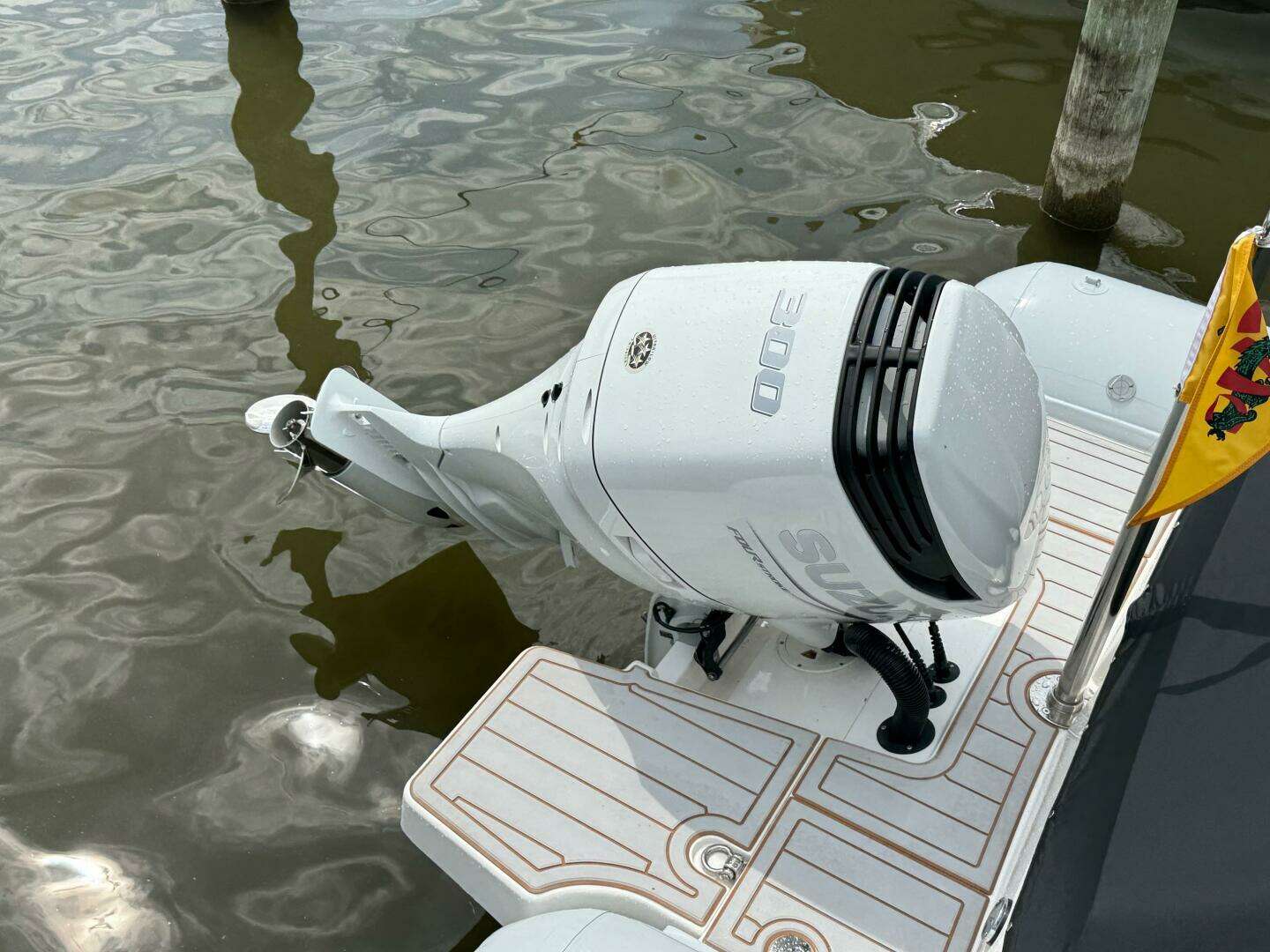

• Max HP: 300 HP
• Tube Diameter: 16” Bow / 20” Stern
• Air Chambers: 7 (Independent)
• Fuel Tank: 80 Gallons
• Fresh Water Capacity: 21 Gallons
• Tube Material: Orca (Hypalon)

INCLUDED OPTIONS

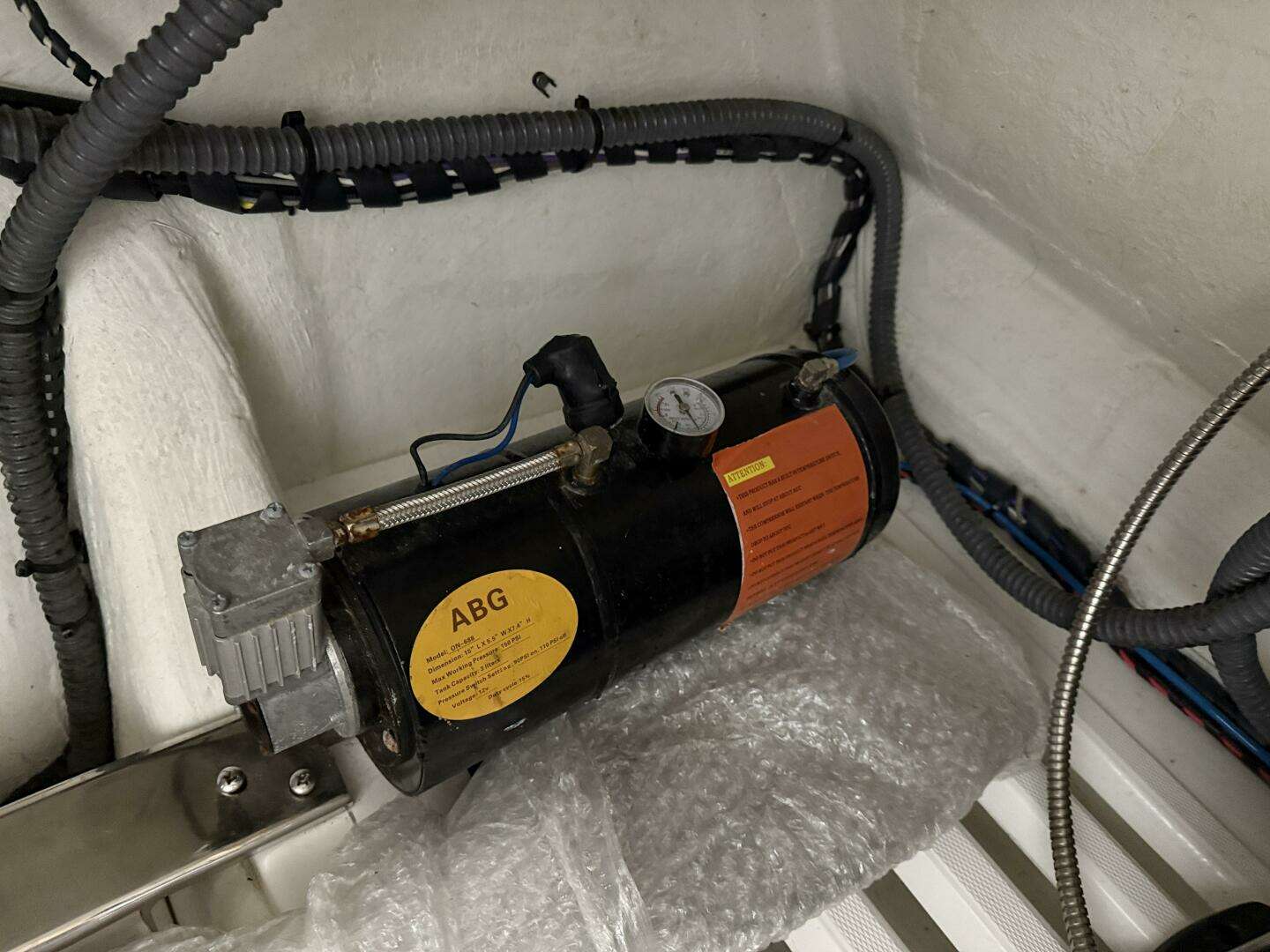

• ABS two stage 5 liter air pump
• Hypalon repair kit
• Drain plug with safety lanyard
• 3 Stainless Steel cup holders
• 1,100 GPH/500 GPH automatic bilge pumps
• 1 freshwater pump
• 1 recessed mount illuminated compass
• Waterproof switch panel

TUBE FEATURES

• Cone shaped tubes (17” at bow and 20” at stern)
• 7 Independent Air Chambers
• Orca (Hypalon) Material with 5 layers
• 2 Vulcanized rubber profiles that act as fenders and spray deflectors
• Tube air valves are imported from Italy and built with injected Nylon, nitrile rubber washers and o-rings, and a stainless steel spring and screw cap

HULL FEATURES

• Deep ‘V’ hull made of laminated fiberglass polyester resin and reinforced with biaxial woven roving
• Hull thickness is ¼” in the hull and ½” in the keel
• Longitudinal and transverse fiberglass stringers are laminated with triaxial fabric
• Tow ring in the bow and 2 transom tie-down rings are present to secure boat to trailer

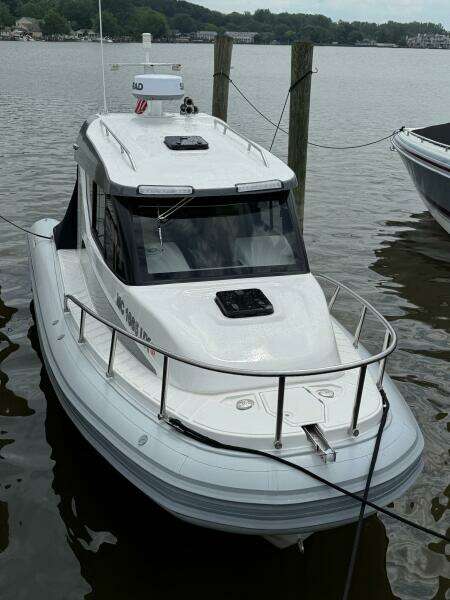

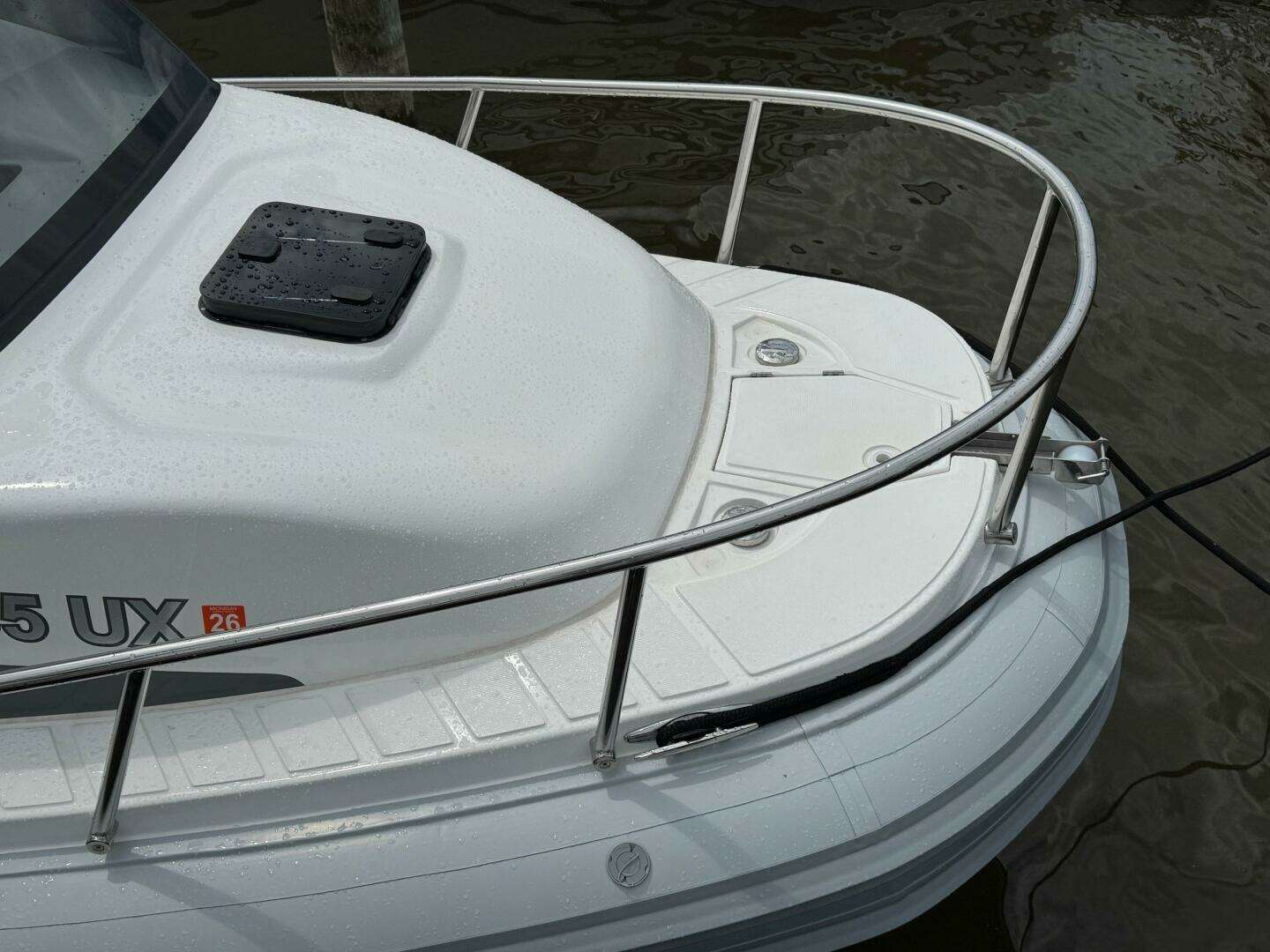

• Bow rails on both sides of forward portion of cockpit with (6) 8” cleats (3 per side)
• Fuel fill and freshwater fill located on bow and equipped with draining systems
• 84 Gallon fuel tank with 2 baffles located under cabin floor
• Swim platform with telescopic boarding ladder, fresh water 10 ft shower wand, and 2 lifting rings

COCKPIT AND CABIN FEATURES

• Cockpit is laminated with gelcoat and has a non-skid surface
• Portlight for ventilation in cabin ceiling with stainless steel handrails on both sides
• Anchor locker with waterproof lights and accommodates a 15lbs anchor and 330ft of line
• 8” Cleat inside the anchor locker and a dedicated stainless steel mooring ring
• 8mm thick glass windshield with windshield wipers

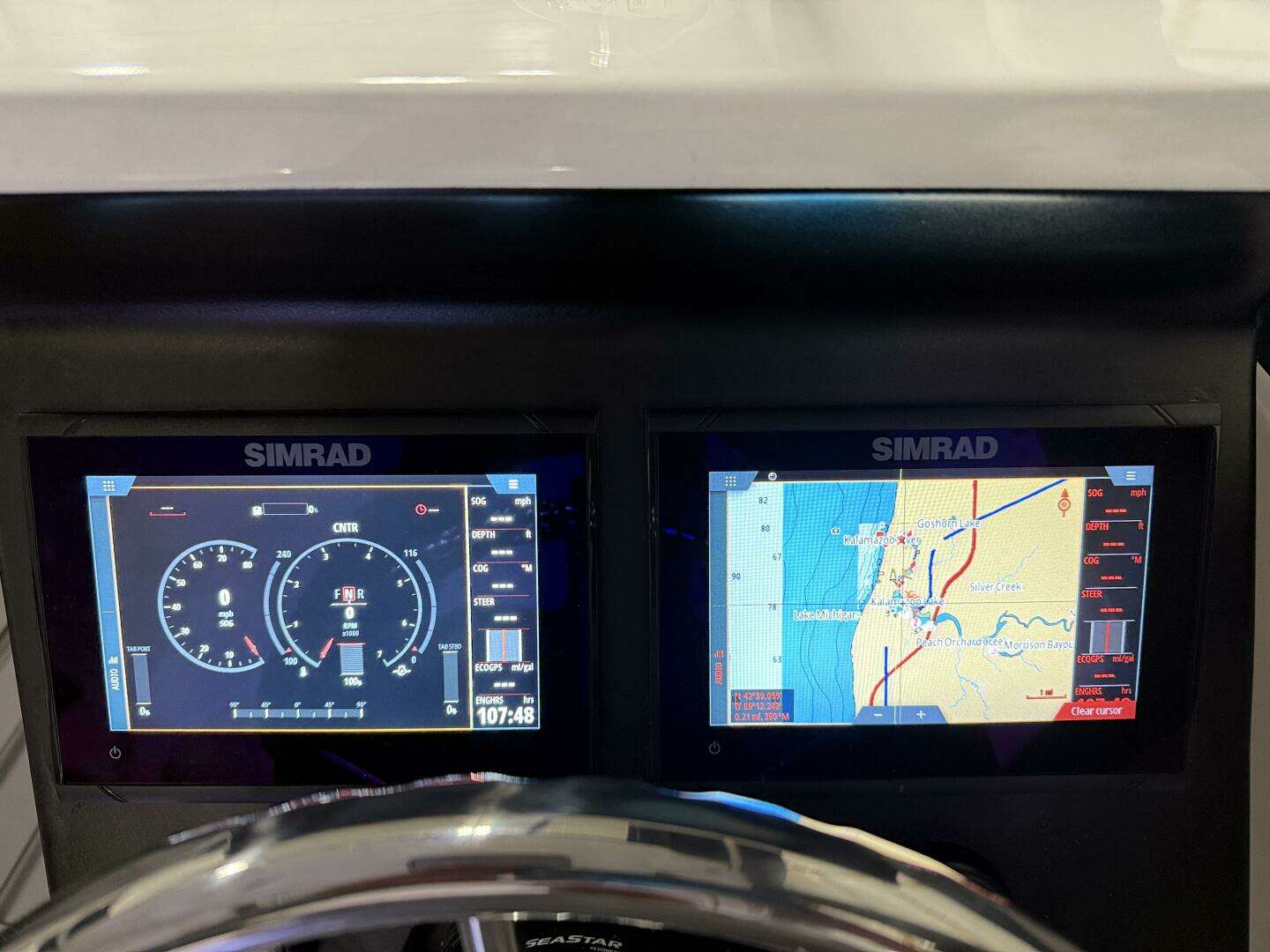

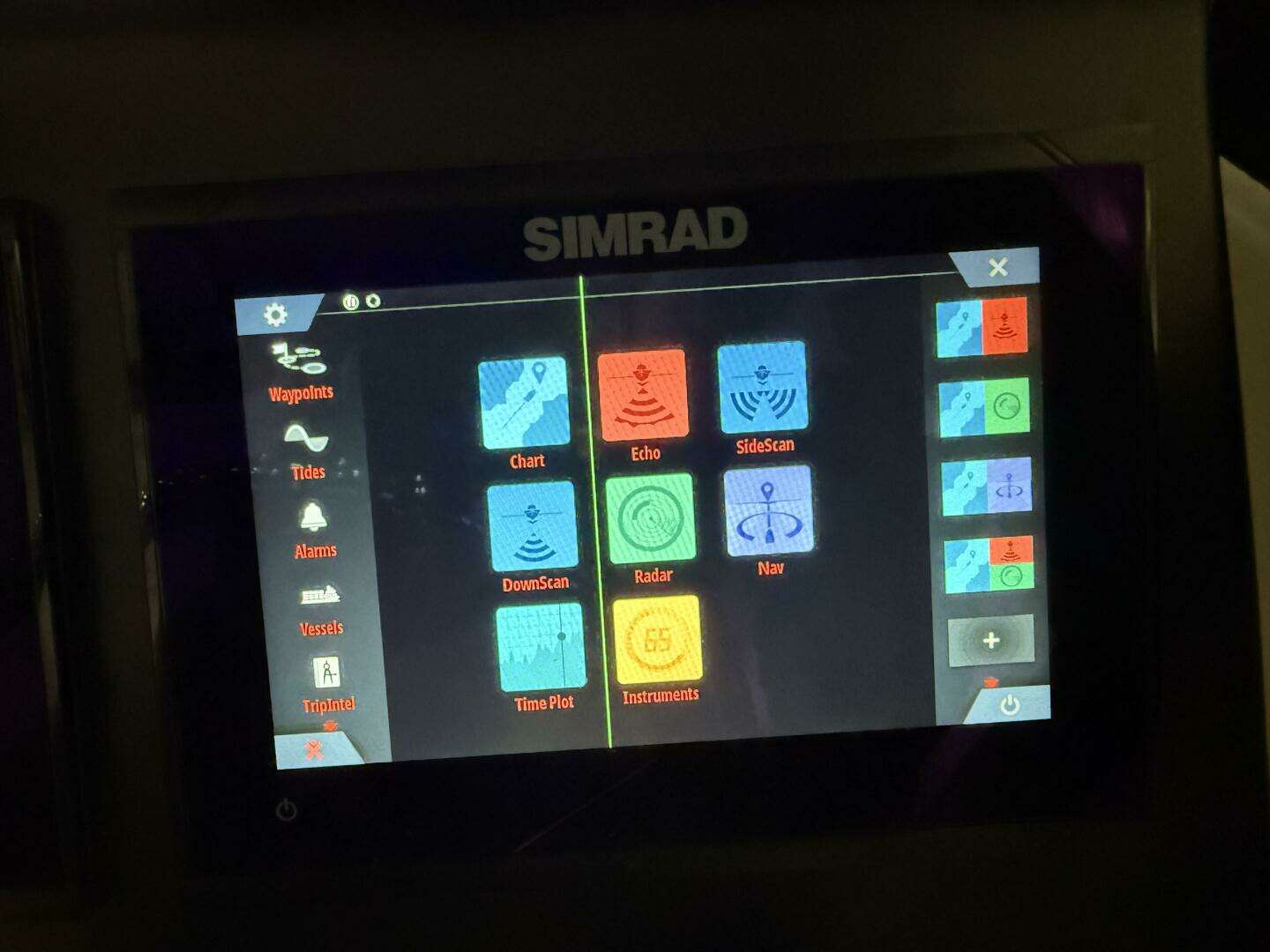

• Spacious dash space for instrumentation
• Access door to the head
• Double ABS fan offers vertical and horizontal adjustments

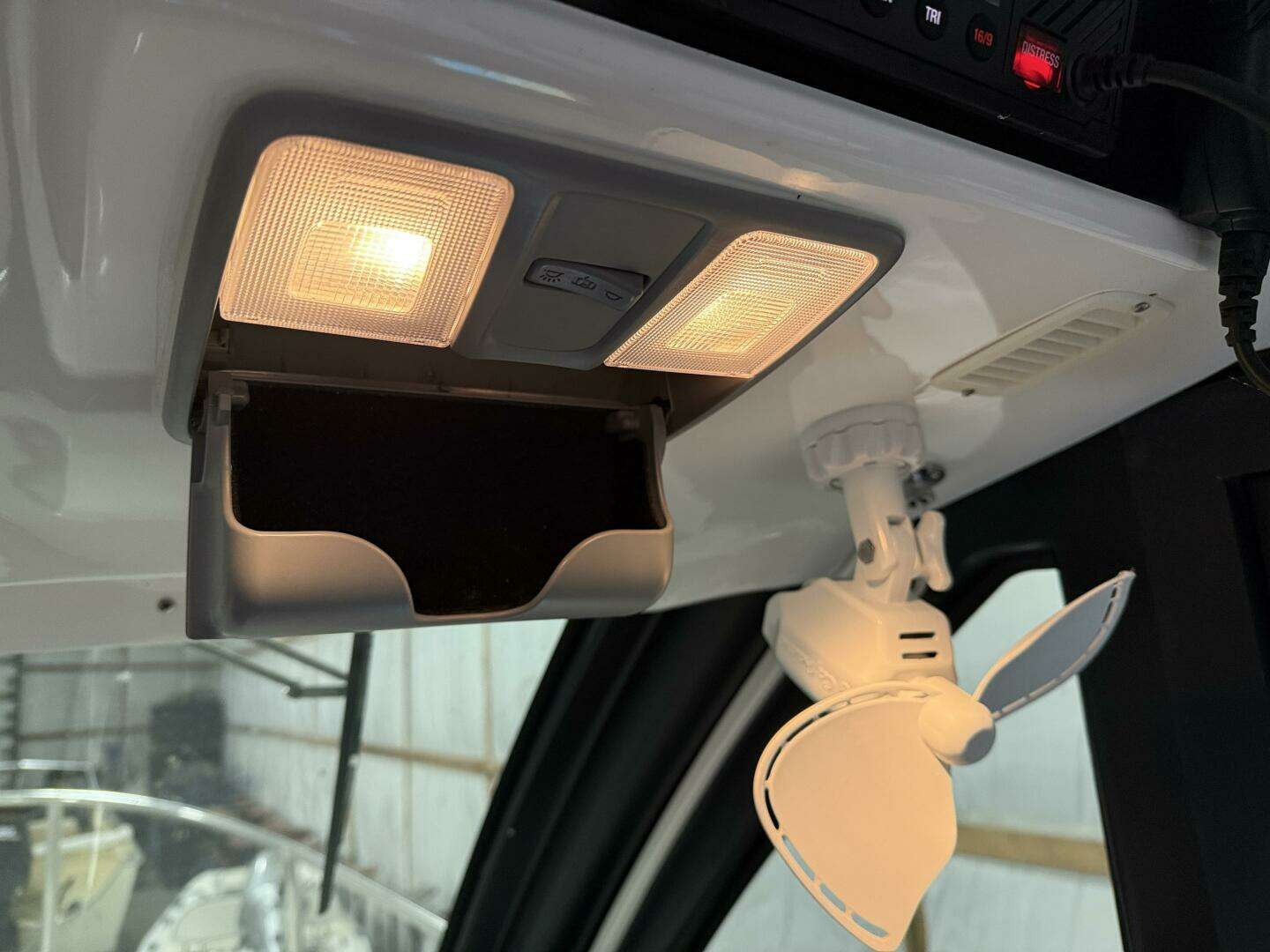

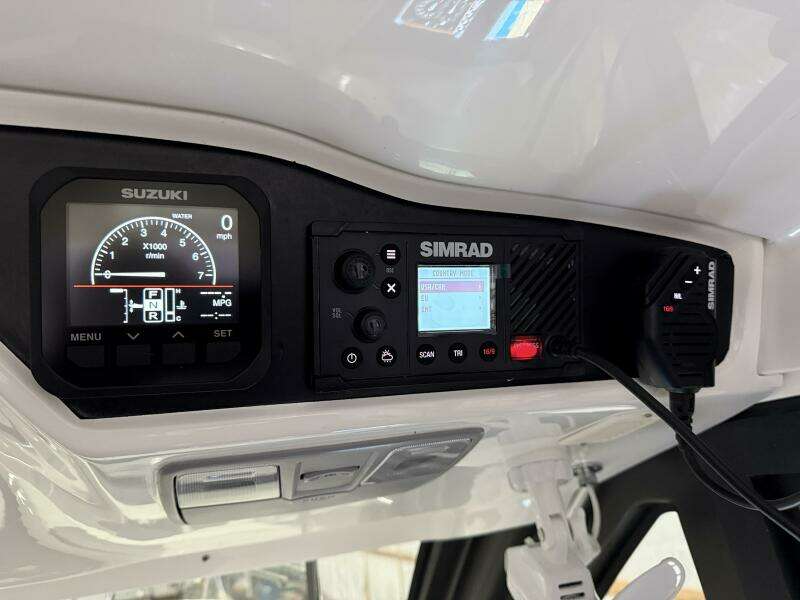

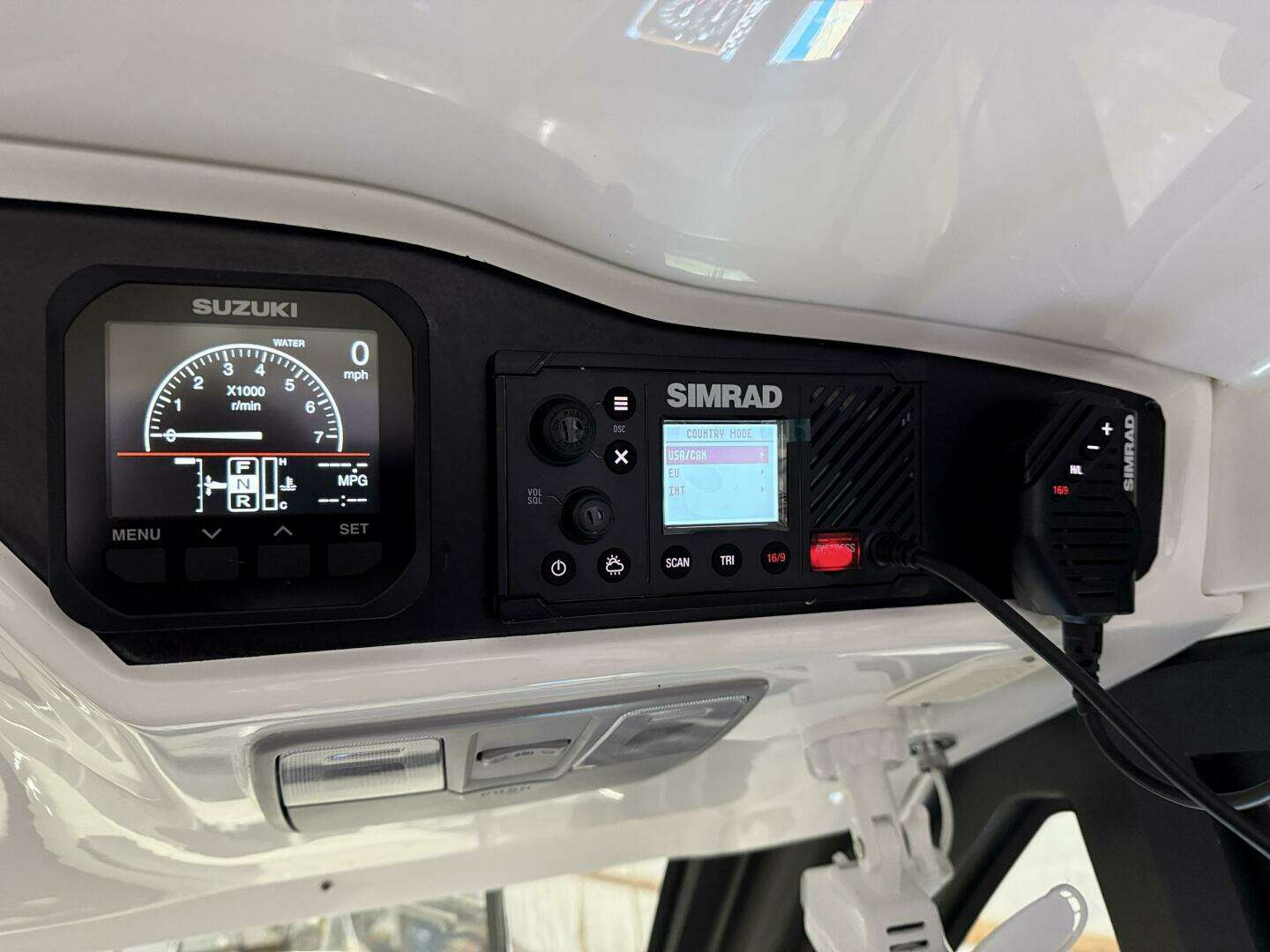

• Overhead console incorporates digital clock and thermometer, sunglass compartment, and space for VHF radio

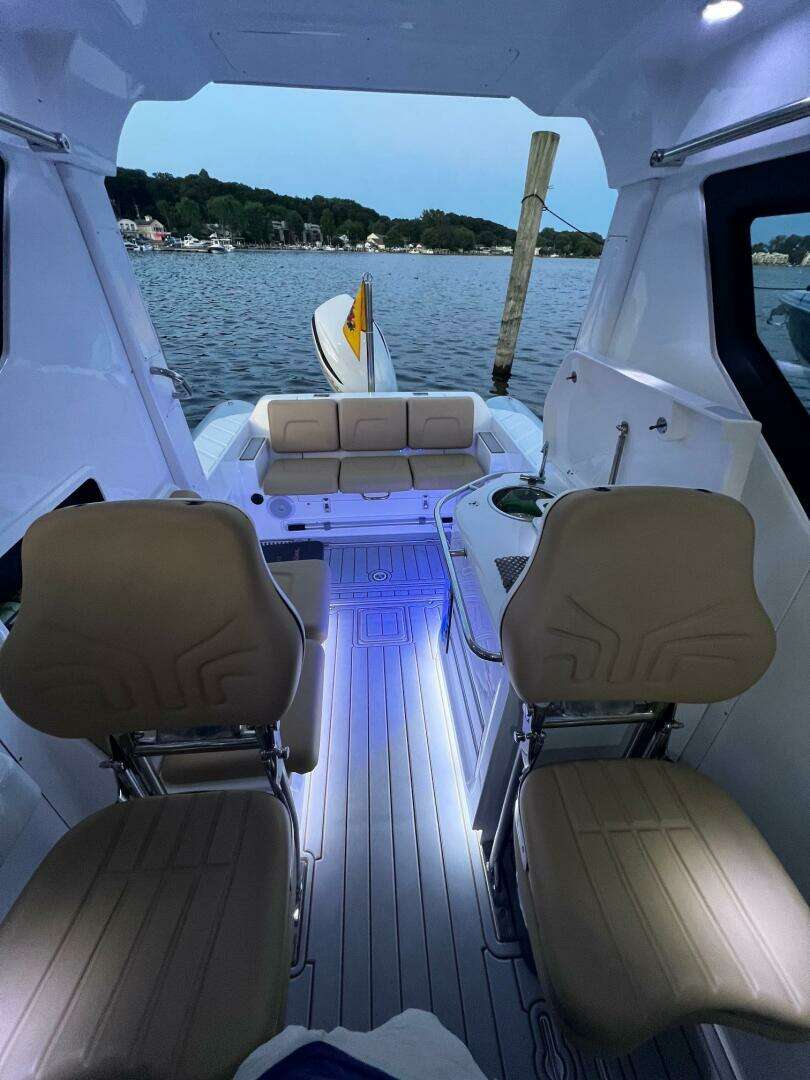

• Captain and companion seats are built with stainless steel structure and a seamless design offering perfect ergonomics while sitting or standing up

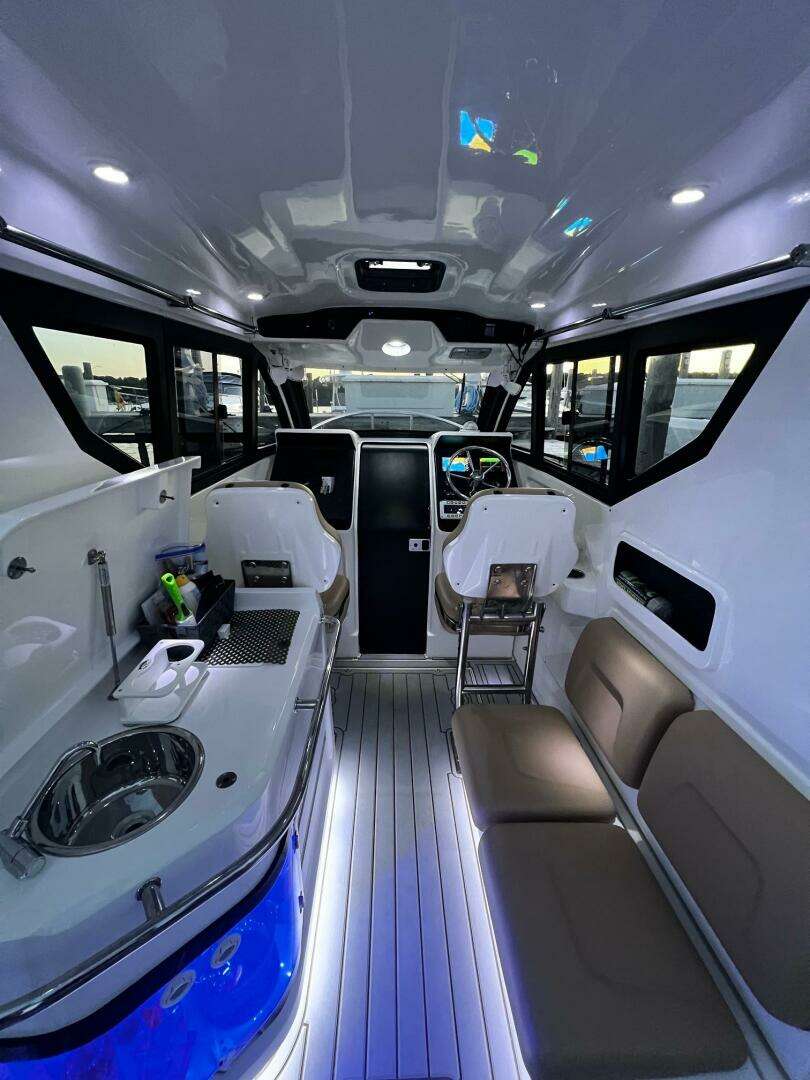

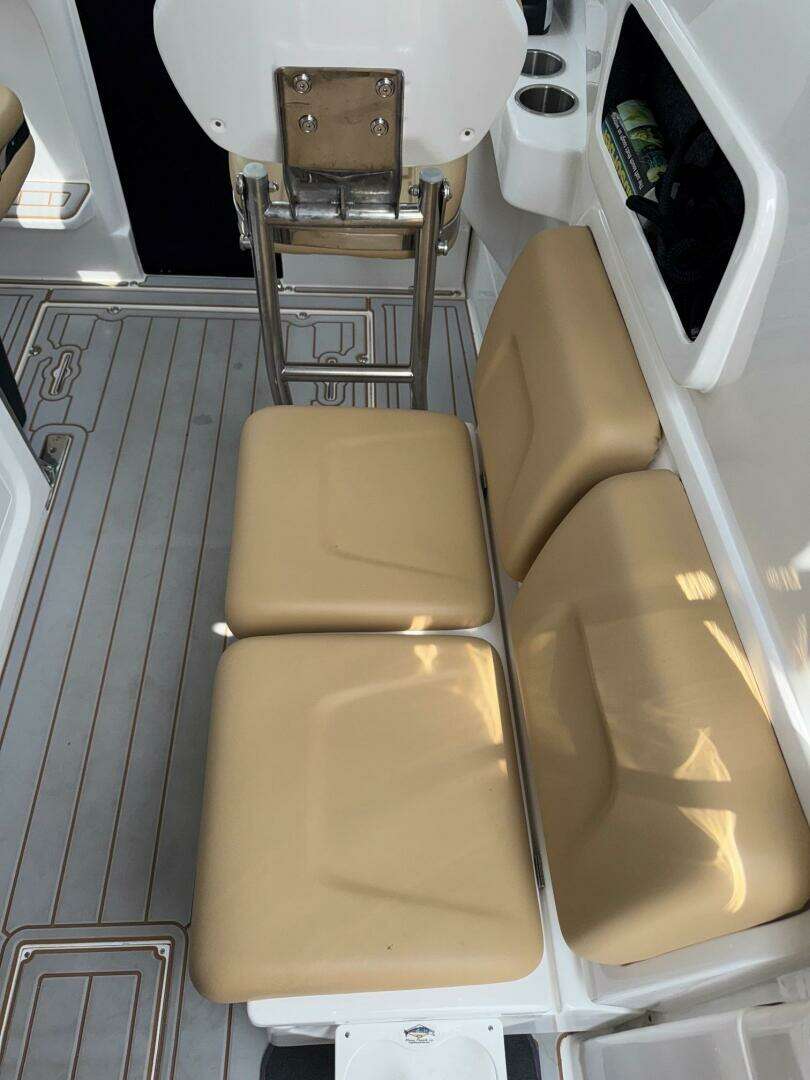

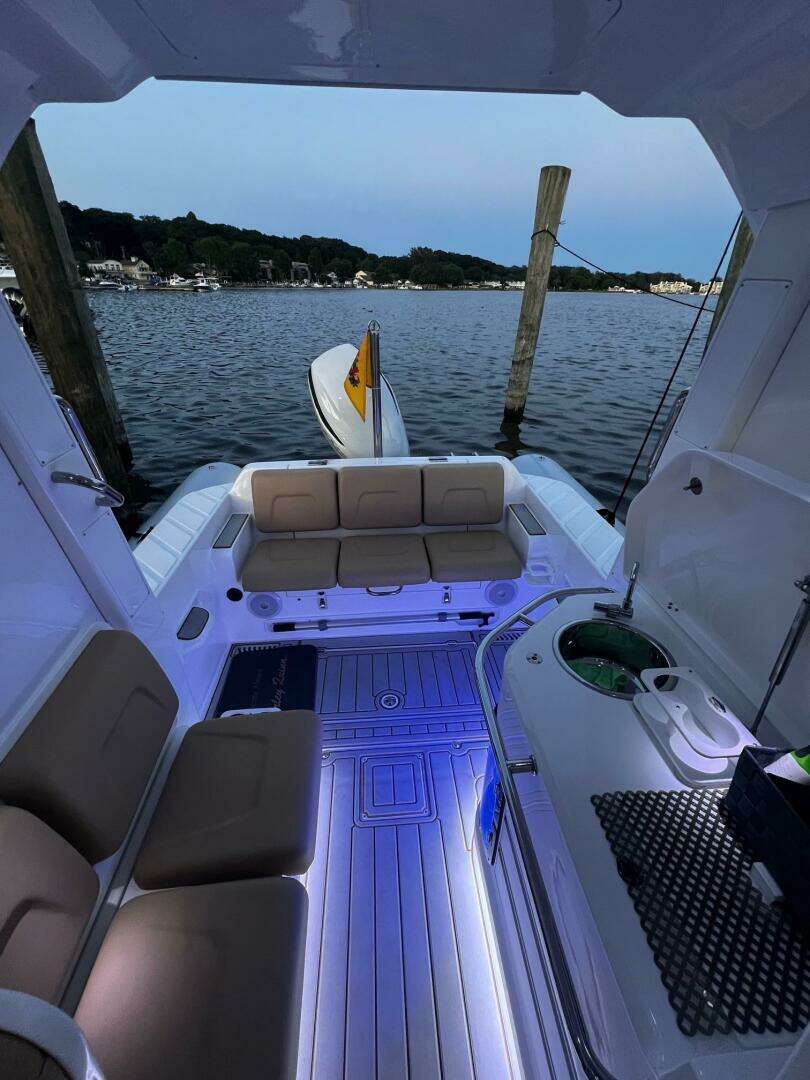

• Sofa situated behind the captain seat accommodates 2 people

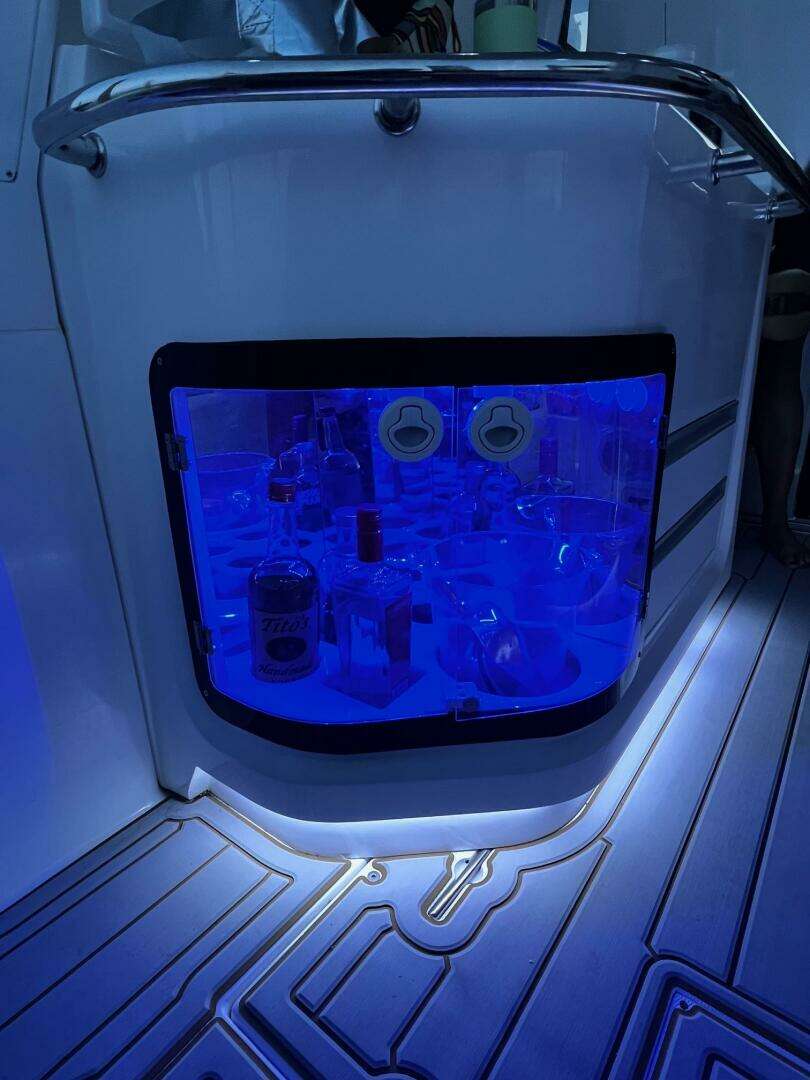

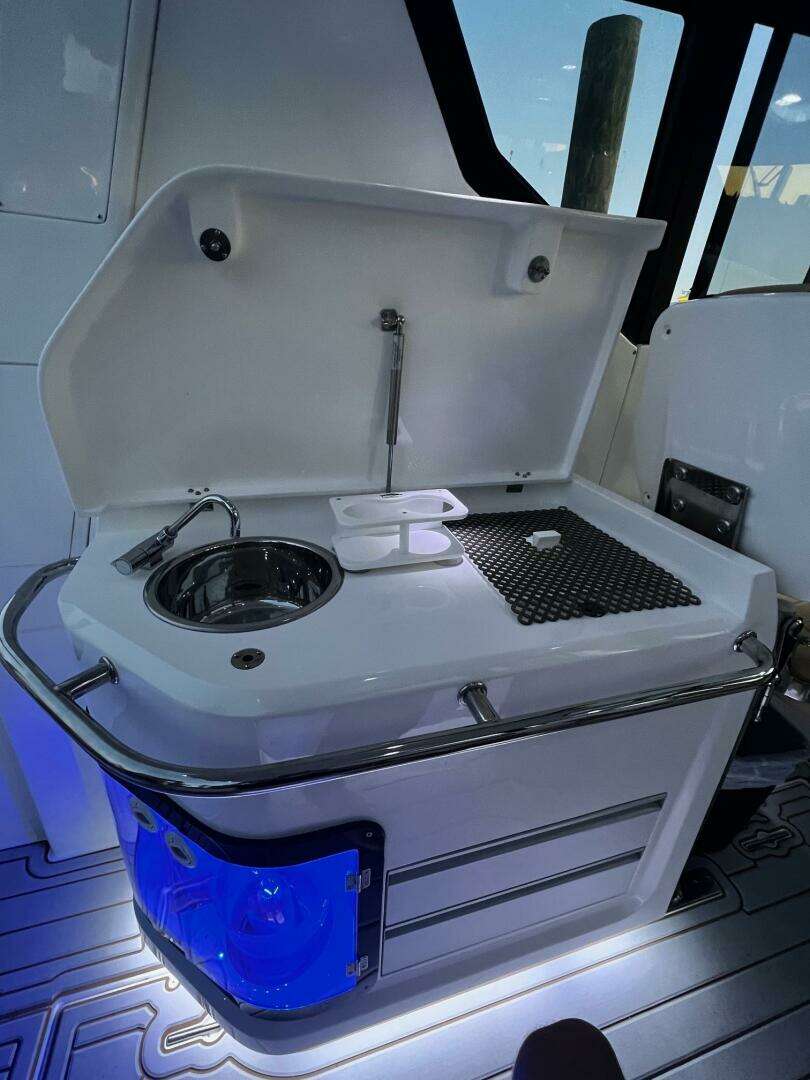

• Behind companion seat there is a sink with faucet, cutting board, bottle/snack storage, ice bucket, large cooler, and 2 storage drawers

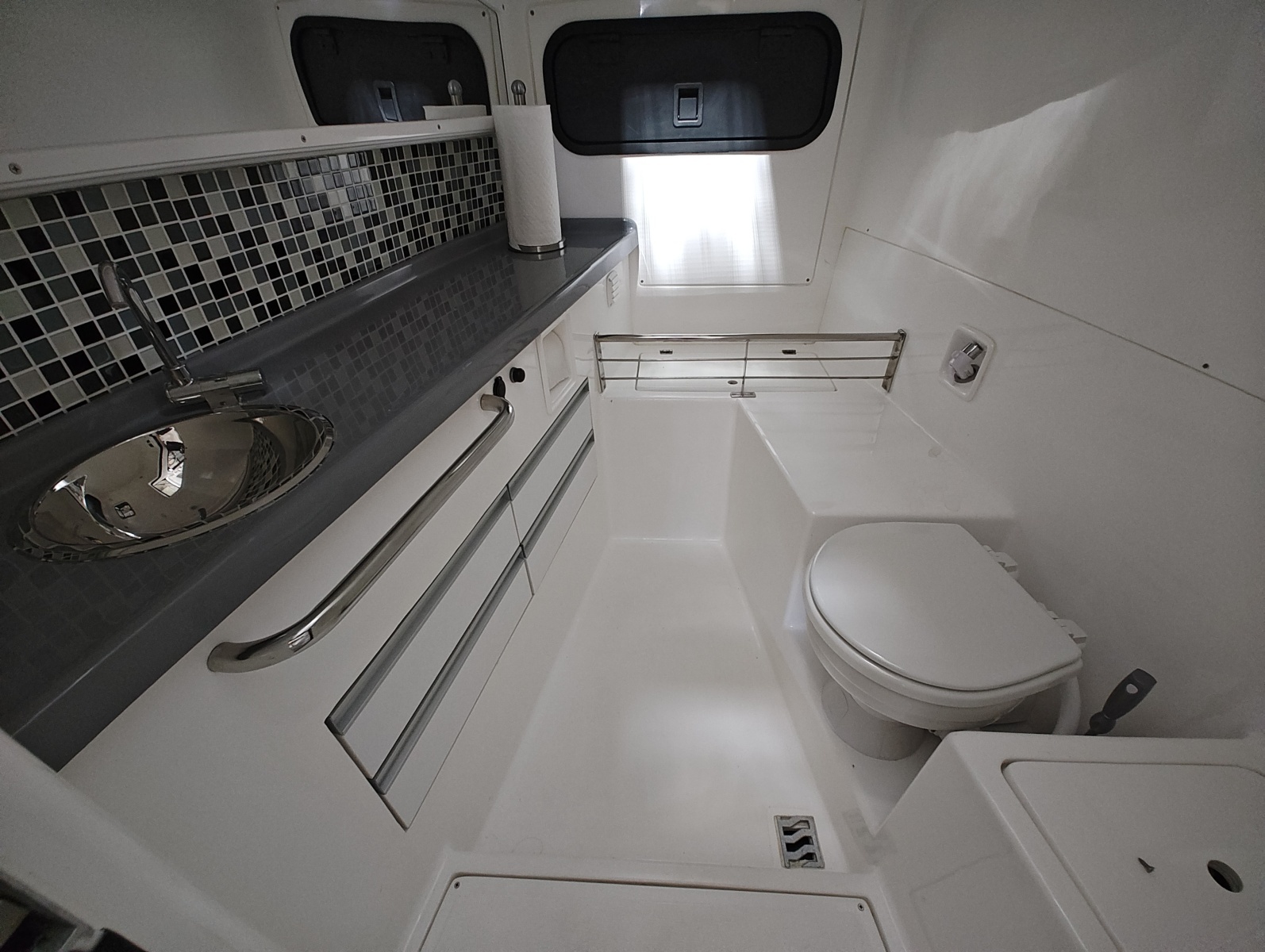

• Head is equipped mirror, sink, electric toilet with macerator, toilet paper holder, trash bin, safety grab handle, electric exhaust fan, shower wand, 4 light fixtures
• Vertical 21 gallon freshwater tank located behind the front bulkhead of the head

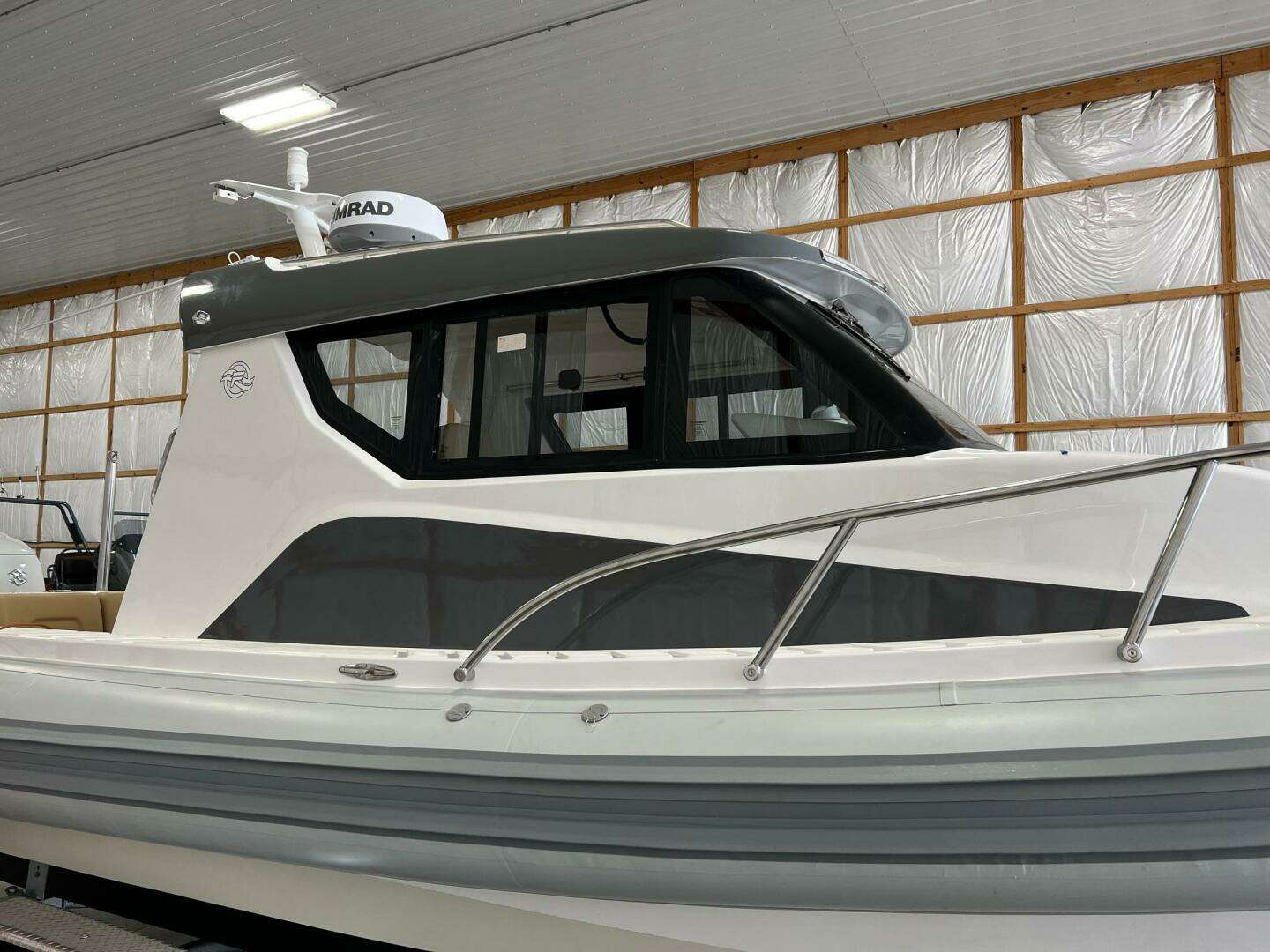

• Sliding windows on both sides of cabin
• Swim platform with telescopic boarding ladder, fresh water shower wand, and 2 lifting rings
