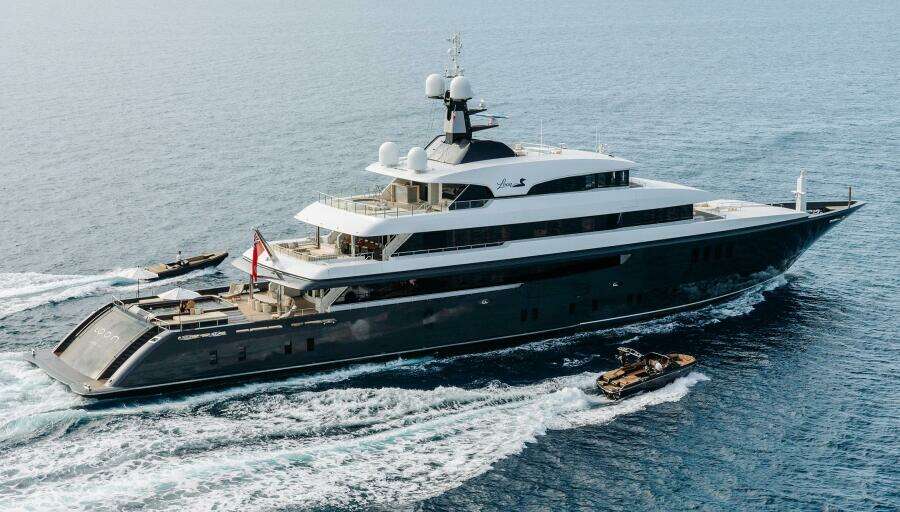

2010 Icon 221'

DIMENSIONS

General

• Length Overall (L.O.A.): 221.46 feet (67.50 meters)
• Length at Waterline (L.W.L.): 168.64 feet (51.40 meters)
• Beam (molded): 37.40 feet (11.40 meters)
• Draft (loaded): 12.47 feet ( 3.80 meters)
• Tonnage: 1,295 gross

Capacities

• Fuel Capacity: 52,185 US Gallons (197,543 liters)
• Water Capacity: 7,661 US Gallons (29,000 liters)
• Watermakers: 9,510 US Gallons (36,000 liters)
• Lube Oil: 818 US Gallons (3,100 liters)
• Waste Oil: 1,347 US Gallons (5,100 liters)

Decibel Noise Readings

• Skylounge Deck Aft Lounge: Cruise Speed dB(a): 42 / Anchor dB(a): 40
• Skylounge Deck Forward: Cruise Speed dB(a): 42 / Anchor dB(a): 40
• Master Cabin: Cruise Speed dB(a): 41 / Anchor dB(a): 41
• Master Bath: Cruise Speed dB(a): 42 / Anchor dB(a): 42
• Main Saloon Forward: Cruise Speed dB(a): 47 / Anchor dB(a): 43
• Main Saloon Aft: Cruise Speed dB(a): 53 / Anchor dB(a): 46

Sea Trial Fuel Burn (Per Engine)

Engine RPM 1,250

• SOG: 12 (knots)
• Fuel Consumption: 98 L/p/h
• Fuel Consumption: 26 G/p/h

Engine RPM 1,450

• SOG: 13 (knots)
• Fuel Consumption: 140 L/p/h
• Fuel Consumption: 37 G/p/h

Engine RPM 1,650

• SOG: 14.3 (knots)
• Fuel Consumption: 247 L/p/h
• Fuel Consumption: 65 G/p/h

Engine RPM 1,850

• SOG: 15.9 (knots)
• Fuel Consumption: 390 L/p/h
• Fuel Consumption: 103 G/p/h

Engine RPM 2,000 MAX

• SOG: 16.9 (knots)
• Fuel Consumption: 465 L/p/h
• Fuel Consumption: 123 G/p/h

MACHINERY

Main Engines

Engine Type: (2) MTU 12V-4000-M71 @ 2,480 Hp each

Engine Hours:

• Port: 17,8968 as of Sept. 17, 2024
• Starboard: 18,419 as of Sept 17, 2024

Gearboxes for Main Engines: ZF model 7561 (reduction 4.9:1)

Drive: (2) Wartsilan Propellers – 5 Blades

Fuel Type: Diesel

Batteries: (2) 24V main engine start batteries

Generators

Port and Starboard Generators: (2) 269 kW Scania generators new in 2014

Port and Starboard Generator Hours:

• Port Generator Hours: 28,541 total hours as of Sept. 17, 2024 - Rebuilt in July 2024: 814 Hours since major overhaul
• Starboard Generator Hours: 28,526 as of Sept. 17, 2024 - Rebuilt in June 2024: 1,451 Hours since major overhaul

Middle Generator: (1) 217 kW Scania generators - New in 2014

• Middle Generator Hours: 24,356 total hours as of Sept. 17, 2024 - Rebuilt in July 2024: 688 Hours since major overhaul

Emergency Generator: (1) Sisu Diesel model 49.492.CTAG-4V - Flybridge / Port side

Catalytic SOOT Filters DPF: Catalytic SOOT Filters DPF: All 3 main generators have HUG's (low to zero emissions) for clean above-water exhaust at waterline

Generator Start: (3) Batteries 24V 200AH for main generators

Electricity

Output: Main power supply 230/400 volt, 50Hz, 3- phase for wire system with grounded neutral

Shore Power: (2) 150Kva Zeus shore power converters, capable of receiving and processing inputs ranging from 330-520 VAC and 40-70Hz and outputting 50Hz, 400V, 220 AMPs

Batteries: 24-volt emergency batteries

Battery Chargers: Mastervolt Mass 24/50

Inverter: Mastervolt Mass 24/2500

Air Conditioning

Type: Heinen & Hopman air conditioning system

Air Compressor: (2) Kaeser Airtower 6

Other Machinery

Watermaker: Hydro Electrique Marine Duplex H40/4200

-  750 liters (198 US Gallons) per hour

-  18,000 liters (4,755 US Gallons) per day

Trim Tabs/Stabilizers: (2) Quantum zero speed stabilizers - Model QC 1800 gyro controlled non-retractable two-fin stabilizer system, designed for peak performance at 15 knots while underway and optimum roll damping while at anchor

Bow Thruster: Veth tunnel thruster VT-240

Steering System: Van Der Velden Marine Systems (hydraulic)

Steering Gear:

• Rubber design oil bath shafts
• Wartsila/Lips 5-blade fixed pitch nibral bronze propellers

Emergency Steering: Van Der Velden Marine Systems

Fuel Separator & Filtration: Alfa Laval PU 150 / Alfa Laval

Fuel Transfer Pump: Alfa Laval ACP 32

Fuel Filling Pump: Azcue CA50/2A

Sewage System: Biological sewage treatment unit HMSA MS-II

Fresh Water System: (2) HEM Hydro Electric Marine H40 series RO water makers (20,000 liters per day)

Fresh Water Treatment:

• (2) HEM reverse osmosis freshwater system / each with water softener
• (2) HEM UV water sterilization system / HEM charcoal filtration system and silver ION

Bilge Water Filtration: Facet bilge water filtration system

Air Compressor: Mariner 200 EPR diving/firefighting air compressor rated at 330bar (200bar for diving and 300bar for firefighting)

COMMUNICATION SYSTEMS

Wi-Fi: STARLink

INMARSAT-C:

• (1) Furuno Inmarsat CTT 3606E GMDSS system
• (1) Inmarsat Fleet 500 with internet and emergency worldwide communication

SSAS: (1) TT-3000E

Telecom: 2N VoiceBlue Max

VHF: (1) Sailor 6222 VHF/DSC radio

Potable VHF: (3) Jotron handheld VHF radios

Satellite Phone: (1) Iridium

Intercom: Phontech CIS

Telephone System: Cisco CME

Radar Transporters: (2) Jotron Tron SART20

SSB: (2) Sailor SSB radio TT3042C

ECDIS: Full ECDIS Transas 4000 paperless bridge

Radiotelephones: (20) Icom IC-F2000S UHF radio

Portable GMDSS VHF: (1) Sailor 6110 Gmdss system

GMDSS Battery Plant: (2) 12V PowerSafe monoblocs

Guest Phones: (15) Cisco IP Phone 7945

Internal Ship Communications: Cisco CME, 20 X Icom IC-F2000S UHF radio

IP Phones: Cisco IP phones in every room

Portable Phones: (1) Wireless Cisco portable phone

GSM Phones: (4) Cellular GSM/data phones

Note: Each cabin has a wired & wireless LAN connection

NAVIGATION SYSTEMS

Navigation Bridge:

• Full ECDIS
• Transas 4000 paperless bridge

Monitors: (5) Hatteland – New 2023

X-Band Radar: (1) Furuno X-band radar FAR-2117BB

S-Band Radar: (1) Furuno S-band radar FAR-21375BB

Multifunctional Workstation: Radio Zeeland

Laser Plotter:

• (1) Transas Laser Plotter
• Also runs with a MaxSea Unit

UPS: APC Smart 3,000

Magnetic Compass: (1) Cassens & Plath 33001

Gyrocompass: (1) Raytheon standard gyrocompass STD22 - (ETO office)

Auto Pilot: (1) Raytheon 102-886

Speed Log: (1) Furuno Wind/Speed Log DS80

Depth Sounder: (1) Furuno Depth Sounder Fe700 with second backup unit

GPS:

• (1) Furuno GPS GP-170
• (1) Furuno GPS GP-150-DUAL

AIS: (1) Furuno AIS FA 150

Navtex: (1) Furuno NX 700 Navtex

Wind: Vaisala Weather Transmitter WXT520

Horn: (5) Tone Air Horns (Manual and auto functions)

Search Lights: Sanshin PP208

BNWAS: Watchkeeper

ENTERTAINMENT SYSTEMS

TV Equipment

APPLE TV in all guests' areas

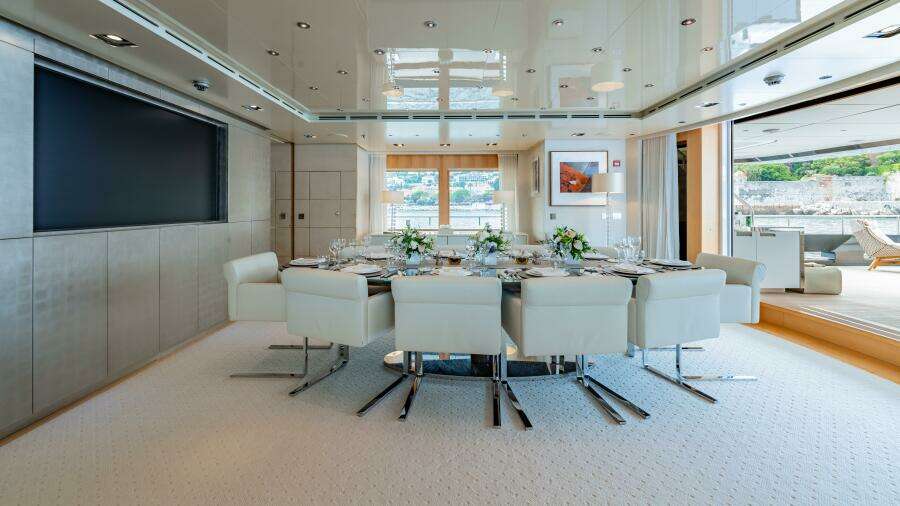

Main Salon:

• Bang & Olufsen BeoVision Avant
• (1) 85" 4K Ultra HD LED TV with surround sound

Skylounge Deck: (1) 80" Samsung 8K QLED TV with surround sound – New 2023

Master Stateroom:

• (1) 49" Samsung LCD TV with surround sound
•  IPOD docking station which can be used for personal iPods

Guest Staterooms:

• (4) 48" LED Samsung Frame TVs - Lower deck
• (2) 43" LED Samsung TVs – Skylounge deck
• IPOD docking station in each guestroom which can be used for personal iPods

Beach Club: (1) 43" Samsung LCD TV on a TV lift

Gym: (1) 32" Samsung LCD TV

Crew Mess: (2) 43" Samsung LCD TVs linked to satellite and entertainment systems and surround systems

Other Equipment

PS4 and PS5 gaming console

The guest staterooms and saloons are equipped with automatic lights, curtains with 100% light shut, and air conditioning controls

Wi-Fi coverage throughout the vessel

Audio Equipment

Stereo’s: Sonos throughout the yacht allowing guests to stream or airplay from their phone

GALLEY & LAUNDRY EQUIPMENT

Main Galley Equipment

Cooking Equipment: Professional MKN cooking equipment, fully integrated in seamless stainless steel work surface

Refrigeration/Freezer:

• (1) Walk-in fridge 6m2
• (2) Walk-in freezers 6m2 (can be raised to fridge temperature)

Dishwasher: Hobart industrial dishwasher

Dumbwaiter: (2) Dumb waiters by Holland Marine which together serve all decks. Innovative lift cage with two compartments, one standard for trays and a large lower compartment for trolleys

Crew Galley/Mess Equipment

Cooking Equipment:

• (2) Ovens
• (1) Microwave
• (1) Hot Oven

Refrigeration/Freezer: Frigoboat

Dishwasher: Hobart industrial dishwasher

Other: Panasonic professional combi microwave

 Additional Galley Equipment

Cooking Equipment:Weber BBQ

Buffet cabinets with refrigerator, ice maker, and plate warmer

Refrigeration/Freezer: 60L Fridge Frigonautica

Other:

• (1) Fridge wine storage
• (1) Storage room

Pantries

Skylounge Deck:

• Nespresso coffee machine
• Quooker instant boiling water tap
• Mixer tap
• Inskinkerator
• Stainless steel sink

Beach Club:

• 60L drinks fridge
• Foster Ice maker
• Bar
• Marble sink

Bridge Deck:

• Nespresso coffee machine
• Quooker instant boiling water tap
• Mixer tap
• Inskinkerator
• Stainless steel sink
• 60L Drink fridge

Main Deck:

• Foster Icemaker
• Santos citrus juicer
• Panasonic professional combi microwave
• 4 Zone hob
• 60L Drink fridge
• Griddle
• Pasta Cooker
• Deep fryer
• Static oven
• Combination steam oven
• Salamander grill
• (1) Walk-in garbage fridge 6m2
• Custom stainless steel exhaust hood with 3 variable frequency intakes and 1 extraction fan to ensure slight under pressure over cooking range to minimize smells and cold air extraction

Laundry Equipment

Miele Professional

• (4) PW6065 washing machines
• (4) PT7136 dryers
• (1) PW6133 washing machine
• (1) PT7331 dryer
• (1) HM 16-80D rotary ironer

TENDERS & TOYS

Tenders:

• (1) 23.62’ (7.20m) 2022 Super Air Nautique Ski Boat
• (1) 24.61’ (7.50m) 2022 X-Craft Beachlander
•  (1) 11.81’ (3.60m) Narwhal unsinkable rescue boat – New engine and tubes 2024

Jet Skis:

• (2) 2023 SeaDoo Sparks
• Yamaha Superjet standup jet ski

Toys:

• (2) Seabob F5S
• (2) Lift efoil
• (1) 13.12’ (4m) new custom FunAir inflatable waterslide - 2024
• (1) 40’ (12.19m) new custom FunAir inflatable beach club - 2024
• (2) Inflatable paddleboards
• (2) Wakeboards
• (1) Foil board
• (2) Wake surf boards
• (2) Water skis
• (1) Mono ski
• (2) Inflatable donuts
• (4) Inflatable sun loungers
• (1) Beach setup including marquee, chairs, tables and Weber BBQs Sets of PFDs, helmets, gloves, snorkels and fins
• Diving Compressor: Mariner 200 EPR diving/firefighting air compressor rated at 330bar (200bar for diving and 300bar for firefighting)

DECK EQUIPMENT

Anchor Windlass System: (2) Ten horn Winches model EACV 28U3

Aft Warping Capstans: (3) Polished Stainless steel Maxwell 8000

Anchors: (2) POOL fully balanced high holding power

Anchor Chain: 190 meters x 28mm of anchor chain for each anchor

Boat Crane and Davits:

• (2) Cramm lifting cranes
• (1) rated at 4 ton lifting Capacity for the 23.62’ (7.2m) Super Air Nautique – Stbd.
• (1) rated at 4 ton lifting capacity for the 24.60’ (7.5m) X-Craft Beachlander, rescue boat and 3 jet skis

Passerelle: (1) Aft Cramm passerelle with 90 degrees or possible rotation, plus up and down feature

Stern Boarding Gangway: Cramm Hydromar hydraulic

Swimming Platform: Fold down transom

Swimming Ladder: Stainless with teak steps

OTHER EQUIPMENT



Pool: Filtered salt water + fresh washer

Spa Tub: Hoesch Alabama whirlpool on bridge aft deck

Sauna: (1) Sauna

Massage Room: (1) Massage room

Gym Equipment:

• (1) Technogym Kinesis Personal Multi-Functional Gym - Peloton Equipment
• (1) Technogym Unica Compact Multi Gym

Sun Awnings: (1) Skylounge deck aft

SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

Security Equipment

Security System: AXIS

CCTV System: (19) CCTV cameras with motion sensors

Monitors

• (1) Surface
• (2) Ipads
• (3) Hattelands

Fire Fighting Equipment

Fire Control System: Hi-Fog firefighting system throughout boat and a co2 system in galley duct

Fire Extinguishers: (52) Portable extinguishers

Fire Hoses: (22) Fire hydrants/hoses

Fire Alarms: Tyco Minerva T2000

Gas Detection: (2) Monicon S-500

Smoke Detention: (150) Tyco smoke and heat detectors

Alarms: E2S System Horns

Safety Equipment

Life Rafts:

• (4) 25-person
• (1) 8-person

Lifejackets: (37)

Life Rings: (8)

Line Thrower: (2) Pains Wessex 250

MOB Boat: Narwhal SV420

Breathing Apparatus:

• (4) BA
• (8) Bottles

Immersion suits: (37)

EPIRBS: (2) Jotron 40S

SART: (2) Jotron SART-20

Flares: (12) Parachutes

Medical Equipment: MSOS class B

ACCOMMODATIONS

General

• Accommodation for up to 13 guests including an Owner's two-level master stateroom, three double staterooms, two twin staterooms that can be converted to doubles and an additional single cabin

Owner

• The Owner’s two-level master stateroom includes a master suite and office on the main deck, and lounge area on the skylounge deck

Guests

• Lower Deck: Four queen staterooms, including two that convert from queens to singles
• Skylounge Deck: One double VIP stateroom and one single berth cabin

Crew

• Bridge Deck: Captain and Chief Officers Cabin.
• Lower Deck: A chief engineer's cabin, 6 shared cabins for crew with direct access to the guest accommodations’ corridor for service.
• Tank Deck: Crew mess room and relaxation area and 2 additional crew cabins.

COMMENTS

Exclusion:

• 48’ Anvera Chase Boat - Towable Tender. Name: “WILD THING”
• “LOON” name reserved for Seller
• All LOON monogrammed items on board
• Scale model (mock-up) of Loon

UPGRADES

2023 and 2024

• Complete bridge refit in 2023 which included completely rebuilding the console and navigation desk
• 5 New Hatteland displays
• Conversion of main deck pool to fresh water with a drop tank and water heater
• New pool deck cushions 2024
• Hull wrapped in 2023
• All 3 generators were rebuilt in 2024
• 15-year survey is due the 1^st quarter of 2025 – Scheduled to start on January 4^th, 2025, at Rybovich Super Yacht Marina in West Palm Beach, FL

Listing MLS by Yachtr.com
