Builder's Description

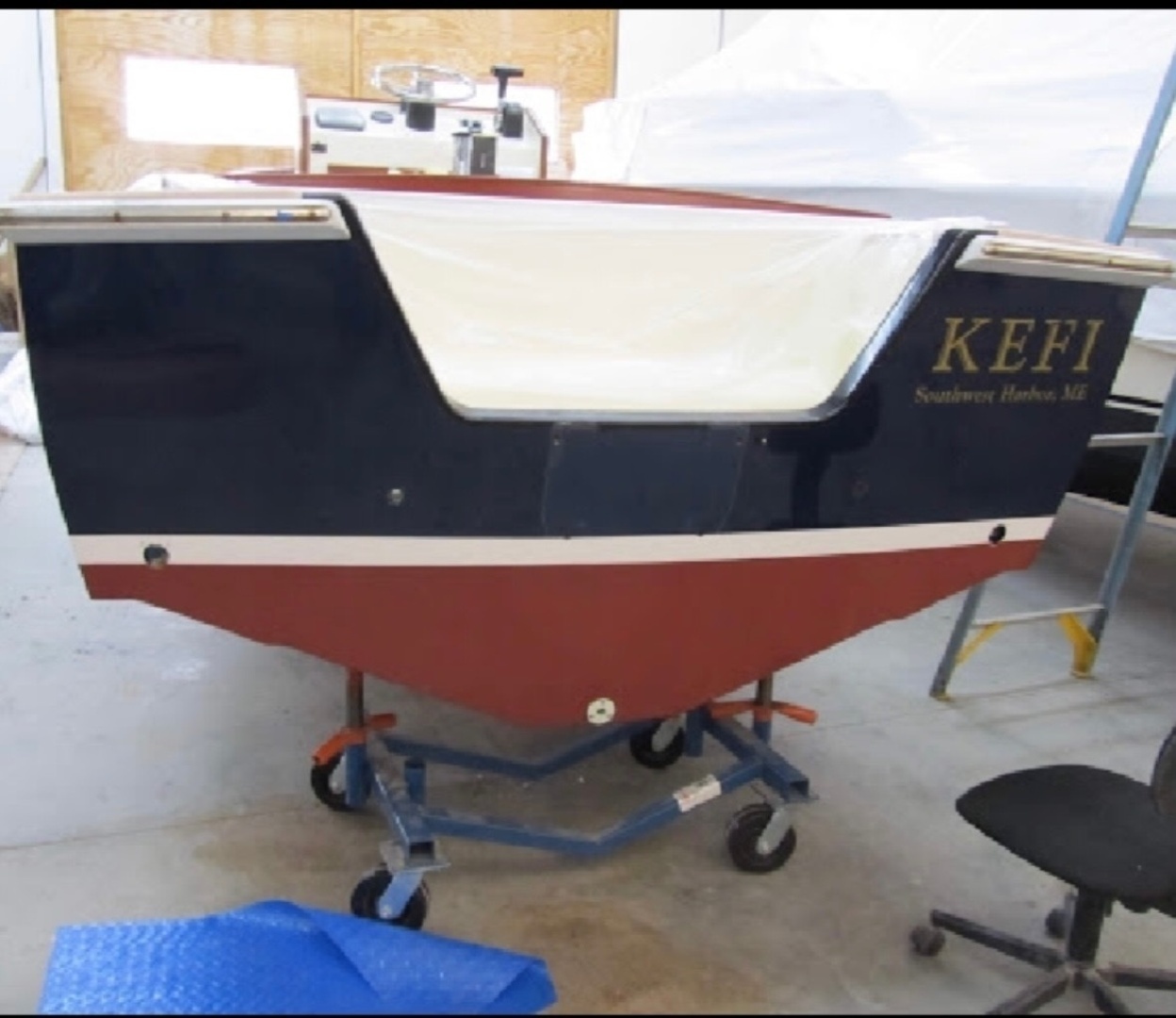

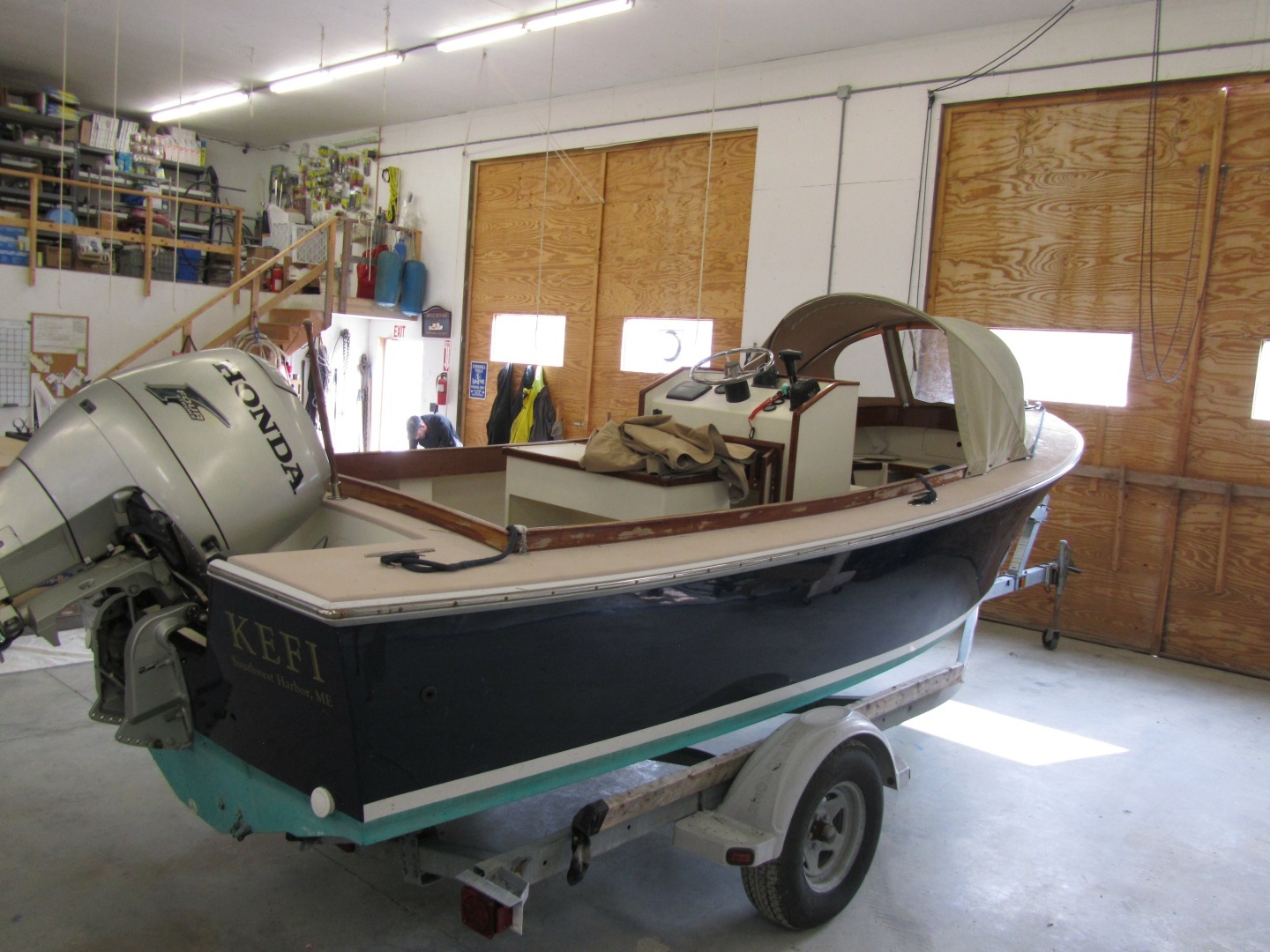

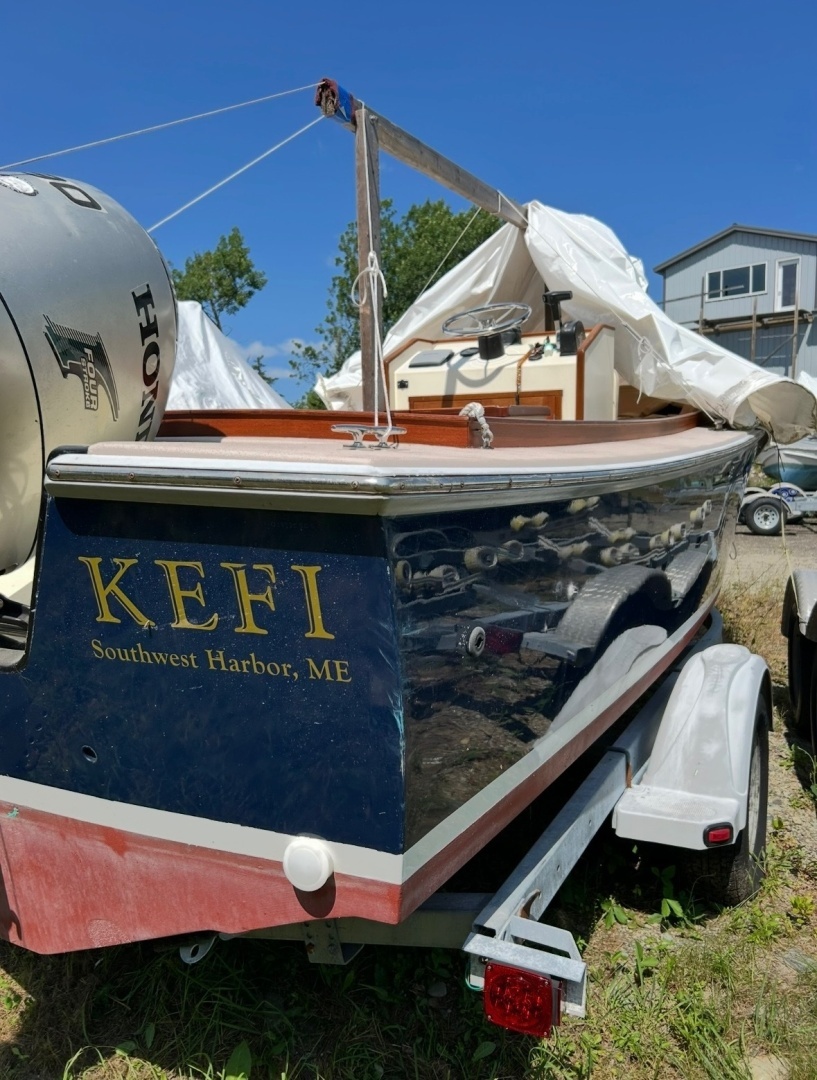

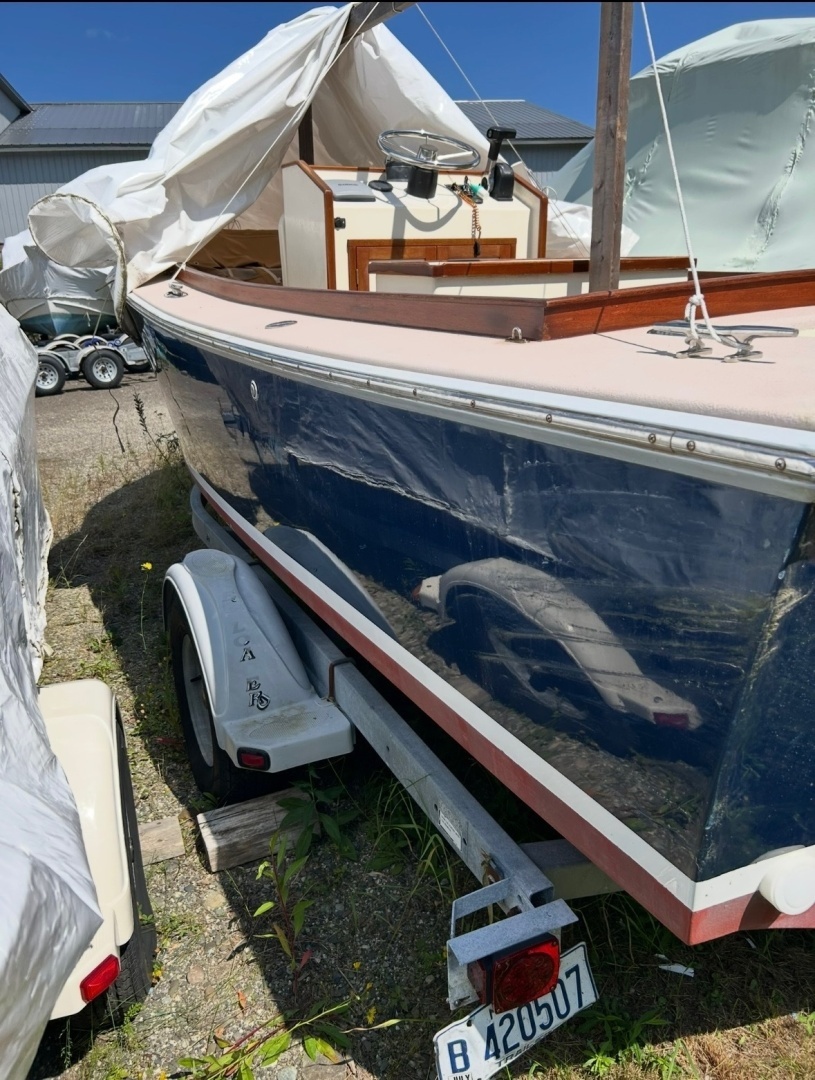

This 1984 Western Way 19 is built in the Classic Launch style. This design offers the convenience of operating while seated with the added protection of the hood with an isinglass windshield or with the top rolled back standing at the helm-- all without spoiling the appearance by requiring a high ungainly top. The cockpit deck is self-draining through transom scuppers.

Construction

The hull laminate consists of two layers of 1oz mat, 1 layer of 1808 fabric, 1 layer of 1oz mat, 1 layer of 5mm coremat, 1 layer of 1808 fabric and one layer of 3/4oz mat and allgripped. Two 2x12 glass encapsulated stringers and ¾” floors are installed to stiffen the bottom. The resulting hull is strong, stiff and light.

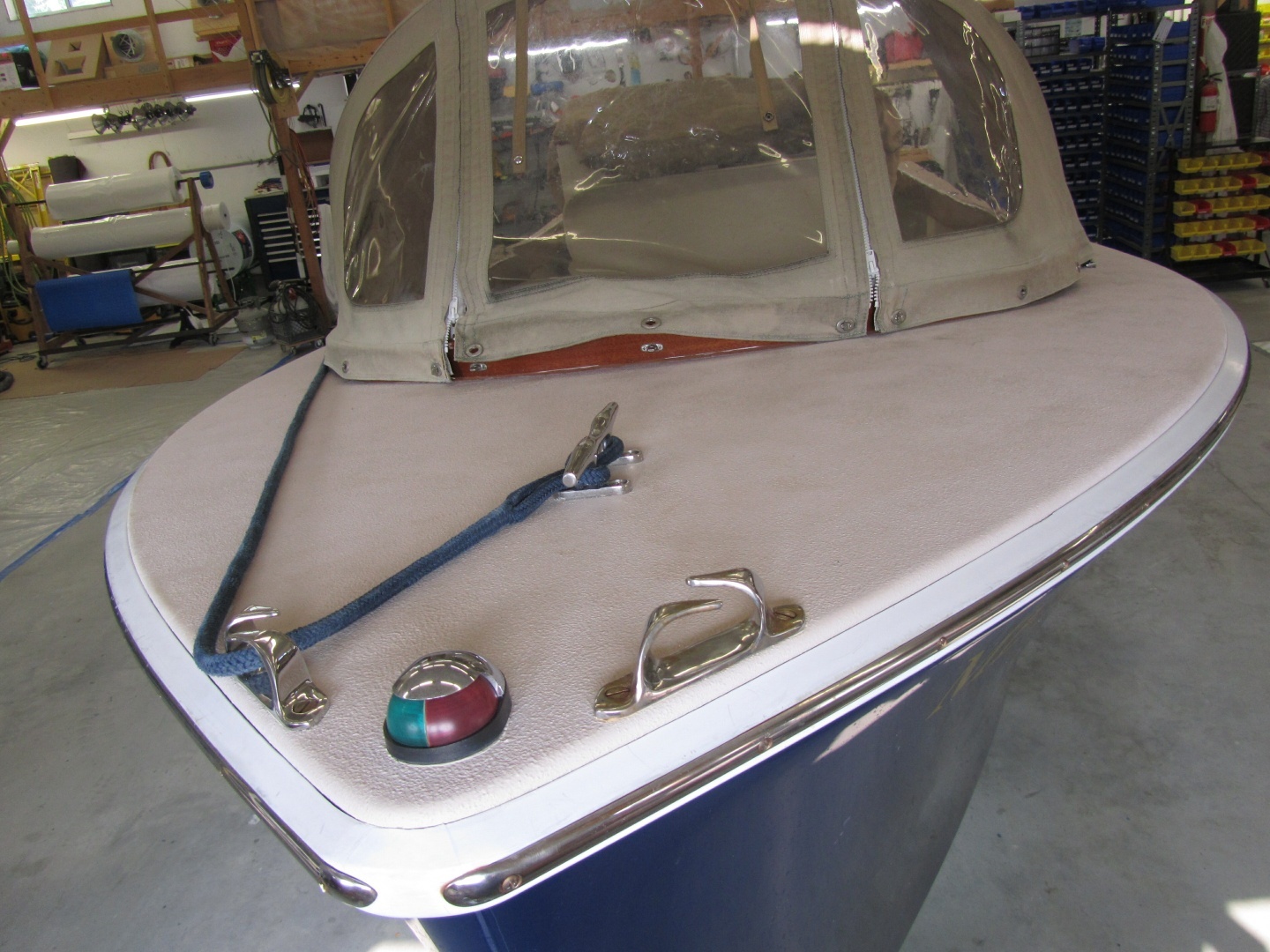

The deck laminate is similar except that a 3/8” balsa core is incorporated in place of the coremat. The guard rail is PVC with stainless steel half oval. The deck hardware is also stainless steel.

The trim is varnished mahogany around the cockpit coaming, the console, and cushioned helm seat. The bench seating forward with cushions offers storage hatches below.

Engine

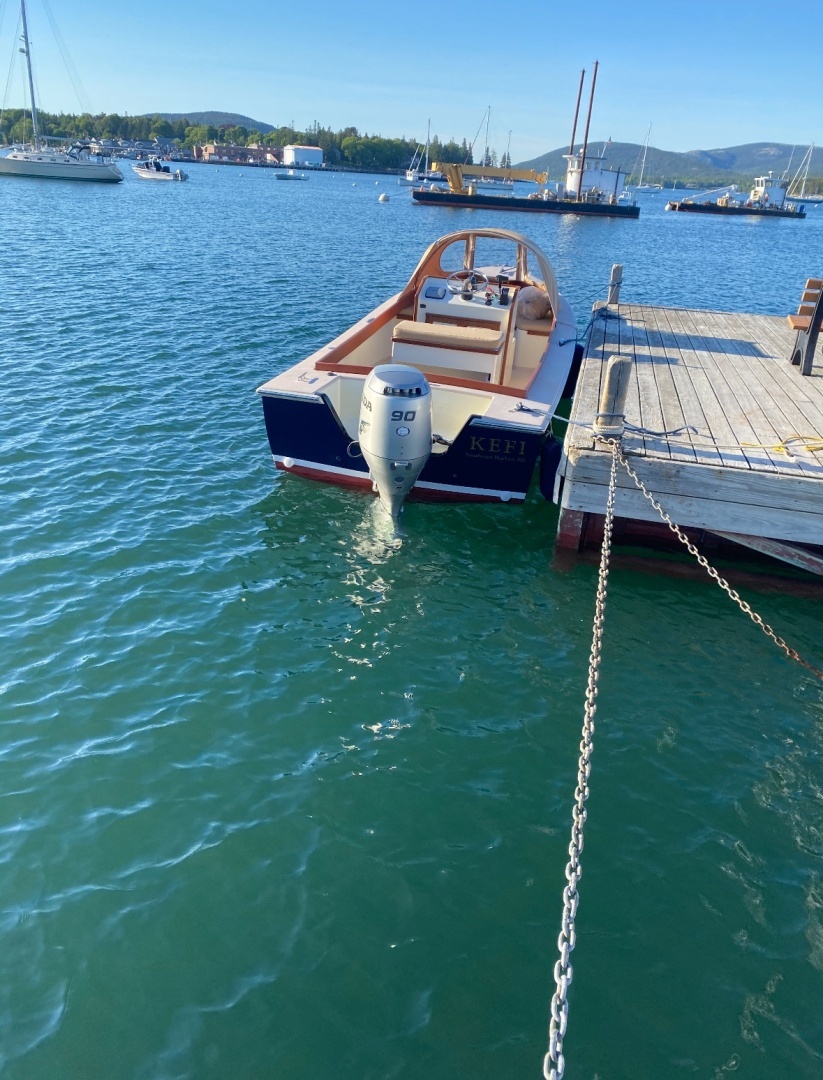

2006 Honda 90 HP 4-stroke outboard that is mounted on the built-in transom with well and built-in gas tank.

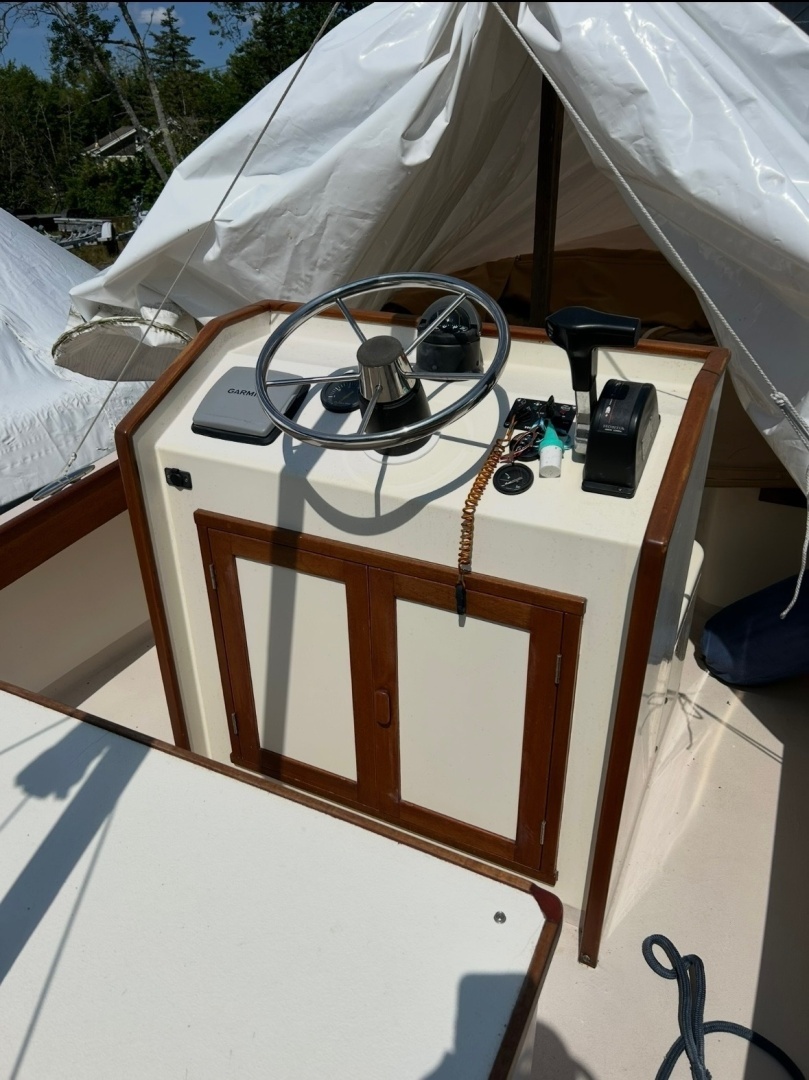

Helm

Hydraulic steering with stainless steel wheel

4" Compass

Honda ignition and throttle

Helm seat for two

Storage access inside console

Electrical panel

Battery

Equipment

Navigational

Garmin GPSmap 541s built-in at console

Running lights forward

Bilge pump

Dock lines

Fenders

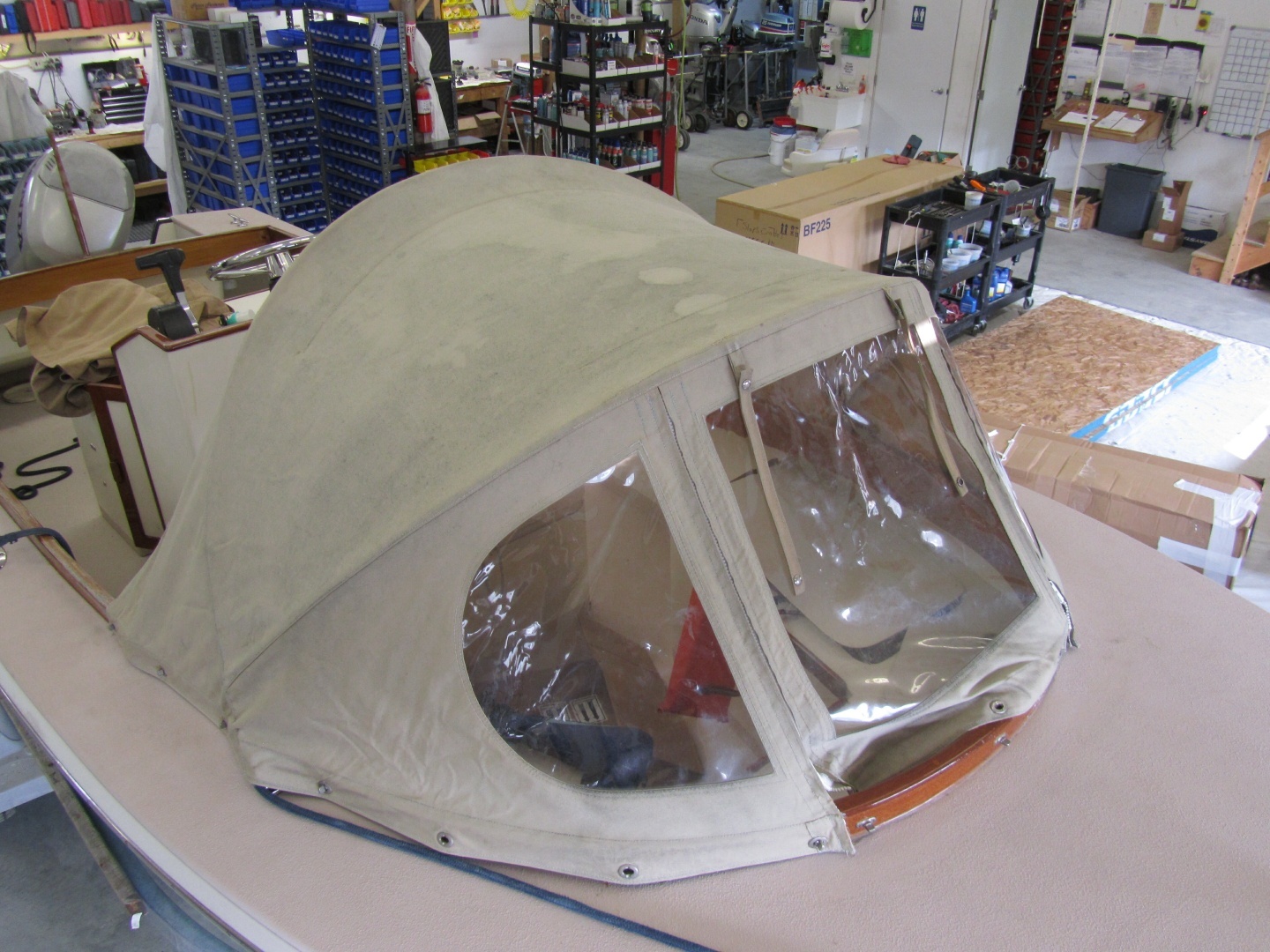

Canvas Hood w/stainless steel bows and isinglass

Seat cushions

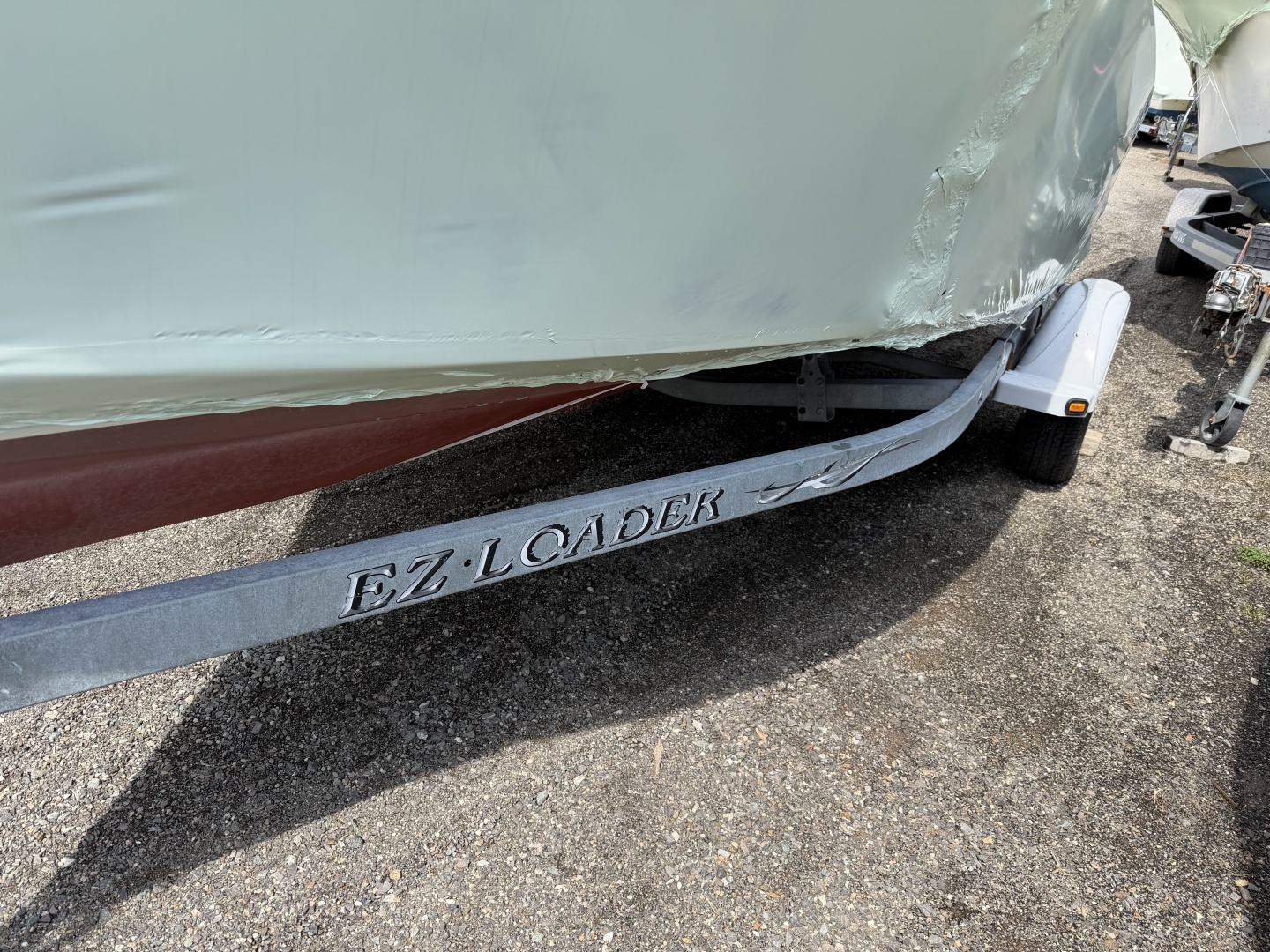

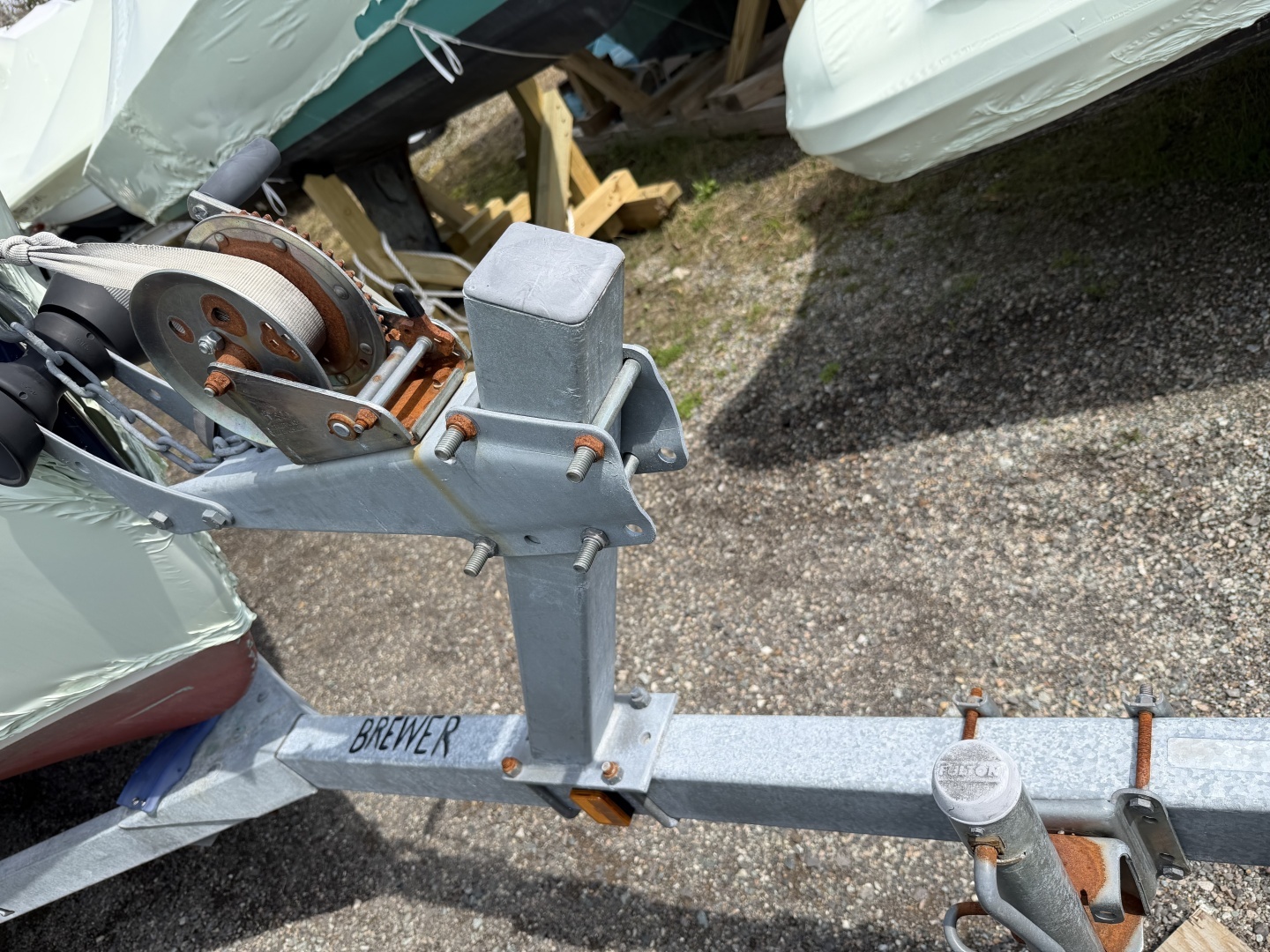

EZ Loader single-axle galvanized trailer
