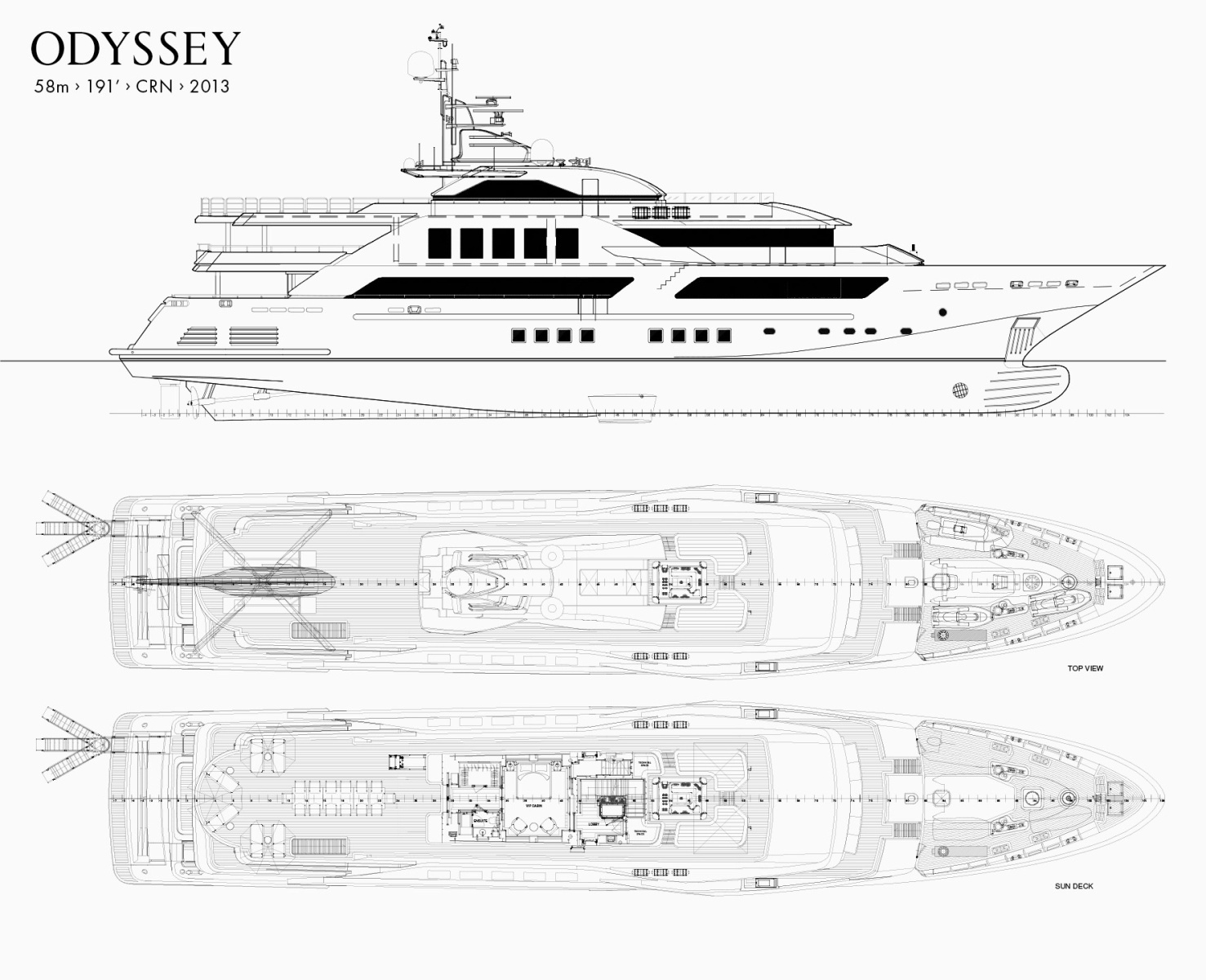

Detailed Specification

MAIN CHARACTERISTICS

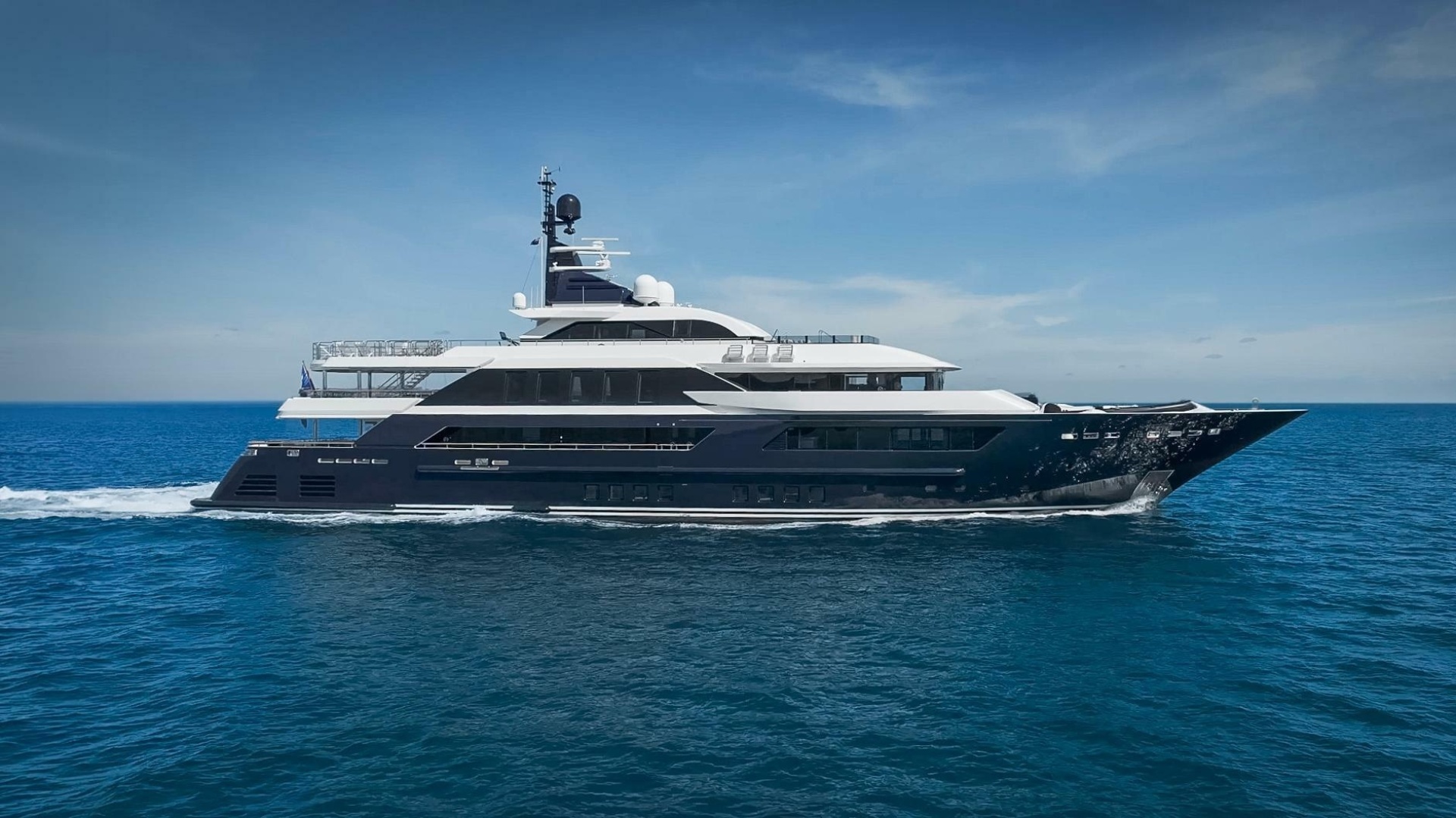

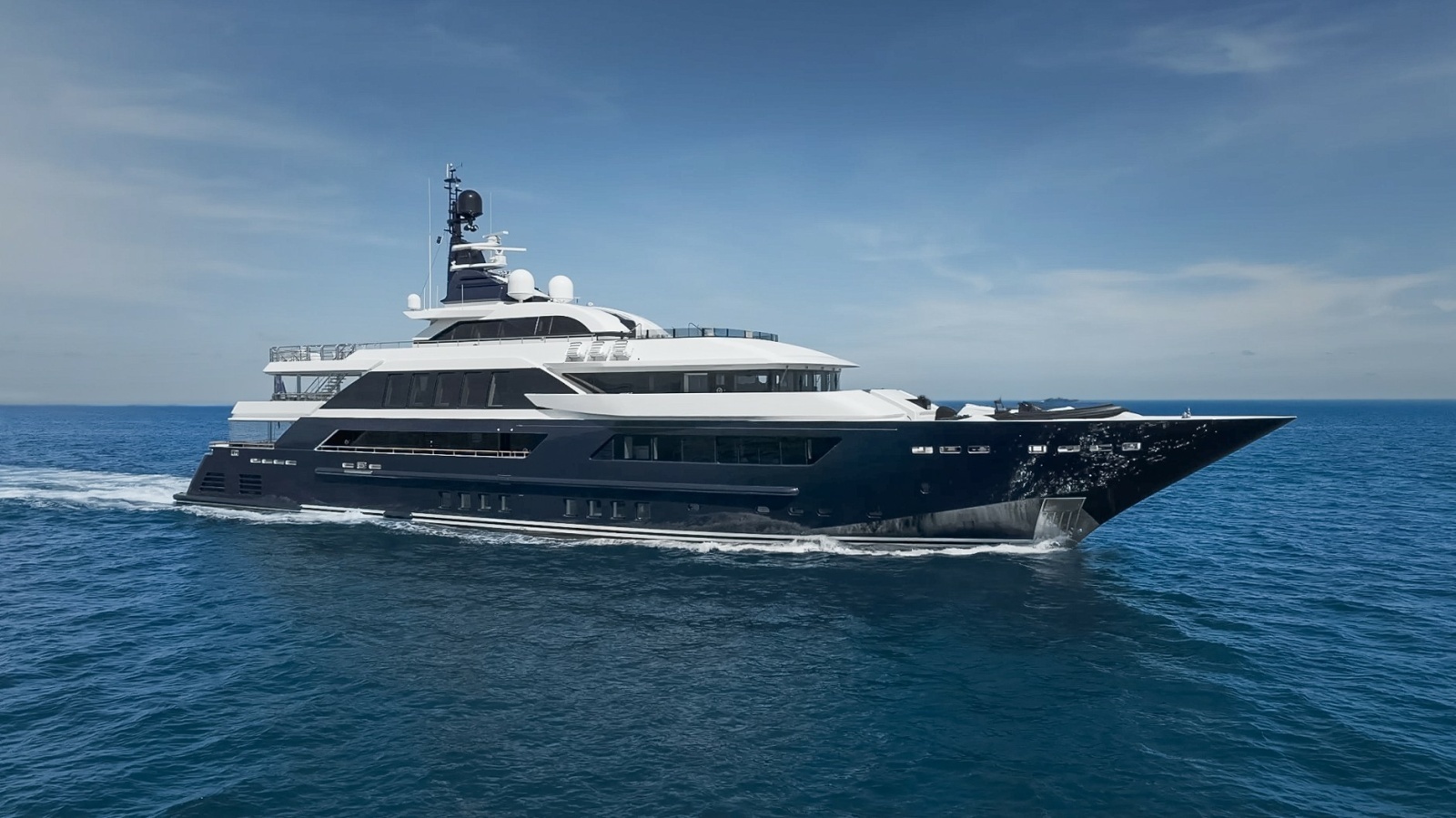

Name: ODYSSEY

Type: Twin Screw Full Displacement Yacht

Builder: CRN Ancona, Italy

Year: 2013

Refit Year: 2019/2020

LOA (M/FT): 58.2 m / 190’9”

Beam Overall (M/FT): 10.2 m / 33’5”

Draft (Full Load) (m/ft): 3.6 m / 9’’8”

Gross Tonnage: 939 GT

Displacement (Light Ship): 775 tonnes

Hull Material: Steel

Hull Configuration: Full Displacement

Superstructure: Aluminium

Decks: Teak

Flag: Marshall Islands

Classification: Lloyd’s ✠100 A1 SSC Yacht Mono G6 Commercial

MCA: Yes

Naval Architect: CRN

Exterior Designer: Zuccon International Project

Interior Designer: Zuccon International Project

Main Engines: 2 x MTU 1,500 kW (2,010 bhp) 12V 4000 M61

Speeds: 16 knots max @ 400 (shaft) rpm or 1800 rpm

14 knots cruising @ 359 (shaft) rpm or 1600 rpm

13 knots economical @ 324 (shaft) rpm or 1550 rpm

Range: 3,000 nm @ 13 knots @ 324 (shaft) rpm or 1550 rpm

Guest Accommodation: 13 guests in 6 staterooms

Crew Accommodation: 14 crew in 7 cabins

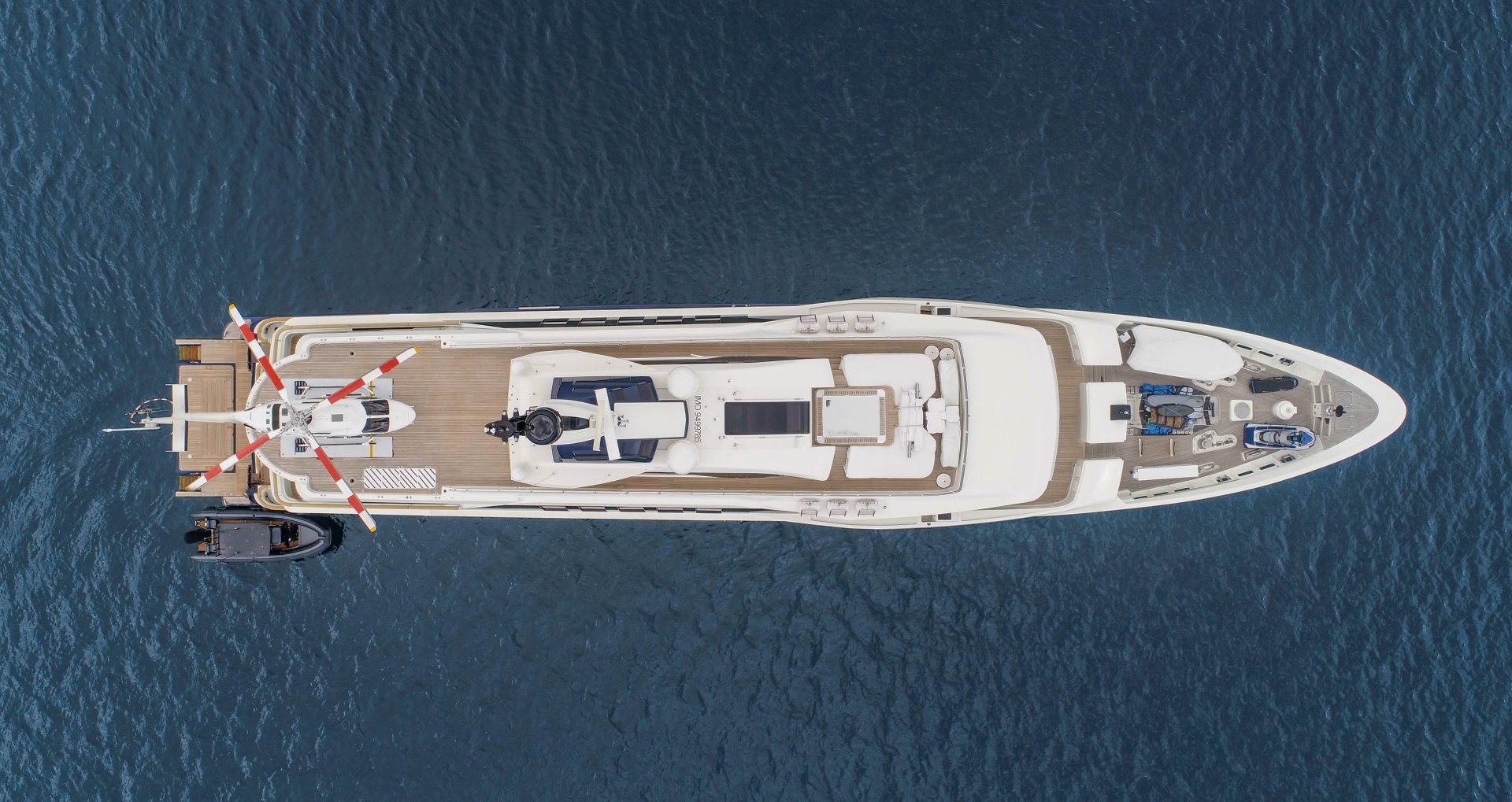

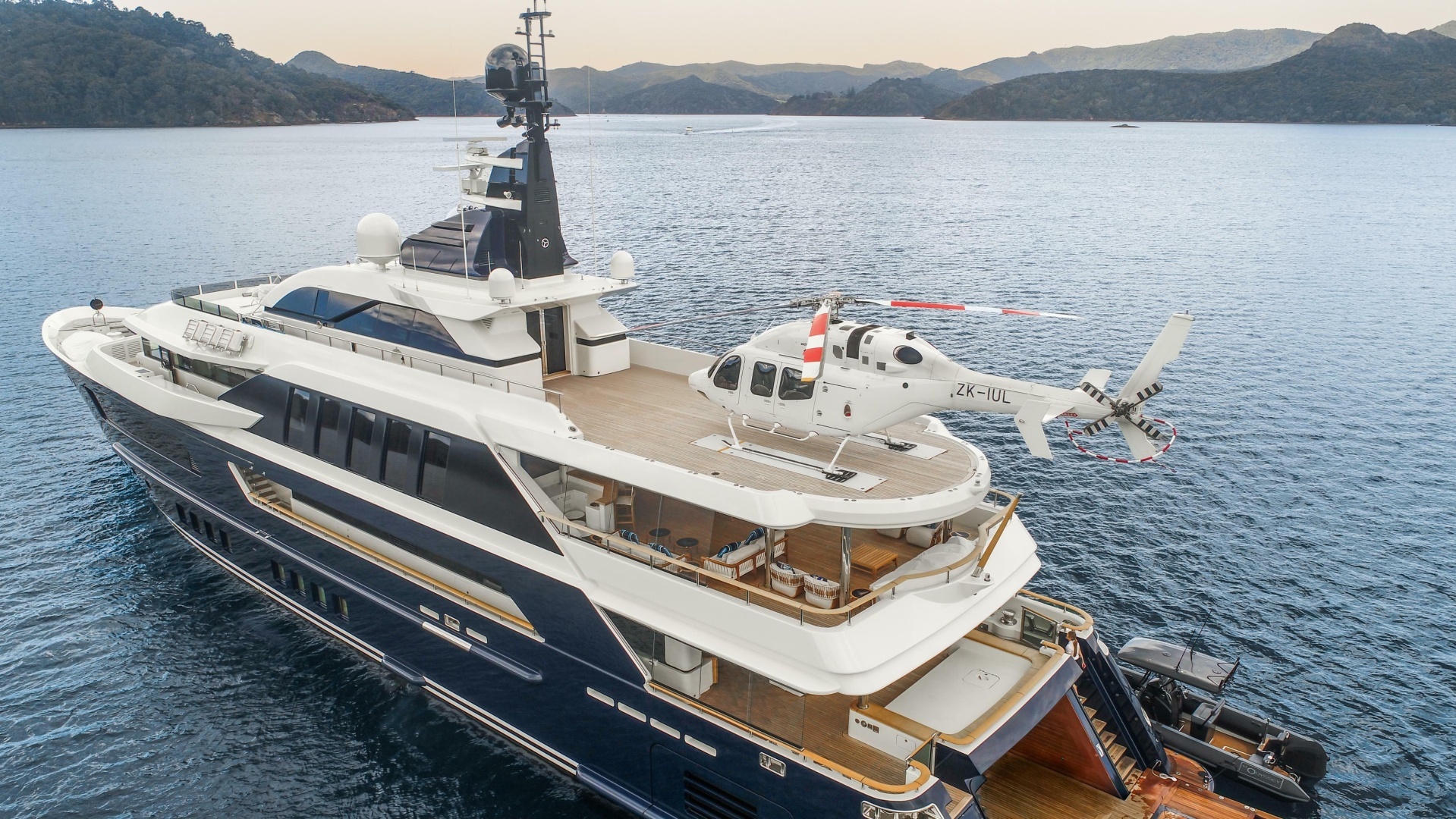

Helicopter Deck: Lloyd’s ‘Touch n Go’ for Bell 429 (private use only)

COMMENTS AND NOTEWORTHY FEATURES AT A GLANCE

Six staterooms

Full-beam master with study and “his and her” bathrooms

Private balcony off master stateroom

Elevator from lower to sun deck

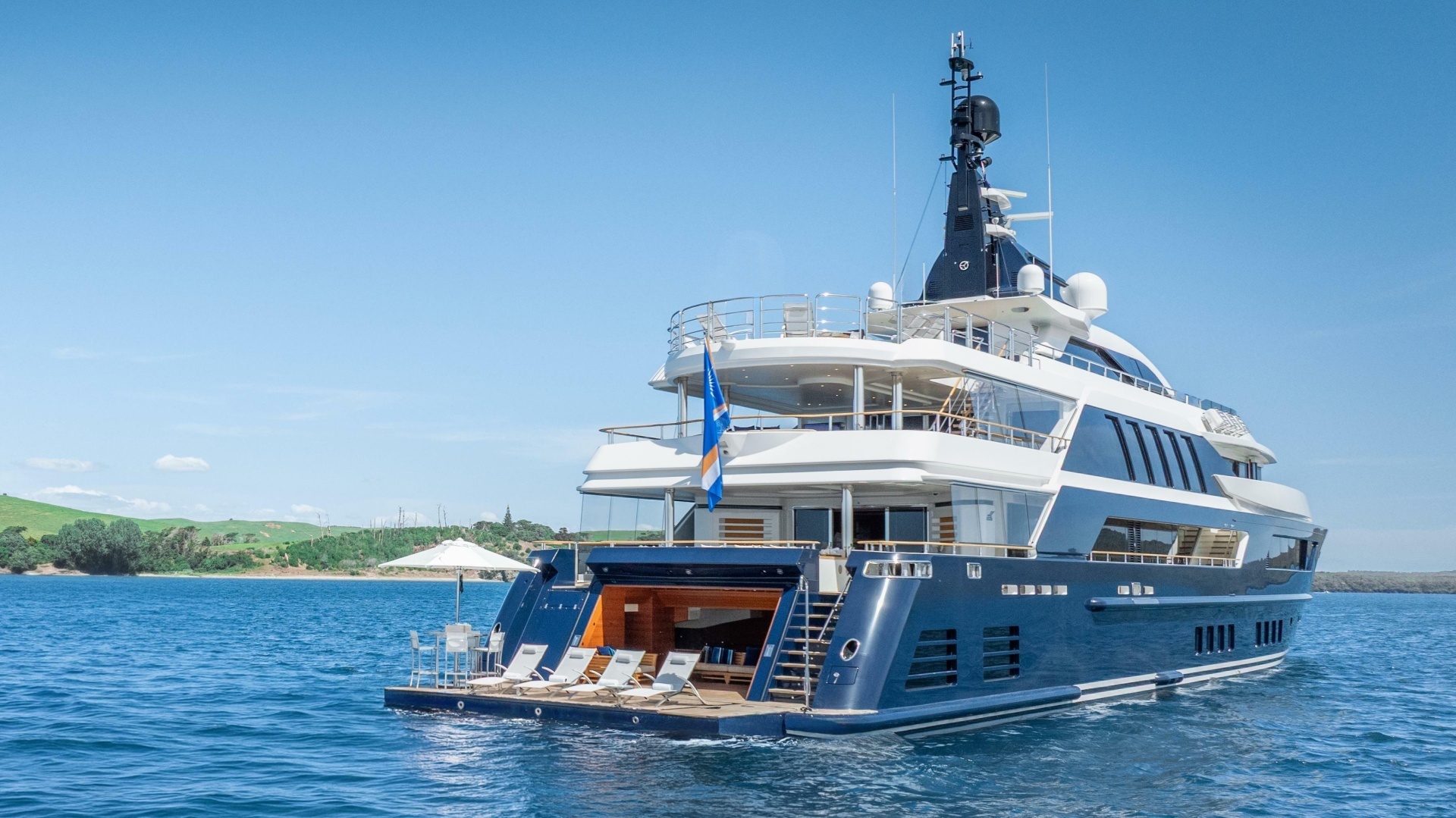

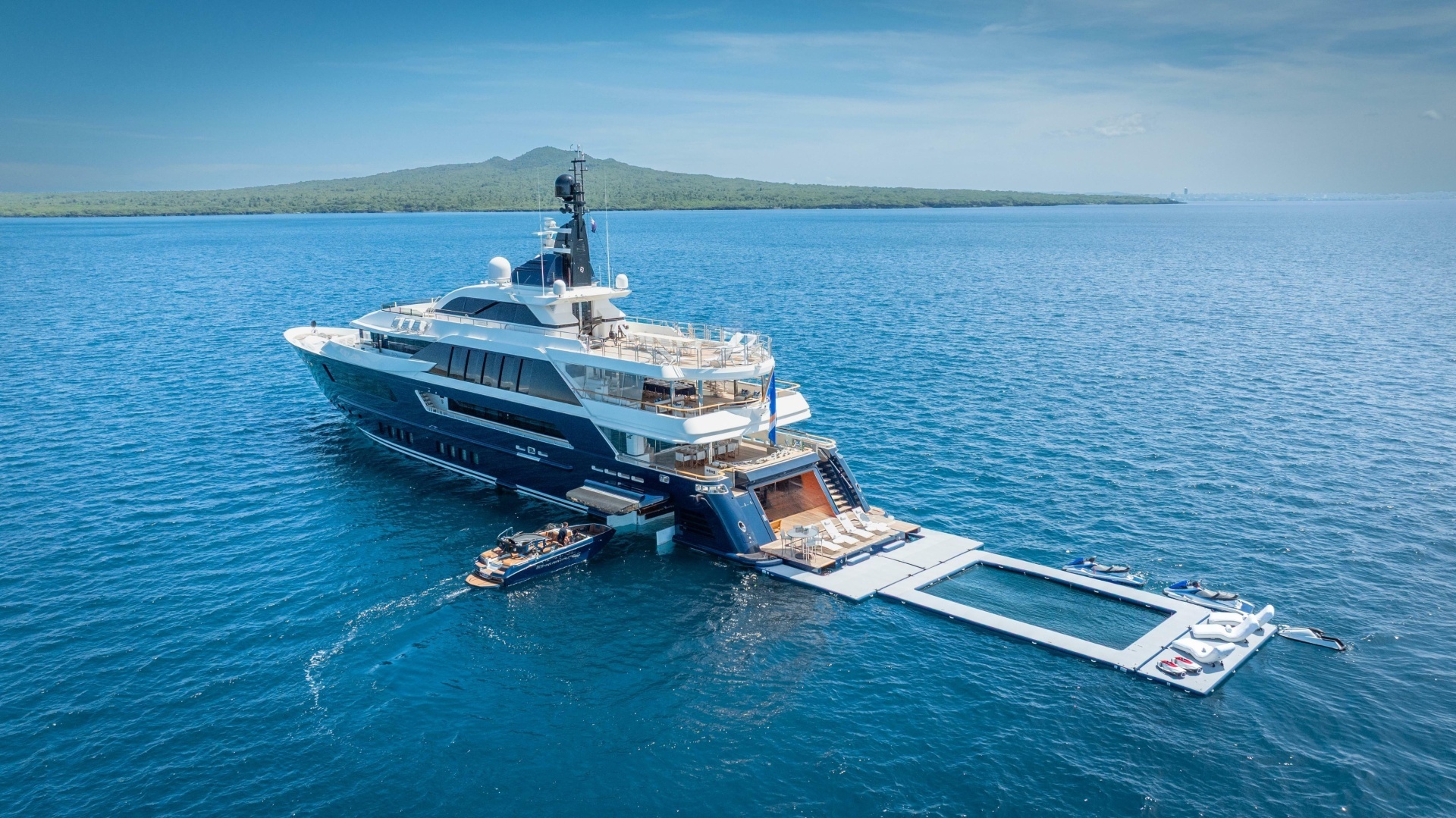

Spacious fold down beach club

Drive-in tender garage

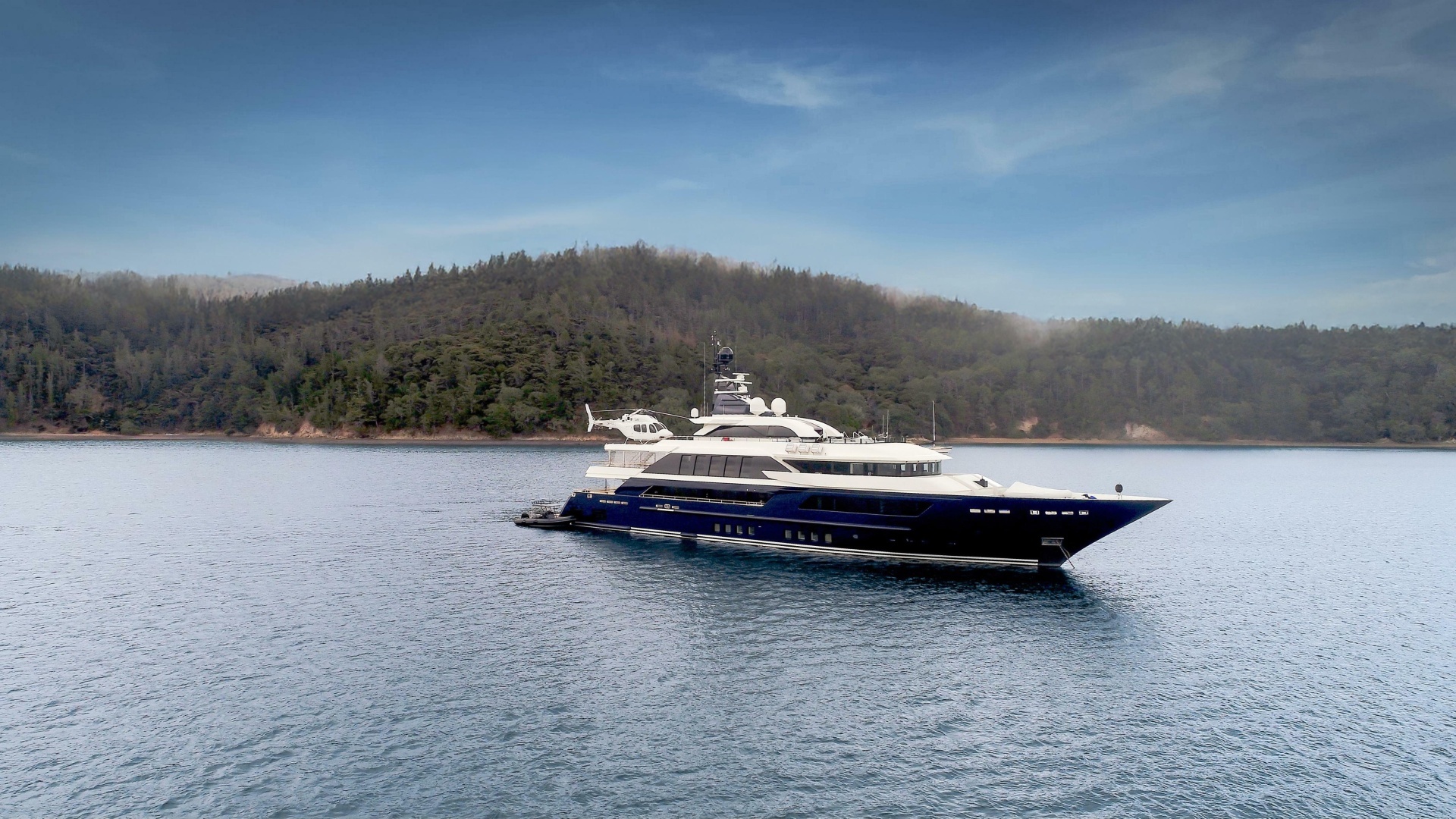

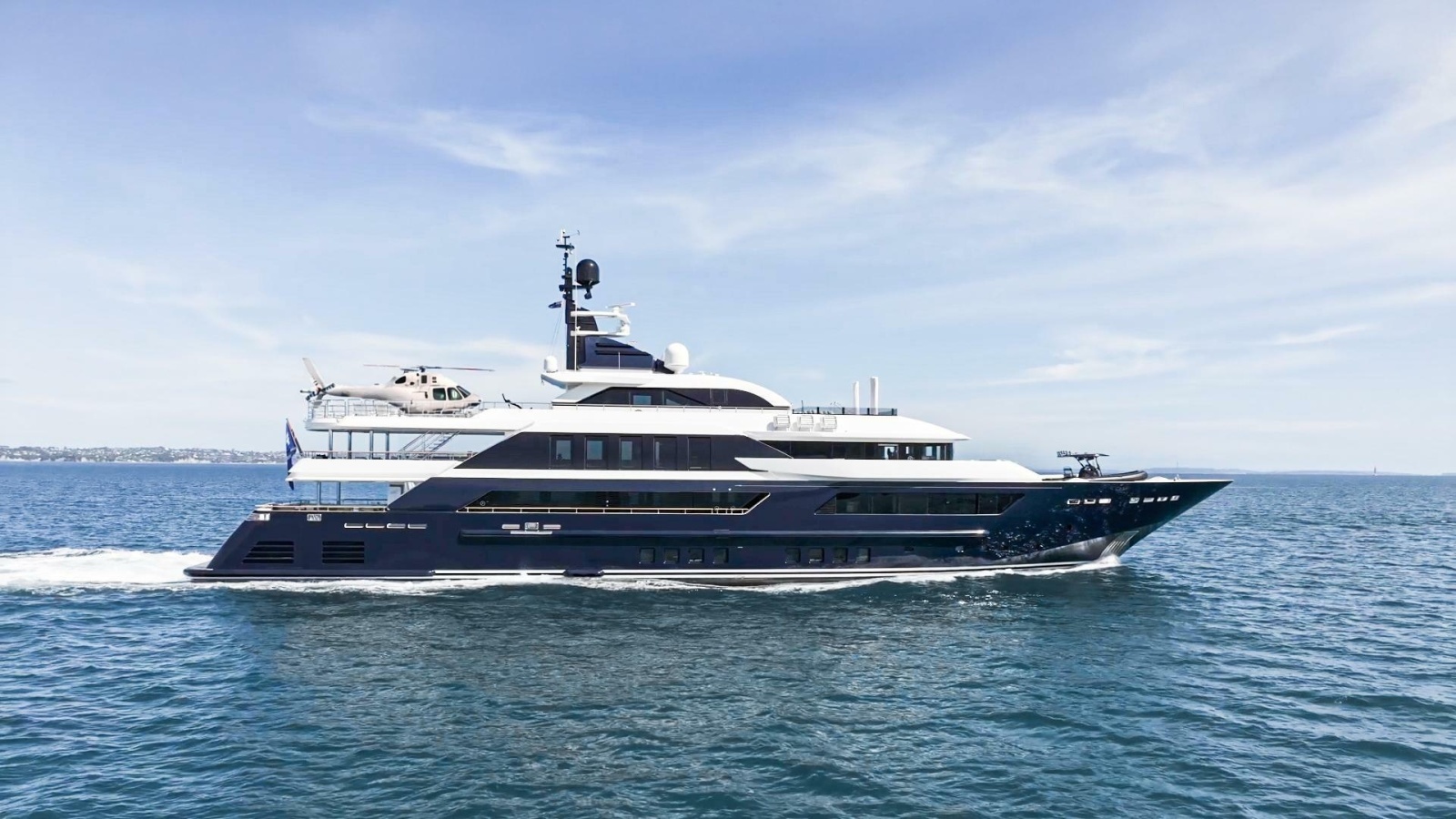

Helicopter landing for Bell 429 or similar (EC135, etc.)

Recent Awlgrip paint job (2020)

Lloyd’s ✠100 A1 SSC Yacht Mono G6 Commercial

CLASSIFICATION

Flag: Marshall Islands

Port of Registry: Bikini

Classification: Lloyd’s ✠100 A1 SSC Yacht Mono G6 Commercial

EU Tax Status: EU VAT not paid

US Tax Status: US Duty not paid

REGULATION

Vessel Registration: Private

Built to Commercial Compliance: Yes

DECKHEAD HEIGHTS APPROXIMATELY

Main Aft Deck: 2.29 m / 7’16”

Main Deck Interior: 2.13  / 7’00”

Upper/Bridge Deck Interior: 2.10 m / 6’11”

Sundeck Interior: 2.19 m / 7’2”

Beach Club: 2.06 m / 6’09”

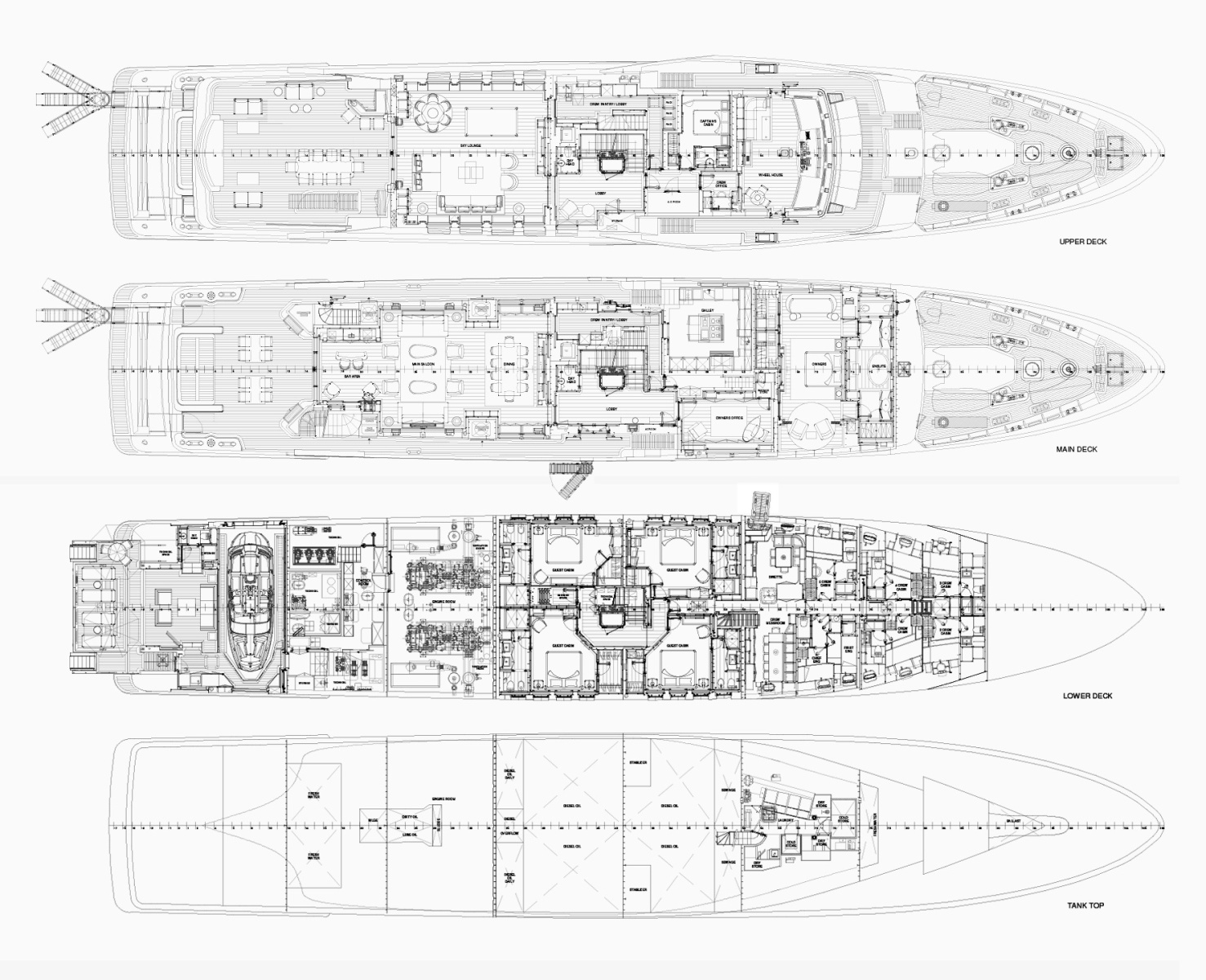

ACCOMMODATIONS

OVERVIEW:

Exceptionally generous layout encompassing 6 staterooms.

An elevator services every deck level.

LOWER DECK:

Tank deck has cold stores, dry stores and laundry.

Lower deck has 6 double crew cabins forward, all with ensuites, Crew mess with crew dinette opposite.

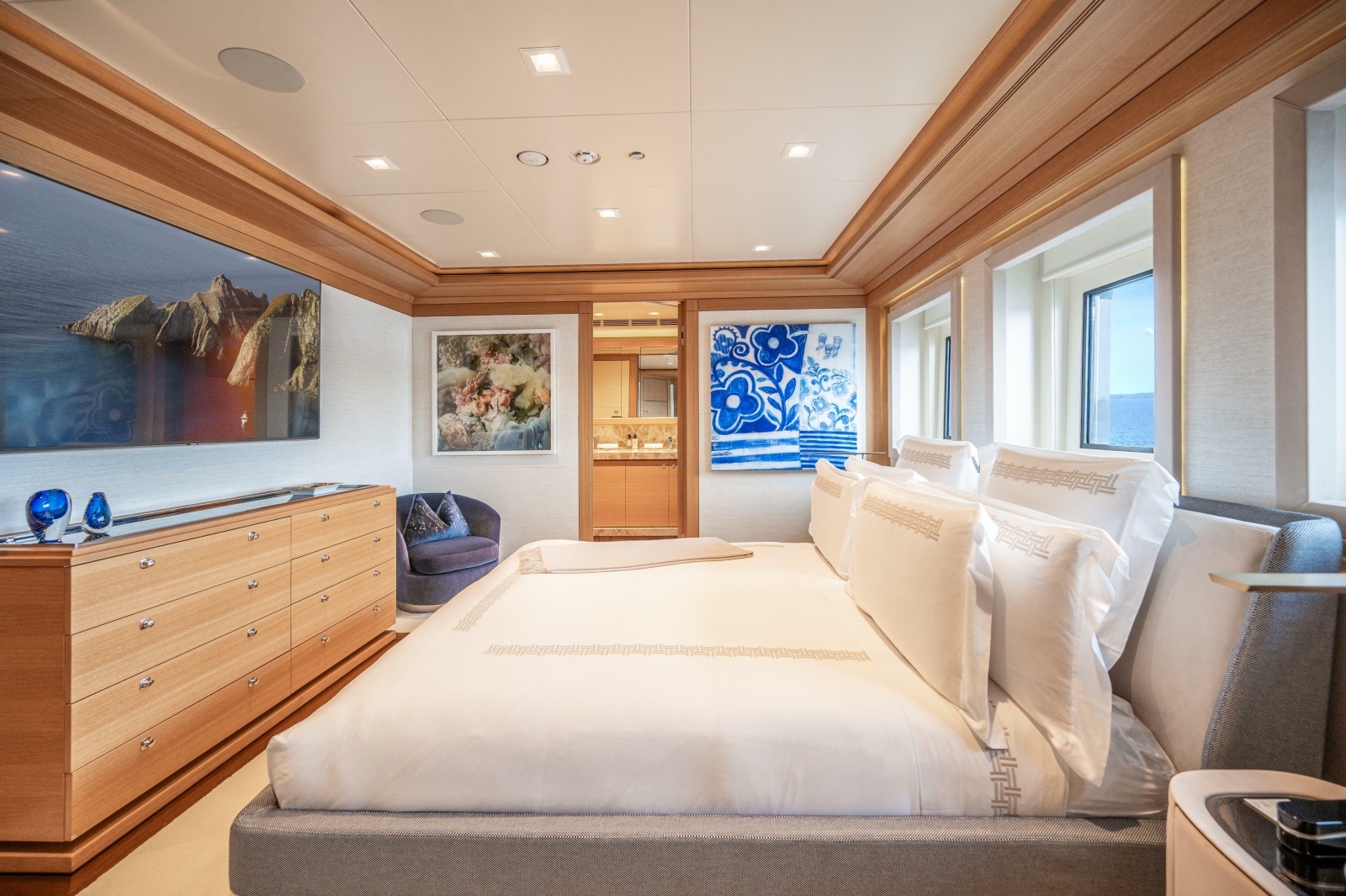

Guest area has 4 guest staterooms:

2 x Double staterooms with en suites with showers

2 x Double/twin convertible staterooms with en suites with showers (one has an additional Pullman berth)

Engine room with ECR aft , garage further aft and beach club with day head all the way aft.

MAIN DECK:

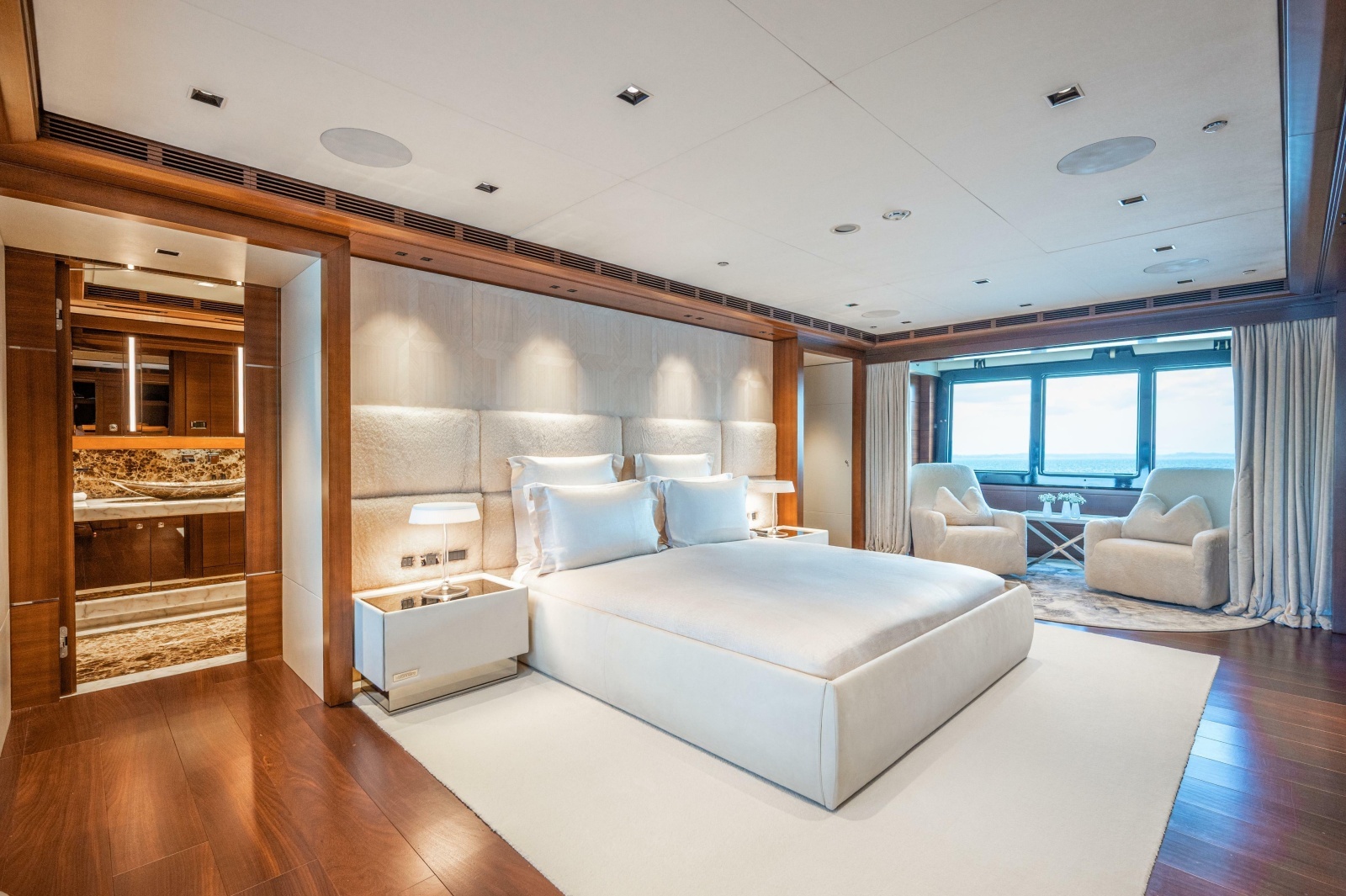

Full beam Owner’s stateroom on main deck forward. Balcony with seating area, his and her bathrooms with central whirlpool bath. Separate Owner’s study aft.

Galley to port, pantry aft and day head in the lobby adjacent elevator. Dining room is open to the main salon further aft with a bar area further aft. Open aft deck with seating and passarelle access to port

BRIDGE DECK:

Bridge with seating to port side, Captains cabin with walk around berth, pantry, sky lounge and outside covered dining with bar on port side.

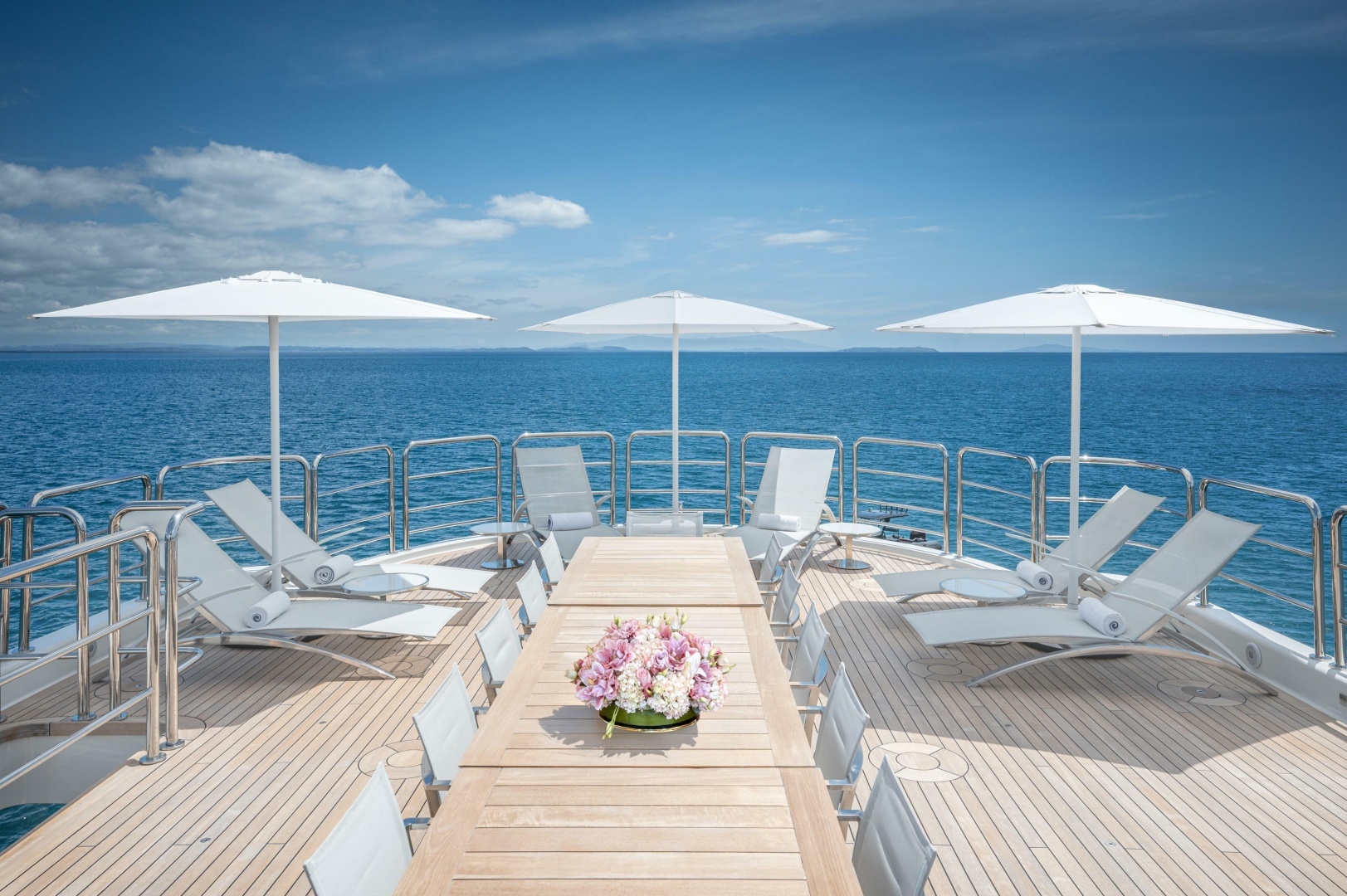

SUN DECK:

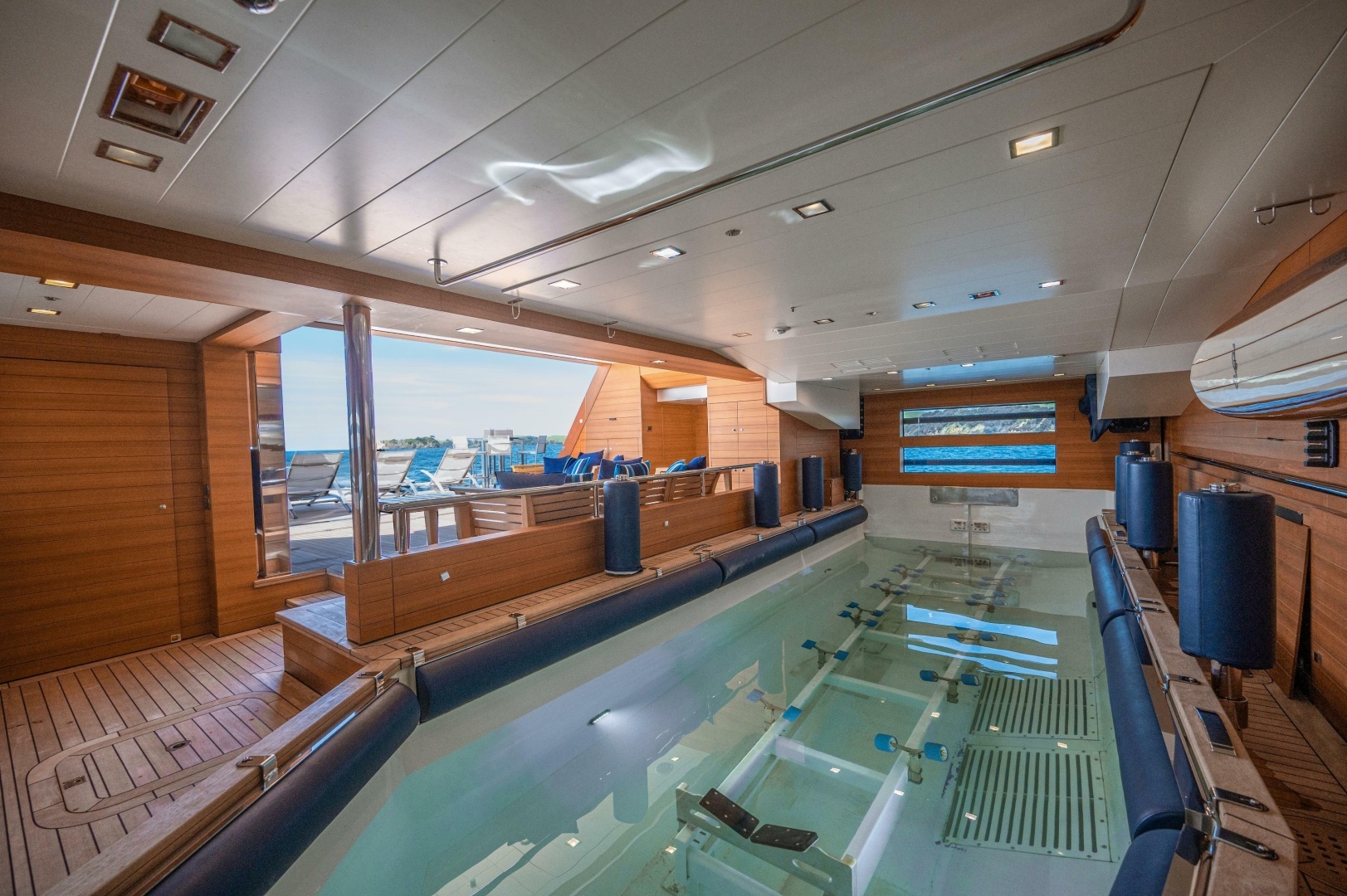

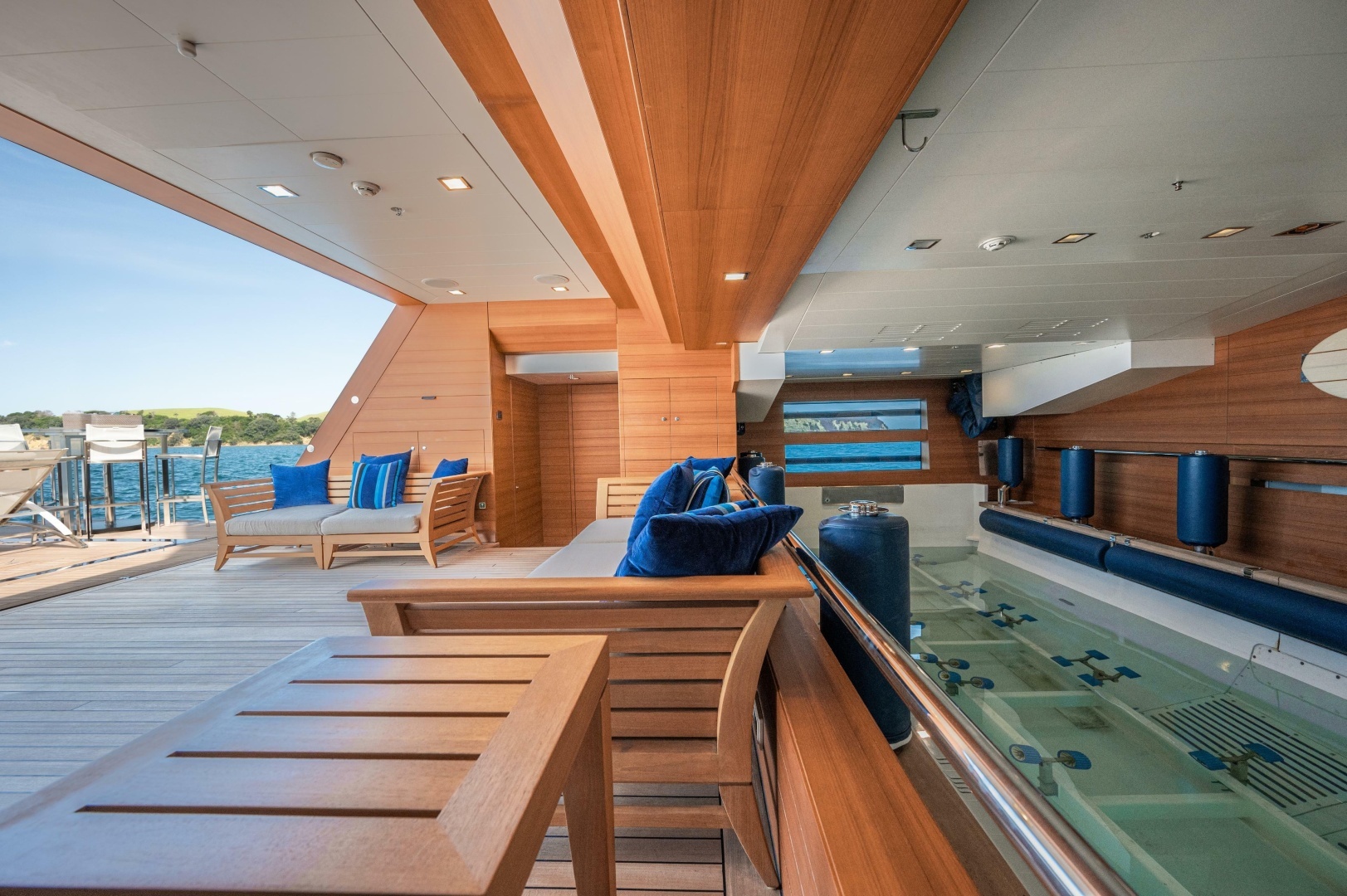

Large pool with sun pads around is forward. Lobby area aft adjacent elevator and VIP stateroom further aft with hanging locker and ensuite bathroom further aft. Expansive outside dining area with gym equipment also serves as the helicopter landing deck for Bell 429 or similar when needed.

CREW ACCOMODATION:

Captain’s double cabin on upper deck

6 x twin berth cabins with ensuites forward on lower deck

CONSTRUCTION

Hull Material: Steel

Bulb: Yes

Superstructure Material: Aluminium

Deck Material: Teak

Paint: Awlgrip (2020)

Number of Decks above WL: 5

CAPACITIES

Gross Tonnage: 939 GT

Net Tonnage: 281 NT

Displacement Tons: 775 tonnes (light ship)

Fuel Capacity: 115,000 L: 28,269 USG

Day Tank: 11,560 (2 x 5,780) L / 3,053 (2 x 1,526) USG

Fresh Water Capacity: 20,000 L / 5,284 USG

Water Makers: 24,000 L / 6,340 USG

Grey Water: 5,870 L / 1,551 USG

Black Water: 5,870 L / 1,551 USG

Lube Oil: 1,900 L / 501 USG

Waste Oil: 1,900 L / 501 USG

Speed

Maximum: 16 knots @ 400 rpm (shaft)

Cruising: 14 knots @ 359 rpm

Economical: 13 knots @ 324 rpm

Fuel Consumption: 12,000 liters (3,170 USG) /day at 13 knots, 1,550 RPM

MAIN MACHINERY

Main Engines: 2 x MTU 1,500 kW (2,010 bhp) 12V 4000 M61

(March 2026):Port: 5,300 hours (approx.)

Starboard: 5,300 hours (approx.)

Last Major Service:March 28, 2018 (MTU)

Engine Controls: MTU Elektronik Bluevision

Gear Boxes: ZF 7641 4.5:1

Shafting: Rolla

Propellers: Rolla

GENERATORS & ELECTRICITY:

Output/Electricity: 400V 50Hz

Generators: 2 x Volvo D9 MG 50Hz

Hug filters installed on both generators reduce emissions and so are environmentally friendly.

 (March 2026):Port: 1,196 hours SMOH,14,693 Total

Starboard: 1,566 hours SMOH,15,283 Total

Emergency Generator: Cat C4 50Hz

Emergency Generator : 187 hours

Shore Power: SAE ASP170 380V 50HZ Convertor

Shore Power Converter: Input: 170-520V 40-75Hz Output: 400V 50Hz

Batteries: Haze & Zenith

AUXILIARY MACHINERY

Steering System: Opem Sistemi

Bow Thruster: EAS HRP 2001 TT 160kW @ 1450rpm

Stabilizers: Naiad Zero Speed Model 820

Under Water Lights: X 8

FUEL & OIL SYSTEM:

Fuel Filters: Racor filters for generators and main engine

Fuel Separator: Alfa Laval MAB 103

Fuel Oil/Water Separator: DVZ 250FSU Oilchief

FIREFIGHTING & BILGE SYSTEM:

Firefighting & Bilge Pump: Garbarino

Sprinkler System: Novenco throughout

FRESH WATER SYSTEM:

Fresh Water Makers: Idromar IDM Duplex,14,400 liters (3,804 USG) per day each

Hot Water Boilers: 2 x Gianneschi water makers

BLACK & GREY WATER SYSTEM:

Black & Grey Water Treatment: Hamann

WC's (toilets/bidets): Jet vacuum system

GARBAGE MANAGEMENT SYSTEM:

Garbage Cold Storage Room: 0.58m³

AC & VENTILATION SYSTEM:

Air Conditioning: Dometic

Air Compressor: Gianneshci GK17-2-30

Air Handling Units: 3 x AHU Condaria (Dometic)

Engine Room AC: ECR only, fancoil supplied from main chilled water loop

Ventilation: Condaria

Galley Ventilation & Extraction: Condaria ducted overhead extraction. Fire dampers and CO². Air conditioning from local FCU on chilled water loop.

HYDRAULIC SYSTEM:

Hydraulic Power Packs: 1 x Main HPU for transom door, garage door, provision door

1 x HPU for stern gangway

1 x HPU for owners balcony

1 x HPU for telescopic foremast

1 x HPU for foredeck crane

Emergency Power Pack: 1 x Portable emergency power pack for Main HPU, all others have emergency hand pump

NAVIGATION AND COMMUNICATION SYSTEMS

NAVIGATION SYSTEMS

Navigation Bridge:

X-Band Radar: 2 x Furuno integrated in Vision Master FT

S-Band Radar: 2 x Furuno integrated in Vision Master FT

Chart Plotter: ECDIS, Sperry Marine, Vision Master FT, Transas, Time Zero

UPS: 1 x UPS for transitional power SAE 42141 PU6 611

Magnetic Compass: Sperry Marine

Gyrocompass: Sperry Marine, Navigat X MK 2

Auto Pilot: Sperry Marine, Navipilot 4000

Rudder Angle Indicator System: Marsili IAB/012

Echo Sounder: Skipper GDS101

Log: Sperry Marine NAVIKNOT

Depth Sounder: Sperry LAZ5100

DGPS: SAAB R4

GPS: SAAB, R6 CDU navigation system

AIS: SAAB, R4

Navtex: Furuno NX-700

Wind Instruments: B&G H3000

Horn: Kahlenberg t-2 air horn

Search Lights: Colorlight

Night Vision Camera: Flir M Series

Bridge Navigation Watch Alarm: Sperry BNWAS

Ships Computer: 2 x HP PC

4 x MacBook Pros

COMMUNICATION SYSTEMS

SAT com: Seatel

1 x Starlink Gen 2 antenna

VSAT: 1 x Seatel 4009-33MK2

INMARSAT – C: Thrane & Thrane

SSAS: 1 x Sailor 6120

ECDIS: Sperry VMFT Total Watch 02

Cellular Systems: Peplink controller 2 x GSM data sims

VHF Radiotelephones: Sailor

SSB MF / HF Radiotelephone: Sailor 6301

Portable VHF: Icom IC-m71

Iridium Satellite Phone: Fleet 77 Thrane & Thrane

Telephone Exchange: Panasonic

Intercom System: Bosch

VHF Digital Radios: 4 x Sailor 6222

Radar Transponders: VMET Totalwatch 01 X-Band, VMET Totalwatch 03 S-Band

Navtex Receiver: Furuno Navtex NX 700B

GMDSS Battery Plant: 840Ah Deep Cycle maintenance free battery bank

Guest Phones: Panasonic

DECK MACHINERY & EQUIPMENT

Windlass: Opem Sistemi

Anchor Chains: 25mm diameter

Anchor Windlass System: Opem Sistemi

Aft Warping Capstans: Opem Sistemi

Boat Crane in tender garage: Trailmaxx 12000lb winch (no boat crane, flooded dock)

Davit on foredeck: Nautical Structures EZ4400-FC-EX Knuckle crane 4400lb

Passerelle: Besenzoni

Side Boarding Ladder: Marquipt & Besenzoni

Swimming Platform: Swim platform transom door – teak deck

Provision Door: Provisioning door (hydraulic) on port side forward

Floodable tender garage port side aft

Spotlights: 1 x Colorlight CL20

Paint Exterior: Awlgrip 2020

SAFETY, SECURITY, & FIREFIGHTING EQUIPMENT

Security System:

CCTV: B&B

Monitors: Seatronix CD26T

Motion Sensors: None

Ship’s Safe: Mottura

Fixed Firefighting System: Novenco sprinkler system

Consilium fire alarm system

CO2 in galley ducting

Fire extinguishers in all areas

2 x Fireman outfits including breathing apparatus + 4 spare bottles

1 x Bottle of foam – 50kg in the engine room

12 x Extinguishers of 6 kg powder

9 x Extinguishers of foam 9 lts

12 x Extinguishers of C02 5 kg

5 x Extinguisher of powder 1 kg

Alarms: B&B monitoring system in engine room, crew mess and bridge

MOB Boat: 6m Rescue boat with Yamaha 60 Hp outboard engine (on foredeck)

Life Rafts: 6 x (Zodiac),12 persons each

Breathing Apparatus: Drager PSS500

Lifejackets: 38 x Inflatable adult

27x Life jackets + 3 child’s

Immersion Suits: 24 x Adult

3 x Child

Life Rings: X 8

EPIRB: X 2

SART: X2

Flares and Signals: 15 x Red paraflares, 6 x red handheld, 1 x orange handheld, 4 x orange smoke,

Medical Equipment: 1 x Set Oceania Medical A (MCA Category A)

ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS

Boat Networks: Internet networks: Wifi all through the yacht from 5 different networks, internet signal through V-sat signal provided by MTN, Peplink 5G internet route (4 sims), two main server for boat files, Starlink unit fitted

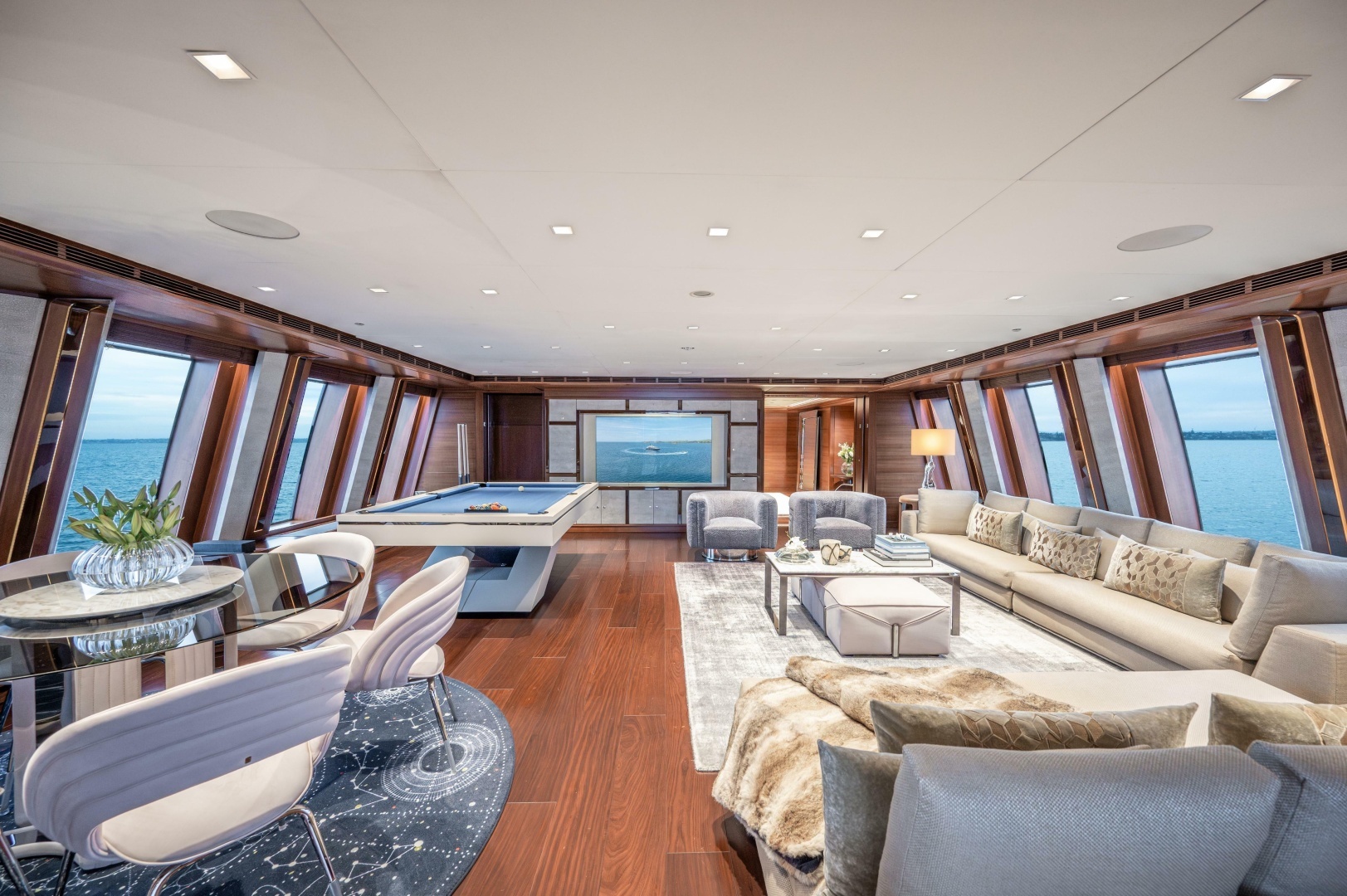

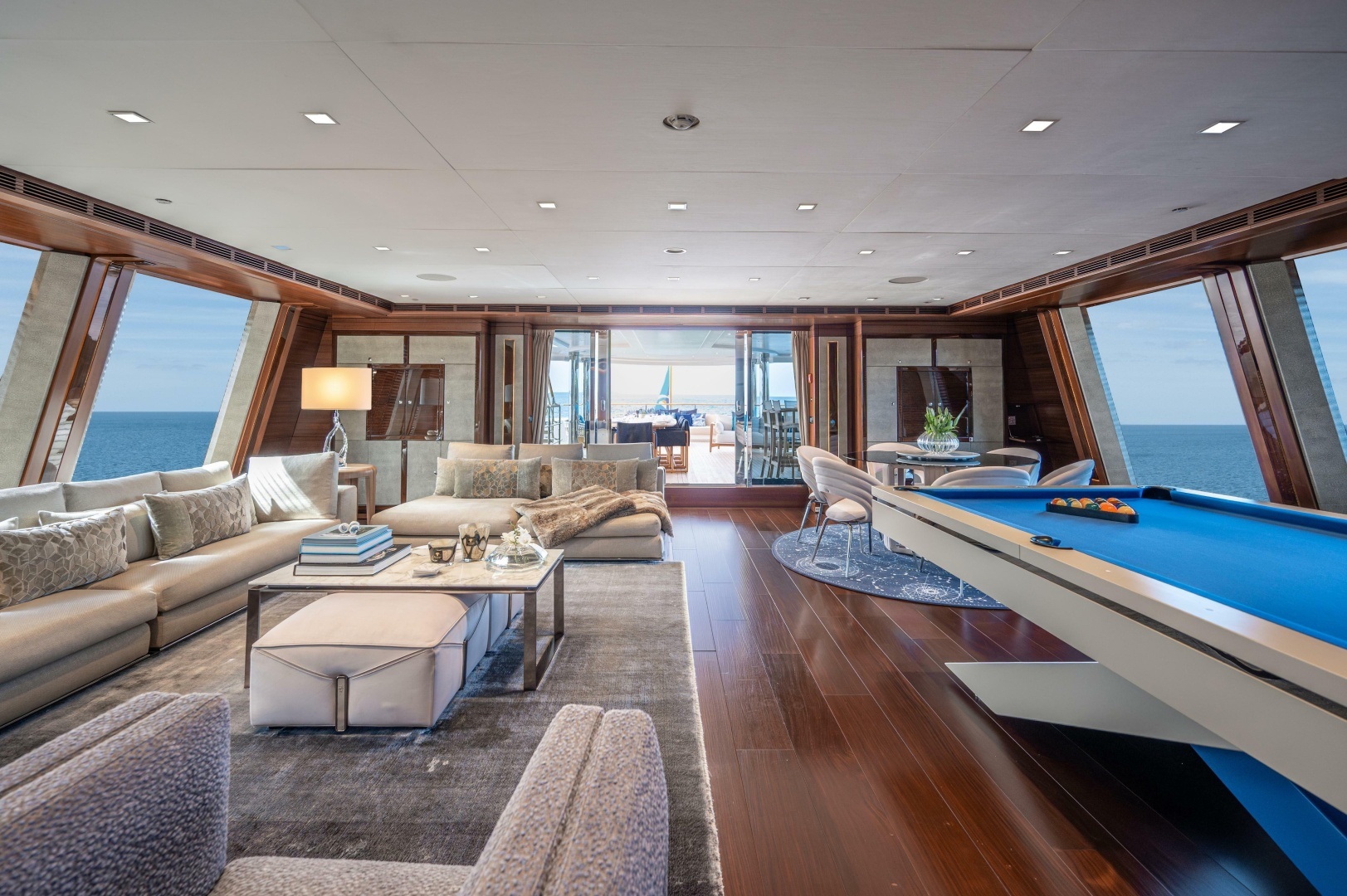

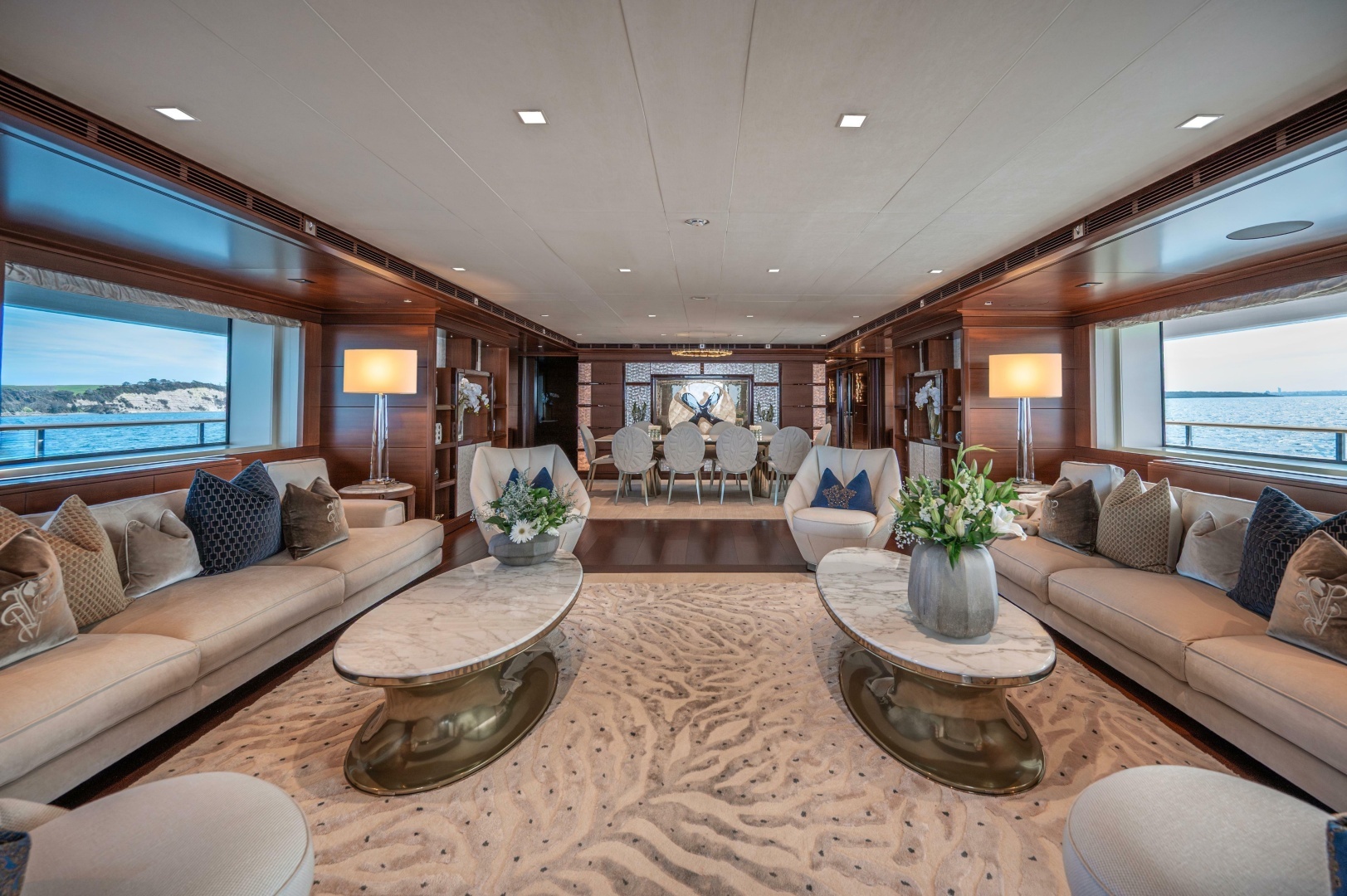

Main Salon: Savant full entertainment system, mini iPad integrated remote control

65” TV on lift port side

Plex movies and music server

Blu-Ray DVD player

Sky TV NZ satellite receiver

Denon amplifier

Apple TV

iPod docking station and radio player

Internet WiFi

Upper Salon: Savant full entertainment system, Mini iPad integrated remote control

1x Samsung 85’’, Plex movies and music server

Blu-Ray DVD player

Sky TV NZ satellite receiver

Denon amplifier

Apple TV

iPod docking station and radio player

Internet WiFi

Upper Aft Deck: Savant full entertainment system, min iPad integrated remote control

2 x Aqualit 55” outdoor TV

Plex movies and music server

Sky TV NZ satellite receiver

Blu-Ray DVD player

Denon amplifier

Apple TV

iPod docking station and radio player

Internet WiFi

Master Stateroom: Savant full entertainment system, min iPad integrated remote control

1 x Samsung 75’’

1 x TV behind mirror

Plex movies and music server

Blu-Ray DVD player

Sky TV NZ satellite receiver

Denon amplifier

Apple TV

iPod docking station and radio player

Internet WiFi

Owner Study / Office: Savant full entertainment system, min iPad integrated remote control

1 x Samsung 65’’

Plex movies and music server

Blu-Ray DVD player

Sky TV NZ satellite receiver

Denon amplifier

Apple TV

iPod docking station and radio player

Internet WiFi

Guest Staterooms: Savant full entertainment system, Mini iPad integrated remote control

75” TV’s

Plex movies and music server

Blu-Ray DVD player

Sky TV NZ satellite receiver

Denon amplifier

Apple TV

iPod docking station and radio player

Internet WiFi

Galley: 1 x Surround audio system Denon

Bridge: 1 x Surround audio system Denon

Beach Club: Savant full entertainment system, mini iPad integrated remote control

1 x Panasonic TV 55’’ Plex movies and music server

Blu-Ray DVD player

Sky TV NZ satellite receiver

Denon amplifier

Apple TV

iPod docking station and radio player

Internet WiFi

Captain’s Cabin: Savant full entertainment system, Mini iPad integrate remote control

1 x Samsung 50”

Blu-Ray DVD player

Sky TV NZ satellite receiver

Denon amplifier

Apple TV

iPod docking station and radio player

Internet WiFi

Crew Cabins: 6 x Surround audio system Denon + TV repeater from crew mess TV connected to system, internet WiFi

Crew Mess: Savant full entertainment system, mini iPad integrated remote control

1 x Samsung 65” TV

Blu-Ray DVD player

Sky TV NZ satellite receiver

Denon amplifier

Apple TV

iPod docking station and radio player

Internet WiFi

Other Equipment: (Office):4 x Macbook Pros, navigation PC

1 x HP Smart Tank 7300 copy machine

1 x Brother MFC printer

GALLEY & LAUNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

Cooking Equipment: 3 x Miele induction hobs

2 x Miele large ovens

Refrigeration/Freezer: Electrolux RS06RX1F 600L 2 x Fridges 1 x Freezer

Dishwasher: Hobart FX-90B

PANTRIES AND OTHERS:

Refrigeration/Freezer: 1 x Foster HR420 410L fridge. 1 x Miele 80L fridge

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT:

Microwave: 1 x Miele 800W

Refrigeration/Freezer: Miele K9122 141L fridge

Dishwasher: Miele professional

Wine Storage: 2 x Miele 100L

Main Laundry Equipment: 4 x Miele semi industrial washing machines

4 x Miele semi industrial dryers

OTHER EQUIPMENT

Barbeque: Weber

Jacuzzi Dip Pool: Teuco 650

Guest Elevator: AIEC, all decks including sundeck

Gym Equipment: Woodway 4Front Running, Concept 2 Rowing, Weights

Sun Awnings: Sun Deck Aft

TENDERS AND TOYS

Tenders: 1 x Ski Nautique G23’ (7m) Coastal with diesel Yanmar 320hp (garage)

1 x Smuggler 7.5m (24’6”) with 250HP Yamaha Outboard (foredeck)

Jet Skis: 2 x Yamaha VX series jet skis (foredeck)

Toys: 2 x Seabobs

2 x Kayaks

1 x Inflatable donut

1 x Yamaha stand up ski (foredeck)

Diving: Mares Diving gear for 6 persons + extra snorkel equipment for 8 persons.

Diving Compressor: Bauer PE200

Other: 1 x Aka 6m Dive RIB tender with 70HP

DISCLAIMER

NOT AVAILABLE FOR SALE OR CHARTER TO U.S RESIDENTS WHILE IN U.S. WATERS

These particulars have been prepared by us from information provided by the sellers and are intended as a general guide to the vessel. We cannot, however, be liable for any inaccuracy. It is up to the purchaser to confirm details of concern to him by survey, inspection and/or enquiry of the seller and to ensure that the purchase contract properly reflects his concern and specific details upon which he may rely. We always advise an independent survey.
