Brokers Remarks

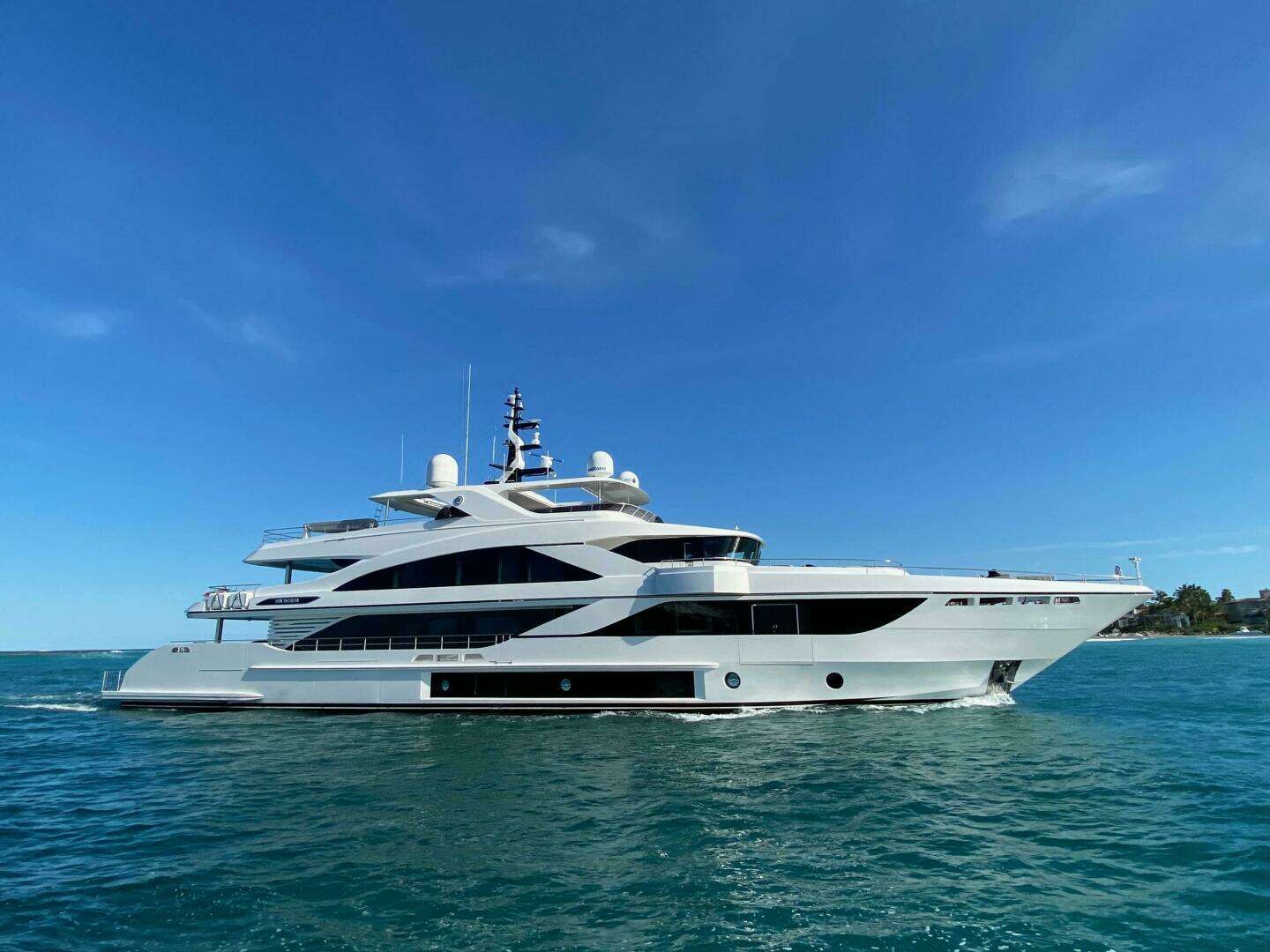

The Majesty 140 by Gulf Craft features many onboard space and entertainment areas, starting with the expansive beach club. Upon entering the salon, there are large sofas and side tables that lead to the formal dining table that can seat 10. The master stateroom is situated on the main deck with a private owner's balcony. “Checked Out” has 5 staterooms that can accommodate up to 10 owners and guests.

Moving from the main deck up to the sky lounge you will find sofas, a bar, and a round table on the aft deck. The flybridge features a jacuzzi, bar with fridge and ice maker, BBQ grill, and multiple seating areas. “Checked Out” lives like a 50M with massive volume at 398GT.

Beach Access

• Weathertight door to crew lounge
• Upholstered sofa with table
• Marine grade stainless steel transom doors
• Electro-hydraulic beach club door with emergency controls
• Transformer 6 steps 550 kg lifting capacity
• Removable marine grade stainless steel staple rails
• Pop-up cleats
• Two ceiling speakers

Aft Deck

• Stairways to upper deck
• Flip down balconies to port and starboard
• Weathertight door to crew lounge
• Electric/Manual sliding patio door
• Upholstered sofa with tables
• Marine grade stainless steel transom doors
• Four ceiling speakers
• Weathertight doors with glass porthole leading to galley passage area on port, and main lobby on starboard
• Bulwark doors at the amidship
• Warm white exterior lights

Salon

• Two large sofas with side tables
• Carpeted floor at the seating space
• Rectangular coffee table
• Two loose chairs
• Electric roman blinds and pleated blinds
• Samsung 75” UHD TV
• Satellite receiver
• HDMI/USB Hub
• Apple TV 4G 32 GB
• Two ceiling speakers

Formal Dining

• Dining table with glass top and 10 chairs
• Marble top low counters with storage cabinets
• Sliding doors to main galley on port and lobby on starboard
• Forward cutlery storage cabinets
• Electric roman blinds with pleated blinds
• Wooden floor

Galley

• Service counter
• One sink with double bowl drop
• Overhead cabinets
• Base cabinets
• Pleated blinds
• Resilient tiles floor
• Fridge - Freezer Combination
• Miele Oven
• Dishwasher
• Induction Hob
• Cooker Hood
• Microwave Oven
• Miele Wine Cooler 34 bottles
• Coffee Maker
• Scotsman
• Pantry Cabinet
• Dinette Area
• Stairway to forward crew lounge

Day Head

• Washbasin
• Vanity mirror
• Storage under countertop
• Electric toilet
• Sanitary accessories
• Marble floor

Pilothouse

• Sofa with tables
• Storage space under the sofa
• Storage cabinet
• Electrical bay
• Wooden floor
• Two ceiling speakers
• KVH Tracvision TV8 with Gyrotrac Satellite System
• Audio/Video System with Automation
• Navigation and radio system by Furuno
• Night vision camera
• Three 19” Navigational displays
• Two Ultra High Definition radar scanners
• Magnetic Compass on main helm station, and emergency steering
• Global positioning system
• Instrument/data organizer display panel on main console, and emergency steering
• Digital Fish Finder
• Weather Fax
• Automatic Identification System
• Satellite Compass
• Autopilot
• Twin wind speed transducers with main helm station controls
• Speed, depth, and temperature through hull transducers
• Air Horn with 3 trumpets
• Whistle control integrated with general alarm system
• Main helm station controlled forward search light
• Toilet exhaust blowers are fitted in all bathrooms with emergency shut-off controls at the main helm station

Master Stateroom

• Located on Main Deck - Forward
• Double bed with side tables and reading lights
• Storage drawers under the bed
• Two wall lamps
• Vanity desk with chair
• Carpeted floor
• Windows with electric roman blinds and pleated blinds
• Electric curtains for the patio door
• Patio with private balcony
• Sofa with side table
• Walk In Closet with cabinets
• Samsung 55”UHD TV
• Satellite receiver
• HDMI/USB Hub
• Apple TV 4G 32 GB
• Four ceiling speakers

Master Head

• Marble top with two washbasins
• Vanity mirror and storage cabinet
• Cabinets under washbasins
• Tub
• Frosted glass walls and door to bidet and toilet room
• Electric toilet
• Bidet
• Sanitary accessories
• Glass door to shower room
• Shower seat
• Head and Hand held showers
• Pleated blinds
• Marble floor

Double Guest Stateroom - Port

• Double Bed with night tables, drawers, and storage
• Two wall lamps
• Reading lights
• Two double door wardrobe
• Windows with electric roman and pleated blinds
• Vanity desk with vanity mirror, stool, and storage cabinets
• Carpeted floor
• Samsung 40” LED TV
• Satellite receiver
• Apple TV 4G 32 GB
• HDMI/USB Hub
• Two ceiling speakers

Double Guest Head - Port

• Marble top with washbasin
• Vanity mirror with storage cabinet
• Electric toilet
• Bidet
• Marble floor
• Glass door to shower room
• Head and hand held shower
• Shower seat
• Marble floor in shower
• Porthole

Double Guest Stateroom - Starboard

• Double Bed with night tables, drawers, and storage
• Two wall lamps
• Reading lights
• Two double door wardrobe
• Windows with electric roman and pleated blinds
• Vanity desk with vanity mirror, stool, and storage cabinets
• Carpeted floor
• Samsung 40” LED TV
• Satellite receiver
• Apple TV 4G 32 GB
• HDMI/USB Hub

Double Guest Head - Starboard

• Marble top with washbasin
• Vanity mirror with storage cabinet
• Electric toilet
• Bidet
• Marble floor
• Glass door to shower room
• Head and hand held shower
• Shower seat
• Marble floor in shower
• Porthole

Twin Guest Stateroom - Port

• Two single beds with storage and night table
• Wardrobe
• Windows with electric roman blinds
• Carpeted floor
• Samsung 40” LED TV
• Satellite receiver
• Apple TV 32GB
• HDMI/USB Hub

Twin Guest Head - Port

• Marble top with washbasin
• Vanity mirror with storage cabinet
• Electric toilet
• Marble floor
• Glass door to shower room
• Head and hand held showers
• Shower seat
• Sanitary accessories

Twin Guest Stateroom - Starboard

• Two single beds with storage and night table
• Wardrobe
• Windows with electric roman blinds
• Carpeted floor
• Samsung 40” LED TV
• Satellite receiver
• Apple TV 4G 32 GB
• HDMI/USB Hub

Twin Guest Head - Starboard

• Marble top with washbasin
• Vanity mirror with storage cabinet
• Electric toilet
• Marble floor
• Glass door to shower room
• Head and hand held showers
• Shower seat
• Porthole

Captain's Cabin

• Located Behind Pilothouse
• Double Bed with night table and reading light
• Storage and drawers under the bed
• Wardrobe
• Carpeted floor
• Electric roman blinds and pleated blinds
• Samsung 32" LED TV
• Apple TV 4G 32GB
• Satellite receivers
• HDMI / USB Hub

Captain's Head

• Washbasin
• Vanity mirror with storage cabinet
• Electric toilet
• Hand Shower
• Corian floor
• Complete sanitary accessories

Crew Lobby

• Resilient floor
• Stairway to main galley
• Cold storage room, Freezer room, and dry storage in the forward

Crew Lounge

• Corian counter top
• Washbasin sink mixer with swivel spout
• Storage cabinets
• Bar with three bar stools
• Port holes with pleated blinds
• Wooden floor
• Doors to aft crew cabins
• Fridge/Freezer combination
• Chest Freezer
• Burner Induction Hob
• Microwave Oven
• Washing Machine
• Tumbler
• Dishwasher
• Samsung 32” LED TV
• Satellite receiver
• HDMI/USB Hub
• Apple TV 4G 32GB

Crew Cabin - Port and Starboard

• Two bunk beds with side table
• Storage under the bed
• Wardrobe
• Port hole with roman blinds
• Open shelves
• Resilient tiles floor

Crew Head - Port and Starboard

• Washbasin
• Vanity mirror
• Electric toilet
• Folding door to shower
• Hand held showers
• Corian Floor

Crew Cabin - Aft

• Two bunk beds with side table
• Wardrobe
• Port hole with roman blinds
• Open shelves
• Resilient tiles floor

Crew Head - Aft

• Corian top with washbasin
• Vanity mirror
• Electric toilet
• Hand held showers
• Teak tray for shower area
• Corian Floor

Engine Room and Mechanical Equipment

• Twin MTU 16V2000 M96L, 2600 HP, 1939 kW, 2450 RPM. Hours: Port 1931, Starboard 1928 (as of 8/2024)
• Twin ZF gearbox coupled with shafts
• Twin power take offs (P.T.O) mounted with gearboxes
• Twin Generators Kohler 100kW, 230/400V AC, 50 Hz, 3~phase. Hours: 5269 port, 5046 starboard (as of 8/2024)
• Generator displays for port and starboard gens
• Twin AB2 (NiAL Bronze) Cu3 propellers
• 11,770 US gallons FRP fuel tanks with level monitoring. The tanks have ventilation pipes and covered with man hole covers
• Alfa Laval MIB 303 Fuel Purifier is connected to the fuel transfer system to separate the solids from the fuel. The through put capacity of this purifier is 760 liters/hour
• Fuel deck fillers on the main deck port and starboard in recessed box with the vent grills.
• Twin In-line exhaust silencers
• Digital Fin Stabilizer System TRAC 540 with hydraulic system in the engine room, and control panels at the main helm station
• Twin 4 kW exhaust and ventilation reversible fans by C.E.M with variable speed located on the port and starboard side in the engine room. The control panels are located on the main console, and remote shut-off/emergency control at the aft cockpit
• Fire dampers with the exhaust fans are installed in the engine room with the forced ventilation shutoff/emergency controls at the aft cockpit
• Natural air ventilation in the engine room through FRP and marine grade stainless steel pipes which are fitted with automatic fire damper of homologation type
• Twin 0.18 kW circulation fans are installed in the engine room
• Automatic fire damper of Homologation type for galley with emergency controls at the main helm station
• Lube oil system consists of two 42.5 US gallons each FRP tanks with level monitoring. The tanks are with ventilation pipes and covered with man hole covers
• Lube oil system comprises of marine grade stainless steel manifold, electrically driven transfer pump, and a manual pump.
• Structural fire protection in the engine room, and main galley
• Main helm control of twelve white underwater lights

Electrical Equipment and Electrical Systems

• Starlink
• FLIR night vision
• Power System: Electrical, 230-400V AC, 50Hz, 3~phase, 24V DC
• Twin 100 kW generators with load distribution
• Dockside cable master system with 30m cable length. Cable is stored in the cable drum

Main switch board (400V, 3 phase, 50 Hz) is located in the engine room and equipped with magnetic contactors, overload protections and short circuit protections. Outgoing circuits protected by circuit breakers

30A and 100A battery chargers are for charging onboard batteries

Onboard batteries are used for following:

• Four 12V, 200AH batteries for engines charged by 16A battery charger
• Four 12V, 200AH batteries for service and machinery charged by two 80A battery chargers
• Four 12V, 100AH batteries for generators charged by 16A battery charger
• Two 12V, 200AH batteries for emergency charged by 30A battery charger

All accommodation and machinery spaces are with 230V AC power outlets

Emergency power is available to power emergency lights, radio equipment, navigation lights, GPS, echo sounder, and Automatic Identification System. The emergency power is also sufficient to supply power to any other emergency equipment integrated

In compliance with COLREG Annex 1, following navigation lights are provided:

• Forward masthead light
• Side light (Port)
• Side light (Stbd)
• Stern light
• Anchor light
• Not Under Command lights
• Twelve white underwater lights with main helm station controls

Navigation Equipment

Navigation System:

• Navigation and radio system by Furuno
• Night vision camera
• Three 19” Navigational displays
• Two Ultra High Definition radar scanners
• Magnetic Compass on main helm station, and emergency steering
• Global positioning system
• Instrument/data organizer display panel on main console, and emergency steering
• Digital Fish Finder
• Weather Fax
• Automatic Identification System
• Satellite Compass
• Autopilot

Instrumentation:

• Twin wind speed transducers with main helm station controls
• Speed, depth, and temperature through hull transducers

Emergency Steering:

• Steering wheel
• Weatherproof sub station with call button
• Rudder angle indicator

Docking Station:

• Engine throttle
• Engines emergency stop panel
• Rudder angle indicator
• Steering joystick
• Bow thruster joystick
• Horn button

Fire Protection, Safety Equipment and Security Systems

Fire Protection and Systems:

FM 200 Fixed fire detection and fire alarm system is fitted at all enclosed spaces except those containing no fire risk (toilets, bathrooms

etc.)

• Accommodation and machinery spaces with following fire detectors and alarms:
• Smoke detectors
• Heat detectors
• Manual call points
• Alarm points
• Fire alarm bell is fitted in the engine room
• Fire alarm panel is fitted under the main console
• FM-200 fixed fire extinguishing system installed with remote release control at the aft cockpit
• Electric main fire pump is connected to the fire main line providing supply to all fire hydrants
• Emergency diesel self-priming centrifugal pump
• Portable fire extinguishers in all accommodation and machinery spaces of following types:
• Dry-powder fire extinguishers
• Carbon-dioxide fire extinguishers
• Fire blanket in the galley
• Fire hydrant supply points
• International shore connection with isolation valve and fire hydrant

Safety Equipment:

• Four life rafts with 10 persons capacity each
• Adult life jackets with light and whistle, and child life jackets
• M.O.B Lifebuoys with light and smoke
• Plain Lifebuoy
• Lifebuoy with line
• Set of line throwing appliances
• Rocket parachute flares
• Two-way radiotelephone sets
• Search and Rescue Transponders
• Emergency position indicating radio beacon
• First Aid Kits
• Fire Axle
• Instruction Manual
• SOLAS Poster
• All escape hatches are operable from both side, ladders are attached where required

GMDSS (Global Maritime Distress and Safety System):

• Full Sea Area A2 GMDSS system

Alarm Display and Monitoring System:

Is integrated with the general alarm system, tank sensors for level monitoring, navigation lights, black & grey water pumps, emergency batteries voltage levels, door & hatches sensors for monitoring, and bilge monitoring.

The display panels are fitted at main helm, engine room, and crew lounge.

Camera Monitoring System:

CCTV camera monitoring system at the following locations:

• Engine room
• Main deck gunwale
• Main deck aft
• Radar mast

Fresh Water System

• 1,780 US gallons FRP fresh water tank with level monitoring. The tank is with ventilation pipes and covered with man hole covers
• Four (200 liters each) water heaters are fitted
• Water maker with production capacity of 660 liters/hour
• Dock connection for fresh water supply with pressure regulator
• Transom shower with hot and cold water mixer
• Deck wash connections at swim platform, main deck aft, upper deck aft, sun deck, and anchor handling compartment

Bilge Systems

• Bilge suction strainers are installed in all watertight compartments which are connected to the main bilge manifold
• Electric main bilge pump is for the bilge removal from water tight compartments. The pump is connected to the bilge manifold
• High water alarm sensors are installed in all watertight compartments which can be monitored on the AMS panel fitted on main console

Air Conditioner System

• Two air conditioning chiller units are installed in the engine room each with the cooling capacity of 360, 000 BTU/hr.
• Heavy duty sea water and chilled water circulation pumps are fitted to supply sea water to the chillers, and circulate the chilled water among the air handler units
• Fresh air circulation system

Flybridge

• Marine grade stainless steel railings
• Marine grade stainless steel supports to hardtop
• Jacuzzi in the forward surrounded with sunbed
• Bar counter with fridge and ice maker
• Bowl washing sink to bar counter
• Upholstered sofa with fold-able coffee table
• Upholstered curved L shaped sofa with coffee table
• Storage under all sofas
• Day head
• Wind deflector glass
• Glass top freezer
• BBQ grill
• Storage space
• Warm white lights
• Self-draining
• 40” Waterproof TV with Custom TV swivel mechanism
• HDMI/USB Hub
• Satellite receiver
• Two on-wall speakers under sofa
• Four ceiling speakers

Upper Deck - Forward

• Steps to foredeck
• Upholstered curved sofas with cup holders and round coffee tables
• Upholstered sofa with teak table
• Storage under all sofas
• Wing stations
• Three windshield wipers with washer system
• Pantograph doors to wheel house
• Stairway to sundeck

Fore Deck

• Marine grade stainless steel railings
• Four polished marine grade stainless steel deck cleats
• Garbage compartment with water tight hatch cover
• Flood light on the foremast
• Water tight hatch cover for access to anchor handling machinery
• Crane for lifting jet skies with the lifting capacity of 700kg
• Self-draining

Anchor Handling and Mooring Equipment

• Twin Maxwell VWC8000 hydraulic vertical windlasses with digital chain counters and handheld operating sets
• Two 167 kg SHHP TW type anchors each with 124 m length and 17.5 mm diameter chain
• Forward water tight hatch cover for access to anchor handling equipment
• Sea water pressure washing of chain with outlet in chain hawser pipes
• Twin Maxwell VC4000 24V DC 2kW capstans are fitted at the aft for mooring

Additional Items

• 2 x Retractable Boat Hook
• 8 x Fenders F7, 15" x 44" White
• 8 x Fender ties, 4.5 meter, 10mm 3 strand, black
• Basic spare lamp kit
• Basic small tool kit
• 16 x Guest Towel sets
• 10 x Crew Towel sets
• Portable Hose Reel

Steering & Maneuvering

• Electro-hydraulic servo assisted steering system
• Up to 100 HP Bow thruster with the control joysticks on the main helm station, wing stations, and docking station

Emergency Steering

• Steering wheel
• Weatherproof substation with call button
• Rudder angle indicator

Communication System

• Intercom telephone system
• Thuraya satellite phone
