Equipment

• Torkmaster hydraulic bow thrusters, 75 hp
• Iridium SAT
• Satellite VoIP

Mechanical

MAIN ENGINES:

• 2xCAT 3406E C.6 894 KW / 1200 HP

GENERATORS:

• 2xCAT C.4.4A CERT 60 HZ – 198 KW

BOW THRUSTER:

• Torkmaster hydraulic – 56KW / 75 HP
• PROPULSION: 2 x Schottel STP 200 Azimut thrusters

Fire Pumps and Bilge

• Bilge: Premium efficiency X antifouling pump
• Fire Pumps: Sever 3352259 Voltue Centrifuge pump

Tankage

• 2 x FWD Fuel tanks P/S & S/S with capacity 10m3 / 2642 gal. each
• 2 x AFT Fuel tanks P/S & S/S with capacity 12.5m3 / 3170 gal. each
• 1 x Service Fuel tank with capacity 2.2 m3 / 581 gal.
• 1 x Waste Oil tank with capacity 2.75 m3 / 726 gal.
• 1 x FWD Ballast Tank with capacity 14m3 / 3698 gal.
• 1 x AFT Ballast Tank with capacity 4.5m3 / 1189 gal.

Fuel Fill and Transfer System

• Alfa Laval - make and model

Fresh Water System

PUMPS:

• (2) Grundfos DE6305 .2Z.C2, 3,OHP
• (2) Heaters
• UV light sterilization
• (2) Heaters
• UV Light sterilization

Black and Grey Water Systems

• Hamman treatment plant

Watermakers

• (2) Idromar, 130 lt/h; 509; 1299 hours

Electrical

The vessel has been provided with an Alternating Current (AC) and Direct Current (DC) electrical system, basic details

are as follows:

AC Electrical:

• 2 each port and starboard 50 shore power connectors
• 2 x 100-amp shore power breaker
• 1 x Shore power selector switch
• 2 x Galvanic isolators
• 2 x C Power 12KVA isolation transformers
• 2 x Atlas Marine transformers
• 2 x 99 KW generators
• 1 x 240/120V distribution panel

DC Electrical:

• 2 x 80 batteries port side engine room main engine and generator start
• 2 x 8D batteries starboard side engine room main engine and generator start
• 3 x 80 batteries starboard side engine room house batteries.
• All batteries are provided with smart chargers.
• Batteries Last replaced 06/2024
• Condition: Serviceable
• 4 x Batteries port side engine room main engine and generator start
• 4 x batteries starboard side engine room and generator start

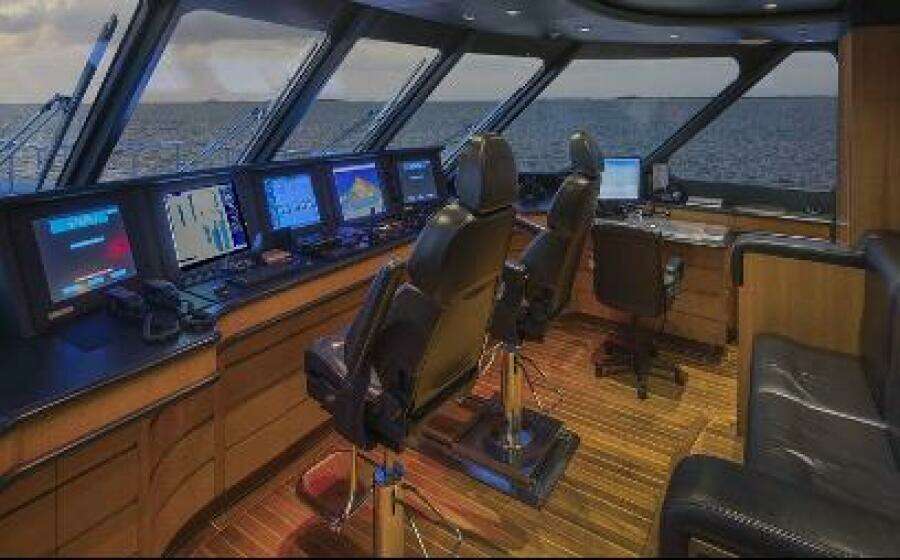

Navigation and Electronics

• 2 x Time Zero
• VHF OSC Sailor 6222
• Simrad display /anemometer, log, GPS for weather station (CCG, time, SOG, etc.
• Sperry Marine Navi Pilot 4000 autopilot
• C. Plasm magnetic compass
• Furling AIS
• 2 x Furuno and Band radars
• Furuno 0560/2017 VHF
• Furuno GP-170 GPS Navigator
• B&G Hydra 2000
• Kelvin Hughes MF/HF control unit
• (2) Binoculars

AV and Entertainment

• TV in each cabin, main salon, sky lounge, and main deck aft

Cranes

• Forward crane
• Garage crane

Water Toys

• Jet ski
• 2 x Sea bobs
• 2 x Inflatable paddle boards
• Inflatable toys

Safety

NAVIGATION:

• Navigation lights
• Search lights
• Ship’s horn
• Ship’s bell

LIFESAVING:

• 2 x Life rafts 25-person capacity each
• EPIRB
• 27 x Rigid life jackets
• 8 x inflatable life jackets
• Han-held flares

MEDICAL EQUIPMENT:

• Med Aire equipment
• Medical Kits
