FULL SPECIFICATIONS

1.     CONSTRUCTION

Fiberglass hull and superstructure with teak decks

2.     DIMENSIONS

                2.1 General

     Length Overall (L.O.A.):                          131.29 feet                (40.02 meters)

     Length at Waterline (L.W.L.):                  101.08 feet                 (30.81 meters)

     Beam (molded):                                         26.57 feet               ( 8.10 meters)

     Draft (loaded):                                            8.92 feet               ( 2.72 meters)

     Tonnage:                                                  338 gross

     Displacement:                                          286,000 lbs.

2.2 Capacities

     Fuel Capacity:                                         8,430 US Gallons        (31,910 liters)

     Water Capacity:                                      1,307 US Gallons        ( 4,950 liters)

     Lube Oil:                                                      77 US Gallons        (    291 liters)

Waste Oil:                                                    77 US Gallons       (    291 liters)

2.3                                          Speed             Consumption per hour                       RPM

Cruising:                           12.0 knots        100 US Gallons /hr                          1,400

3.     MACHINERY

3.1 Main Engines

Engine Type:

•   (2) MTU 12V 4000 M93 diesels @ 3,140 Hp each

Drive:

•   Direct drive

Propellers:

•   5-blade, Nibral, with stainless steel shafts

Transmission:

•   ZF 2650 A

Ratio:

•   3.286:1 A

3.2 Generators & Electricity

Output:

•   70 kW/ 230/400V / 1,500 RPM @ 50 Hz

Generators:

•   (2) Kohler 70EFOZD generators @ 1,500 rpm

Shore Power:

•   (2) 480V three phase 100 amp

•   Atlas shorepower SPA II, SPA 90F

Batteries:

•   (8) 12V, centerline forward engine room

•   (6) 12V 8D, below port lazarette sole

•   (6) 12V, bridge foredeck lockers

•   40 AMP mastervolt - 24V charger

•   80 AMP mastervolt - 24V charger

•   (2) 22.5 AMP Newmar in doghouse – 24V charger

Inverter/Filter:

•   Visicomm Sinewave harmonic filter

3.3 Air Conditioning

Type:

•   MarinAir tempered water system with (4) chillers

Output:

•   480,000 BTU’s

3.4 Other Machinery

Watermakers:

•   (2) 1400 GPD reported, HRO, Seafari

Hot water heater:

•   (2) electric calorifier’s with (3) elements each

Trim Tabs:

•   Stainless steel double ram 39” X 31”

Stabilizers:

•   ABT Trac model #400, hydraulic, at anchor with 28 Square ft Fins and underway

Bow Thruster:

•   (2) ABT Trac hydraulic 5-blade propellers in 20” Tube

Stern Thruster

•   (2) ABT Trac Hydraulic 5-blade propellers in 16” Tube

Steering System:

•   (2) Hydrive station hydraulic + emergency station

Fuel Separator & Filtration:

•   (2) Separ bowls in-line with bowl on engines

4.     COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

4.1 Communication Systems

SATcom:

•   KVH V7 Mini V-SAT Broadband

Telephone System:

•   KVH

VHF:

•   Furuno

•   SIMRAD HS 100

•   SIMRAD HS 100 in crew mess & emergency steering station

Cellular Phone System:

•   Panasonic Hybrid system

Sat Terminal:

•   Sailor Inmarsat-C Terminal

4.2 Navigation Systems

Radar:

•   (2) Furuno 96 Mile (X & S band)

Magnetic Compass:

•   4” Ritchie

Auto Pilot:

•   Simrad AP50

Depth Sounder:

•   Furuno FI50

GPS:

•   Furuno GP-150 & GP-39

AIS:

•   Furuno FA-150

Ships Computer:

•   (2) Vasari and Nav computer with Nobeltec

Laser Plotter:

•   Navnet and Time Zero

Wind/Speed Log:

•   In GPS and Chart plottters & Sperry display

Navtex:

•   Furuno NX-700

Sonar:

•   Furuno FE 700 drop down

4.3 Entertainment System:

a.     Video Equipment

                TV’s:

•   Samsung TV, Apple TV in salon

•       Samsung TV, Apple TV, Bose DVD in master stateroom, Roku

•       Sony TV’s on powered lifts, Apple TV with Bose DVD in aft staterooms, Roku

•       Sony TV’s, Apple TV with Bose DVD’s in forward staterooms, Roku

•       Samsung TV with Alpine DVD player in crew mess, Roku

•       Samsung TV on powered lift, Apple TV, Bose DVD in sky lounge, Roku

b.  Audio Equipment

                Stereo’s:

•   Alpine AM/FM/DVD players in crew mess, galley & pilot house

•       Marantz AV receiver in salon

•       Bose AV receivers in lower guest staterooms and Samsung sound bar in master stateroom

•       RJI remotes & Ipad controllers

5.     GALLEY & LAUNDRY EQUIPMENT

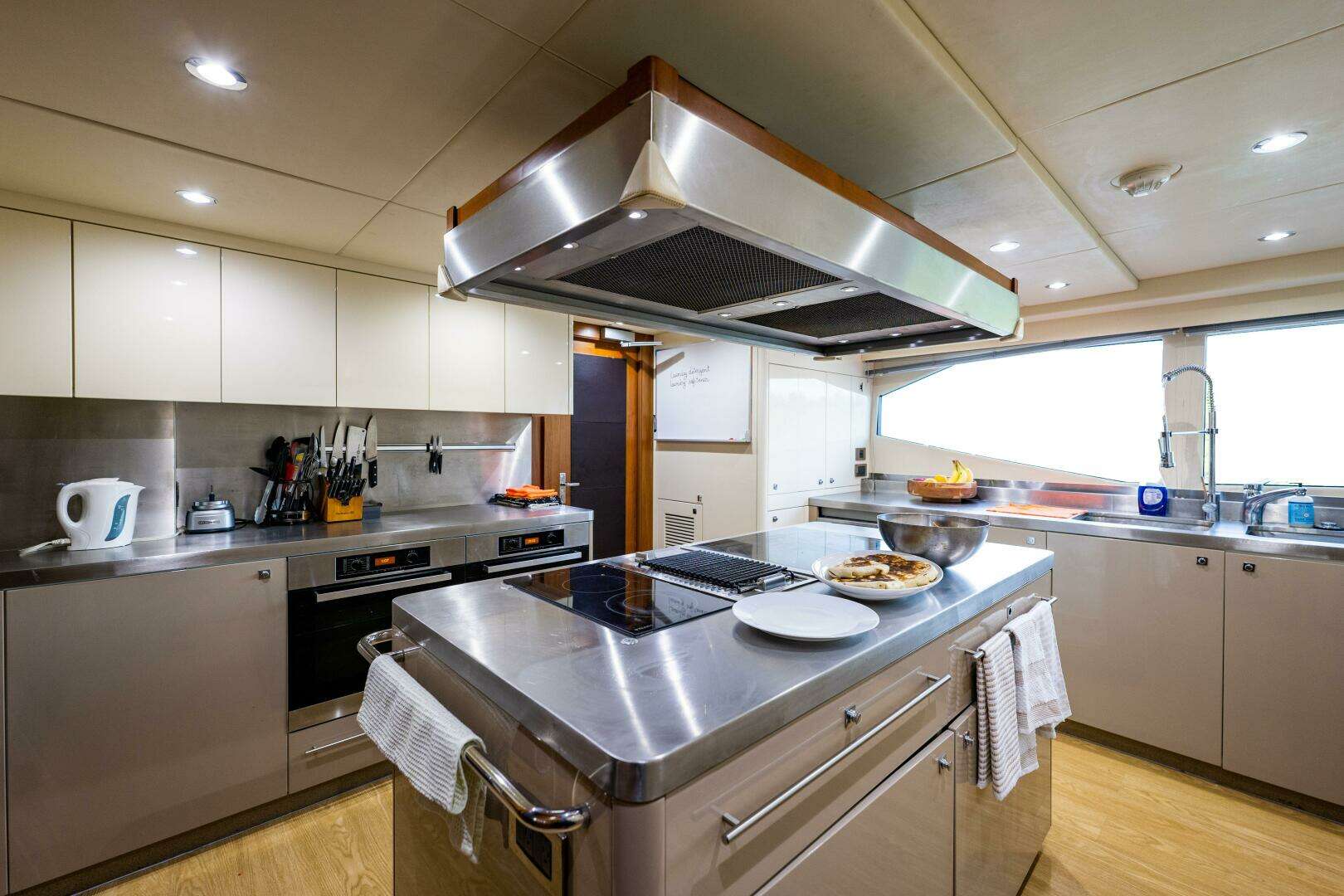

5.1 Main Galley Equipment

Cooking Equipment:

•   (2) convection Miele ovens

•    Six burner Hafele, single burner grille; new stove top June 2024

•    (1) Microwave oven – Miele

•    Miele vent hood with lights

Refrigeration/Freezer:

•   (3) Sub-Zero with drawers

•   (1) Sub-Zero with drawers

Dishwasher:

•   (1) Miele

5.2 Crew Galley/Mess Equipment

Cooking Equipment:

•   (1) microwave oven – Miele

Refrigeration/Freezer:

•   (1) Miele refrigerator

•   (1) Sanden freezer in garage

Other:

•   (1) Miele dishwasher (crew mess)

5.3 Additional Galley Equipment

Cooking Equipment:

•   Two burner electric Kenyon BBQ (sundeck)

Refrigeration/Freezer:

•   (1) Sub-Zero wine chiller (service pantry)

•    (1) Summit refrigerator (skylounge bar)

•    (1) Miele refrigerator (skylounge pantry)

•    (1) Raritan ice maker (galley service pantry)

•    (1) Summit ice maker (skylounge bar)

Other:

•   Dumbwaiter to sundeck

5.4 Laundry Equipment

     Main Laundry Equipment

•   (2) Samsung 2-piece washer and dryer (port lazarette)

6.  TENDERS & TOYS

Tenders:

•   19’ Aquascan tender

Dive Gear:

•   Kahlenberg – service air compressor

•    Bauer Junior II – dive air compressor

Other:

•   (2) Jet ski’s

•   (2) Sublue underwater scooters

•   (2) Wakeboards

•    Water ski’s

•   Snorkeling gear and diving equipment

•   Big Bubba 4 person towable tube

•   Fishing gear: 4 rods, 2 casting, 2 trolling, lures

7.  DECK EQUIPMENT

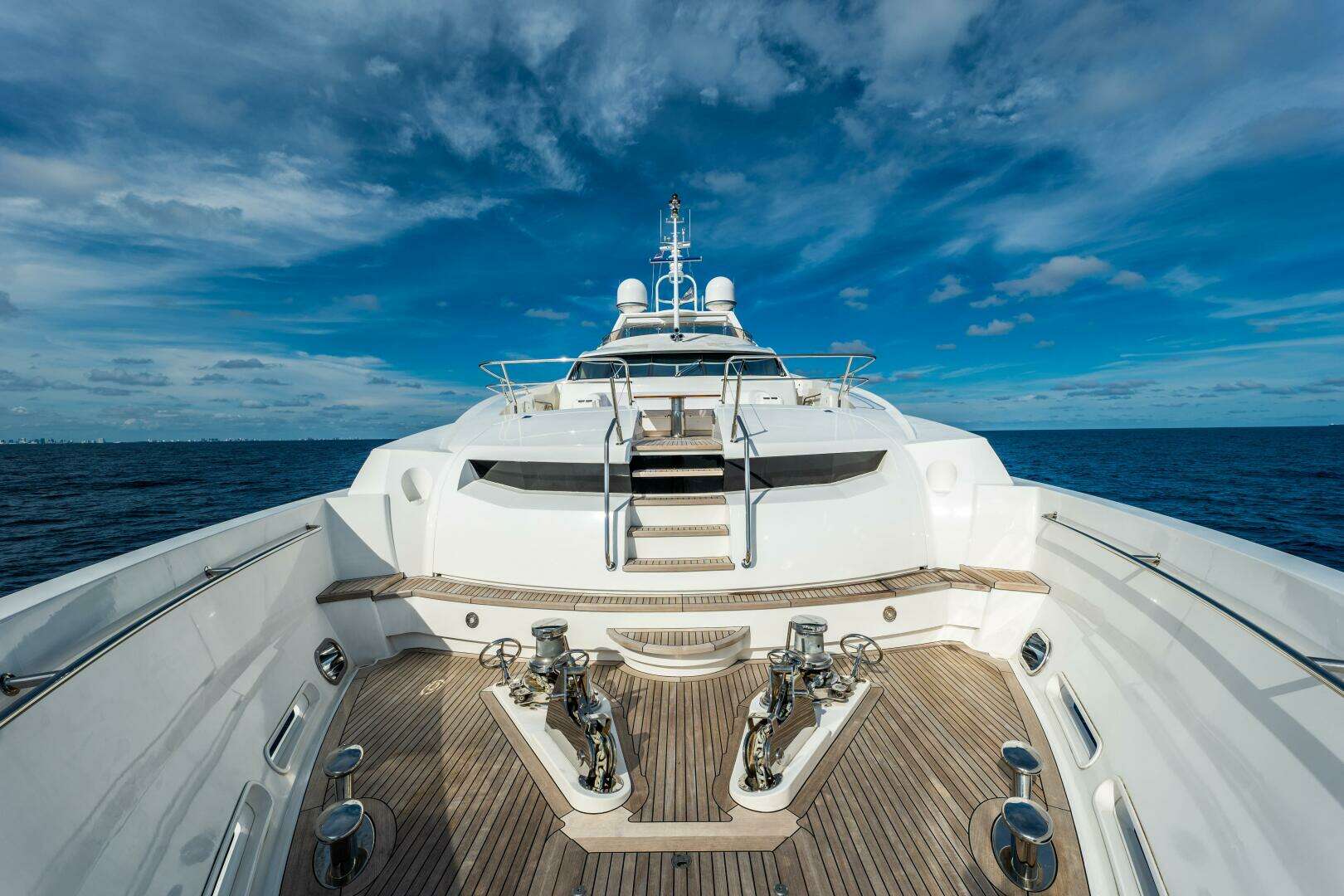

Anchor Windlass System:

•   (2) Muir VRC 8000 vertical, electrical

Anchors:

•   (2) 463 lbs. stainless steel Manson

Anchor Chain:

•   451’ of 0.05’ chain

Boat Crane and Davits:

•   Atlas 2000 Manual Operation davit– foredeck

•   Hydraulic winch in garage & electric overhead winch – dinghy davit

Passerelle:

•   Besenzoni, hydraulic

Swimming Platform:

•   Powered swim platform

8.  SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

8.1 Security Equipment

Cameras:

•   (4) Cameras and FLIR Thermal Camera

8.2 Fire Fighting Equipment

Fire Control System:

•   Seafire FM200 clean agent and Deluge system in engine room

•   400 Vac pump on manifold, Hatz diesel crash pump

•   400 volt pump in engine room with manifold, remote pickups

•   Manual release - starboard main deck fire locker, crew area

•   Shut-Downs: Vent fans, vent flaps, main engines, each generator

Fire Extinguishers:

•   (11) 2.5lb, (8) 10lb dry powder, (2) 5lb, (5)10lb CO2

Alarms:

•   Remote indicator: At lower helm, alarm system throughout vessel

8.3 Safety Equipment

Life Rafts:

•   (4) 10-person Sea Air

Life Rings:

•   (4) with floating throwing lines – (2) with strobes

EPIRBS:

•   ACR battery

SART:

RECENT IMPROVEMENTS ON "ABOUT TIME" INCLUDE BUT NOT LIMITED TO (2024 + 2025):

2024:

·        New Rolla propellers

·        Shafts inspected

·        New cutlass bearings

·        New shaft seals

·        New rudder post bearings

·        Hull and superstructure polished and ceramic polymer applied

·        Complete bottom coat

·        All running gear treated with prop speed

·        New AC raw water intake system

·        New raw water intake system for watermakers

·        All new AC titanium chillers

·        All hydraulic PTO's rebuilt

·        Hydraulic stern thruster motor rebuild

·        MTU engines are fully serviced (annual)

·        Generators serviced (annual)

·        Swim Platform hydraulic locking actuators rebuilt

·        Garage door hydraulic locking pin seals replaced

·        Garage door, swim platform, balcony hydraulic motors replaced

·        RINA annual inspection completed

·        2024 Flow Marine titanium 40-ton chiller plant

2025:

·        Main engines master service @ 3,400 hours

·        New Rhodium AMCS system (state-of-the-art upgrade)

·        New Deif PMS power management system

·        New Kohler Generator Decision Makers

·        Generators top-end rebuild & full service

·        Central hydraulics rebuilt, flushed, new filter system

·        Swim platform, garage door & balcony hydraulics overhauled

·        Freshwater maker fully serviced

·        New toolbox with complete tool set

·        Two full sets of generator service spares

·        Aquascan tender with Suzuki outboard serviced

·        Flag & Class annual surveys completed

Disclaimer

- Exclusions include all of Owner's personal effects, art work, china, crystal, silver-

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
