ACCOMODATIONS

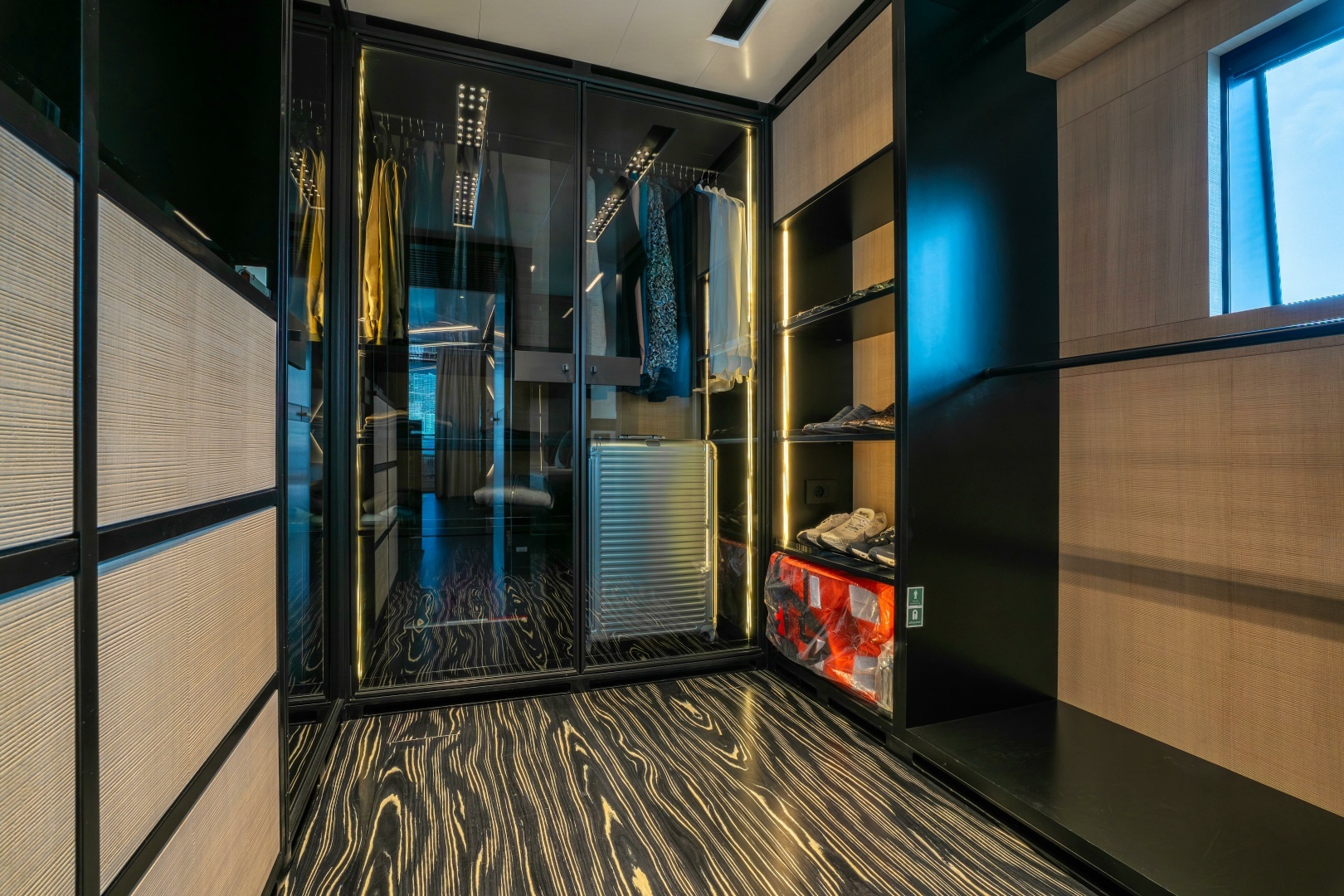

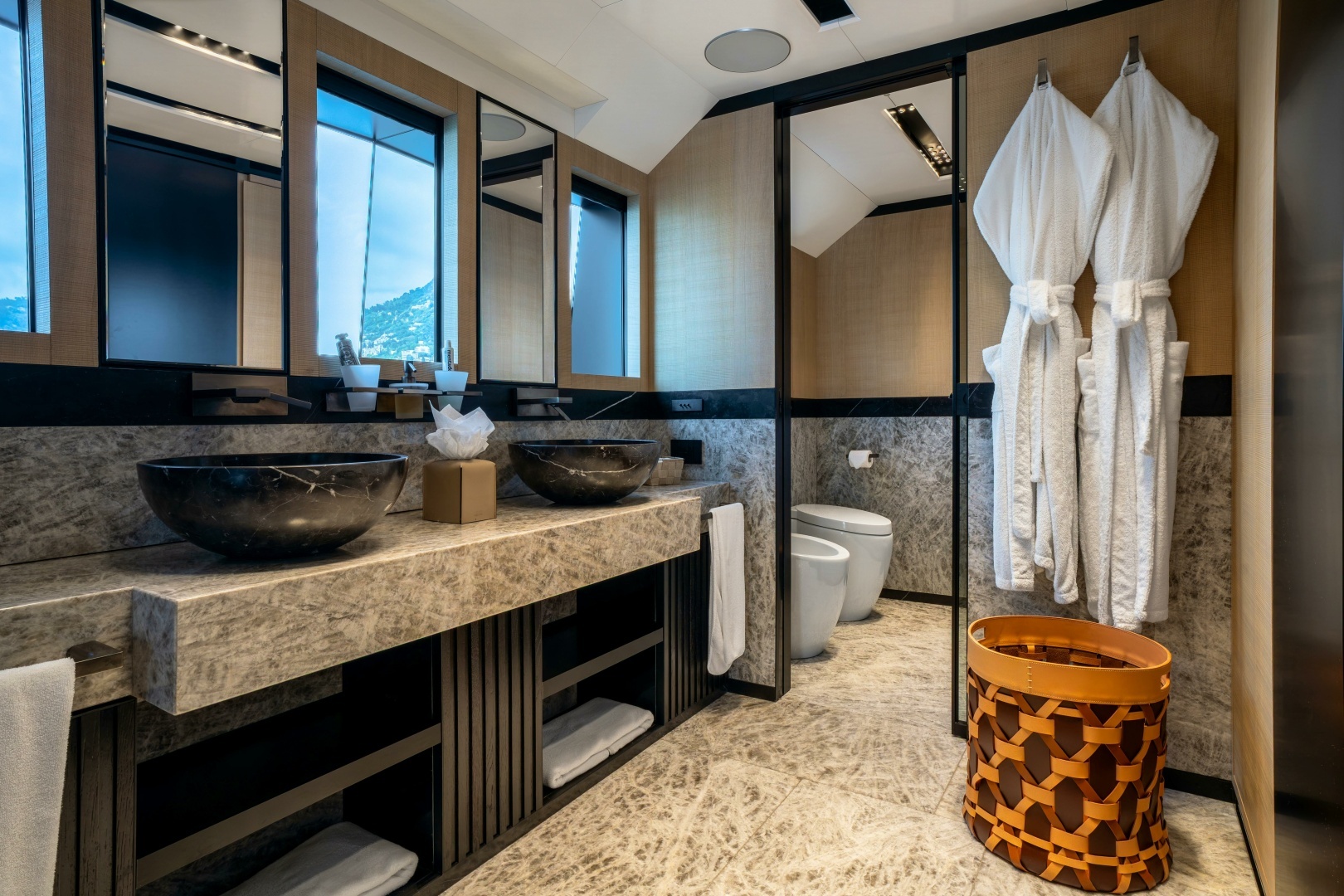

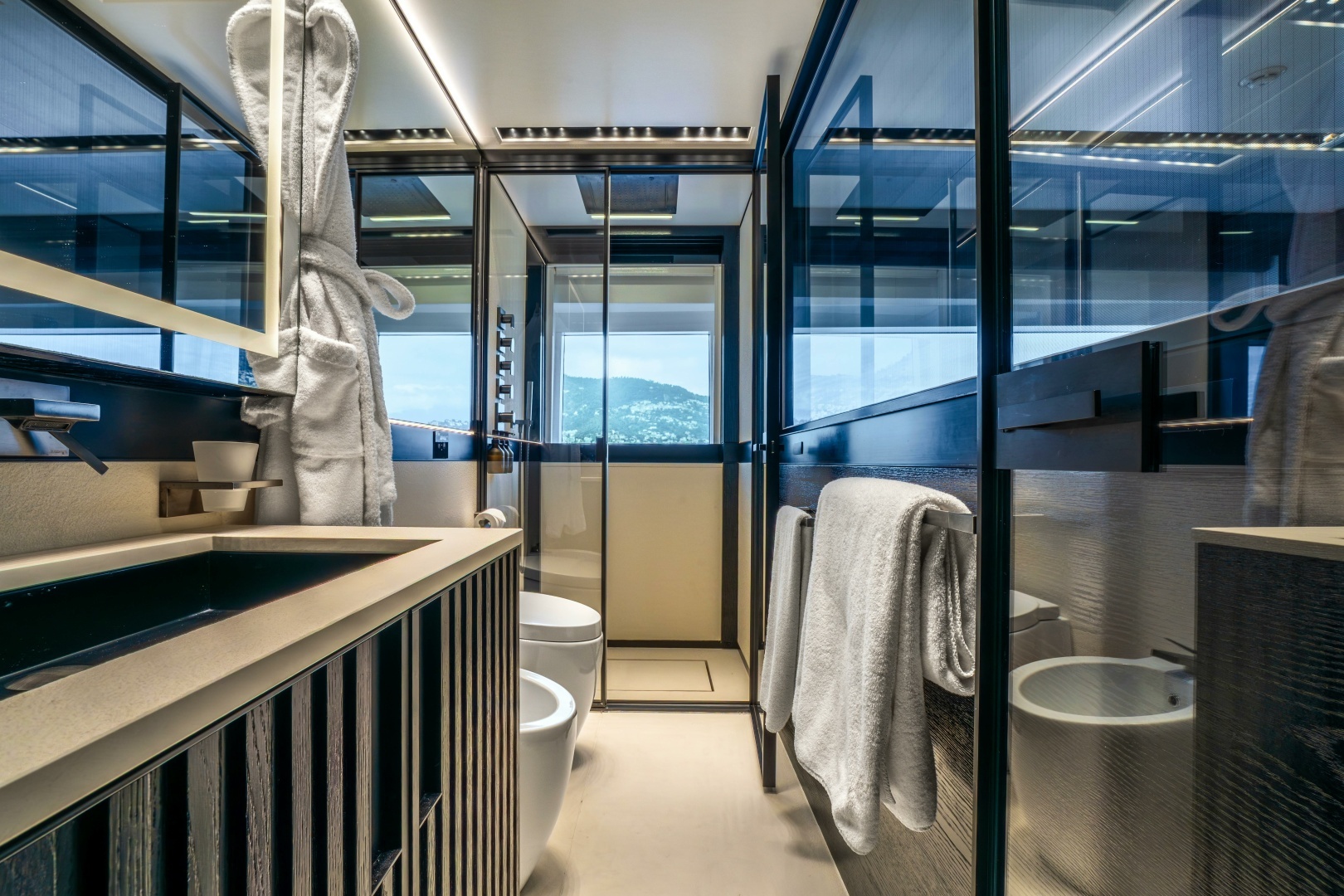

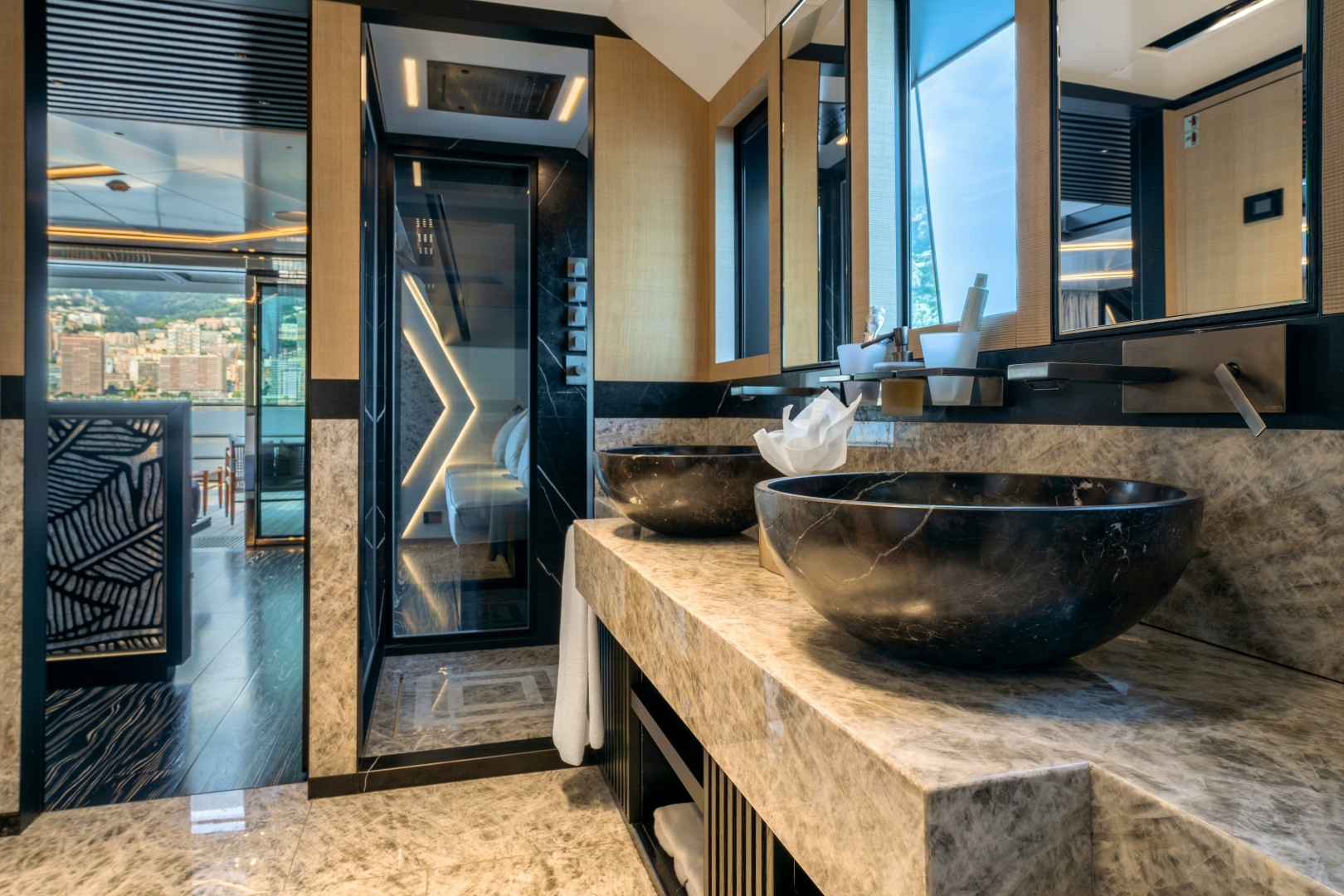

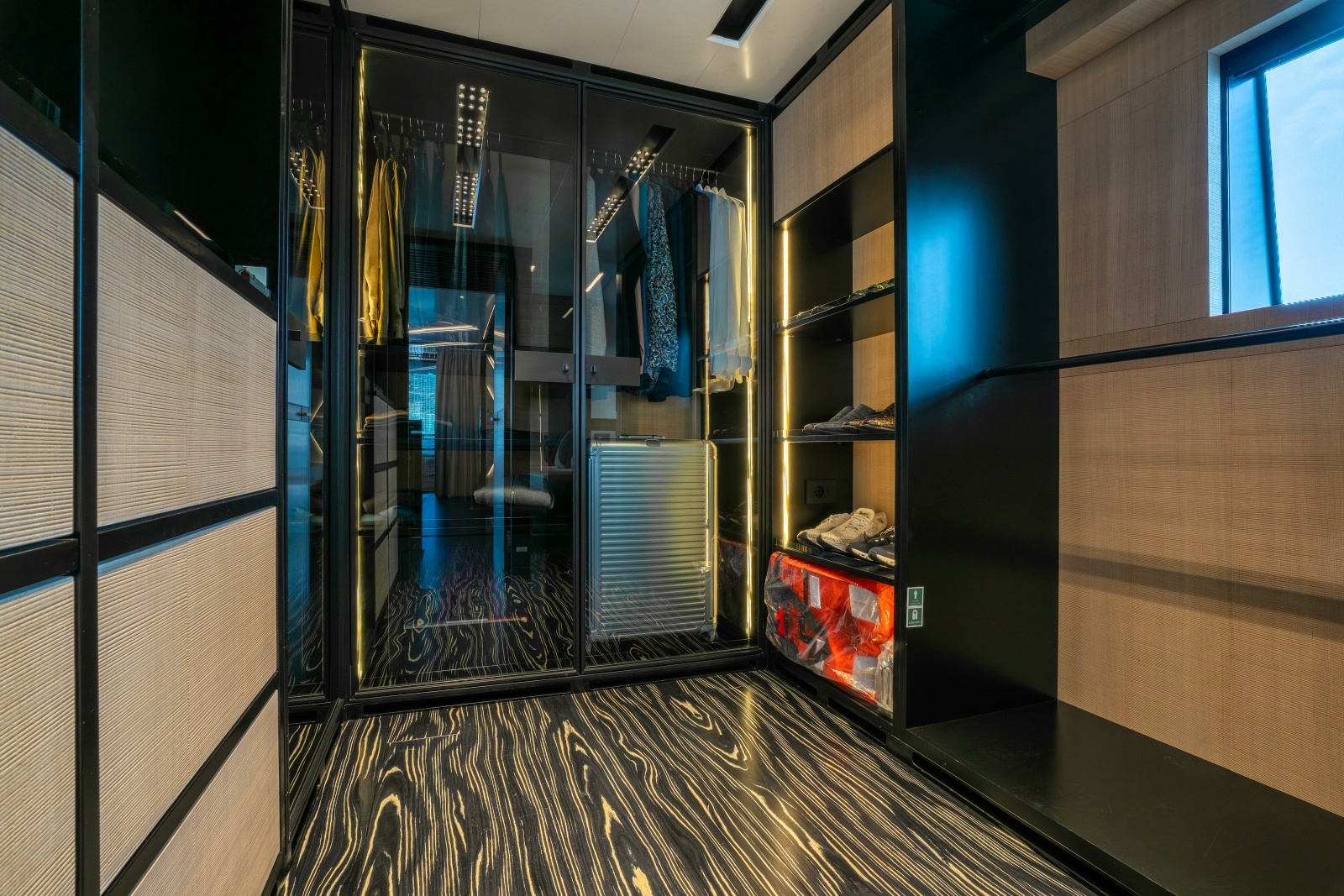

• Owner's Stateroom on upper deck with private terrace , walk-in closet and ensure Bathroom

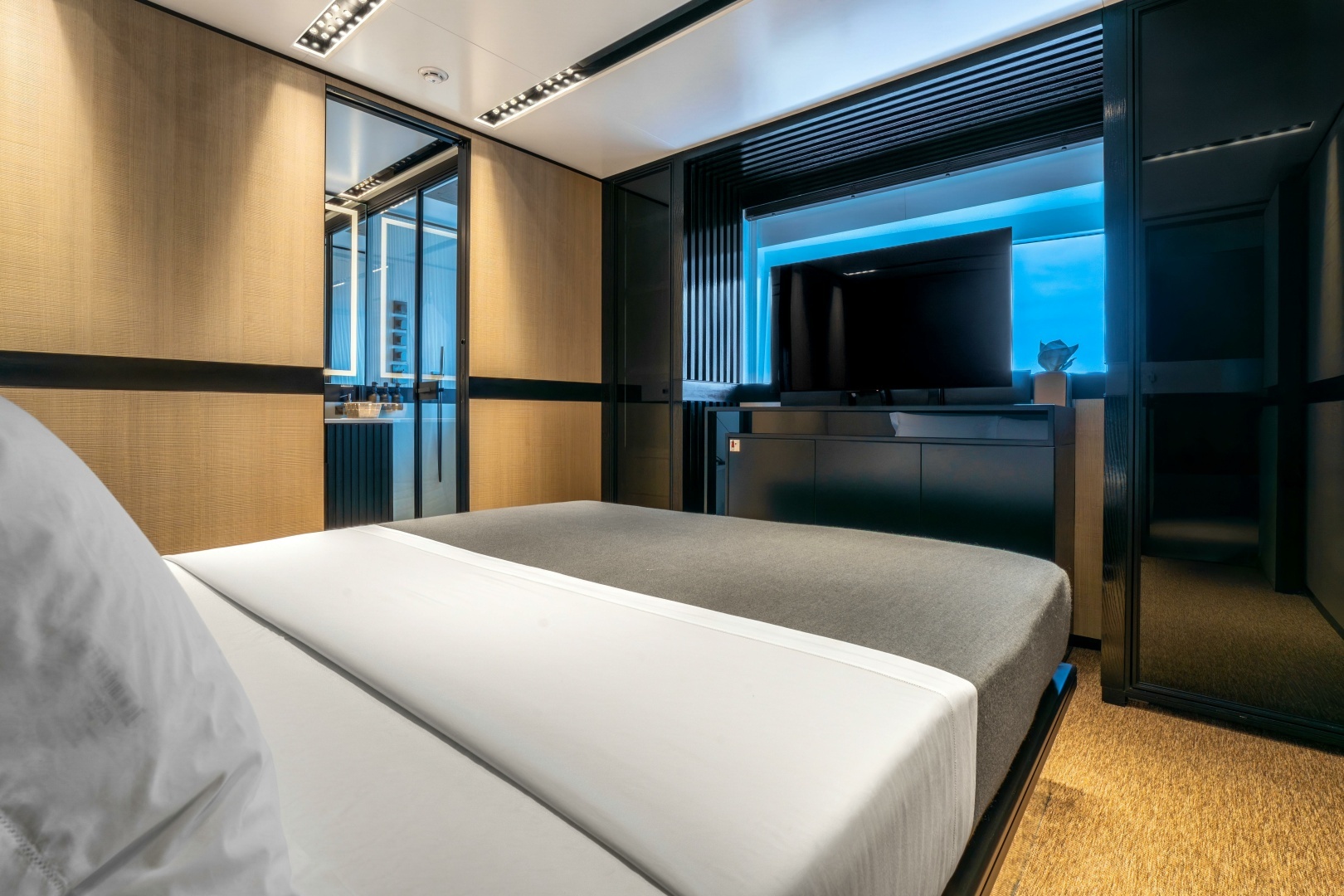

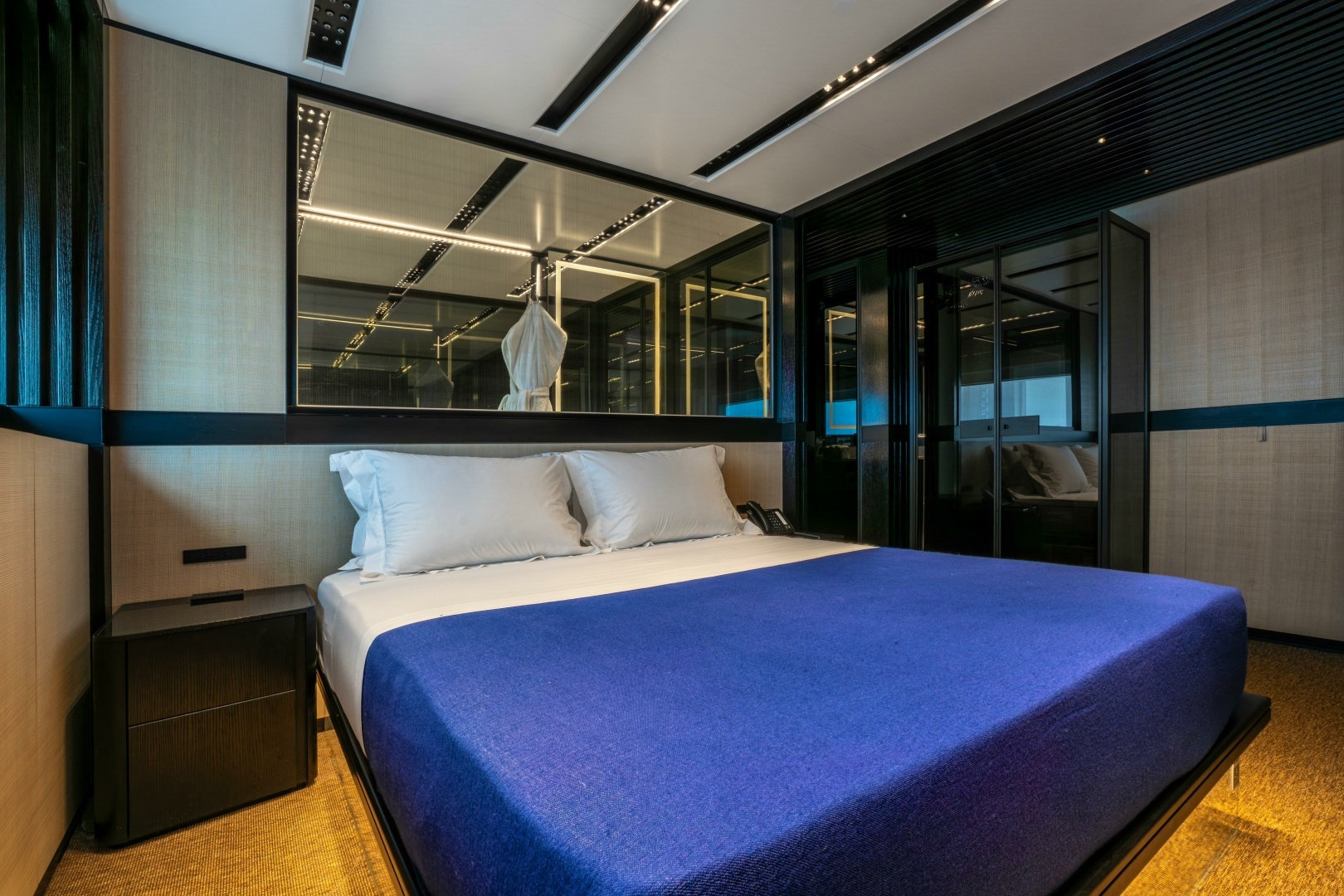

• VIP staterooms on the lower deck with ensuite bathrooms
• Double staterooms on the lower deck with ensuite bathrooms

DECK MACHINERY & EQUIPMENT

• (2) Posidonia SHHP PTW + 219 kg anchors
• (1) 100 m, (1) 120 m anchor chains
• (2) Italwinch 5.5 kW anchor windlass system
• (2) Opacmare Load 1,200 kg

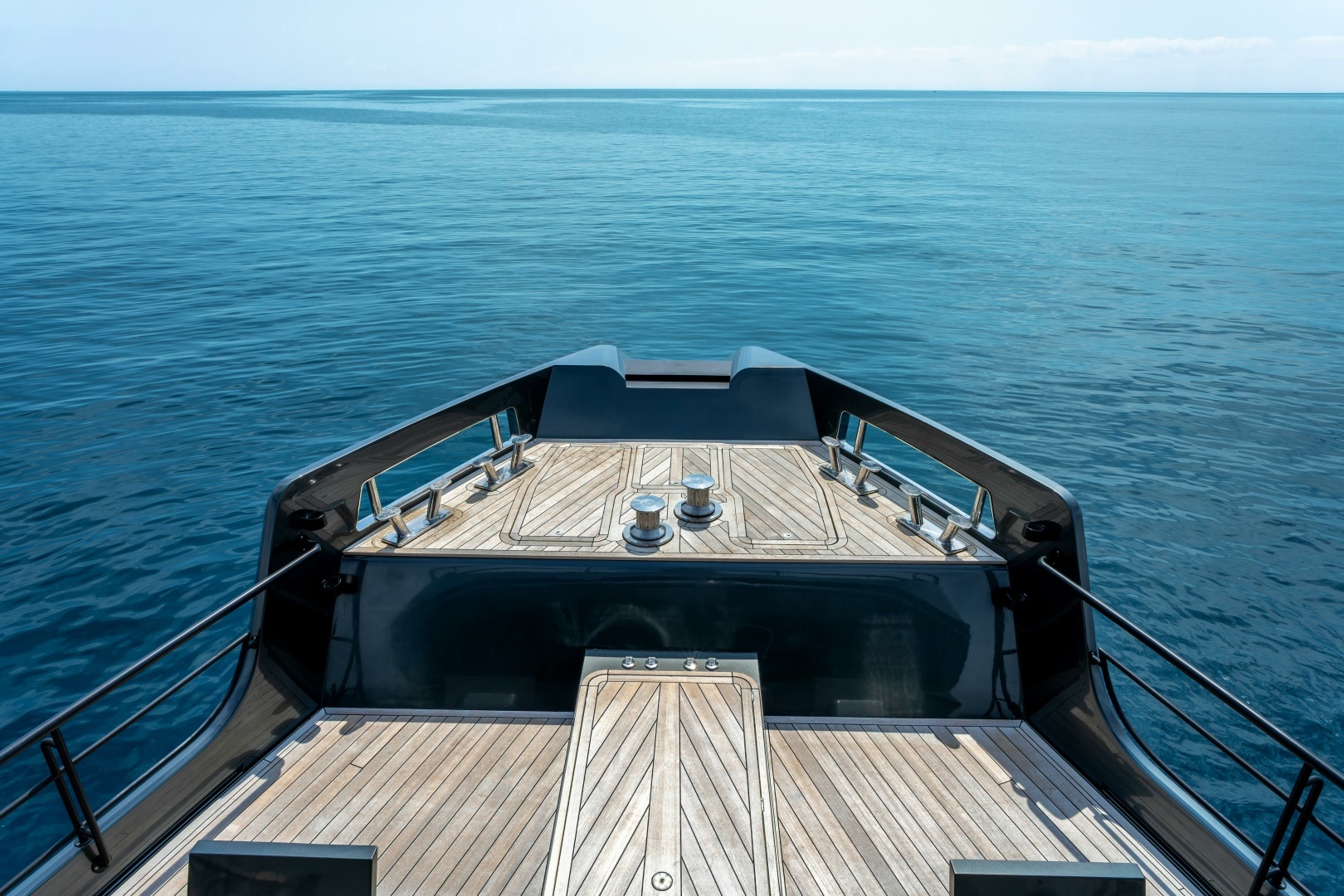

• (2) Italwinch 4 kW fore, (2) Italwinch 4 kW aft mooring capstans
• Dupont Marine paint exterior
• (2) Hydraulic door with 400vac unit

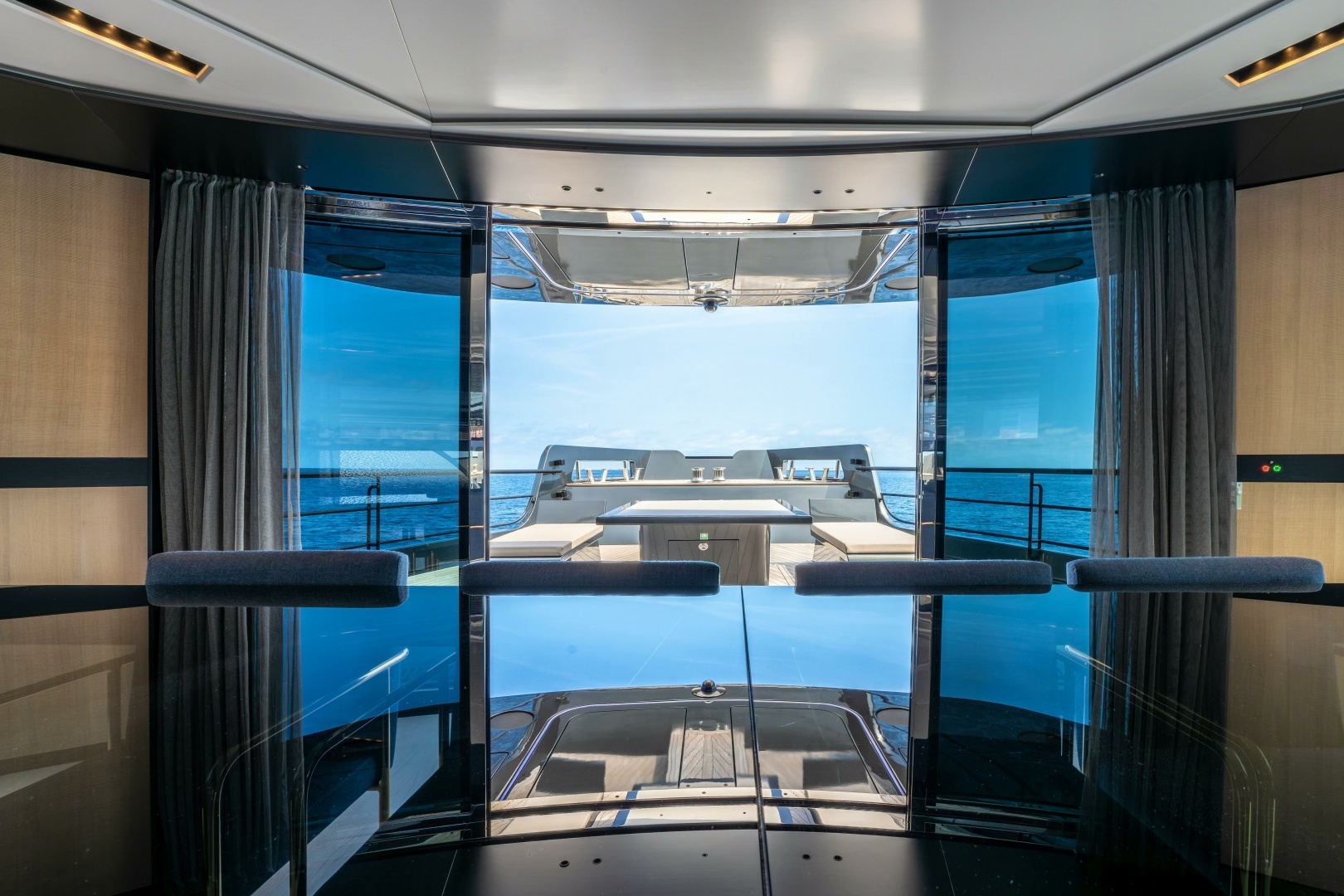

• (2) Opacmare sliding doors on main deck
• (1) Opacmare sliding door on upper deck to access master

COMMUNICATION EQUIPMENT

• Intellian T80W LNB Worldwide SAT TV
• Intellian V80gG control unit VSAT
• Furuno Felcom18 with printer and alarm/distress unites life Inmarsat-C
• Furuno LH-5000 intercom
• (2) Furuno FM8900 VHF
• Radar X-Band radar transponders
• GMDSS with LRIT and Inmarsat-C

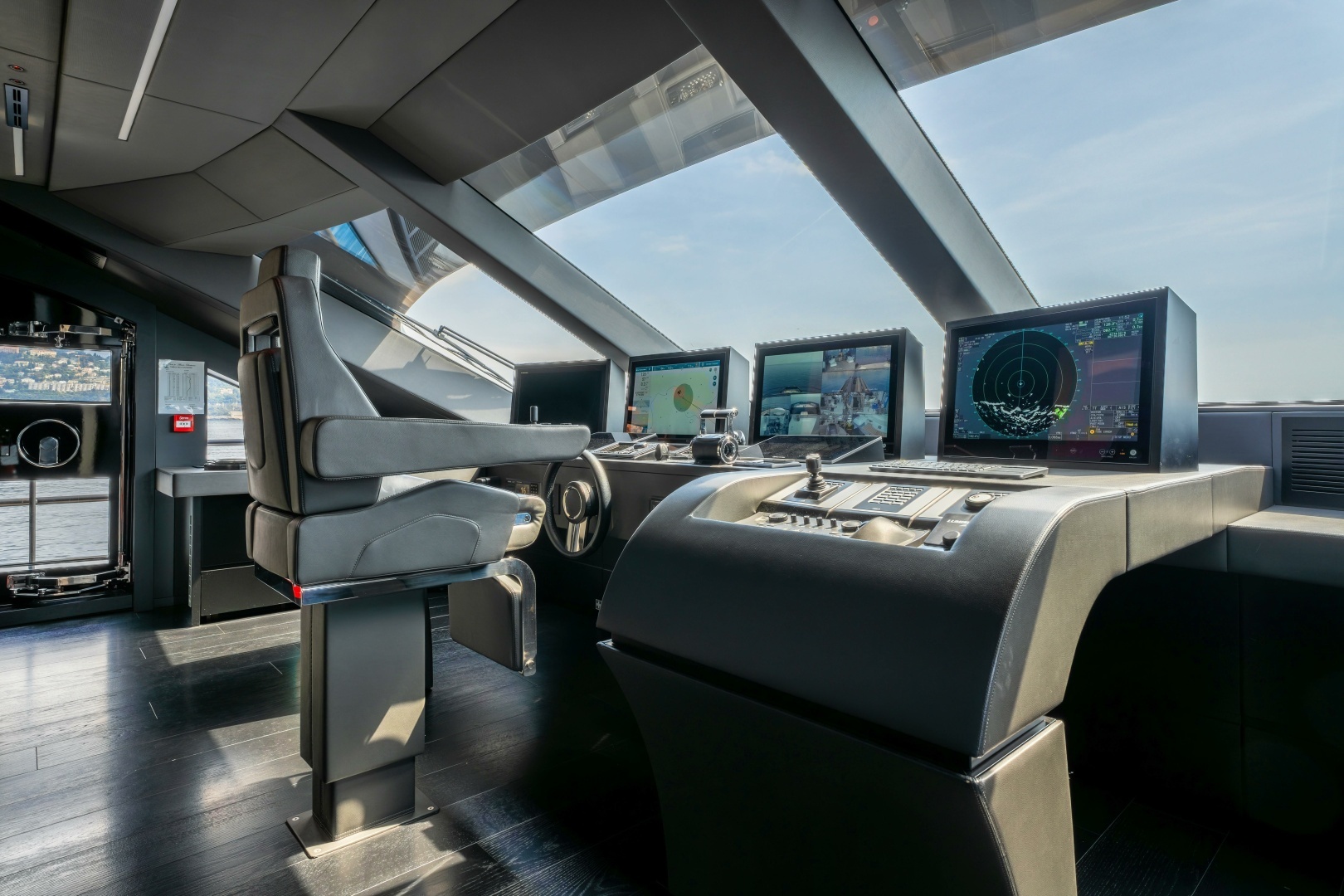

NAVIGATION EQUIPMENT

• Furuno X-Band radar (25 kW - 96 nm - arpa 100)
• Furuno Hatteland 24" full HD touch display radar
• Furuno Chartplotter
• Sonar: DFF1 600 w Megawide electronic chart
• Fuselli Fassio calibrated compass with spare compass
• Simrad AP80 Auto pilot
• Furuno FE800/Less MB echo sounder
• Furuno GP170 GPS
• Furuno FA170/GPA017S AIS
• (1) Searchlight installed on mast
• (1) Portable daylight signaling light
• Bridge Navigation Watch Alarm: BR-500 control unit
• Airmar WX220 weather station

ELETTRICAL EQUIPMENT

• Electrical : 88 kW transformer + 400v 3 - phase 50 Hz main
• Shore Power: (1) 125A, 400V AC 3-phases
• Batteries: (2) Service battery banks (800Ah C20 + 800Ah C20), (1) Emergency battery bank (800Ah C20), (1) Radio battery bank (200Ah C20)

• Battery Chargers: (2) Chargers dedicated to service batteries, (1) Charger dedicated to emergency batteries, (1) Charger dedicated to main engine batteries, (1) Charger dedicated to genset batteries

ENTERTAINMENT EQUIPMENT

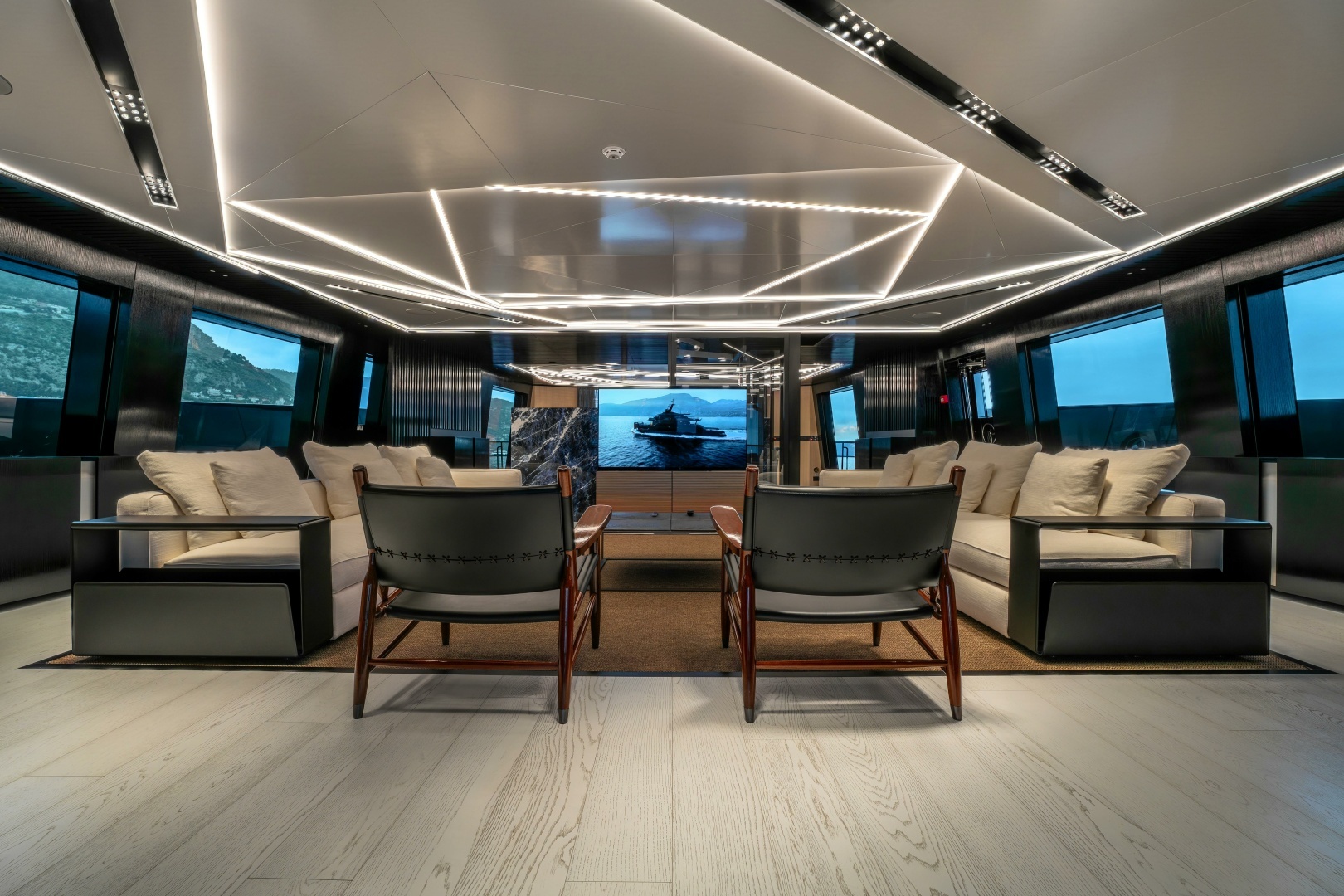

• 70" B&O TV in main salon
• 55" LG TV + B&O sound in master
• 48" LG TV + B&O sound in VIP staterooms
• 48" LG TV + B&O sound in guest staterooms
• 42" LG TV + B&O sound in beach bar
• 48" LG TV in crew mess
• Owner's and guest areas have app for Android and Apple home automation to control lights and curtains

SAFETY & FIREFIGHTING EQUIPMENT

• Fire-fighting systems according to flag authority
• Seawater fire-fighting system with fire house for engine room
• Vapor detection system for garages
• Smoke and fire detection throughout
• Furuno watch alarm system with flash beacon and motion sensor with (3) remote controls in crew cabins
• (2) 10-Pax life rafts with survival kit
• Solas approved lifejackets
• (1) Life ring with automatic light/smoke device
• (2) Life rings
• (2) Life rings with buoyant line
• Provided parachute flares and smoke signals
• (1) lc-305 alarm unit
• (1) lc-306 distress unit
• (1) Pp-520 printer

SECURITY EQUIPMENT

• (1) HD digital hybrid video recorder
• (6) PTZ technical areas cameras
• (1) PTZ mast cameras
• (1) 24" full HD touch display Hatteland
• (1) Remote control in crew mess and captain's cabin on Furuno 16" disp

CCTV

• (1) PTZ camera on mast
• (6) PTZ cameras for external areas (1 on main deck fore area, 2 on main deck side passageways, 2 on main deck aft area, 1 on upper deck aft area
• (6) PTZ cameras for technical areas (2 on engine room, 1 on technical room, 2 on garages, 1 in stern technical area

MOTION SENSORS

• BR-560 motion detector

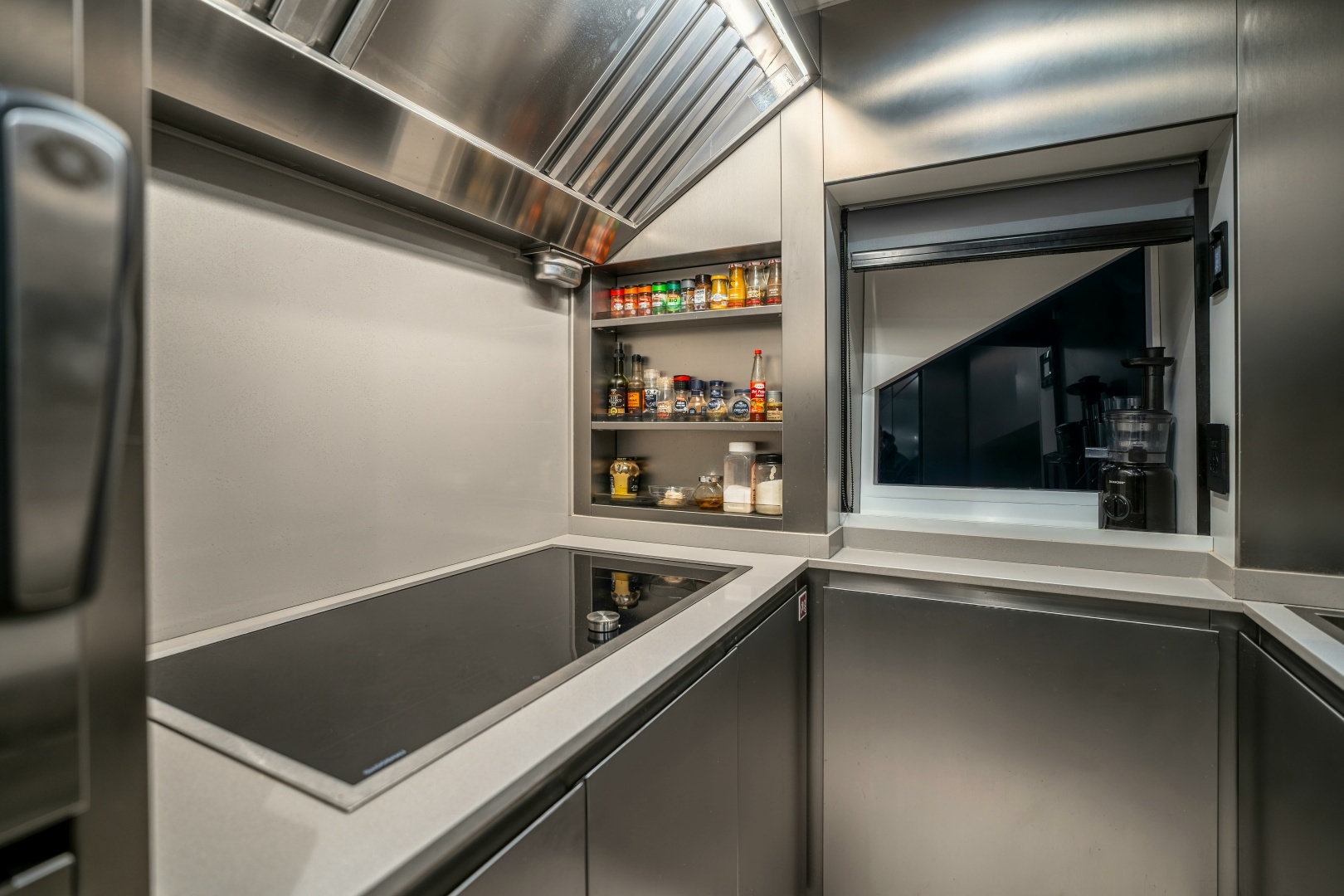

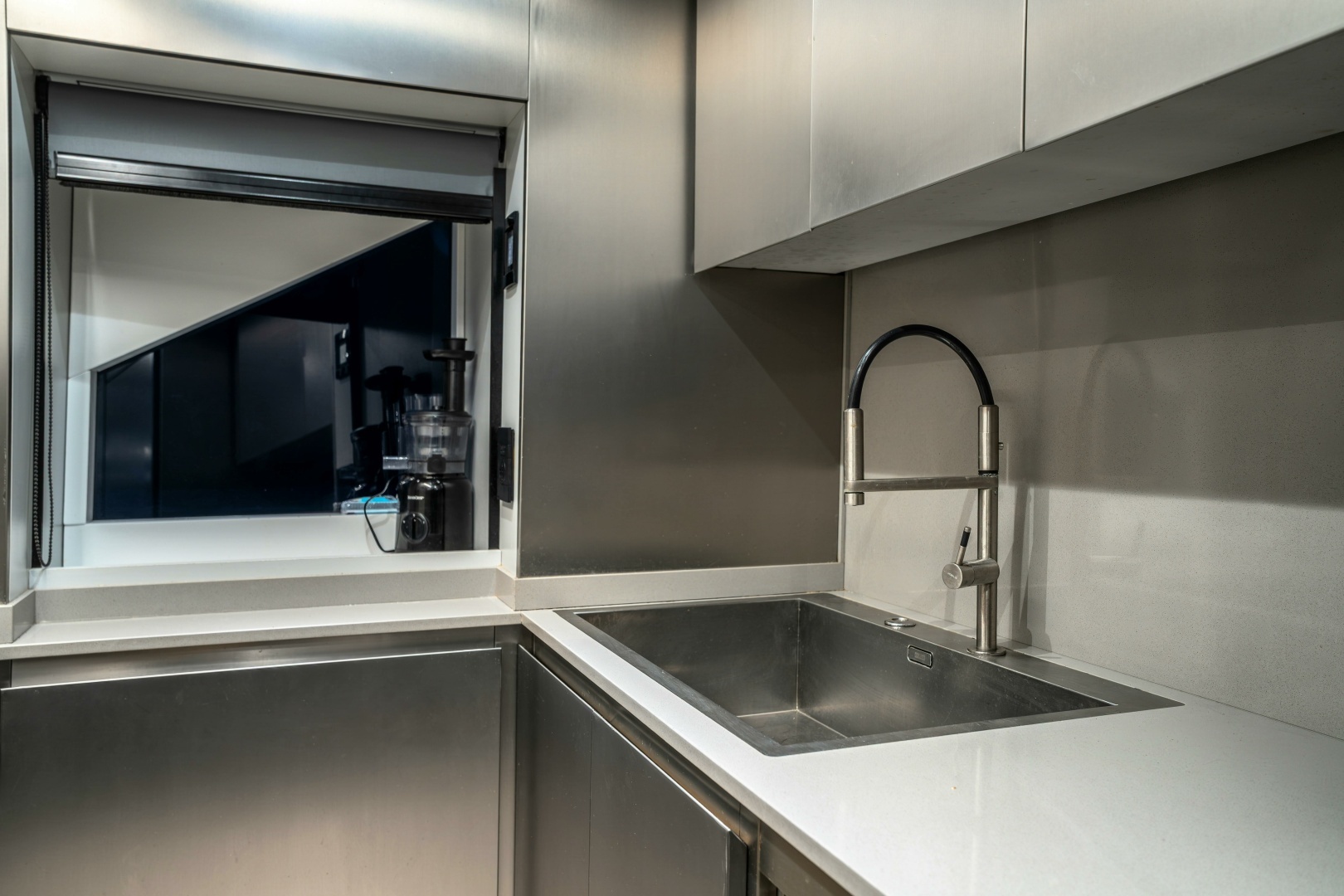

MAIN GALLEY EQUIPMENT

• (1) Gaggeneau induction cooking top
• (1) Zanussi hood
• (1) AEG full height refrigerator
• (1) Full height freezer

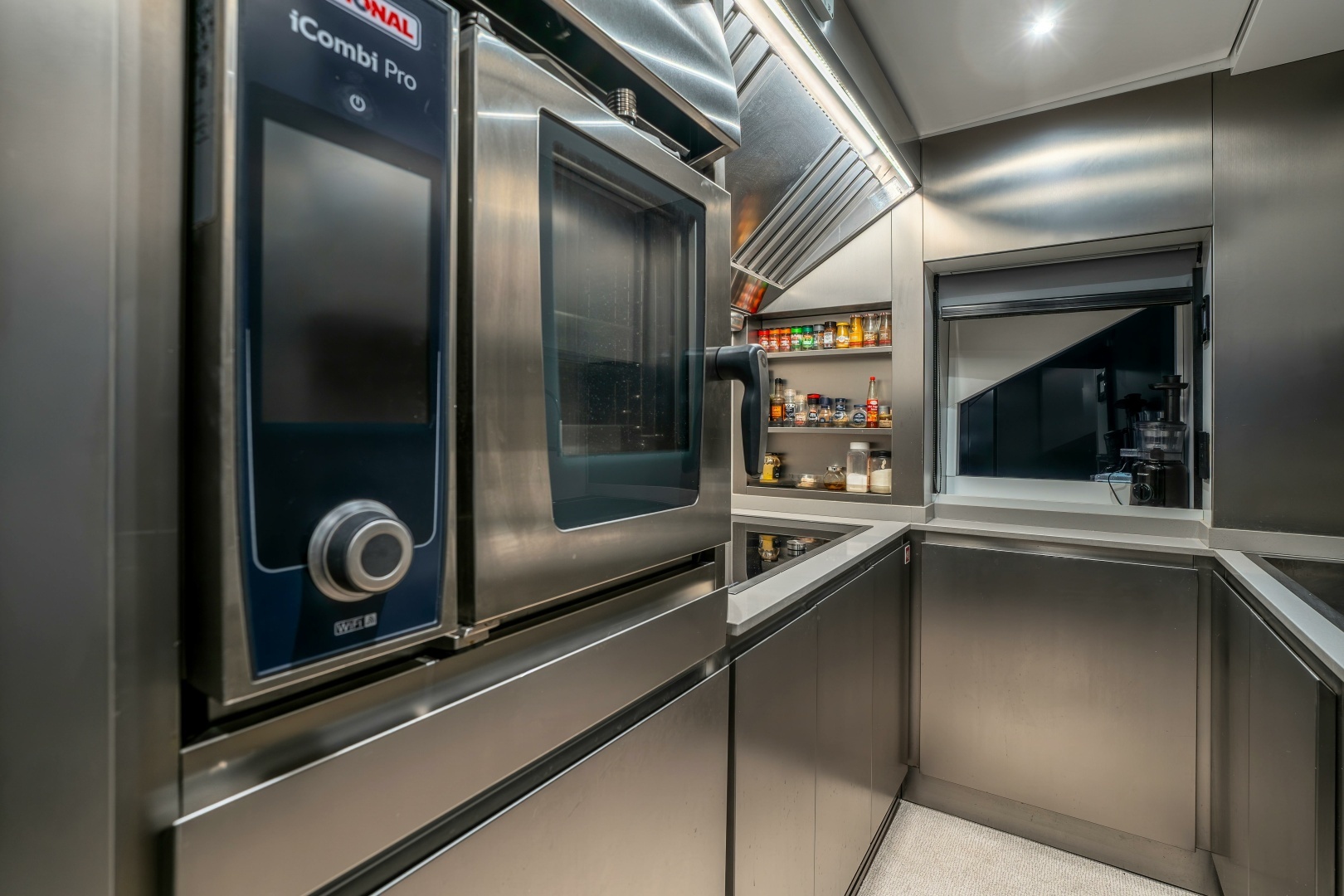

• (1) Rational self cooking center XS6 2/3 oven
• (1) Gaggeneau dishwasher
• (1) Insinkerator Evolution 100 garbage macerator
• (1) Gaggeneau microwave oven

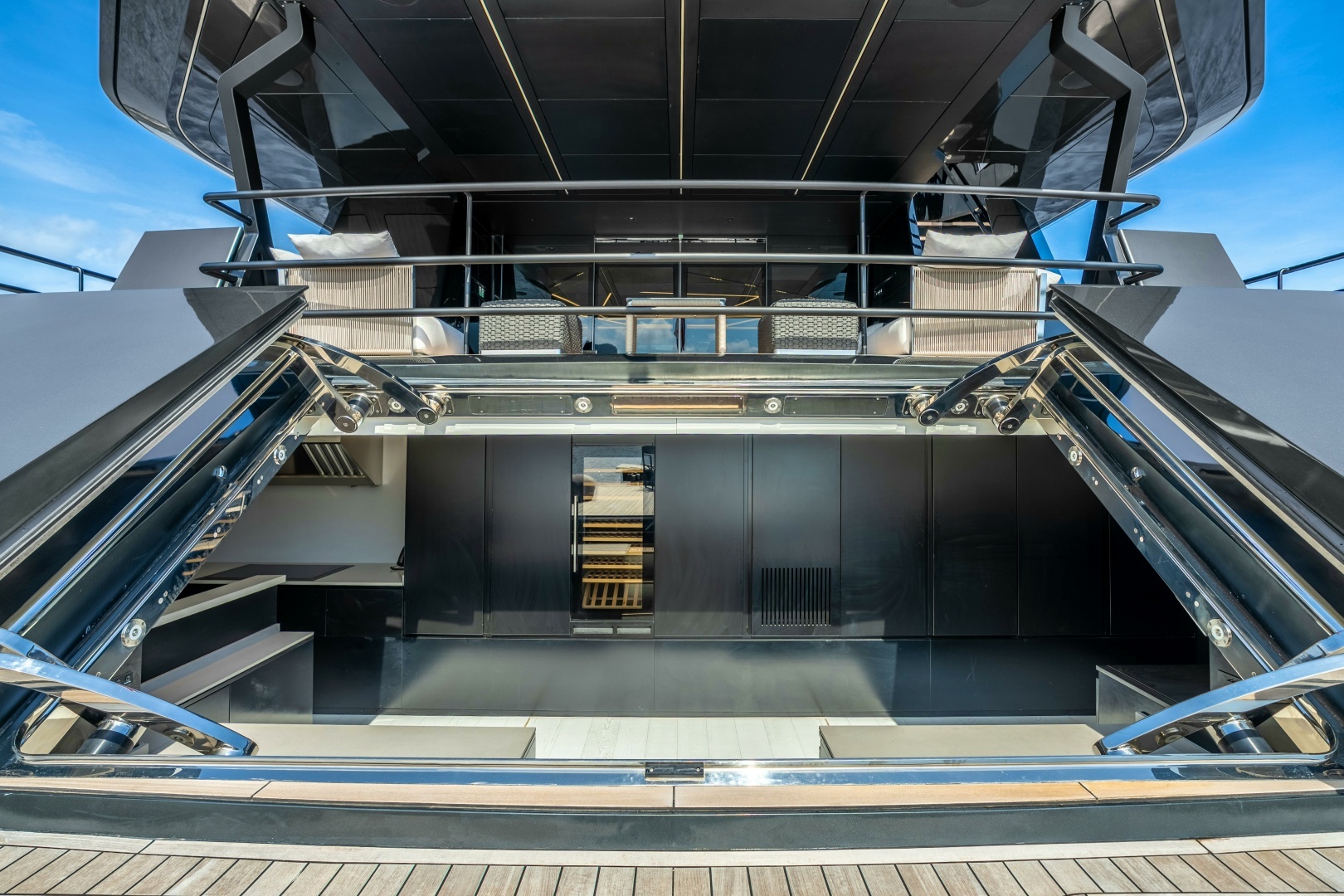

BEACH BAR EQUIPMENT

• (1) Dunavox wine cellar
• (1) AEG refrigerator
• (1) AEG freezer
• (1) Hoshizaki icemaker
• (1) Insinkerator Evolution garbage macerator
• (1) Gaggeneau induction cooktop
• (1) Zanussi hood
• (1) Gaggeneau oven

AUXILIARY MACHINERY

• Steering & Trim Tabs: Twin disk, MY 4000 / 4 -24
• Bow Thruster: Sidepower
• Stern Thruster: Sidepower
• Stabilizers: Zero speed CMC Marine LR290
• Underwater Lights: (18) Lumishore TIX803 EOS
• Fuel Filters: (4) Racor, 1 for each consumer (engines and gensets)
• Fuel Oil Separator: (1) Alfalaval MIB 303 - 760 liters/hour capacity
• Air ConditiOning: (2) Condria 180,000 BTU with AHU units

OTHER EQUIPMENT

• (1) SubZero refrigerator/freezer/icemaker in master
• (1) Vitrifrigo frigobar in guest lobby
• (1) Refrigerator in lower deck

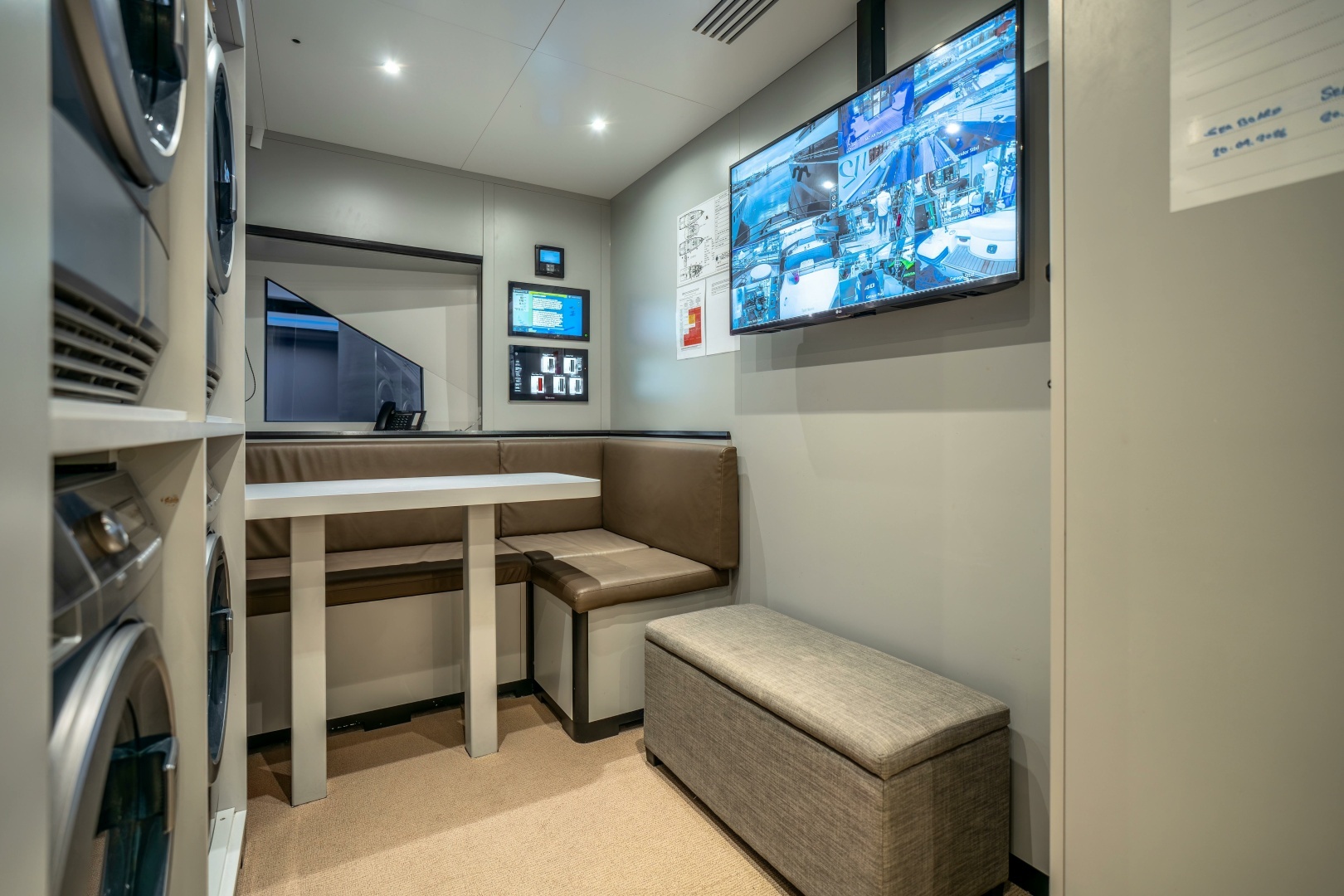

CREW MESS

• (1) Full height refrigerator
• (1) Full height freezer
• (1) 90 cm induction cooking top
• (1) Garbage macerator
• (1) Hood

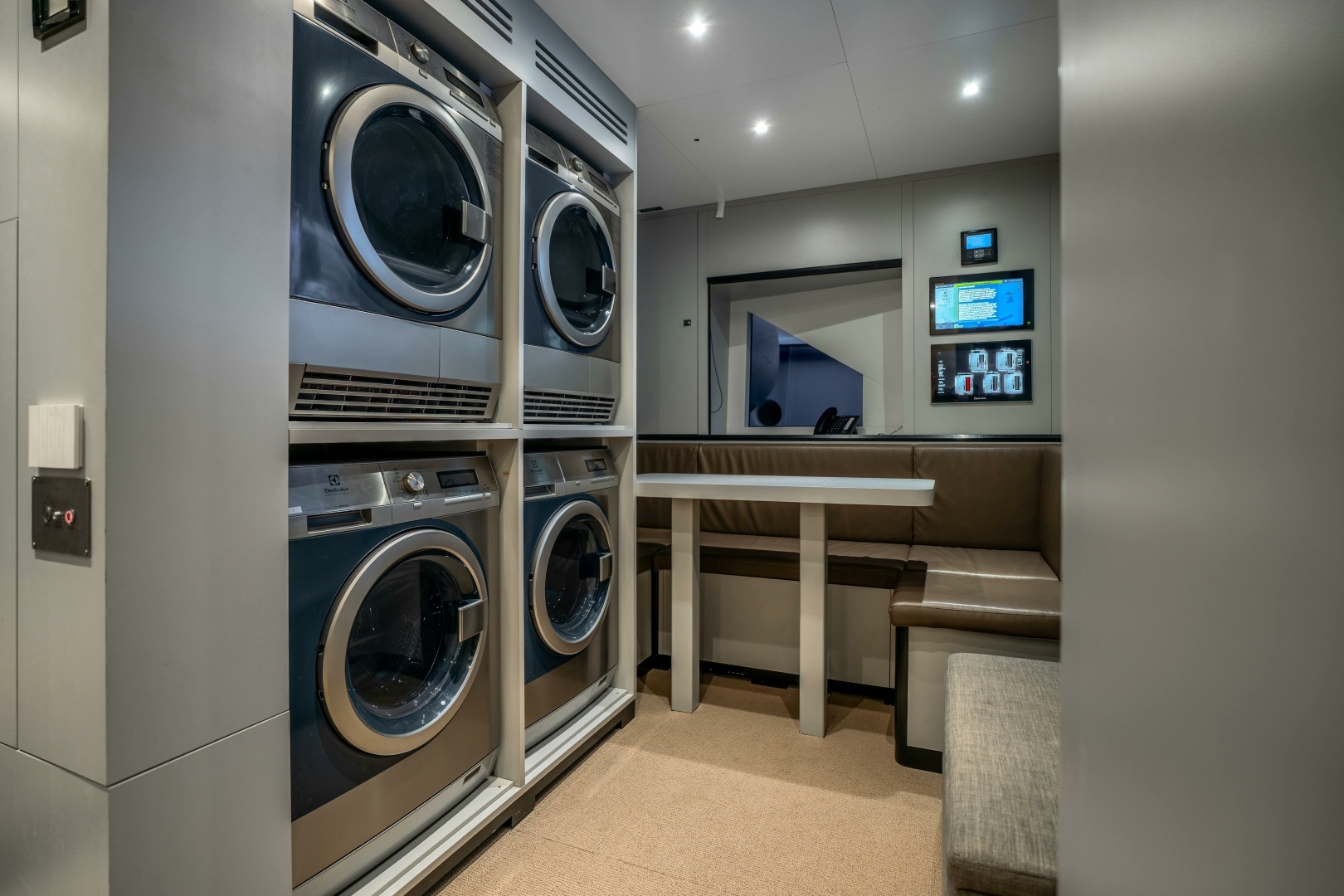

• (2) Zanussi washing machines
• (2) Zanussi dryers

CREW

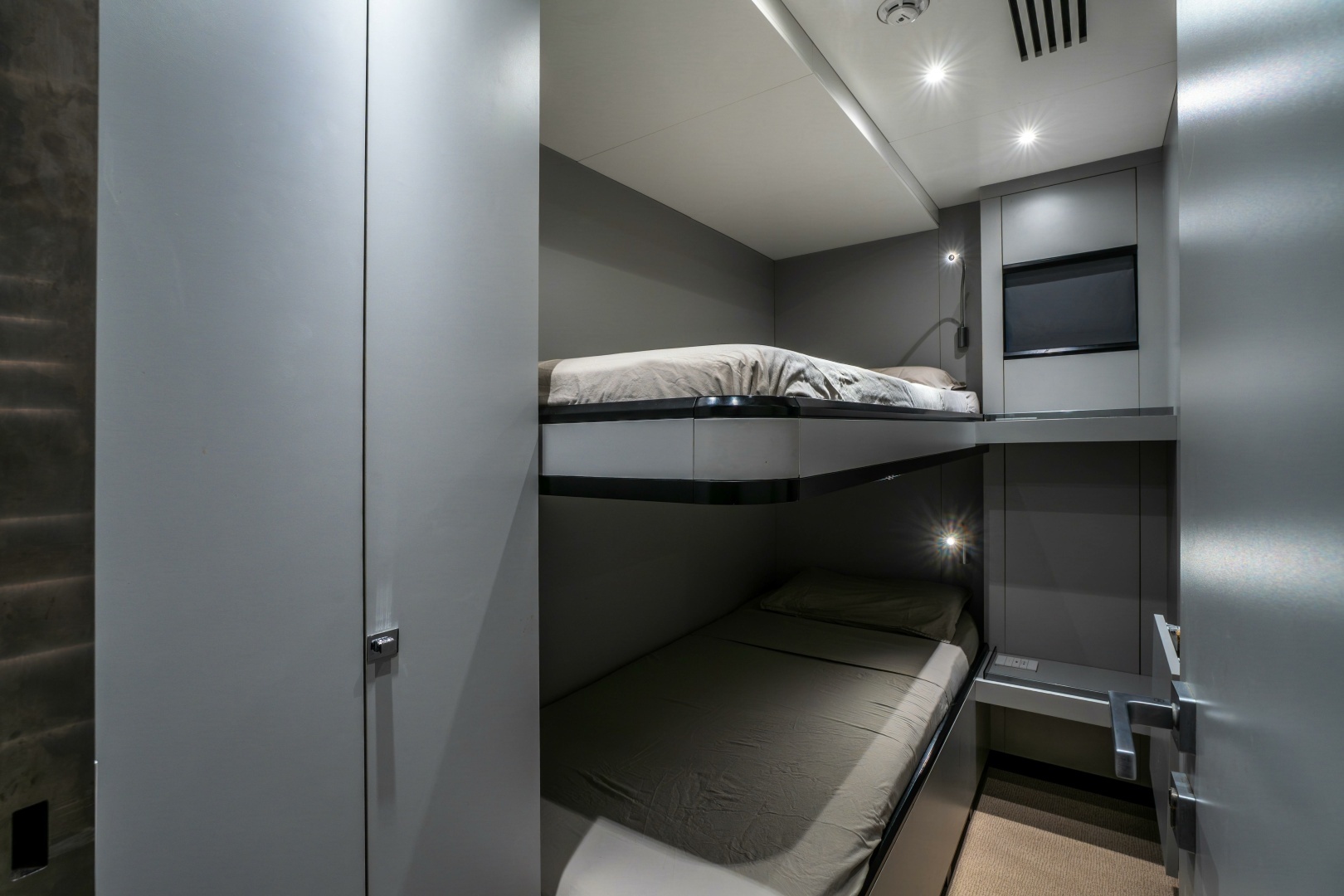

• (3) Twin crew cabins (with Pullman)
• (1) Captain's cabin (with double bed)

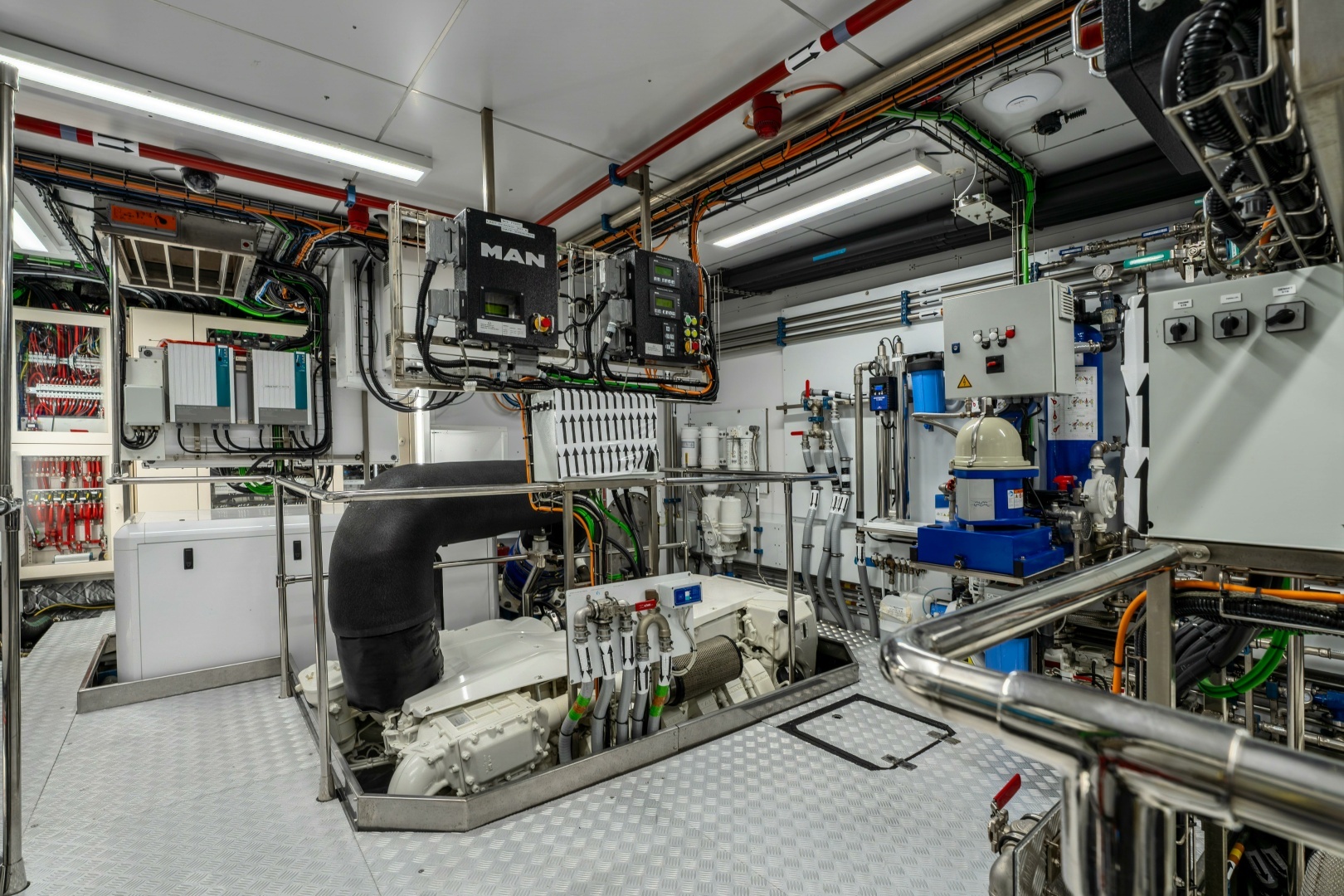

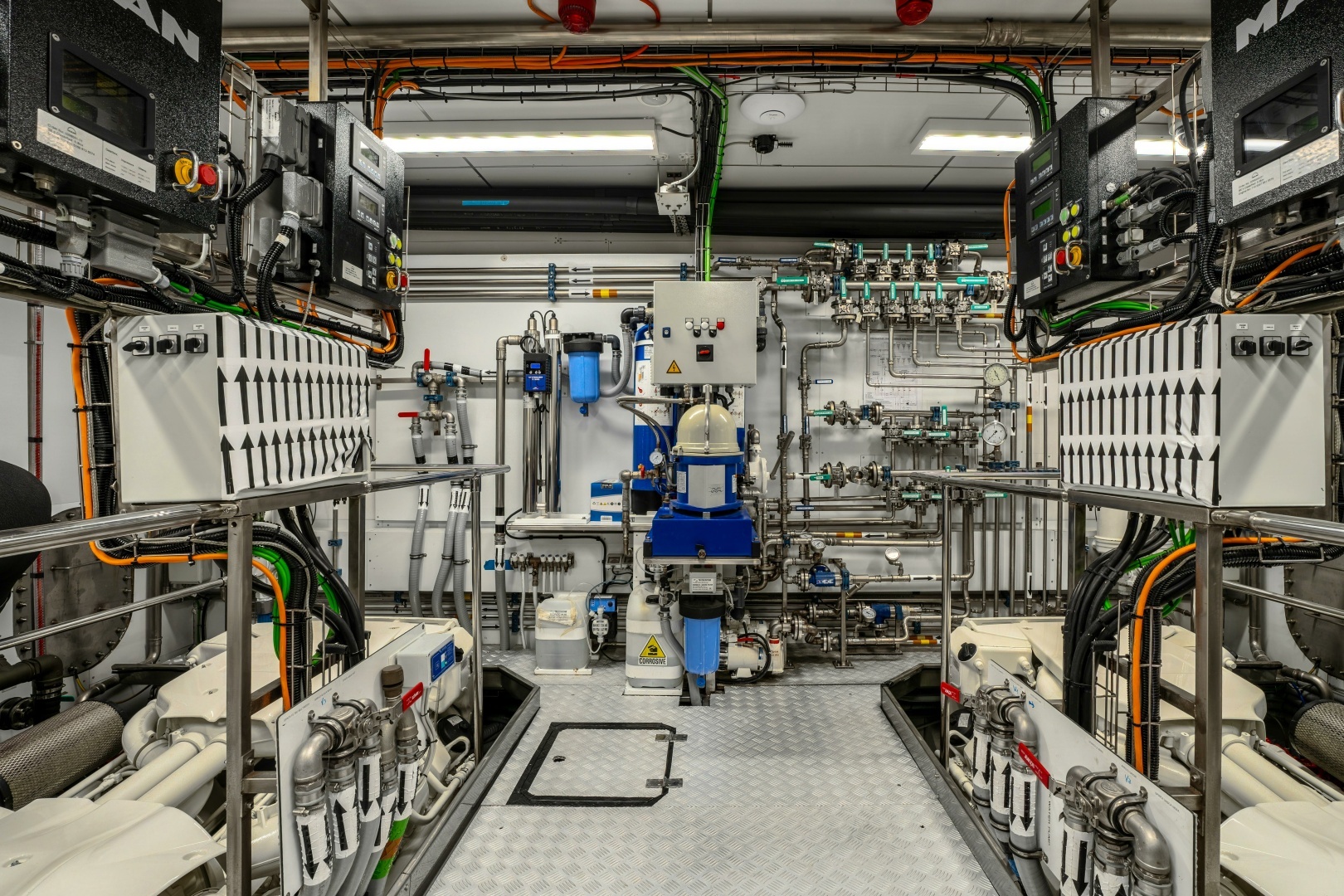

MACHINERY
