2026 Hargrave 125'
38.10 m
2026 Hargrave 125' E Series Superyachts Division
- 38.10 m
- Diesel
- Power
- Trideck
2026 Hargrave E Series Superyachts Division
125' (38.10 m) Project 125

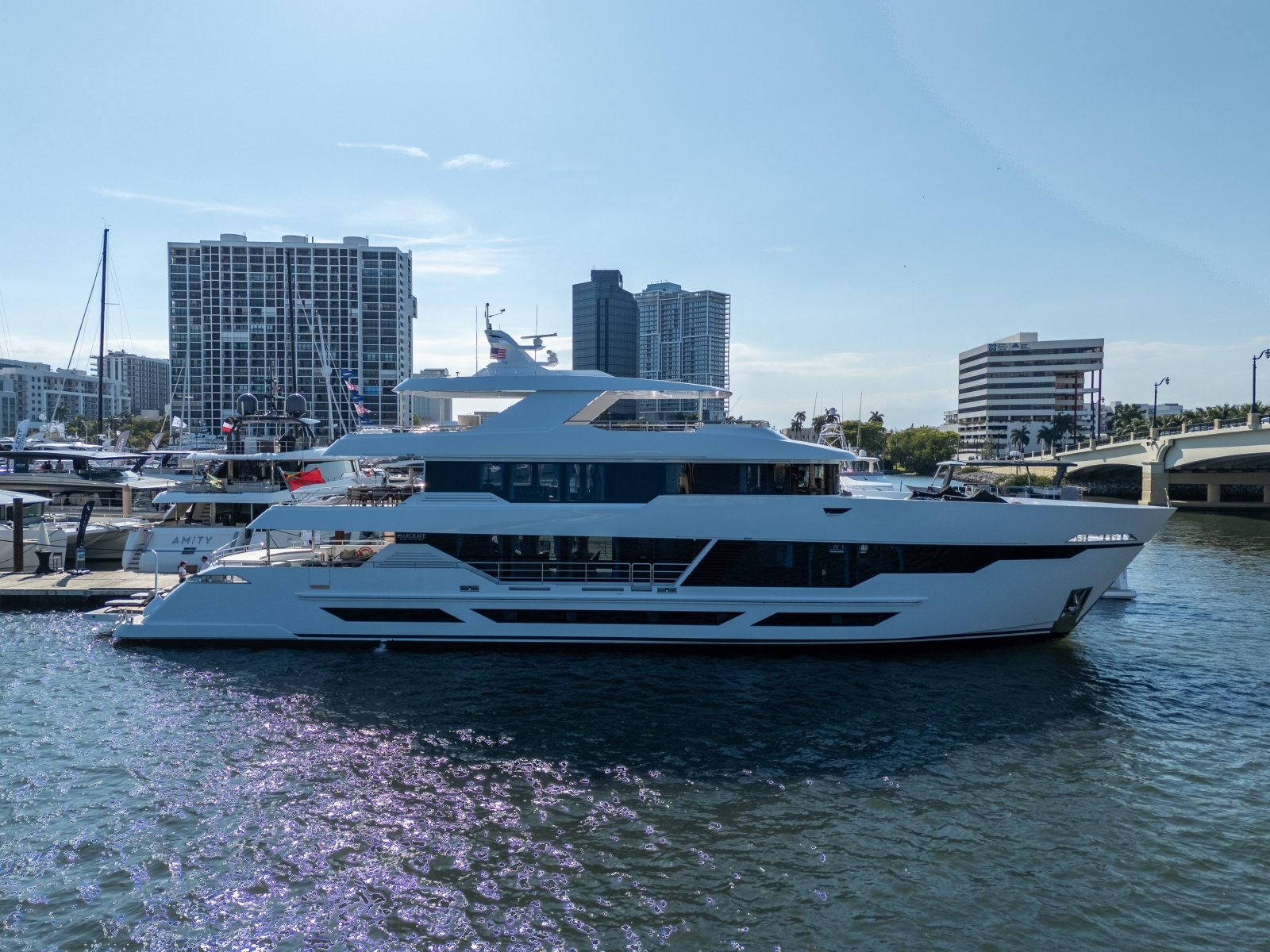

Available for immediate delivery M/Y RESONANCE 125/38m By Hargrave Superyachts Division. A True Turn Key Yacht. Hargrave’s Management takes care of every operational detail, including crewing, if desired.
Tax Paid
| FEATURES: |
|---|

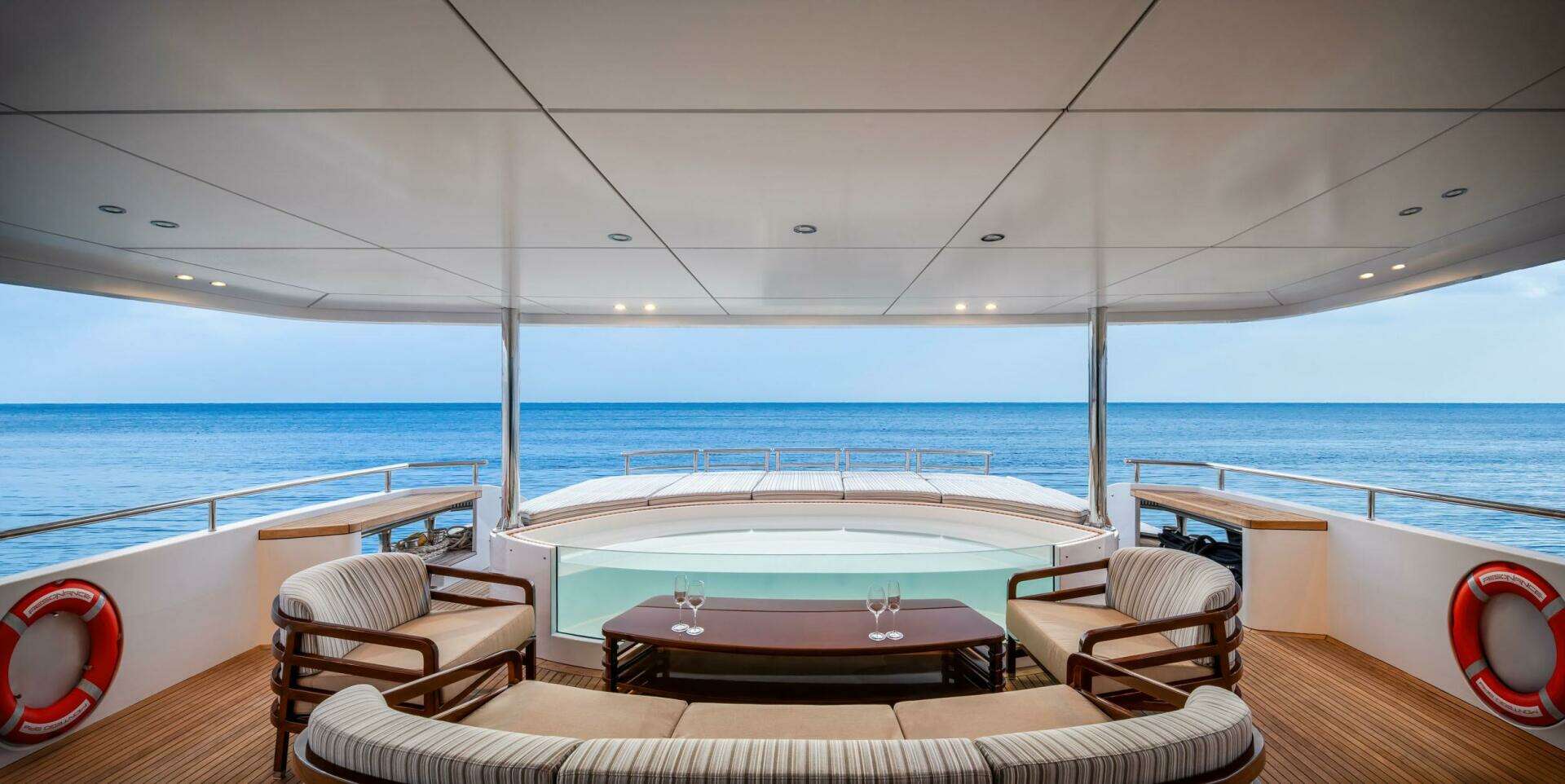

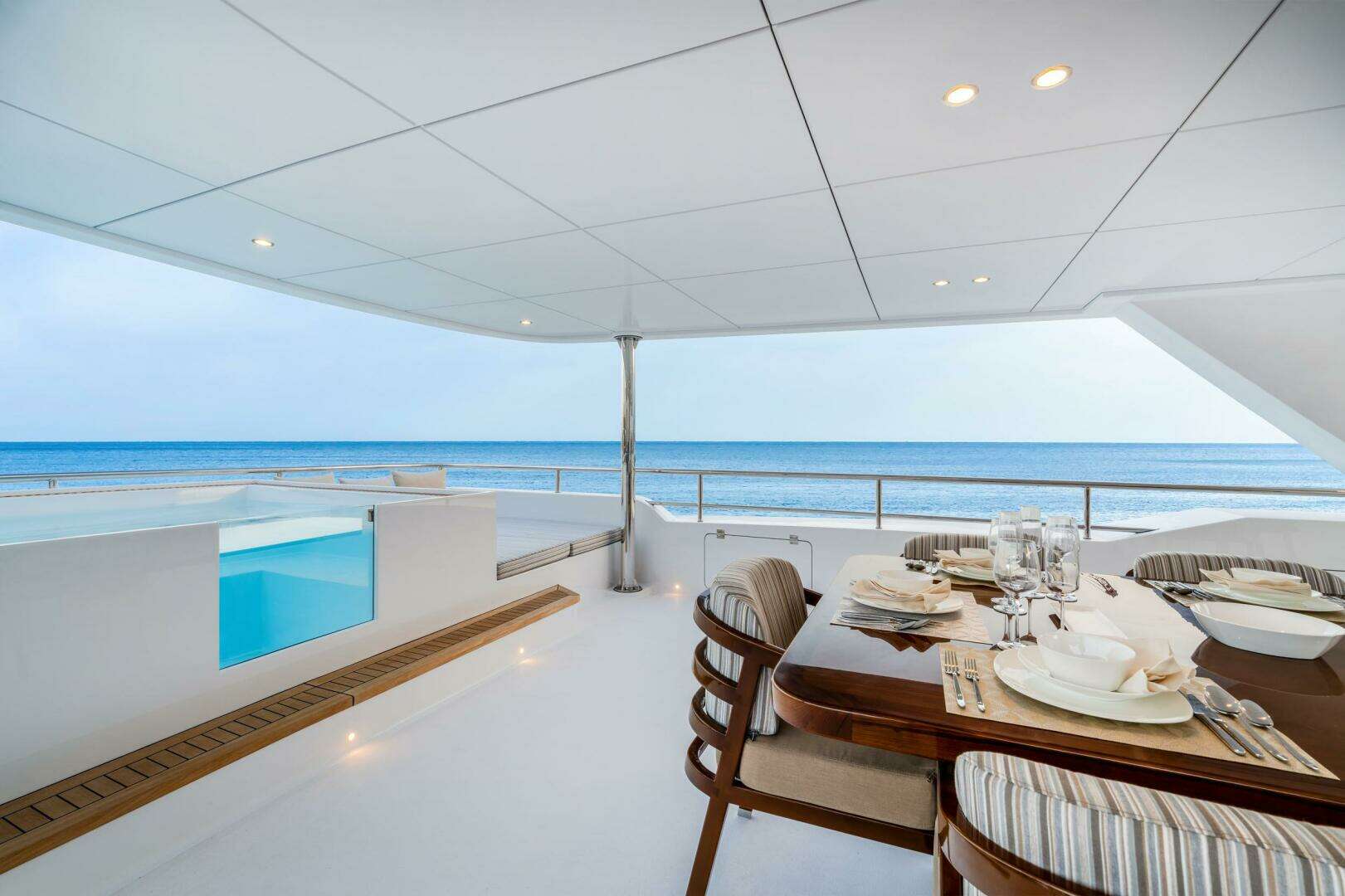

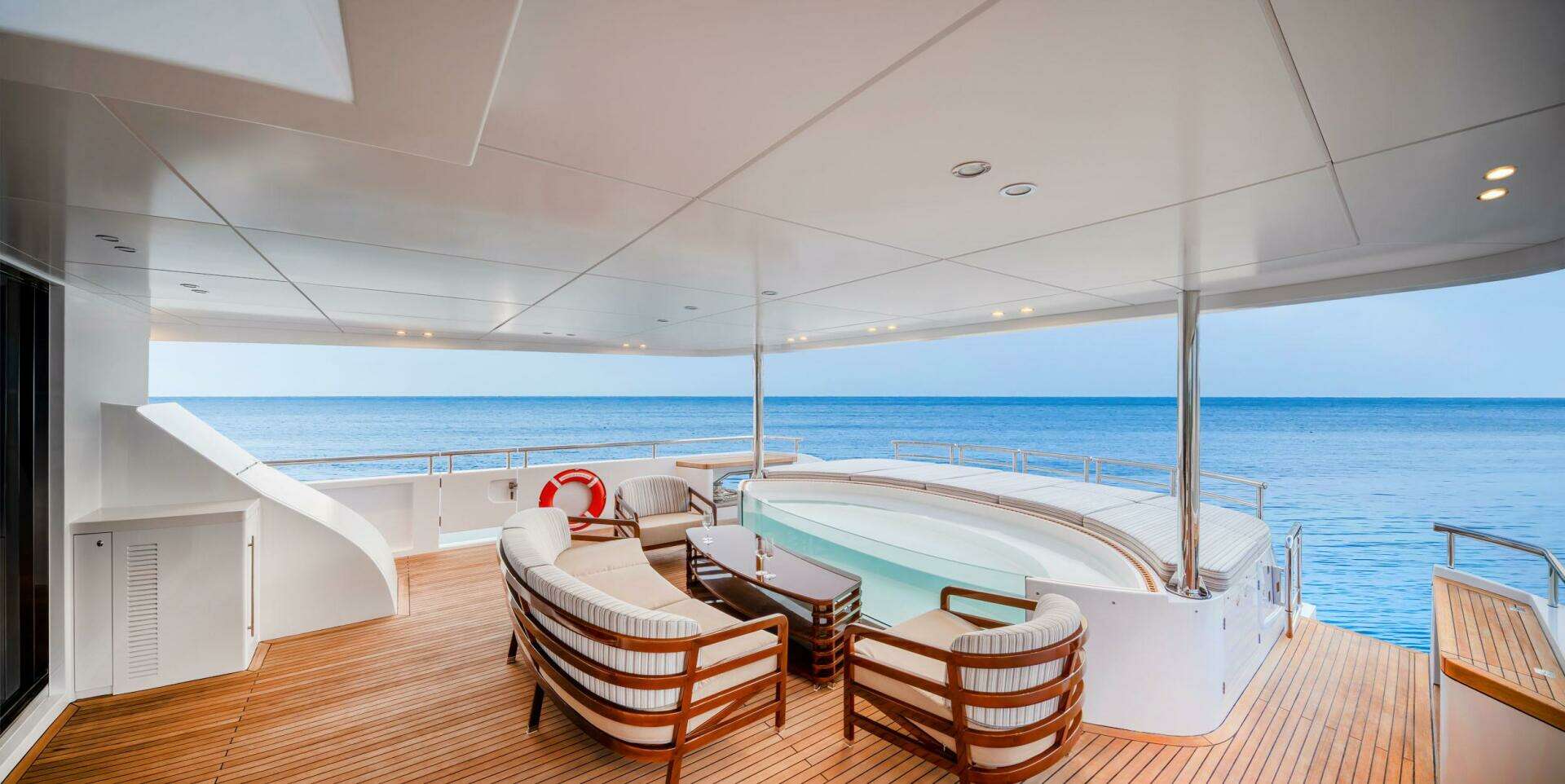

| Dual Jacuzzi |
| Tender and Toys storage at the Bow |
| 7.2 ft Ceilings |
| Carbon Fiber Reinforced Hull and Superstructure |
| 10 year Warranty on hull and 10 year on Main Engines and Generator |
| Tenders: TO BE DETERMINED |
| Toys: One inflatable Tender and 2 Jet Skis |
2026 Hargrave 125' E Series Superyachts Division
- 38.10 m
- Diesel
- Power
- Trideck
Call for Price
Description

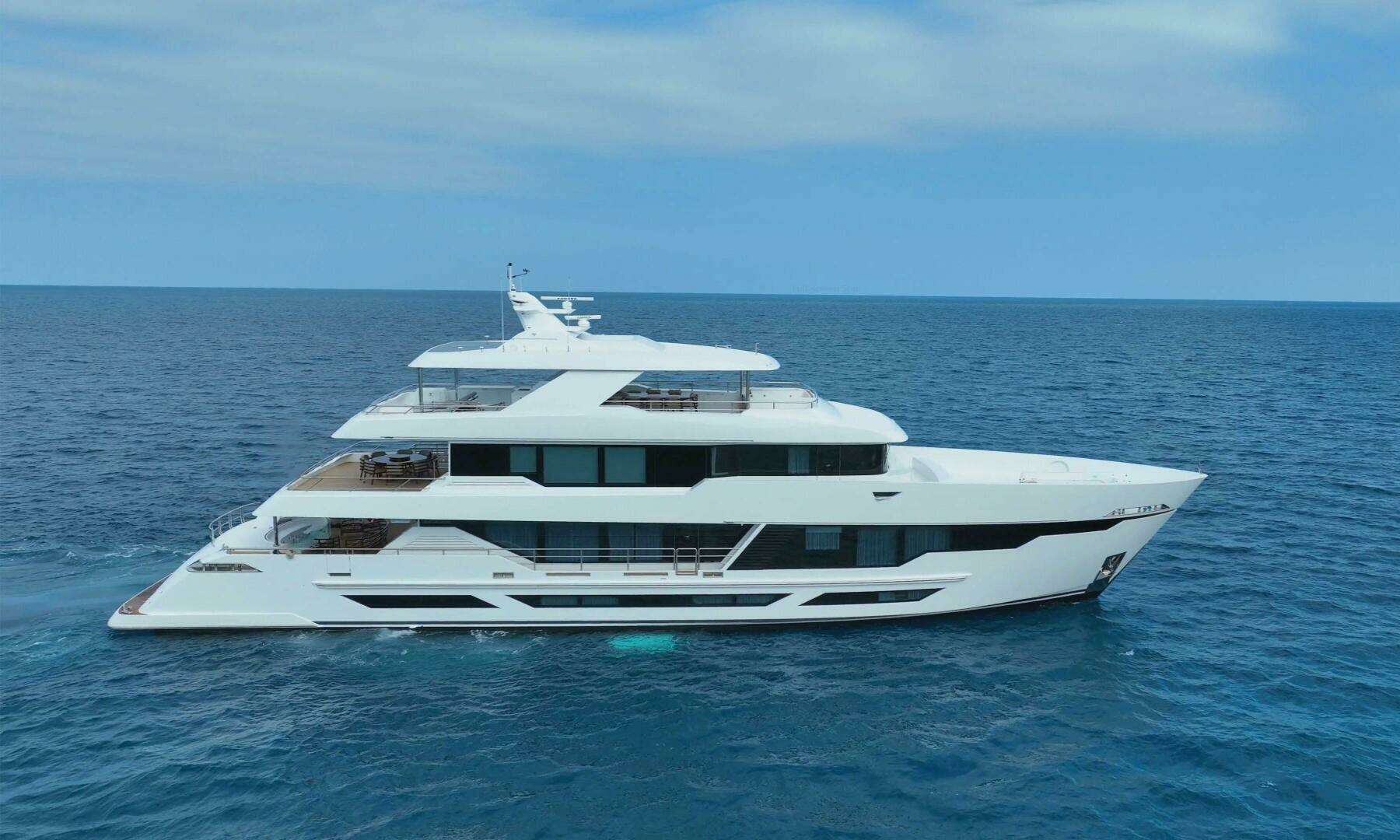

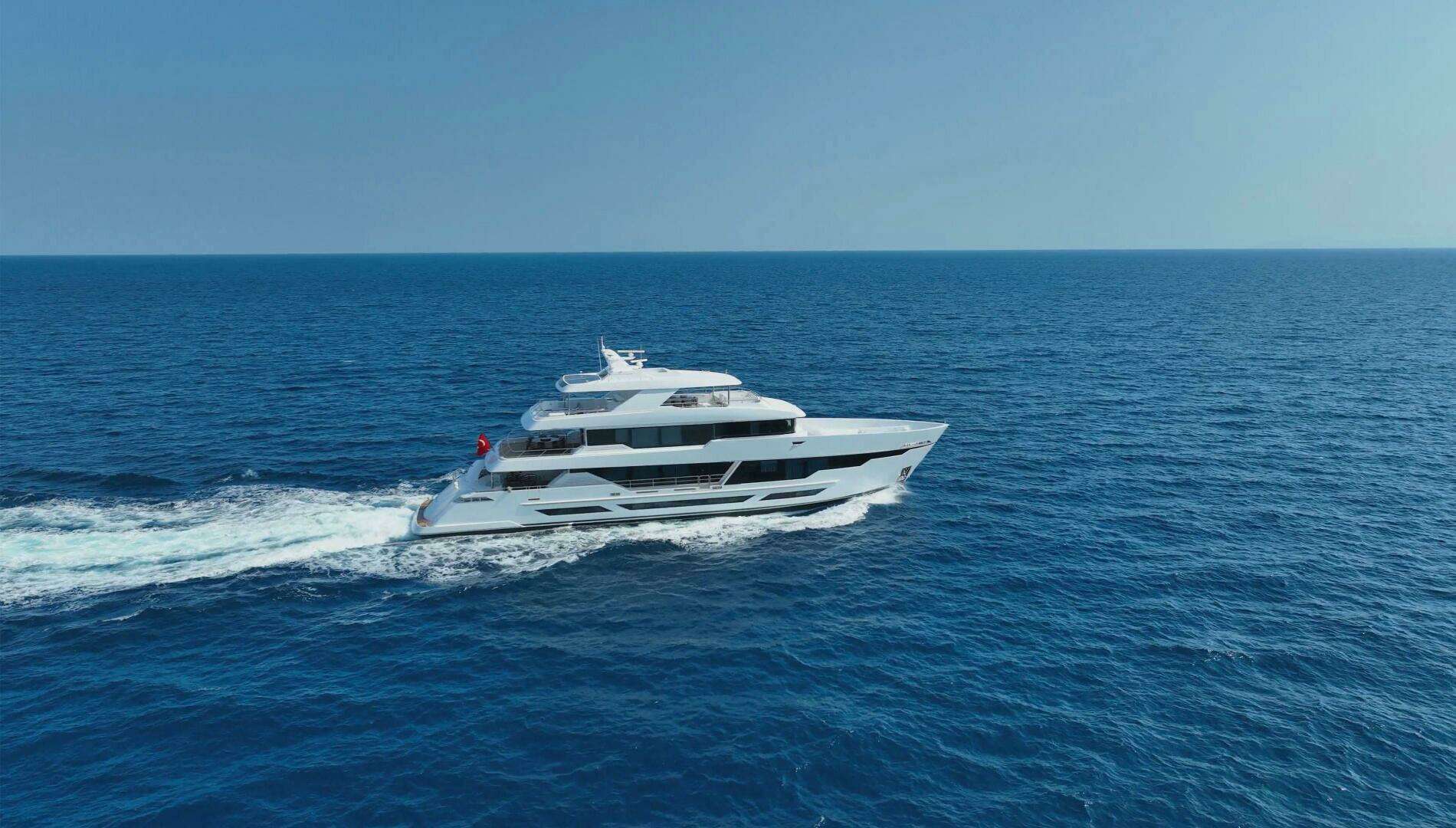

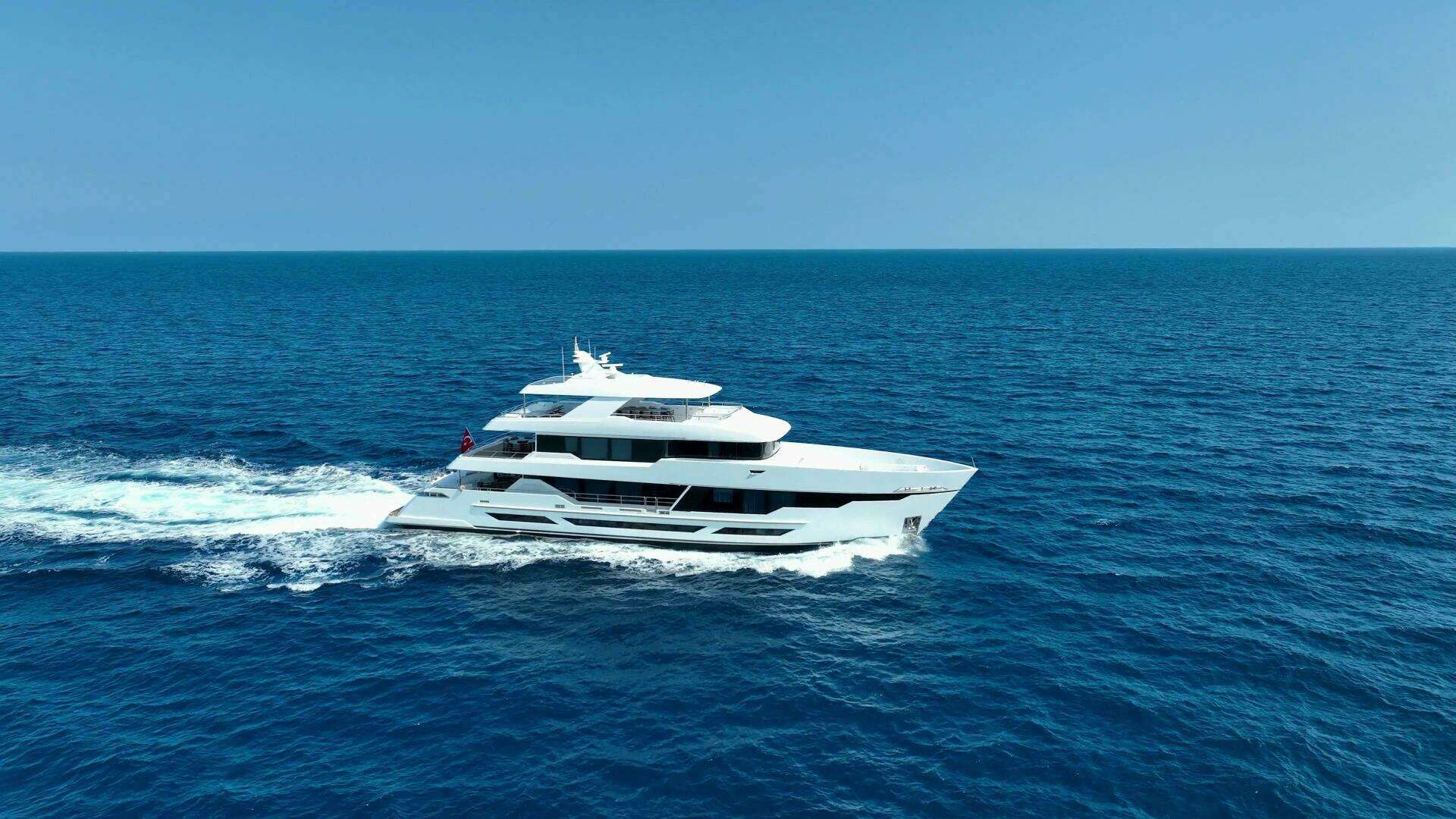

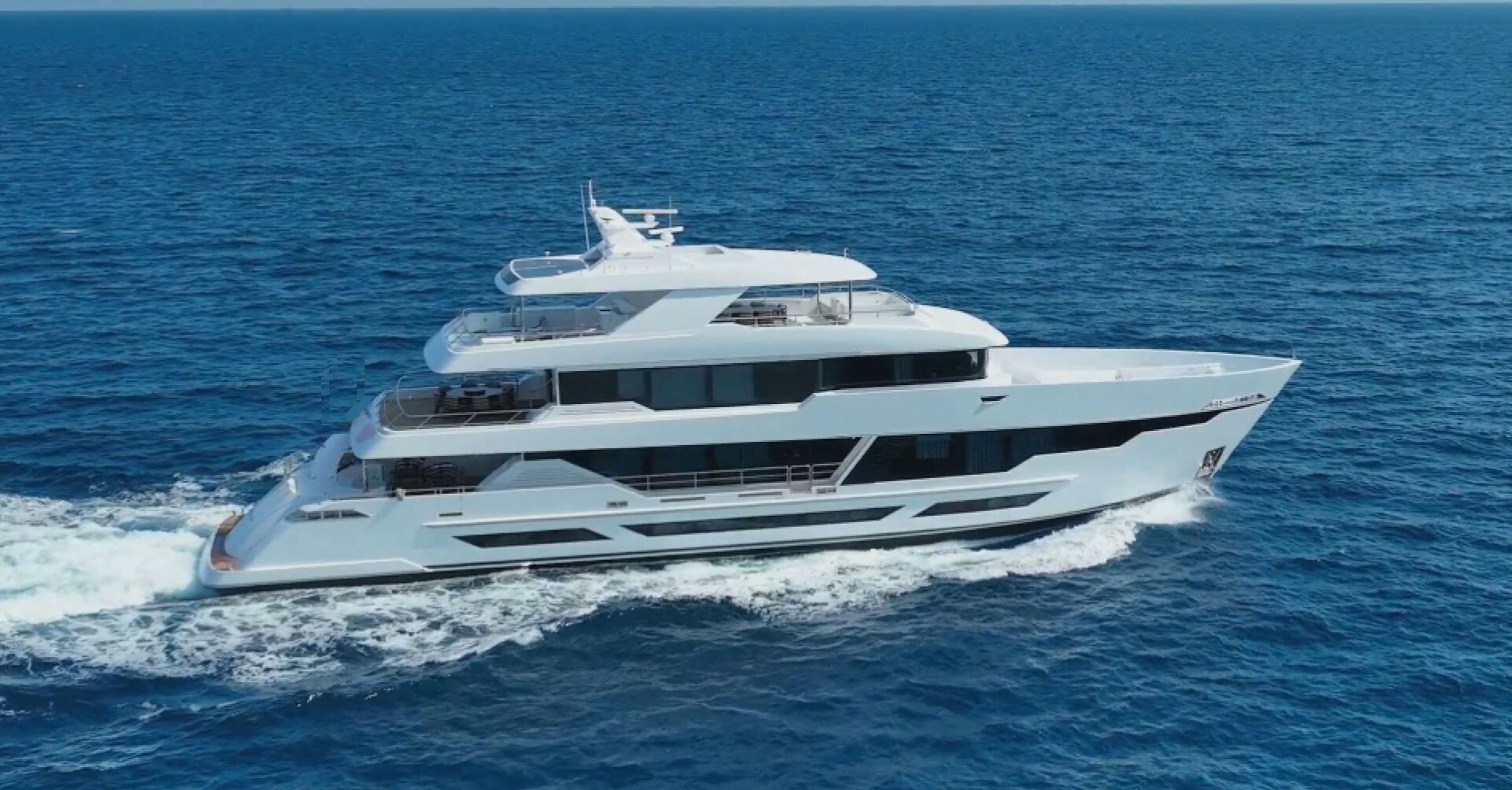

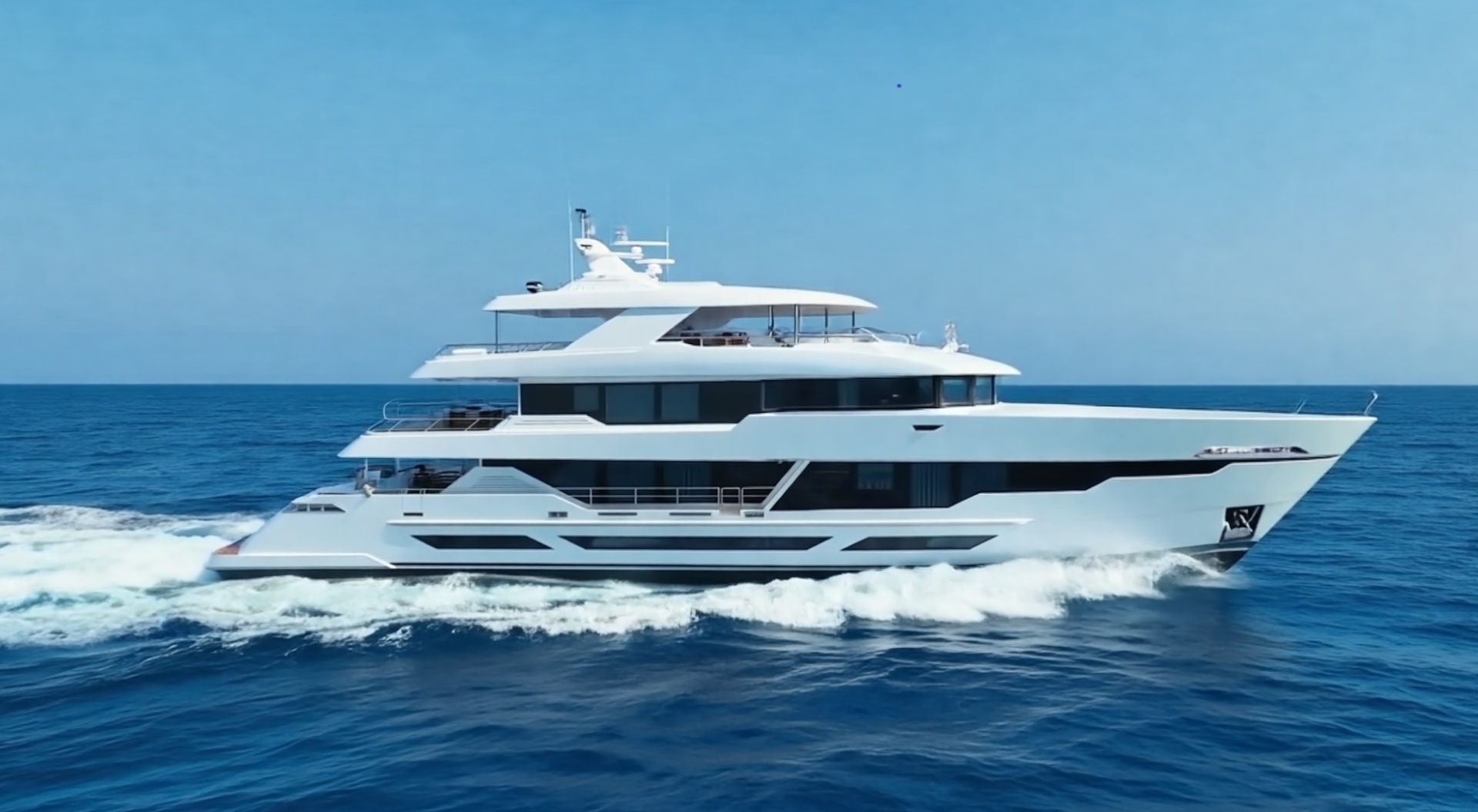

Project 125 is the latest evolution from the Hargrave Superyacht Division.
This 125-foot tri-deck motor yacht is designed to offer a wide range of capabilities.
Built on the proven success of the E Series, she has been quietly in development and under construction for the past 22 months, with input from experienced owners, designers, and captains.
The result is a yacht that delivers an exceptional combination of design, volume, functionality, and long-range cruising strength

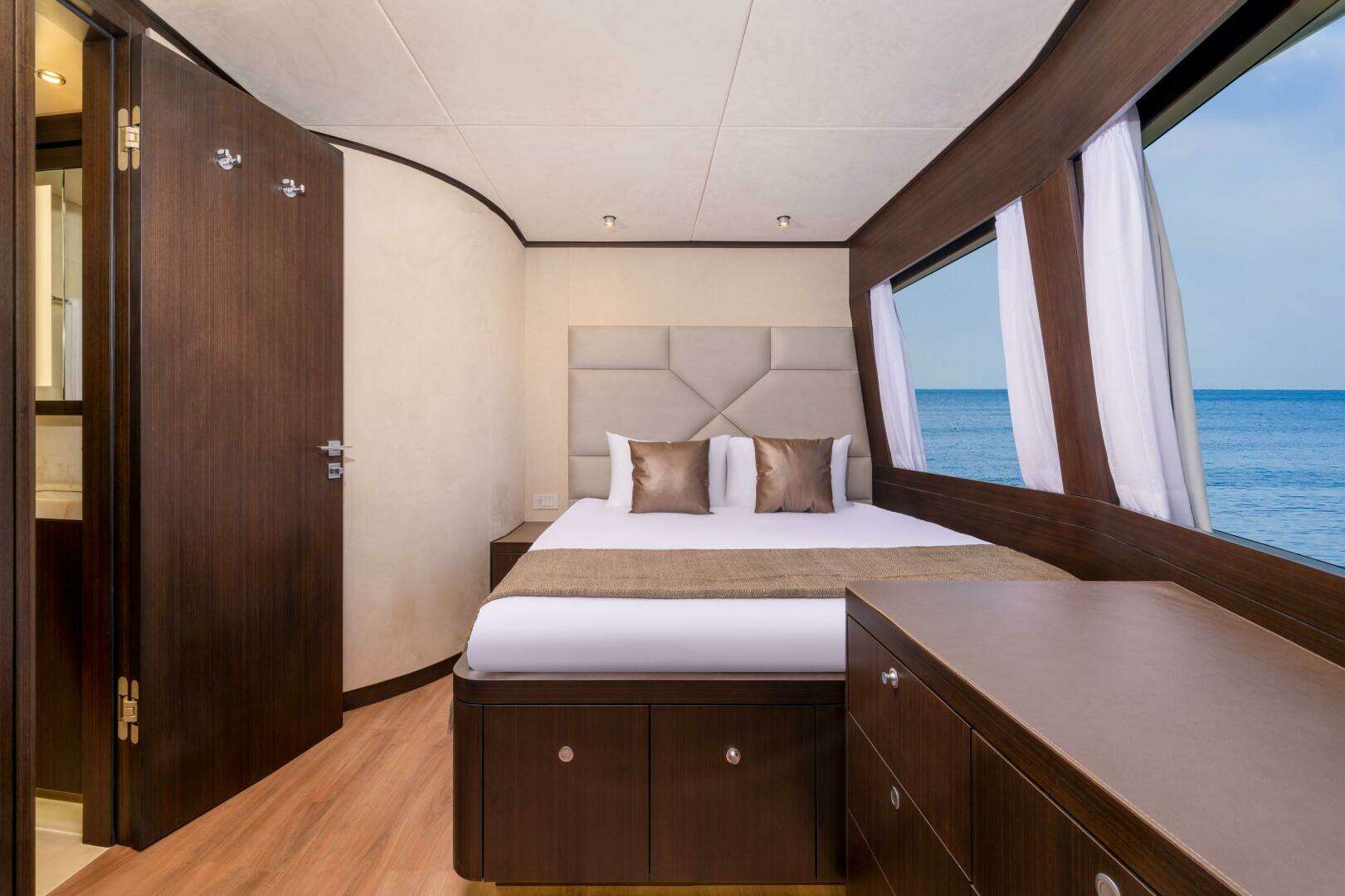

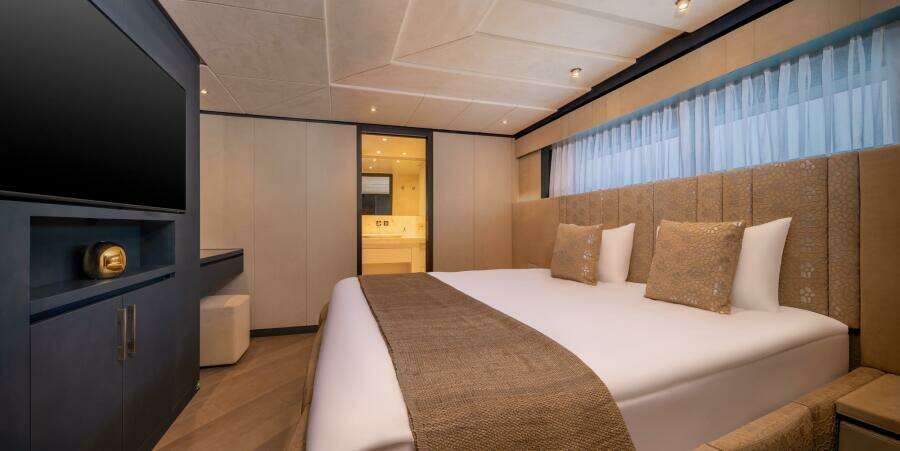

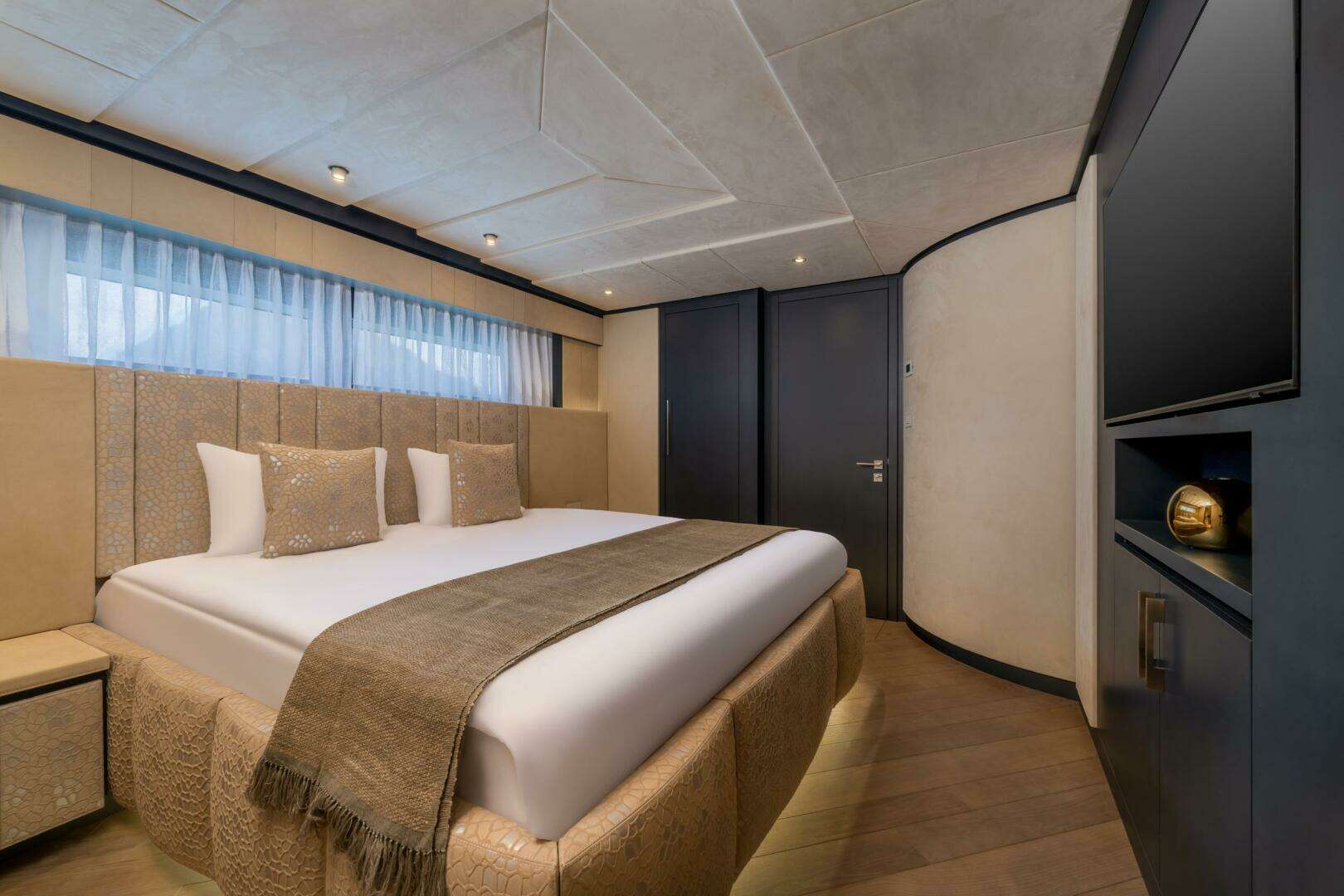

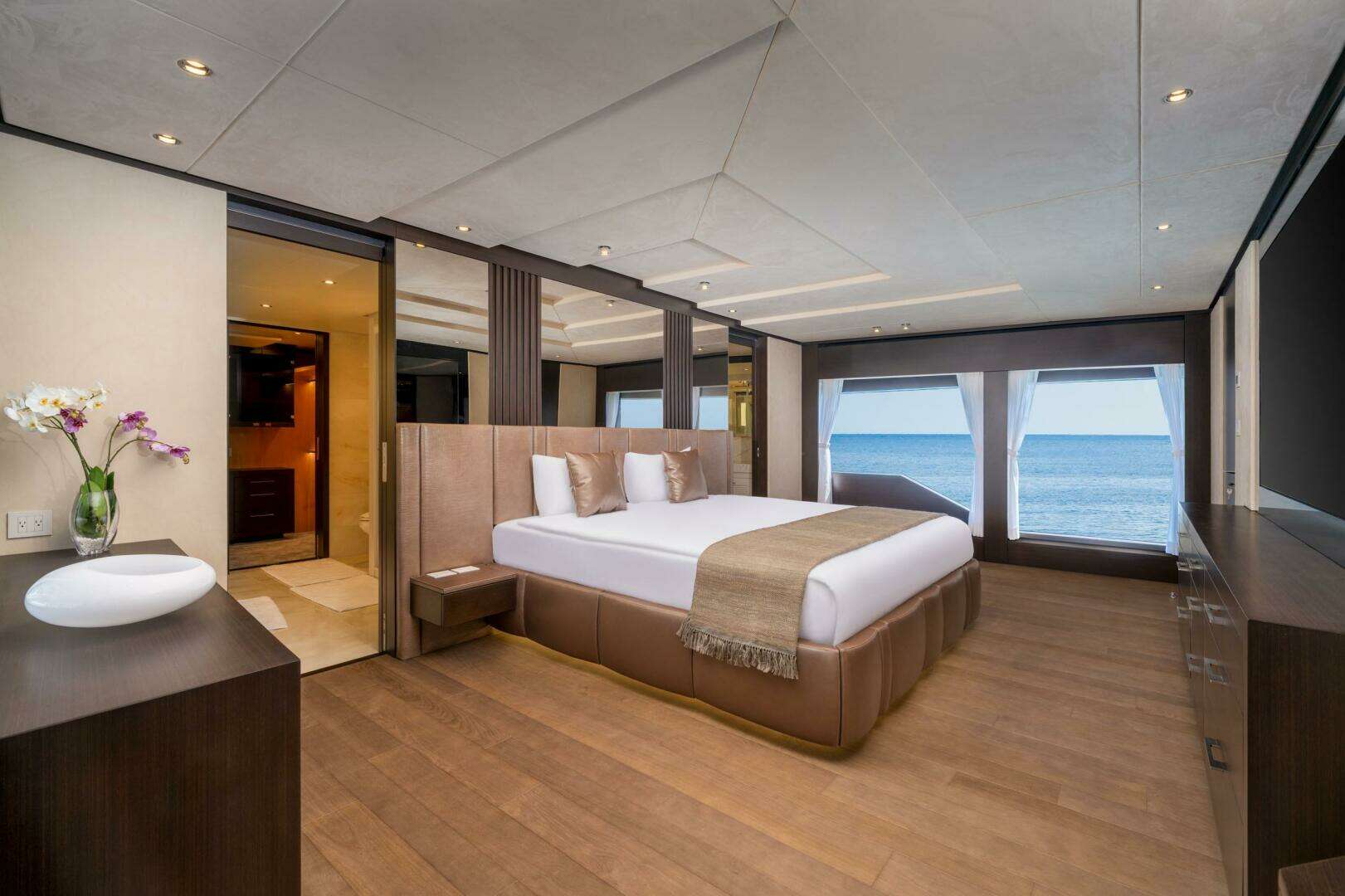

Project 125 (Now Called M/Y RESONANCE) offers one of the largest volumes in her class. With four full decks of guest accommodations, a full-size air-conditioned beach club, bow tender storage, five California king-sized staterooms, and a long list of additional features, she is built for extended time aboard.
Her hull is engineered for foul-weather cruising, and her systems and crew flow have been designed for efficient long-term operation.
For her new owner, Hargrave Yachts Management offers complete operational support for the first six months, including crewing, if desired.
In addition, Hargrave backs this build with a 10-year structural warranty and a 10-year platinum warranty on her main engines and generators.
LOA125'
LOA38.10''
Beam26'
Draft Max Feet6'
Draft Max Inch5''
Draft Min Feet6'
Draft Min Inch5''
Head Room Feet7'
Head Room Inch4''
Fuel Tank (Gallons)8000
Fuel Tank (Liters)30283.28
Fresh Water (Gallons)1000
Fresh Water (Liters)3785.41
Holding Tank (Gallons)500
Holding Tank (Liters)1892.71
TypePower
ConditionNew
Specifications
Project 125
Yes
Power-New
2026
2025
108'3"
6'5"
6'5"
5
10
5
Yes
Yes
9
7'4"
4
Yes
8
1
18 Knots
14 Knots
2300
Diesel
Carbon Fiber Reinforced Fiberglass
Fiberglass
Awlgrip
Semi Displacement
10 years
Yes
Yes
Zero Speed
Naiad
Yes
8000 Gallons (30283.28 Liters)
1000 Gallons (3785.41 Liters)
500 Gallons (1892.71 Liters)
330
220
400000
Yes
RINA
Yes
Hargrave Superyachts Division
Hargrave Superyachts Division
Hargrave Superyacht Division
12
Engines
Engine 1
- Engine Make: Caterpillar
- ModelEngine Model: C32
- Engine TypeEngine Type: Inboard
- Drive TypeDrive Type: Direct
- Power HPPower HP: 1900.00
- Power KWPower KW: 1416.83
- Feul TypeFeul Type: Diesel
- Engine LocationEngine Location: Port
Engine 2
- Engine Make: Caterpillar
- ModelEngine Model: C32
- Engine TypeEngine Type: Inboard
- Drive TypeDrive Type: Direct
- Power HPPower HP: 1900.00
- Power KWPower KW: 1416.83
- Feul TypeFeul Type: Diesel
- Engine LocationEngine Location: Starboard
Generators
Generator 1
- Generator Make: Caterpillar
- Generator Model: C4.4
- Generator KW: 75.00
- Generator RPM: 1800.00
Generator 2
- Generator Make: Caterpillar
- Generator Model: C4.4
- Generator KW: 75.00
- Generator RPM: 1800.00
Multimedia
Full Details
Short Specifications
MAIN CHARACTERISTICS
ACCOMODATION:10 GUESTS + 7/8 CREW
CLASSIFICATION: RINA PLEASURE YACHTS CHULL MACH Y UNRESTRICTED NAVIGATION
(ISPP) INTERNATIONAL SEWAGE POLLUTION PREVENTION
LENGTH OVERALL: 38.25 meters / 125.5 ft
LENGTH Waterline: 33.26 meters / 109 ft
BEAM MAX: 7.80 meters /25.6 ft
DRAFT: 2 m/ 6.5 ft
DISPLACEMENT (Light Ship): 165 Tonnes
DISPLACEMENT (Fully loaded): 205 Tonnes
GROSS TONNAGE: 342 GT
SPEED: 18 Knots
PROPULSION
MAIN ENGINES: 2 x CAT C32 1900HP @ 2300 Rpm
GEARBOX: TWIN DISC MGX-6598DC 3.03:1
ENGINE CONTROL: GLENDINING ( 1 main + 2 remote station)
GENERATORS:
CAT C4.4: 75KW
CAT C4.4: 75KW
SHAFT PROPELLER: CJR (UK) 4,5” MARINEMET 25 Shaft / 5 Blades Class S Propellers
ELECTRIC SYSTEM
Main Service: 115/208 VAC 3PH 60Hz
Shore Power Converter: ASEA 75 kVA
Service and Engine Start System: 24DC
Service Batteries: 2200 Ah ( 2x 100 A Charger )
Emergency Batteries: 880 Ah ( 1x 80 A Charger )
Radio Batteries: 260 Ah ( 1x 30 A Charger )
ME & Generator Batteries: (x2) 960 Ah ( 2x 40 A Charger )
Fire Puımp Batteries: 880 Ah ( 1x 80 A Charger )
TANK CAPACITY
Diesel Oil : 30.250 Lt/ 8.000 Gallons
Fresh Water : 4.540 Lt/ 1.200 Gallons
Black Water : 2.000 Lt / 500 Gallons
Grey Water: 3.000 Lt / 800 Gallons
BUILD / CONSTRUCTION
HULL / SUPERSTRUCTURE: CARBON RAINFORCED E-GLASS - EPOXY COMPOSITE SANDWICH
OPEN DECK: HANDLAID BURMESE / MYANMAR TEAK OR NON SKID PAINT
PAINT SYSTEM: AWLGRIP
MASTER EQUIPMENT LIST
Airhorn: Kahlenberg
Anchor winch and Capstans: (x2 )Maxwell VWC6000 Hyd. Windlass, VC4000 Capstans
Windscreen Wipers: (x4) Speich
Alarm & Monitoring system: Wago
Anchor and Chain: (x2) 200kg 316L S.S. Pool Anchor, (x2) 123m (400 ft) 14mm, Grade 3 Studlink Chain
Batteries and chargers: Victron
ER Venilation: Delta T System
Bow thruster: Naiad 67 hP Bow thruster
Stabilizers: Naiad 525 At Rest Stabilizer with 22kW Power Pack
Fuel Water filters: Separ
HVAC:
TECHNICOLD Chiller assembly (x3) 120,000 BTU
STEERİNG SYSTEM:
Wills Ridley Electro Hydraulic Steering
INSULATION:
Unifrax B15 Engine room and B0 Galley insulation (Doubled for extra insulation)
Rockwool Thermal cabin insulation
PUMPS:
HeadHunter and FEIT
Sewage treatment: Headhunter TW-HMX-6001LP
Toilet system: Headhunter White Royal Flush Bravo
NAVIGATION AND COMMUNİCATİON EQUIPMENT
GARMIN & FURUNO
(x5) Surveillance Cameras & FLIR N232 Thermal Camera
(x5) 32” Pilot House Touchscreen
(x2) Garmin 215 VHF Radio
Garmin Fantom 54 Radar / Furuno 6” Radar
Furuno NV700 Autopilot
Furuno Navtex, AIS and NavNet
(x2) Starlink Antenna
DECK EQUIPMENT
SWIM LADDER: 316L Stainles Steel
CRANE: SW 1000kg (2200lbs) Telescobic Hydraulic Deck Crane
PASARELLA: 17ft Hydraulic Gangway
HANDRAILS: 316L S.Steel
PANTOGRAPH DOORS: (x4) Pantograph Door
SLIDING DOORS: Electric Operated main and upper saloon doors
WATERTIGHT DOORS AND DECK HATCHES: Watertight Deck Hatches and Engine room WT Fire Doors
AFT BEACH SHELL DOOR: Hydraulic Actuator Operated Carbon Reiforced Composite
Watertight Door
SAFETY EQUIPMENT
LIFE RAFTS: Viking 2 x 12 Persons
FIRE PROTECTION: Fireboy FM200 Engine Room Fixed Fire Extinguishing System
FIRE & GENERAL ALARM SYSTEM: HAES Conventional Fire Detection System
APPLIANCES

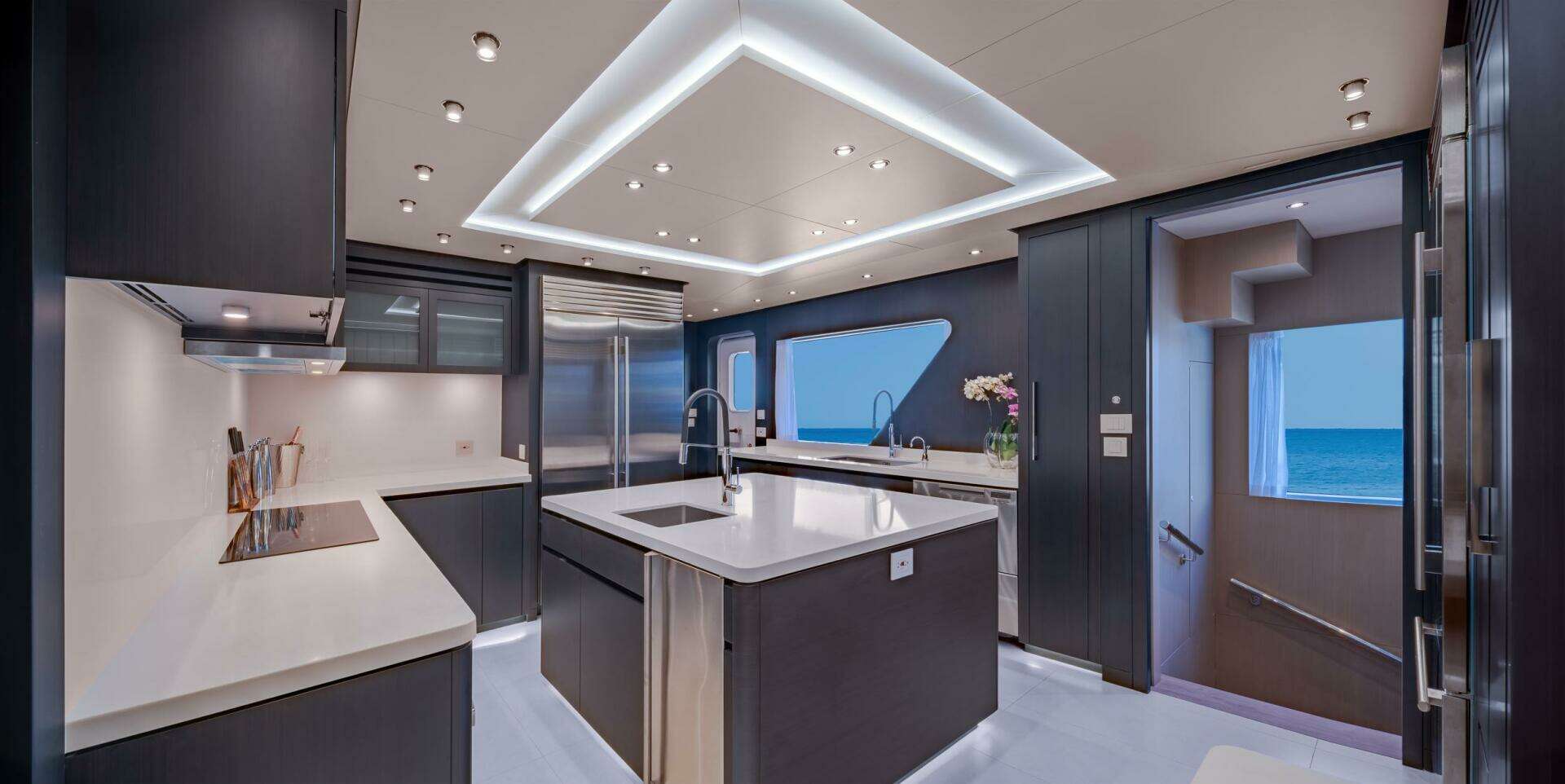

COOKTOP:
GE 36" Built-In Touch Control Induction Cooktop (Galley)
WASHER:
(x2) GE 4.8 cu. ft. Capacity Smart Front Load ® Washer
Crewmess(1) / Guest Corridor(1)
DRYER:
(x3) GE 7.8 cu. ft. Capacity Smart Front Load Electric Dryer
Crewmess(2) / Guest Corridor(1)
REFIGERATOR: Subzero 36" Classic French Door Refrigerator/Freezer (Galley)
Subzero 42" Classic French Door Refrigerator/Freezer (Galley)
WINE COOLER:
(x3) Schmecke 12 Bottle Freestanding 2 Shelf Wine Cooler
MD Corridor(2) / UD Salon(1)
Zephr 24" French Door Dual Zone Wine Cooler (Sundeck)
(x2) Zephr 15″ Single Zone Wine Cooler
MD Aft(1) / UD Salon(1)
MICROWAVE OVEN:
GE 2.1 Cu. Ft. Over-the-Range Sensor Microwave Oven (Galley)
GE 0.7 Cu. Ft. Countertop Microwave Oven (Crewmess)
GRILL:
Fire Magic Deluxe Gourmet Drop In Grill (Sundeck)
DISHWASHER:
Fisher&Paykel Series 7 Contemporary Tall Double (Galley)
GARBAGE DISPOSAL:
(x2) GE 3/4 HP Continuous Feed Garbage Disposer (Galley)
RANGE HOOD:
Broan® Elite EWT1 Series Chimney 36” Range Hood (Galley)
OVEN:
(x2) GE 30"Smart Built-In Convection Single Wall Oven (Galley)
ICE MAKER:
(x4) Hoshizaki Top Hat Cuber Icemaker, Air-cooled
MD Aft(1) / UD Salon(1) / Beachclub(1) / Sundeck(1)
ENTERTAINMENT
TELEVISION
Samsung 32" Class QLED 4K Q60D (Captain Cabin)
(x6) Samsung 55" Class QLED 4K Q60D
UD Salon(1) / Guest Cabins(4) / Crewmess(1)
Samsung 65" Class QLED 4K Q60D (MD Salon)

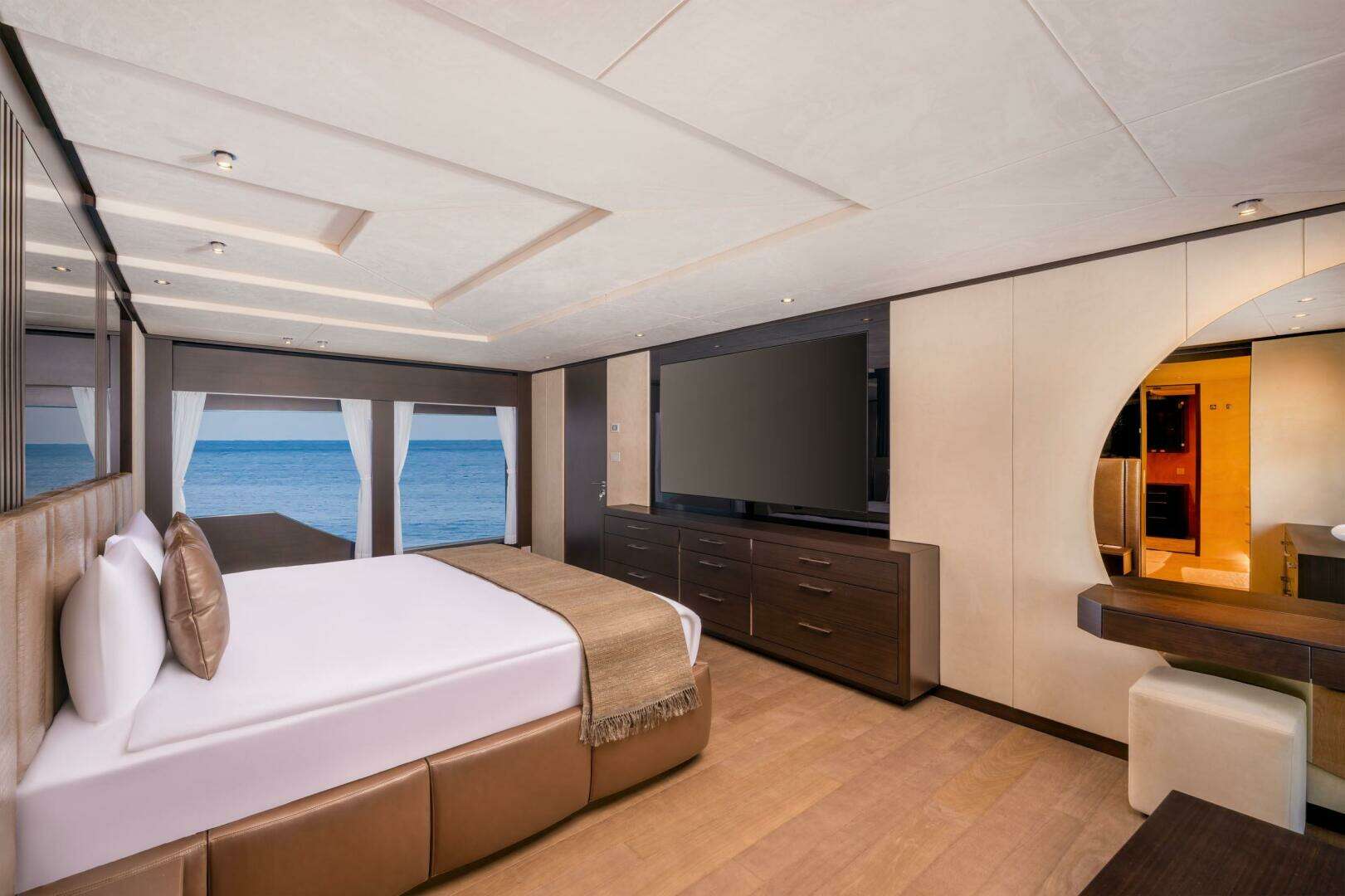

Samsung 85" Class Neo QLED 8K Smart TV (Master Cabin)
(x9) Apple Tv 4K
(x9) Xantech DL85K/CFL-Proof Dinky Link Ir Receiver
SOUND SYSTEM
AUDIO / VIDEO: CRESTRON READY
Bose Smart Soundbar 900 Dolby Atmos (MD Salon)
Bose Smart Soundbar 700 Dolby Atmos (UD Salon)
(x2) Bose Bass Module 500, Black 10’’
MD Salon(1) / UD Salon(1)
(x6) JL Audio M6-770X-C-GWGW Speaker
MD Aft(2) / UD Aft(1) / Sundeck(3)
JL Audio M6-650X-C-GWGW Speaker (Bowdeck)
(x2) JL Audio M6-10IB-C-GWGW-4 Subwoofer
MD Aft(1) / Sundeck(1)
(x3) Fusion Apollo MS RA770 Marine Stereo
MD Aft(1) / UD Aft(1) / Sundeck(1)
Fusion Apollo SRX400Marine Stereo (Bowdeck)
(x4) Fusion® ARX Wireless Remote
MD Aft(1) / UD Aft(1) / Sundeck(1) / Bowdeck(1)
INTERNET SYSTEM
(x8) TP-LINK AX1800 Ceiling Mount WiFi 6 Access Point
(x2) TP-LINK Omada Hardware Controller
Peplink Cellular Antenna Mobility 40G 5G /LTE Ready
Peplink Max BR2 Pro/Dual 2.5 GPS Wan Ports,X62 5G
