Interior Design

Famed Italian interior designer Luca Dini created a contemporary and elegant interior atmosphere for this new Horizon RP120. While there is a strong European influence, her styling also emphasizes comfort and usability. The customized design details aim to complement the open layout that takes advantage of the spacious beam. Dini chose to utilize breeze oak as the RP120’s main wood throughout. This light, neutral gray-toned wood with its textured surface brings to mind a modern beach house surrounded by sand and sea and inspires a sense of lightness and tranquility throughout the yacht.

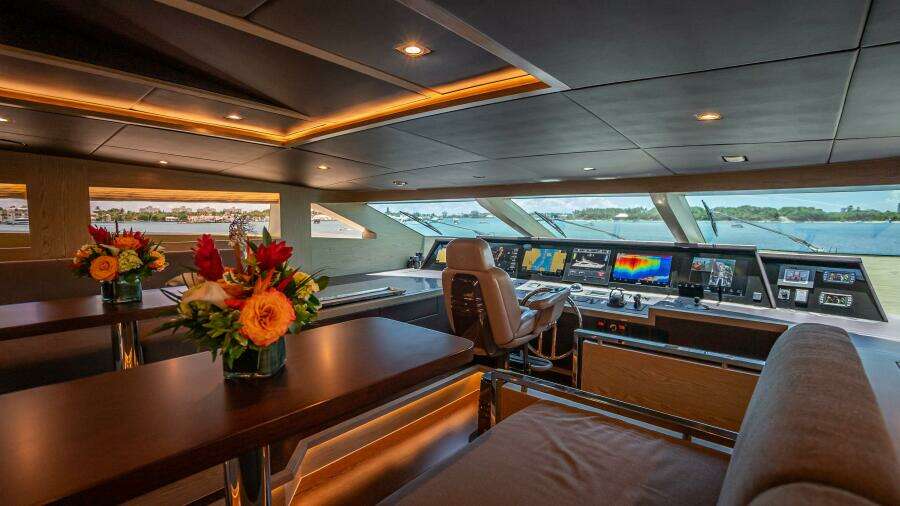

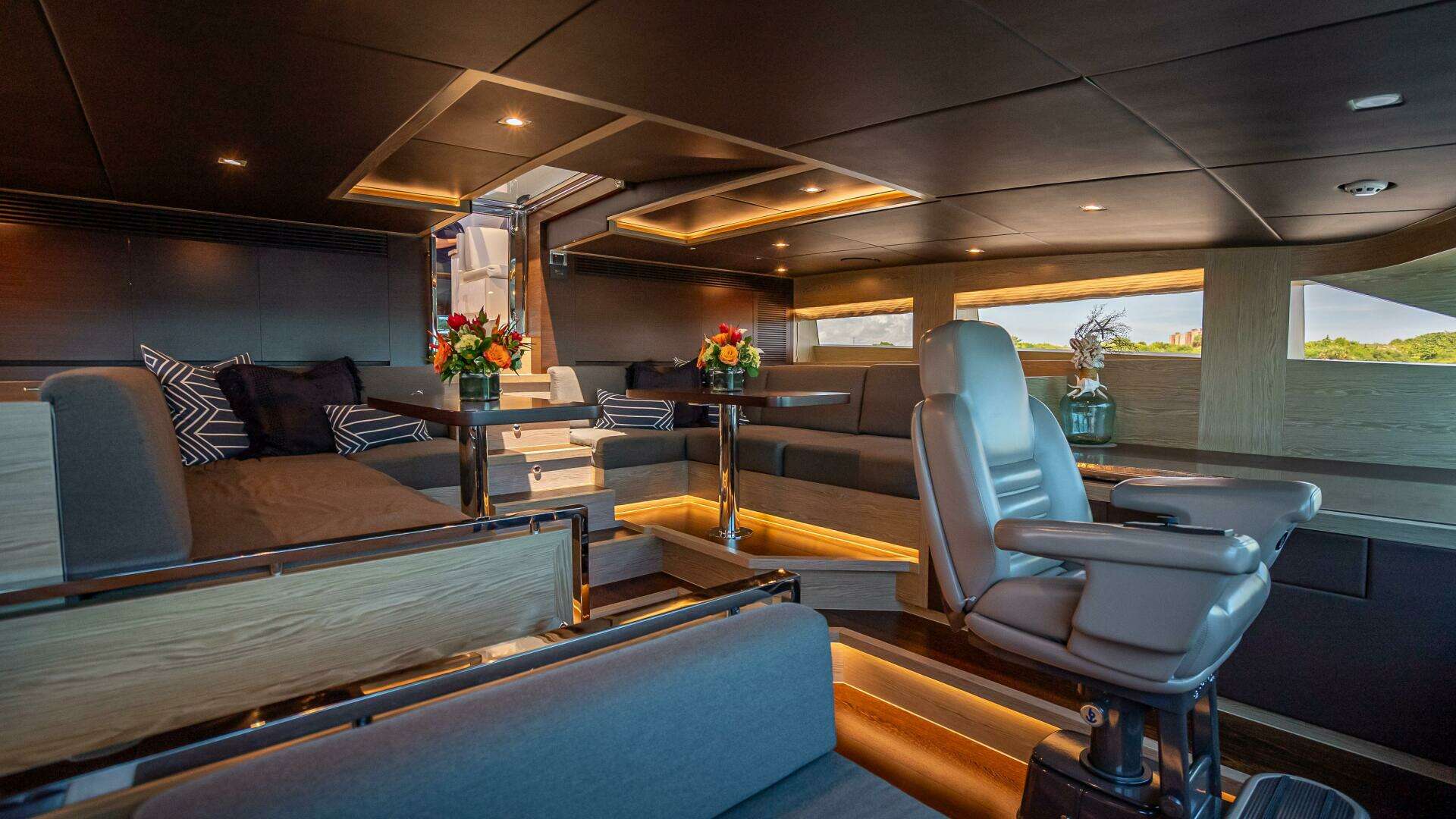

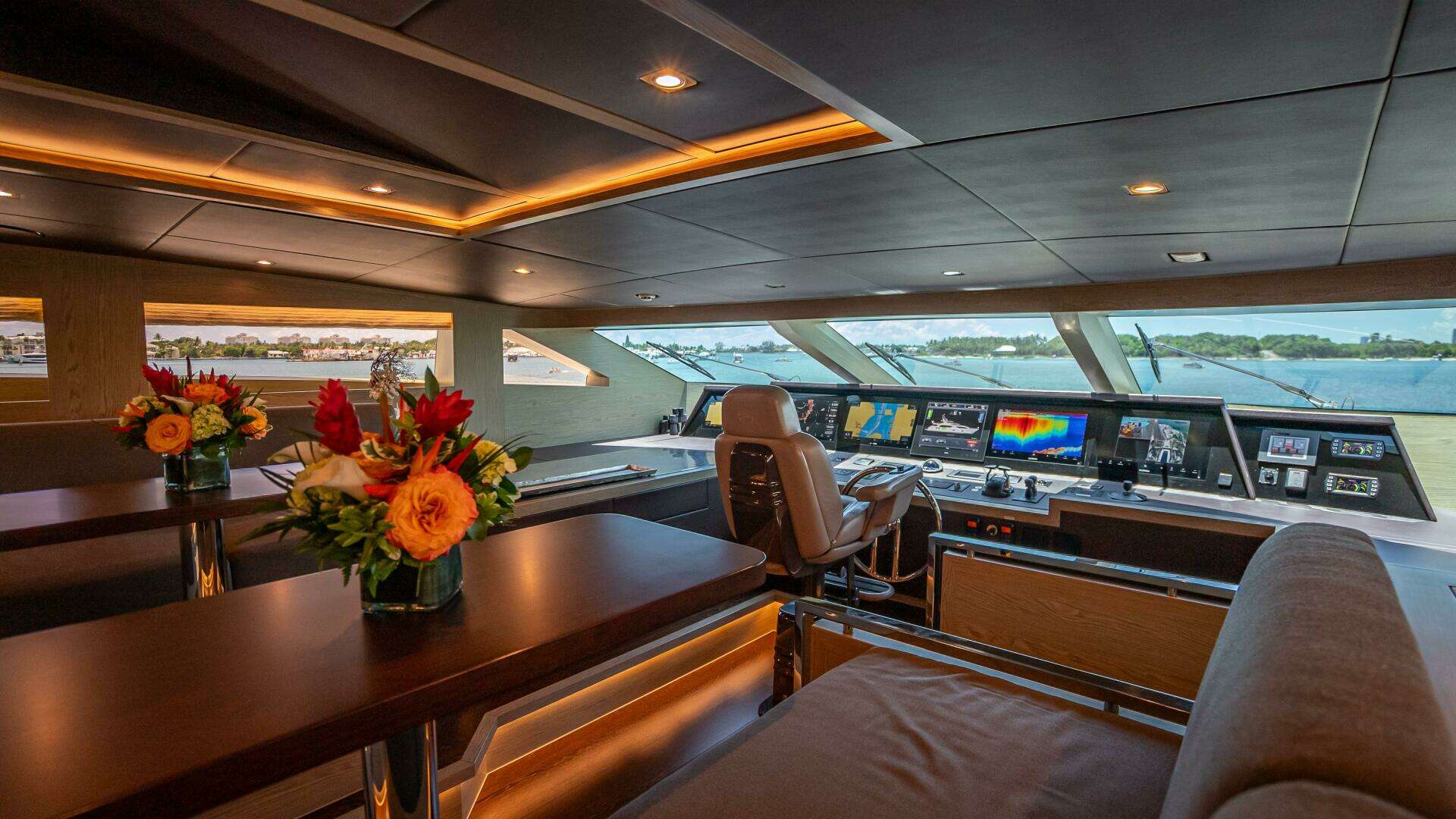

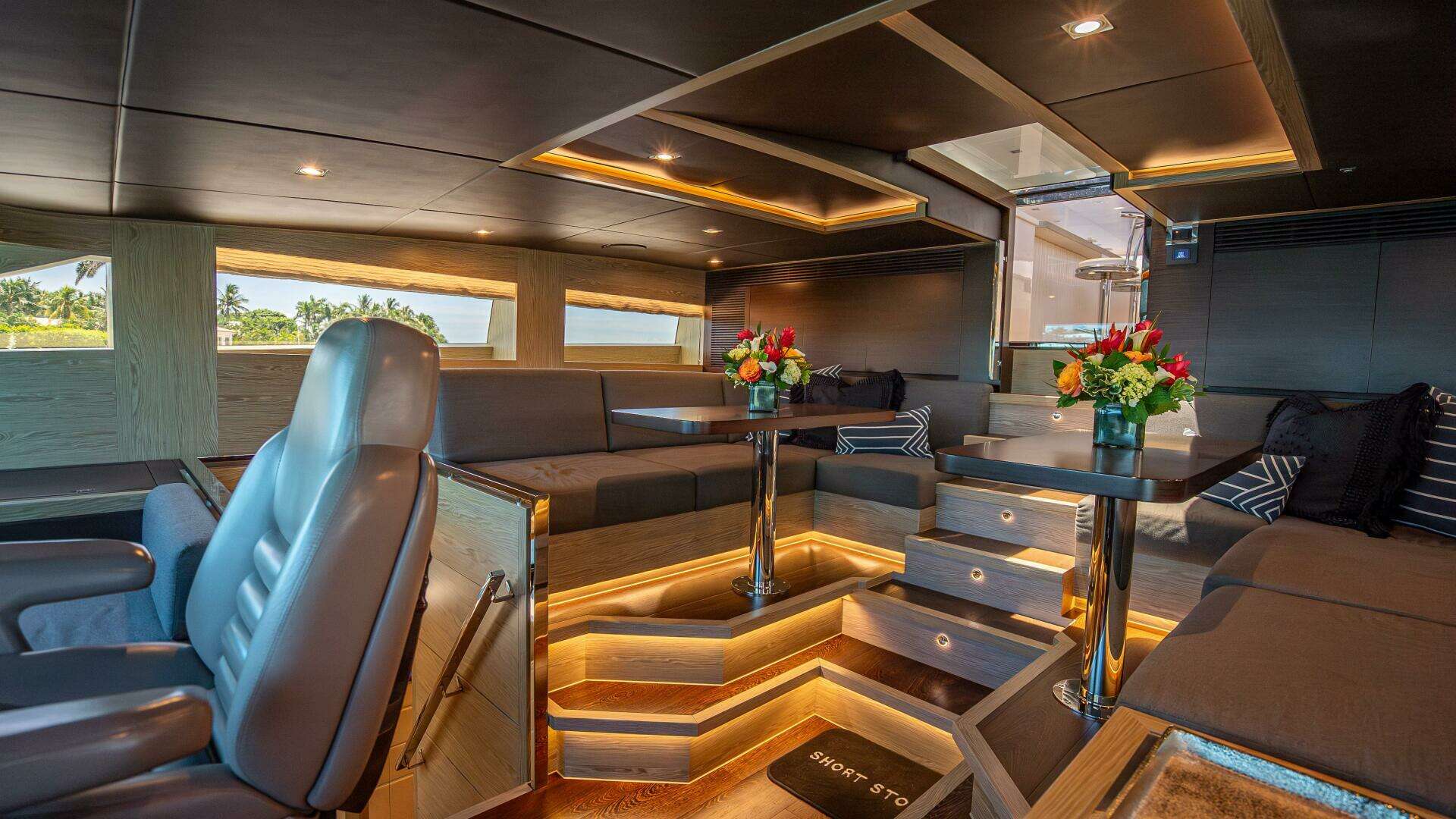

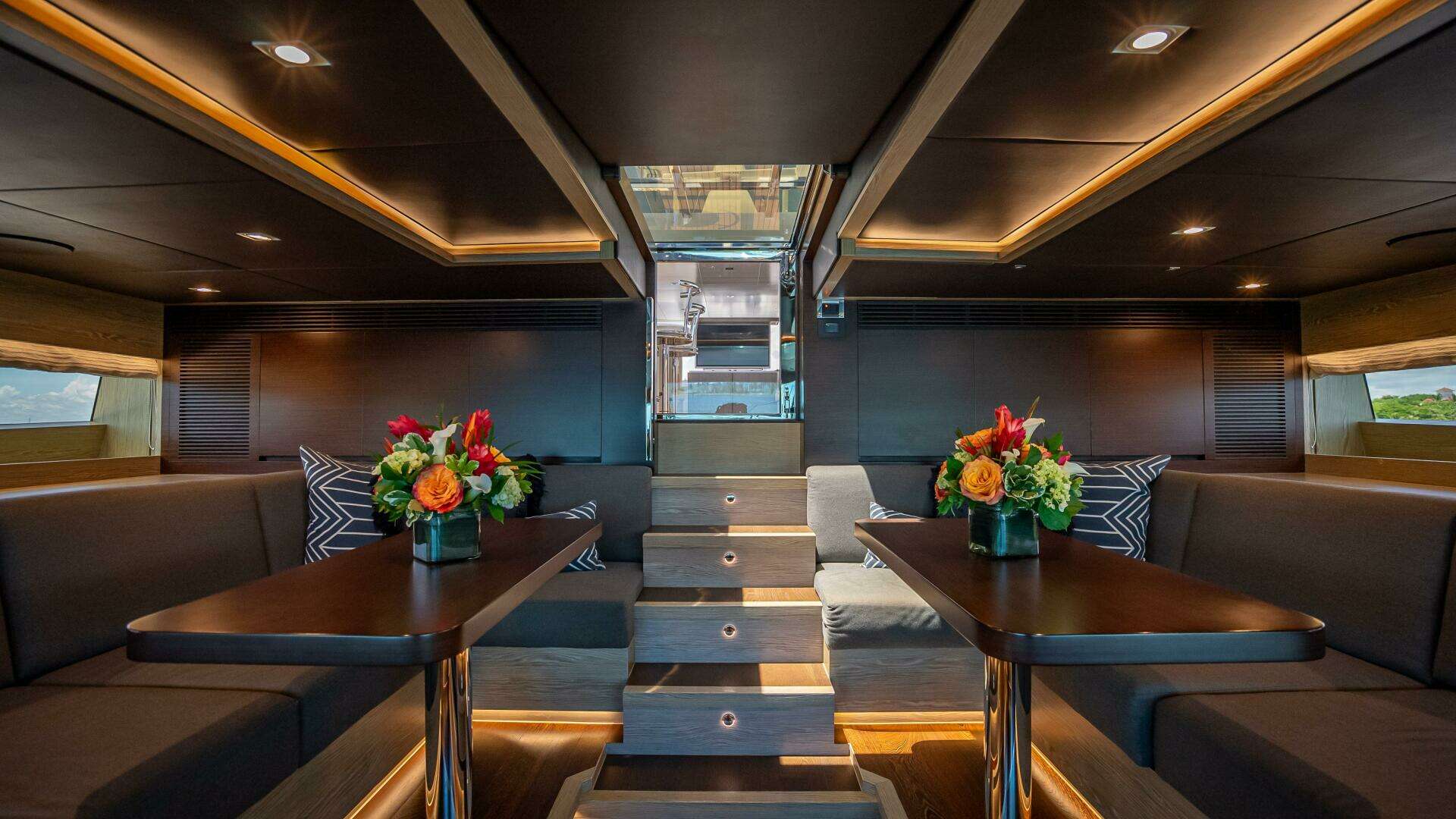

Pilothouse

The pilothouse is finished in complementing light and dark color oak wood. It features a panoramic dashboard displaying all systems and controls to manage and monitor this RP120’s stellar features, such as the Boening monitoring system, Garmin navigation, satellite TV systems and Wi-Fi wireless network environments. A stepped overhead provides additional headroom in this space, which also offers an dual L-shaped seating area for owners and guests who wish to observe the action while underway.

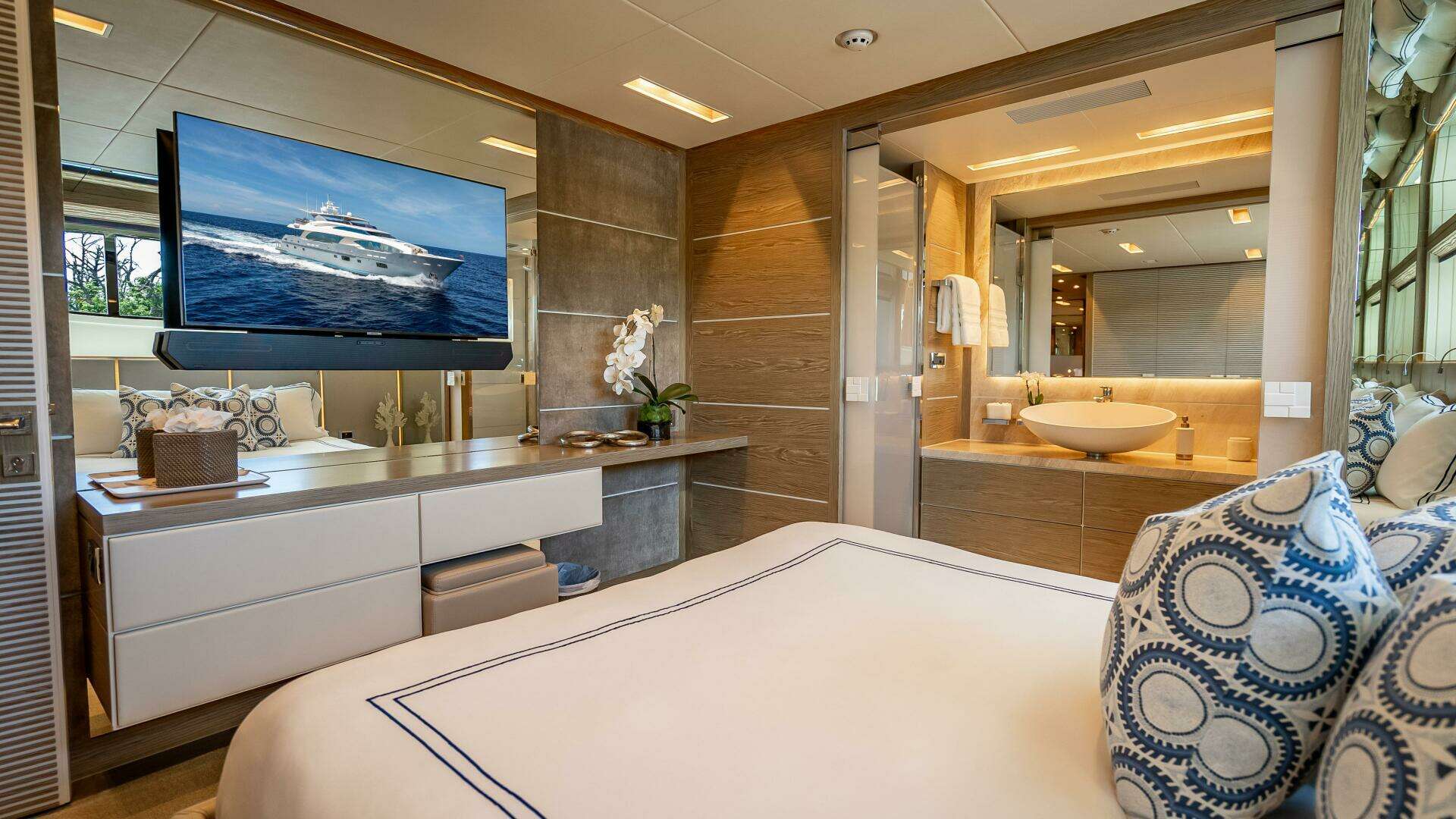

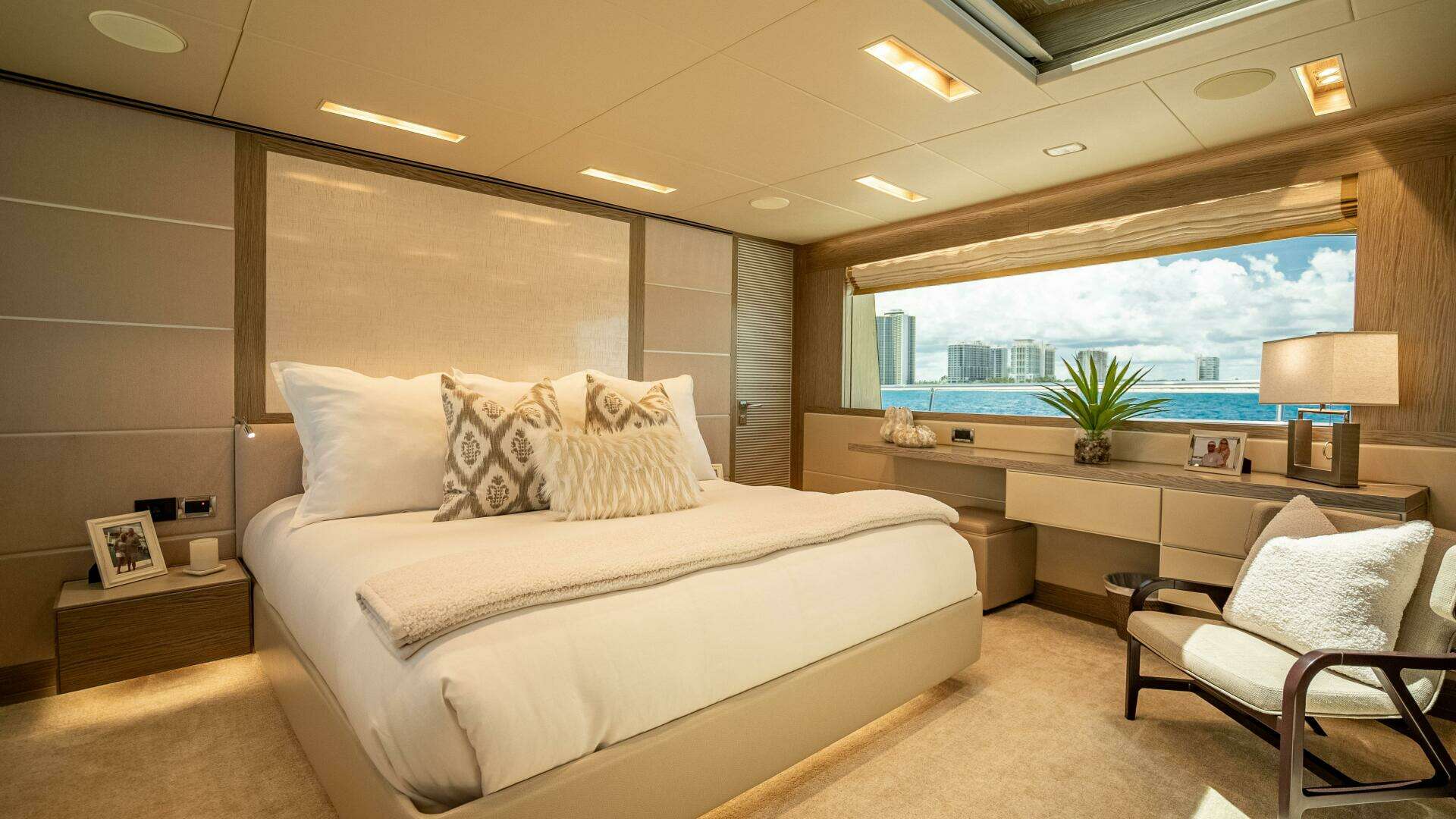

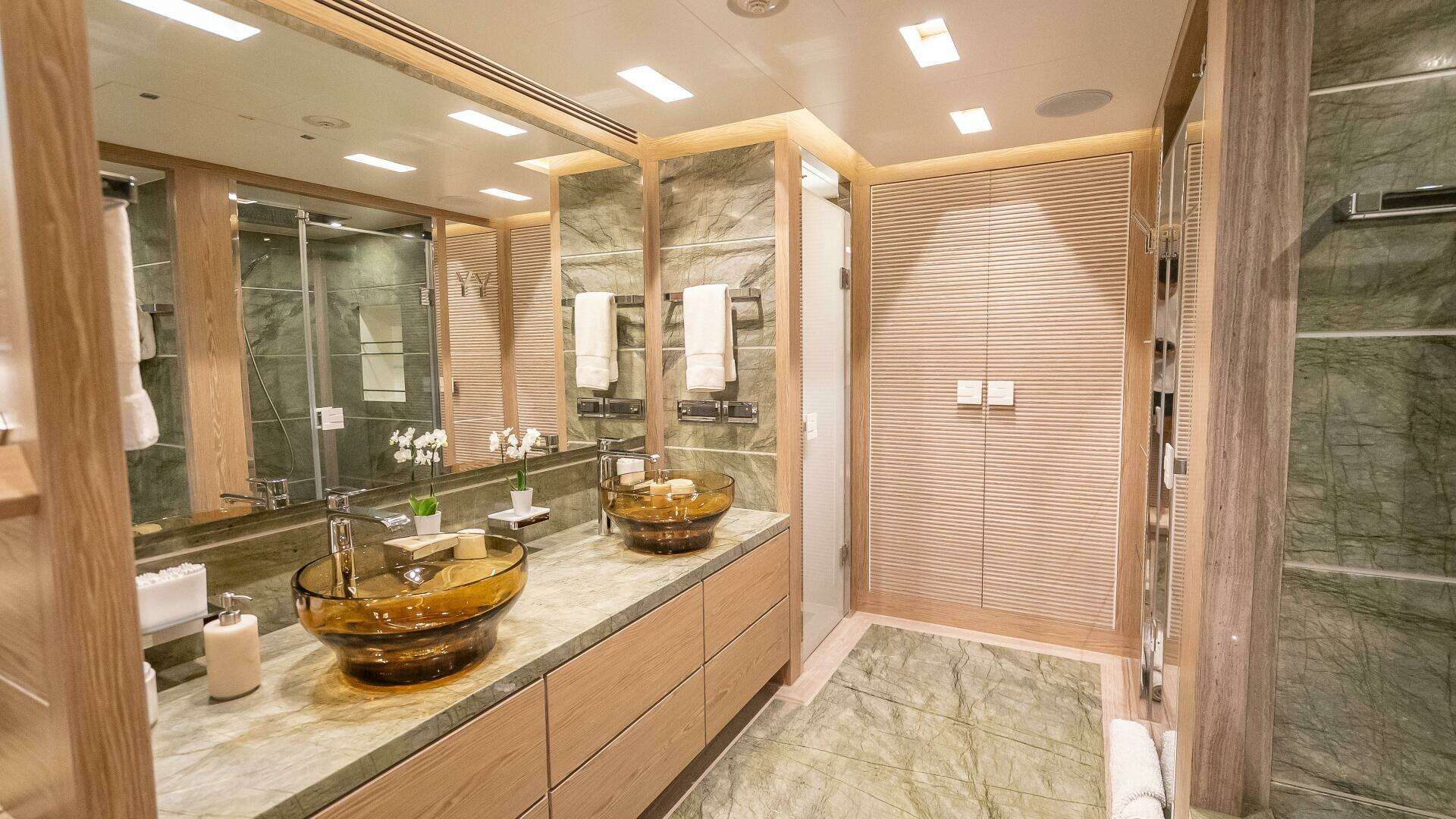

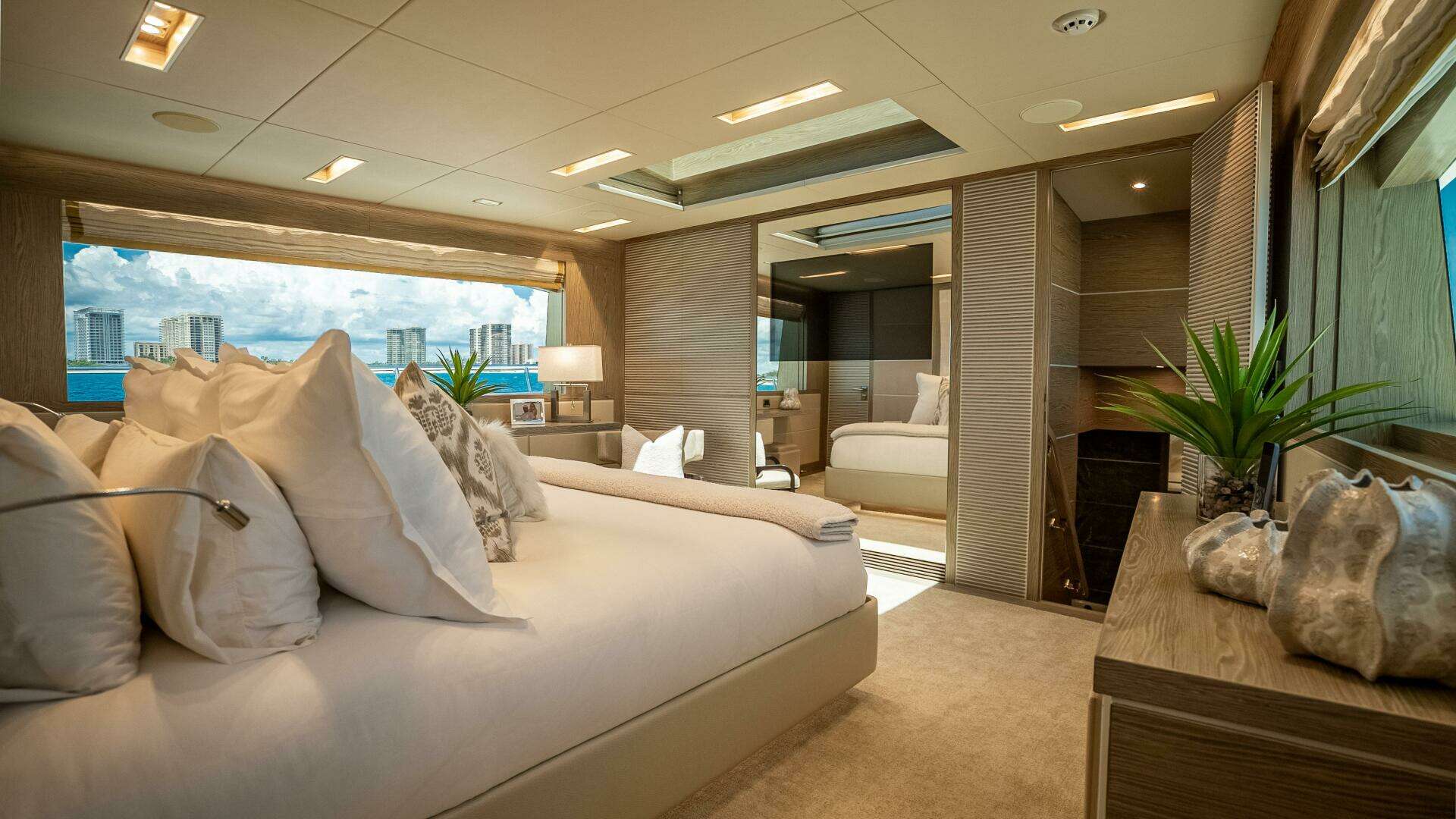

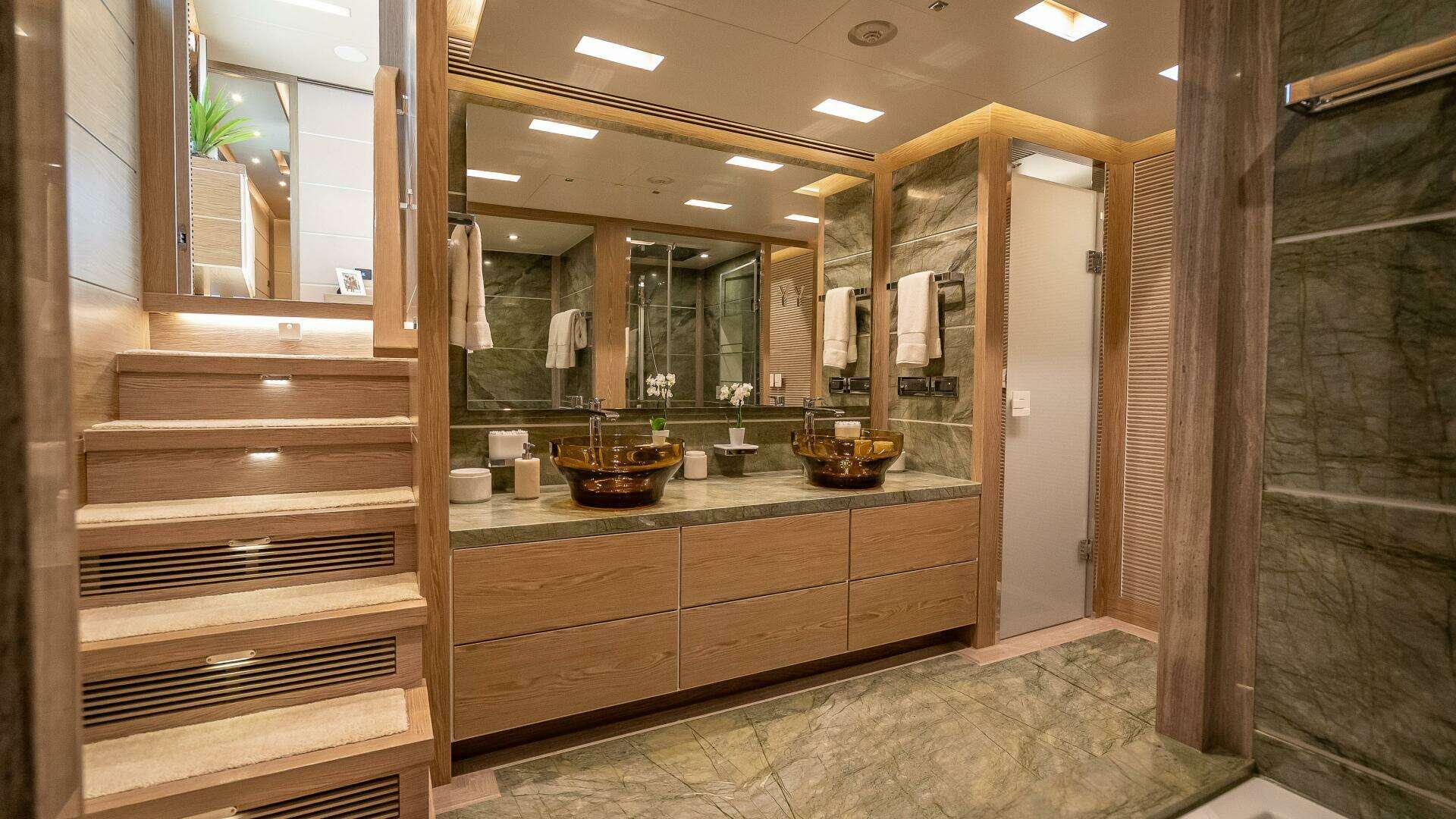

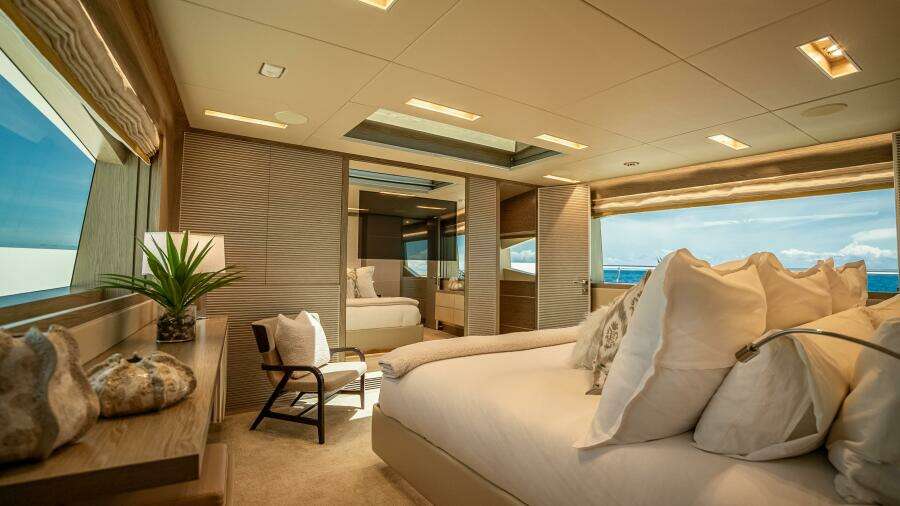

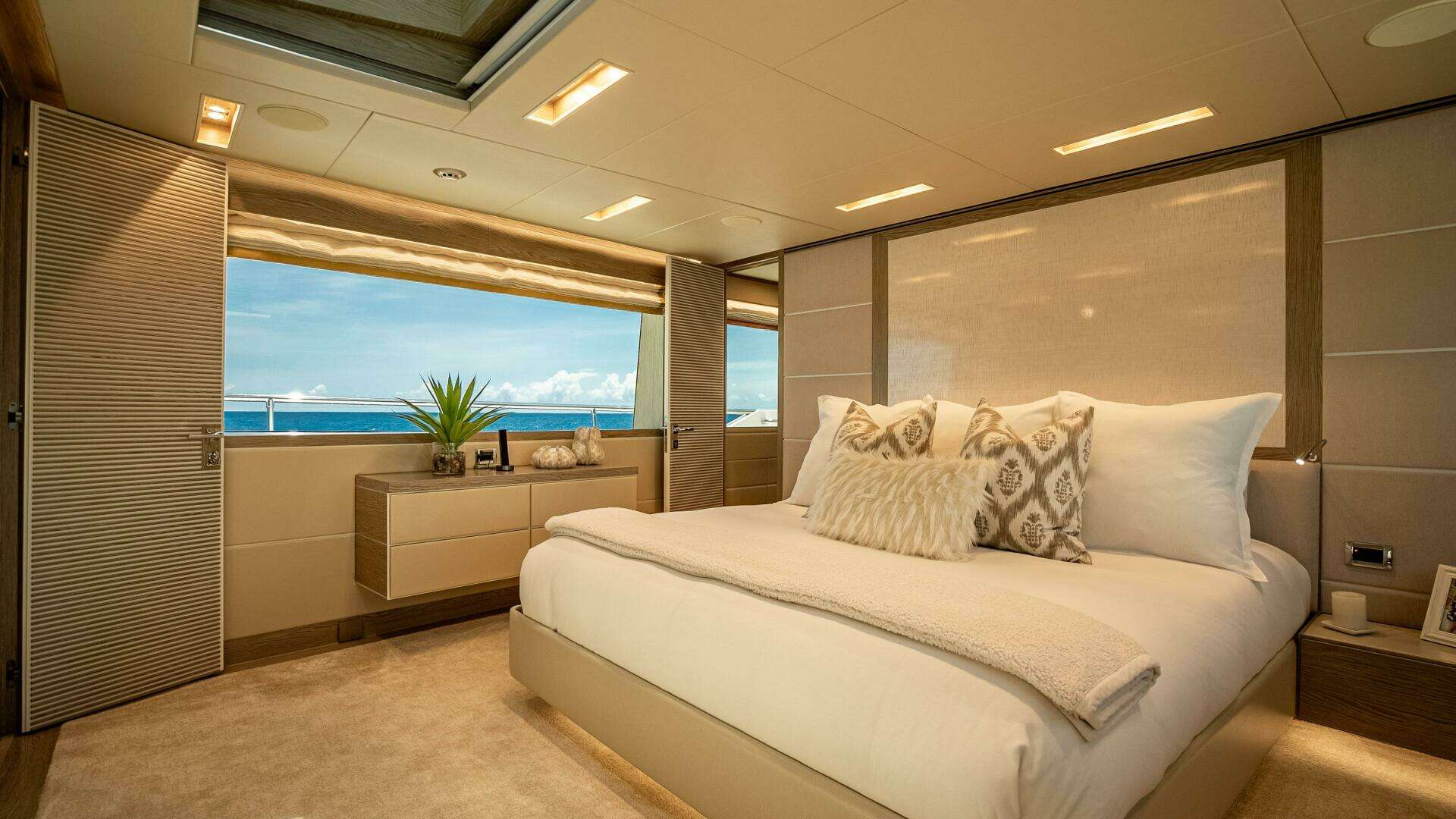

On-deck Master Stateroom

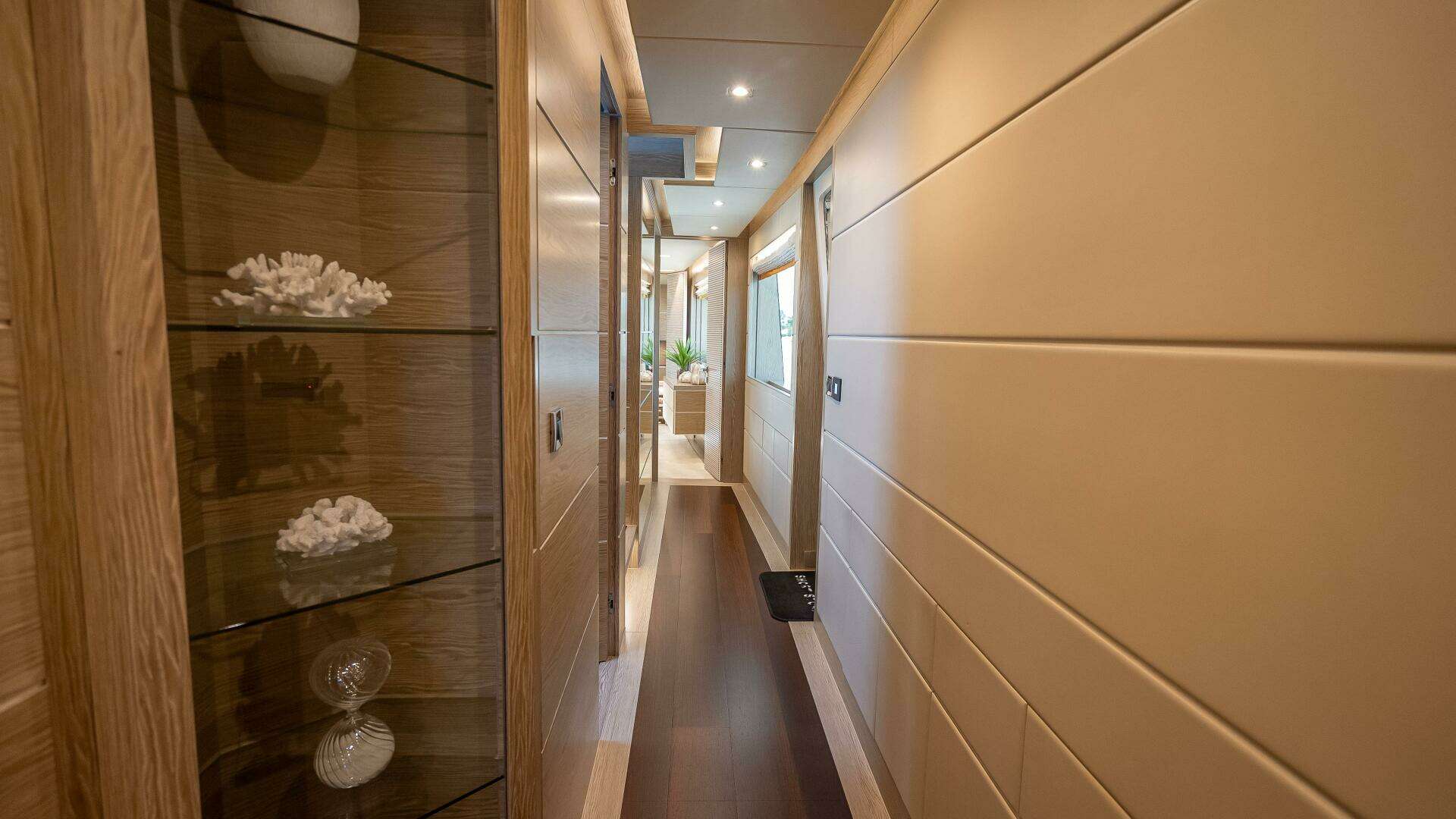

From the dining room, a starboard-side passageway leads forward through the main-deck foyer and beyond to the on-deck master. Here, a split-level design wows with breathtaking views and plenty of light flowing in from the upper level. A King-sized bed, mirror-embedded LCD TV, along with soft furnishings and accessories in this light, neutral Gray-toned wood, with hints of green and metallic tones, lend a contemporary elegance to the bedroom. On the lower level, the master en suite head features a striking emerald green marble for the floor and walls and is fitted with two sinks, Jacuzzi, shower and tub.

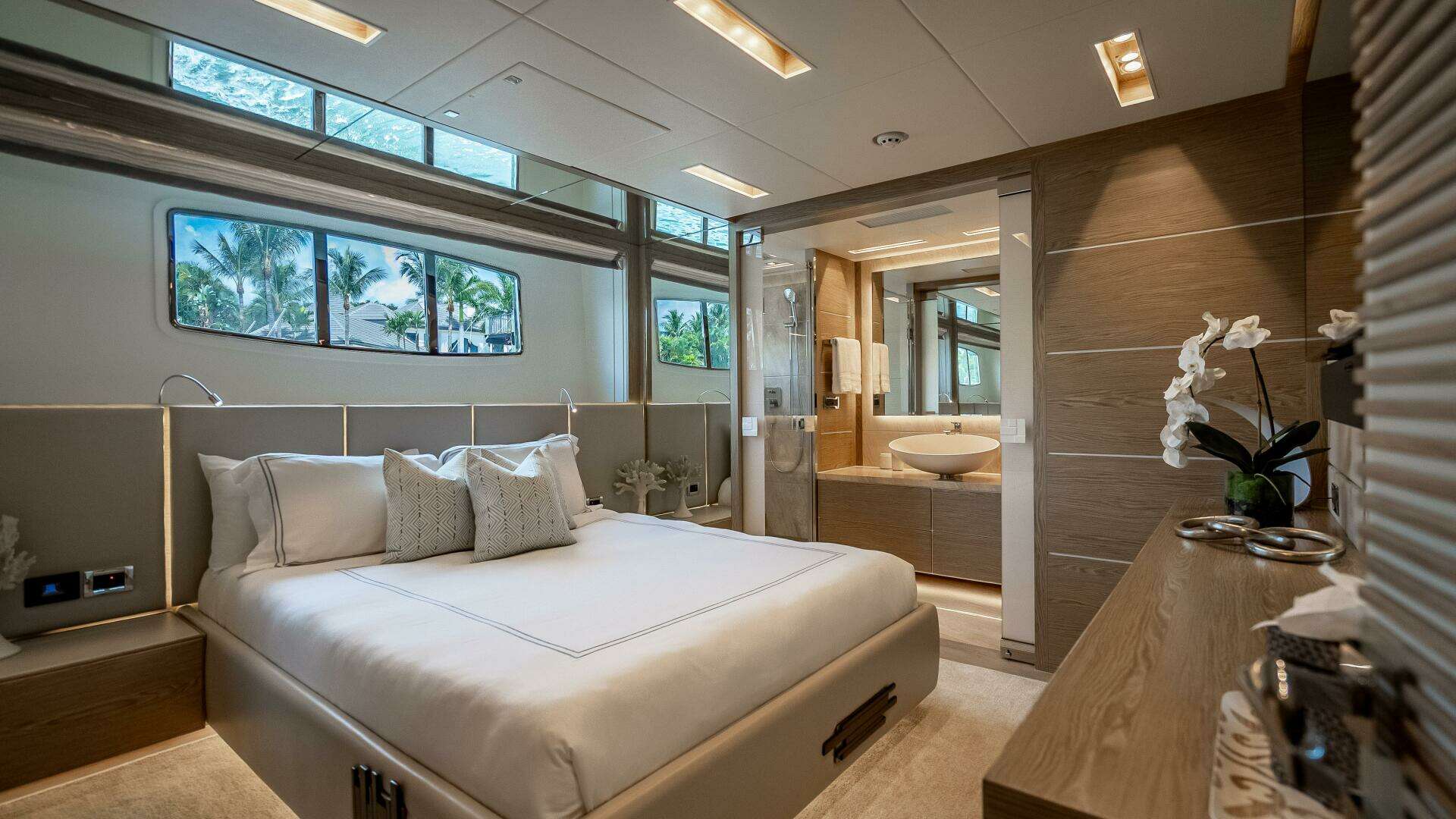

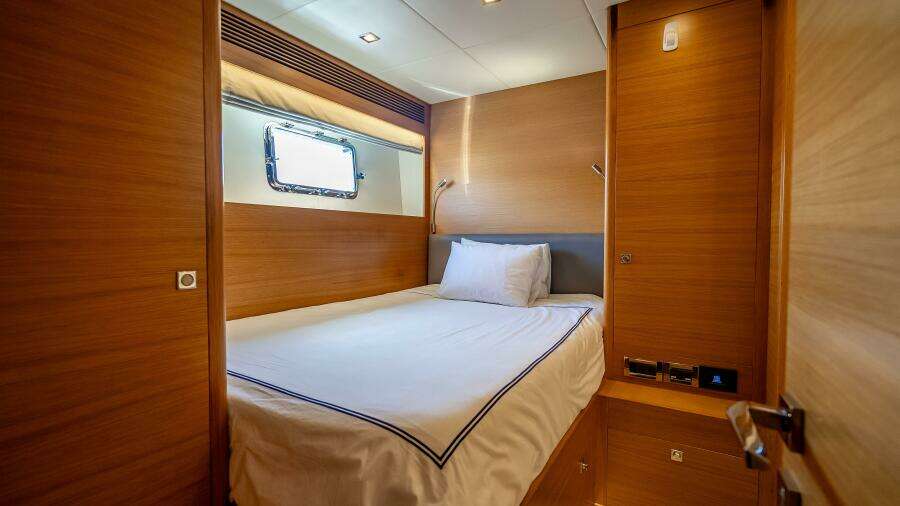

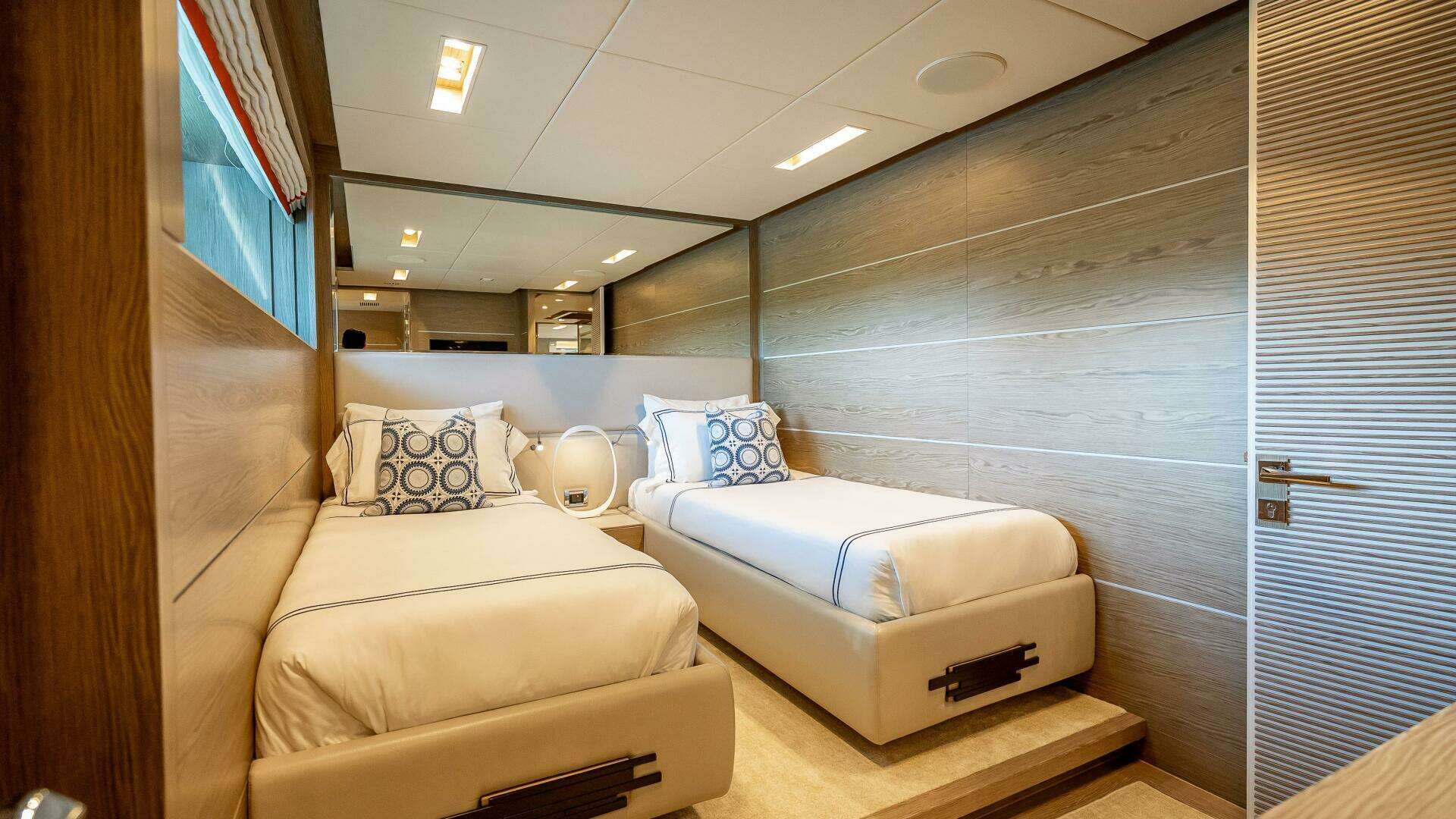

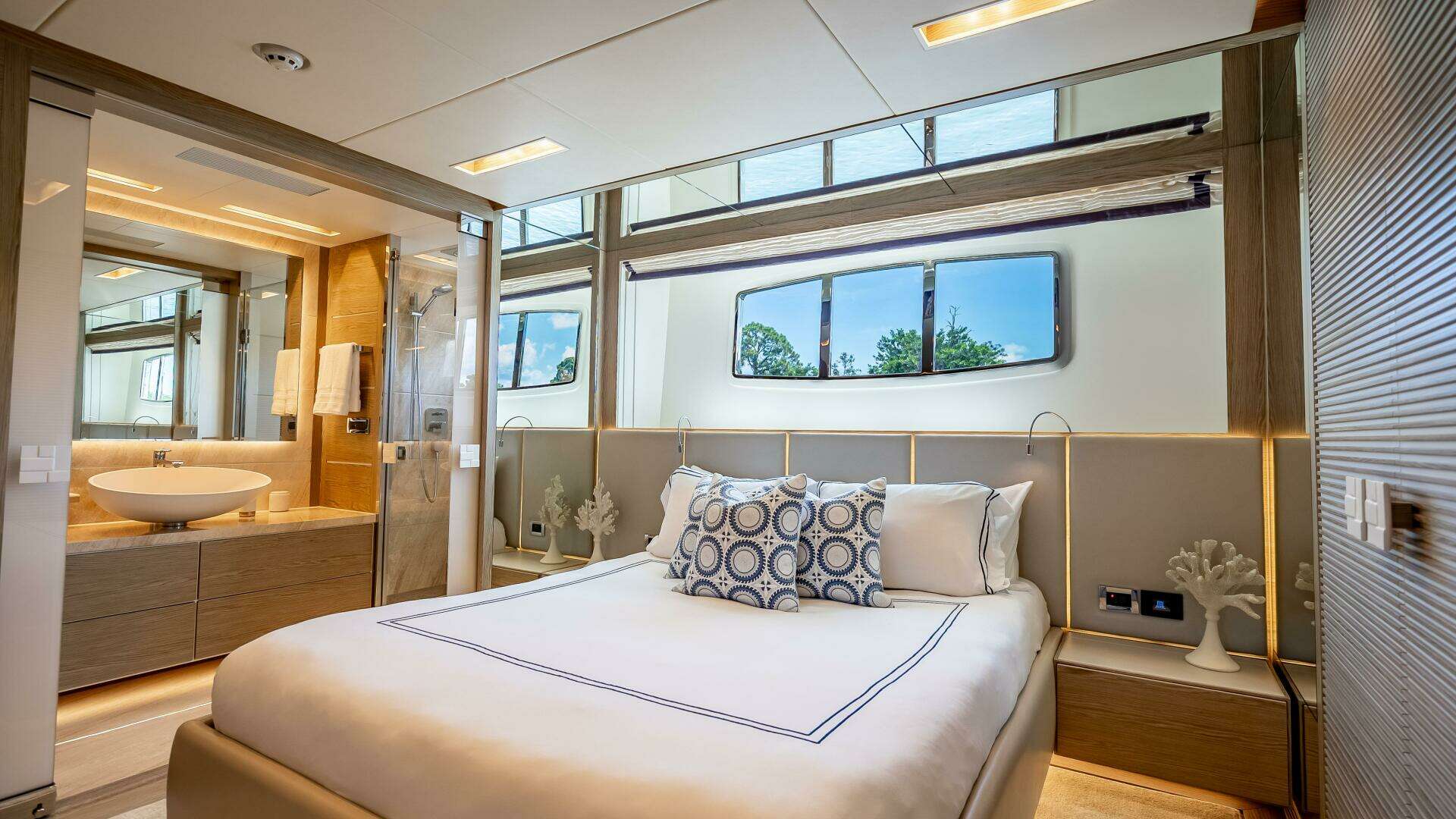

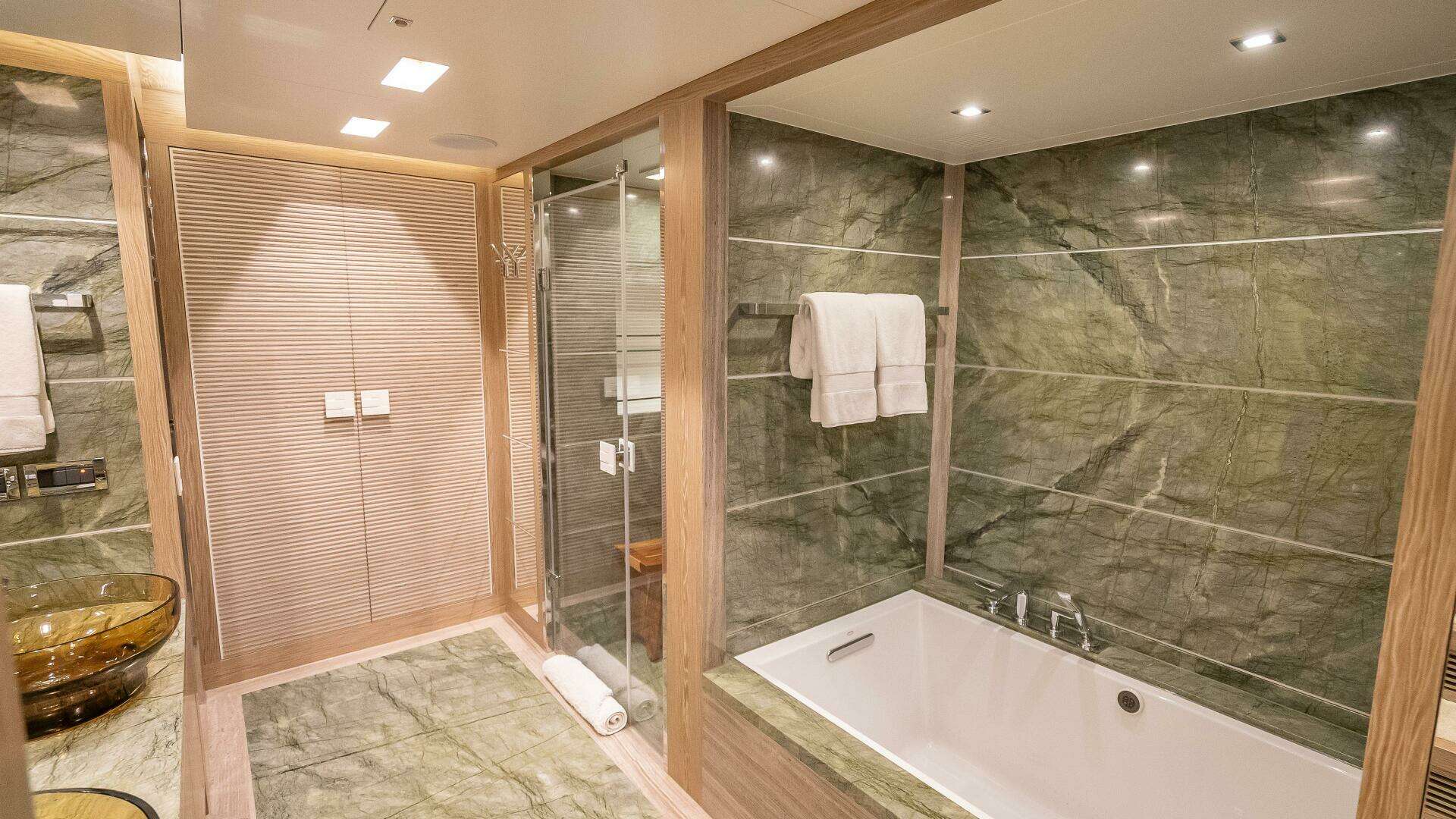

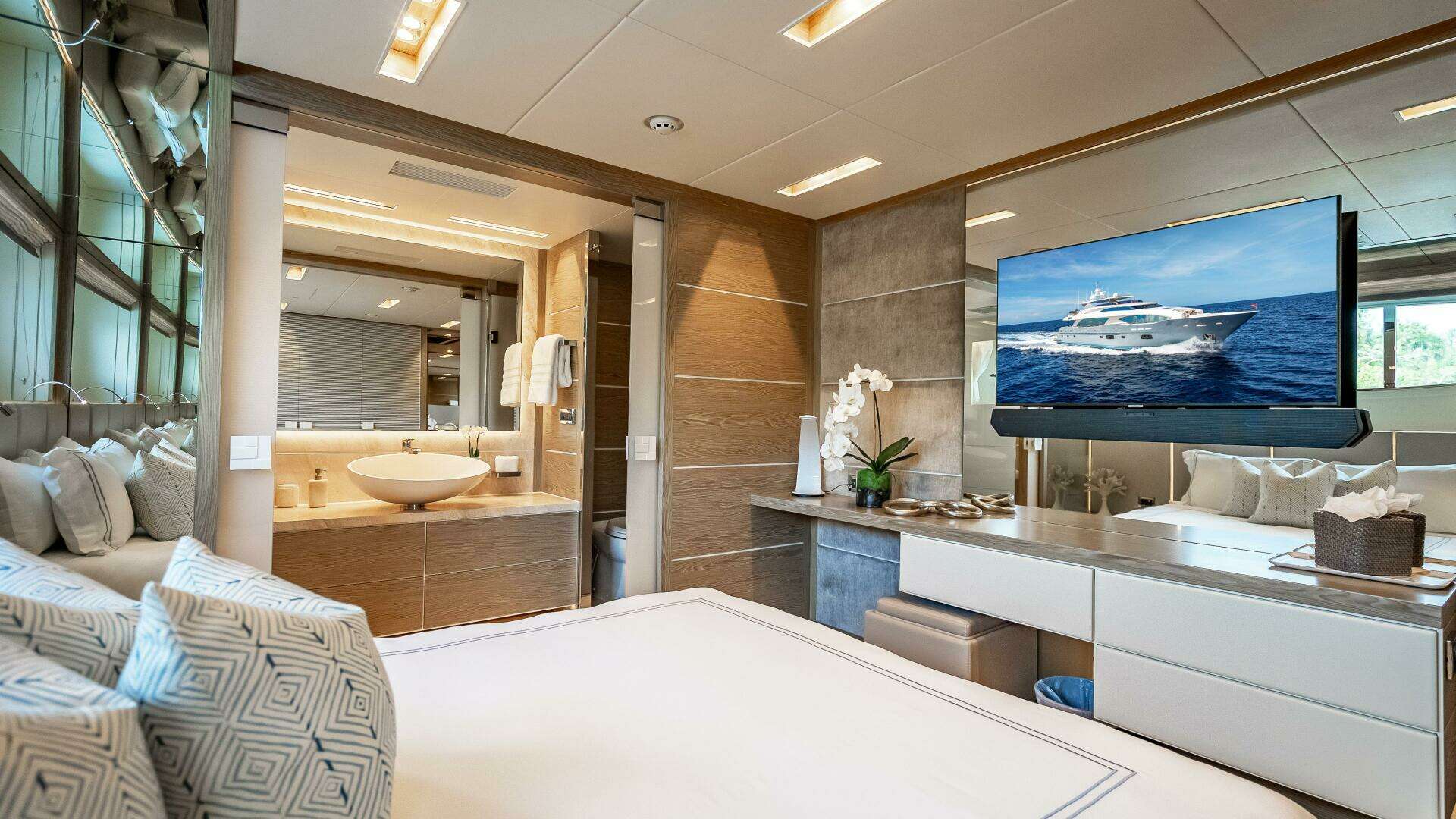

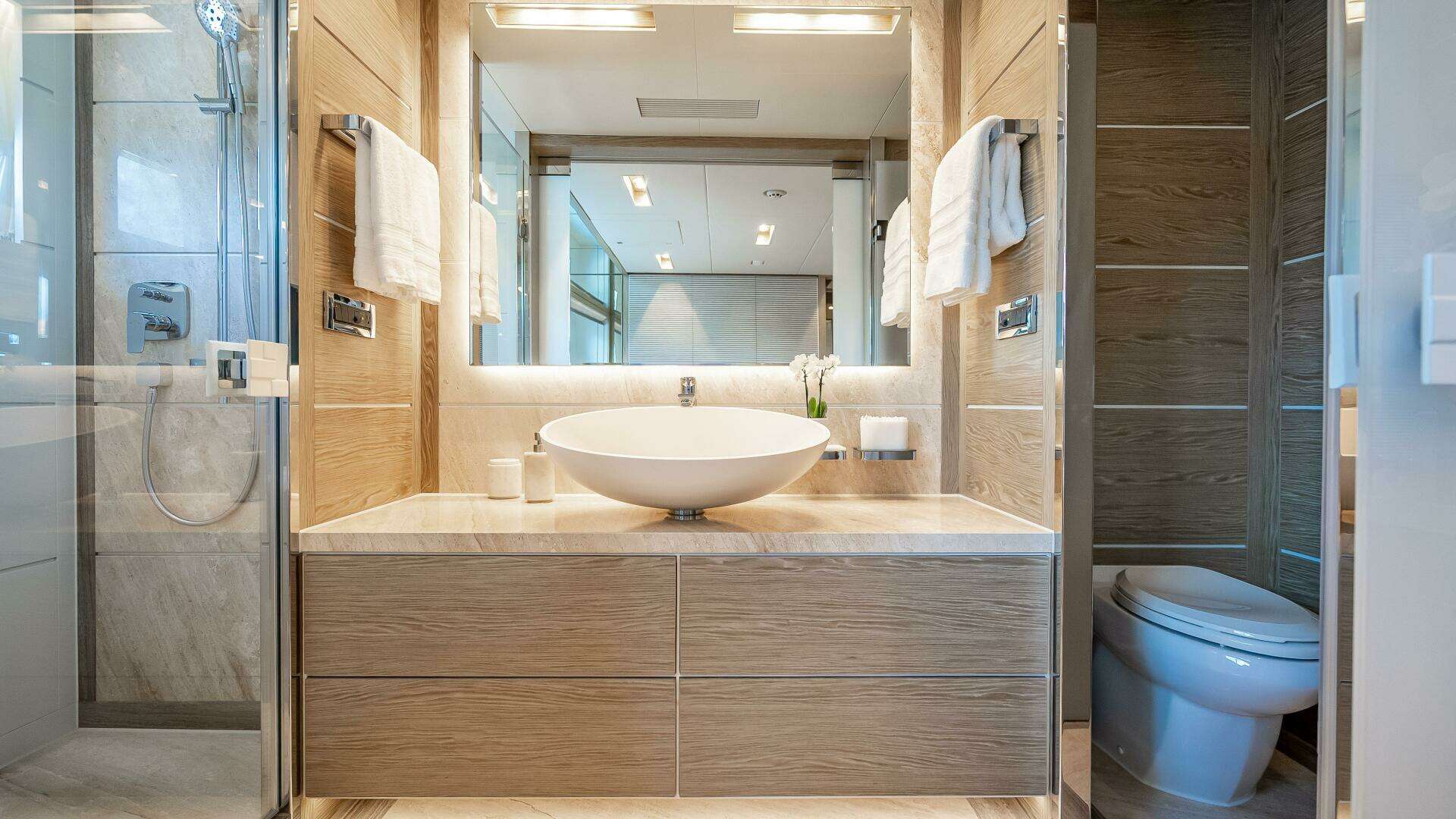

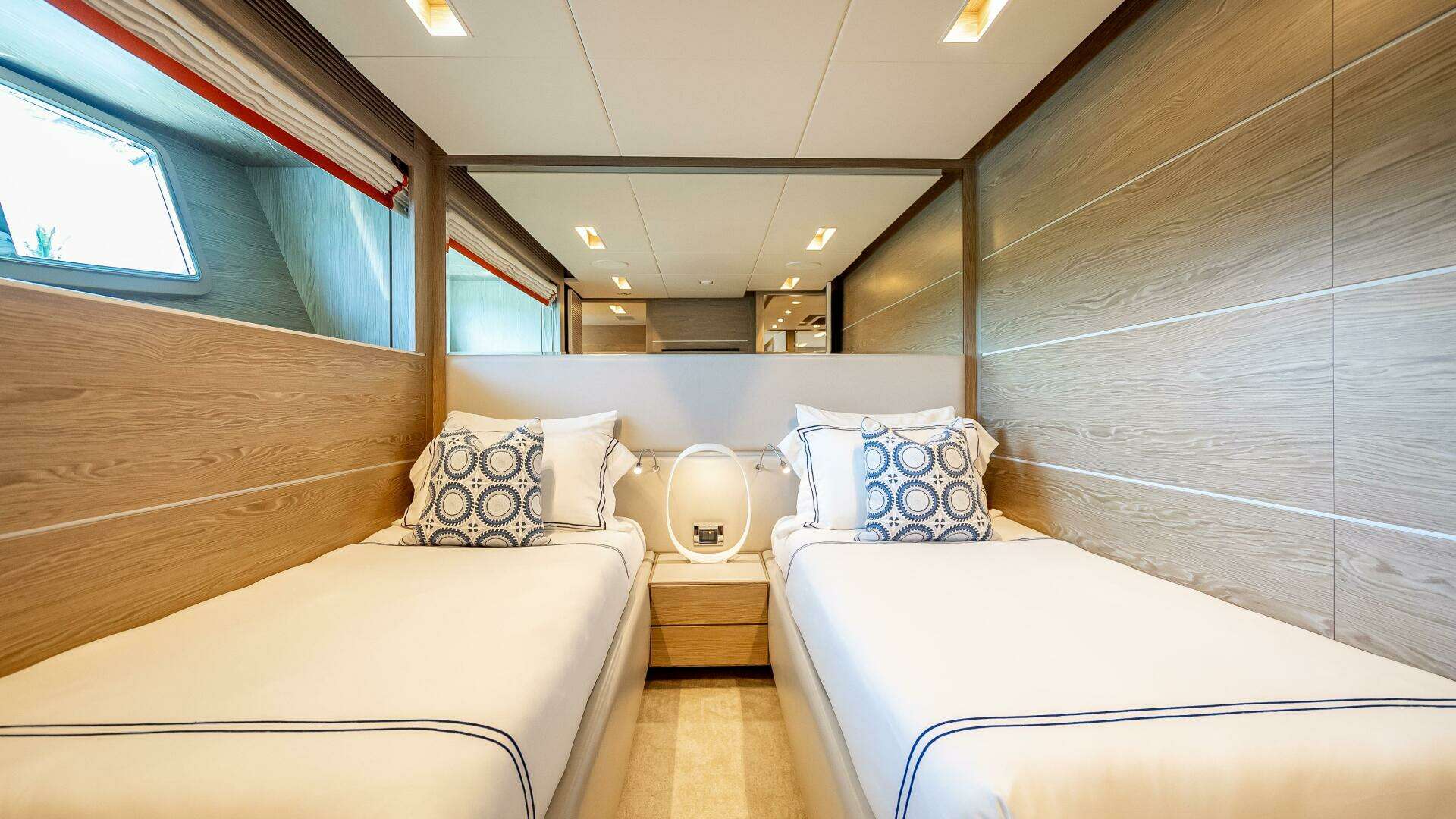

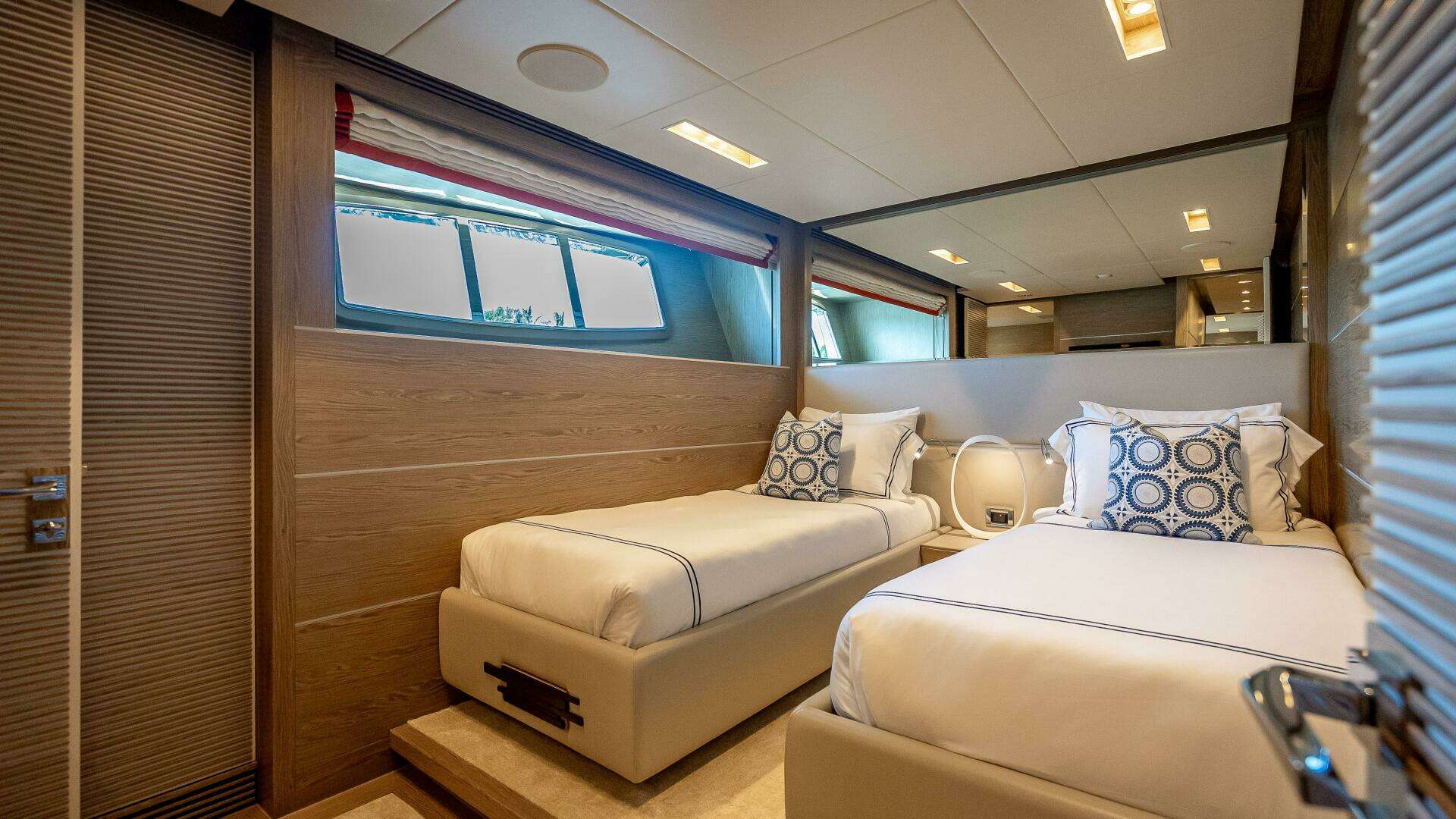

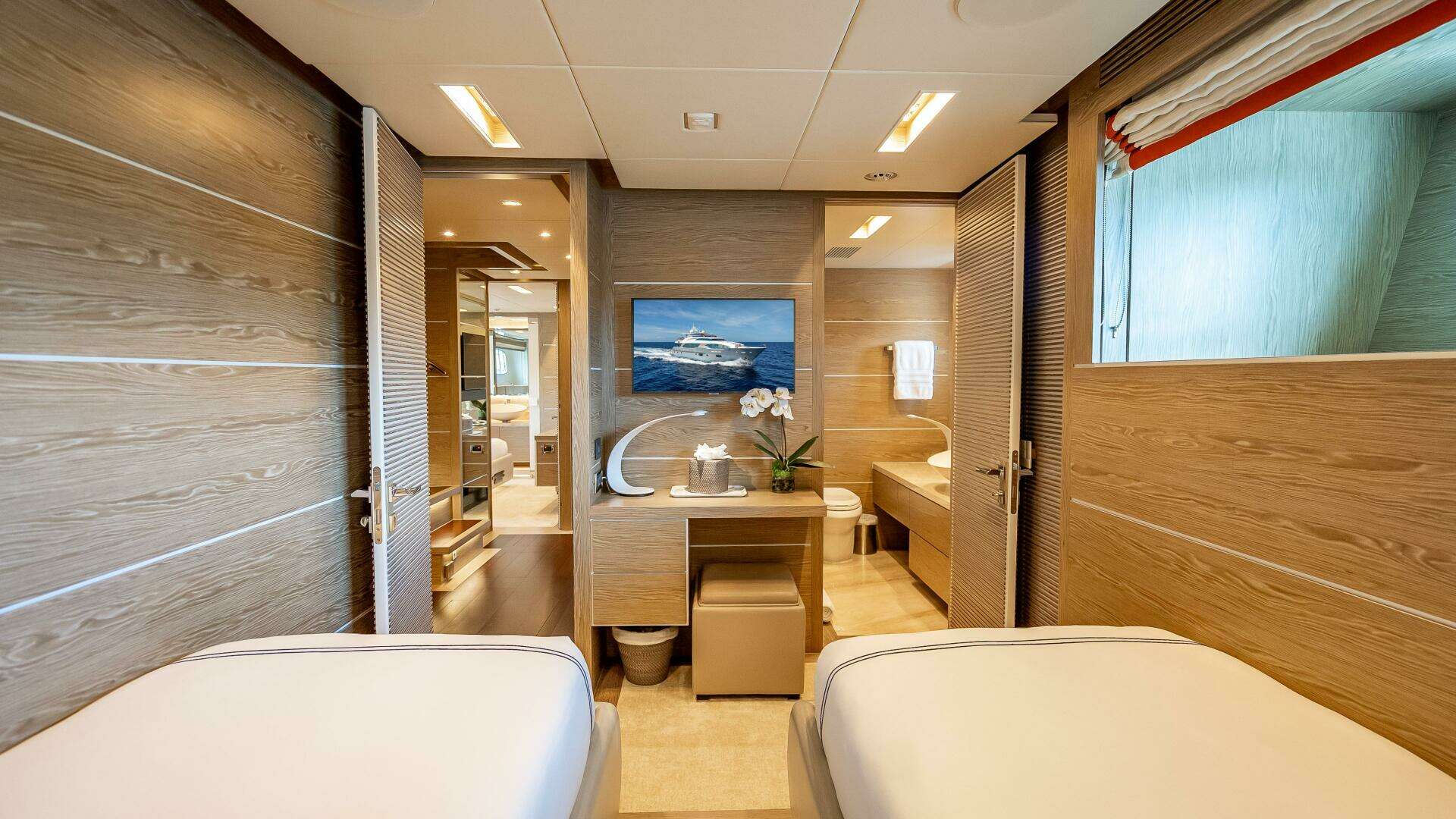

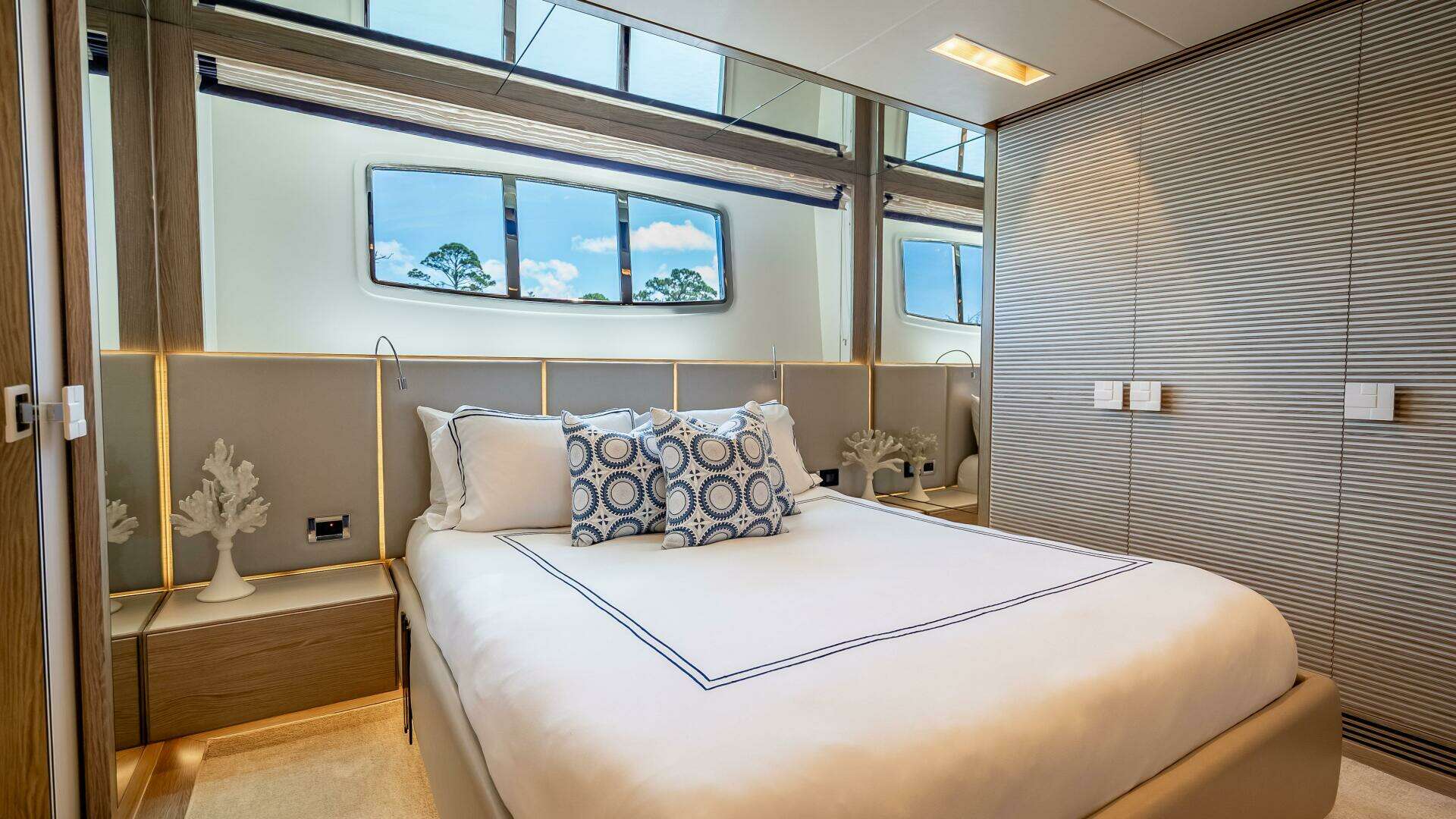

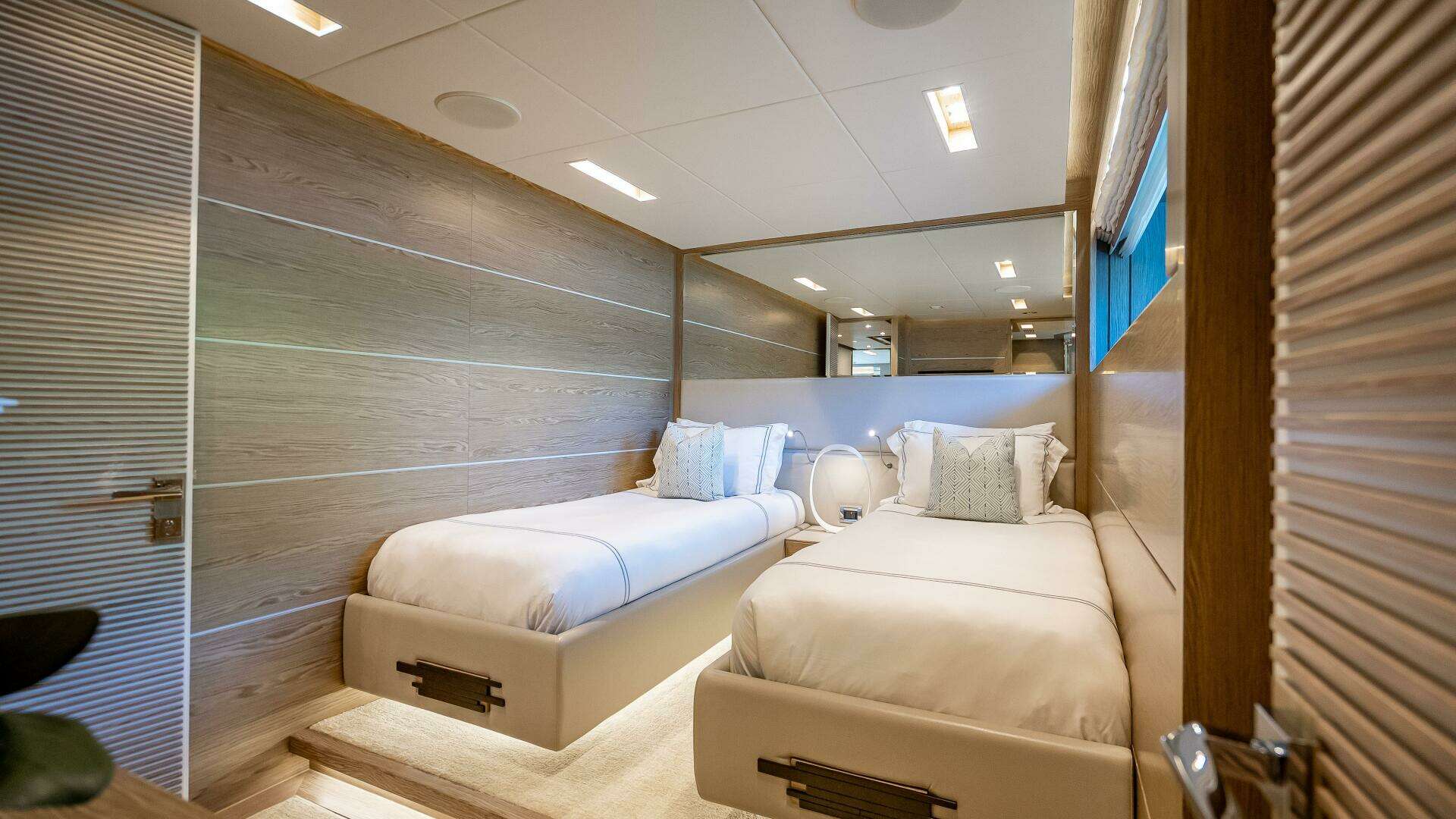

Guest Staterooms

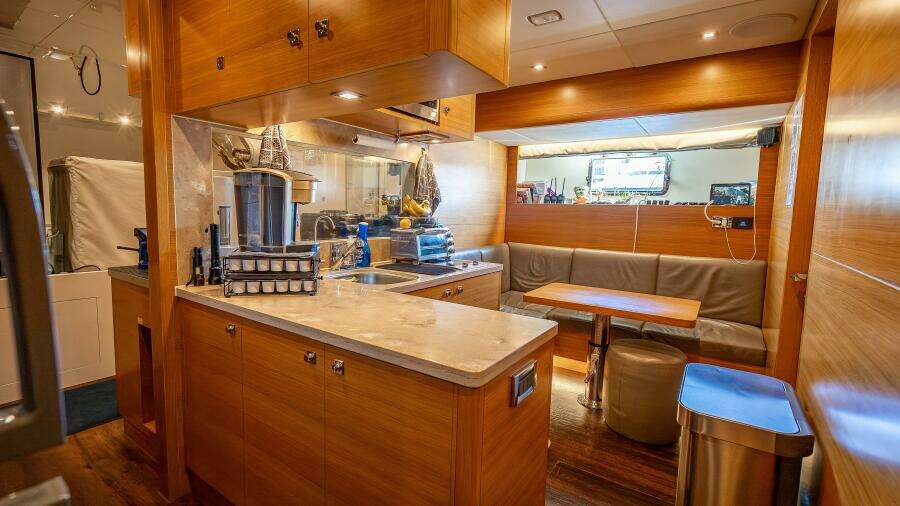

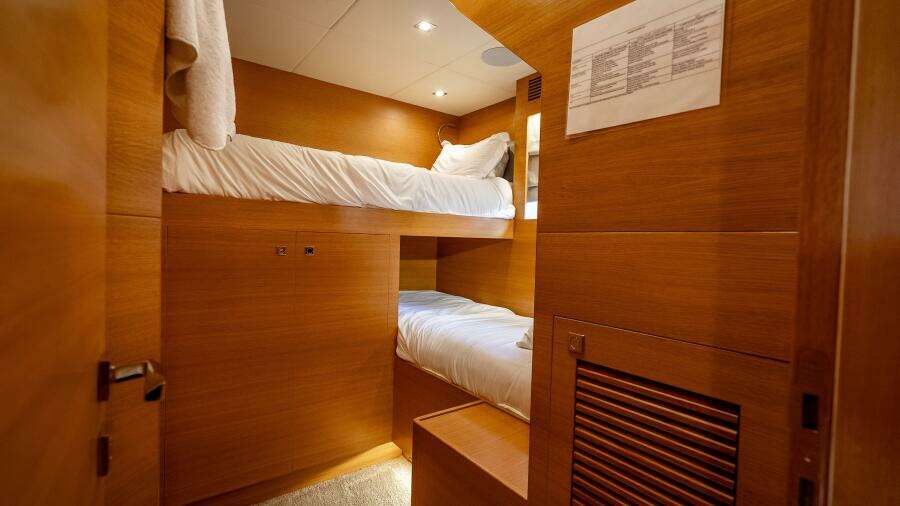

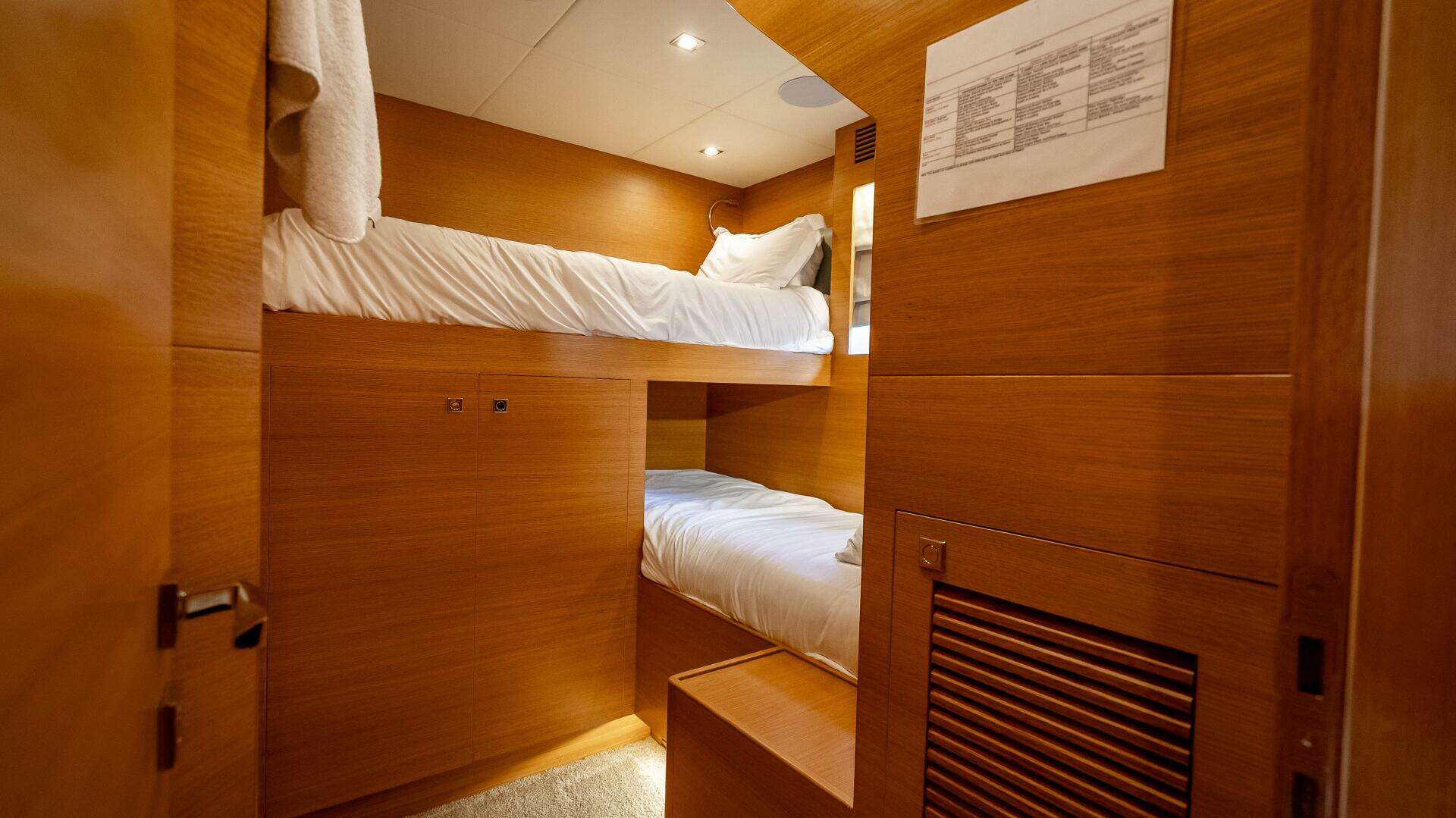

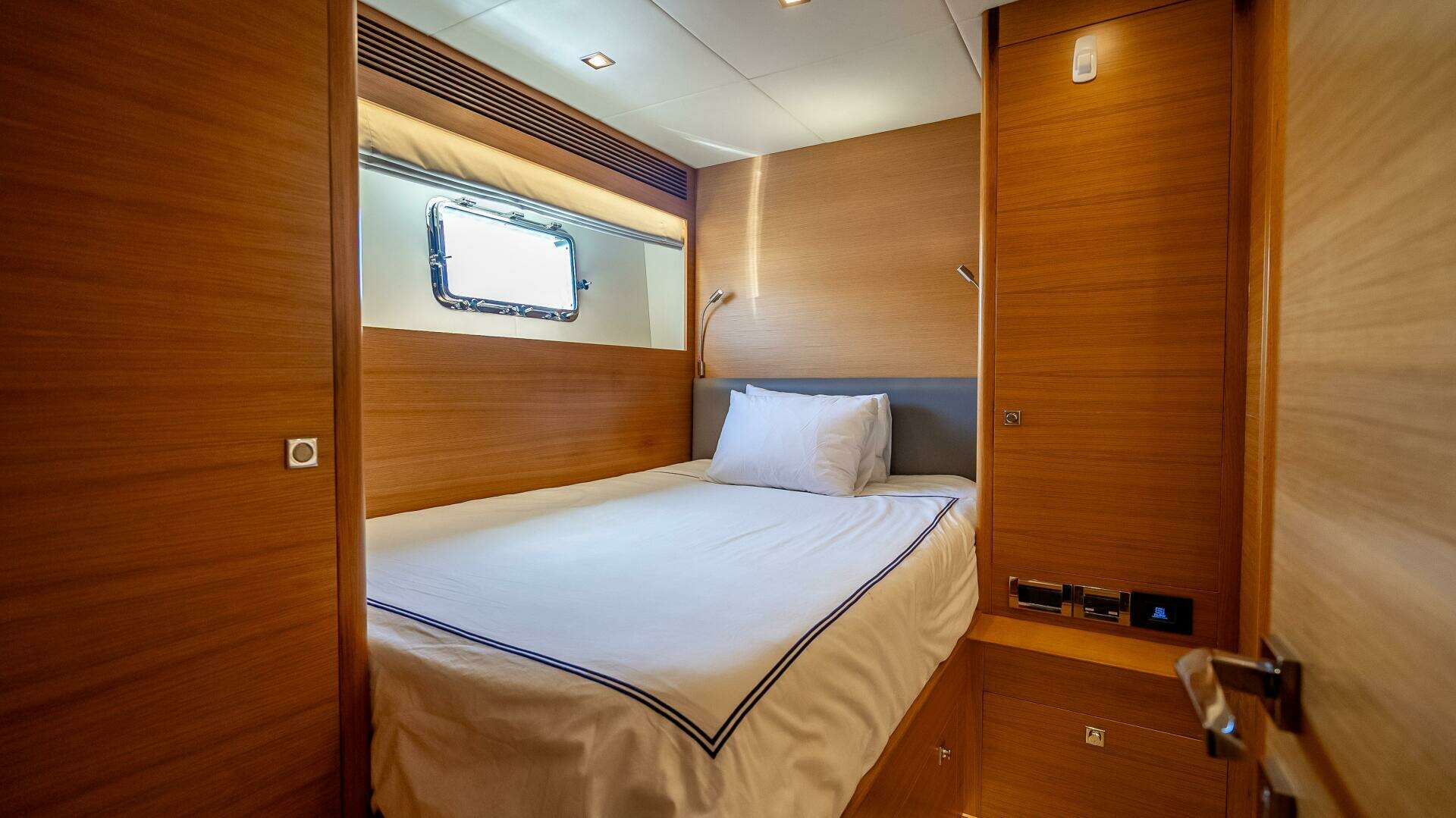

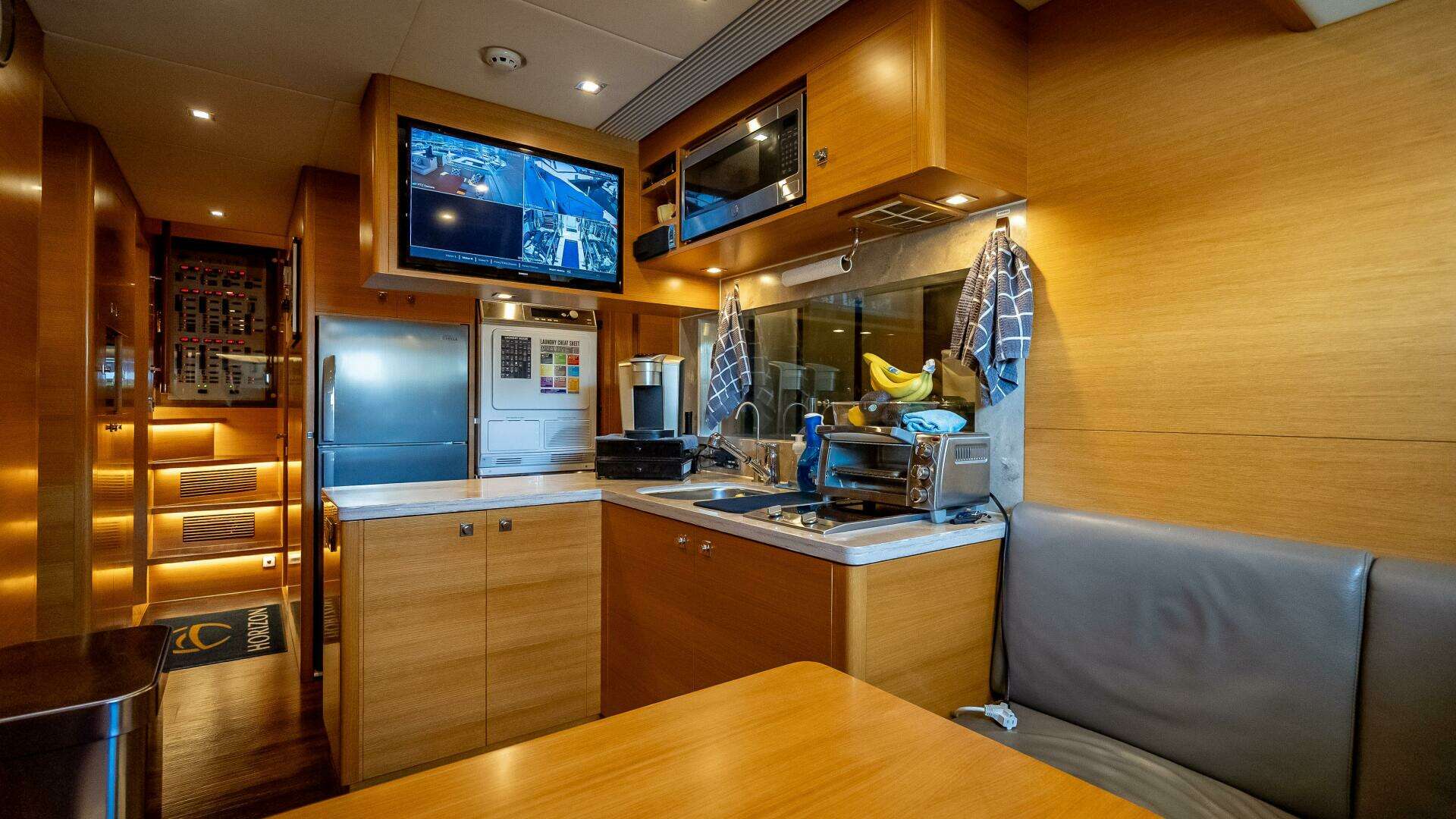

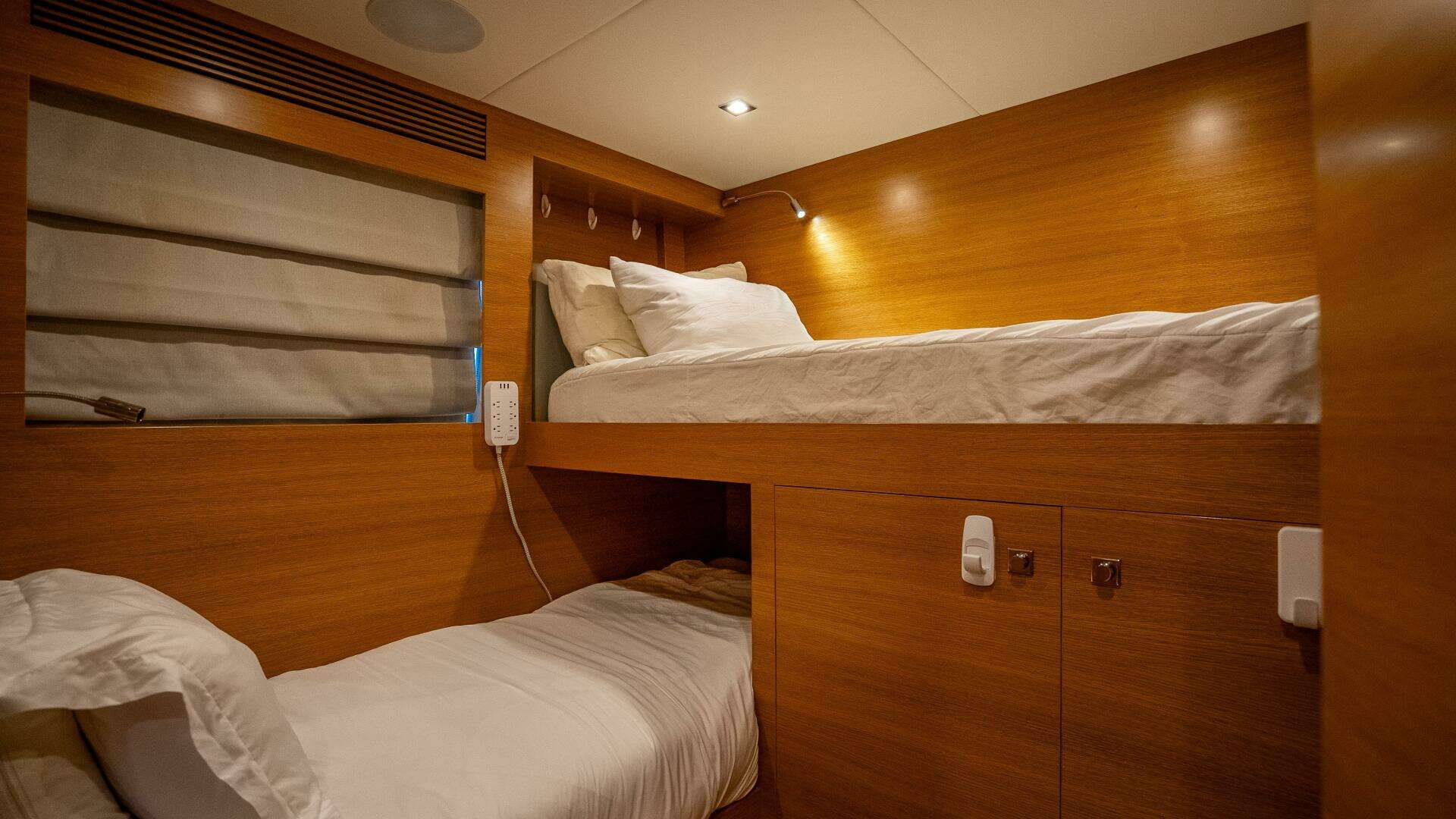

On the lower deck, the crew area is situated aft of the engine room, while four en suite guest cabins are found forward. All staterooms are beautifully designed with a very appealing natural colour tone throughout. Mirrored VIP staterooms, respectively outfitted this light, neutral Gray-toned wood, feature frosted glass sliding doors that open to the en suite’s sink and mirror creating an additional feeling of spaciousness. Mirrored twin staterooms respectively outfitted in blue and green décor themes are situated forward of the main staircase.

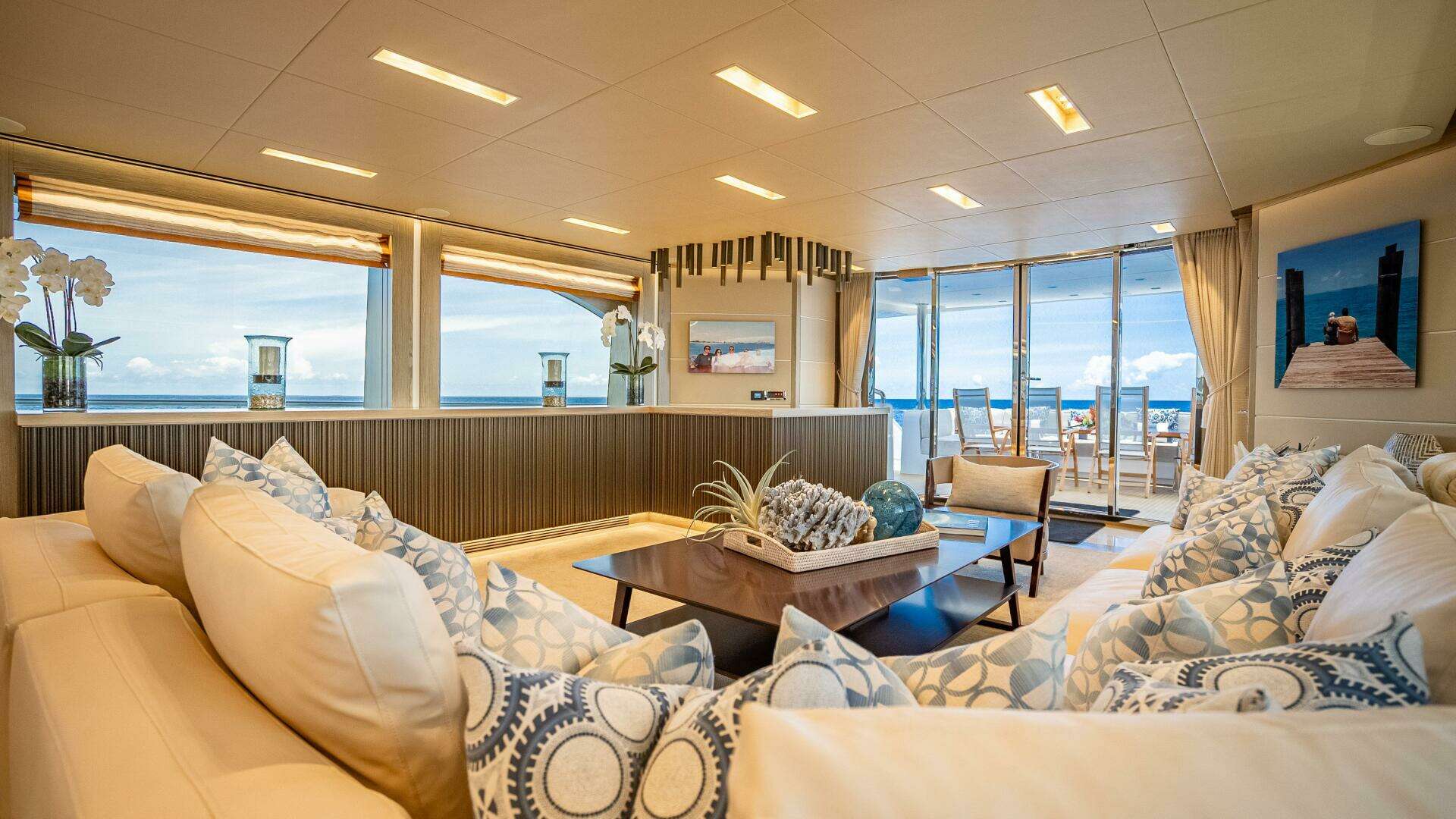

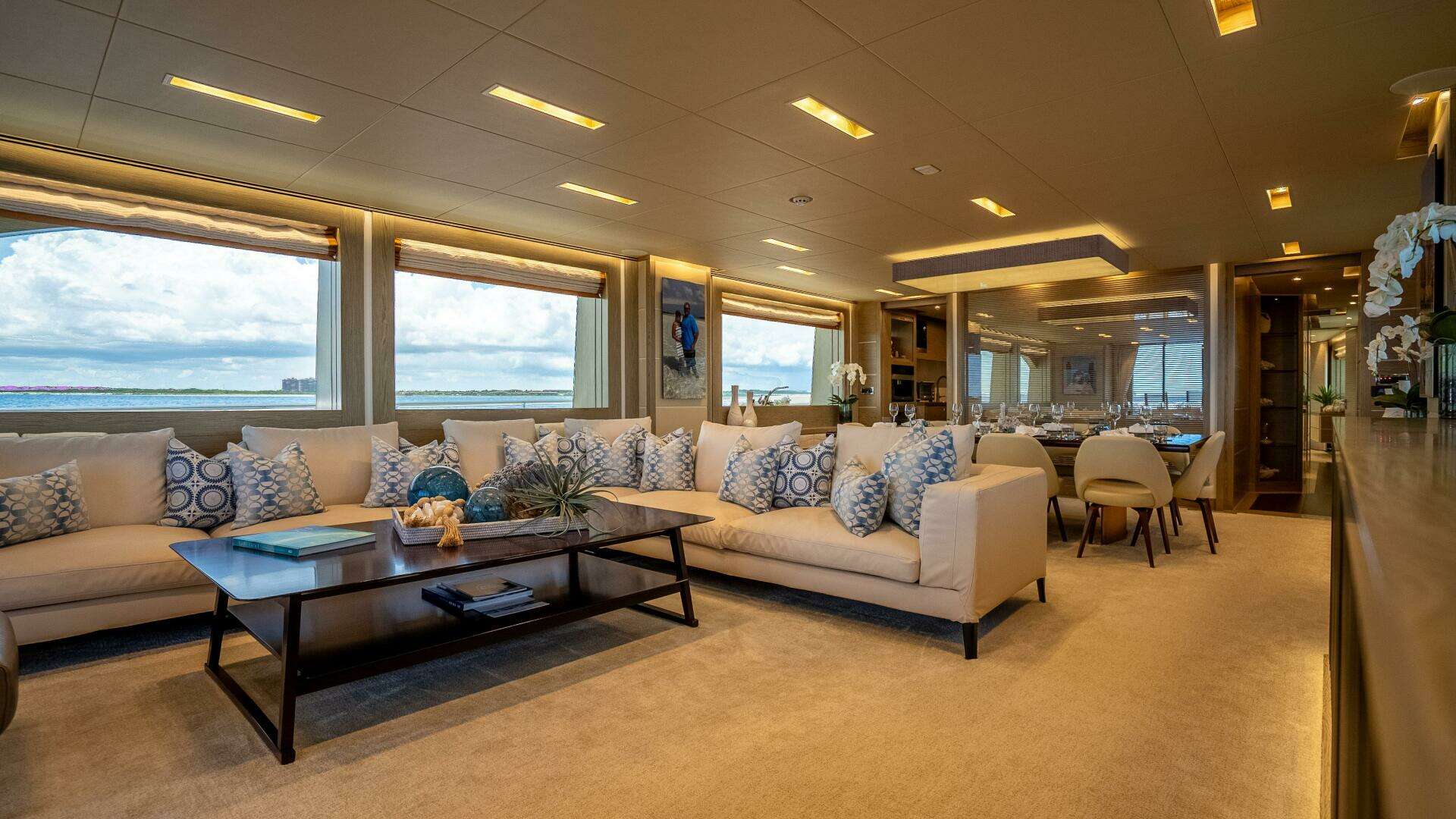

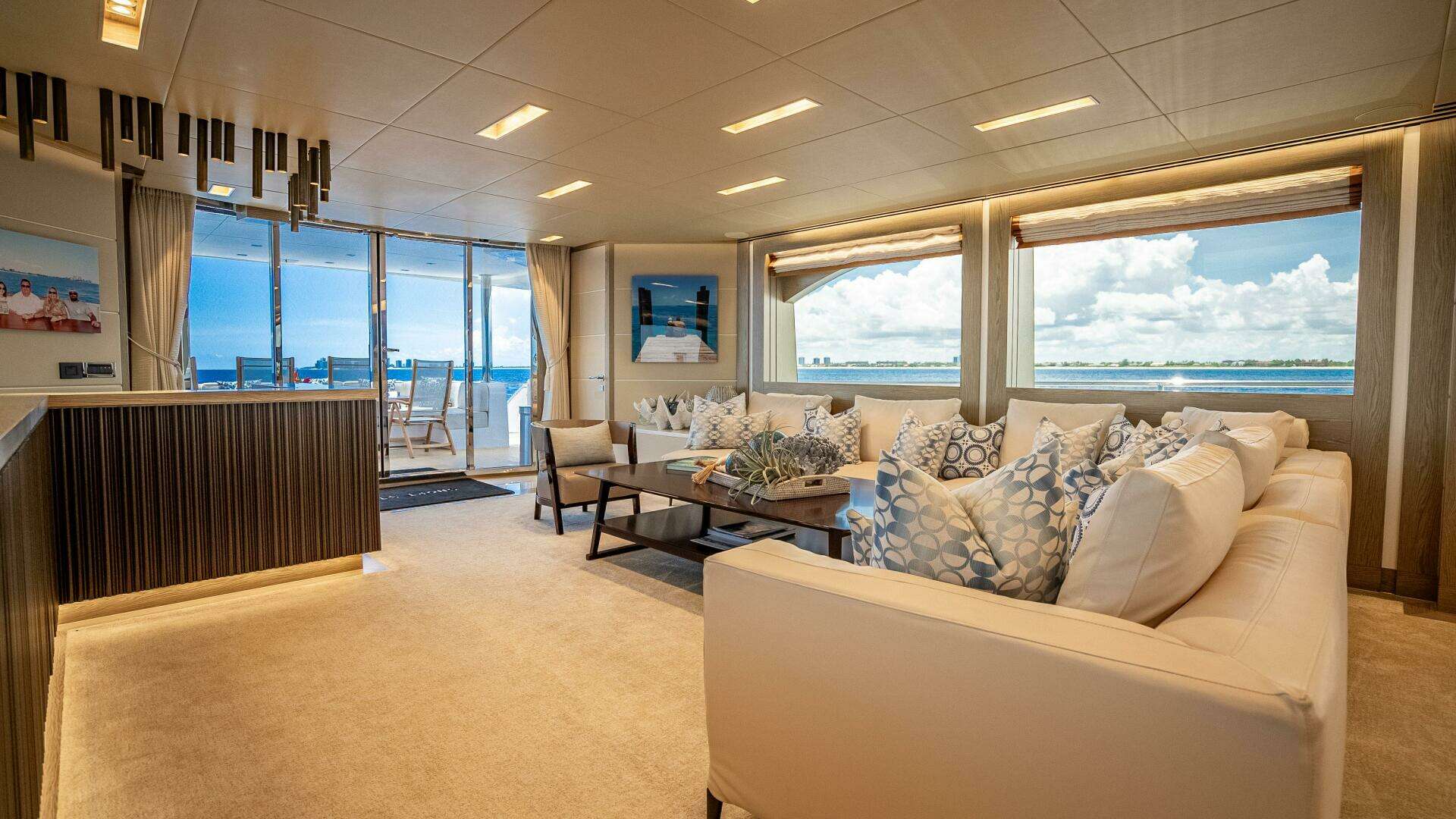

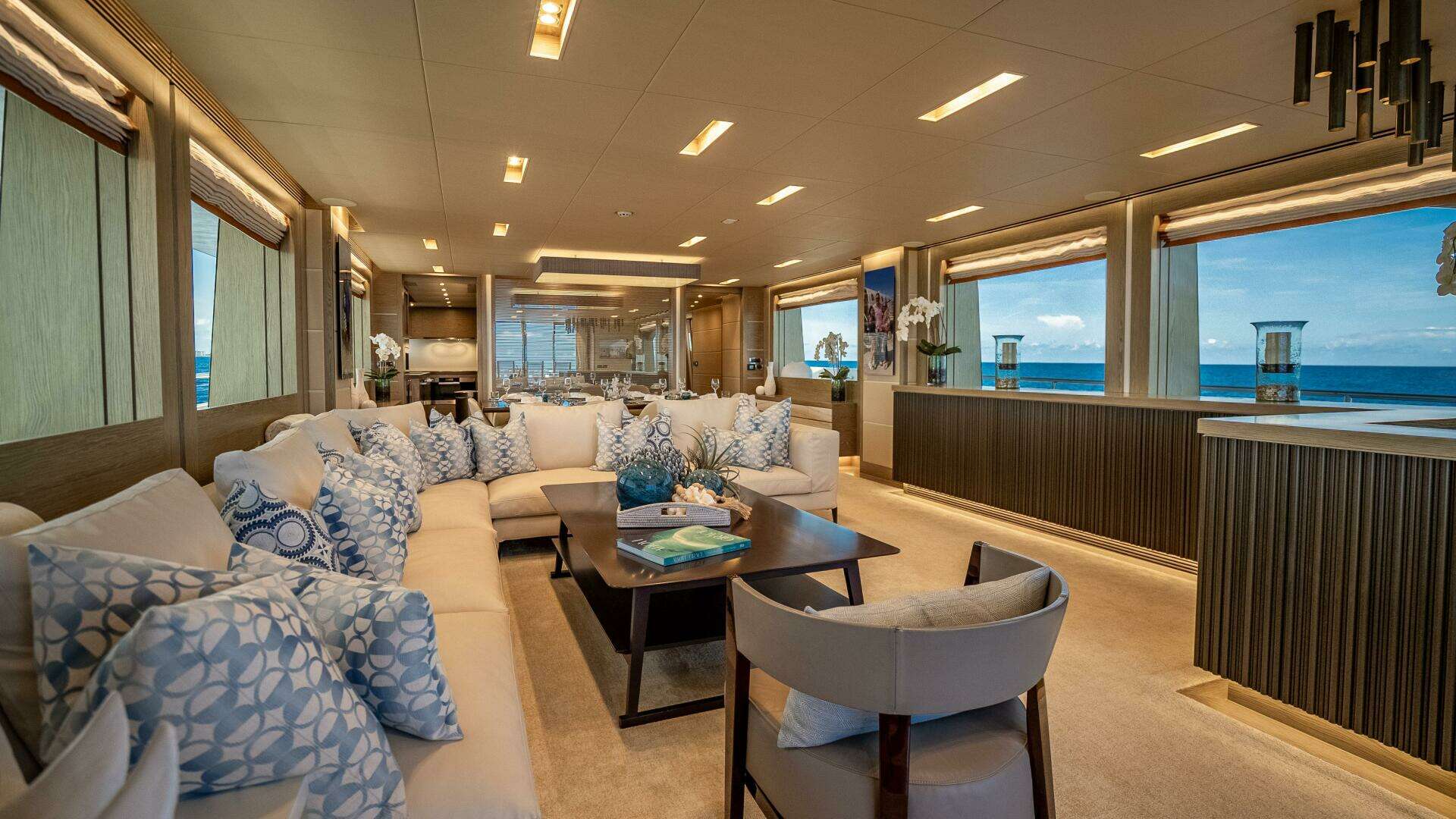

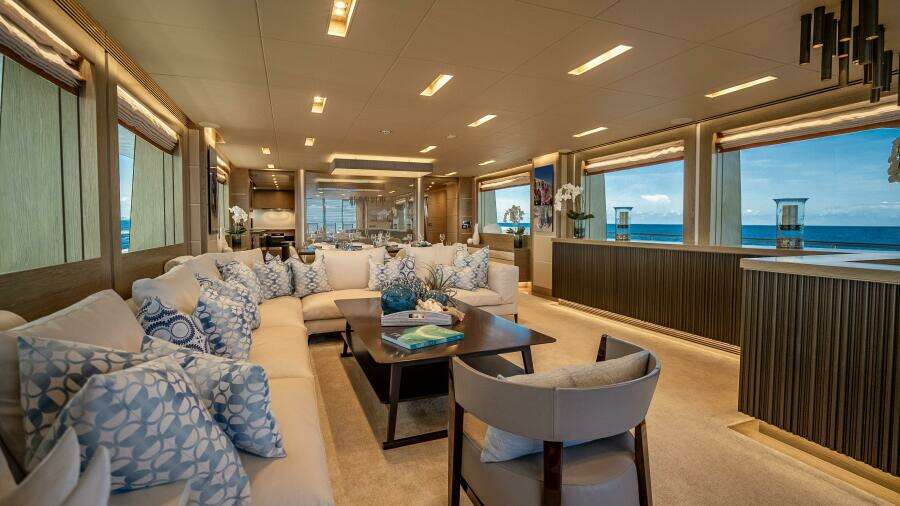

Main Deck

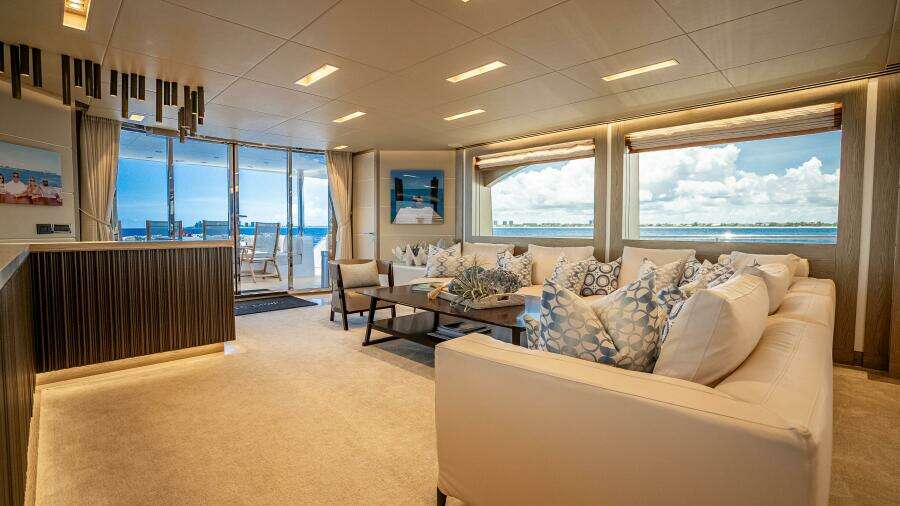

Highlighted by large windows that invite plenty of natural light, the main salon welcomes guests with a bar area in the aft foyer. This unique three-dimensional bar is set off by a custom overhead lighting installation comprised of small, oxidized metal pipes. A relaxing lounging area is situated just forward and is complemented by a 65” lifting TV and home theater system. A day head is conveniently located to port for ease of use from the aft deck.

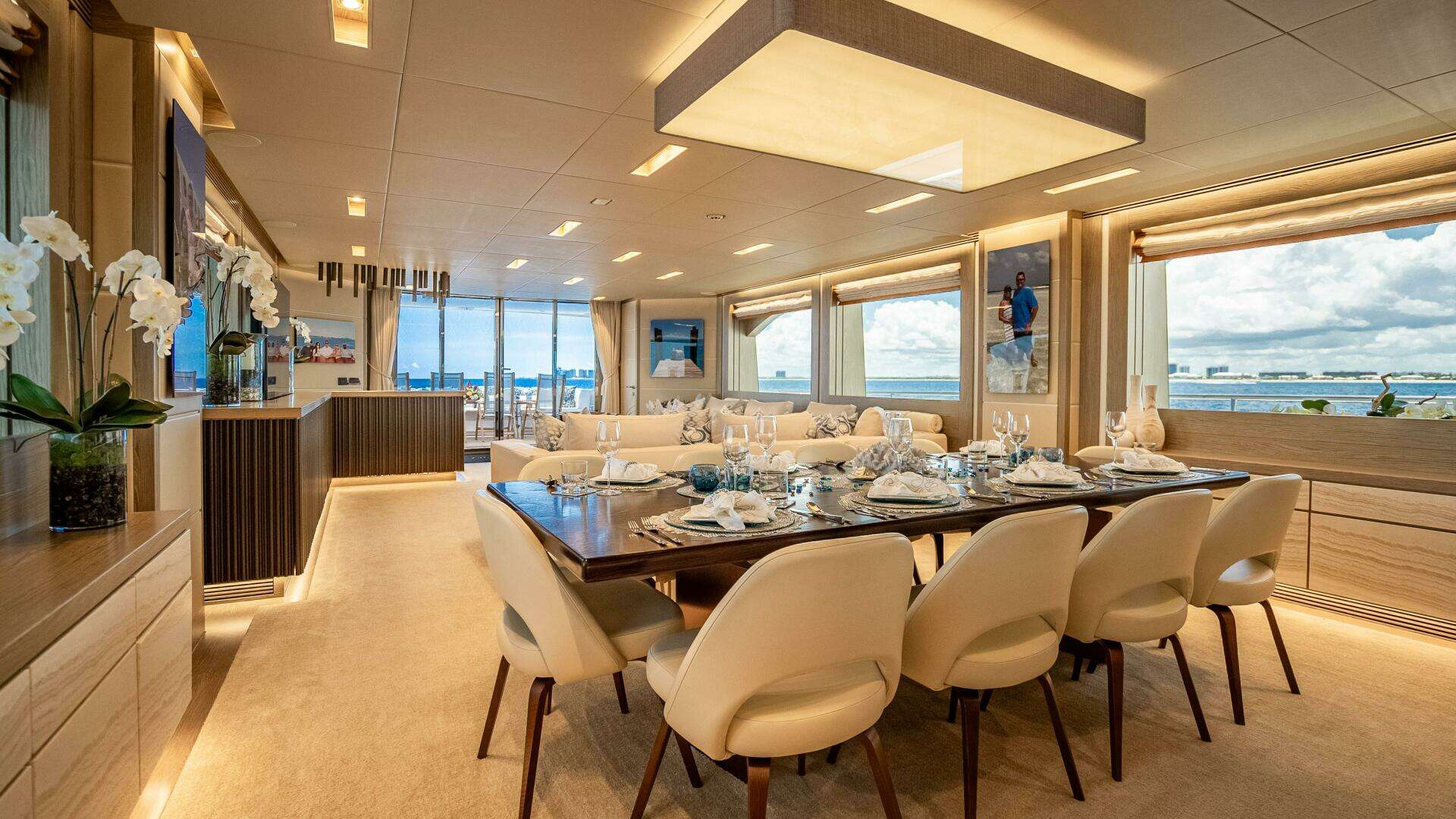

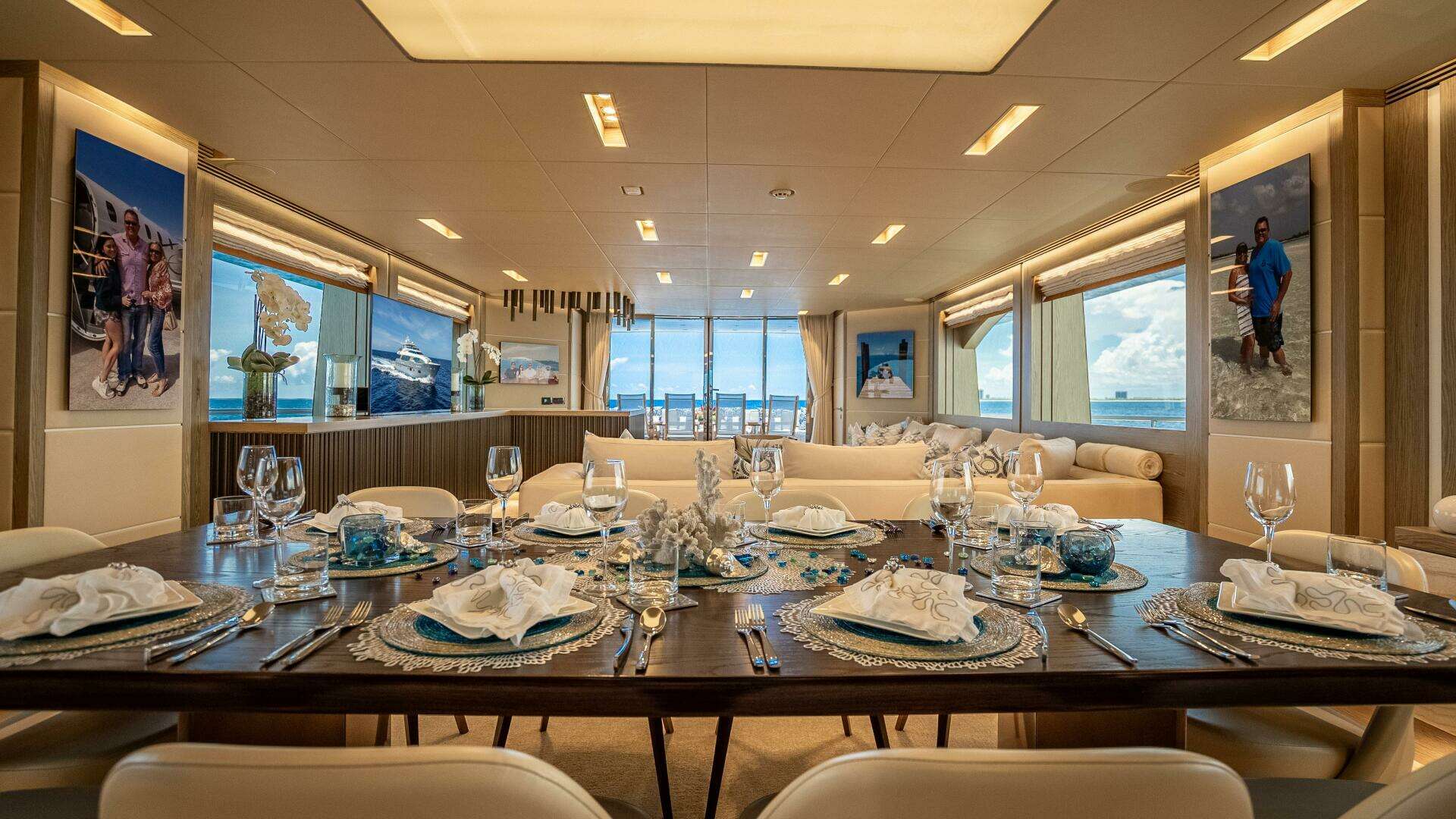

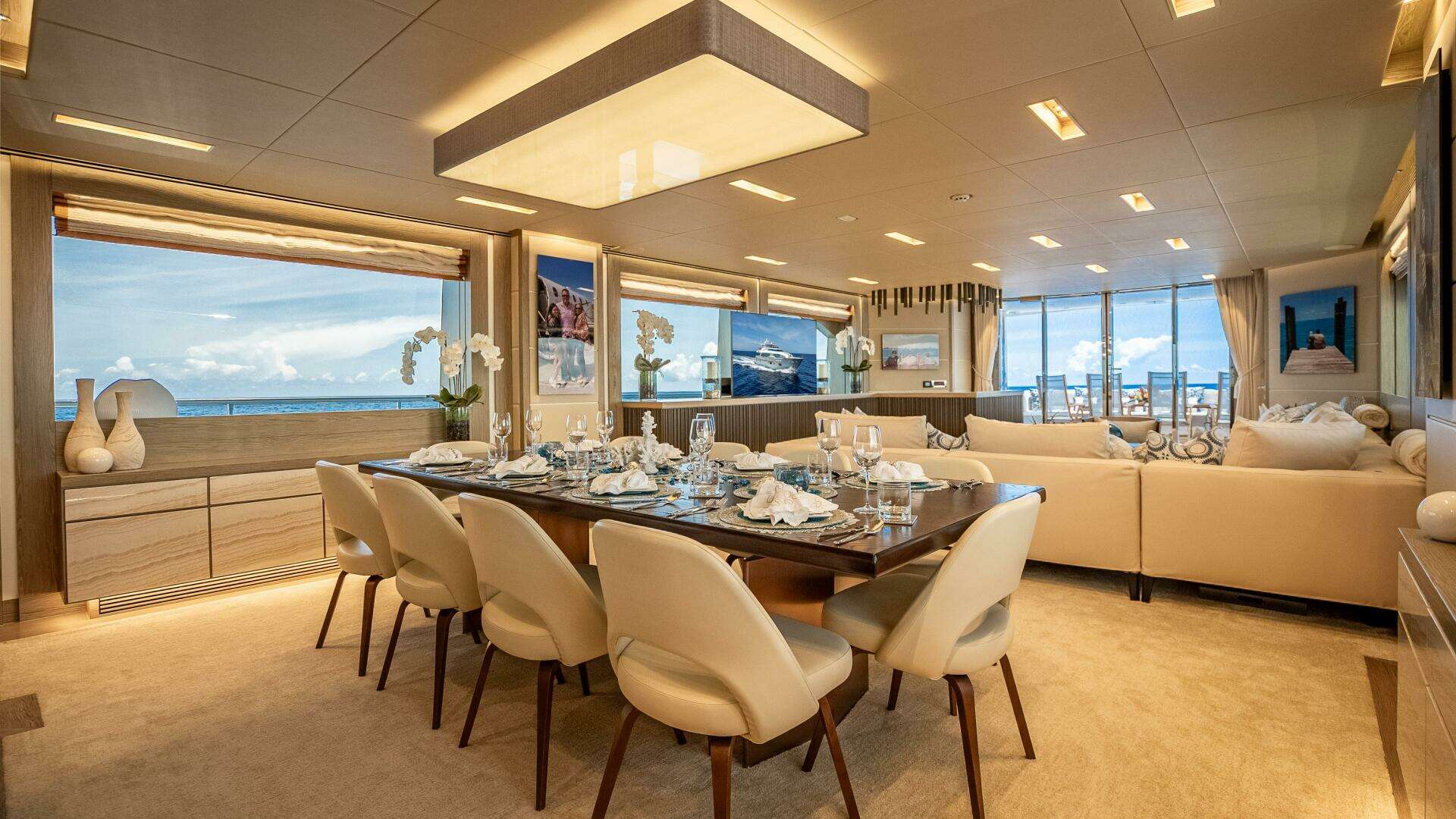

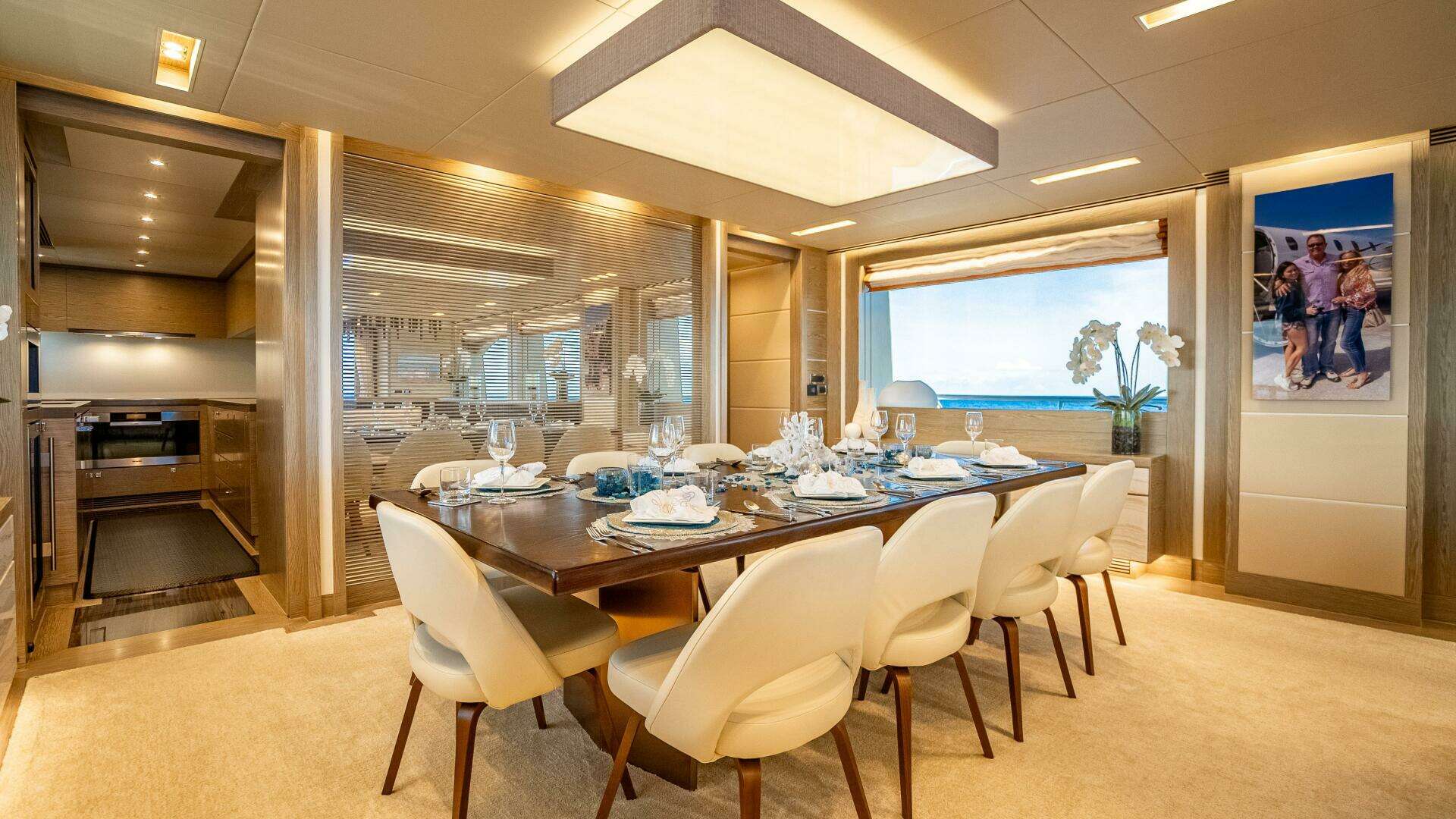

Forward, the formal dining area, highlighted by a mirrored bulkhead wall with thin wood inlays, accommodates ten guests in a Zen-like atmosphere. Electric sliding doors to port and starboard are finished in exquisite detail, feature small wooden slabs on a lacquer surface that, when accented by artfully placed spotlights, yields a pleasant “chiaroscuro” effect. The built-in cabinets to port and starboard of the dining table feature marble panels, bring a lovely stone texture to this elegant area.

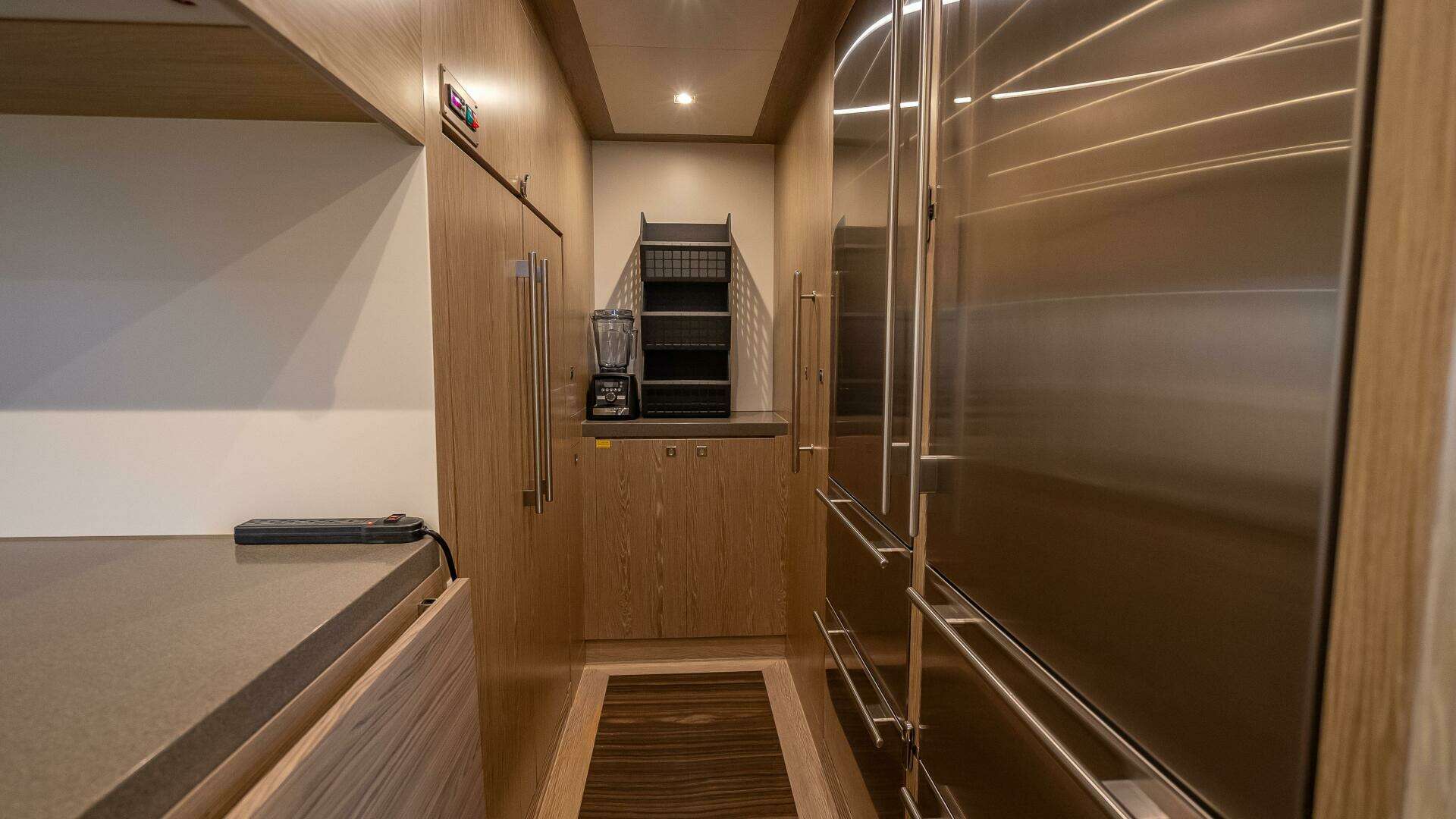

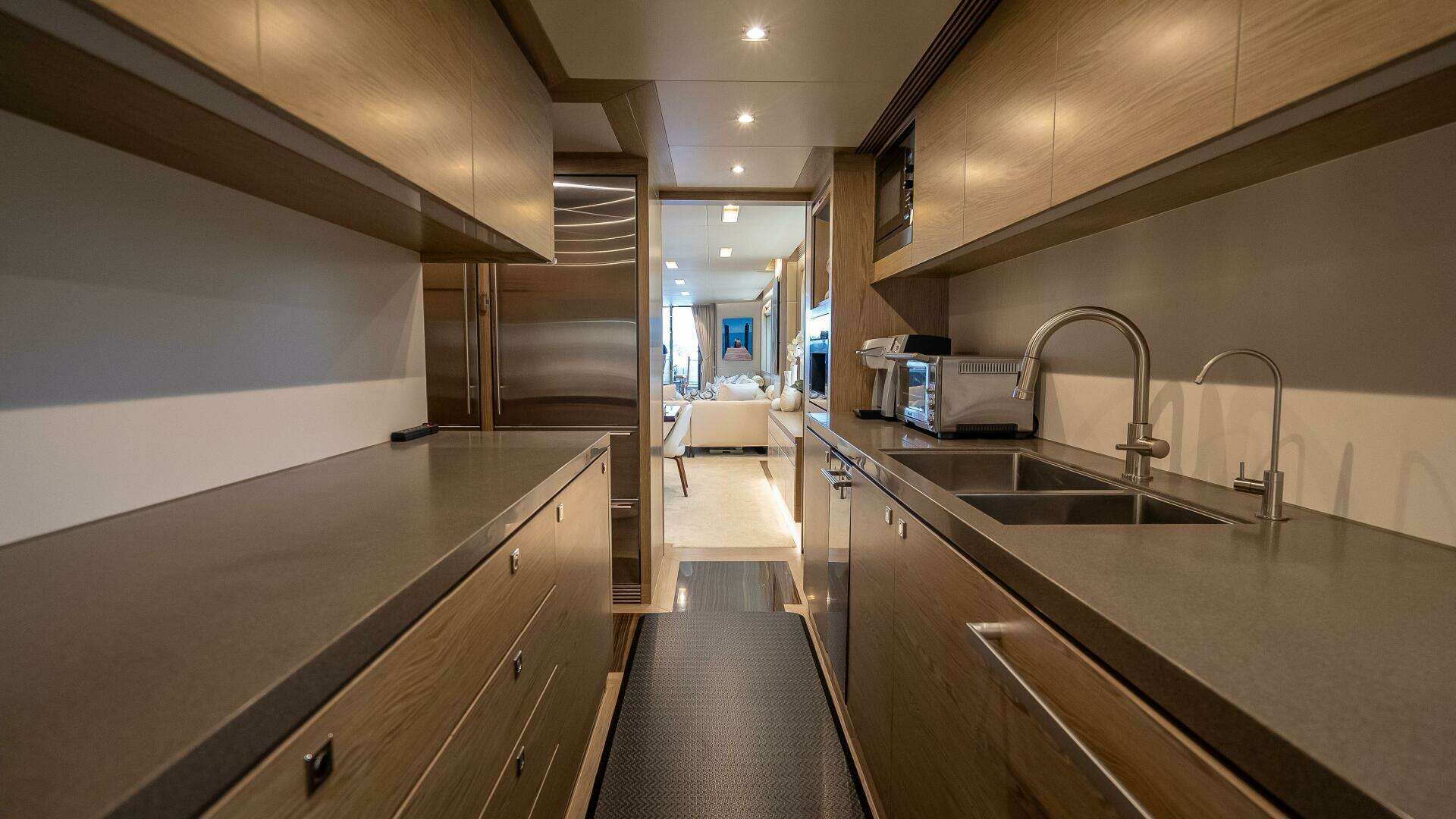

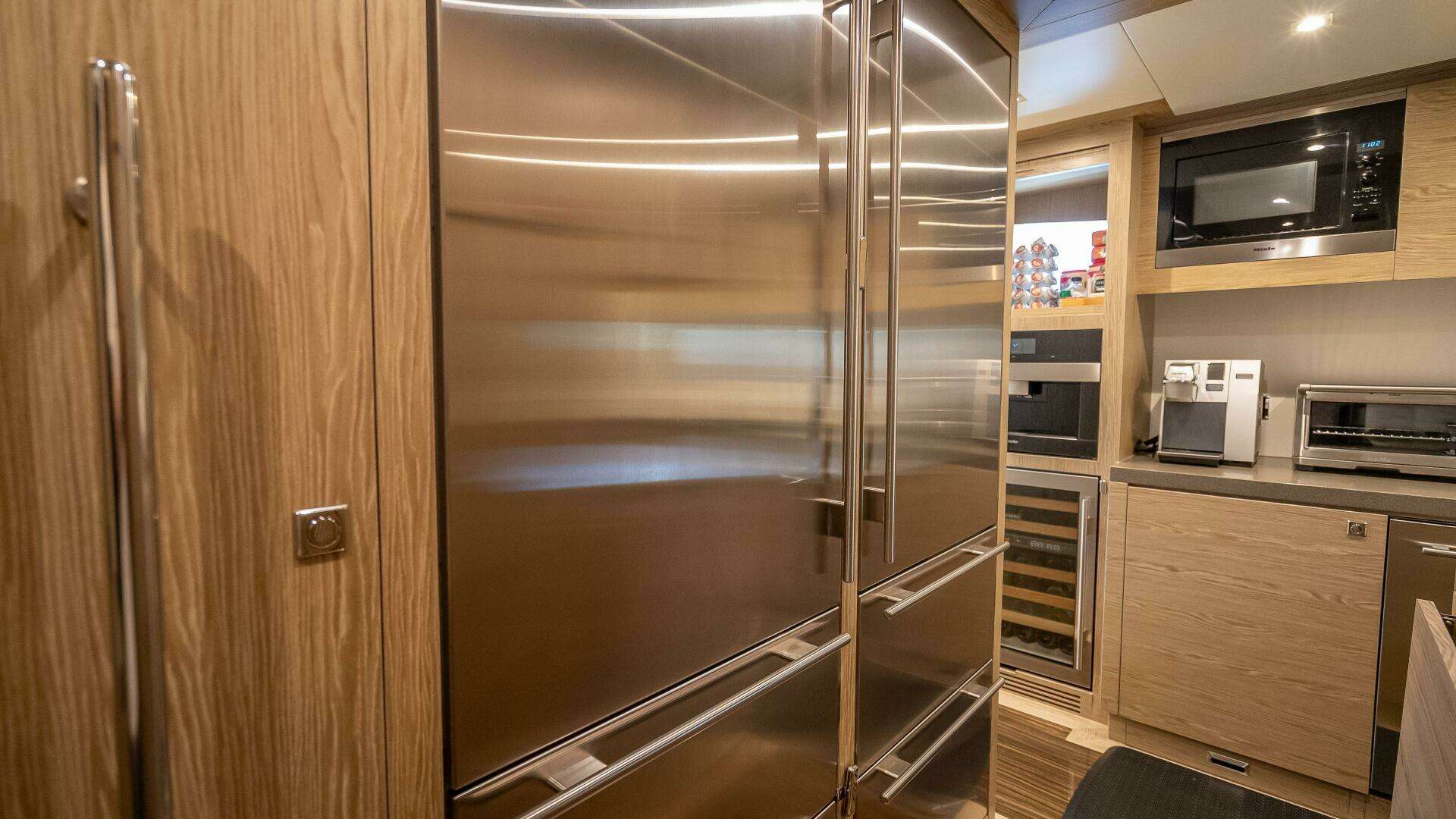

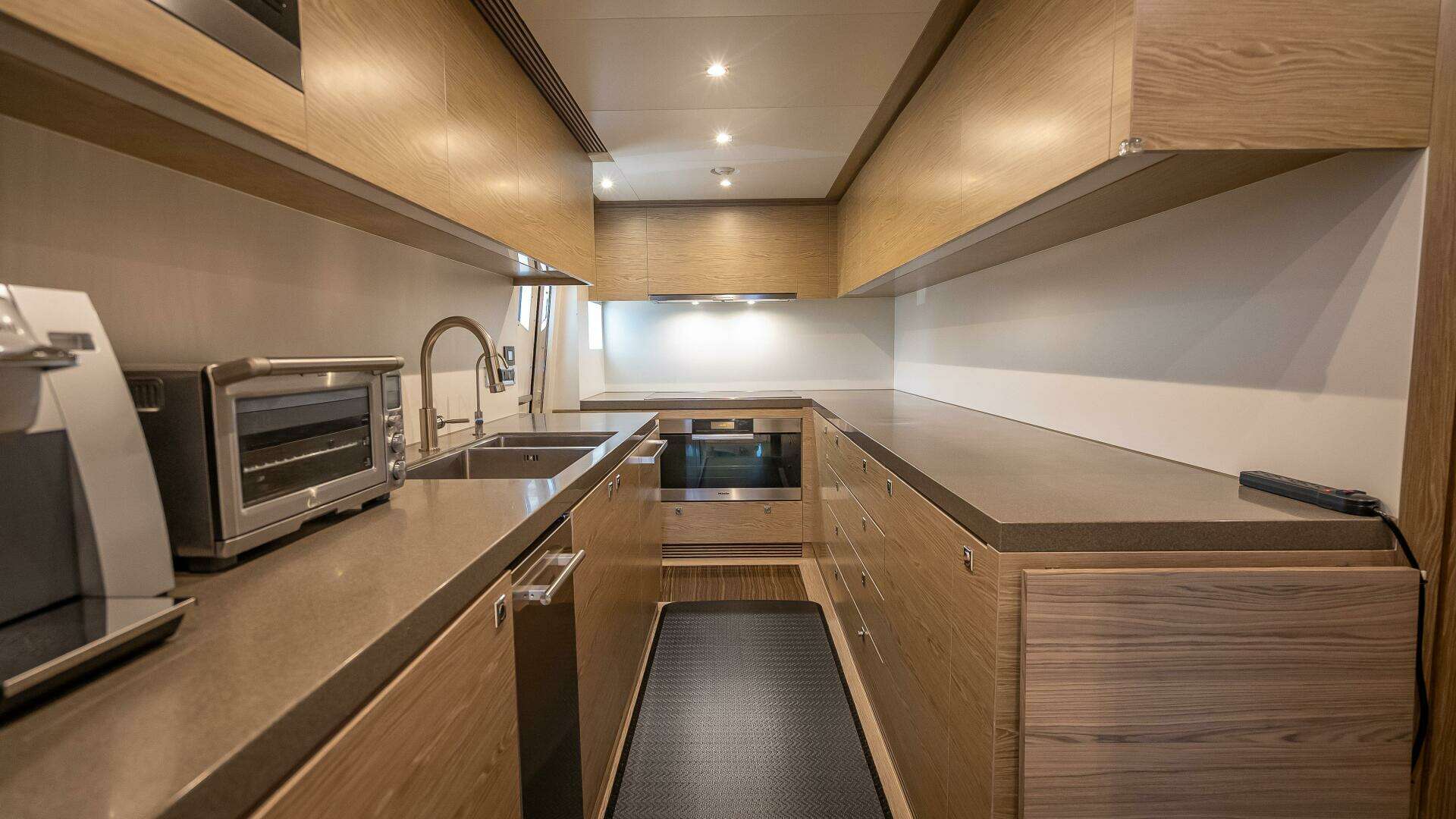

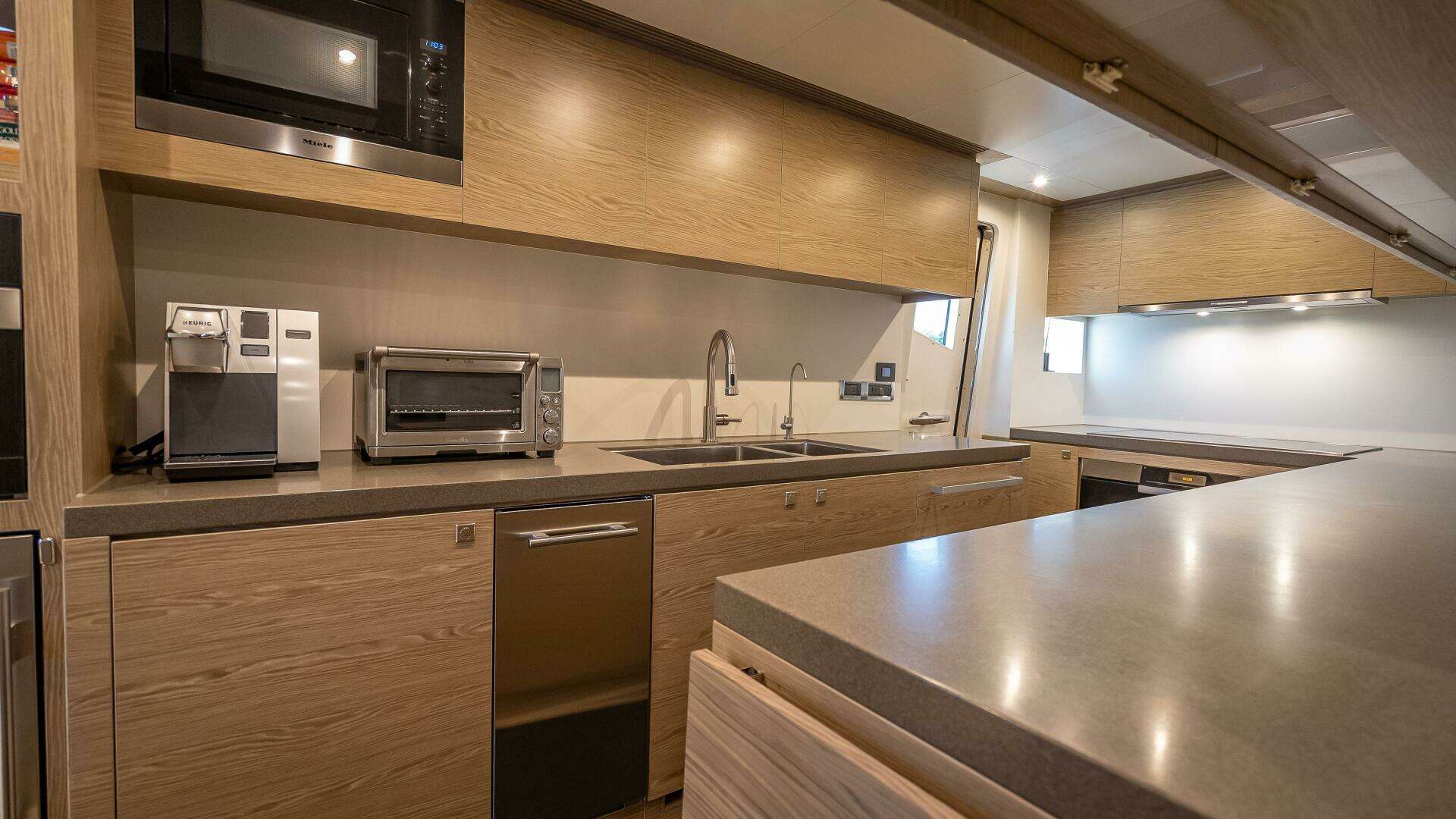

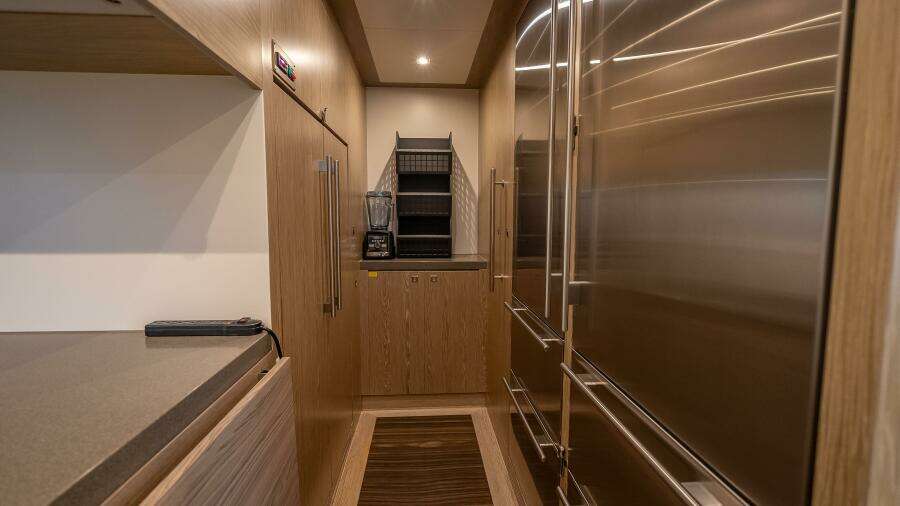

Forward to port, the fully-equipped galley features dual light and dark-toned counter surfaces, two refrigerators and freezers, and plenty of storage for provisions during a long voyage. A cabinet in the entryway is designed with a tambour door for additional storage and brings in natural light with a window. All appliances are standard 110V, which also complies with the United States, Canada and Japan.

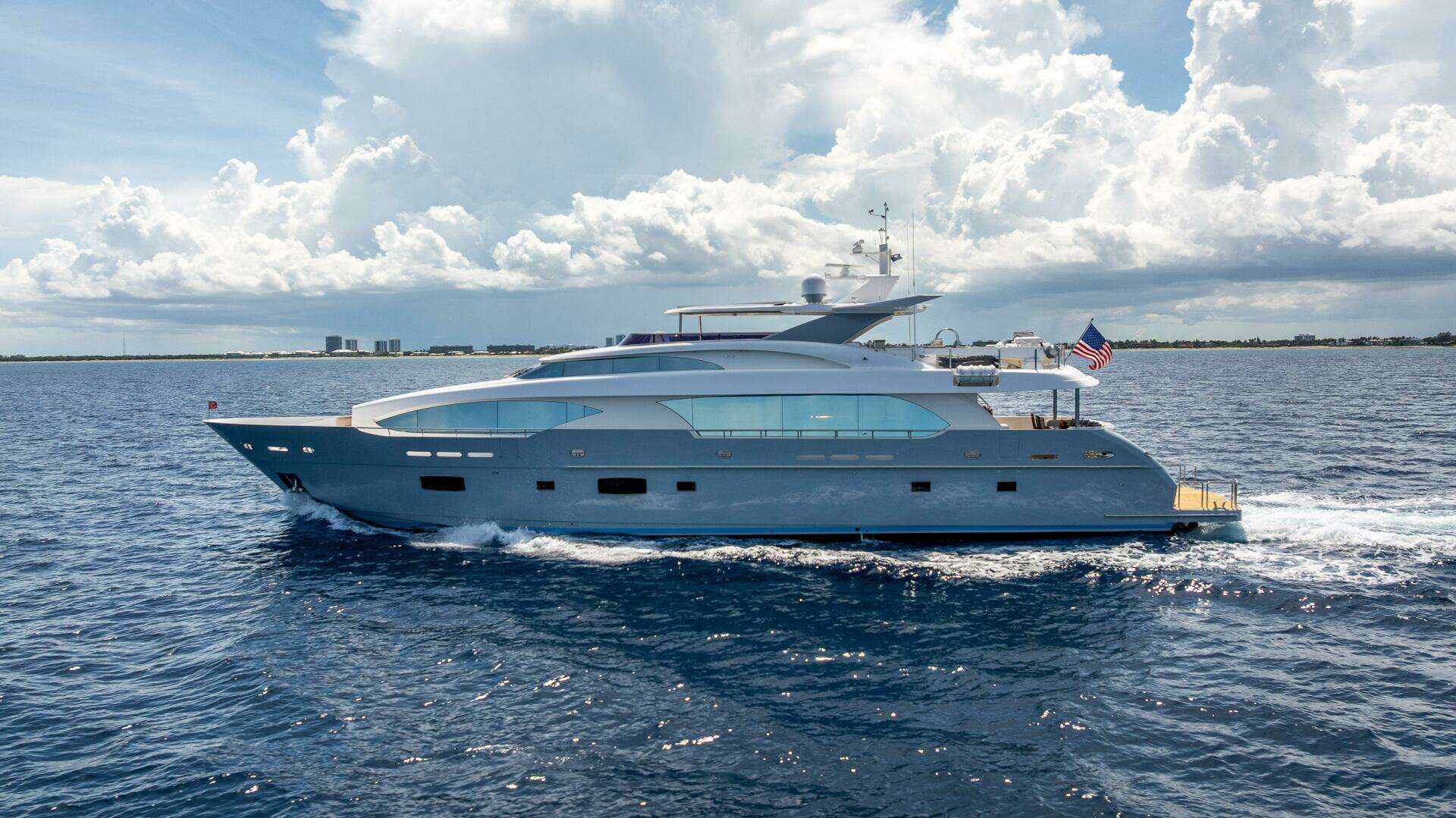

Hull and Main Structure

• One piece hull SCRIMP cored lamination w/deep skeg and longitudinal girders
• Hull, deck & superstructure are built with licensed process SCRIMP for improved strength and less weight
• Fiberglass solid hull bottom
• High density Divinycell or equivalent foam cored hull sides, decks and superstructure
• Stringers with high density foam coring
• Interior structural components all properly bonded to hull
• Strong collision bulkhead structure for extra safety
• International anti-fouling bottom paint w/anti-osmosis treatment - Sept 2024
• Hull Paint to Gray Hull - 2021

Exterior deck and Equipment

• 2-foot swim platform extension
• High bulwark w/flush mounted courtesy lights
• Fiberglass rub rail w/SS cap along hull side & swim platform
• Heavy-duty SS 2" handrail with 1 1/4" stanchions
• Exterior stainless all 316L grade
• Pre-wired for LED boat name on stern & sides
• (3) Hosemaster hose reels - FD 35', foredeck 100' and stern garage 100'

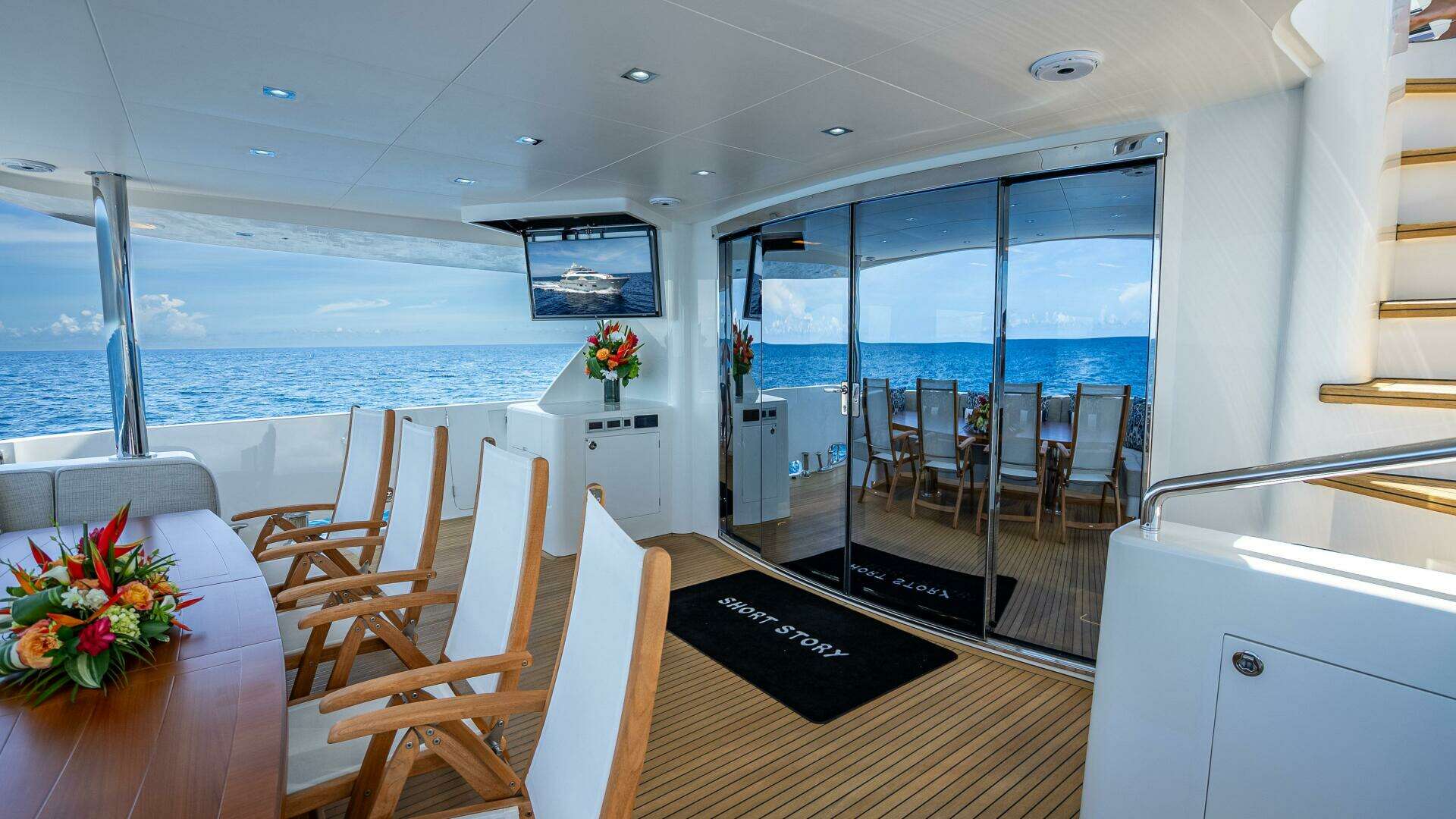

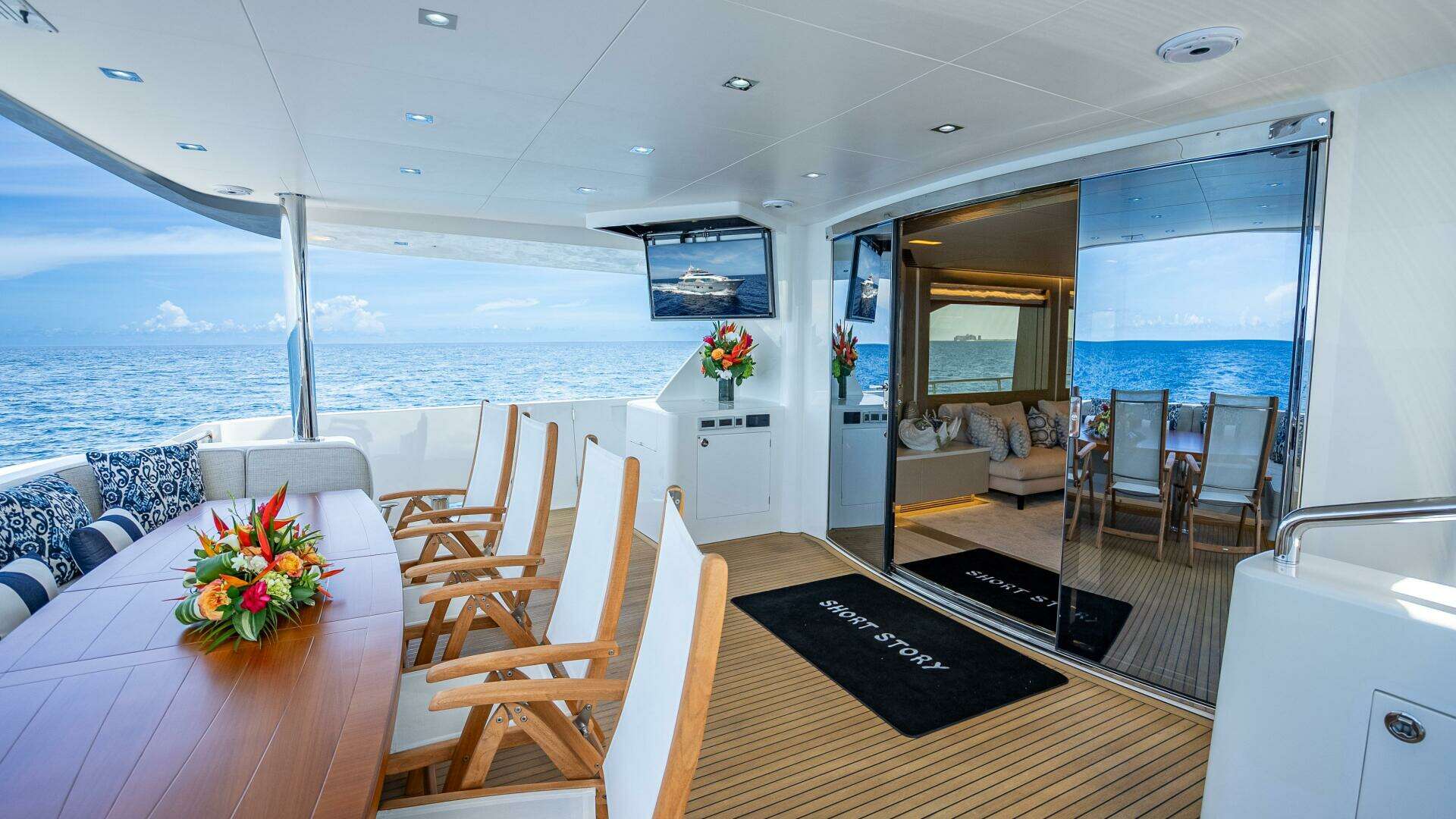

Aft Deck & Swim Platform

• Nonskid foredeck, teak aft deck, teak swim platform and teak steps to swim platform

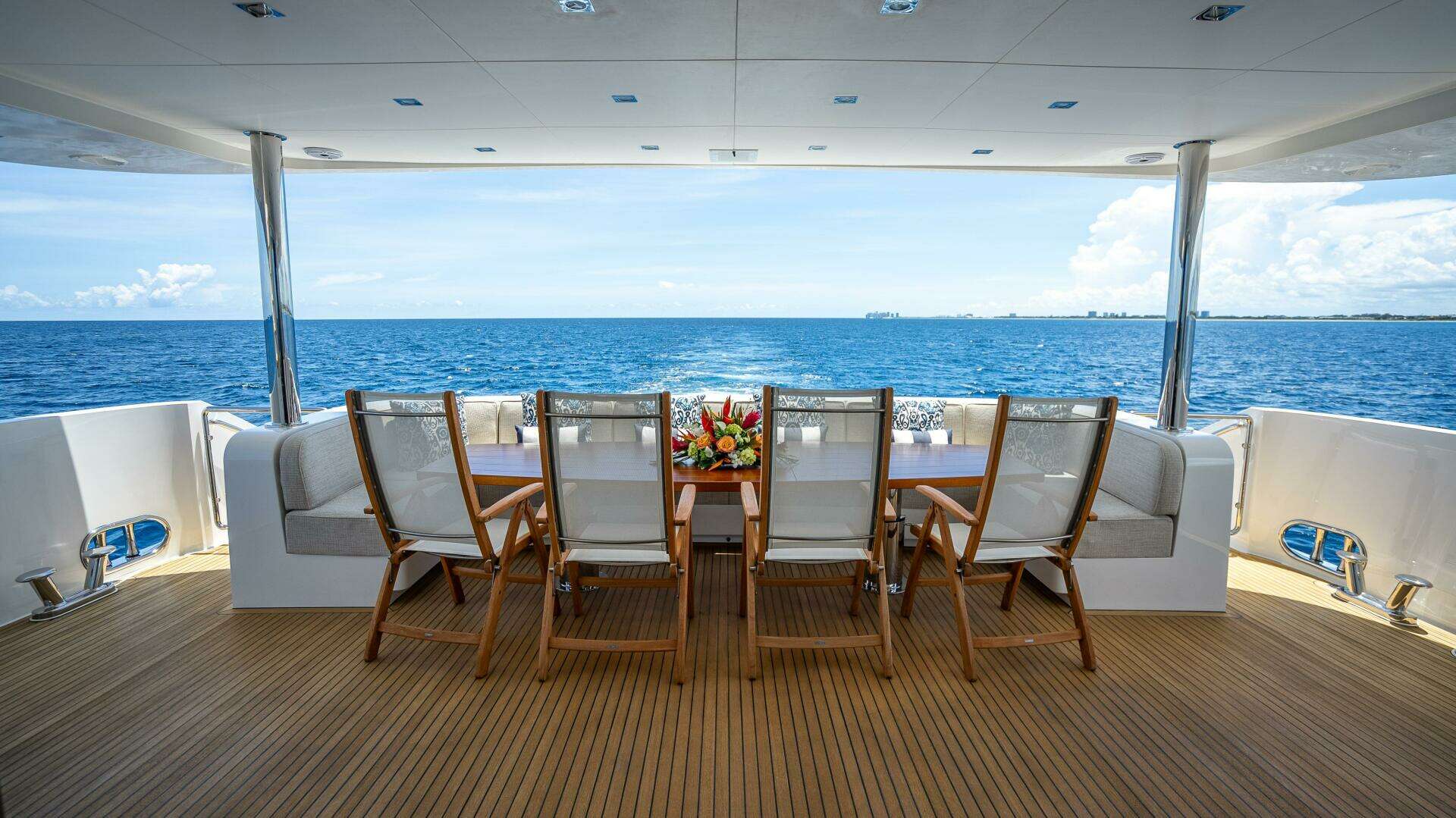

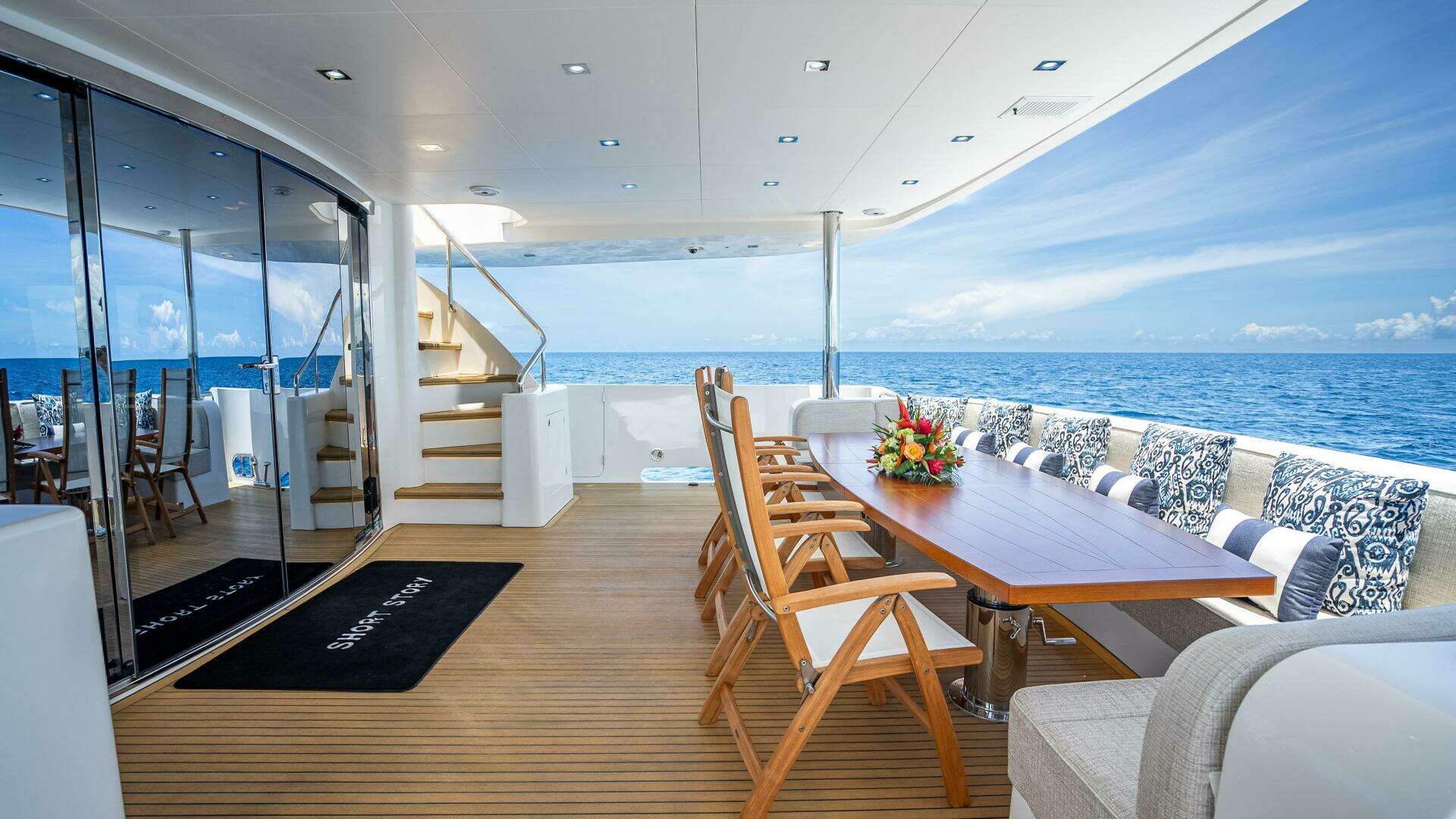

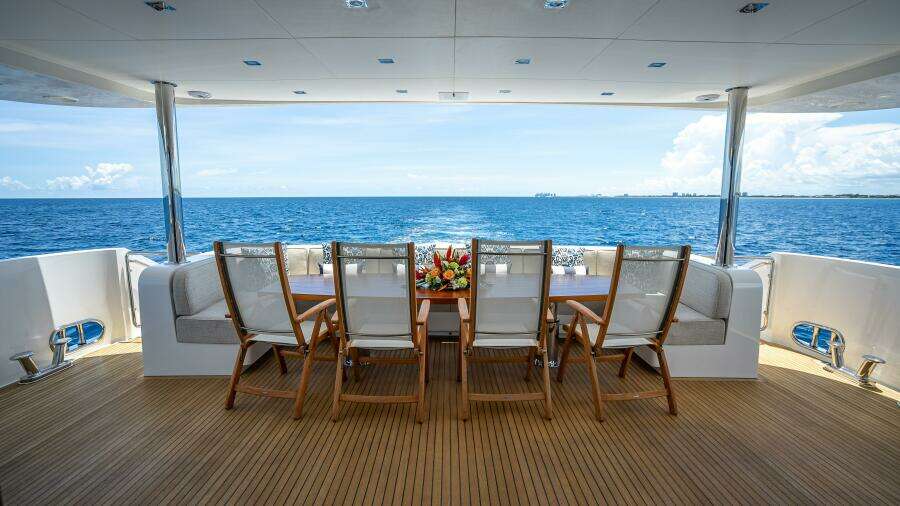

• Aft deck FRP settee w/ hi-lo teak dining table (sliding) - with removable centre
• All new cushions - 2025
• Samsung 40" LED TV - 2025
• (2) Pairs of JL speakers - 2025
• Besenzoni hydraulic passerelle

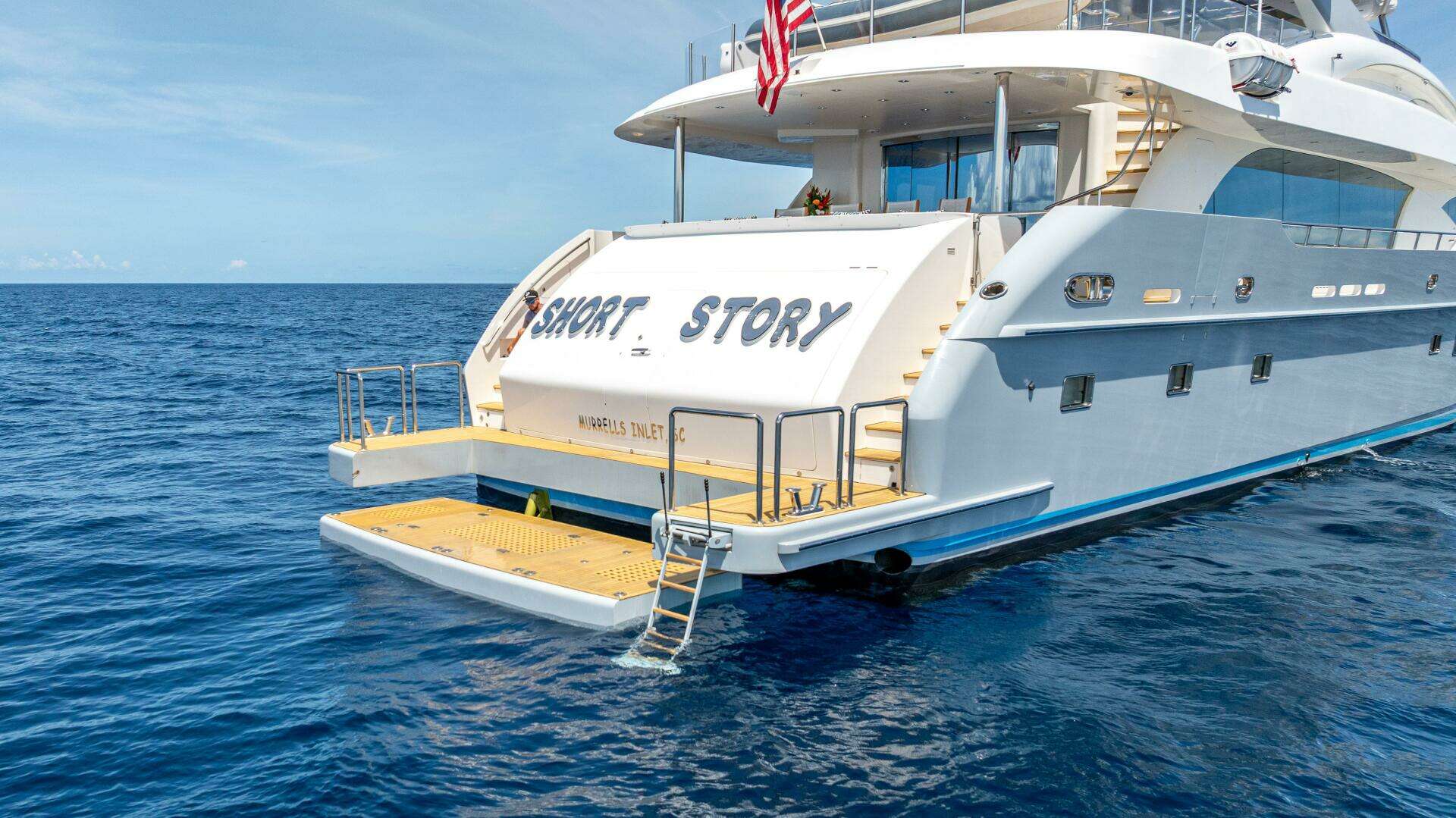

• Teak hydraulic hi-lo swim platform w/1750 lbs (800kg) load capacity and stairways to aft deck
• Built-in shower with hot/cold water above swim platform
• Besenzoni hydraulic swim ladder
• 2" Removable SS rails around swim platform at stern
• Fixed cleats for tender tying

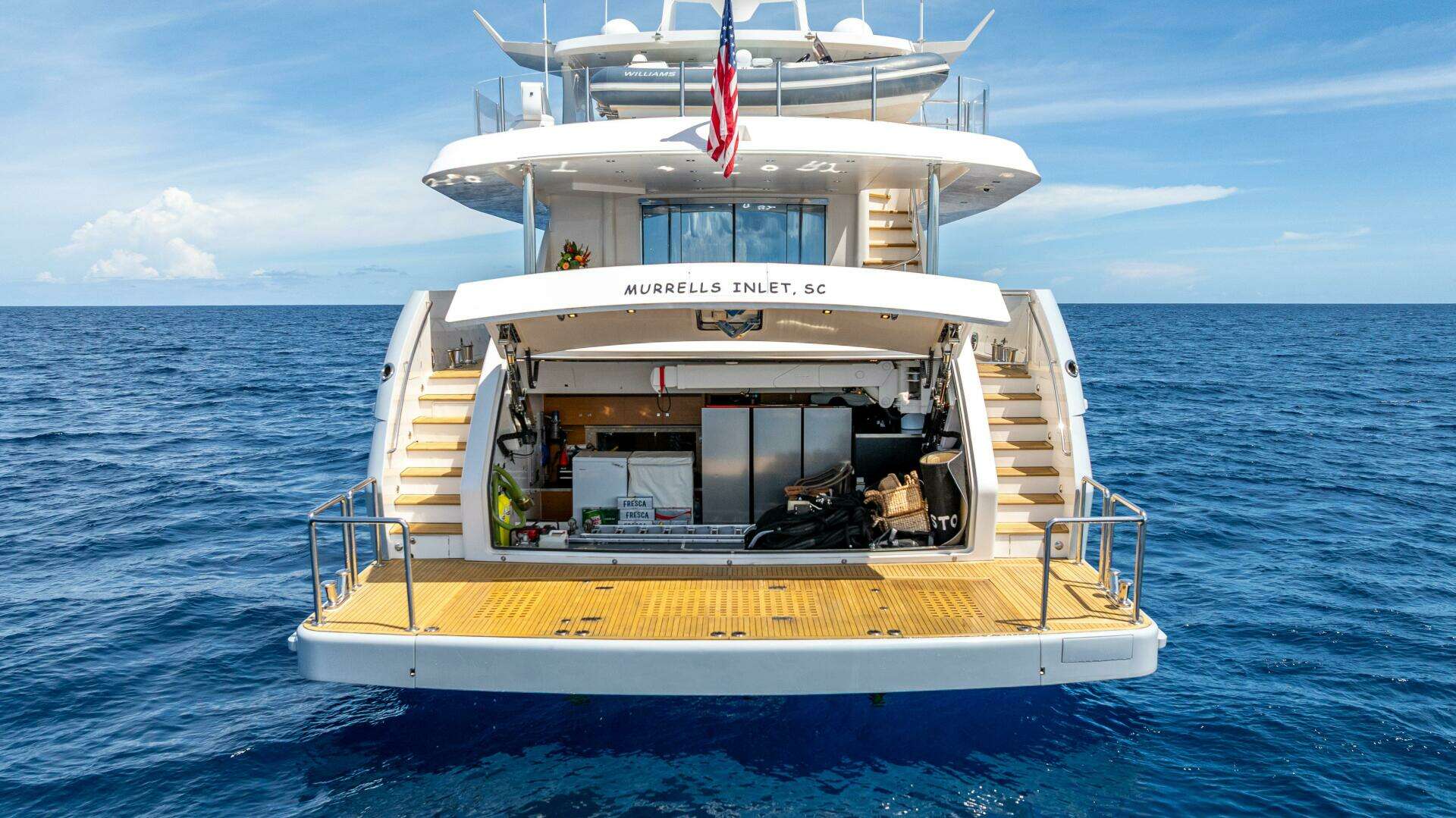

Tender Garage

• Large Hydraulic garage door (can be used as a garage or a beach club)
• Inflatable tender storage options: fits in both the garage and on the flybridge
• Besenzoni boat track system in garage
• Escape hatch to crew cabin

Forward Deck

• (1) pair of Fusion speakers
• Large U-shaped settee & foredeck sunbathing cushion w/drink holders
• New cushion covers - 2025
• Morton Marine umbrella for fwd seating
• Bow teak step with cushion; extra shower head in FRP cabinet beneath step
• Bow seating area has a teak high-lo table with U shaped seat

Mooring System

• (2) Maxwell VWC6000 hydraulic windlasses w/local plug in control and foot switches and remote (hidden windlass design at bow)
• (2) Chain counters located in pilothouse
• (2) Extra chain counters
• (2) Maxwell VC3500 electric rope winches w/rope roller at aft deck
• Hawser holes at port & starboard sides at transom aft deck
• (2) Aft deck corner fairleads
• (2) Maxwell electric rope winches on fwd deck
• (2) 150kg SS anchors with SS bow protection plate
• 400' High tensile 1/2" anchor chains (2) w/chain stopper & tensioner
• Freshwater/sea water anchor chain washdown system by manual operation
• Heavy-duty 316 SS cleats and fairlead w/rollers at forward & aft deck

Doors, Hatches, Windows & Port Holes

• (4) Bulwark doors at foredeck & aft deck for boarding
• Deckhouse entrance doors (2) at galley and foyer
• Watertight door at the entrance to the utility room/garage from the swim platform
• SS gate doors from aft deck to swim platform
• Frameless windows clear tempered laminated Low-E glass for windshield & side windows
• Acrylic glass for flybridge windscreens
• (4) Larger windows for VIP & Guest staterooms
• (10) Large port lights
• CE approved SS portholes with storm covers for staterooms

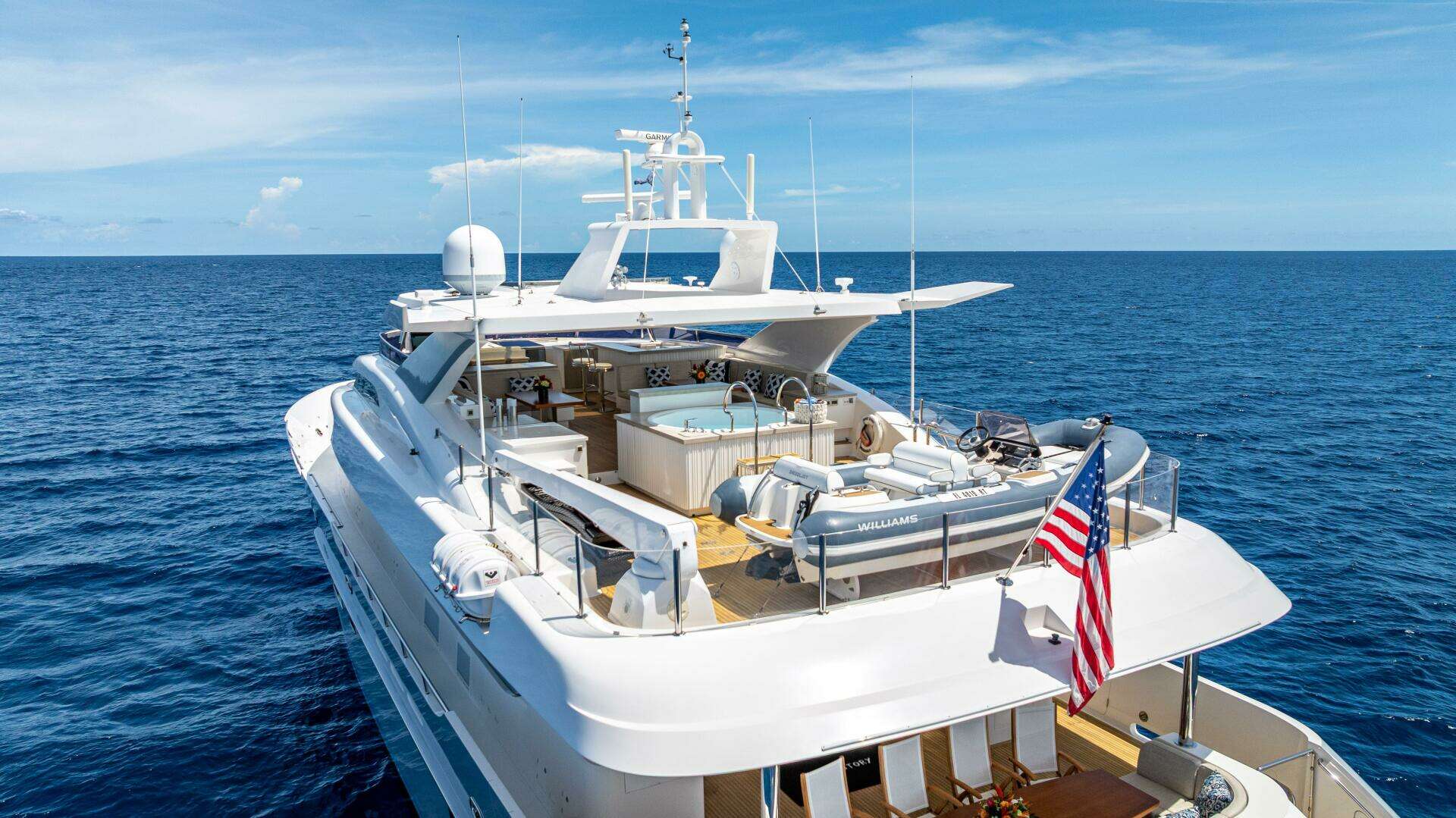

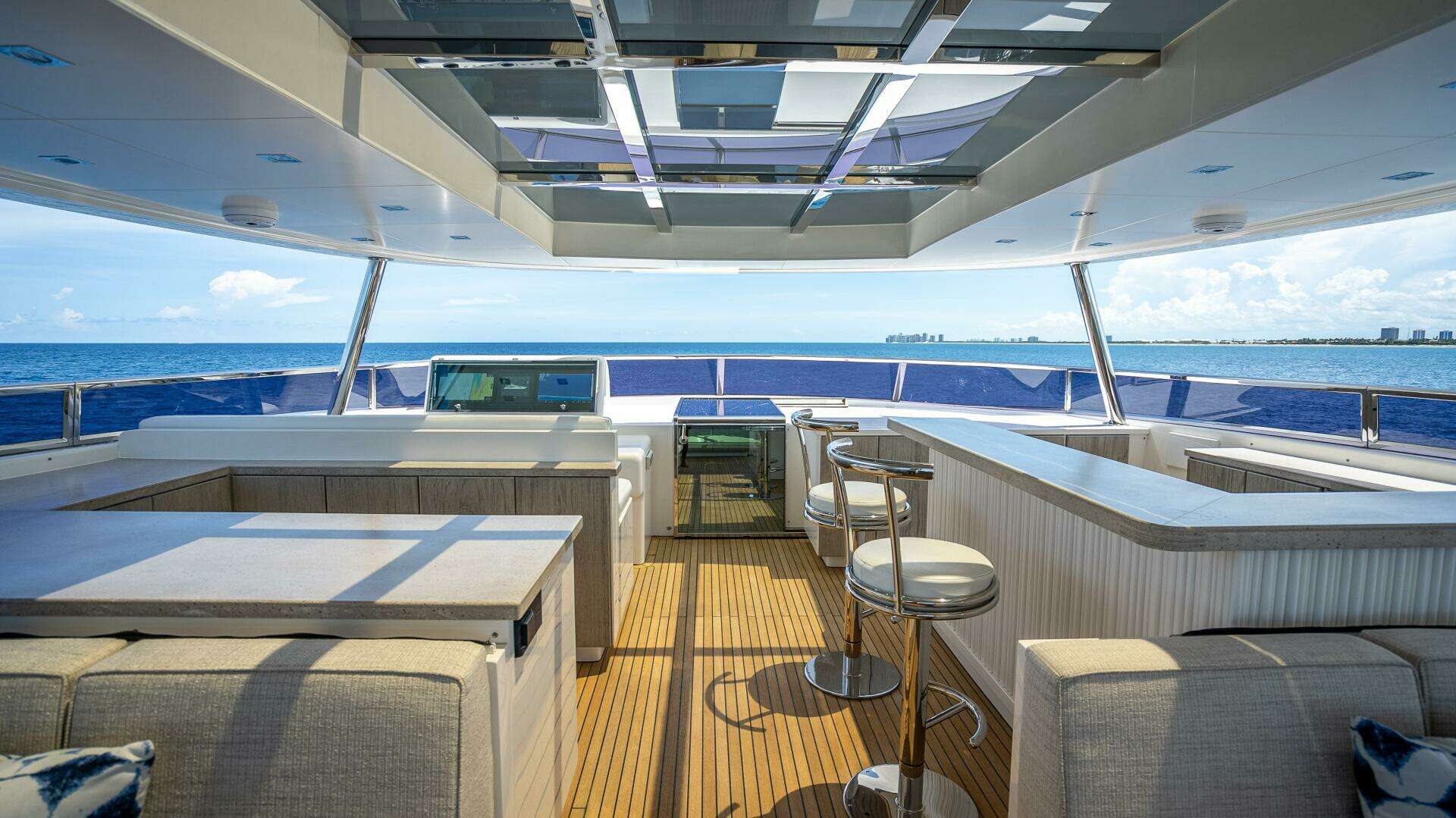

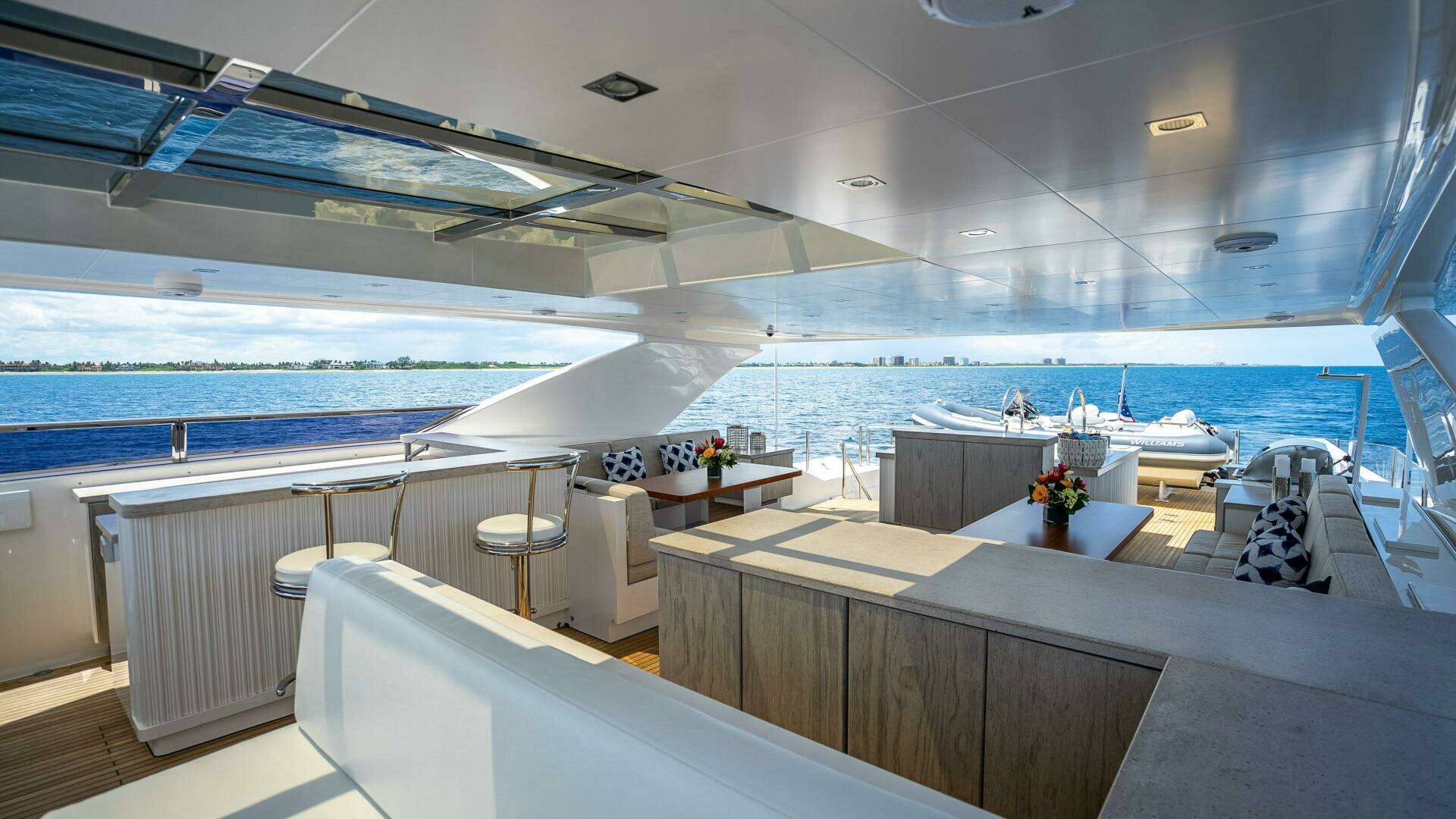

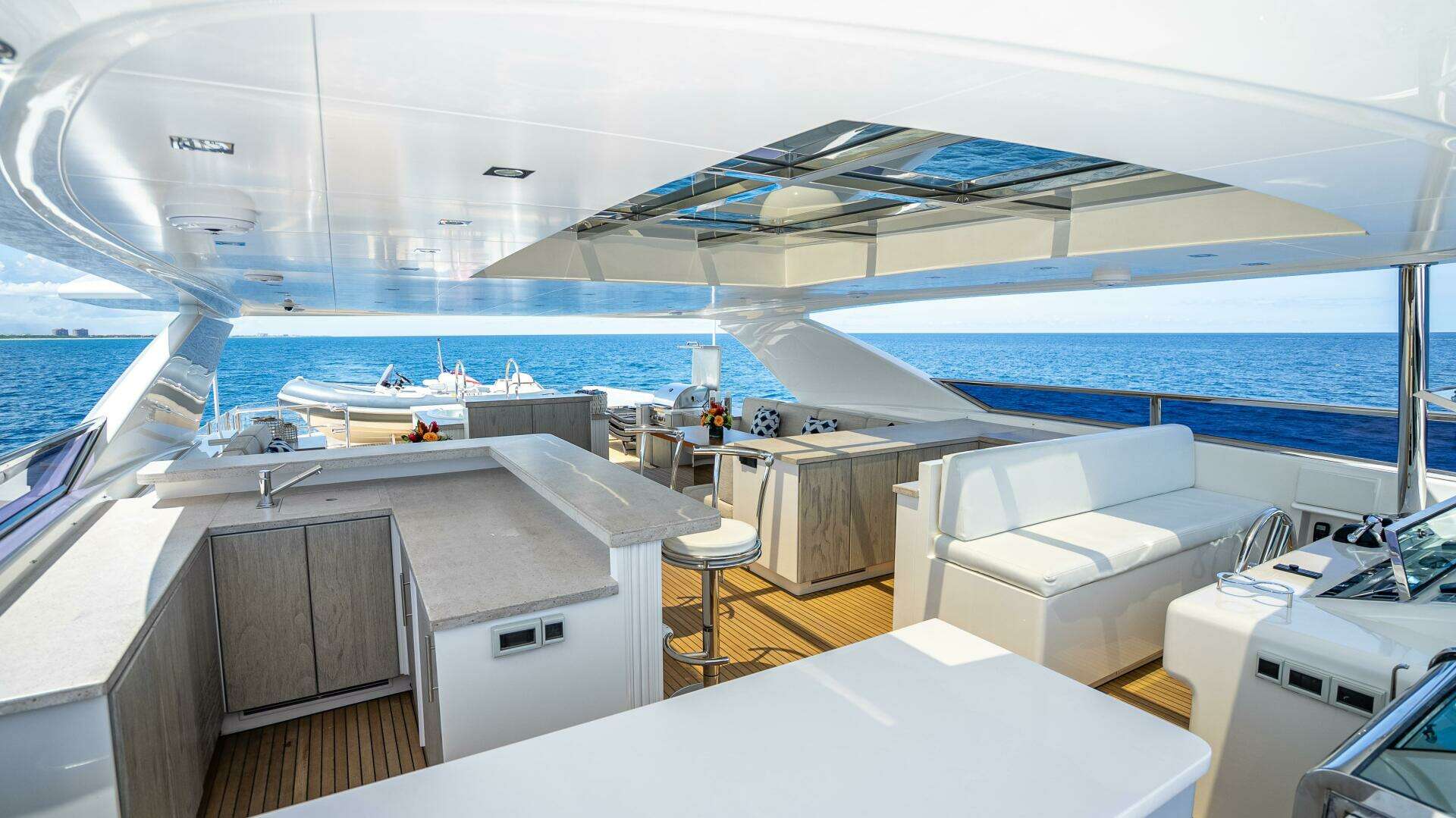

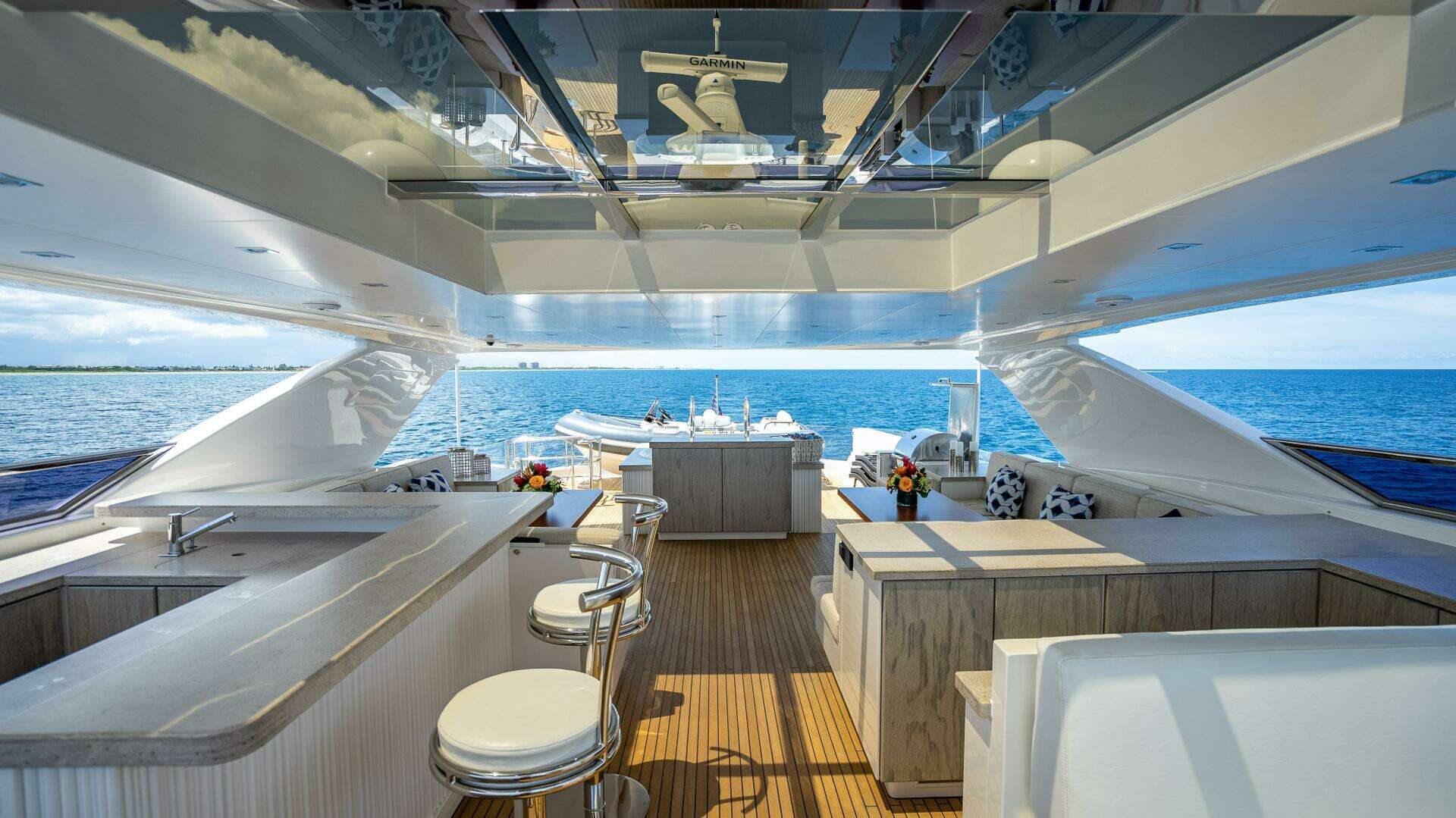

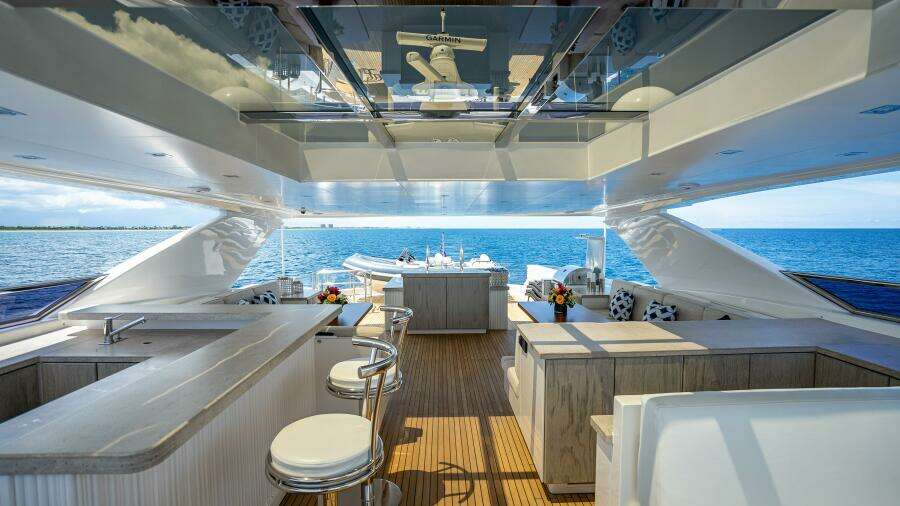

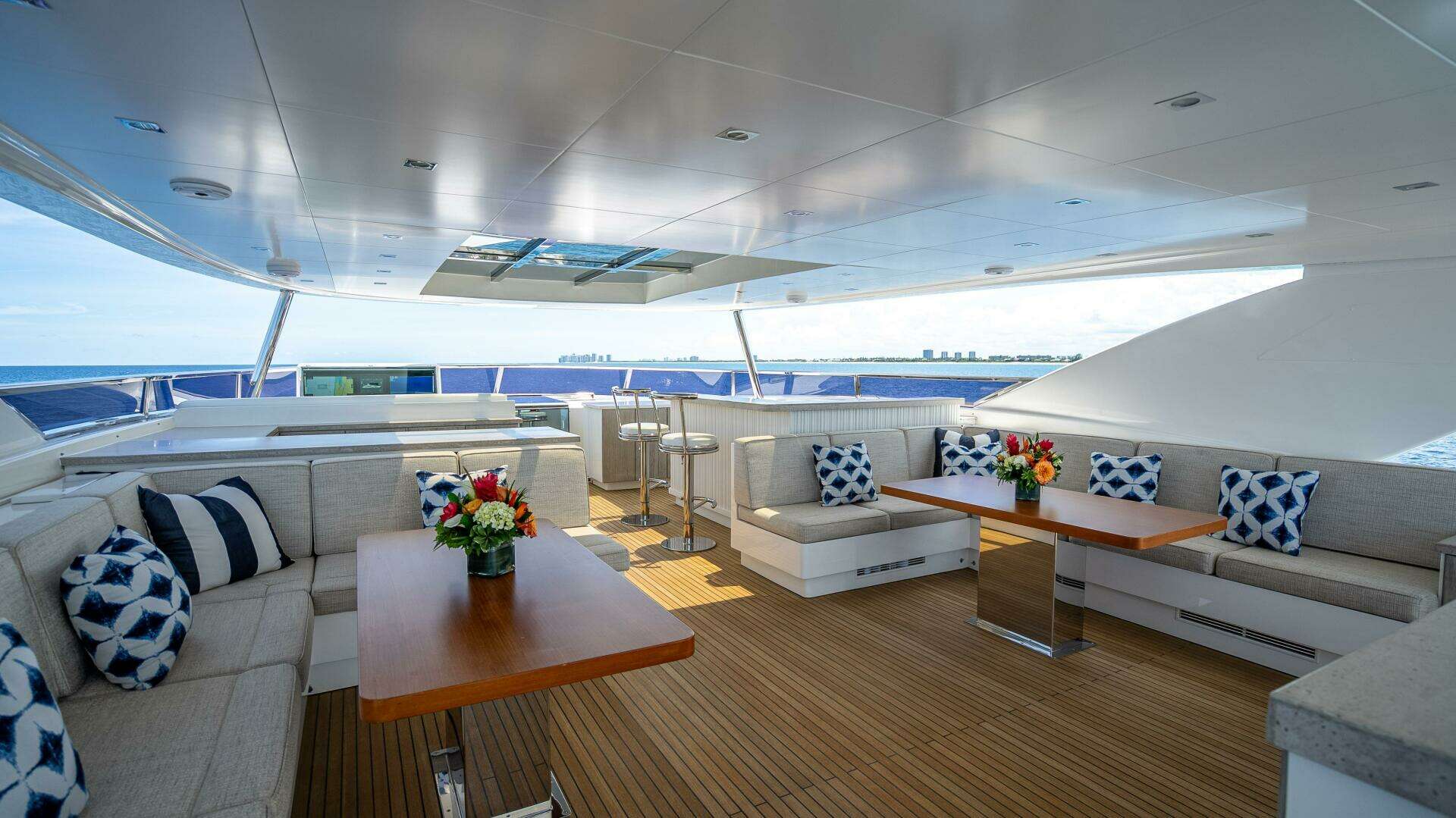

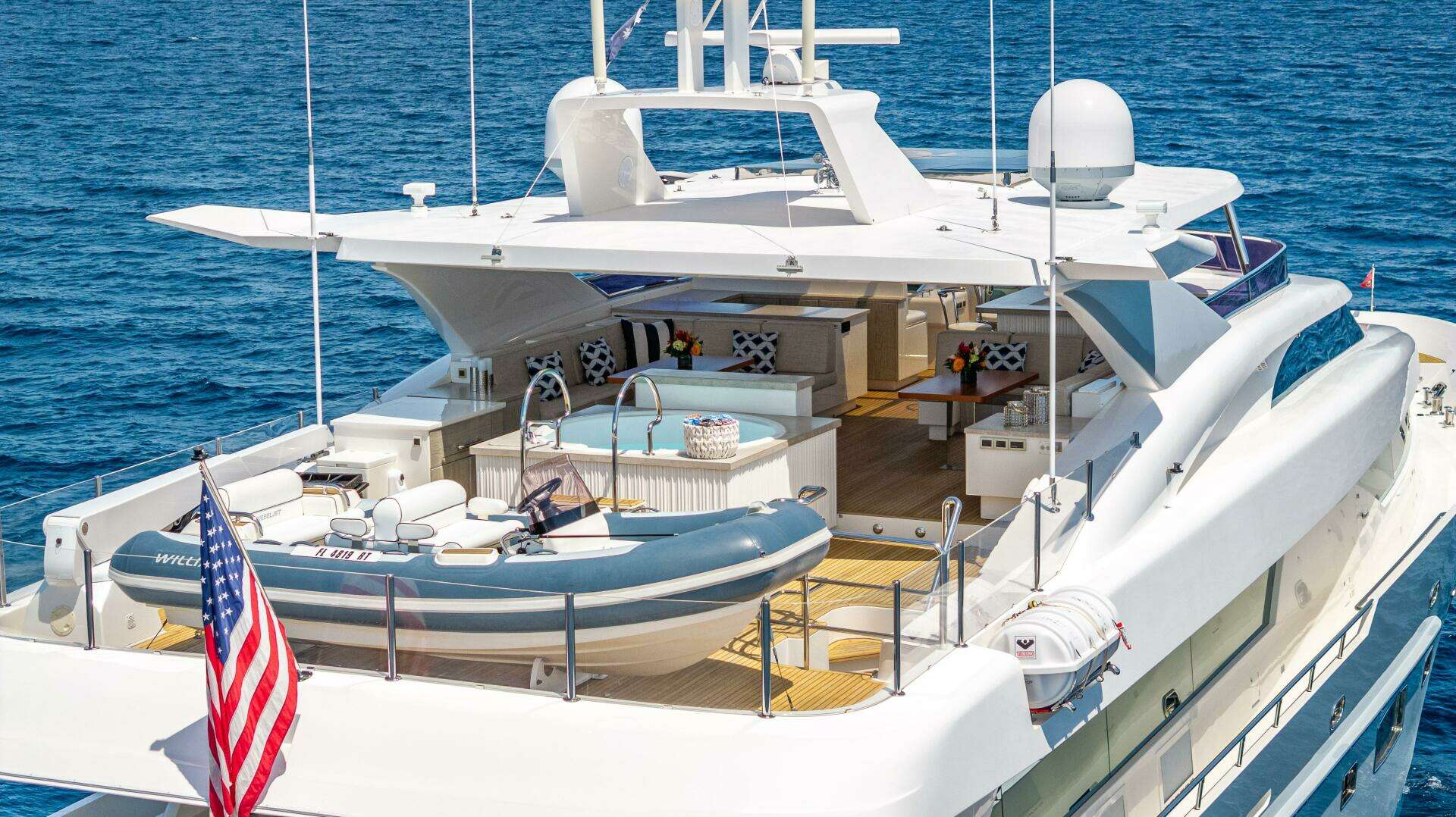

Flybridge and Boat Deck

• Teak on entire FB deck
• Indirect lighting system under bar & seats
• Oversize drains w/strainers on each corner of flybridge deck with internal overboard drains, all w/check valves & vent holes

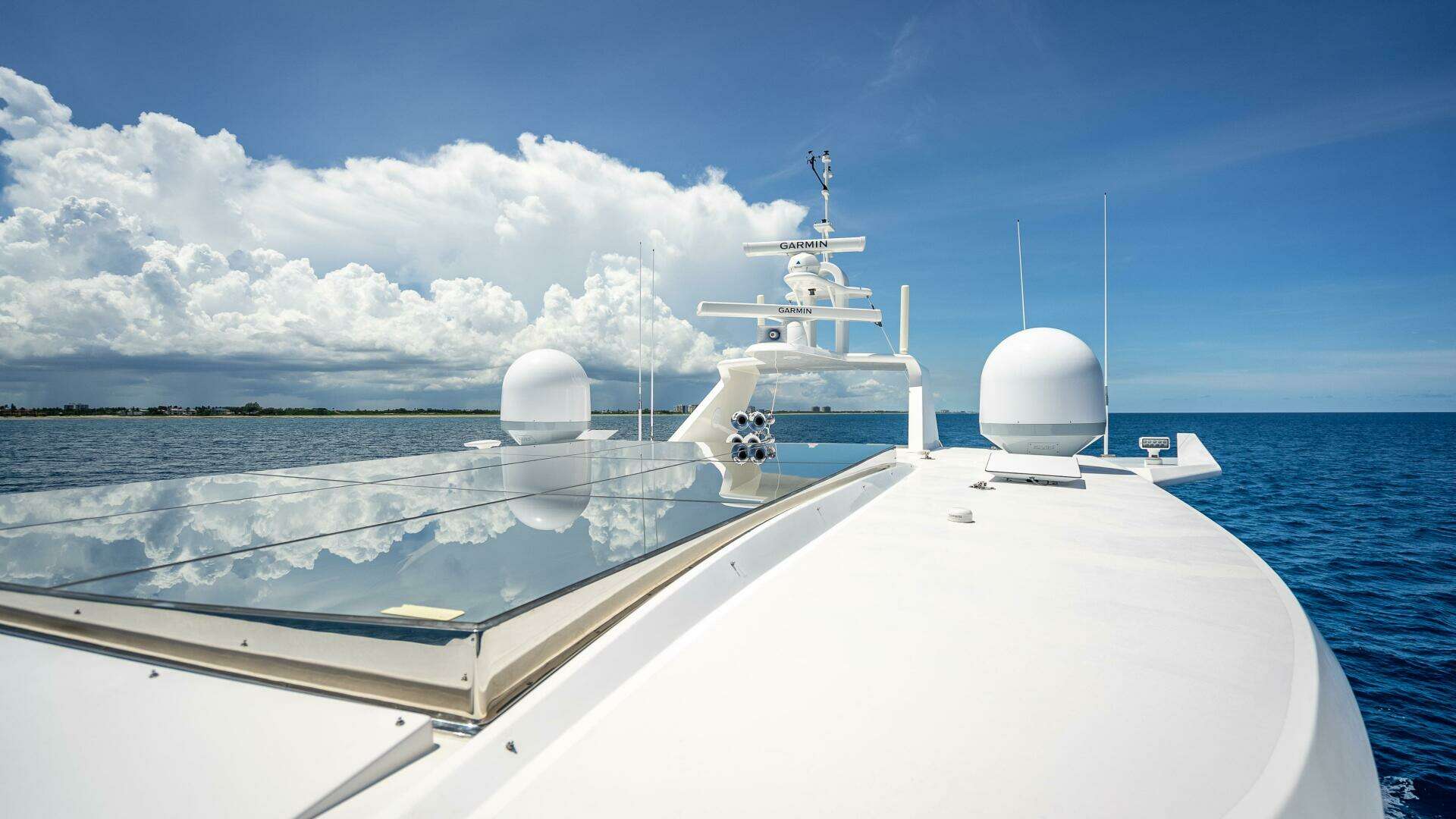

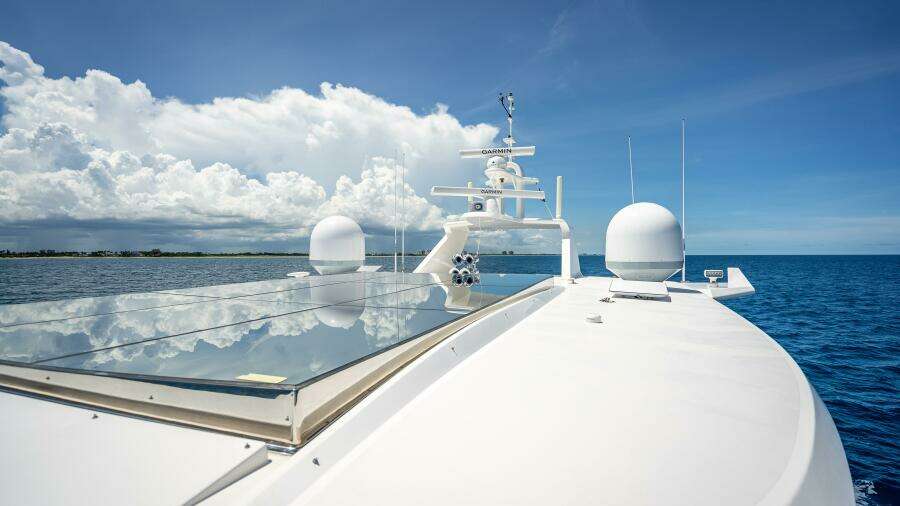

• Radar arch w/antenna bracket, (2) search lights on both sides of radar arch and Buell Quadraplex air horn
• Curved stairway from aft deck to flybridge with teak steps and SS handrail

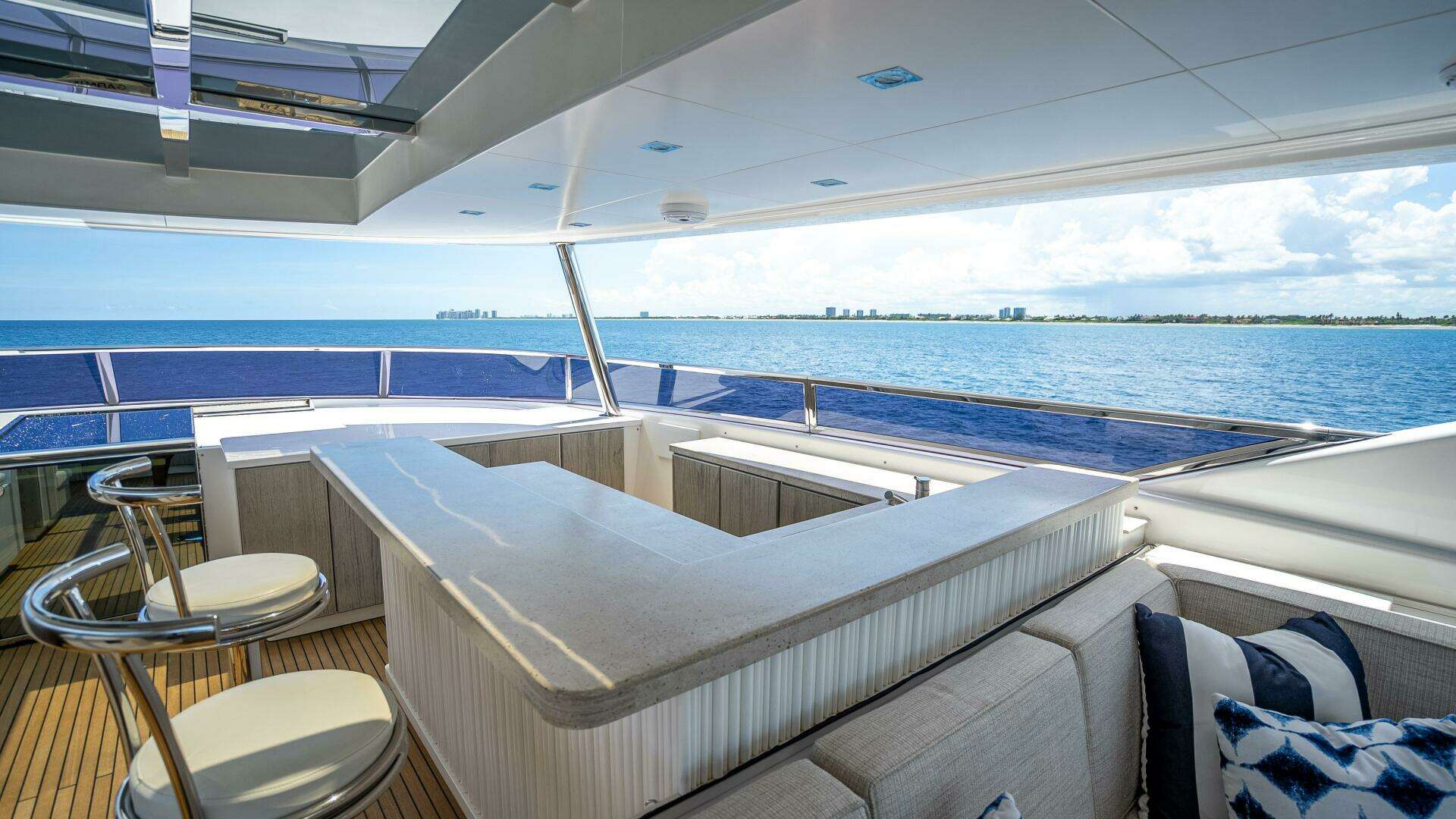

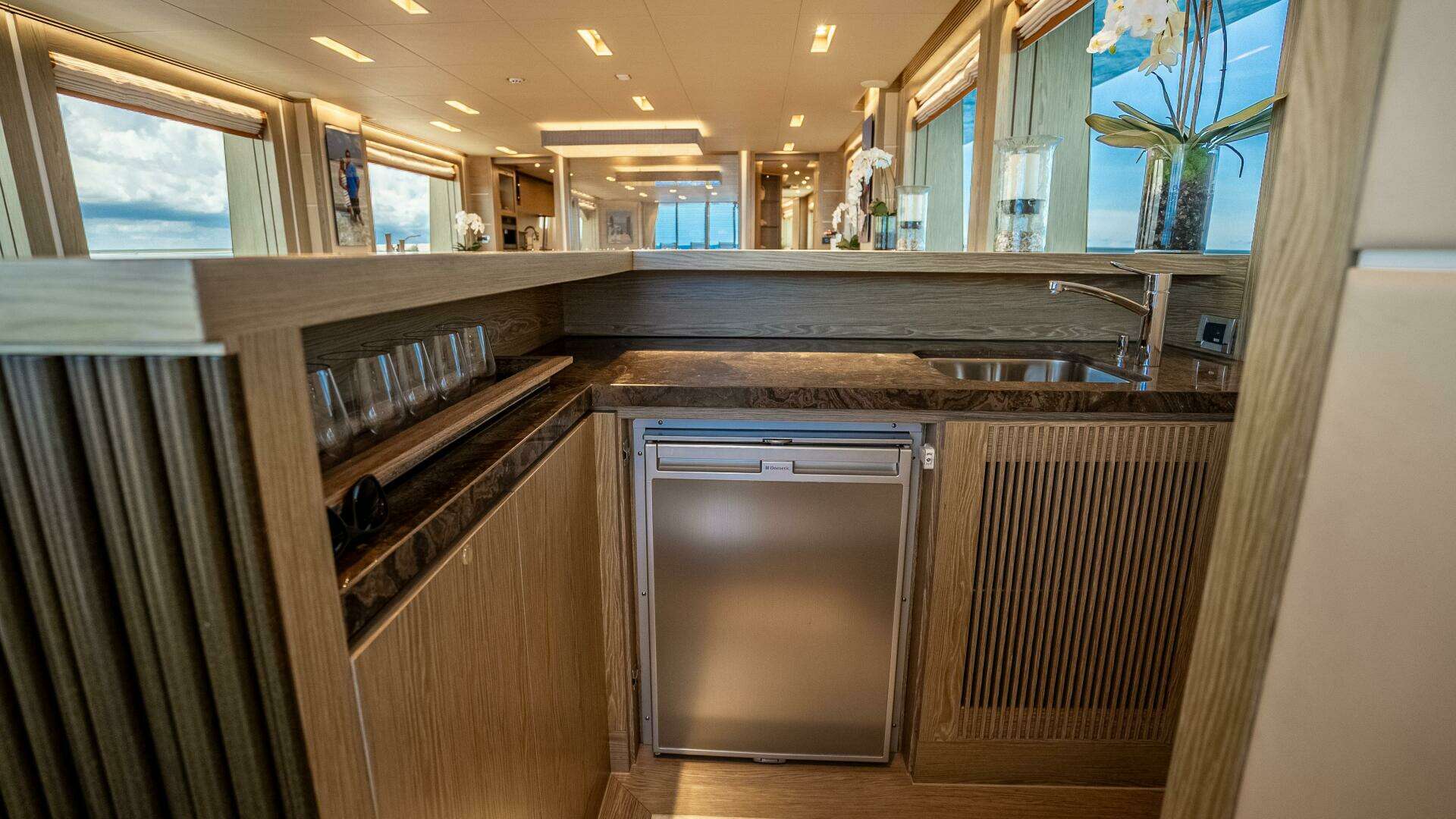

• Custom bar with sink, icemaker, fridge; adjacent storage area
• Footrest around bar and (2) round stools for bar counter
• (2) FRP settees & sliding teak tables per layout

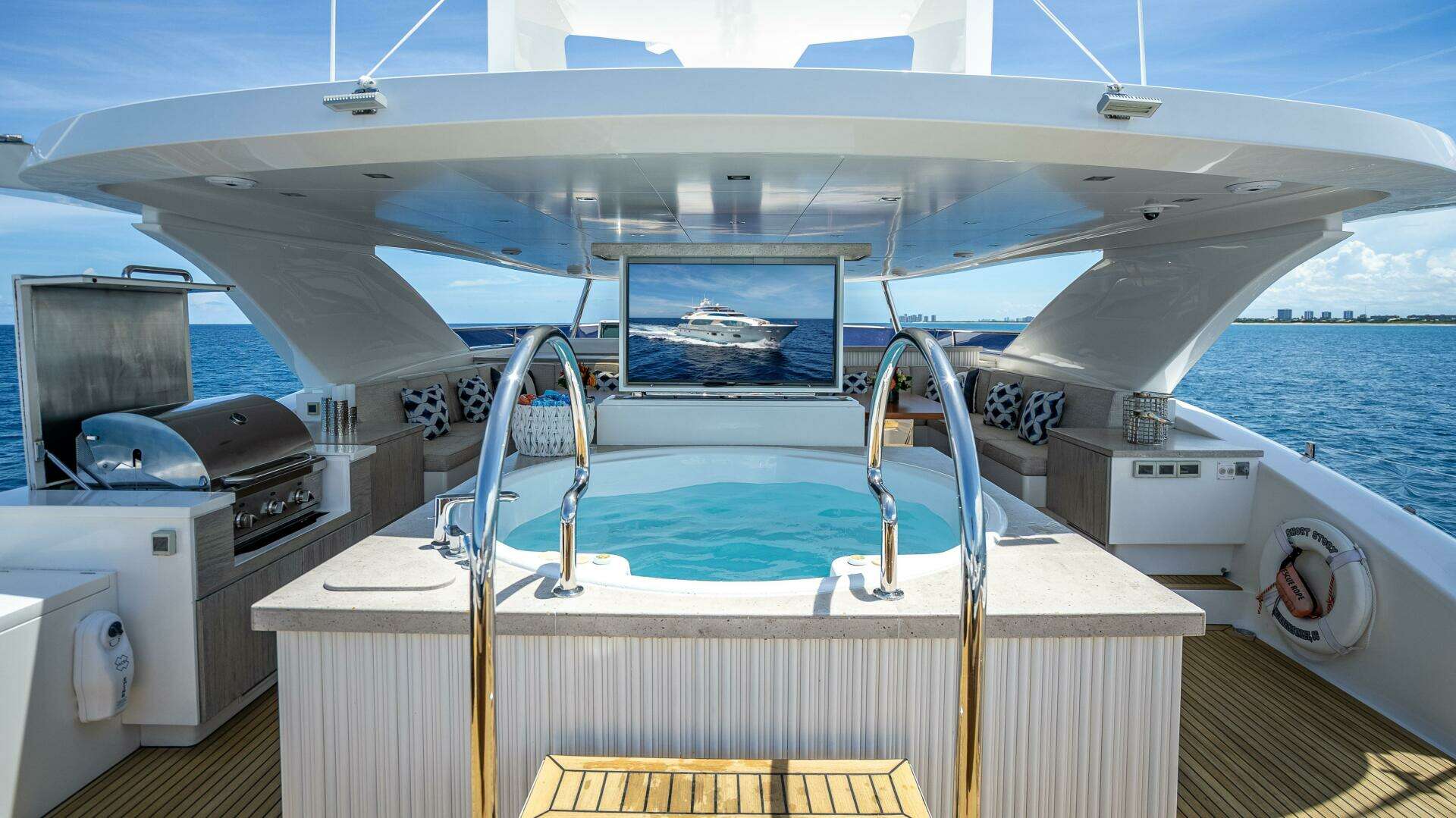

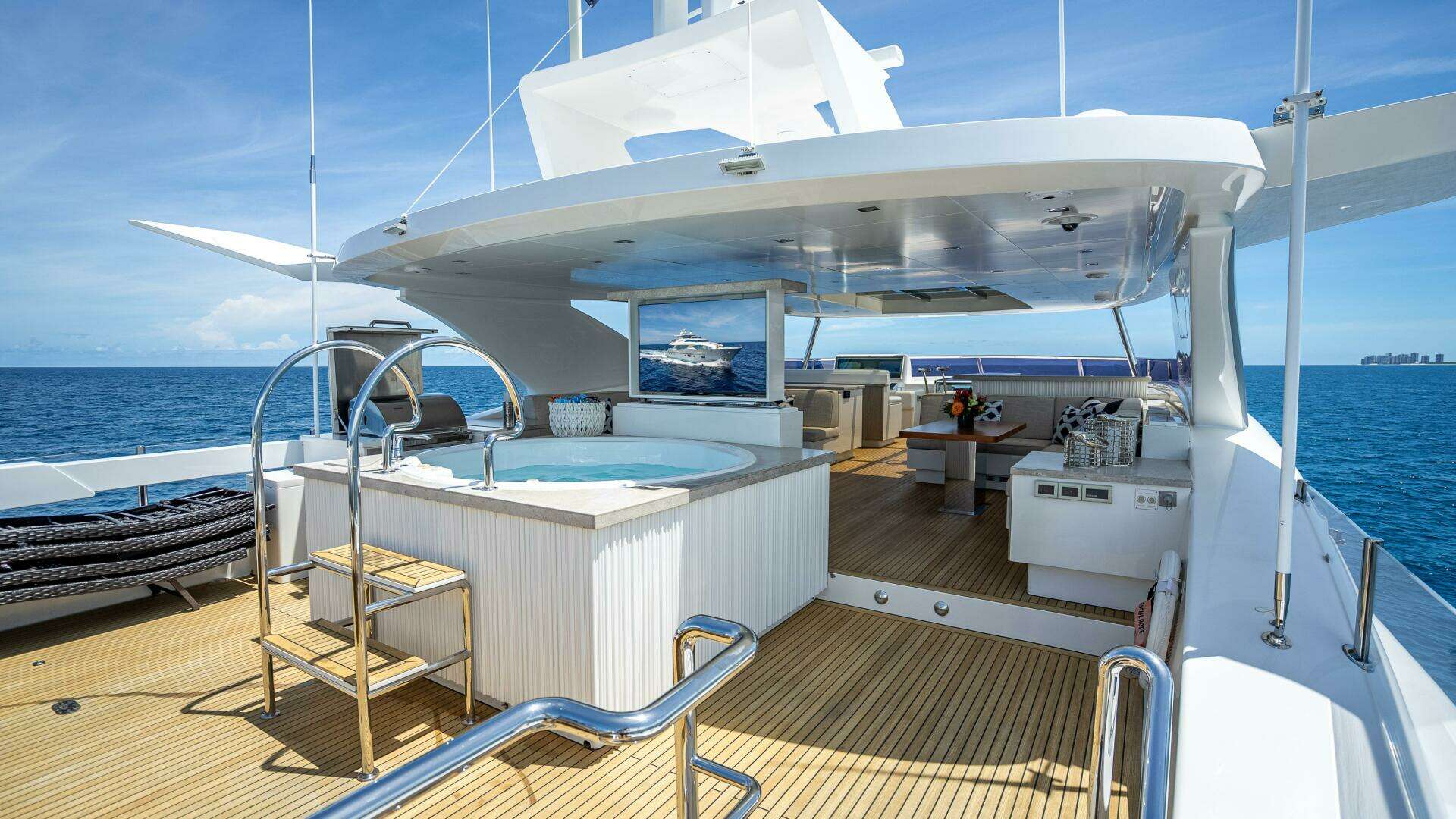

• (5) Persons jacuzzi with heater
• Removable hand rails w/ acrylic panels around flybridge aft deck and stairway rails

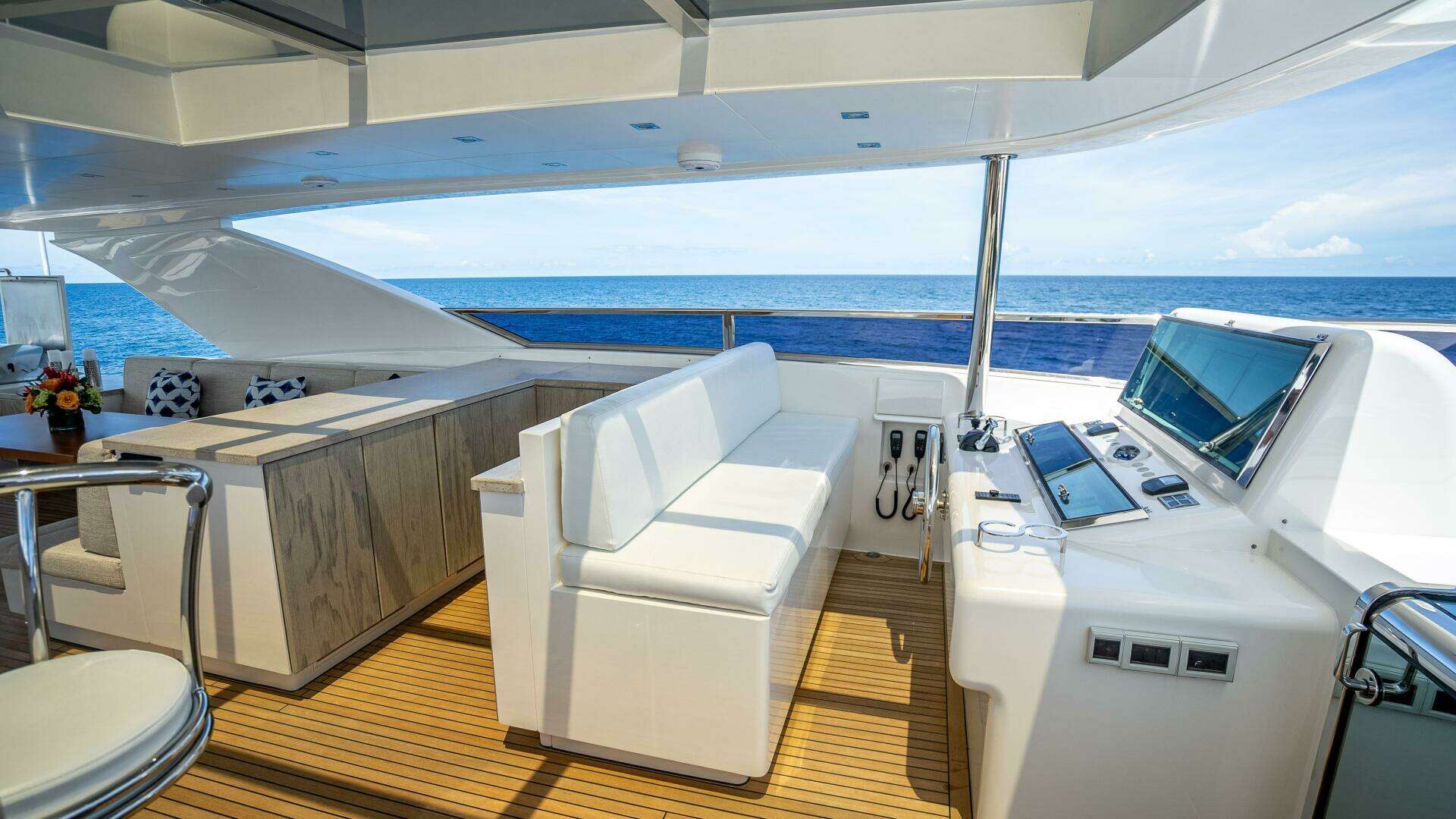

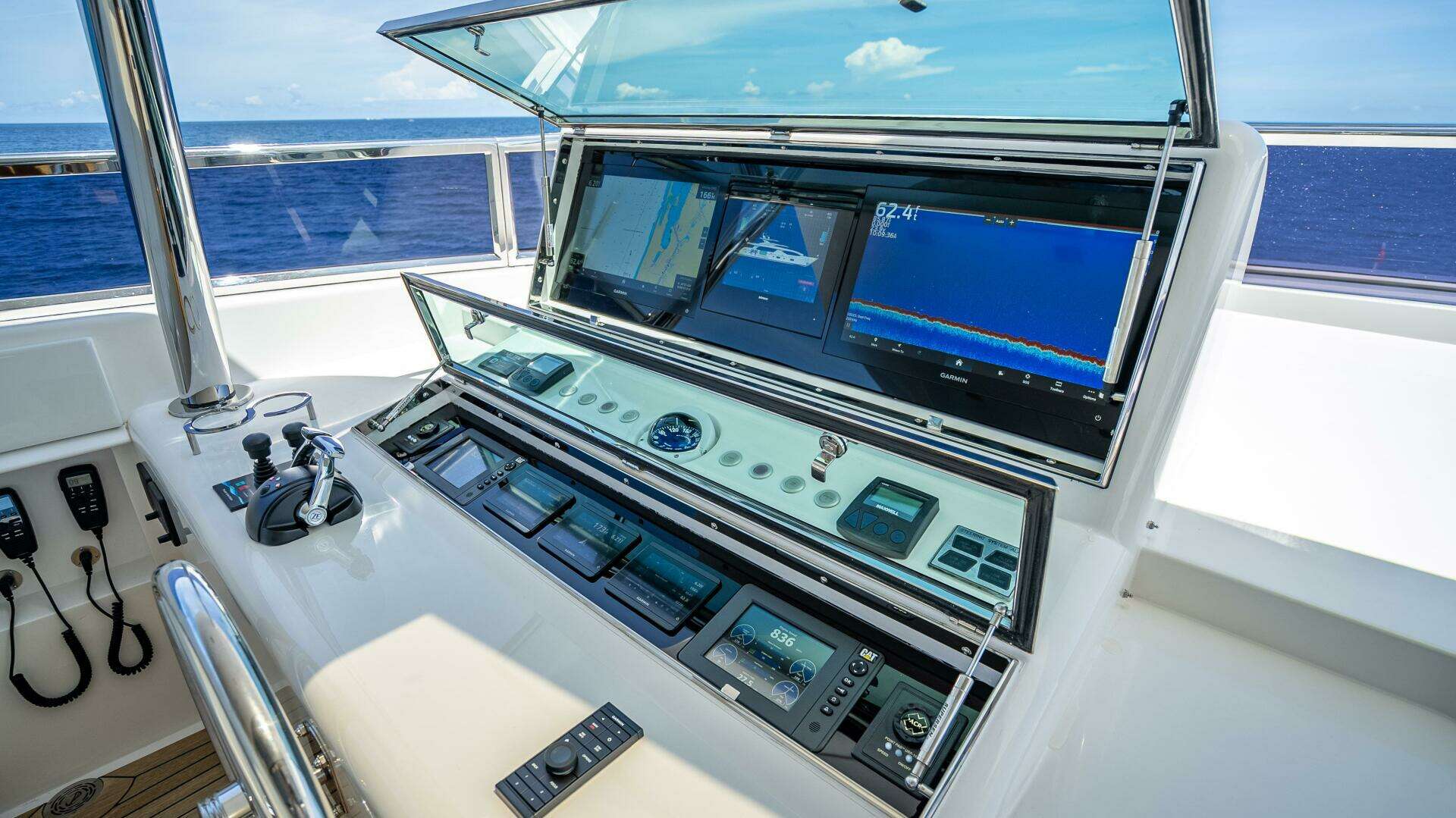

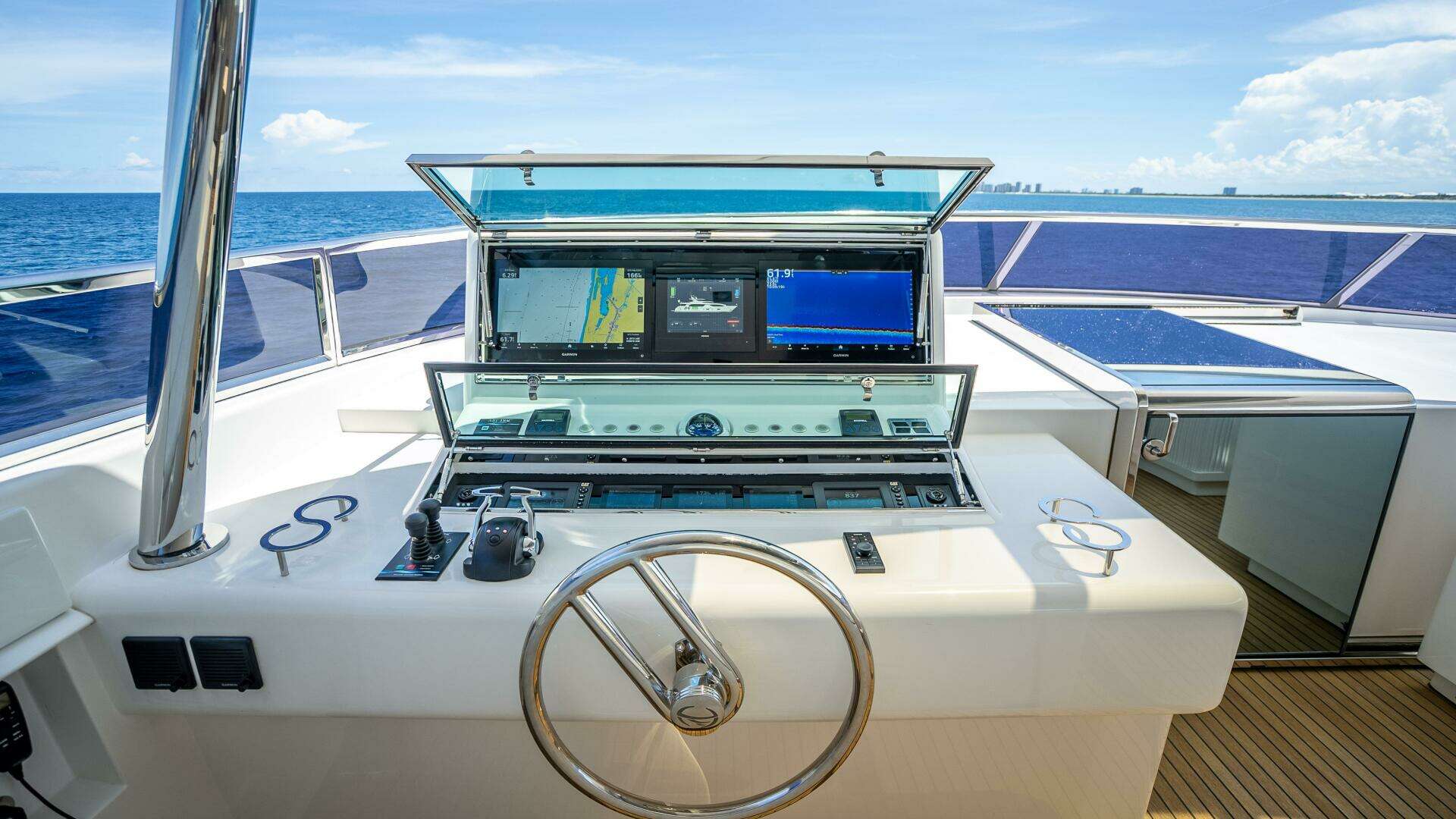

• Custom helm station with carbon fiber dashboard panel with ZF Mather controls, compass, steering wheel and clear access on both sides for docking
• (2) Flood lights illuminating flybridge aft deck, flush mounted in hard top & (2) flood lights illuminating radar arch/mast
• Webasto soft top folding roof system for hardtop
• FRP cabinet with Propane BBQ w/ manual lift up function & extra deck wash faucet
• New cabinet doors - 2024
• Air conditioning on flybridge
• Hydraulic Steelhead ES1500 davit
• SS Rail w/groove as lower track for EZ2CY
• FRP cover with sunpad above flybridge jacuzzi

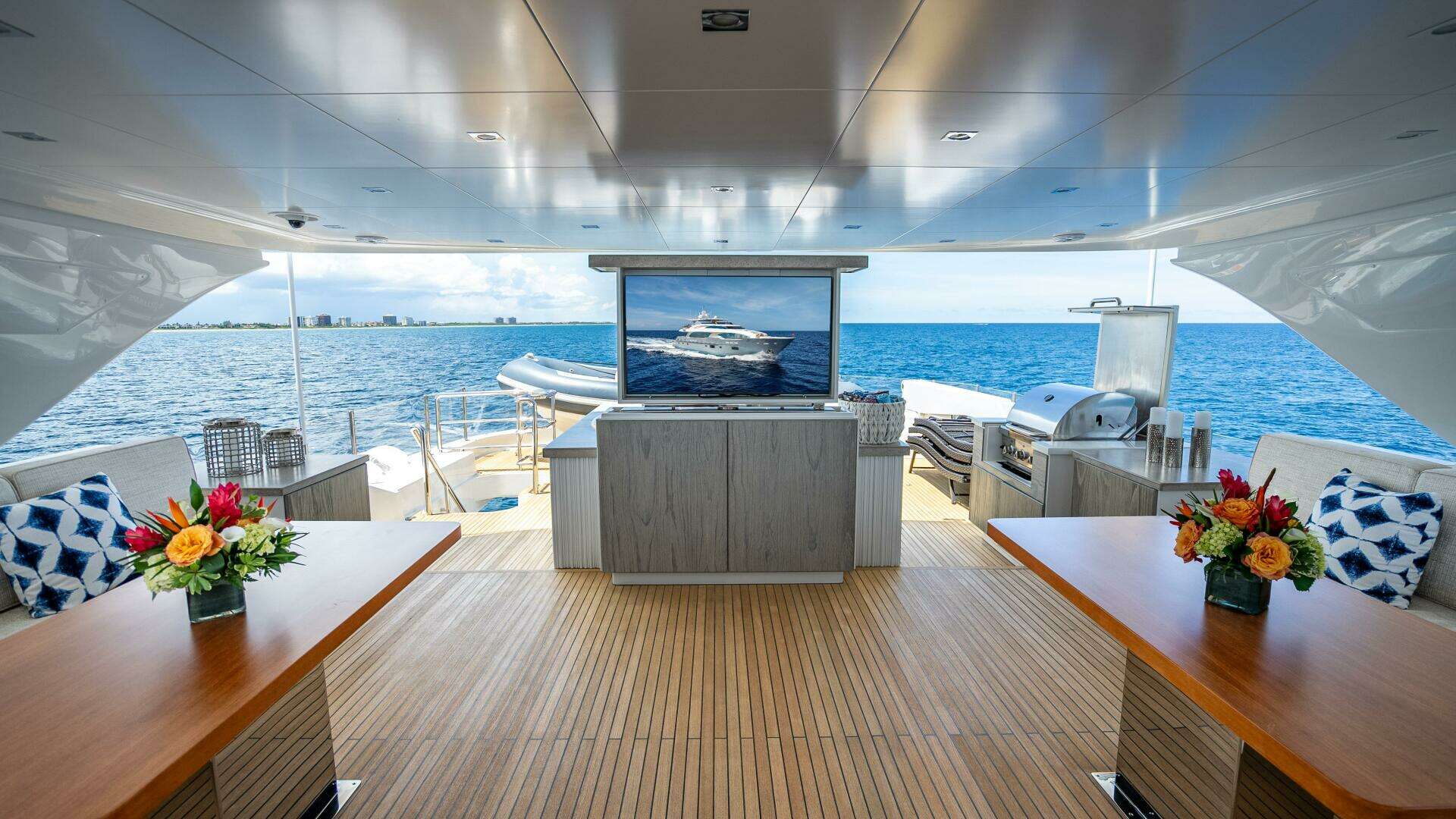

• SunBrite 46" LED TV
• (4) pairs of JL speakers
• (2) Life rafts

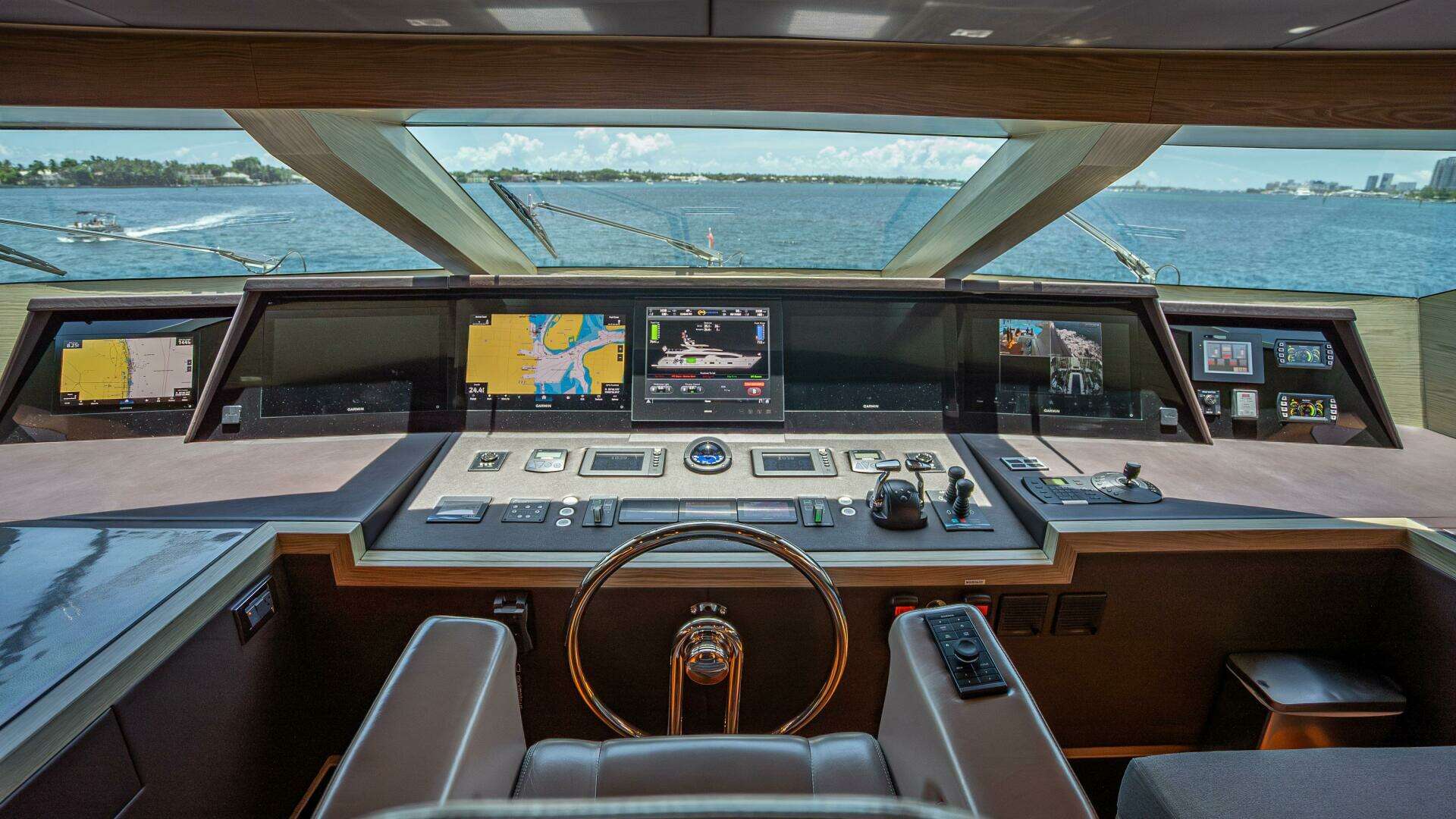

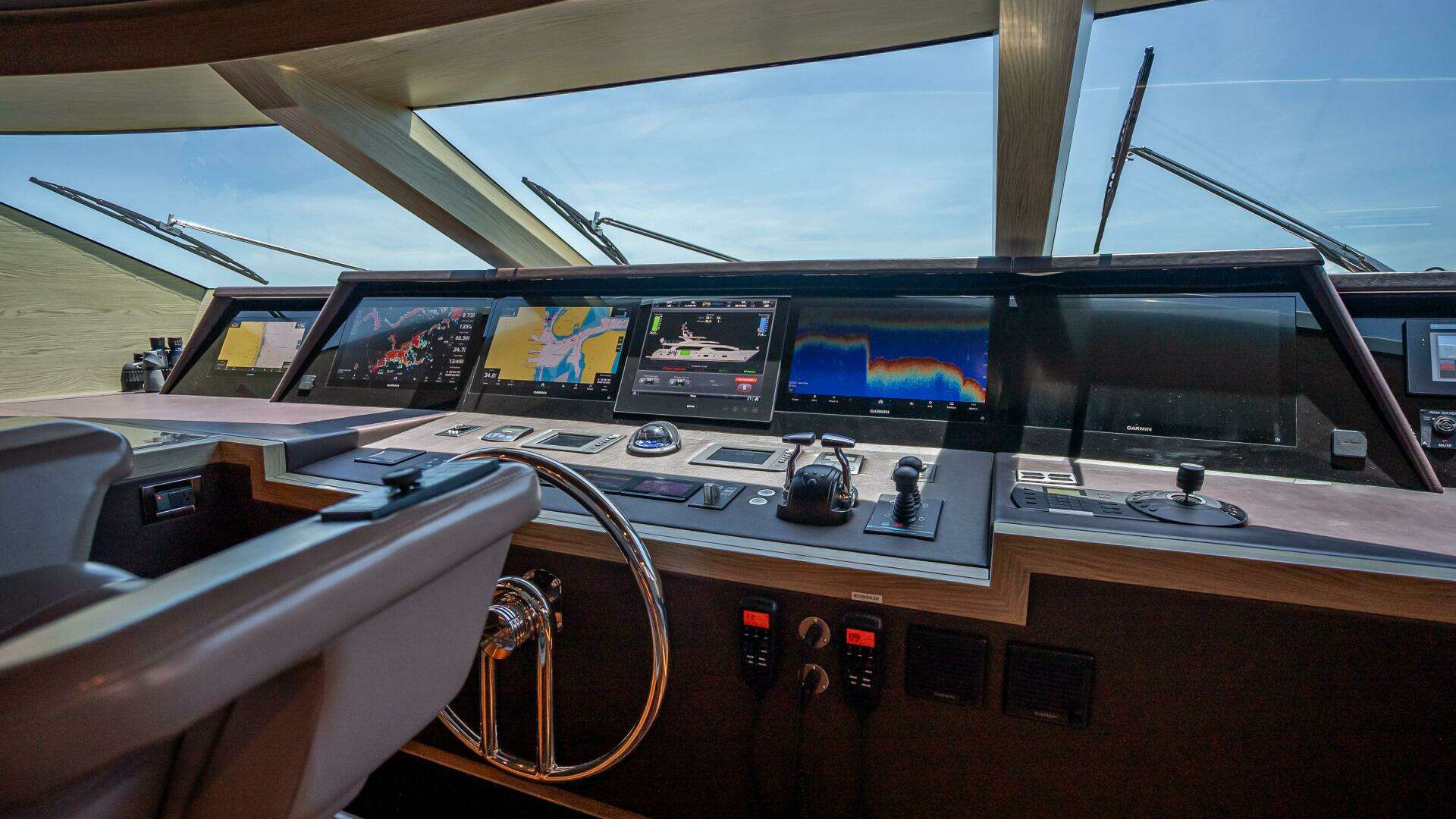

Pilothouse and Instruments

• Integrated instrument panel on helm station with black acrylic dashboard panel
• Integrated general alarm and monitoring system for important equipment (bilge pumps, blowers, navigation lights)
• International LED navigation lights
• Boening monitoring and control system
• Ritchie magnetic compass for pilothouse and flybridge stations
• Heavy-duty Speich SS wipers and washer system, with variable speed control for each windshield wiper
• L-Shaped leather settee, teak sliding table
• Desk with storage and one chair
• Hardwood flooring
• Surveillance camera for aft deck, flybridge and engine room
• Upgrade to electric Besenzoni pilotchair P216 with Garmin Controls
• All new Garmin electronics with 5 screens
• 3 Small Garmins
• ABT Trac
• Dual Radar
• Autopilot
• Bow & Stern Thruster
• (1) Pair of JL speakers

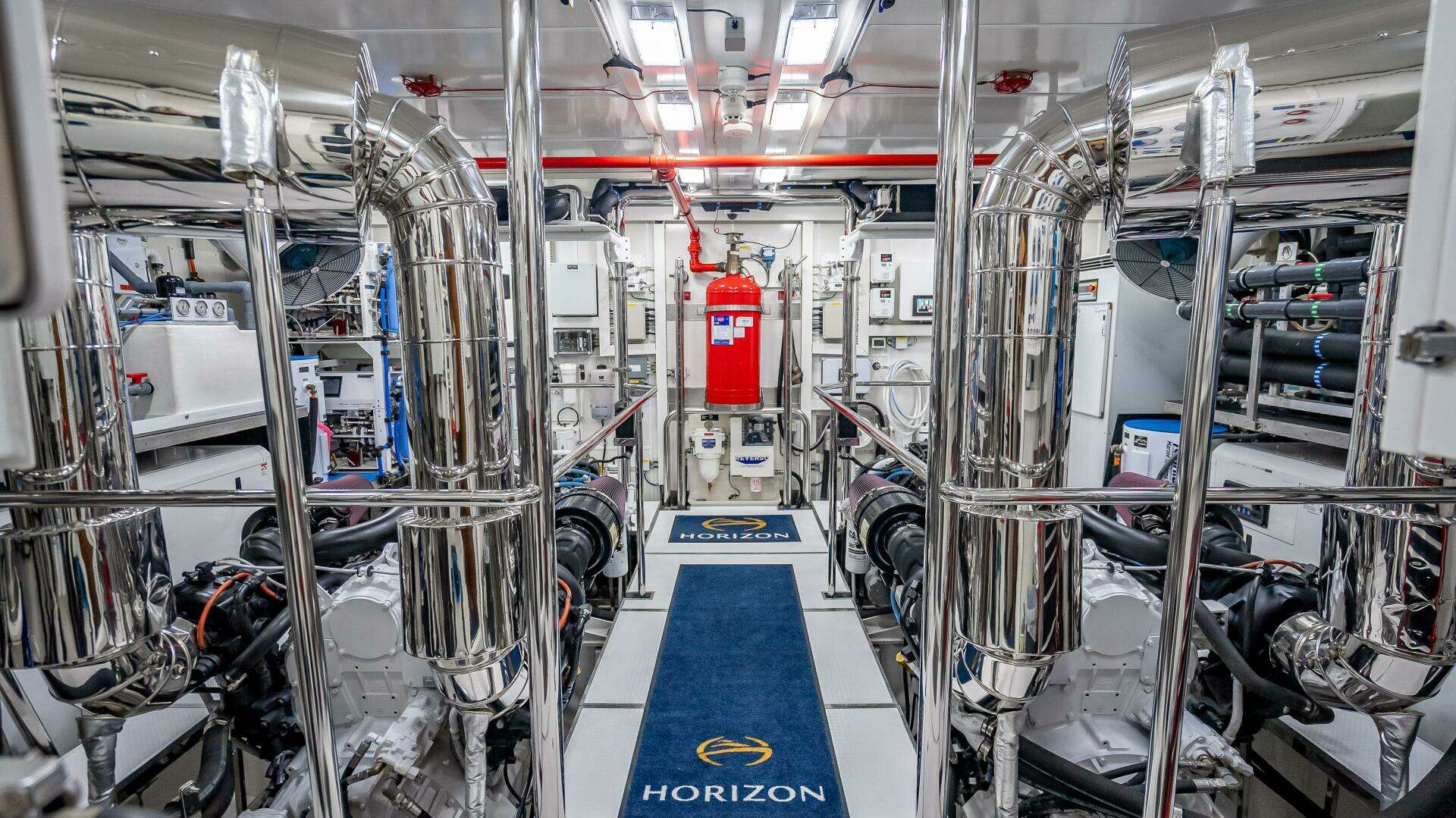

ER and Propulsion Equipment

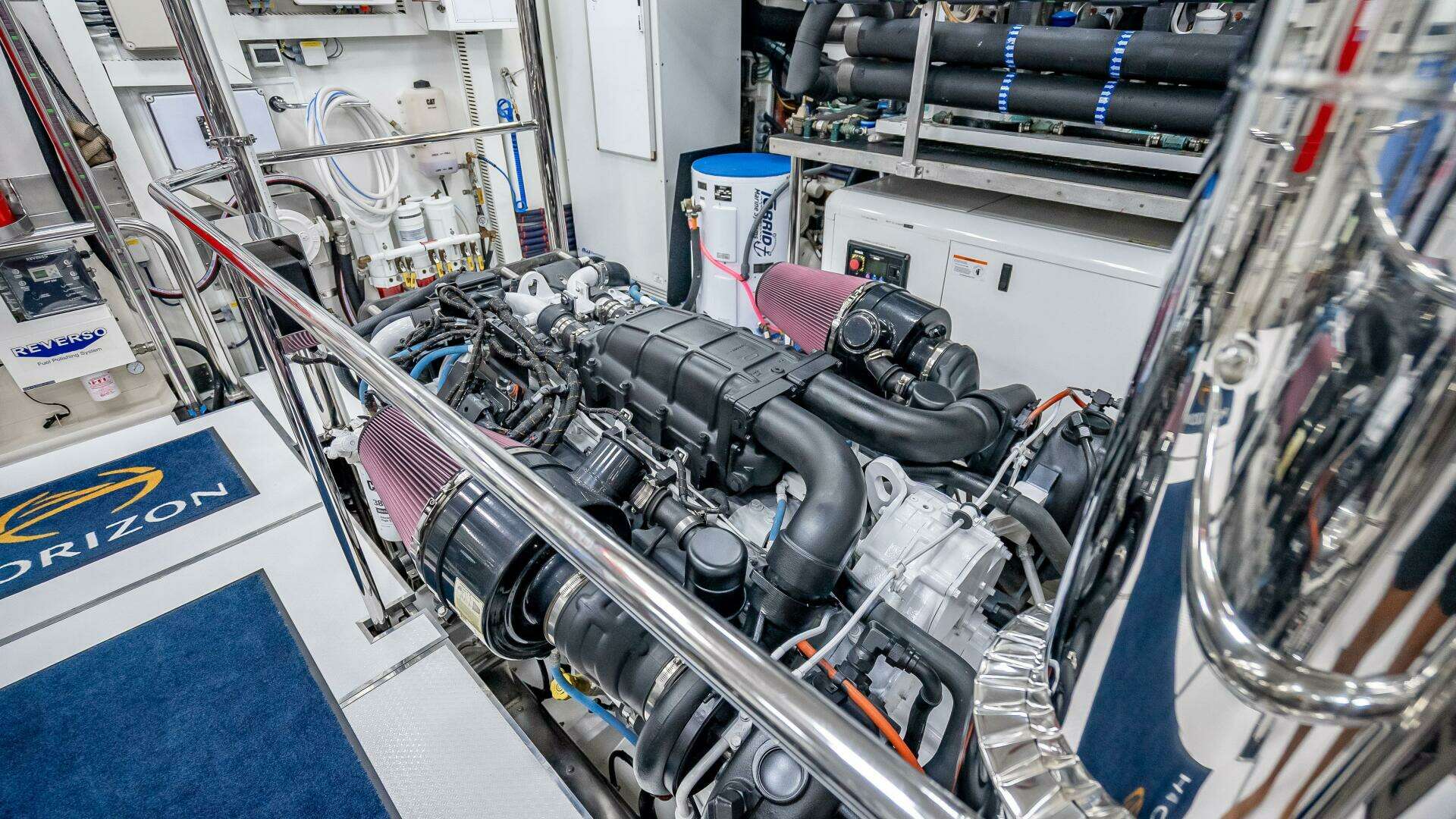

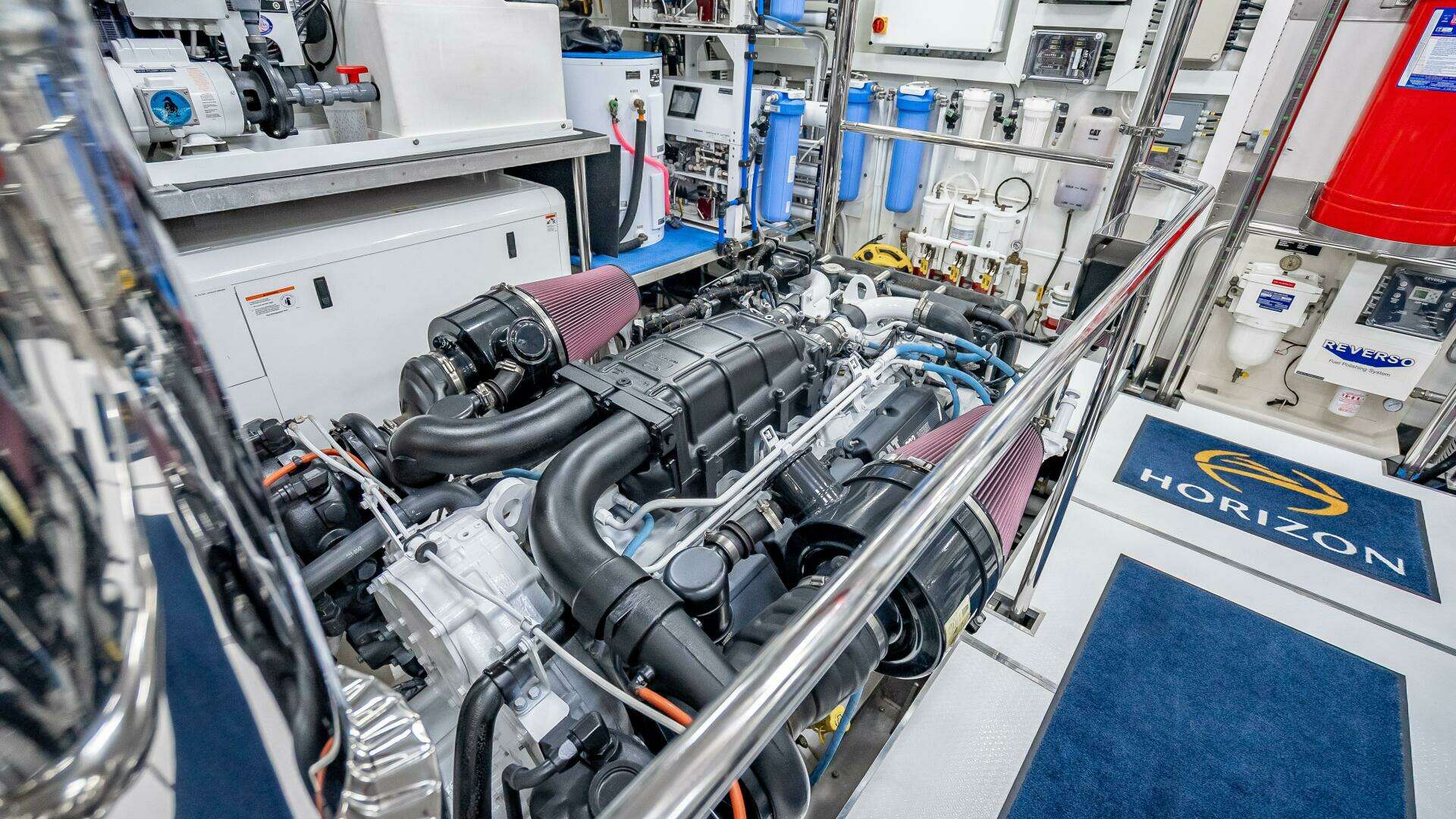

• Twin CAT C32A 1900 hp diesel engines with reduction gears - 1800 hrs
• Live SAE-C PTO on gear boxes for thrusters/windlass & stabilizer power
• SAE-A PTO on engines for hydraulic steering gear
• ZF Mathers fixed engine control system in pilothouse and flybridge - (1) handheld remote control plug-in receptacles at aft deck and flybridge
• SS Aquamet HS 22# shafts
• High performance S-Class (5) blade propellers in NiA1Br
• Main bronze struts w/backing plates
• Shaft and rudder packing glands with Tides Marine dripless seals
• Underwater exhaust system
• Custom steering wheels at both helms
• SS rudder w/zinc plates
• ABT hydraulic 16" variable speed bow & stern thrusters, 65 hp
• ABT Zero speed stabilizers 440/20x
• Spur line cutters for shafts
• Spare rudder seals on the rudder shafts
• Engine room LED ceiling lights
• Reversible AC intake blowers (2) w/automatic speed control
• Engine room ventilation openings (4) w/Delta T moisture eliminators
• Heavy-duty watertight engine room door
• Air compressor
• Vacuum cleaner system w/outlets throughout vessel
• Double sound & heat insulated material with foam & lead combination
• Watertight bulkheads at forward and aft
• Full length SS overhead grab rail on each side of engine
• Zero Speed
• Dual AC raw water pumps
• Dual spot zero 2200 GPD X2 with Dockside filtration
• Galley & crew drinking water 120 systems
• Aircon in engine room
• After cooler 10 yr service - Feb 2025

Electrical System

• Main electric panel w/circuit breakers inside the engine room
• Sub panel design in each zone for electrical distribution
• Emergency power package & lighting system
• AC Volt receptacles located throughout including engine room
• GFI protection for all outlets in exterior, heads, galley and engine room
• Indirect lighting under valance in salon, staterooms, pilothouse and galley
• Independent 24 volt to 12 volt converters for necessary equipment
• (1) DC12 Volt receptacle
• Electrolysis bonding & grounding system
• Dimmer system for ceiling lights in aft deck, flybridge, salon, master, VIP stateroom, port and stbd staterooms
• (2) Zinc anodes on transom
• KVH TracVision HD7 and (2) M9 domes
• Boening monitoring and control system
• Atlas shore power 75kW converter (upgraded with seamless transfer)
• (10) Underwater lights
• (2) Stern docking lights
• Extra camera on flybridge
• Hubbell shore TV and telephone sockets
• Wave WiFi booster system with wireless routers onboard
• Vimar internet outlet/socket
• Panasonic PBX telephones with intercom features in salon, pilothouse, master stateroom, VIP stateroom, guest staterooms and crew mess; remaining cabins with telephone outlet

AC/DC Main Power System

• AC Electrical system: 208V/120V three phase (4) wires, 60 Hz
• (2) Kohler generators 65kW w/sound shield
• (4) 255Ah Starting batteries for main engines and generators
• (10) 210Ah AGM batteries for ship's DC 24V service power
• (2) 210Ah emergency batteries above main deck w/independent battery charger
• All batteries enclosed with proper fixtures
• Vapor proof battery switch
• Charles battery chargers for engine start and service
• Outback inverter power

Shorepower System

• (2) Glendinning 100 amp shorepower cablemasters w/75' power cable
• (2) Shorepower receptacles, 100 amp
• Shorepower connection w/total 65KVA isolation transformer
• Atlas Power Convert

Navigation System

• Garmin navigation system, includes:
• Garmin GPS
• (5) Garmin multifunction displays
• Autopilot
• Garmin wind/depth/speed/temp transducers
• VHF
• AIS
• ABT Trac
• Dockmate
• Boening monitoring system

Mechanical Systems

• Reverso Nauafp 600 fuel polishing system
• Dive compressor Bauer Junior II
• Marine grade pipes throughout boat
• Color-coded piping for easy identification

Fuel and Lube Oil System

• Emergency shut-off valve w/remote control
• ISO grade fuel hose through entire system
• Dual Racor 79/1000MA fuel filters/water separator for each engine
• (2) Racor 500MA fuel filters, one on each generator
• Electric fuel transfer pump plus one manual emergency spare pump
• Oil change pump system for engines and generators
• Marine grade fuel tank in engine room & fiberglass tank under bilge

Fresh Water System

• FRP water tanks, total 800 gallons w/electric level gauge
• Marine grade pipe lines for cold & hot fresh water
• (3) Torrid 30 gallon water heaters w/circulation pump system
• Instant hot water system
• (2) High-volume AC fresh water pressure pump and (2) DC pump for back up
• Sea Recovery water maker 1400 gal/day with fresh flush function
• UV sterilizer for watermaker
• (3) Charcoal filters are plumbed into the fresh water line - fresh water pump, shore water inlet and galley

Air Conditioning and Ventilation System

• Marine Air chilled water central AC compressor units w/soft start & reversible cycle heat function with air handler units with individual controller throughout boat
• Back up sea water cooling pump and back up air conditioning circulation pump
• Pilothouse window de-foggers

Sanitary System

• 320 Gallon holding tanks w/Y-Valve for holding tanks dockside pump out
• Collecting sump tanks w/auto switch pumps for each shower & washer drainage area
• Headhunter sanitary treatment system (serviced 2025)
• Headhunter fresh pump & toilet system
• Enable to pump out grey water to the dockside, the same as black water

Fire Safety System

• Fire pump w/ outlets and hydrants
• Fire insulation in engine room
• Fire resistant treatment for pipe penetrations
• Fixed fire extinguisher FM200 or equivalent for engine room with remote pull station
• Automatic shutdown system
• Hand held fire extinguisher as required
• Integrated fire alarm system in pilothouse with heat or smoke detector in each cabin

Interior Design and Equipment

• Custom Luca Dini interior
• 5 en suite guest staterooms: on-deck Master with four guest staterooms below deck + crew quarters aft
• Carpet in Master, dining area, guest staterooms and crew cabins
• Wood floor in companionways, pilothouse and crew mess
• High density hotel grade pocket spring mattress with sheet sets (flat sheets, fitted sheet, pillow cases) and bedspreads - for whole boat except crew cabins and upper bunks

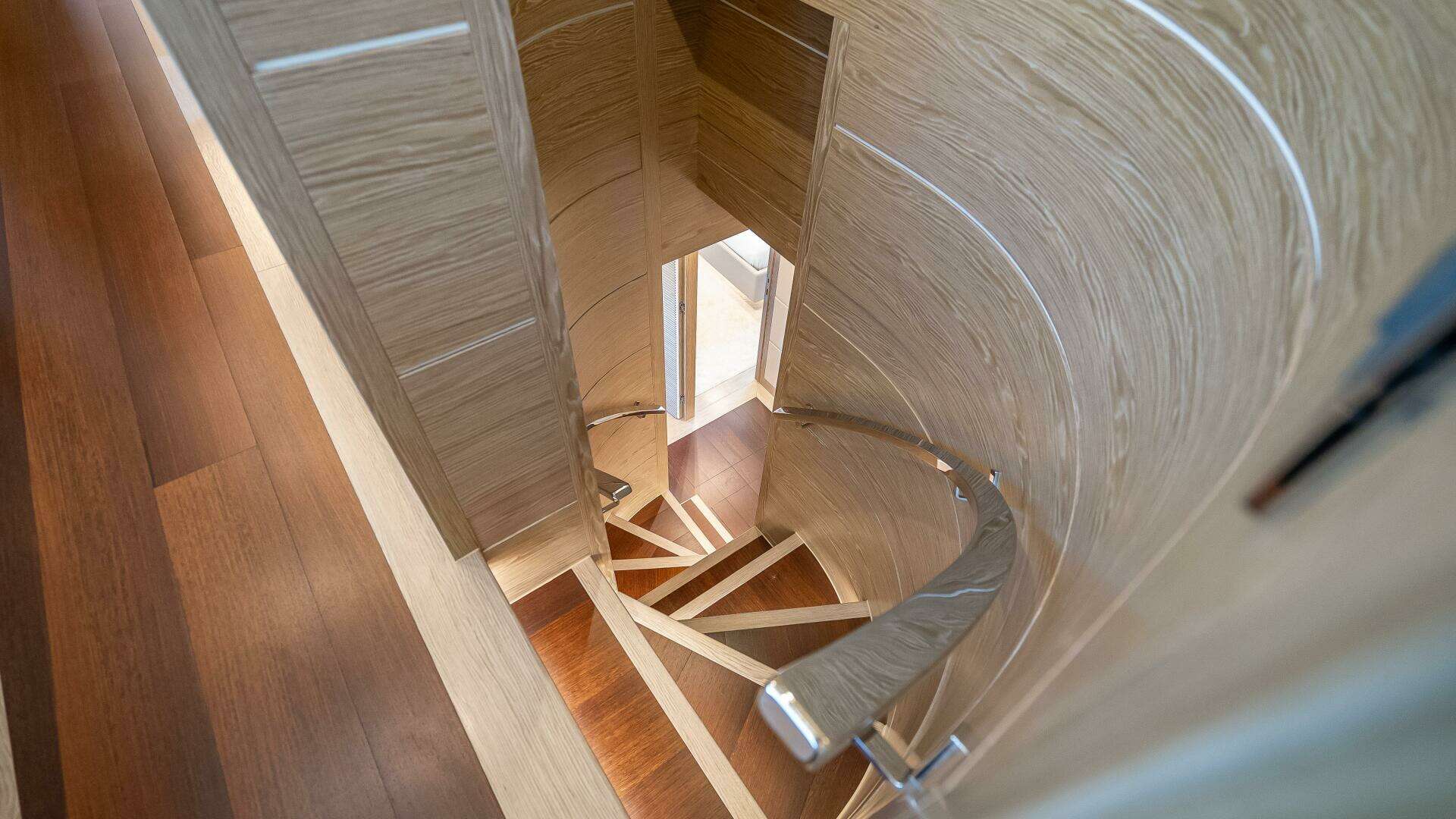

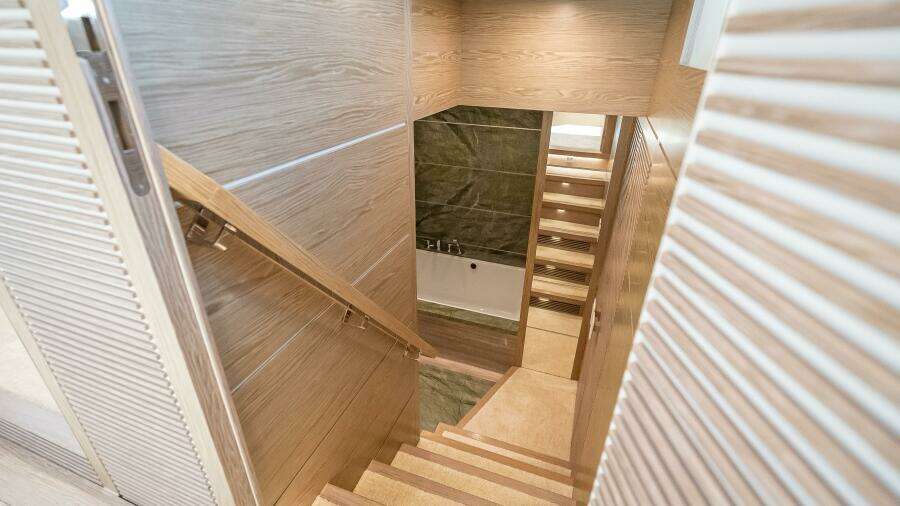

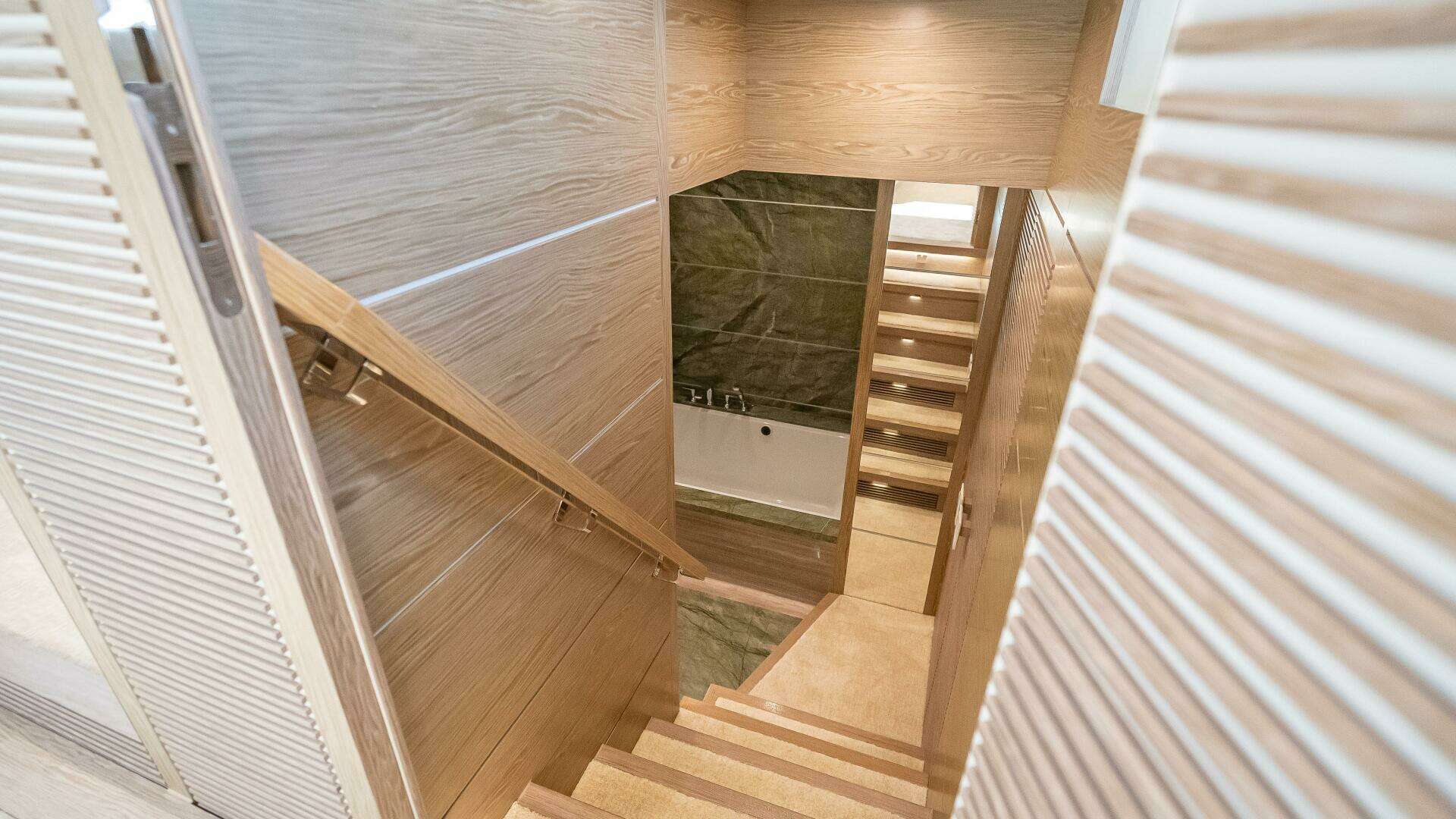

• Indirect lighting system under sofas, beds, valances and all stairways
• Hanging lockers in all staterooms w/necessary shelf or drawers

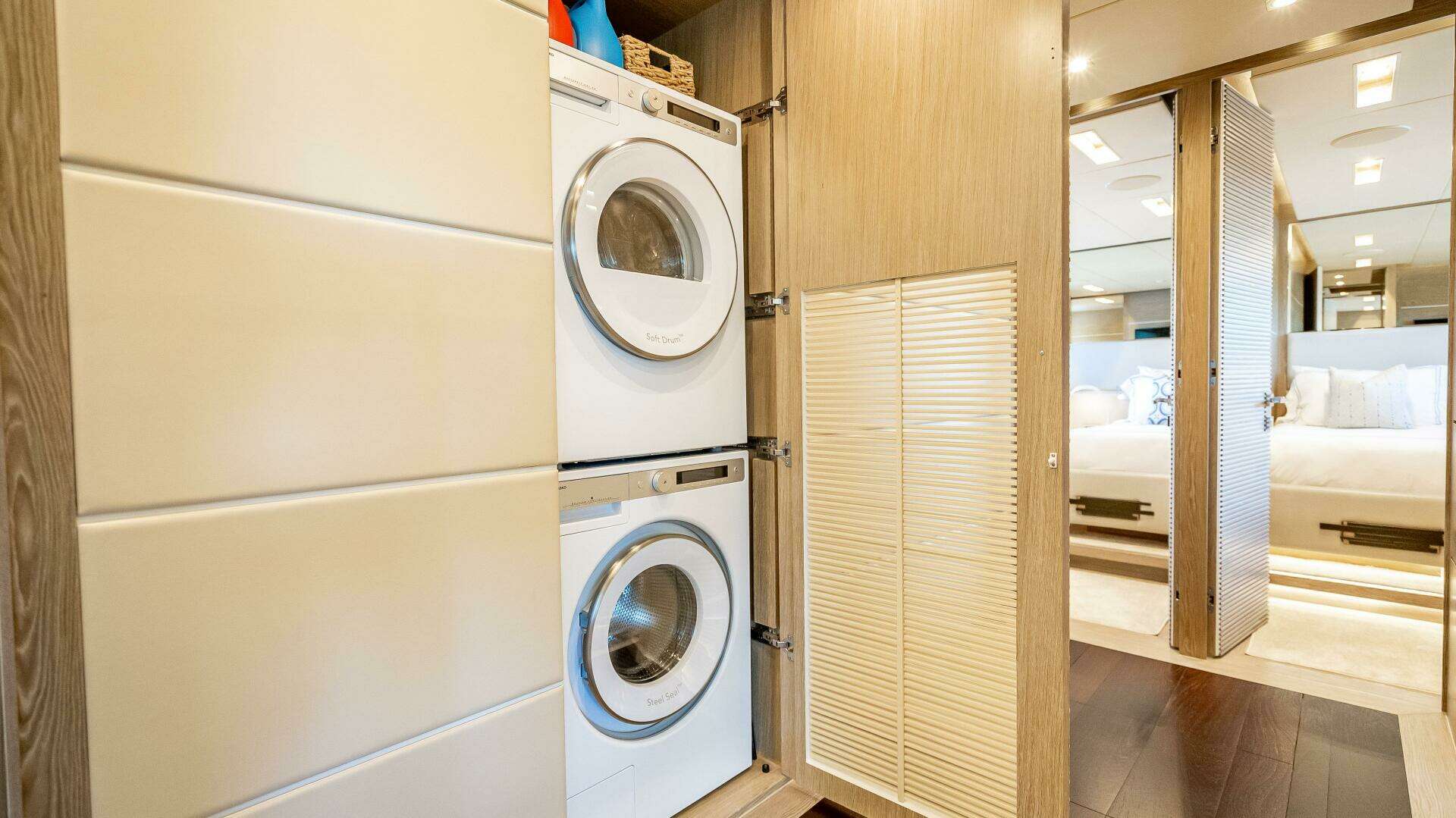

• Extra stacked washer/dryer in fwd guest companionway
• Seamless polyurethane finish in all heads
• Hansgrohe faucets, towel bars, towel rings, cup/brush/soap holders, head brush in forward bathrooms
• Exhaust blower for each head
• Marble counter top, backsplash and floors in all day and guest heads

Salon

• Electric curved salon entrance door - with touch free floor pad
• Dayhead on port side
• Storage and TV cabinets in accordance to arrangement plan w/adequate venting
• Custom ceiling design
• L-shaped sofa with custom coffee table, chair and stools per layout
• Electric blinds
• Custom-designed bar (stbd) with marble top, storage, refrigerator and icemaker
• Samsung 65" LED TV
• Lifestyle home theater with speakers
• Apple TV

Dining Room

• Port & stbd storage cabinets in accordance to layout
• Custom wood table with dining chairs
• Custom overhead lighting
• Custom marble back wall with (2) electric sliding doors to galley & hallway

Main Galley Area

• Corian galley counter top and splash back
• Cabinets & overhead lockers per layout
• Marble floors in galley
• Full set of tableware for (12), includes pots/pans, dishes, plates, knives, forks and glasses w/ holders
• (2) SubZero galley refrigerators and (1) large capacity freezer
• Miele range and oven
• Miele microwave
• Miele dishwasher with SS trim kit
• SS Double sink per layout
• XO icemaker
• Kitchen Aid garbage disposal
• SubZero wine cooler
• Miele coffee machine
• Sink under Counter reverse osmosis system

Master Stateroom

• Bed size 80" x 76" Atlantic King size
• Large walk-in closet
• Port side desk; storage cabinets to stbd per layout
• TV located behind mirrored door
• Fixed skylight
• Electric blinds for windows including skylight

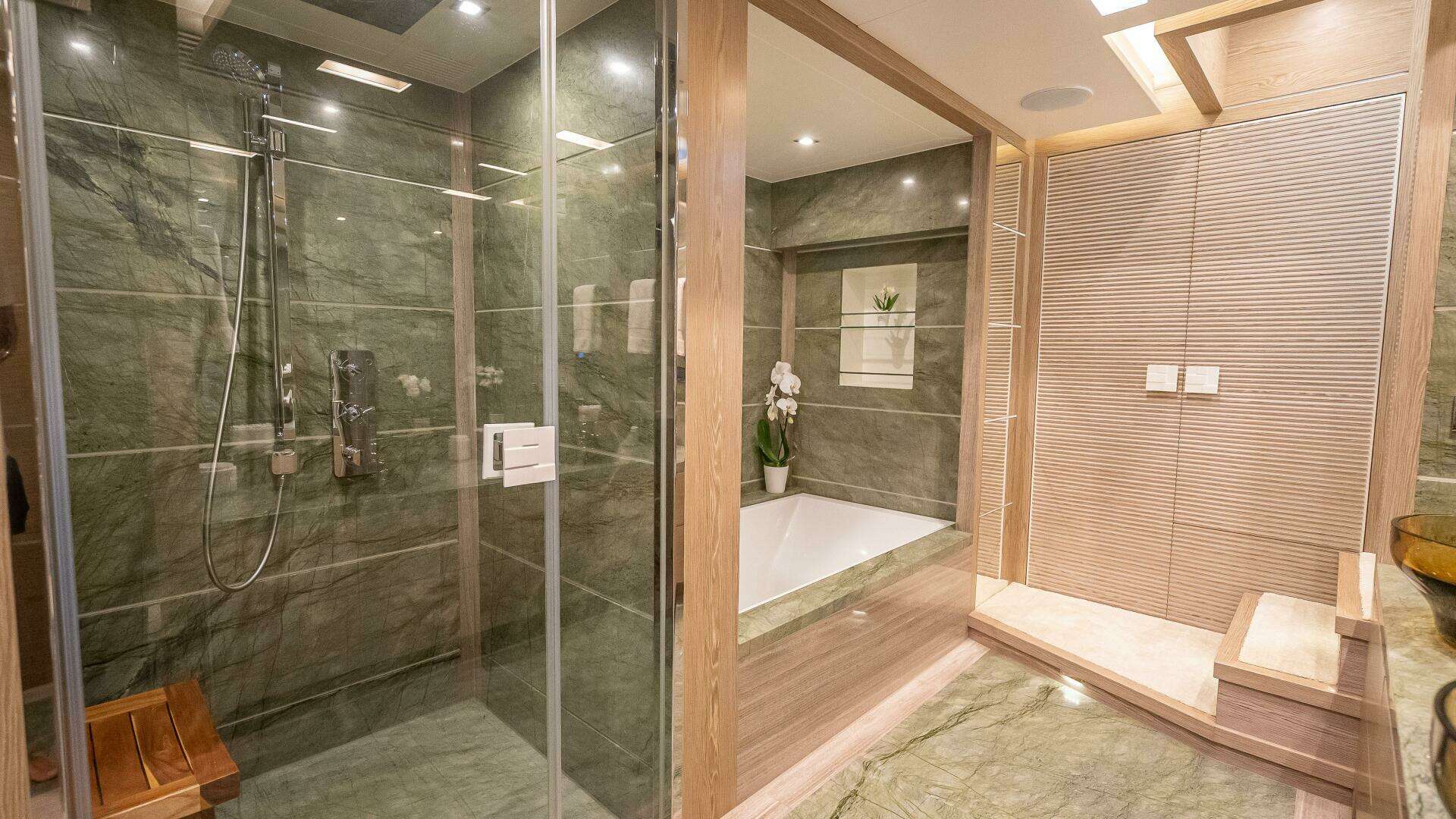

• En suite head with dual sinks, shower, jacuzzi, water closet and dual hanging lockers
• (1) Pair Fusion speakers in master head
• Samsung 48" LED TV
• JL audio speakers ceiling mount
• Samsung Blu-Ray disc player
• Apple TV
• (1) Safe

Forward Twin Guest Staterooms

Both Twin Guest Staterooms

• (2) Single twin beds with drawers under
• Double-door hanging locker
• Desk with chair

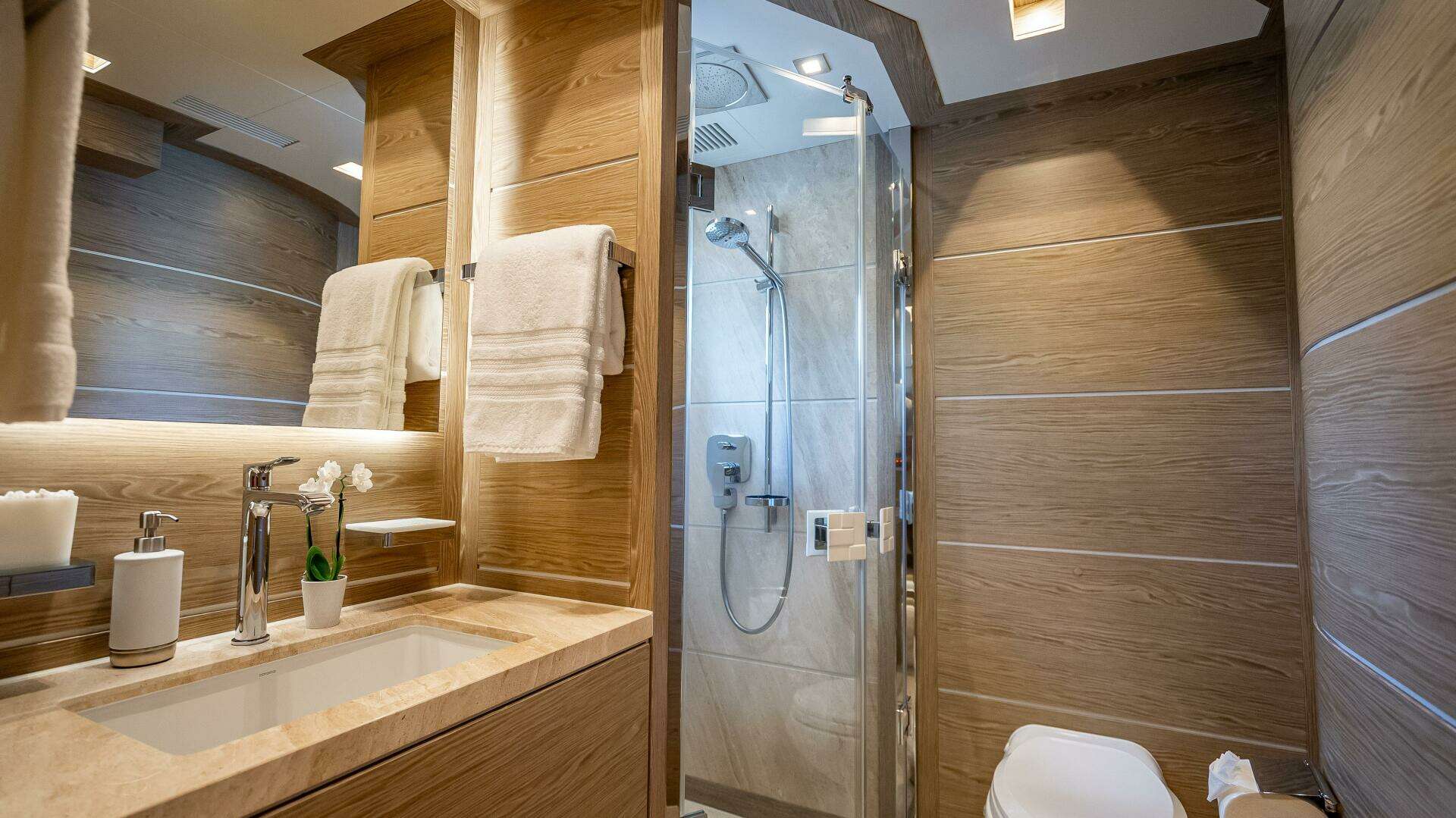

• En suite head with shower, sink & toilet
• After cooler 10 yr service - Feb 2025

Port Guest Cabin

• Samsung 32" LED TV
• (1) pair of JL speakers

Starboard Guest Cabin

• Samsung 32" LED TV
• Fusion w/Bluetooth DVD stereo
• (1) pair of JL speakers

VIP Guest Staterooms

• Queen size bed with drawers under
• Vanity w/ stool
• Large closet space
• En suite head with sink, shower and separate water closet

Port VIP Cabin

• Samsung 40" LED TV
• JL audio speakers ceiling mount
• Apple TV

Starboard VIP Cabin

• Samsung 40" LED TV
• JL audio speakers ceiling mount
• Apple TV

Crew Quarters

• Captain's cabin w/ bed and dual hanging lockers; en suite head with shower, sink and water closet
• (2) twin bunks rooms w/ hanging locker
• Head with sink, shower and toilet (shared between twin rooms)
• Crew sink under counter reverse osmosis system
• Stacked washer/dryer
• Crew mess with L-shaped dinette, fridge/freezer, storage, microwave, and cooktop

Captain Cabin

• Samsung 24" LED TV
• Fusion w/Bluetooth DVD stereo
• (1) pair of JL speakers
• TV with CCTV
• Boening monitoring and control system
• Garmin GPS

Crew Mess

• Samsung 32" LED TV
• Fusion w/Bluetooth DVD stereo
• (1) pair of JL speakers
• Crew galley fridge/freezer
• Washer & Dryer
• High-Lo table with U shaped seating
• Miele Stove
• Microwave
• Samsung TV with real time cameras

Crew Forward Cabin

• Fusion w/Bluetooth DVD stereo
• (1) pair of JL speakers
• TV with CCTV

Crew Aft Cabin

• Fusion w/Bluetooth DVD stereo
• (1) pair of JL speakers
• TV with CCTV

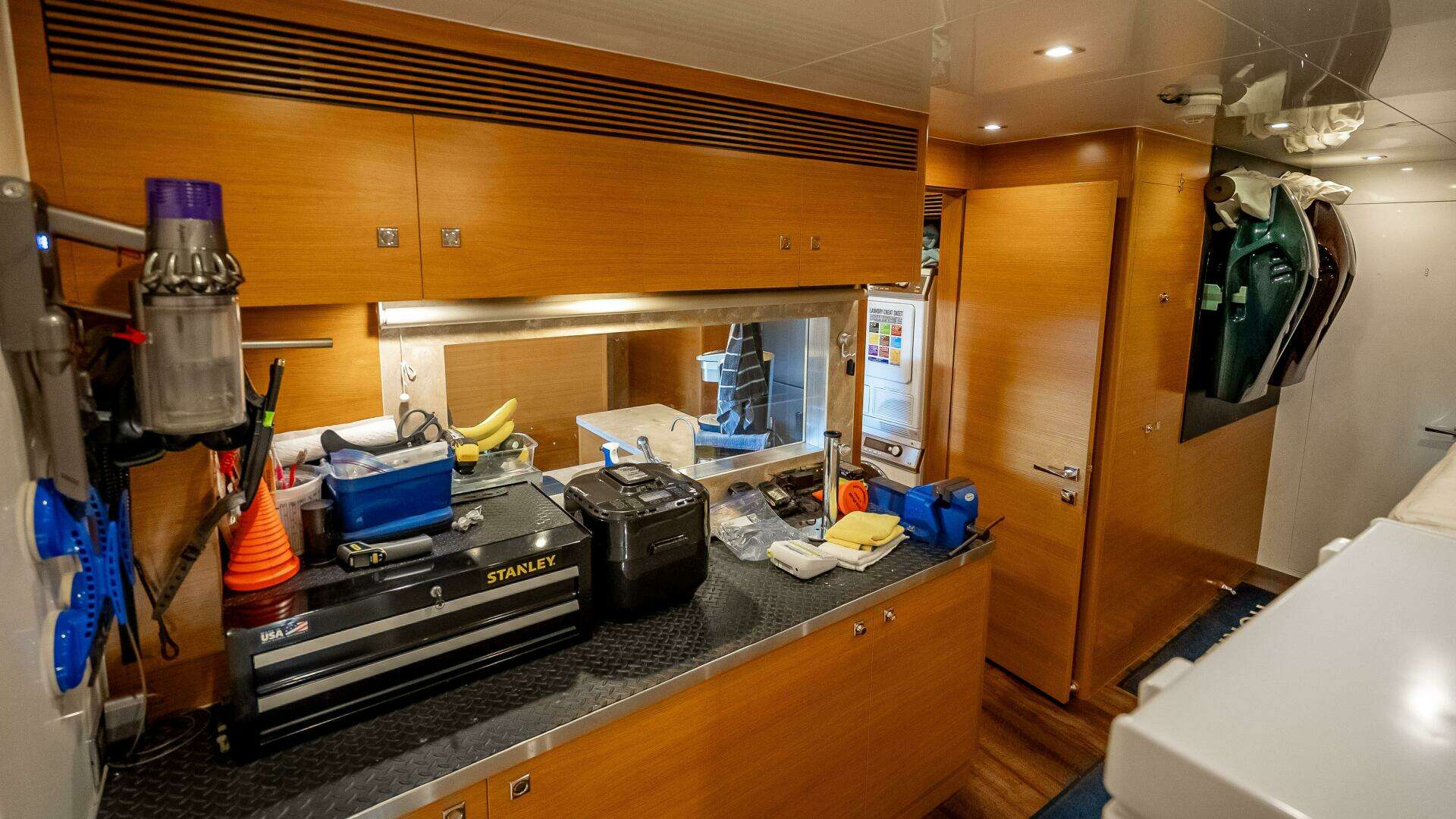

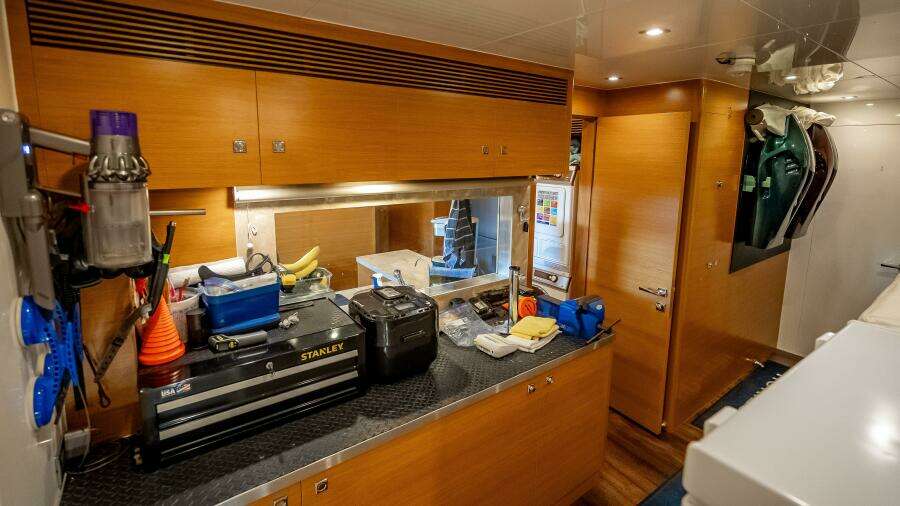

Utility Room

• Working counter top with drawers underneath
• Single deep SS sink with faucet
• Drained and ventilated wet locker
• Storage lockers per arrangement plan
• Vinyl flooring
• Dayhead per layout
• Commercial Ice Machine

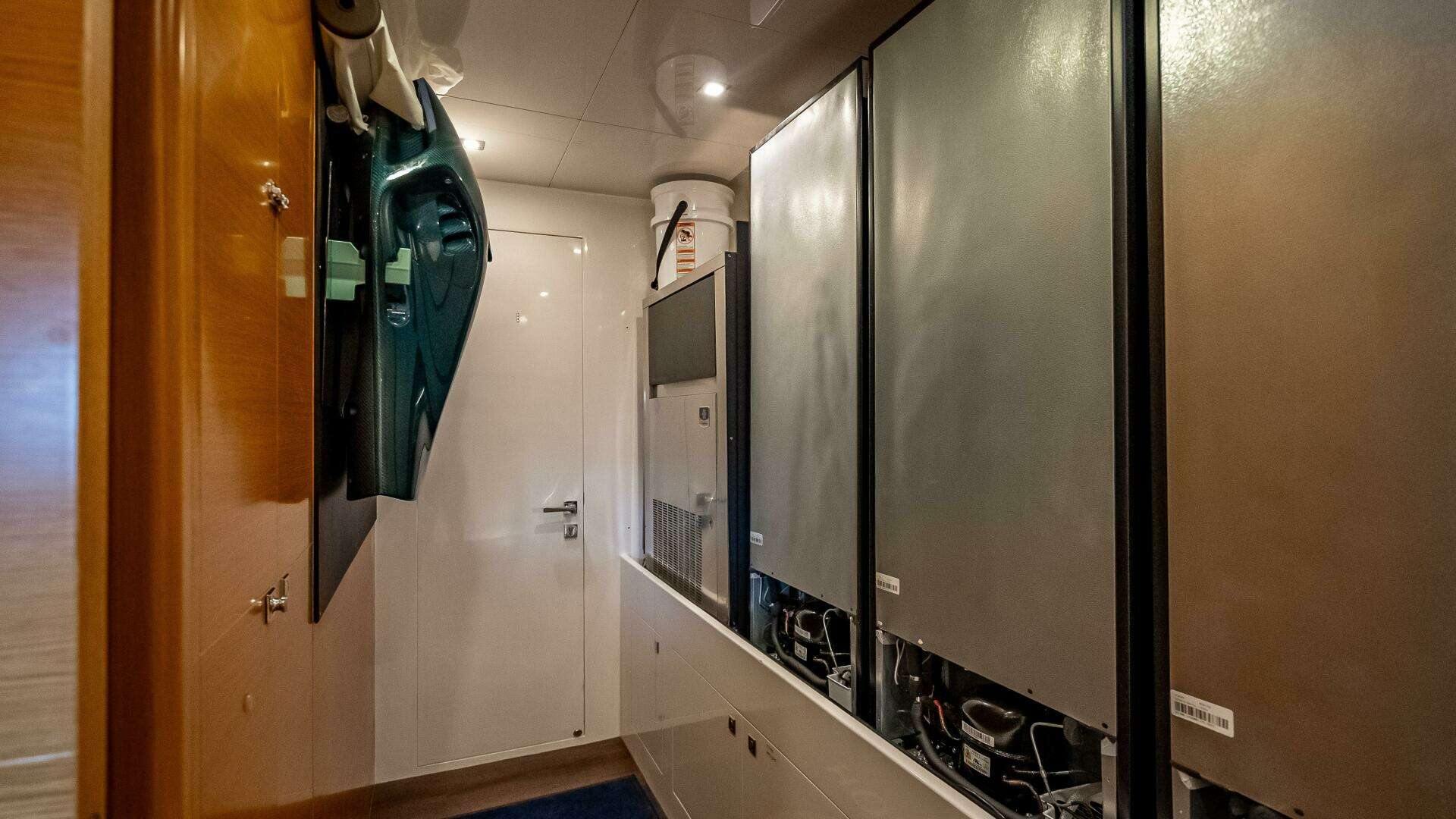

• 5 extra freezers
• 2 sea next under water scooters
• Swim Platform
• Head Hunter Treatment Plant
• Garmin VHF Beach Club
• Dive tank racks
• New wave boarding ladder with angle 45/90 degree extension
• Atlas Power Convert
