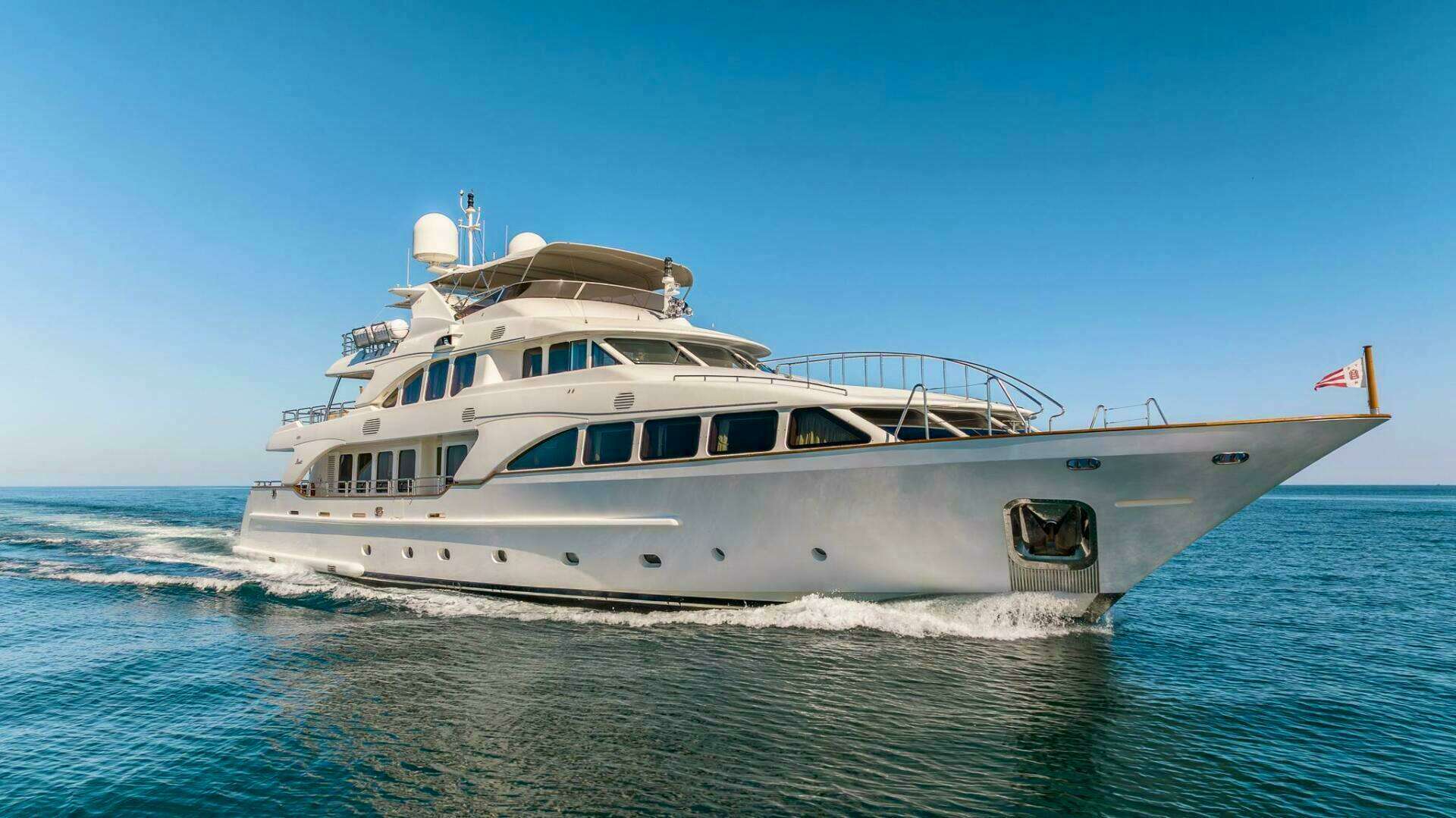

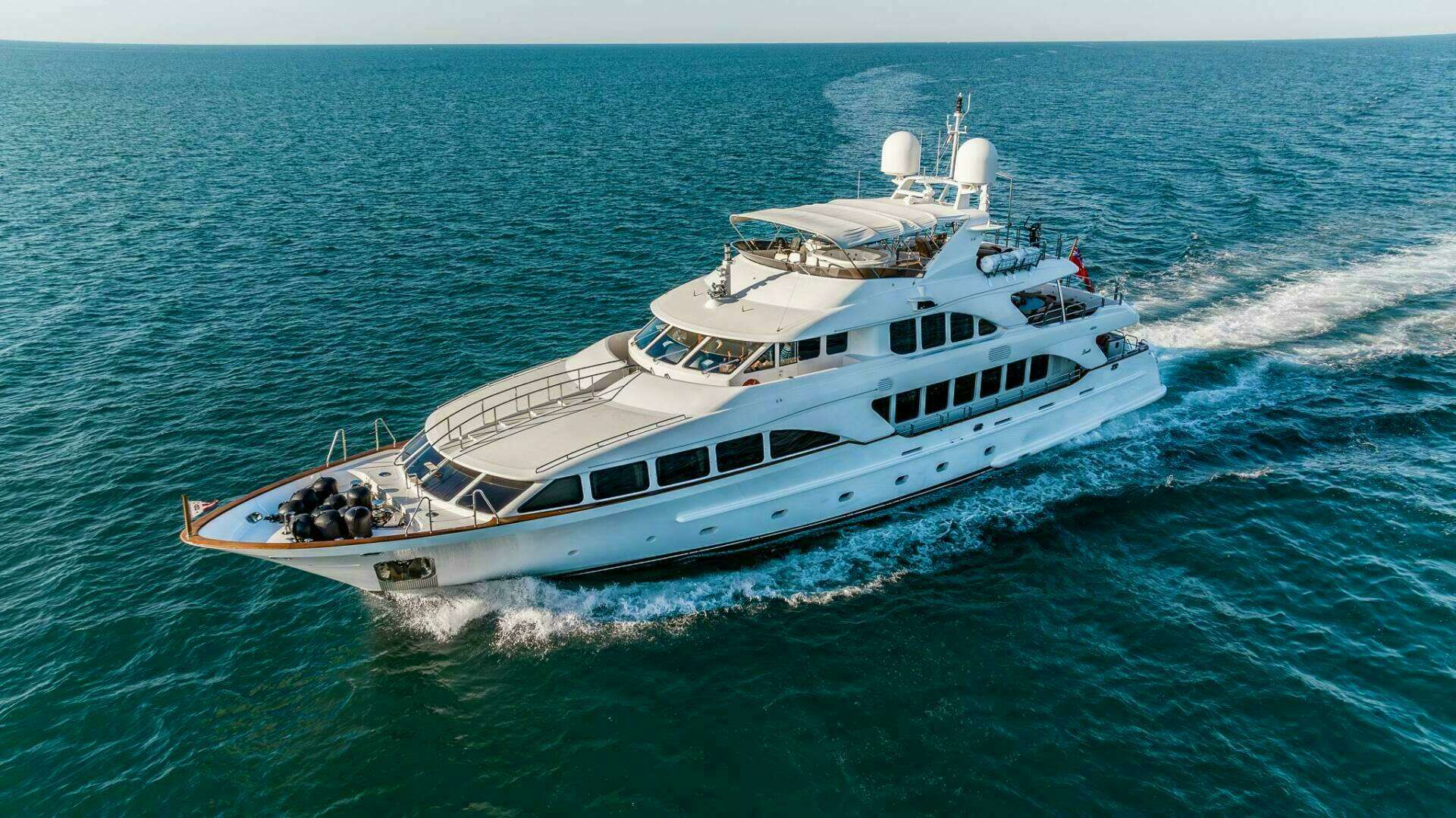

MAIN CHARACTERISTICS

Type: Full displacement motor yacht

Flag: Cayman Islands

L.O.A: 36.6m 120’1”

Beam: 7.9m 25’9”

Draft: 2.3m 7’5”

Tonnage: 299 GRT

Displacement (full load): 260T

Net Tonnage: 89T

Year: 2009

Builder: Benetti, Italy

Naval Architect: Benetti SpA

Exterior Designer: Stefano Righini

Interior Designer: François Zuretti

Construction: GRP, Teak laid decks

Classification: ABS + A1, MCA

Crew: 7

Guests: 12

Max Speed: 15.8 knots

Cruising Speed: 13 knots

Range: 3,300nm at 11 knots

ACCOMMODATIONS

Total: 12 guests in 5 cabins

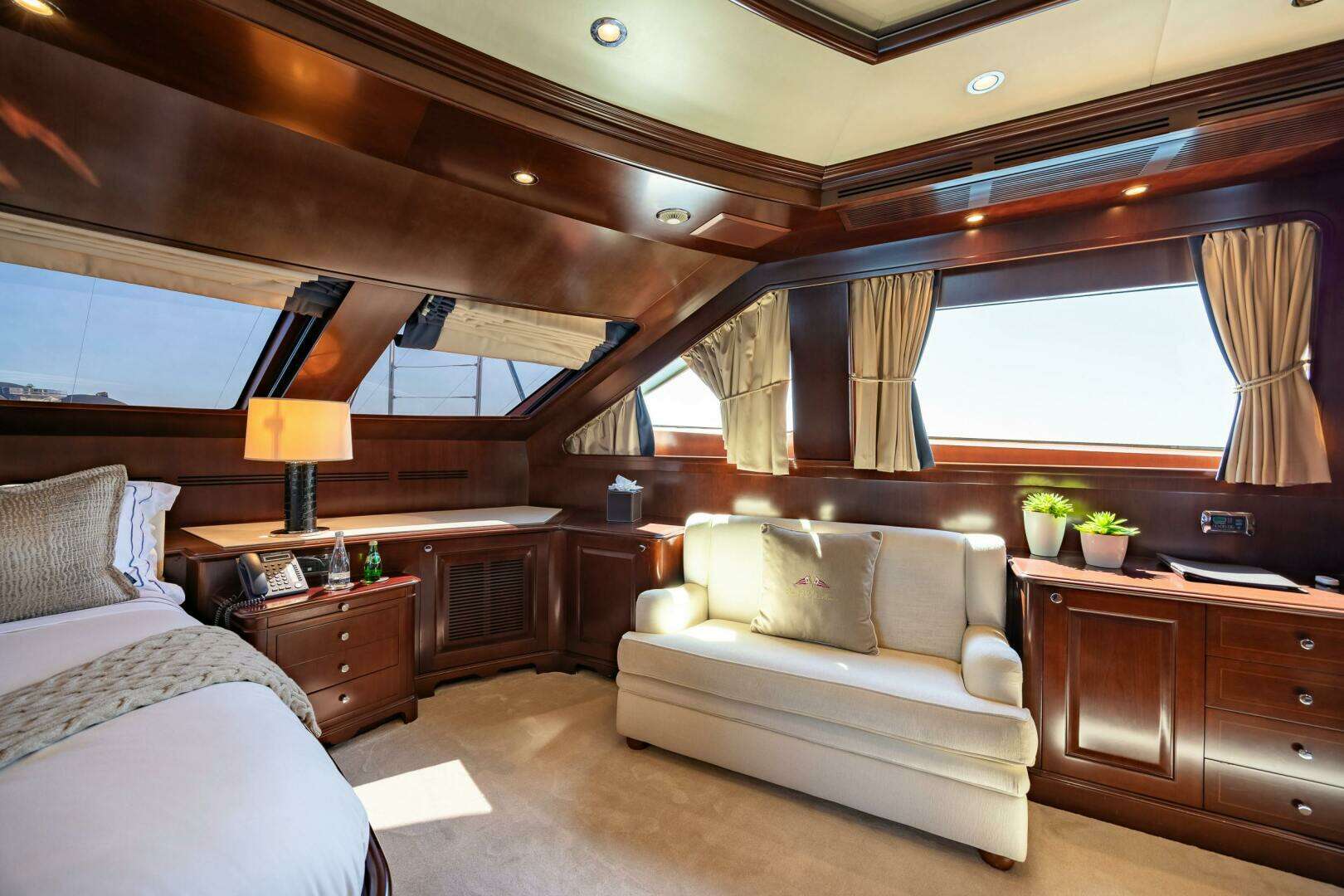

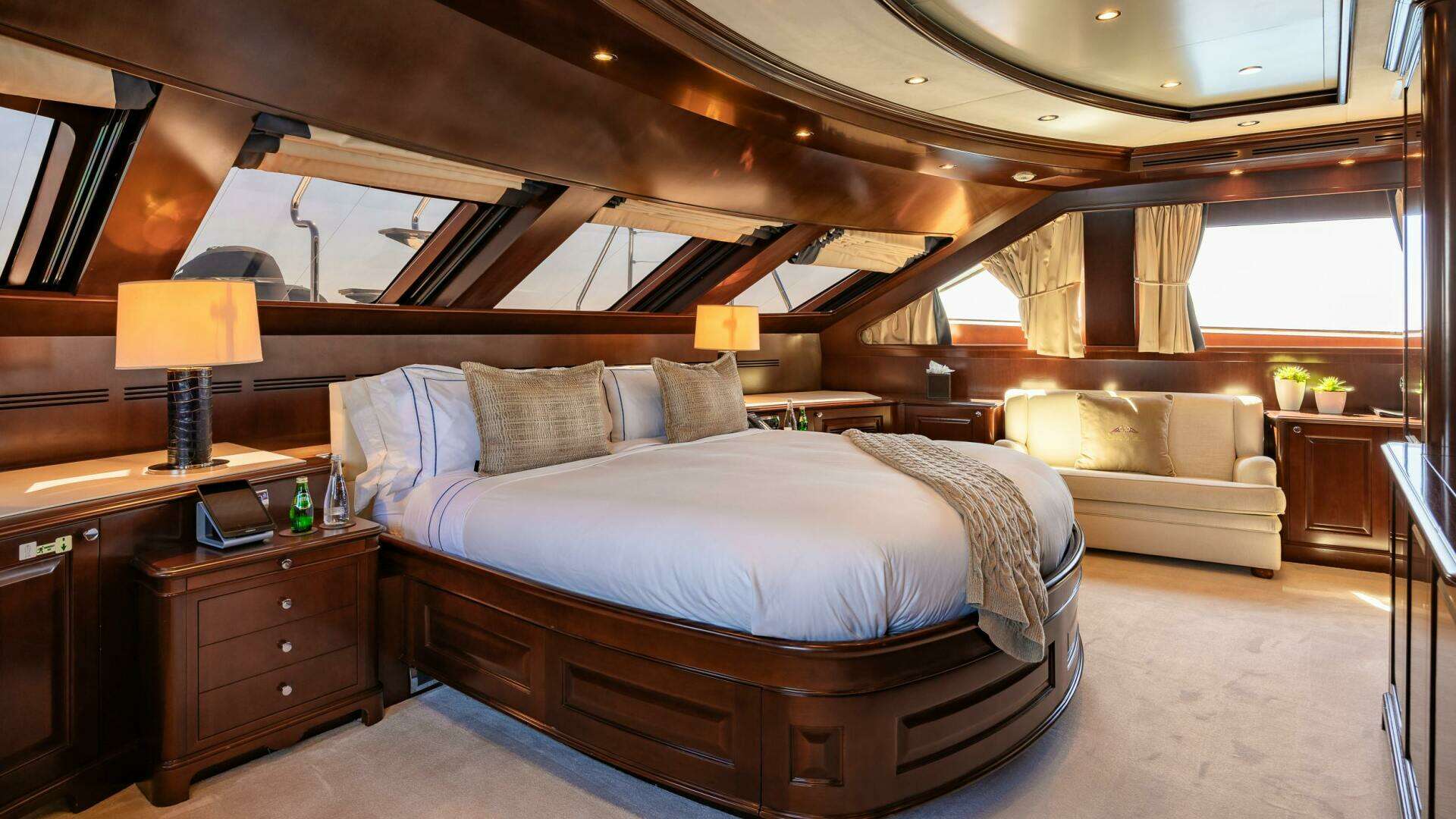

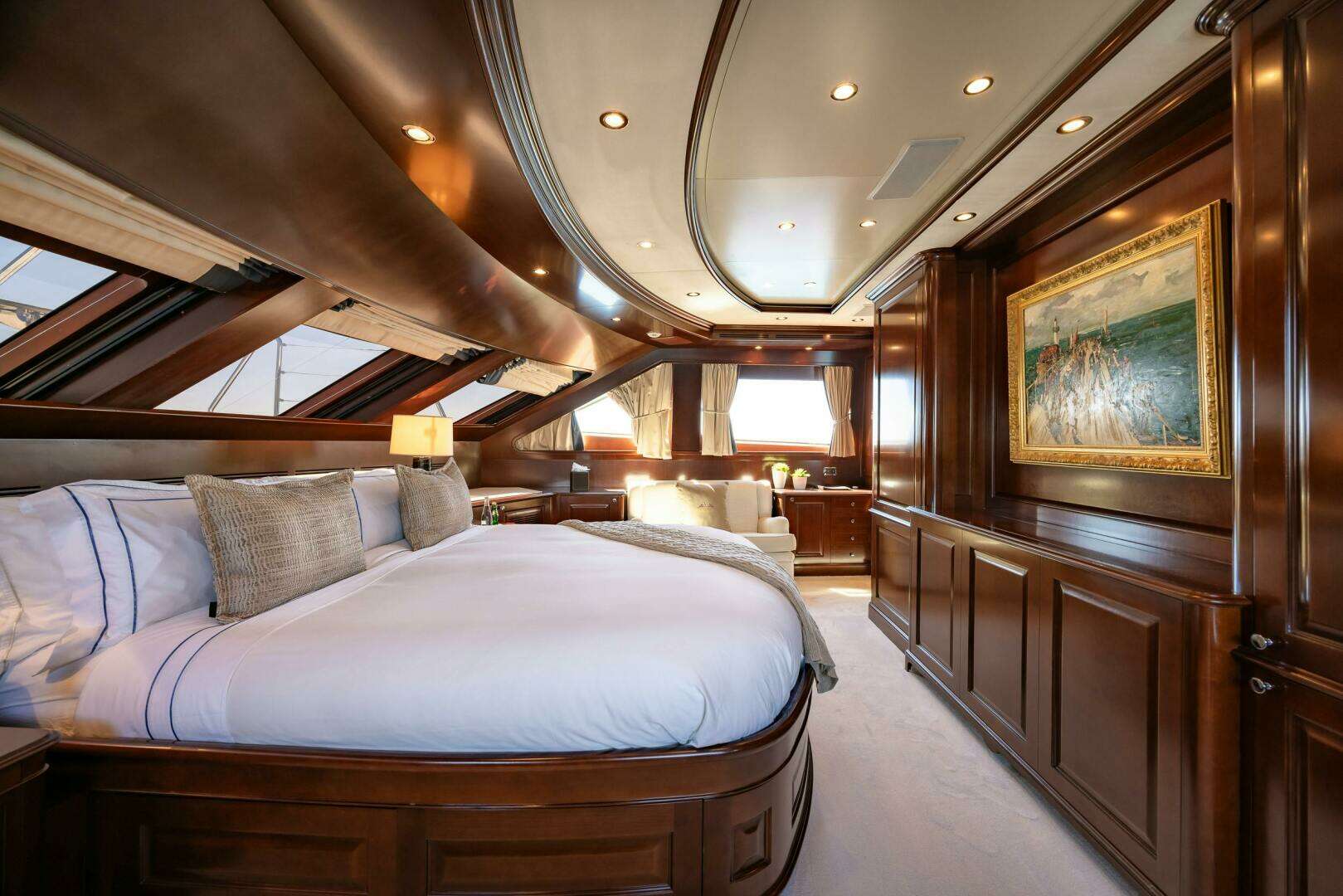

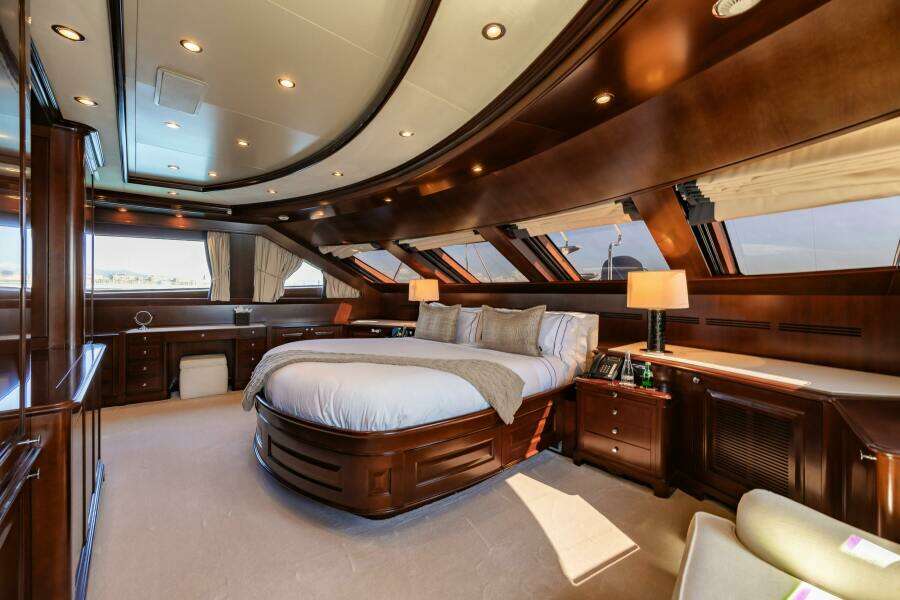

Master Cabin: Main deck, full beam, with ensuite

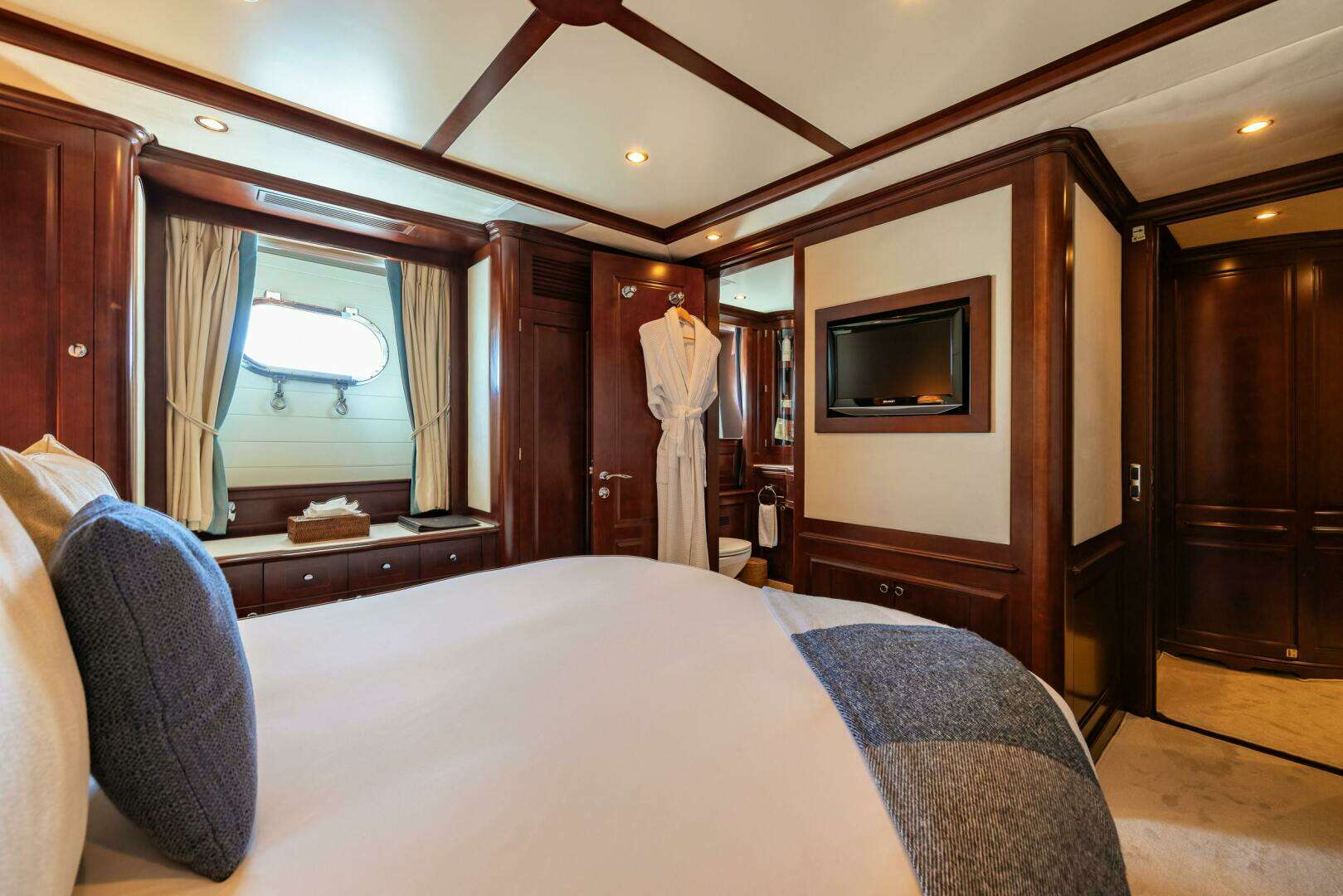

Double Cabins: 2 x double cabins, with ensuite

Twin Cabins: 2 x twin cabins with ensuite & Pullman beds

Crew: 4 x crew cabins sleeping up to 8 crew

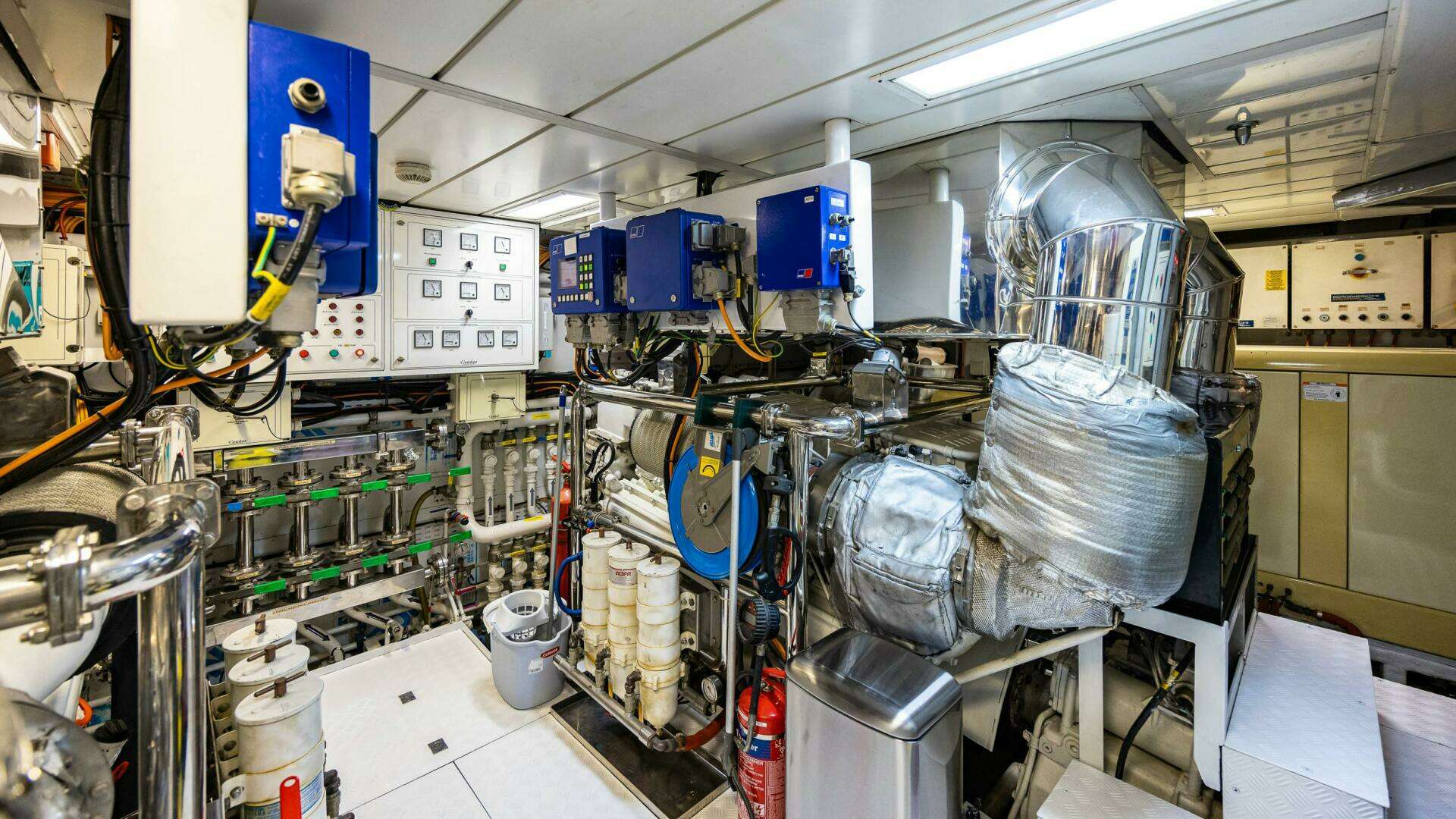

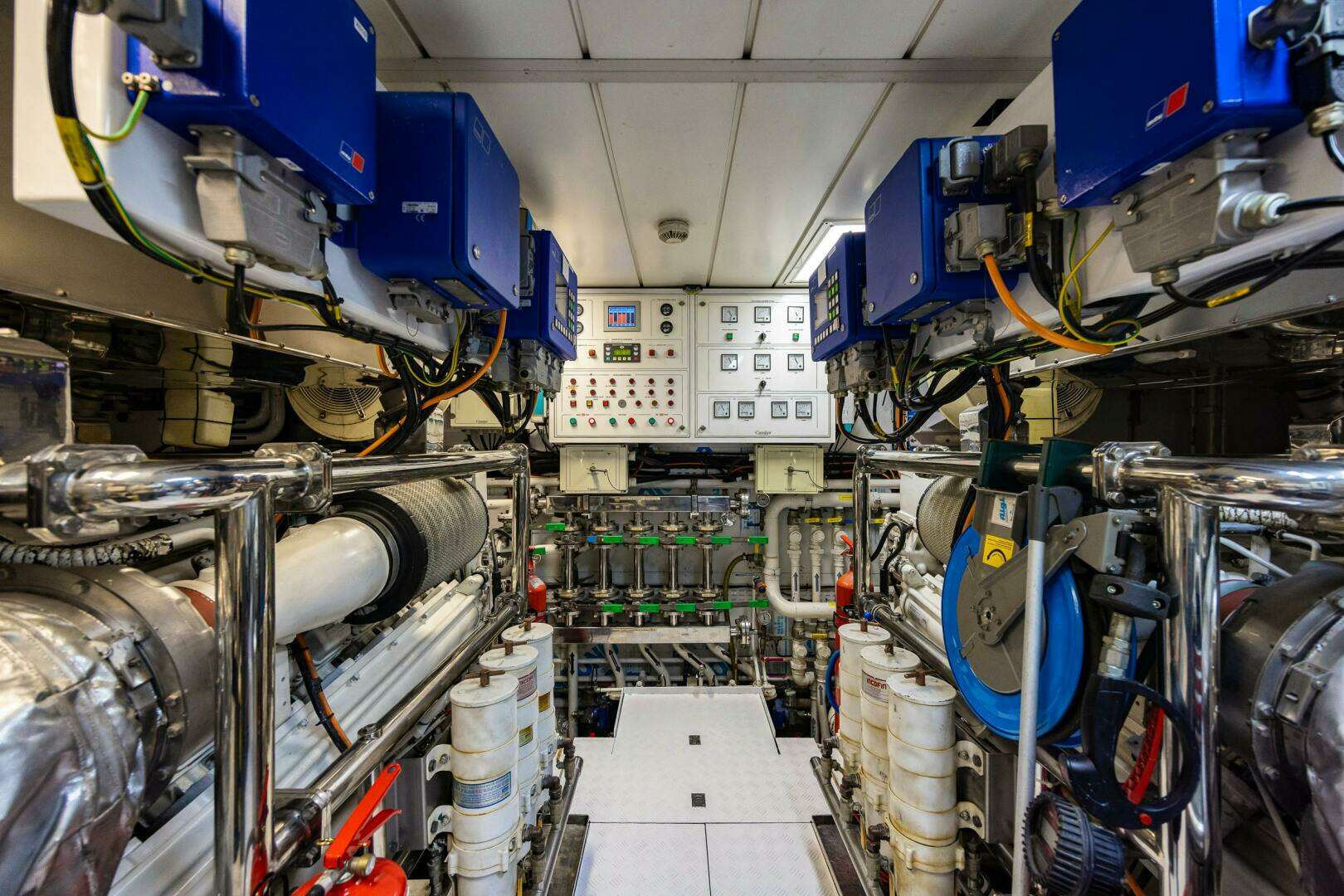

MACHINERY

Main Engines: 2 x 1,550hp MTU 12V 2000 M91

Port Hours: 6,450

Starboard Hours: 6,450

Gearboxes: ZF Marine transmission, ZF3351

Shafts: BSC, 120mm AISI 316

Propellers: Detra, 5 Blad

FUEL CONSUMPTION

100% 2390RPM – 2 x 294L/H 15.8 knots

80% 2150RPM – 2 x 200L/H 15knots

60% 2000RPM – 2 x 150L/H 14.5knots

50% 1850RPM – 2 x 120L/H 13.8knots

40% 1500RPM – 2 x 63L/H 12.3knots

35% 1350RPM – 2 x 45L/H 11.2knots

1850 RPM – 2nd stage Turbo On

1650 RPM– 2nd Stage Turbo Off

AUXILIARY MACHINERY & ELECTRICAL SYSTEM

Generators: 2 x Kohler 80 Kw @ 50 Hz

Port Generator Hours: 16,500 (rebuilt at 11,500)

Starboard Generator Hours: 16,500 (rebuilt at 11,500)

Electrical system: 220VAC 50 hz

Shore power: 220VAC 50hz (2 x transformers) 3 Phase, 125 Amp

Batteries: Gel

TANK CAPACITIES

Fuel: 44,000 litres (11,623 US gallons)

Water: 8,200 litres (2170 US gallons)

Water maker: Idromar NCS8 300 litres/hour (reverse osmosis equipped with sand filters)

Clean Lub Oil: 600 litres (159 US gallons)

Dirty Oil: 600 litres (159 US gallons)

Grey Water: 1,800 litres (475 US gallons)

Black Water: 2,700 litres (716 US gallons)

ANCILLARY EQUIPMENT

Steering: 2x BCS 8.6ltr Pressure 78bar

Bow thruster: Naiad Marine - 20 LHT proportional thruster

Stabilizers: Naiad Marine – 525 Zero Speed

Fuel Filters: Racors for main engines and generators

Fuel Oil Separator: Alfa Laval – MIB 303

Bilge Pump: Gianneschi 380VAC – 50hz

Fire Pump: Gianneschi 380VAC – 50hz, interchangable with bilge pump

Emergency Fire Pump: Gianneschi

Boiler: 2x Gianneschi 150l with the 2 x 3kW elements in each boiler

Sewage treatment: Hamman unit plant treatment

WC's: Jets vacuum system

Airconditioning: Condaria – 6x compressors 432,000 BTU

Ventilation: 5 x fresh air units, 22 x air handler units

SAFETY & SECURITY EQUIPMENT

EPIRB

SART

3 x 10-person Zodiac inflatable liferafts (new 2023)

2 x 12-person Zodiac inflatable liferafts (new 2023)

21 x adult immersion suits

24 x adult inflatable lifejackets

5 x child’s lifejackets

MCA Cat. C Medical kit plus large supply for day-to-day use

2 x fireman outfits including two breathing apparatus + 4 spare bottles

5 x 5 kg CO2 extinguishers

15 x 6 kg powder extinguishers

10 x 2 kg powder extinguishers

2 x 9 lt foam extinguishers

Engine room fixed firefighting 3 x 30 kg CO2, cable release

Galley fixed firefighting 1 x 10 kg CO2 , cable release

ALARMS & MONITORING

3 x Exterior security cameras

1 x Engine room security camera

Heat and smoke sensors in 3 loops

Autonica automatic fire detection and alarm system

Petrol fume detection in tender garage

COMMUNICATION EQUIPMENT

Sat Phone: Seatel Turo LMXP 100 cm

Satcom: VSAT Sailor TT 7676A high speed internet

Cellular System: Telular 1C02A16

VHF: 2x Sailor TR5022 DSC

Watchkeeper: Net-Logic WKAIUA

Receiver exchange: Panasonic KX-TDA30

UHF Communications: 8 x hand-held UHF radios

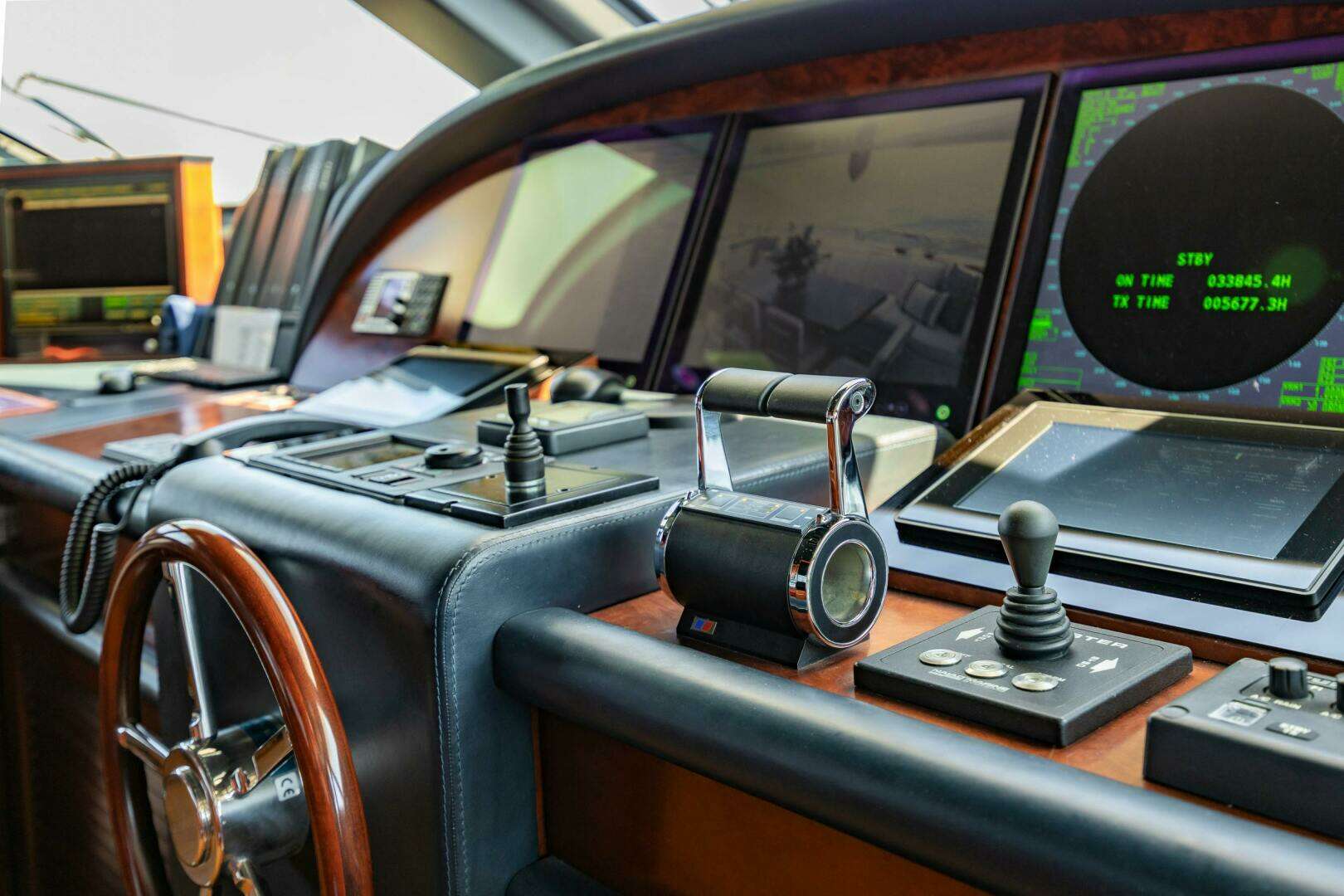

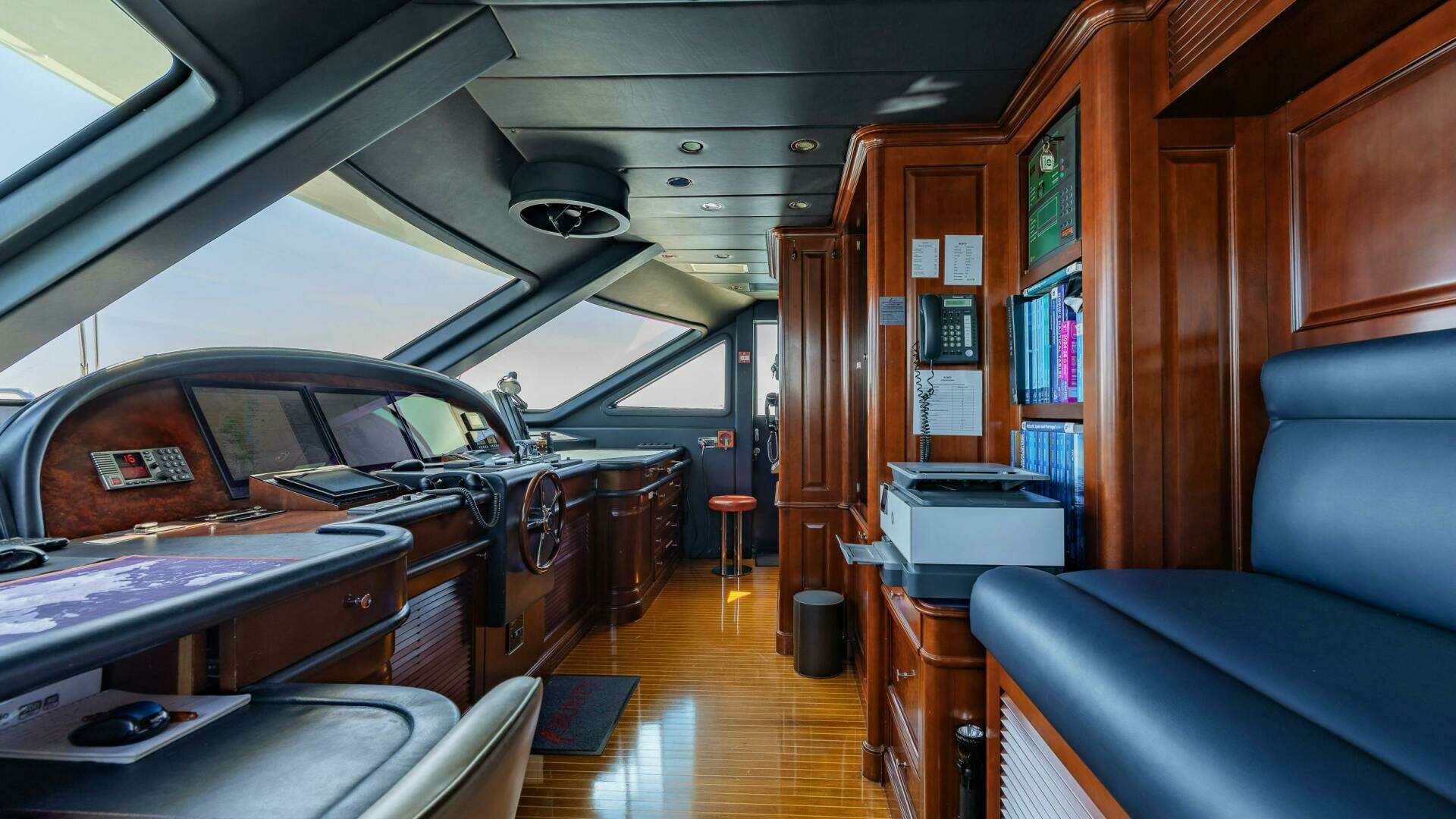

NAVIGATION EQUIPMENT

Magnetic Compass: Sperry Marine, type 4863-1000

Gyro Compass: Navigat Mk2

Autopilot: Sperry Marine, Naviplot V HSC

Log: Furuno RD30

Echo Sounder: Furuno RD30 & Furuno Navinet PSU-005

Radar: Furuno Navinet PSU-005 with 19” colour Hatteland monitors

Radar: Furuno Far X Band

Chart Plotter: Transas Navi Sailor Pro 4000 ECS with 19” Hatteland monitors

GPS: Furuno GP32 & GPS incorporated in chart plotter

Navtex: Furuno NX-700

Wind Instruments: Furuno GP32

AIS: Furuno FA-50 Incorporated in Transas plotter

DECK EQUIPMENT

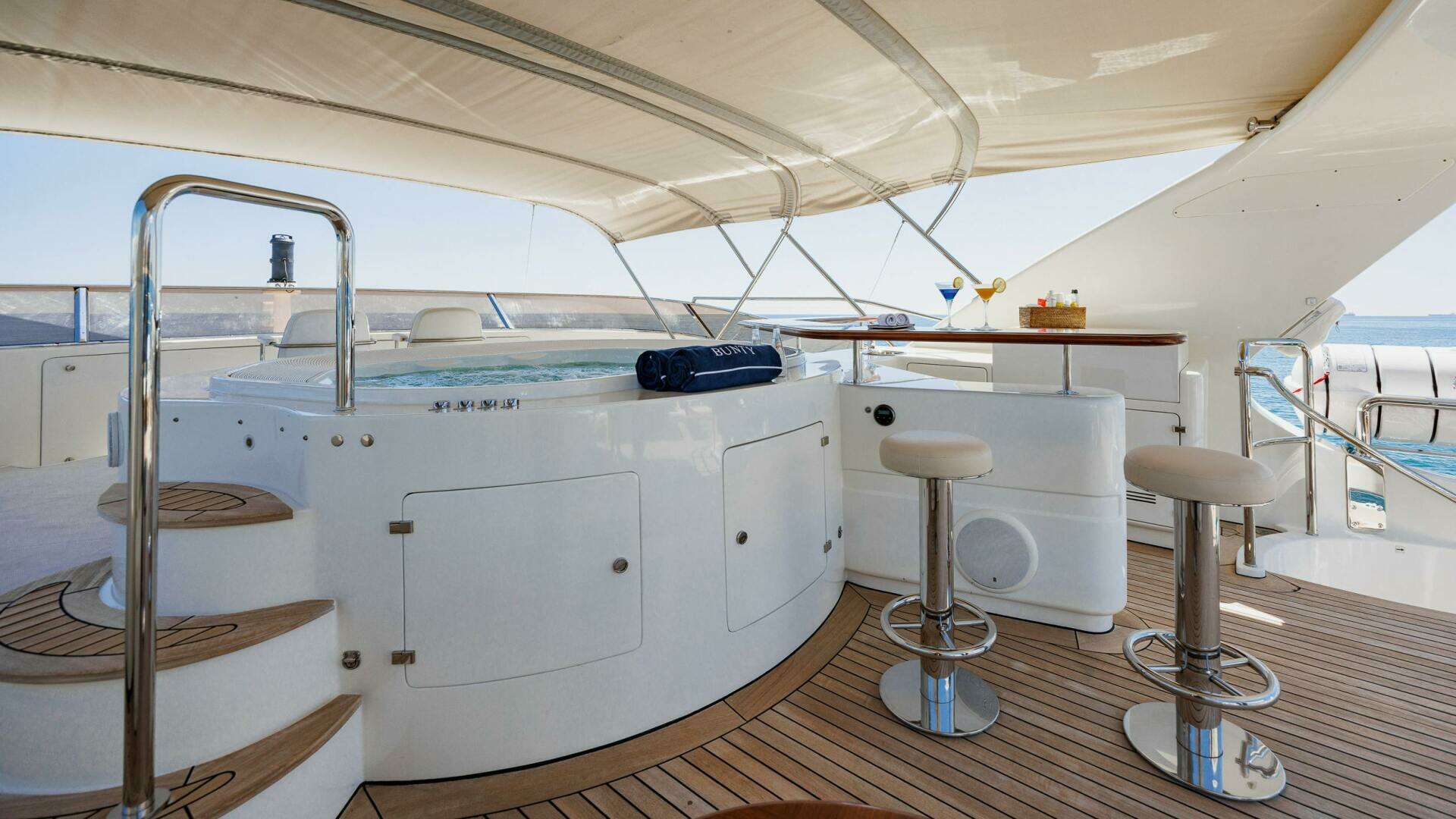

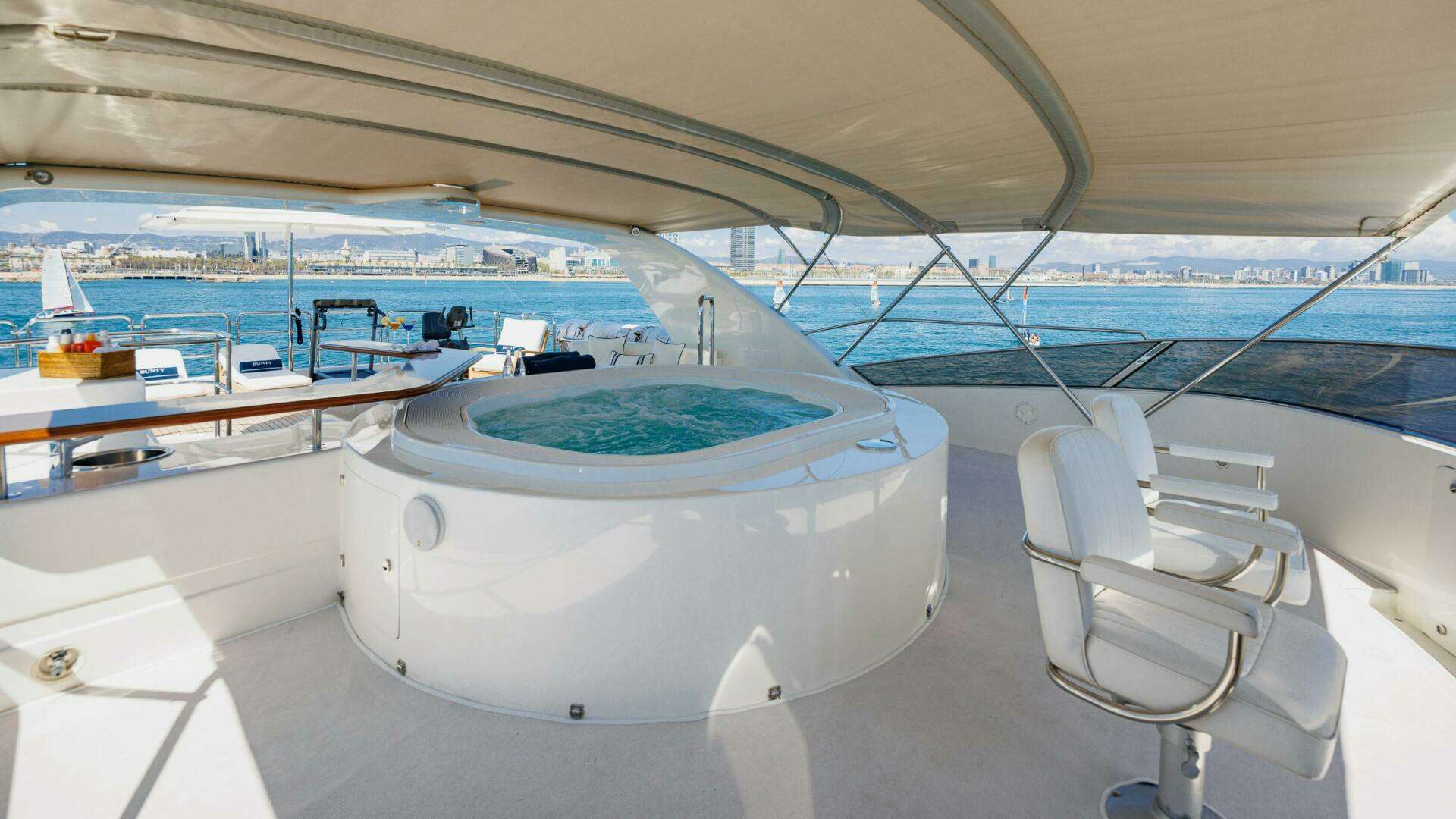

Jacuzzi: Model 4 SP3P/3R, 6 person

Anchor Windlass: 2 x Rossi Motoriduttori

Aft Capstans: 2 x Rossi Motoriduttori

Anchors: 2 x 225kg each

Anchor Chains: 2 x 5 shackles, 19mm stud-link

Boat Crane: 1 x Bensenzoni sundeck rescue boat crane, manual 600kg

Passerrelle: Pincraft Gemini Plus

Swim Ladder: Motomar hydraulic unit

Swim platform: Pincraft hydraulic unit

Searchlight: 1 x Searchlight on foremast

Sundeck Awning: 1 x custom bimini

Bridge Deck Awning: 2 x side awnings

Main Deck Awing: 3 x privacy awnings

AV/ ENTERTAINMENT SYSTEMS

Wifi throughout

All guest cabins and salons have iPads to control AV and lighting

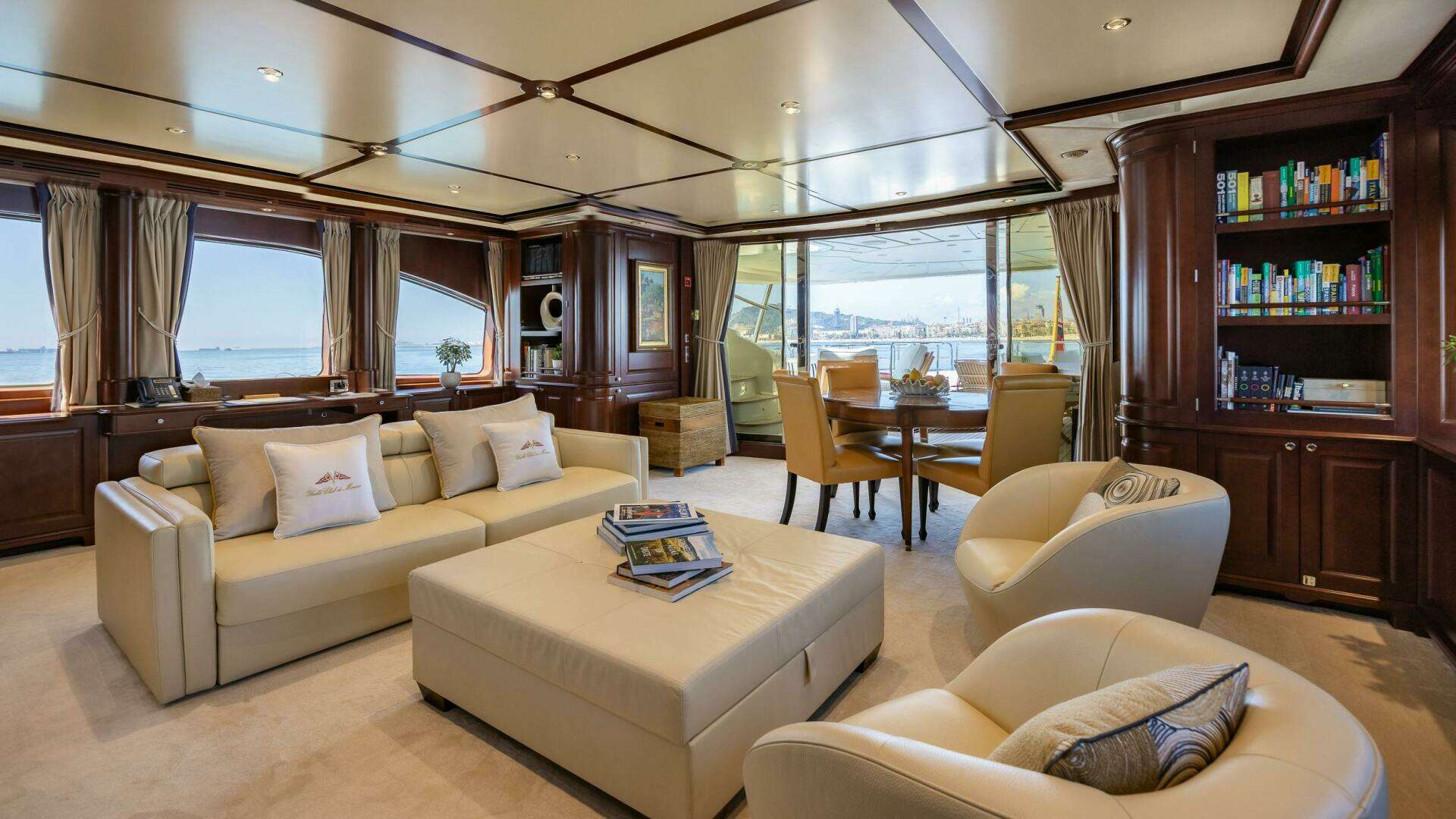

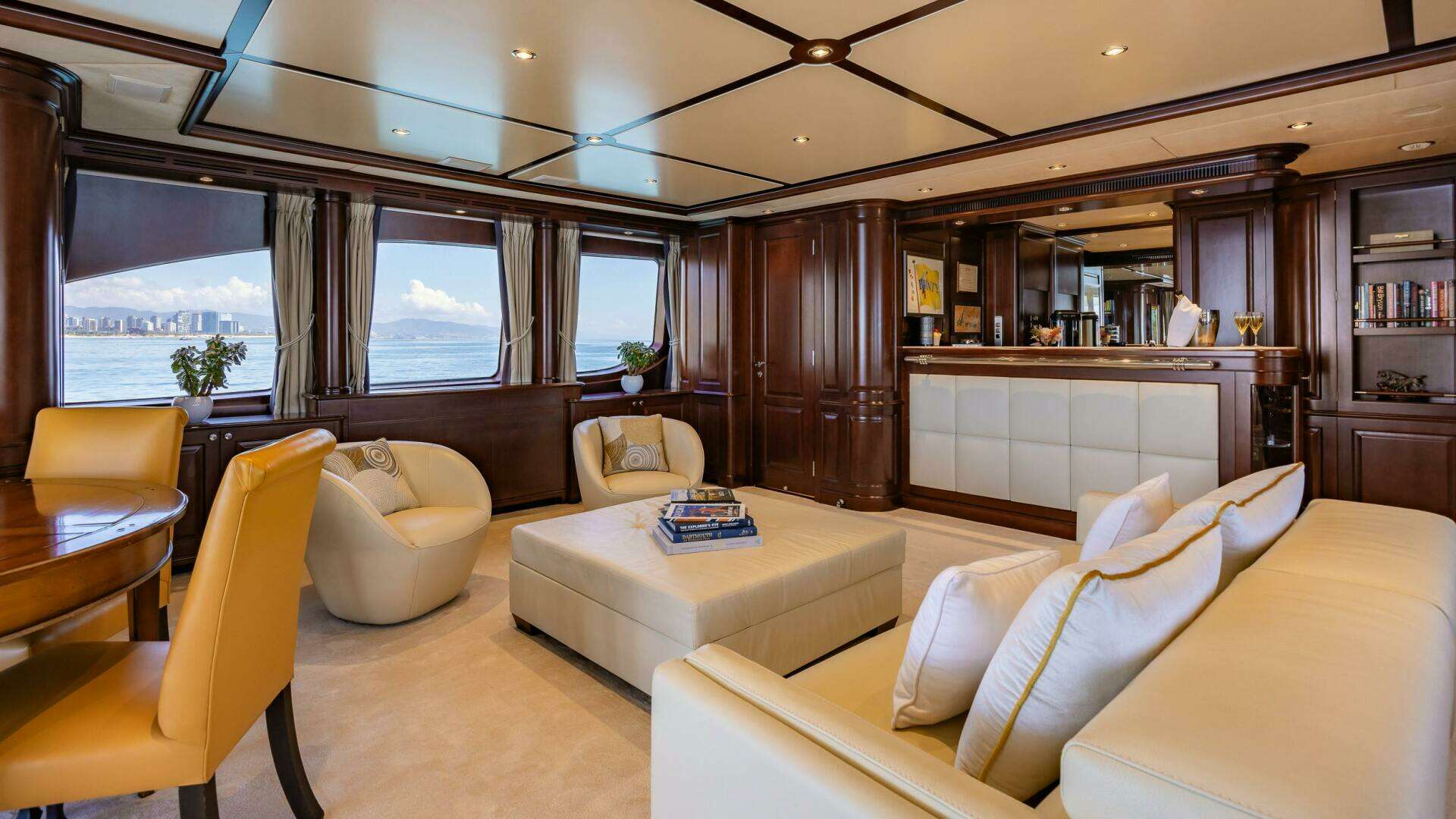

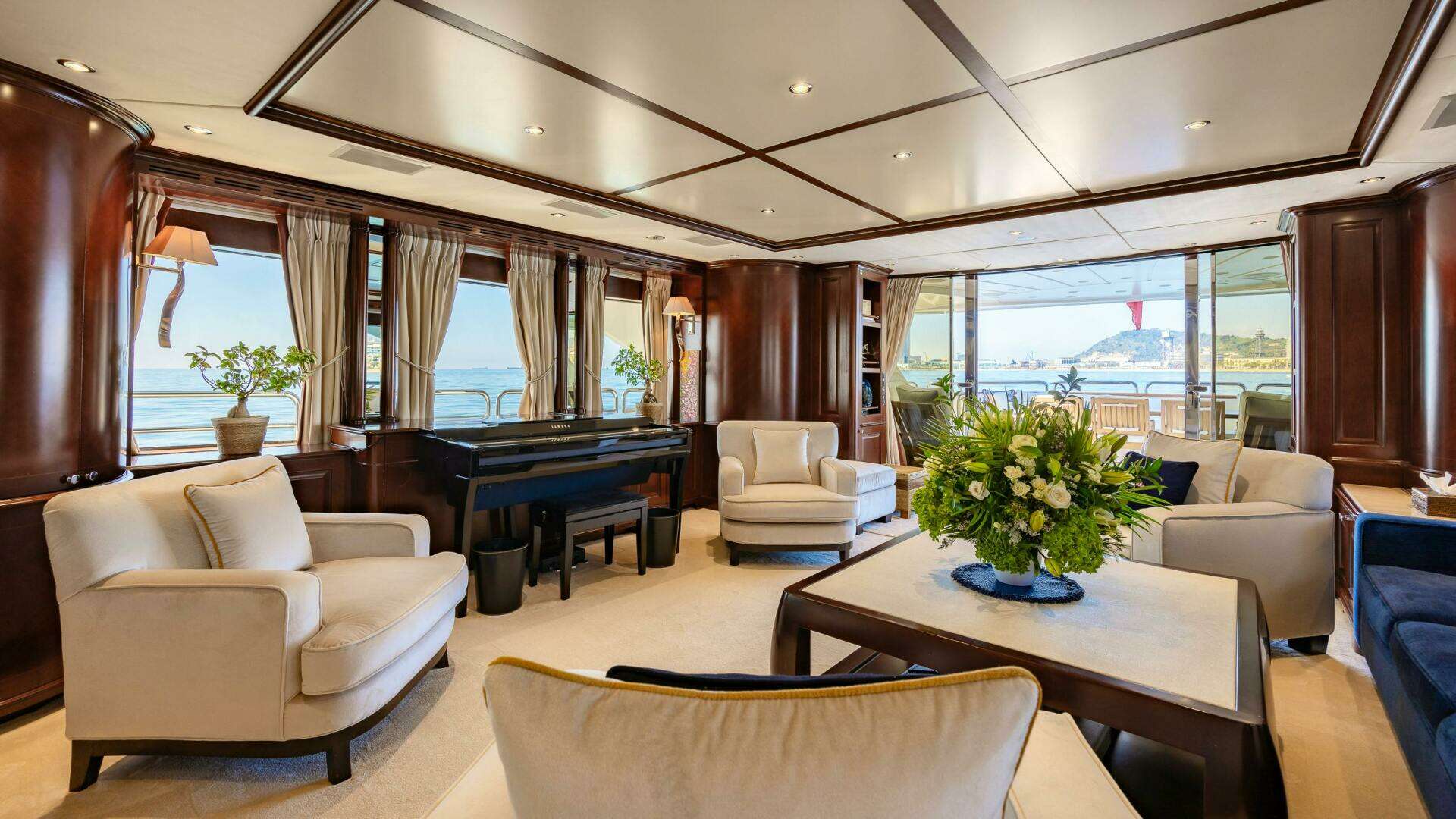

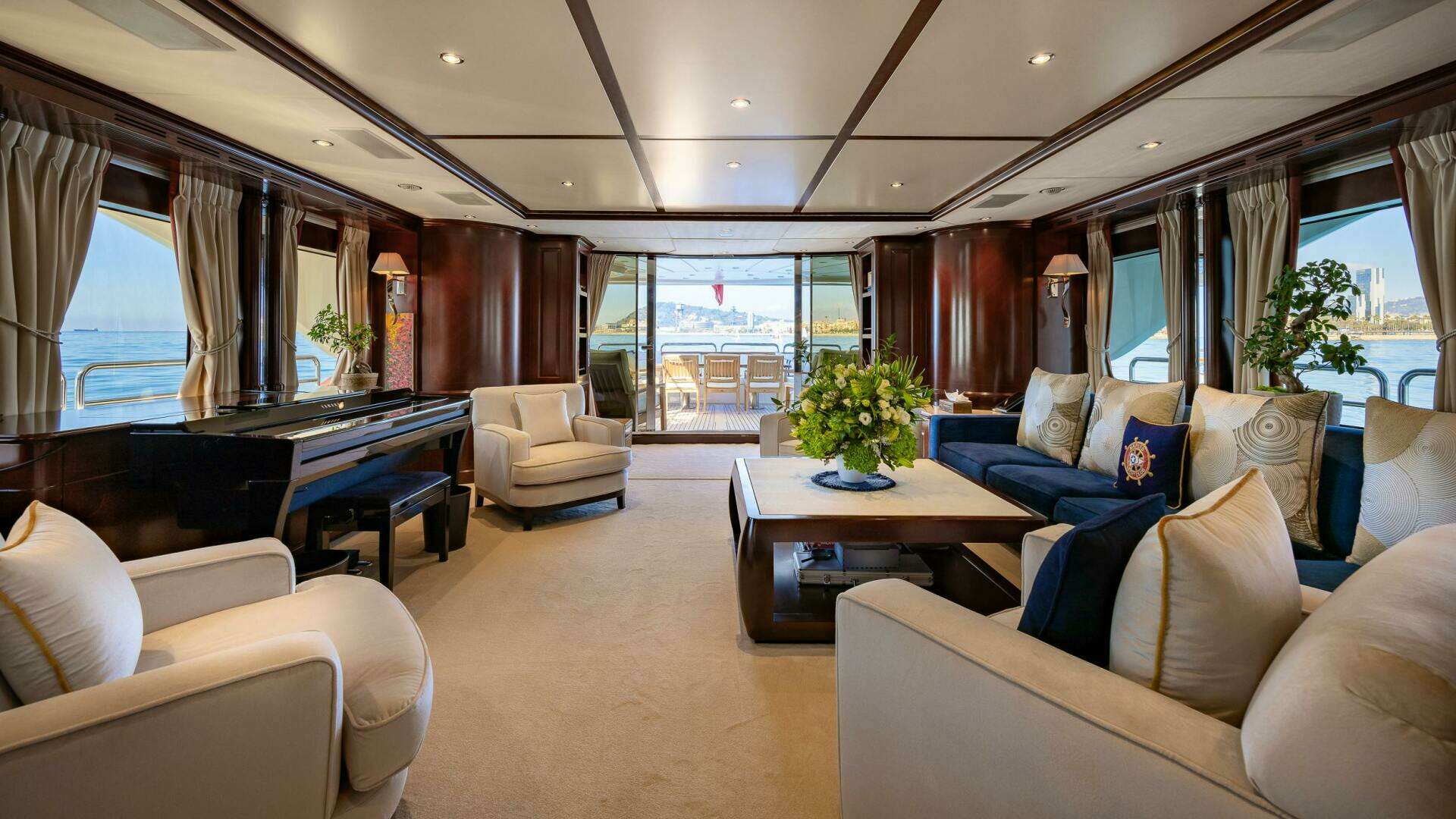

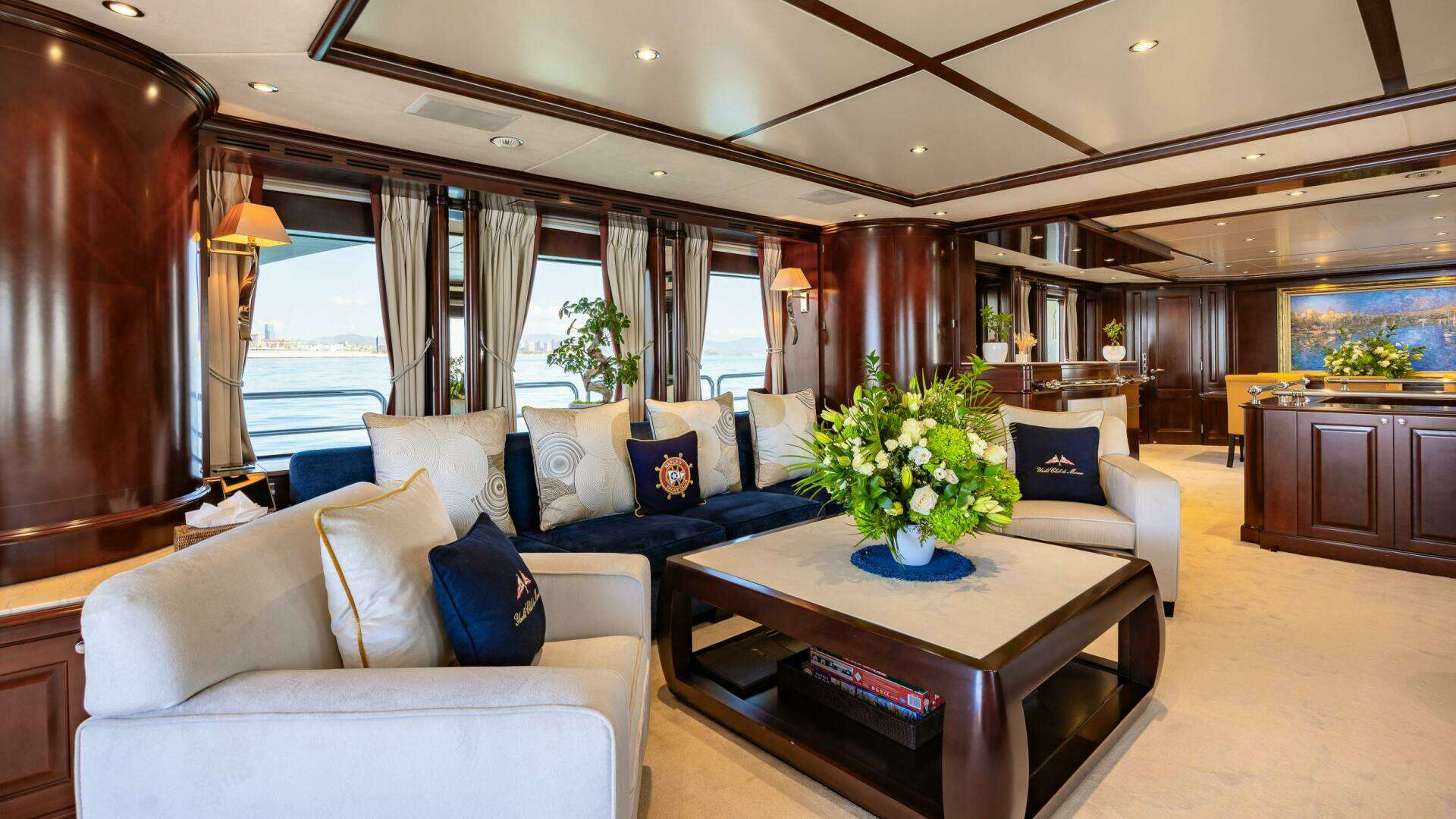

Main Salon - Denon surround sound, Sky TV, Apple TV, DVD, 42” HD TV

Skylounge - Denon surround sound, Sky TV, Apple TV, DVD, 42” HD TV

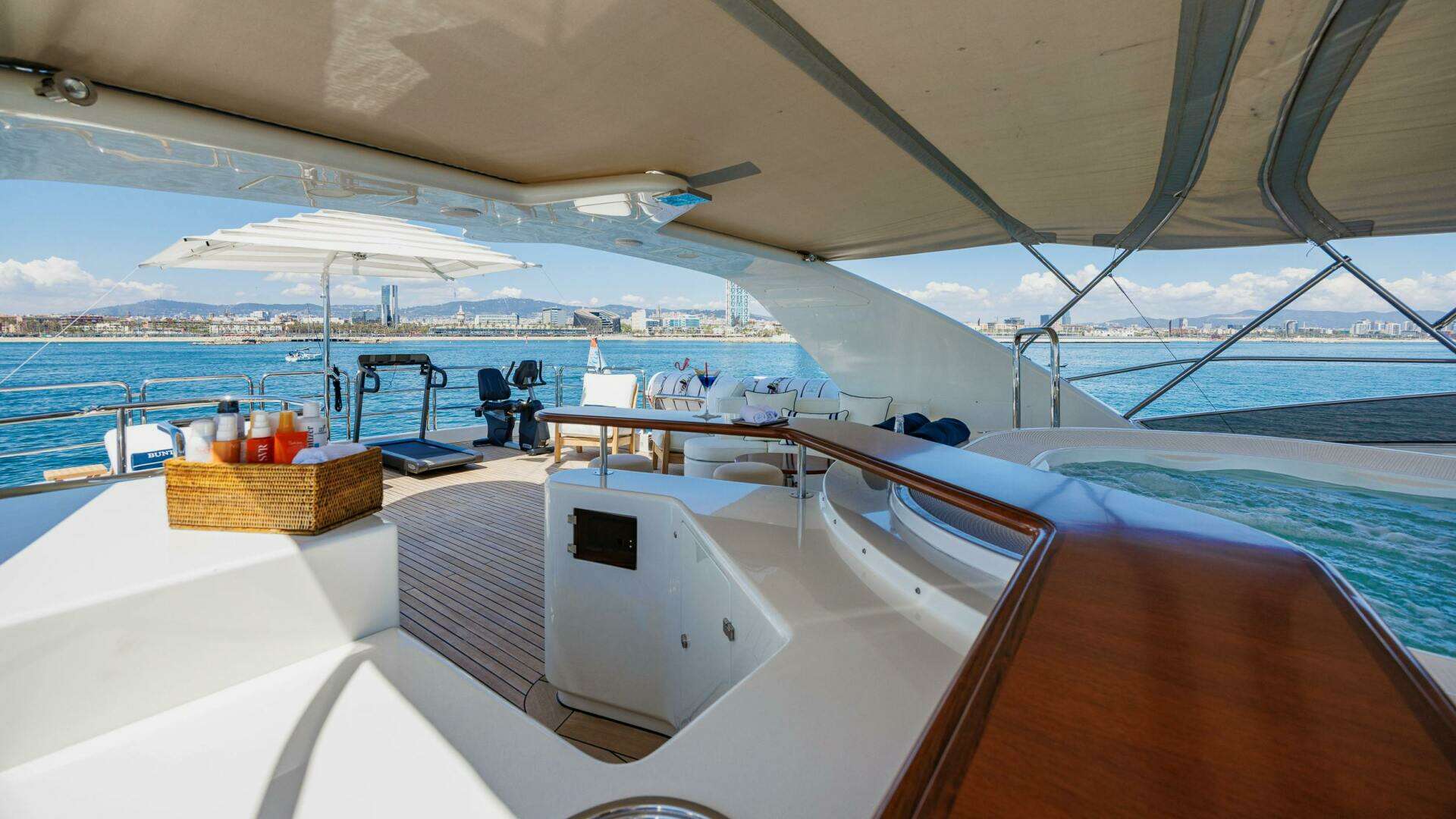

Sundeck - Fusion stereo, 6x Promar speakers, Apple Airplay

Owner’s Cabin - Denon surround sound, Apple TV, DVD, 42” HD TV

Guest Cabins - Yamaha stereo/DVD, 20” HD TV

Captain’s Cabin - Yamaha stereo, Navigation display, Sky TV

Crew Cabins - Yamaha stereo

Crew Mess - Denon surround sound, Samsung, DVD, Sky TV, 20” HD TV

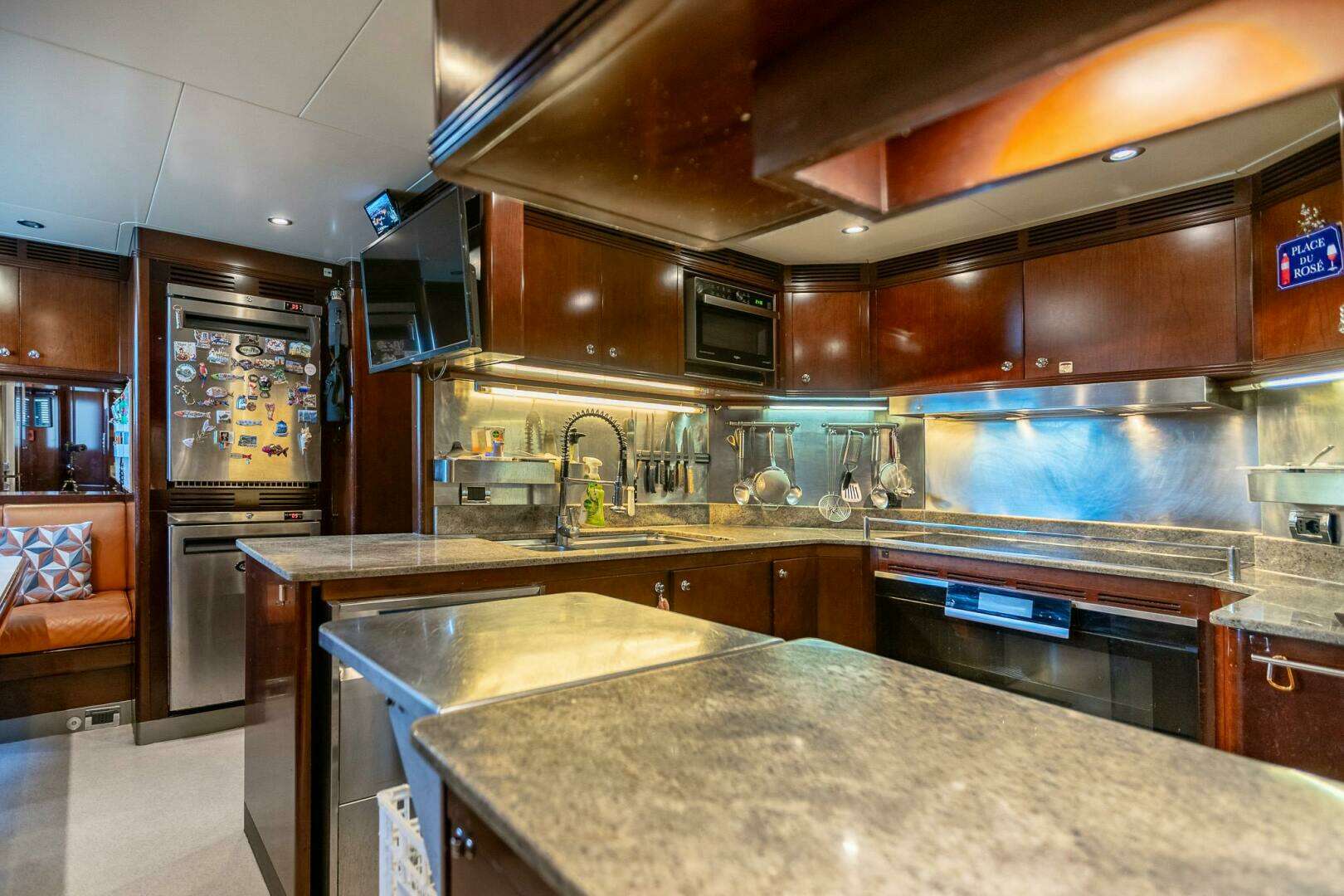

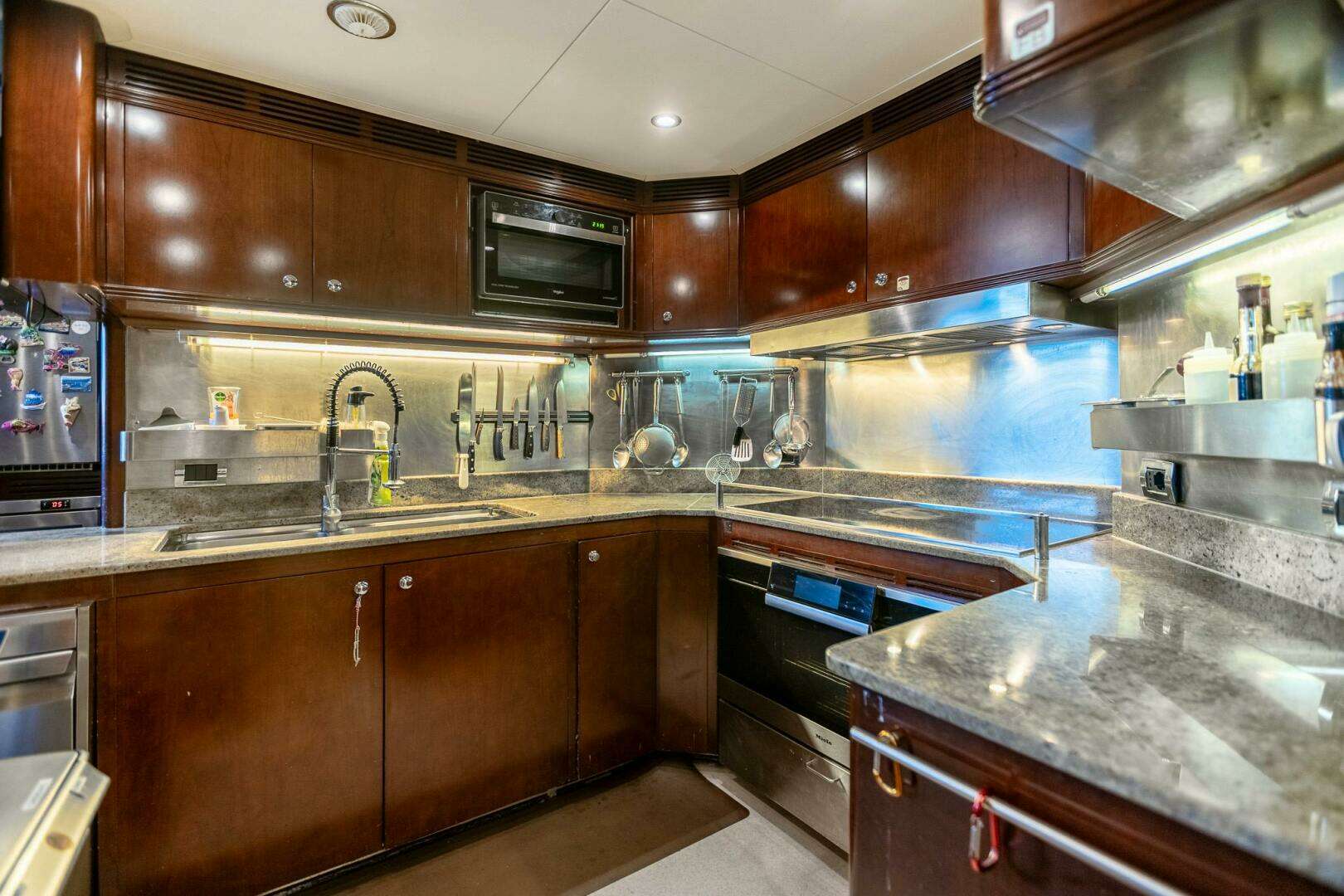

DOMESTIC EQUIPMENT

1 x Whirlpool microwave

6 x Miele induction plates

1 x Electrolux dishwasher

1 x Miele 90cm oven

2 x Fridges, Foster

4 x Fridges, Frigoboat Marine

2 x Freezers, Frigoboat Marine

1 x Cuisinart toaster

1 x Phillips kettle

LAUNDRY

2 x Miele washing machines

2 x Miele dryers

1 x Rowenta steam iron

BRIDGE DECK BAR

2 x Wine Fridges

1 x Miele dishwasher

1 x Small drinks fridge

1 x ULine ice maker

1 x Russell Hobbs kettle

1 x Phillips blender

1 x Krupps coffee machine

EXTERIOR DOMESTIC EQUIPMENT

1 x Sundeck ULine ice maker

1 x Bridge deck IndelB small drinks fridge

1 x Sundeck ULine ice maker 1 x Bridge deck IndelB small drinks fridge

Tender & Toys

5.2m Castoldi Jet Tender

2 x Yamaha Jetskis (new 2020)

Waterskis (adults and children sets)

REFIT NOTES (2017-PRESENT)

2017

MTU service, engineering works

New interior linen & crockery towels

Winter 2017/18 Lusben shipyard

Replace Bridge and Master delaminated windows (ABS survey)

Propellors and shafts removed, Laser alignment and boring adjustment (ABS survey)

Pre 5-year survey works, overboard valve replacement, tank inspections and painting. Stabiliser major service.

Hamman treatment overhaul, HVAC chiller and pumps overhaul.

Jet pumps and fire/ bilge pumps overhaul.

Annual shipyard works plus anchor galvanising, teak repairs, garage tender recovery system overhauled.

Hull and super structure gel coat sand, polish and Ceramic coating applied.

Awl grip paint stern area.

Mast and seating on Jacuzzi deck repaint.

Garage floor repaint.

Varnish application capping rails

Upgrade VSAT and TVRO system and replace SAT Domes and Control system.

Replace both saloon TV and SAT boxes, AV controller upgrade

New radar Furuno X band radar

New wing station and bridge screens

Upgrade sundeck bimini to full size frame and new canopy

New helm seats and carpet on jacuzzi deck

Install spotlights, BBQ and gas detector alarm.

New crew carpet

New galley and crew roof panels

Galley hob, oven, dishwasher, fridge and freezer doors replaced and overhauled compressors.

Upgrade installation of new under bridge a/c compressor cooling system

Replace platform teak and various steps and border planks upper deck

Cayman flag commercial survey with annual safety servicing.

Winter 2018/19

ABS 5-year survey and shipyard works including testing and replacing overboard valves, tank inspections and repaint freshwater tank, machinery

Hull inspection as required

Load line survey including light weight inclination test and new stability book with marine surveyor and class

MTU service, borescope inspection, oil samples tested and 4 x Turbo overhauls.

Gearbox internal inspections and oil samples test.

Heat exchanger overhaul.

Coolant pump overhaul.

Generator Kohler 80kw complete engine overhauls at 11,500 hrs

Upgrade WIFI routers and Kerio security, Pepwave external aerials

All exterior seating and sunbeds upholstery recovered

Main Saloon sofa and seating upholstery recovered

Leather dining chairs recovered

Saloon table veneer replaced

Fire retardant applied to saft furnishings (Flag)

Cayman flag commercial survey with annual safety servicing.

Winter 2019/20

Battery replacement - all service batteries & emergency batteries

MTU replace wing station controller, engine control screen, starter motor, coolant pump plus annual service

2 x New jet skis Yamaha ex deluxe

New exercise bike

Winter 2020/21

MTU QL3 replace injection pumps and injectors, valve service, overhaul 4 x turbos, replace coolant pumps and remove sump fix oil leaks

New starter motors (5169 hours)

Replace water softerner and UV lamps and water pumps control

3m Polish Hull and super structure, UV polish

Varnish application capping rails

Full replacement of medical kits and defibrillator.

Fire retardant application of soft furnishings for Flag

Flag and class Annual commercial surveys and safety equipment service

Bridge touch screen LCDs upgraded, new GPS multi-function displays and depth sounder and two Hatteland screens replaced.

Winter 2021/22

Annual haul out and maintenance

Exterior tables repainted

Ceramic coat stern hull areas to prevent black soot marks

Varnish application capping rails

Flag and class Annual commercial surveys and safety equipment service

Fire retardant application of soft furnishings for Flag.

Galley extraction ducting professional cleaned

Winter 2022/23

Annual haul out and ABS shaft survey, replacement shaft seals / bushes.

Completed before 5 year ABS survey due 2024

Respray Boot top line in Royal Blue

Anchor winch motors replaced with new units

Jet pumps overhauled

Hamman sewage treatment overhauled, new dosing pump, sea water pump

Jacuzzi complete overhaul, new pumps and heaters

Ventilation cleaning by specialist company of interior ducting

Water maker complete overhaul, new membranes and sand filter, pumps overhauled

Miele washing machines and dryers overhauled by service agent

Bimini canopy replaced in white, jacuzzi deck carpet replaced

New Techno gym running machine

Castoldi tender Volvo D3 engine complete overhaul

Interior carpet completely renewed and galley vinyl

Flag and class Annual commercial surveys and safety equipment service
