2024 Hargrave 118'
36.00 m
2024 Hargrave 118' E Series Superyachts Division
- 36.00 m
- Diesel
- Power
- Trideck
2024 Hargrave E Series Superyachts Division
118' (36.00 m)

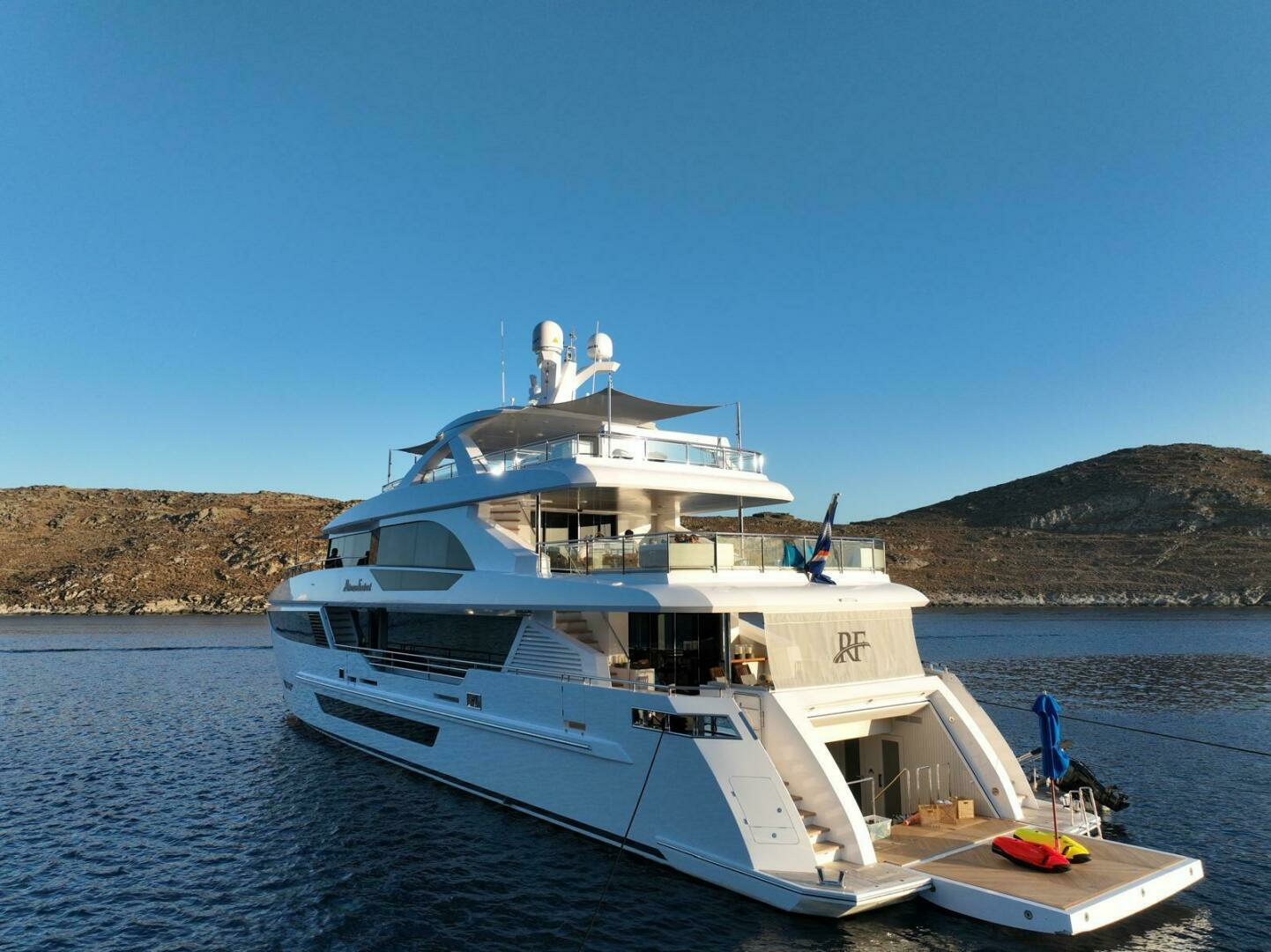

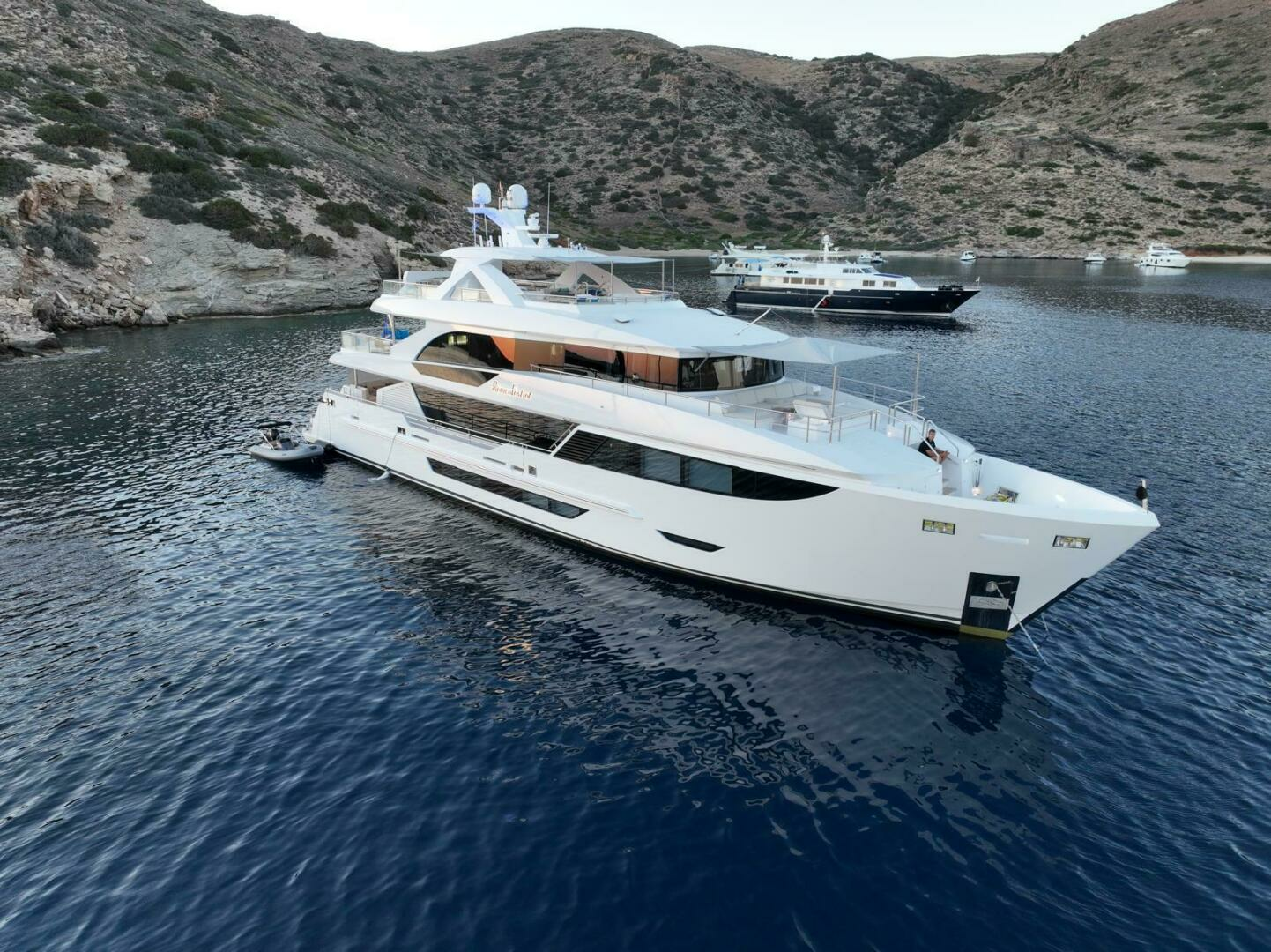

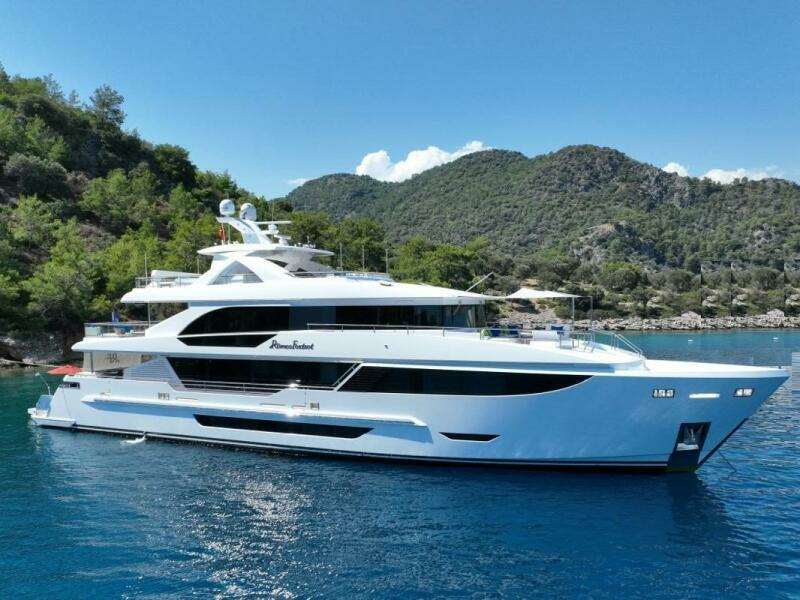

Introducing the E Series 118 Tri-Deck by Hargrave Yachts – the largest in its class at 323 GT. Contact us for more information on this impressive new build, current projects, or future opportunities. We currently have four yachts under construction. Join us to explore your next yacht journey.
| FEATURES: |
|---|
| 2800 Nautical miles range at 10knots |

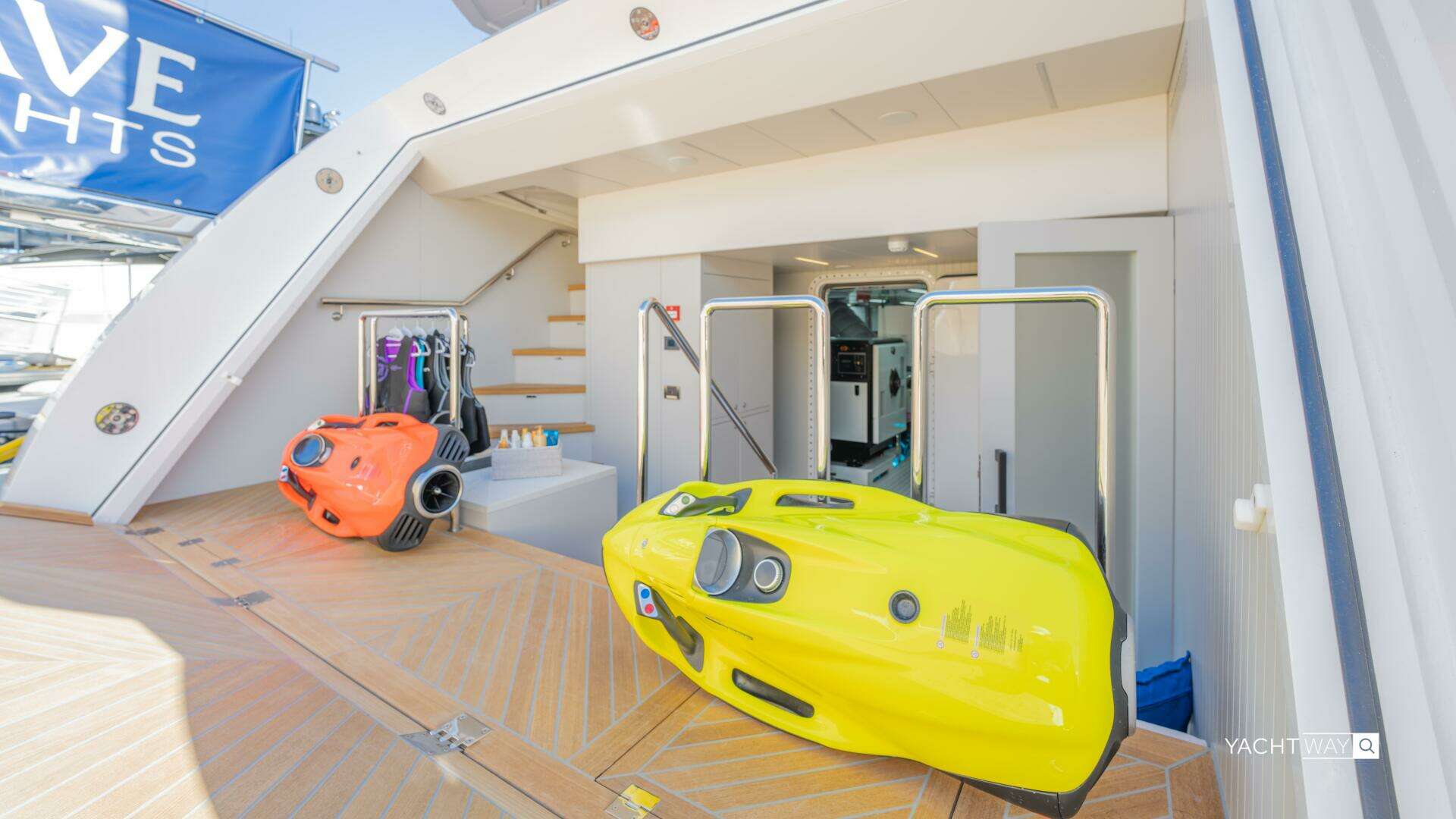

| Beach Club |

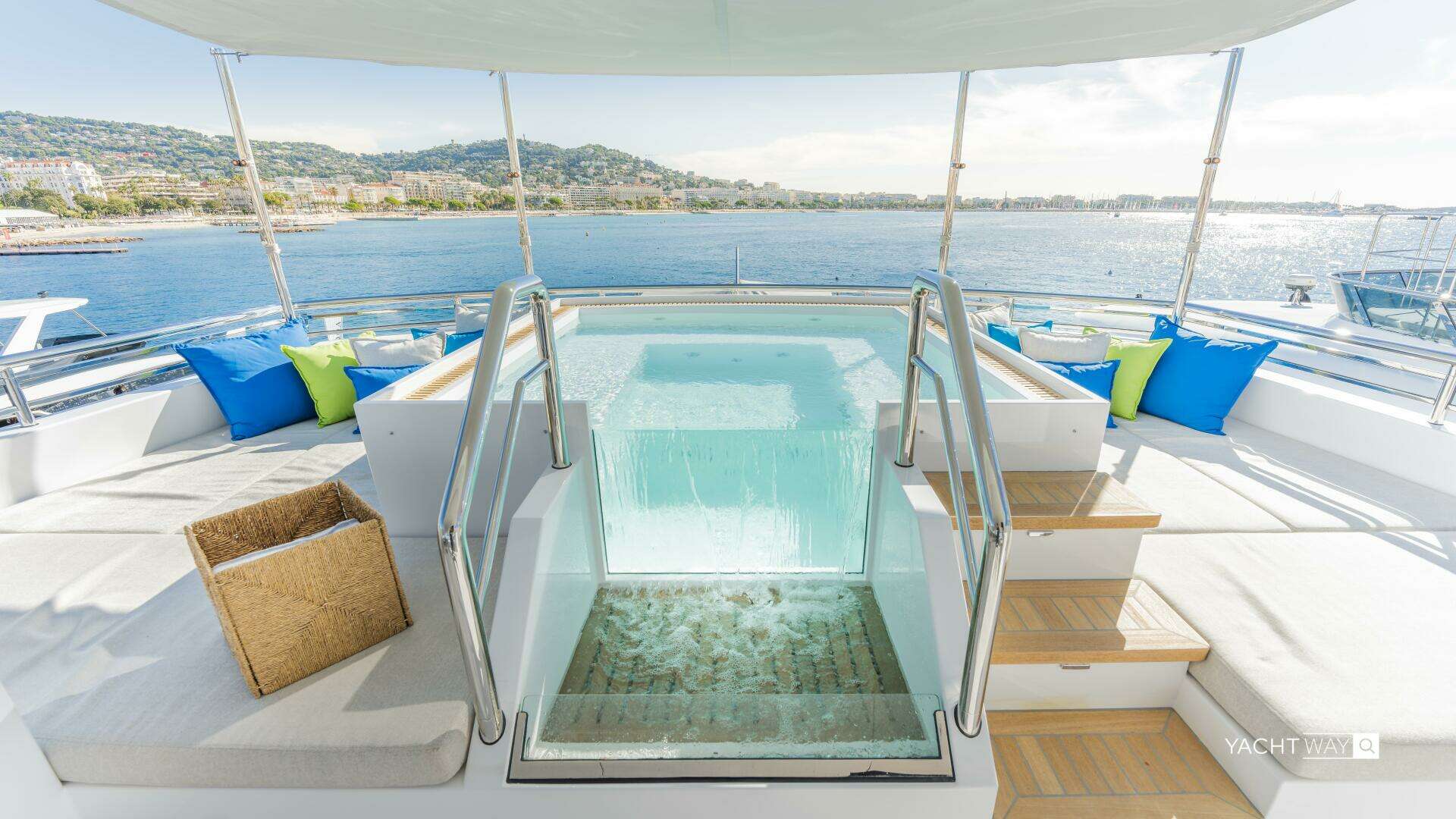

| Sauna and Jacuzzi |
| Day heads/ Powder Rooms in all four decks |
| 7'2" Ceilings heights |
2024 Hargrave 118' E Series Superyachts Division
- 36.00 m
- Diesel
- Power
- Trideck
Call for Price
LOA118'
LOA Inch3''
LOA36.04''
Beam26'
Draft Max Feet6'
Draft Max Inch6''
Draft Min Feet5'
Draft Min Inch9''
Head Room Feet7'
Head Room Inch2''
Fuel Tank (Gallons)8350
Fuel Tank (Liters)31608.17
Fresh Water (Gallons)1000
Fresh Water (Liters)3785.41
Holding Tank (Gallons)500
Holding Tank (Liters)1892.71
TypePower
ConditionNew
Specifications
HSY36-115
Yes
118'3" (36.04 Meters)
Power-New
2024
2024
104'2"
6'6"
5'9"
5
10
5
Yes
Yes
10
7'2"
4
Yes
8
1
19 Knots
15 Knots
Diesel
Fiberglass with Carbon Fiber reinforcement
Fiberglass
Alwcraft 2000
Fast Displacement
10 years
Yes
Zero Speed
Naiad
Yes
8350 Gallons (31608.17 Liters)
1000 Gallons (3785.41 Liters)
500 Gallons (1892.71 Liters)
323
210
374785
RINA
Yes
Hargrave Design team
Yacht Interiors by Shelley
Hargrave Yachts
White Superstructure with Whispering Gray hull
12
Multimedia
Full Details
Short Specifications
ACCOMODATION 10 GUESTS
CREW: 7-8 CREW
CLASSIFICATION: Rina Pleasure Yachts C+HULL o Mach Y UNRESTRICTED NAVIGATION
DISPLACEMENT (Light Ship) 170 Tonnes
DISPLACEMENT (Fully loaded) 210 Tonnes
GROSS TONNAGE 317 GT (Approx.)
TOP SPEED 19-20 KNOTS with the current engine package
TOP SPEED 24 KNOTS with the 2400 HP C 32's Engines.
HULL DESIGNED FOR SPEEDS UP TO 28 KNOTS
PROPULSION
MAIN ENGINES 2 x CAT C32 1900HP @ 2300 Rpm
GEARBOX ZF5000 SERIES 2,98:1
ENGINE CONTROL GLENDINING ( 1 main + 3 remote station)
GENERATORS Caterpillar 75 KW Caterpillar 75 KW
SHAFT PROPELLER CJR (UK) 4,5” AQUAMET 22HS Shaft / 5 Blades Class S Propellers
ELECTRIC SYSTEM 120 / 208 VAC 3P 60Hz Main Service
24VDC Service and Engine Start System
TANK CAPACITY
Diesel Oil : 31.750 Lt / 8.350 Gallons
Fresh Water : 4.000 Lt / 1.000 Gallons
Black Water : 2.000 Lt / 500 Gallons
Grey Water : 2.700 Lt / 700 Gallons
BUILD / CONSTRUCTION
HULL / SUPERSTRUCTURE : CARBON RAINFORCED E-GLASS - EPOXY COMPOSITE SANDWICH
OPEN DECK : HANDLAID BURMESE / MYANMAR TEAK OR NON SKID PAINT
PAINT SYSTEM : AWLGRIP
MASTER EQUIPMENT LIST
Airhorn Kahlenberg
Anchor winch and Capstans (x2 )Maxwell VWC8000 Hyd. Windlass, VC800 Capstans
Windscreen Wipers Speich
Alarm & Monitoring system Beijer - Wago
Anchor and Chain (x2) 200kg 316L S.S. Pool Anchor, (x2) 110m (360 ft) 16mm
Grade 2 Stud-link Chain
Audio / Video Crestron
Batteries and chargers Victron
ER Ventilation Delta T System
Bow thrusters Naiad 65kW Bow thruster
Stabilizers: Naiad 525 At Rest Stabilizer with 22kW Power Pack
Fuel oil filters Racor
HVAC NorthernLights Technicold Chiller assembly x3 H/ 10 TON/ TOTAL: 360,000 BTU
Steering System Data Hydraulics AC /DC Steering
Insulation Unifrax B15 Engine room and B0 Galley insulation
Rockwool Thermal cabin insulation
Navigation and communication equipment GARMIN
Pumps HeadHunter and Depco
Sewage treatment Headhunter
Toilet system Headhunter
DECK EQUIPMENT
SWIM LADDER 316L Stainless Steel
CRANE Hydraulic Deck Crane
HANDRAILS High Grade 316L S.Steel
PANTOGRAPH DOORS (x4) Pantograph Door
SLIDING DOORS Electric Operated main and upper saloon doors

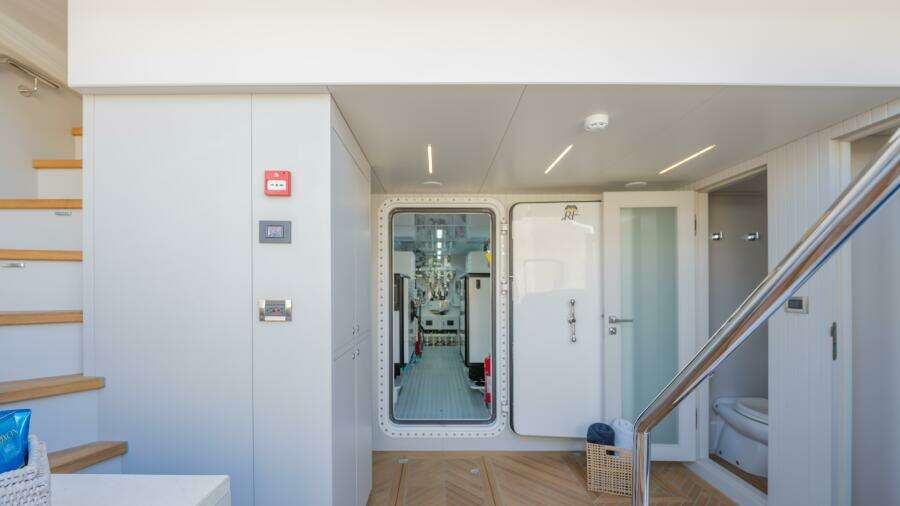

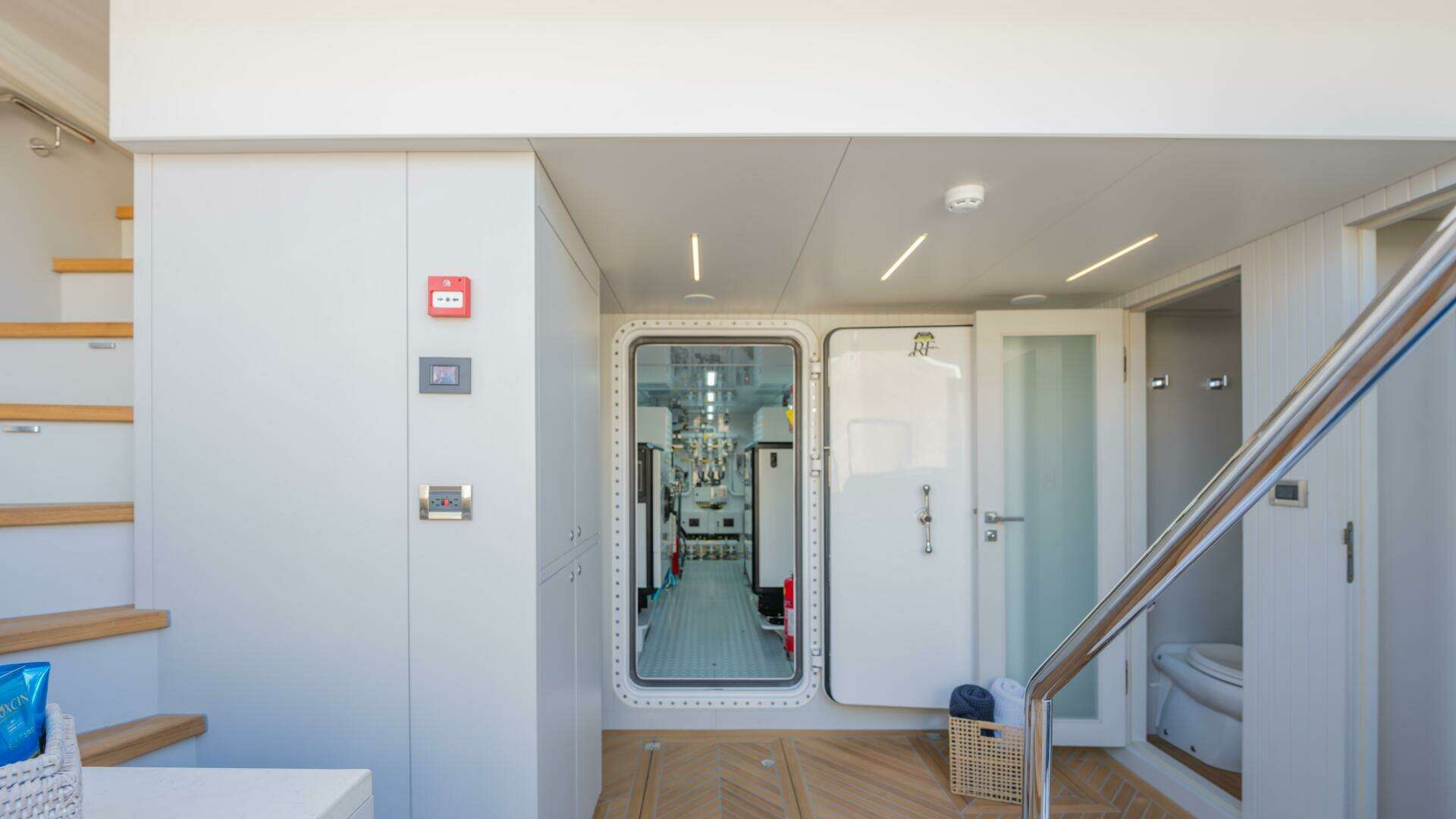

WATERTIGHT DOORS AND DECK HATCHES Watertight Deck Hatches and Engine room WT Fire Doors
AFT BEACH SHELL DOOR Hydraulic Actuator Operated Carbon Reinforced Composite Watertight Door
SAFETY EQUIPMENT
LIFE RAFTS 2 x 16 Persons
FIRE PROTECTION FirePro Engine Room Fire Protection
FIRE & GENERAL ALARM SYSTEM TYCO
