MAIN CHARACTERISTICS

Beam 24’ 1” (7.33M)
Draft 8’ (2.44M)
Speed 12/26 knots (approx)
Construction GRP
Gross Tonnage 245 t
Engines 2 X MTU 16V 2000 M96L
Naval Architect Sunseeker
Exterior Designer Sunseeker
Flag Malta
Location South of France
Classification RINA Commercial

ACCOMMODATION

Total Guests Sleeping        12
Total Guests Cruising         12
Number of beds                   9
Number of King beds           1
Number of double beds       2
Number of convertible beds 2
Pullman Bunks                       2

SPEED/WEIGHT

Cruise Speed 12 knots
Cruise Speed Range 1250 NM
Max Speed 25-26 knots
Max Speed Range 960 NM
Grey Water 1,255 l
Dirty Oil 290 l
Gross Tonnage 245
Water Capacity 4,000 l
Black Water 1,340 l
Fuel Capacity 14,450 l
Diesel fuel long range overload tank of 5,050 l
Fuel Consumption 120 l/h cruising

TENDER, WATERSPORTS & GYM EQUIPMENT

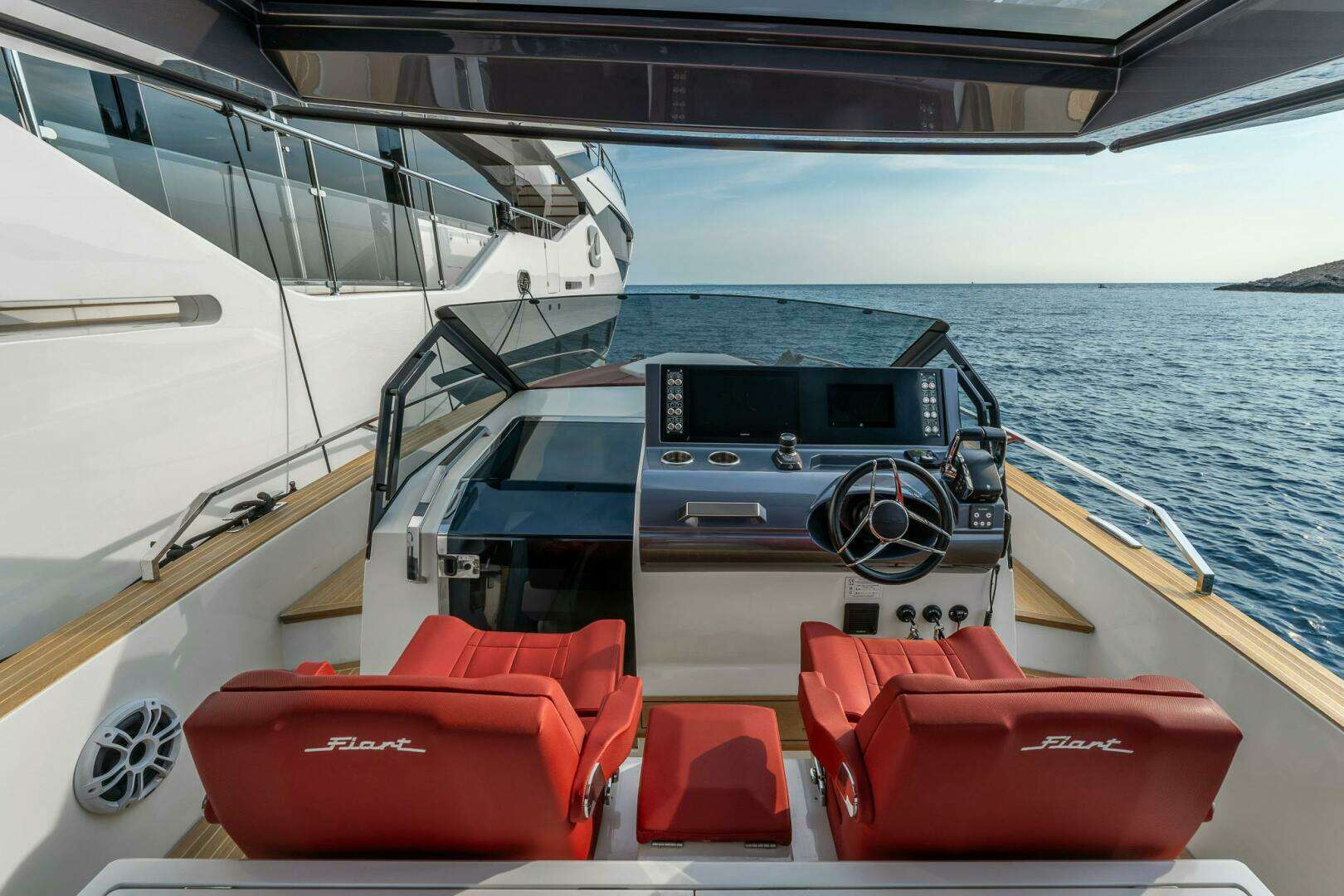

Williams 565S Diesel Jet fitted in the garage
Inflatable Slide
2x JetSki – Seadoo GTR 230 (2019 model)
1x Jet Surf

MACHINERY

Propulsion       2 x MTU 16V 2000 M96L
Engine Type     Diesel
Steering            Hydraulic Power Steering
Stabilisers          Fin stabilization system- 2x
                          Sleipner 2.0m2 fins





AIR CONDITIONING

Marine Air chilled water system to Tropical specification and
with quieter running WhisperCool DC fans
► Air Conditioning for the engine room Watermaker Water Maker - Idromar Water Maker 375 litres per hour (MC9S- 375A-2) 380V 50Hz - Three Phase.
Water Heaters Hot water tank x 2 at 200 litres each (with 3 x 2kW immersion heaters)
Bow Thruster Bow thruster hydraulic control unit 63kW
Stern Thruster Hydraulic Sleipner Stern thruster system
Fuel Separators Alfa Laval Fuel cleaning centrifugal separator
Generators        Two Kohler 70kW

GENERATOR HOURS

Shore Power Converters 75 kVA shore power converter
Windlass 2 x anchor windlasses with hand
control
Anchors & Chains Two Manson Kedge 125kg
polished stainless steel bow
anchors
Cranes & Davits Crane Atlas 2500 Davit which has
a reach of 2285mm and a height of
1800mm
Passerelle Stainless Steel hydraulic passerelle control unit – 400v AC
Water Treatment Sewage Treatment plant

EQUIPMENT & MACHINERY UPGRADES

Trailing Pumps
► Auto Troll for Transmissions
► Flybridge hardtop, including retractable centre canopy and
aft extending sun canopy
► Underwater lights x 15
►Medium Tinted film to side windows and sliding doors in the
Saloon

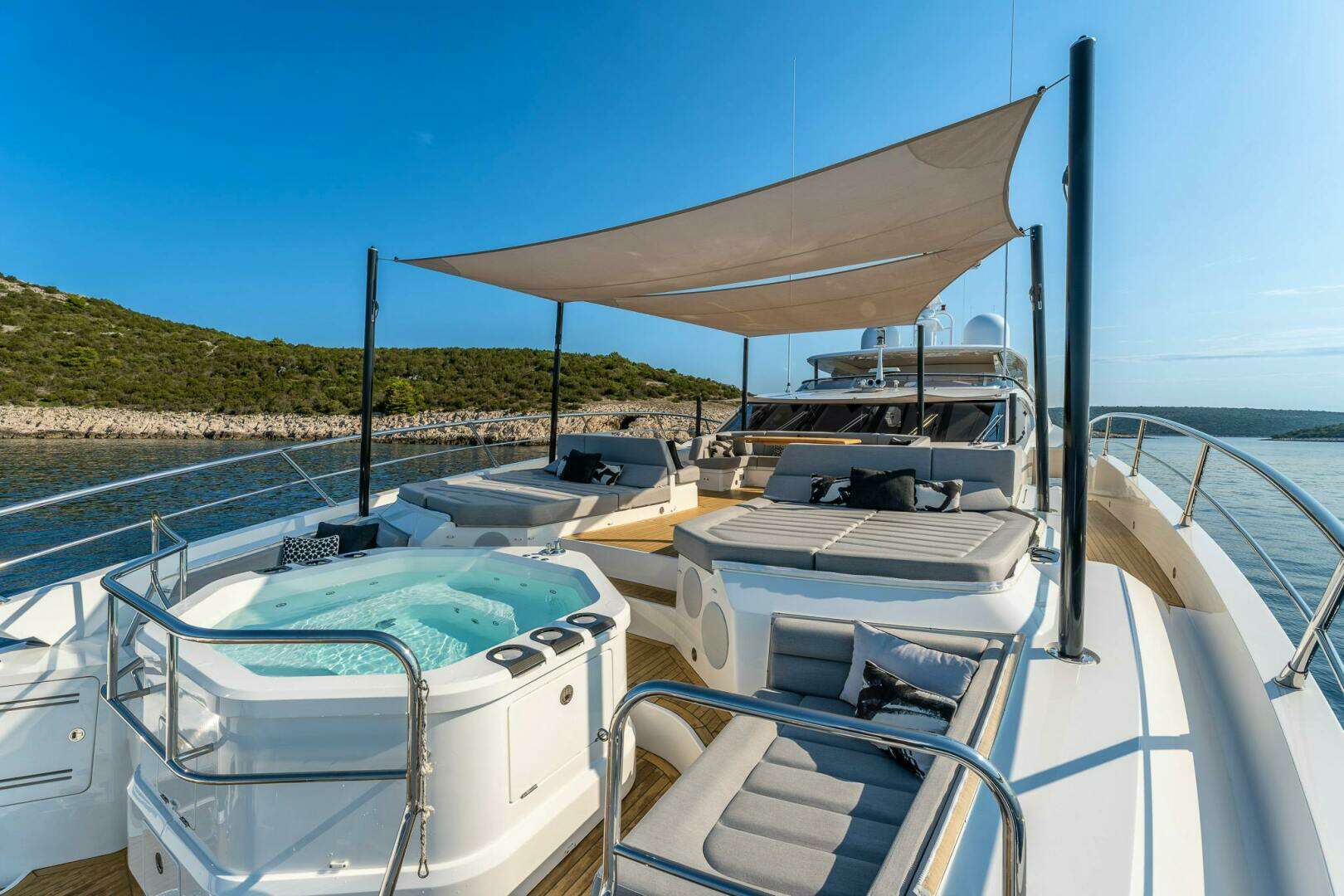

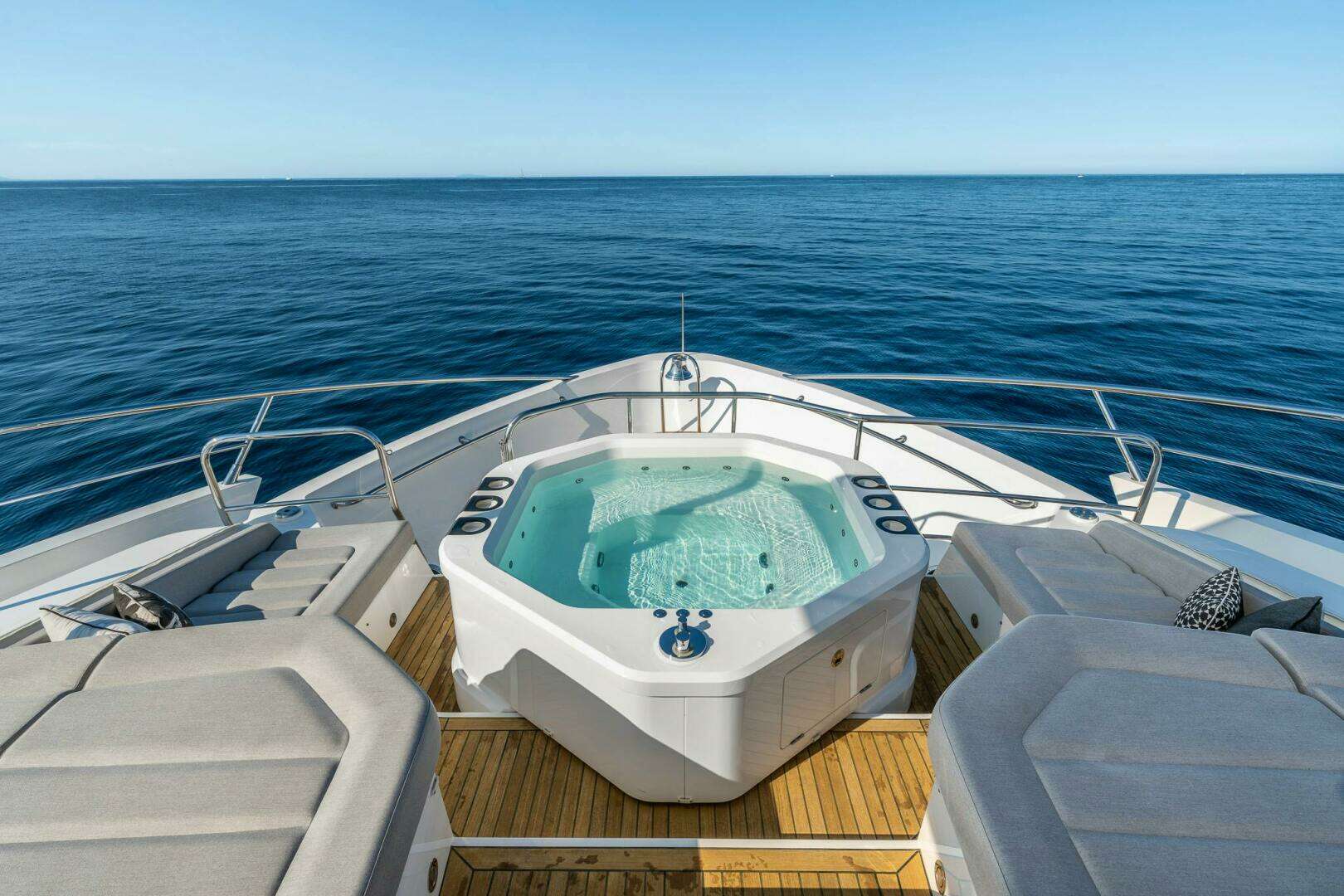

► Foredeck Spa Tub installation in lieu of Flybridge
► Octo Marine Compact Water Softener
► Tender diesel fuelling station with transfer pump from day
tank and fuel hose reel
► Portable air compressor OP20P stored in the engine room
with AC 220v power supply sockets in Garage, Engine Room
and Foredeck
► Voyager 2 remote controlled Seachlight VX500V2 dual
station control. 150W Xenon 24V - 7,600,000cd

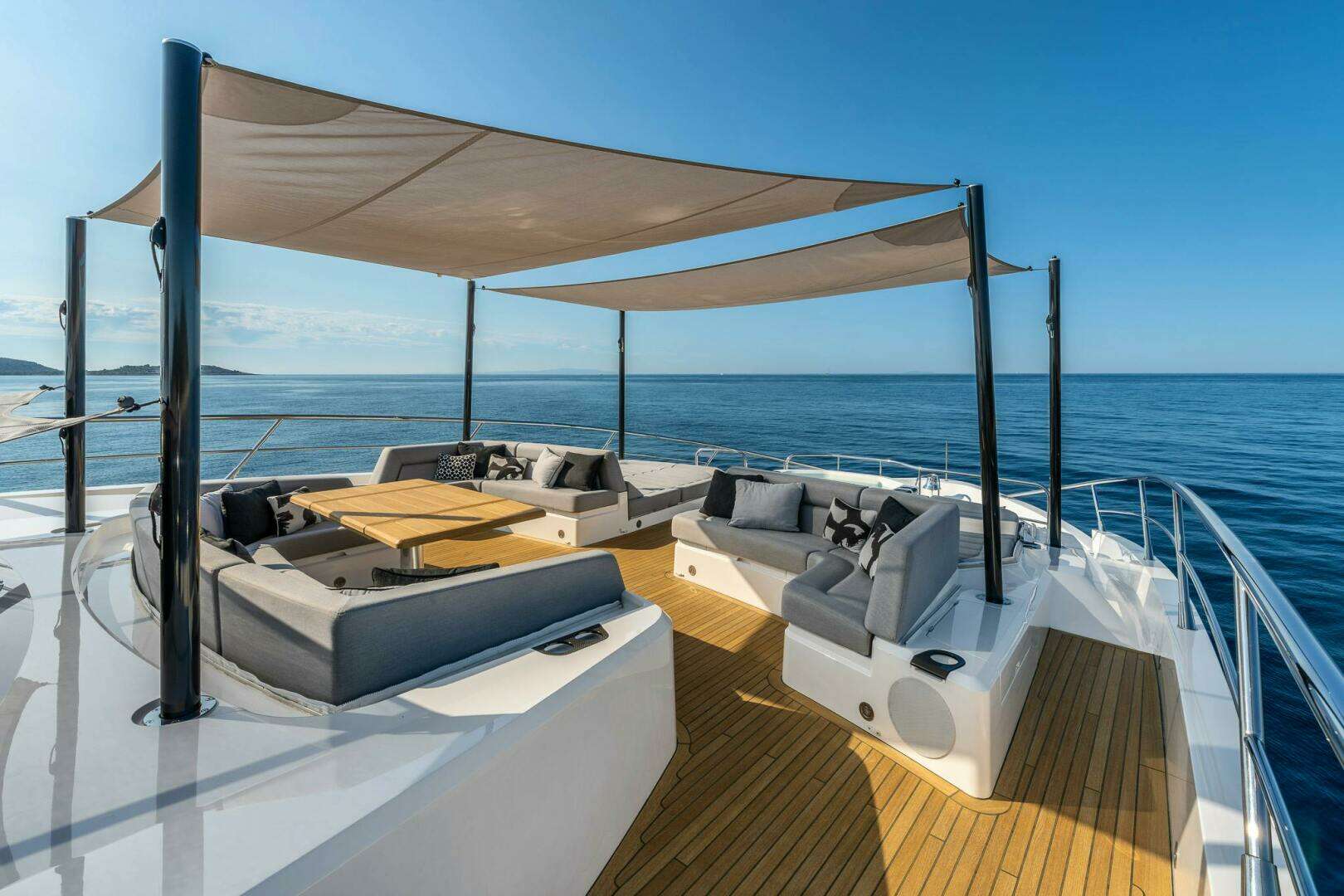

► Sail canopy system with 4 pole system with 3 individual sails
for the Aft of the Flybridge

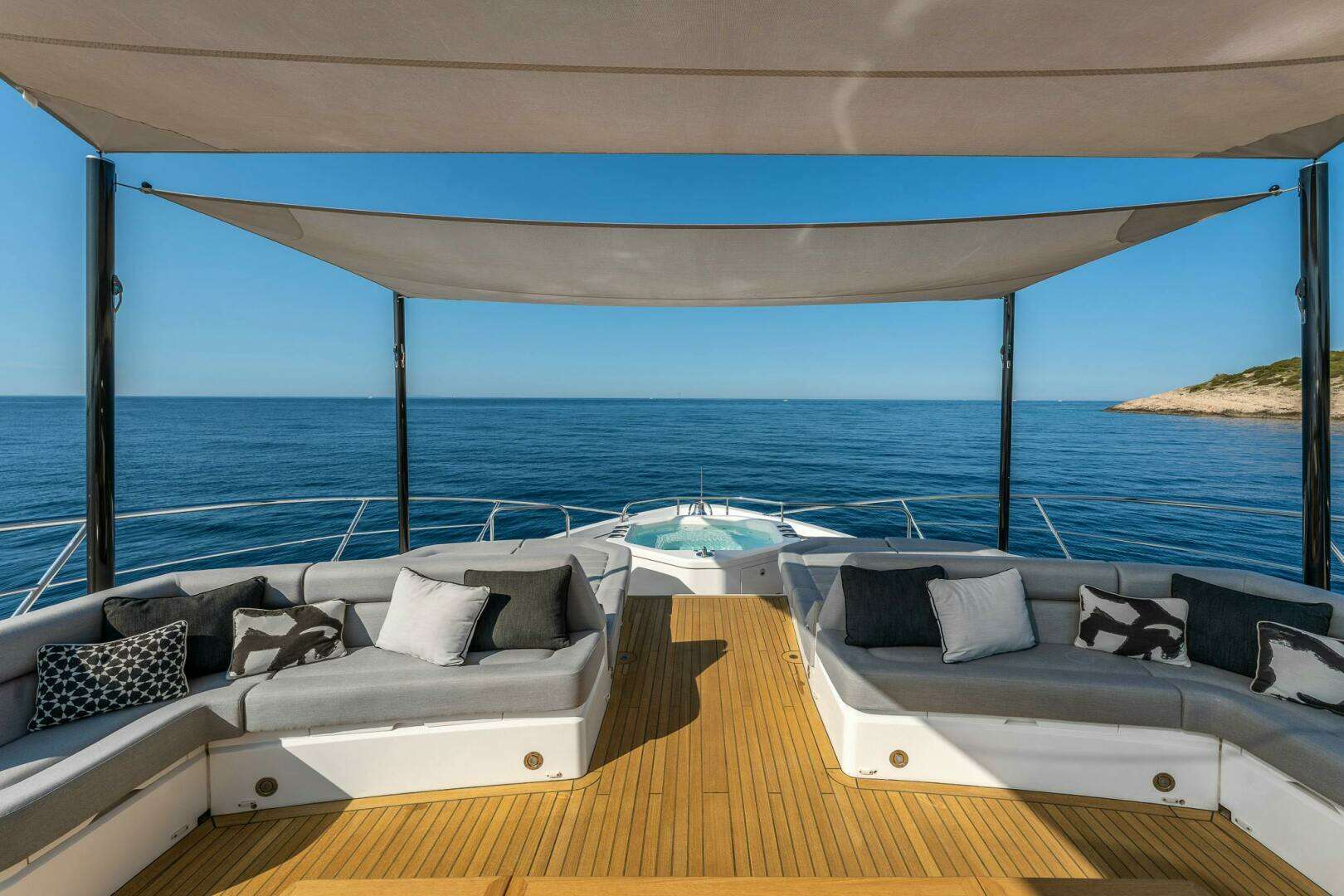

► Sail canopies with 6 pole system with 2 individual sails for
the Foredeck
► Electronic sun canopy with electronic mesh blind aft cockpit
► Flybridge canvas covers on forward flybridge as 703 to infill
gap between screen and hardtop
►Water pump for seawater for a water slide with manual
control installed in the engine room

LAYOUT, AV & IT EQUIPMENT

Cisco Aironet series Access Point Wifi throughout
► 1x Cisco Wireless Controller for Access Points
► A couple Peplink LTE-A modem provided for a fast Internet
connection on board (modem with redundant SIM card slots)
► Kerio firewall & antivirus
► Sonos Sound System throughout
► Plex Offline Media Server with 50TB storage
► Apple TV throughout
► Tijssen CCTV camera system with eight dedicated cameras
► Tijssen SMS Paging facility
► Tijssen MPA Generator Control and Monitoring System
Upgrade
► Vimar ByMe Interior Premium Lighting System Package FLYBRIDGE
►Waterproof TV 42’ with a rise, fall, twist and in specially
made plastic pedestals for the paste control on the flybridge
► 4 x JBL Control 322 C Speaker
► 4 x JBL Control 312 CS 12’’ woofer
► SAT decoder
► Apple TV 4K + Sonos Connect
► mini iPad

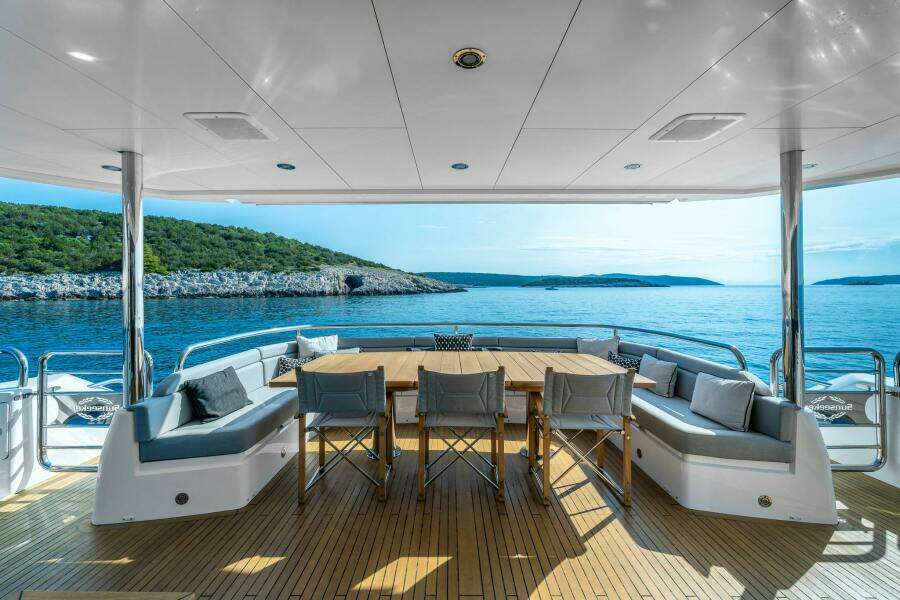

FORE DECK, AFT DECK & BEACH CLUB
► 8 x JBL Control 322 C Speaker
► 8 x JBL Control 312 CS 12’’ woofer
► Sonos Connect
► mini iPads

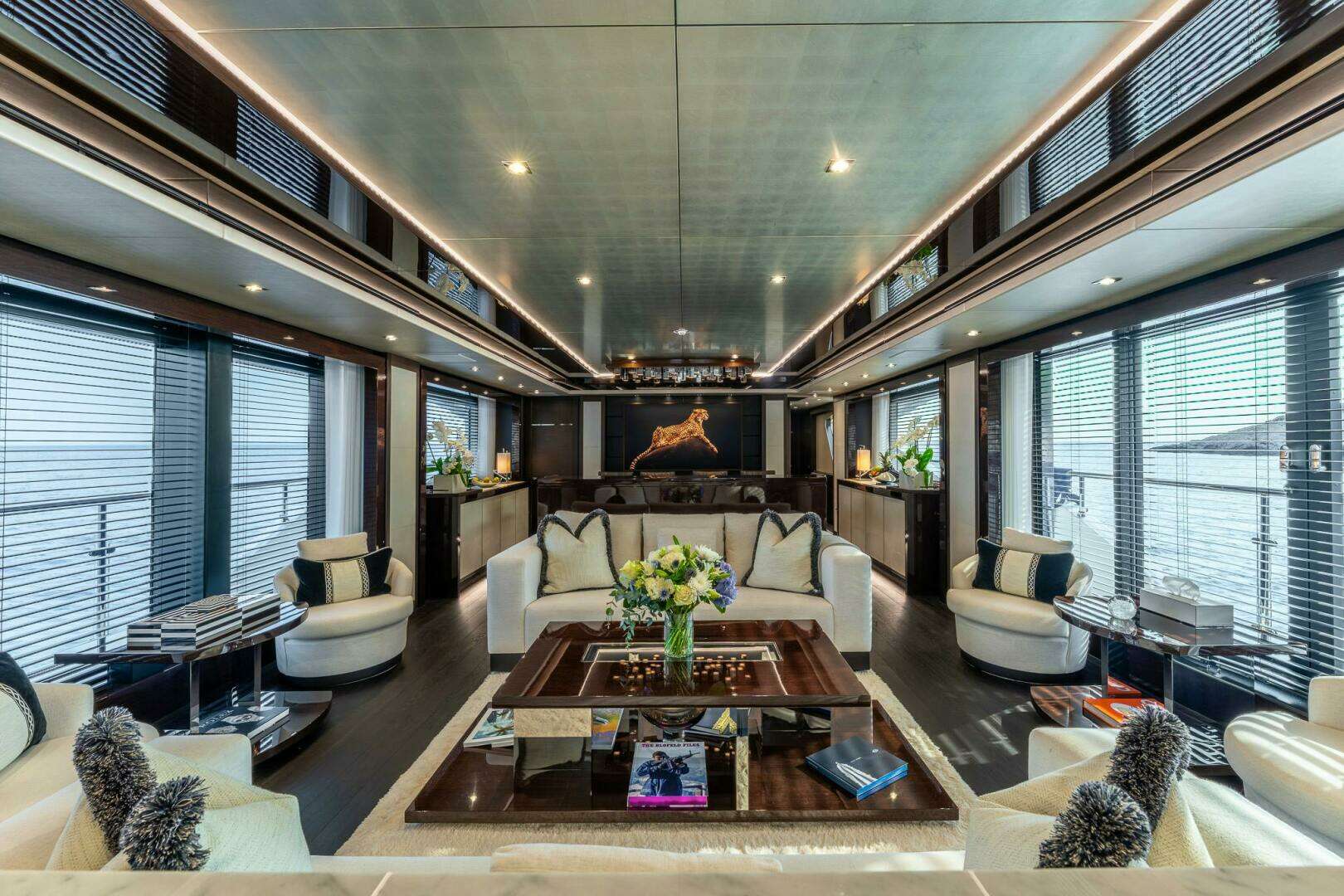

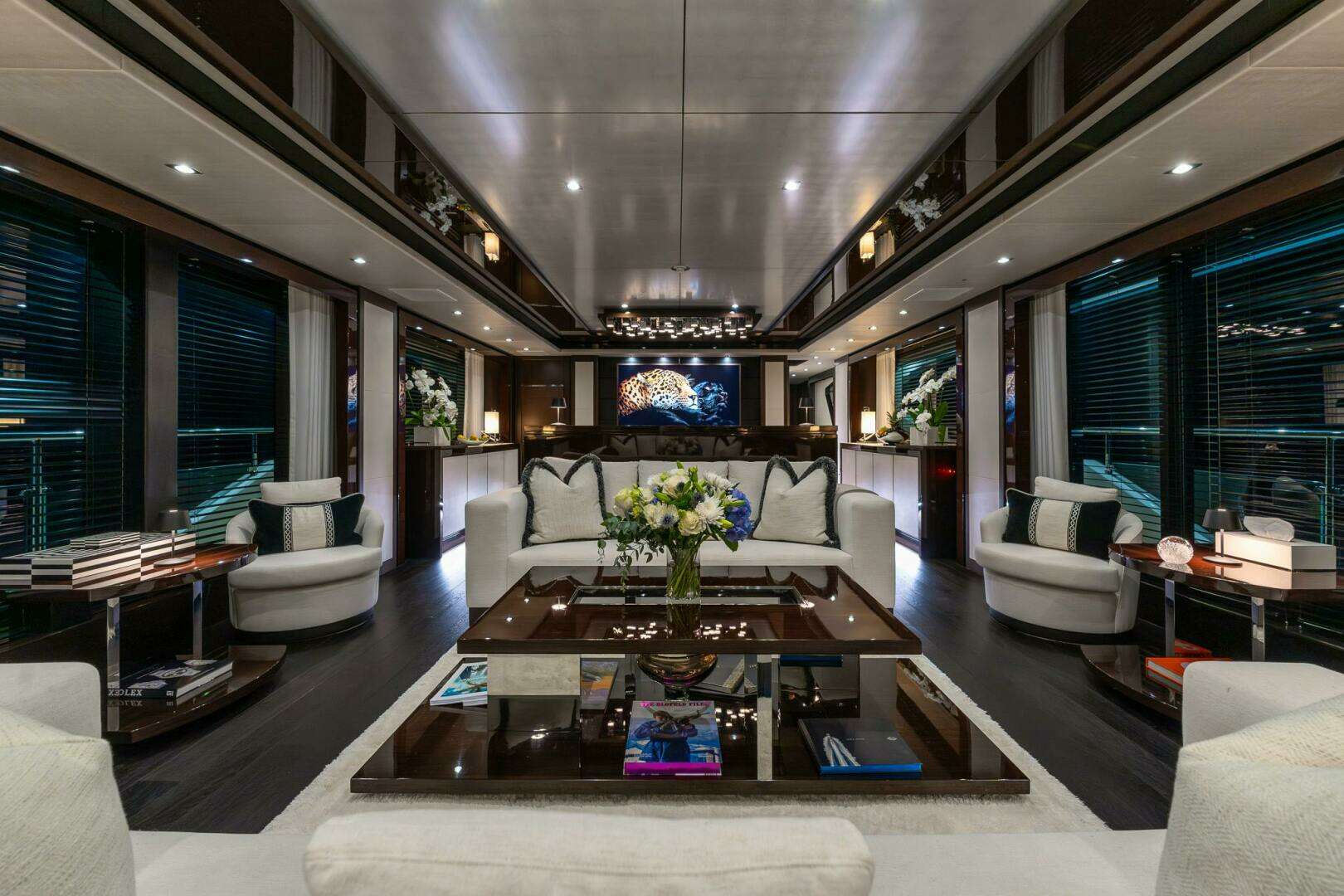

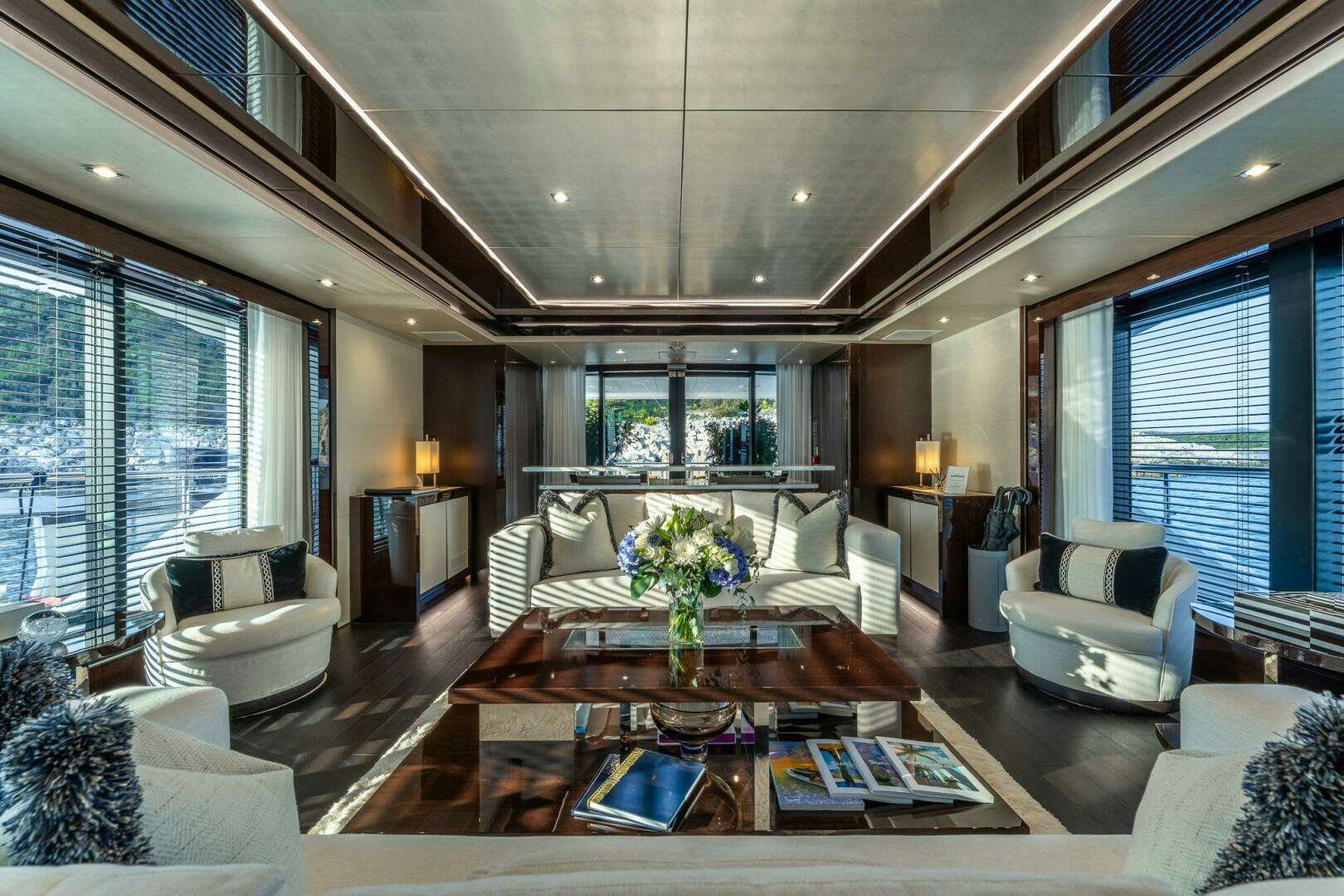

MAIN SALON
► Samsung TV 55’’ Q 4K
► 5 in salon and 2 in dining B&W 7.3 speaker
► B&W DB4S Class D Active Subwoofer
► SAT decoder
► Oppo 4K BDP
► AVR Yamaha AVR 2080 4K
► mini iPad
► Electric roman blinds port & starboard forward with
blackout lining in the dining area
► Electric curtains port & starboard center with blackout
lining in the saloon

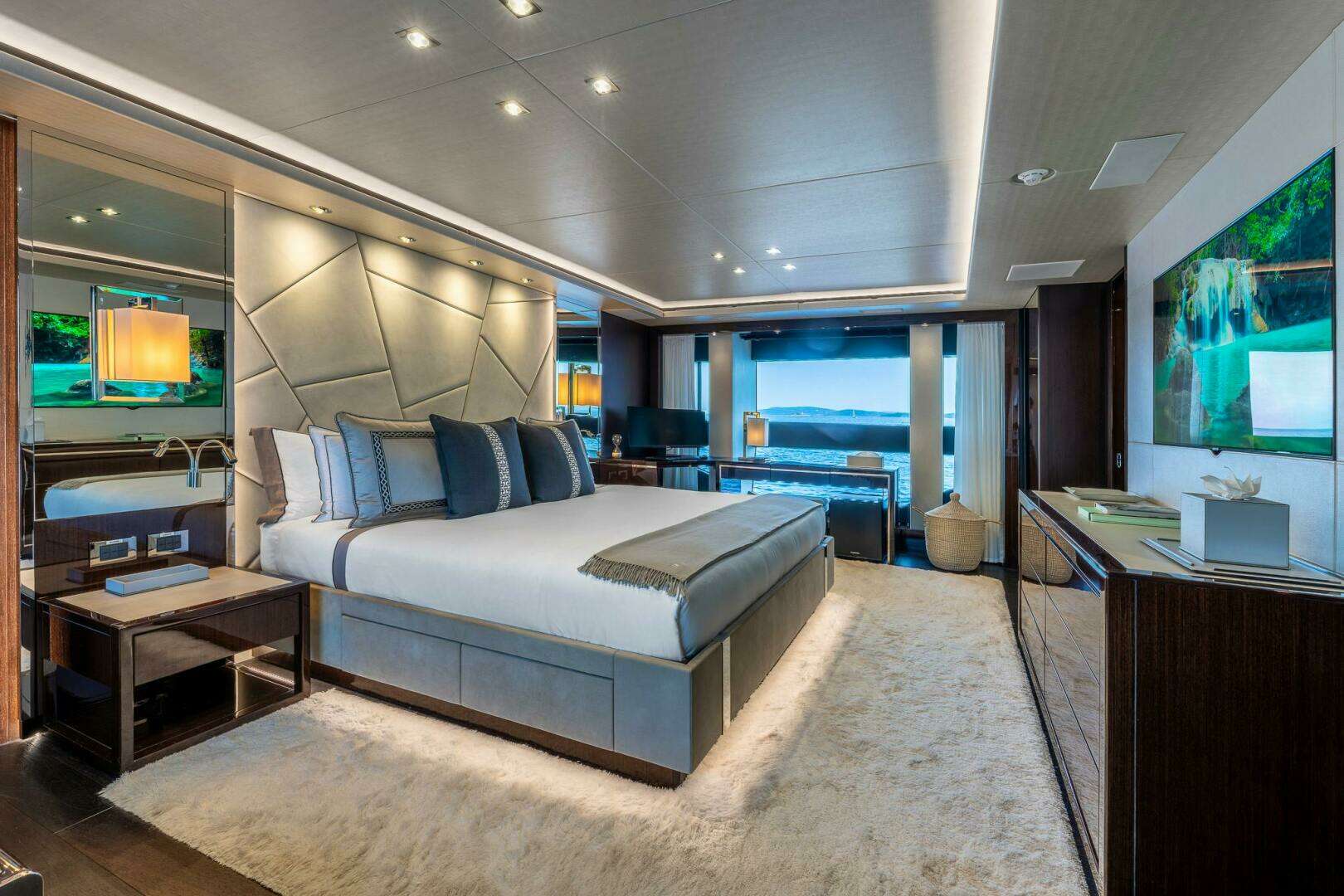

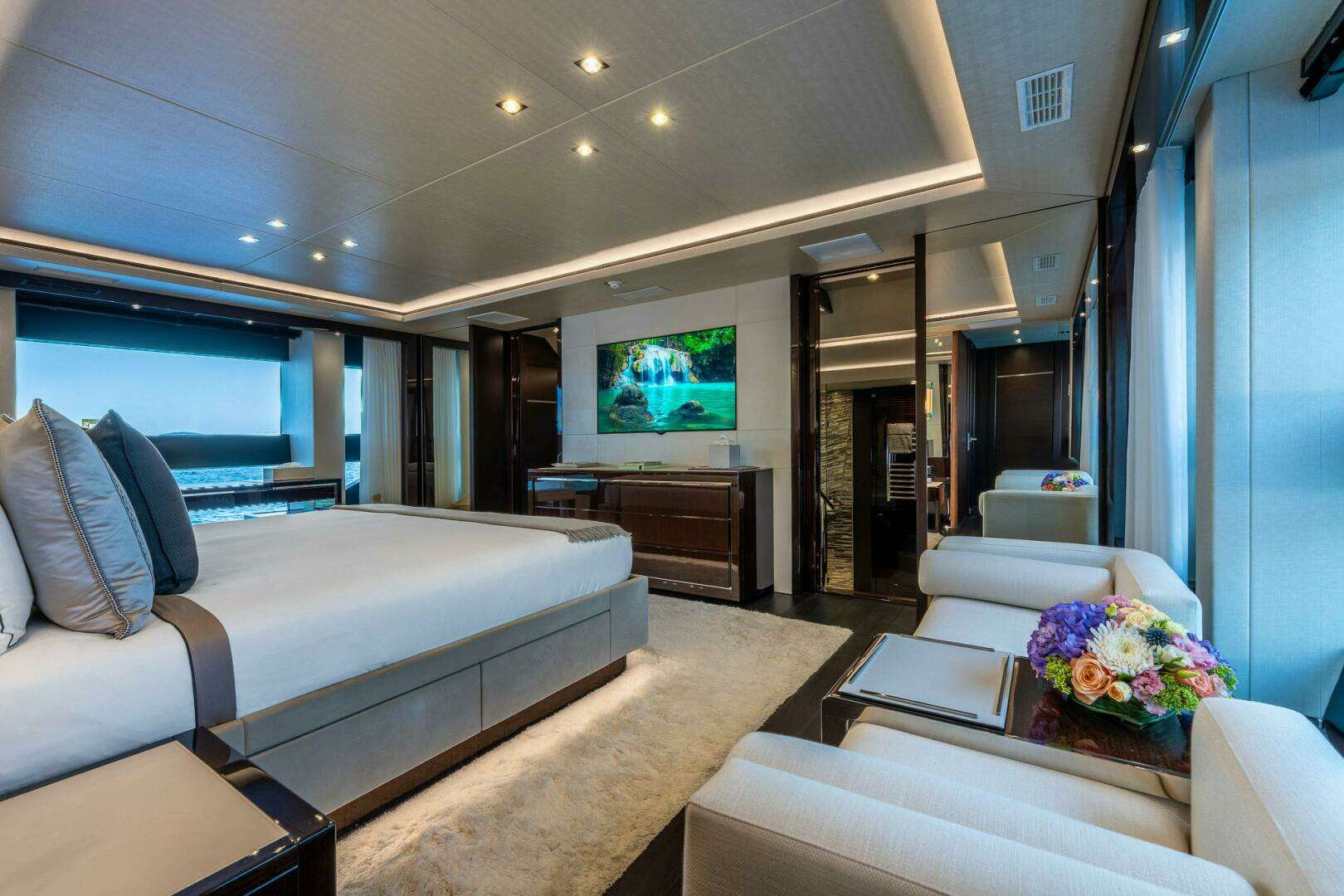

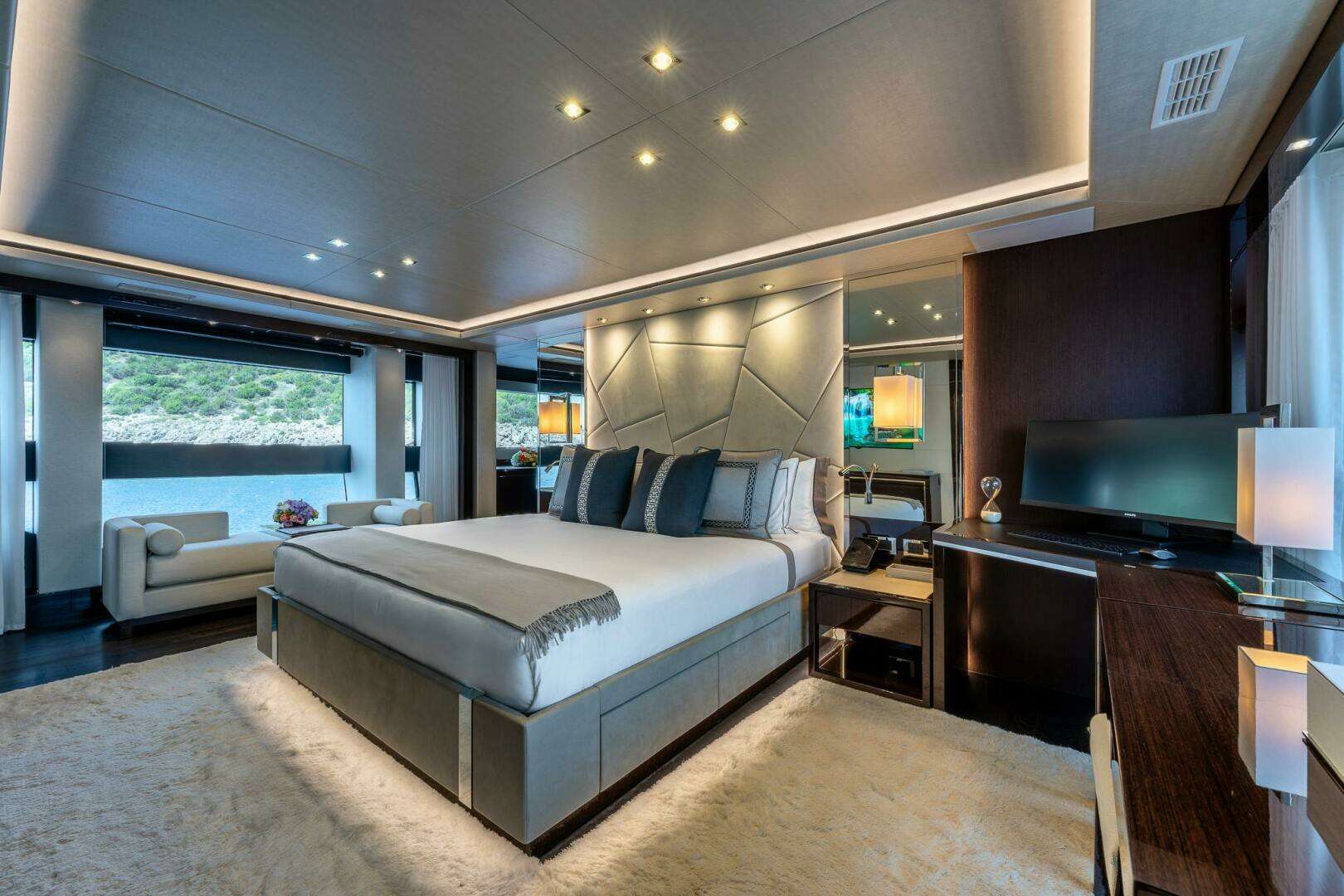

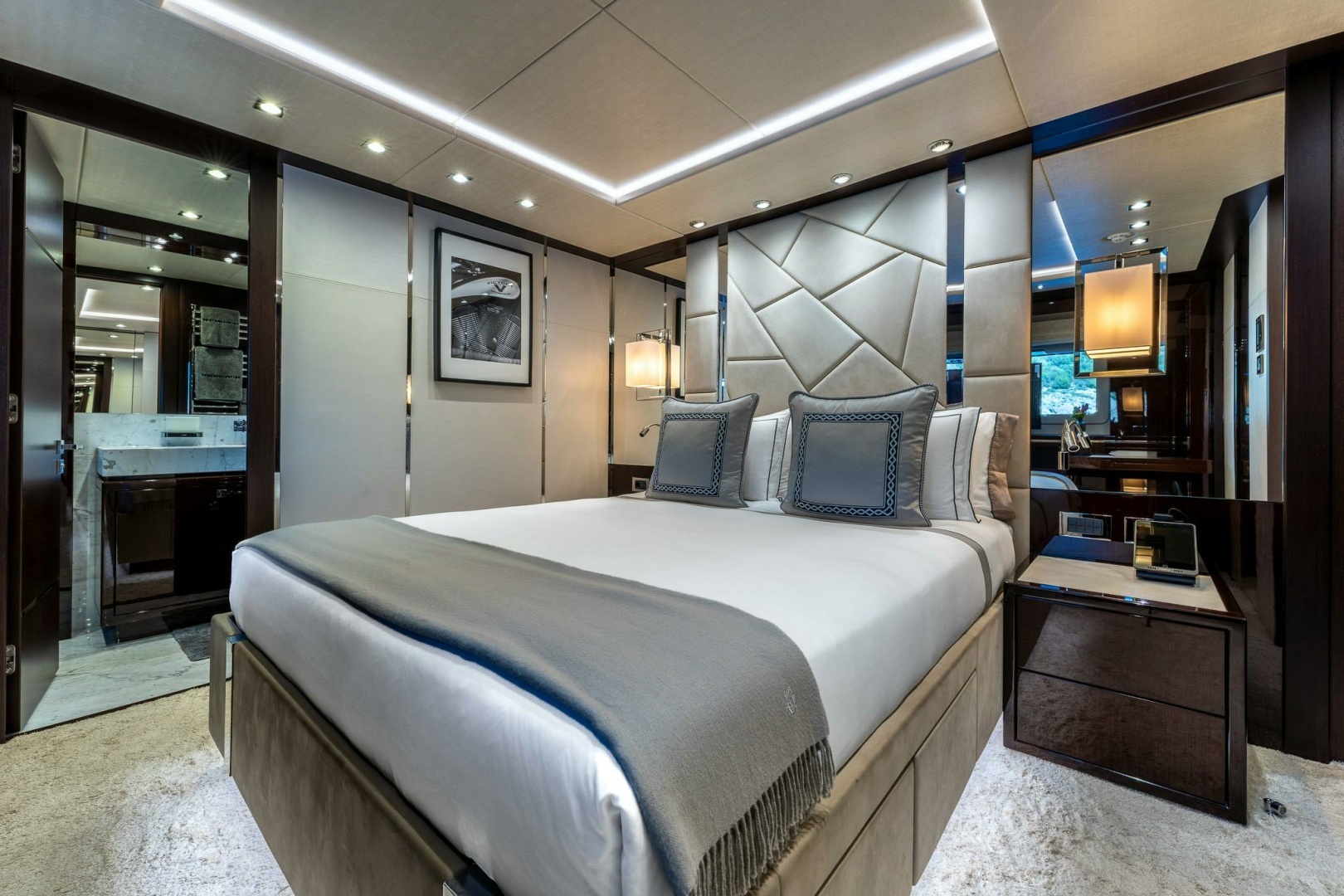

MASTER CABIN
► Samsung TV 55’’ Q 4K
► 5 B&W 7.3 speaker
► B&W DB4S Class D Active Subwoofer
► SAT decoder
► Oppo 4K BDP
► AVR Yamaha AVR 2080 4K
► mini iPad
► Sliding doors on entrances to the bathroom
► Large mirrors on port & starboard forward wall
► Electric day blinds in central large port & starboard windows
only and aft starboard window on entrance in the Master
cabin
► Electric curtains with blackout lining in port & starboard
windows

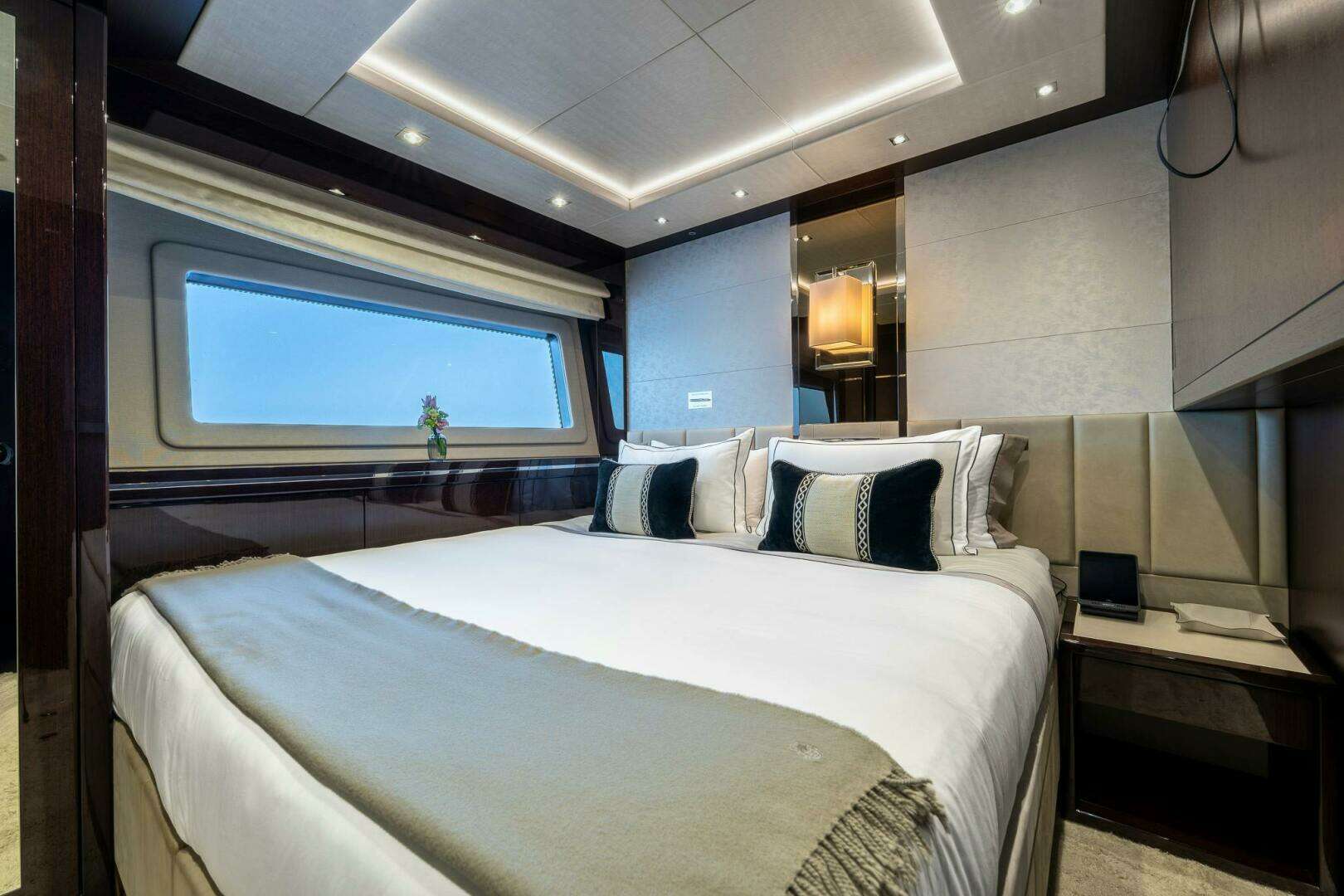

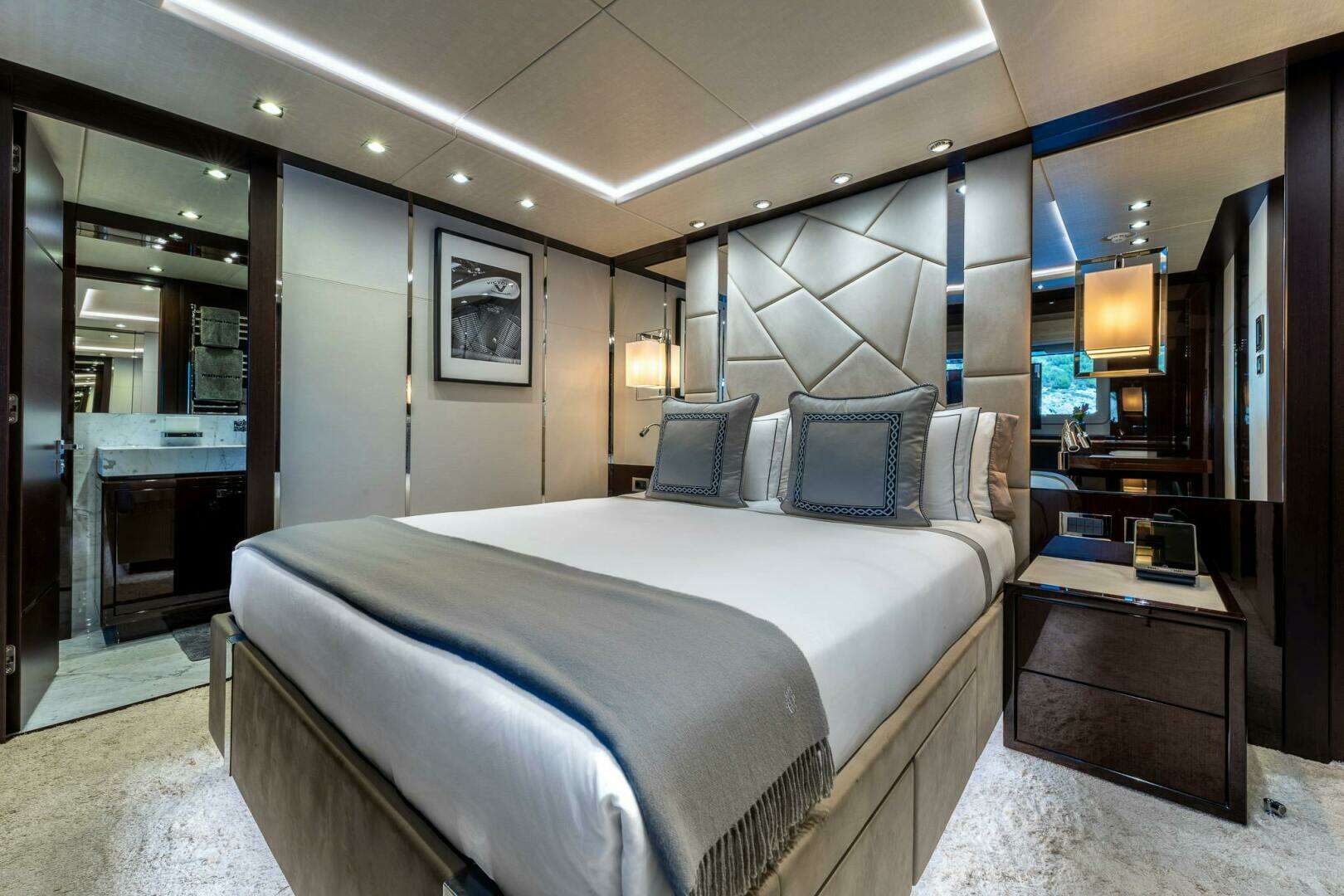

► Electric roman blind with blackout lining in the entrance GUEST VIP CABINS
► Samsung TV 40’’ 4K
► 2 Klipsch PRO-180RPC LCR speaker
► B&W ASW608 Active Subwoofer
► SAT decoder
► Harmann Kardon BDS 280 BDP/AVR combo
► mini iPad

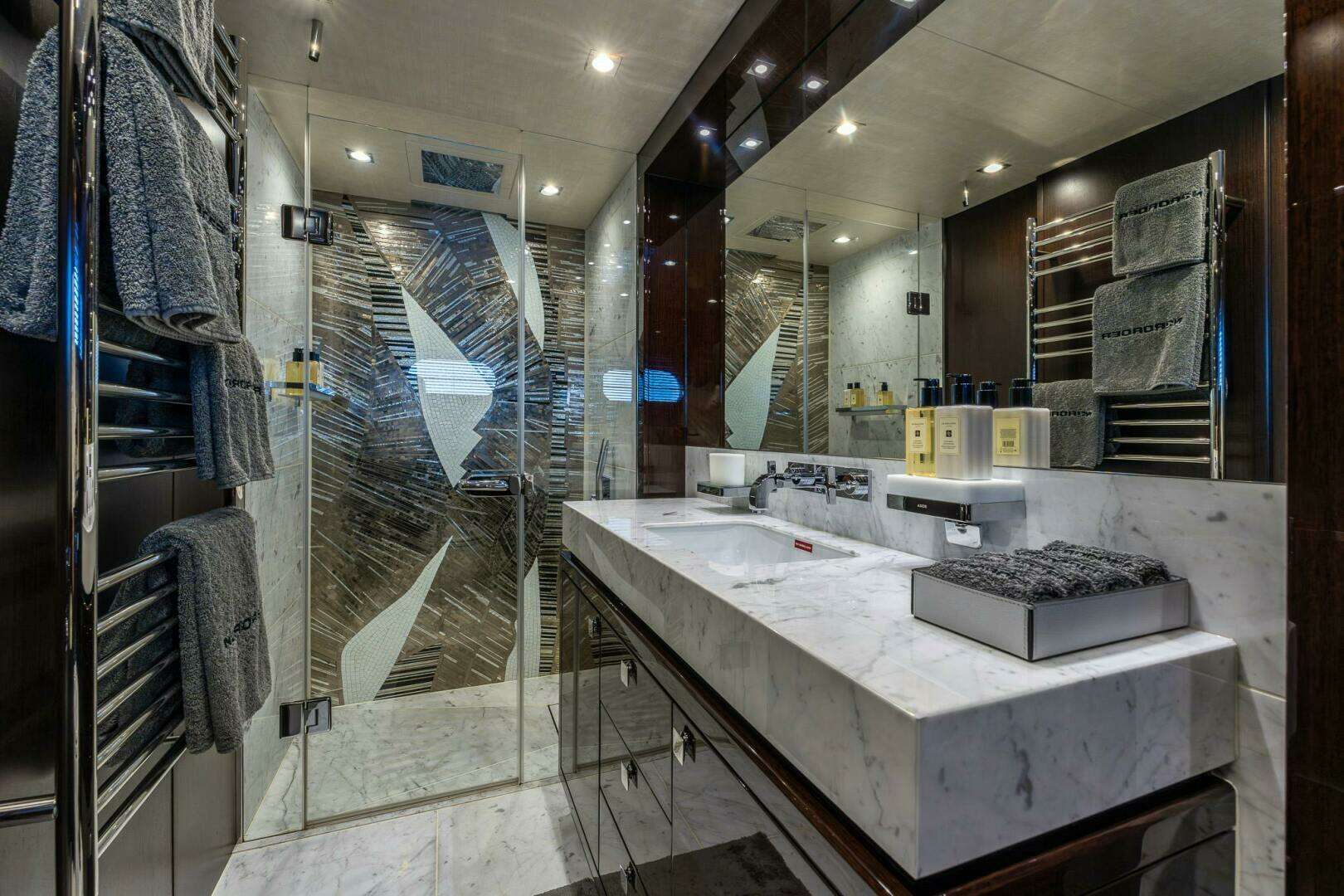

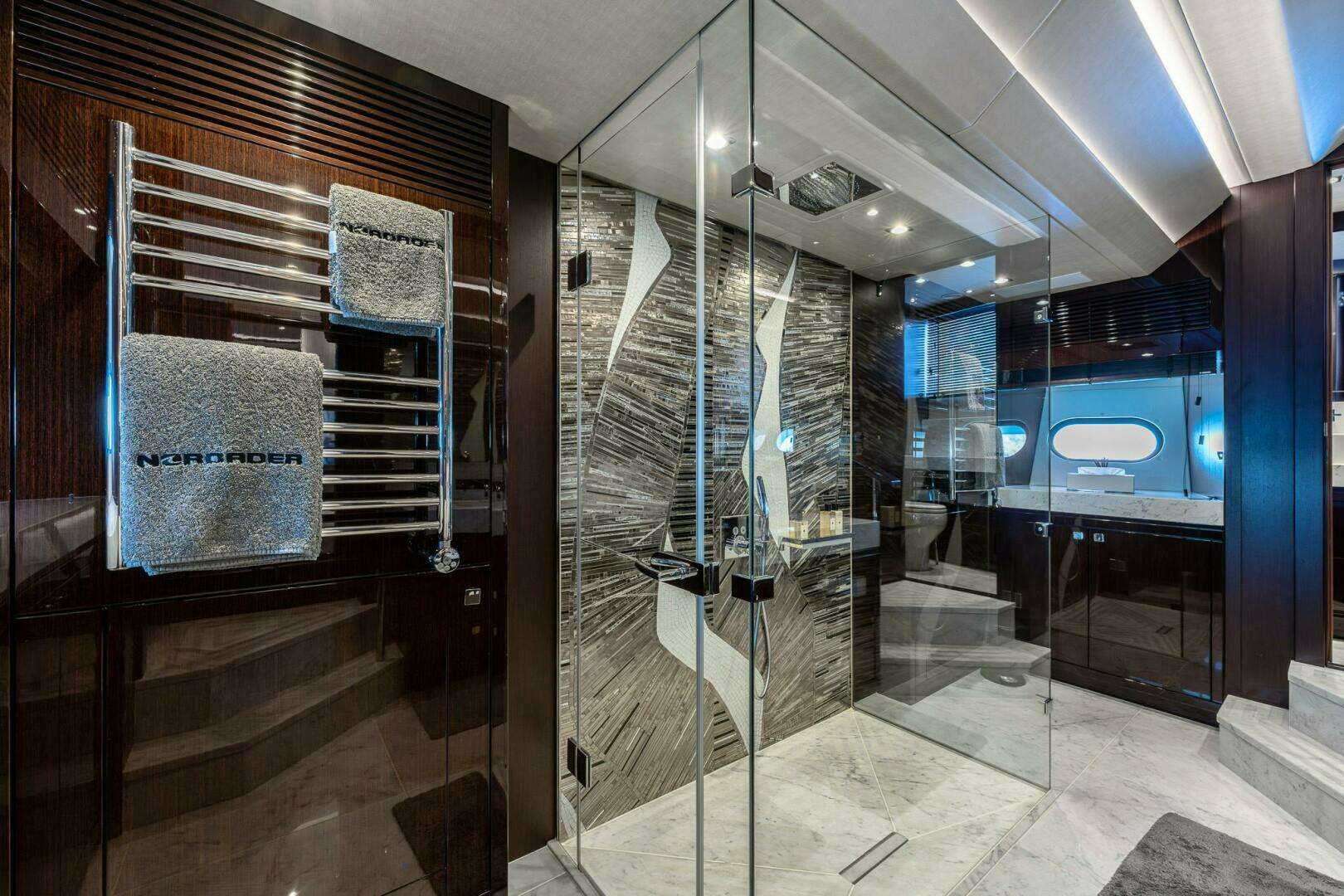

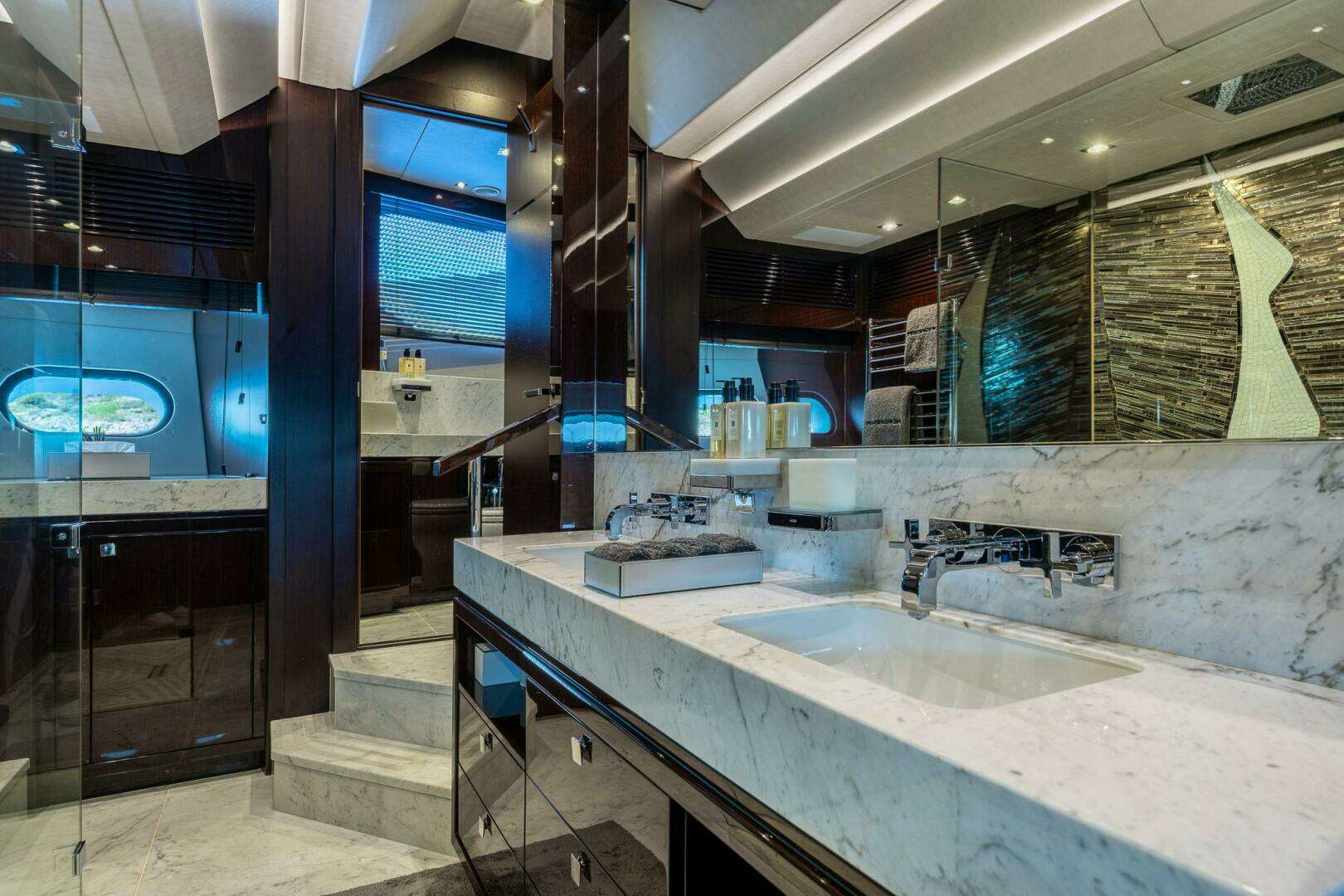

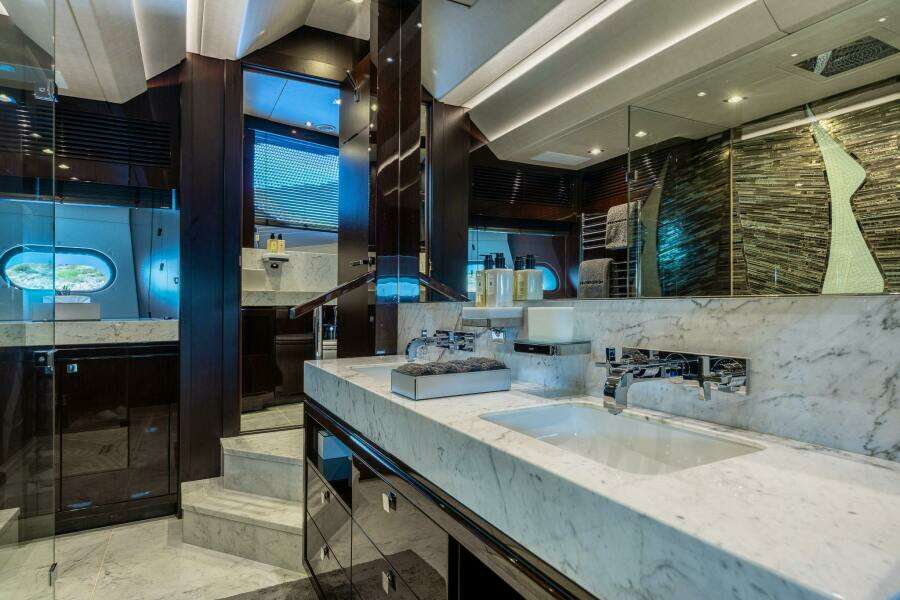

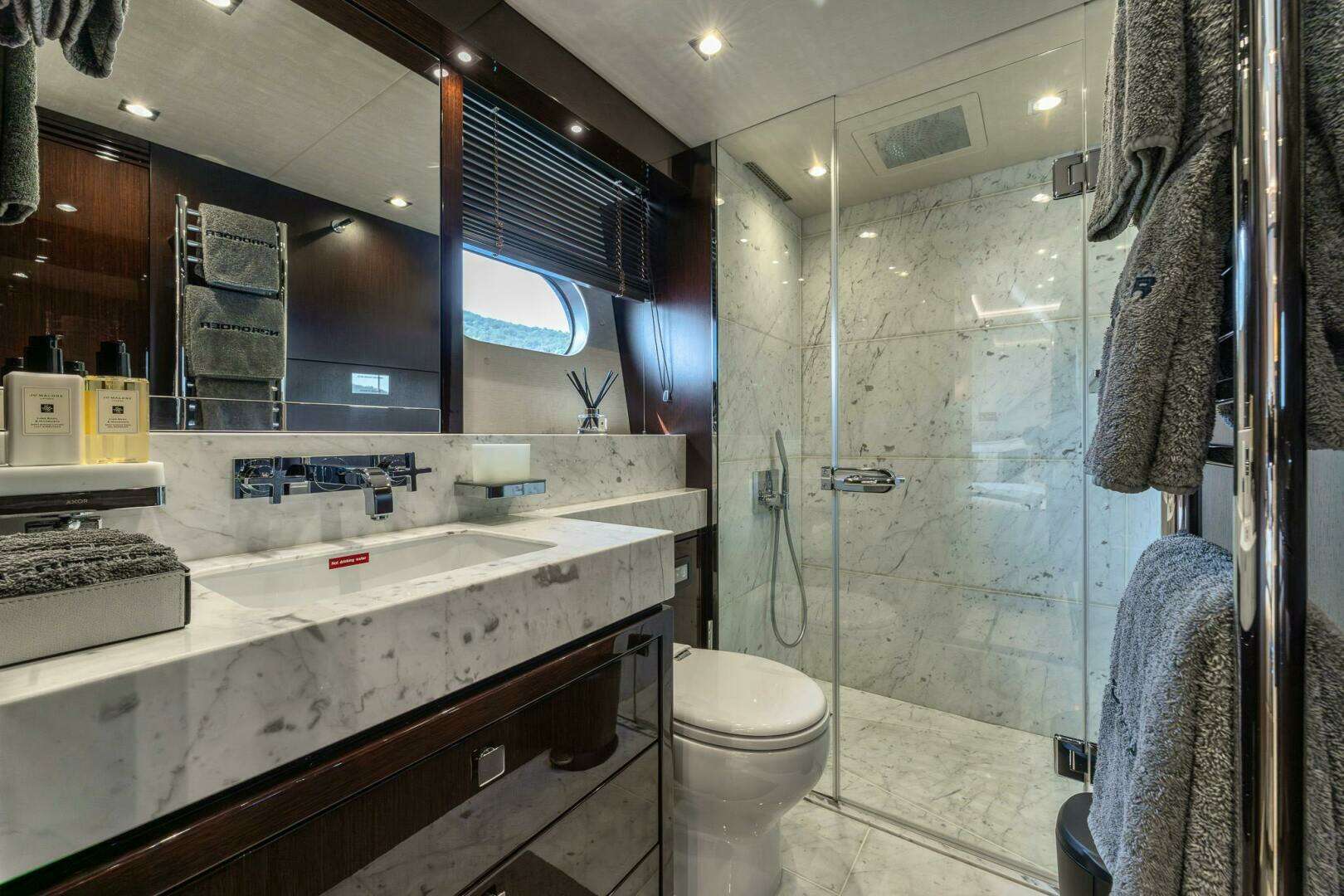

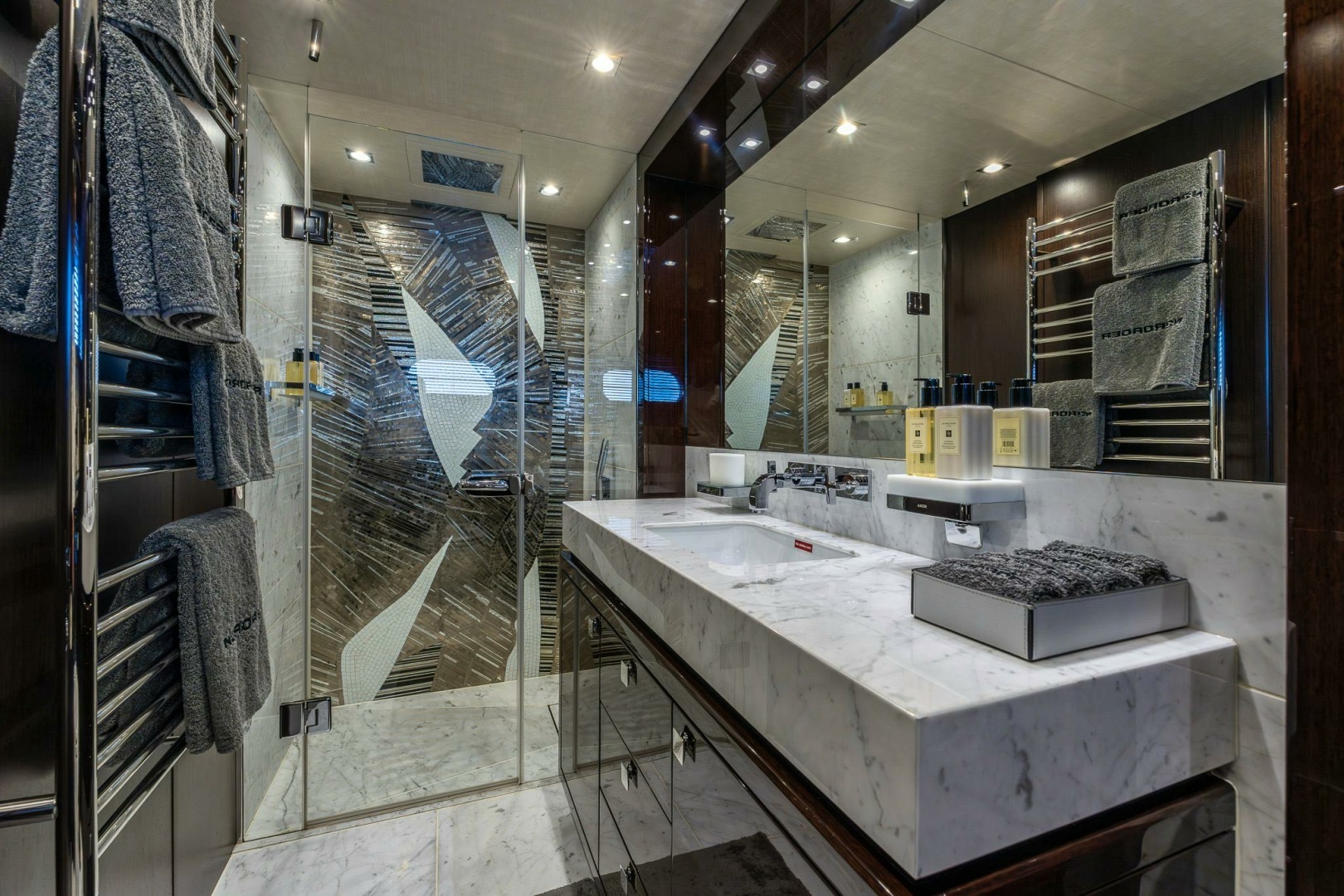

► Bathroom in the VIP Guest cabin with Bianco Carrera
marble throughout except for the basins and shower cubicle
bulkhead and backs plash only and Mosaic pattern on the
forward shower bulkhead
► Electric roman blind with blackout lining in the Starboard
VIP Guest cabin

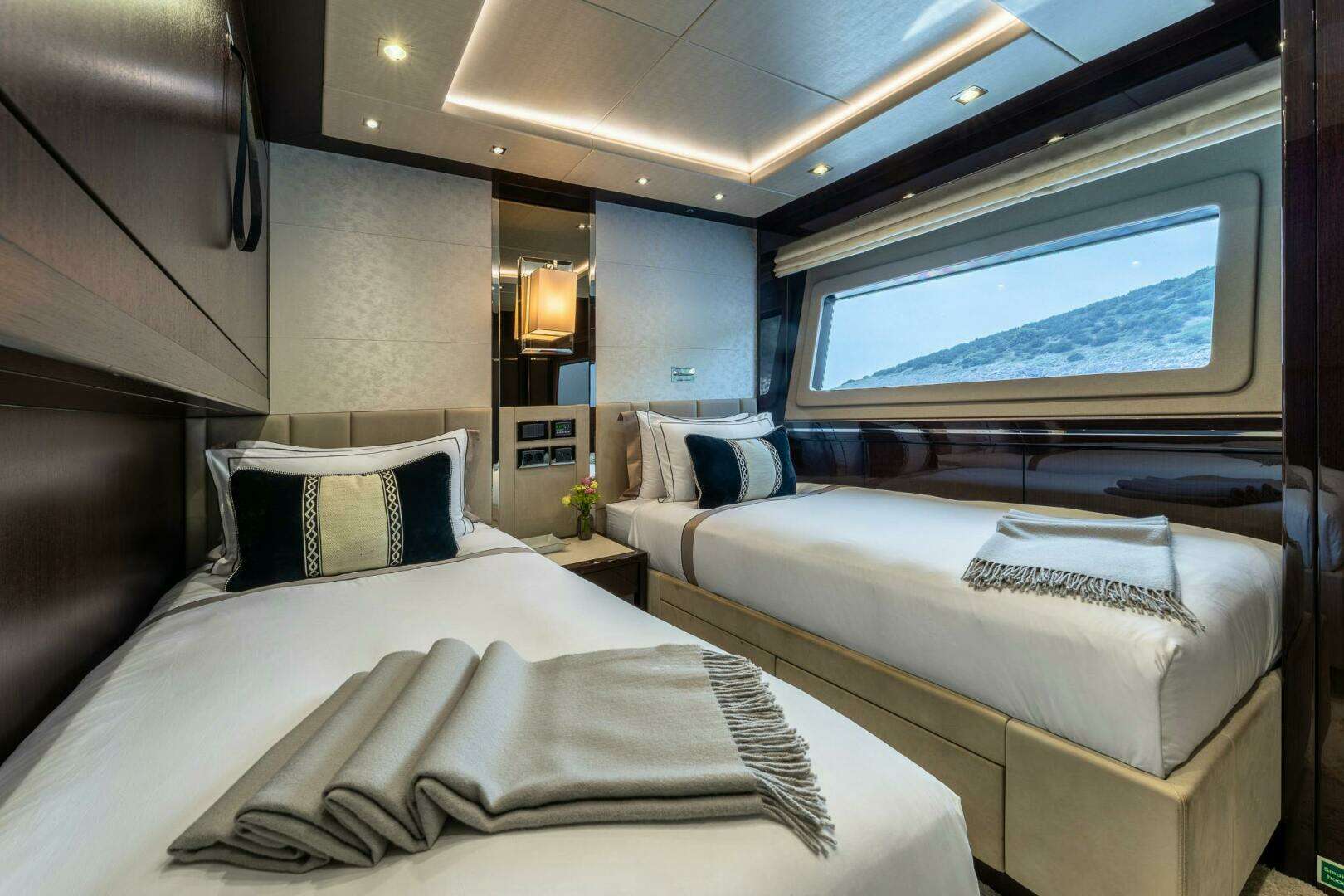

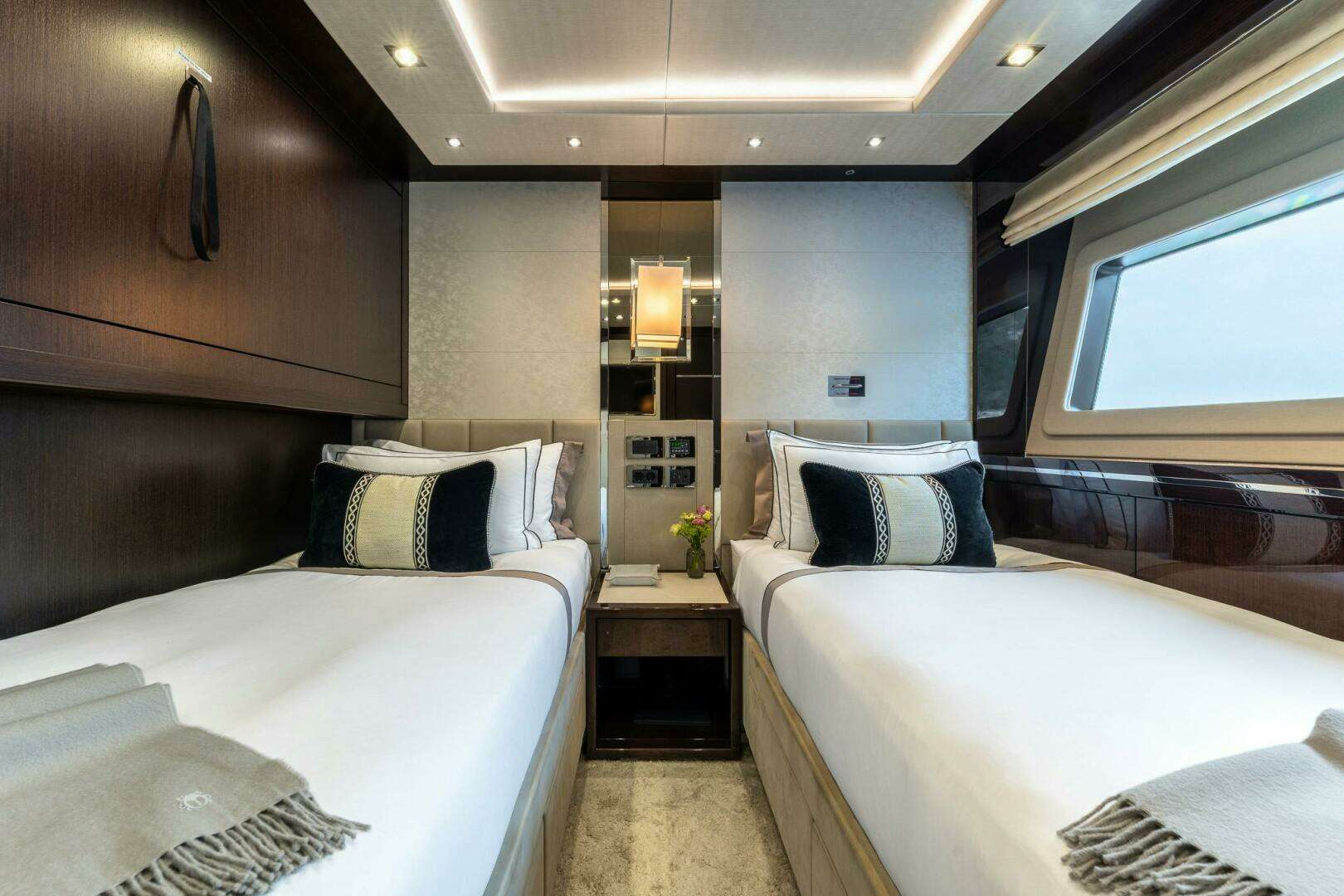

► Guest Twin Cabins
► Samsung TV 32’’
► 2 Klipsch PRO-180RPC LCR speaker
► B&W ASW608 Active Subwoofer
► SAT decoder
► Harmann Kardon BDS 280 BDP/AVR combo
► mini iPad
► Electric roman blind with blackout lining in the Starboard
Twin Guest cabin

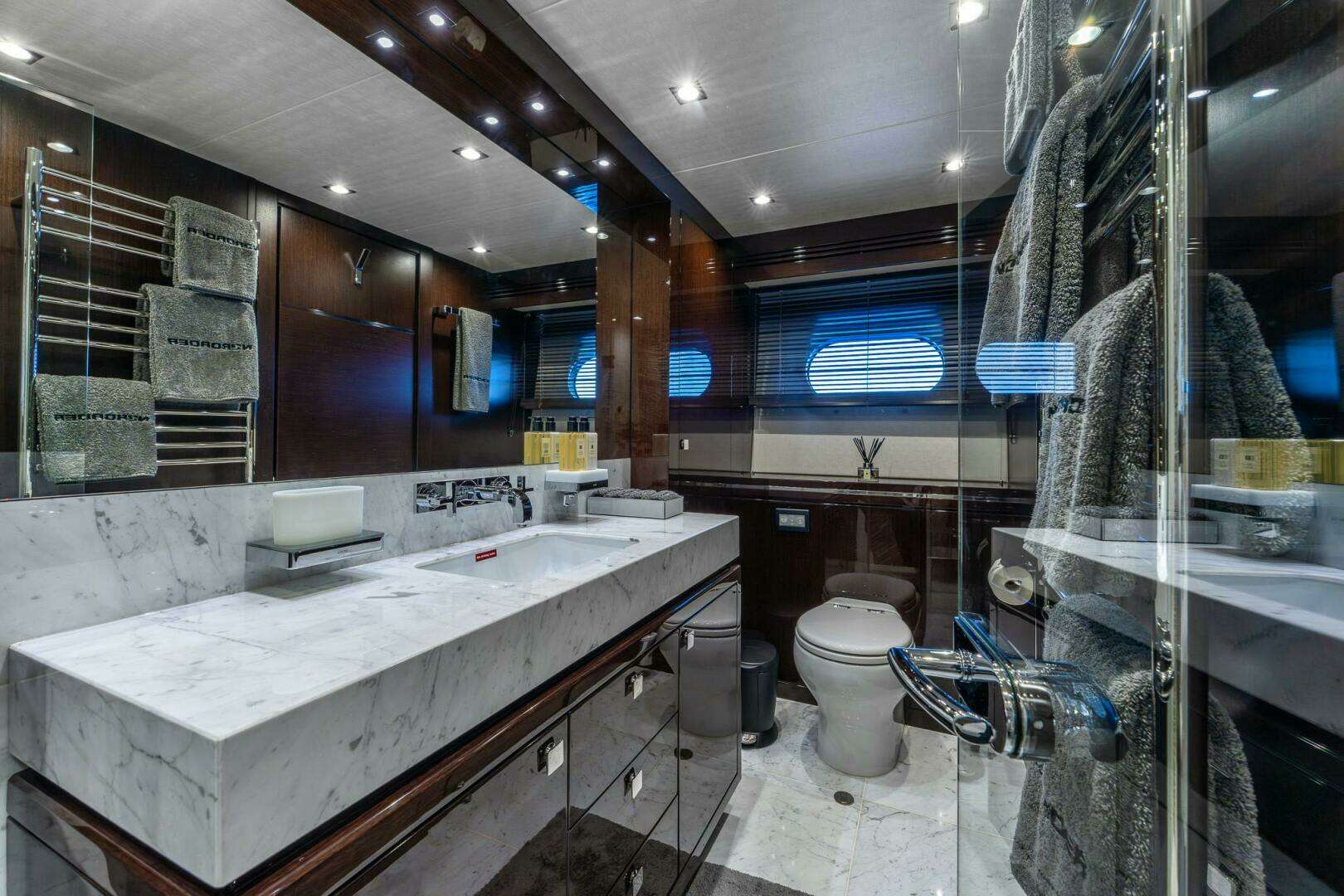

► Bathrooms with Bianco Carrera marble
► Electric roman blind with blackout lining Port Twin Guest cabin

NOROADER - UPGRADES 2022-PRESENT

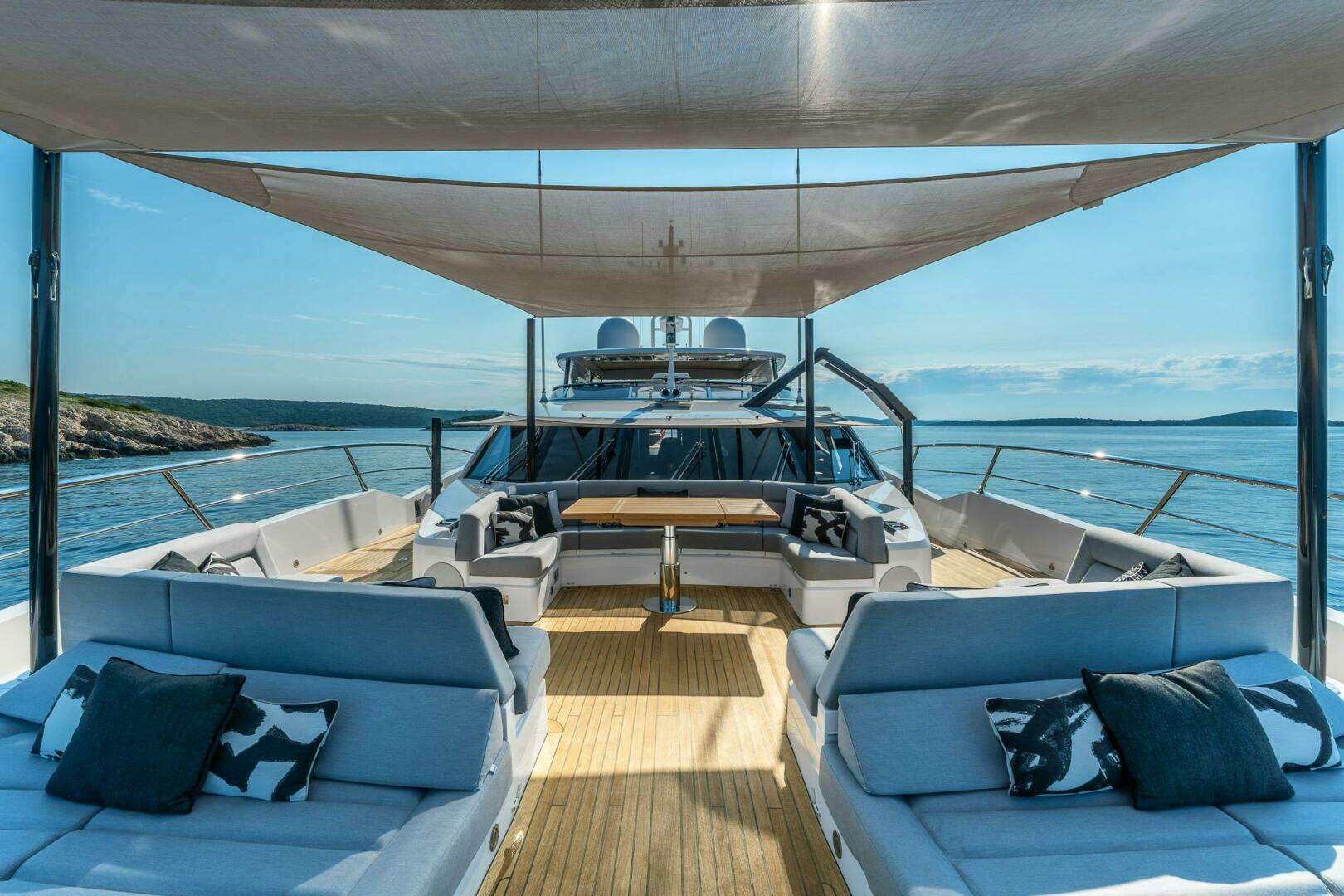

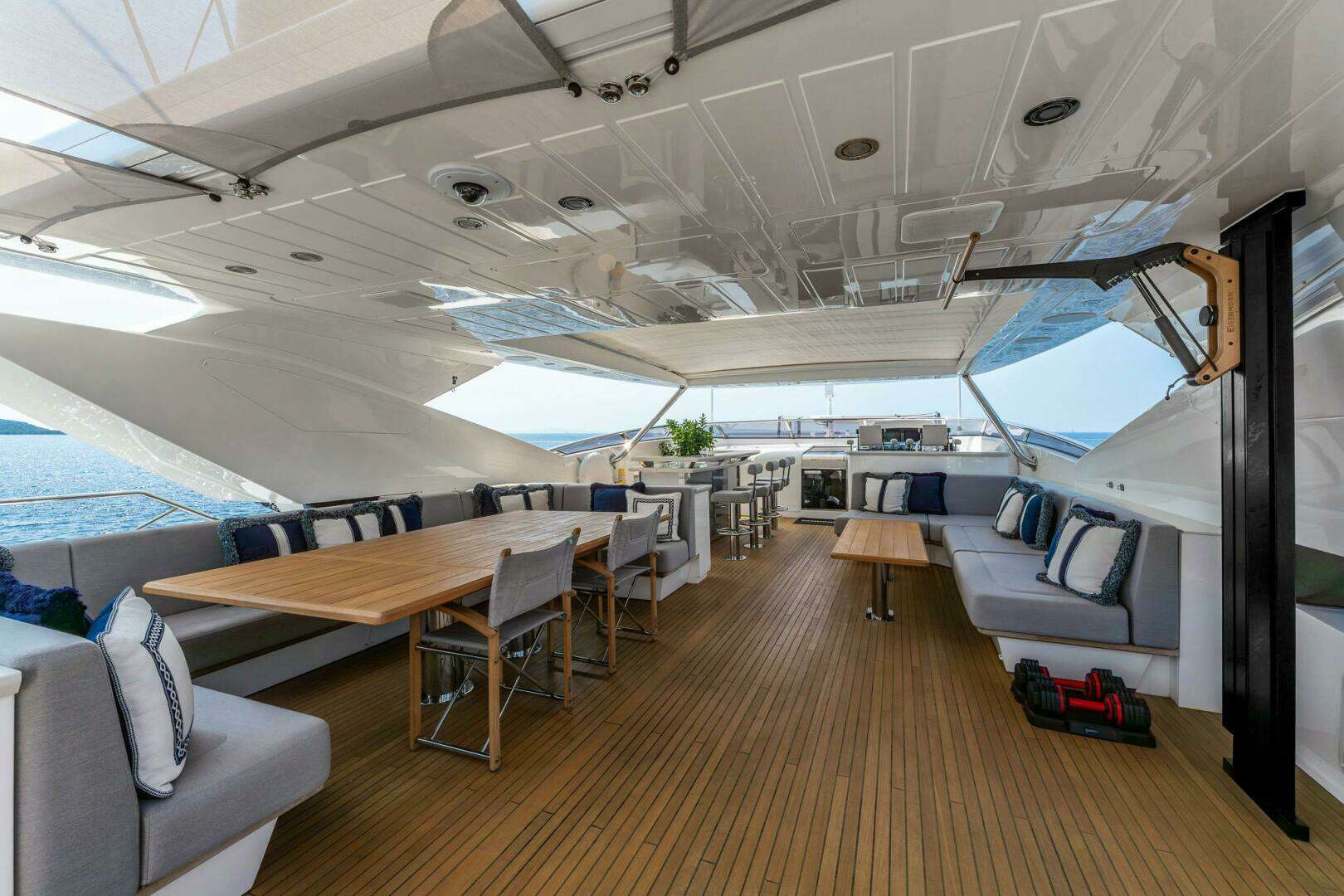

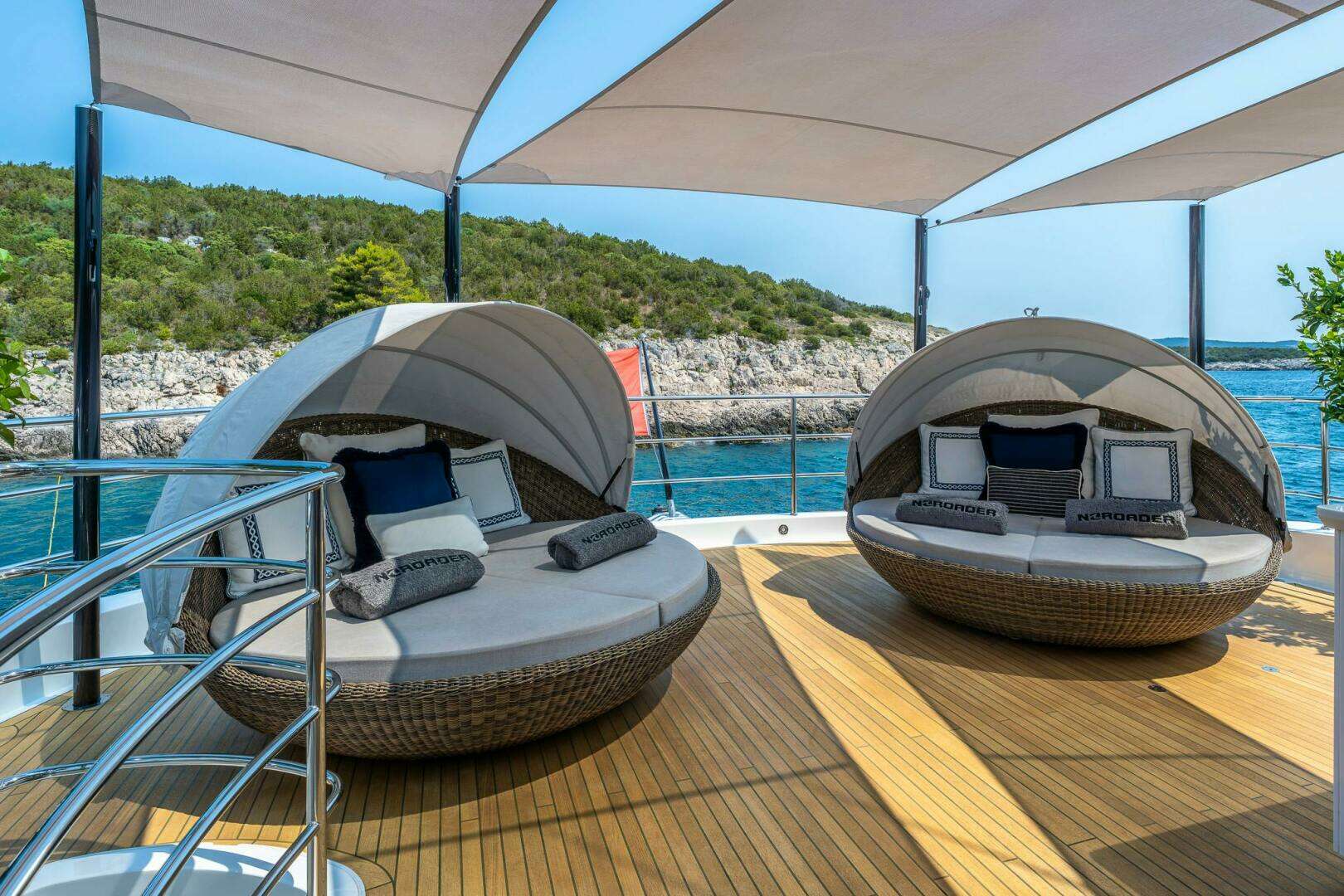

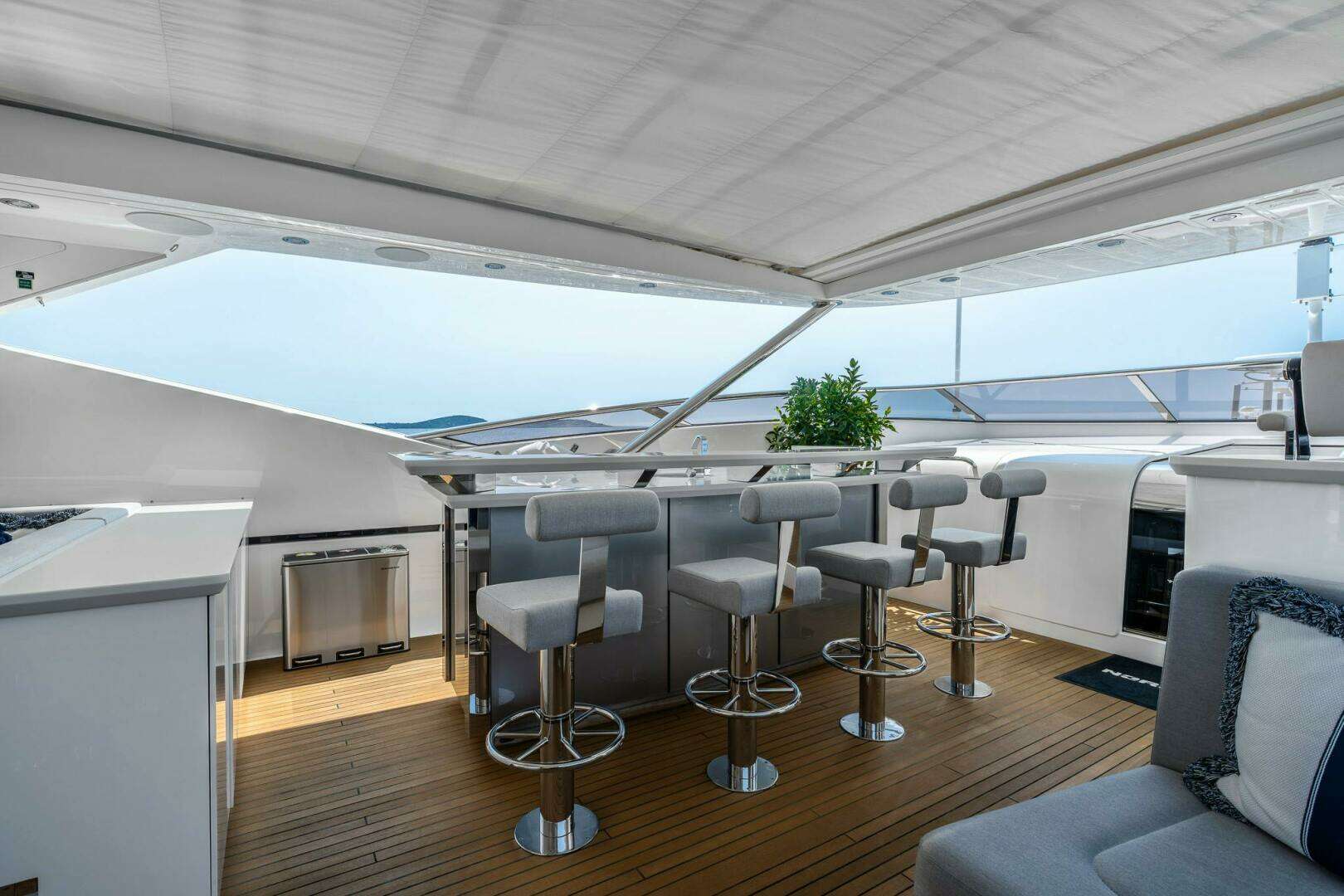

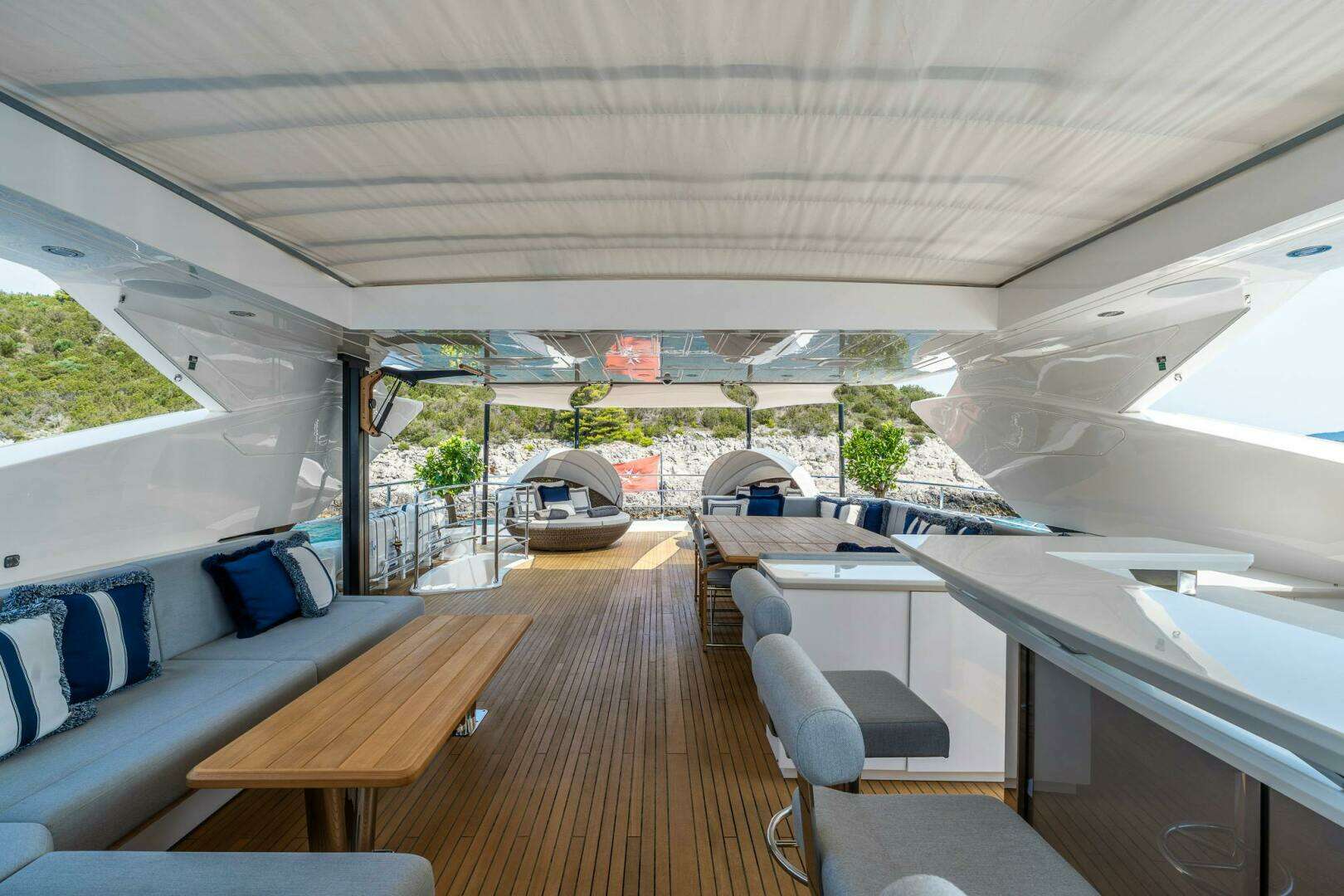

SUNDECK
► Sockets fitted under table
► Bar rotated to port including Fridge/Ice Maker
► Re-upholstered seating
► Reconfigured table seating
► Built-in storage to port on both ends of table seating
► New Bar Stools
► Gym setup (pipes and electric cables remain in place)
► Two Love Seats aft
► All surfaces treated with protective coating self-healing +
high gloss top
► Added space by reduction to one coffee table to stbd
PLATFORM
► Custom inflatable platform deck
► Large carbon shower
► Additional cleats
► Reinforced fold-down seating
► Platform sensors replaced
► Additional socket for Chase Boat
► Sail canopy to provide shade
► Jetskis and Sportjet Tender refreshed
► Jetski and Tender <100 Hours

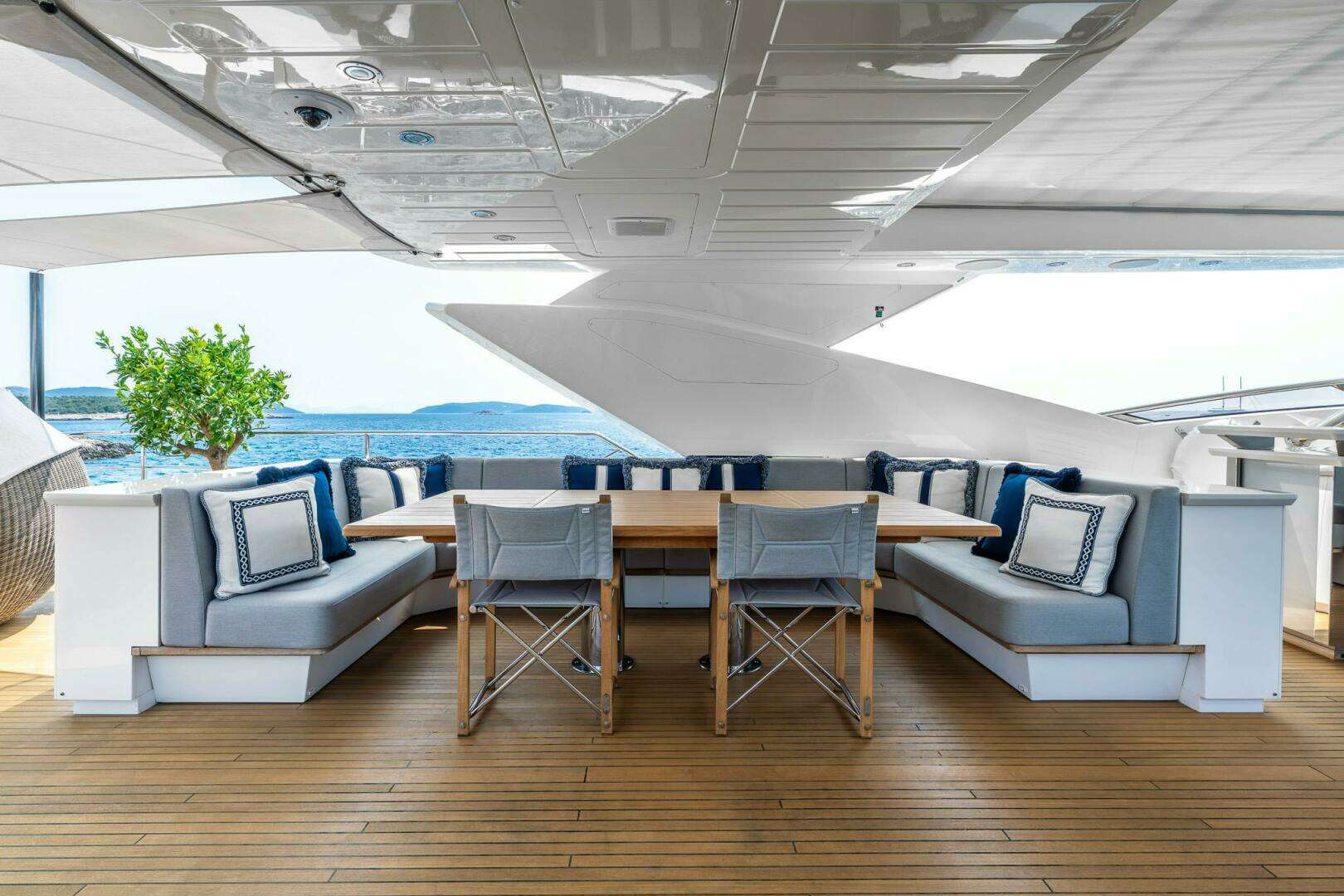

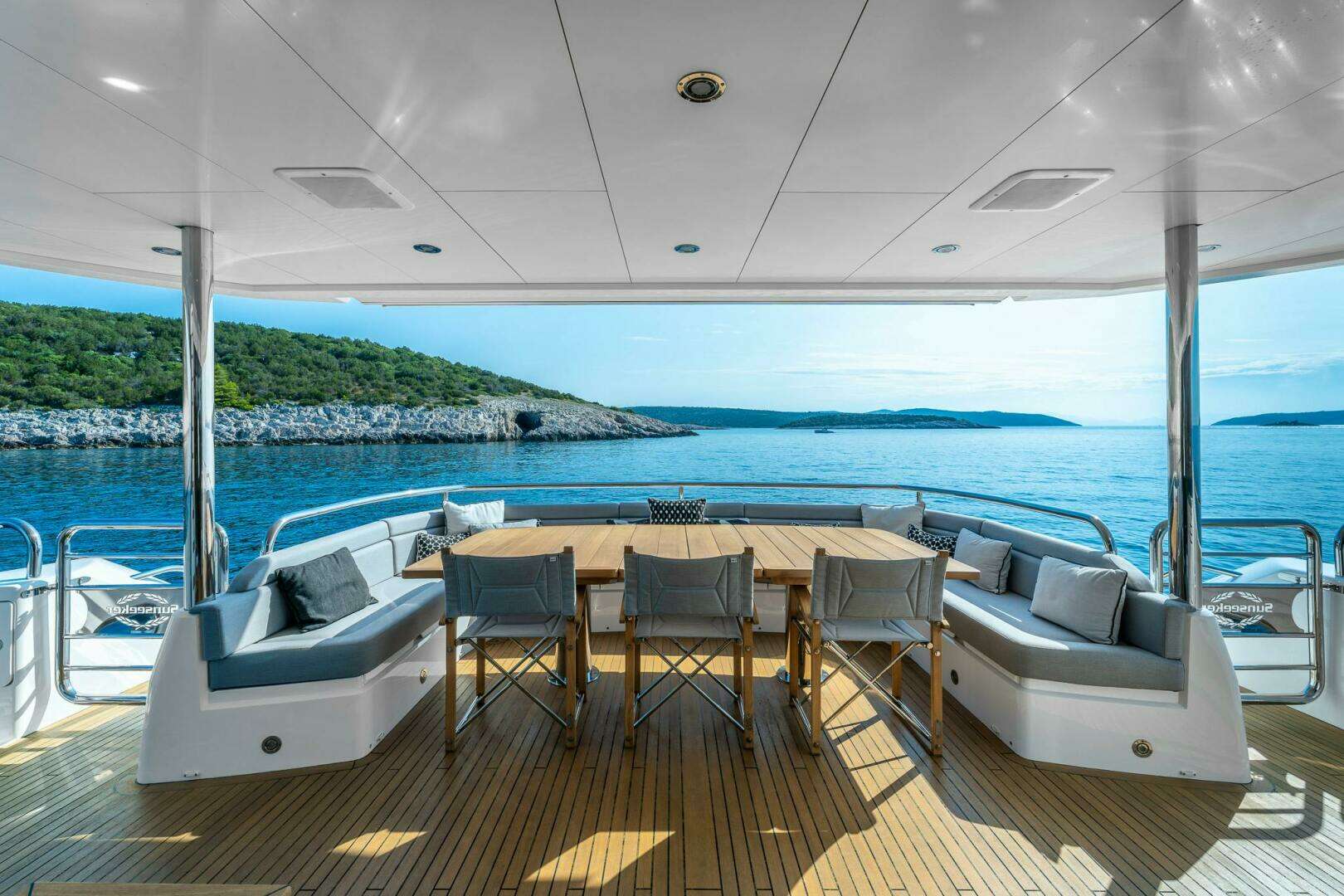

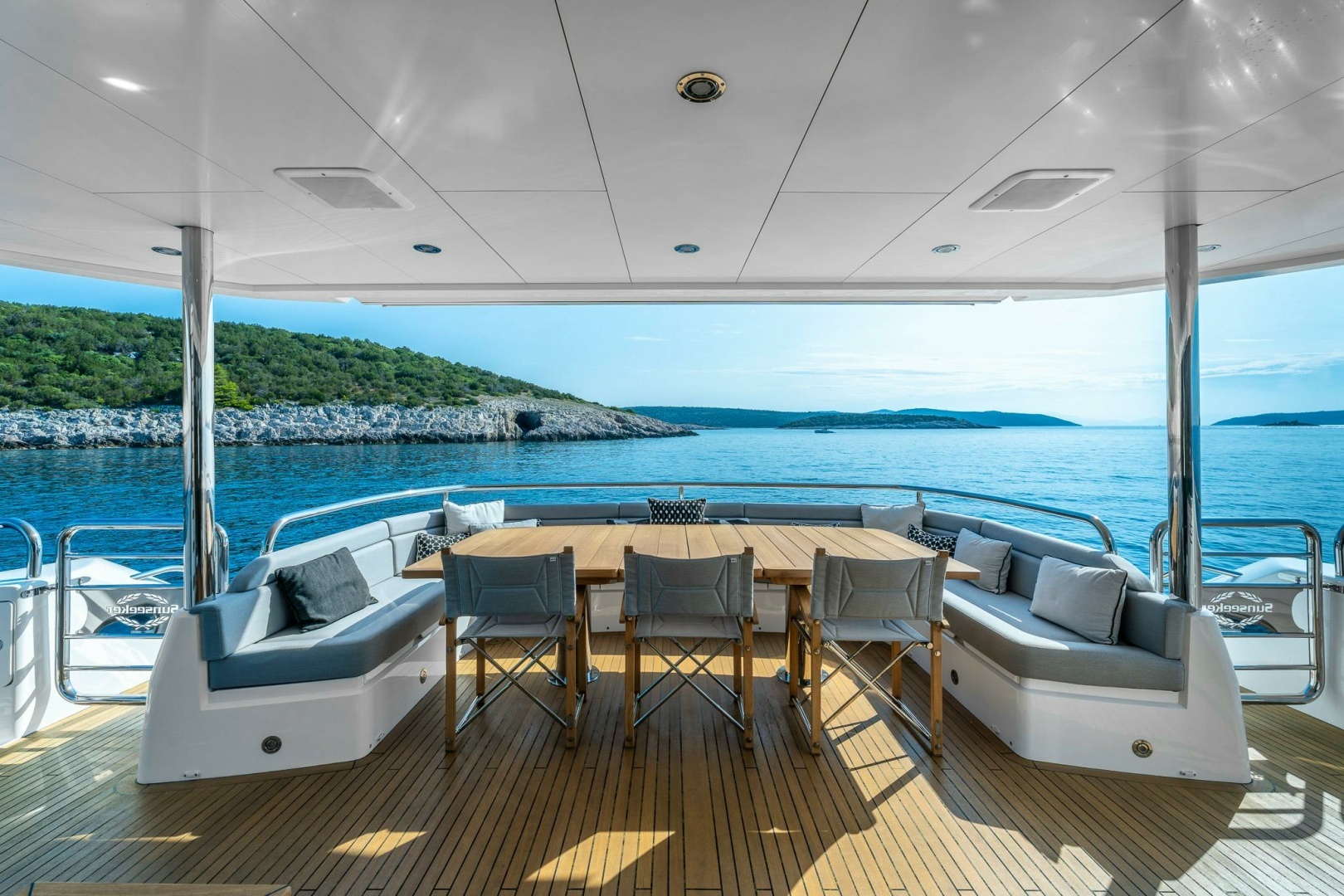

COCKPIT
► New upholstery
► Trees Replaced
► Extra sockets under table

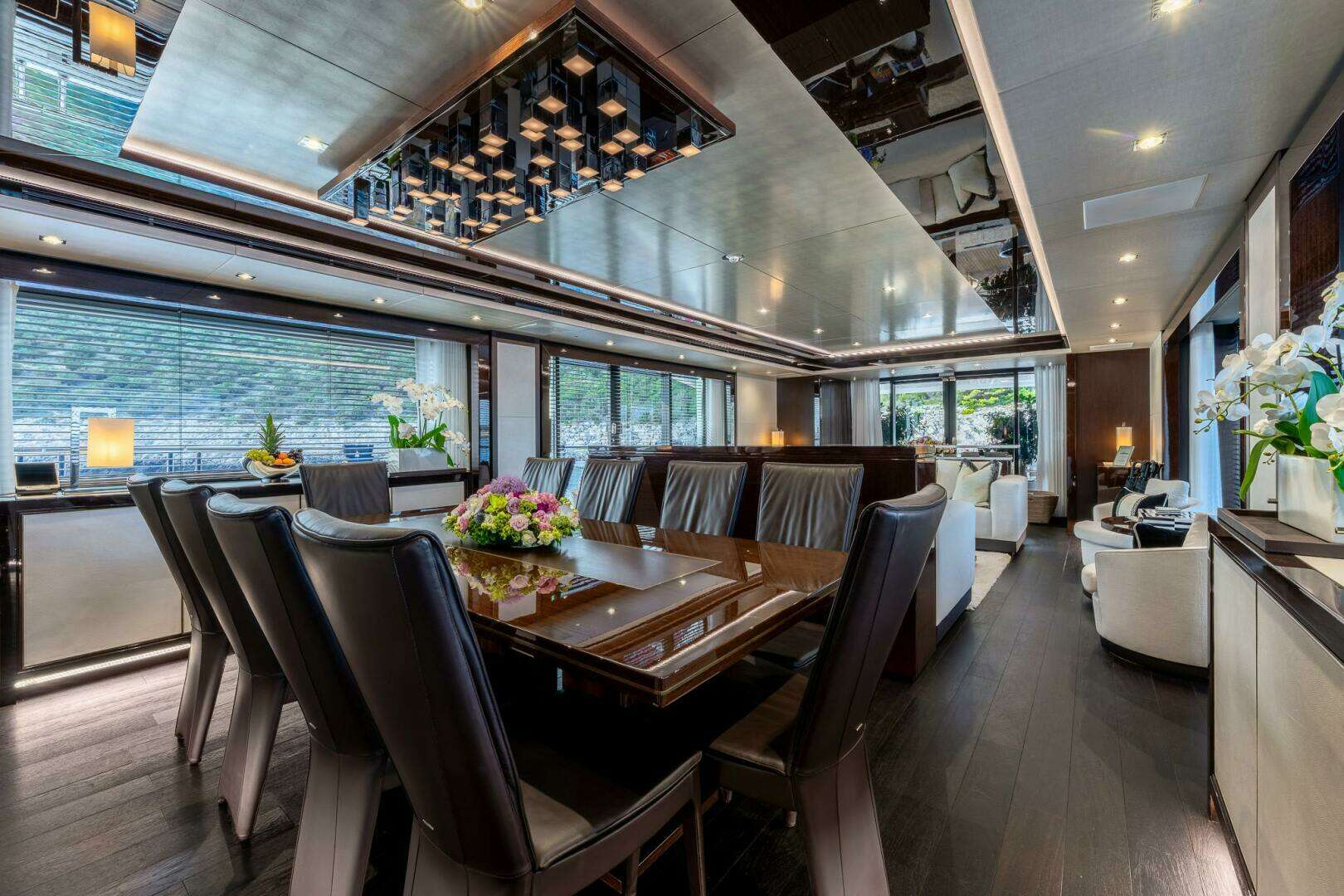

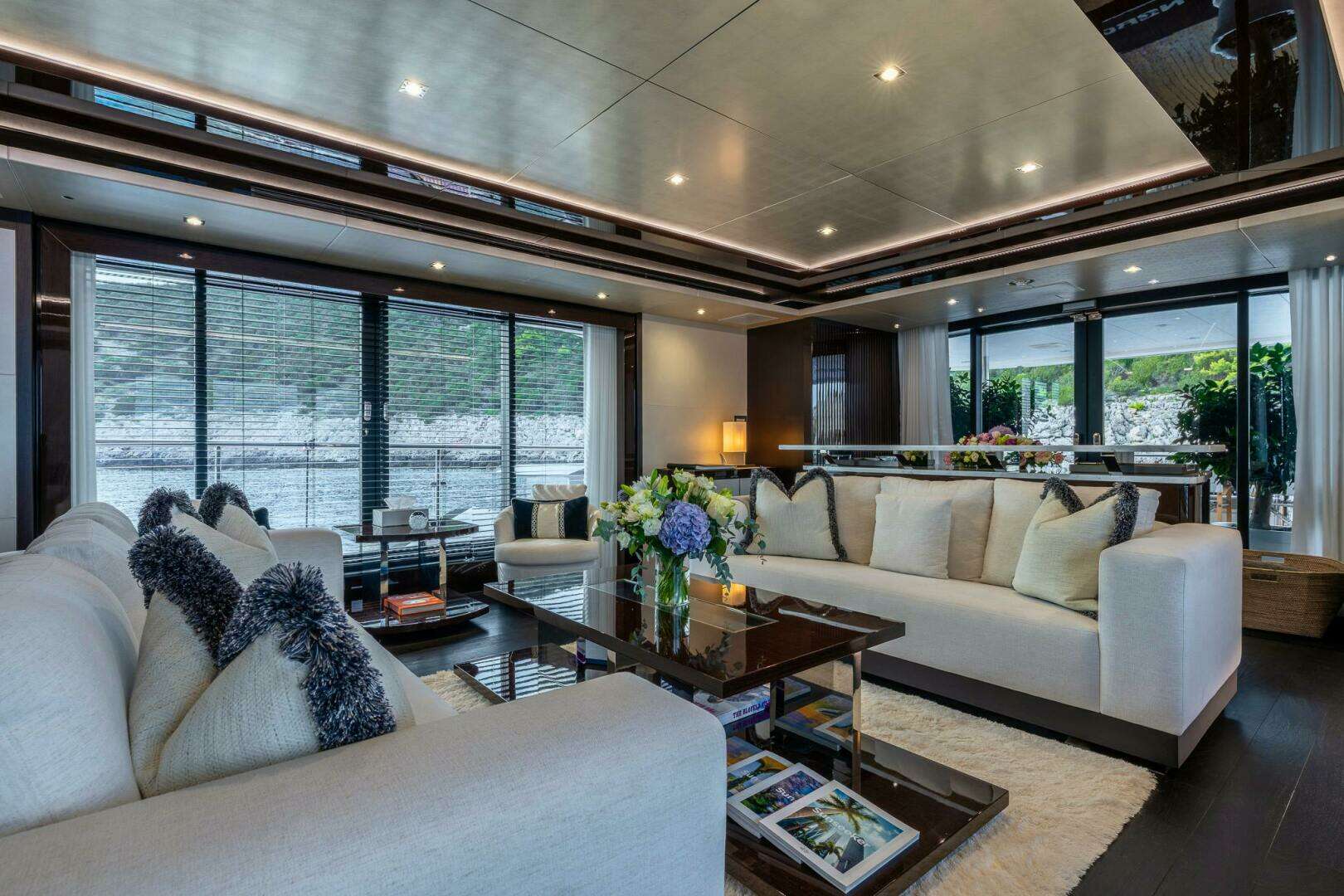

SALOON
► All New lighting
► All New Furniture
► Stainless steel door features replaced with black leather upholstery
► New large Bar unit fitted to aft with storage

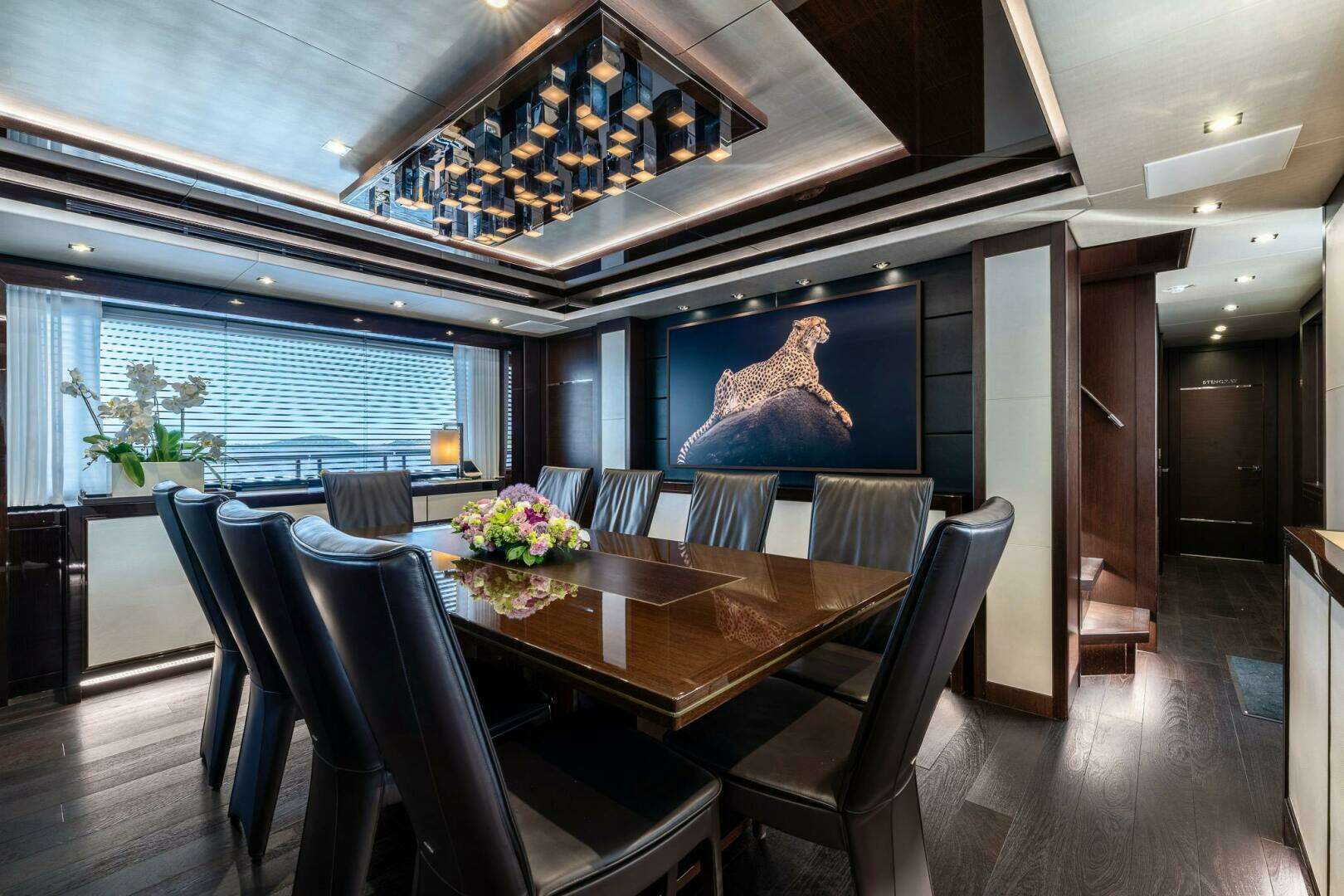

► New Dining table/chairs
► Re-positioned high-low UHD TV
►Wooden flooring fitted with new carpet insert
► New UHD Samsung art TV
► Electric Roman Blinds with App functionality throughout Yacht

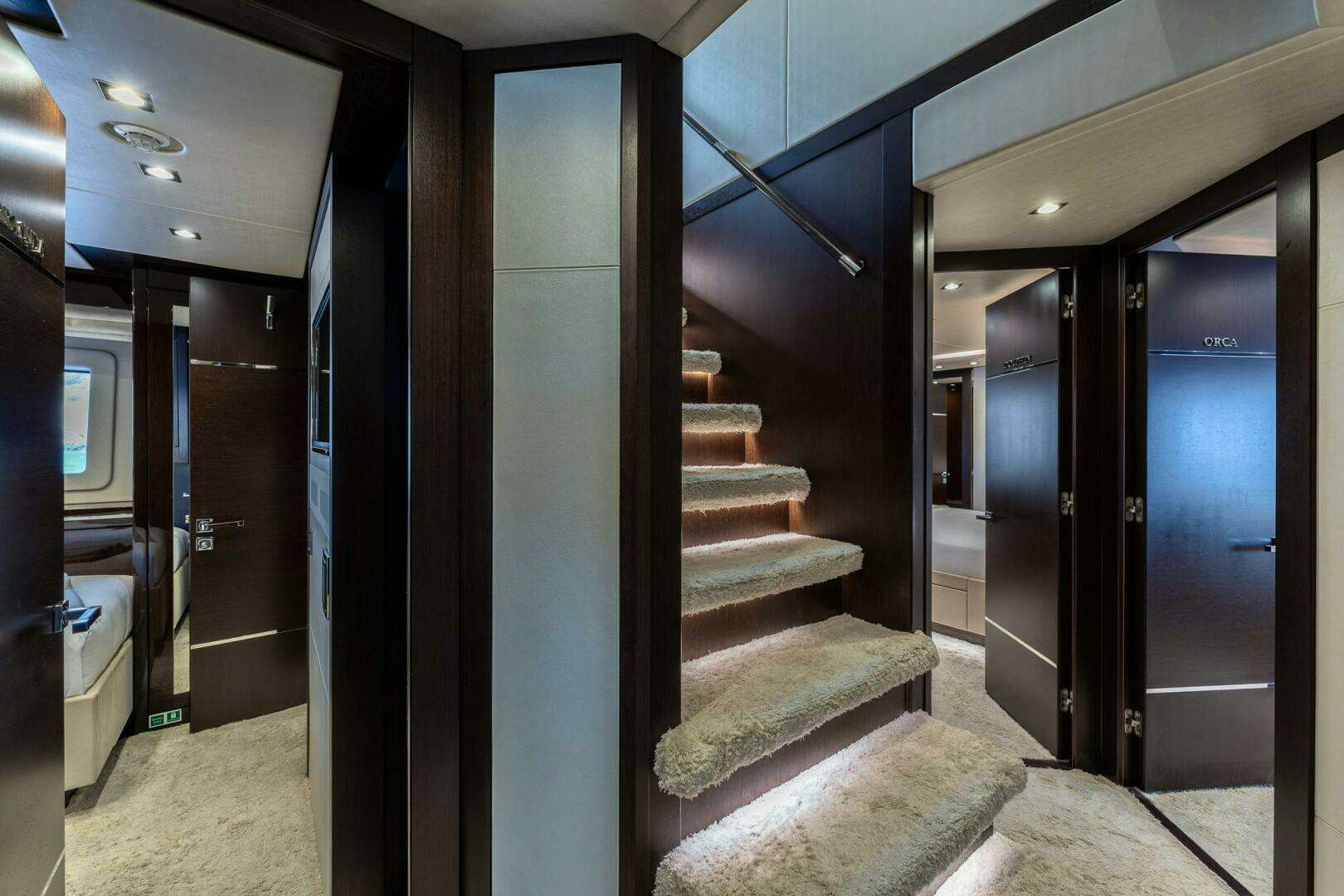

LOBBY
► Thick carpet on companionway and to lower guest areas
► Large new mirror
► Dayhead
► Dimmable lights
► New marble flooring

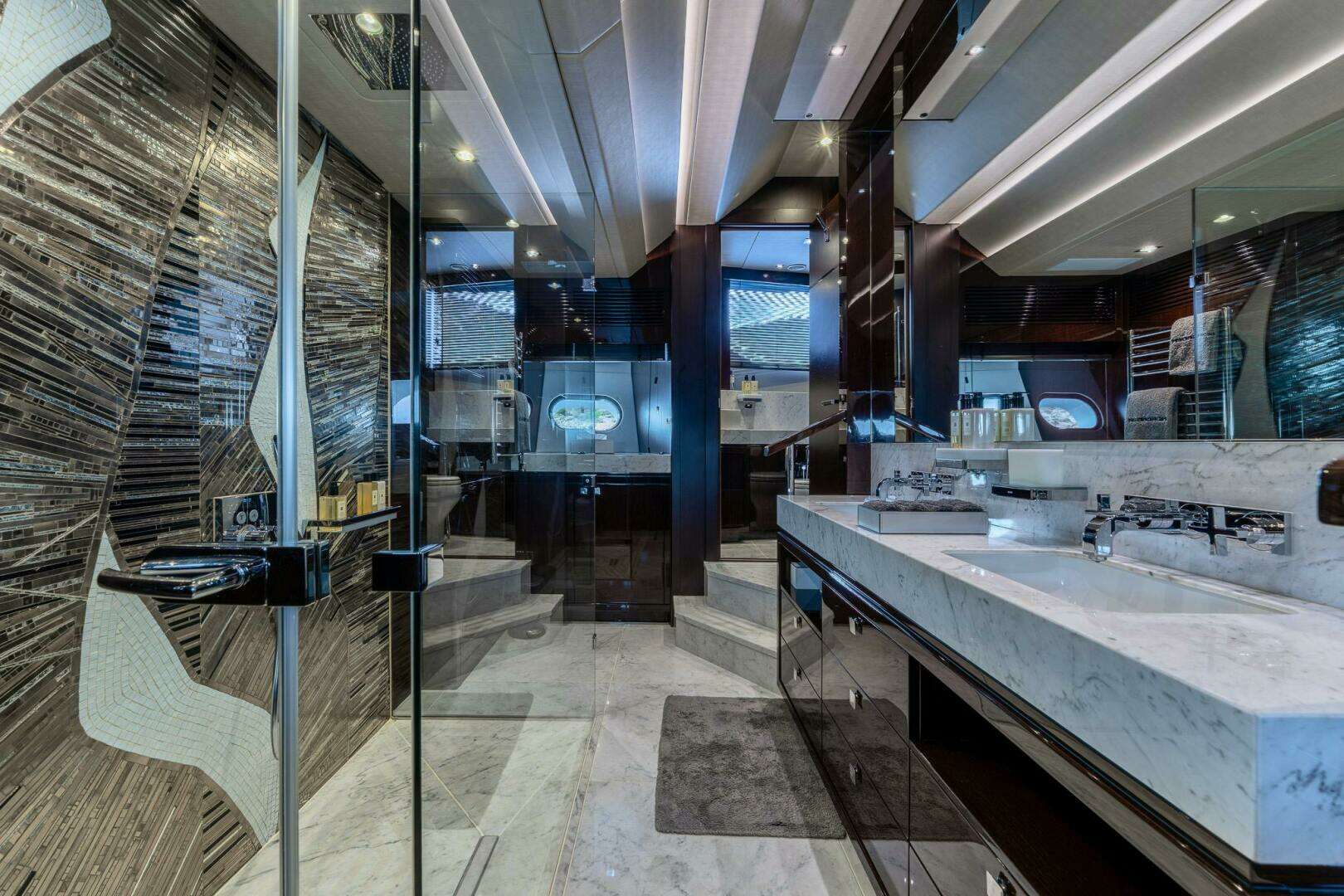

MASTER CABIN
► Black leather window surrounds
► AC vent moved and now directional
► Corner desk added
► Side Mirrors added
► All wood/surfaces protected with polymer coating
► Light fittings upgraded
► Non-slip stairs to en-suite
► Toilet bidet installed
►Mini-Bar installed
GUEST CABINS
► New mirror/lights
► Dimmable lights in bathroom
► New USB sockets

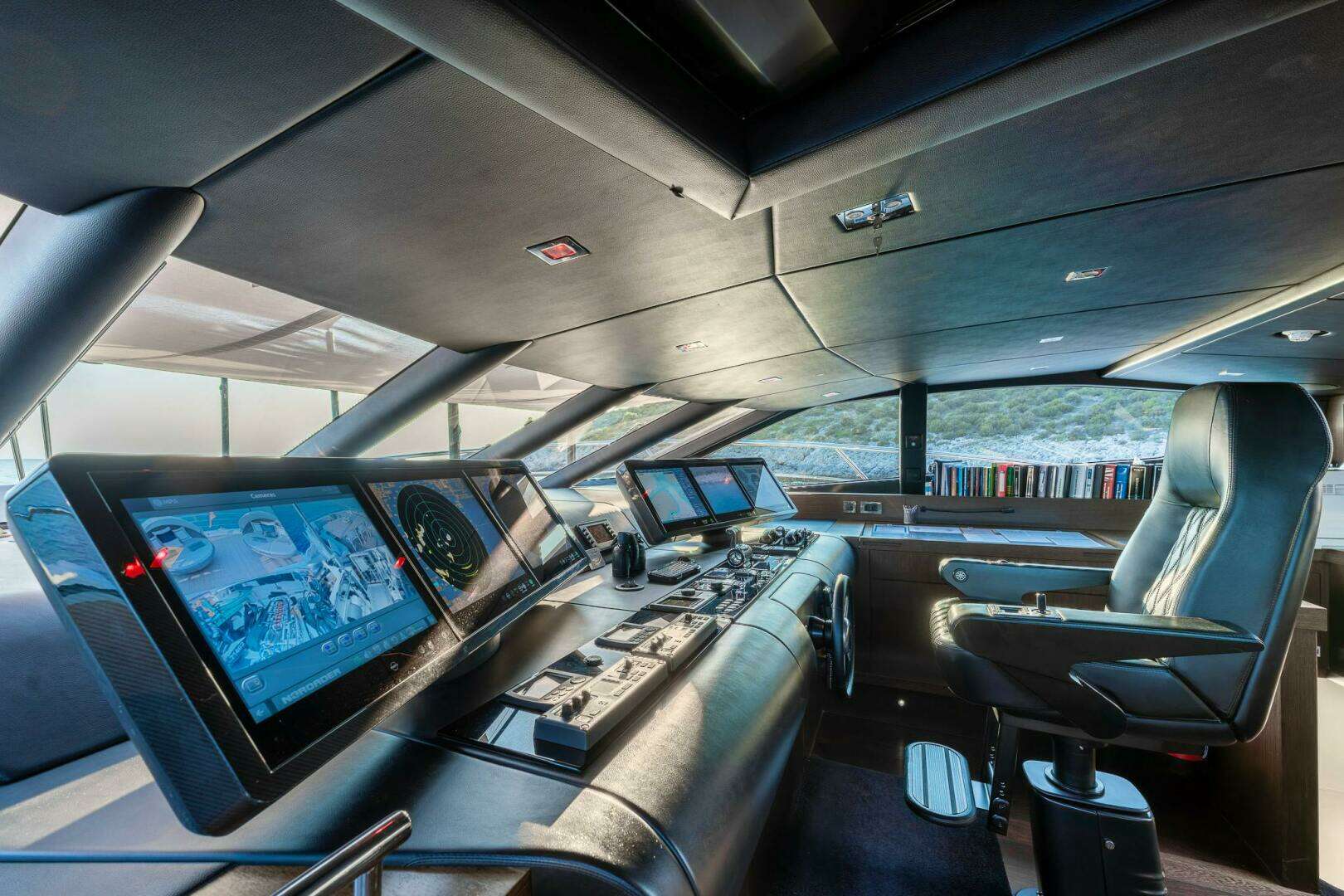

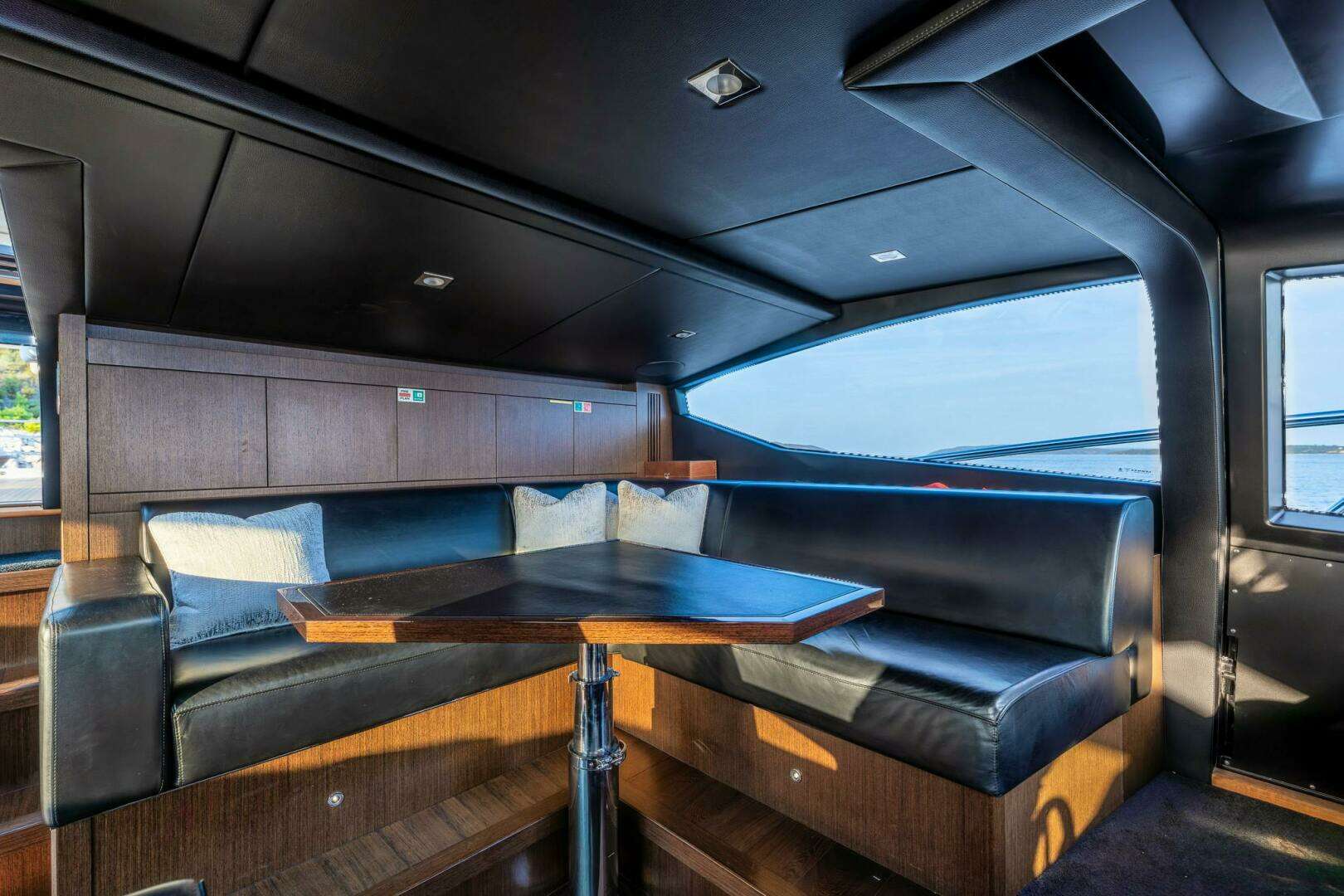

HELM
► Leather replaced (black)
► Table replaced
►Window tints
► Additional aft camera fitted
► HDMI connector for cinema projector
► Custom helm windscreen shade fitted to reduce internal heat by 5-10 degrees
► Stand alone AC unit for upper tech space
*This document is not contractual. All specifications are given in good faith and offered for informational purposes only. The publisher and company do not warrant or assume any legal liability or responsibility for the accuracy, completeness, or usefulness of
any information and/or images displayed. Yacht inventory, specifications and sale price are subject to change without prior notice. None of the text and/or images used in this brochure maybe reproduced without written consent from the publisher.

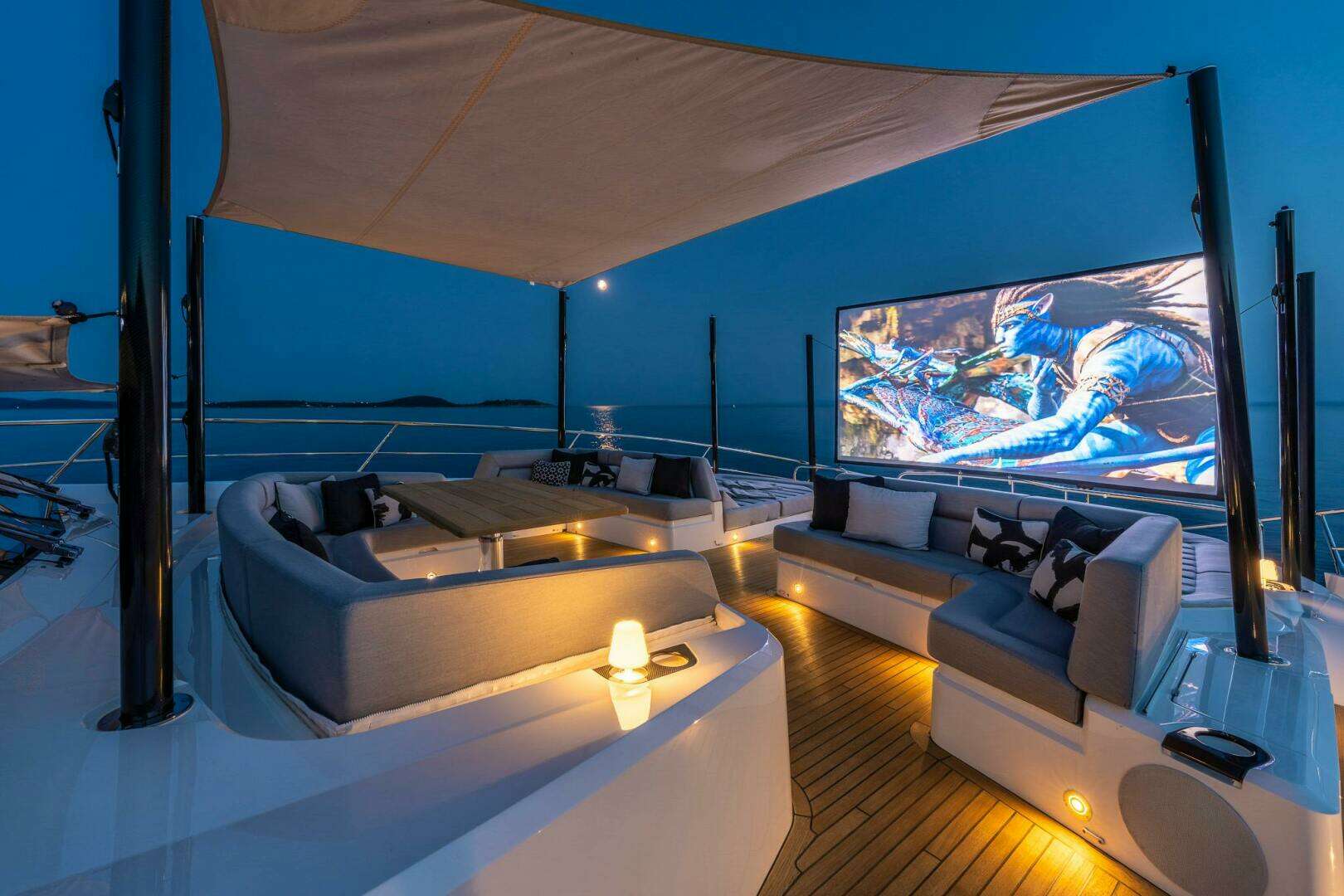

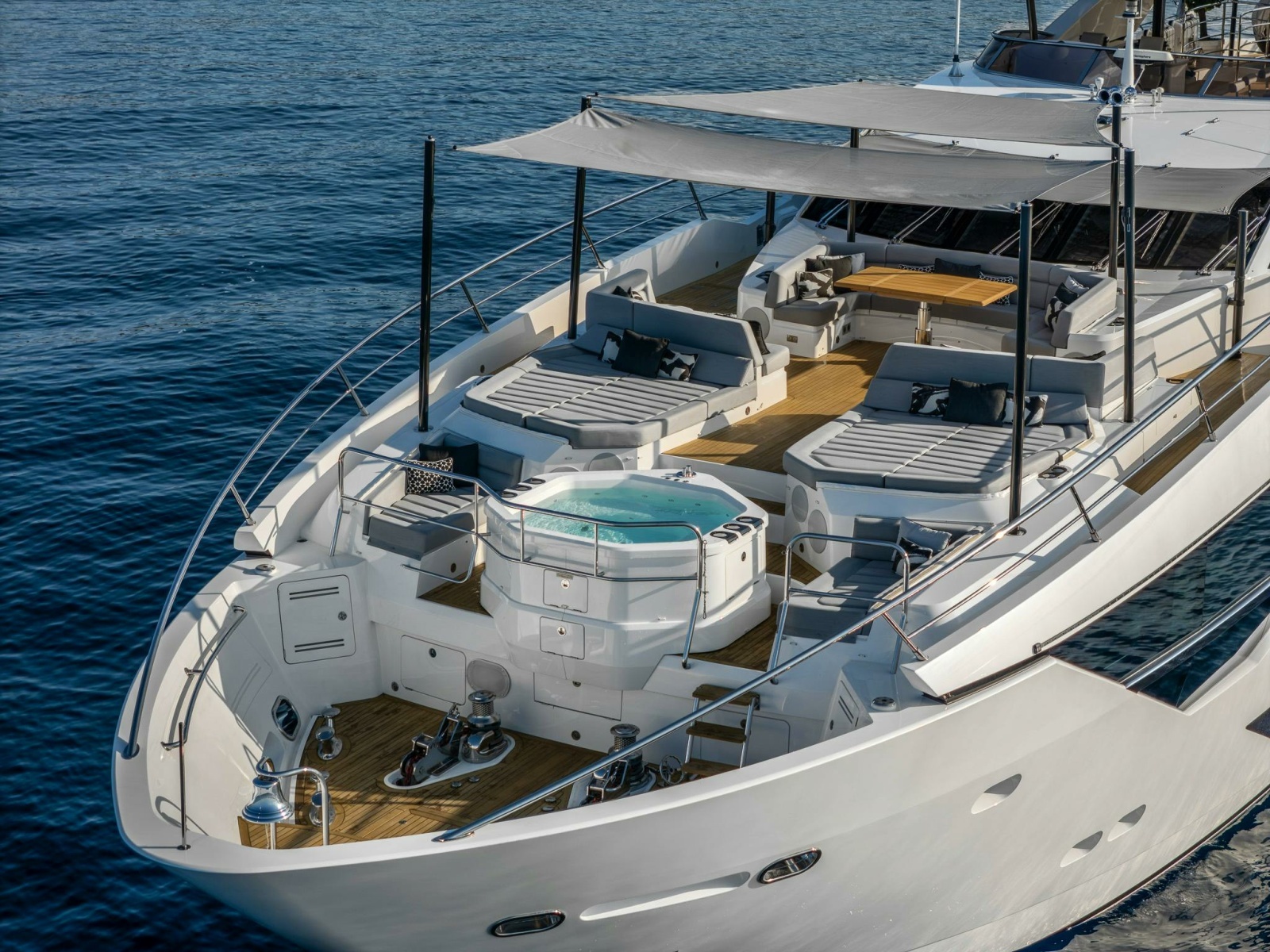

FOREDECK
► Projector plate for cinema projector
► Secured Carbon Canopy stanchions
► Upholstery upgrades
► Additional outlets under seating
► Cinema screen setup
► Custom angled cushions for Cinema viewing
► Professional NEC Projector

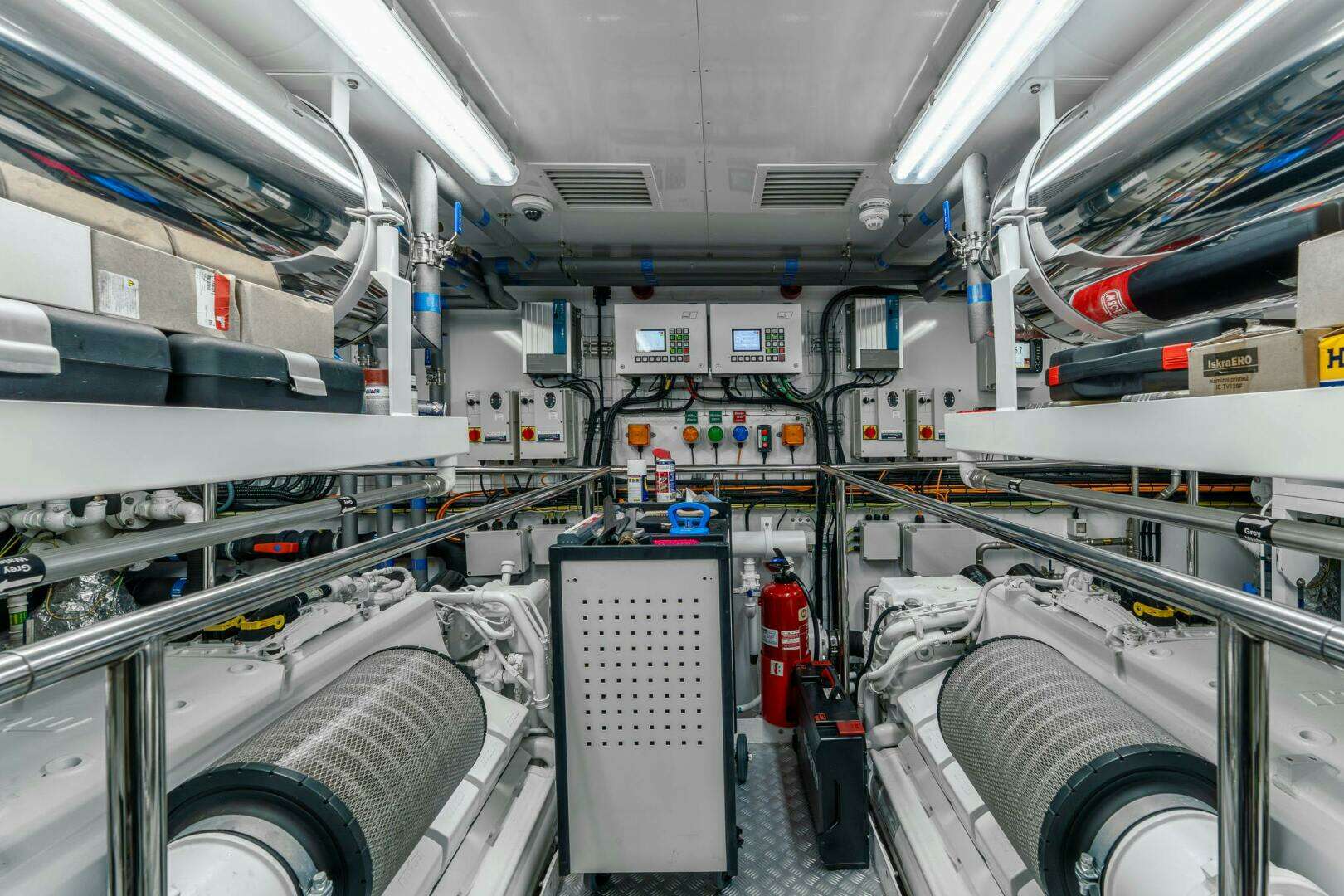

ENGINE ROOM/TECH
► Additional fridge/freezers fitted
► Repositioned washer/dryers to garage
► Space for ironing and folding in garage
CREW CABIN
► Additional storage
► Light charging stations
SERVICING
► Generators will be serviced
►Megger test for whole yacht
►Main engine warranty extended 3 year or 1,500 hour after service
► Atlas Shorepower will be overhauled including new fans

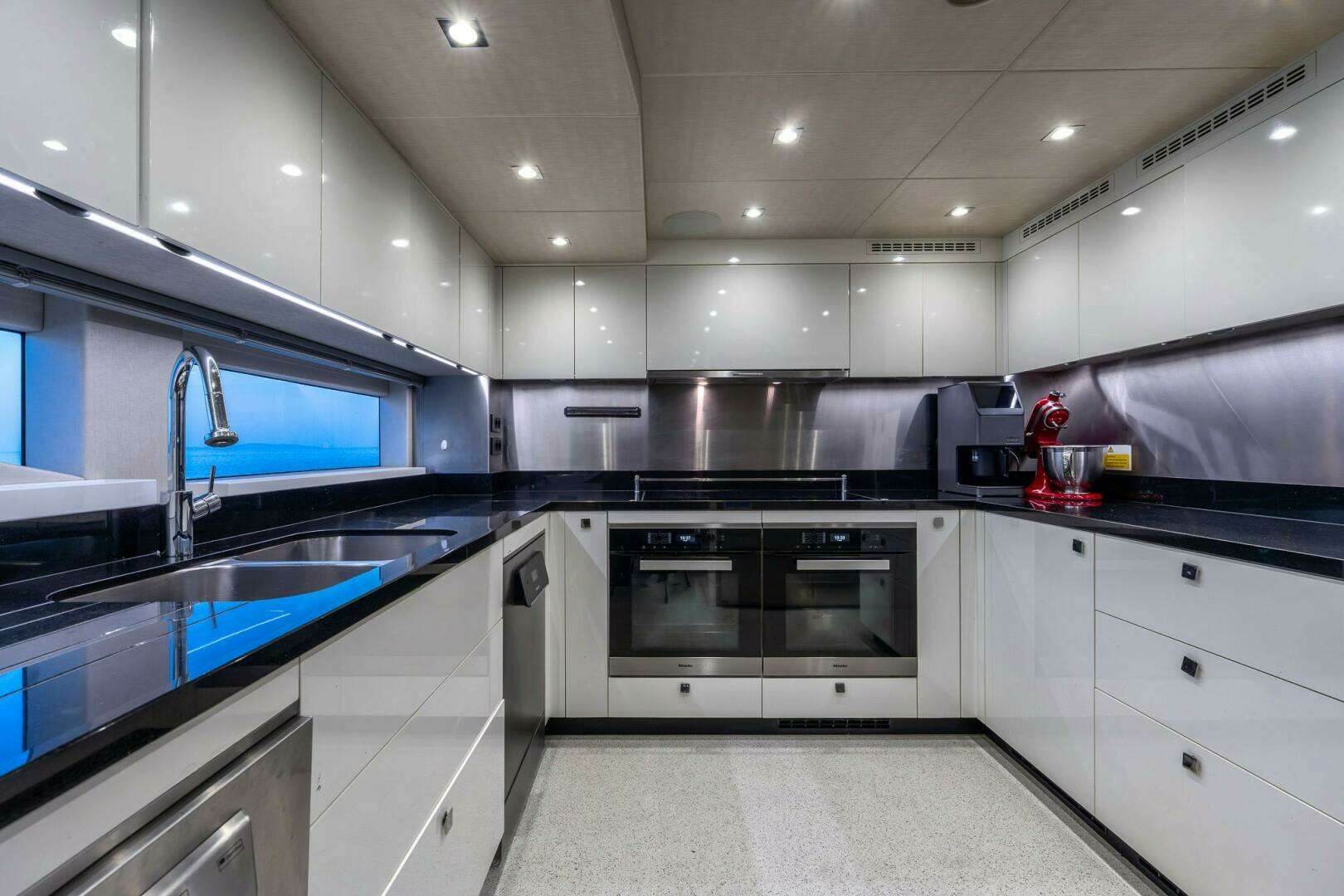

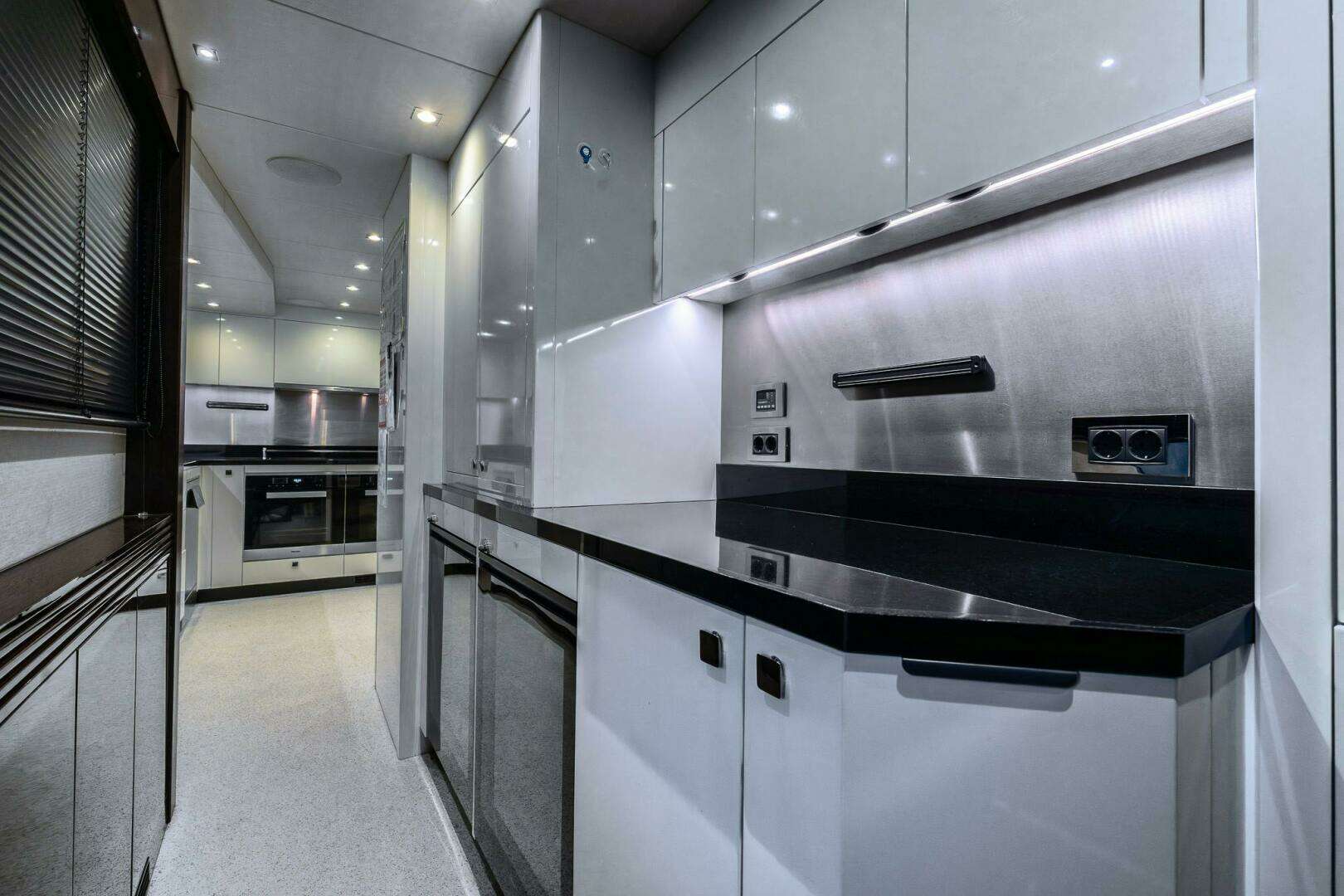

GALLEY
► Additional Professional dishwasher
► New hob
HULL
► Sanded & polished with polymer protection
► Fixed Hull vane fitted aft to increase lift
► Humphree Interceptors trim tabs fitted
