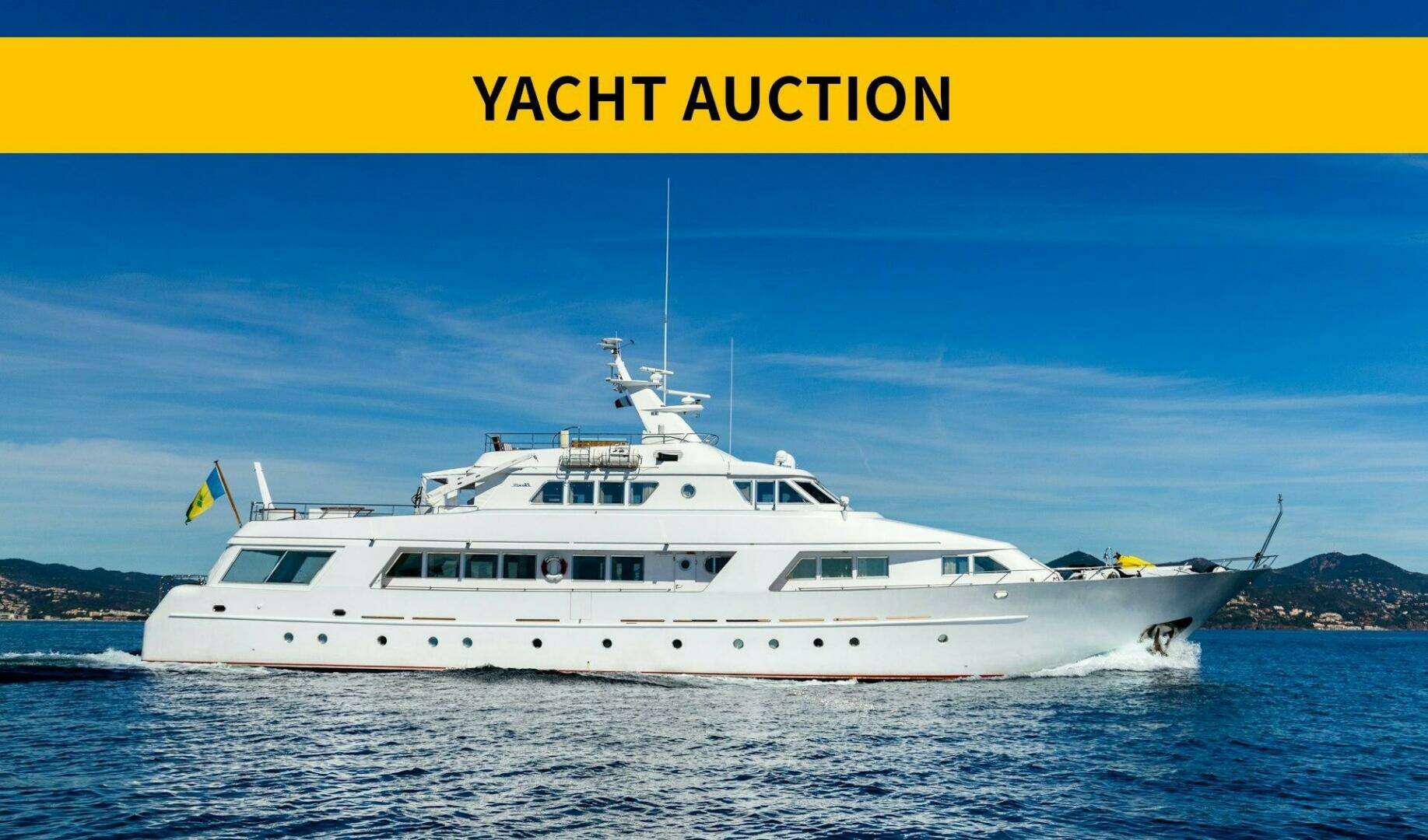

1983 Benetti 113'

MAIN CHARACTERISTICS

Name

STAR OF THE SEA

Type

Motor Full Displacement

Builder

Benetti

Year

1983

Refit Year

2005

LOA (M/FT)

34.50

M

113’

2”

Length COR

26.74

M

Beam Overall (M/FT)

7.20

M

23’

7”

Beam moulded (M/FT)

4.30

M

Gross Tonnage

219

Hull Material

Steel

Hull Configuration

Displacement

Superstructure

Aluminium

Decks

3

Flag

Saint Vincent & The Grenadines

Classification

Built to Lloyd’s

Exterior Designer

Benetti Shipyard

Interior Designer

Benetti Shipyard

Main Engines

2 X Caterpillar Diesel 3408 Dita Rebuilt (2005)

Speeds

10 Max

8 Cruising

Economical

Range

4000 nm @ 9 kn

Guest Accommodation

6/12

Crew Accommodation

7 crew berths

COMMENTS AND NOTEWORTHY FEATURES AT A GLANCE

¨      Tri-deck with six ensuite cabins

¨      Charter machine with very successful track record

¨      Vintage Benetti steel hull pedigree

classification

Flag

Saint Vincent & The Grenadines

Port of Registry

Kingstown

Classification

Member of IACS / Non - IACS

US Tax Status

NOT PAID

IMO Number

8654625

Official Registration

400634

Home Port

Kingstown

regulation

Vessel Registration

St Vincent

Built to Commercial Compliance

Lloyd’s

CONSTRUCTION

Hull Material

Steel

Superstructure Material

Aluminium

Decks Material

Teak

Paint

Awlgrip

Motor Hull Type

Displacement

Number of Decks

(3)

CAPACITIES

Gross Tonnage

219

Net Tonnage

 65

Fuel Capacity

42000

Litres

Gallons

Fresh Water Capacity

16000

Litres

Gallons

Water Makers

4500

Litres/day

Gallons

Grey Water

1000

Litres

Gallons

Black Water

1600

Litres

Gallons

Speed

Maximum

10

Cruising

 8

Fuel consumption

120 liters/hour

MAIN MACHINERY

Main Engines

2 X 365hp Caterpillar Turbocharged Diesel 3408 (Rebuilt 2005)

Engine Hours

Port           5430 Hours

Starboard 5430 Hours

Propulsion Type

Straight Shaft

Gear Boxes

3:1 Twin Discs MG514C Rebuilt 2012

Propellers

2 x 4-Blades, 2 spare propellers stored on board with axle

GENERATORS & ELECTRICITY

Output/Electricity

240V/50Hz 63 Amps 3-phase (shore), 24V Emergency supply

Generators

2 X Stamegna SM 650, 50kW (Perkins diesel, Stanford alternator)

Generator Hours

Port           16583 Hours

Starboard 17456 Hours

Shore Power

380V 50Hz 100Amp

Isolation Transformer

Converter 400V AC 3-phase to 240V AC single-phase

Battery Chargers

MasterVolt

AUXILIARY MACHINERY

Emergency Steering

Mechanical

Bow Thruster

Yanmar 45 H110 (New 2024)

Bow Thruster Engines

New ND 40 Yanmar JH 110 HP

Stabilizers

Vosper (overhauled 2004/05, new electronic 2008)

Under Water Lights

(4)

Fuel & Oil System

Fuel Purifier

Alfa Laval

Fresh Water System

Fresh Water Makers

HEM

Hot & Cold Circulation Pump

Yes

Hot Water Boilers

Yes

Black & Grey Water System

Black & Grey Water Pumps

Gianneschi

AC & Ventilation System

Air Conditioning

Condaria 3 X 60000 BTU, reversible for heating, 2 spare compressors stored on board

Air Handling Units

(8) New 2024 – (14) Total

NAVIGATION & COMMUNICATION SYSTEMS

NAVIGATION SYSTEMS - ELETRONICS & NAVIGATION

·        Simrad RA40 Marine Radar

·        GPSMAP 2010 GPS

·        Furuno NAVnet VX2 1954C-BB Marine Radar

·        Furuno NAVnet VX2 GD-1920C-BB Color Marine Plotter

·        Raymarine RAY430 Loudhailer Bridge

·        Net Logic Watchkeeper w Master Control Unit

·        ICOM IC-M411 Radio

·        Simrad AP352 Autopilot

·        Furuno SC-702 Satellite Compass

·        Navman Wind 3150 Wind-Speed, -Direction, -Angle indicator

·        McMurdo Smartfind 406MHz Epirb – Beacon ID 2DCC8 E9266 FFBFF

Bridge Navigation Watch Alarm

Yes

Weather Fax

Yes

Ships Computer

Yes

COMMUNICATION SYSTEMS

Portable VHF

(5) Cobra Marine HH600 DSC + GPS

Portable GMDSS VHF

(1) IC – GM1600E

DECK MACHINERY & EQUIPMENT

Anchor Chains

2 X Poole anchors (approx. 180 kgs each) 2 X 120m chain

Anchor winch, capstans

Nanni – on forward deck and 2 X capstans aft

Cranes

Nanni 2X on boat deck, 1 X forward deck (overhauled 2005)

Warping Capstans

(2) Aft Deck

Passerelle

Hidraulic - Mor Saverio, hydraulic fully retractable s/steel 350cm (new 2004)

Side Boarding Ladder

Yes

Spotlights

Yes

SAFETY, SECURITY, & FIRE FIGHTING EQUIPMENT

Monitors

(1) Brandt

Ship’s Safe

(1) Each guest cabin

Fixed Firefighting System

CO2

Life Rafts

(4) (2024 ReCert)

Lifejackets

22 Adult 7 Children

Immersion Suits

(5)

Life Rings

(1) Port (1) Starboard

ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS

Audio Equipment

Fusion surround Sound, Main Salon, Aft Deck, Bridge Aft, Sundeck

Master Stateroom

TV – Smart Samsung 32”

Exterior, Aft Deck, Bar, Bridge Deck

Fusion Audio System

GALLEY & LauNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

Cooking Equipment

Rutame + Electrical

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT

Microwave

Yes

Refrigeration/Freezer

(4) Commercial LIEBHERR refrigerator, freezer

Dishwasher

(2) Miele

Wine Storage

(1) Wine Fridge

Main Laundry Equipment

(2) Miele Dryer

(1) Washer

OTHER EQUIPMENT

Spa Tub

Yes

CAPITAL IMPROVEMENTS

2024

Exterior

Brand new complete bottom paint system

Propspeed running gear

Hull plate work various areas

All Thru-hull valves replaced

Bow thruster replaced

Hull paint polish

Boot stripe repainted

Interior

Fresh carpeting in all areas

Air conditioning rebuilt
