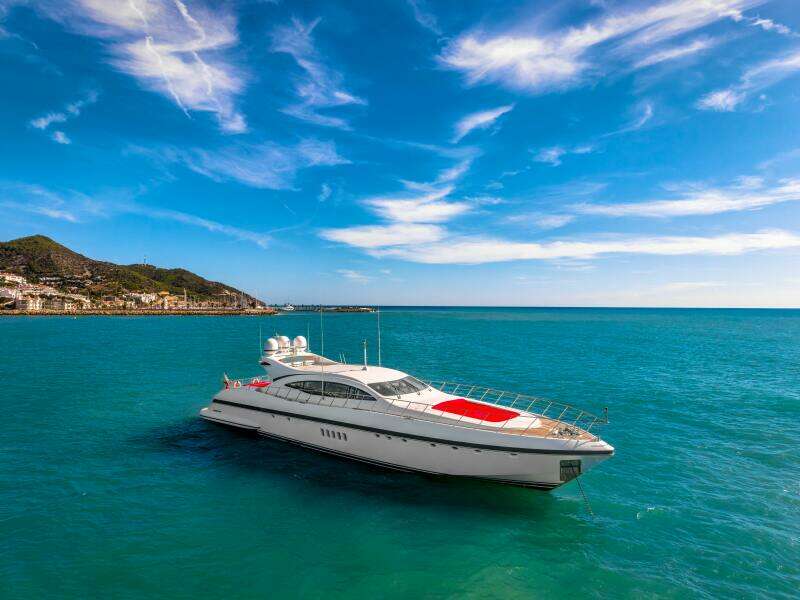

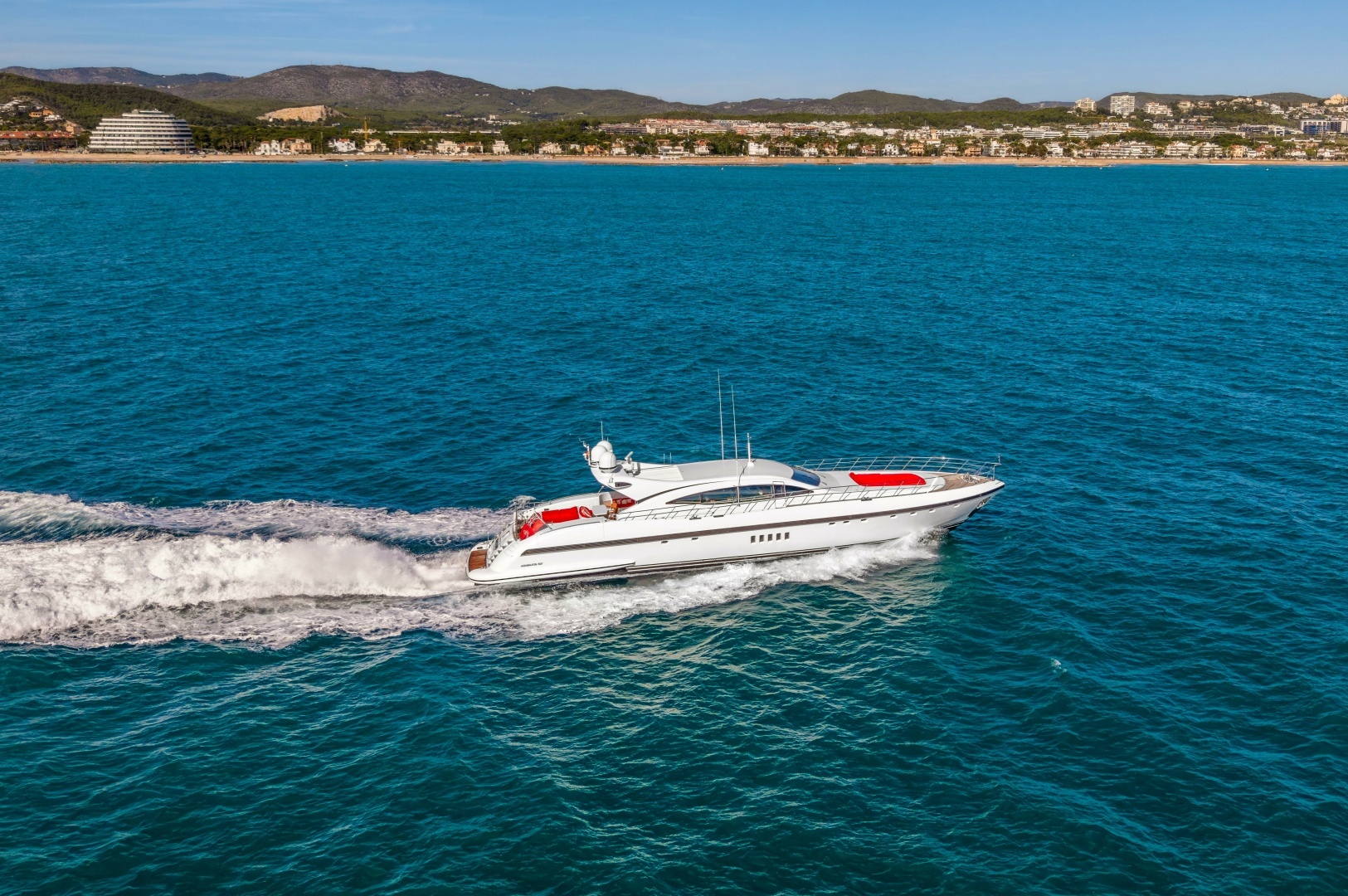

2008 Overmarine 109'
33.50 m€ 2,950,000 Euros
Le Panorama, 57 Rue Grimaldi, Bloc A/B 7e étage98000Monaco 98000 Monaco
Yachtr
2008 Overmarine 109' Mangusta 108
- 33.50 m
- Diesel
- Power
- Motor Yachts
In Stock #2844038
2008 Overmarine Mangusta 108
109' (33.50 m) GRAZIADIU
-
Flag of Registry: Cayman Islands
Port of Registry: Viareggio
Vessel ID: 2844038
| FEATURES: |
|---|
2008 Overmarine 109' Mangusta 108
- 33.50 m
- Diesel
- Power
- Motor Yachts
In Stock #2844038
€ 2,950,000 Euro
$ 4,769,583 CAD*£ 2,589,437 GBP*$ 3,401,350 USD*
*estimated foreign exchange
LOA109'
LOA33.50''
Beam23'
Beam Inch4''
Draft Max Feet3'
Draft Max Inch4''
Fuel Tank (Gallons)3434
Fuel Tank (Liters)13000
Fresh Water (Gallons)528
Fresh Water (Liters)2000
TypePower
ConditionUsed
Specifications
Name
GRAZIADIU
HIN/IMO
8747630
Stock Number
dda8edad-e1b3-f011-bbd3-000d3a36643e
Power-Used
Year
2008
23'4"
91'11"
3'4"
Cabins
4
Sleeps
10
King Berths
1
Crew Sleeps
4
Maximum Speed
37 Knots
Cruise Speed
32 Knots
Fuel Type
Diesel
Hull Material
GRP
Air Conditioning
Yes
3434 Gallons (13000 Liters)
528 Gallons (2000 Liters)
Gross Tonnage
181
Displacement
105
Classification
Bureau Veritas
Builder
Overmarine
Engines
Engine 1
- Engine Make: MTU
- ModelEngine Model: 12V 4000 M90
- Power HPPower HP: 2730.00
- Power KWPower KW: 2040.00
- HoursHours: 1566.00
- Engine LocationEngine Location: Port
Engine 2
- Engine Make: MTU
- ModelEngine Model: 12V 4000 M90
- Power HPPower HP: 2730.00
- Power KWPower KW: 2040.00
- HoursHours: 1566.00
- Engine LocationEngine Location: Starboard
Engine 3
- Engine Make: Kohler
- ModelEngine Model: 33EFOZ
- Power KWPower KW: 33.00
- HoursHours: 3599.00
- Engine LocationEngine Location: Port
Engine 4
- Engine Make: Kohler
- ModelEngine Model: 33EFOZ
- Power KWPower KW: 33.00
- HoursHours: 3092.00
- Engine LocationEngine Location: Starboard
Full Details
Overview
Builder: OvermarineModel: Mangusta 108
Length: 33.48.m (109’ 58”)
Construction: GRP
Year: 2008
Refit: 2025
Guests: 10 in 4 Cabins
Crew: 5 in 3 cabins
Cruise Speed: 32 Knots
Top Speed: 35Knots
Range: 460 nm
Exterior Designer: Stefano Righini Design
Classification: Bureau Veritas
Flag: Cayman Island
Commercial Compliance: MCA (I 3/3 E, MACH, Charter Yacht /C)
Principal Dimensions
Length overall (incl. pulpit): 33.4m (109’ 58”)Length overall (excl. pulpit): 28.5m (103’ 4”)
Beam: 7.12m (23' 3")
Draft: 1.3m (17' 3")
Gross Tonnage: 181 GRT
Net Tonnage: 54 T
Displacement: 110 T (Full Load)
Fuel capacity: 14,700 L (3,883 gallons)
Water capacity: 2,000 L (528 gallons)
Grey & Black Water: 1,600 L (422 gallons)
Broker’s Comments
GRAZIADIU is an exceptional example of the iconic Mangusta 108 series — a yacht that perfectly blends performance, style, and comfort. Measuring 109.9 feet (33.5 meters), she offers generous accommodations for up to 10 guests in four beautifully appointed cabins, each thoughtfully designed with light wood finishes and bold colours.Crafted by the renowned Italian shipyard Overmarine, GRAZIADIU has been privately owned and maintained to the highest standards, reflecting the meticulous care by her captain and owners. With low engine hours and benefitting from the completion of her class survey in 2025, she is ready for her new owner.
Performance
Cruising Speed: 32.0 knots Maximum Speed: 35.0 knotsRange: 460nm

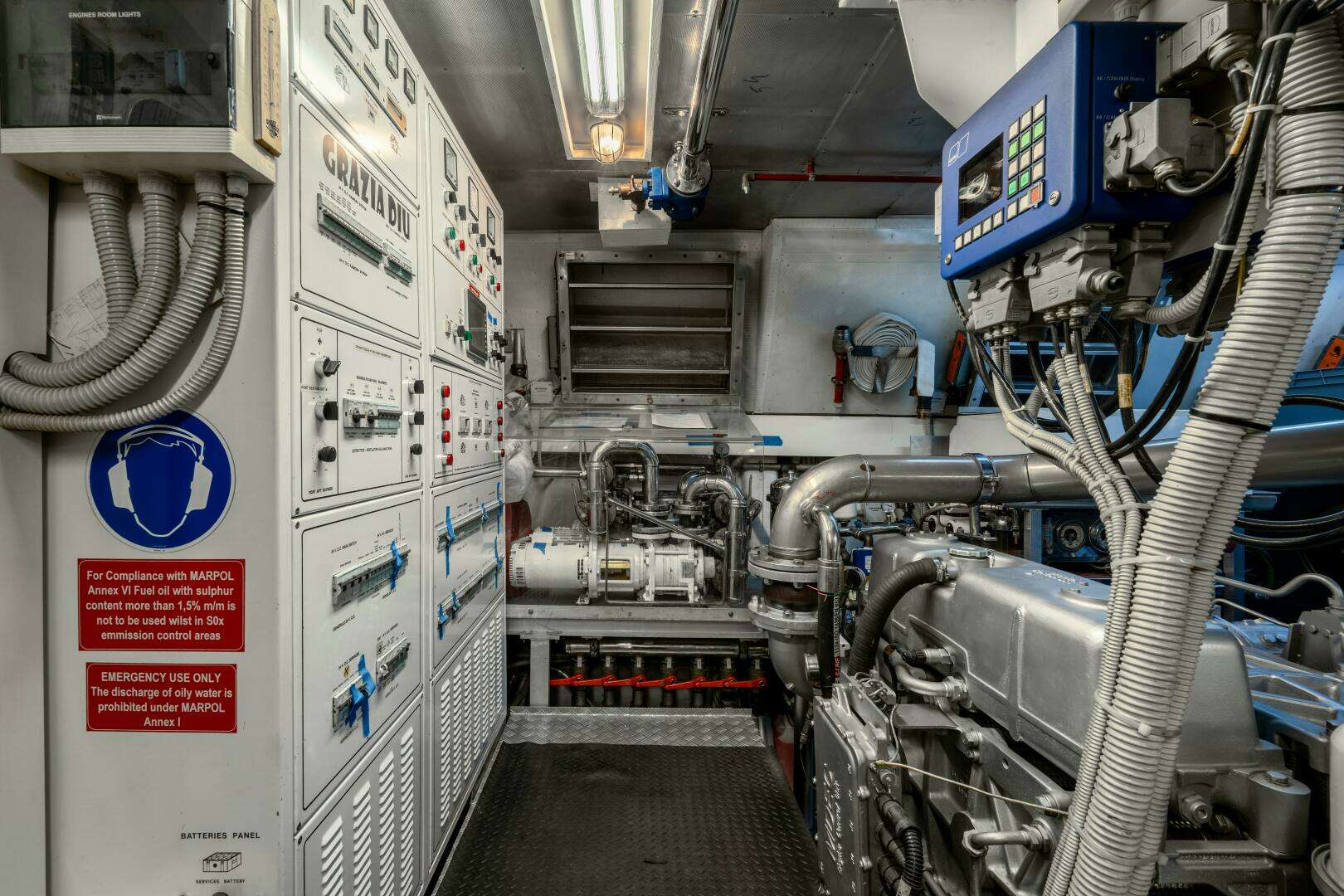

Machinery

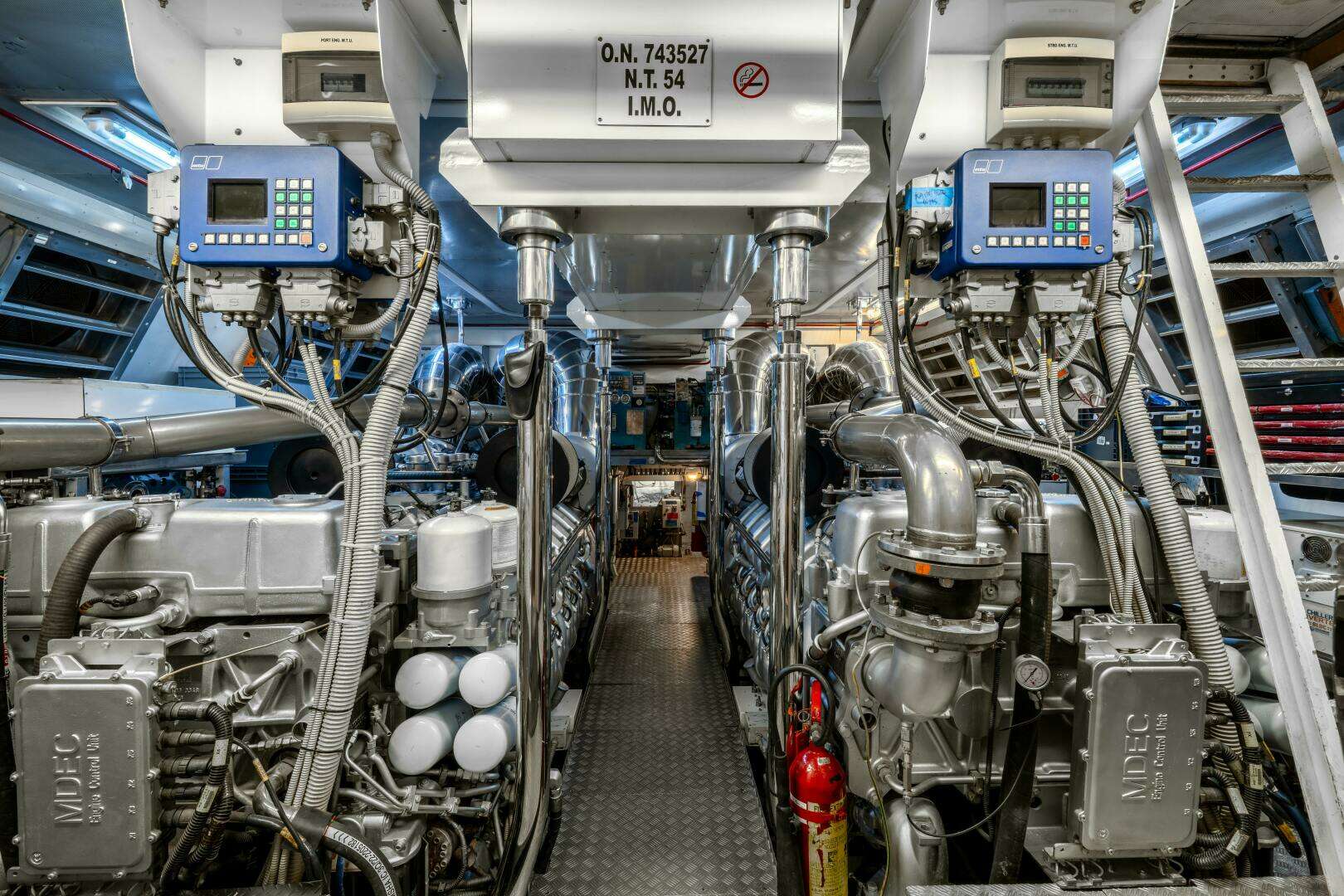

Engines: 2 X MTU 12V 4000 M90 2040 kW 2730hpEngine hours: Port: 1566 hrs / Stbd: 1566 hrs
Generators: 2 X KOHLER 33EFOZ @ 33kW each
Generator hours: Port: 3,599 hrs / Stbd: 3092 hrs
Propulsion & Steering
Propulsion: 2 x Kamewa 63 S3 Water JetsGearboxes: 2 x ZF BW 465
Hydraulic Bow Thruster BCS 47 kW
Onboard Systems
FUEL SYSTEM: RACOR fuel pre-filter supplied by MTU and WESTFALIA OTC 2 400 V Fuel purifierGianneschi bilge pumps and fire fighting
Frigomar Air conditioning
Deck Hardware
WINCHES, ANCHORS AND CAPSTANSTwo 5500 W Lofrans Ercole Verticale –
3kW/3 –phase/380V vertical anchor windlasses
ANCHORS & CHAINS
• 2 x SEC SHHP 154 KG
• 2 X 14 mm chain length of 120m galvanized
CAPSTANS
• 2 X Lofrans T2000 2.2 kW 400 V
GANGWAY
• Sanguineti hydraulic gangway and swim ladder MIZAR L Capacity 680 kg
• Teak grating walking surface
• Tilting capability
• Infrared remote controls

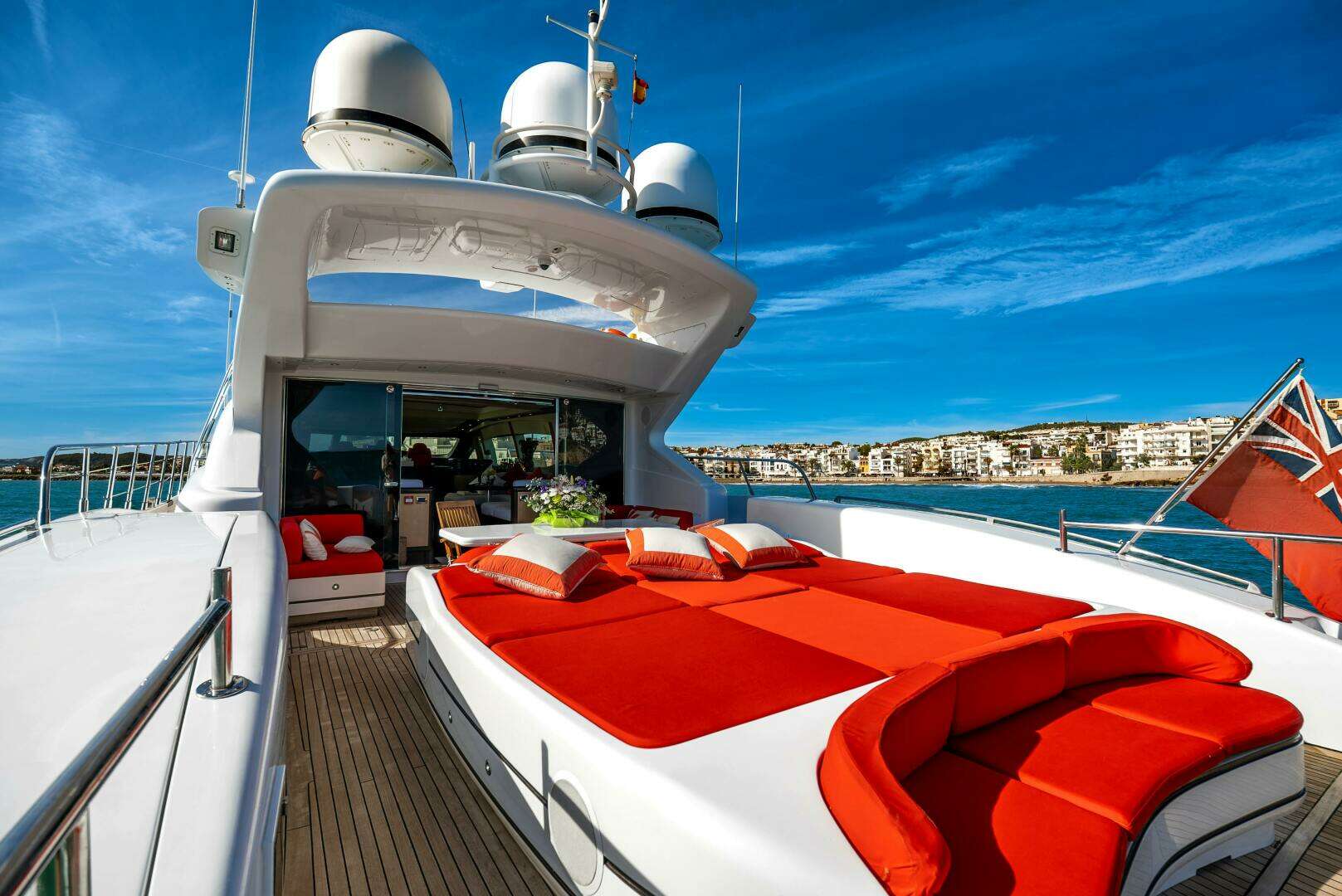

Deck Equipment
• 1 X Sanshin search lights• 1 X Kahlenberg air horns

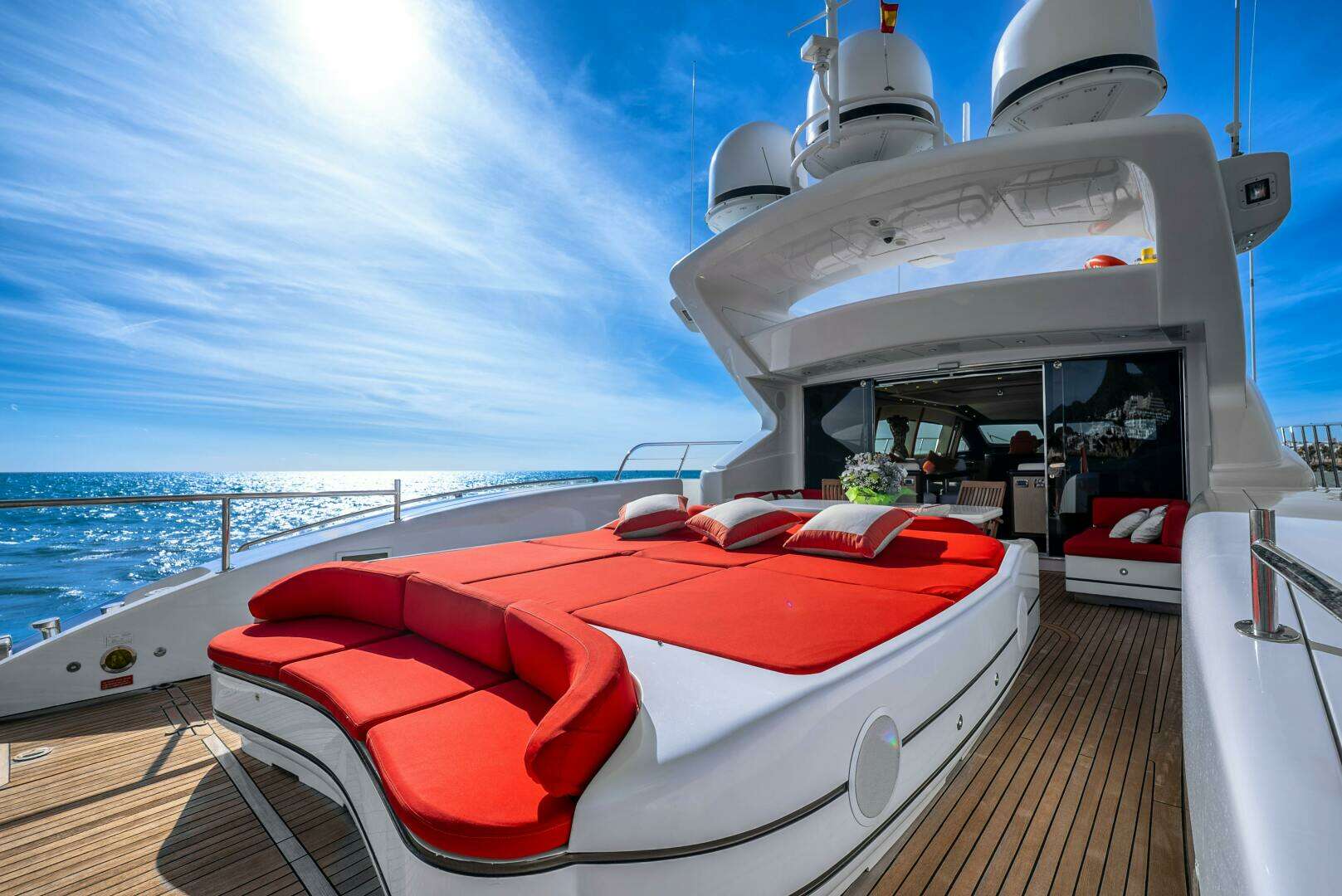

• Aft deck sun awning
• 1 X sun beds forward
• Swim platform
• Bow deck shower
• Electric Sun Roof

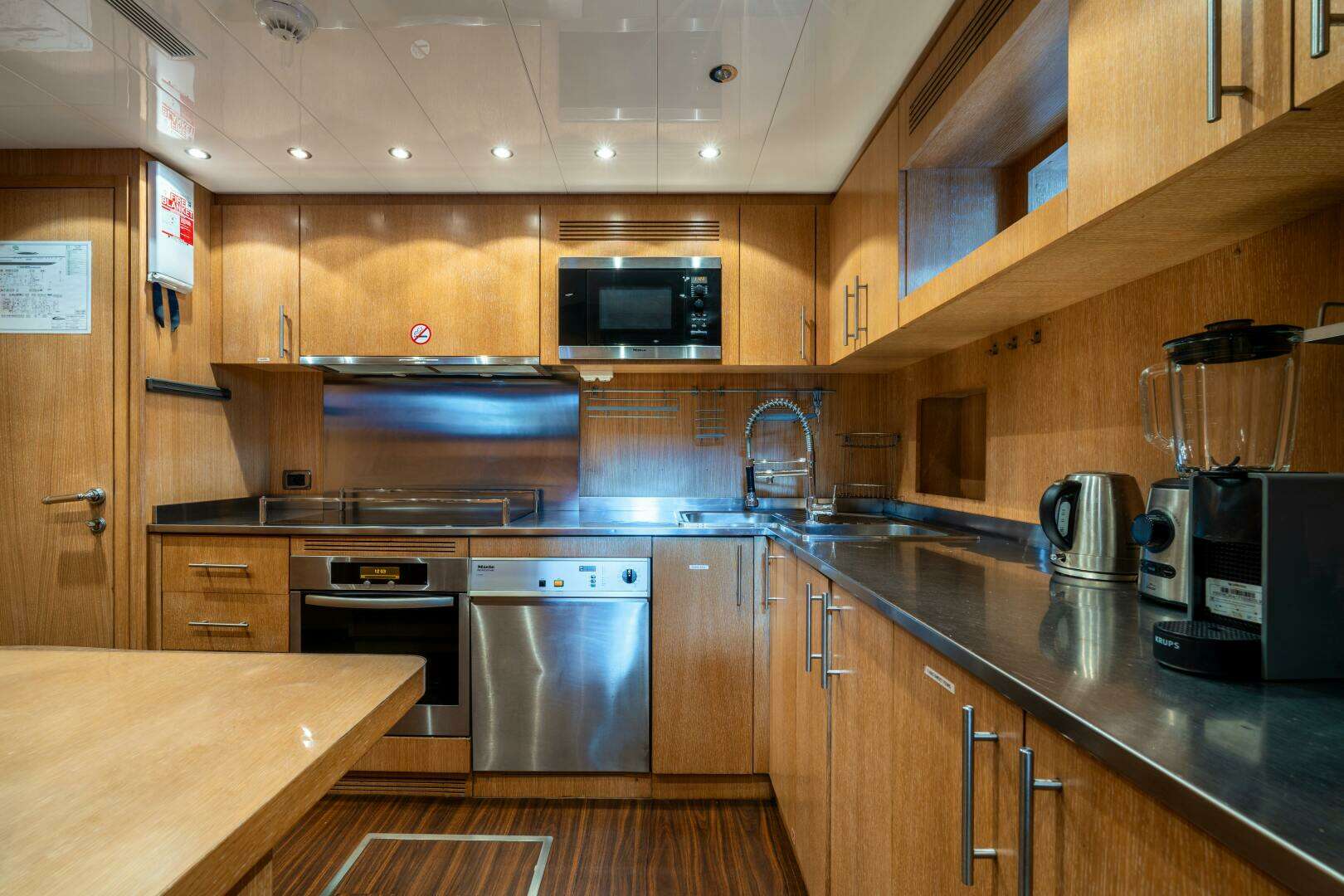

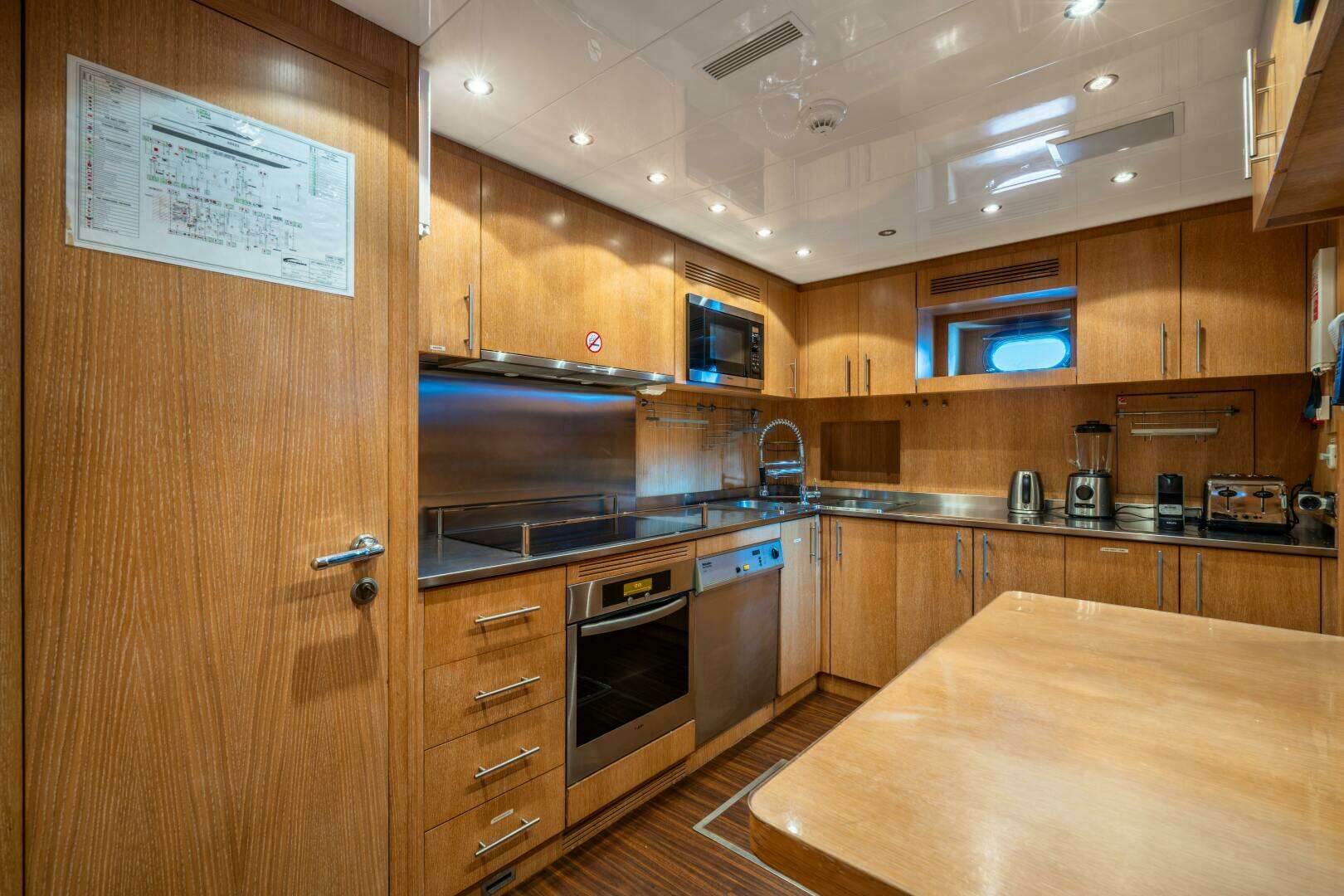

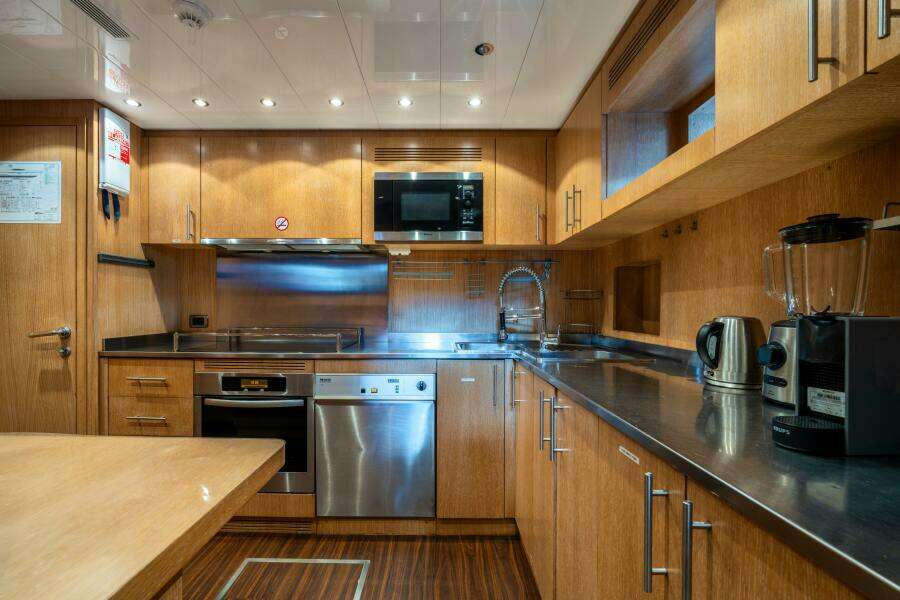

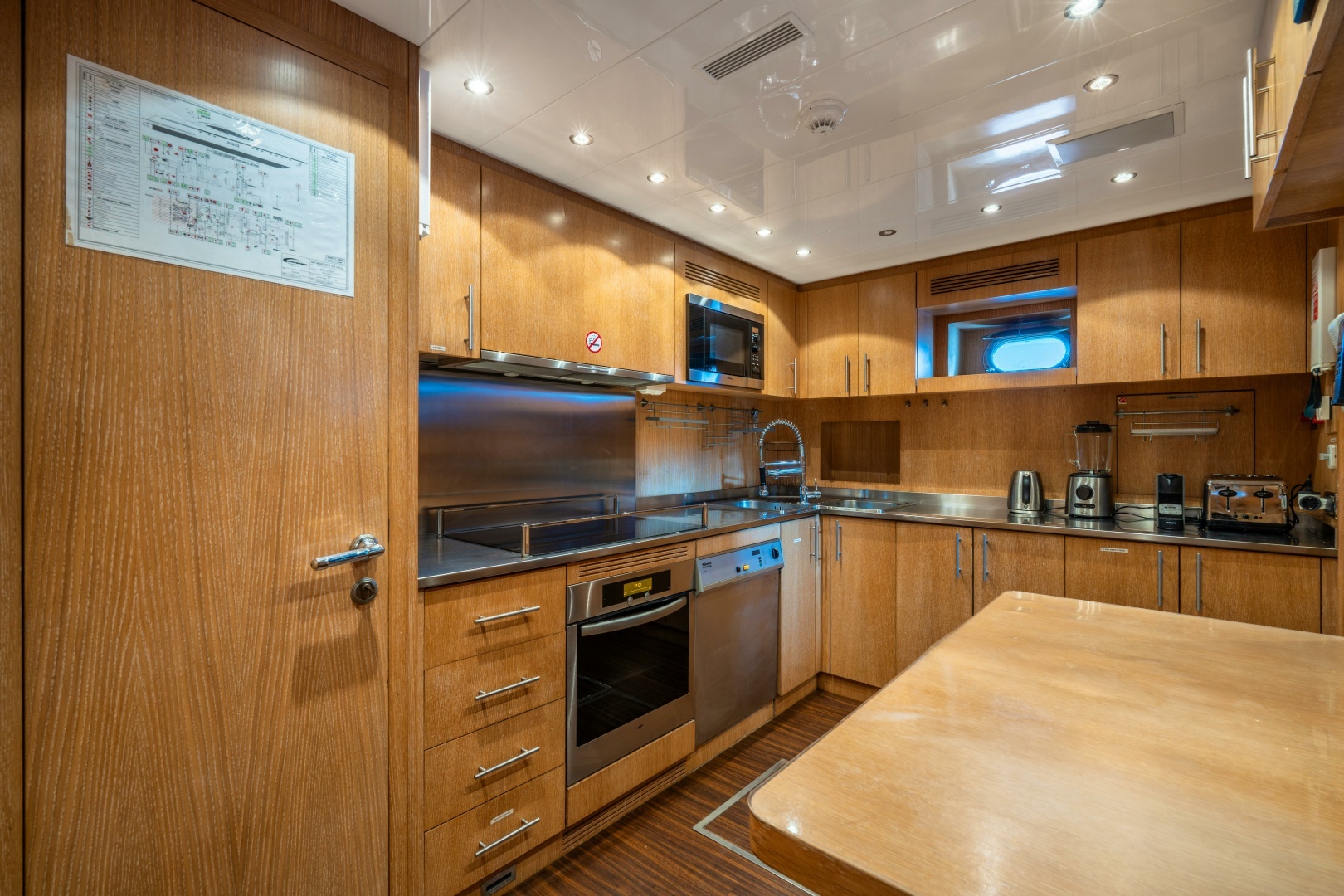

Galley
• 1 X Miele Oven• 1 X Miele Microwave M8161 • 1 X Miele Exhaust hood
• 1 X Miele Dishwasher G78J6 • 4 X Frigit fridges
• 1 X Liebherr winecellar
• 1 X Gaggenau cooking top
• 2 X Frigit fridges
• 1 X Brema icemaker
Laundry
• Clothes washing machine PW 6065• Condense dryer machine PT 7136
Safety Equipment
• 2 X Survitec Zodiac XTREM SOLAS; 10 person• 1 X Survitec Zodiac XTREM SOLAS; 8 person
• 9 X dry powder fire extinguishers, 2 kg
• 5 X dry powder fire extinguishers, 6 kg
• 4 X dry powder fire extinguishers, 9LT
• 3 X C02 5kg
• Engine room C02 fire fighting system
• ACR EPIRB GME MT406FG

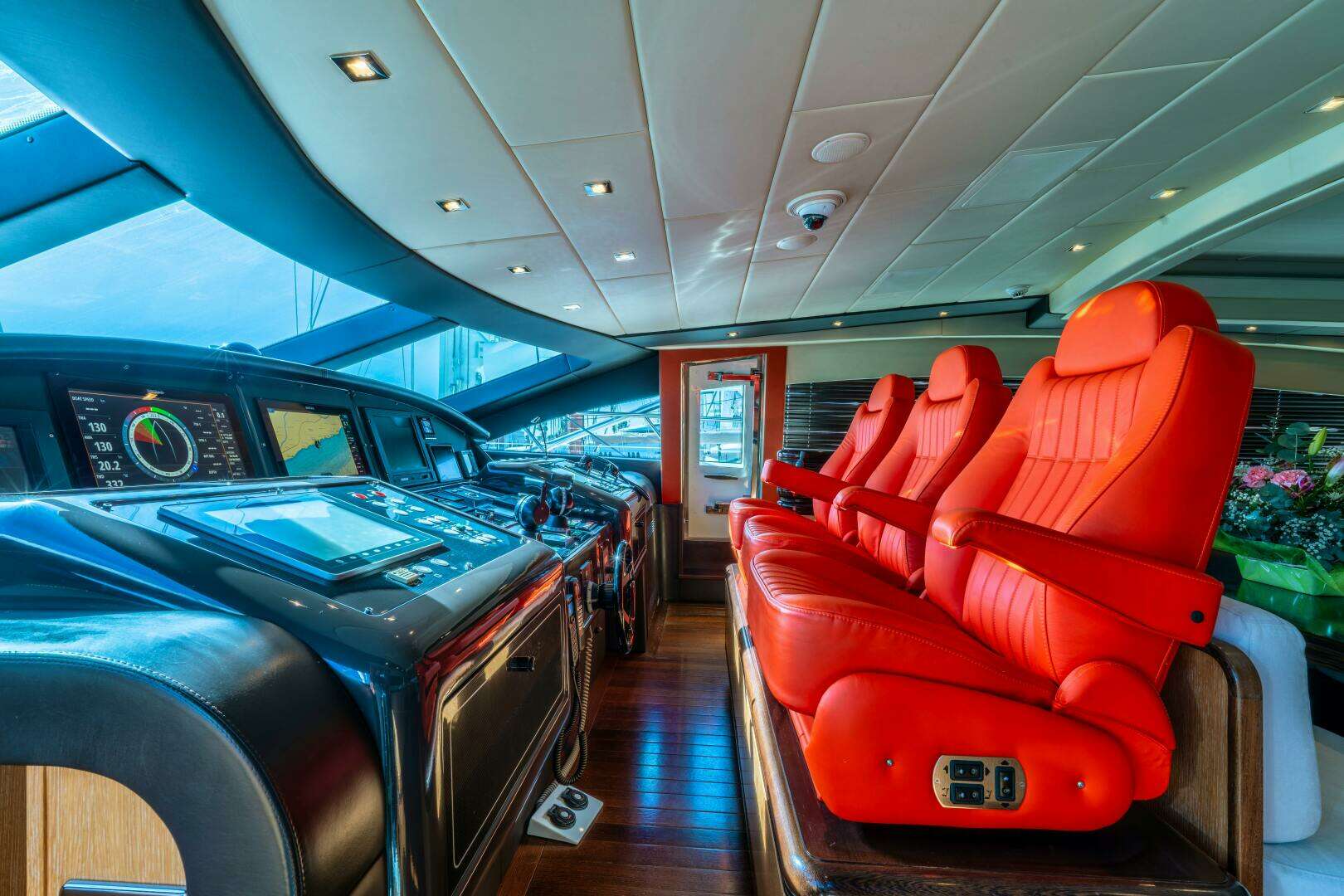

Navigation System & CCT
• Plotter: Time Zero Pro• Radar Furuno FAR PPU013
• Sounder Furuno ETR610N
• Wind Airmar weather station
• Autopilota Roberson AP9 MK3
• Ais Fa150 Furuno
• VHF FM2721
• Navtex Fax30
• Satelite Compass Furuno SC702

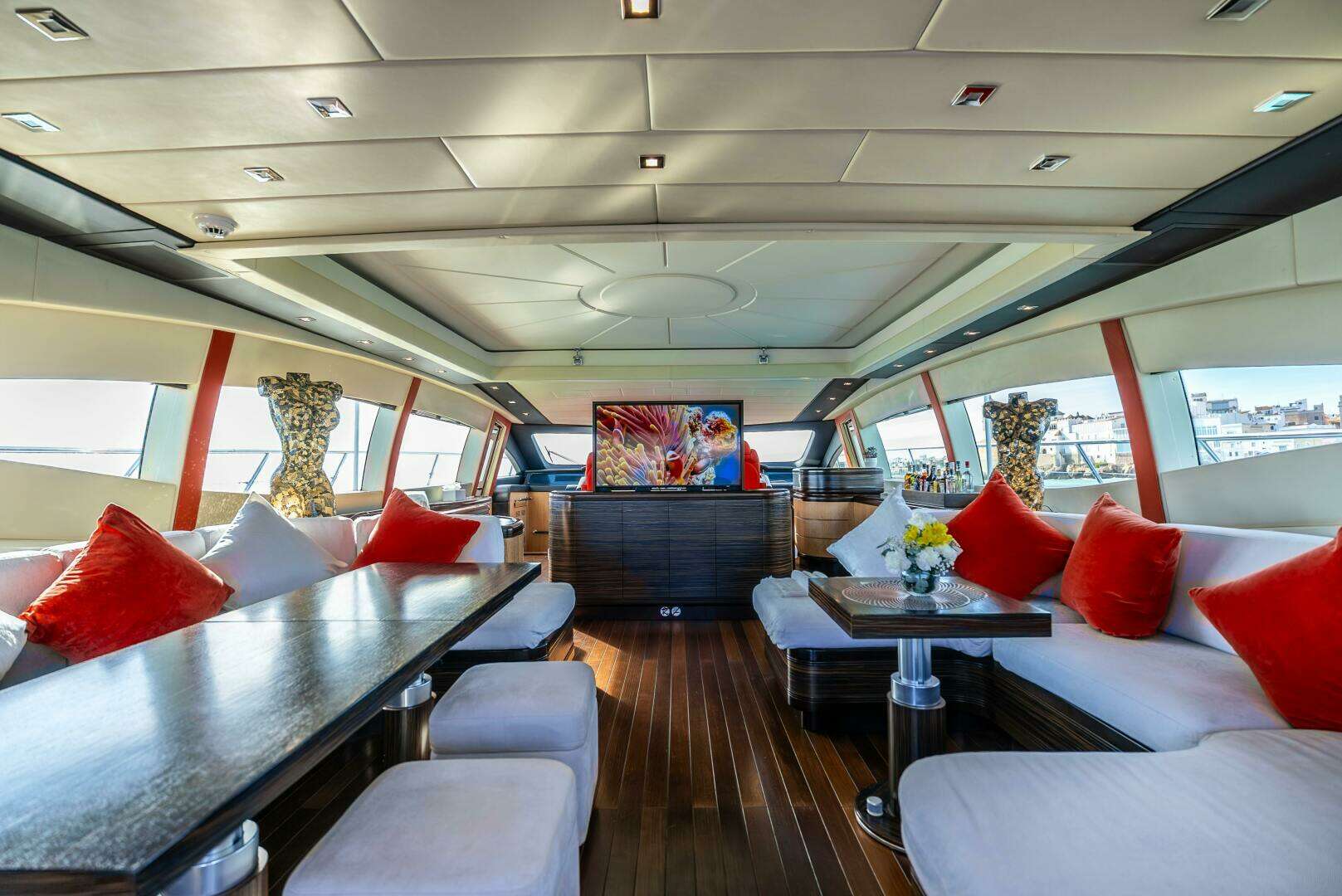

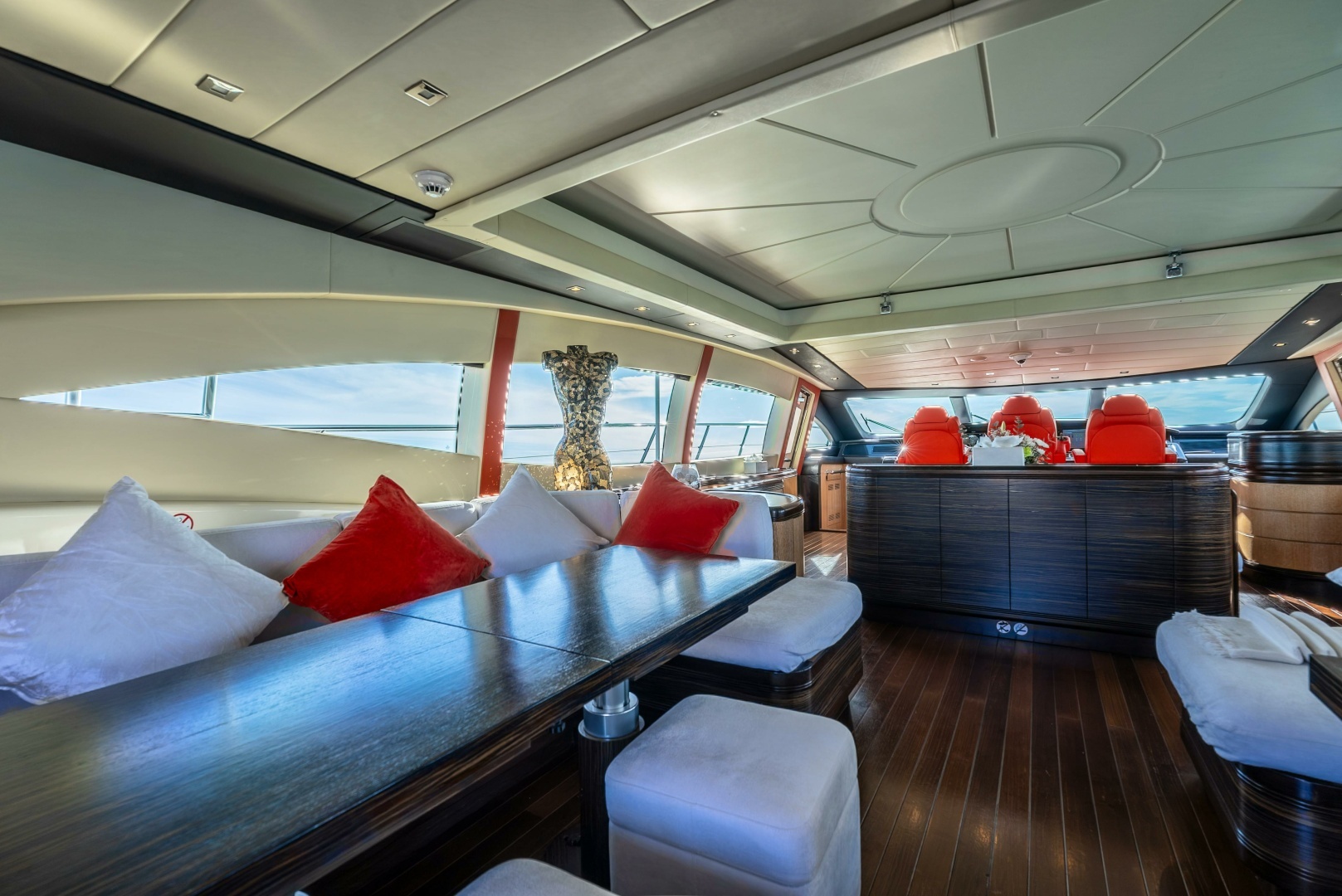

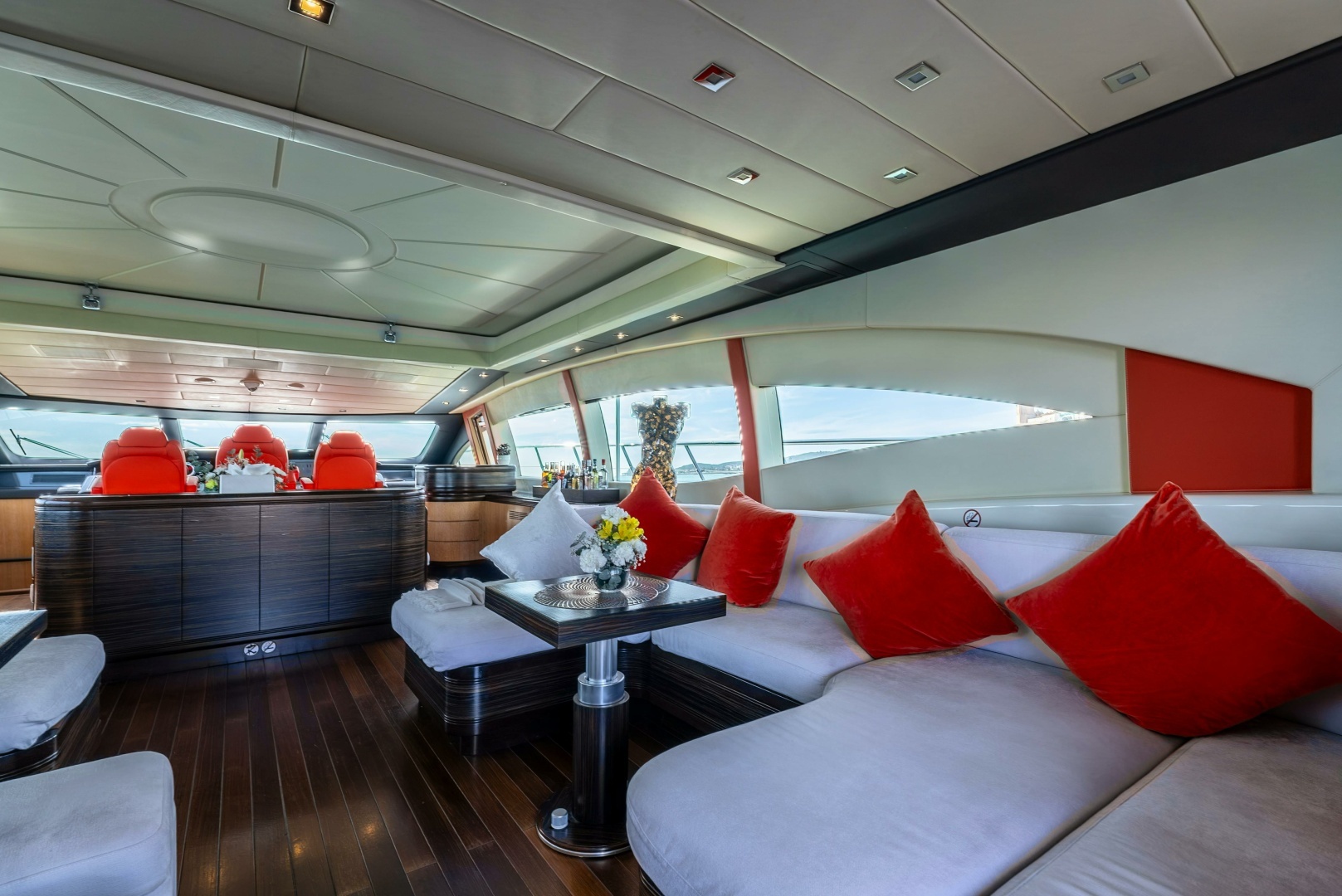

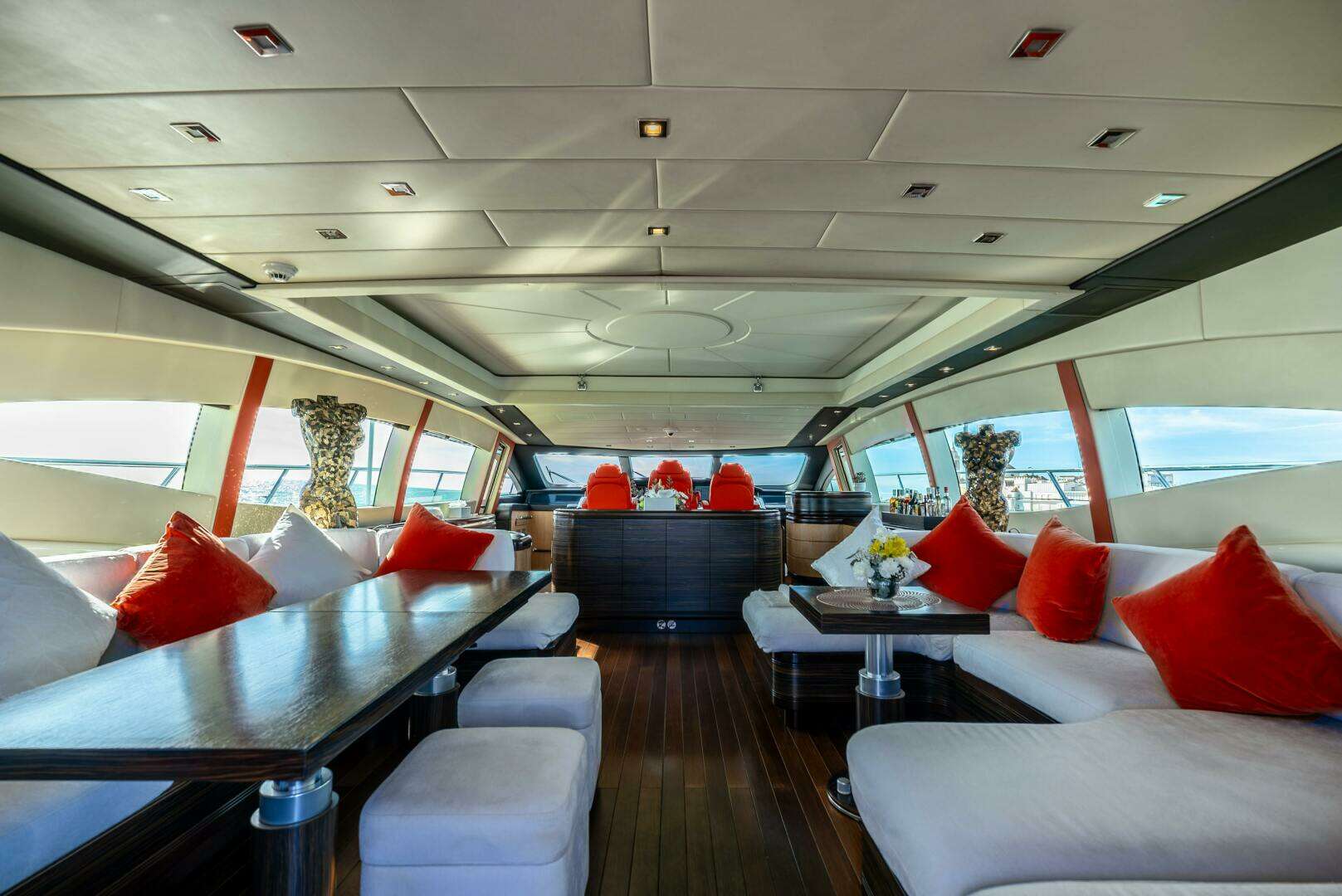

Audio Video
Main Deck Saloon• Tv Samsung HD 55”
• Amplifier Denon
• Kaleidescape client media player
• Decoder sat sky
• Apple tv
• 5 X speaker Heartquake image 8 • Subwoofer JL Lab focal
• Remote control: Neo Control 4

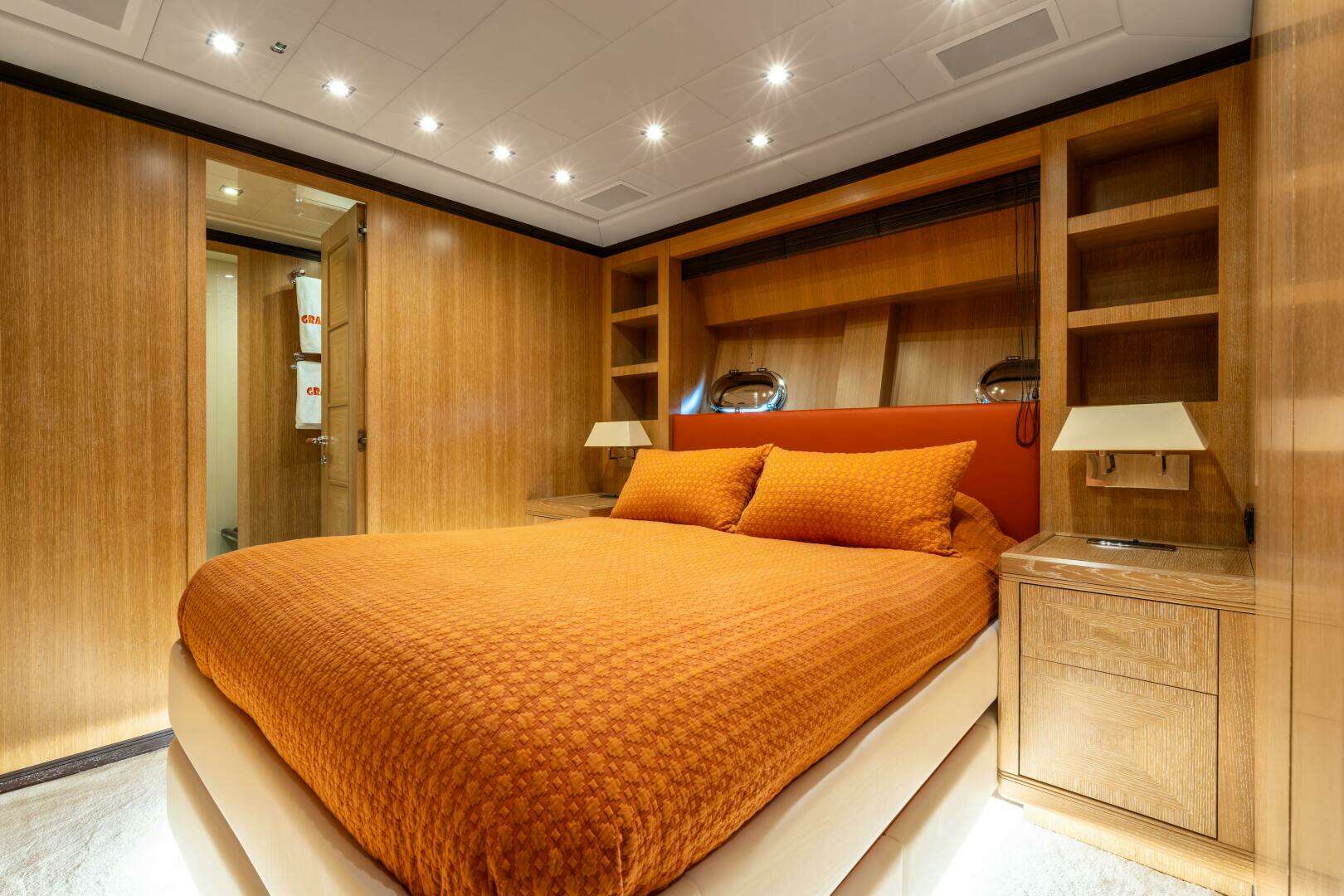

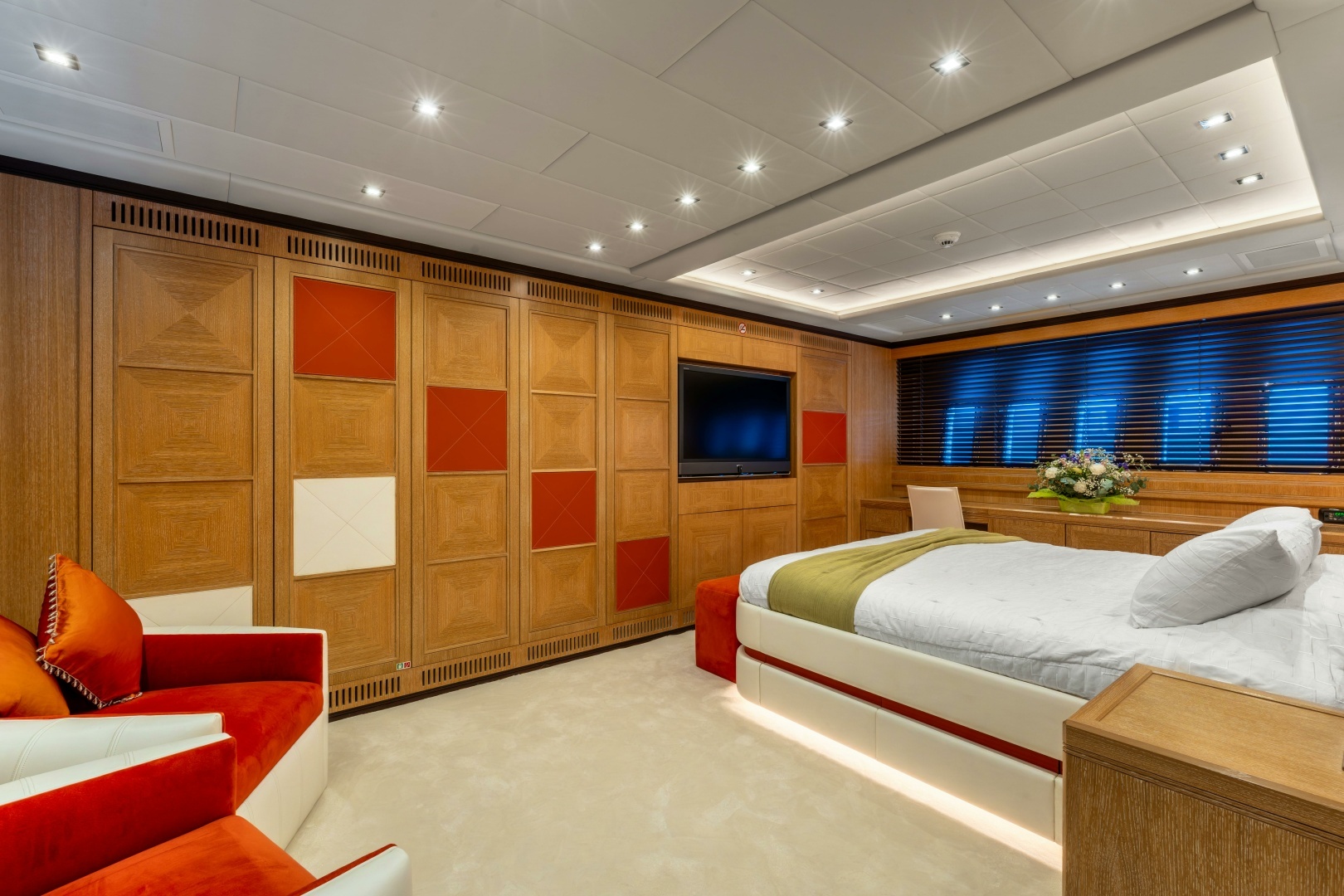

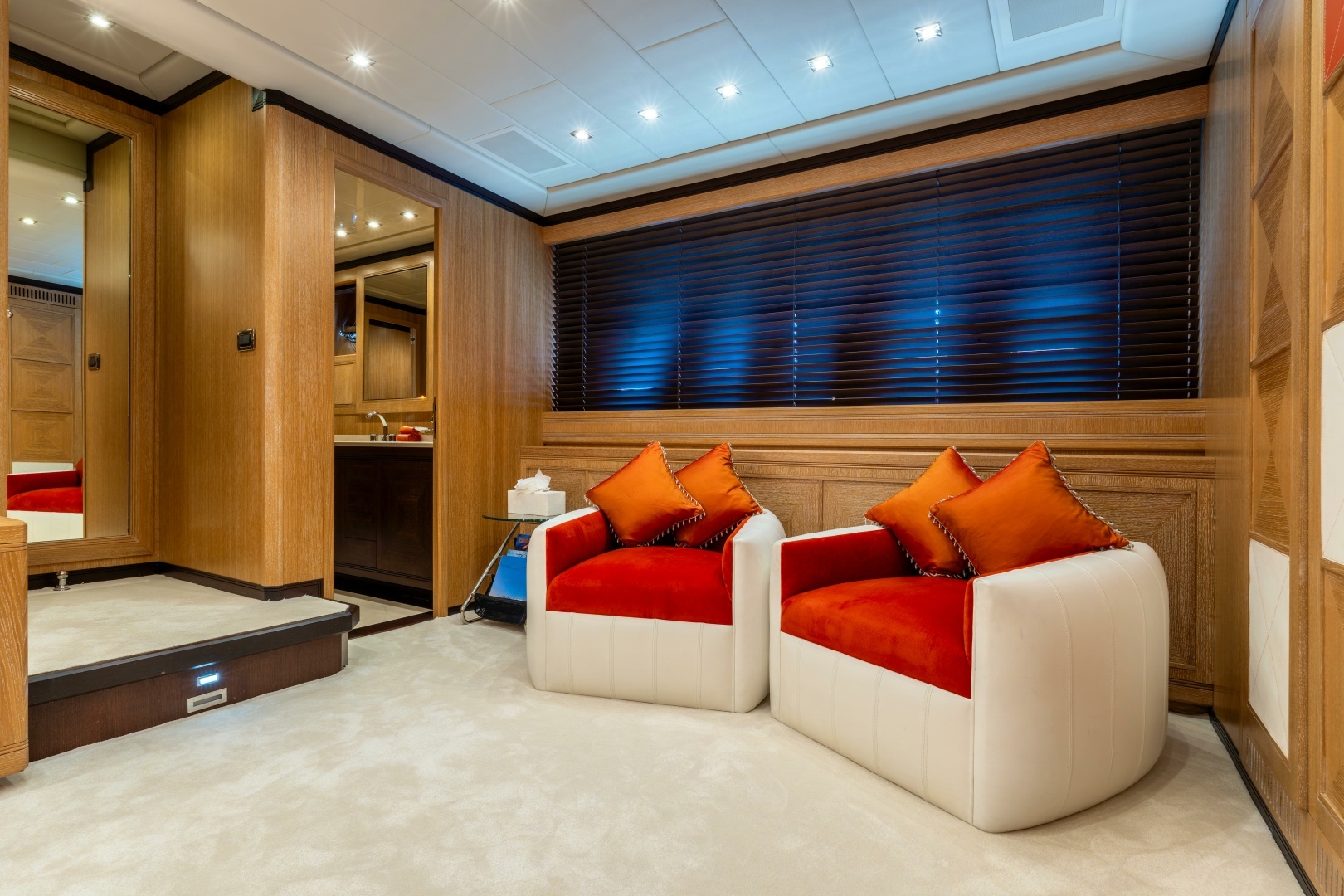

Owners cabin
• Tv Samsung HD 40”
• Apple TV
• Amplifier Marantz
• Kaleidescape client media player
• Decoder sat
• Apple tv
• 5 X speaker Heartquake image 8
• Subwoofer JL Lab focal
• Philips pronto tsu 9600 remote control
Guest Cabins
• Tv Sony 22”
• Apple TV
• Amplifier Marantz
• Subwoofer Denon
• 4 X speaker Heartquake image 6
• Decoder sat
• Remote control: Neo Control 4
Fore deck
• 2 X speaker 4”
• Crestron keypad control
• Amplifier Marantz

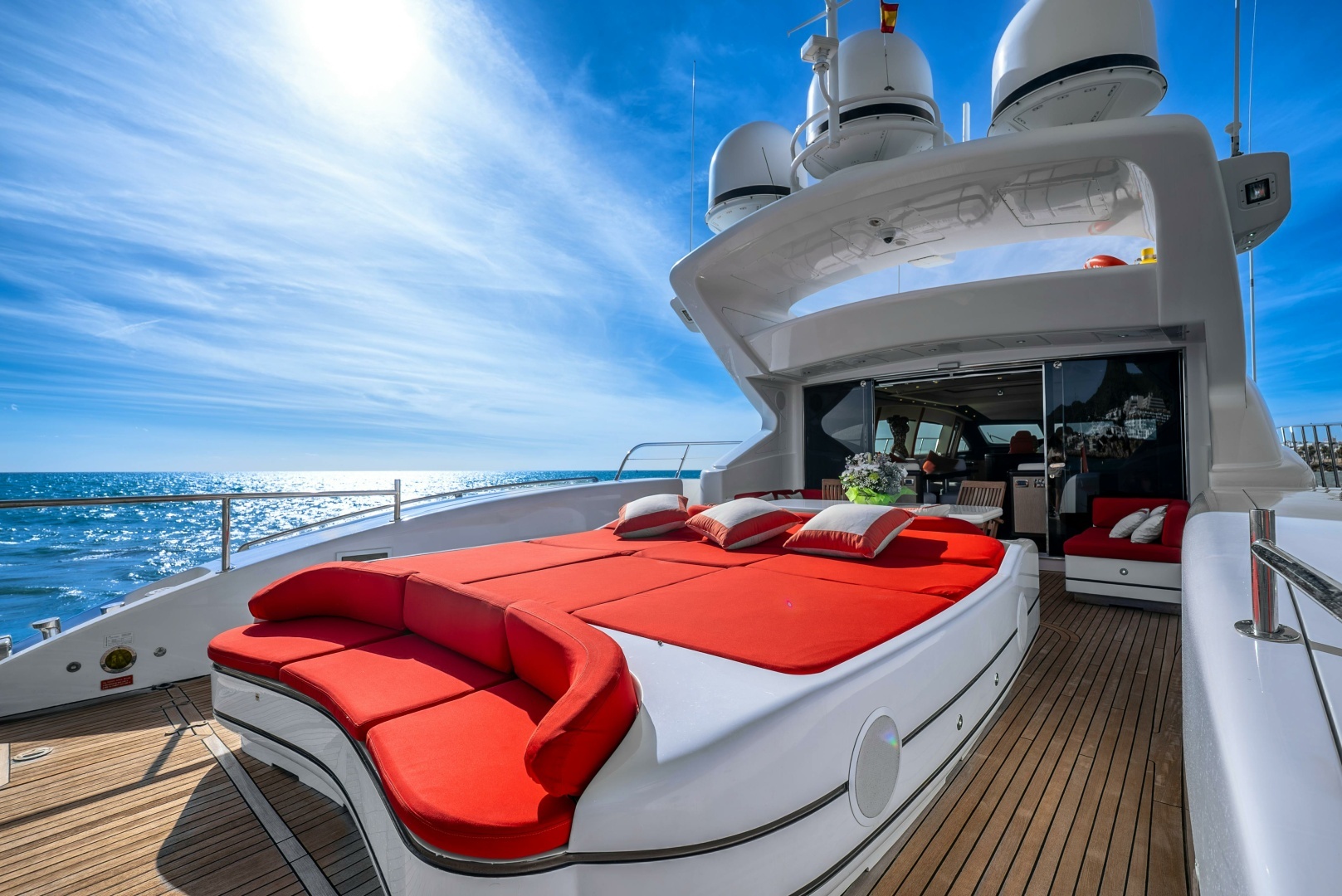

Aft Deck
• 6 X speaker Focal IC108
• Amplifier Marantz

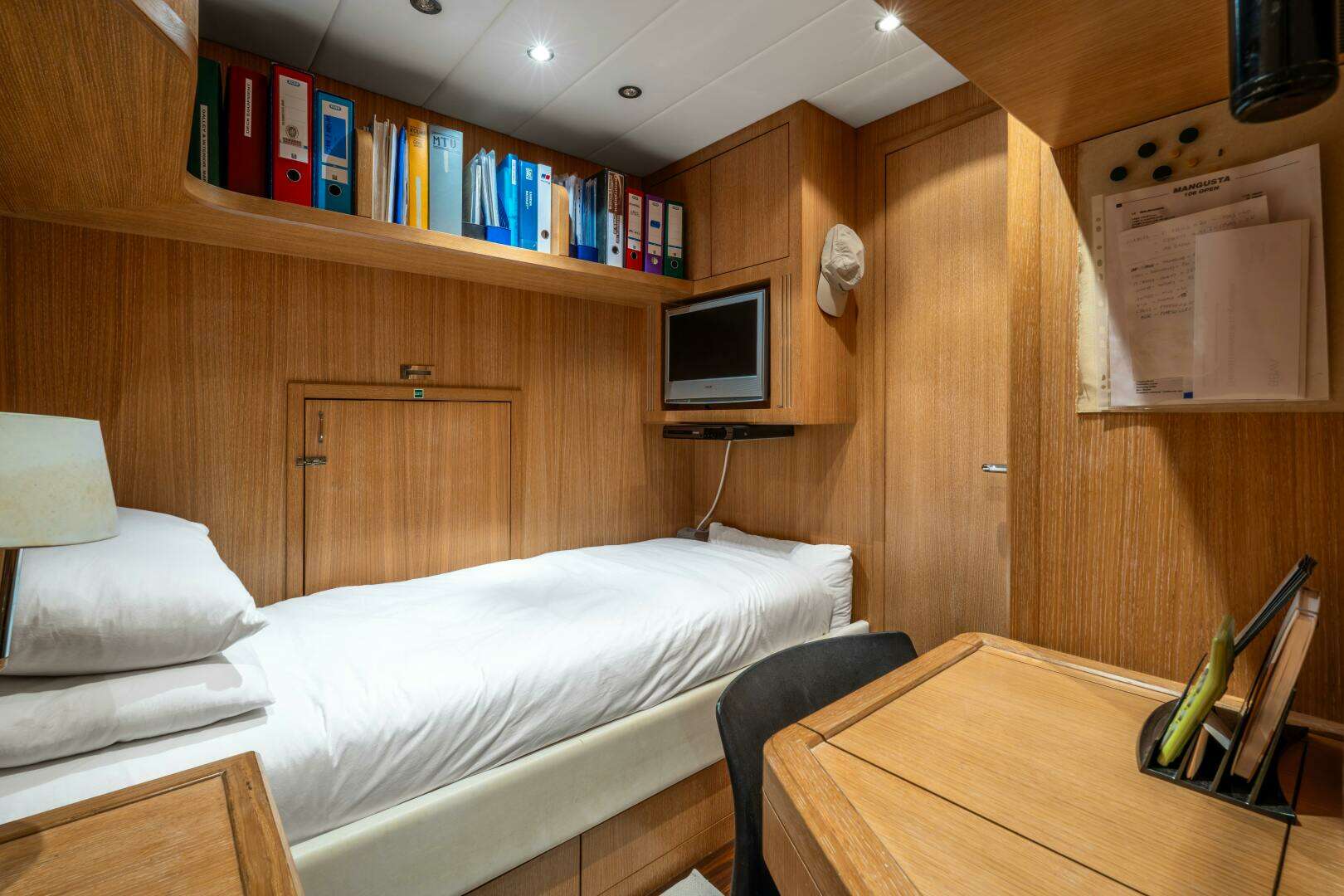

Captain’s Cabin
• TV LG 20”
• Amplifier Marantz
• Subwoofer Denon
• Decoder sat
• 1 X 2 speaker Heartquake image 6
• Display 8” cctv
• Furuno RD30

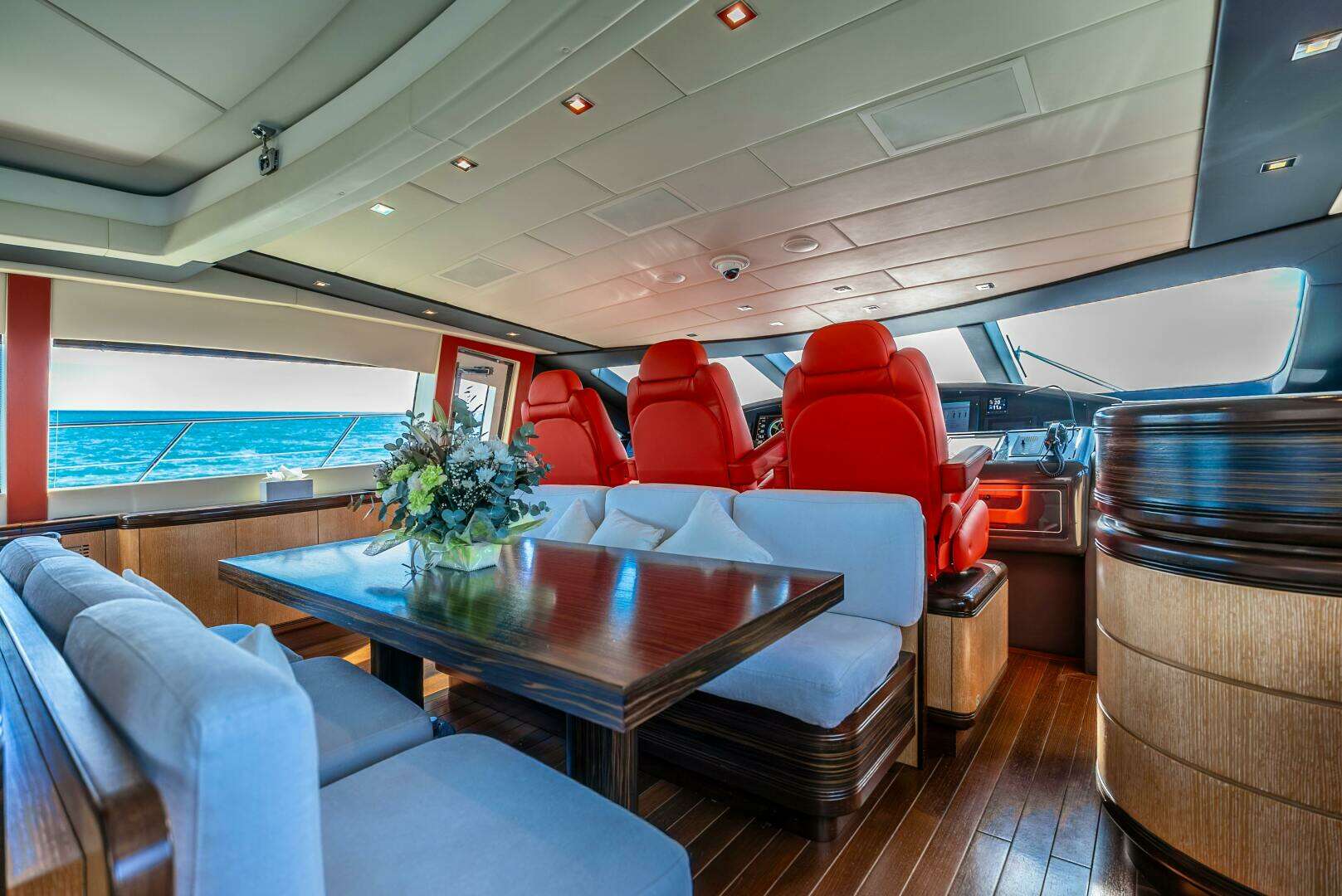

Dinette
• TV Samsung 32”
• Amplifier Marantz
• Decoder sat
• 1 X 2 speaker Heartquake image 6
• Display 10” cctv
• Furuno RD30
Crew Cabin
• 2 X TV LG 14”
• Amplifier Marantz
• Subwoofer Denon
• Decoder sat
• 2 X speaker Heartquake image 6
• Display 8” cctv
• Furuno RD30
Tech room & rack
• Router 4G Peplink max br1 mk2 • Control 4
• Crestron matrix PVID8X3 • Crestron matrix BIPAD 8 • Crestron FM tuner
• Quad Panasonic cctv
• Wi-fi Ubiquity Mesh kit
• 4 X access point Ubiquity
• Satellite BB server wired ocean • KVH TV8
Recent works 2025
- Fresh Antifouling
- Windlass service
- Capstan service
- Exhaust hose replacement
- Kamewa Jet Service
- Generator Service
- Rubber mounts and Alignment
