Key equipment List from builder invoice

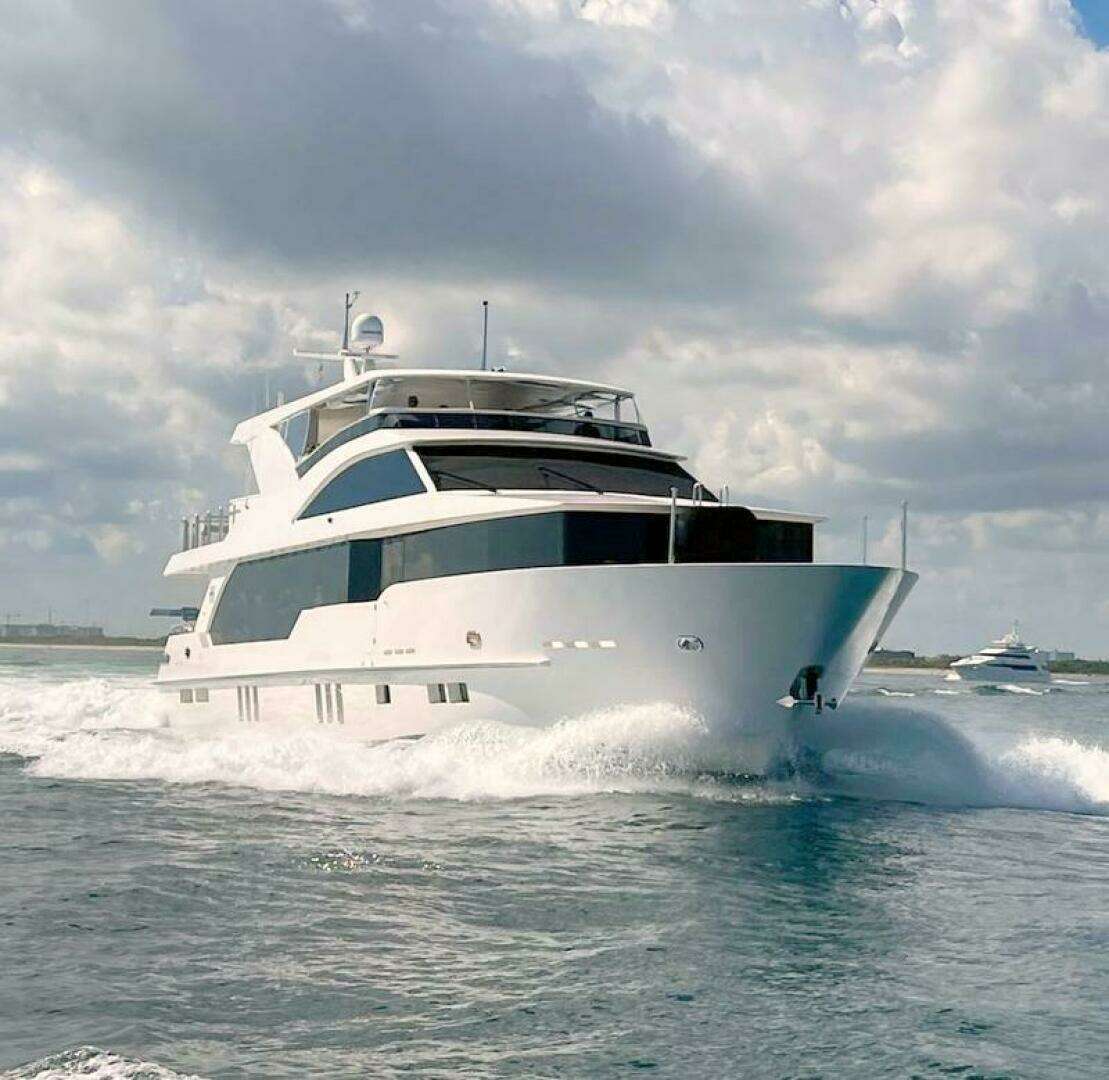

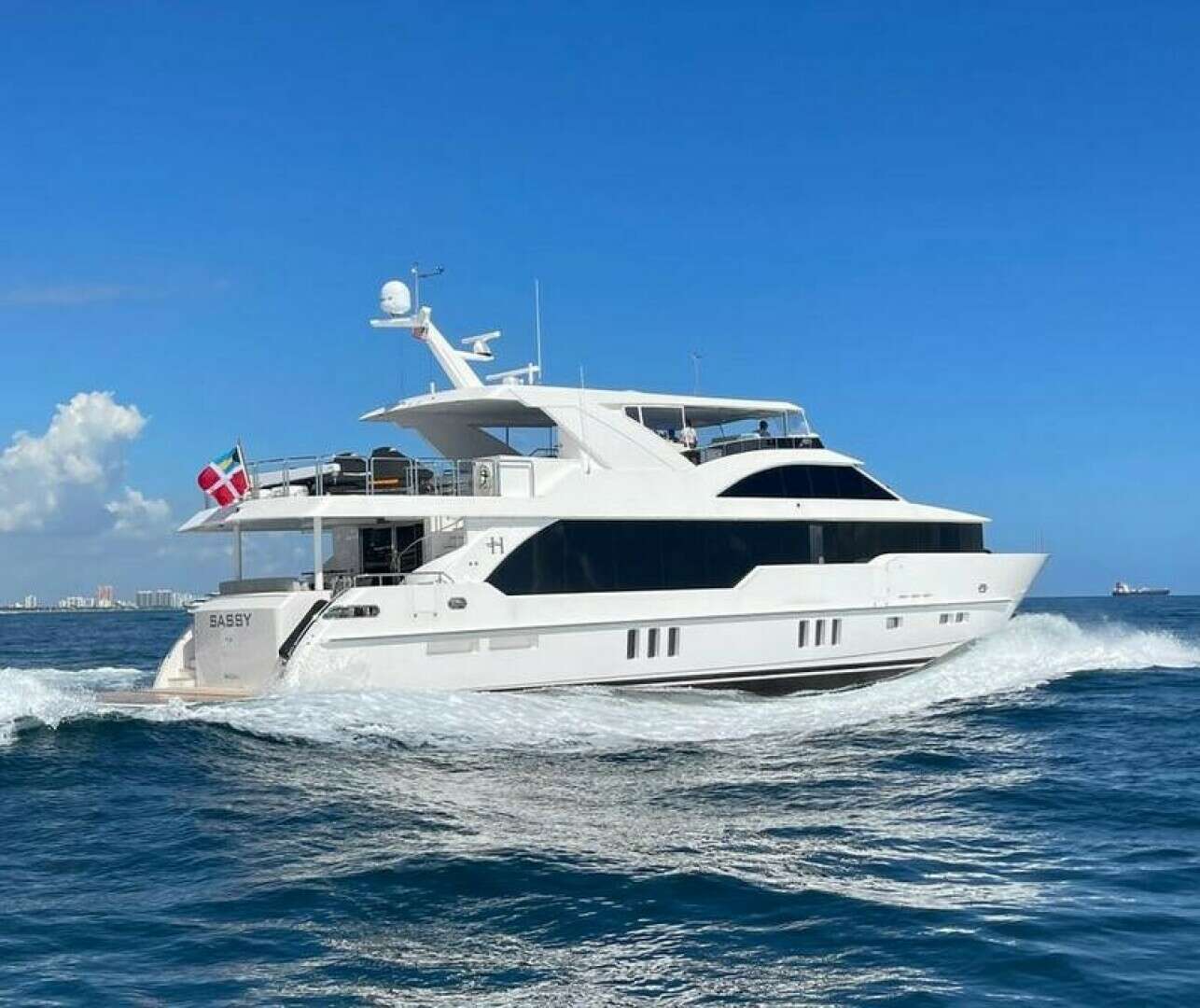

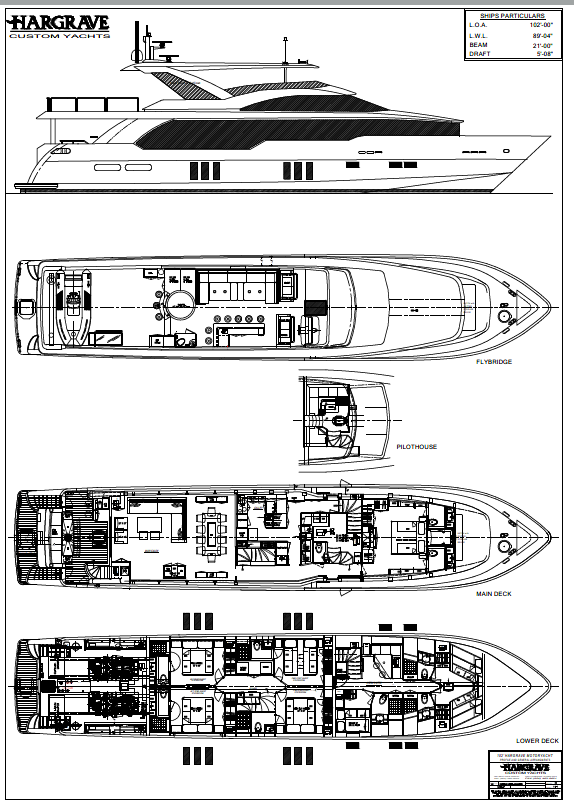

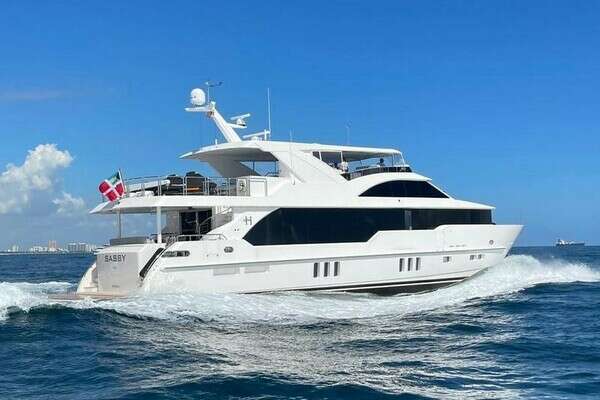

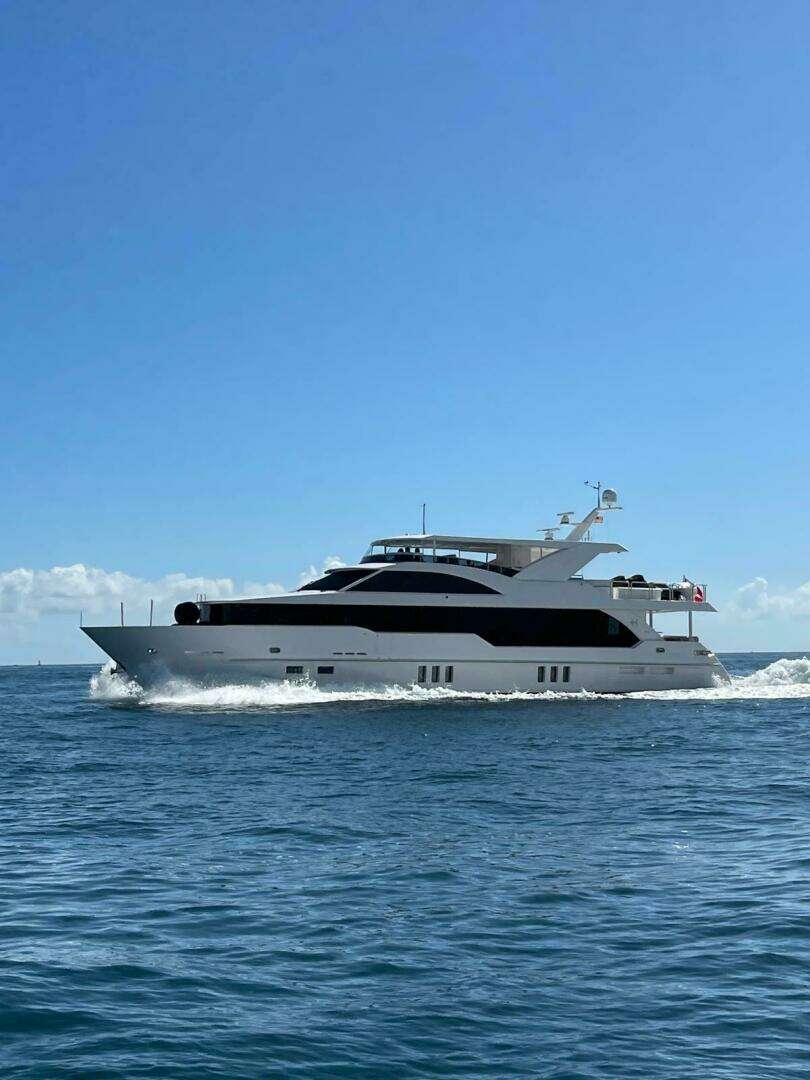

102’ Hargrave Raised Pilothouse – Hull 678

This 102’ Hargrave Raised Pilothouse represents the finest of Hargrave’s custom yacht program. Hull 678 was built for an experienced owner with upgraded engineering, quiet operation, and luxurious interior appointments by Yacht Interiors by Shelley. Powered by twin CAT C-32 2000 HP engines and set on Hargrave’s proven 102’ x 21’ beam platform, the yacht offers exceptional performance, extended cruising capability, and spacious owner/guest accommodations.

Principal Dimensions & Performance

• LOA: 101’
• Beam: 21’
• Engines: Twin CAT C-32, 2000 HP
• Generators: (2) Northern Lights 38 kW
• Fuel: 3,200 gallons
• Water: 600 gallons
• Stabilizers: Naiad 302 with Datum control
• Bow Thruster: Hydraulic 48 HP, 16” tube

Hull & Construction

• Hand-laid fiberglass hull with foam-core reinforcement
• Vacuum-bagged stringers bonded to hull
• FRP superstructure, decks, and bulkheads
• V-shaped keel with longitudinal stringers
• Teak or non-skid exterior deck options
• Stainless steel portlights and deck fittings
• Custom fiberglass swim platform with ladder
• Stainless steel handrails, cleats, and hawse pipes
• Transom with integrated steps
• Aquamet shafts and bronze running gear
• Sea chest and Groco sea strainers

Engineering & Mechanical

Engine Room & Machinery

• Underwater exhaust with idle bypass
• Racor 1000 FG engine filters (double Racors for redundancy)
• Racor 500 MA10 genset filters
• Oberdorfer fuel transfer pump
• Reverso oil change system (engines, gears, generators)
• Hydraulic Hynautic steering with autopilot capability
• Delta “T” ventilation system
• Additional insulation for quiet ride
• Tide Seal dripless shaft logs and rudder seals

Electrical Systems

• 220V/110V/60Hz electrical system
• Mastervolt chargers: 80A/24V, 30A/24V, 30A/12V
• (2) 100-amp MasterVolt AC/DC transformers
• (8) 200-amp/hr batteries for ship & engine systems
• (2) Glendinning 100-amp Cablemasters (125' cords)
• Newmar 50A 24V-to-12V converter
• 100-amp galvanic isolator

Stabilization & Thruster

• Naiad 302 stabilizers w/ 12 sq. ft. fins and Datum control
• Backup stabilizer & bow thruster hydraulic pumps
• PVC-shielded hydraulic line protection

Exterior & Deck Equipment

Bow

• FRP bow seating with storage
• Eight waterproof deck lights
• Stainless umbrella base
• Maxwell Nilsson VW4000 windlass
• 210 lb stainless steel anchor with 300’ chain
• Quartz floodlights

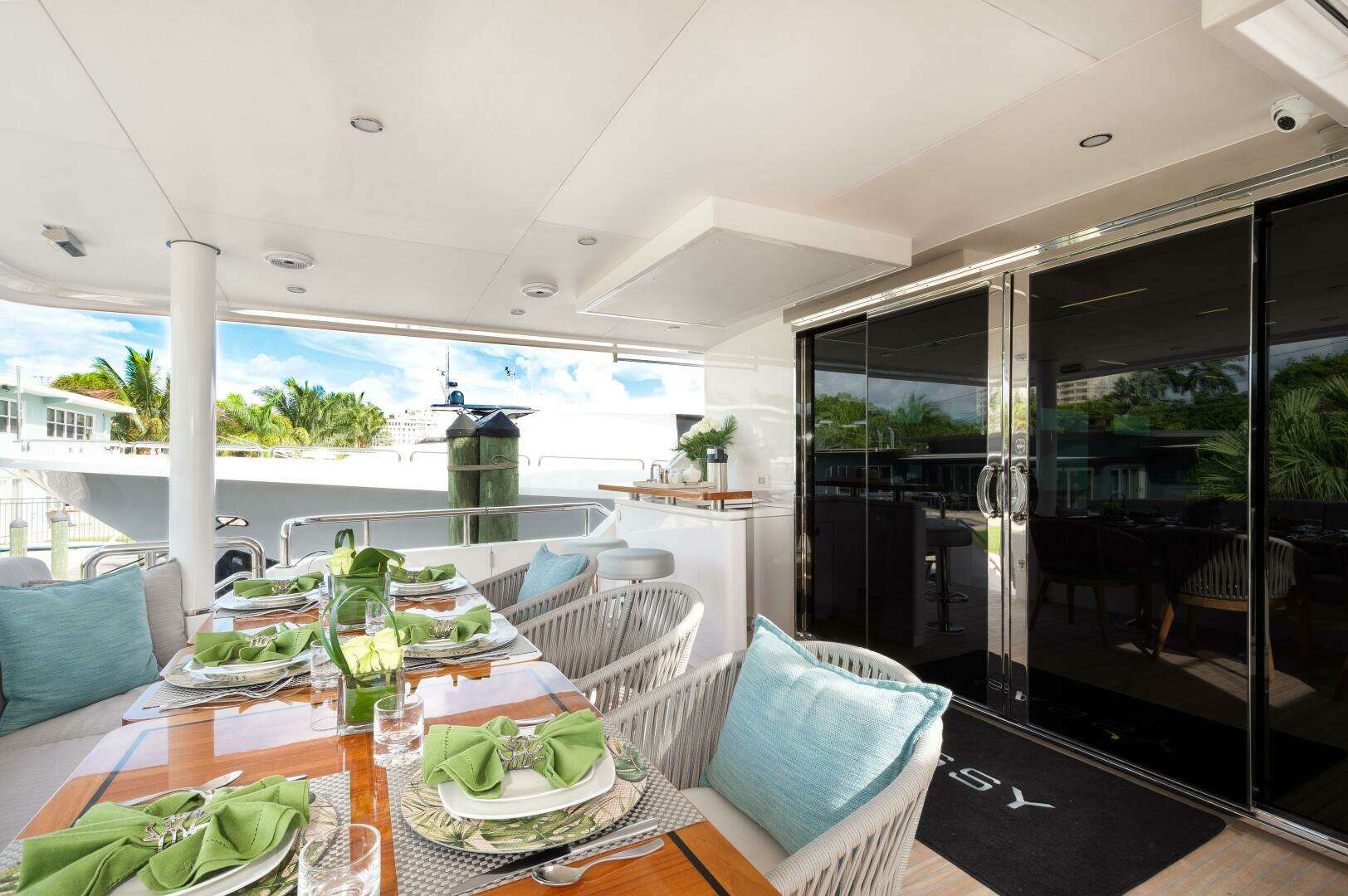

Aft Deck

• Built-in bench seating
• Teak table (sliding & hi-low)
• Wet bar with sink
• Storage lockers & ladder locker
• TV on an electric lift
• Stainless baby gates
• Teak deck chairs

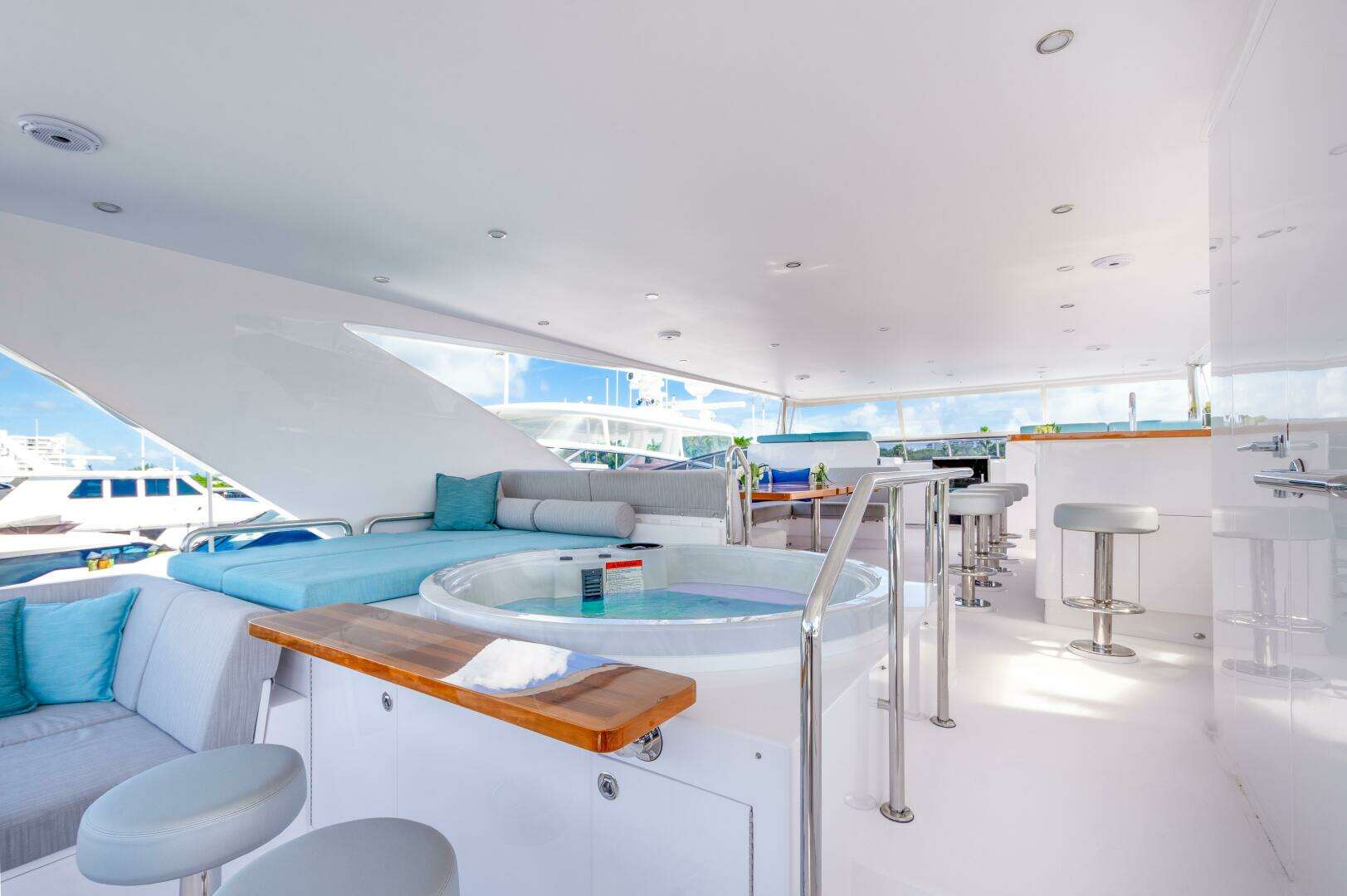

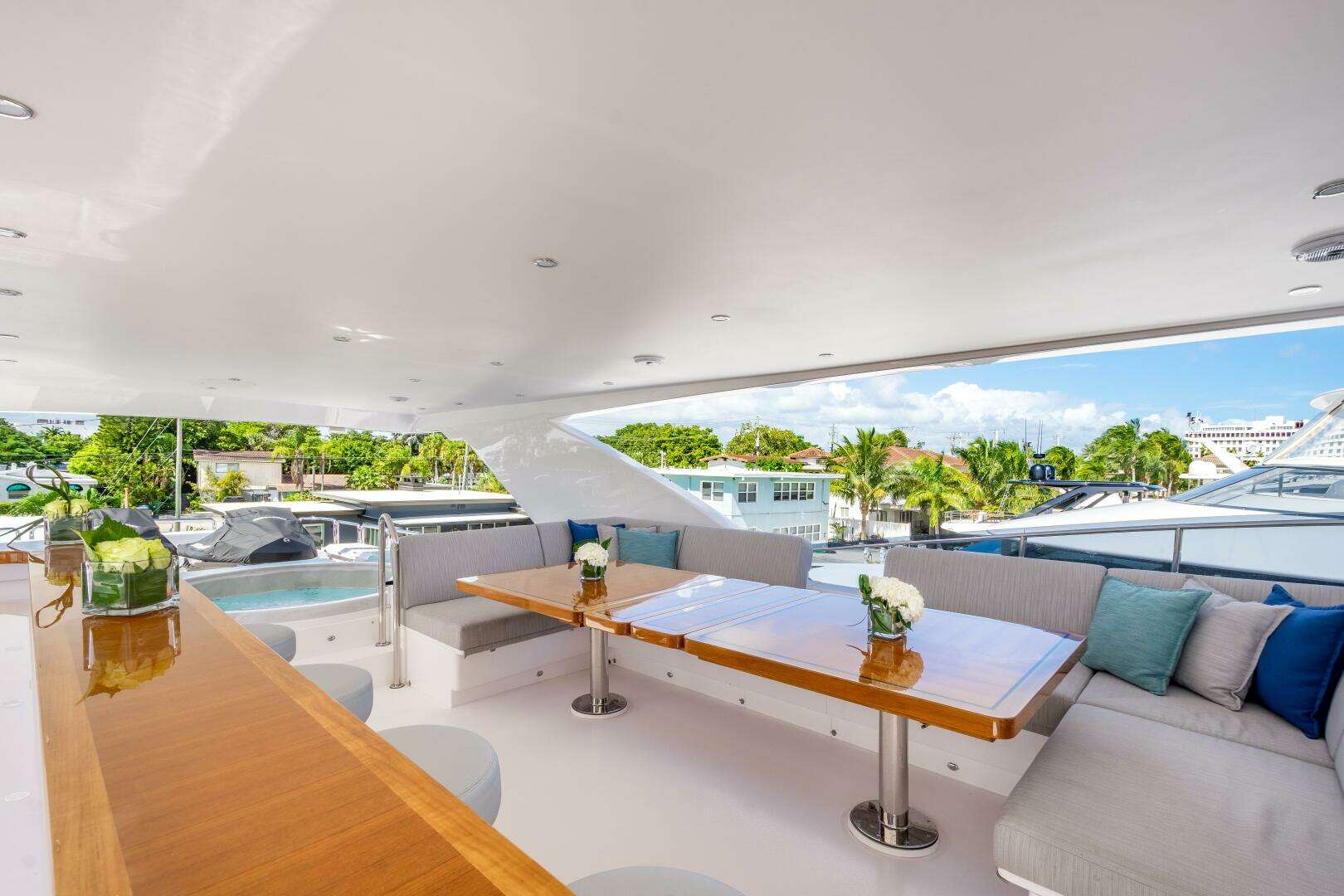

Flybridge

• Custom hardtop
• Large granite-top wet bar with stools
• Hot tub with FRP seating & whirlpool
• L-shaped seating with coffee table
• Stainless rails and footrests
• Fire Magic grill station
• Refrigerator drawers, wine cooler, ice maker
• Helm chair with storage
• Sliding hatch from pilothouse

Swim Platform

• Custom FRP platform
• Stainless U-rails
• Pop-up cleats
• Freshwater shower

Interior – Designed by Yacht Interiors by Shelley

General Interior

• Walnut cabinetry & Toseva veneers
• Vinyl-covered headliner system
• Recessed tray ceilings & custom soffits
• Cantalupi LED lighting
• Vimar switches w/ dimmers
• Marble & granite surfaces
• Italian hardware & German latches

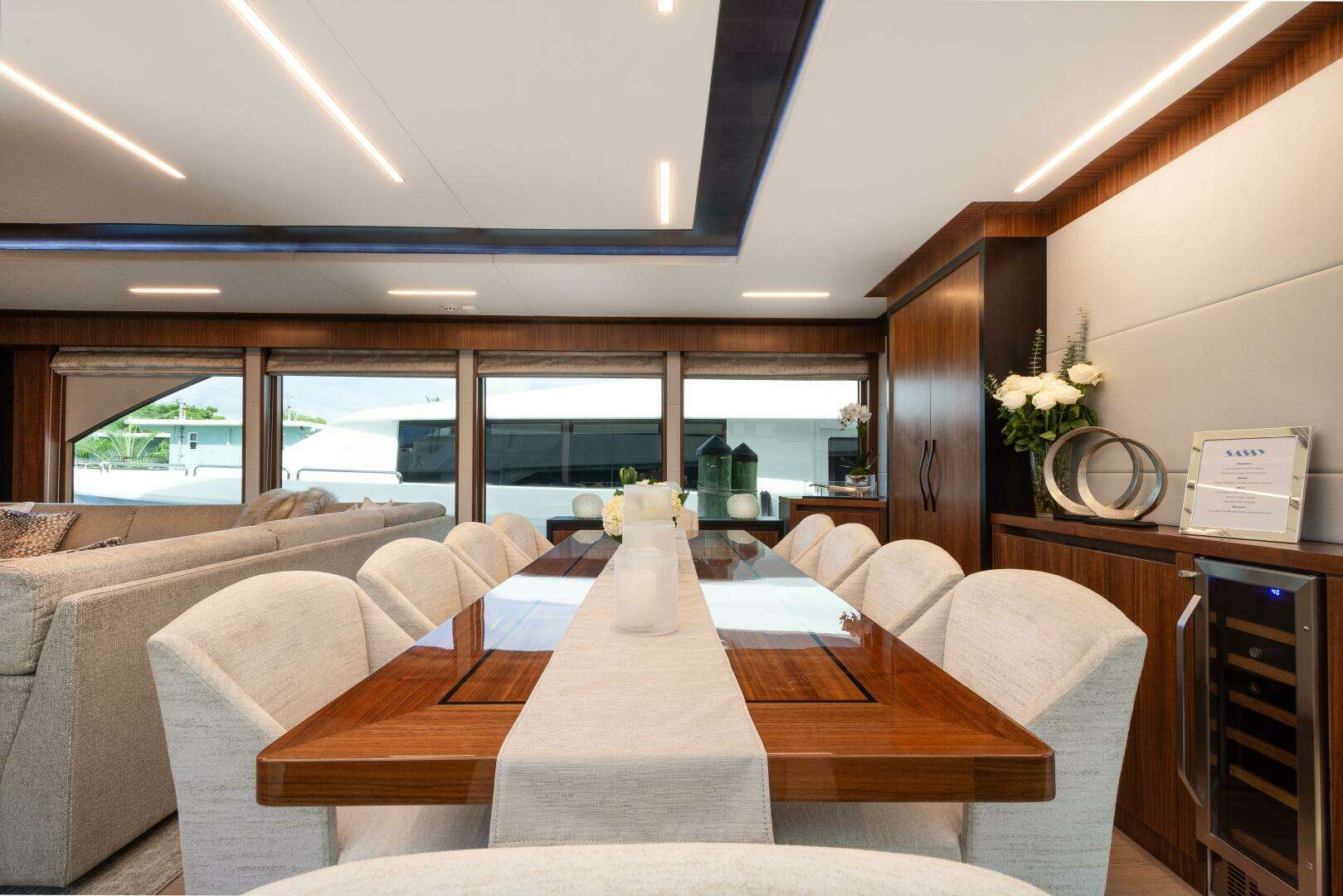

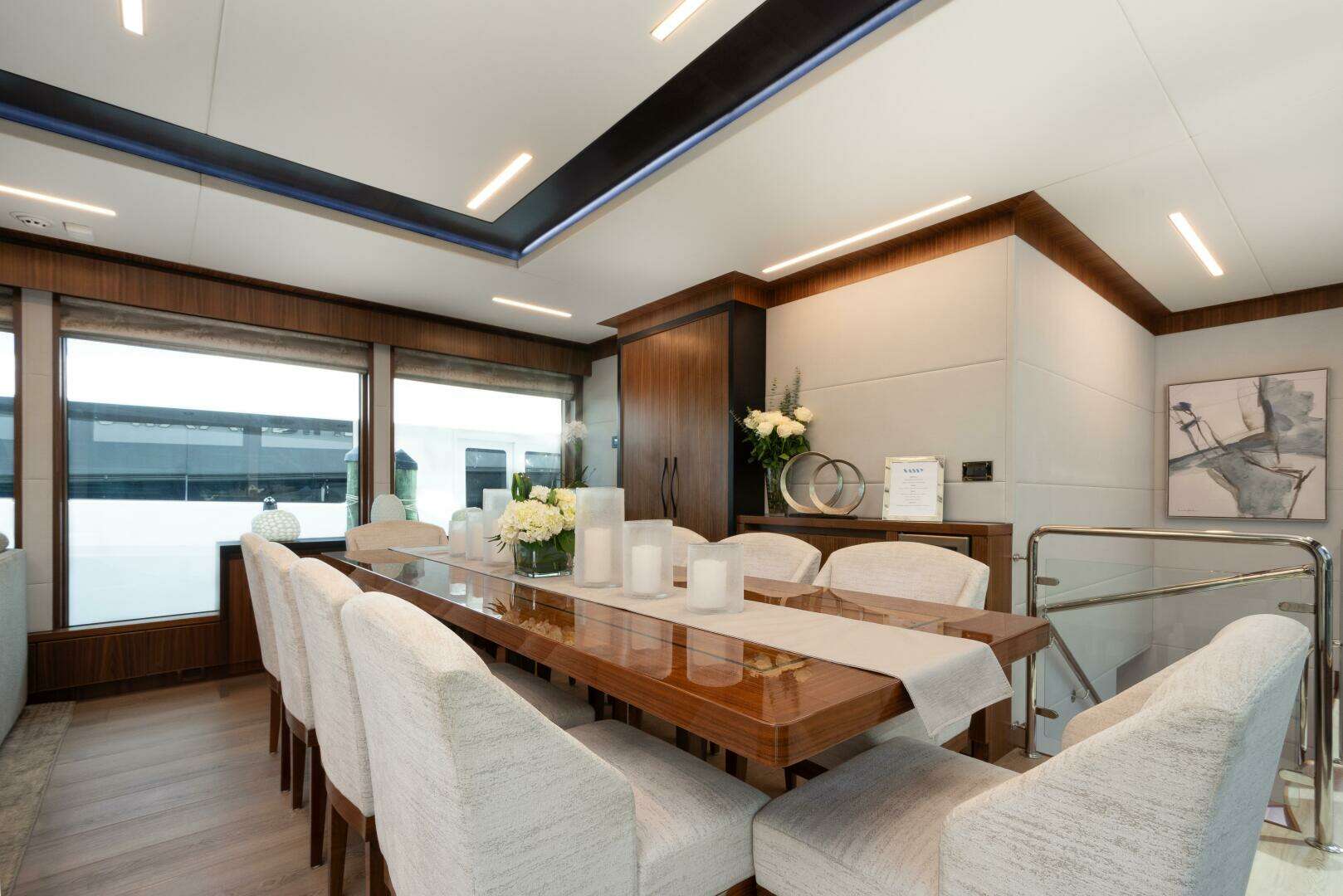

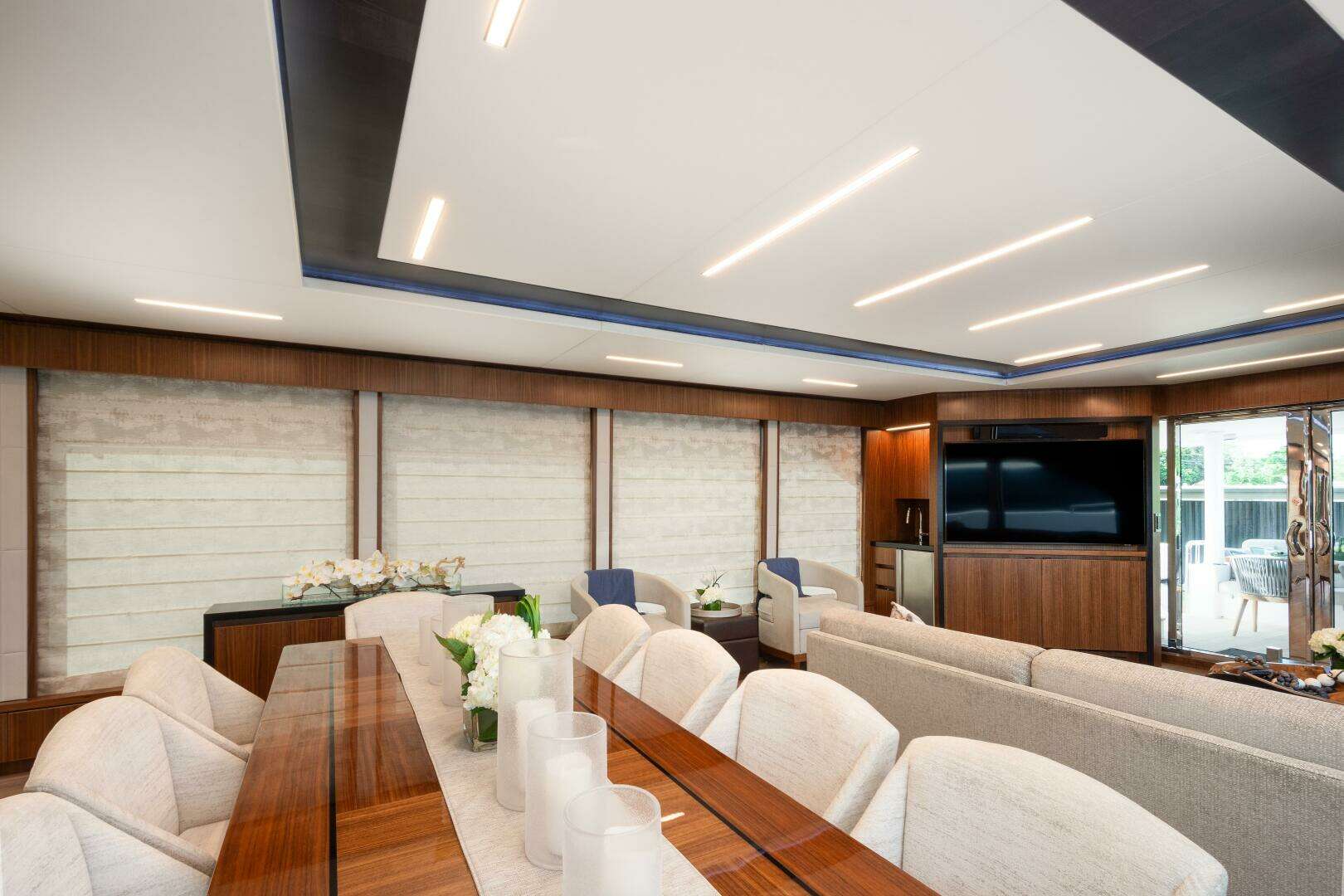

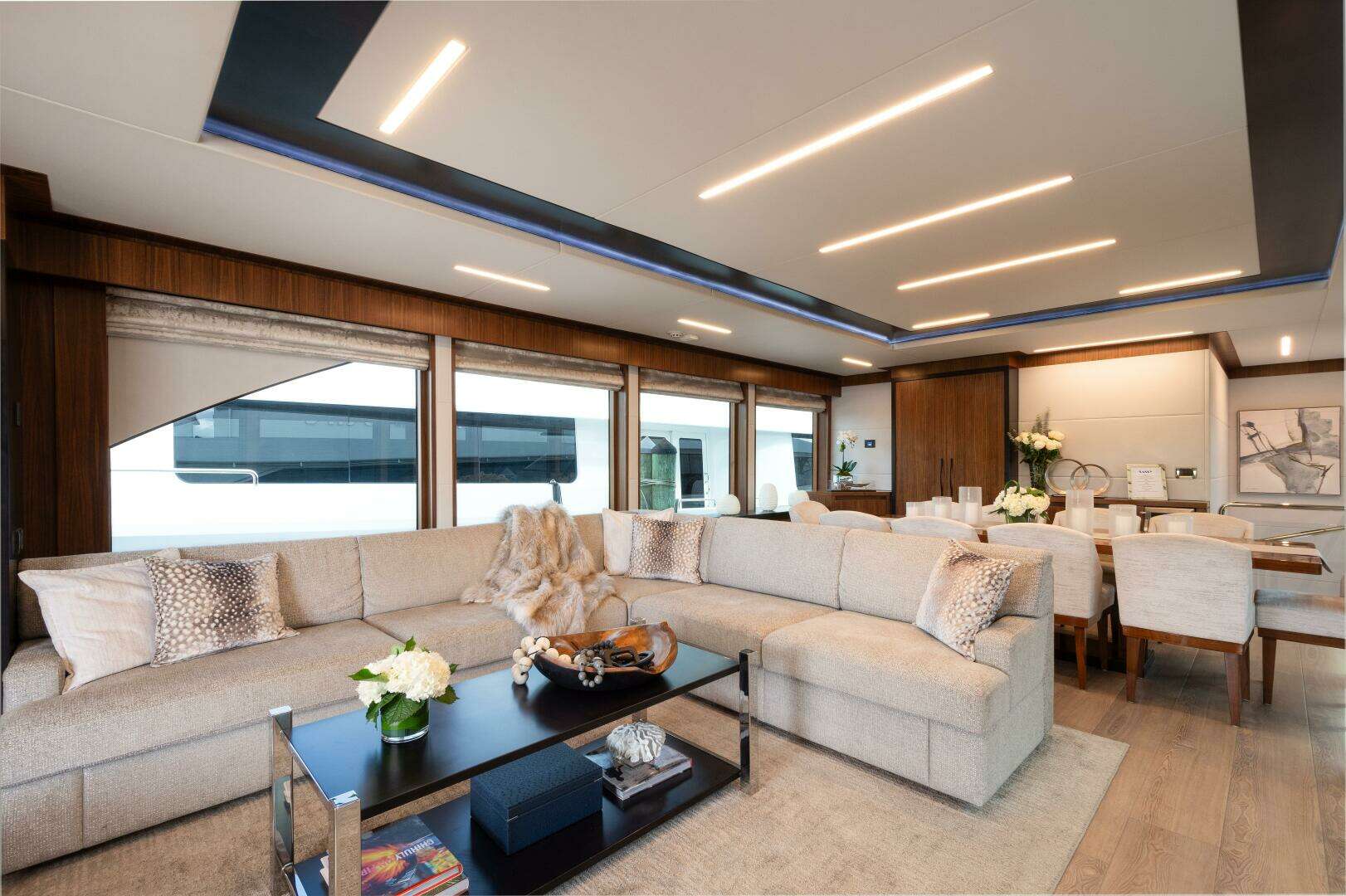

Main Salon

• Custom cabinetry and furniture
• Decorative rain-glass panels
• Marble-top bar with sink
• Three bar stools in Pearl Gray
• Glass shelving & bottle storage
• Custom club chair
• Glass cocktail tabletop

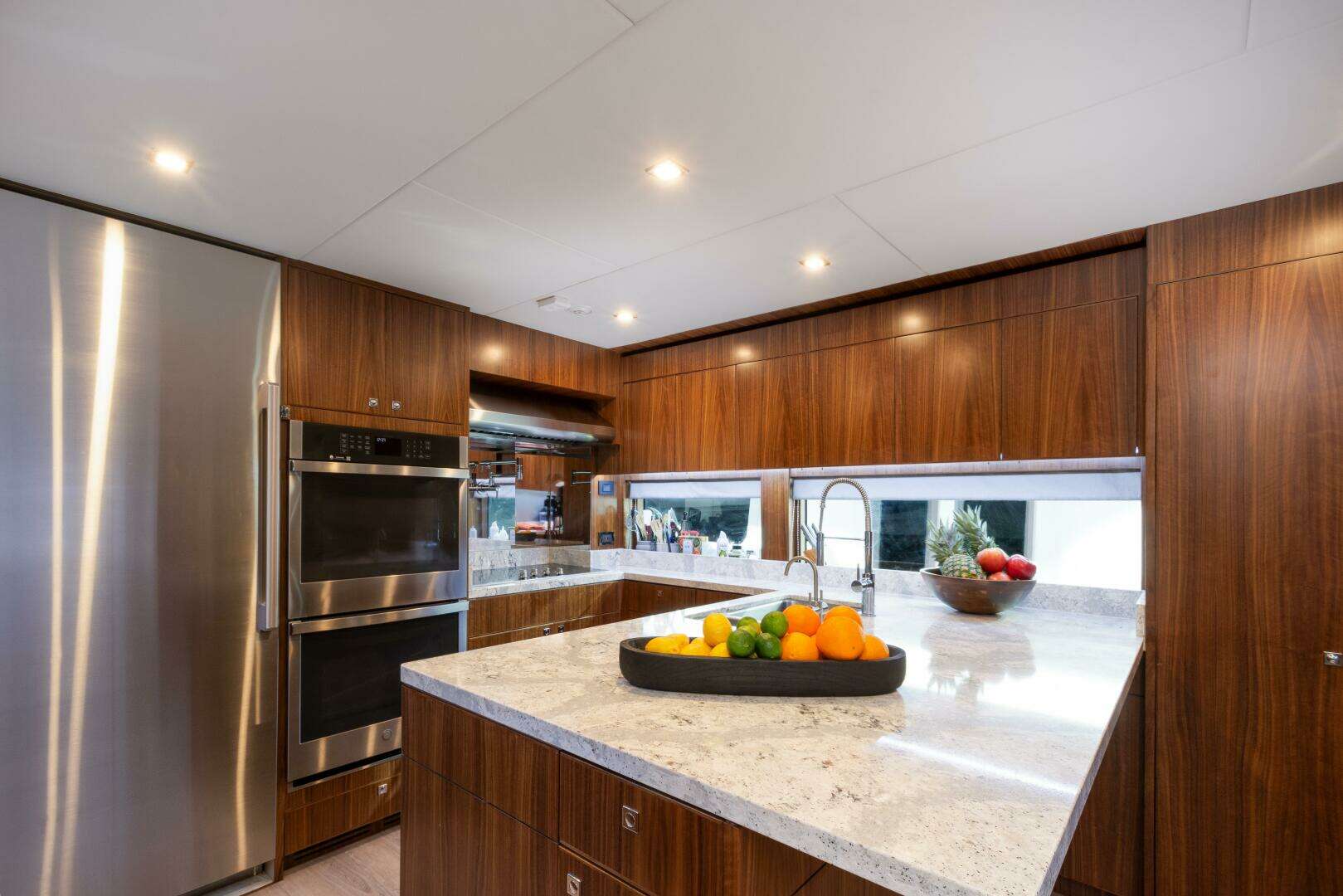

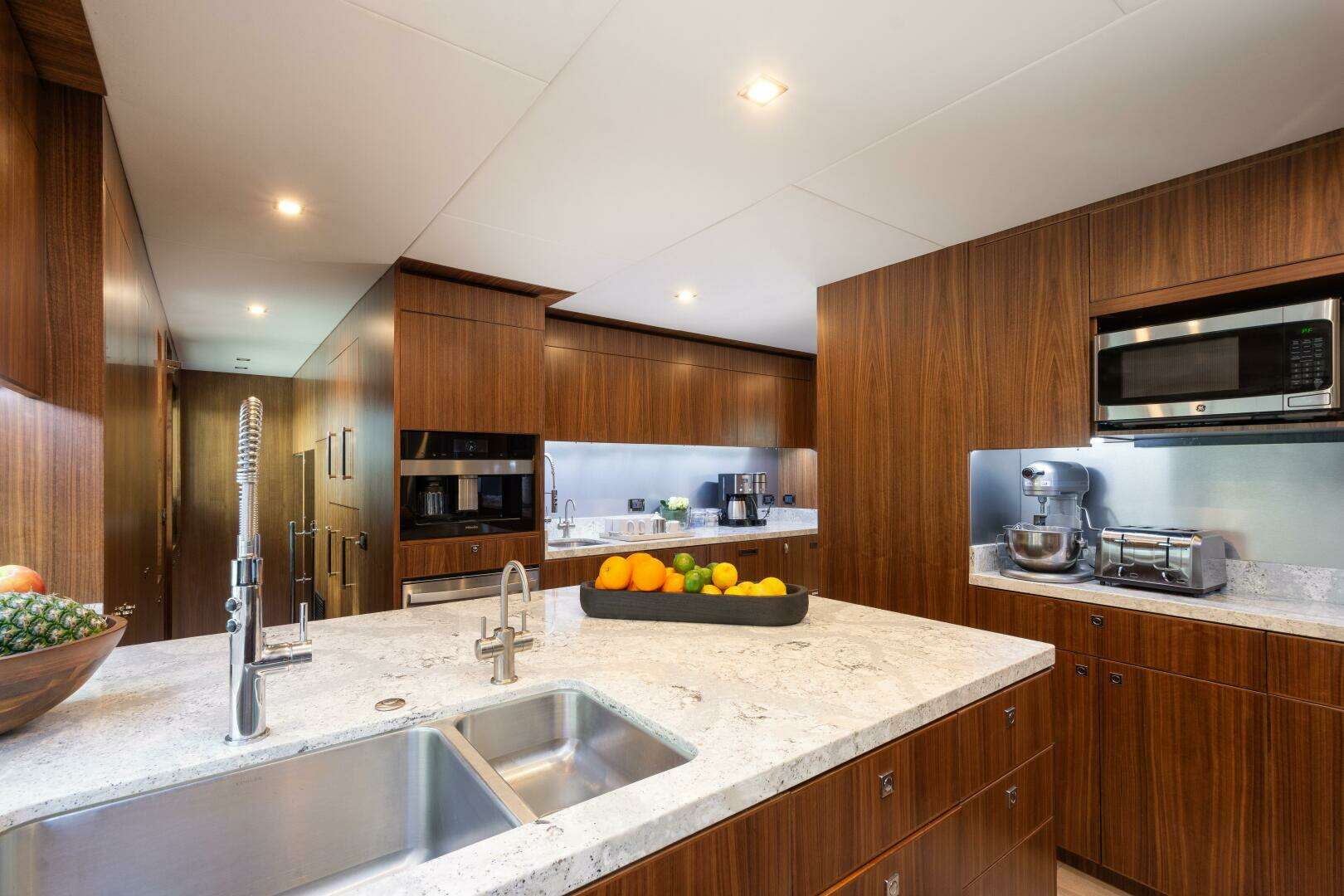

Galley

• Granite counters
• Marble backsplash
• Stainless railings & handrails
• Pneumatic lift-up steps for storage
• Hafele pull-out pantry system
• Multiple utensil drawers

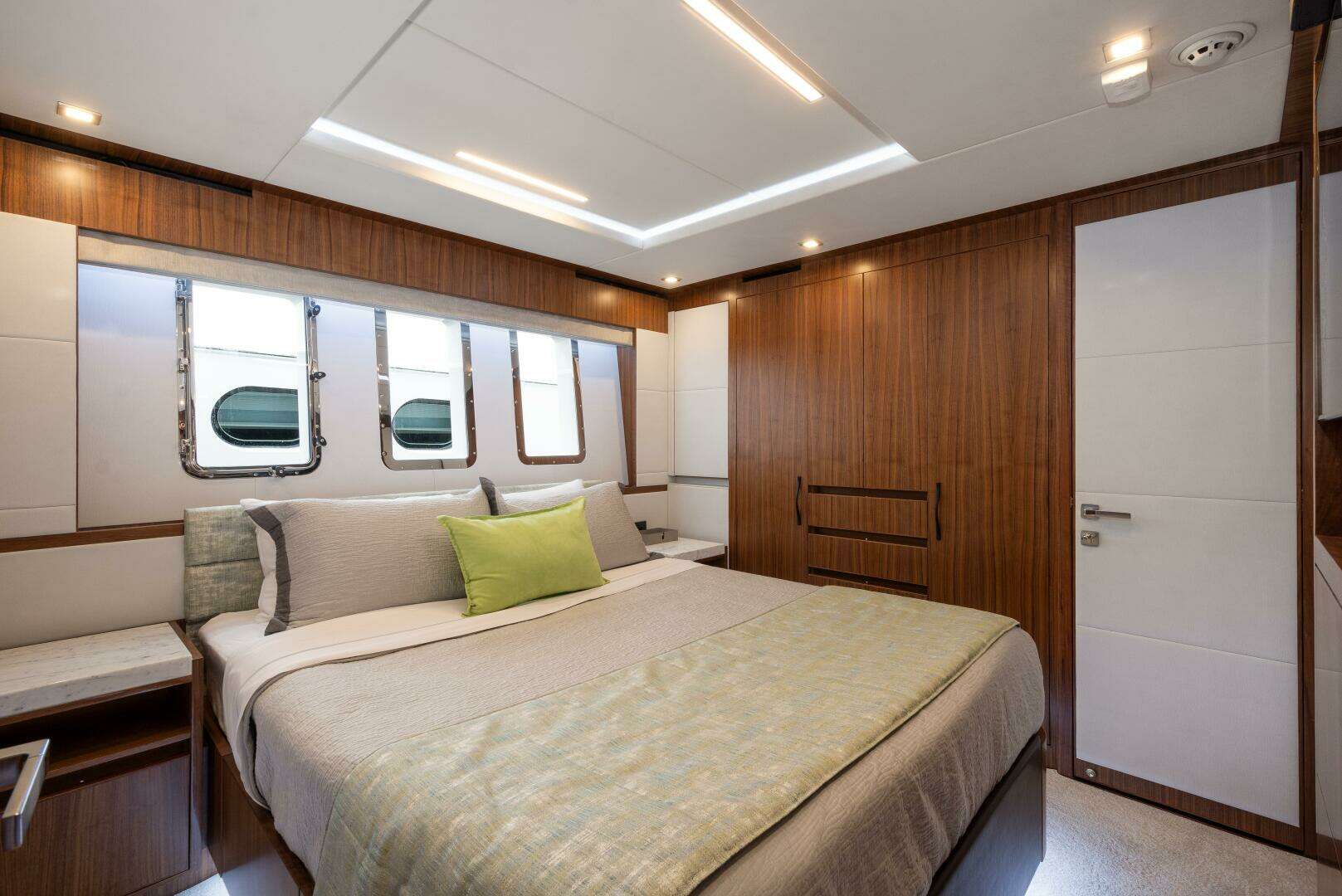

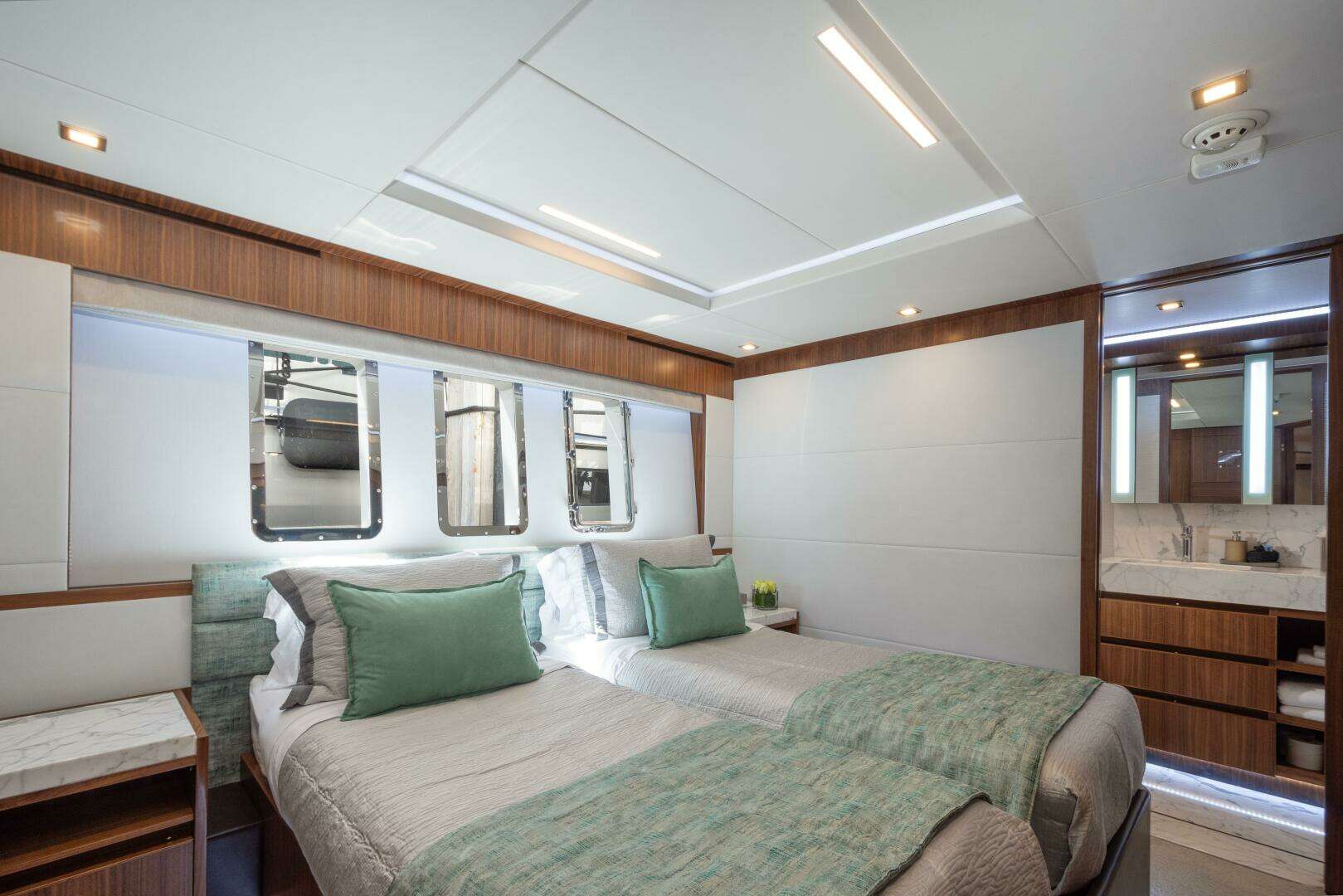

Lower Foyer & Guest Areas

• Marble floors with stainless inlay
• Samdam K-Pro sound insulation
• Mirrors on closet doors
• Custom upholstery
• Pneumatic lift beds in the Master cabin & Captain’s cabin
• Sliding bed mechanisms (Captain & Starboard Guest)

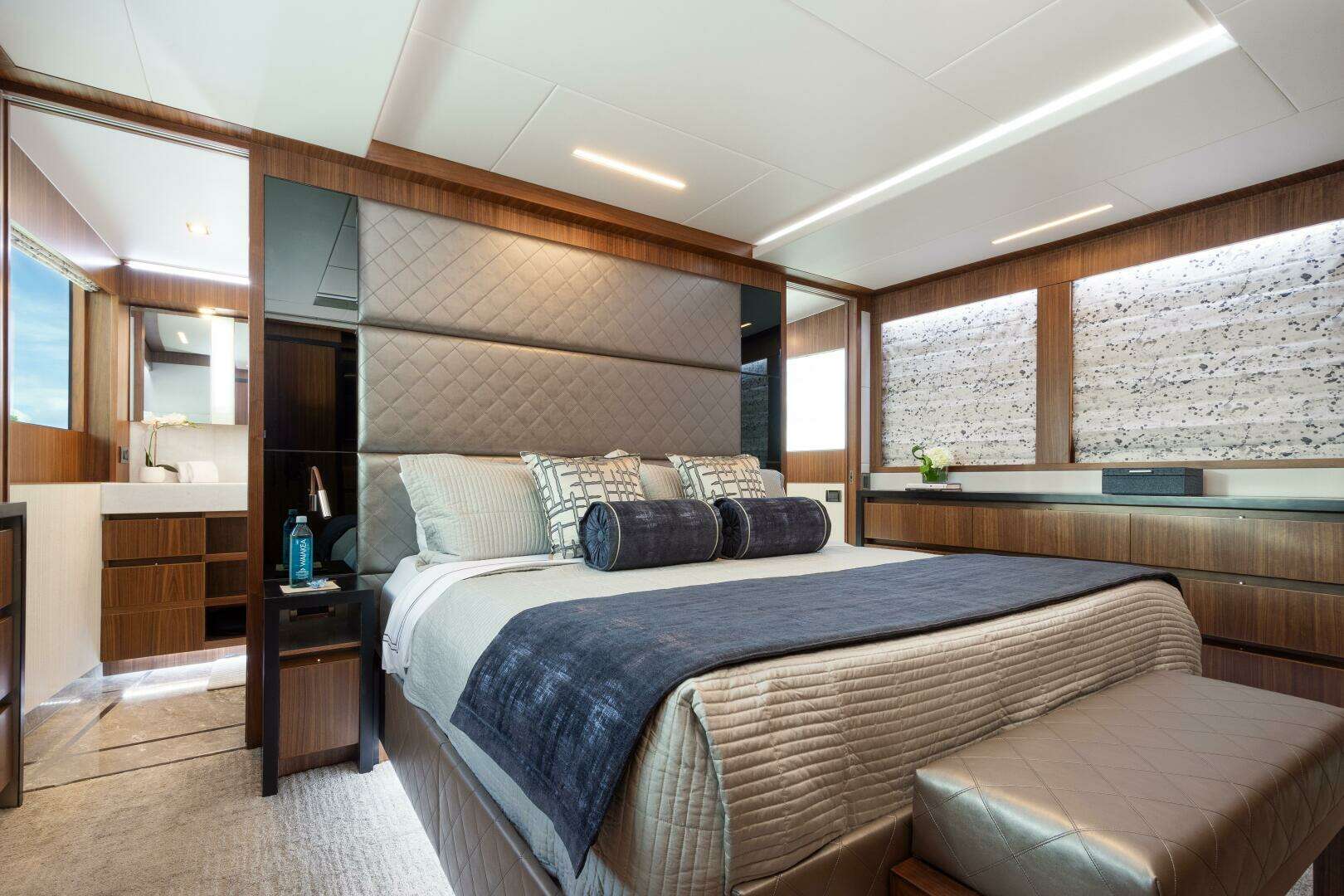

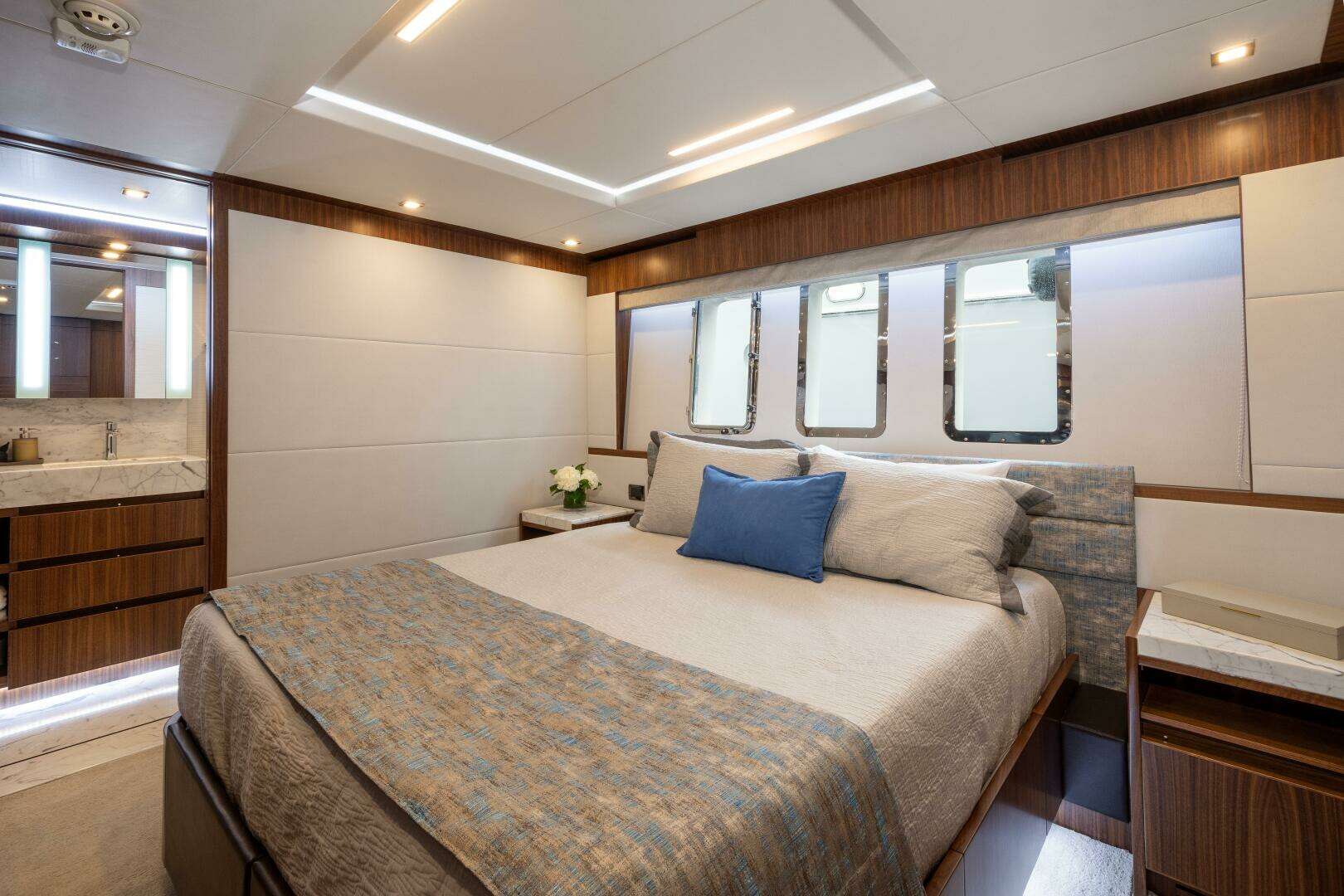

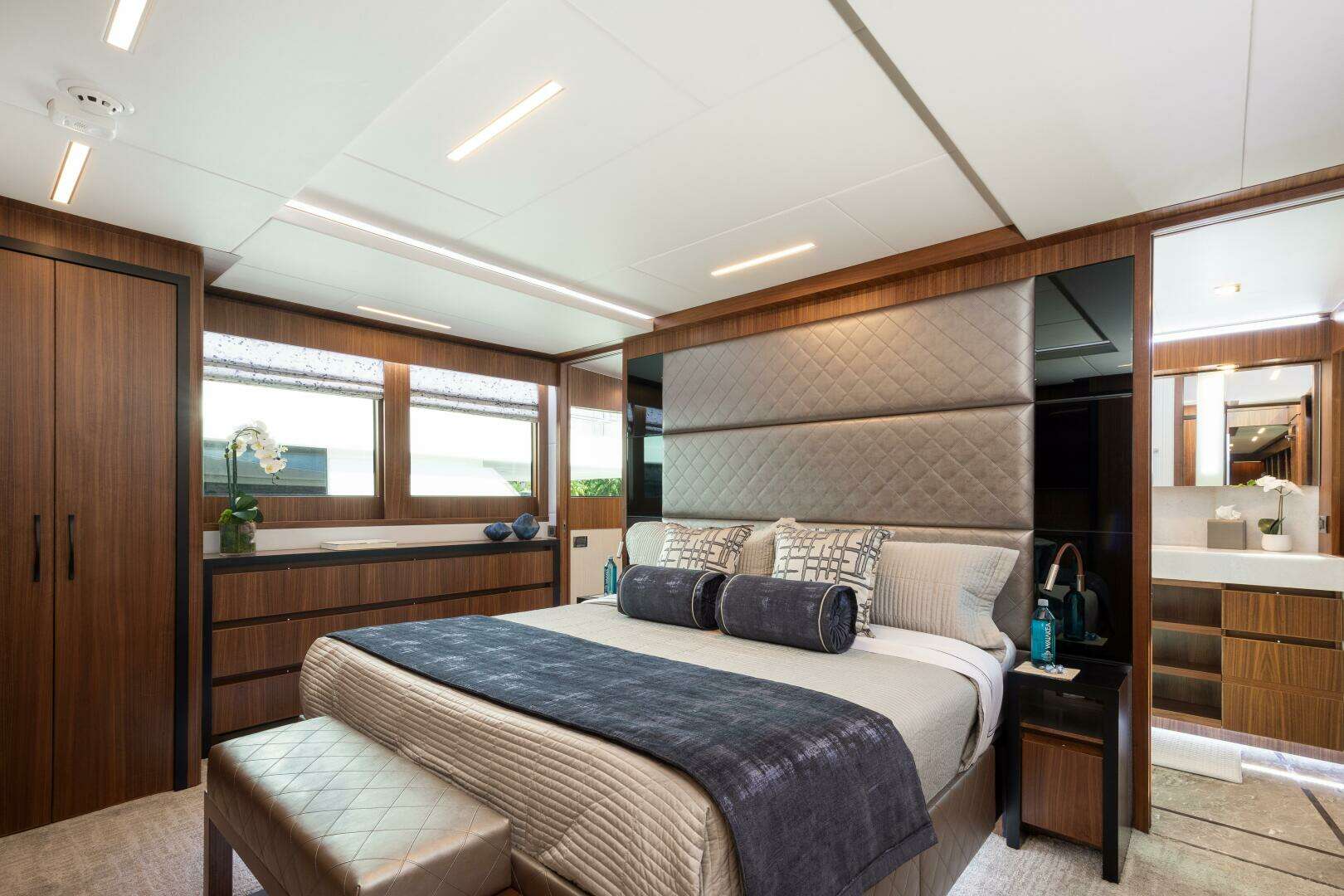

Master Suite

• Full-beam layout
• Marble counters, flooring & shower
• Dual Kohler sinks
• Frameless glass shower door
• Non-slip shower floor
• Marble shower seat

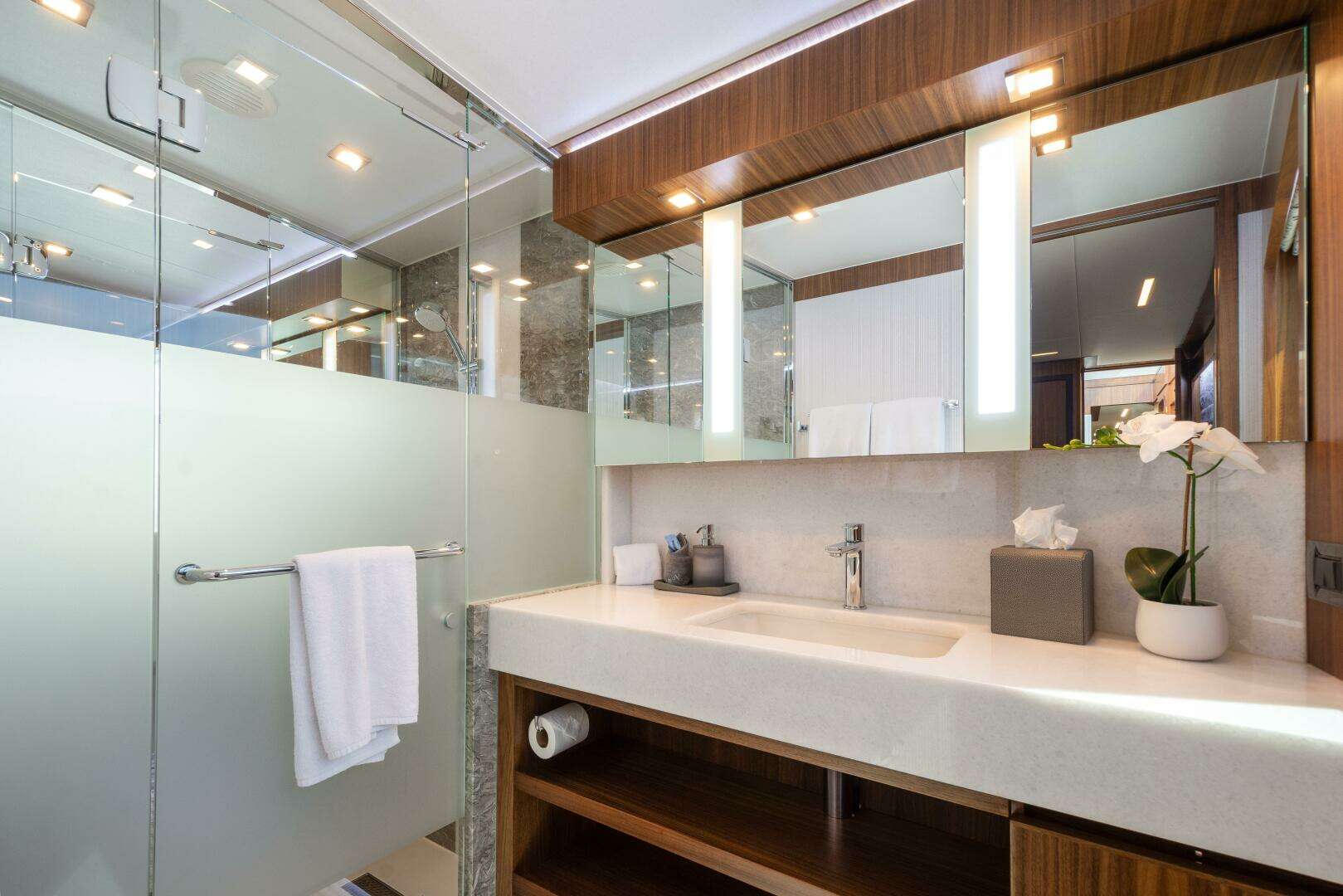

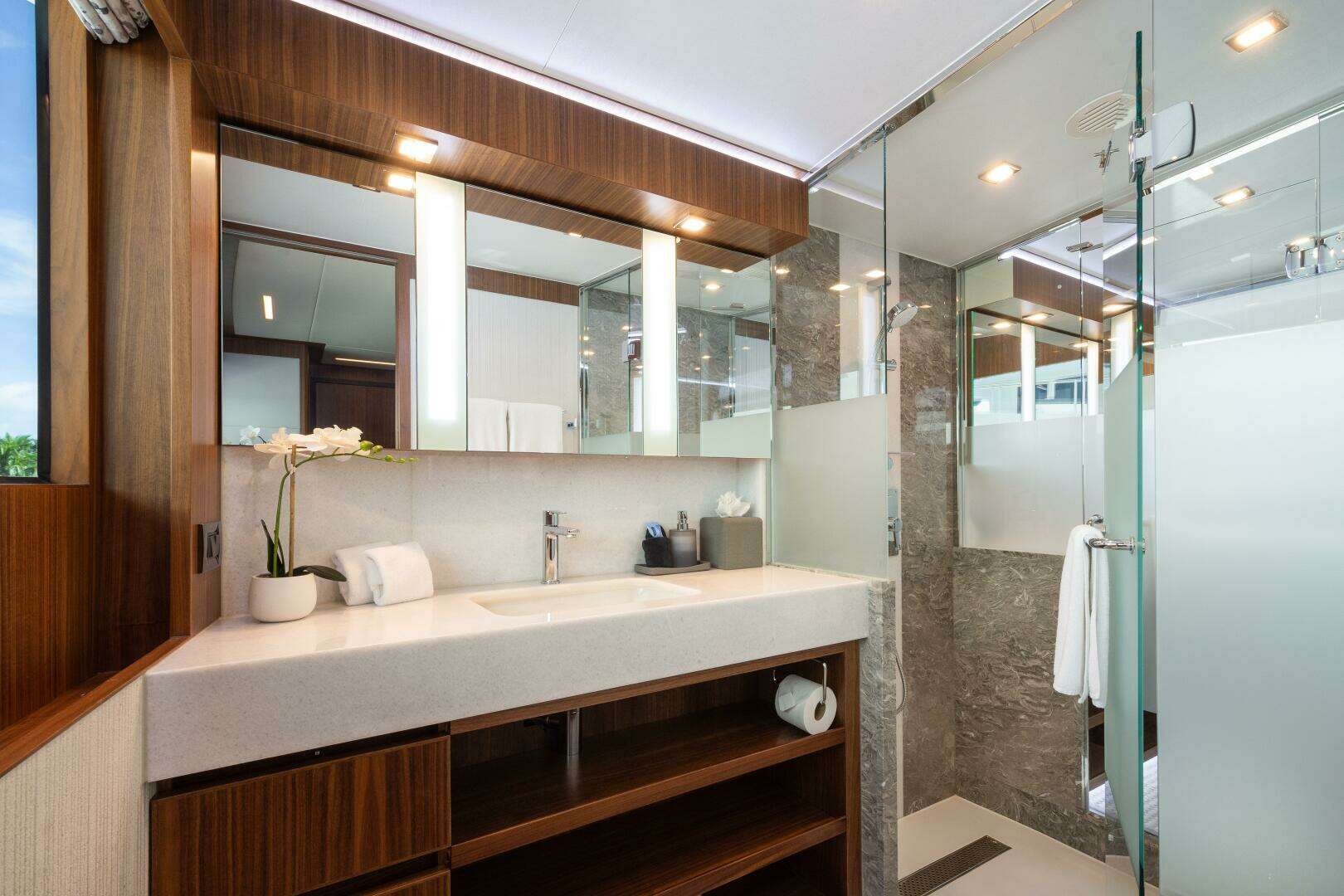

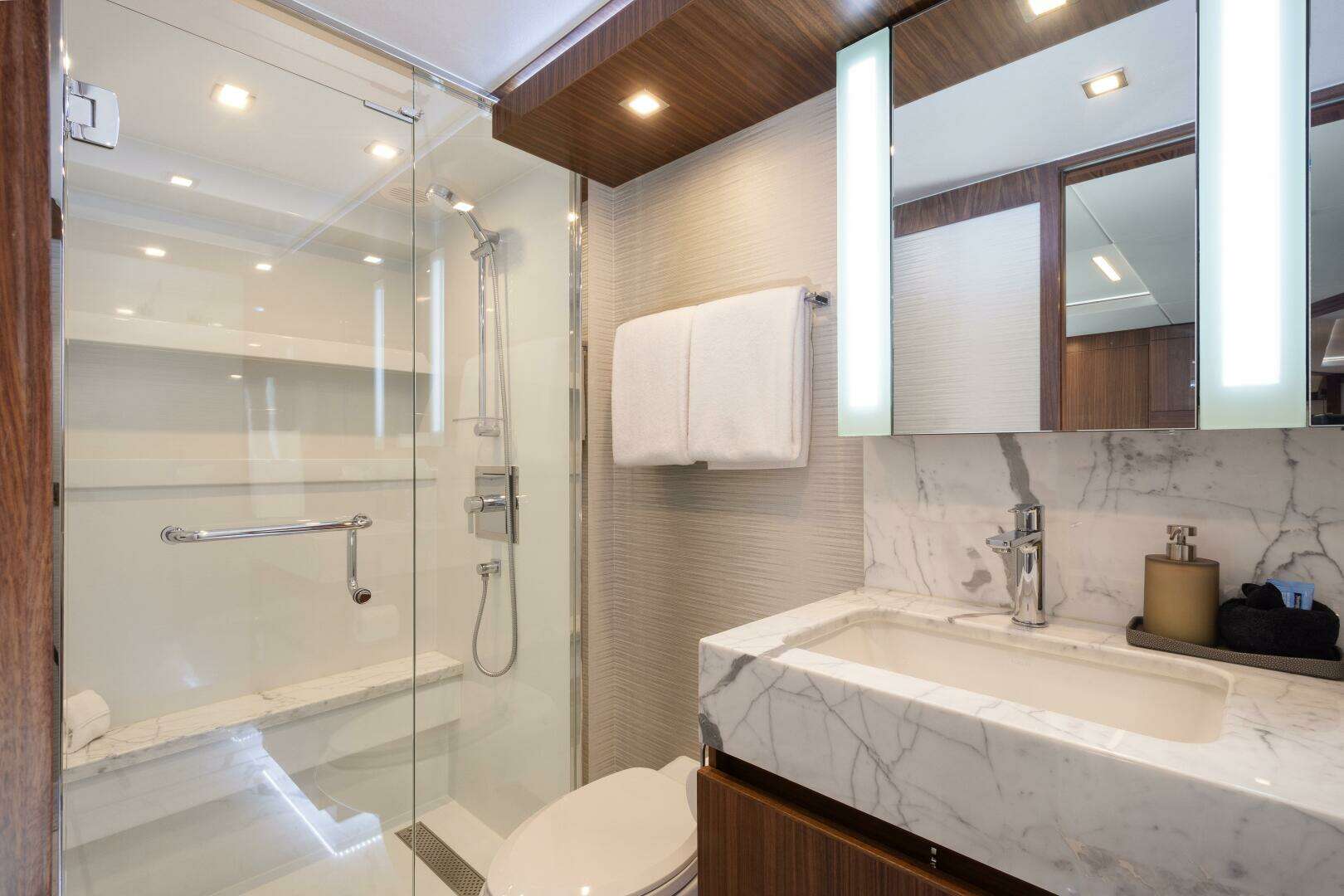

VIP & Guest Heads

• Marble floors & countertops
• Grohe fixtures
• Frameless glass doors
• Marble shower seats

Appliances

Galley

• GE Profile refrigerator, oven, cooktop, microwave
• Sub-Zero integrated fridge drawer
• GE dishwasher & disposal
• GE trash compactor
• Franke stainless sink
• Blanco chrome faucet

Salon

• U-Line ice maker
• GE ice maker w/ panel kit
• Kohler bar sink

Aft Deck

• U-Line refrigerator and ice maker

Flybridge

• Sub-Zero refrigerator drawers
• U-Line wine cooler
• Whirlpool 68" spa tub
• Fire Magic grill
• Scandvik faucet

Laundry

• GE washer/dryer sets (lower foyer & crew lounge)

Crew & Service Areas

• Separate crew lounge
• Washer/dryer sets
• Pullman berth in the forward crew
• Pneumatic storage access
• Excellent machinery access throughout

Navigation & AV

See the separate detailed electronics and A/V equipment list.

(Will be inserted once we receive it.)

USA-Installed Options

• Full safety package
• Life rafts
• Quick Lift 2000 lb davit
• 1500 GPD BWD watermaker
• Stidd 500N Admiral helm chair
• UMT Sea Stairs

Interior Décor Package (YIBS)

Includes carpeting, upholstery, drapery, spreads, chairs, stools, lighting, hardware, fixtures, and complete interior design services.
