Upgrades 2020-2022

• Toilet System, 2021 - Headhunter
• Tank level monitoring, 2021 Headhunter
• Exhaust Risers, re-engineered and fabricated 2020
• Running Gear, Shafts, Bearings, Props - 2022
• Complete replacement of A/C System with USA made Flagship Marine System (3 - 4 ton chiller units and 14 blower units) - 2021
• All pumps replaced or rebuilt during 2020-2023 (Black, Gray, Potable Water, Chain Wash, AC Raw Water)
• Navigation Bridge is now all Class Panel SIMRAD - 2022 (all functions touchscreen)
• Passerelle and hydraulics were removed and totally rebuilt by Marine Hydraulics, Fort Lauderdale, FL - 2022
• Entire Hull was vinyl wrapped - 2022
• Starboard Main Engine totally rebuilt to -0- hours - 2022
• Port & Starboard Main Engines were factory remanufactured and a repower happened -2010
• Duetz engines were removed and replaced by MTU 16 cylinder 2,000 hp

HULL

• DECKS: Fiberglass with core – teak overlay
• PROPELLER SHAFTS: 4” Stainless Steel
• BEARINGS [SHAFT]: Cutlass
• RUDDER: Spade

MACHINERY

• ENGINE MAKE:  MTU
• FILTERS: Racor
• EXHAUST LINE:  Stainless Steel Risers
• EXHAUST SILENCER: Water Collector-Type Muffler
• ENGINE ALTERNATOR: 24 Volt
• CONTROLS:  Electronic
• SHAFTLOGS, TYPE: Flex
• STUFF BOX:  Dripless Seals
• WATERMAKER:  Reverse Osmosis of South Florida
• BILGE PUMPS:       Electric/Automatic, 20-volt to Compartment Manifold
• FRESHWATER PRESSURE SYSTEM: 220-Volt

 ELECTRICAL SYSTEM

• PORT/STARBOARD GENERATORS:  Kilopak
• CYLINDERS: 4
• RPM: 1800
• COOLED: Freshwater
• EXHAUST LINES: Fiberglass Muffler
• FILTERS: Racor
• BATTERY CHARGER(S): Professional Mariner 12.20 / Newmar 24-80
• LIGHTING: 24-volt D.C. & 110-volt A.C.
• BATTERIES: 10

 ELECTRONICS

• RADAR: Simrad
• VHF: Icom IC-M506 / Garmin
• SAT TV: Starlink
• GPS:  Furuno / Simrad
• AUTOPILOT: Simrad
• DEPTHSOUNDER: Simrad
• COMPASS: Ritchie Magnetic
• SEARCHLIGHT: ACR

 DECK EQUIPMENT

• Two 250-lb Stockless Anchors with approximately 300’ of Chain – Port & Starboard
• WINDLASS: Lofrans
• CLEATS:  Stainless Steel
• SAFETY RAILS: Stainless Steel

AUDIO / VIDEO

• STEREOS:  Fusion
• TELEVISIONS: Insignia / LG / Samsung

EQUIPMENT

BOTTOM:

• Five Underwater Lights at Transom
• Dual Cylinder Trim Tabs
• Line Cutters on Shafts
• Dual Propeller Bow Thruster
• Refrigeration Cooling Coils Port

RADAR ARCH:

• Starlink Satellite Antenna
• WIFI Antennas
• Two ACR Searchlights
• Radar Scanner
• Port & Starboard Navigation Lights
• Forward Navigation Light
• Anchor Light
• Stern Light

DECKS AND SUPERSTRUCTURE:

• Fiberglass Deck with molded non-skid
• Courtesy Lights
• Dual Lofrans Anchor Windlasses
• Approximately 300’ of Chain – Port & Starboard
• Fire Station
• Two Bow Cleats
• Universal Fairlead/Roller Assembly at Stem
• Stockless Anchor, 250 lbs.
• Stainless Steel Handrail Stanchions
• Bow Light
• Sun Lounge with Cushions, Courtesy Lights and Cover
• Windscreen Cover
• Two Spring Cleats, Port & Starboard on Gunwale
• Side Deck Drains, Port & Starboard
• VHF Antennas, Port & Starboard
• Diesel Fuel Fill, Port & Starboard

BOSUN’S LOCKER:

• Hold Light
• Chain Locker with Approximately 300’ of chain each side
• Electric/Automatic Bilge Pump

AFT DECK:

• Teak over Fiberglass Deck
• Stainless Steel Handrails at Steps, Port & Starboard
• Stainless Steel Rails, Aft
• Hinged Gate at Steps to Swim Platform, Port & Starboard
• Stereo Speakers, Two Port and Two Starboard
• Stern Cleat, Port and Starboard Aft
• Lofrans Warping Winch, Port & Starboard, each with foot switch with weather cover
• Fire System Release Handle, Port Aft
• Two 6-man Viking Life Rafts
• 100-Amp Shore Power Cord, Port & Starboard
• Quick Davit, Starboard

GARAGE:

• Hydraulic Operated Access Hatch
• Hydraulic Power Pack
• Hydraulic Steering Power Pack
• Hydraulic Passerelle Davit
• Hold Lights
• Access Hatch from Aft Deck
• CO2 Fire Suppression System
• Tide Ride Ladder

HELM:

• Magnetic Compass
• Three Simrad Displays
• Display to Alarm and Ships Systems
• Anchor Windlass Control
• Switch Panel
• ACR Searchlight Controls
• Simrad Autopilot Control
• CCTV Control Pad
• Engine Ignition Switches
• Bow Thruster Control
• Icom IC-M506 VHF Radio
• Garmin VHF Radio
• Bench Seat

 HELM DECK:

• Teak Deck
• Windscreen, Port & Starboard
• Vinyl Bimini Top with Enclosure
• U-Shape Settee, Port & Starboard
• Dining Table, Port
• Two Circular Cocktail Tables, Starboard
• Sub-Woofer, Port & Starboard
• Insignia LED Television
• Wet Bar, Port Forward, with Stainless Steel Sink & Frigit Refrigerator
• Bench Seat, Port Forward
• Sliding Door to Salon, Forward
• ACR E.P.I.R.B.

SALON:

• Laminate Plank Sole
• Vinyl Overhead Panels with Recessed Lights
• Straight Sofa, Port, with Dining Table
• Curved Sofa, Starboard
• Four Ottomans
• LG LCD Television
• Desk with Chair
• L-Shape Settee, Forward
• Dry Bar with Marble Top
• Maisee Wine Cooler
• Fusion Stereo
• Braeburn Air Conditioning Control
• Fixed Portlights, Port & Starboard
• Fixed Windows, Forward
• Electric Locker with MTU Displays, Furuno GP33, Simrad Auto Pilot, Direct TV Receiver, Horizon VHF Radio, CCTV Processor
• Smoke Alarm

GALLEY COMPANIONWAY:

• Laminate Sole
• Vinyl Overhead
• Main Electrical Service Panel
• Fire Alarm Panel
• Pump Control and Alarm Panel
• Medical First Aid Kit

COMPANIONWAY:

• Carpeted Sole
• Maple Paneling
• Vinyl Overhead with Overhead Lights
• Six Steps Up to Salon
• Smoke Detector

DAY HEAD:

• Marble Sole
• Oak Wall Paneling
• Marble Top Vanity with Sink
• Large Mirror
• Overhead LED Lights
• Exhaust Blower
• Porthole
• Royal Flush Toilet

FIRE FIGHTING & SAFETY EQUIPMENT

• Portable Fire Extinguishers:  Dry Chemical
• Built-In System: CO2
• Auxiliary Fire Pump System: 220-volt
• Life Raft: Two 6 Person – Viking
• Life Jackets:  Adult Type I & II
• Life Rings: 30” USCG Approved
• Bell: 12”
• Horn:  Electric / Air
• Oil Plaque: Yes
• Waste Discharge Plaque: Yes
• Flares
• E.P.I.R.B.: ACR
• First Aid Kit

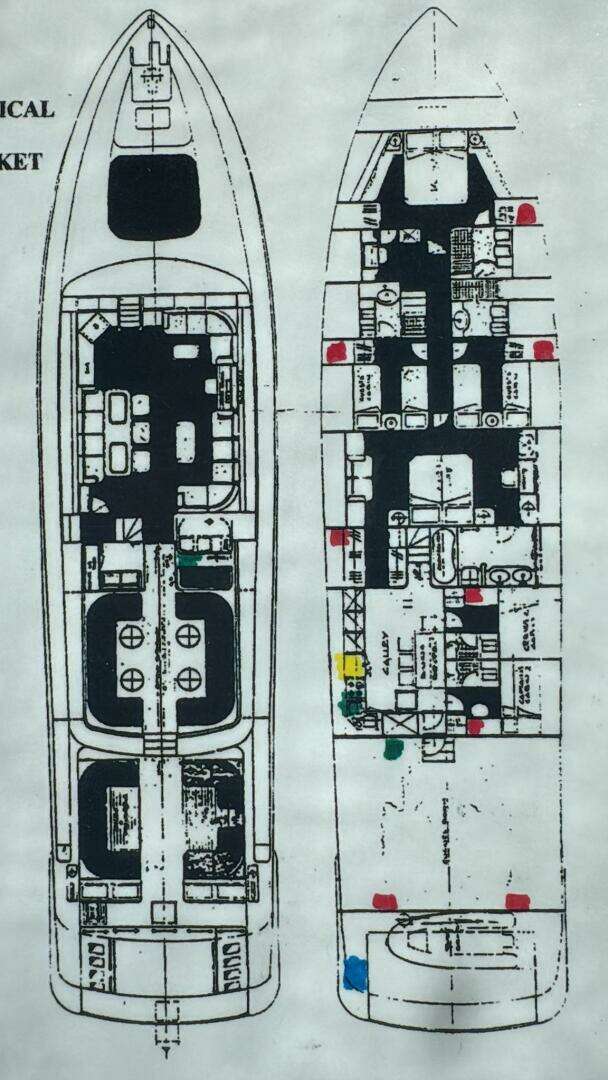

ACCOMMODATIONS

BOW STATEROOM:

• Carpeted Sole
• Access to Bow Thruster Hold
• Birdseye Cabinetry
• Vinyl Overhead
• Recessed Lighting
• Two Portholes, Port & Starboard
• Storage Lockers
• Custom Night Tables
• Queen Berth, Centerline, with Four Drawers & Indirect Lighting
• Upholstered Headboard
• Hanging Locker, Port & Starboard
• Smoke Alarm Sensor

BOW STATEROOM HEAD:

• Marble Sole
• Oak Wall Paneling
• Marble Top Vanity with Sink
• Large Mirror
• Overhead LED Lights
• Exhaust Blower
• Porthole in Outboard Alcove
• Royal Flush Toilet
• Fiberglass Jacuzzi Tub
• Showerhead

STARBOARD STATEROOM:

• Carpeted Sole
• Maple Paneling with Birdseye Doors & Cabinets
• Twin Berths
• Porthole in Alcove
• Nightstand with Marble Insert
• Air Conditioning Control
• Breaker Panel in Closet

STARBOARD GUEST HEAD:

• Marble Sole
• Marble Top Vanity with Sink
• Mirror
• Overhead Recessed Lights
• Exhaust Blower
• Royal Flush Toilet
• Shower Stall with Teak Grate, Seat, Shower Nozzle, Overhead Lights

PORT STATEROOM:

• Carpeted Sole
• Maple Paneling with Birdseye Doors & Cabinets
• Twin Berths
• Porthole in Alcove
• Nightstand with Marble Insert
• Air Conditioning Control Panel
• Electrical Circuit Breaker Panel in Closet

PORT STATEROOM HEAD:

• Marble Sole
• Marble Top Vanity with Sink
• Mirror
• Overhead Recessed Lights
• Exhaust Blower
• Royal Flush Toilet
• Shower Stall with Teak Grate, Seat, Shower Nozzle, Overhead Lights

MASTER STATEROOM:

• Carpeted Sole
• Smoke Alarm and Overhead Lights
• King-Size Berth, Centerline
• Upholstered Headboard
• Portholes
• Nightstands, Drawers and Wall Lamps
• Settee, Port
• Custom Desk with Storage & Marble Top
• Walk-In Closet, Port Aft, with Carpeted Sole, Braeburn A/C Control and Overhead Light
• Electrical Sub-Panel, Outboard
• Shelves, Inboard

MASTER STATEROOM HEAD:

• Marble Sole
• Marble Wall Panels
• Overhead Lights
• Mirror
• Porthole in Outboard Alcove with Shade
• Marble Vanity with 2 Sinks, Fixtures & Storage
• Fiberglass Jacuzzi Tub
• Royal Flush Toilet

FORWARD CREW STATEROOM:

• Laminate Sole
• Recessed Lights
• Upper and Lower Single Berth
• Hanging Locker
• Reading Lights

FORWARD CREW HEAD:

• Vinyl Tiled Sole
• Recessed Lights
• Royal Flush Toilet
• Shower Stall with Teak Grate Sole, Adjustable Shower Head

AFT CREW STATEROOM:

• Laminate Sole
• Recessed Lights
• Upper and Lower Single Berth
• Hanging Locker
• Reading Lights

GALLEY:

• Laminate Sole
• Overhead Recessed Lights
• Molded Counters with Dual Stainless-Steel Sink
• Two Frigit Freezers
• Two Frigit Refrigerators
• General Electric Dishwasher
• Miele Oven
• Samsung LED Television
• Four Burner K & K Induction Stovetop
• Scotsman Icemaker
• KitchenAid Oven
• CCTV Camera
• Two Splendide 2100 Clothes Washer/Dryer Units
• 120/240 V.A.C. Circuit Breaker Panel
• Smoke Alarm

ENGINE ROOM:

• Diamond Plate Sole
• Access from Aft Deck
• Access from Watertight Door in Crew’s Quarters
• Fluorescent Hold Lights
• DC Hold Lights
• Galvanic Isolator
• Discharge of Oil Placard
• Waste Disposal Placard
• Shore Power Circuit Breaker
• Battery Cut-Off Switch to Each Generator
• Professional Mariner 12.20 Battery Charger
• Two Refrigeration Condensers
• Two 12-Volt Optima AGM Batteries to Generator
• Ventilator Blower, Port & Starboard
• Two Diesel Fuel Transfer Pumps
• Reverso Oil Change Pump
• Fuel Management Valves
• 687-Gallon Day Fuel Tank, Port & Starboard
• DDEC Engine Display, Port & Starboard
• Newmar 24-80 Battery Charger
• Main Shore Power/Generator Electrical Panel
• Two FloTec Freshwater Pumps
• DeWalt Air Compressor
• Dripless Shaft Seal, Port & Starboard
• Hydraulic Steering Actuator
• Emergency Steering Helm, Aft
• Flagship Chilled Water Air Conditioning
• 3 Compressors
