Overview

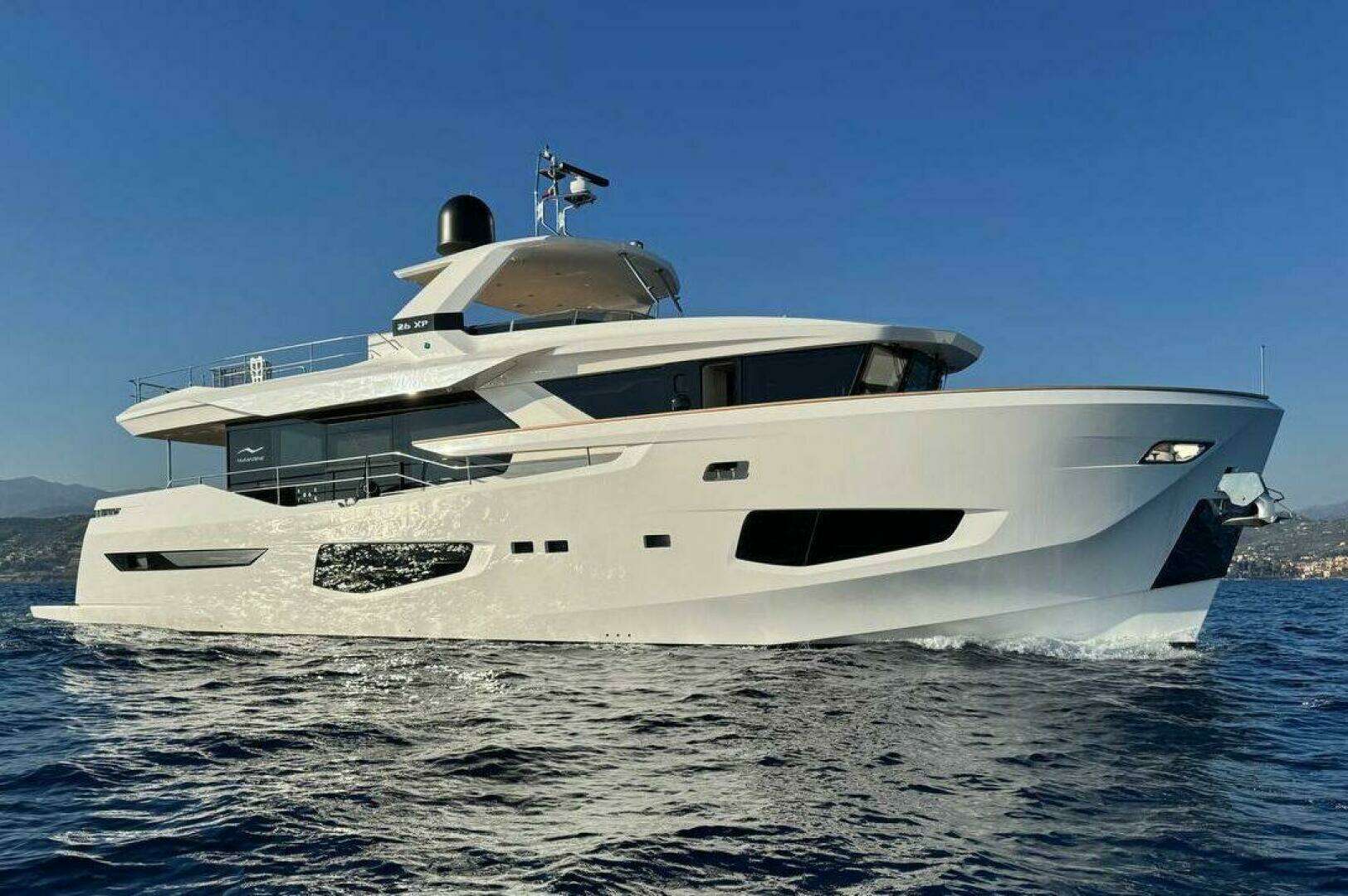

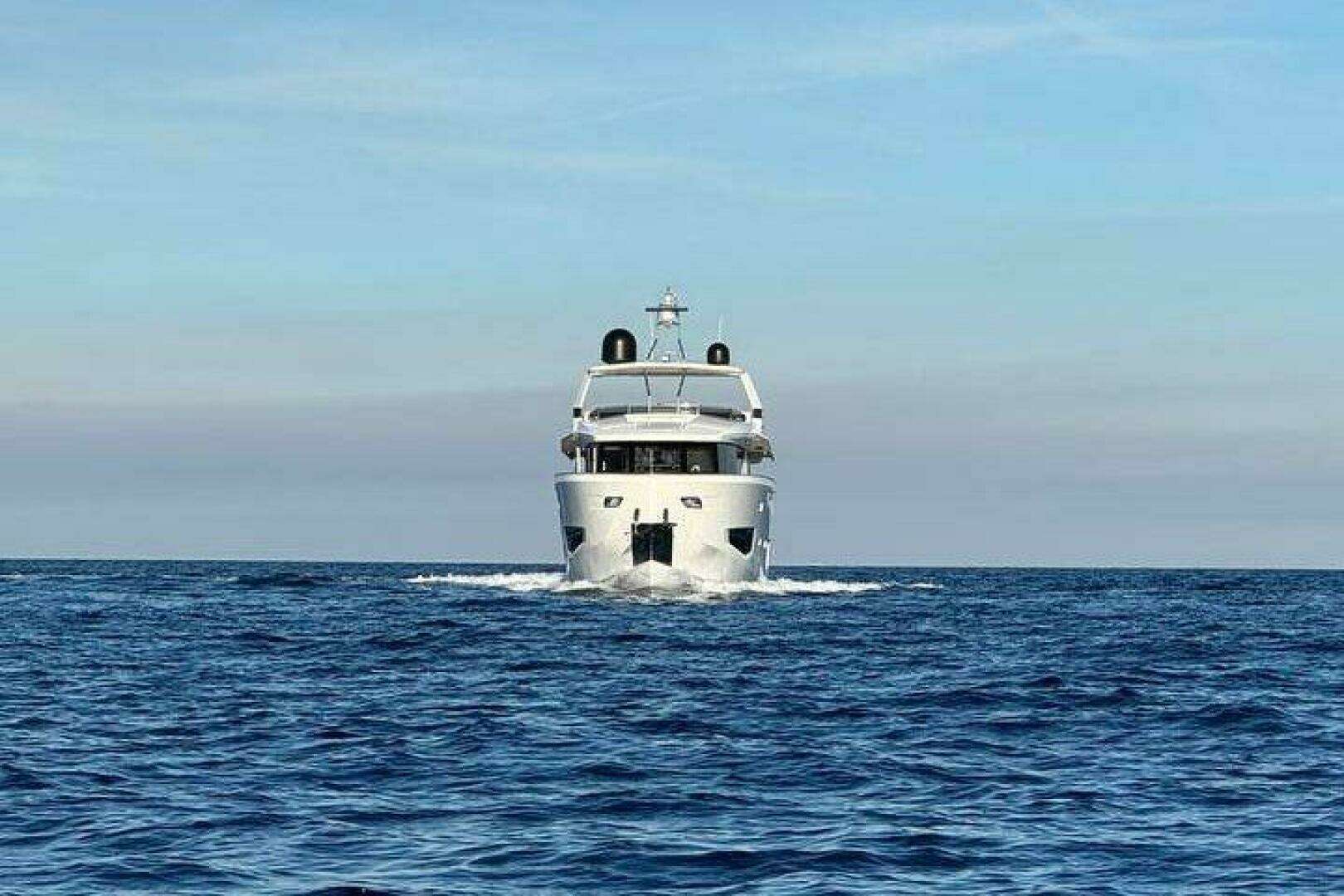

MAORIA, a Numarine 85 explorer-style yacht, combines modern design, quiet performance, and exceptional comfort. Built with a composite GRP hull and superstructure, she features Silentline noise and vibration reduction, meeting RINA “Comfort Class” standards.

Certified CE Category A and fitted with electric fin stabilizers, she ensures smooth, stable cruising in all conditions.

Accommodating six guests in three staterooms, including a full-beam master, MAORIA offers spacious living areas, a sauna (that could be converted into a 4th guest stateroom), and expansive outdoor decks for dining and relaxation.

Key Features:

-First Numarine of her type available for charter

-Ultra-quiet performance built to the “Comfort Class”

-Full-beam master stateroom with private lounge

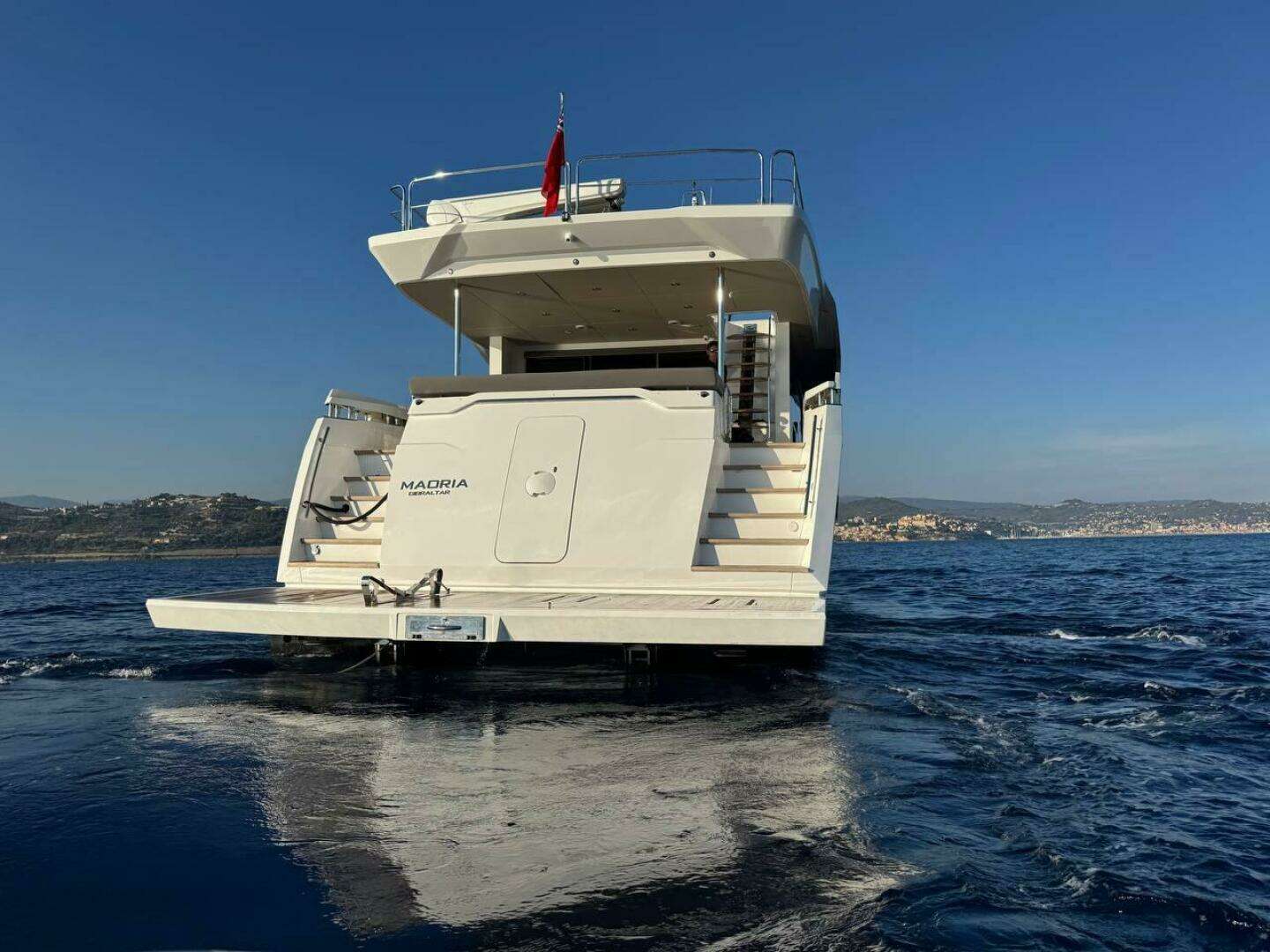

-Expansive sundeck and hydraulic swim platform

Accommodation

MAORIA accommodates six guests in three staterooms, along with four crew members in two separate crew staterooms.

Guest configuration includes one king and two queen staterooms, all appointed with private en-suite bathrooms.

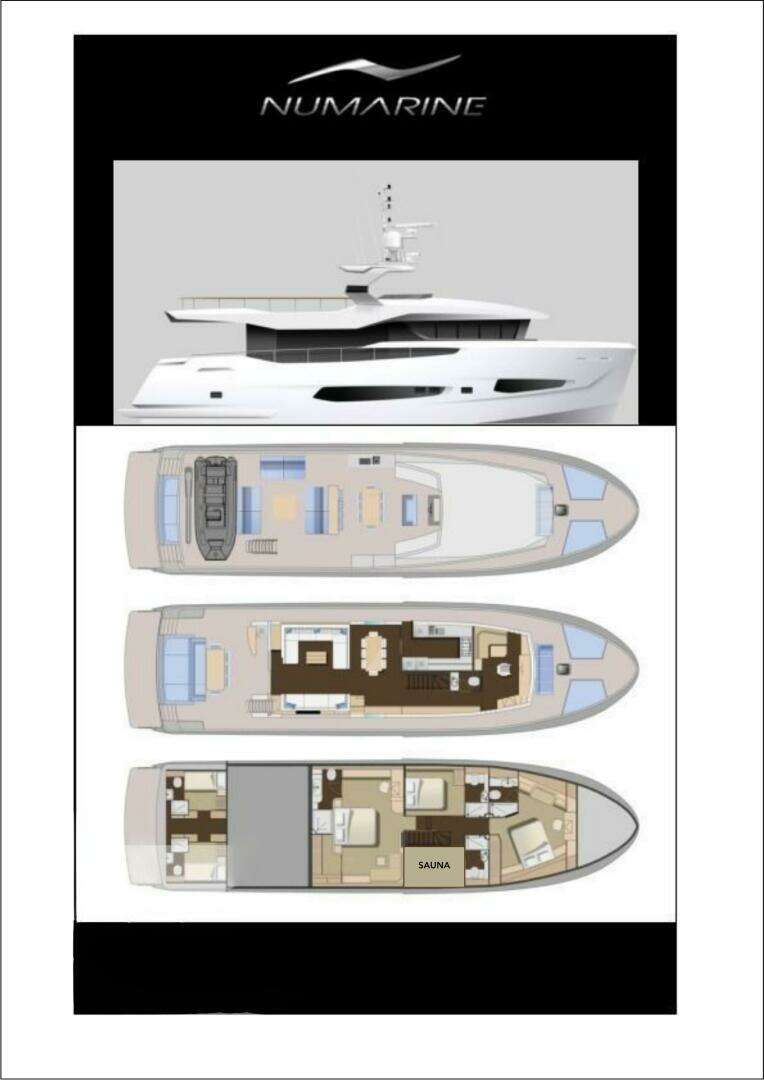

Layout & Design

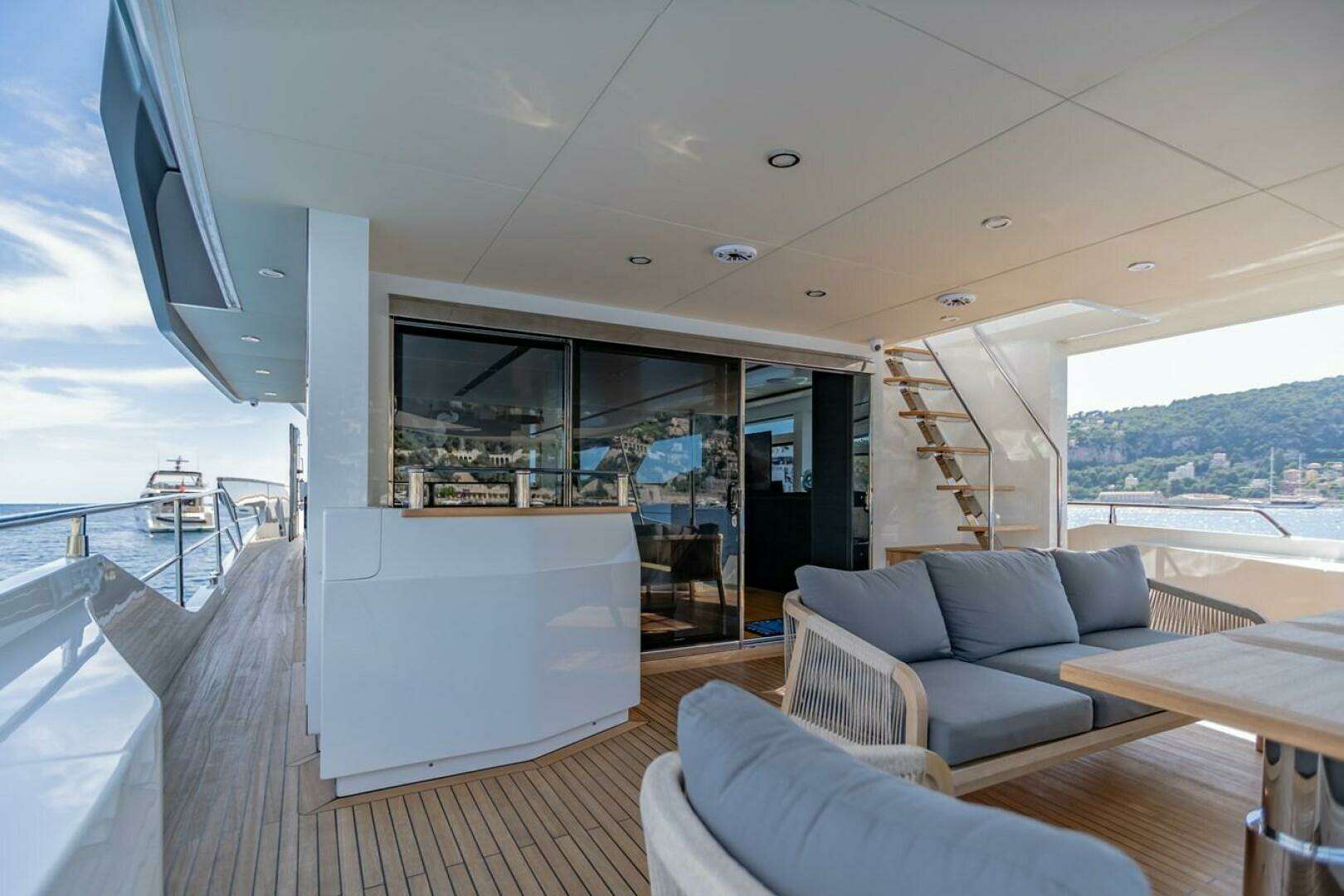

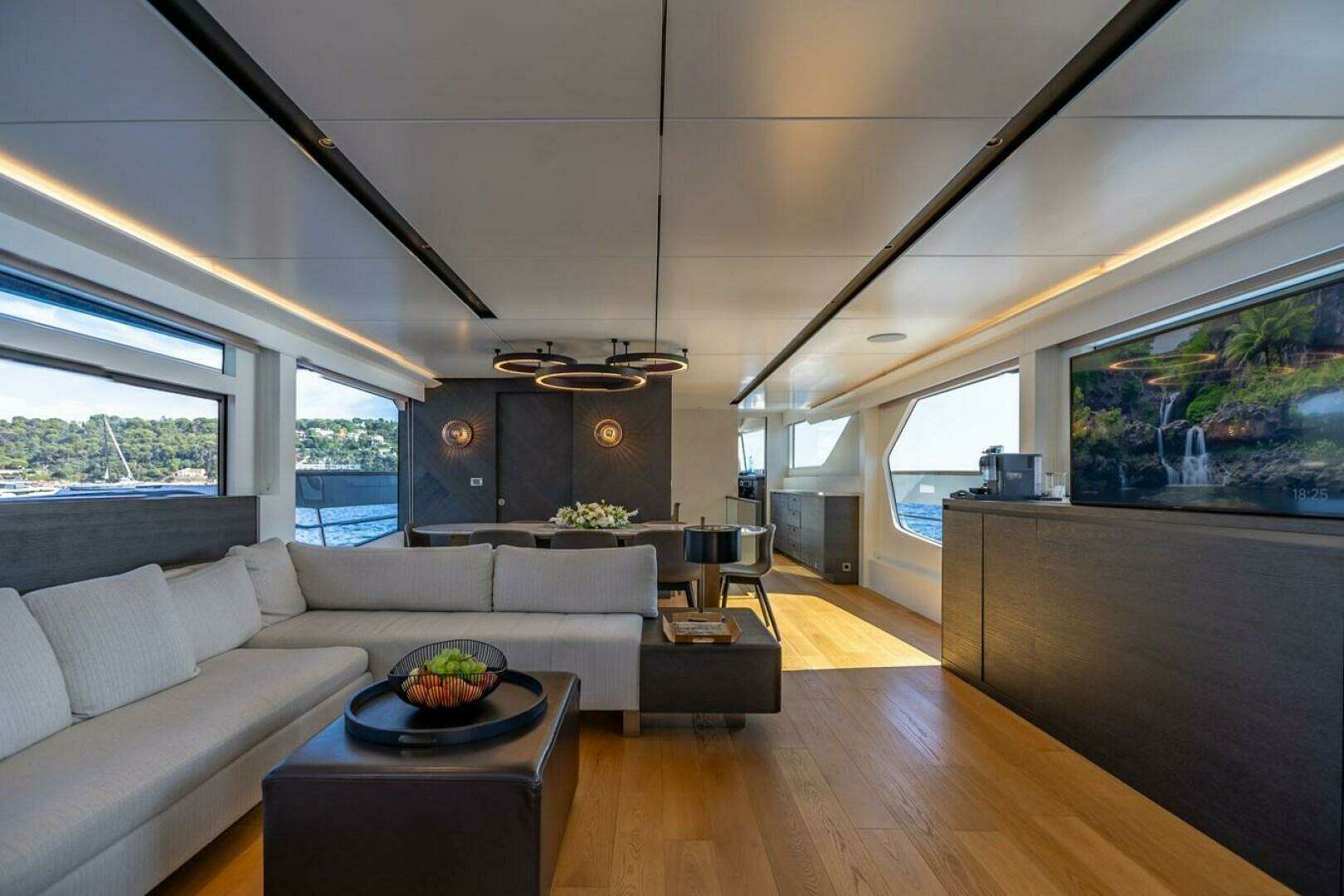

MAORIA is an explorer-inspired yacht combining contemporary design with high-end finishes. Boarding from the aft deck, guests are welcomed into a spacious seating area with adjustable tables and a compact bar with refrigerator. Inside, the main salon offers a large sofa for six and a dining table for eight, surrounded by floor-to-ceiling windows for natural light and sea views.

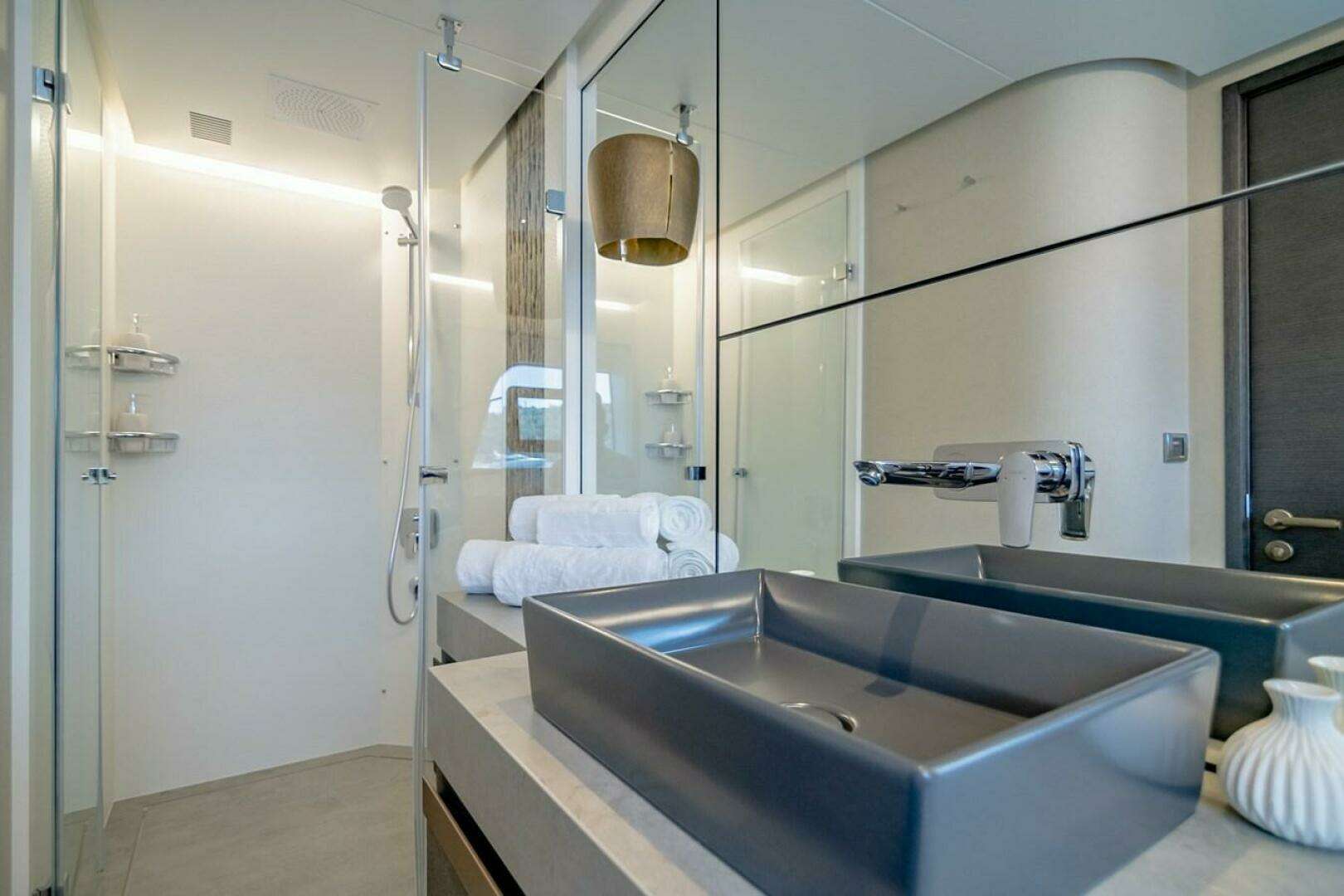

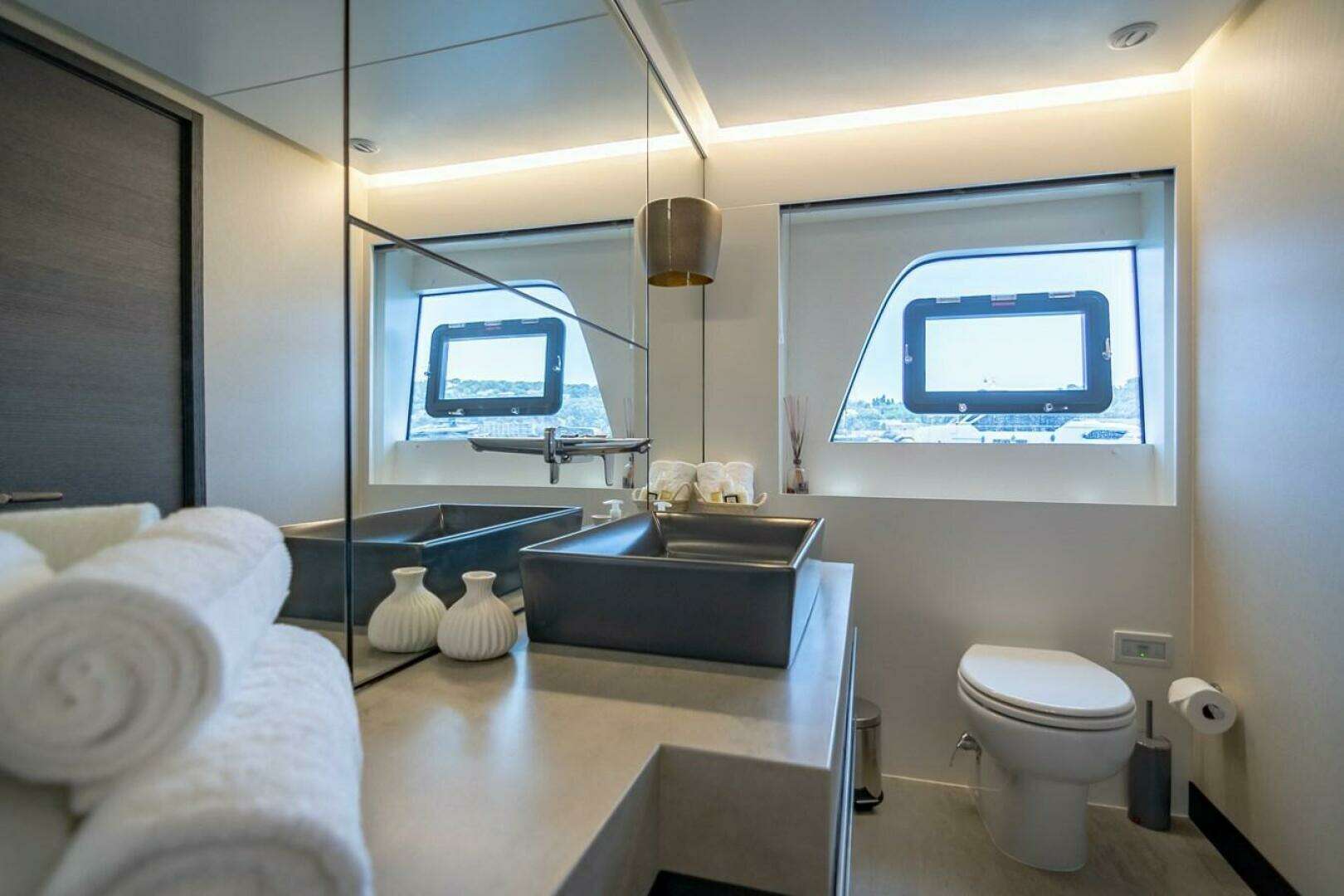

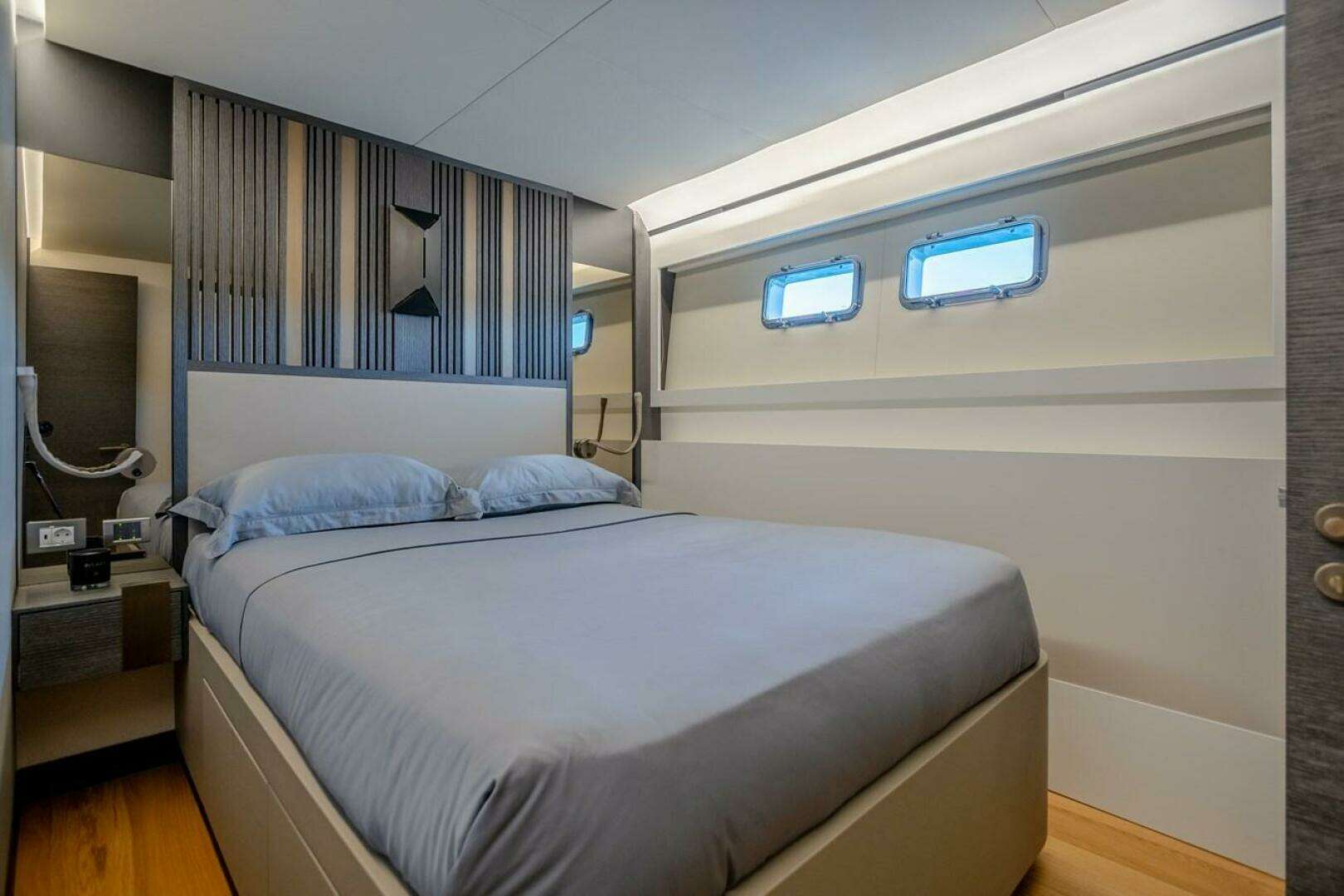

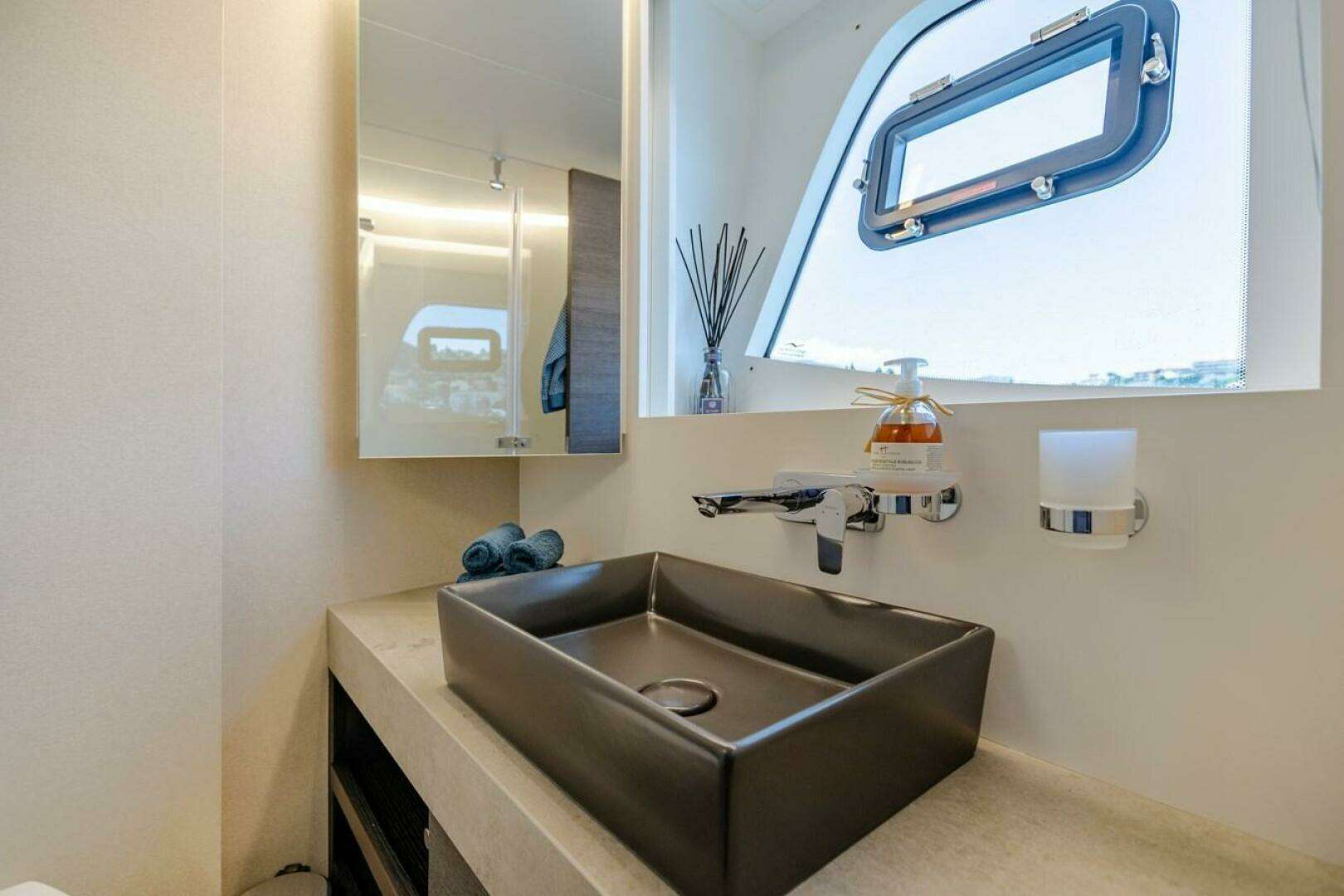

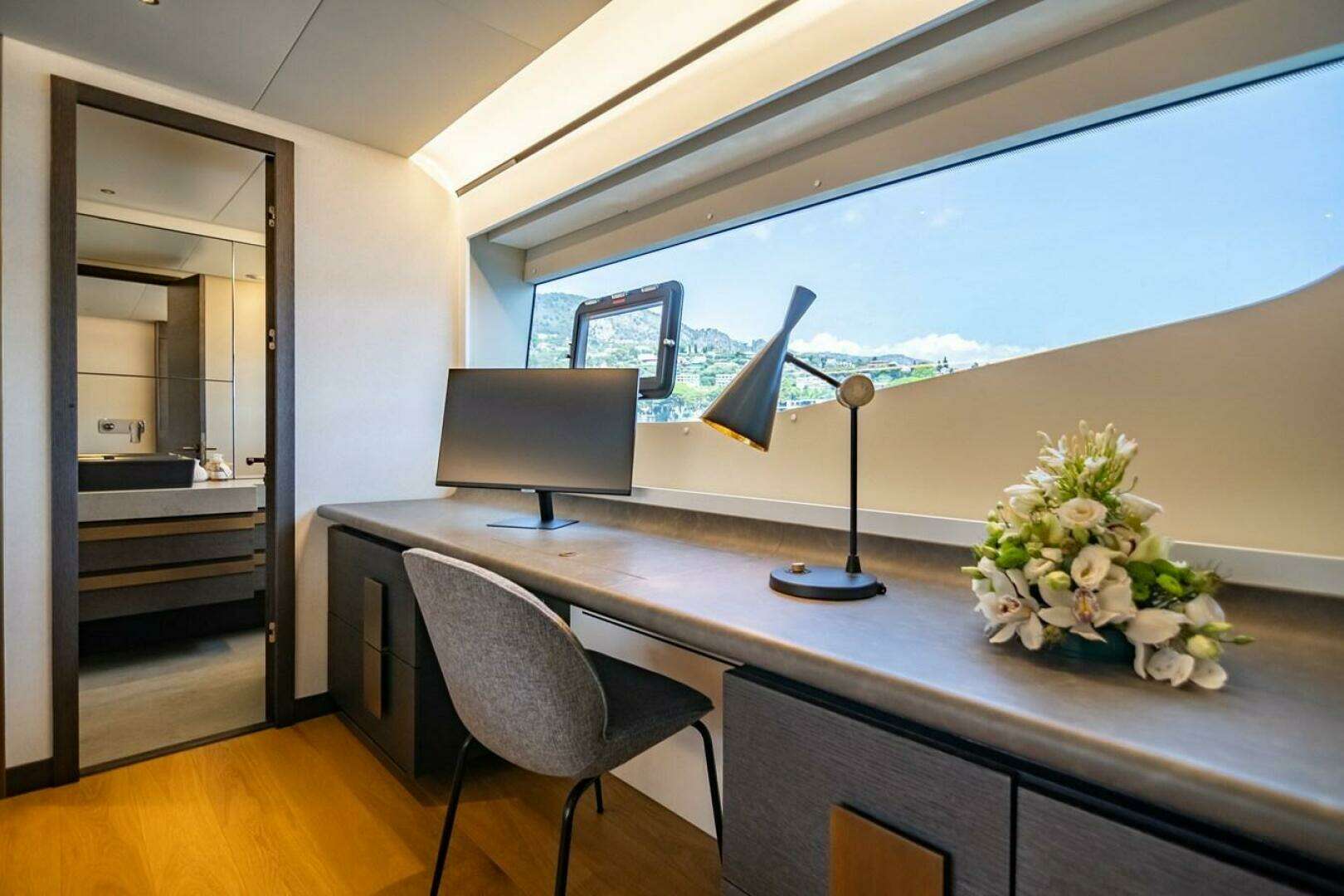

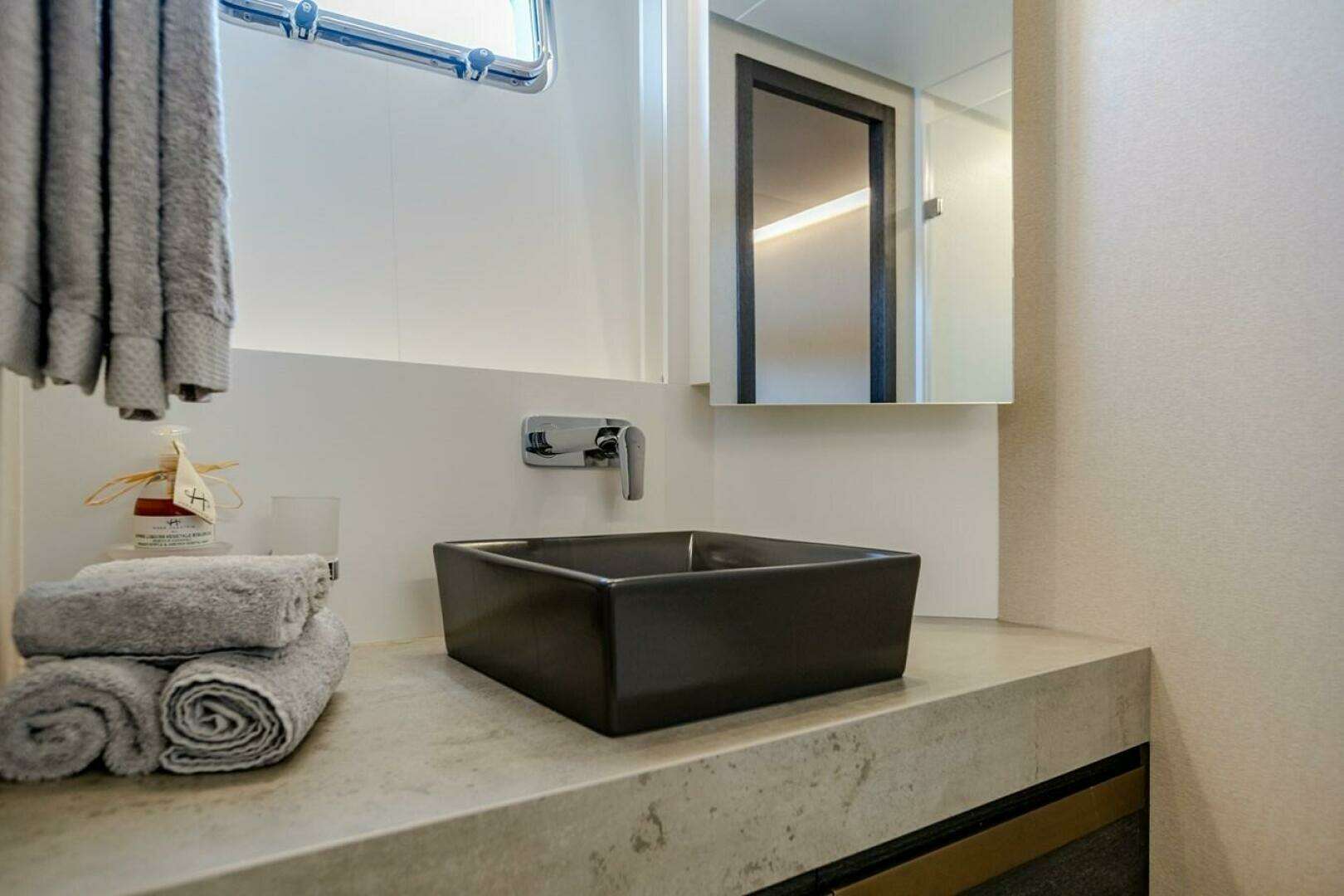

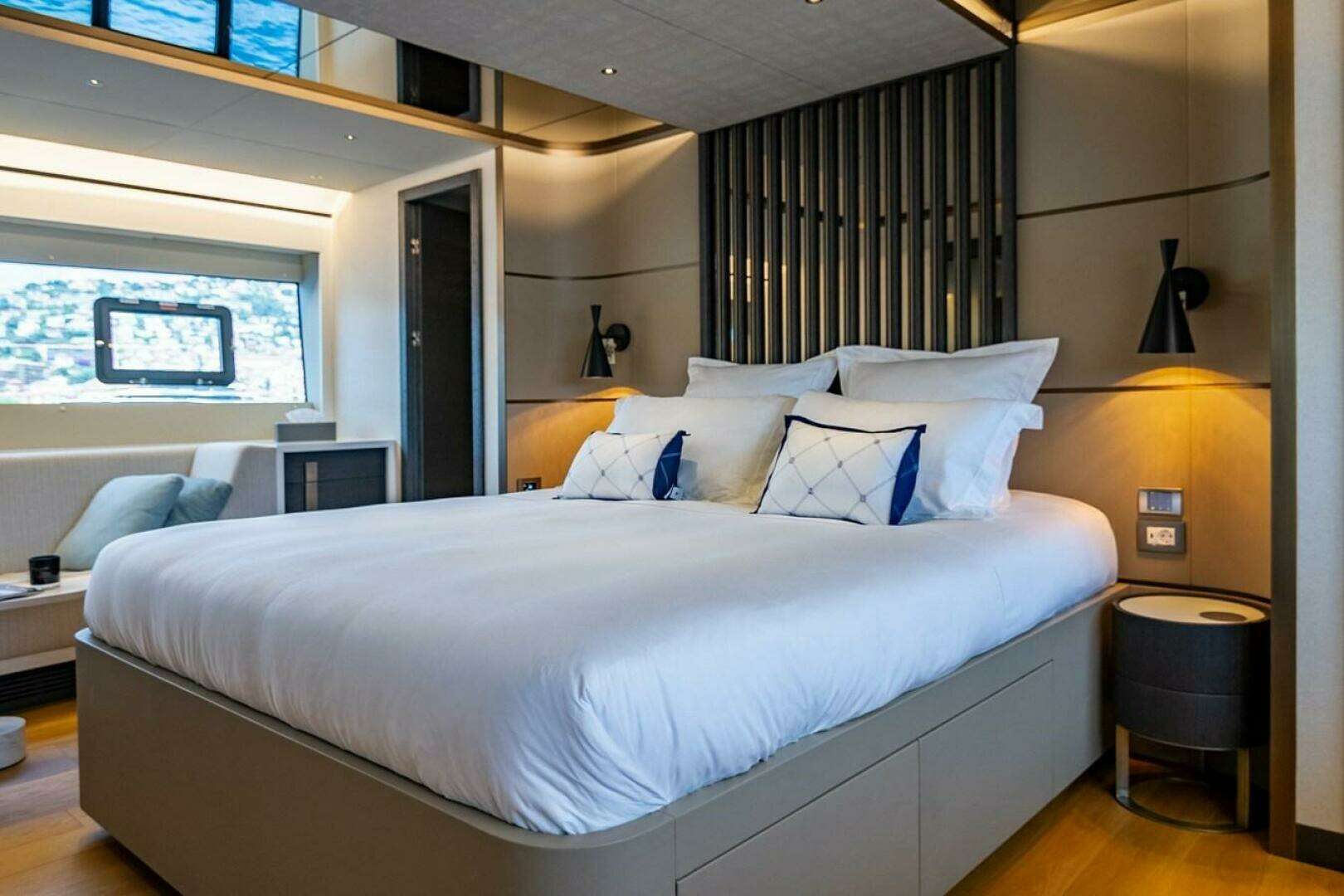

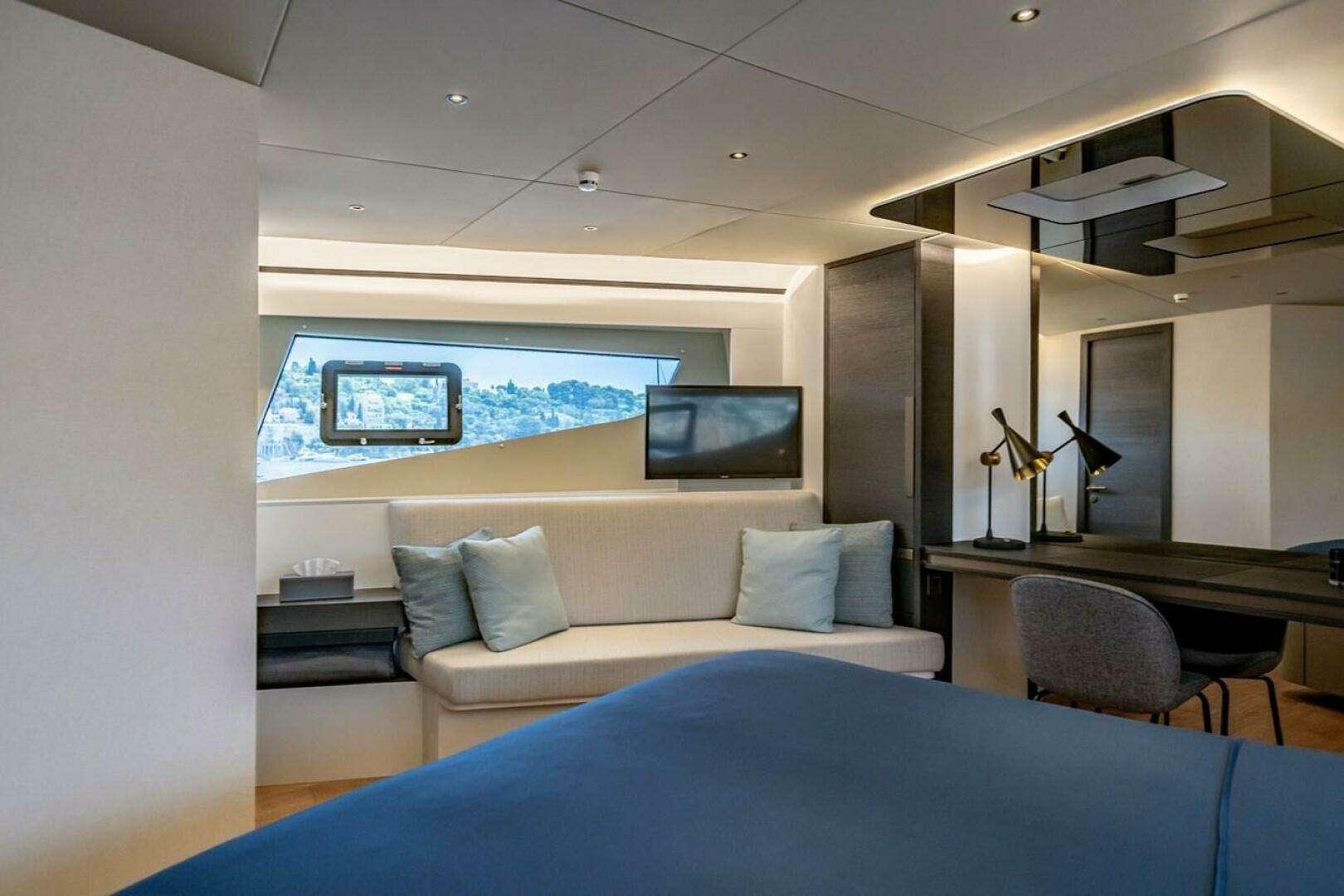

Sleeping arrangements include a full-beam master stateroom with king-size bed, walk-in wardrobe with safe, and L-shaped sofa with desk. The VIP stateroom forward also benefits from a full-beam layout, a queen bed, ample storage, and a desk. The portside guest stateroom includes a double bed and wardrobe. All staterooms feature private en-suite bathrooms with modern fixtures.

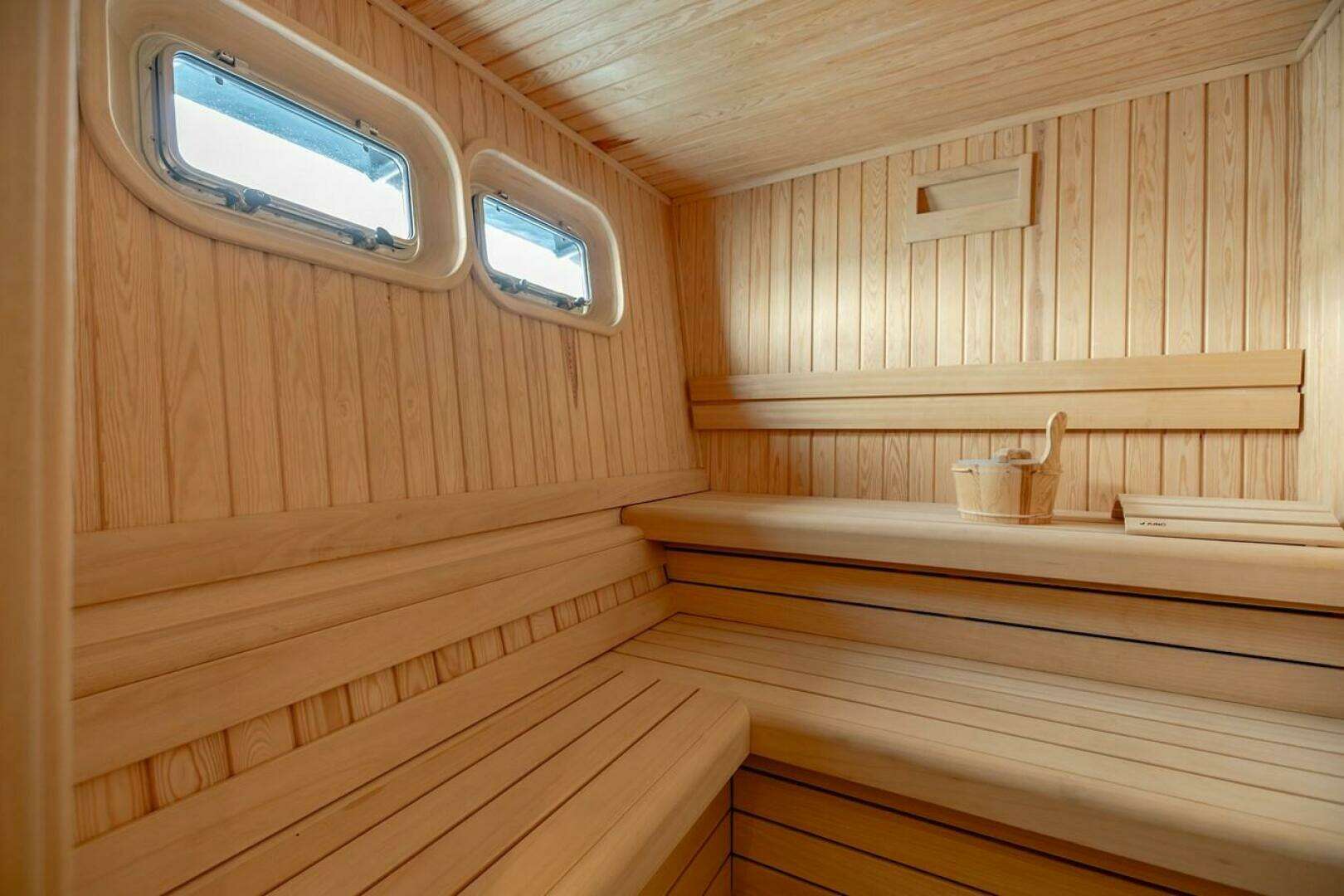

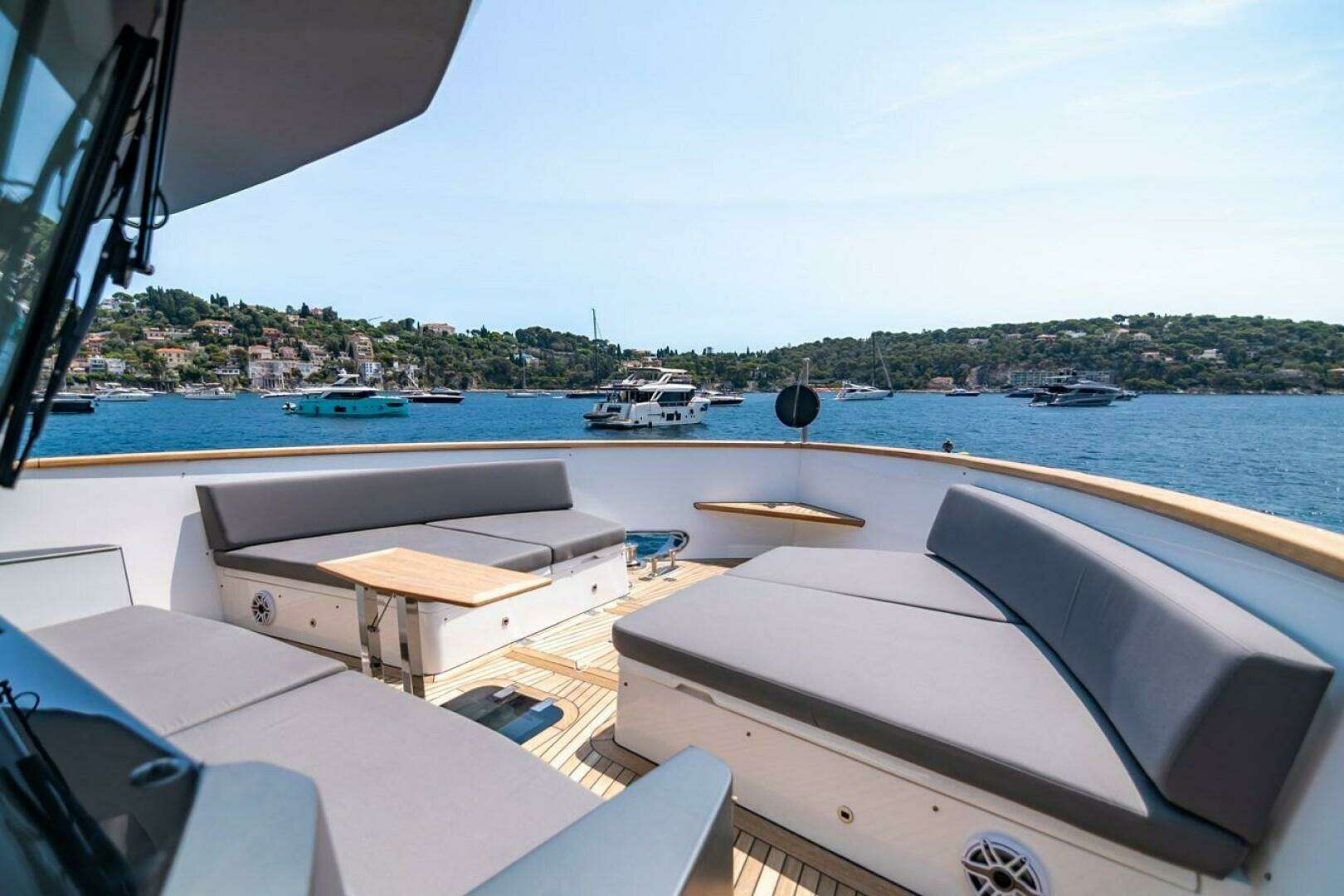

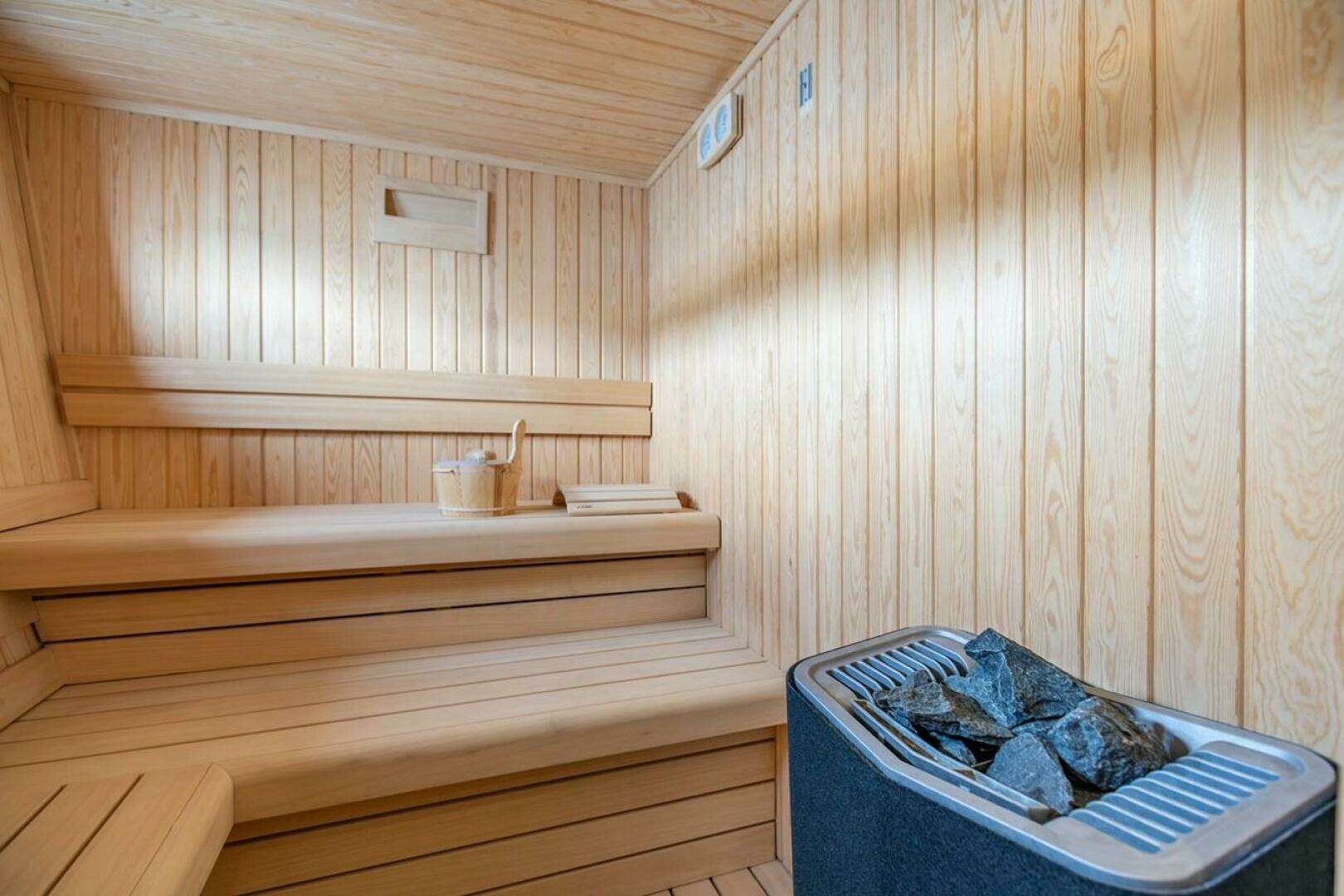

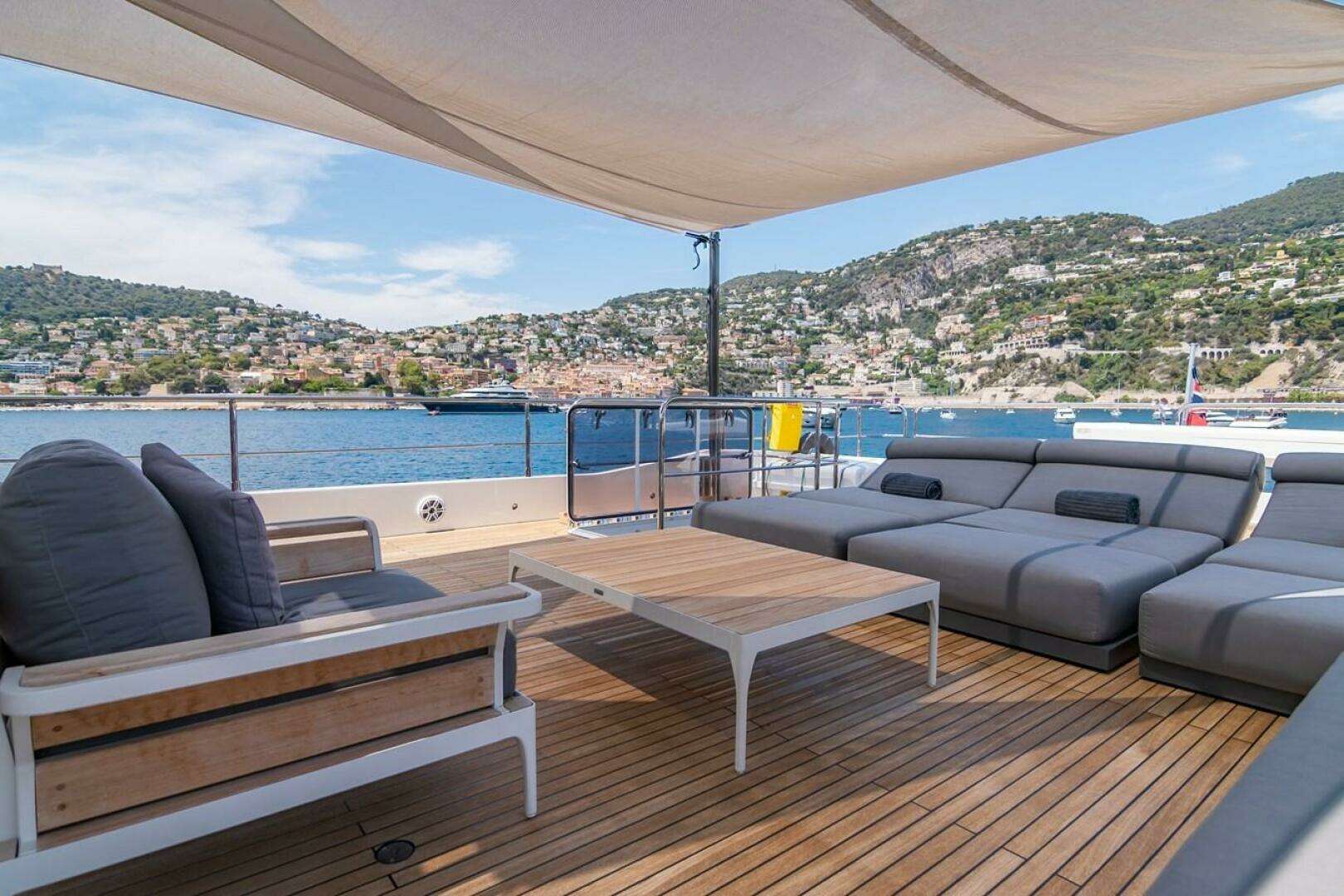

The sundeck provides an ideal space for dining and entertainment, complete with a dining table for eight, barbecue, refrigerators, ice maker, and sunbeds. The foredeck includes seating for six with a retractable table, while the hydraulic swim platform provides easy access to the sea. A six-person sauna with shower and changing area is located on the lower deck.

She’s notable as the first Numarine of her type available for charter.

Hull & Structural Design

Composite structure, Unidirectional and multiaxial E-glass with vinyl ester resin

Scantling and FEA calculations completed by Gurit Composite Engineering

Hull and super structure all gelcoat

All interior partitions and bulk heads PVC foam or lightweight cored plywood

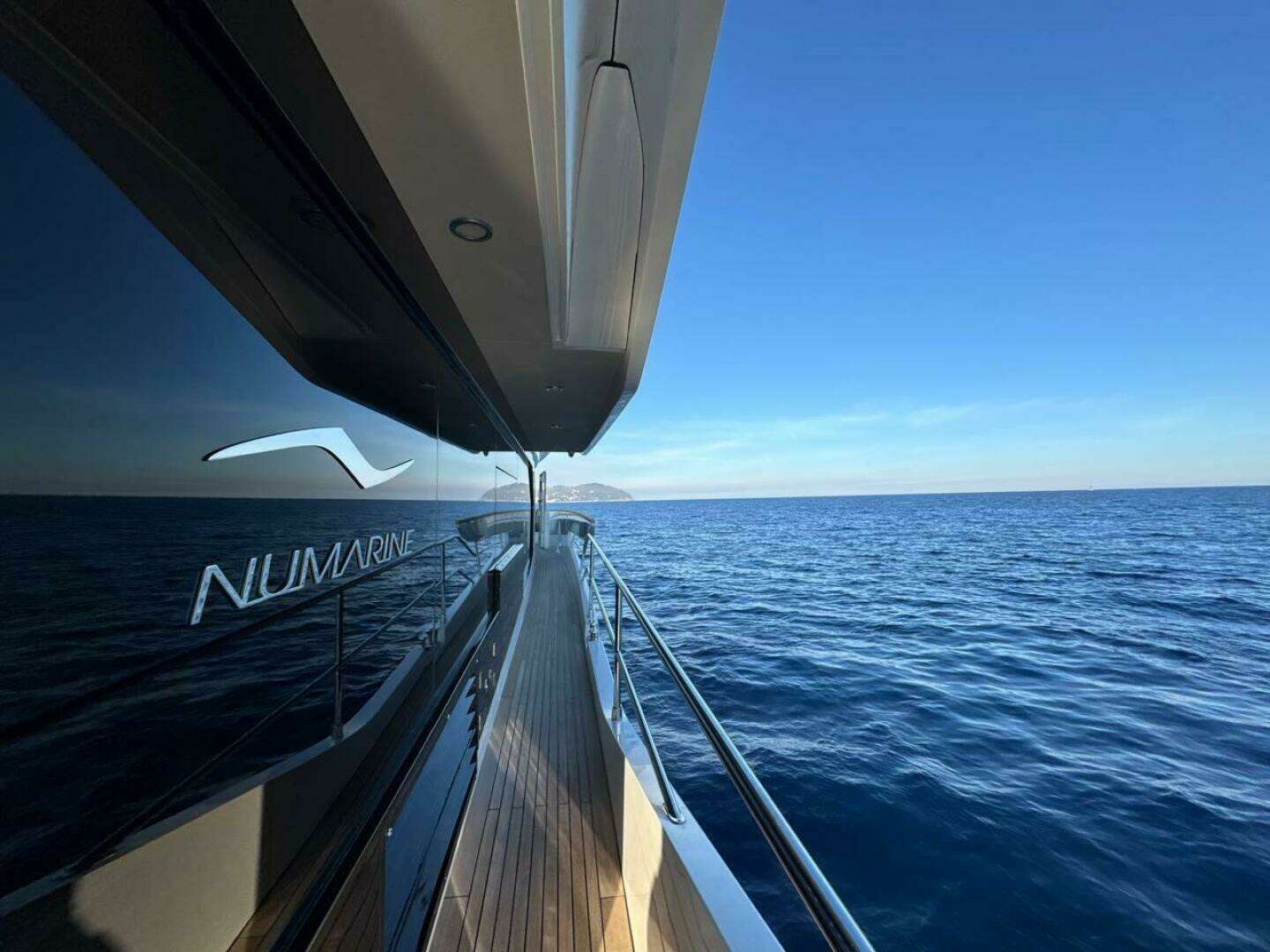

Teak laid side decks and foredeck, flybridge stairway, and cockpit floor

Propulsion System

Main Engines: MAN D2676 LE, 560 hp each

Gearboxes: ZF500 IV 3:1

Drive Type: V-drive shaft

Generators & Electricity

Output: 240v/60 Hz

Generators: Cummins Onan 17.5kW and Cummins Onan 27 kW Hours: Stbd 2905 Port: 2157 - 27MDKDU-8208A

Gen. Fuel Consumption: 2.4 gal per hr at full load

Shore Power: Twin dockside 240 Volt 63amp 60Hz AC connection with Glendenning cable masters and IsoBoost isolation transformers

Batteries: Main Engines: 24V bank for engines and thruster 4+4 to allow 48v for thrusters / windlasses

Generator Starting: 17.5 and 27

General Service: 24V auxiliary 880Ah

Air Conditioning

Full air conditioning and heating system via central chiller, with individually controlled fan coils in each stateroom and interior area.

Other Machinery

Watermaker(s): 2 x Idromar 280 l/h

Stabilizers: CMC Marine 240VAC Electric Fin Stabilization

Bow Thruster: 15KW-300Kg thruster /DC electric

Stern Thruster: 15kw - 300 kg thruster/DC electric

Steering System: Power Assist Hydraulic steering system

Fuel Separator: Dual fuel filters

Bilge Water System: Automatic bilge pumps

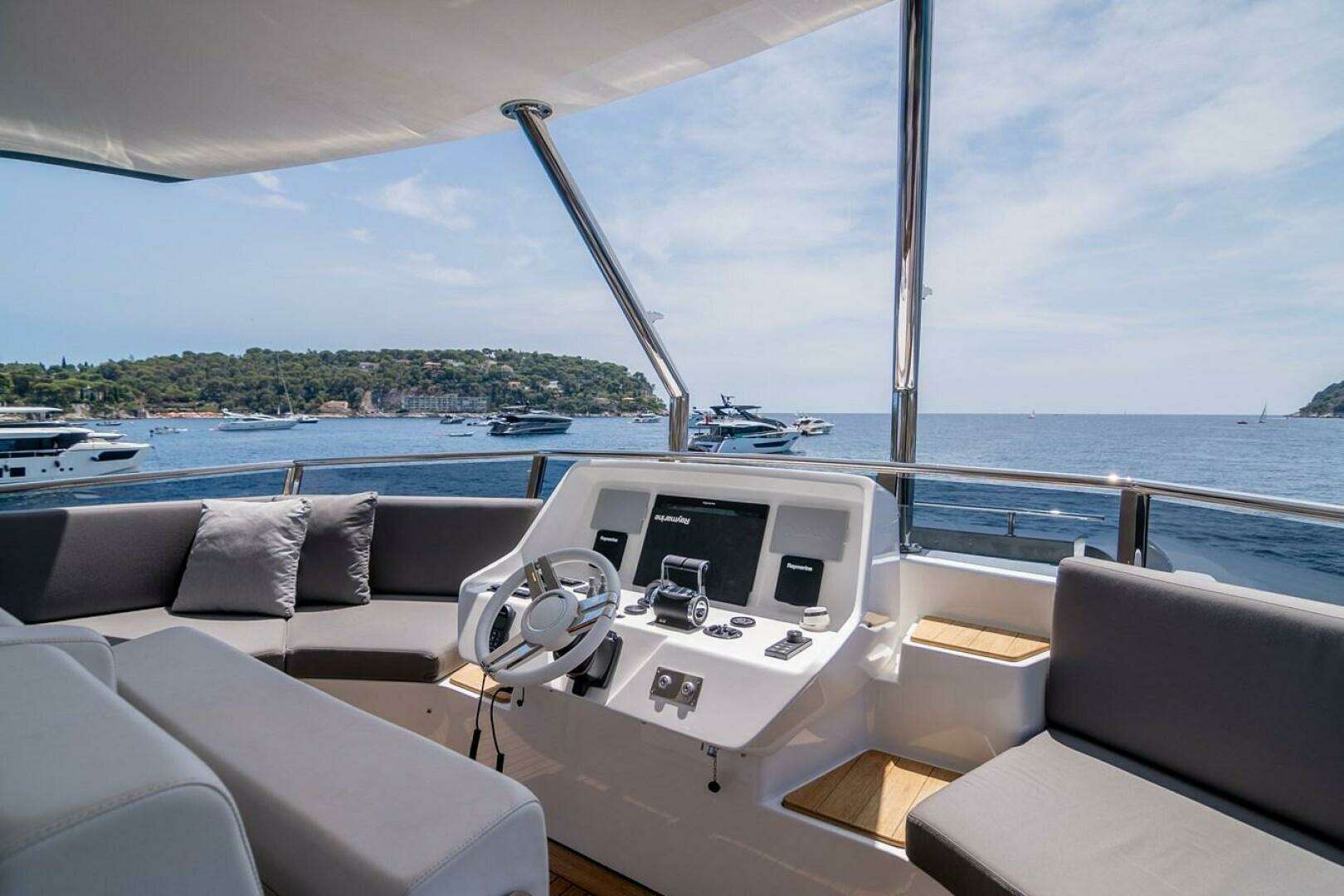

Helm Control: Flybridge

Electro-hydraulic power steering and adjustable tilt steering wheel

Full engine controls and instrumentation

Anchor windlass controls

Bow and Stern thruster control

Magnetic compass

Navigation, anchor, and light switches

Search light control

Rudder angle indicator

Engine room fire extinguisher warning light

19" Raymarine Eletronics

Autopilot display

Tridata display

GPS

VHF

Hydraulic lifting platform

Communication

Satellite dish TV system

Navigation Systems

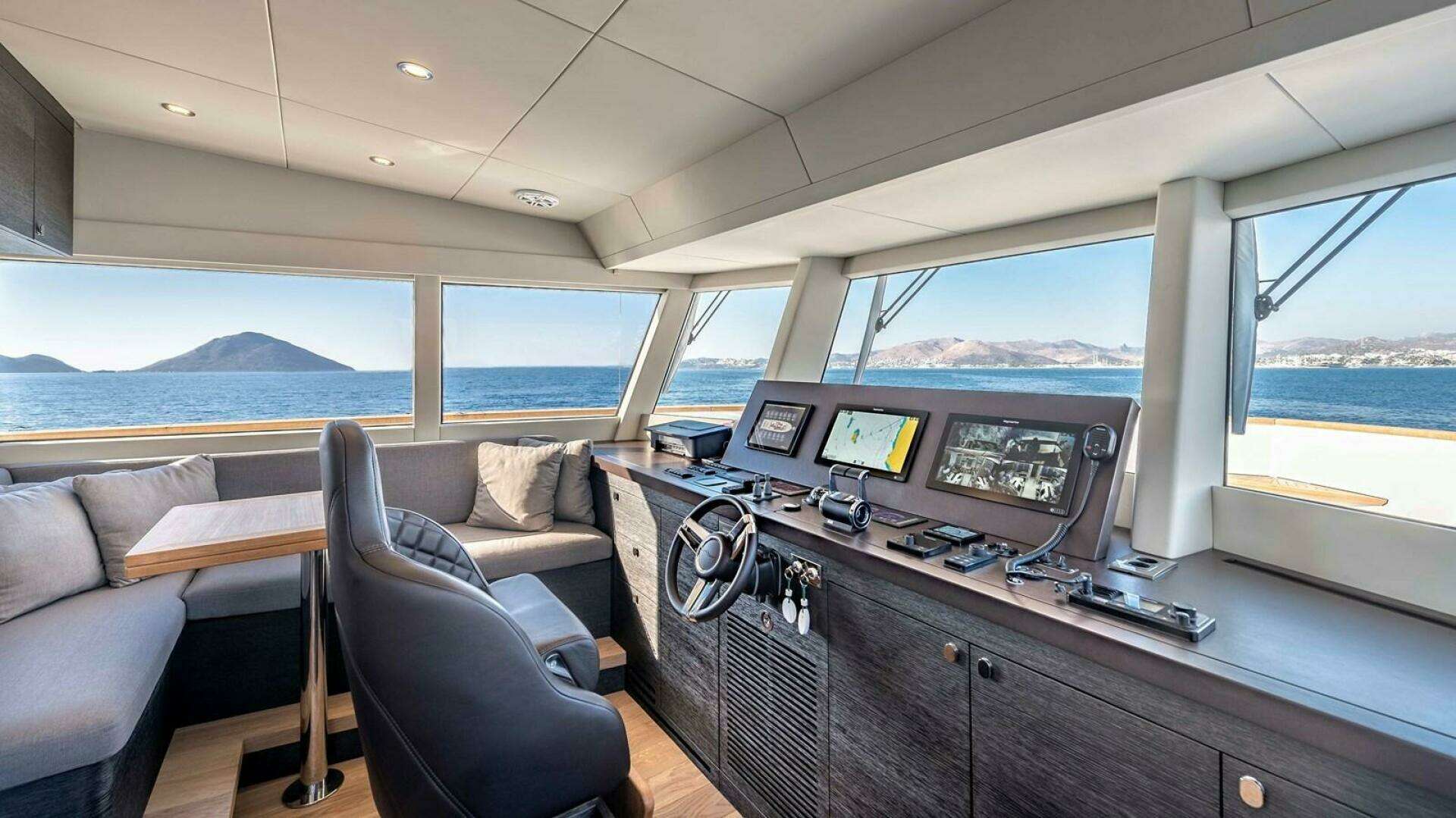

Lower Helm Console

Seating area on portside with table: Captains helm seat

Electro-hydraulic power steering and adjustable tilt steering wheel: Consul with veneer furniture and material top finish

Full engine controls and instrumentation: Anchor windlass controls

Bow and stern thruster controls: Magnetic compass

Navigation, anchor, and dashboard light switches: Horn control

Bilge alarm panel (monitoring system): Wiper and screen wash control

Rudder angle indicator: Fuel Level (monitoring system)

Fresh water (monitoring system): Black water (monitoring system)

Searchlight control: Engine room fire extinguisher warning system

2x 19” Garmin Multifunction displays: Autopilot display

Tridata (Depth, speed, and temperature) digital display: GPS

VHF with AIS: Hand Held fire extinguisher

Bilge pump controls: Main control panel (AC/DC) with generator controls

Side opening door to starboard: Parquet floor to helm position

Radio with speakers: Red night lights

Entertainment

Main Salon: Samsung 50” TV

Owner’s Stateroom: Samsung 40” TV

VIP Stateroom: Samsung 32” TV

Crew Staterooms: 2 × Vestel 22” LED TVs

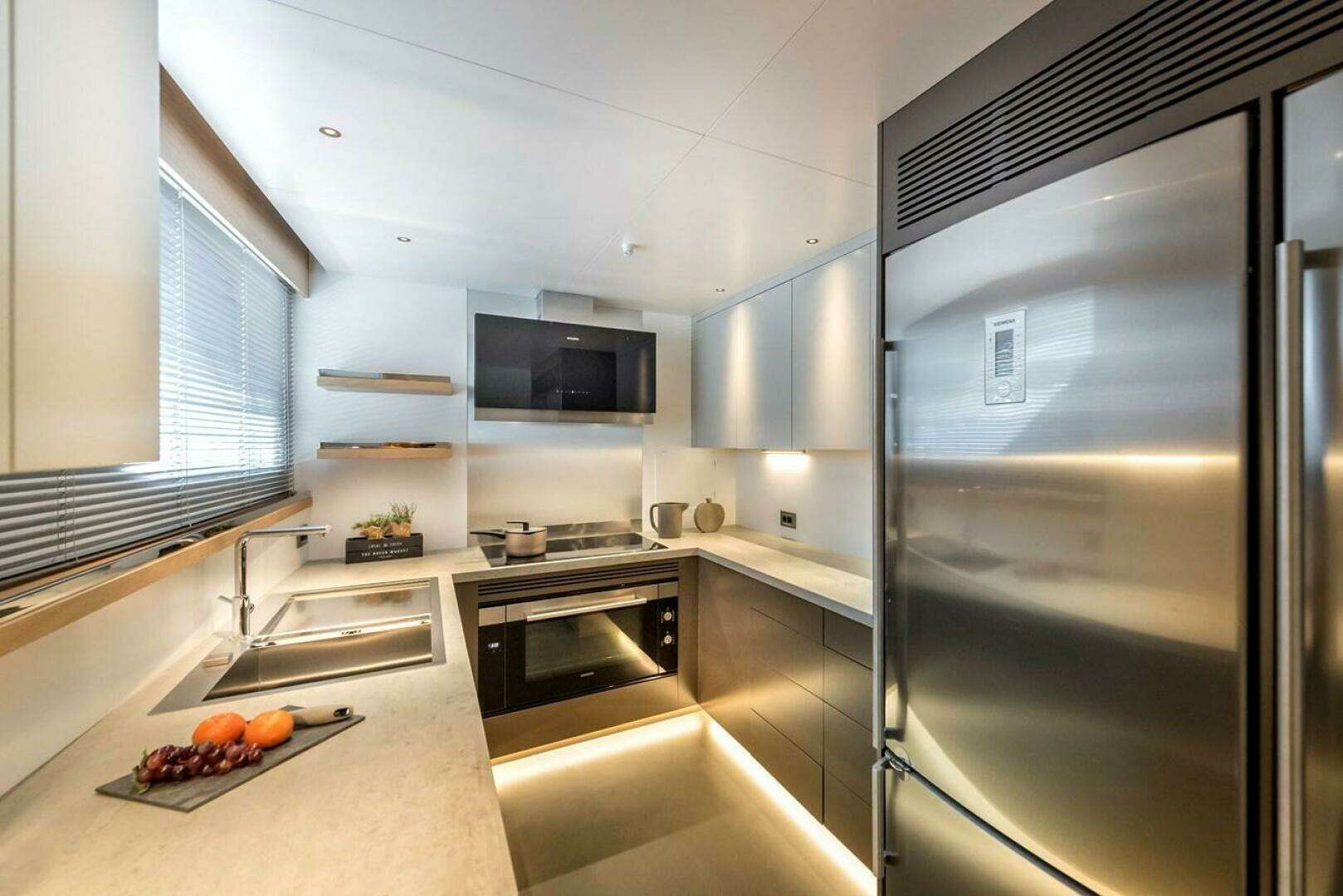

Galley

Range: Miele Induction Cooktop KM 6370

Oven: Miele Oven H 7670 BM (Stainless Steel)

Grill: Kenyon Frontier Electric Grill (Touch Control)

Refrigeration: Miele Freestanding Fridge-Freezer KFN 13923 DE

Ice Maker: Vitrifrigo IM CLS Hydro Inox (Flybridge)

Wine Cooler: Miele KWT 6322 UG (Obsidian Black Glass)

Compact Refrigerators: 2 × Miele Built-Under Refrigerator K 31222 Io

Dishwasher: Miele Fully Integrated Dishwasher G 7596 SCVi AutoDos

Ventilation: Miele Wall-Mounted Hood DA 6498 W with DADC 6000 (Pure Grey)

Laundry Equipment

Siemens Washer-Dryer Combo in Crew Area

Siemens Washer-Dryer Combo in Lower Deck

Deck & Hull Equipment

Anchor Windlass System: Twin electric anchor winch with foredeck and three station controls

Anchors: Dual 80 Kg

Anchor Chain & Rode: 120m/150m

Deck Capstans: Electric stern rope mooring winches (2 at the stern and 1 at the bow)

3rd station on the portside

Davit/Cranes: Davit on aft Flybridge deck

Passarelle: Port side passarelle

Spotlights: Remote controlled search light

Exterior Showers: Swim shower at transom

Swim Ladders: Stainless swim ladder

Underwater Lights: 4 underwater transom lights

5 Blade NAB bronze propellers

NAB bronze P brackets

Stainless steel Marinemet 25 duplex shafts

Dripless shaft logs

High performance bronze rudders

Full cathodic bonding system to aluminum anodes

Electric bow and stern thrusters

Antifouling - Black

Tender & Toys

Tender: Zodiac 5.2 m with 90 hp outboard

Jet Ski: Sea-Doo Spark (2-Seater)

Fire Safety & Protection

Automatic fire extinguishing system with engine, generator, and fan shutdown linked to indicators at both helm stations. Smoke detectors in all staterooms and living areas, with a heat detector in the galley.

Additional Features & Remarks

Isotherm Drawer 190 INOX Fridge on the Flybridge + ISOTHERM CRUISE 130 Drink INOX at the Cockpit Bar

Install lightening protection with copper spike on highest point of mast and connected to Dynaplate on the hull
