QUICK SPECIFICATIONS

Cockpit + fold-down swim platform

Crow's nest w/ compact helm station

Four staterooms, incl. a full-beam on-deck master suite

Enclosed Skylounge w/ main pilot console

Boat deck loose L-shape sofa set & coffee table w/ Hi-Lo propane BBQ

High-performance S-class 5-blade propellers

Side Power SPS93/VF1650 stabilizers

Side Power SH550 bow & stern thrusters

Steelhead davit ES2500 (1130 kg/2,500 lb)

Spot Zero fully automatic watermakers

Maretron monitoring system

HULL AND MAIN STRUCTURE

White gel coat finish

One-piece hull and superstructure utilizing SCRIMP™ technology with Horizons patented 6D infusion, incl. longitudinal and transverse stringers

Hull, deck & superstructure built with licensed process SCRIMP™ for improved strength and less weight

Hybrid design hull bottom with sandwich construction and solid fiberglass

High-density Divinycell or equivalent foam-cored hull sides, decks & superstructure

Stringers with high-density foam coring

Interior structural components all properly bonded to hull

Strong collision bulkhead for extra safety

International brand anti-fouling bottom paint w/anti-osmosis treatment

PropSpeed/PropGold metal paint for underwater appendages

Tunnels for reduced draft

High-Performance Piercing Bow (HPPB) with S/S protection plates

Upper deck with bump-out design at PORT and STBD. side

FOREDECK & AFT DECK

Teak aft Deck

(2) ACCO 300 ft high-tensile 1/2” anchor chains (2) 90kg S/S anchors

(2) Maxwell VWC 3500 windlass

Maxwell VC2500 electrical rope capstan on bow deck

(2) Maxwell VC2500 electrical rope capstans on aft deck

Frameless windows, slightly tinted tempered laminated Low-E glass for windshield

Frameless windows, tinted tempered laminated glass for side windows

Foredeck accessed from stbd. staircase/ walk around on main deck

Foredeck built-in U-shaped seating w/ sliding tables

Foredeck sunpad cushion with cup holders and pop-up lights (x2)

Sunshades for bow seating, per layout

Manual freshwater & seawater anchor chain washdown system

(2) Chain counters in pilothouse

(2) Aft deck bulwark side doors for boarding

Wind door on each side of aft deck to its side walkway.

MarQuipt 7-step side boarding sea stair

43" electrical flip down TV to aft deck

CROW’S NEST

Non-skid deck

Helm bench

Radar arch w/ antenna bracket

Automatic carbon ladder with sliding hatch

Compact helm station (S/S steering wheel, carbon fiber dashboard panel, engine controls, engine  start/stop, engine displays, a MFD 9213 13" display, autopilot, a repeater (Marin Instrument), VHF handsets, control of bow and stern thrusters, magnetic compass, an air horn button, cup holder)

COCKPIT

Teak Cockpit and swim platform

Storages under floor

Two transom doors on the aft coaming

Convertible transom fold-down swim platform

(8) Rotating fishing rod holders & (2) Hubbell outlets

Eskimo fishbox ice system & light-up bait tank

SKYLOUNGE & BOAT DECK

Enclosed skylounge with forward helm station, incl. (2) helm chairs, aft L-shaped settee, and day head, 43” electrical fold-up TV, and custom two-level bar with 3 bar stools, sink, refrigerator, and ice maker

Custom-designed helm w/ full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Riviera ASTRA magnetic compass, surveillance camera system, bilge pump panel & navigational lights

Hydraulic Steelhead davit ES2500 (1130 kg/2,500 lb)

Upper deck w/ L-shaped seating, wet bar w/ sink, chest freezer, 24” Hi-Lo propane BBQ, and storage

ENGINE & PROPULSION DETAILS

Twin CAT C32A 1,600hp engines

Side Power SPS93/VF1650 stabilizers

Side Power SH550 bow thruster + SH550 stern thruster

Zipwake interceptor system

Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder

Engine alarm system as per engine standard

High-performance S-class 5 blade propellers

Bronze struts w/ backing plates

Shaft and Rudder packing glands w/ Tides Marine dripless seals or equivalent

Tethered remote handheld controller (w/ throttles, gears & thrusters) with plug on cockpit & pilothouse

Hydrive marine power steering system

Underwater exhaust system for engines w/ bypass mufflers

Engine room with lightweight floor

Heavy-duty Insulated engine room door

S/S overhead grab rail on each side of engine

Anti-noise treatment to exhaust system

Delta-T engine room demisters

Air compressor

ELECTRICAL SYSTEMS

GFI protection for all AC outlets in exterior, heads, galley

and engine room

Electrolysis bonding system

Cathodic protection with zinc anodes for shafts, struts, etc.

LED lighting system throughout interior & exterior

(6) Underwater lights

(2) Kohler Generators 40kW (60Hz) with sound shield

Maretron monitoring and control system

Shore power connection with (2) 100A boost polarization transformers & (2) 100A Cable masters & (2) 100A shore power plugs and bow inlets

(2) LED search lights

Pre-wired for LED boat name on stern & PORT & STBD skylounge sides

Pre-wired for wireless yacht controller

MECHANICAL SYSTEMS

2700 US gal fuel tanks w/ sight & electrical gauges

(2) Racor 500 MA fuel filters, one on each generator

(2) Electric fuel transfer pumps

Fuel polishing system (210GPH)

400 US gal FRP water tank

(2) 20 US gal water heaters

High-volume AC freshwater pressure pump & backup DC pump

Spot Zero SeaXchange XTC II 1200 water maker & ZTC II 2000 water purifier

Charcoal filters are plumbed into the freshwater line: shore water inlet and galley

Hot water circulation pump

Marine Air VARCX chilled water conditioning system

ELECTRO SEA ElectroStrainer Pro

Tecma toilet system

100 US gal holding tank & deck fitting for dockside pump-out

Sump pump system for grey water

Electric level indicators for holding tank

Headhunter sanitary treatment system

Electric bilge pump

High water level bilge alarm

Bilge exhaust ventilation fans

Fire insulation in engine room

Fire-resistant treatment for pipe penetrations

Automatic fire damper system

(4) Portable fire extinguishers

Integrated fire alarm system in pilothouse, with CO and smoke detector in each cabin

INTERIOR DECOR & EQUIPMENT

INTERIOR DECOR & EQUIPMENT

Guest accommodation includes on-deck master stateroom, fwd. VIP stateroom, port &  Stbd. VIP staterooms, all ensuite

Crew area incl. a captain's cabin and a crew cabin, head & shower, access from stbd. salon

Laundry room w/ washer/dryer, ironing board, sink and storage

Customized interior package for interior décor & lighting

Full set of Wedgwood (GIO) galley tableware for 10, including dish holder, pot/pans, dishes, plates, knives, forks, glasses, etc.

Stacked washer/dryer in crew quarters

Extra set of bed sheets for all guest cabins, including crews

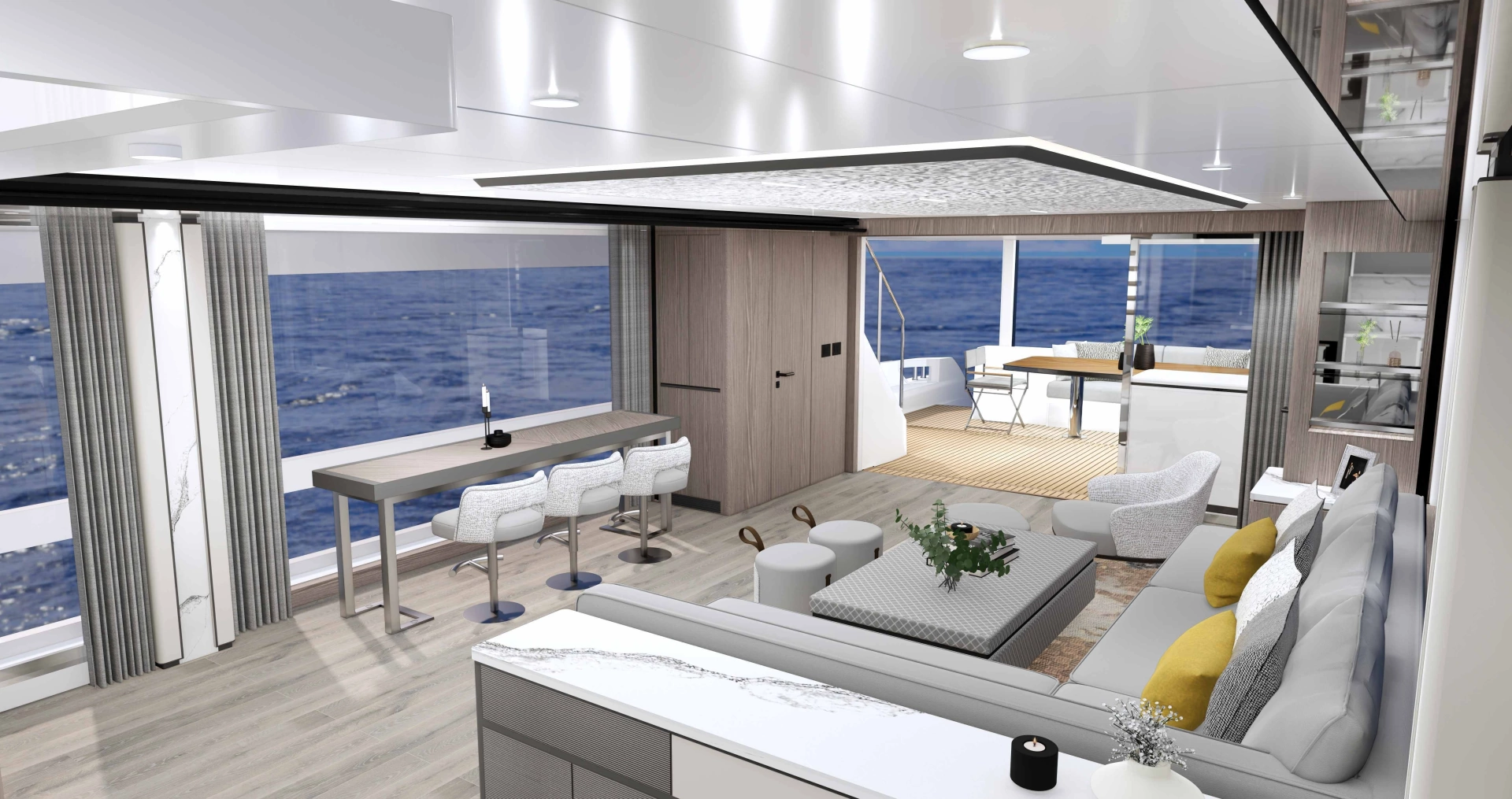

SALON

S/S manual sliding entrance door w/self-locking

Dayhead with two access doors

L-shaped sofa & armchair w/ a coffee table

Custom area rug

Port side buffet cabinet behind sofa

Convertible folding dining table & chairs, per layout

Breakfast bar design

Electric sheer shadings

55" TV, fold-down from ceiling

GALLEY

Enclosed galley w/ Hi-Lo blind

Professional galley + extensive storage per layout

Full-height Sub-Zero freezer + full-height Sub-Zero refrigerator

Miele cooktop, oven, dishwasher & Bosch over-the -range microwave

Sub-Zero wine cooler

(1) Opening porthole

MASTER STATEROOM

King bed w/ storage drawers, nightstands, and safe

Electric Roman shades

Ensuite head w/double sinks, rain shower & toilet

Chest drawers on both sides

(1) Opening porthole

55" TV

Escape hatch in Master with ladder

LOWER STATEROOMS

FWD. VIP STATEROOM

A double sliding bed w/ drawers underneath, hanging lockers, storage

Ensuite head w/ sink, rain shower & toilet

32" TV

MIRROR STATEROOMS

Queen bed w/ nightstands

Ensuite head w/ sink, rain shower & toilet

43" TV

CREW QUARTERS

(1) Stbd. bunk crew cabin with upper and lower beds

Port Captain Cabin with a double bed

Shared head w/ sink, shower & toilet

Miele washer/dryer

ELECTRONICS

Pre-wired SAT TV & SAT phone

Starlink maritime flat high performance satellite internet kit

4G/5G Cellular router system with WiFi on board

Sonos stereo system w/Control 4 to integrate the AV remotes for fore deck, skylounge, aft deck, main deck incl. salon and master stateroom

PILOTHOUSE NAVIGATION

Full Garmin navigational system includes:

(1) Garmin GMR™ 1236 xHD3 Open Array Radar

(1) Garmin Fantom 24x Dome Radar

(1) Garmin GSD™ 25 Premium Sonar Fish Finder Module

(4) Garmin GPSMAP 9222 22" multifunction displays

Garmin GPS

Garmin Autopilot system

Garmin Wind / Speed / Temp transducer

Garmin VHF with built-in loudhailer

Garmin AIS
