Details

83' Northern Marine / Delta

Expedition Yacht

Year: 1999

Located in Ft Lauderdale, FL

Hull Material: Fiberglass

Engine/Fuel Type: Twin Diesel

Builder/Designer

Builder: Northern Marine / Delta Designer: Steve Seaton

Dimensions

LOA: 83' 6" Beam: 21'6" Displacement: 150 Tons

Draft: 6'6" Ballast: 40000 lbs

Engines

Engine(s): Lugger Engine(s) HP: 350 Cruising Speed: 10 Kts

Max Speed: 12 Kts

Tankage

Fuel: 6000 Water: 1000

Hull

OFF-LINE is of all fiberglass construction, solid from the

waterline down. Her hull sides, deck, and superstructure

all have balsa cores. She has full cored bulkheads and

longitudinals as needed.

She is a fully molded shape with a box keel and bulbous

bow. Each of the props is on a full skeg. There is a full

steel shoe that runs the length of the keel and steel

shoes on the skegs. She carries 20 tons of lead ballast.

There is an access plate into the bulb. Above the bulb is a

stainless steel cutwater. Immediately aft is the 16" bow

thruster tube.

OFF-LINE Features enormous fiberglass stabilizer fins

measuring 47"X70" or 22Sq. Ft. Each. These fins are

large for a yacht of this size, and provide incredible

stability at slow speeds. They are controlled by Naiads

digital control head

BILGE LAYOUT:

There are 16 stations. Starting forward is the bulbous

bow. The bulbous bow is a separate watertight

compartment. Immediately aft is a watertight bow

thruster compartment with a freeman hatch in the crew

area floor for access. On the top of this compartment is

the crew area floor making this a collision bulkhead that

protects the knuckle of the bow. Aft of the bow thruster

compartment is a machinery space. At the aft end of the

machinery space is a bolted aluminum hatch for access

into the centerline beneath the guest accommodations.

Aft of that is the engine room. Aft of that is the lazarette

area.

There are two main raw water intakes in the engine room

(sea chests). They are fiberglass standpipes with cupro

nickel logs, to witch are attached bronze ball valves.

There are individual sea strainers for each piece of

equipment.

In the bow thruster compartment is the bow thruster

tube and hydraulic motor. The thruster is a counter

rotating dual 5 blade by American Bow Thruster. Also in

this compartment are two control blocks, one for the

hydraulic bow thruster and one for the hydraulic

windlasses. Also located here is the plumbing for the bulb

bow discharge and fill. Aft is an automatic bilge pump and

high water alarm. Alongside is an emergency bilge

pickup.

Next aft is the forward machinery space. Port and

Starboard are the two forward fuel wing tanks. These

tanks have large manholes. In the centerline is the

hydraulic lift for the forward looking sonar. All the way aft

are the two RUUD 30 gallon hot water heaters. Beneath

are two headhunter portable water pumps with soft

starts. Outboard and aft in this compartment are the two

stabilizer heads.

Beneath the guest accommodations are a centerline gray

water tank, and a centerline black water tank. The aft

end of this compartment has an automatic bilge pump,

high water alarm, and emergency bilge pickup.

The engine room has an automatic bilge pump, and

emergency bilge pickup. The lazarette likewise has an

emergency bilge pump, and an automatic.

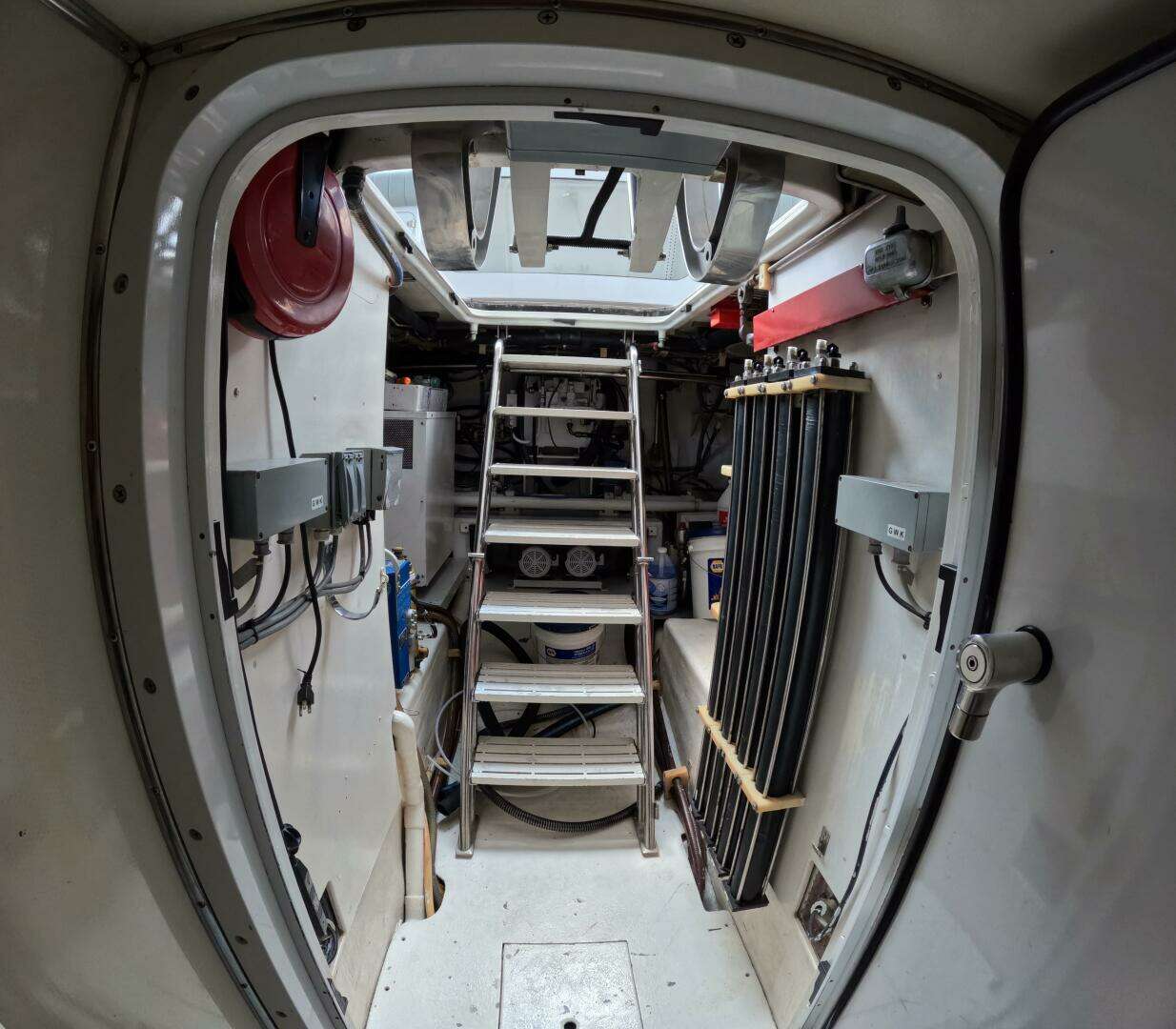

LAZARETTE:

Main access to the lazarette is via a large french hatch

flush to the cockpit deck.

In the Lazarette you will find the following equipment:

*(2) fuel tanks

*CO2 System with (4) 35 LB. bottles

*Bauer Dive Compressor

*Dive Tank Storage

*Chlorine capillary pump, and chlorine tank

*Eskimo Shaved Ice Machine

*Refrigeration compressor for aft deck refrigeration

*Single fiberglass discharge standpipe

*Swim Platform Vent

*Steering Stem with (2) pumps, Jastrom rams, and tie

bar

*FCI water maker rated at 1600 GPD with 4 membranes

*Battery Box with (3) banks of batteries-(2) 8 D house,

(2) 8D port engine start, (2) Stbd engine start. These

batteries are fitted with rotary selector switches and

disconnects.

*Newmar 24/80 battery charger, 80 amps @24 volt

*Air hose

*140 Aluminum gas tank

*Dingy gas transfer pump

in the centerline forward bulkhead is a dogged and

gasketed door into the engine room.

Deck

The decks are painted nonskid, forward on the bow deck

is the anchoring gear. There is a large anchor chain

storage area, covered with a hatch that is dogged and

gasketed. There is a divided chain bin, which is well lit

and well ventilated, and features an anchor freshwater

wash down. Also located here are two 1-1/2" braided

nylon lines with stainless thimbles and 2000 kg rated

3/16 stainless hooks. There are two Talon 3/16 stainless

plow type anchors, 150 lbs each. The anchors are carried

all the way forward in custom chutes, and are shackled to

400' of 1/2" hitest anchor chain. Pair of Muir hydraulic

windlasses with vertical capstans and gypsies is bolted

through polished stainless steel plate with scupper drains

and dam.

A bench seat is built in to the front of the house a full

widths bosons' locker beneath. Access to the bosons

locker is via gas assisted hatches to port and starboard.

Stowed in here is the tethered portable wing station

control panel. Deck level lighting is provided. A halogen

floodlight on the hardtop illuminates the anchor station.

Port and Starboard are bridge doors into the pilothouse,

and further aft are three steps up to the oat deck on the

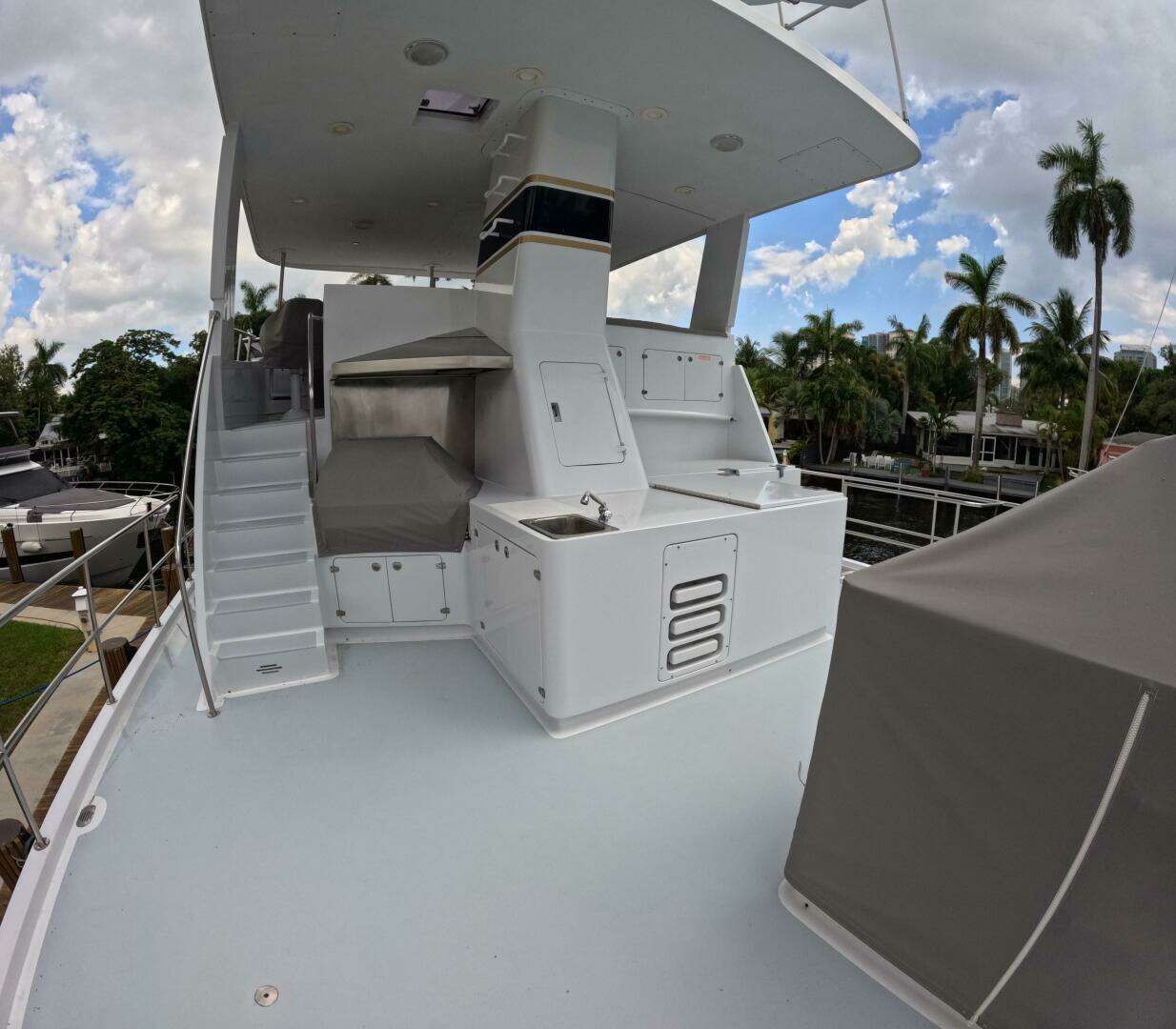

port side. The boat deck has a waist high welded stainless

rail all around. On the centerline of the boat deck is a

neatly mounted Nautical Structures fully articulating

hydraulic davit. Underneath the davit are large storage

drawers.

Tenders are carried on stainless chocks bolted to the

deck, and secured with stainless tie downs. One tender is

a 2000 17 Mako Center console with a 130 Honda 4

stroke, the other tender is a 13.5' Novurania RIB with a

50 HP Honda 4 stroke. Both tenders can be launched on

either side, or transom by the davit

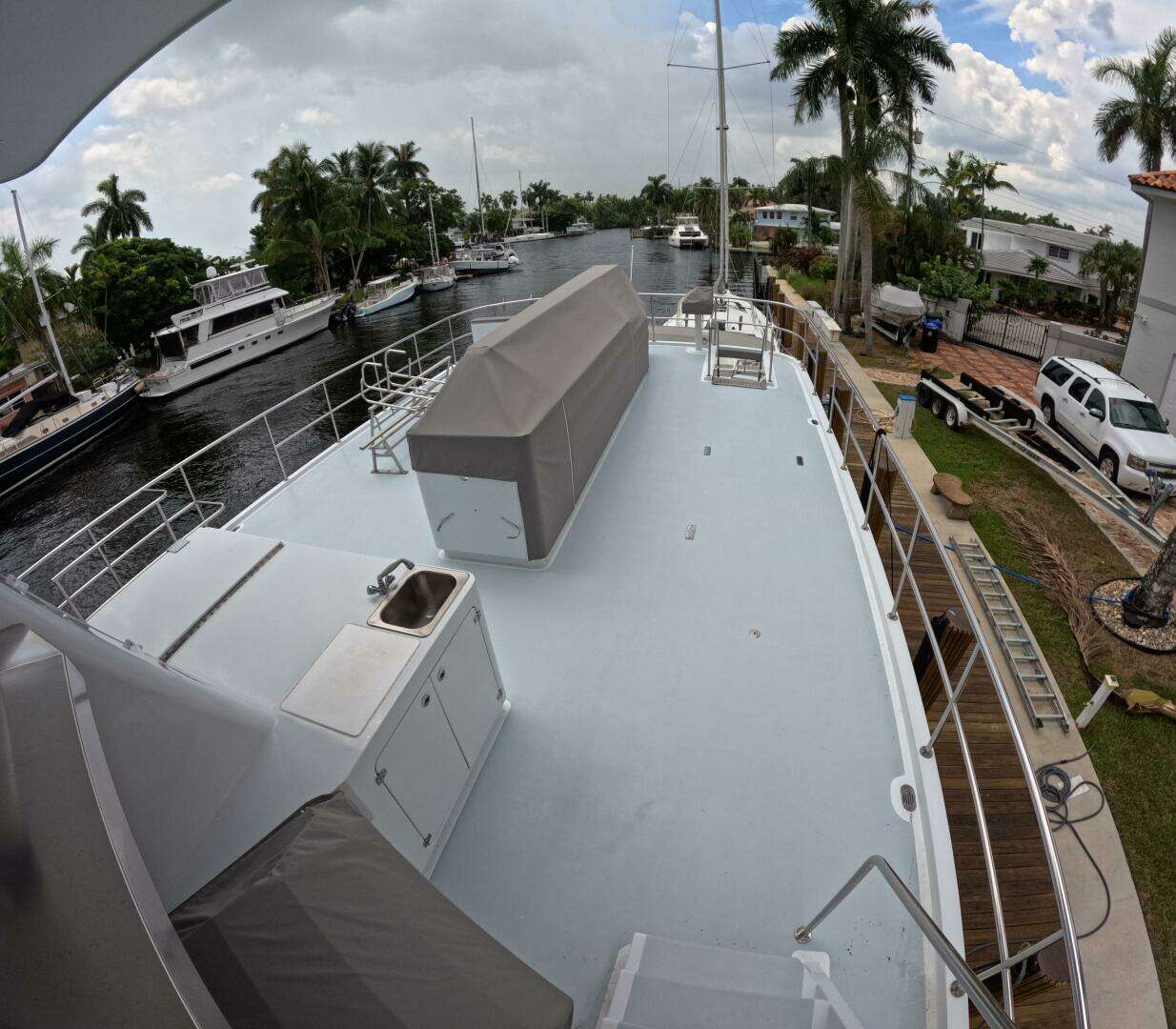

Forward on the boat deck to starboard are fiberglass

cabinets housing two chest type freezers, one is a 15 cu.

ft, and the other is a 20 cu.ft.

To port of this area are a stainless sink, and a stainless

steel Wolf barbeque grill. There is a professional stainless

hood over the grill. Port and starboard are two Viking 8

man life rafts on hydrostatic releases.

Forward to port of the grill area are steps leading to the

fly bridge.

Aft to port on the boat deck is the backing station with

the following:

*bow thruster control

*Follow up steering

*Mathers main engine controls

*Main engine start stops

*Autohelm Maxiview display

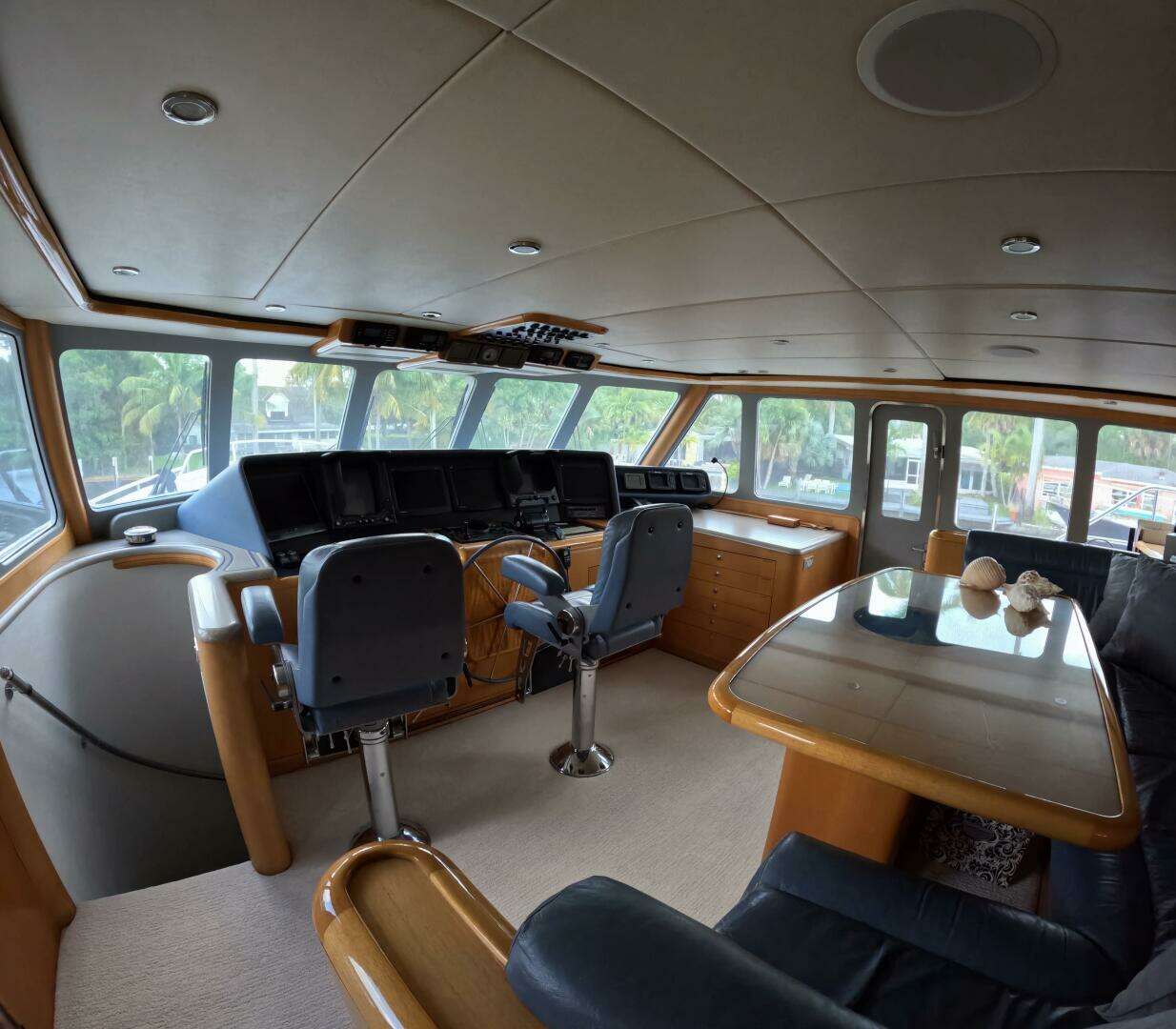

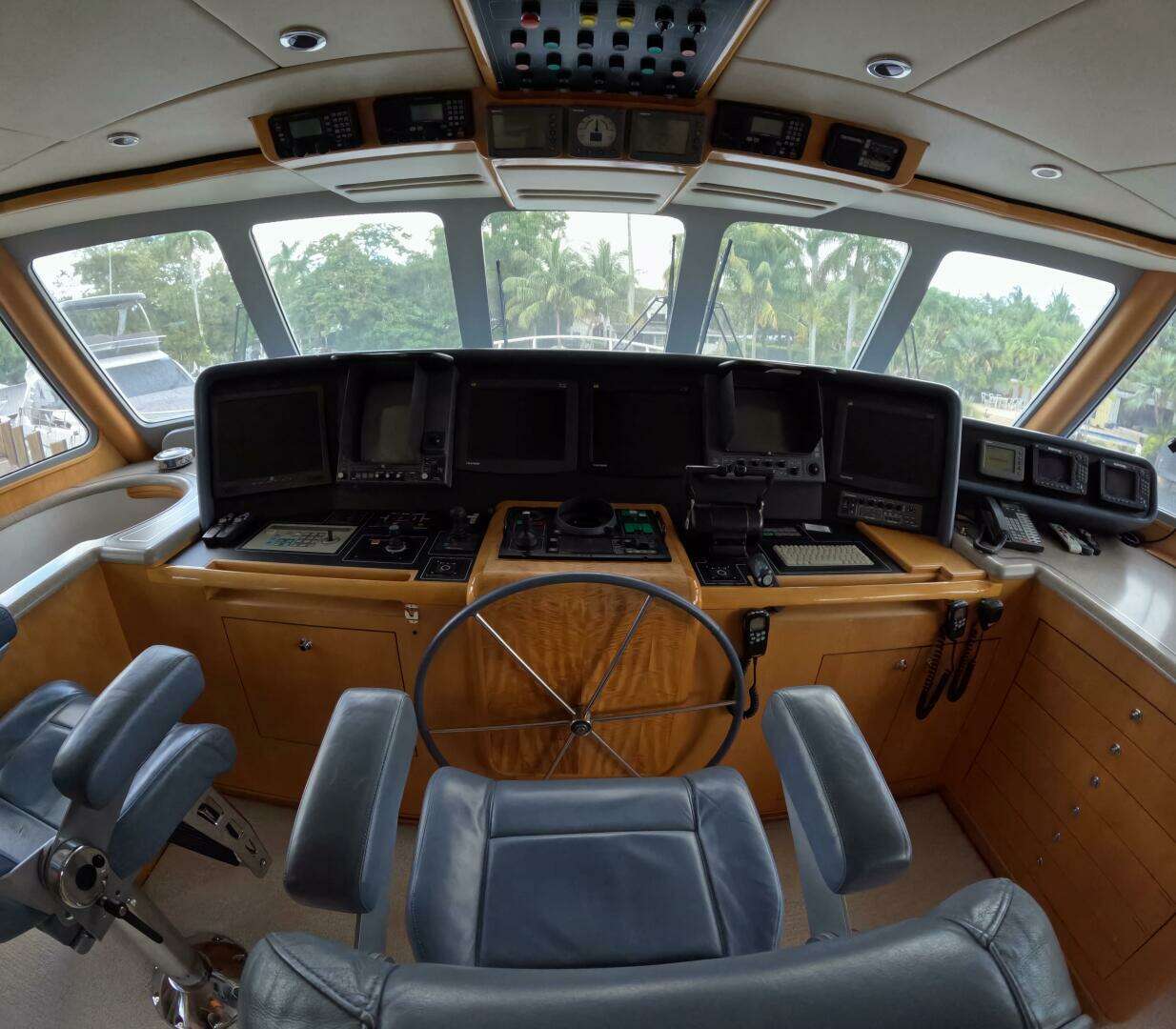

The large fly bridge features a fiberglass hardtop with

EZ2CY enclosure. Forward to port is the fully

instrumented helm with repeaters for all electronics, and

cameras, and two Stidd Helm Chairs. To starboard, and

aft is a large U shaped seating area. with two tables. Aft

are the aluminum steps up the mast and through a hatch

to access the hardtop, and equipment on the mast. Under

is the bridge refrigerator/icemaker.

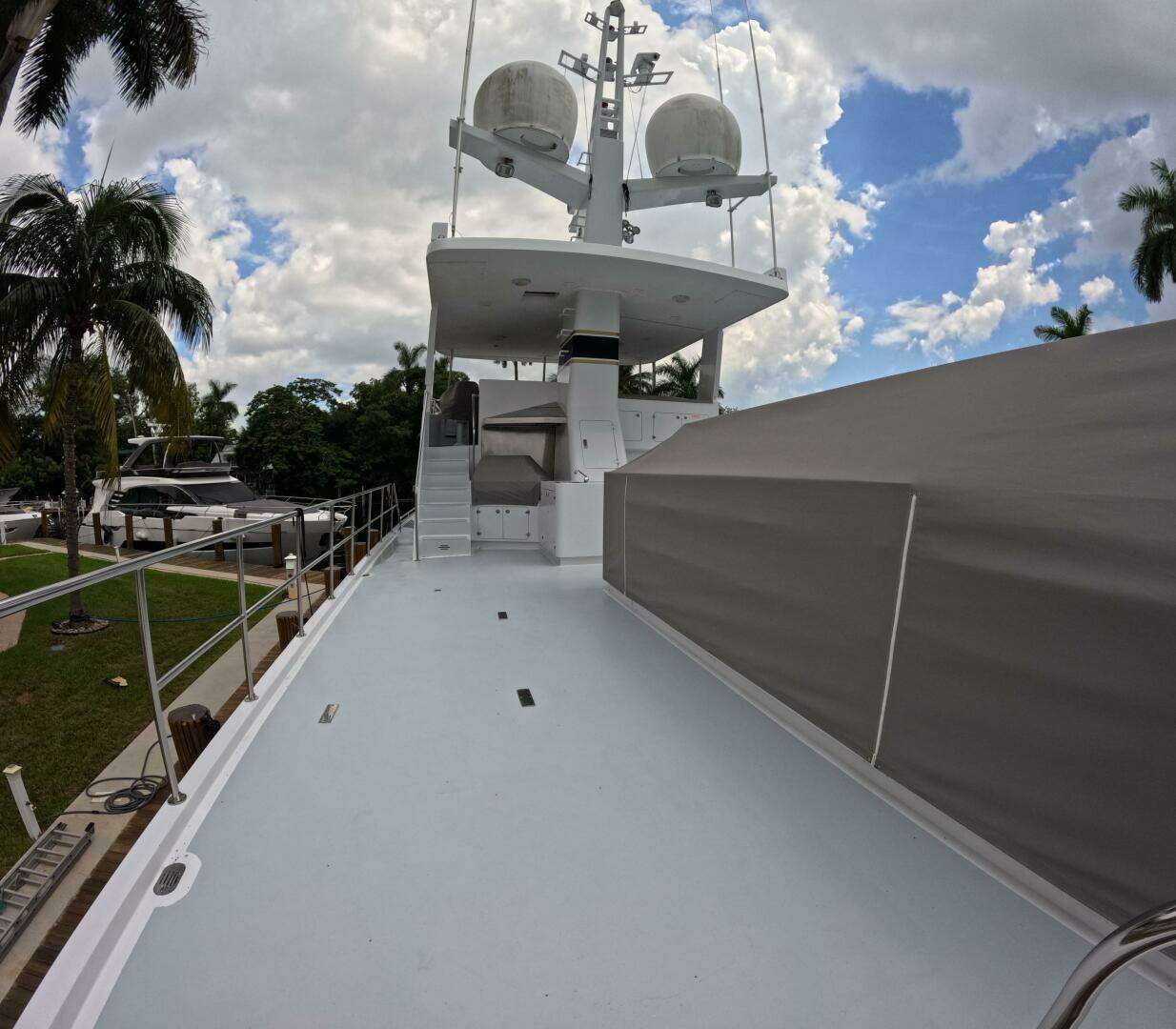

The following gear is located on the hardtop and mast:

*halyards port and starboard

*(2) 6' Furuno arrays

*ACR model RCL 600 remote search light

*Newmar Hailer speaker

*(2) large domes satcom, and Seatel (upgraded in 01)

*Kahlenberg model T-1, triple trumpet horn

*(2) aft facing halogen floodlights

*Forward facing halogen flood light

*(2) ACR Satellite 406 EPIRBs on brackets with

hydrostatic releases

*closed circuit TV camera mounted on Vicon remote

mount

*Texas Instruments Nightsight remote thermal imaging

camera

*Anemometer

*Anchor light

*Mast head light

*"Not Under Command" lights

Cockpit / Fishing

The cockpit is accessed via stairs down from the stbd side of the pilothouse, stairs aft from the

boat deck, or from a door aft in the salon.

The cockpit features new (02) teak decks, and is surrounded by boxed bulwarks with padding at

knee height. It is partially covered by a fiberglass overhang with flush mounted lighting, and

stereo speakers.

The cockpit has everything a smaller sport fisherman would have. Along the forward end is a large

bait rigging area, with drop in bait freezer. Refrigerated drink cooler, and stainless steel sink.

There are RUP triple spreader outriggers, with hydraulic layouts.

Mounted aft to stbd is a large Scopinich fighting chair, and to port is a pedestal mounted teak

table. On the transom is a large aerated live well that is lit, and features a Plexiglas front. To

starboard and aft is the dingy fueling station, and next to it is the large transom door with access

to the swim platform, that also features teak decks.

Forward on either side is access to the side decks, that features teak soles, fuel filling stations,

and boarding access. There is a cabinet in the bulwarks that houses a fire station with 100' of fire

hose, and start stop switches for the pumps.

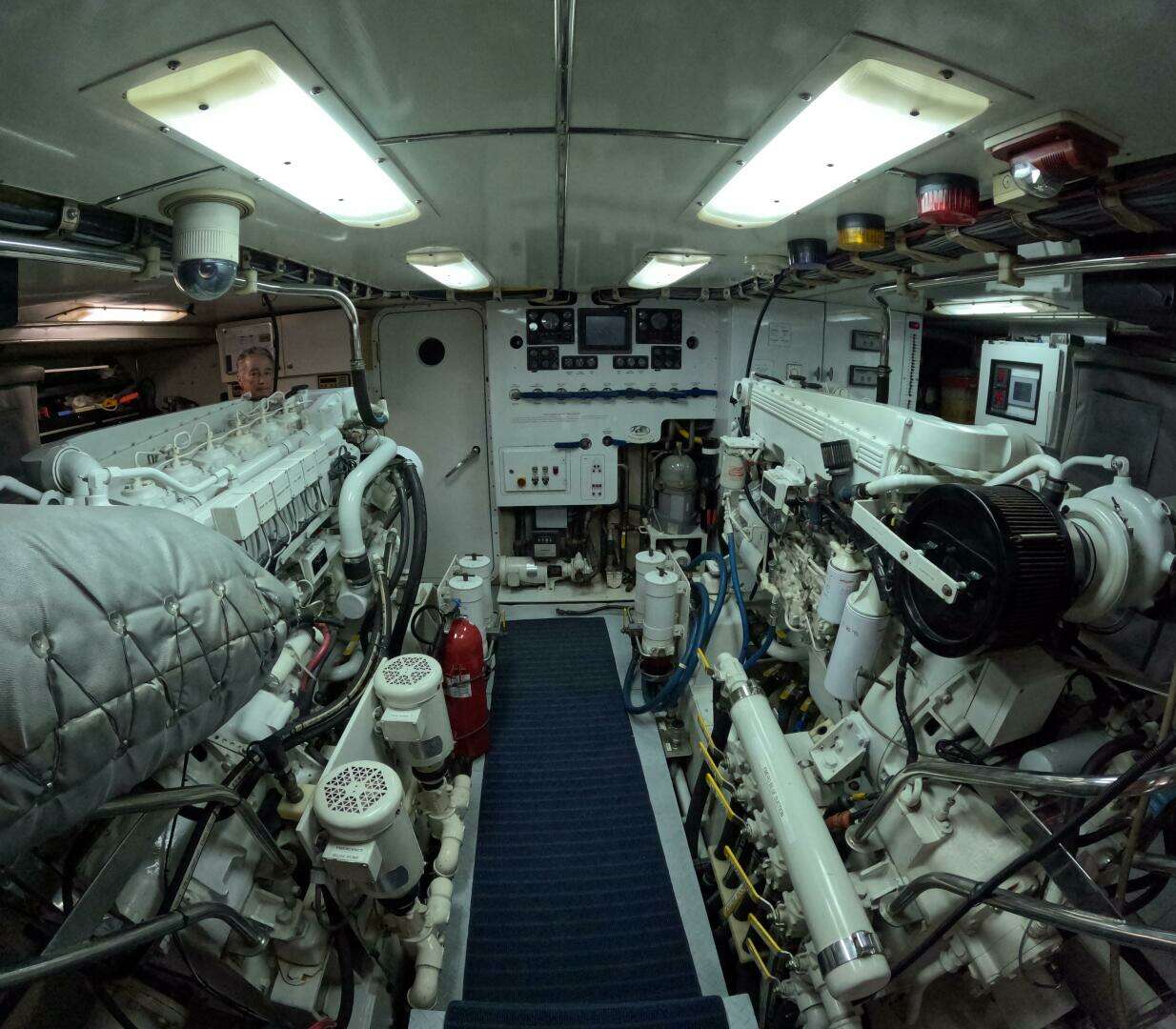

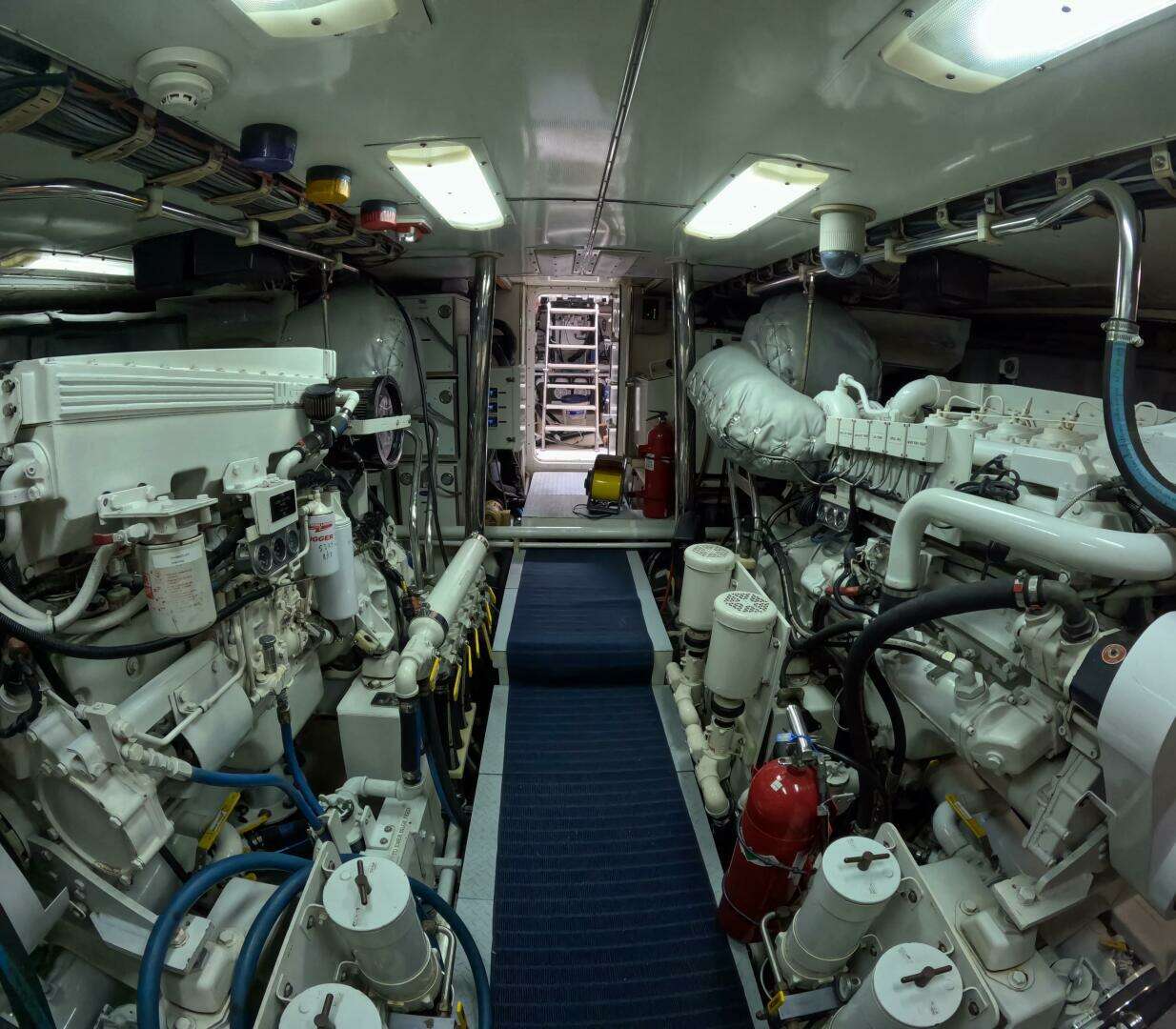

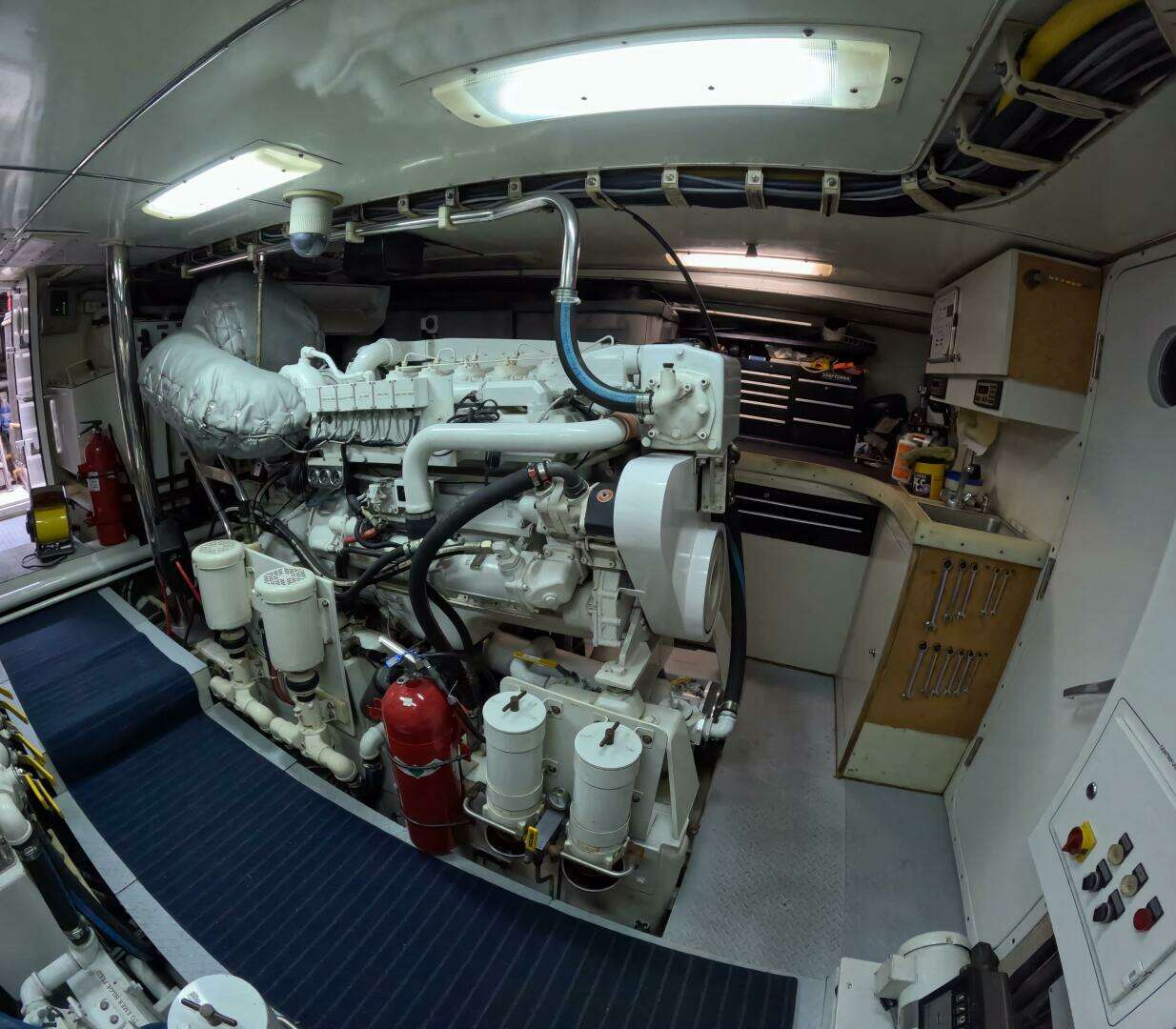

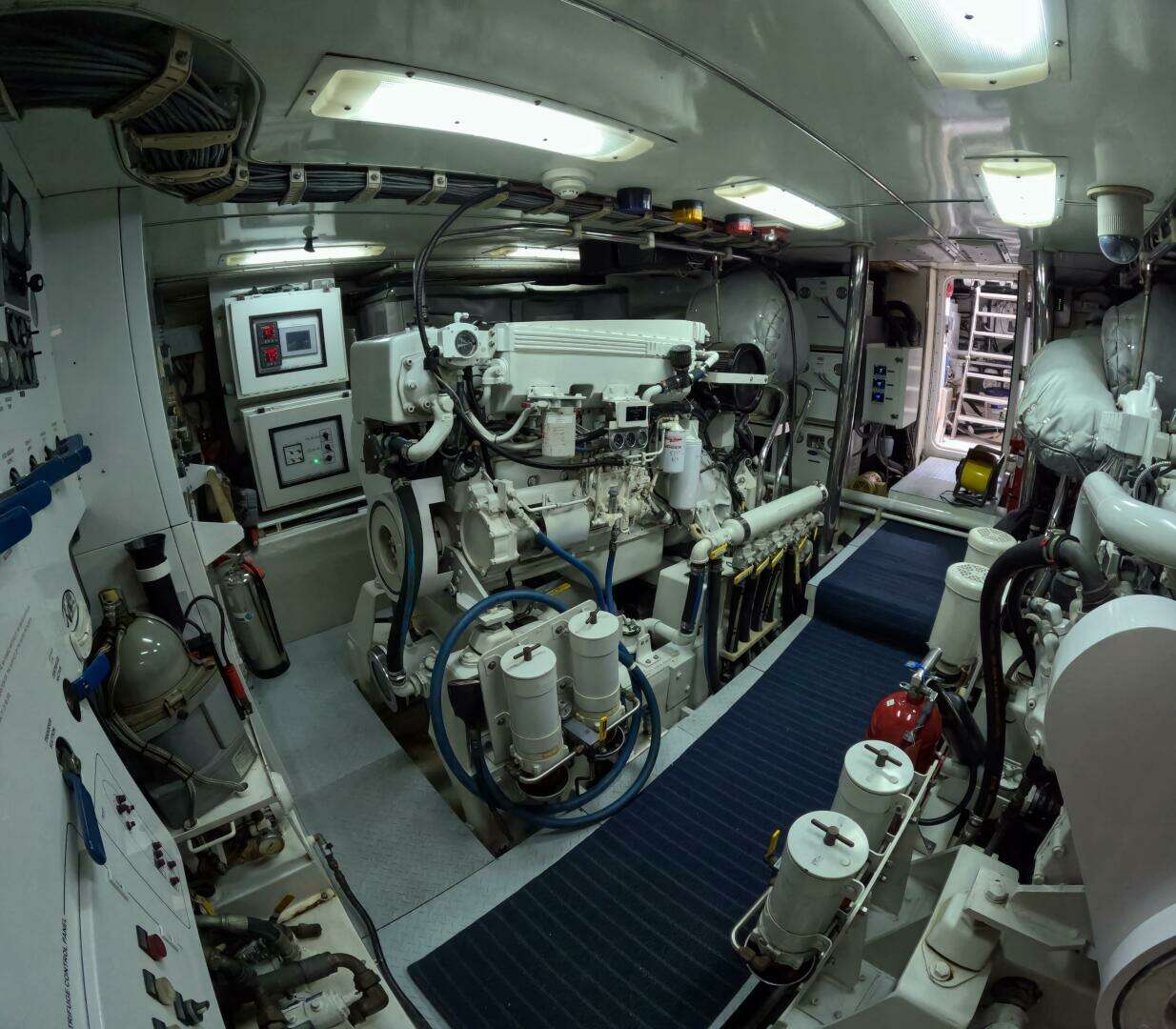

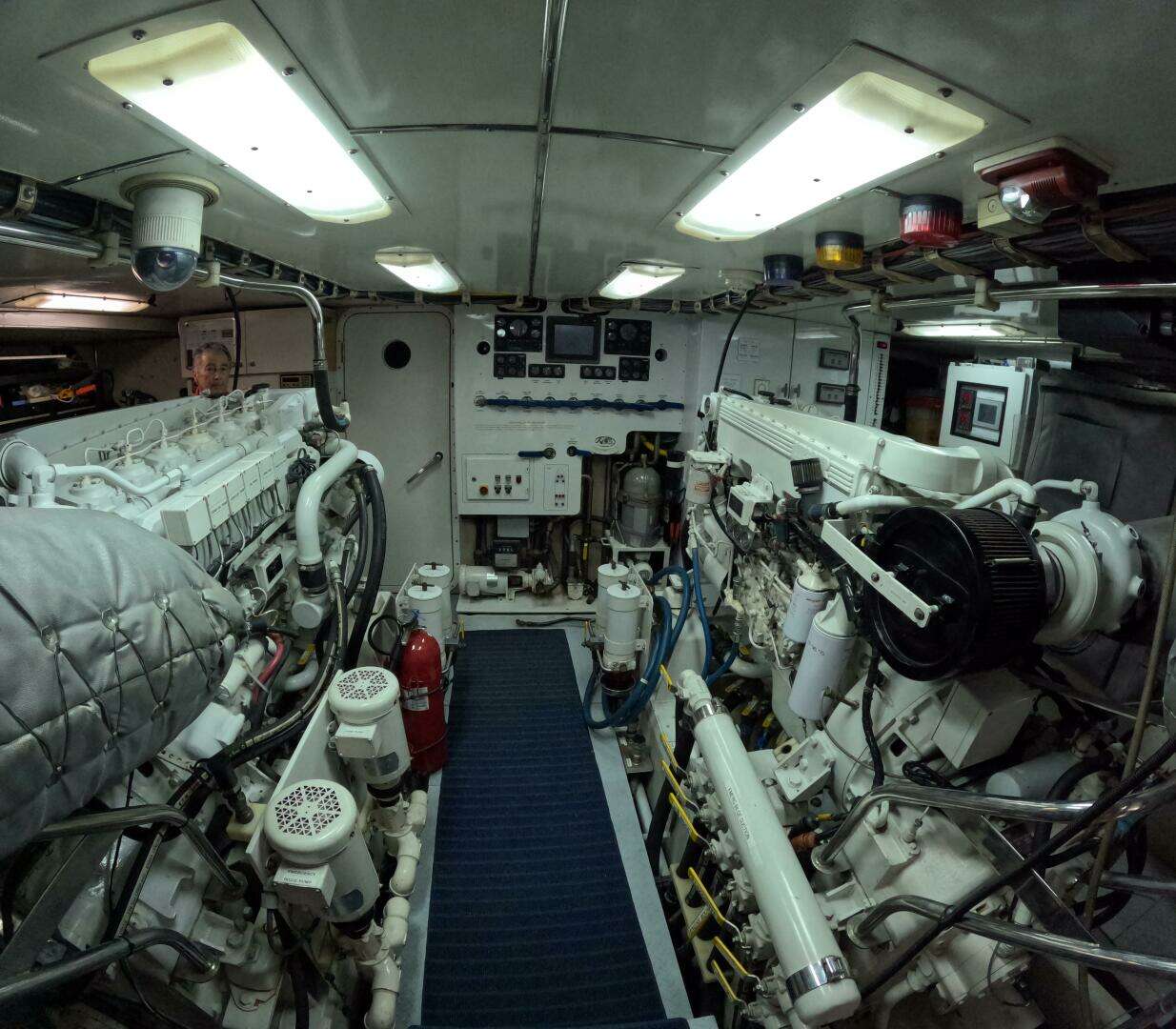

Engine Room

Entrance to the engine room is from either of two freeman doors, one on the bulkhead forward,

and the other on the bulkhead aft. The room is well insulated behind perforated metal shielding.

The engine room is painted white throughought. There is both AC and DC lighting.

The following equipment is located in the engine room:

*(2) Lugger Mains

*(2) Northern Lights Generators (40 KW each)

*(5) bilge pump panel

*Main electrical panel with:

Ground fault meter

(3) power measure panels

Generator selector switches

Pump Controllers

Main circuit breakers

Distribution circuit breakers

*Atlas shore power converter (new in 02, by Ward Marine Electric)

*Hydraulic system with:

(2) PTO pumps one off each generator

Electric hydraulic pump

Baldor frequency drive

*Hydrovane 10 air compressor

NOTE: There are two reservoirs, one in the engine room, and one in the Mast

*Aqua Air Hydromatic chill water air conditioning system with three 4 ton compressors, fitted with

frequency drives

*Blue alarm light for phone

*Yellow alarm light for general alarm

*Red alarm light for fire

*(2) 18" fans with variable speed, and reversible drives in the main electrical panel

*Auto damper on air intakes

*Royal Fox waste treatment system model RF200FP-B, US Coast Guard certified, fitted with two

Edson Diaphragm pumps.

*Workbench with tool drawers, tool box, vice, grinder, and double sink

*Naiad stabilizer control system

*(1) rubber impeller 2-HP bilge pump with 5 bilge manifold

*(1) 2-HP fire pump with rubber impeller with single outlet on deck

*(2) wing fuel tanks

*Day Fuel tank centerline

*Monitor camera

*(2) par bilge pumps

*(2) generator fuel lift pumps

*Clean oil pump

*Dirty Oil Pump

*Bait well pump

*Refrigeration cooling pump

*Icemaker cooling pump

*Hydraulic system cooling pump

Electrical

The main electrical systems are 110/208 AC and 24-volt DC. AC power is supplied by either of the

two generators or the shore power throught the new Atlas shore power converter. In the 2001

refit, there was major improvements made to the electrical system by Ward Marine Electric. DC

power battery banks in the engine room, plus the emergency battery bank in the pilothouse

supply the DC power. There are separate battery charges for each area.

The main electrical board is well laid out for easy servicing. There are distribution panels in

various areas.

All wiring is neatly run, well supported, and properly protected. All wiring is multi strand copper

wire, and is plastic coated.

Electronics

WHEELHOUSE

*Furuno D Fax weather fax receiver

*Furuno Navtex receiver model NX500

*Sony Laptop for satellite/ships computer

*(2) Cellular phone, fax, voice

*SAT COM B with high speed data (new on 01)

*Hewlet Packard laser jet printer/fax/copier

*Sony AM/FM/CD

*Panasonic security monitor with controls for 4 cameras, and Nightsight

*(1) Furuno 72 Mile color Radar W/ARPA

*(1) Furuno 96 Mile color radar W/ARPA (new in 02)

*NAIAD digital fin control (new in 01)

*ACR remote spotlight control

*American Bow thruster control

*C-Plath Navipilot V Autopilot

*Monitor for IIS monitoring system

*Monitor for transas navigation system

*Flush Mounted keyboard for computers

*C-Plath Gyro

*Furuno forward looking color sonar

*(3) Autohelm Master View nav instruments

*(2) Northstar 952 GPS receivers

*SEA loud hailer

*(2) SEA VHF radios

*(4) handheld walki talkie radios

*Autohelm Wind direction with speed

*SEA Single Sideband Radio

*Toshiba PBX for phone system

*(2) uninteruppted power supplies

FLYBRIDGE

*Autohelm Multi-view display

*SEA Hailer

*SEA VHF

IIS monitoring screen

*Furuno Navigation display

*Chartnav multifunction display with selector switch for CCTV. CMS, Transas.

*Bow thruster control

*C Plath rudder angle indicator

*ACR remote spotlight control

Pilothouse

The Pilothouse is beautifully finished in steamed Beech wood, to the highest yacht standard.

Forward is a five panel windshield with wipers. There are fixed windows and opening doors to port

and starboard leading to the bow deck, aft boat deck, and also acts as a private crew entrance.

Aft to port is a companionway down to the main entrance foyer, and galley.

Forward in the pilothouse is the fully instrumented, and custom designed helm, with two Stidd

helm chairs. To starboard is a large chart table, with chart storage below. Aft is a U shaped raised

seating area with table. Aft of this is the Pilot berth. Aft to starboard is a desk with pedestal chair,

and areas for the ships computers, and sat phones.

Galley

Her Galley is open to the main dining ang salon areas, perfect for entertaining. It features

hardwood flooring, granite countertops, double stainless steel sink facing a large window. All

appliances are stainless steel, including the Thermadore double oven, Whirpool microwave,

dishwasher, and preperation sink. The huge double door stainless steel Sub Zero refridgerator

features two doors, and four stainless drawers beneath. Under the pantry are the Two Stainless

Freezer drawers. Aft of the galley is the breakfast bar with granite counter top, seperating it from

the salon.

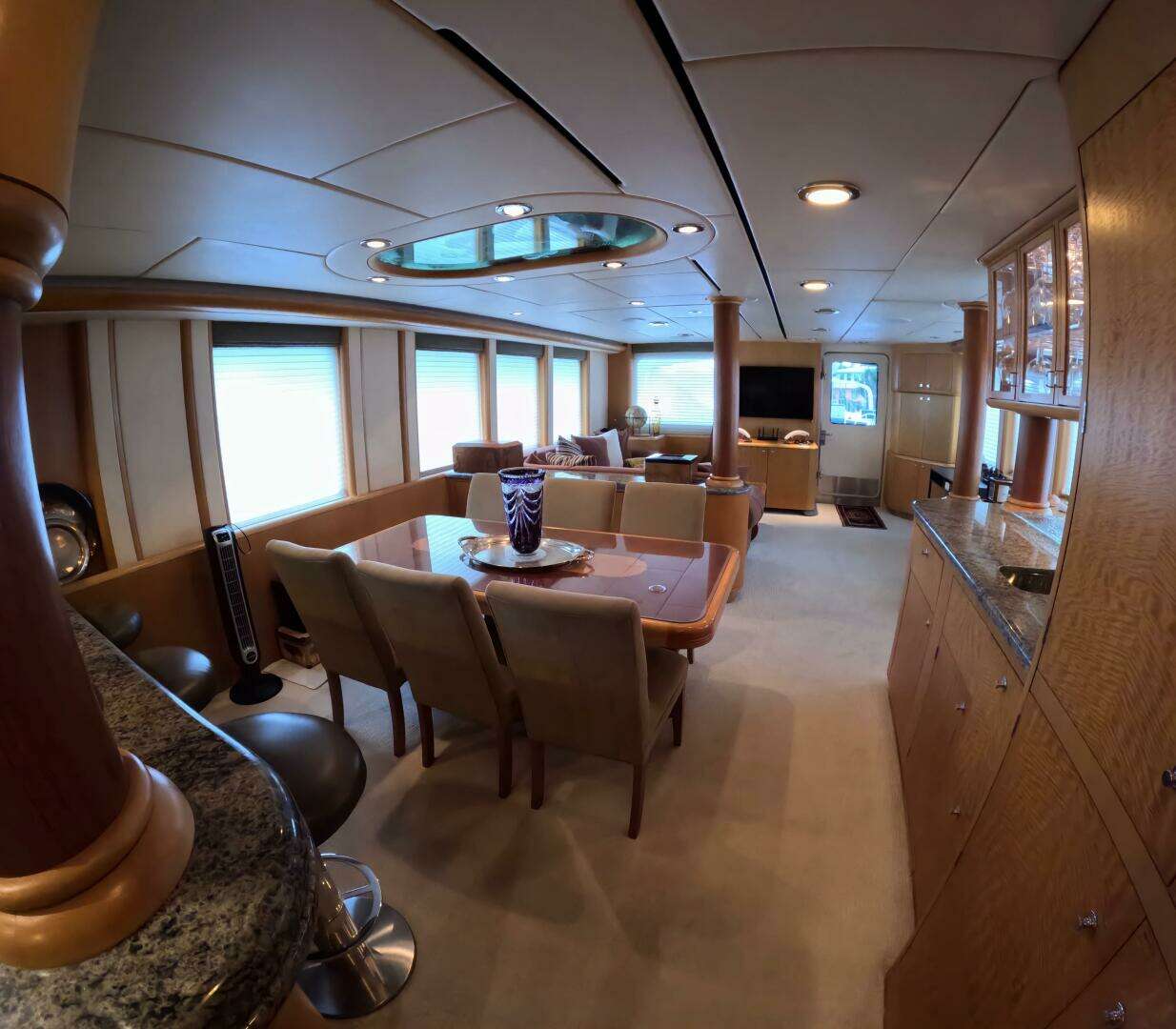

Dining Salon

The dining salon is aft of the galley. It is separated from the galley by a bar with three pedestal

stools. In the dining salon is a pedestal table with seating for 6. Over the table is a custom etched

glass lit "skylight" depicting an octopus.

To port is a wet bar with lit glass cabinets above. The wet bar is finished with Granite countertops,

stainless sink, and two U-Line wine cooler lockers. Below is stowage and a U-Line ice maker. Aft to

port is the companionway down to the master and guest staterooms.

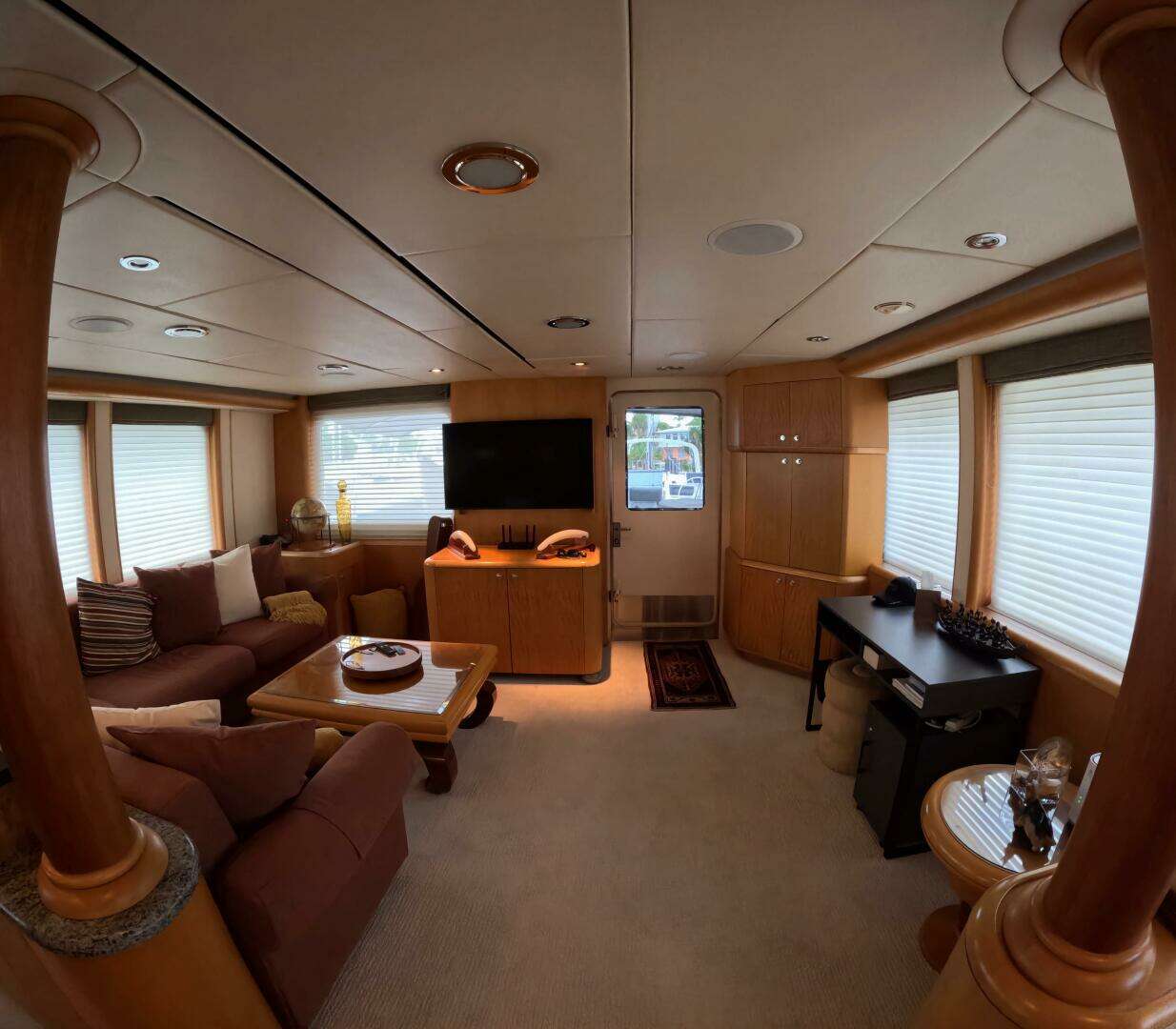

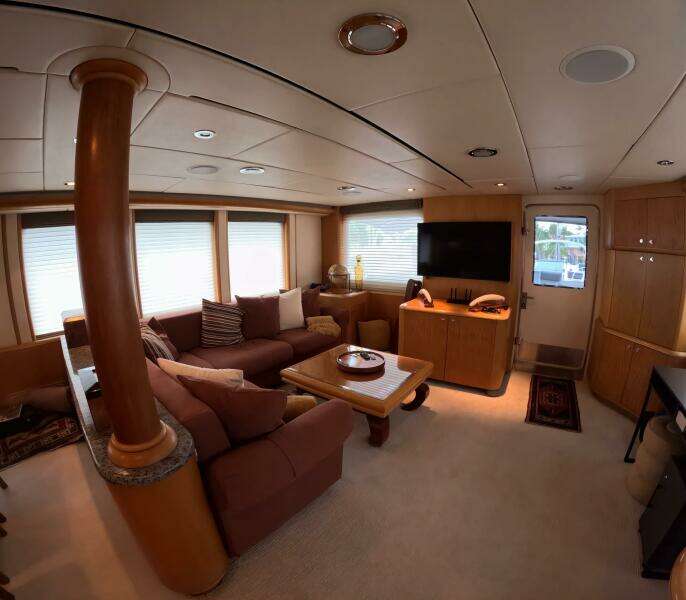

Main Salon

Aft of the open dining area is the Main Salon. It is separated by a low beech wood china cabinet.

The salon features large windows to port and starboard with large L-Shaped couch and two chairs.

There is a cocktail table . Aft is the entertainment electronics center, featuring a 37" plasma TV.

Access to the aft cockpit is through a dogged and gasketed salon door. The galley, dining, and

salon areas are all finished in Beech wood, with granite countertops, and imported wall fabrics.

The Following entertainment electronics are located in the Salon:

*Toshiba Multifunction phone

*Sony 42" Plasma TV (new in 02)

*Sony CDP-CX90 200 disc CD changer

*Overhead speakers

*Subwoofer

*Sony STR-DE310 Tuner

*Adcom GFA 5300 Amplifier

*Panamax surge protector

*Sony DVP-S7000 CD/DVD/Video CD player

*Samsung Worldwide video VHS player

*Sony DSS receiver

*Pronto color Multifunction remote

Day Head

Off of the main entrance foyer is the day head with vanity sink and toilet, with separate door

leading to the side deck.

Master Stateroom

Forward of the guest foyer, is the master stateroom with King Berth, and built in settee. It is

finished with Beech wood, carpeted soles, fabric wall coverings, and Majilite overheads. There are

numerous built ins, including a baby area with berth that was recently converted to an office area

with desk, and wall cabinets in matched Beech Wood. The ensuite head features a stall shower,

one piece Corian vanity, headhunter toilet, and custom Corian tile floors.

The following entertainment electronics are located in the master stateroom:

*Sony 27" TV

*Overhead speakers

*Sony DSS receiver

*Sony DVP-S7000 CD/DVD/Video Player

*Sony SLV-695HF VHS Player

*Toshiba Multifunction Telephone

*Autohelm Multifunction Display

*Sony CDS-C650 CD/Tuner

*Sony 13" TV

VIP Stateroom

All the way forward, on the main deck, off of the foyer is a companionway leading down to the VIP

Stateroom. There is a king size bed, that can be converted to two singles, by removing an insert,

and adding a partition. The room features lots of storage, and an ensuite head with large seperate

stall shower.

The following entertainment electronics are located in this cabin:

*Sony 20" color TV

*Overhead speakers

*Sony DSS Receiver

*Sony DVP-S7000 DVD/CD/Video CD Player

*Sony CDX-C650 CD/Tuner

*Toshiba multifunction phone

Guest Stateroom

Starboard from the guest foyer is a guest stateroom with lower queen berth, and a single pullman

berth above. The stateroom has a ensuite head with seperate shower.

This stateroom has the following electronics:

*Sony TV

*Sony DVD/CD/Video CD player

*Overhead speakers

*Toshiba Multifunction Phone

*Sony CD/Tuner

Crew Area

The forward crew accommodations are accessed via a companionway on the port side of the

pilothouse. All the way forward to starboard is a crew cabin with a single berth. It features a built

in desk with swing out stool.

The Following entertainment electronics are located in this cabin:

*Sony CDX-C680 CD/Tuner

*Sony 13" color TV

*Sony DVP-S7000 DVD/CD/Video CD Player

*Sony DSS Receiver

*Toshiba Multifunction phone

*ISS alarm systems monitor

Starboard in the crew accommodations passageway is a head with vanity sink and stall shower.

Aft in the crew area is the crew laundry with Gibson heavy duty stacked washer/dryer. To port

from the passageway is the second crew stateroom with upper and lower bunks. Aft of this

stateroom is the separate head, with vanity sink.

The following entertainment electronics are located in the second crew cabin:

*Sony CDX-C560 CD/Tuner

*Toshiba multifunction phone

*Sony 13" color TV

Laundry

There are two laundry areas. One is located in the crew area, and the other is off of the guest

foyer. Both feature Commercial grade Gibson washer and dryers

Notes

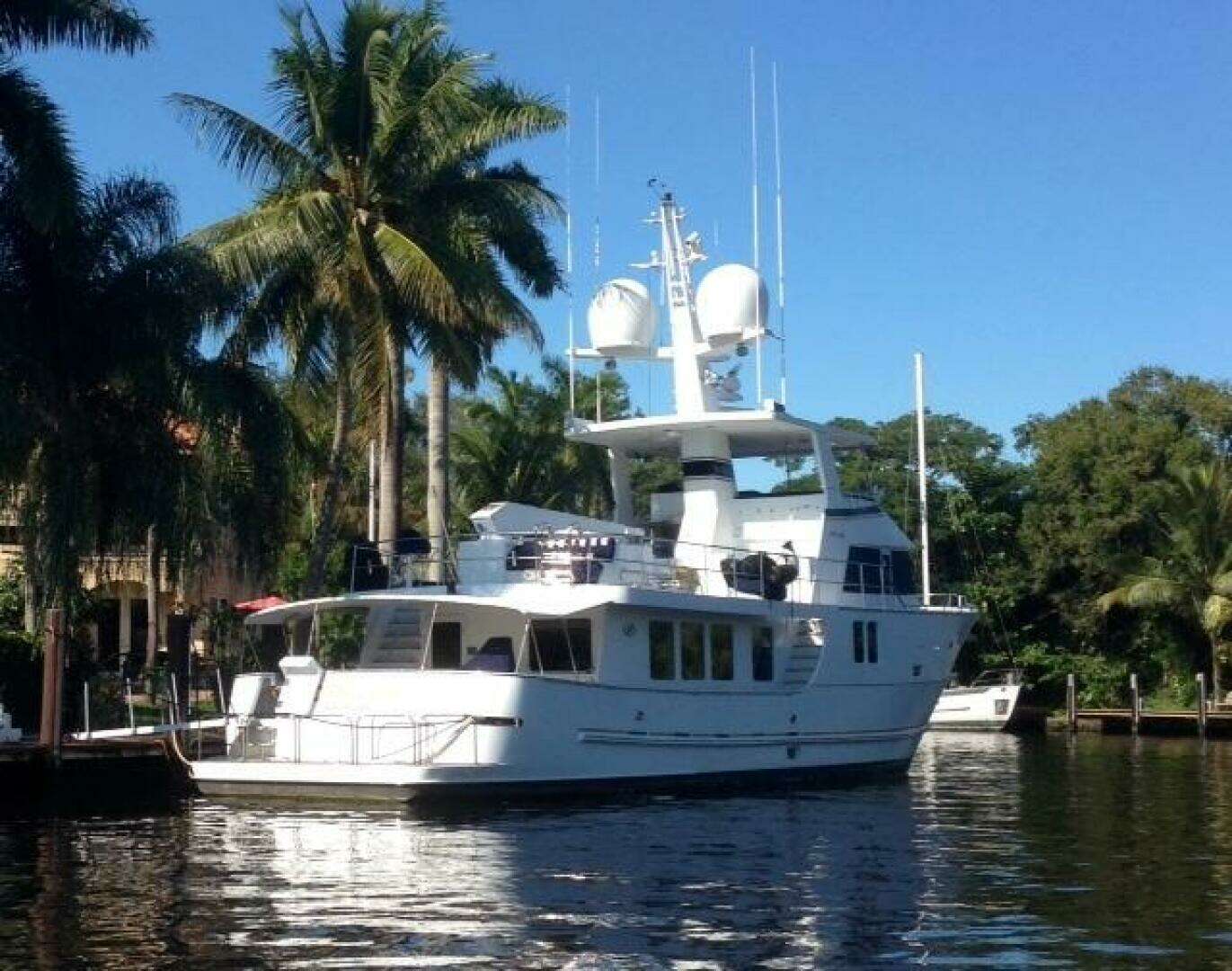

Off Line was a collaboration of Northern Marine and Delta Marine in the Pacific Northwest. Orginally built with virtually an unlimited budget. Off Line is the only twin engine built in this model.

Off Line is an amazing example of a true expedition yacht built to cruise the world. This owner has maintained the yacht with an open checkbook. I have seen 3 and 4 year old yachts that do not show as well. The interior is comfortable with an air of homeyness about it. The engine room is spotless. Off Line was painted a few years ago. This is a must see yacht
