ACCOMMODATIONS / WALKTHROUGH

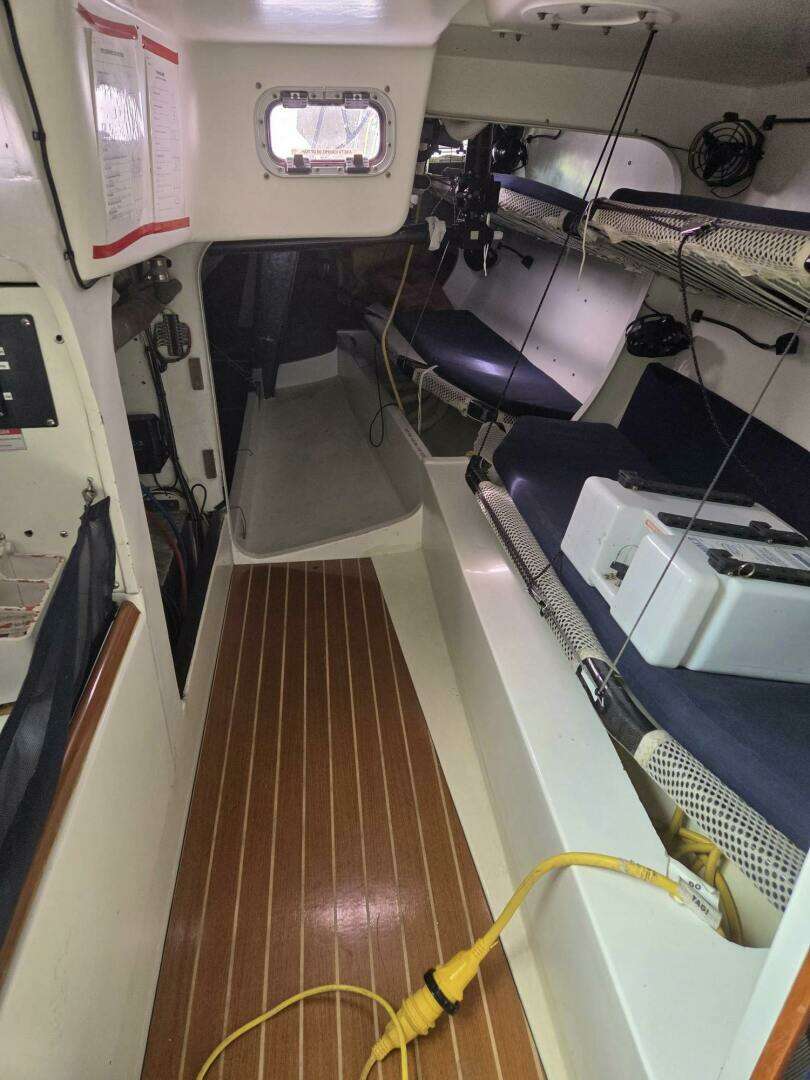

Open Race Boat Interior. 8 adjustable pipe berths. 2 permanent Berths. U-Shape Galley located Starboard side Nav station located port side,

GALLEY

• U-Shape galley located Starboard Side, double SS sinks,


• Refrigeration, New Force 10 4 Burner Gas stove with oven.

NAVIGATION AND ELECTRONICS

• B&G Instrumentation System


• (3) FFD displays, 3Mn/Sht Ped,Nav


• Zeus 9 GPS


• 8 Garmin Displays


• B&G Auto Pilot Ram


• Precision Compass


• ZG 100 GPS


• ZG 100 Compass


• Remote Auto Pilot controller


• 3 Dynamic motion sensors


• Linedar Rake Sensor


• NAC3 Auto Pilot


• AIS Raymarine


• Fleet Broad Band 150


• Iridium Hand Held Phone


• Pepwave Router


• IPad Mini Remote Screen


• Nav Computer and software


• Hand Held VHF Radios


• Icom VHF Radio

ADDITIONAL EQUIPMENT

Boat

• 100%CarbonFiber,BolsaCore (composite construction) racing yacht. Custom designed by Kernan Yacht Design, built by Dencho Marine.


• KeelBulb-Keel weight 10,300 lbs.


• Rudder - constructed by “ACC Marine” of Marina California with


• *New Jefa upper and lower bearings installed 10/21


• Bowsprit - permanently attached with PBO Bobstay and Peak custom molded end fitting.


• *New Dynema Bobstay 1/23


• *New 2:1 tackline 1/23


• *New Dynema backstay and strop 1/23


Spars

• (1) Spar Package - “Novis Composites” comprising of:


• Mast – Carbon Fiber with ,4 carbon sweptback spreaders, rod - shrouds & forestay, PBO cathedrals, windex, B&G 57” wand, VHF antenna, kevlar backstay, Lopolight (carbon) Tri-color nav. light, Perko combo steaming/deck light, custom MHJ/Spinnaker halyard locks (auto lock-remote release)


• *1/21Rod head stay and lufffoil replaced w/Future Fibres spectra headstay


• *1/21 PBO cathedrals replaced


• *5/23Newrodandlowerturnbuckles Masthead lock lines replaced Lopolight tri color replaced


• (1) Mast Jack – “Enerpac” hydraulic mast jack, rams, jacking bar and box


Running Rigging

• *Running rigging replaced 3/23


• Masthead halyards x2, jib halyard, genoa staysail halyard, 2:1 main halyard, mainsheet, jib sheets x2, J0 sheets x2, spin sheets x 4


Deck Gear

• (2) Steering–custom carbon fiber wheels with Edson 418 Bulkhead Steerers system & Ritchie SS-

• 2000 flush mount compasses


• (2) Steering Chocks–


• (1) Steering Quadrant – custom carbon fiber dual (separate) grove\


• (1) Harken Winch Package–


• (2) Secondary’s (B65.2STRwithbase raiser)


• (2) Primaries (B990.3 TCR, SB, ODB) with Sheave Base and Over Drives Boxes


• (2) Mainsheet (B65.3 STR)


• (2) Cabin Top (B53.2 STR)


• (1) Twist Pedestal(Primaries)


• (1) Straight Pedestal (Mainsheet)


• (3) EndoscopeThruHoles–“BoatScope,” Keel–Sail Drive –Rudder, on center line


• (1) Endoscope Probe – “Boat Scope”


• (1) Dodger–custom molded fiberglass with perspex windows; secures over companionway hatch and hatch remains lockable


• (1) Navtec Hydraulic Package, with stainless steel piping to the rams from the valves


• (1) Backstay Ram -22 FE


• (1) Outhaul Ram -17 LE


• (1) VangRam -30 Std Vang


• (1) Headstay Ram -30 LE


• (1) Mast Head Jib Ram -30 LE


• (1) Sail Stacking Bag - primarily a starboard orientated bag, though does apart to both sides


Sails, (North) Inventory:

• Storm sail


• Trysail, unknown


• Jib, Unknown


Delivery

• Mainsail, Unknown


• Jib, unknown


Mainsail - Racing:

• 1- 3DI, 2016


• 1- 3DI, 2022


Jibs - Racing:

• 1- J2, 2020, 3DI


• 1-J2, 2022, 3DI


• 1- J3, 2020, 3DI


• 1- J4, Unknown, Kevlar


• 1- J0, 2020, 3DI


• 1- MHG, 2016, 3DI


Staysail

• Spinn Stay sail (2024)


• 1- Genoa, 2020


• 1- Spinnaker, 2020


Spinnaker

• Code Zero (2024)


• 2A (2024)


• 1- A1.5, 2020


• 1- A1, 2022


• 1- A2, 2020


• 1- A2, 2022


• 1- A3, 2020


• 1- A4, 2020


• 1- A7, 2022

SAFETY EQUIPMENT

• (1) GPIRB– “Satfind 406” US Category 1, Model S-1510


• (20) Lifejackets – foam


• (8) Lifejackets – inflatable “Spinlock” (pressure valve),


• (12) Personal AIS


• (1) Flashlights – (6) headlamps, (6) flashlights


• (1) Spotlight–12V, high-powered


• (2) Grab Bags – same equipment, one each for each life raft


• (2) Life raft–80 SLOR (8PersonWINSLOWSuper-


• Light Offshore Life Raft) with insulated floor


• (2) Fire Extinguisher– “Kidde Mariner 110”:3-lb, both inside door of center galley bench


• (1) Fire Extinguisher – “Kidde Mariner 5”: 2-lb, on galley bench


• (1) Bilge Pump – “Jabsco Elec. Diaphragm” #36600-2000, 6 GPM w/ full length roaming hose


• (2) Bilge Pump – “Rule-Matic” 750 GPH, Manual & Auto (1 in Head sump + 1 in Keel sump)


• (1) Medical Kit – Basic day kit


• (1) Medical Kit–Extensive multi-day, multi-crew offshore kit


• (2) Emergency Steerin gRudder Cassettes –ready to stern mount on yacht, port & stbd


• (1) Emergency Rudder– this fits the cassettes and is made from a “Columbia 30” rudder mold


• (1) Emergency Tiller–carbon fiber tiller and separate anodized aluminum rudder-adapt-puck


• (2) Life sling Overboard Rescue System – this is the towed life ring with halyard lifting strop


• (2) MOM 8A inflatable man overboard module – ring, light, pole, drogue.


• (2) Anchoring– racing, “Fortress” aluminum anchor, 35ft x 3/8” chain and 150ft x 1/2” warp/line


• (1) Anchoring – delivering, 70ft x ½” chain and 210ft x 5/8” warp/line. USE anchor from racing


• (2) Bilge Pumps (hand operated)– Whale Gusher Titan,1internal &1 external pump operation


SAIL DRIVE

Sail Drive:

• *Replaced with Yanmar SD60 5/22


• (1) Propeller – Gori Racing Series Folding Propeller (2 blade) #G 475x330x2 RHS


• *Replaced with Seahawk folding propeller 5/22


• (1) Diesel Tank–Housetank:45gallon, Stainless Steel


• *Replaced with a 60-gallon SS tank 8/21


• (2) Delivery Tanks–50-gallon plastic tanks (Plumbed into fuel system for delivery, deck filled)


• (6) Delivery Tanks–30-gallondrums (2DeliveryTanks–15-gallon drums


• (3) Delivery Tanks–5-gallon(yellow) Skepter Jerry Cans


• (1) Watermaker–Spectra “Cape Horn Extreme 1300”–14gal/hr

ELECTRICAL

• (2) Battery – House Bank, 4D (12v), 400-amp hrs, replaced 2022


• (1) Battery – Electrical Bank, group 27 (12v), 90-amp hrs


• (1) Battery – Engine Bank, group 24 (12v), 65-amp hrs


• (1) Navigation Lights - Perko LED, Bow is 0602 chrome, Stern is 0170MSN chrome


• 1 masthead nav light

REMARKS

Peligroso is a beautiful high performance ocean racer designed by Kernan and built by Dencho Marine in 2005.

Many wins to her credit. Including 1st in her division in the last two Transpacs. All sails and equipment are up to date.

New Code 0, new 2A, new Spinn, Staysail. Other new additions include new Raritan Electric Head, New Force 10 4 burner gas stove, new water heater. Hull Bottom was completely stripped and refinished.
