Hull, Superstructure and Deck

• Hand-laid solid fiberglass hull molded in one piece
• Vinylester resin for first 5 layers of hull lay-up
• 2 layers of Kevlar from chine to chine and 3 layers of Kevlar in the fwd collision zone
• Hand-laid fiberglass deck, deckhouse, and flybridge cored with high strength Divinycell foam
• Hull/deck joint through-bolted every 6", sealed with 3M 5200 sealant, and glassed over with 3 layers of fiberglass
• Longitudinal and transverse stringer system
• Molded F.R.P. rub rails capped with solid stainless steel trim rails
• Molded non-skid F.R.P. decks
• Interior structural components all properly bonded to the hull

Interior Finish

• Cherry wood (Makore) interior
• Satin finish with High gloss accents
• Burl wood inlay in selected areas
• Burl wood table top and countertop in selected areas
• Carpet and pad in selected areas
• Removable padded soft vinyl headliners throughout
• LED lighting throughout
• Rope lighting in selected areas
• Push/Release type latches for cabinets and drawers
• Hunter Douglas mini blinds in salon and galley

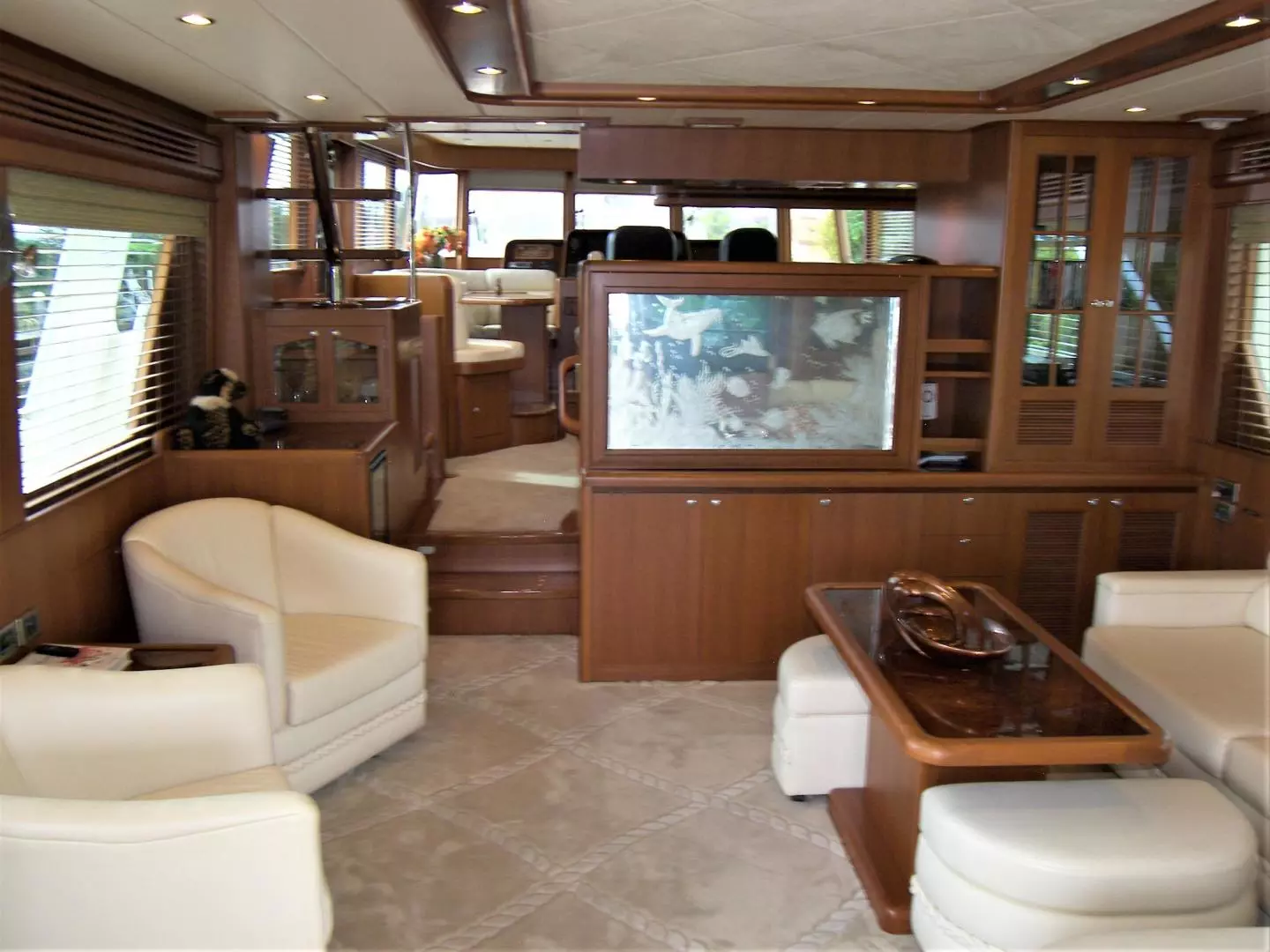

Salon

• 40" LED High Definition TV
• Beautiful etched glass with recessed lighting to hide TV w/electric lift
• Bose surround sound system with DVD/DC player
• CD stereo with speakers for cockpit, pilothouse and galley
• Port side L-shaped with leather upholstery
• Large wood coffee table with burl inlay
• Port side table with burl top
• Two port side seats with leather upholstery
• Frameless Tempered glass windows in salon
• Cabinet for entertainment system
• Audio level controls for salon, cockpit, and galley
• Two lighted glass china cabinets
• Wine cooler
• LED overhead lighting with dimmer control
• Stainless steel aft sliding door
• Salon overhead decorative redwood burl ceiling treatment

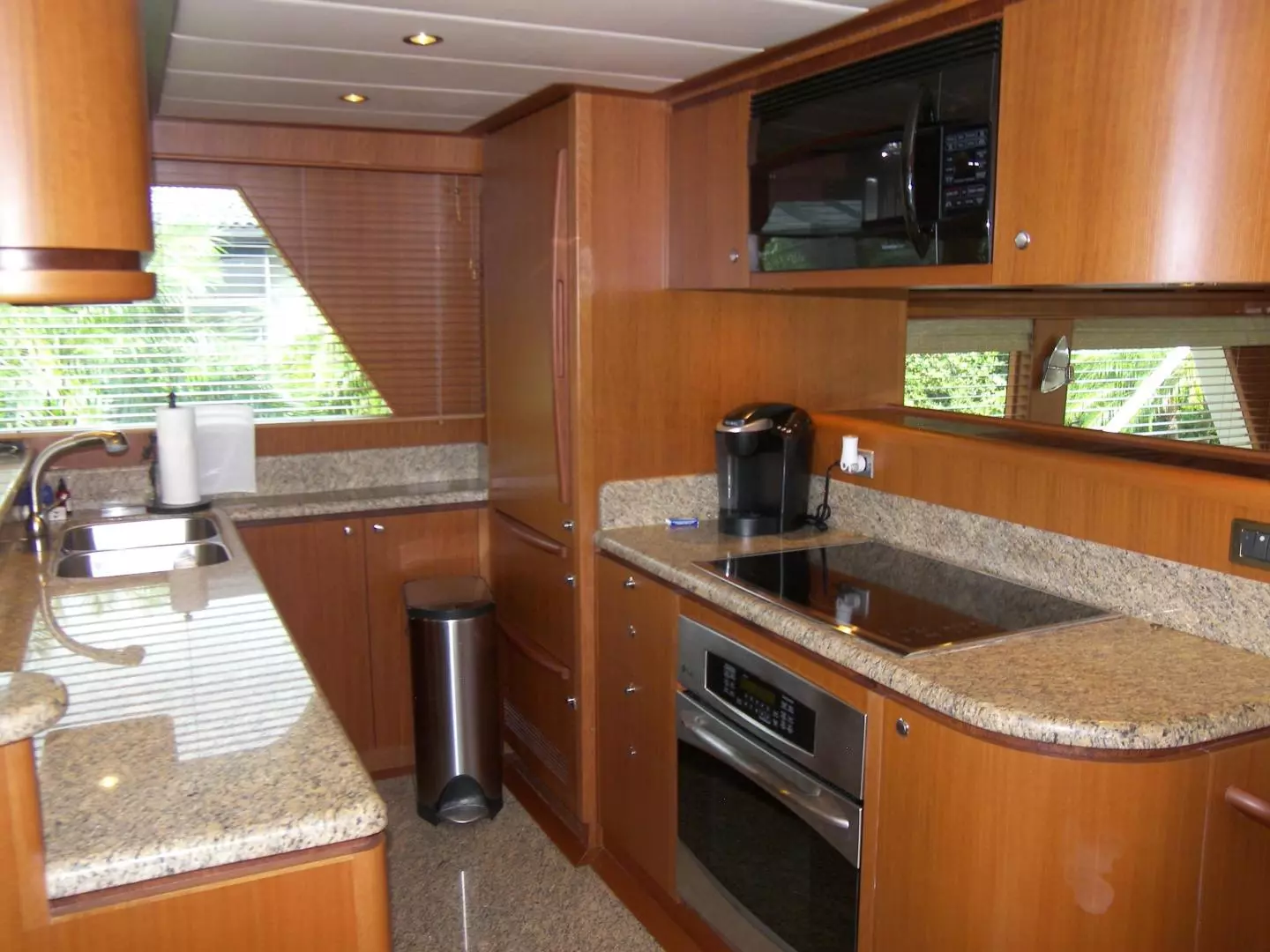

Galley

• Granite counter top with double sink
• Granite floor
• Sub-Zero refrigerator with double freezer drawers with ice maker
• GE electric cook top
• GE oven
• GE Microwave
• Trash compactor
• Fisher Paykel dishwasher
• Storage cabinets
• Two bar stools at service counter
• Galley exhaust blower
• Overhead variable 24V LED lights
• GFI outlets
• Quality single lever faucet
• Garbage disposal

Pilothouse

• Stainless steel aircraft style pilothouse doors at port and starboard side
• Electronic engine contorls with back-up panel
• Hydraulic power steering powered from both engines
• Complete engine instrumentation
• System indicator panel
• Frameless Tempered glass windows in pilothouse
• Hardwood floor
• Custom steering wheel
• Two Pompanette Platinum Series helm chair with stainless steel pedestal
• Water and fuel tank gauges by Wema
• Trim tab controls
• Rudder indicator control
• Engine synchronizer controls
• Wema tank level indicators
• Bow and stern thruster controls
• Naiad Multi Sea II controller for stabilizers
• Jensen AM/FM/CD Stereo
• Seperate audio level controls for pilothouse and galley
• Compass
• (3) windshield wipers with washers
• Interior stairway with stainless steel hatch leading to flybridge
• Built in dinette settee
• Large dinette table with granite table top
• Storage cabinets
• Storage drawers

Master Stateroom and Head

• King size bed with drawers and storage under berth
• Overhead decorative redwood burl ceiling treatment
• Built in 32" LED HDTV
• Pioneer AM/FM/DVD/CD plater and surround sound system
• Cedar lined hanging lockers (4)
• Bureau and vanity cabinet
• LED overhead lighting with dimmer controls
• Opening S/S port lights (4)
• Rope lighting
• HEAD
• Stall shower lined with corian
• Tecma toilet
• Grohe faucets
• Corian countertop
• Corian floor with drains
• LED overgead lighting
• GFI outlets
• Exhaust fan
• Opening S/S port light

VIP Stateroom and Head

• Island queen size berth with drawers under berth
• Cedar lined hanging locker
• Built in 20"LCD TV
• Pioneer Am/FM Stereo DVD/CD player LED overhead lighting dimmer control
• Opening S/S port lights (2)
• Six cabinets
• Overhead skylight with screen and blackout
• Reading lights
• Additional storage under berth
• HEAD
• F.R.P. stall shower
• Tecma toilet
• Grohe faucet
• Corian countertop
• Corian floor
• LED overhead lighting
• GFI outlets
• Exhaust fan
• Opening S/S port lights

Mid Guest Stateroom

• Side by side bunks or over/under bunks
• Built in 15" LCD TV
• AM/FM/DVD/CD player
• Opening S/S port lights w/screens
• LED overhead lighting with dimmer control
• Cedar lined locker

Flybridge

• Complete engine instrumentation
• A/C (2) units 18kbtu each to keep you cool
• Hydraulic power steering
• Electronic engine controls
• 1,500 LBS UMT davit with power lift/ rotate
• Huge aft deck for tender or other water craft
• F.R.P. molded helm console
• (2)Pompanette Platinum Series helm chairs
• Stairway from cockpit to flybridge
• BBQ grill
• Stainless steel steering wheel
• U-Line refrigerator/freezer
• Flybridge seating with storage

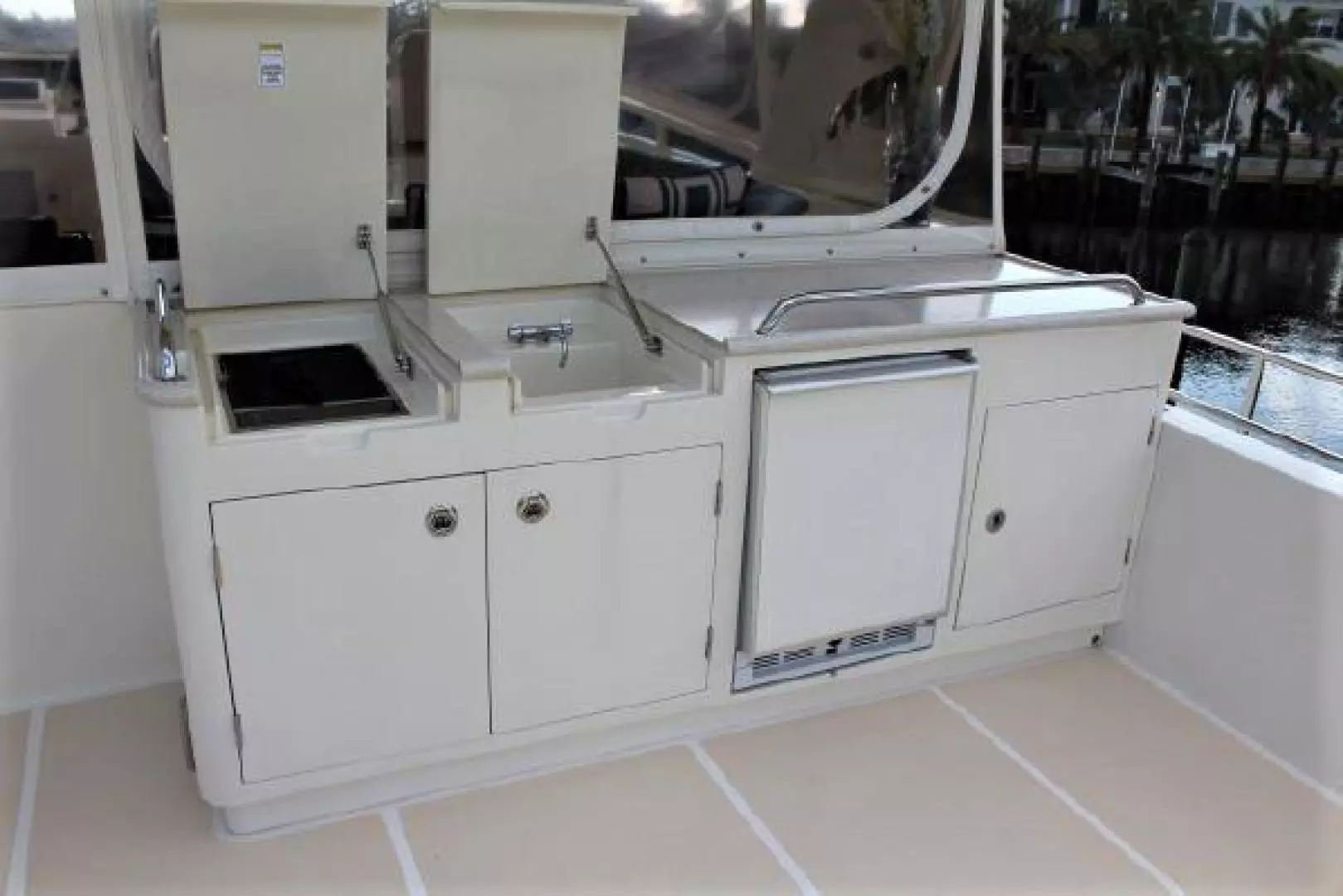

• Flybridge wet bar with sink
• Flybridge F.R.P. table
• Fiberglass venturi with safety tempered glass
• Air horn
• Search light
• Full Strata Glass enclousure
• Hard top

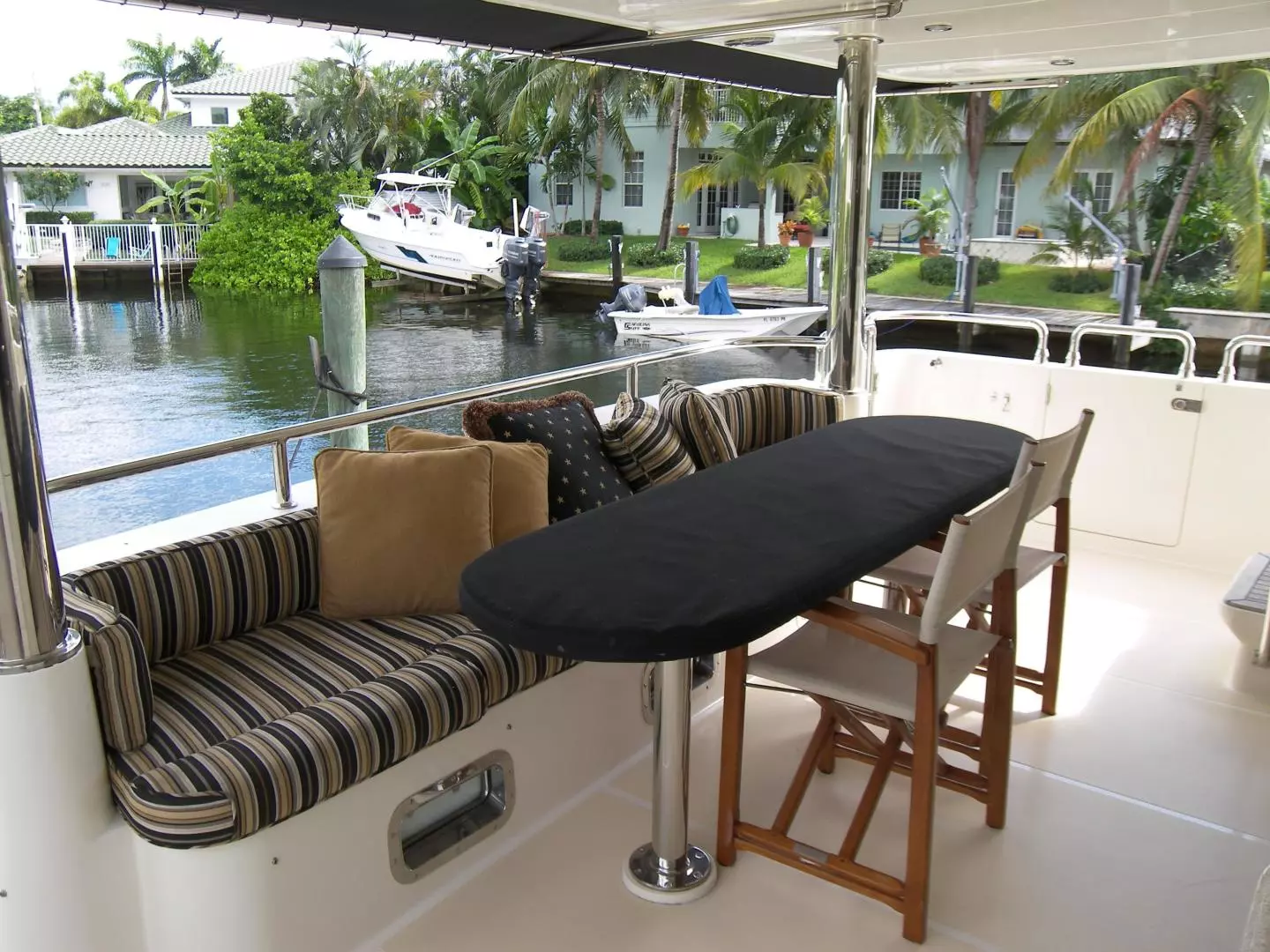

Aft deck and Transom

• Large table with hard wood and compass rose inlay
• TV in cabinet
• Aft deck seating
• Storage Cabinet and sink
• Port and Starboard engine controls
• Engine room access from crew quarters
• Water tight transom door to crew area
• Stainless steel swim ladder
• Hot and cold shower unit
• Twin cable masters

Electrical System

• Complete AC/DC breaker/distribution panel
• Kohler 23 KW/60 HZ generator with sound shield (928 hrs)
• Kohler 15.5 KW/60 HZ generator with sound shield (970 hrs)
• Both generator batteries recently upgraded to AGM 12 volt
• (2) Shore power isolation transformers with ISO Boost
• (2) 75' Glendinning Cablemaster
• Charles 50 Amp 24 Volt charger for engine batteries
• Inverter 4. KW with 105 amp charger for house batteries
• 30 Amp 12 Volt charger for generator
• Battery selection switches
• Soft starts for A/C compressors
• Six 200 Amp AGM marine batteries w/box for house system
• Four 200 Amp AGM marine batteries w/boxes for engine starting
• One 120 Amp AGM marine battery w/box for each generator starting
• Quality AC and DC lighting throughout
• 120V outlets throughout
• Bonded electrical system
• Color coded wiring system
• 24V to 12V 50amp converter
• LED 24 volt lighting
• Shore power selection switches
• Navigation lights
• SAT HD TV w/6 receivers

Electronics

LOWER HELM

• (2) Garmin 7612 Touch screen plotters (new in 2016)
• (1) GM1-10 Depth
• (1) GHC-10 Auto Pilot w/remote
• (1) Color Fish/Depth Sounder
• (1) Garmin 6kw Radar
• (2) Raymarine 240 VHF Radio's
• (1) Naiad Marine Stabilizer
• CAT Electronic Controls
• (1) Wesmar HD Bow/Stern Thrusters
• (1) Clarion Stereo
• BRIDGE ELECTRONICS
• (2) 7212 Touchscreen Plotters (new in 2016)
• (1) GM1-10 Depth
• (1) GHC-10 AP
• (2) Raymarine 240 VHF Radio's
• (1) Wesmar HD Bow/Stern Thrusters 33 HP
• (1) CAT Electronic Controls
• (1) Naiad Stabilizer Panel
• (1) Clarion Stereo Remote
• (1) Azimuth Compass

Aft Deck

• Dual Stern Docking Stations
• Port and Starboard boarding doors
• Tide Ride ladder with storage compartment
• Sink and storage cabinet
• TV in cabinet
• Full bench seat with cushions and covers
• Additional loose teak chairs for the Teak table with cover
• Teak covered steps to fly bridge
• Teak covered steps to swim platform with gate
•

Engine Room / Mechanical

• Twin Caterpillar C-18's "C" rated @ 873 HP @ 2200 RPM
• Racor Dual 1000FG fuel filters for each engine
• Under water exhaust system with bypass to transom
• Tides Marine Dripless packing glands with spare seals
• Engine room high density foam sound insulation
• Engine room bulkhead insulated with extra foam sound insulation
• Jabsco engine room blowers
• Aqua #22 H.S. stainless steel shafts and 4 blade precision propellers
• Fiberglass exhaust mufflers
• F.R.P. water tanks
• F.R.P. fuel tanks (fuel grade)
• Stainless rudders and rudder posts
• Color coded copper fuel lines
• Color coded copper water lines
• Color coded hydraulic fluid lines
• Secondary R/W pump for A/C with valves installed
• Pressured fresh water system
• Seacocks and sea strainers on engine and generator raw water intakes
• Rule 2000 automatic bilge pumps (3)
• One Whale Gusher hand bilge pump
• Emergency bilge suction off main engines
• (2) 20 gallon S/S water heaters
• F.R.P. diamond plate floors
• Holding tank with macerator pump plumbed for deck side or overboard discharge
• Engine room AC and DC lights
• Engine oil changing system: engines, generators, transmissions
• Engine shutdowns on engines
• Engine room fire extinguisher with auto shut down
• Auto Fire doors on air intakes
• Fire system re-certified 2019
• High water bilge alarm
• Fresh water outlet
• White PU painted bilge
• FCI Aquamaser 800 GPD watermaker with FW flush

Crew Quarters/Galley/Crew head

• Upper and lower bunks. Top bunk folds down to make couch
• Drawers and hanging locker
• Reading light
• Galley counter with sink and refrigerator
• Sharp 13" LCD TV
• AM/FM/DVD/CD player
• Head with corian countertop, corian floor, and Grohe faucet
• Seperate dedicated shower stall
• Opening S/S port lights (3)
• Electrical control panel
• Water-tight aircraft style door at transom
• Air Conditioning system

General Equipment and Other Features

• Tender is a CL14 Caribe with 70hp Yamaha Outboard Motor
• Viking 6 man Life Raft
• Chilled-water reverse cycle air conditioning system, (2) 5 ton units
• Complete Stabilizer system 9 sq ft fins with Naiad Multi Sea II control
• Bow thruster hyd (33 HP)
• Stern thruster hyd (33 HP)
• Hydraulic windlass with 3 station controls
• Port and Starboard cockpit engine controls
• 100 LBS anchor and 275' of anchor chain
• 50 kg SS Bruce Anchor w/275' chain
• (3) video cameras, (2) in engine room (1) aft deck
• Panasonic phone system with intercom system
• Trim Tabs
• Deck wash down at forward and aft decks
• Dockside water pressure connection
• #316 grade stainless steel for mooring cleats, chocks, anchor roller, handrails, and stanchions
• TV, phone, and water inlets
• Stainless steel portholes
• Central vacuum system
• Bosch Washer / Bosch Dryer
