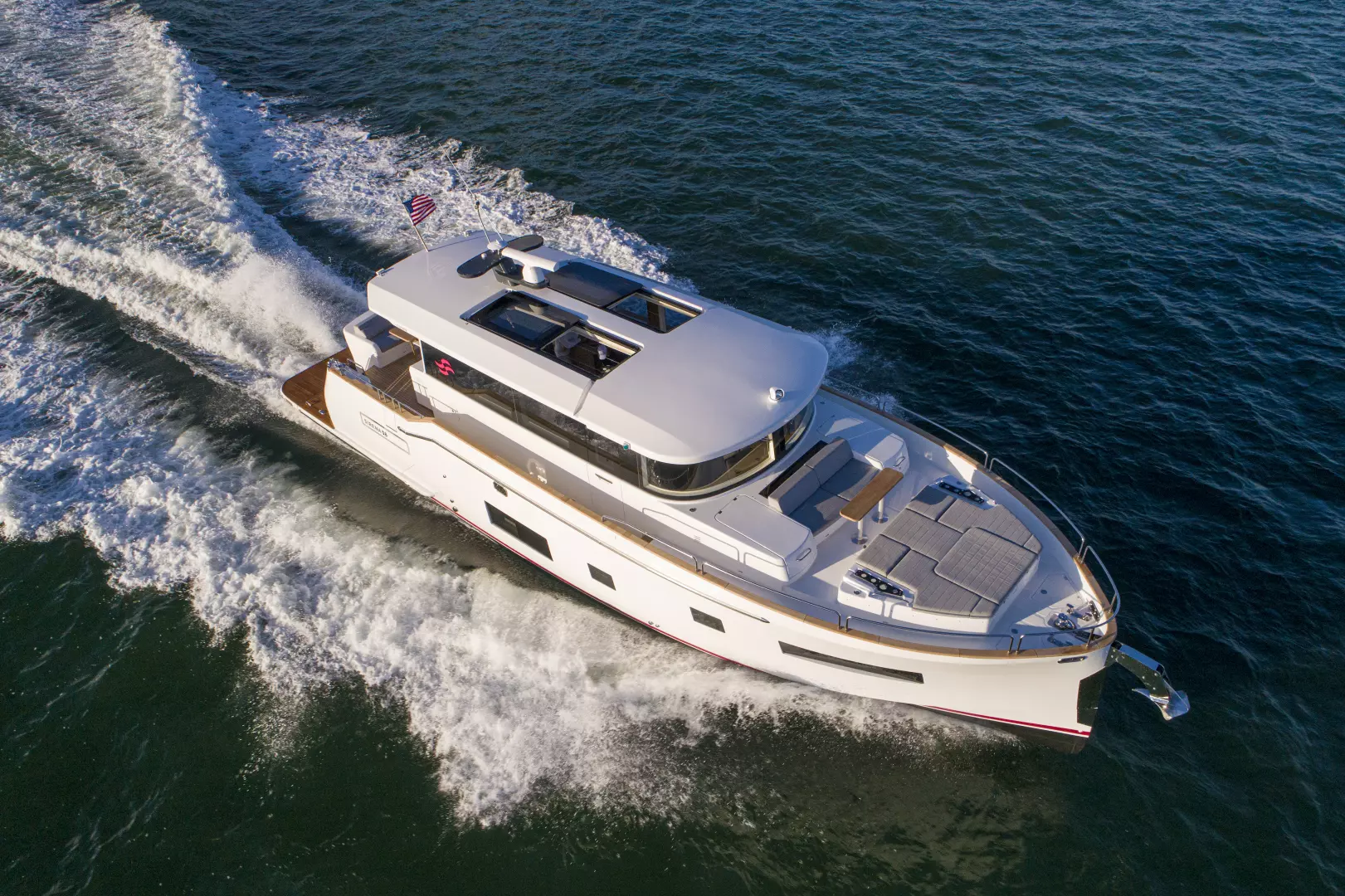

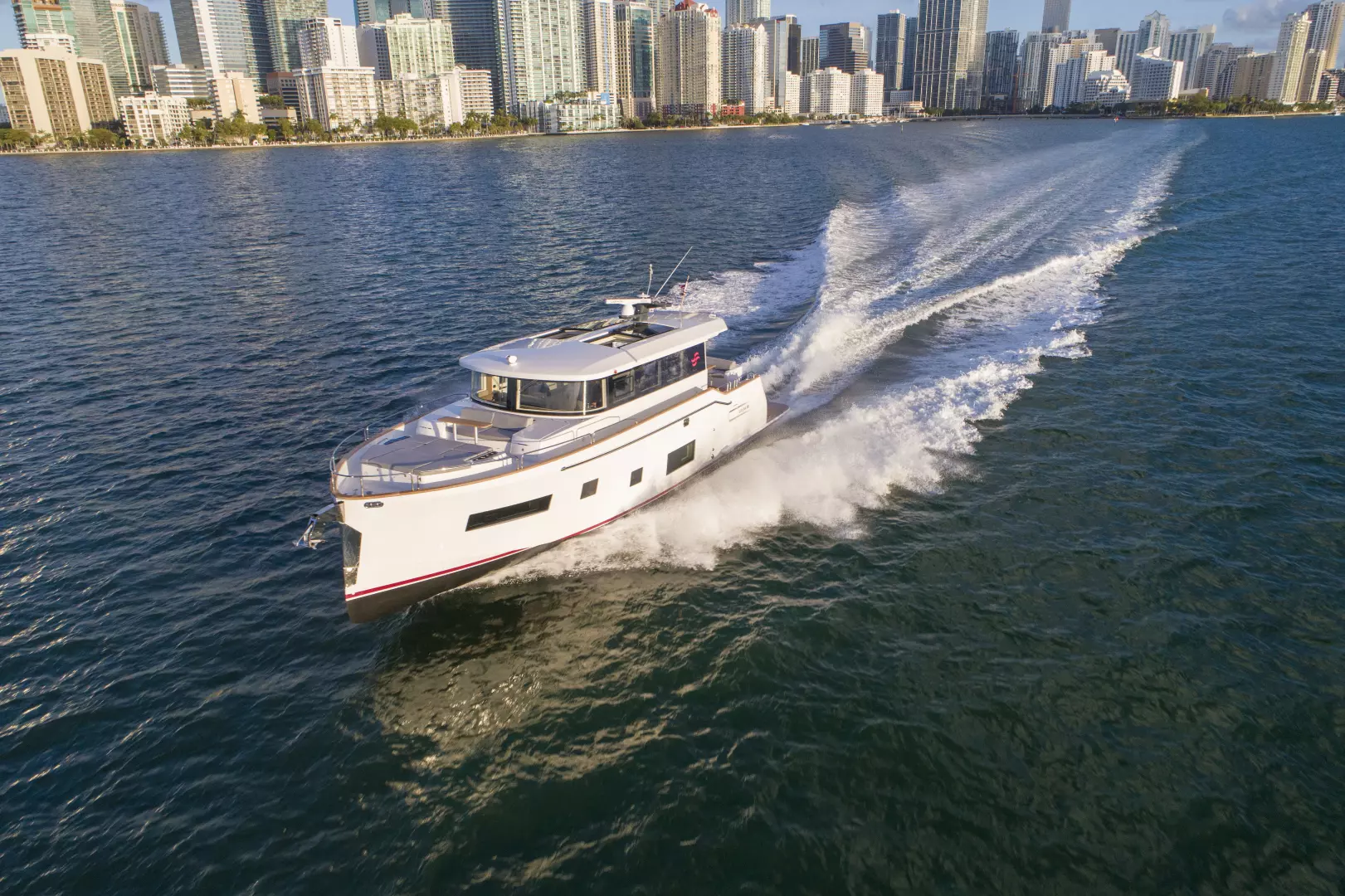

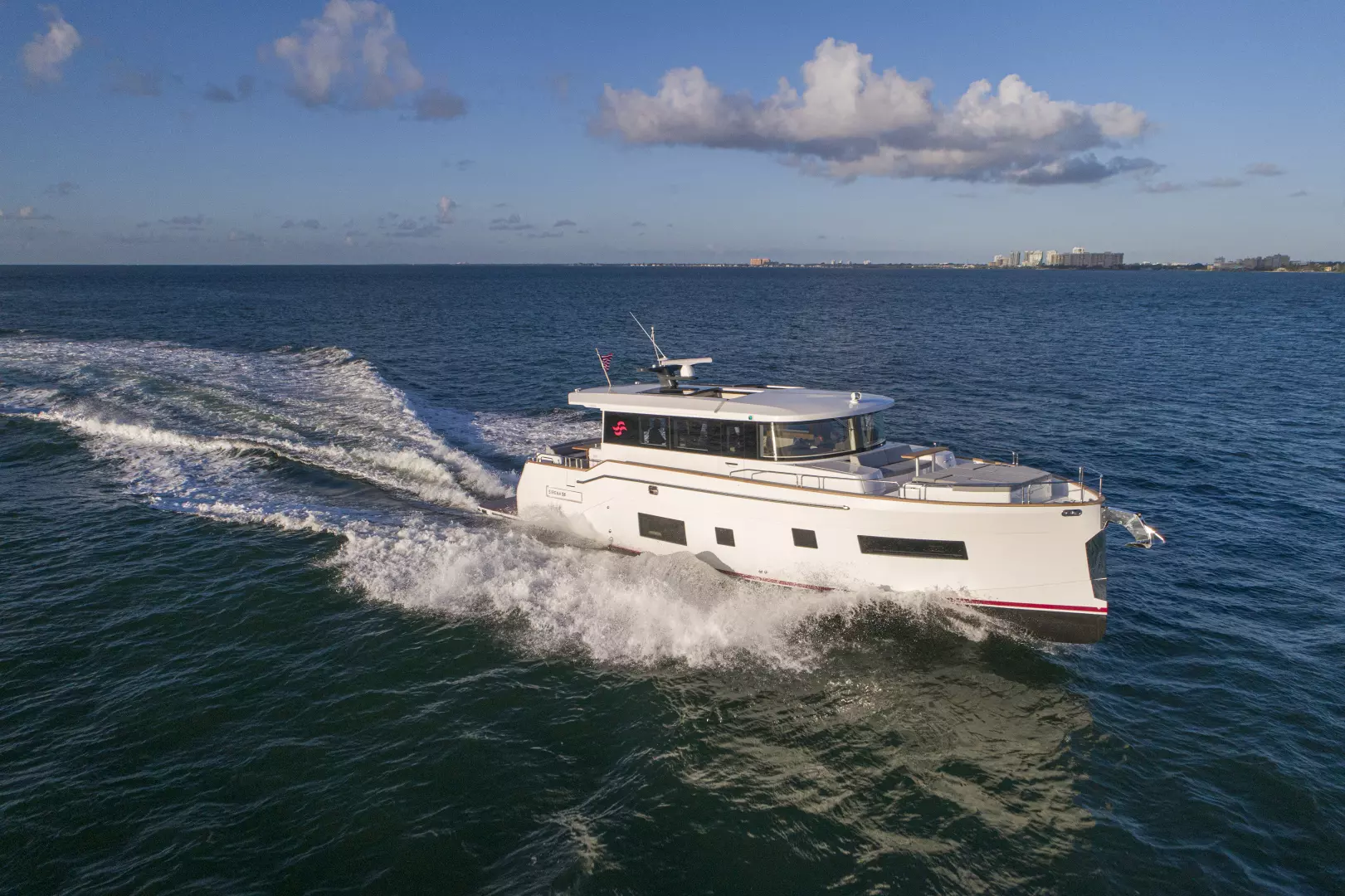

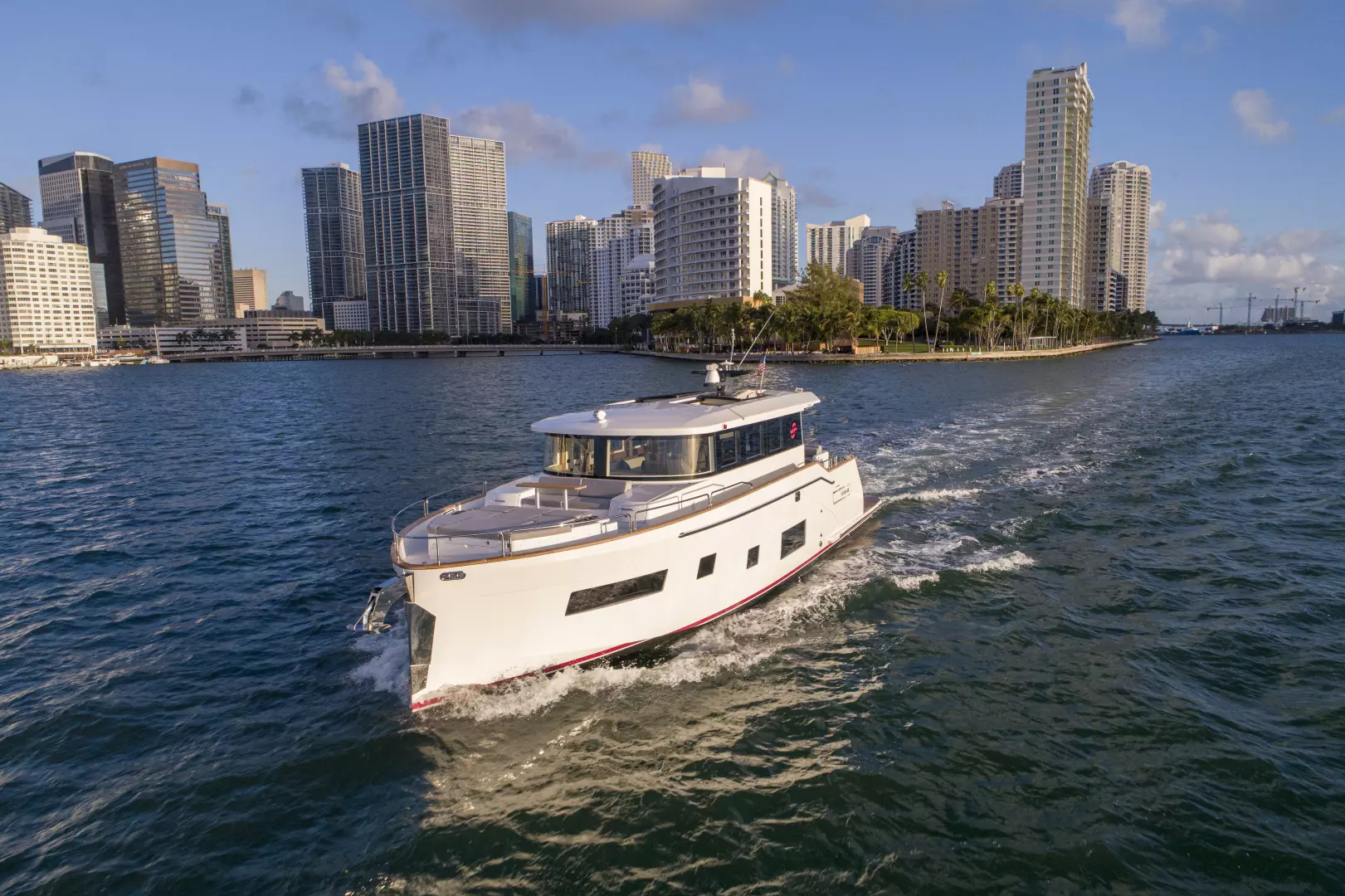

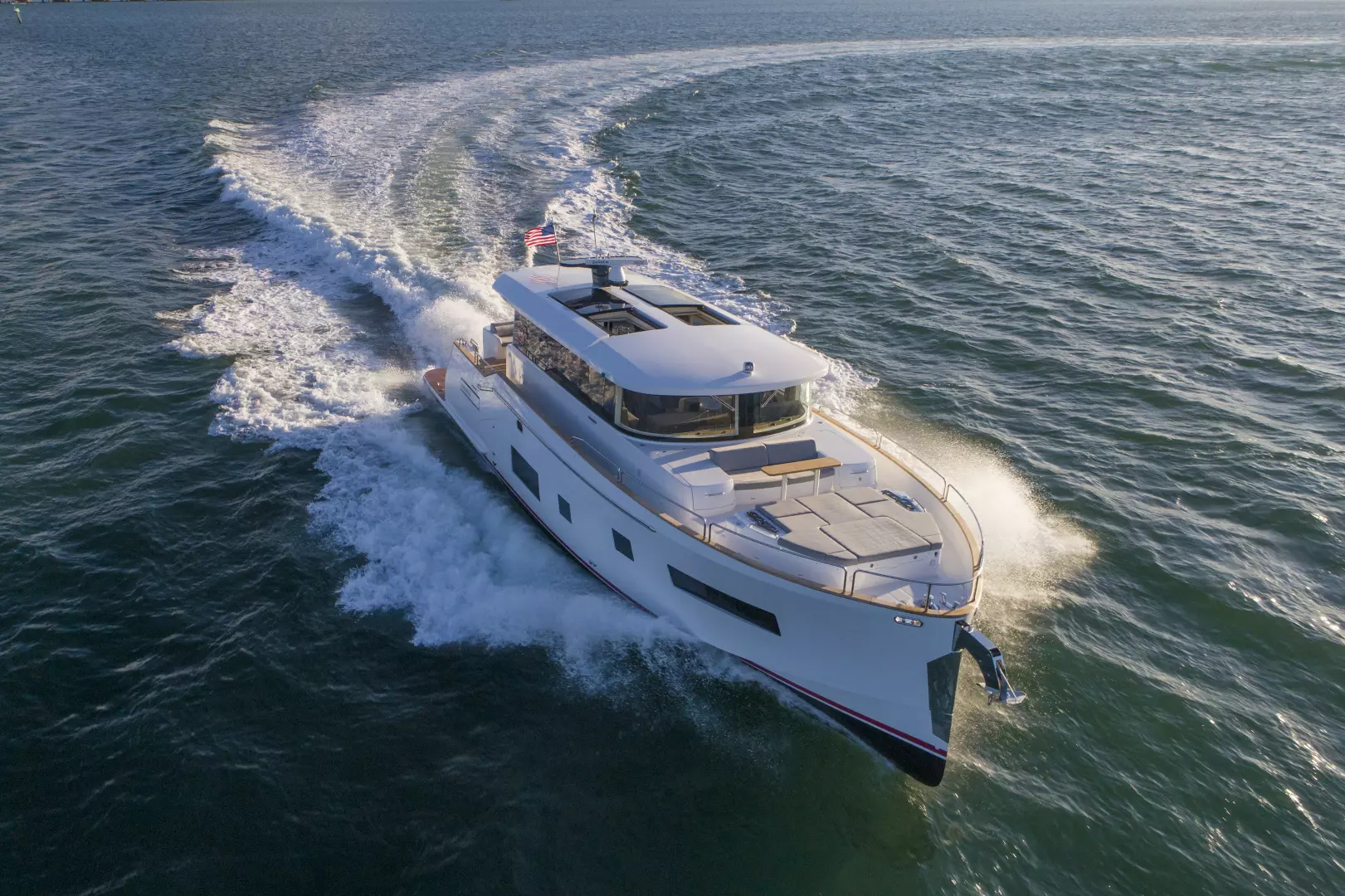

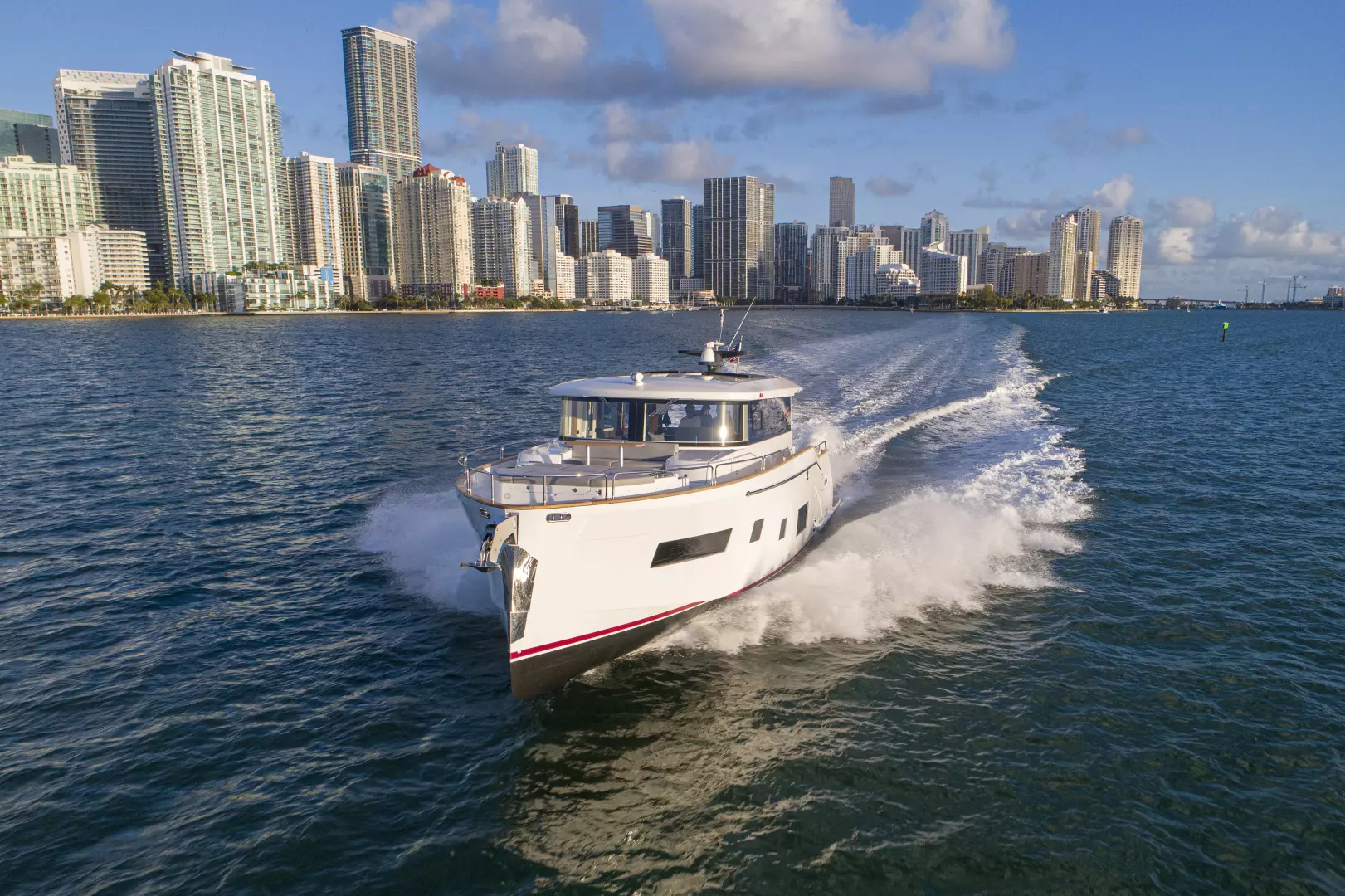

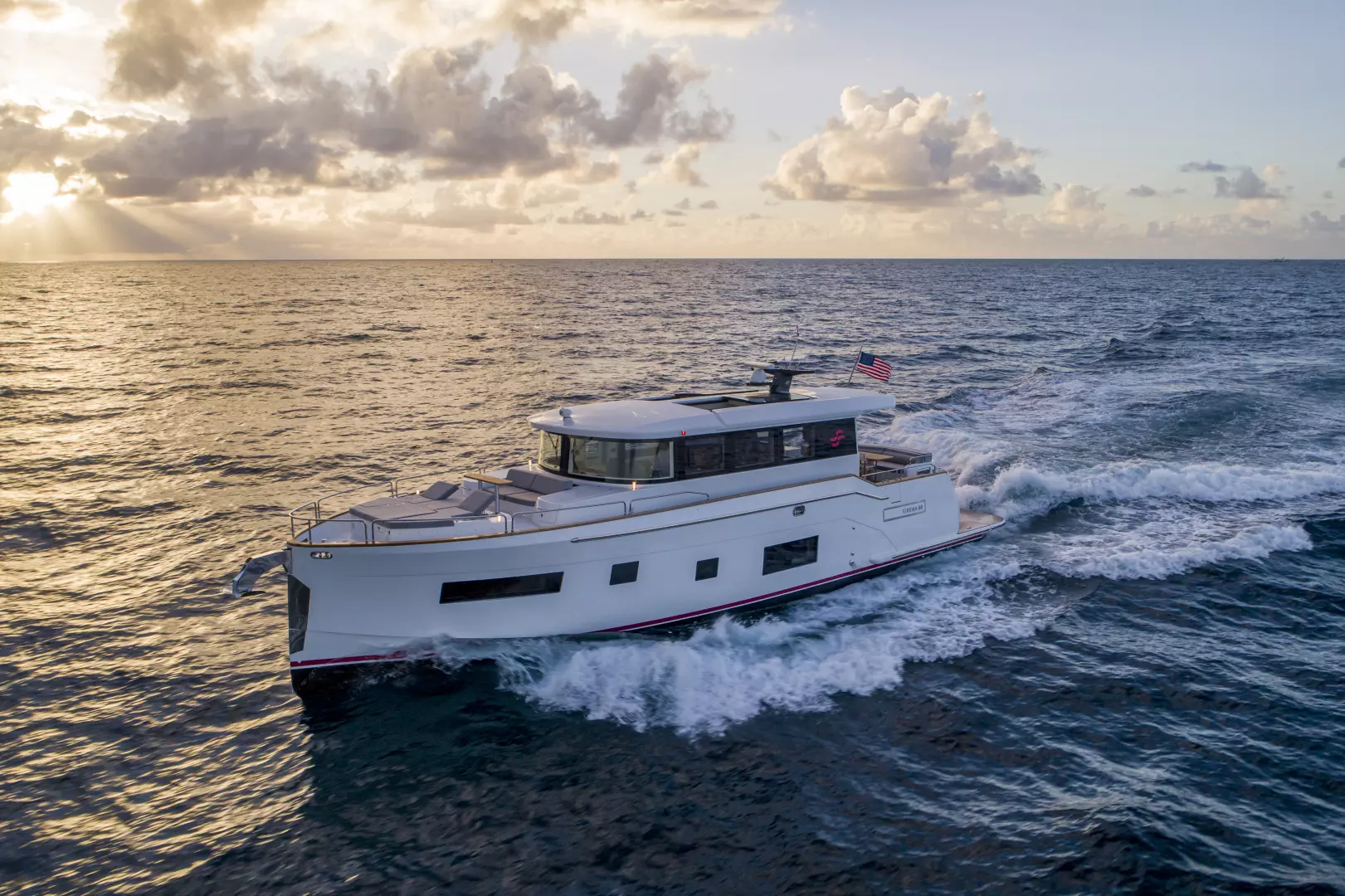

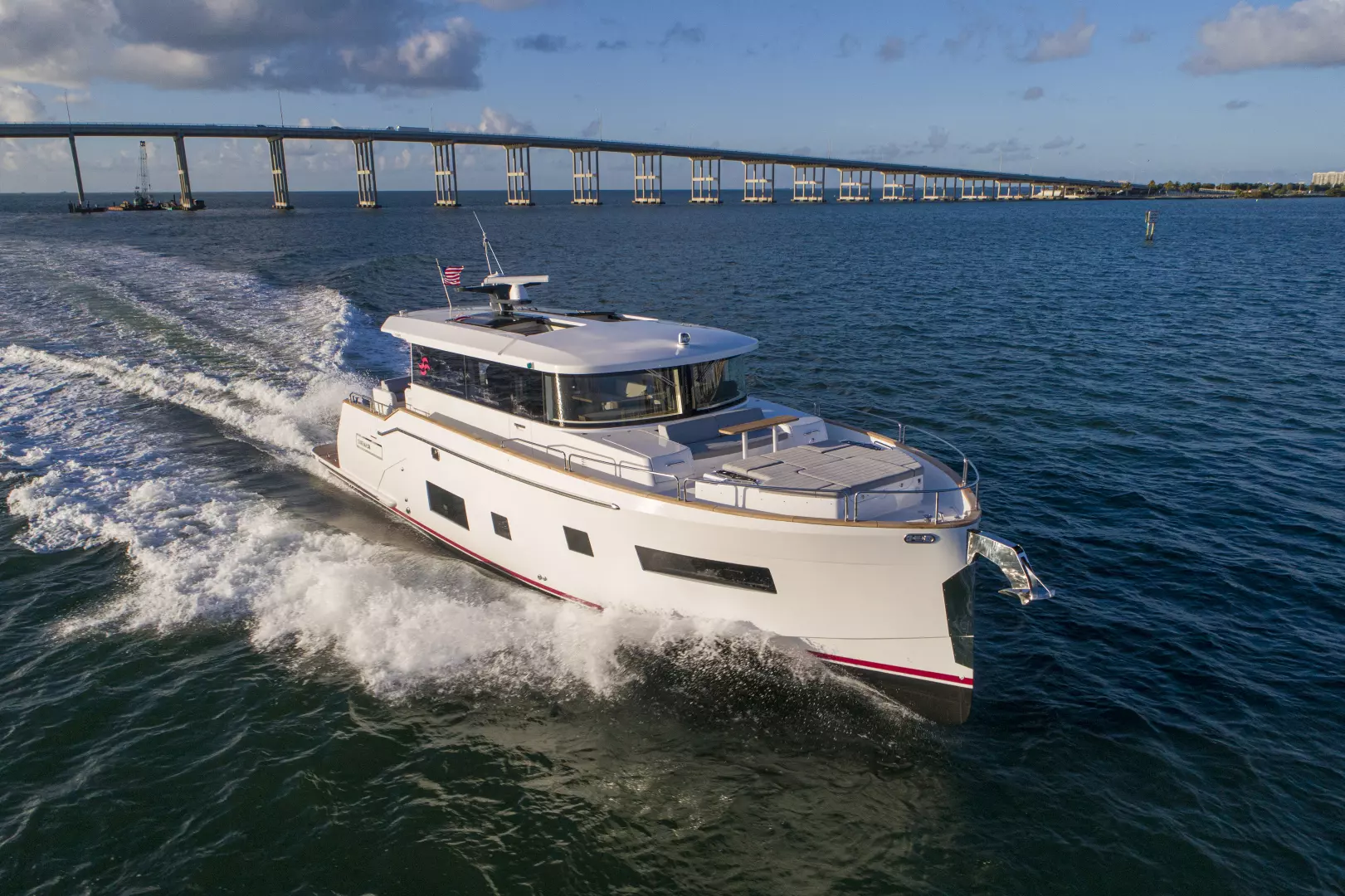

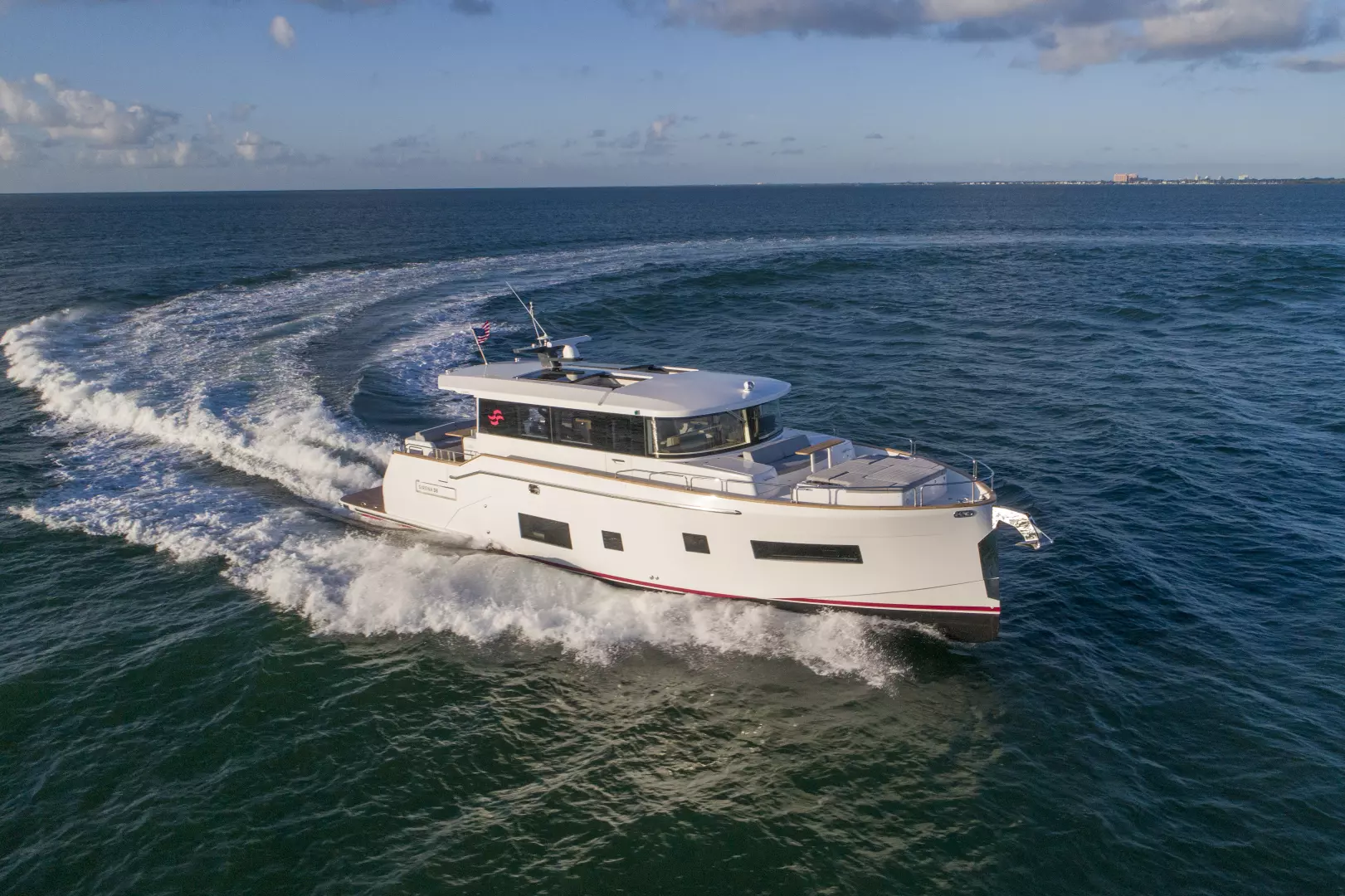

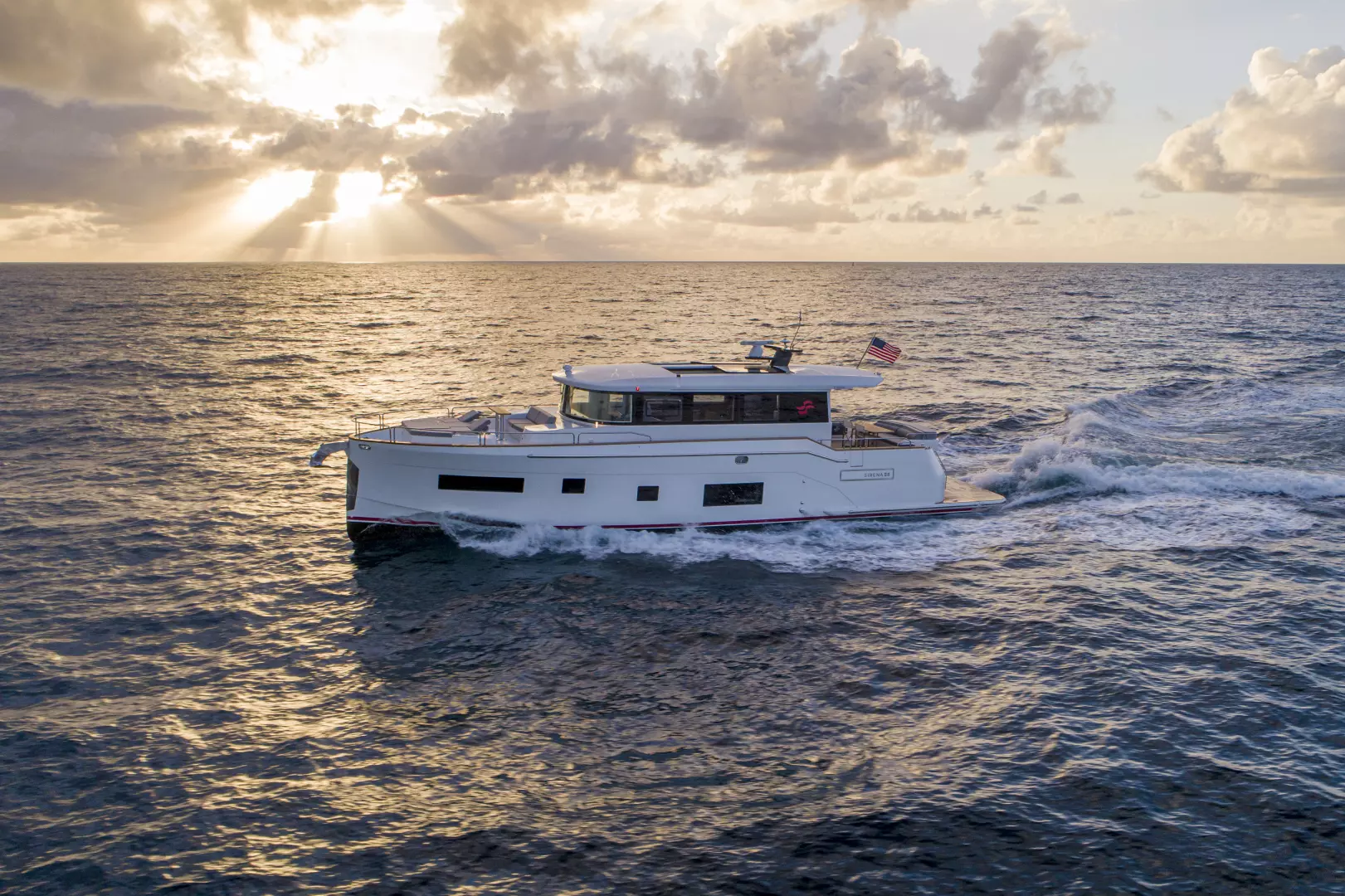

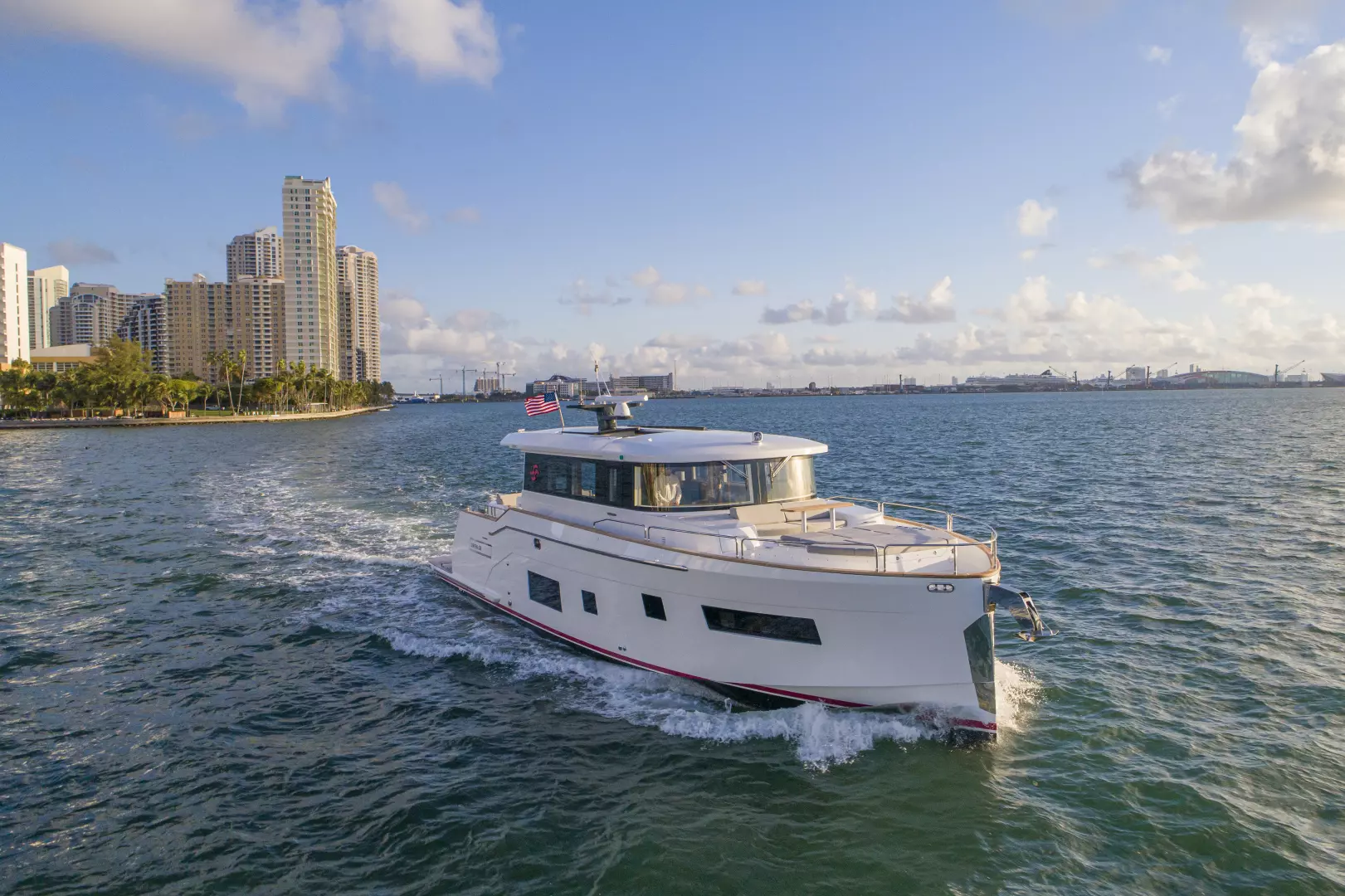

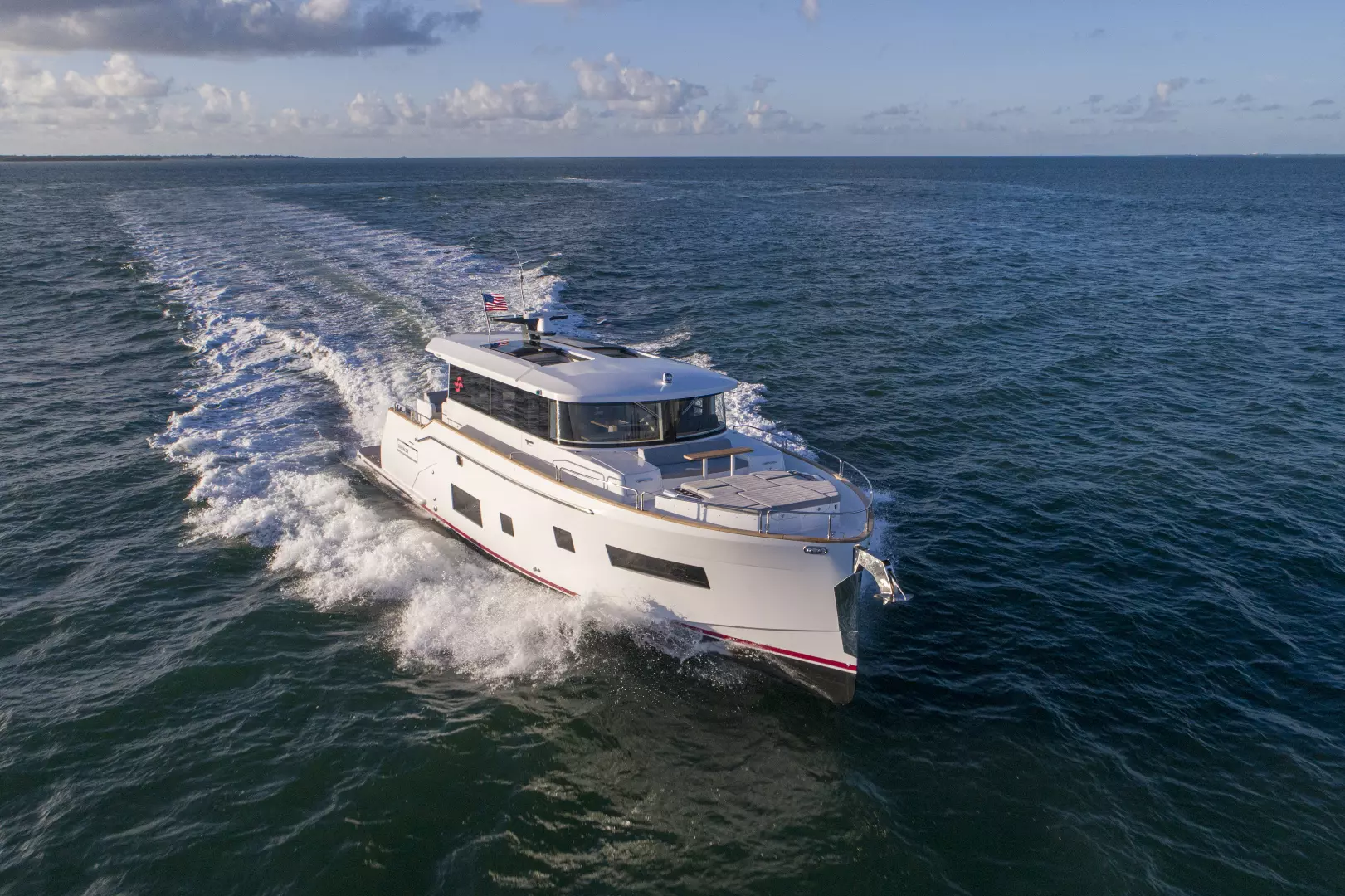

Exterior Design

Seaworthiness and comfort are key components of every Sirena Yachts, and the Sirena 58 offers both. It starts with a hull design by world-renowned Germán Frers and Frers Naval Architecture & Engineering. Extensive tank testing ensures efficiency at speeds ranging from 10 to 30 knots. Vacuum-infused construction provides hull stiffness for excellent seakeeping and onboard comfort.

“It is a pleasant, sea-kindly low-drag canoe body capable of planning at high speed or cruising in semi-displacement, lowfuel-consumption mode. The hull stability is well matched to the needs of the gyroscopic stabilizers to ensure cruising or anchoring in great comfort.” —Germán Frers

Interior Design

The timeless interior of the Sirena 58 is designed by Tommaso Spadolini of Design Studio Spadolini and offers spaces equally suited to the intimate gathering of family and entertaining larger groups of friends.

“The main concept of Sirena Yachts interiors is comfort and light. When we started discussing the concept, the mission was to create a warm and elegant space, which could mix high-tech and handcrafting.” —Tommaso Spadolini

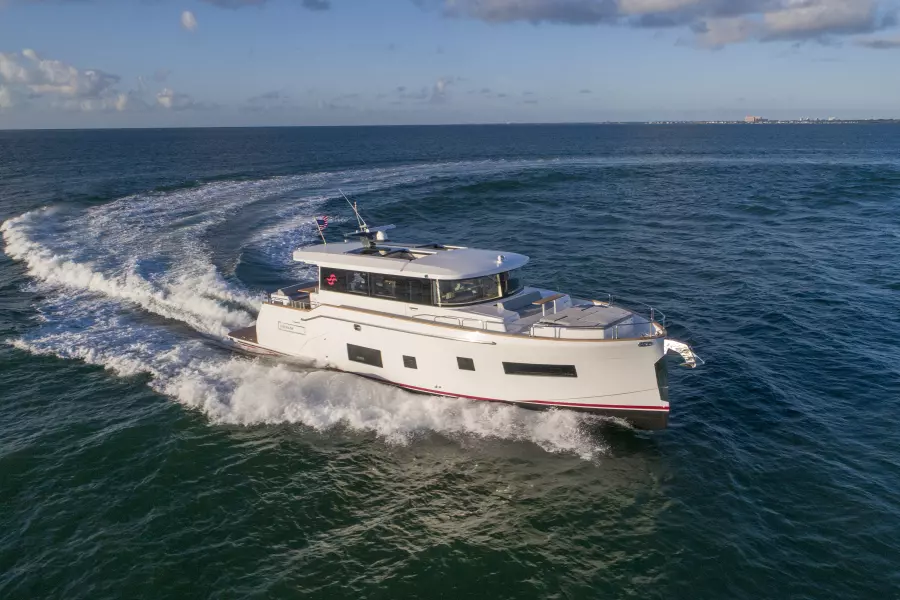

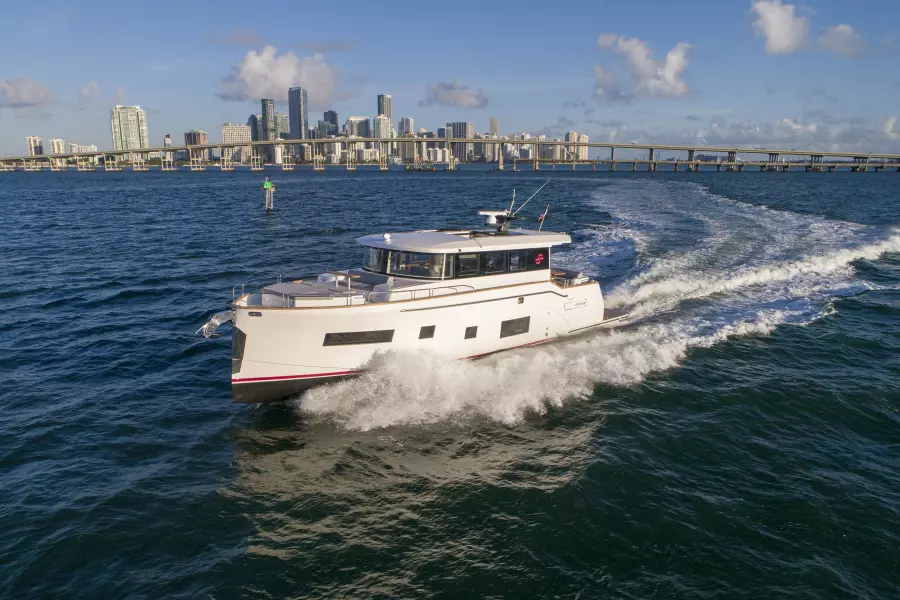

Sirena 58 - A life without compromise

The Sirena 58 is a yacht that delivers a refined experience for owners that understand what they want. The design has a timeless look, with clean, shippy lines, and offers efficient performance at a range of speeds that add cruising versatility—go for an afternoon, a weekend, or a week. The seakindly ride and comfort features will make even the most sophisticated guests want to spend more time aboard, enjoying the fine craftsmanship and amenities as they cruise from port to anchorage.

Dimensions and Main Characteristics

Length Overall LOA

(Incl. swim platform excl. anchor roller) 18,58m / 61’

Hull Length LH ISO 8666

(Net GRP - Swim platform excluded) 17,18m / 56’ 4’’

Waterline Length LWL ISO 8666

(Full load conditions) 17,00m / 55’ 9’’

Hull Beam BHmax ISO 8666 (@ Mid-ship section) 5,36m / 17’ 7’’

Max Draft - TMAX ISO 8666 1,24m / 4’ 1’’

Loaded-Displacement Mass - mLDC ISO 8666 34,5 tonnes (with VOLVO D11) / 76280 lbs

36 tonnes (with VOLVO D13) / 79370 lbs

Light Craft Condition Mass - mLCC ISO 8666

(= Dry displacement, no crew, no luggage)

28 tonnes (with 2 x VOLVO D11) / 61730 lbs

29,5 tonnes (with 2 x VOLVO D13) - optional / 65040 lbs

Diesel Tank Capacity 3600lt / 950 gal

Fresh Water Tank 800lt / 210 gal

Black Water Tank Capacity 450lt / 120 gal

Gray Water Tank Capacity 225lt / 60 gal

Cabins 3 standard + 1 (optional crew cabin)

Beds 6 + (1 crew)

Heads 3 + 1 (crew head)

Building Material GRP / Carbon hybrid fiber

Hull Type Semi-displacement

Exterior Styling & Concept Frers Naval Architecture & Engineering

Interior Decor Design Studio Spadolini

Hull Design Frers Naval Architecture & Engineering

Engines VOLVO D11 670HP x 2

VOLVO D13 900HP x 2

Marine Gears ZF 325 IV (VOLVO D11)

ZF 335 IV (VOLVO D13) - optional

Reduction Ratio 2.037: 1 (ZF 325 IV)

1 .964: 1 (ZF 335 IV) - optional

Transmission V drive

Propeller Diameter (Max) 800mm / 2’ 6’’

Max Speed 25 knots

28 knots

Cruising Speed 16 knots

Economy Cruising Speed 10 knots

Range 10 kn (Incl. 10% reservoir) 850NM

Certification CE Category A

NOTE: All performance specified in the table above are design data and applies to a standard configuration boat

(standard equipment installed as per this standard list) with clean keel, propellers, and rudders. Furthermore, the

performance levels indicated above have been defined under good sea and wind conditions (Beaufort Scale level

1, Douglas Scale level 1, ambient T < 25°, seawater T =15°, atmospheric P = 103250 Pa) with 2 people on board,

25% fuel, and fresh, grey and black water tanks empty. Different or harsher sea conditions and additional selected

optional equipment may affect the performance.

Structure of the Boat

The structural design is compliant to EN-ISO 12215. The hull, deck and superstructures are constructed in sandwich technology. Entire boat have been built using the vinylester resin infusion technique and assembled with structural adhesive engineered for marine application. Thanks to the vinylester resins maximum resistance to osmosis and better surface finishing Sirena Marine is therefore able to provide a 5-year warranty against osmosis. This construction technology reduces weight and improves construction quality and consistency. Superstructure made from carbon hybrid fabrics for improved lightness and strength. Bulkheads are made in PVC sandwich and secondary bonded to the hull with lamination.

Semi-Displacement Hull

A semi-displacement vessel can take advantage of increased power and can achieve greater speeds when needed. Most of the time, semi-displacement vessel operates in displacement mode and is very fuel-efficient. Due to the lesser draft as compared to full displacement vessels, semi-displacement vessels have less “wetted surface area”, requiring less horsepower to propel the hull through the water. A semidisplacement hull can achieve about 35% more speed with the same engine load requirement as compared to a full displacement hull form, or conversely at the same speed use significantly less fuel and energy. The hard chine hull of a semi-displacement vessel is inherently more stable than a rounded bottom full displacement hull. Semi-displacements vessels are far more comfortable at anchor than any rounded bottom design.

Exterior Specifications

HULL

External surface finished with high resistance white gelcoat

Moulded with tunnel for bow thruster and reinforcement for stern thruster

Stainless steel rubrails with rubber insert

Waterline boot top in burgundy red

Antifouling painting

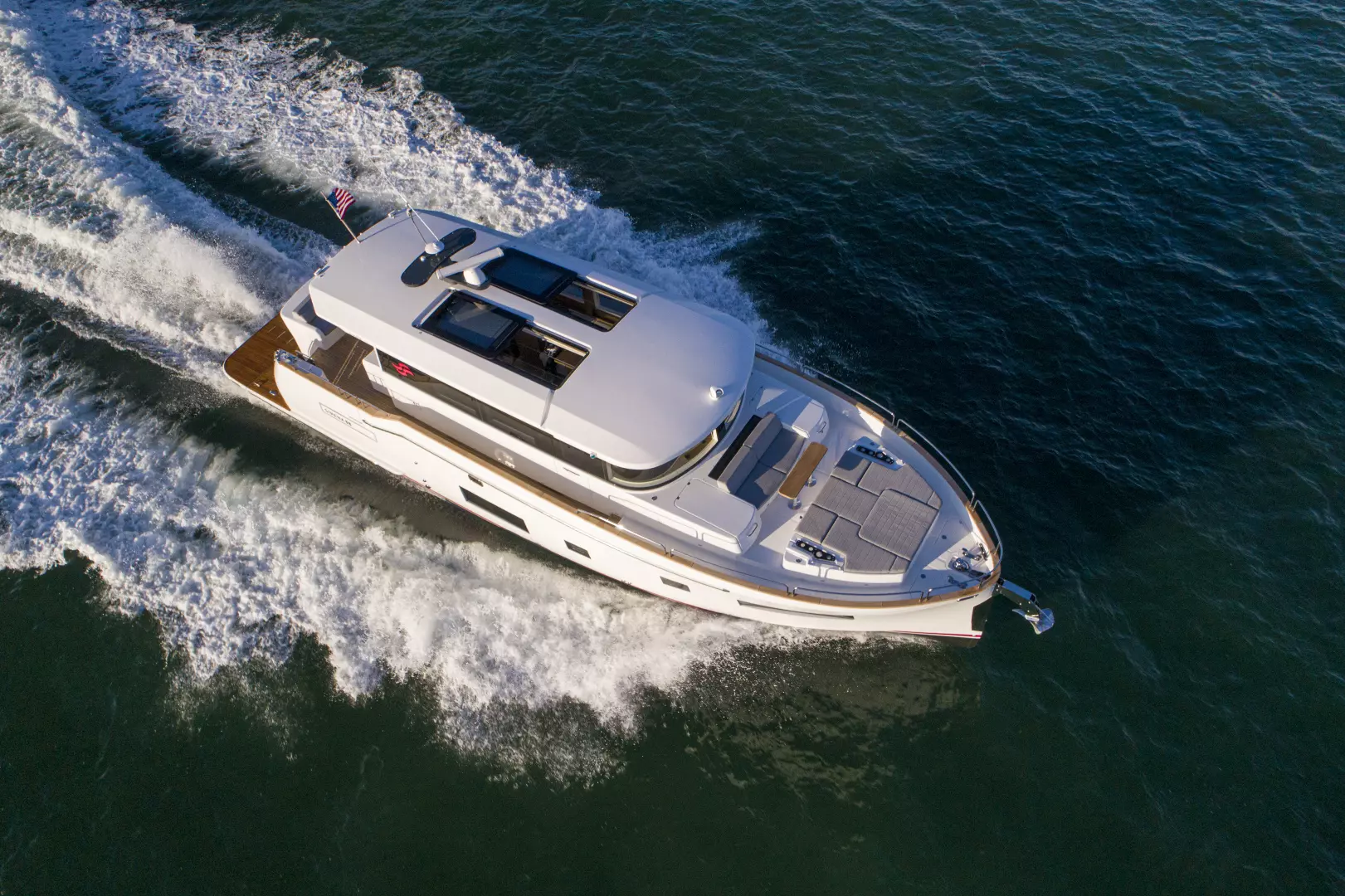

FLYBRIDGE

Hybrid carbonfiber flybridge

Antiskid surface floor finish

Hinged access weathertight hatch in white aluminium and Plexiglas®

Plexiglas® windshield

U-shaped seating area for up to 6 people on starboard sofa, with storage underneath

Table for up to 8 people, with teak laid top

Mast for 18” 4kW HD radar, VHF antenna, horn and optional navigation equipment

Shower with hot/cold water mix on mast

Wetbar with sink

Storage behind helm station

Aft sundeck area for optional seating area, chaise longue

Helm station with double seating area

Fore sundeck area with cushion and storage underneath

Skylight for the lower deck stairs

Navigation lights

Helm station with high resistante grey gelcoat

Forward-backward adjustable flybridge bench helm seat

Covers for seats, sun bathing cushions and table

Extra conduits connecting engine room with mast and console

Helm station equipped with:

Steering wheel

Garmin 10’’ MFD GPSMAP 8610

Garmin GHS 11 VHF radio

Depth/Speed transducer

Anchor windlass control

Navigation/anchor lights switch

12V socket

USB socket

Interceptor control

Chain counter

Horn switch

Compass

Activation of bilge pumps

Bow thruster joystick

Fire extinguisher alarm panel

Monitoring system functions integrated in to chartplotter displays:

Grey water level gauge

Black water level gauge

Fresh water level gauge

Fuel tank level gauge

Shore power connection status-alarm

Tenderlift platform position status

Bilge high level alarm

SUPERSTRUCTURE

Hybrid carbonfiber superstructure

Deckhouse with front and side visors

Tempered laminated curved windows

Europa grey side windows and neutral colour front windows

Manuel sliding window in the helm station (port side)

2 windscreen wipers with washer

Navigation lights (red, green)

Sirena Yachts Logo on deck house

Courtesy lights on steps

FOREDECK

Stainless steel pulpit

Antiskid surface

Nr. 2 Stainless steel hawses

Nr. 2 Stainless steel mushroom bollards

Fixed bow anchor roller

Stainless steel anchor shield on bow

1700 W Lofrans anchor windlass with mooring support

Ultra 45kg stainless steel anchor

250’ high resistance chain with 3/8” diameter

Chain wash down system

Self draining chain locker and housing for 8 fenders

Sofa with removable cushions and storage underneath

Sunbathing area with removable cushions and storage underneath.

Stainless steel handrails and Plexiglas® cup holders

Plexiglas® cup holders

Covers for seats, sun bathing cushions

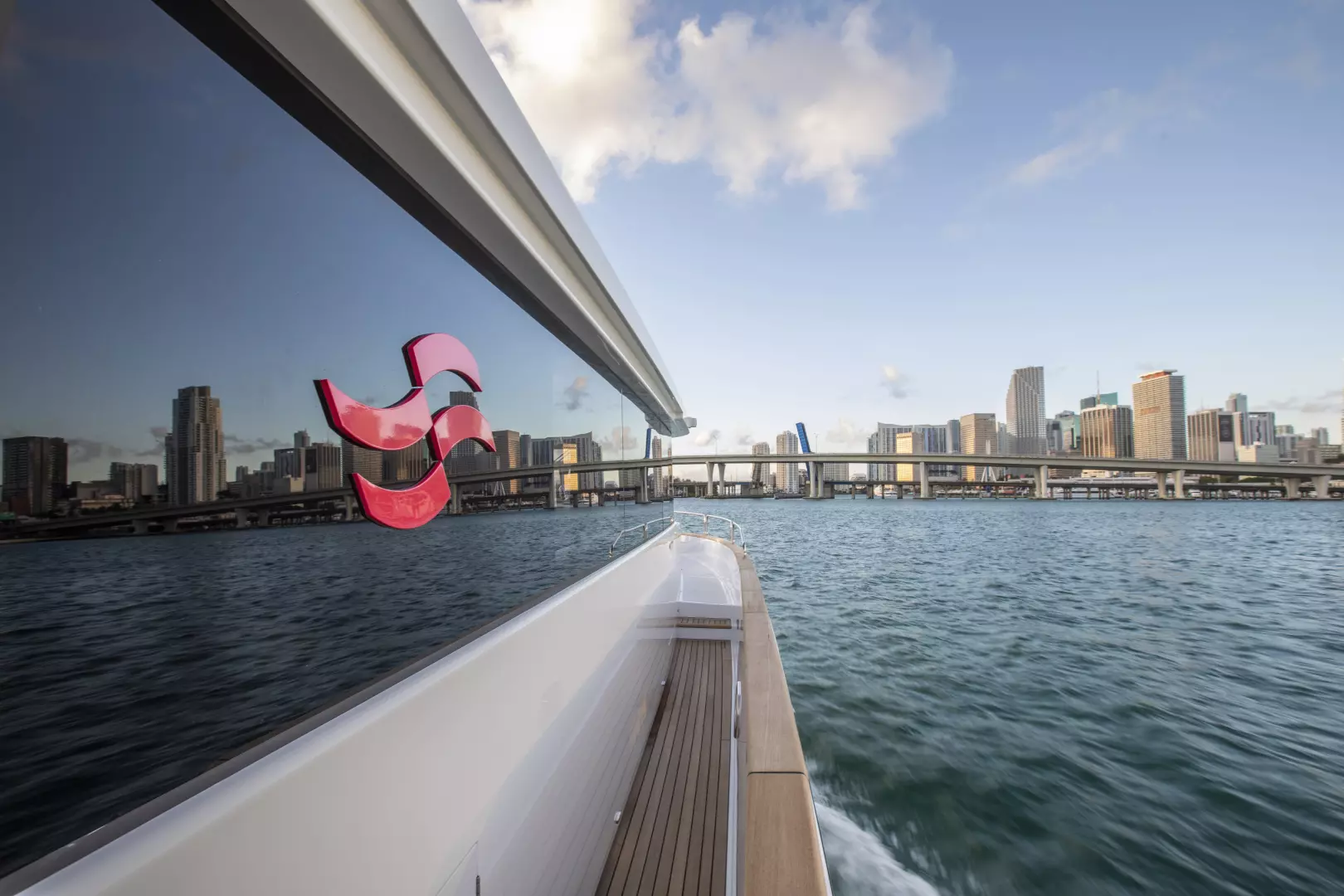

SIDE WALKWAYS

Side walking areas and first steps of bow area entrance in teak

Nr. 2 fuel fillers covered by GRP

Nr. 2 stainless steel fairlead with cleats inside at mid-ship

Fresh water filling inlet

Black water deck suction discharge outlet

Grey water deck suction discharge outlet

Courtesy lights on steps

Teak gunwale

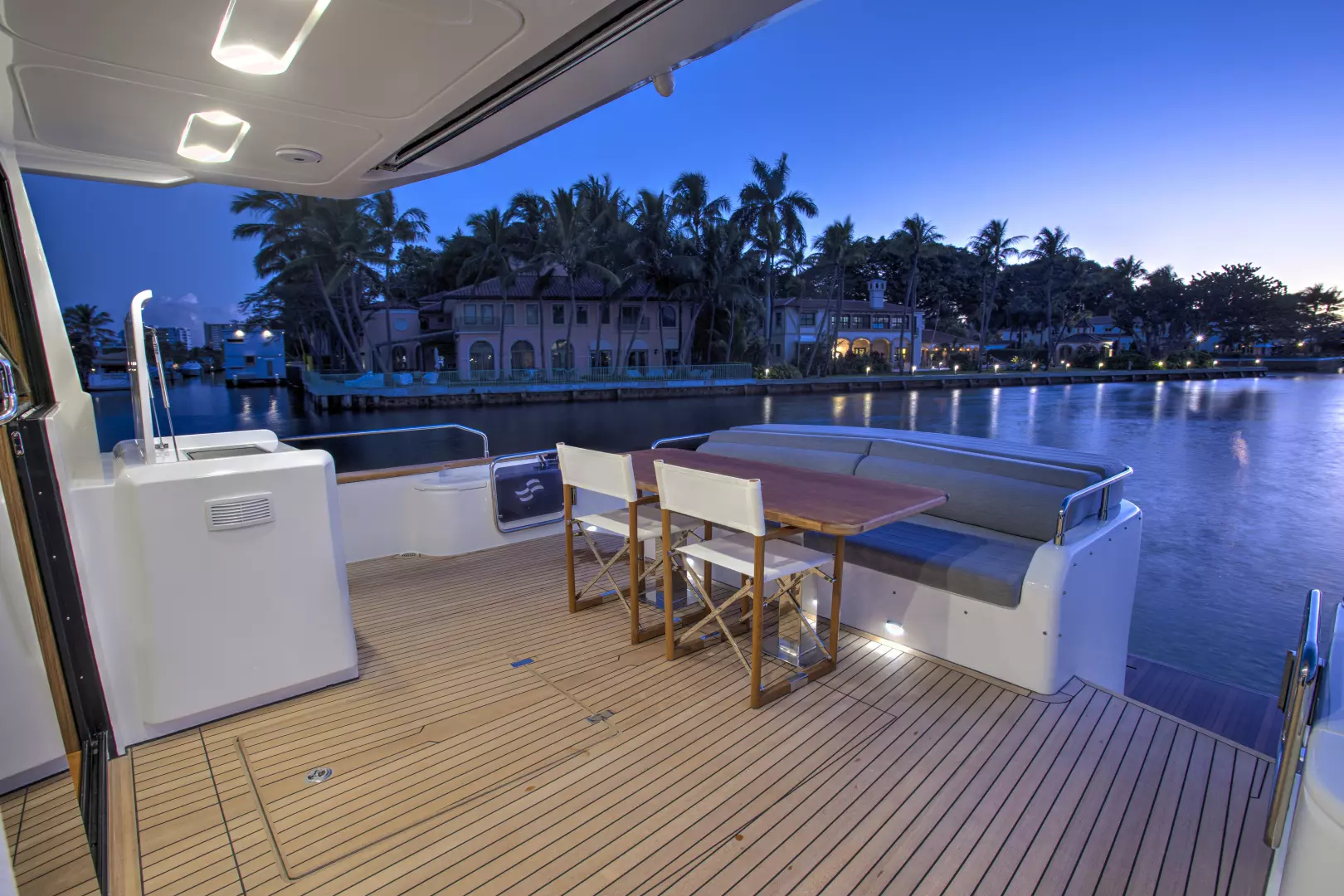

AFT COCKPIT

Teak covered steps from platform to cockpit

Teak covered floor

Saloon door with 2 stainless steel panels (1 fixed) in tempered glass

Flybridge access with a GRP teak laid stair and a built in locker

Courtesy lights on steps from platform to cockpit

Nr. 4 stainless steel fairlead

Nr. 2 stainless steel mushroom bollards

Nr. 2 stainless steel and Plexiglas® gates with Sirena Yachts logo

Covers for seats and table

Cockpit sofa with cushions

LED spotlights

Nr. 2 watertight loudspeakers

Side boarding gate on each sides

Manual activation of the fire extinguisher system

Stainless steel handrails

Engine room access via GRP hatch

Soft patch for engine and generator removal

Access to aft storage area via GRP hatch on aft seat

AFT PLATFORM / TRANSOM

Manual sliding swim ladder integrated in the platform

Hydraulic tenderlift with 880lbs net working load capacity

Spray anti-skid surface

Glass on transom with integrated openable porthole

Shower with hot and cold water mixer

Fresh water shore connection

Nr. 2 shore power socket 2 x 63A

Maximum tender dimensions according to platform 9’2” x 4’6”

Nr. 2 Stainless steel mushroom bollards

Interior Specifications

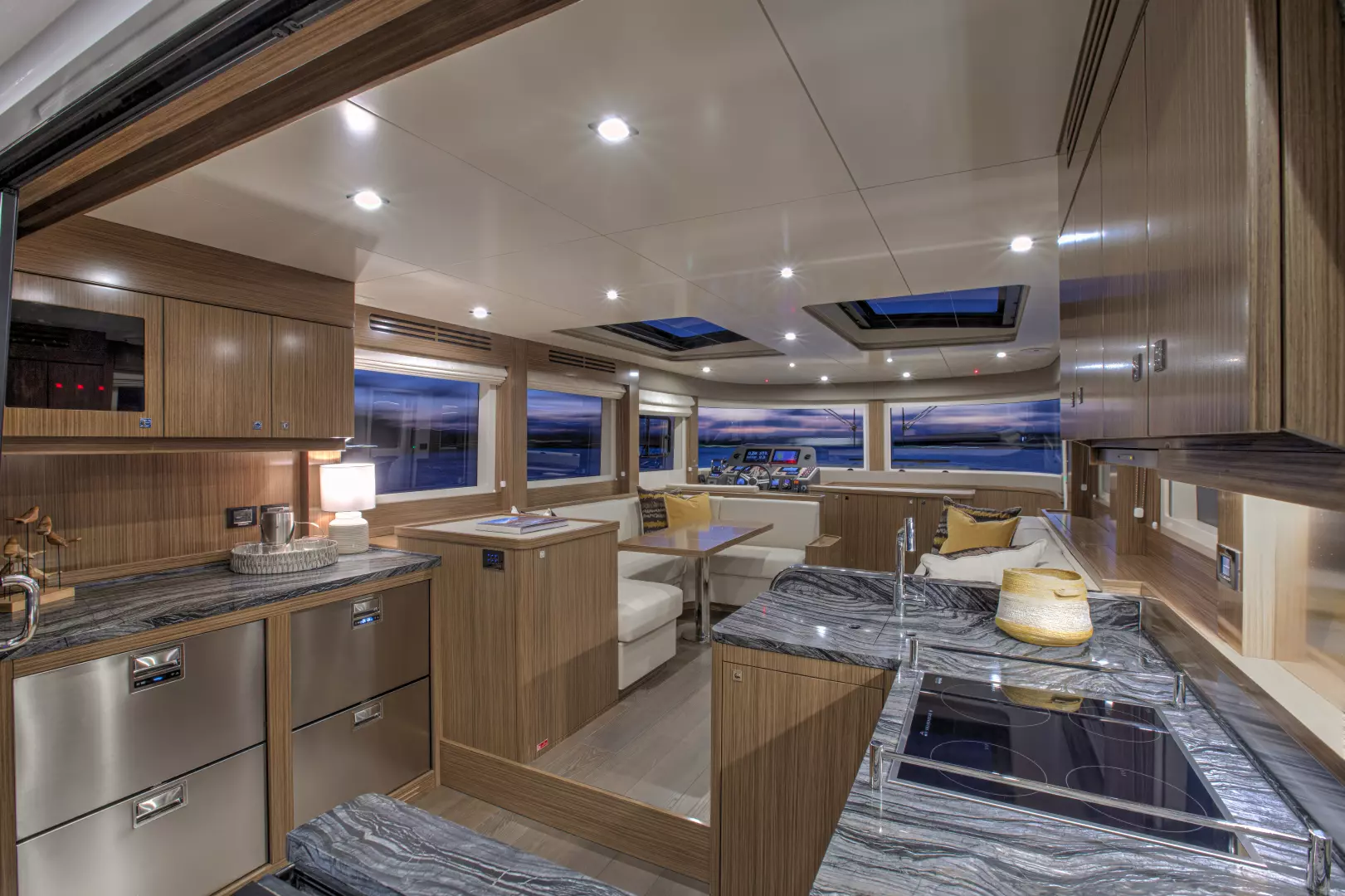

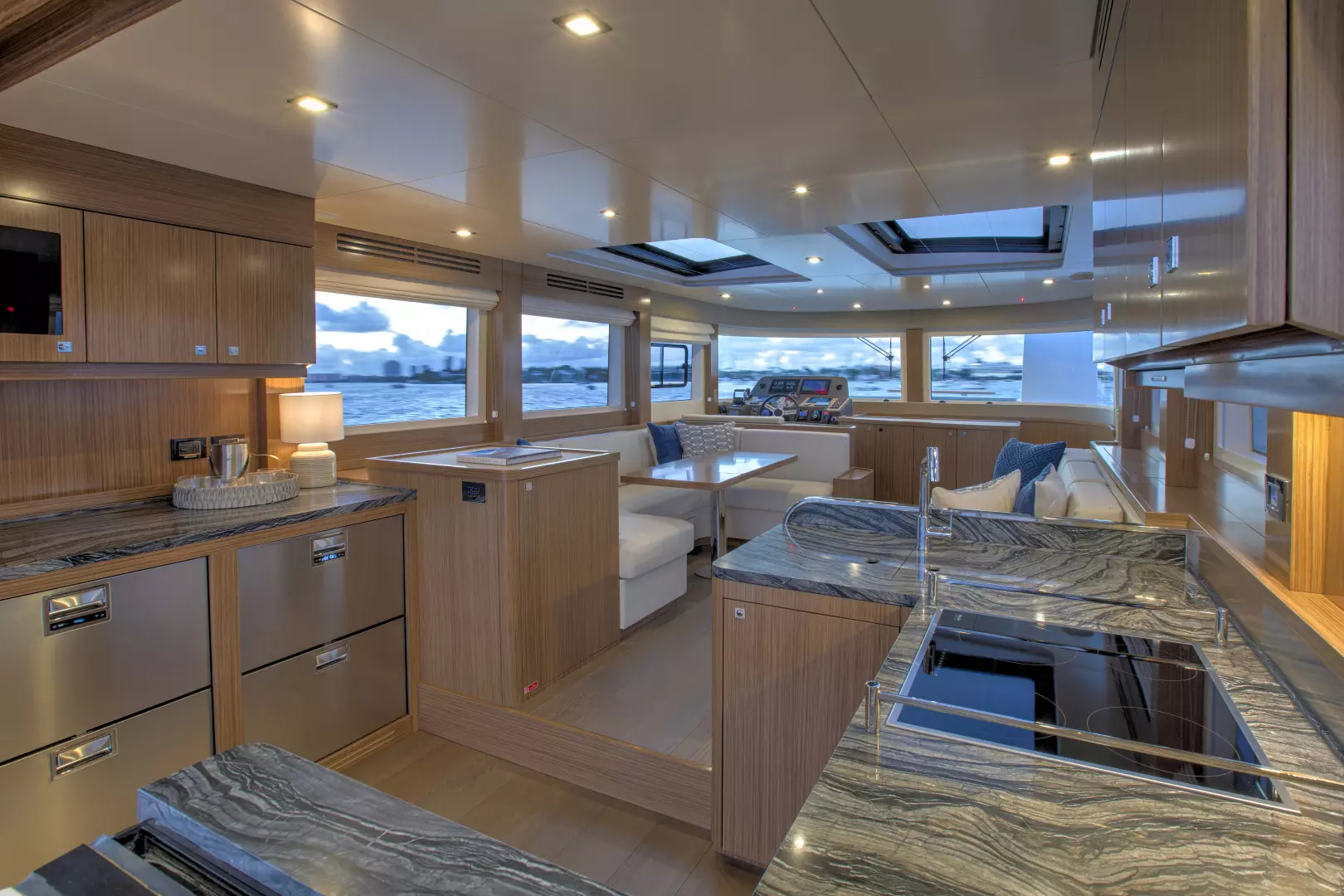

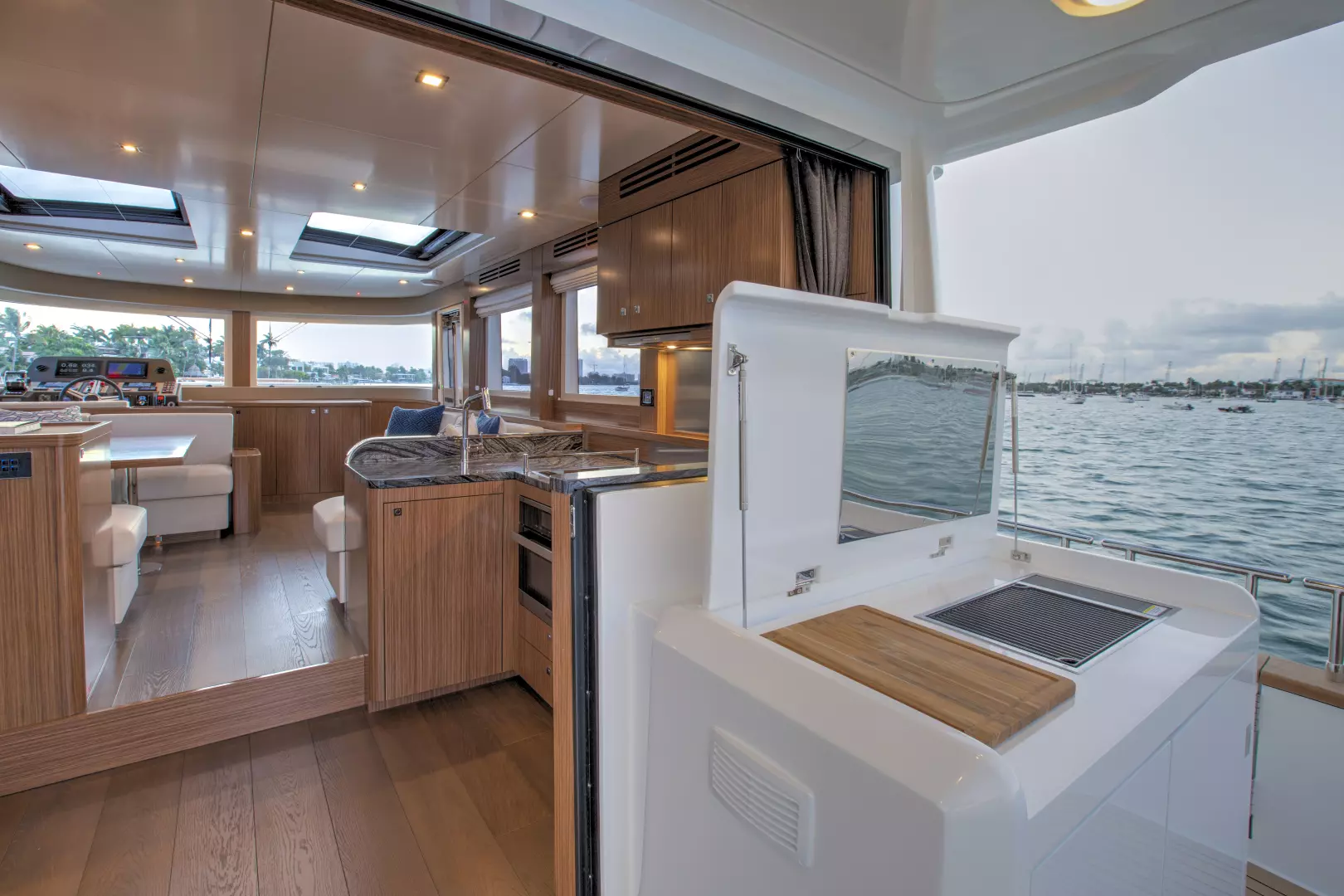

GALLEY

Galley at the entrance of saloon at starboard side

Wooden flooring

Low and high cupboards and bottle drawer at starboard side

Miele refrigerator/freezer 9.2 cu.ft. 268lt (196lt + 72lt) at portside

Storage area with shelves at portside

Worktop in Corian

Stainless steel sink

Water mixer

Miele four-hob glass ceramic cooktop

Stainless steel pan holder

Miele oven

Miele extraction hood

LED spotlights

Rubbish bin

Curtain on the entrance door

1 AC socket

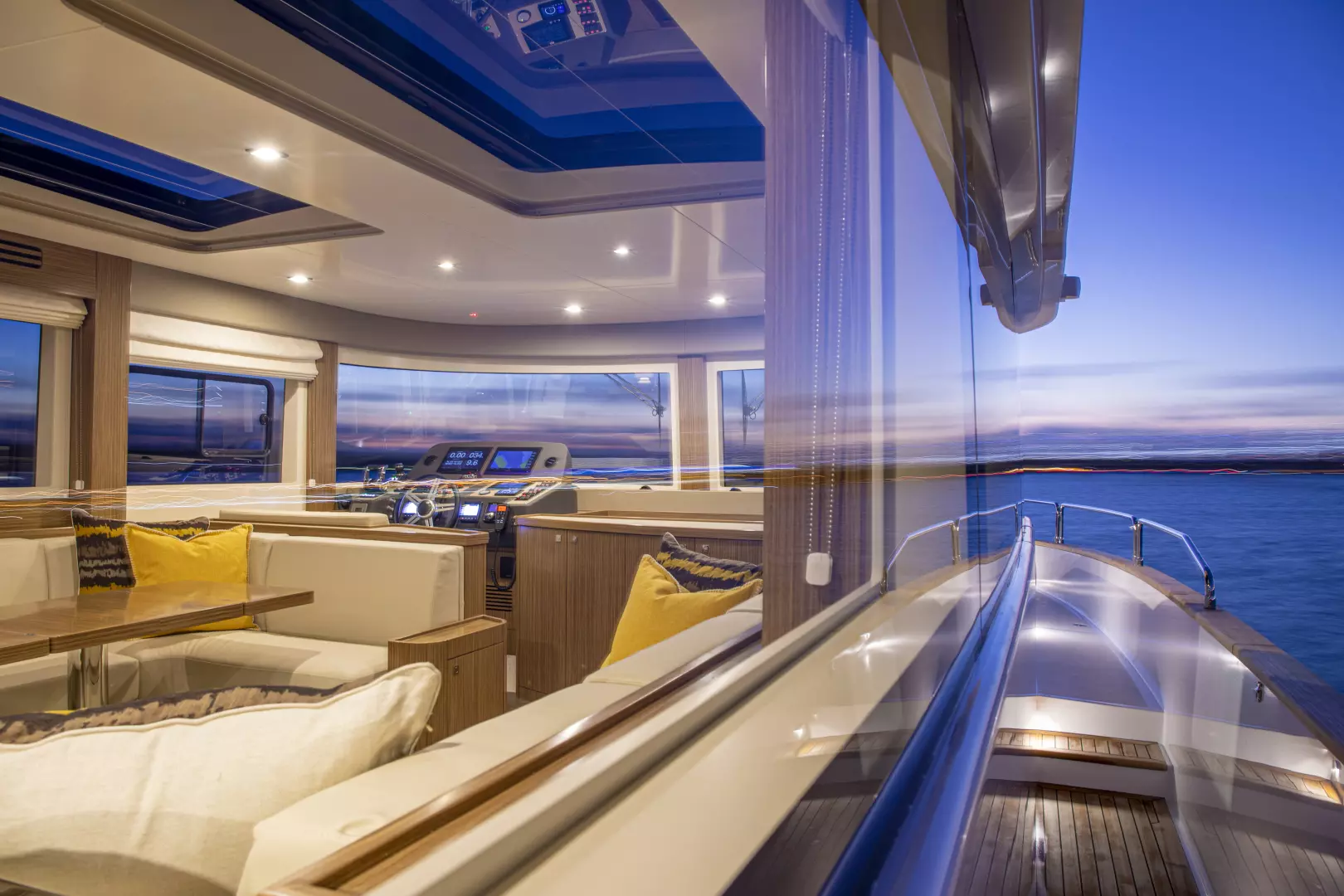

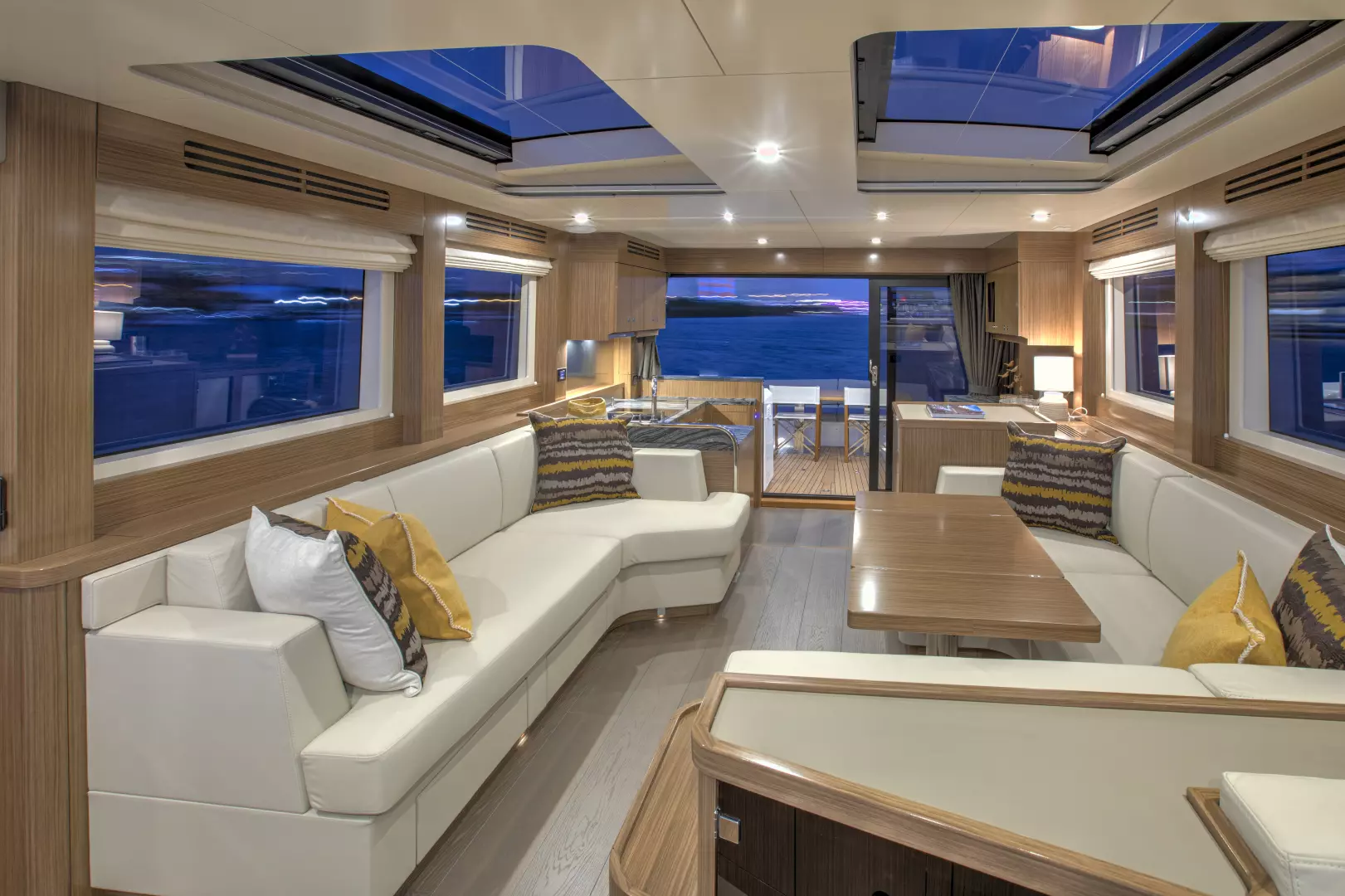

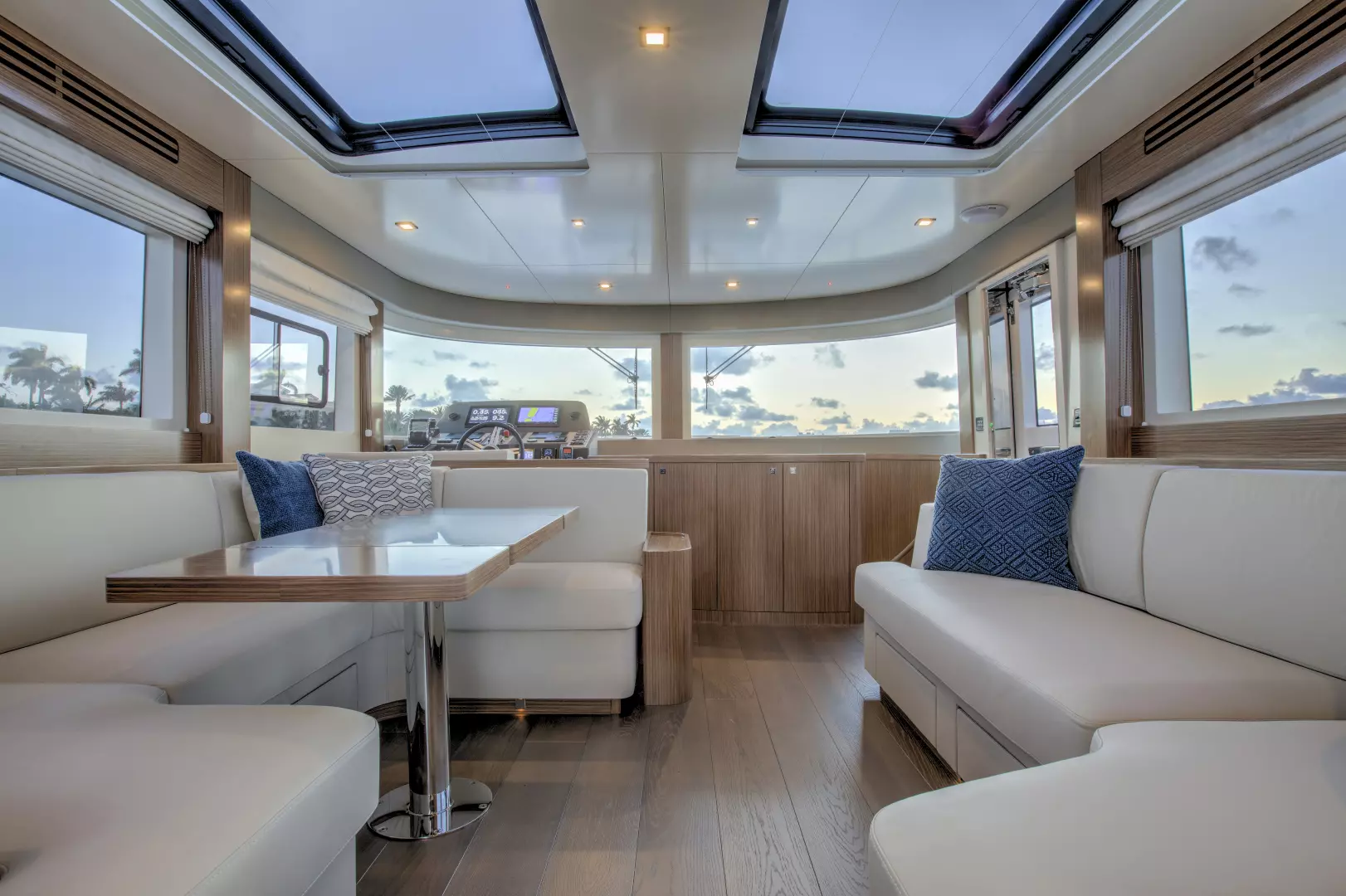

SALOON / DINETTE

Carpet flooring

U shape sofa and fixed table on portside

L shaped sofa on starboard side

Space to house TV lifting system at starboard side

Saloon overhead grabrails with LED lighting

Roman curtains on side windows

Fusion Marine entertainment system

Hi-lo TV system in saloon

TV antenna predisposition

Nr. 2 AC socket

Nr. 2 loudspeakers

Double helm seat

Cup holders by helm station

Service and engine batteries switches and engine room lighting switch at the entrance portside

Black mesh covers for windows

Drawers under all sofas

Footrest (under steering wheel)

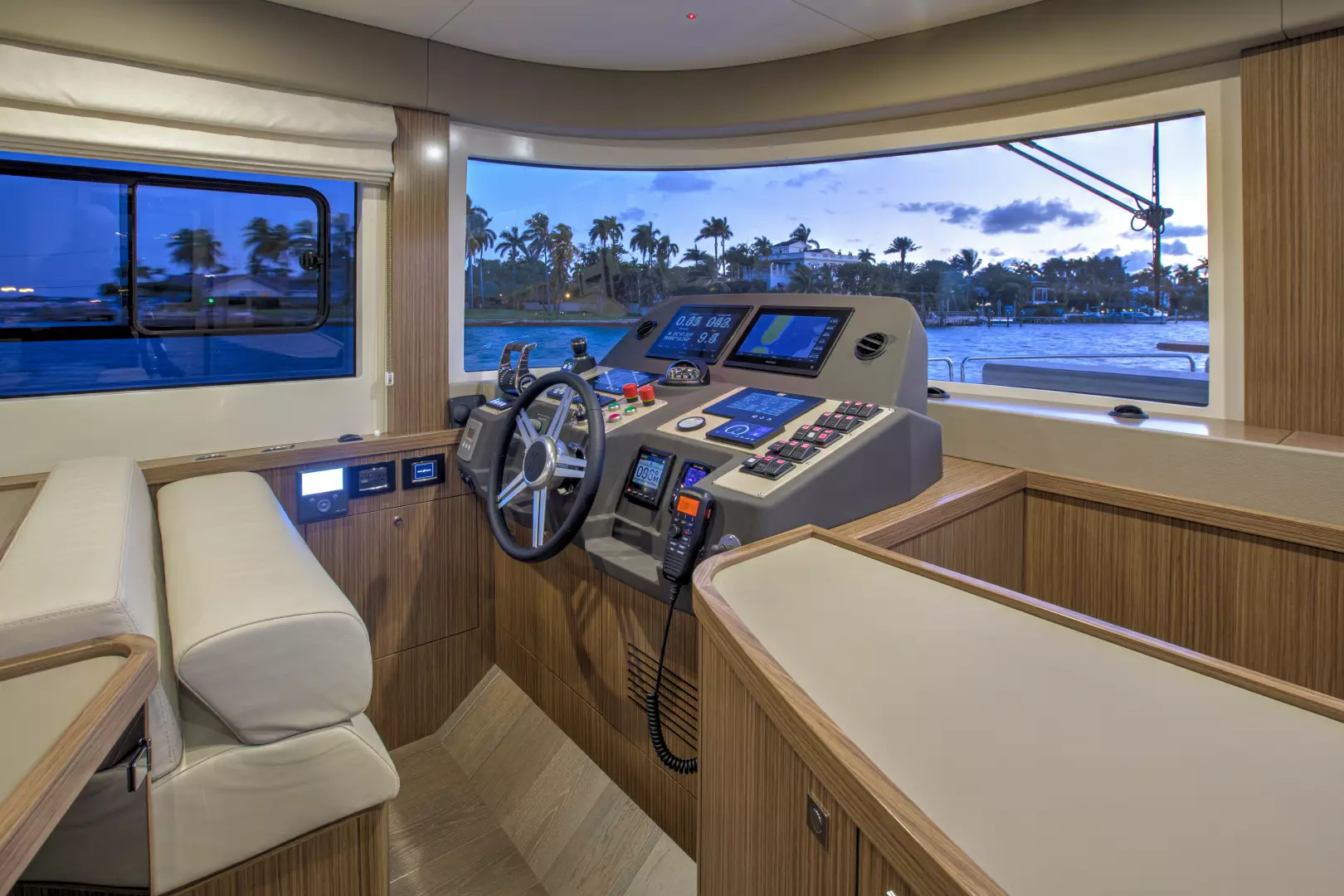

Helm station equipped with:

Helm seat on port side

Storage area next to helm station

AC socket

Nr. 2 panel cabinet for storage next to the helm station

Steering wheel

Garmin 10’’ MFD GPSMAP 8610

Garmin GHS 11 VHF radio

Depth/Speed transducer

Spotlights switch

Wheelhouse electrical panel next to helm seat

Windscreen washing switch

Anchor windlass control

Navigation/Anchor lights switch

12V socket

USB socket

Interceptor control

Bow-thruster joystick

Chain counter

Horn switch

Fire extinguisher alarm panel

Compass

Monitoring system functions integrated in to chartplotter displays:

Grey water level gauge

Black water level gauge

Fresh water level gauge

Shore power connection status-alarm

Aft storage door position status

Tenderlift platform position status

Bilge high level alarm

STAIR TO LOWER DECK

Carpet on steps

Courtesy Lights

Handrail

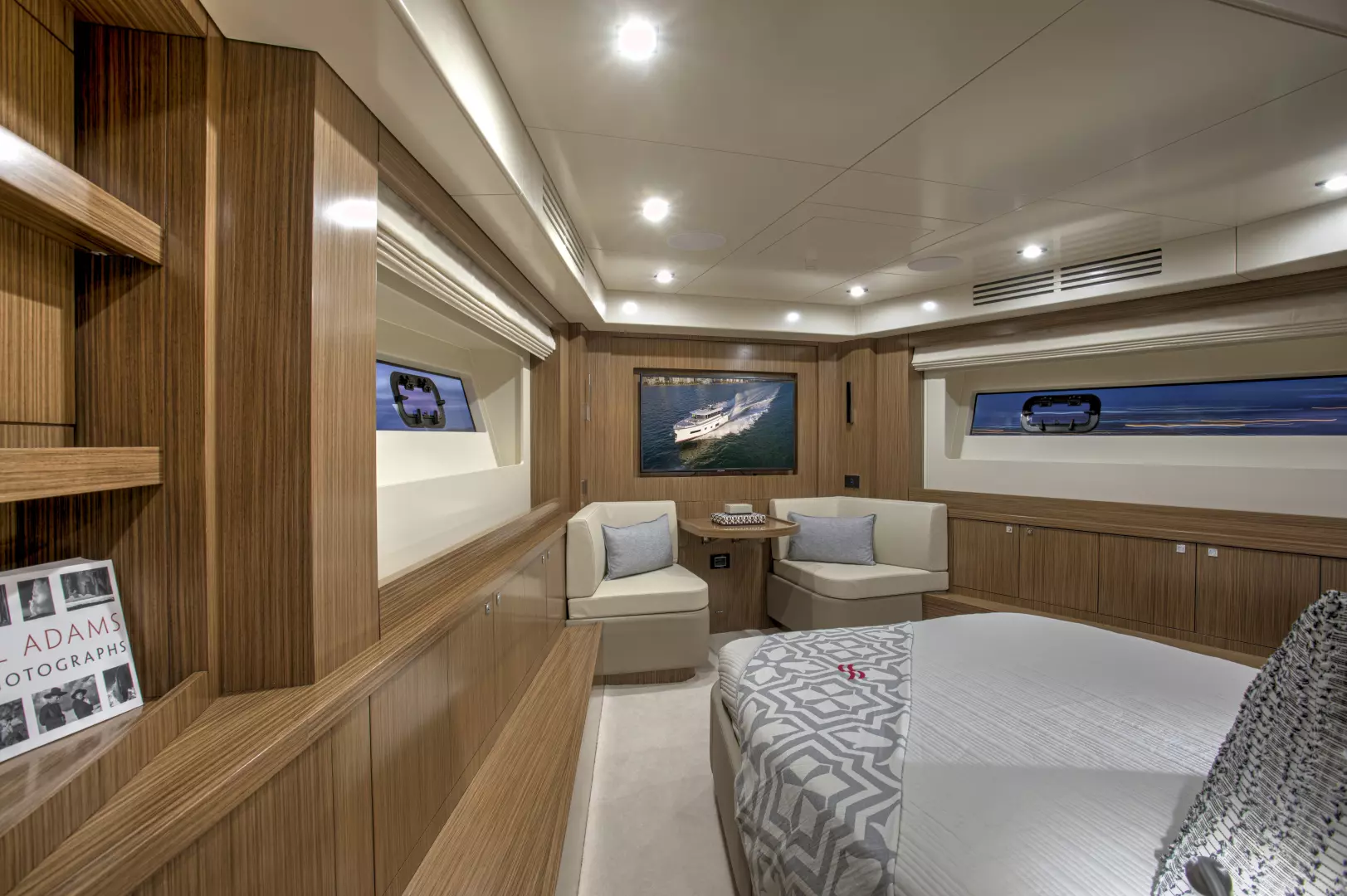

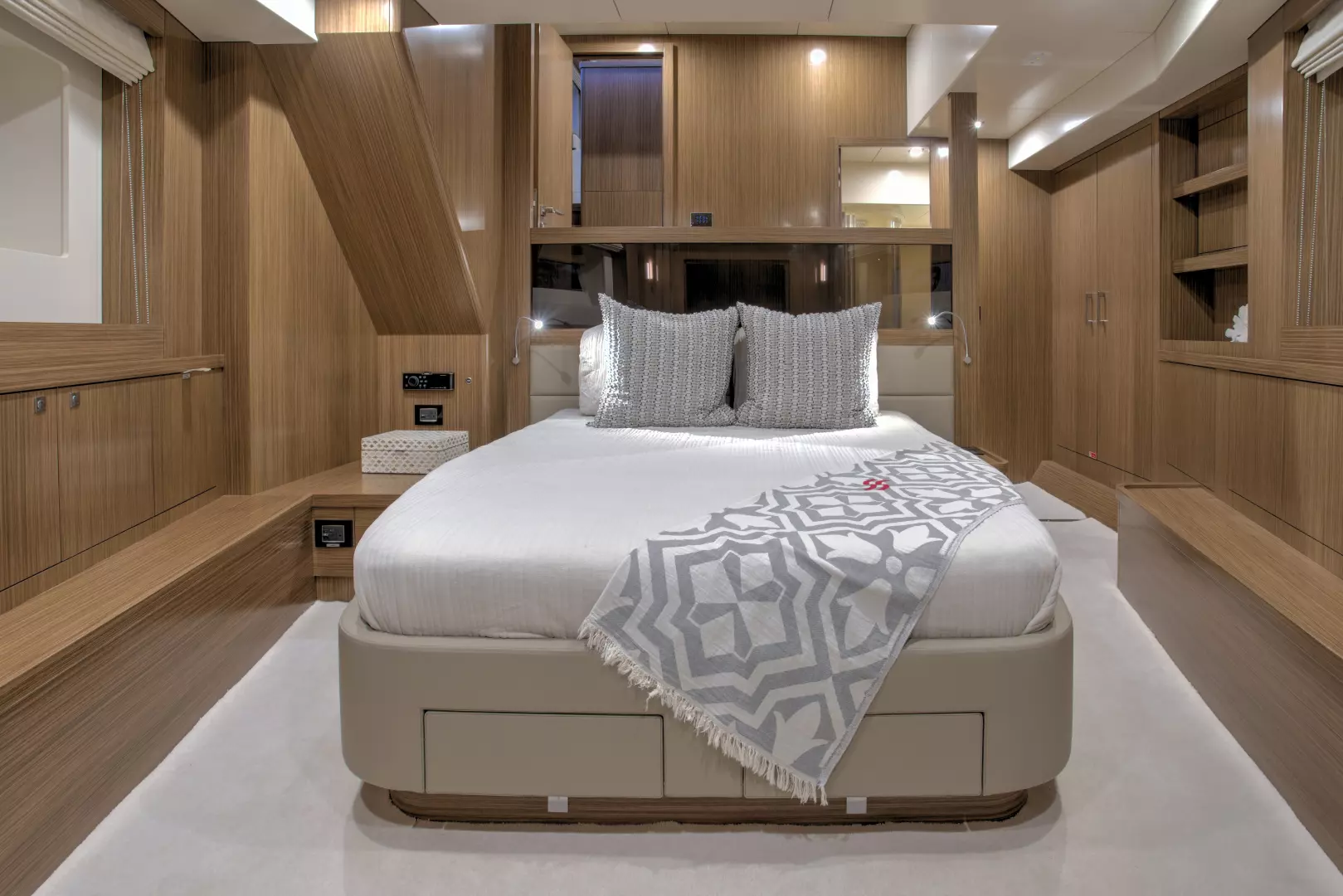

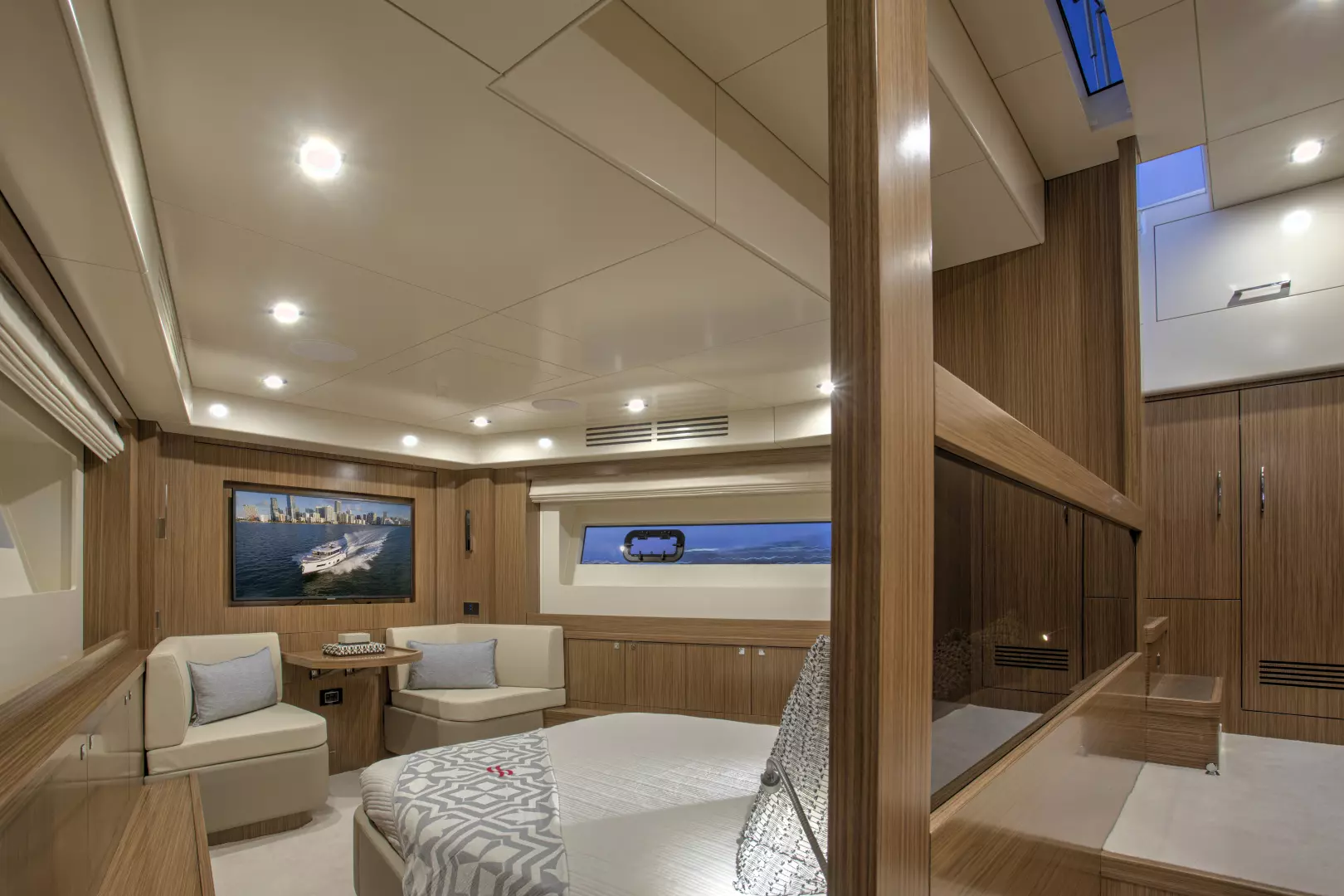

OWNER’S CABIN

Located at amid-ship

Carpet flooring

En-suite head

Nr. 2 AC sockets

Double bed

Mattress

Nr. 2 Nightstands

Two full size wardrobes with hangers and shelves

Full size mirror

TV antenna predisposition

Vanity on port side

Sofa on starboard side

Storage on port side and starboard side

Storage unit on port side with drawers

Dimmered lights

Nr. 2 reading lights

Courtesy lights

LED spotlights

Nr. 2 wall lights

Roman curtains

Two scenic windows

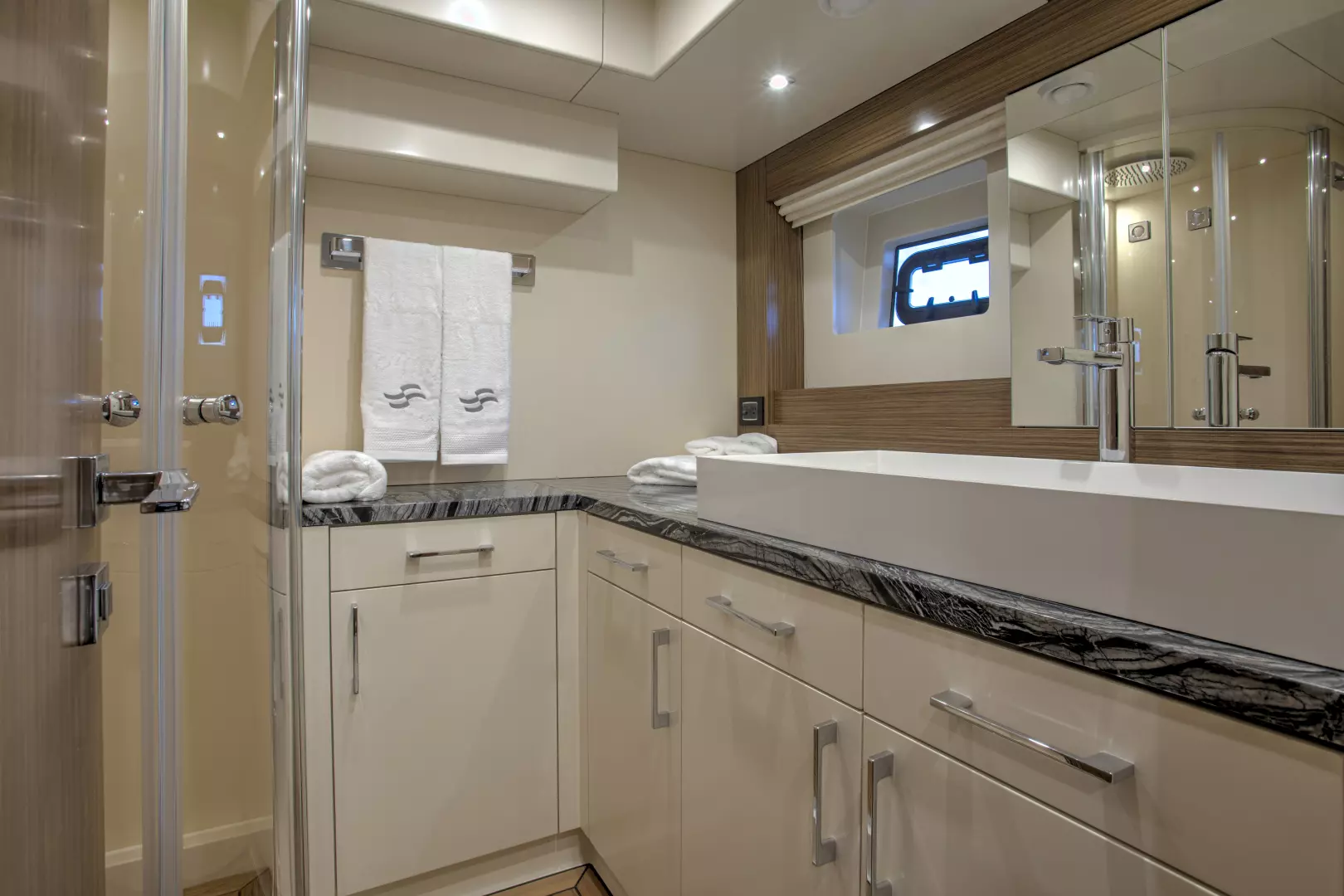

OWNER’S HEAD

Located on the forward starboard of the owner’s cabin

Private access form the owner’s cabin

Corian flooring in head

Corian flooring in shower area

Toilet

Shower area with Plexiglas® door

Showerhead

Shower mixer

Washbasin

Water mixer

Bathroom counter top in Corian

Mirror

Cabinet underneath the sink

Air extractor in shower

LED spotlights

Nr. 1 portlight

AC socket with protection

Toilet accessories

Venetian blind

VIP CABIN

Located on lower deck fore side

Carpet flooring

En-suite head

Double bed with underneath storage

Mattress

Nr. 2 wardrobe with shelves on both sides

TV antenna predisposition

LED spotlights

Nr. 2 wall lights

Dimmered lights

Nr. 2 reading lights

Courtesy lights

Roman curtains

Nr. 2 scenic windows with one porthole each

VIP CABIN HEAD

Located on starboard side with private access from VIP cabin

Corian flooring in head

Corian flooring in shower area

Toilet

Shower area with Plexiglas® door

Showerhead

Shower support with adjustable height

Shower mixer

Washbasin

Water mixer

Bathroom counter top in Corian

Mirror

Cabinet underneath the sink

Air extractor in shower

LED spotlights

Nr. 1 window with porthole

Venetian blind

AC socket with protection

Toilet accessories

GUEST CABIN

Located on port side

Carpet flooring

Direct access to day head

Twin beds with underneath storages

Mattress

Nr. 1 nightstand between two beds

Full size wardrobe with hanging space mirror and shelves

One portlight and scenic window

Roman curtain

Dimmered lights

Nr. 2 reading lights

Courtesy lights

LED lights

Nr. 1 wall lights

Ac socket

GUEST’S / DAY HEAD

Located on port side

Entrance from guest cabin and corridor

Corian flooring in head

Corian flooring in shower area

Washbasin

Water mixer

Bathroom counter top in Corian

Mirror

Cabinet underneath the sink

Air extractor fan

Toilet

Toilet accessories

Shower solution

LED lights

Ac socket with protection

Window with porthole

AFT STORAGE AREA (OPT. CREW CABIN)

Access from aft cockpit via GRP hatch

Free space for storage

LED spotlight

ELECTRIC SYSTEM

Halogen free and self-extinguishing cables

Bounding system with two sacrificial anodes

Grounding system

Galvanic Isolator and to prevent galvanic corrosion

115/230V AC - 60 Hz with 2 x 63A shore connection

24V DC - 12V DC with negative grounded

Reverse polarity indicator

Inverter 2400W - 24V / 110V - 60Hz

SHORE POWER CONNECTION

Shore power socket 115/230V - Nr. 2 63A

Power lines procted by dedicated GFCI circuit

Shore power cable

Glendinning cable master CM8

GENERATOR

Nr. 1 Cummins Onan Generator 21,5Kw - 60 Hz

AIR CONDITIONING

CruiseAir zone controlled reverse cycle system - 99.000 BTU/h

PROPULSION SYSTEM

VOLVO D11 670HP x 2

ZF 325 IV gearbox (Ratio 2.037: 1)

2.5” diameter Duplex F51 shaft (Shaft angle 8 degree)

Aluminium bronze P bracket

800x830mm 5 blades Teignbridge propellers

PSS shaft seal

STEERING & MANOEUVERING SYSTEMS

Servo electric power assisted steering system and autopilot system

Garmin autopilot system

Rudder blade in aluminium bronze

Dynamic automatic trim control via interceptors

8 Kw bowthruster - 24 DC, 9.8” diameter

BATTERIES

Nr. 8 95Ah batteries for service

Nr. 4 140Ah batteries for engine start

Nr. 1 95Ah battery for generator start

Nr. 1 battery charger - 24V / 80A for service

Nr. 1 battery charger - 24V / 30A for starting batteries

Nr. 1 battery charger - 12V / 15A for generator battery

BILGE SYSTEM

Nr. 1 x 24V electrical Bilge pump in engine room

Nr. 1 x 24V automatic electrical bilge pump 24V in the accommodation area

Nr .1 manual Bilge pump located at aft deck under mooring area. Two suction areas through a valve, one

suction at accommodation area. One suction at engine room.

Nr. 4 Bilge level alarms

Nr. 2 Bilge high level alarms

Engine room emergency pump through a diverting valve fitted on engine seawater cooling line

Each electric pump can be manually activated by switches placed in the helm station

FIRE EXTINGUISHING SYSTEM

Seafire Novec manual ad automatic extinguishing agent in the engine room

Automatic shut down system

Alarm panels on helm station and flybridge dashboards

FUEL SYSTEM

Nr. 2 stainless steel tanks (total 950 gal) located in the engine room

Fuel level indicator for each tank on monitoring system

Visual level gauge on port and starboard tanks

Nr. 1 single Racor separation filter for generator

Nr. 2 double VOLVO separation filter for engines

FRESH WATER SYSTEM

Nr. 1 HDPE tank (210 gal)

Self priming fresh water pump

Tank level indicator and empty status integrated in the monitoring system

16 gal water heater 110V - 1200W

Hot and cold water in all head rooms, galley, cockpit, flybridge sink and fly shower

Cold water outlet in engine room

Filling cap on the side-walking

Shore fresh water connection

BLACK WATER SYSTEM

Nr. 1 HDPE tank 120 gal capacity

Tank level indicator integrated in the monitoring system

3/4 and full tank indication in the heads

Fresh water toilet flushing

Holding tank discharge via suction on deck

Overboard discharge of wastewater via a dedicated line at the exit of the holding tank

GRAY WATER SYSTEM

Nr. 1 HDPE tank 60 gal capacity

3 sump tanks under masterhead

3/4 and full tank Indication in the heads and galley

Water drainage from showers and sink into tank

Level sensor integrated into the monitoring system

Water drainage via manifold (24V membrane pump)

Manual / Automatic overboard discharge

SEAWATER SYSTEM

Nr. 2 Seawater intakes with filters and valves for engine cooling system

Nr. 2 Seawater intake with filter and valve for generator cooling system

Nr. 1 Seawater intake with filter and valve for chain wash and deck wash system

Water maker predisposition

ENGINE GAS EXHAUST SYSTEM

Water-cooled engine exhaust, thermal-insulated stainless steel manifolds

Fiberglass muffler integrated into the hull structure, submerged outlets, and bypass line on hull sides

VENTILATION / EXTRACTION

Air inlet and outlet openings with a GRP cover on hull sides

Nr. 2 24V air inlet fans at port side ventilation channel

Nr. 4 24V air extraction fans at port side ventilation channel

Mist eleminator at each channel

OTHER EQUIPMENTS

Six 40’ mooring lines in 3/4’ diameter

Nr. 8 fenders with 8 mm diameter lines

Nr. 2 leather fender hook

Fender covers with Sirena Yachts logo

Owner’s manual

CE certificate

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
