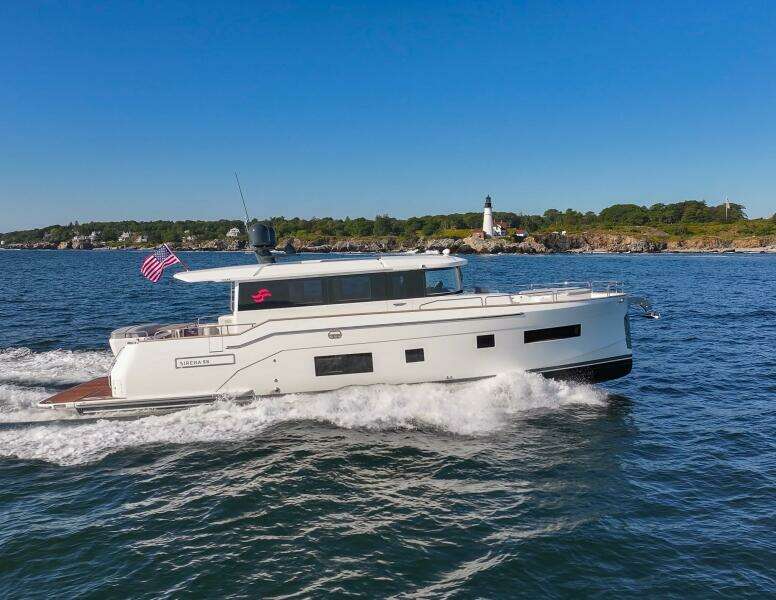

US Standard Specifications - Exterior

HULL

• External surface finished with high resistance white gelcoat
• Moulded with tunnel for bow thruster and reinforcement for stern thruster
• Stainless steel rubrails with rubber insert
• Waterline boot top in burgundy red
• Antifouling painting

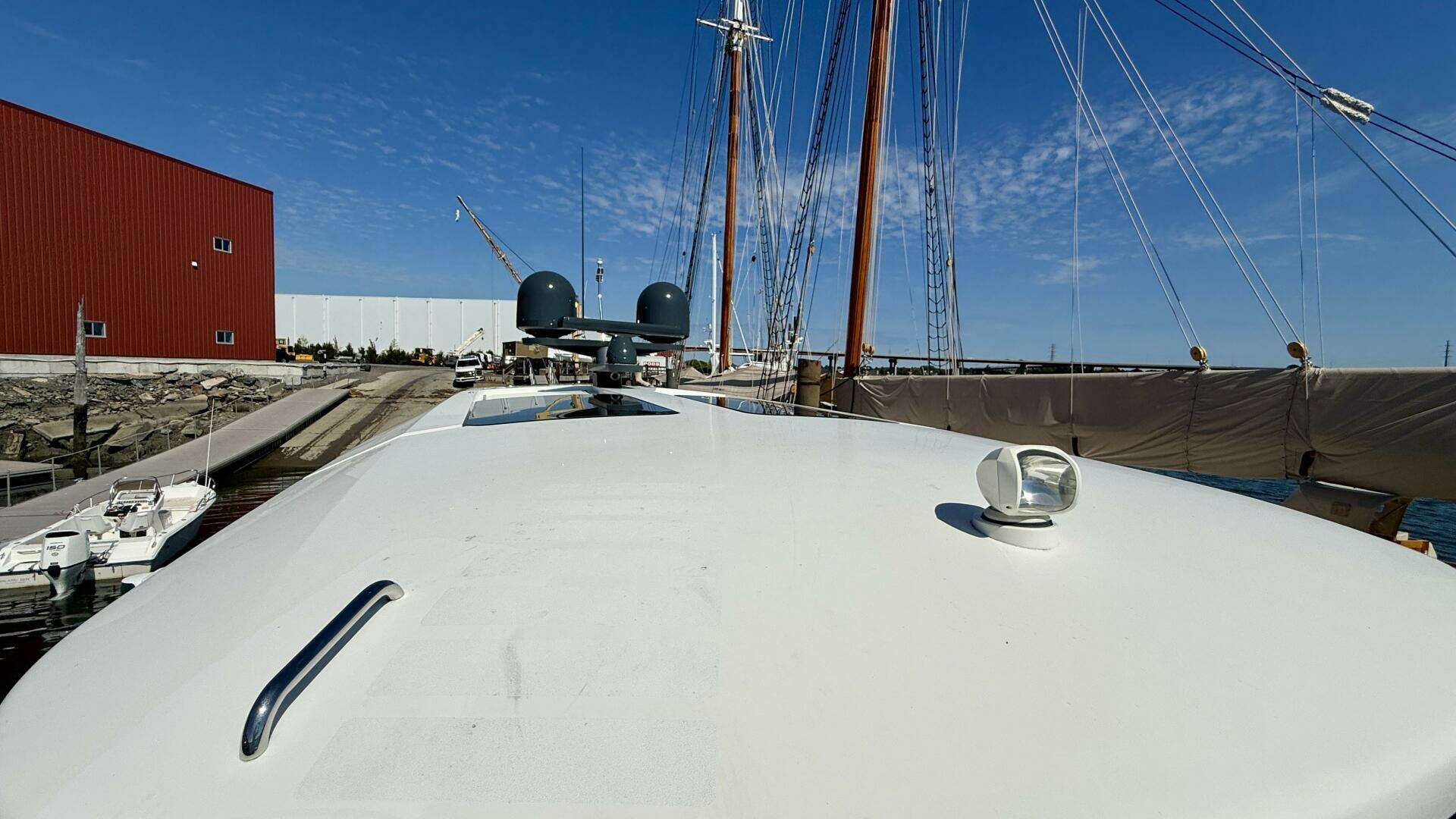

HARDTOP

• Hybrid carbonfiber hardtop
• Mast for 18” 4kW HD radar, VHF antenna, horn and optional navigation equipment
• Fixed skylight windows
• Navigation lights
• Extra conduits connecting engine room with mast

SUPERSTRUCTURE

• Hybrid carbonfiber superstructure
• Deckhouse with front and side visors
• Tempered laminated curved windows
• Europa grey side windows and neutral colour front windows
• Manuel sliding window in the helm station (port side)
• 2 windscreen wipers with washer
• Navigation lights (red, green)
• Sirena Yachts logo on deck house (port and starboard side)
• Courtesy lights on steps

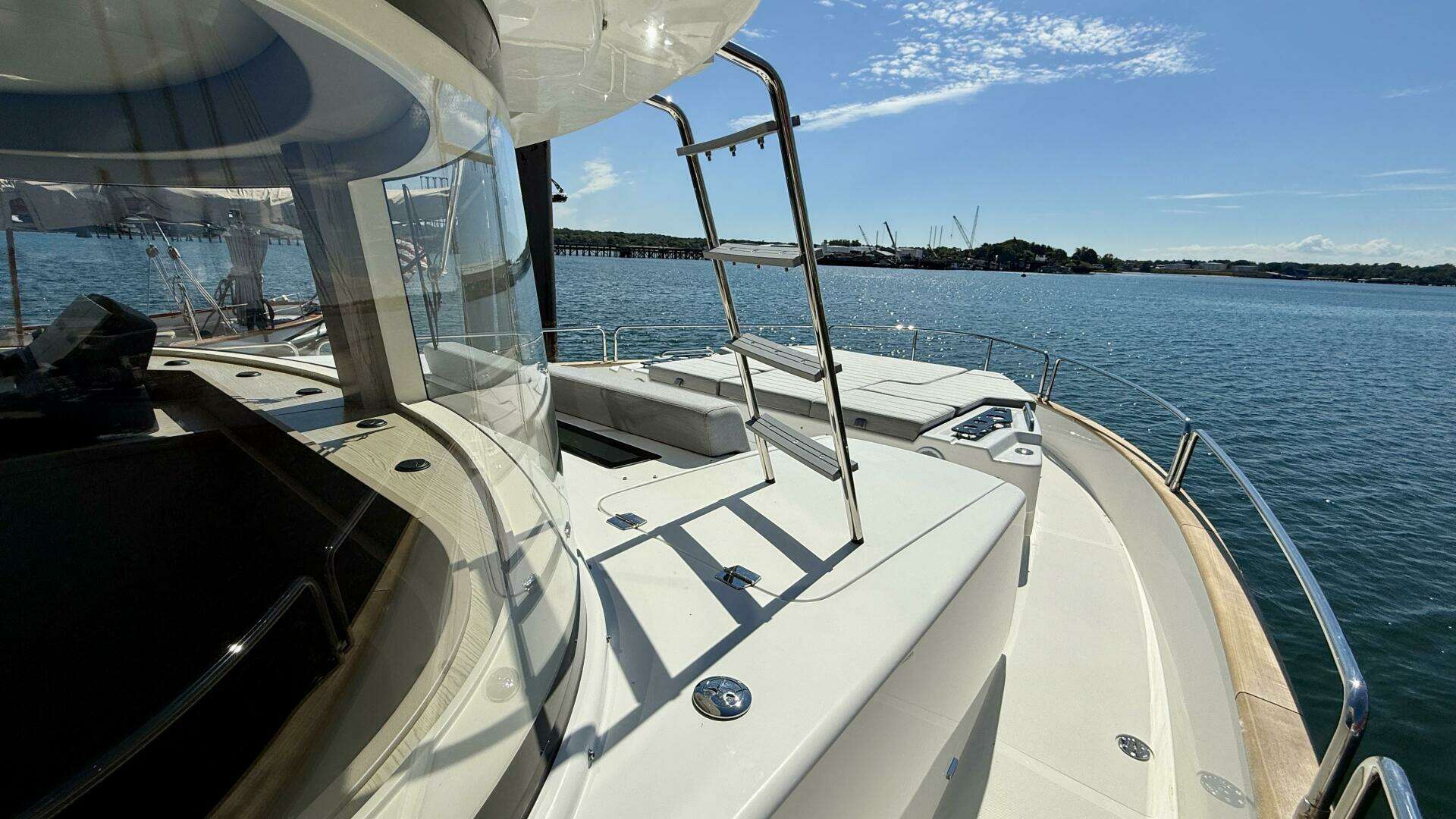

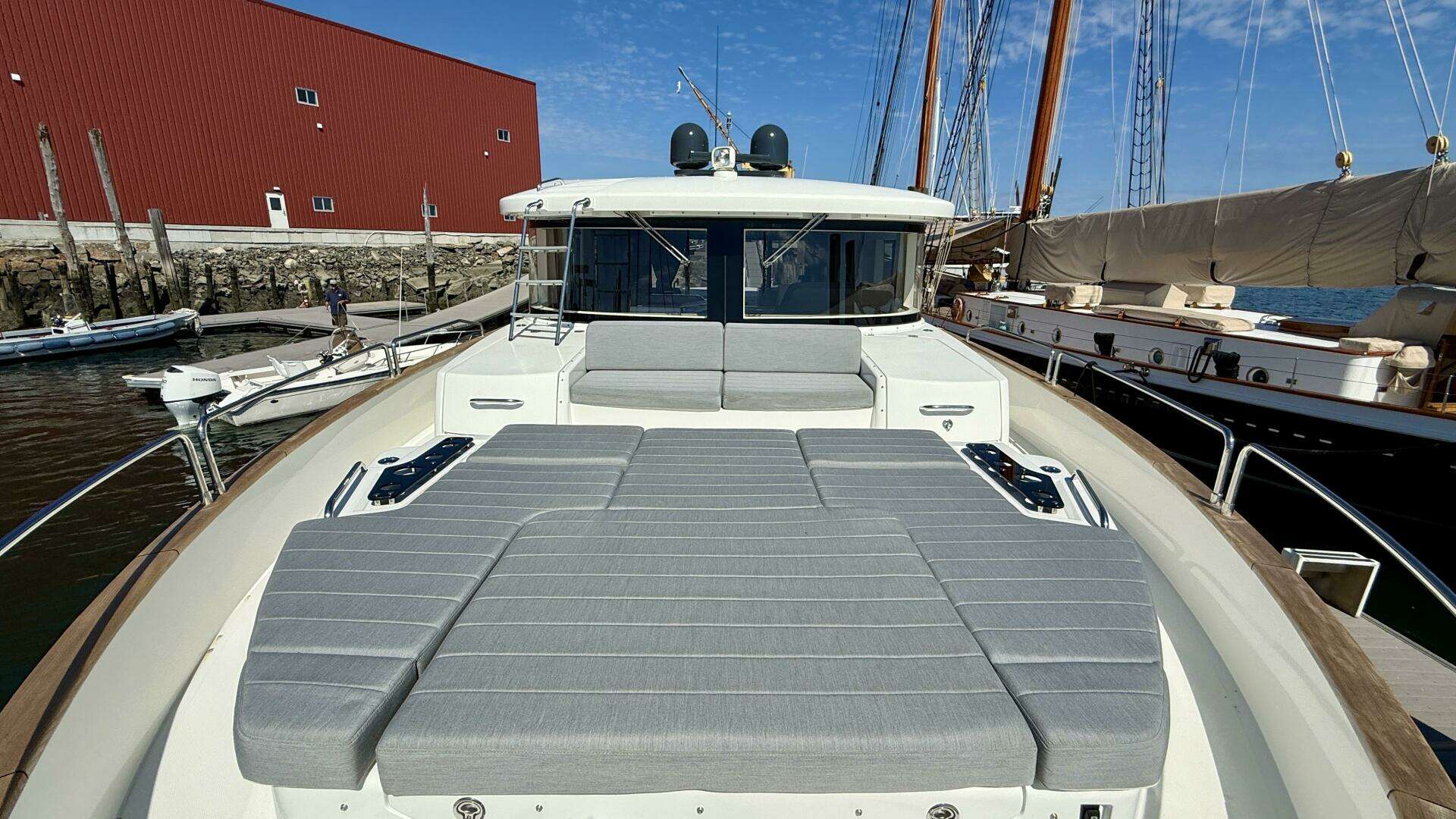

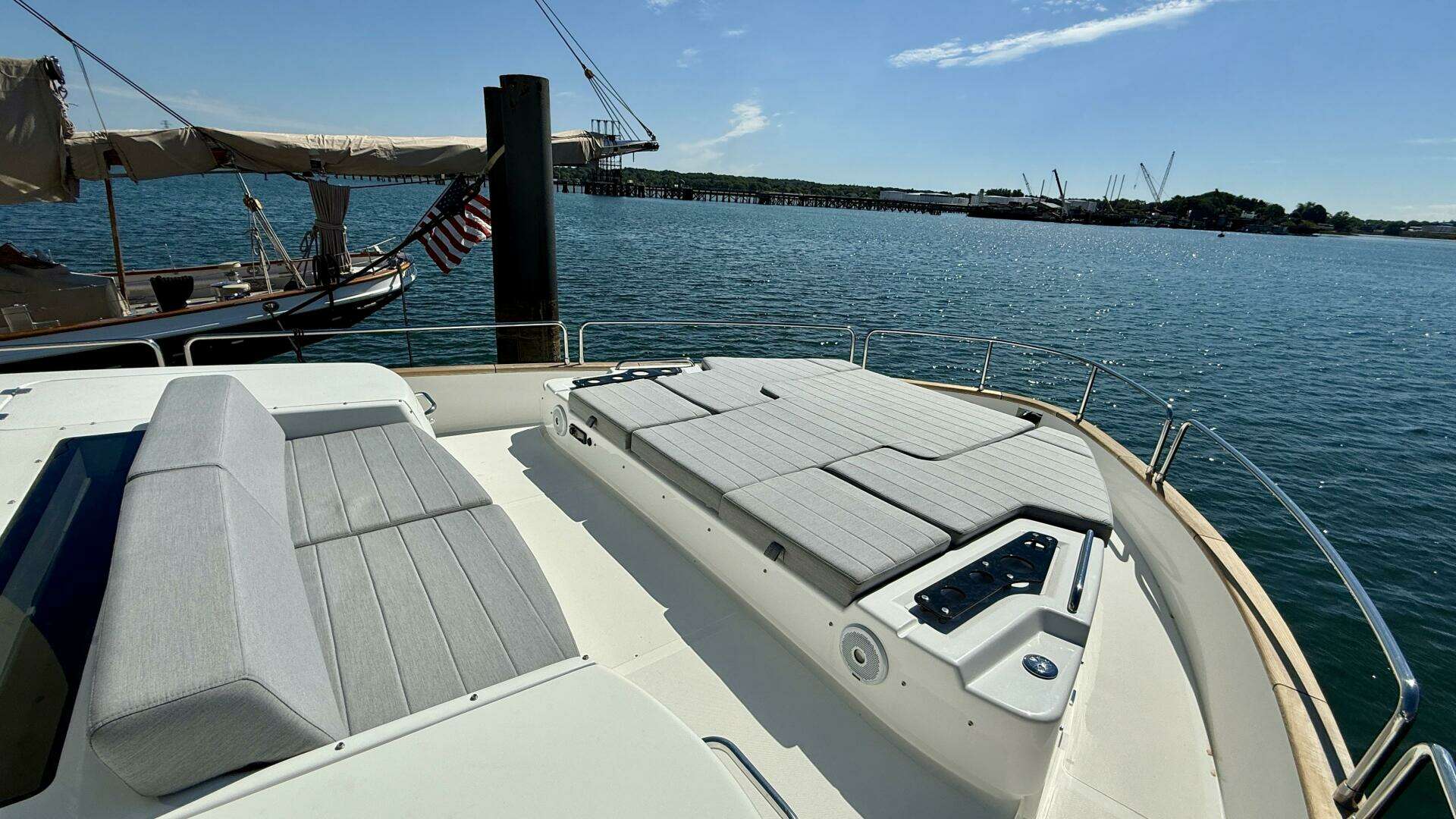

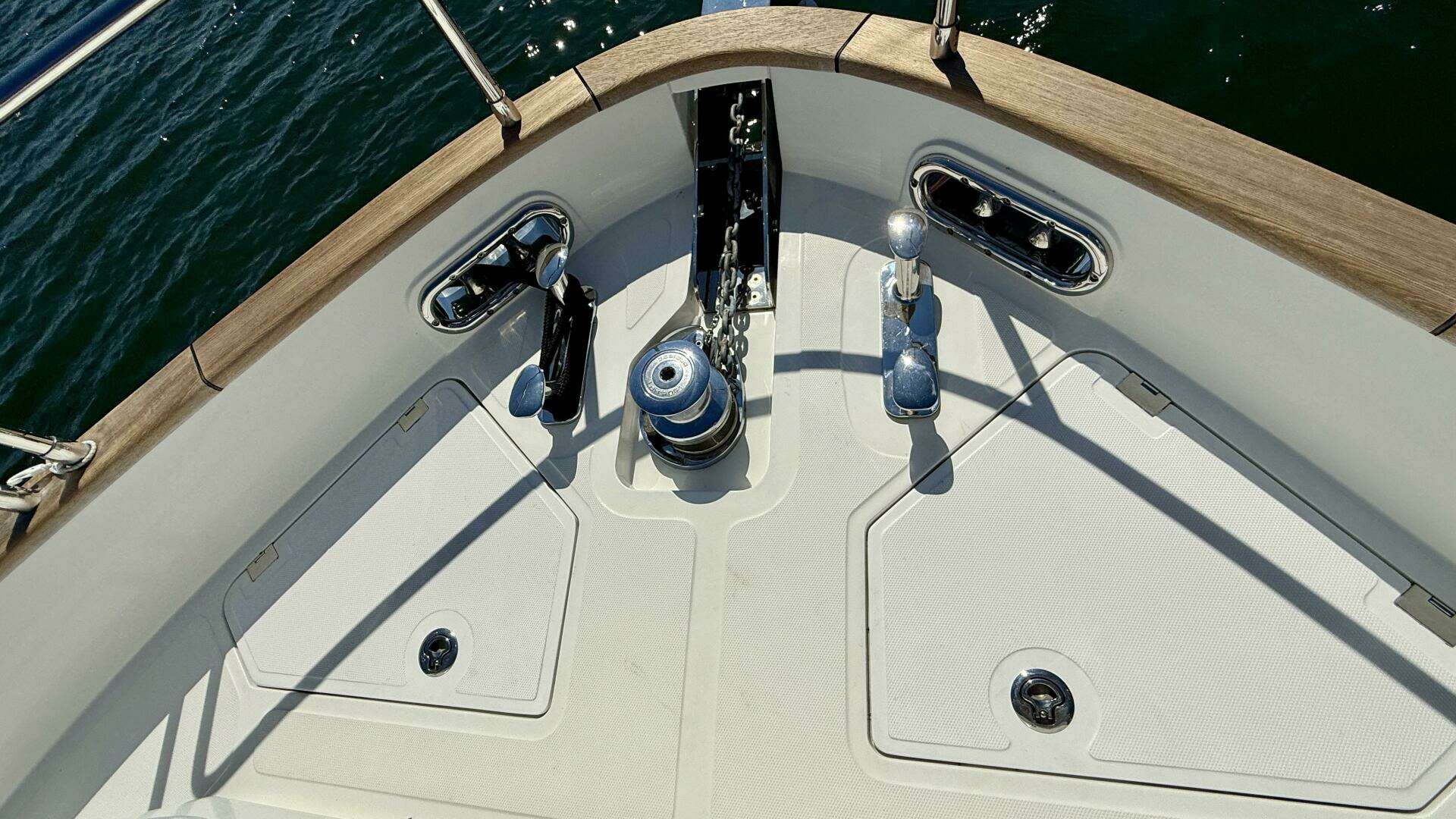

FOREDECK

• Stainless steel pulpit
• Anti-skid surface
• Nr. 2 stainless steel hawses
• Nr. 2 mushroom bollards
• Fixed bow anchor roller
• Stainless steel anchor shield on bow

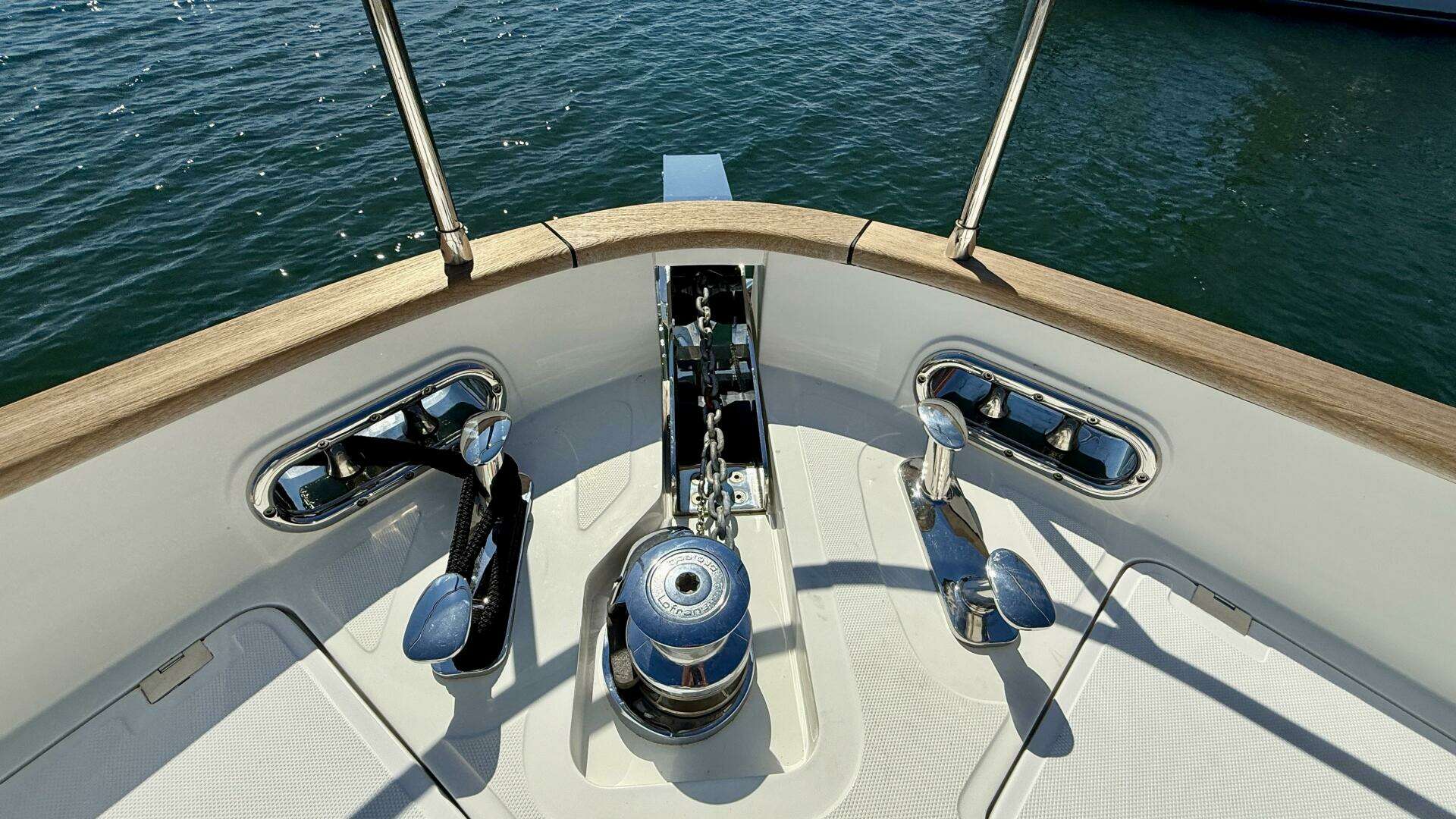

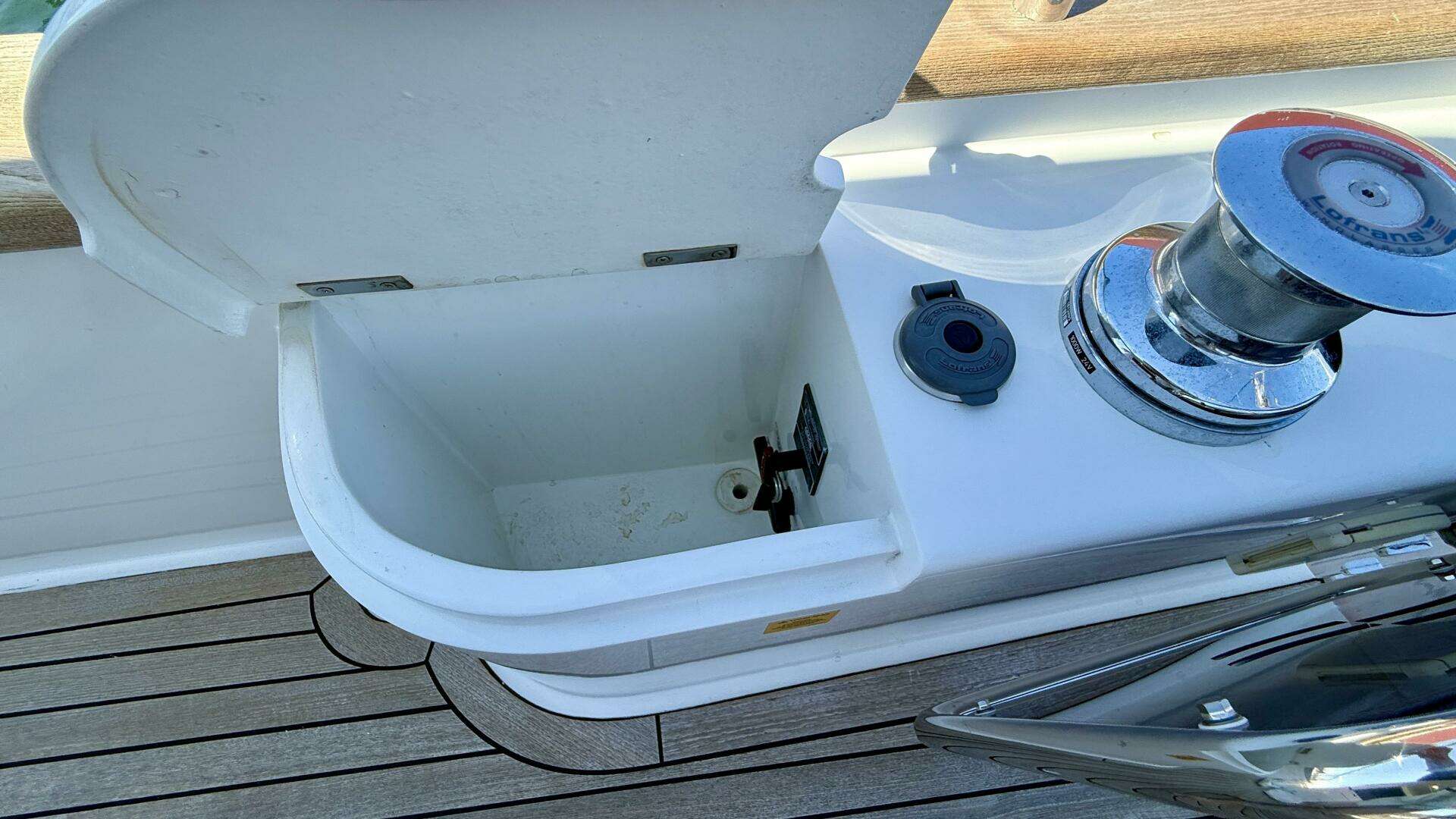

• 1700W Lofrans anchor windlass with mooring support
• Ultra 45kg stainless steel anchor
• 250’ high resistance chain with 3/8” diameter
• Chain wash down system

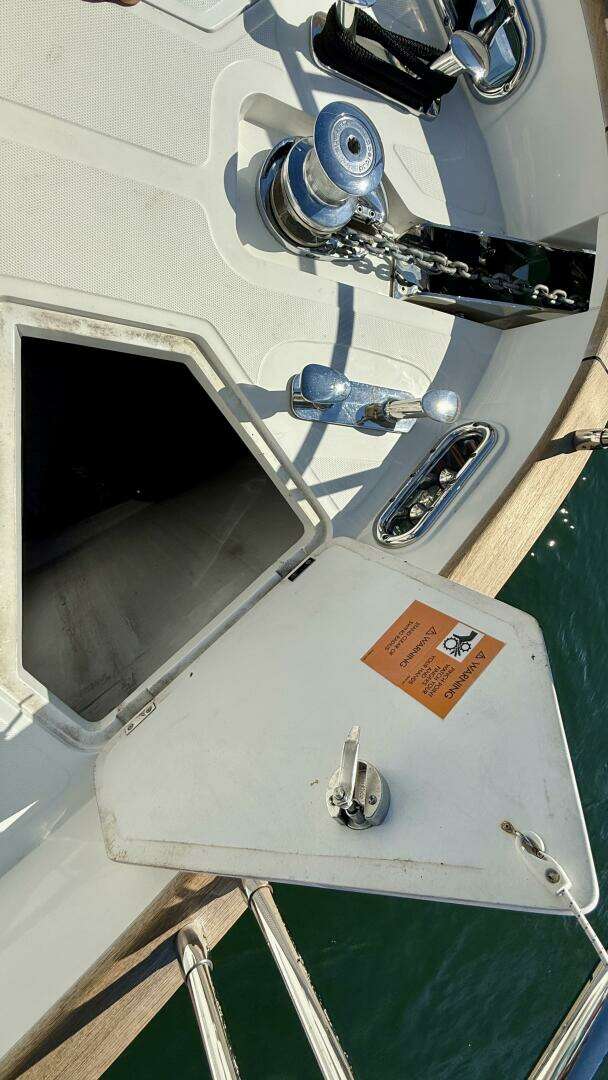

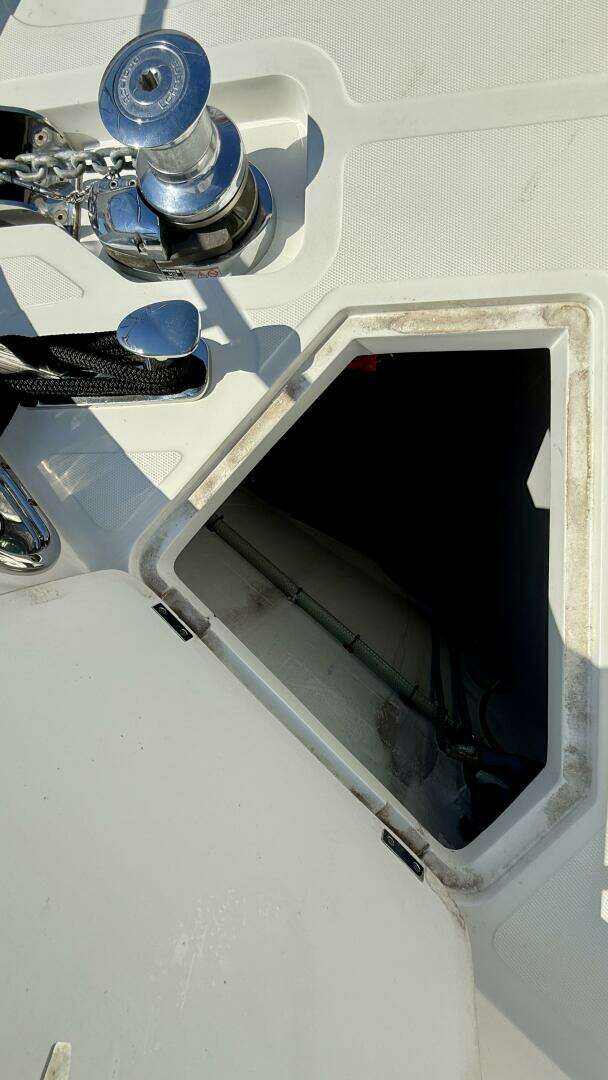

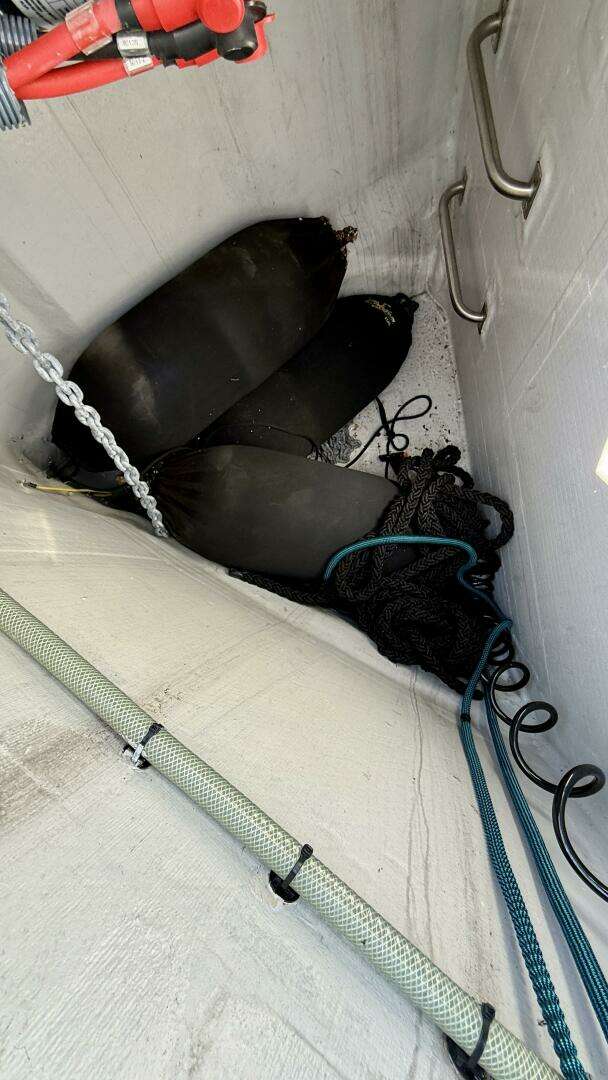

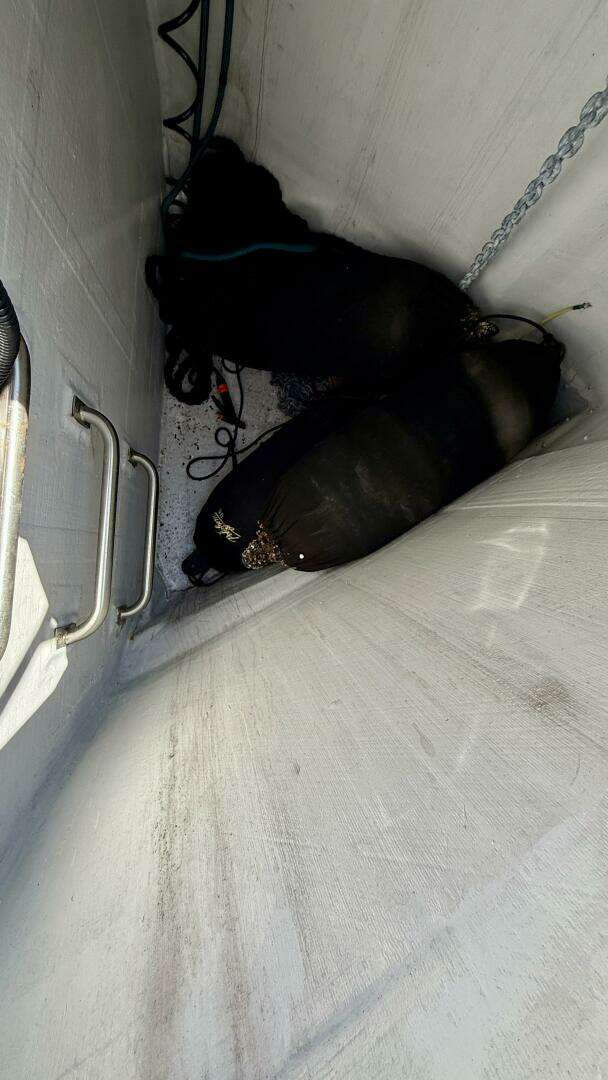

• Self draining chain locker and housing for 8 fenders

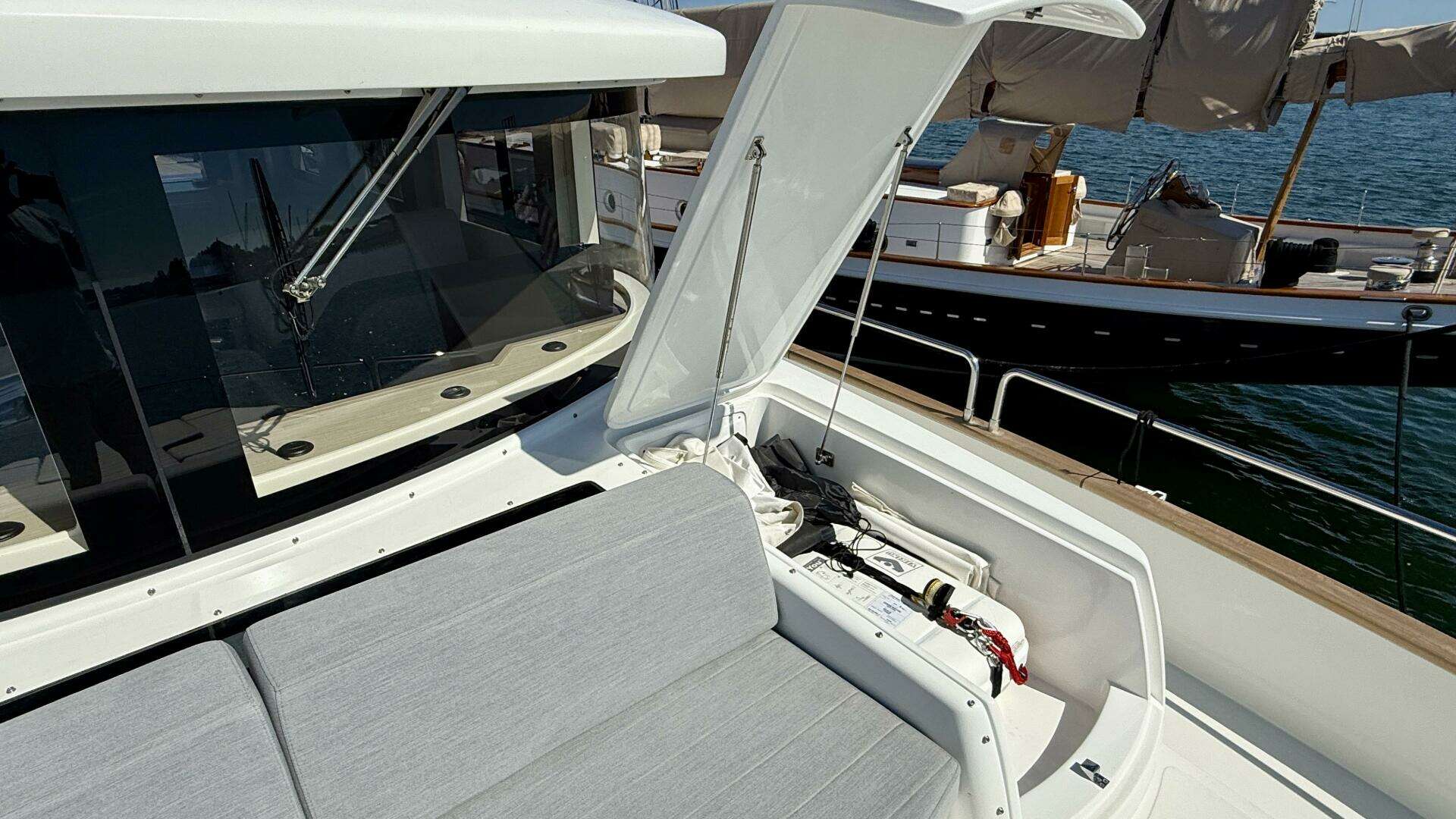

• Sofa with removable cushions and storage underneath

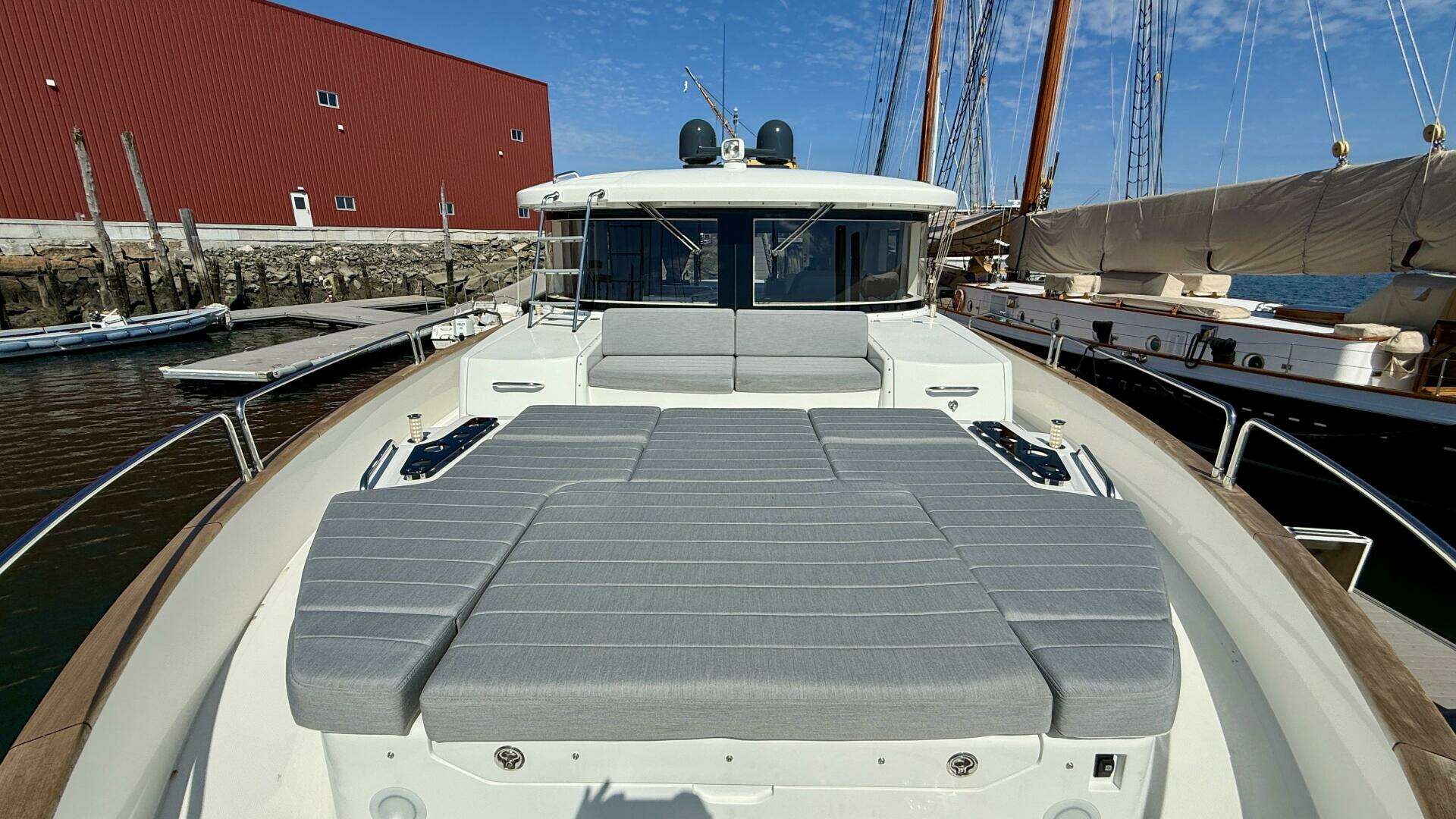

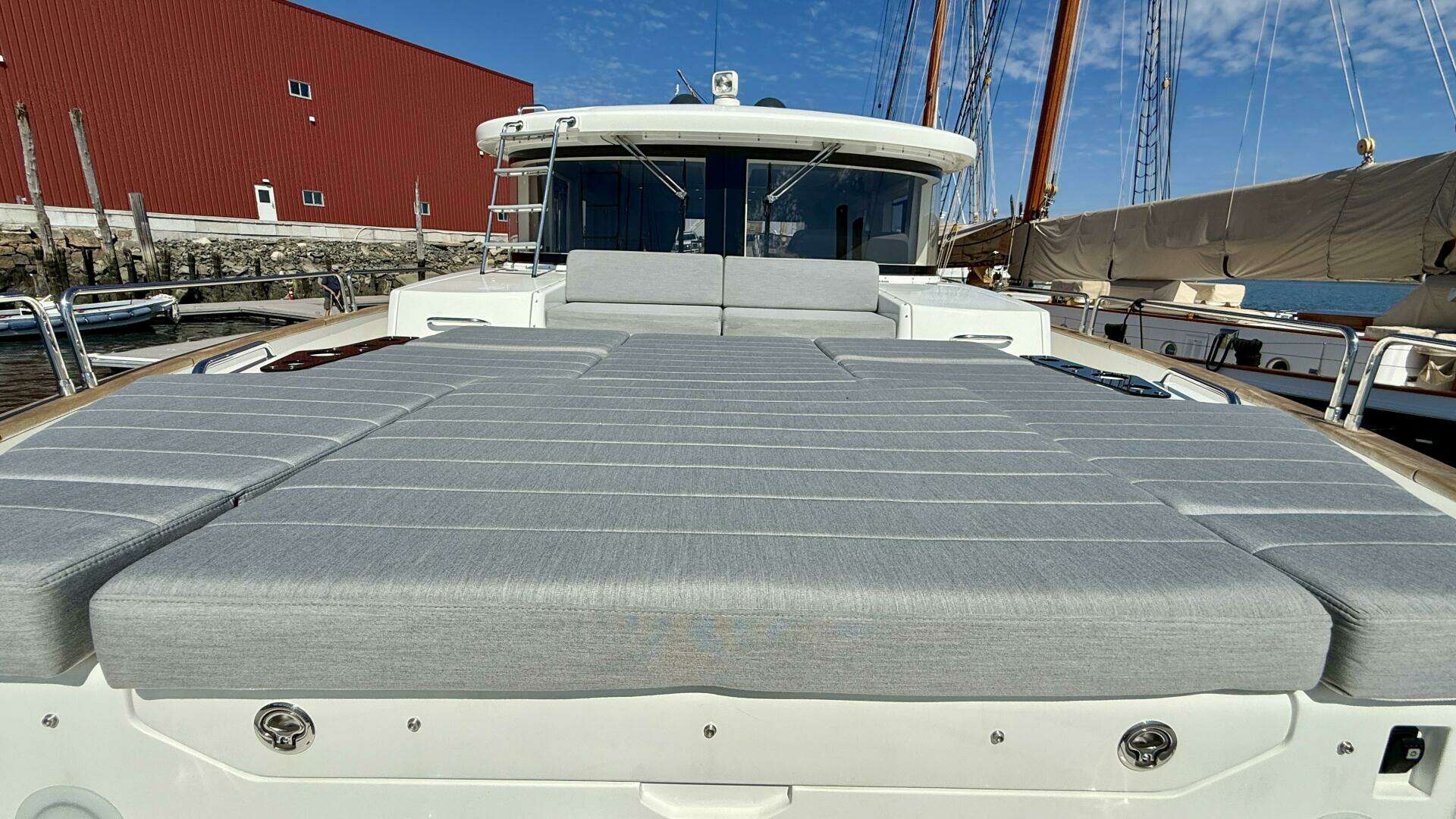

• Sunbathing area with removable cushions and storage underneath
• Stainless steel handrails and Plexiglas® cup holders
• Covers for seats, sun bathing cushions

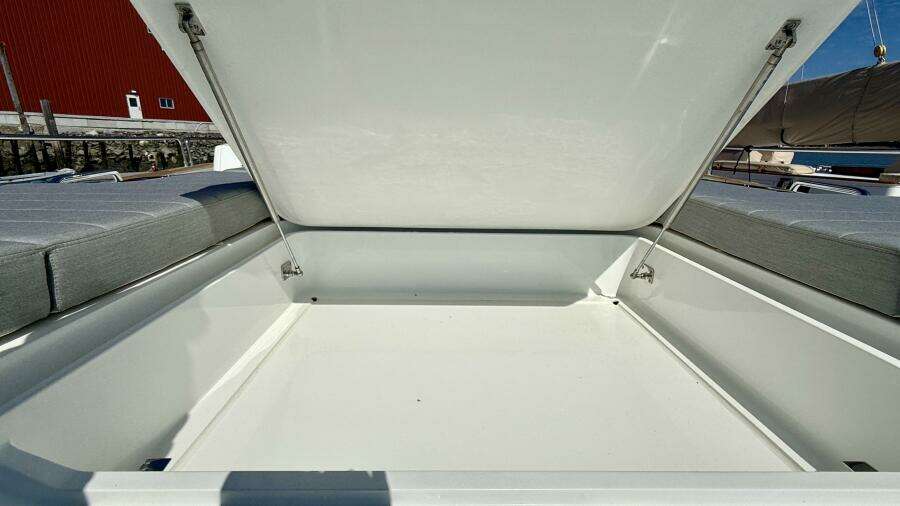

• Nr. 2 lockers around the sofa

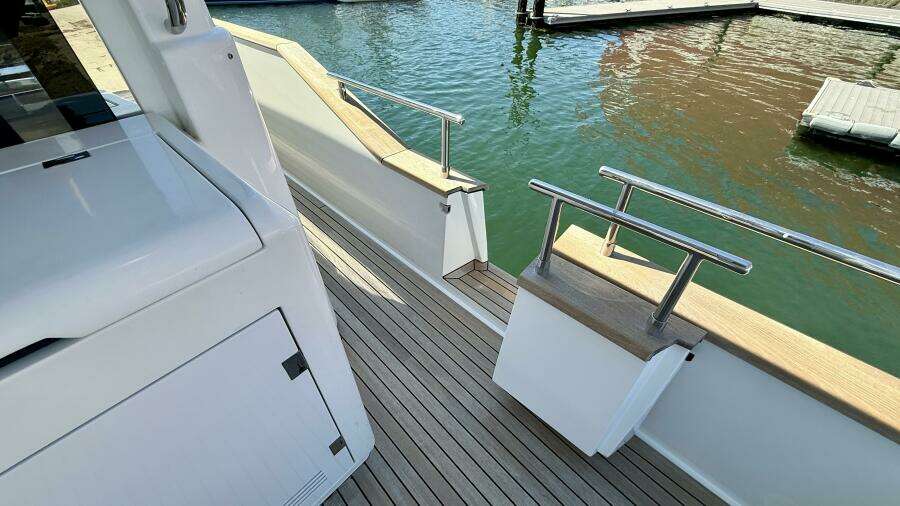

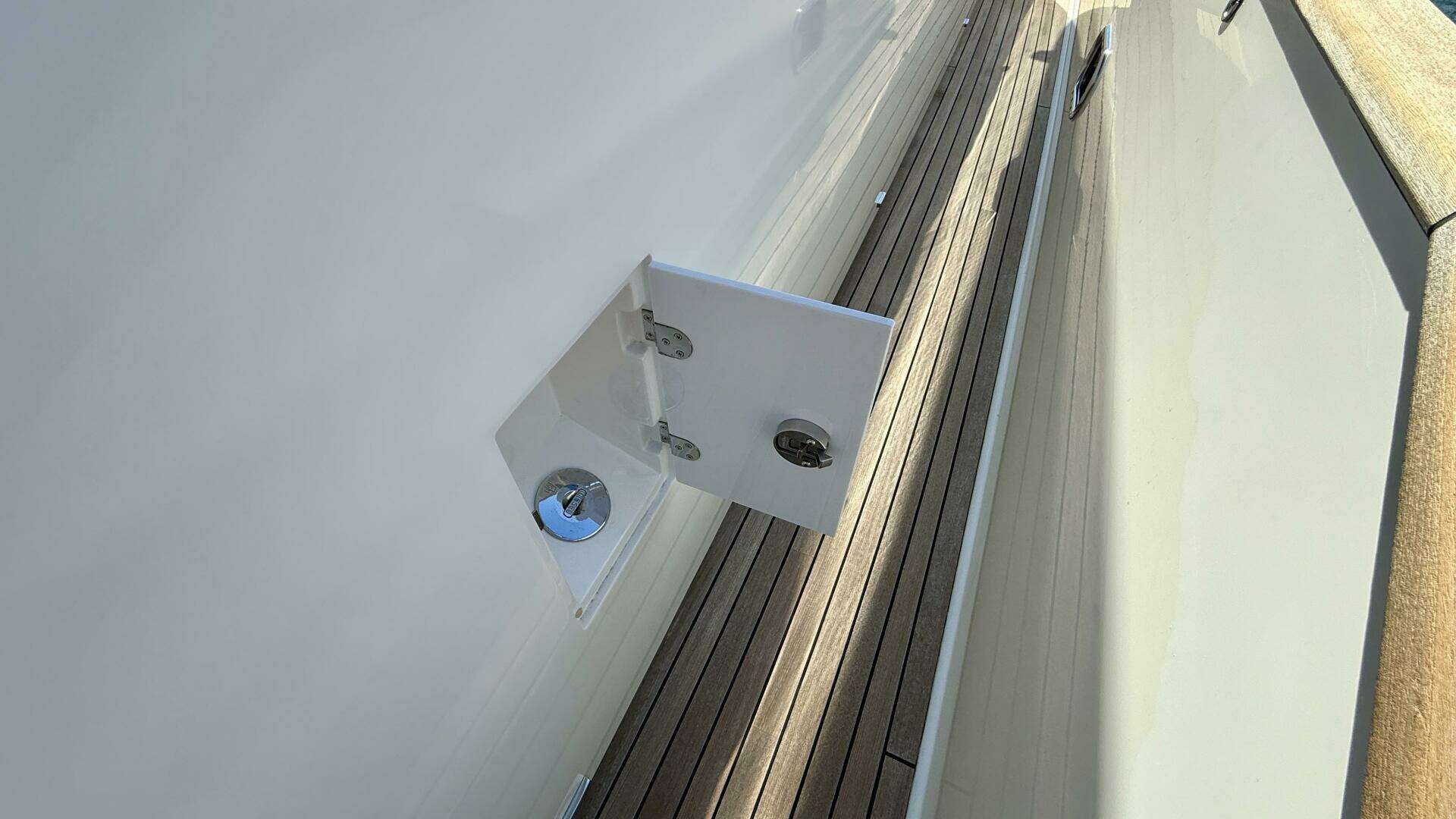

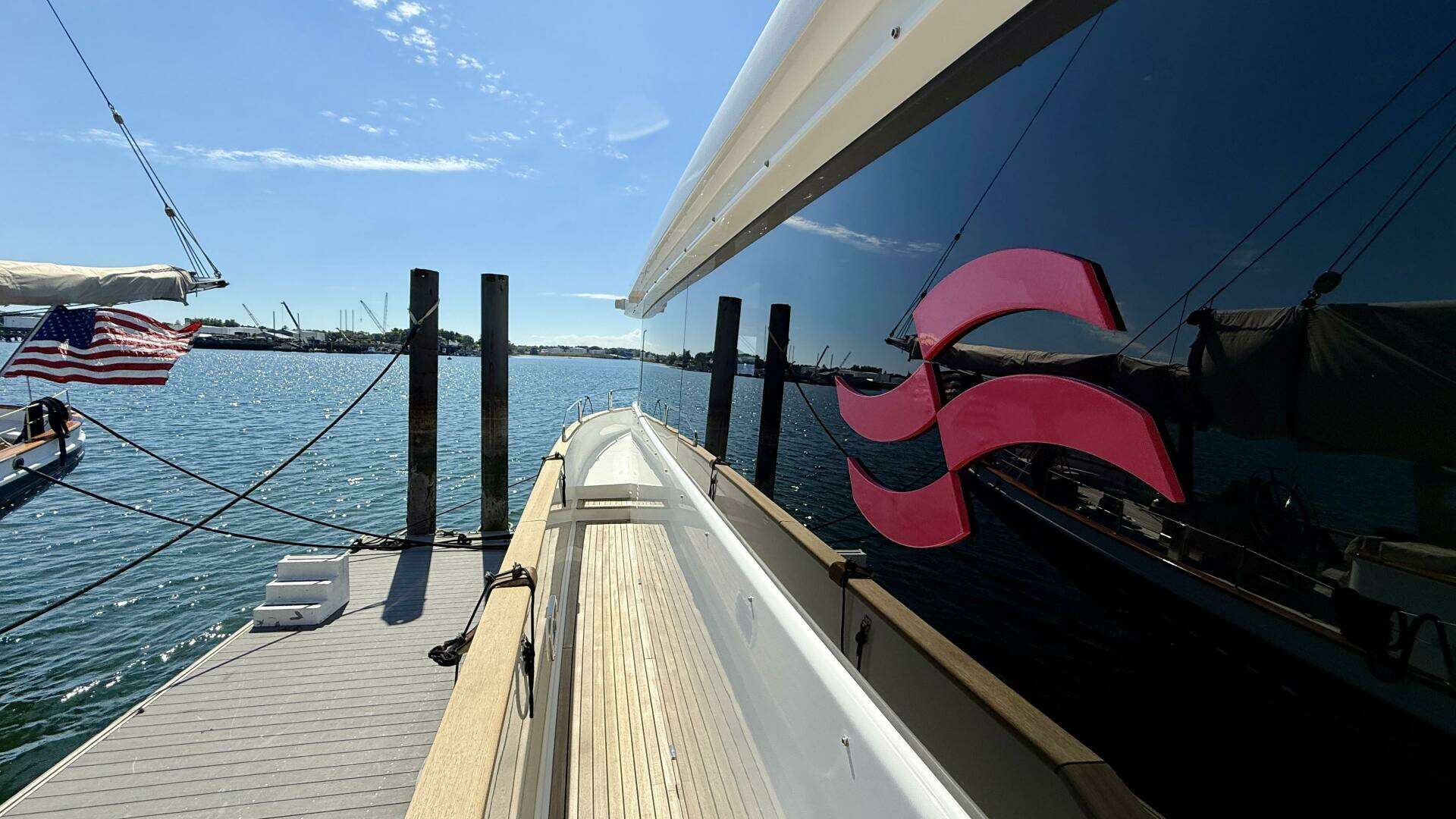

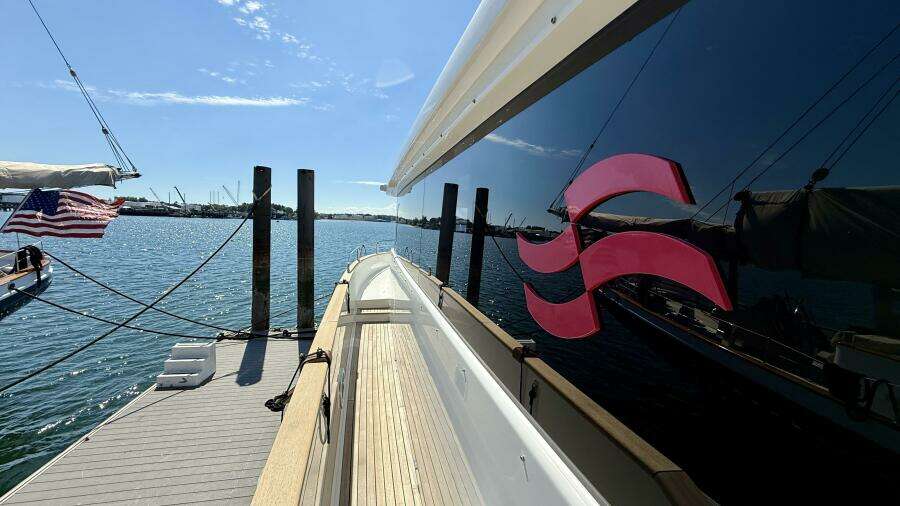

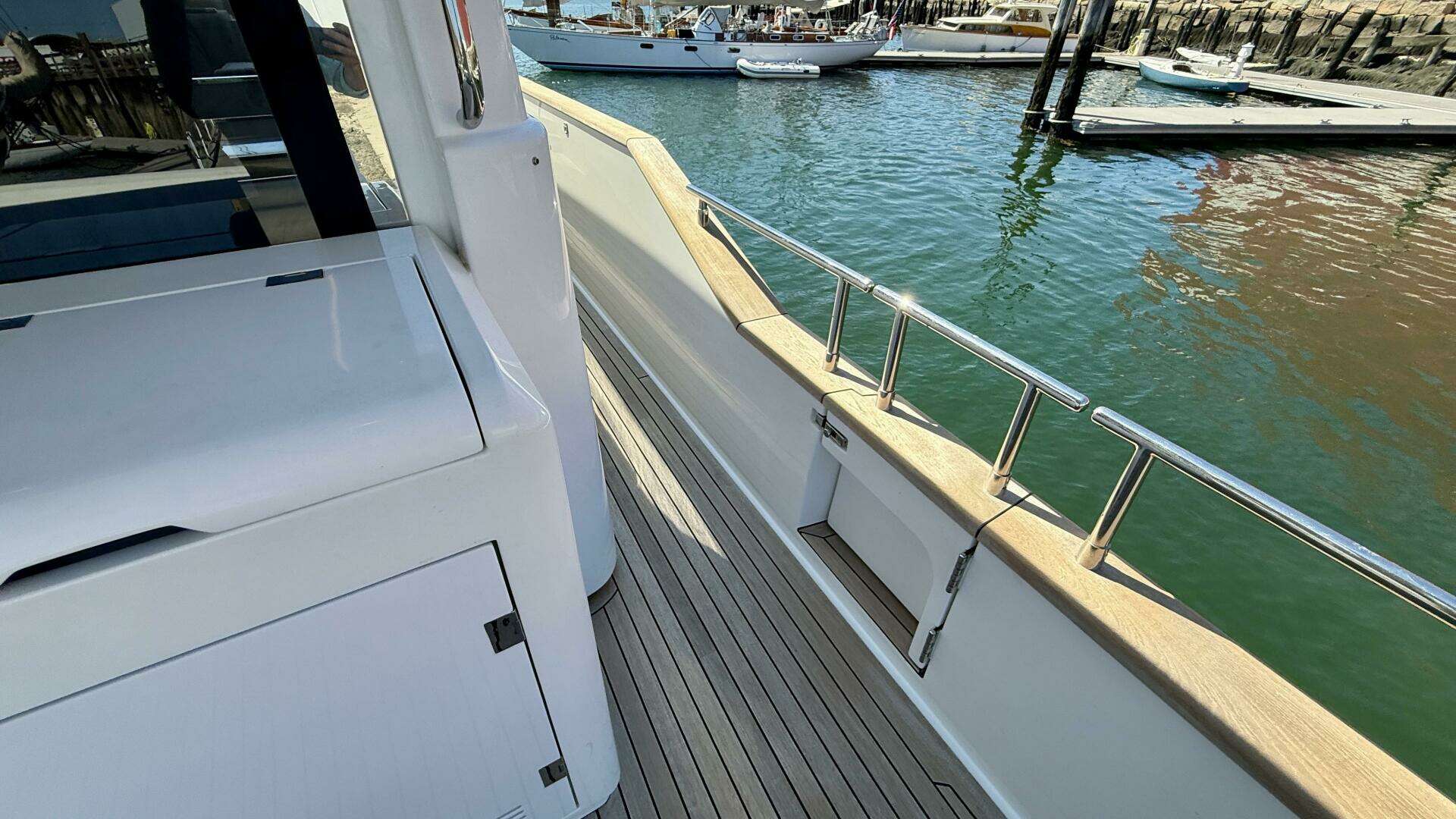

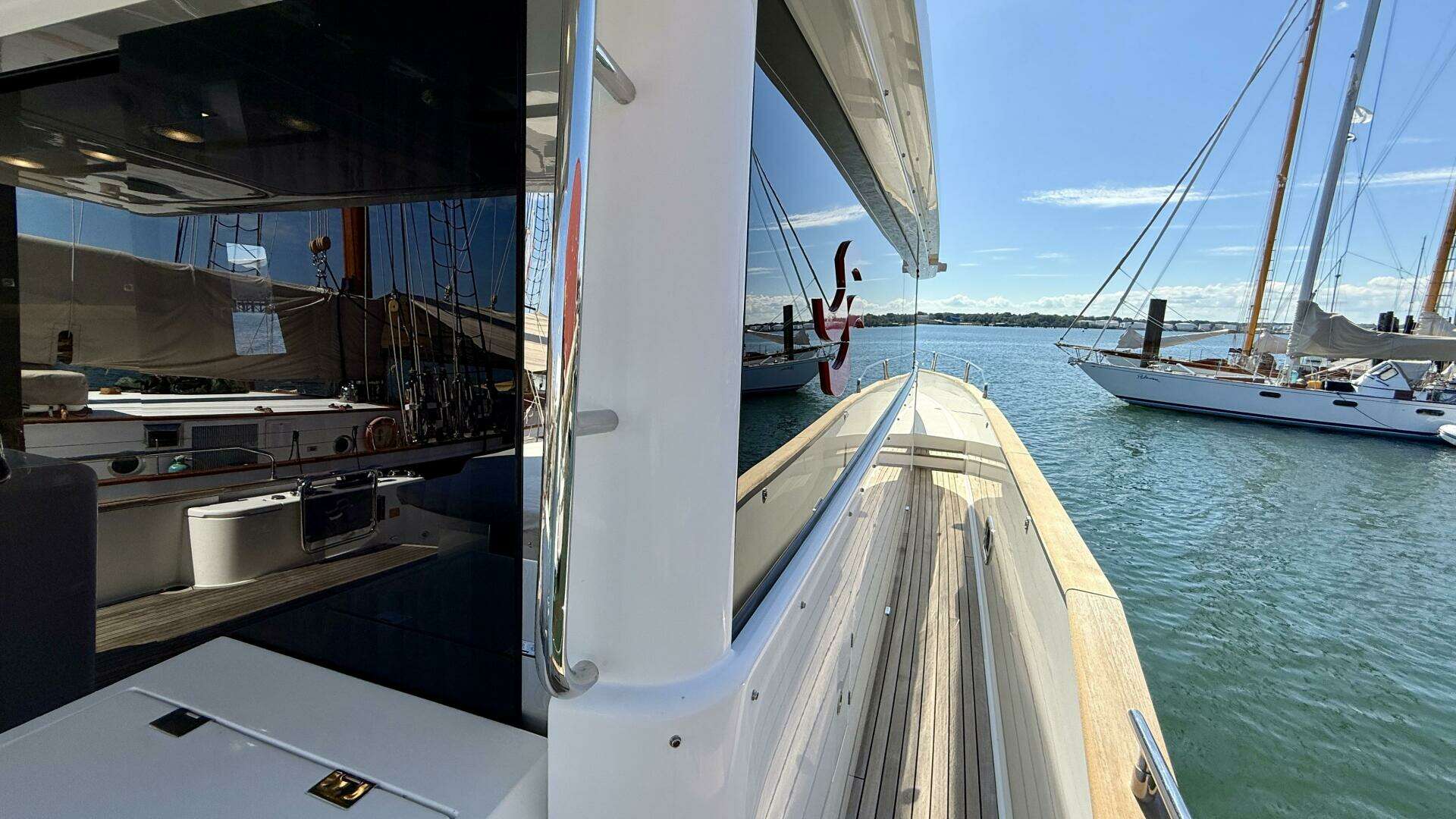

SIDE WALKWAYS

• Side walking areas and first steps of bow area entrance in teak
• Nr. 2 fuel fillers covered by GRP

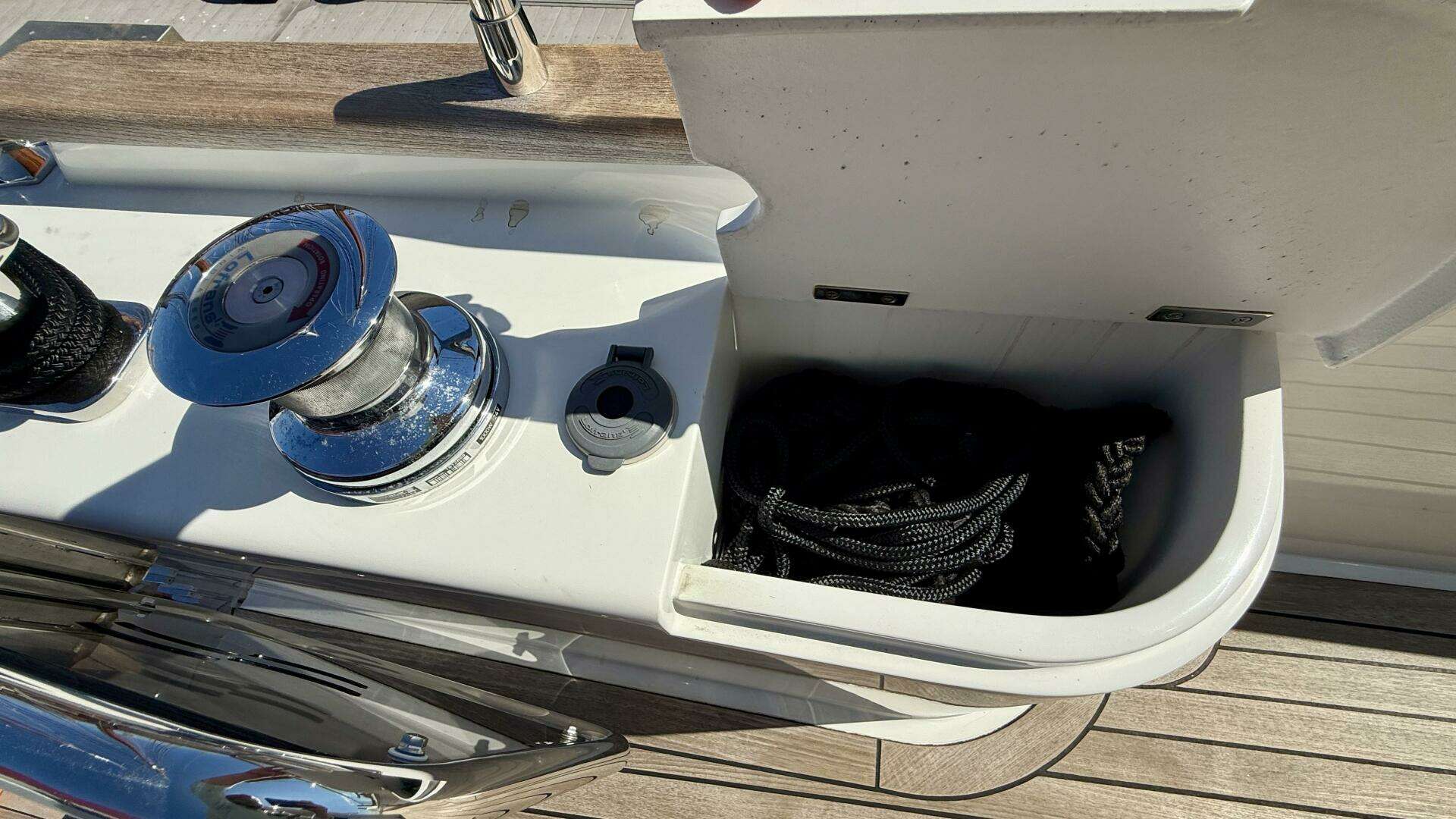

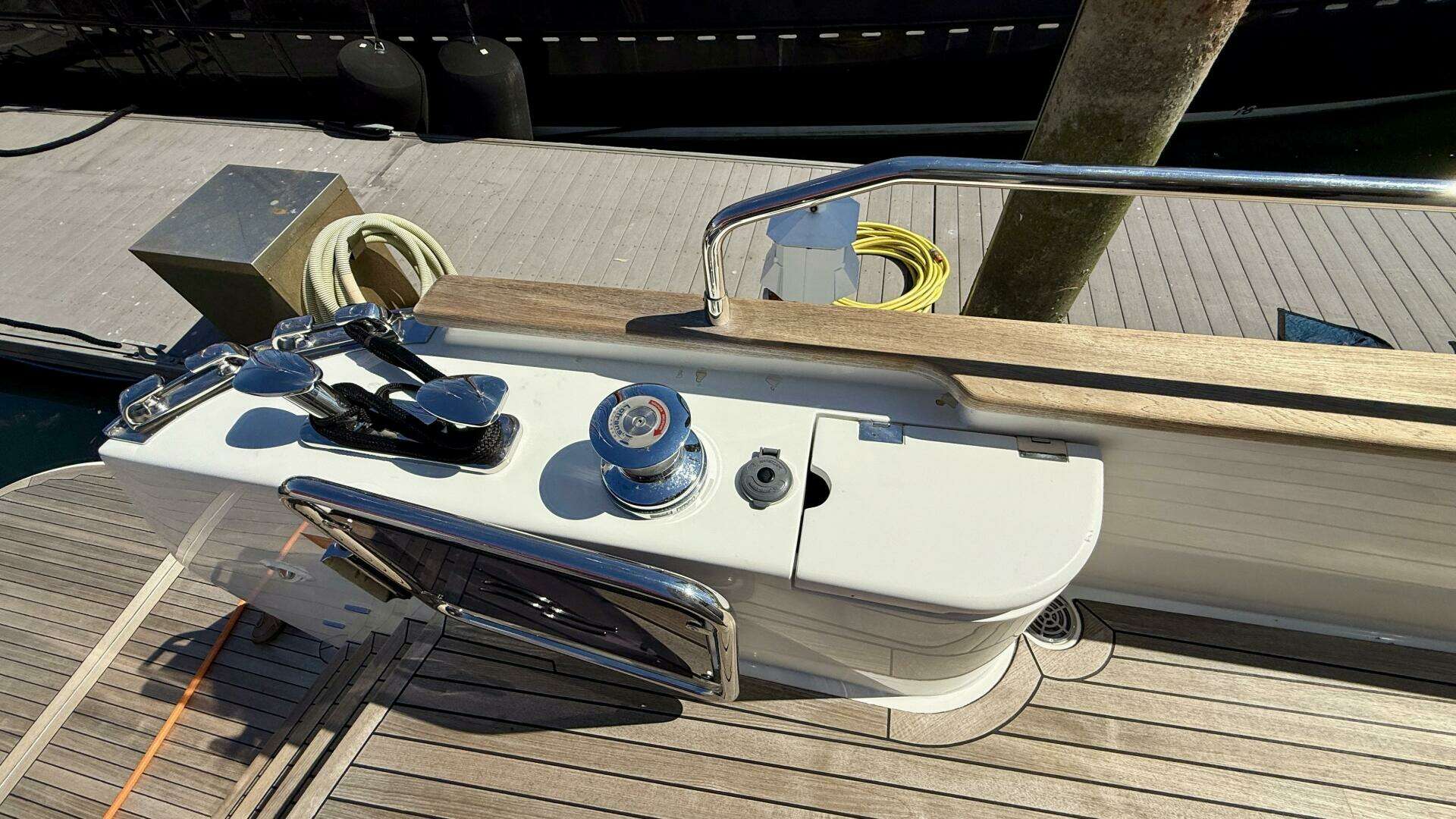

• Nr. 2 stainless steel fairlead with cleats inside at mid-ship

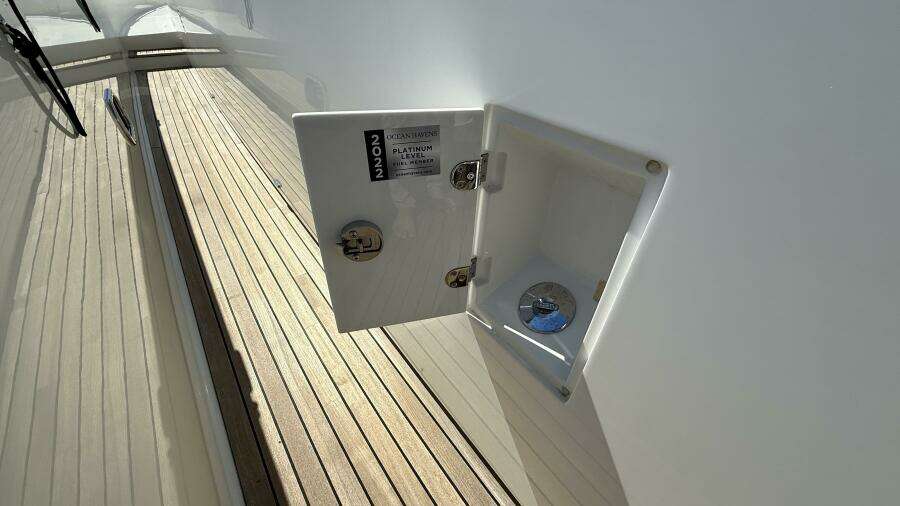

• Fresh water filling inlet
• Black water deck suction discharge outlet
• Grey water deck suction discharge outlet
• Courtesy lights on steps
• Teak gunwale

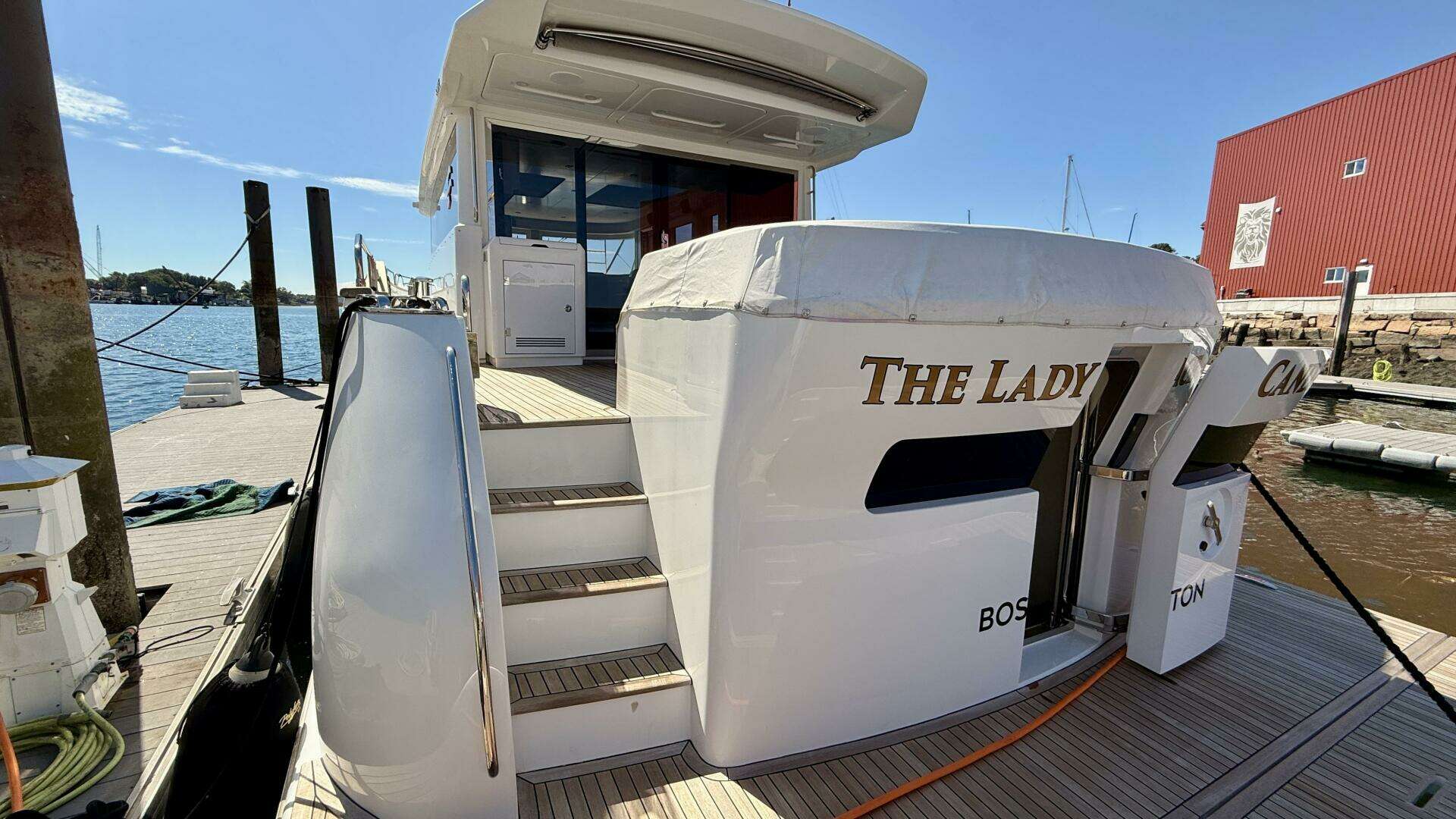

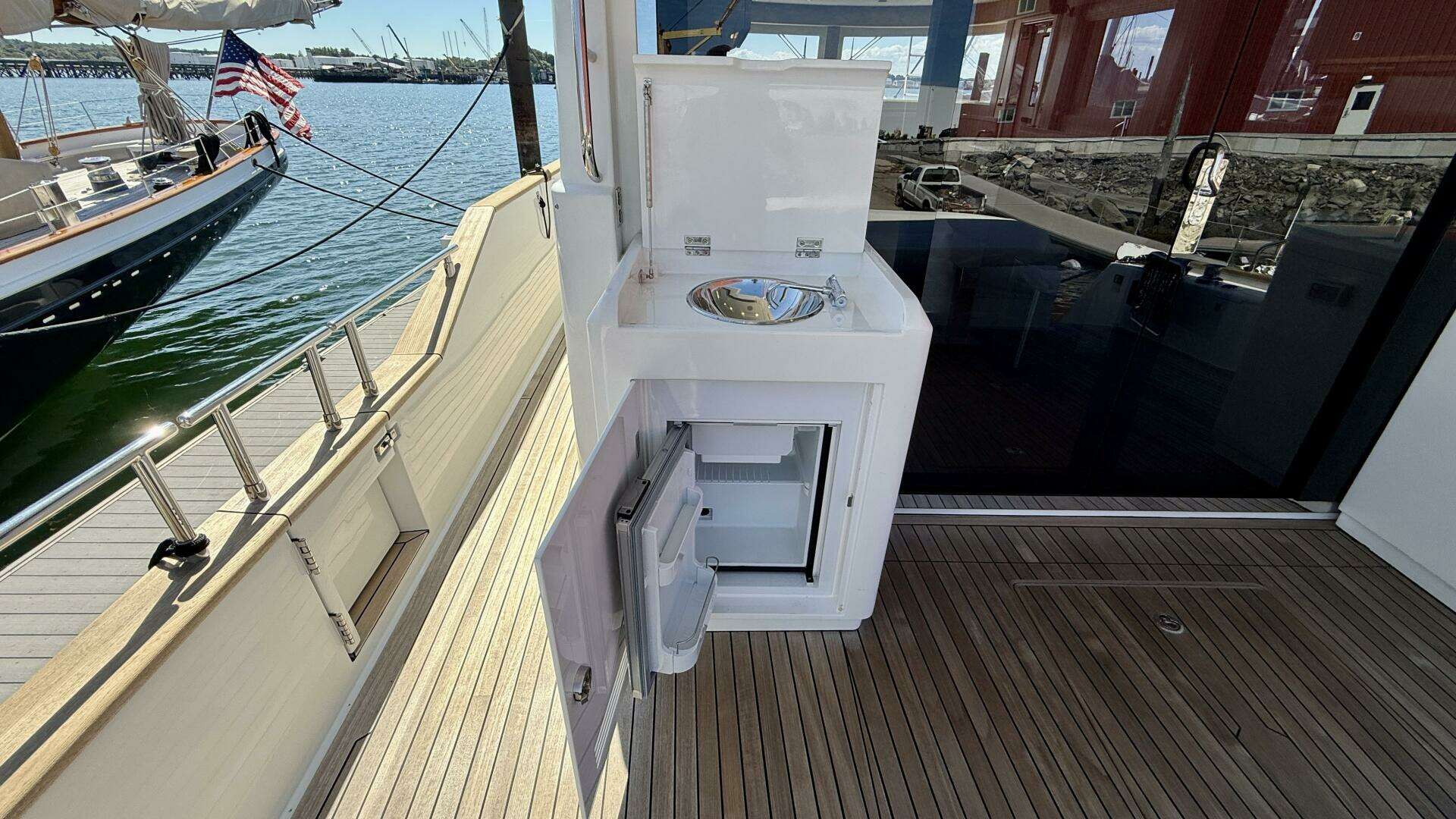

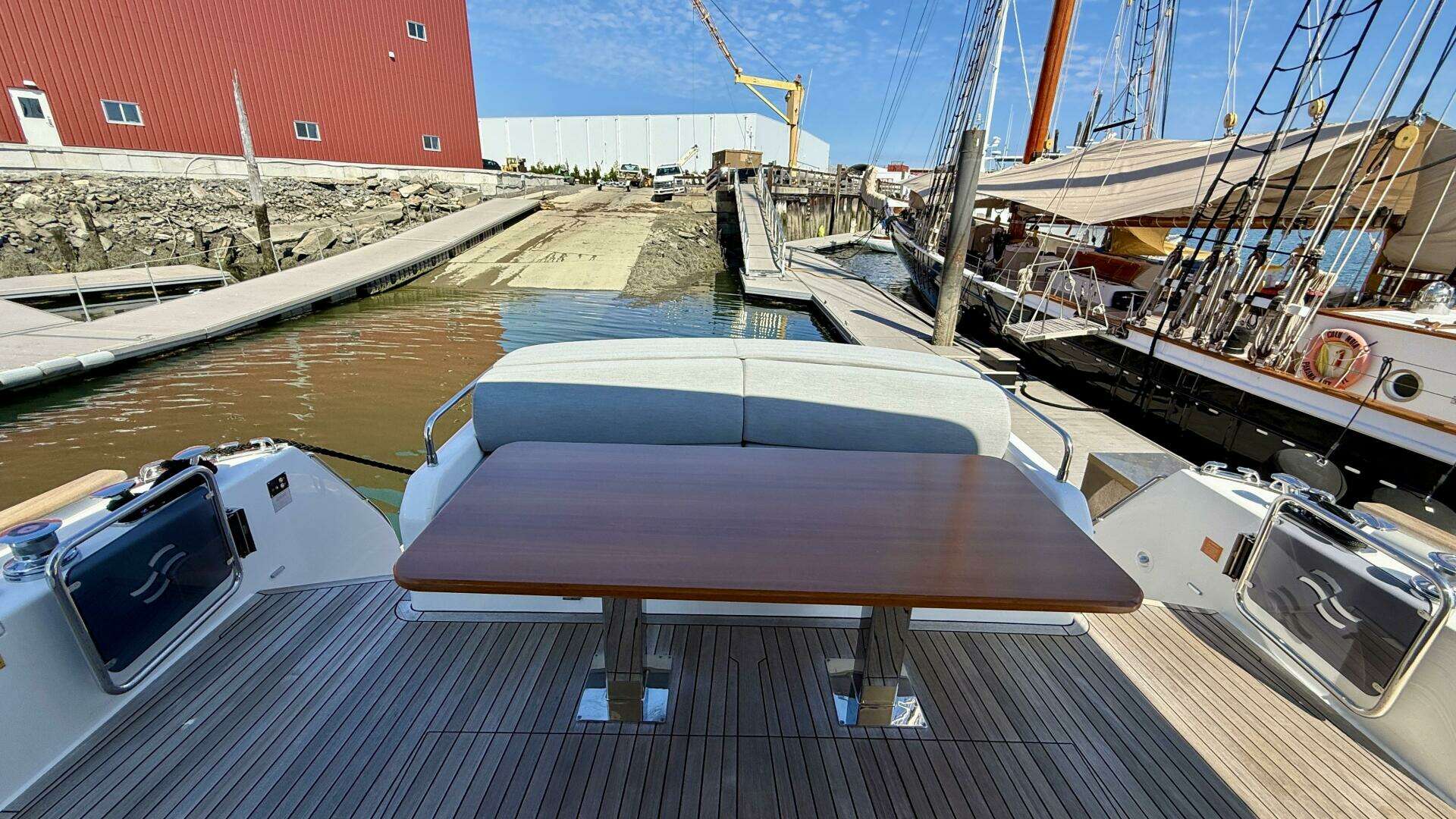

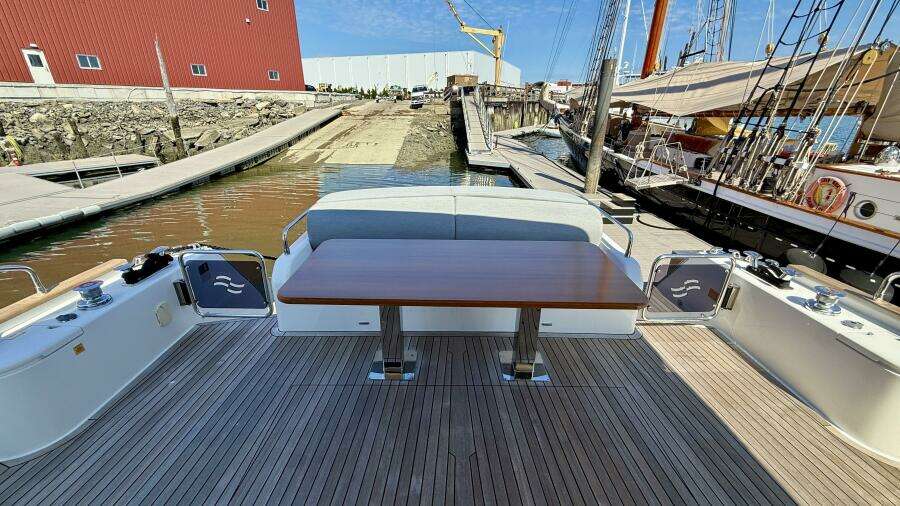

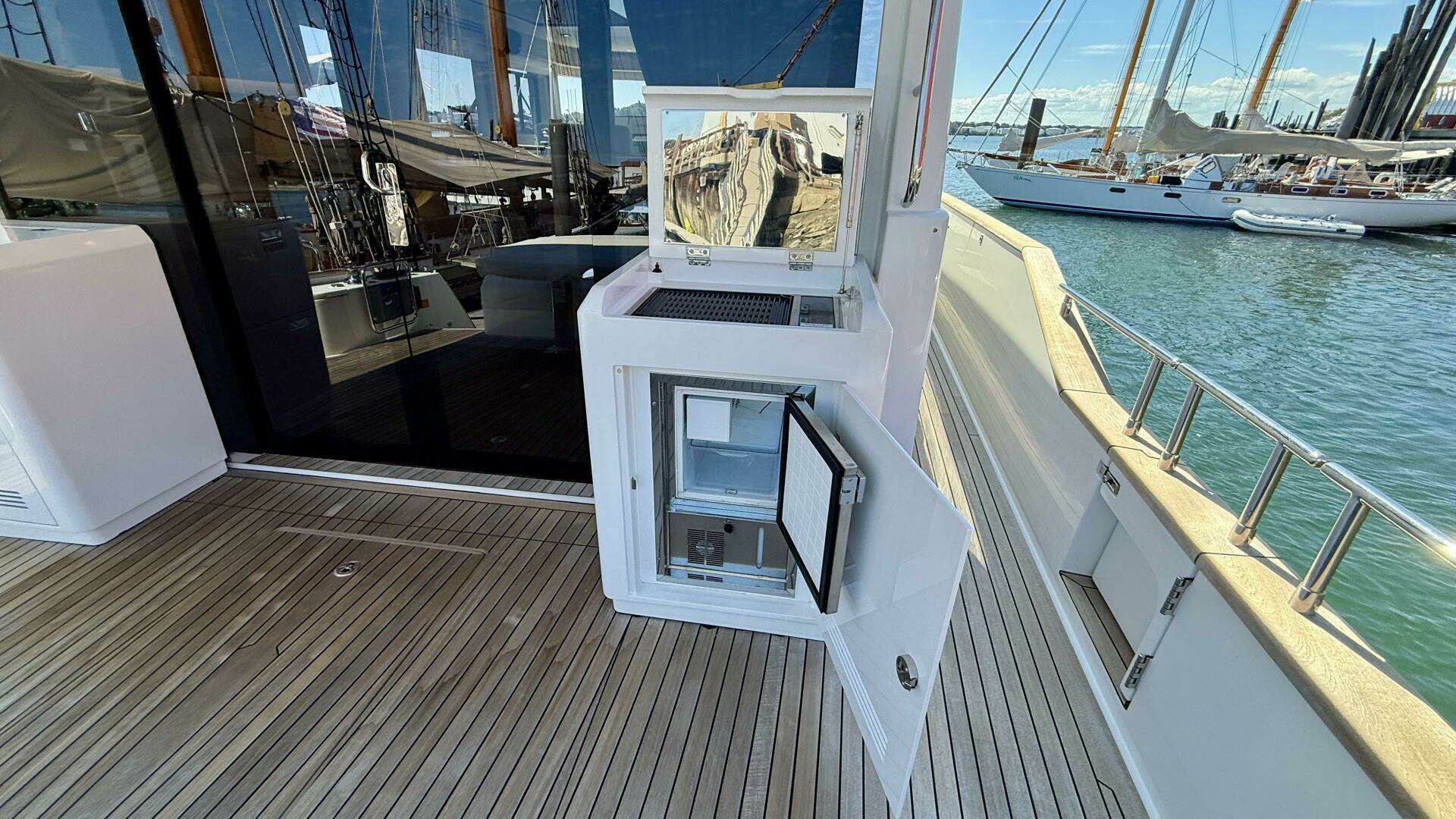

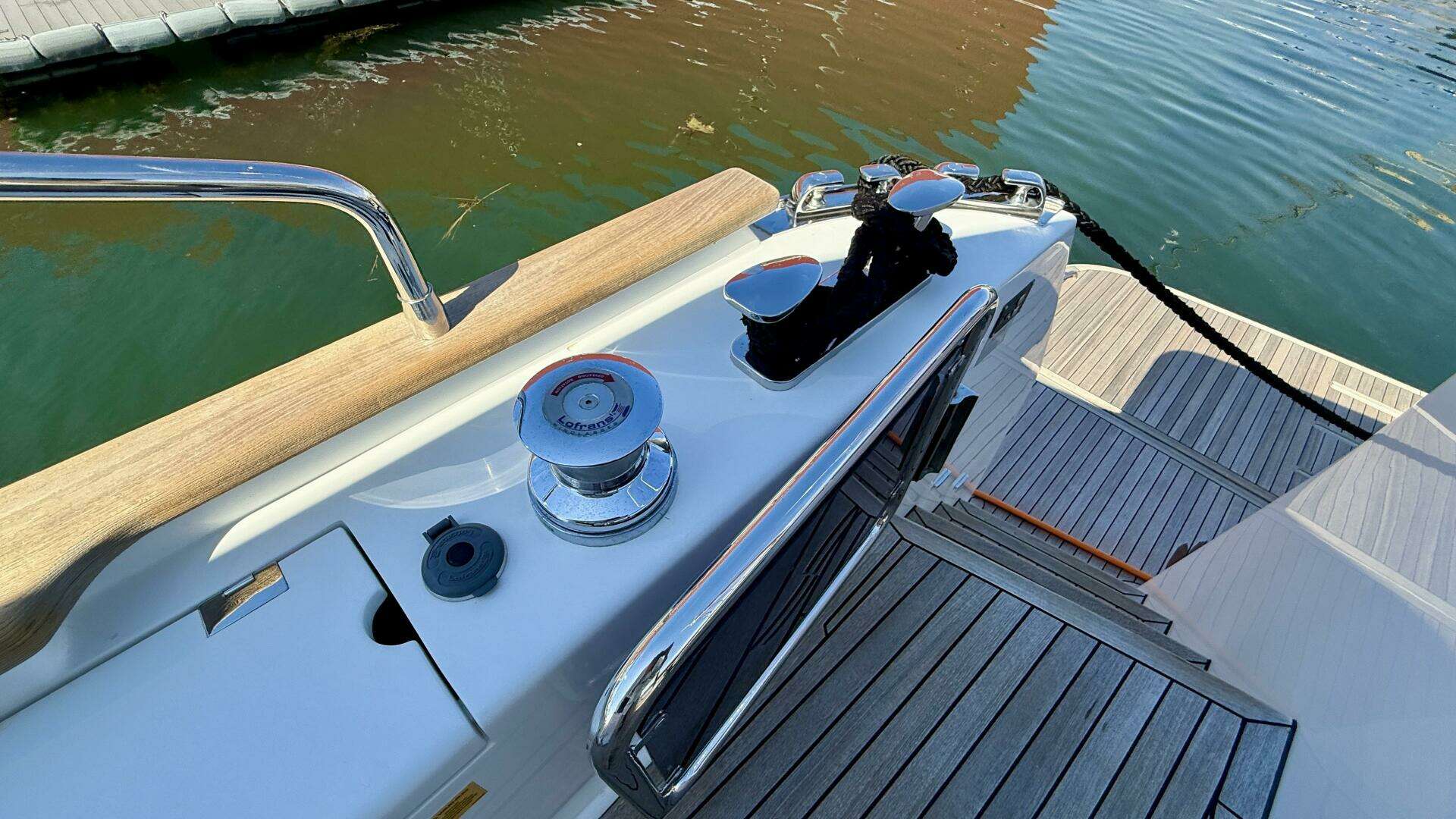

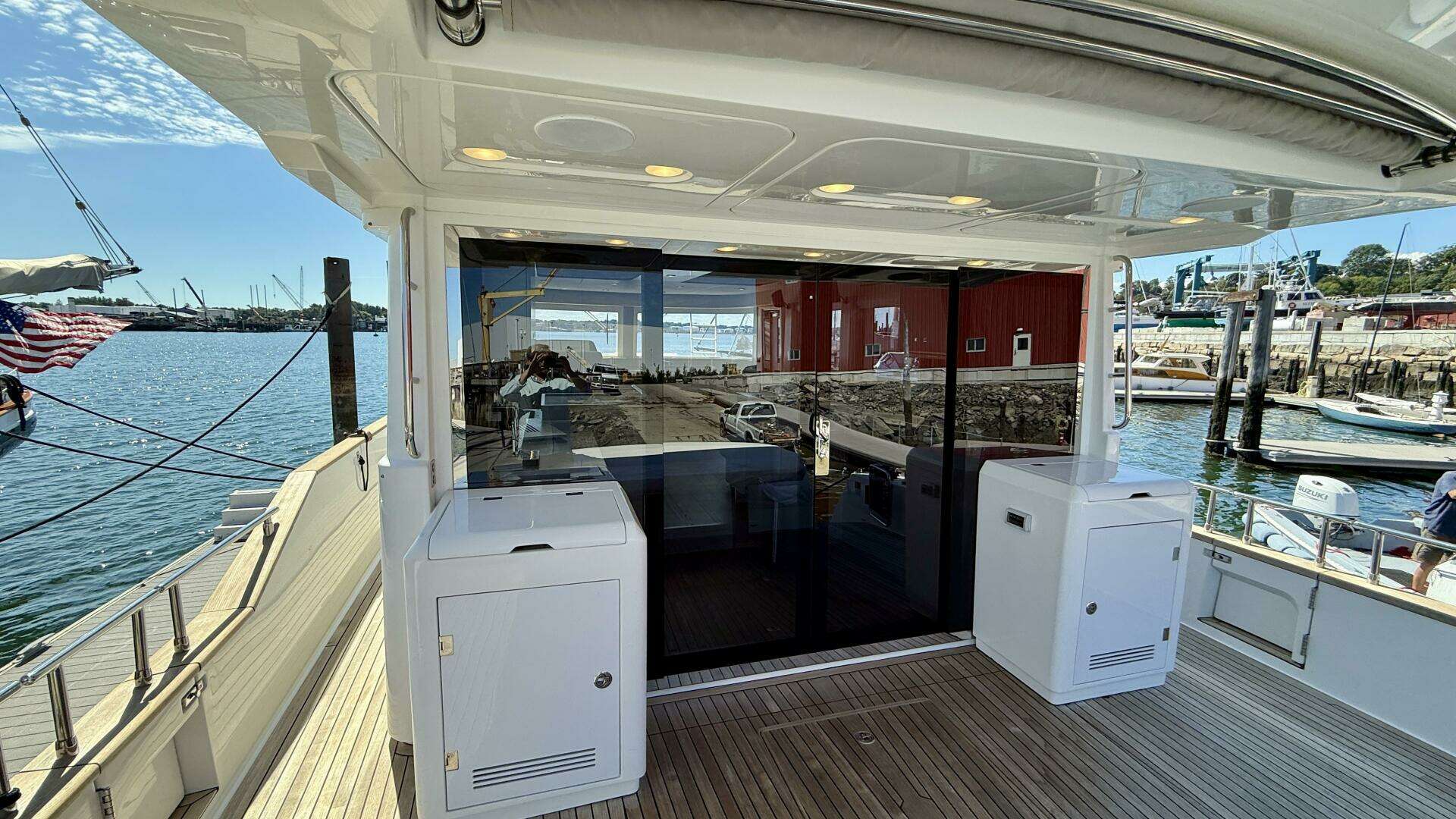

AFT COCKPIT

• Teak covered steps from platform to cockpit
• Teak covered floor

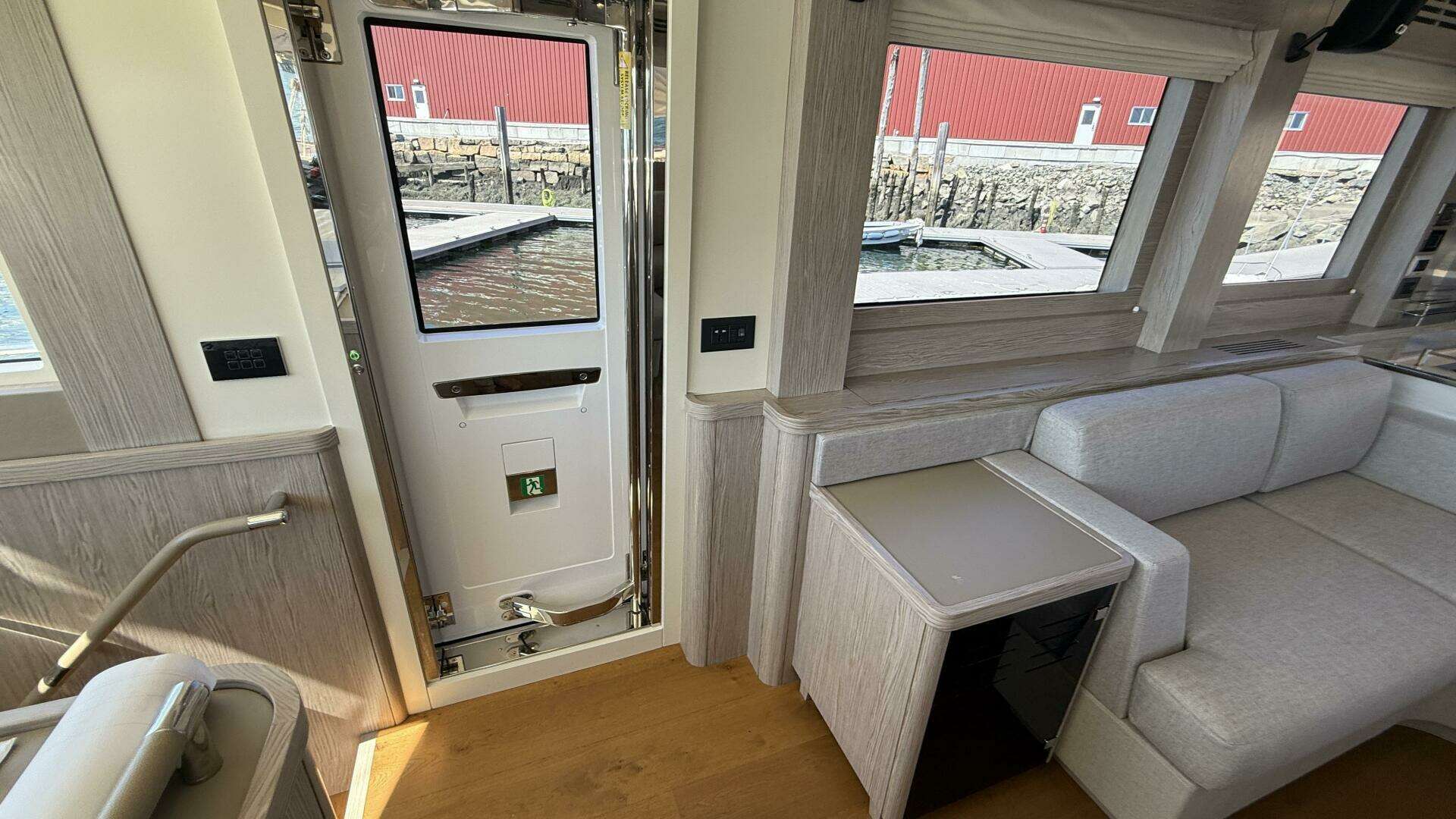

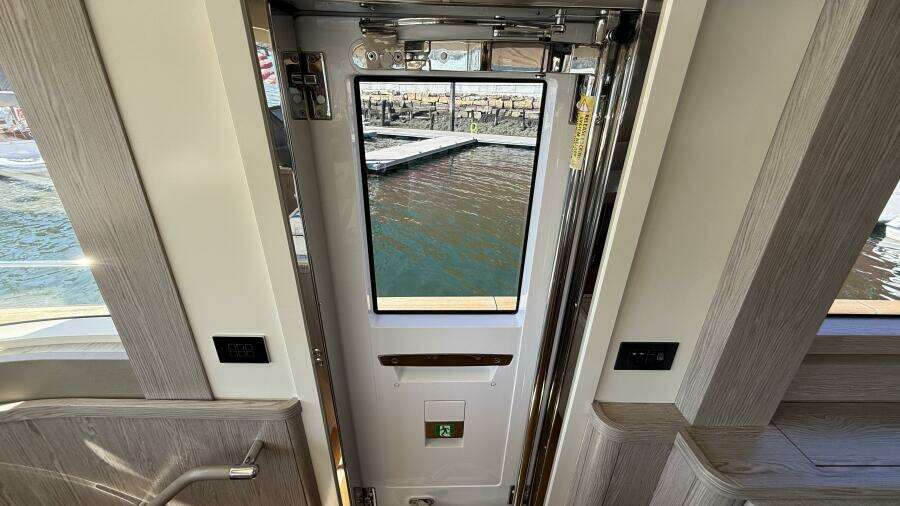

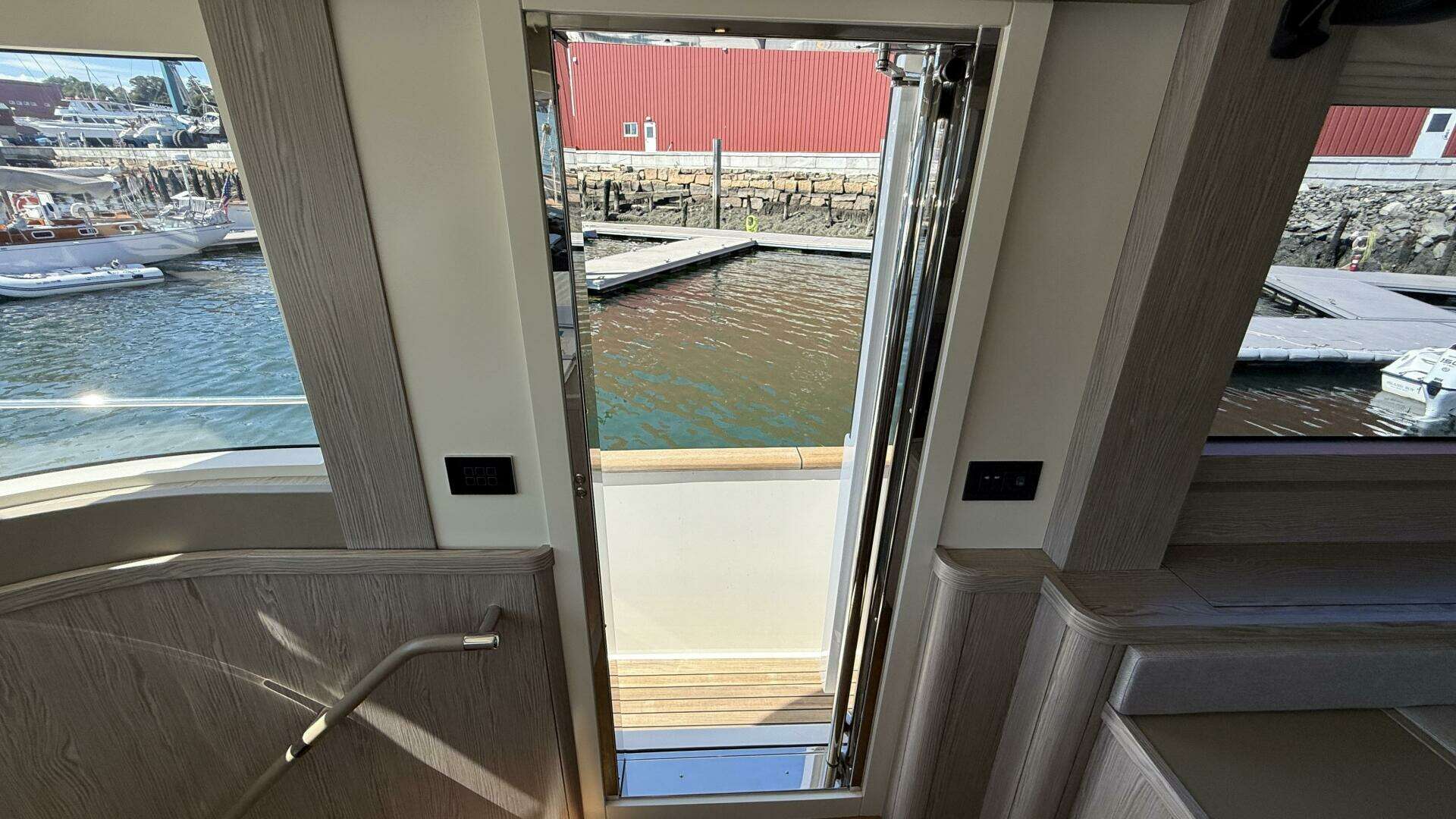

• Saloon door with 4 stainless steel and tempered glass panels. 2 panels fixed. 2 panels sliding from center to sides
• Courtesy lights on steps from platform to cockpit
• Nr. 4 stainless steel fairlead
• Nr. 2 stainless steel mushroom bollard
• Nr. 2 stainless steel and Plexiglas® gates with Sirena Yachts logo
• Covers for seats and table

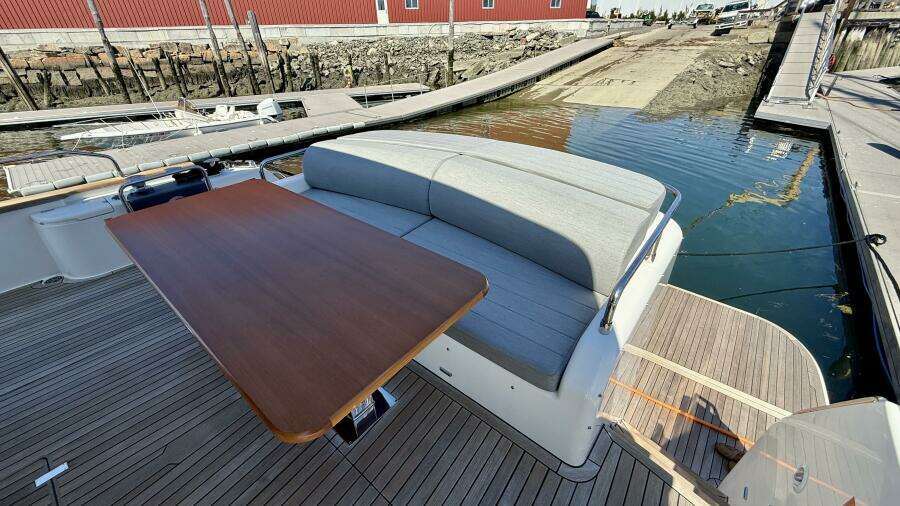

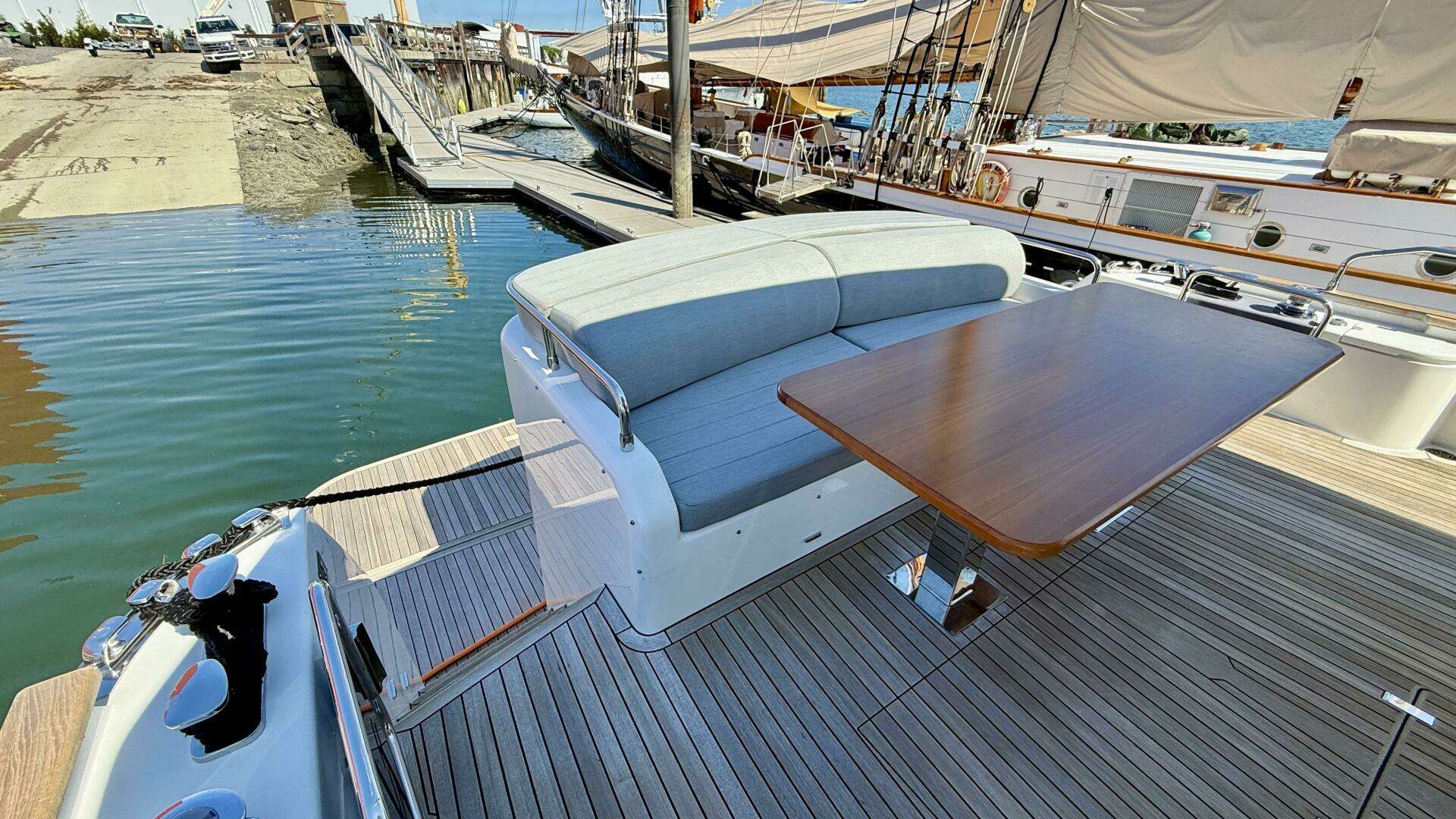

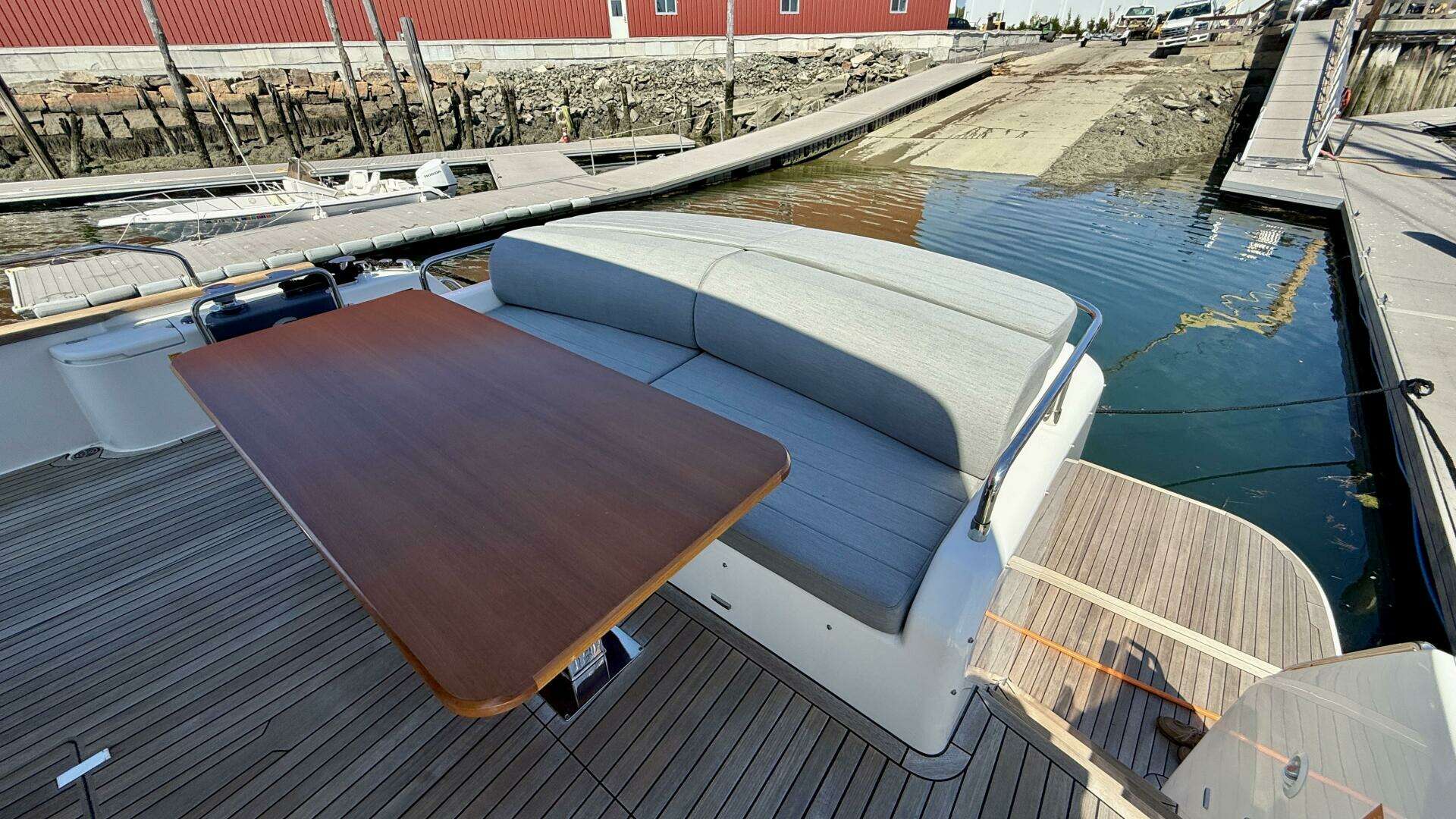

• Cockpit sofa with cushions
• LED spotlights
• Nr. 2 watertight loudspeakers
• Manual activation of the fire extinguisher system
• Stainless steel hardrails
• Engine room access via GRP hatch
• Soft patch for engine and generator removal

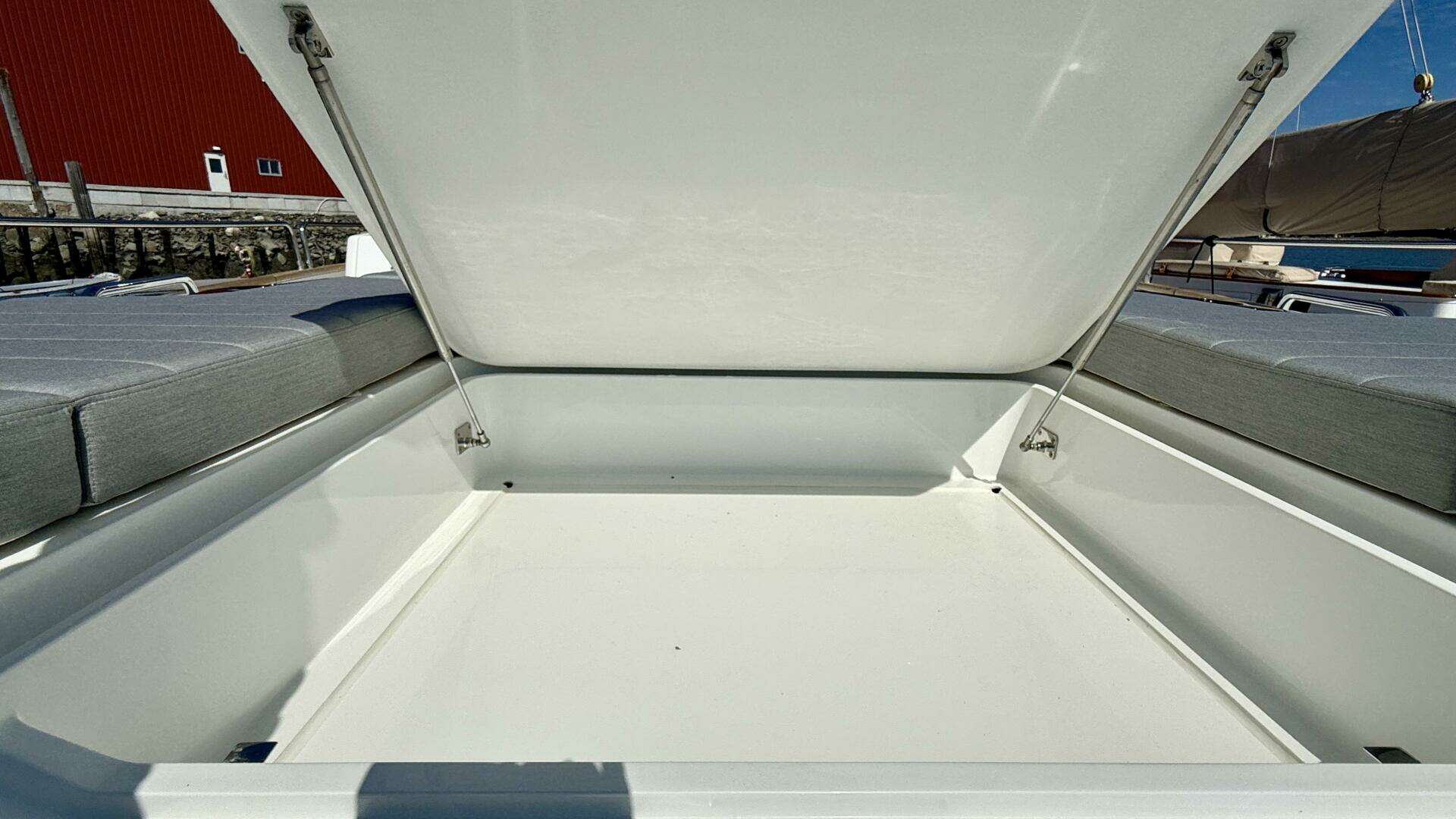

• Access to aft storage area via GRP hatch on aft seat

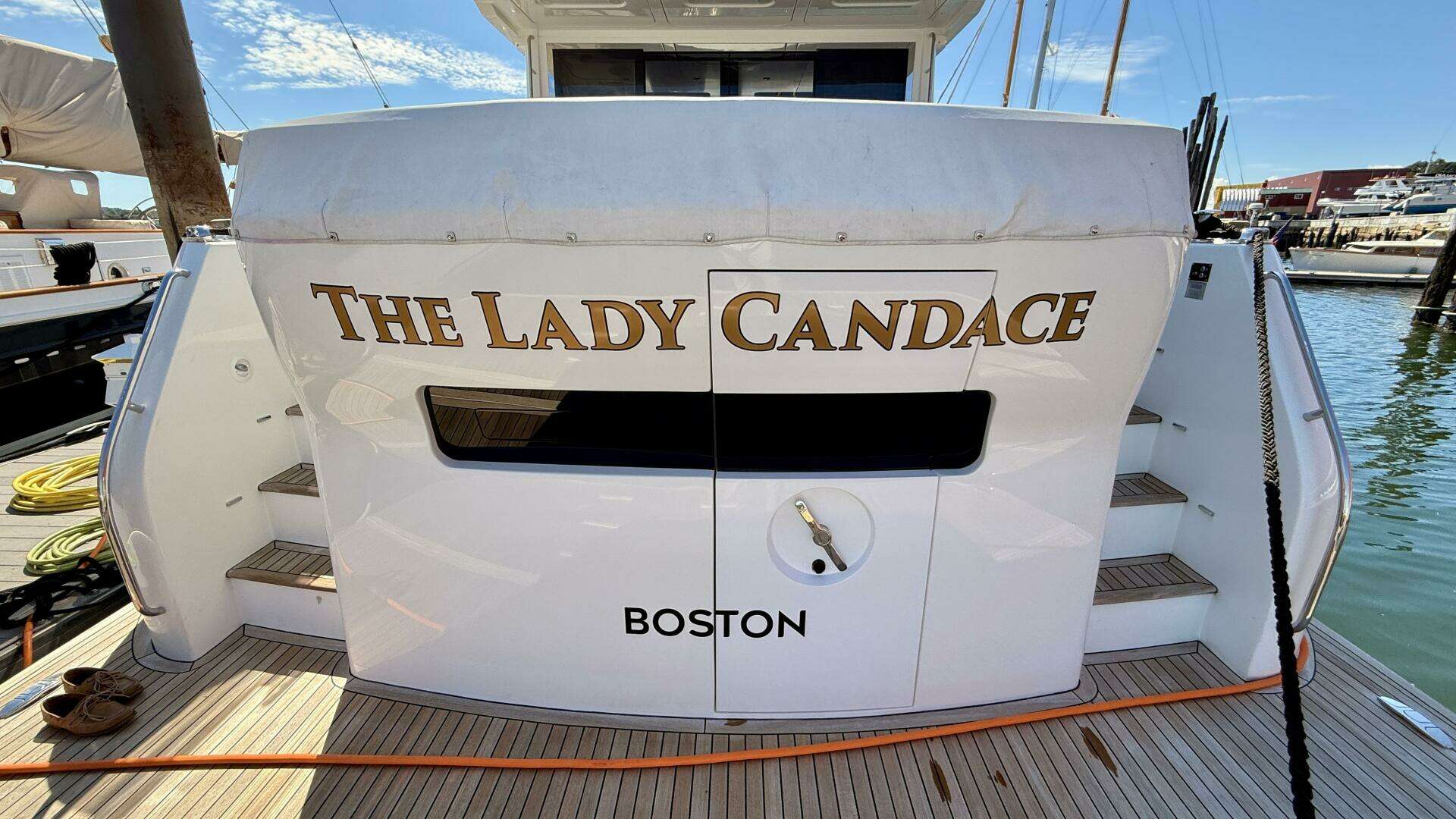

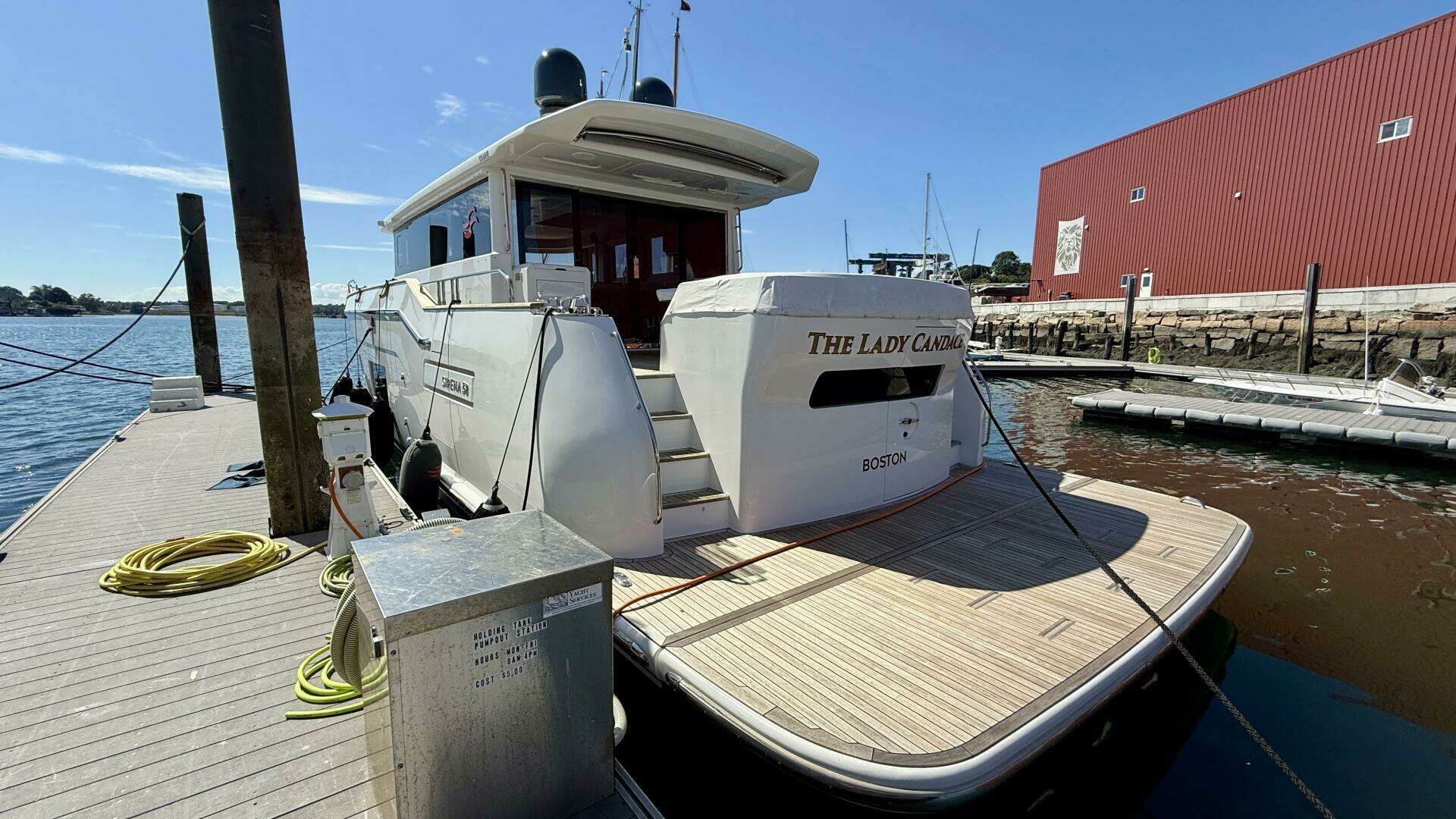

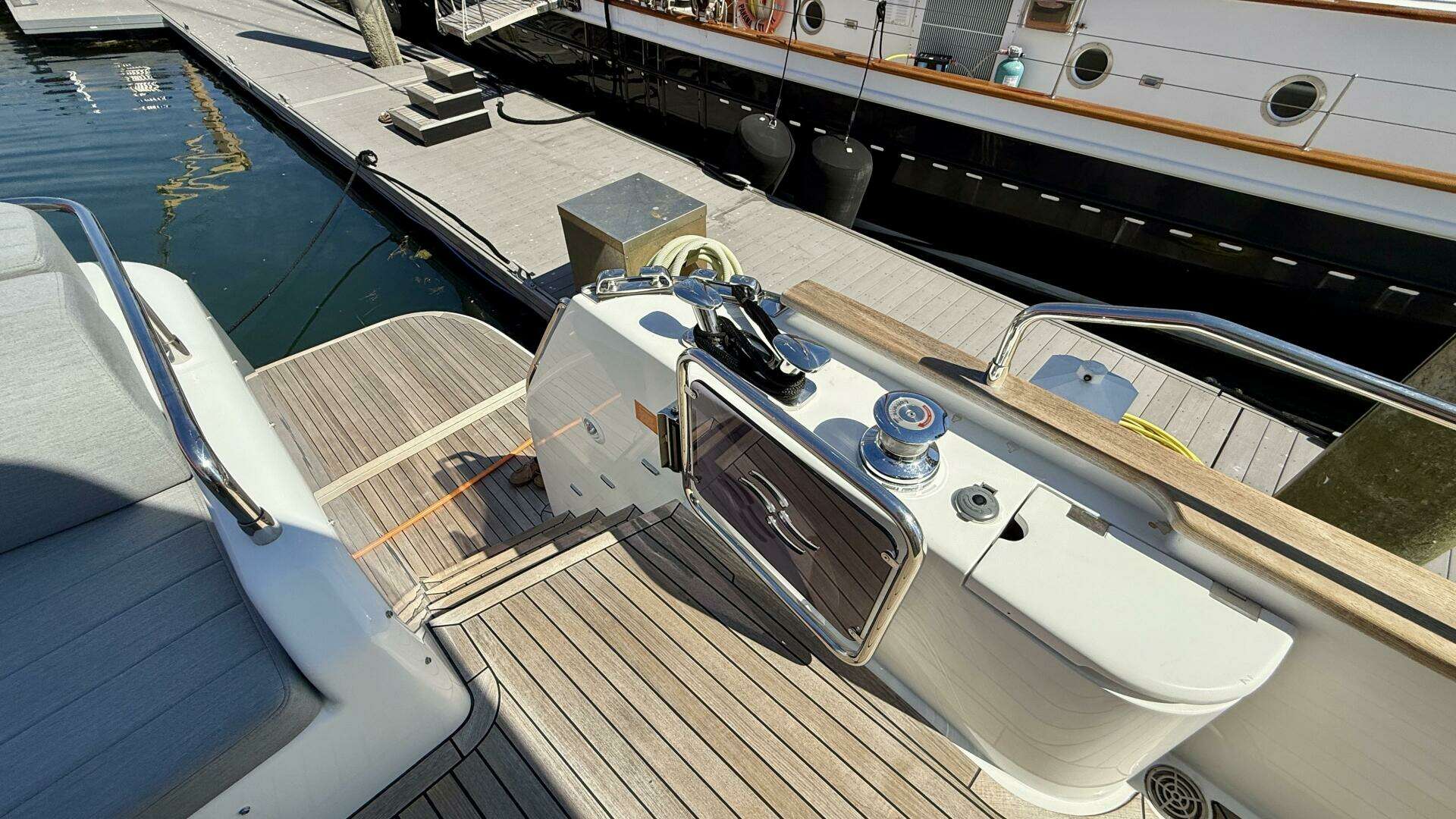

AFT PLATFORM / TRANSOM

• Manual sliding swim ladder integrated in the platform
• Hydraulic tenderlift with 880 lbs net working load capacity
• Spray anti-skid surface
• Glass on transom with integrated openable porthole
• Shower with hot and cold water mixer
• Fresh water shore connection
• Nr. 2 shore power socket 2 x 63A
• Maximum tender dimensions on the platform 11’3’’ x 5’9’’
• Nr. 2 stainless steel mushroom bollards

US Standard Specifications - Interior

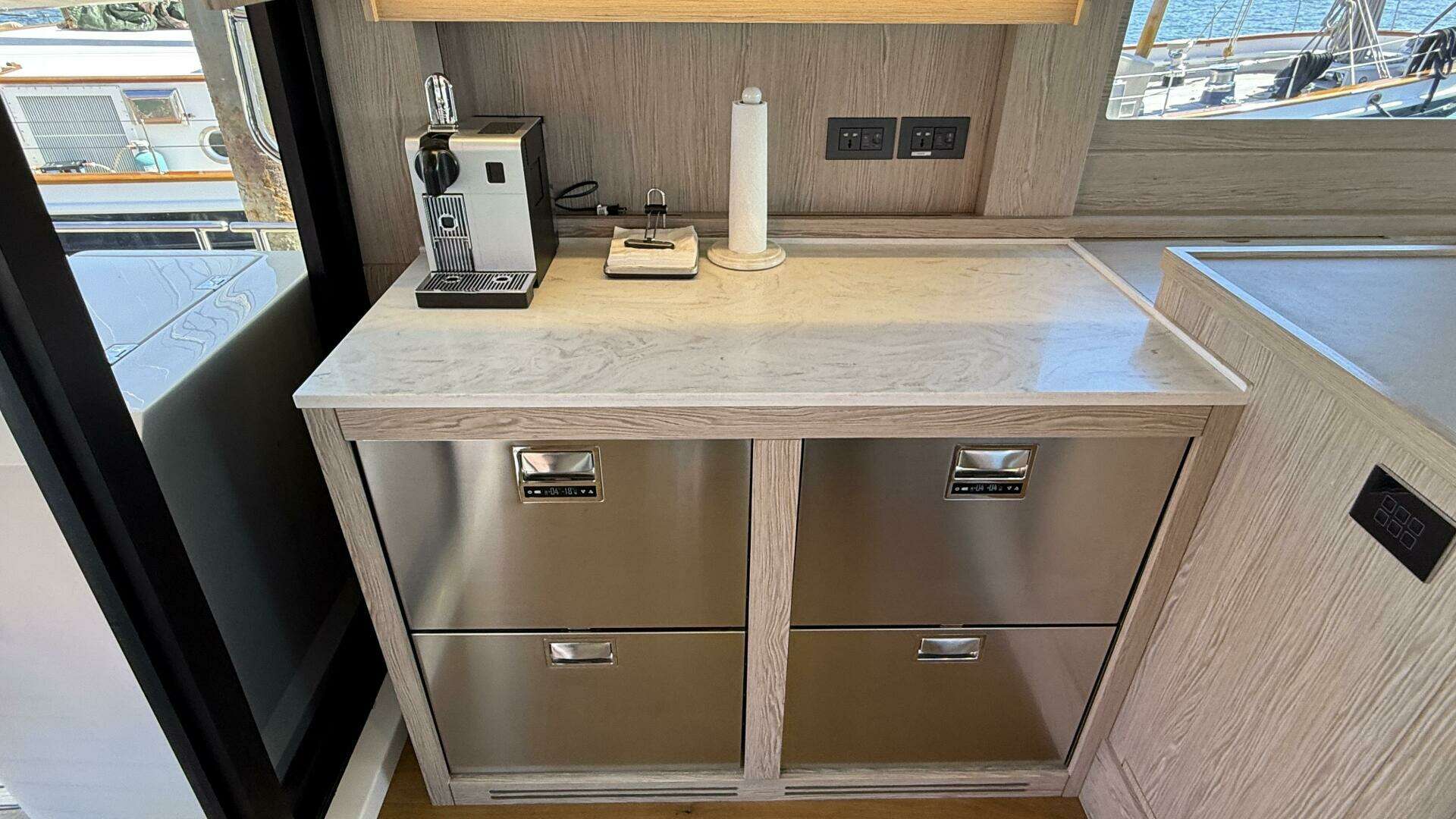

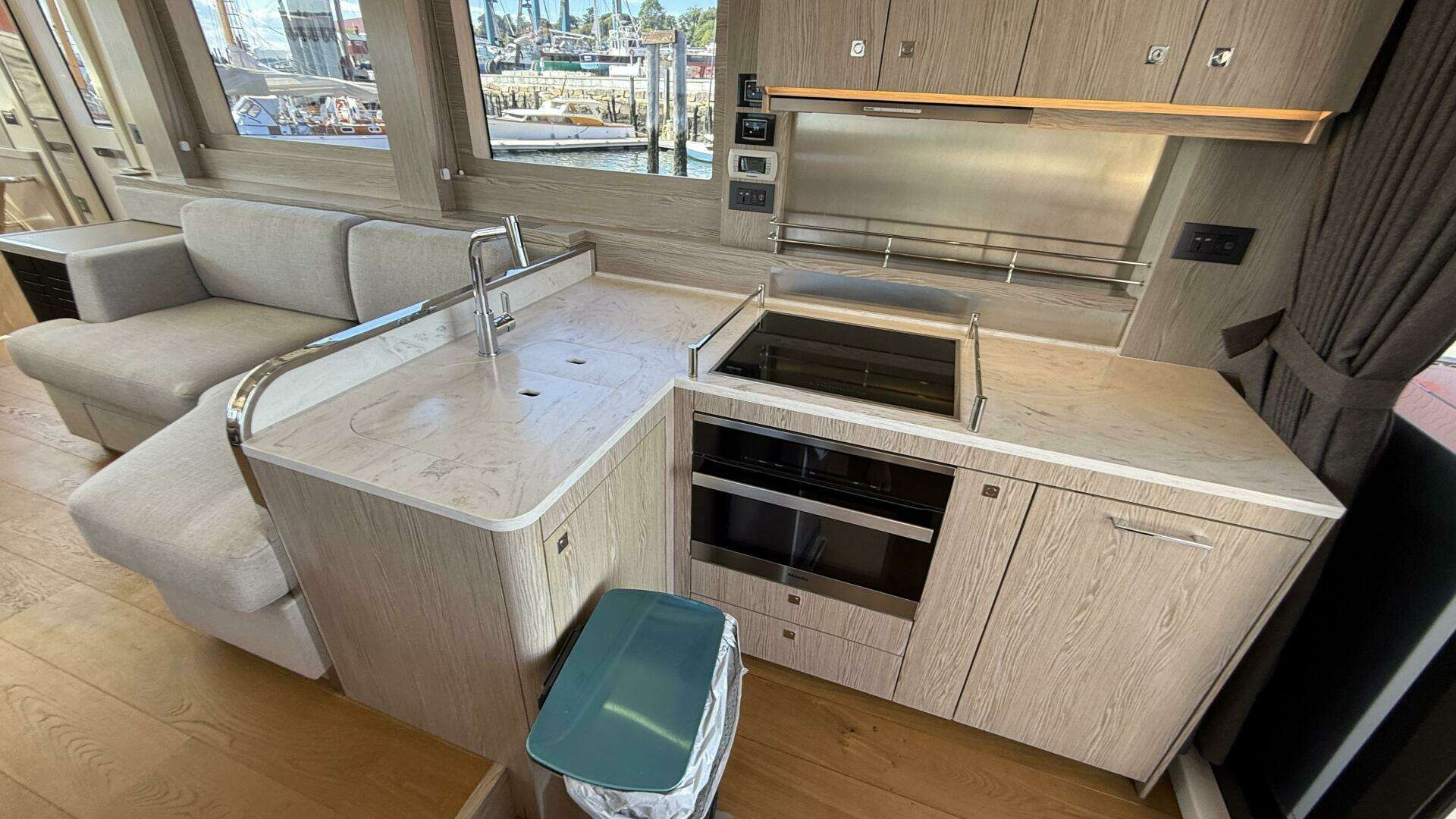

GALLEY

• Galley at the entrance of saloon at starboard side
• Wooden flooring
• Low and high cupboards and bottle drawer starboard side
• No.2 Drawer type fridge/freezer
• Storage area with shelves at portside
• Worktop in Corian
• Stainless steel sink
• Water mixer
• Miele four-hob glass ceramic cooktop
• Stainless steel
• Miele oven
• Miele extraction hood
• LED spotlights
• Rubbish bin
• Curtain on the entrance door
• Nr. 1 AC socket

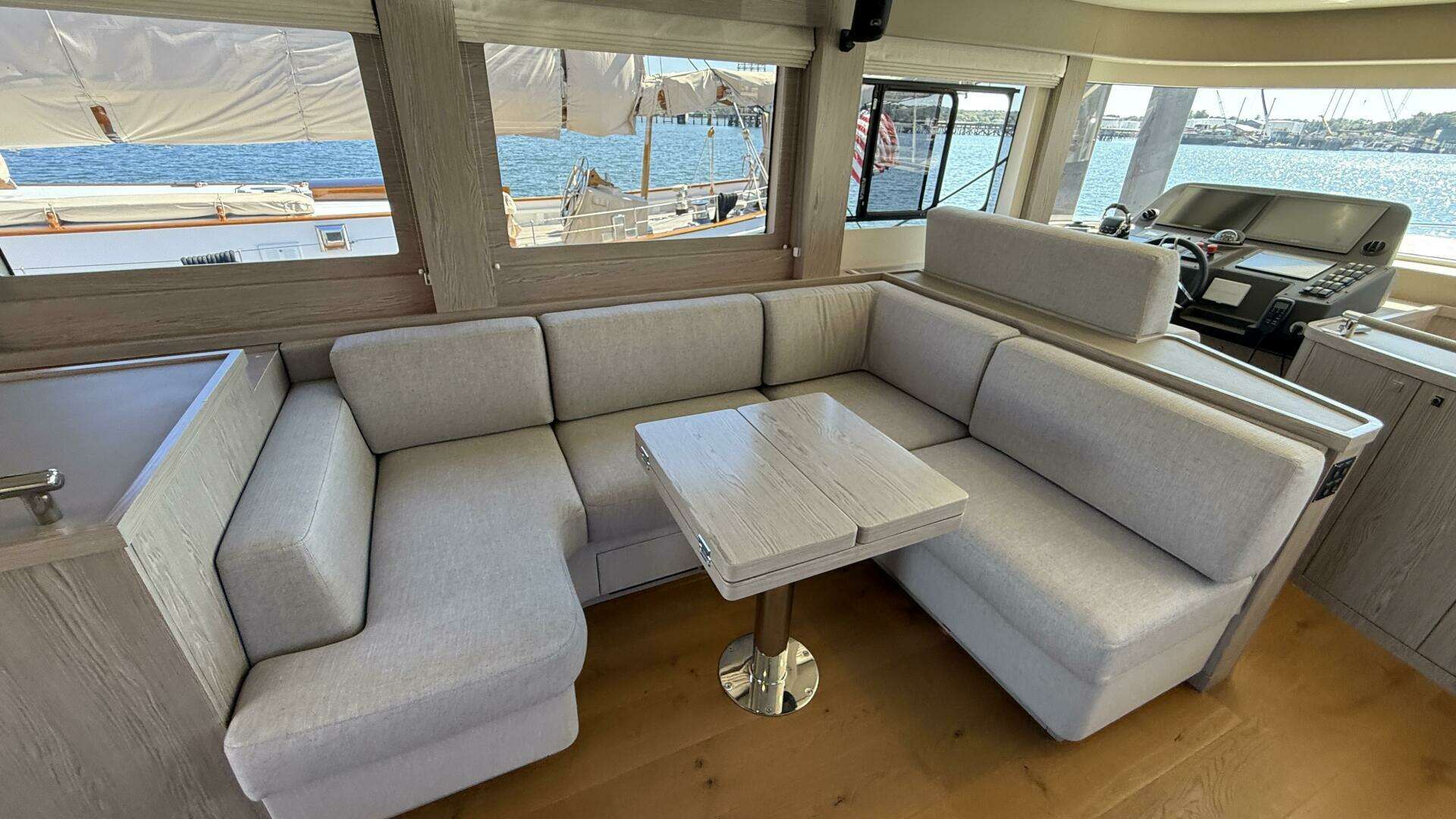

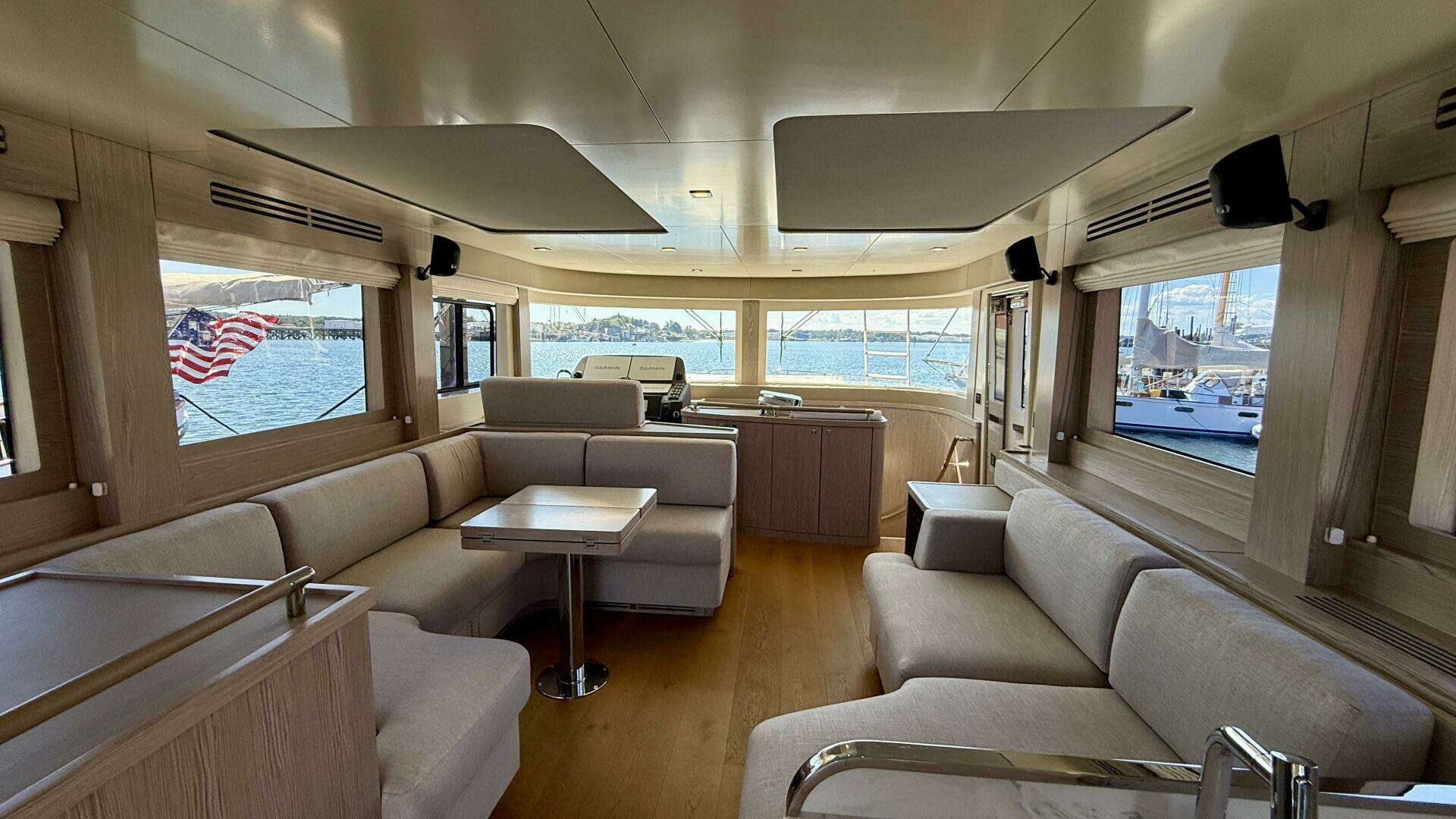

SALOON / DINETTE

• Carpet flooring
• U shape sofa and fixed table on portside
• Cabinet next to L shaped sofa on starboard side

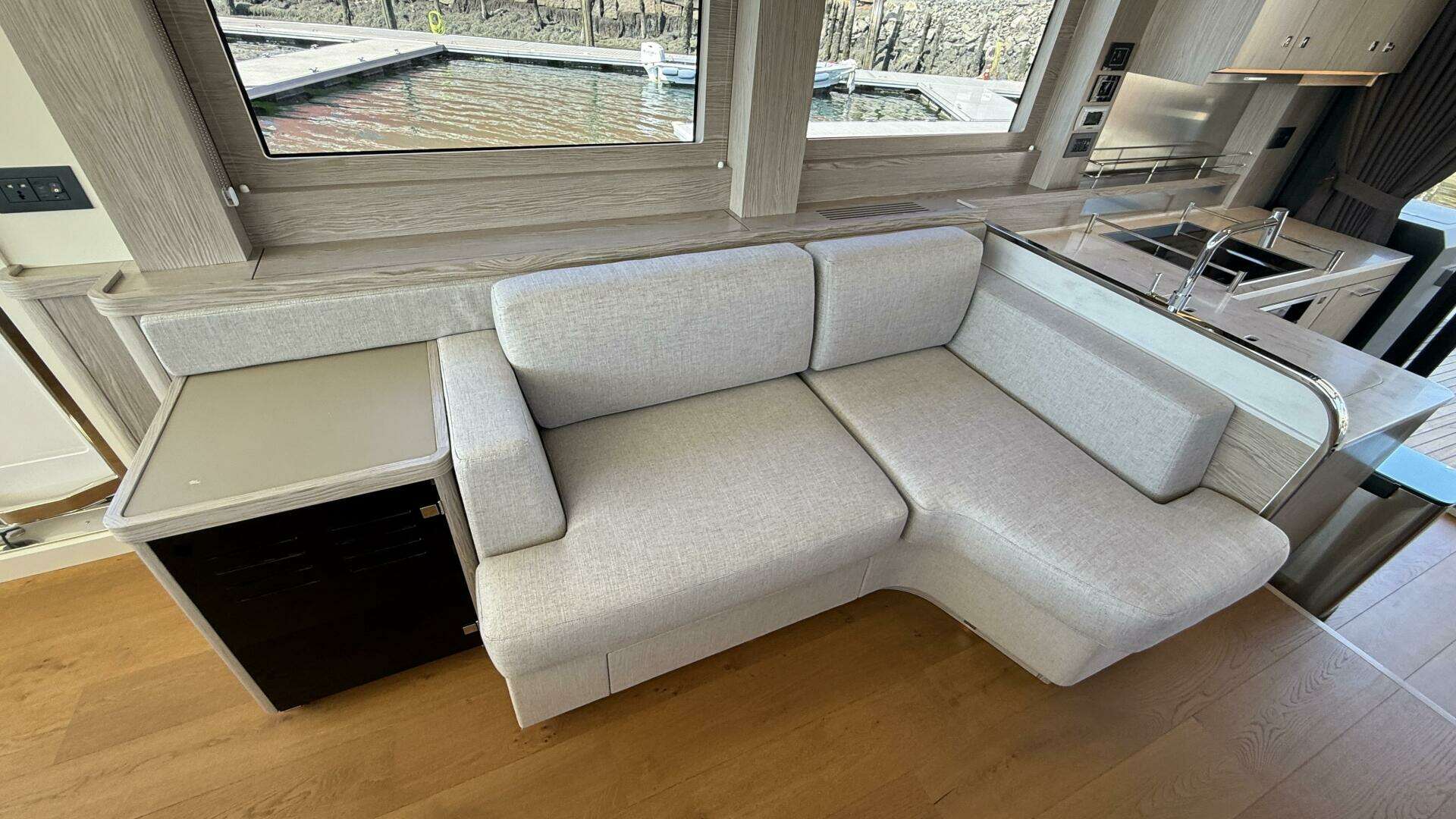

• L shaped sofa on starboard side
• Space to house TV lifting system at starboard side
• LED spotlights
• Roman curtains on side windows
• Fusion Marine entertainment system
• Hi-lo TV system
• TV antenna predisposition
• Nr. 2 AC socket
• Double helm seat
• Cup holders by helm station
• Nr. 2 loudspeakers
• Black mesh covers for windows
• Drawers under all sofas
• Footrest (under steering wheel)
• Service and engine batteries switches and engine room lighting switch at the entrance portside

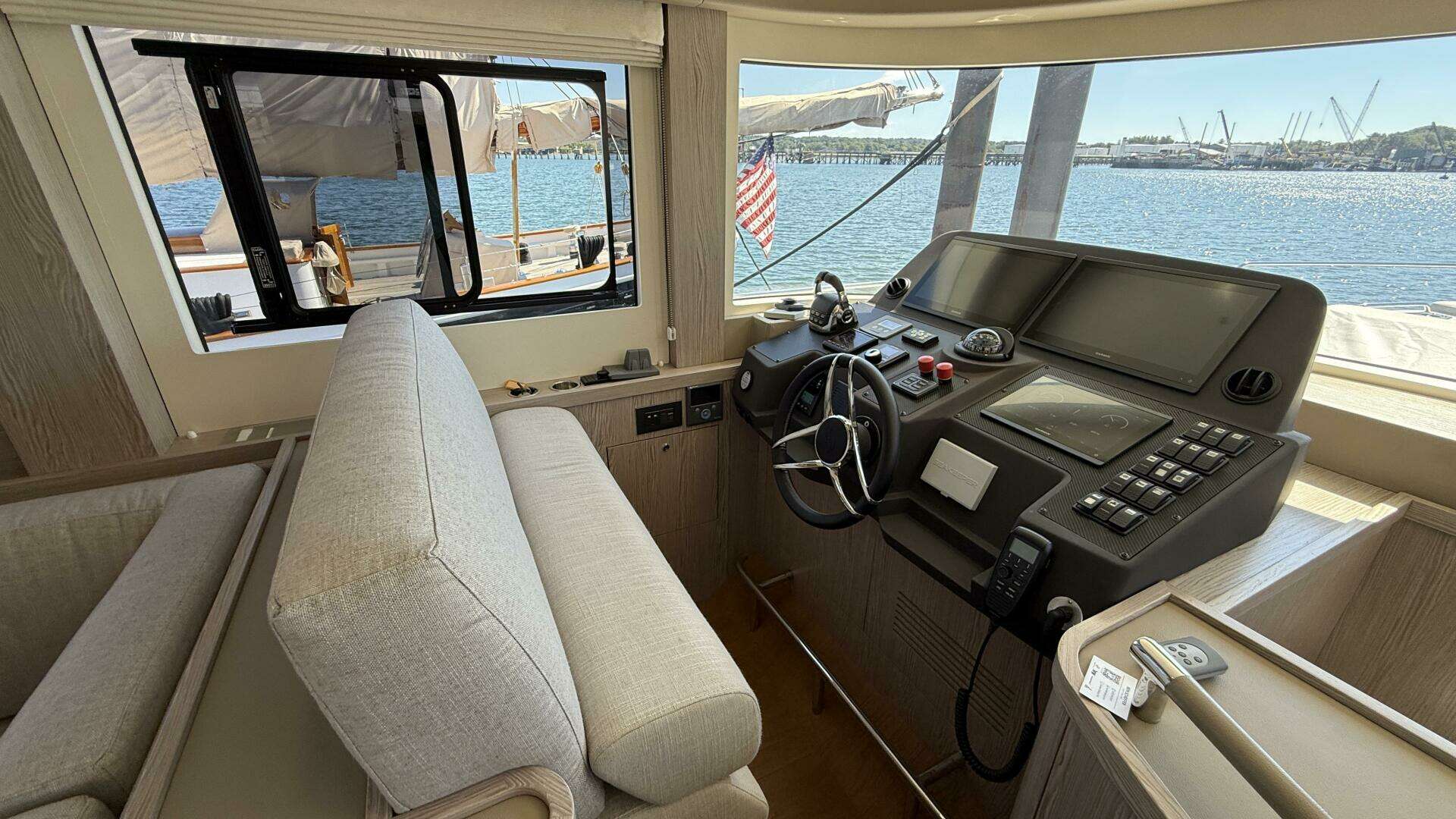

• Helm station equipped with:Helm seat on port side
• Storage area next to helm station
• AC socket
• Nr. 2 panel cabinet for storage next to the helm station
• Steering wheel
• Garmin 10’’ MFD GPSMAP 8610
• Garmin GHC 20 autopilot control head
• Garmin GHS 11 VHF radio
• Depth/speed transducer
• Spotlights switch
• Wheelhouse electrical panel next to helm seat
• Windscreen washing switch
• Anchor windlass control
• Navigation/Anchor lights switch
• 12V socket
• USB socket
• Interceptor control
• Bow-thruster joystick
• Chain counter
• Horn switch
• Fire extinguisher alarm panel
• Compass
• Monitoring system functions integrated in to chartplotter displays:Grey water level gauge
• Black water level gauge
• Fresh water level gauge
• Shore power connection status-alarm
• Aft storage door position status
• Tenderlift platform position status
• Bilge high level alarm

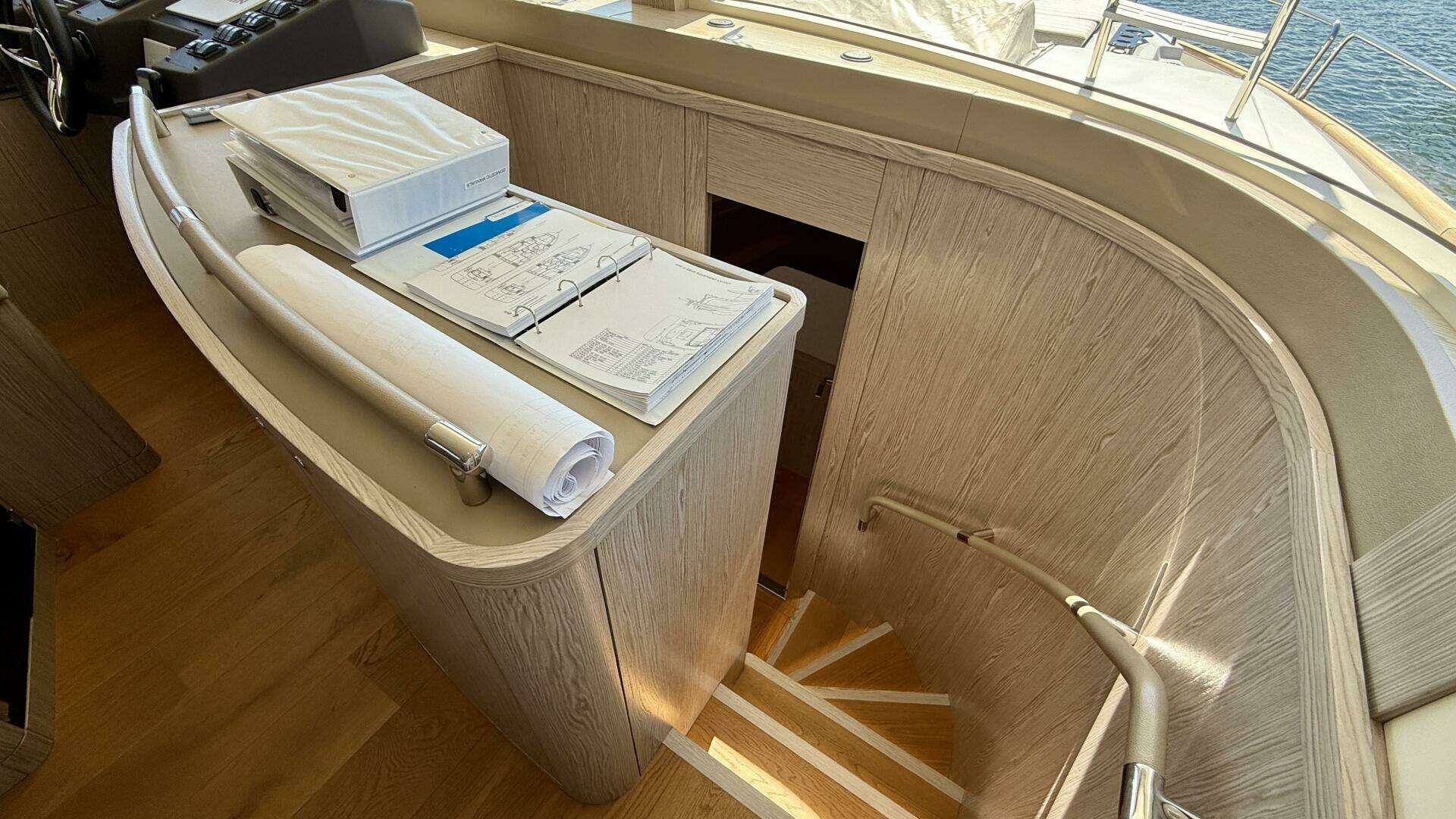

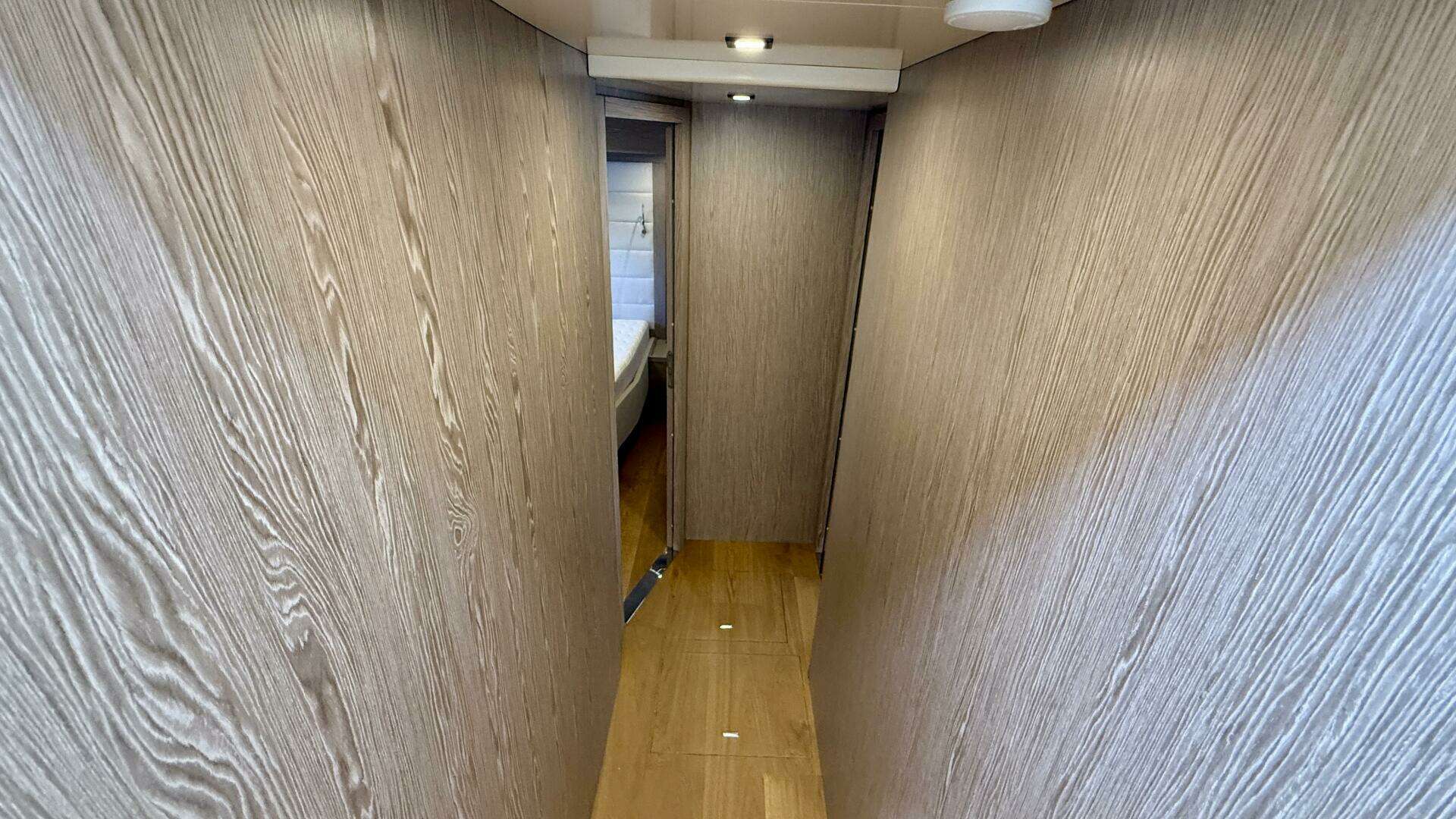

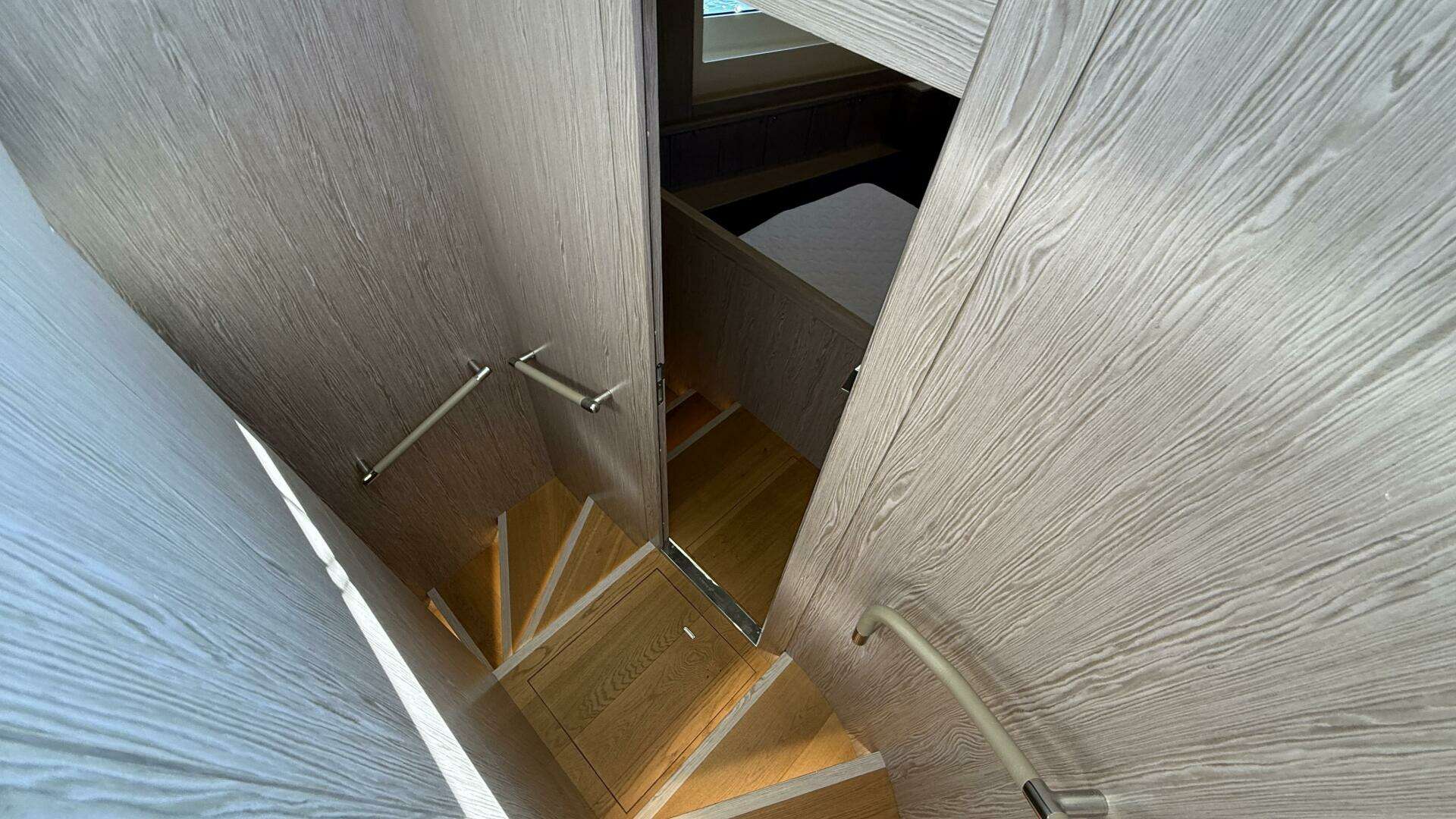

STAIR TO LOWER DECK

• Carpet on steps
• LED lights
• Handrail

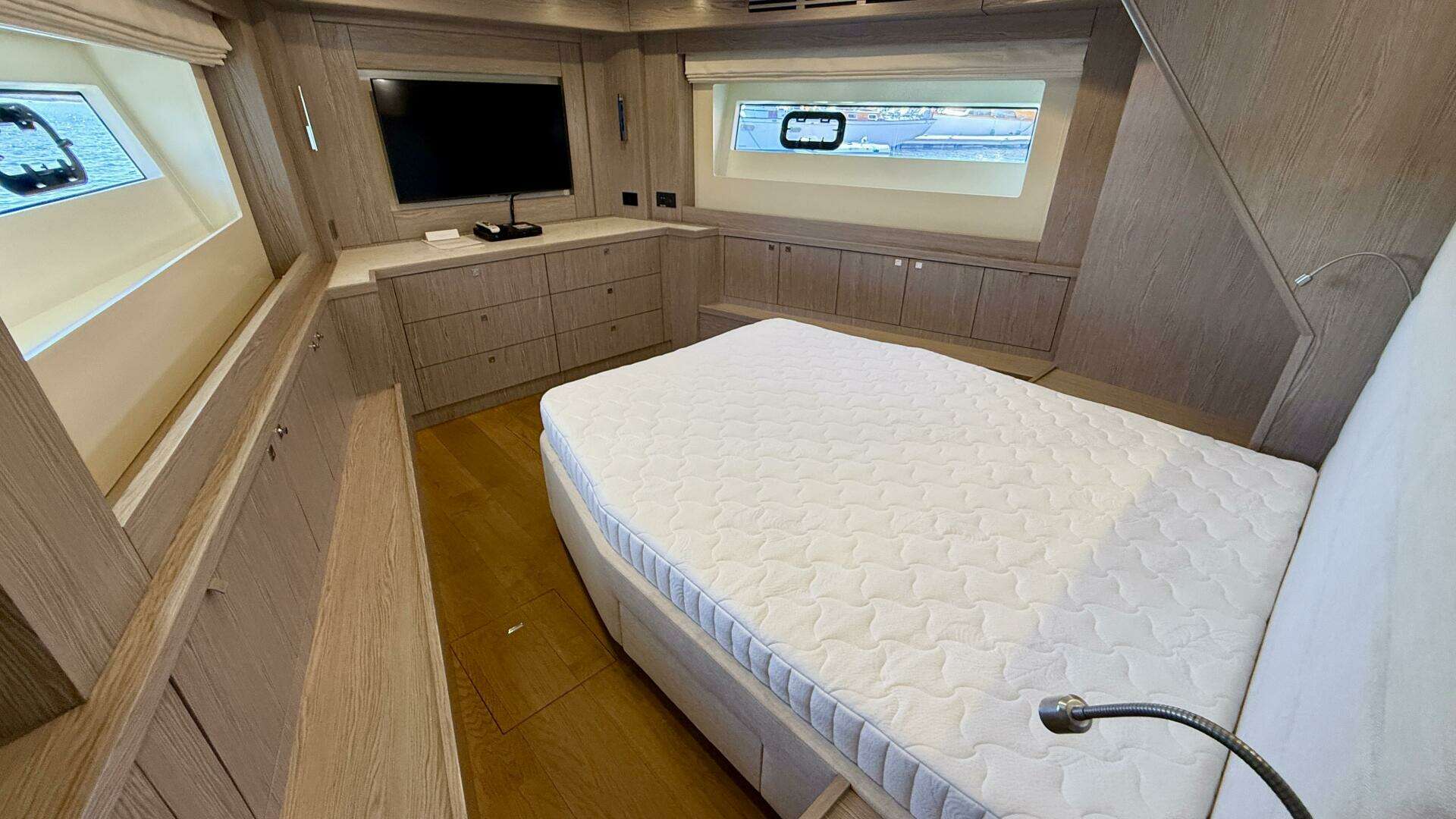

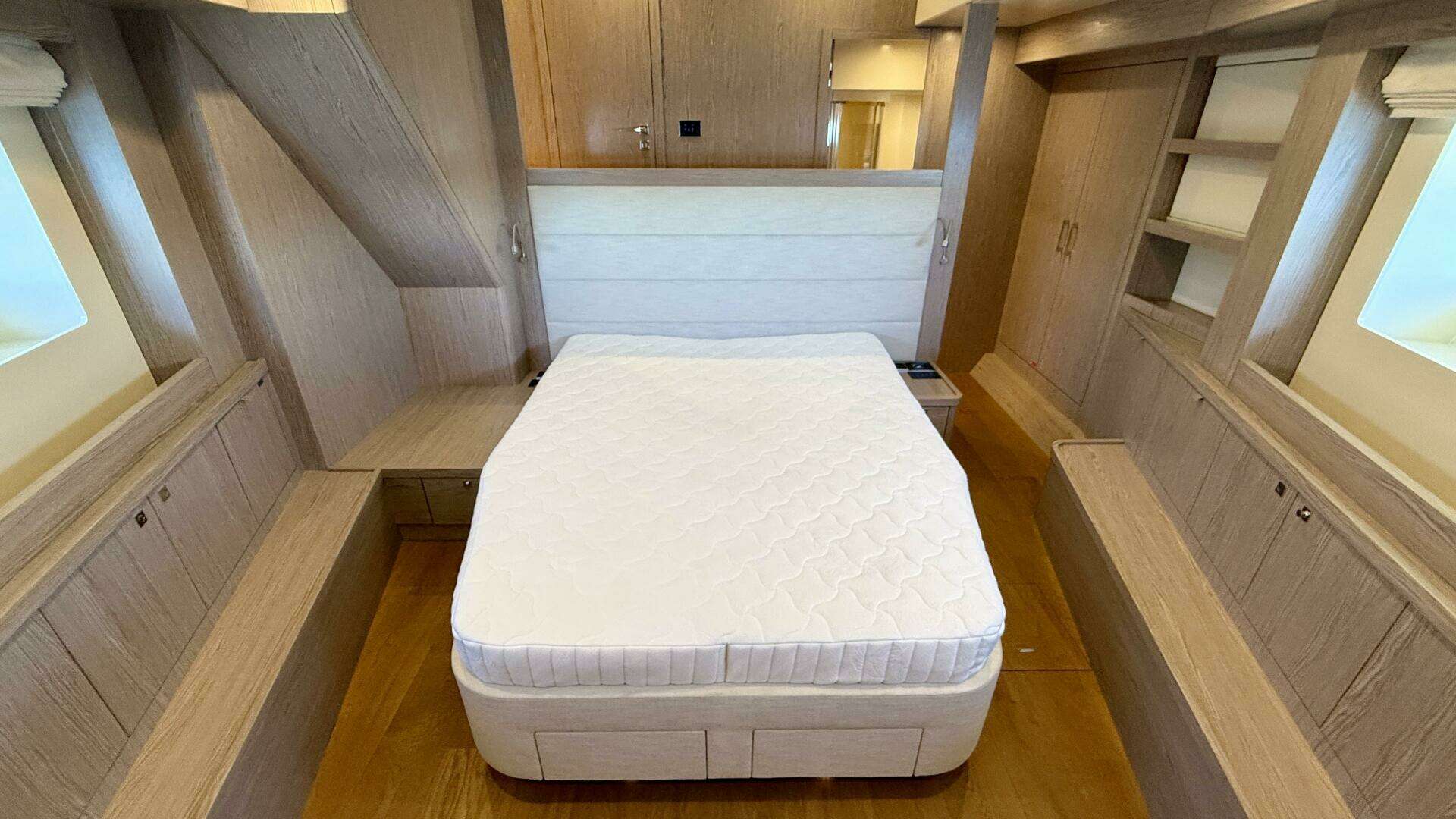

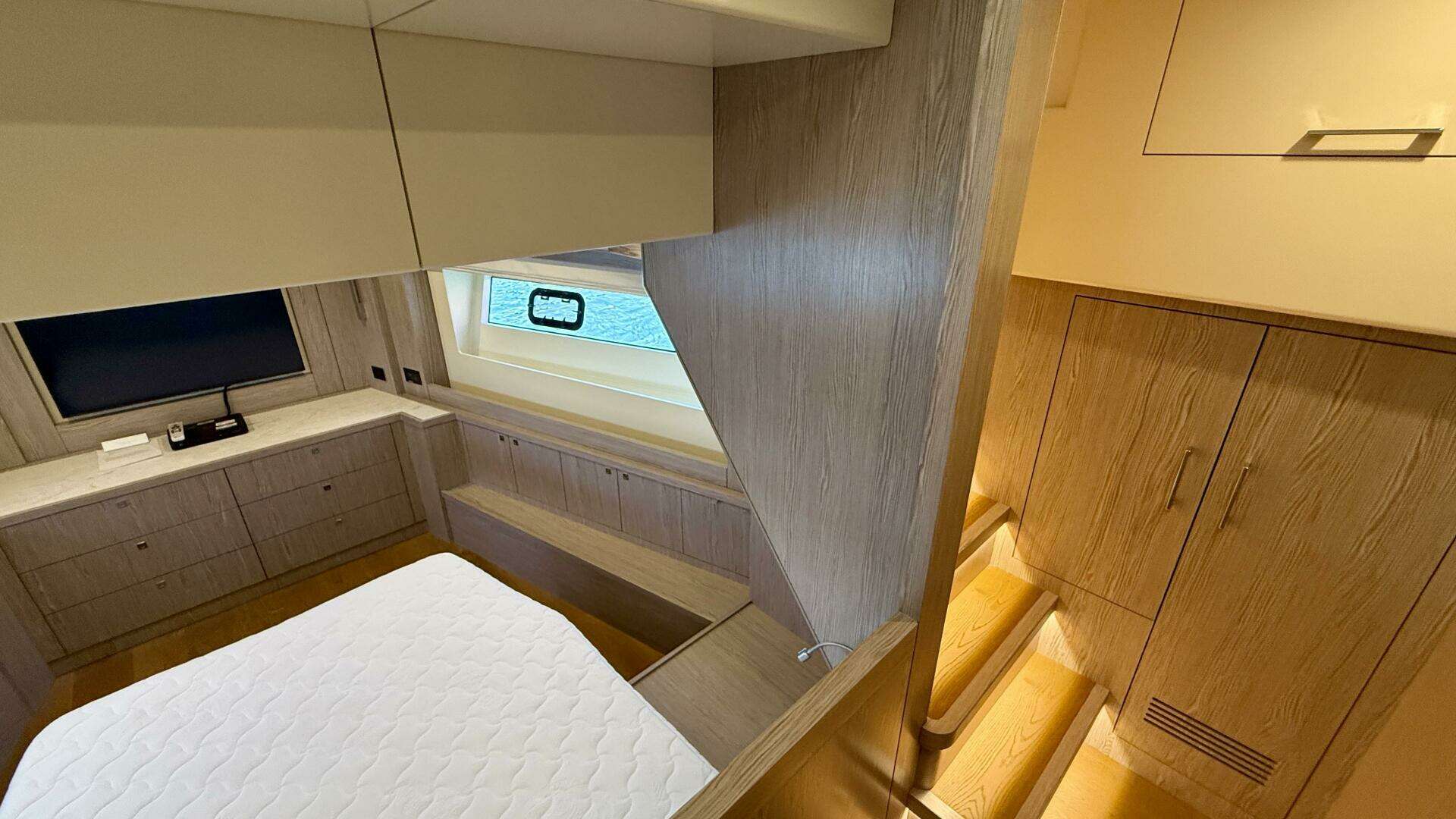

OWNER’S CABIN

• Located at amid-ship
• Carpet flooring
• En-suite head
• Nr. 2 AC sockets
• Double bed
• Mattress
• Nr. 2 nightstands

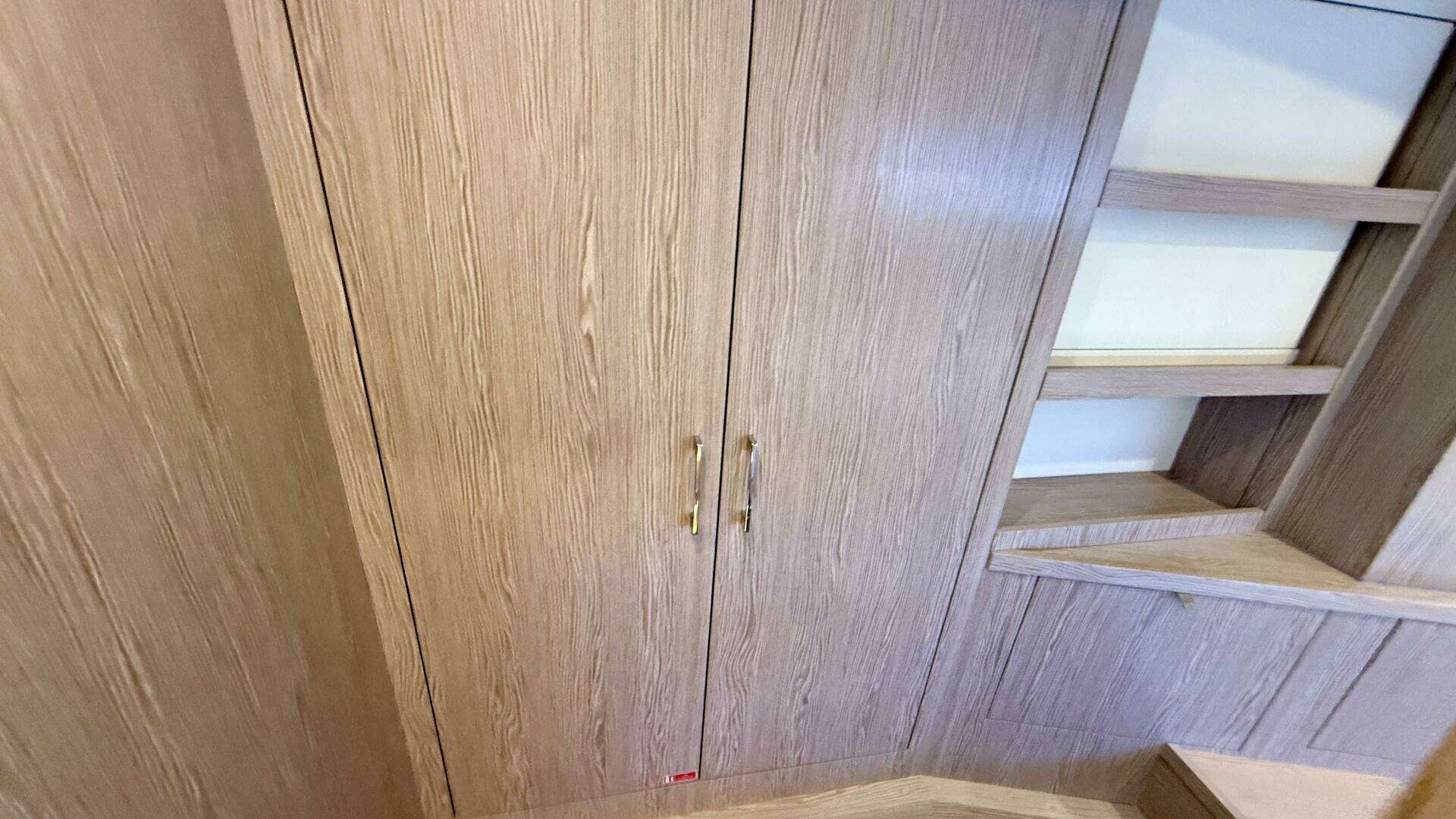

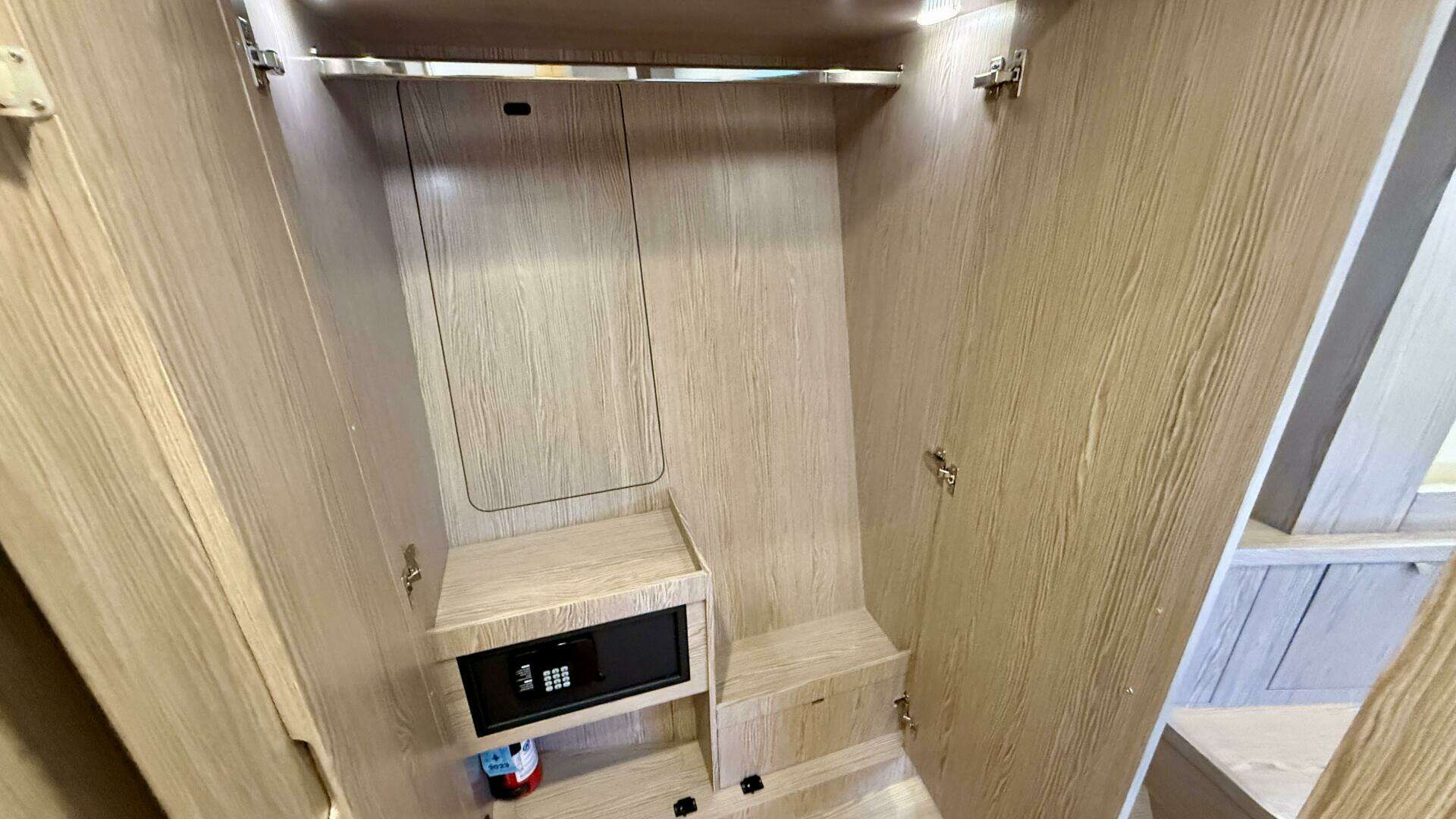

• Nr. 2 full size wardrobes with hangers and shelves
• Full size mirror
• TV antenna predisposition
• Vanity on port side
• Sofa on starboard side
• Storage on port side and starboard side
• Dimmered lights
• Nr. 2 reading lights
• Courtesy lights
• LED spotlights

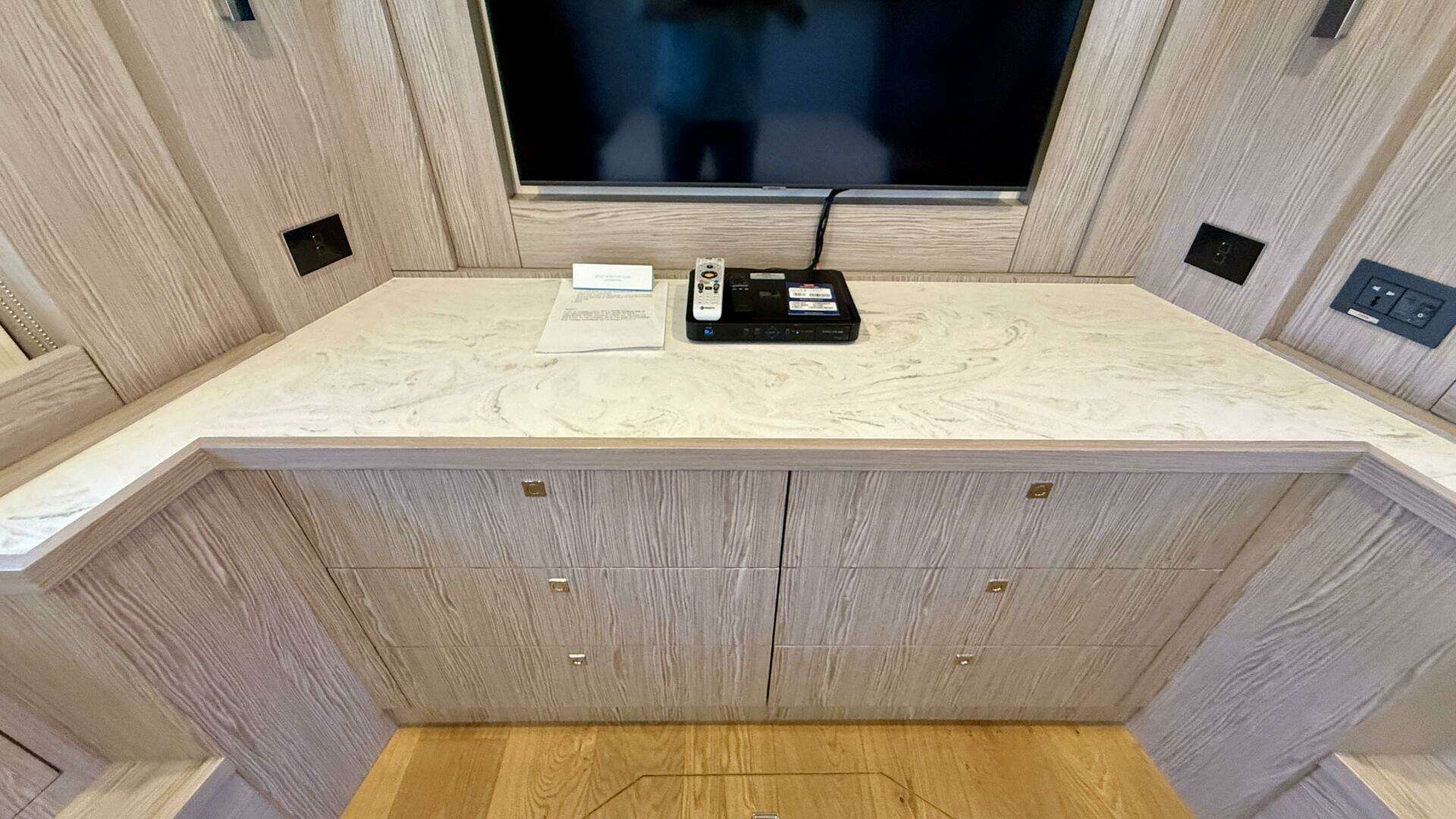

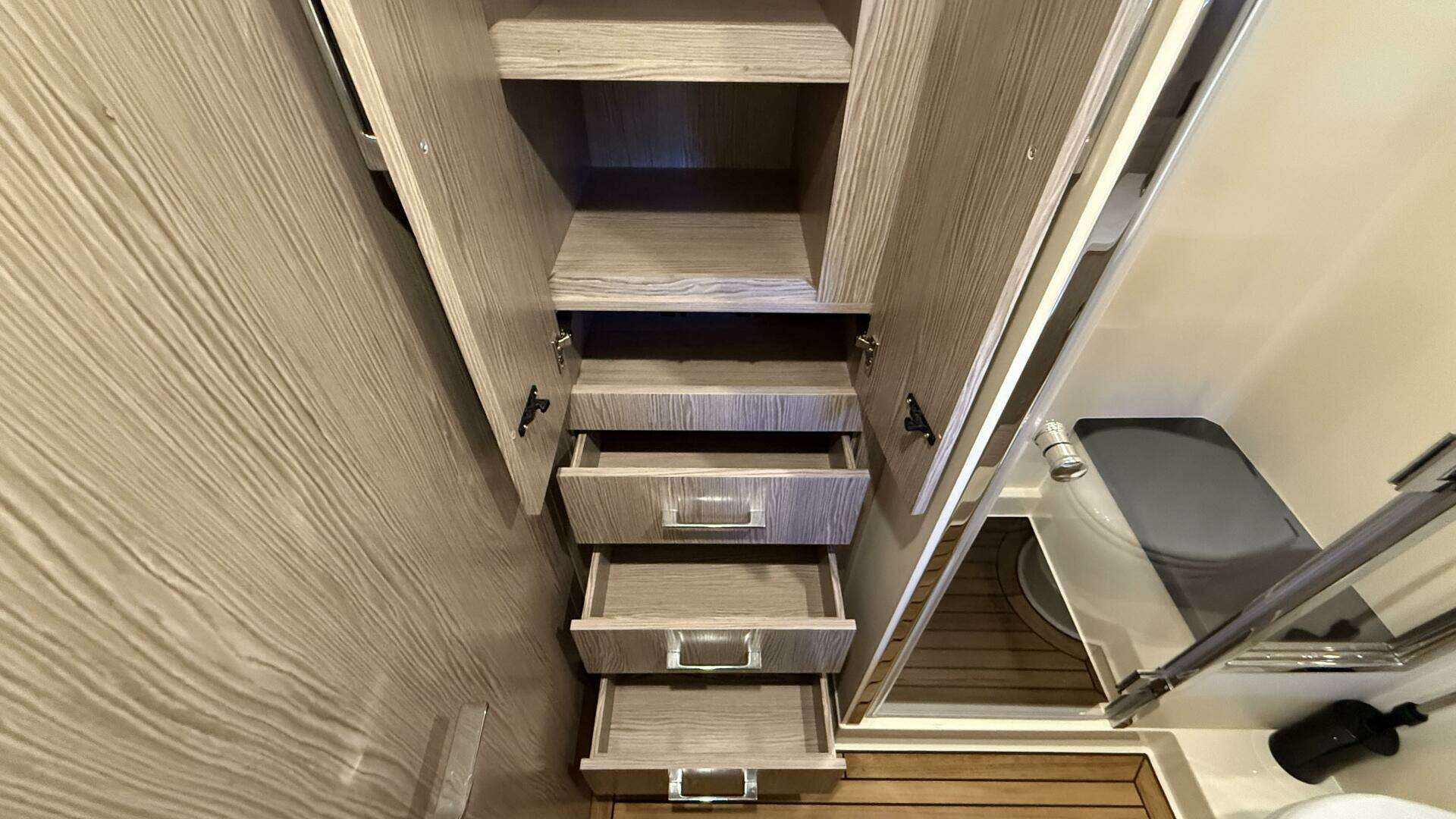

• Storage unit on port side with drawers
• Nr. 2 wall lights
• Roman curtains
• Nr. 2 scenic windows

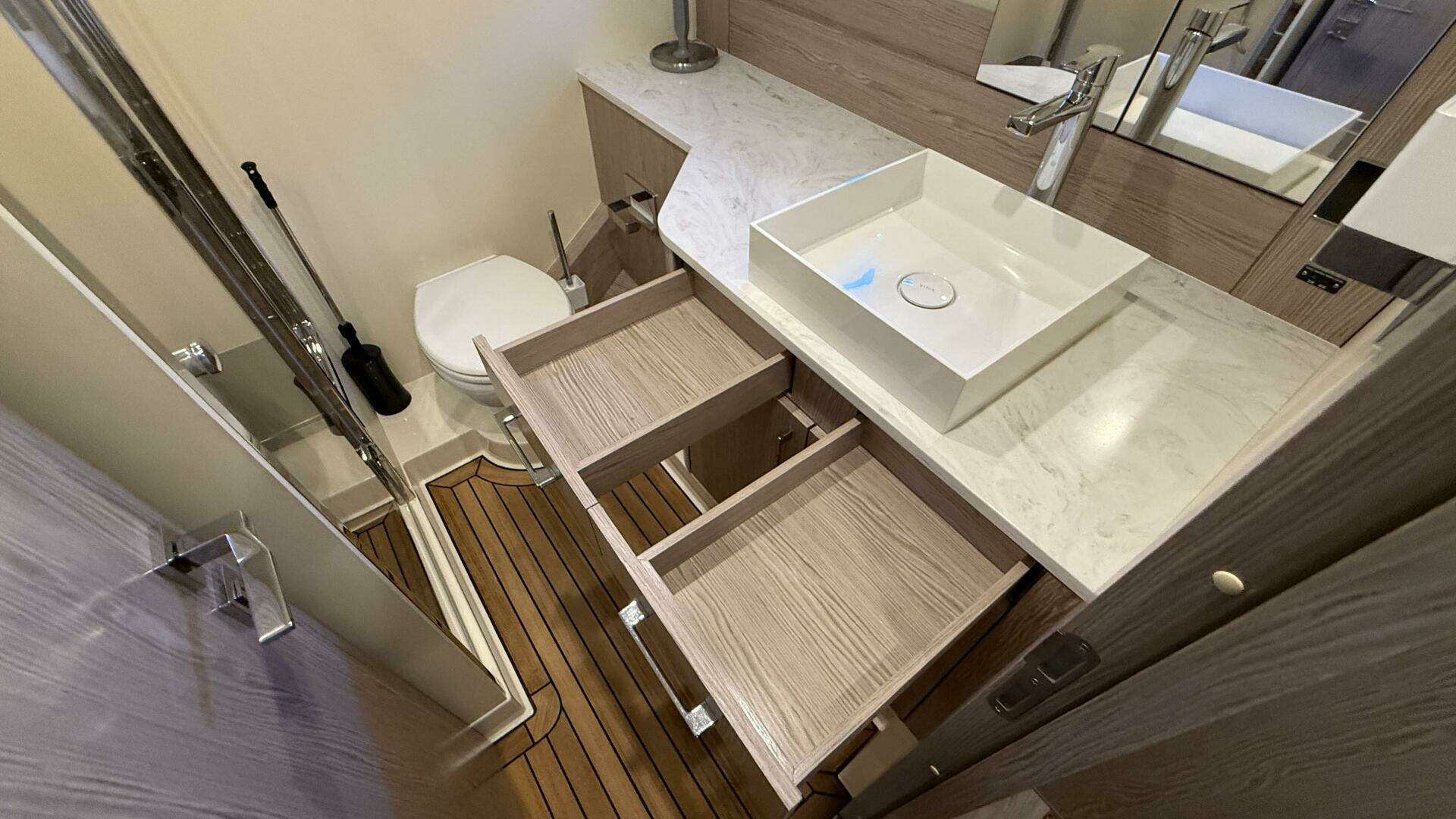

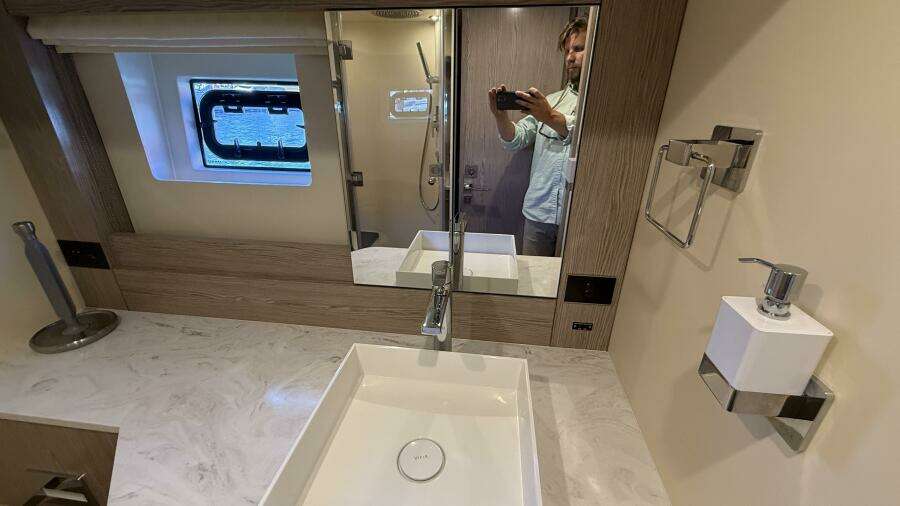

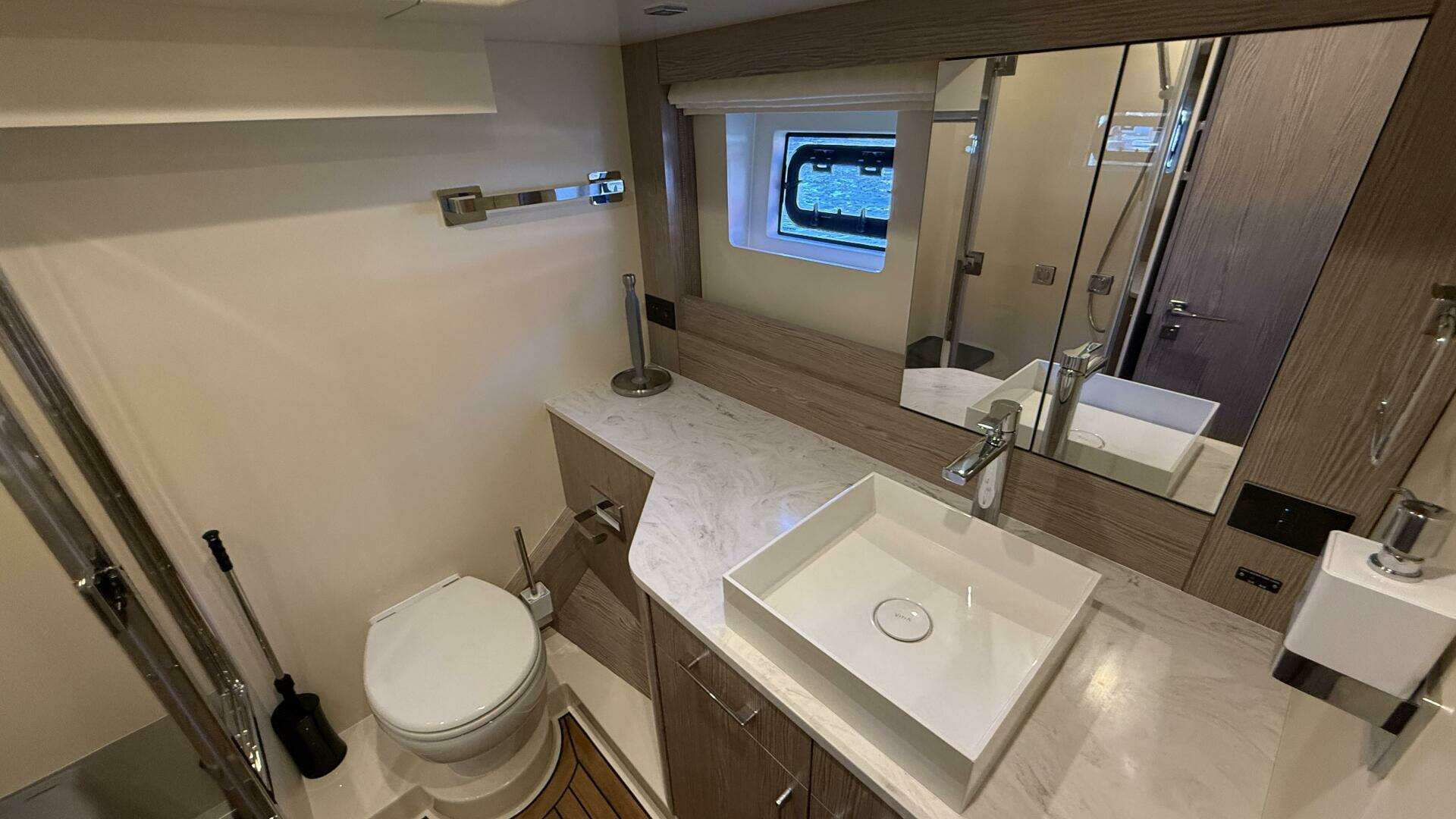

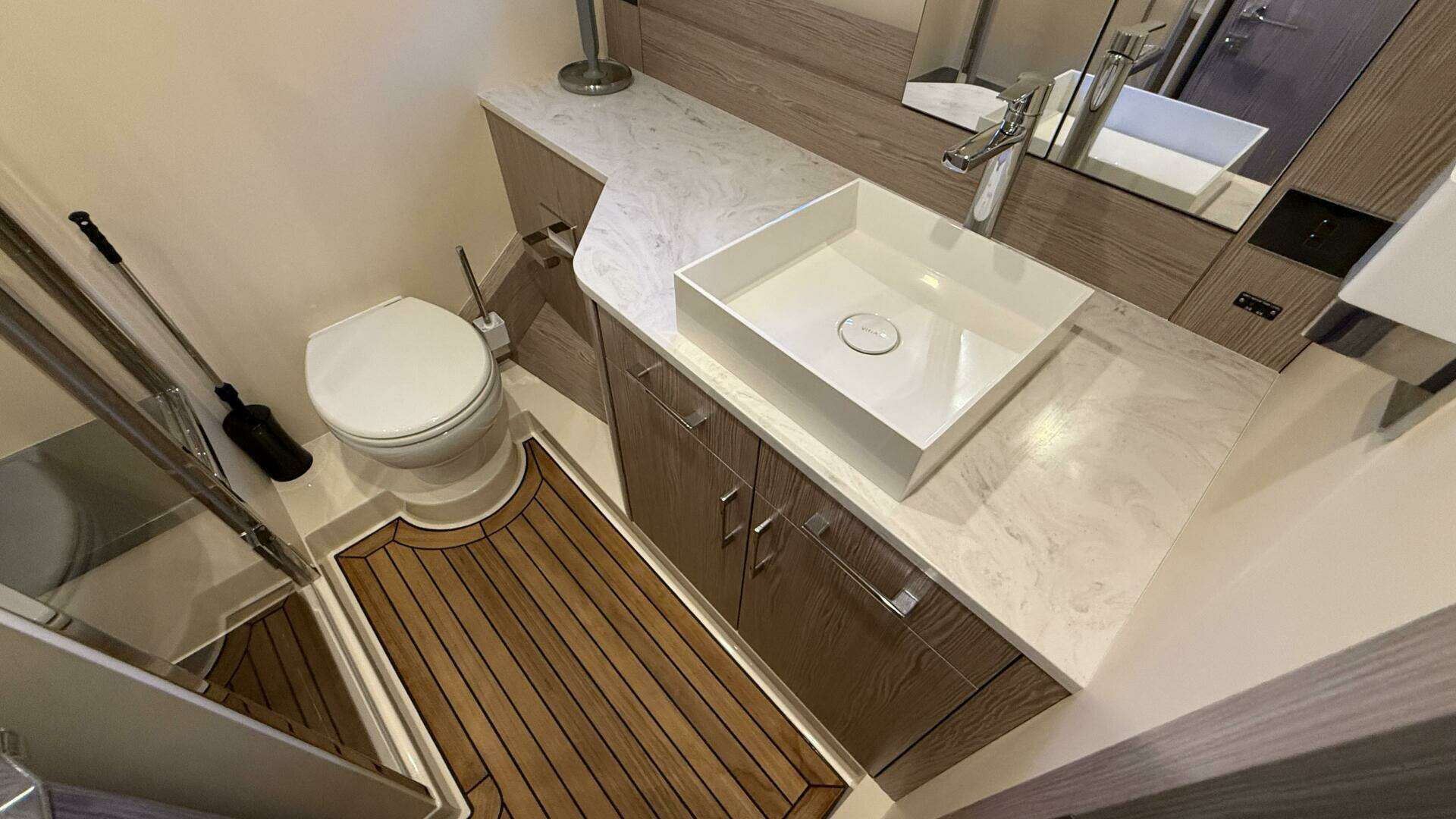

OWNER’S HEAD

• Located on the forward starboard of the owner’s cabin
• Private access form the owner’s cabin
• Corian flooring in head
• Corian flooring in shower area
• Toilet

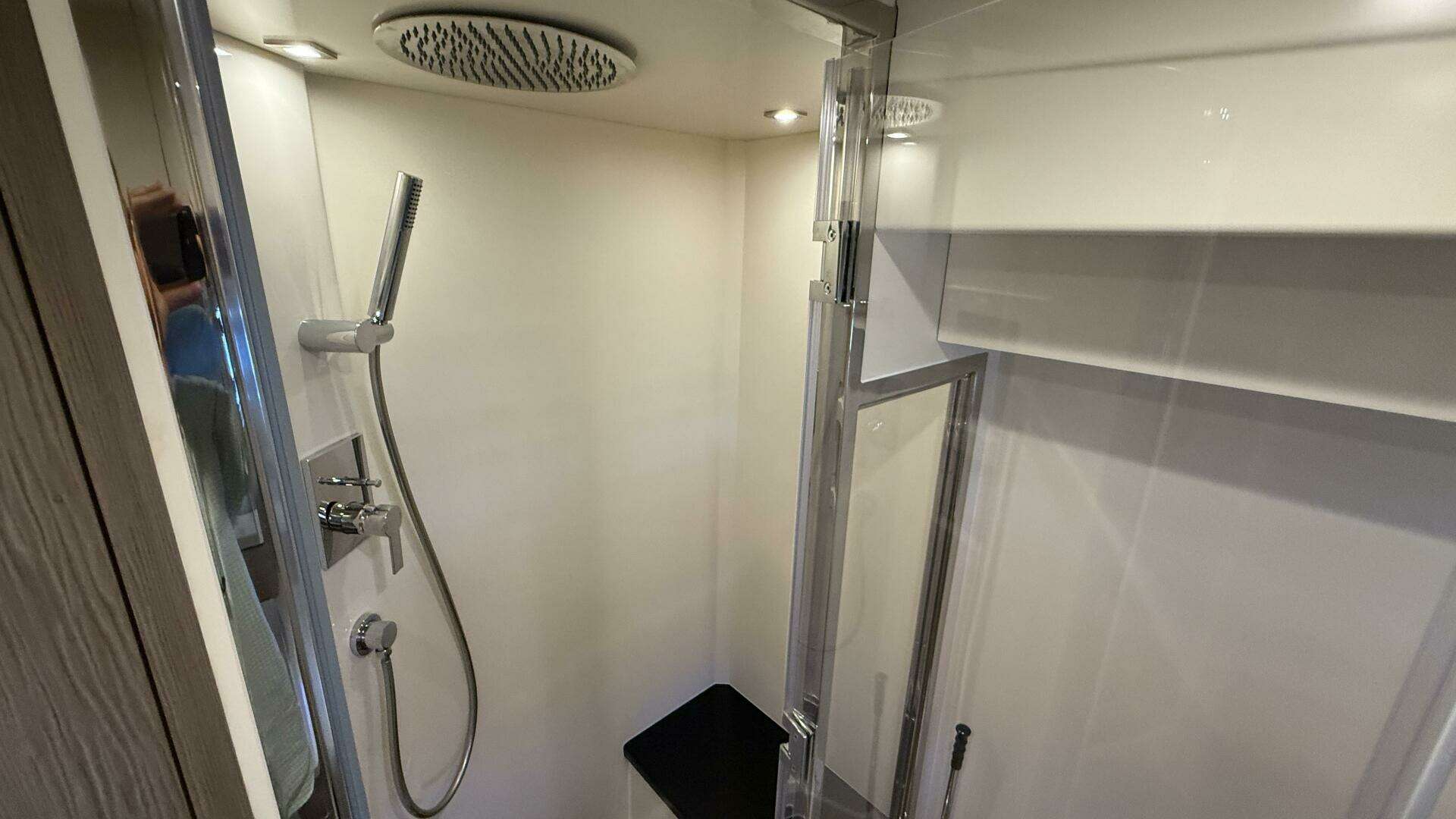

• Shower area with Plexiglas® door
• Showerhead
• Shower mixer
• Washbasin
• Water mixer
• Bathroom counter top in Corian
• Mirror
• Cabinet underneath the sink
• Air extractor in shower
• LED spotlights
• Nr. 1 portlight
• AC socket with protection
• Toilet accessories
• Curtain

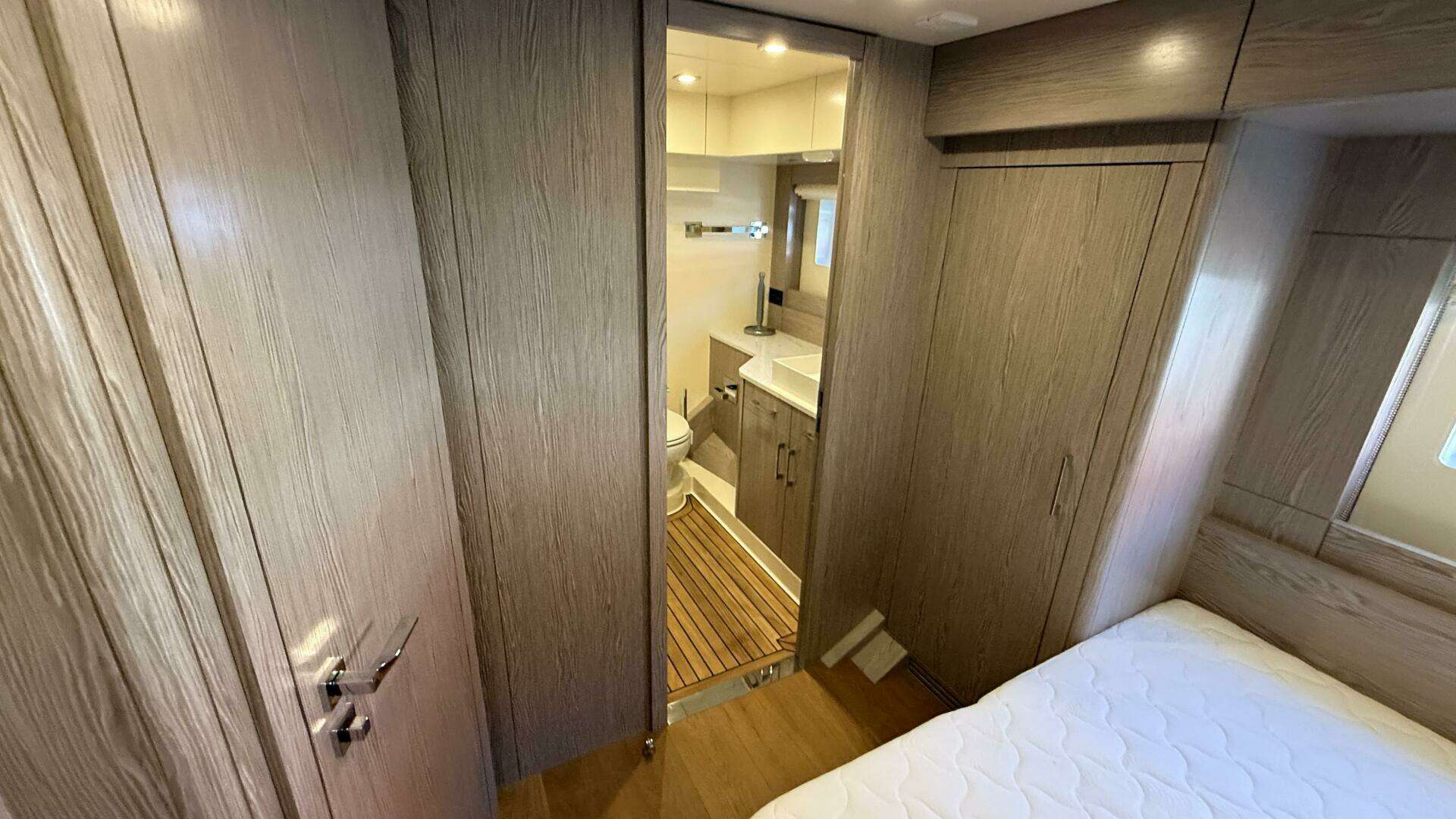

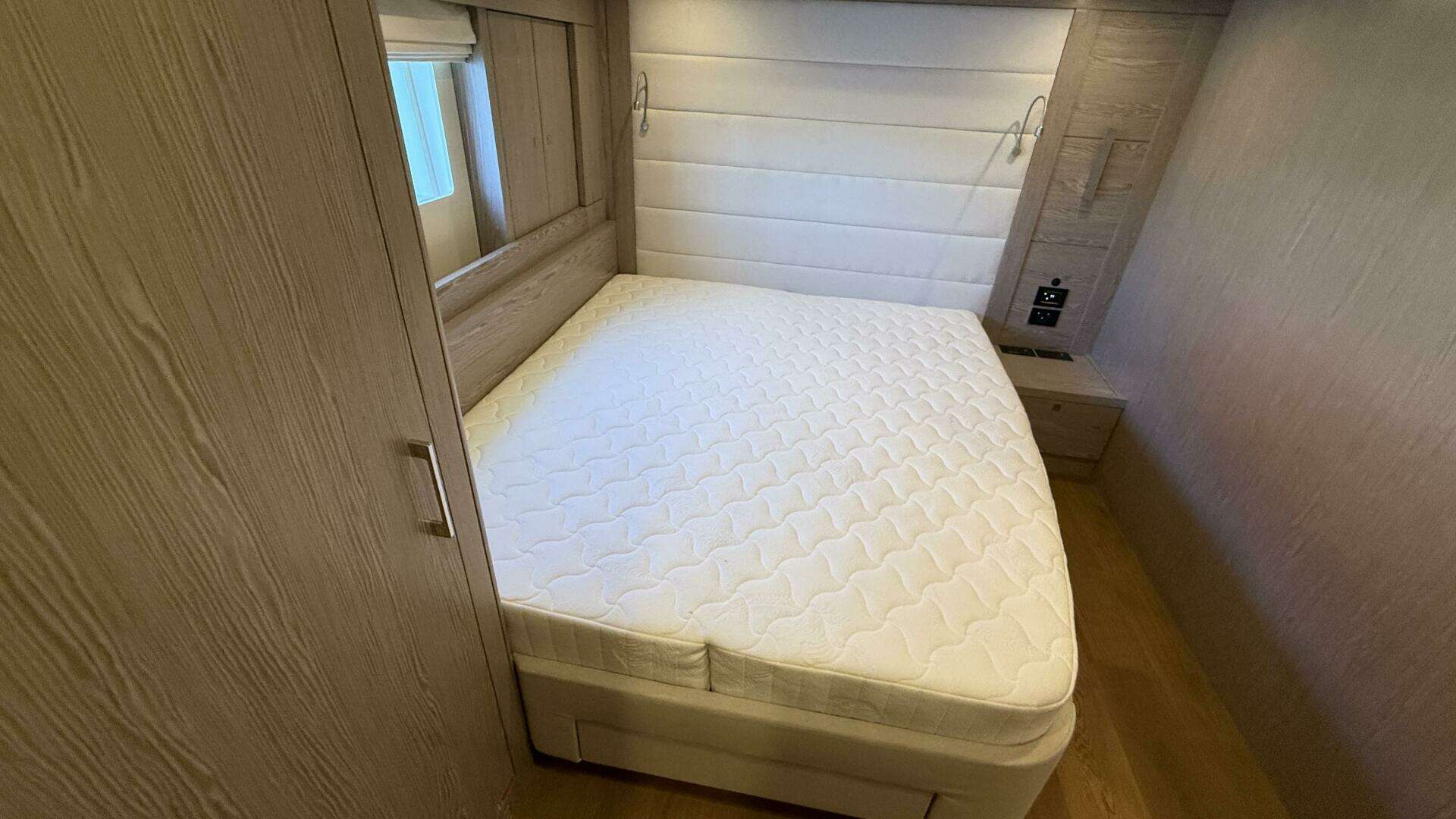

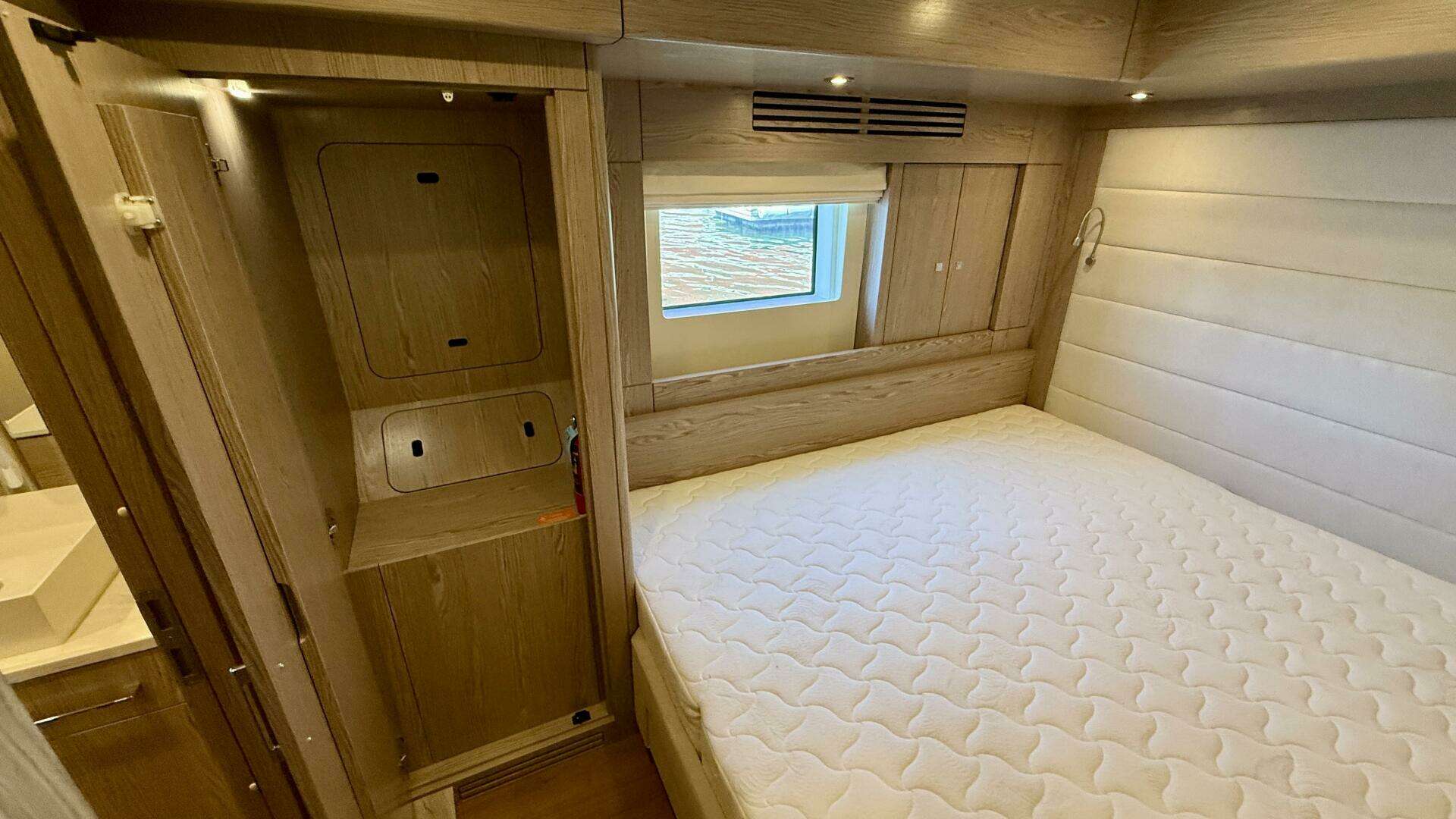

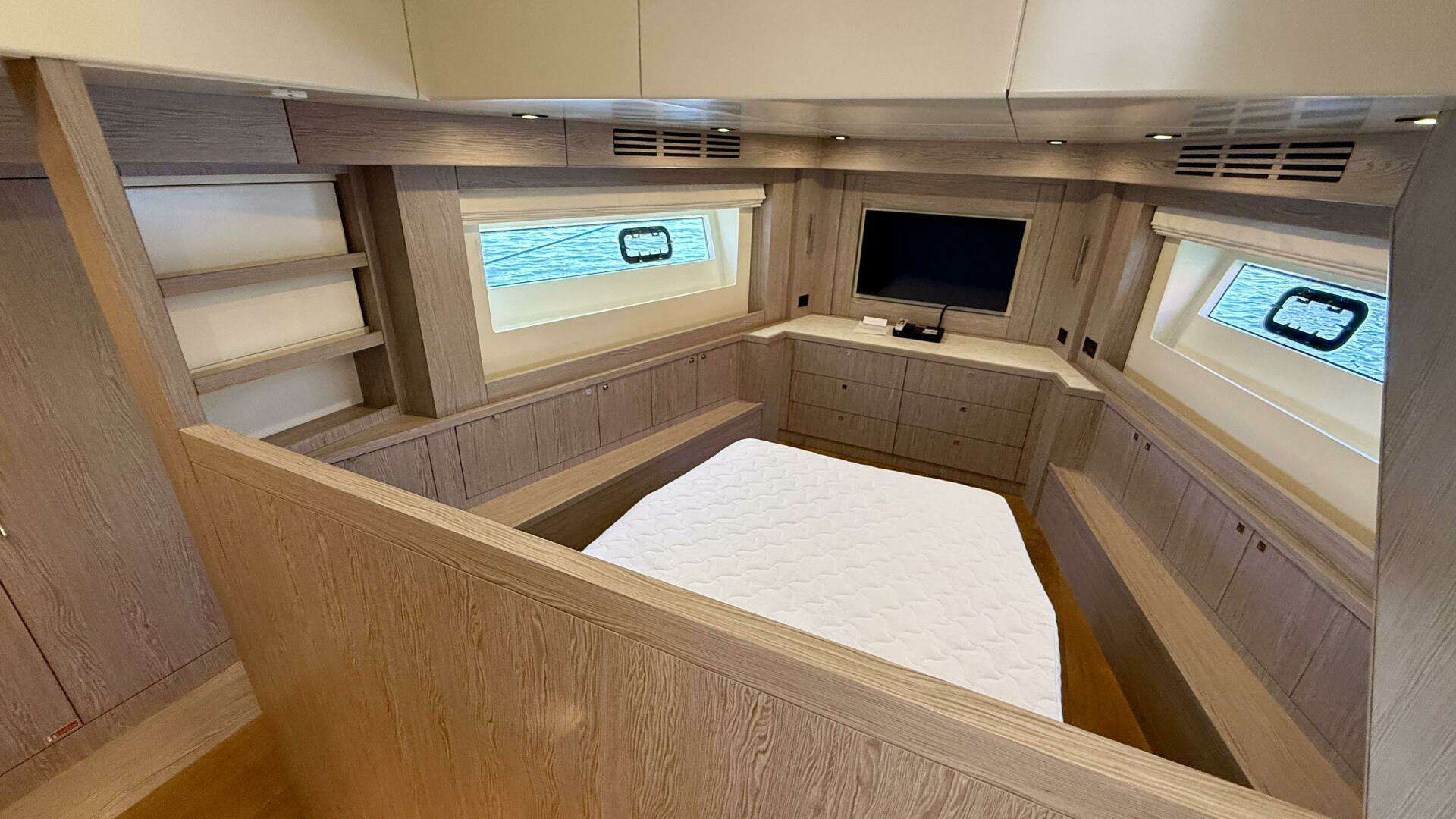

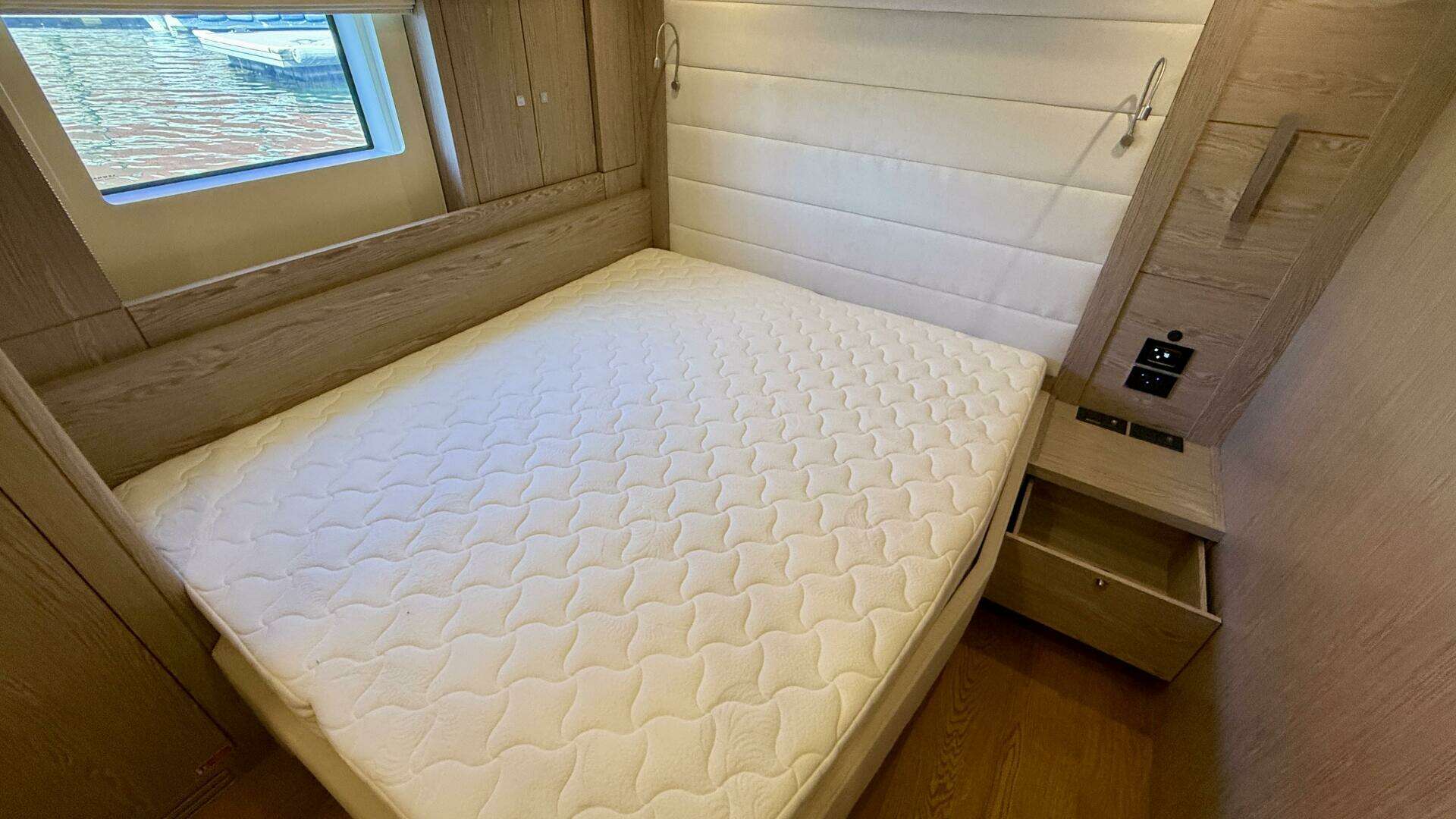

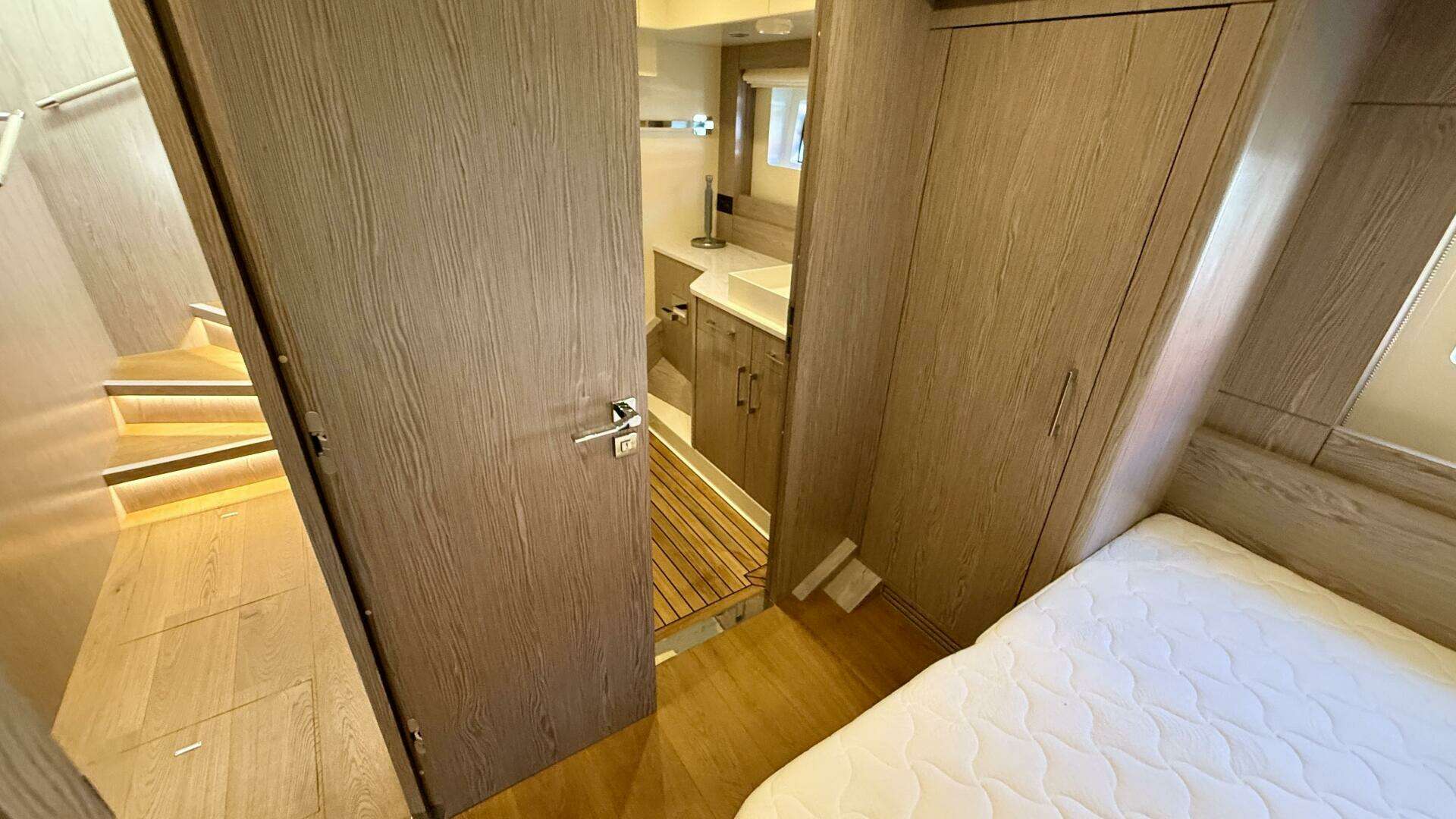

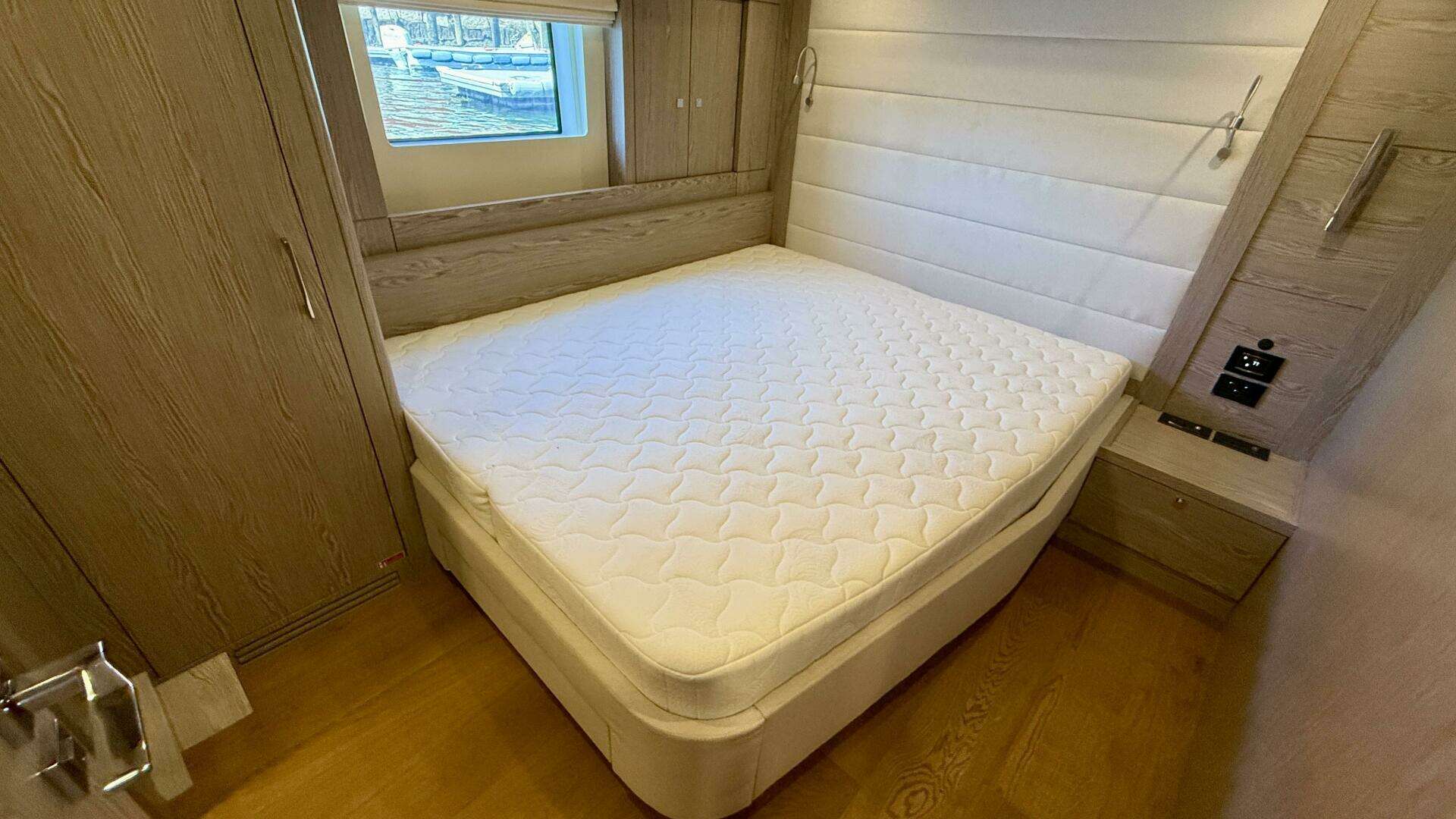

VIP CABIN

• Located on lower deck fore side
• Carpet flooring
• En-suite head
• Double bed with underneath storage
• Mattress

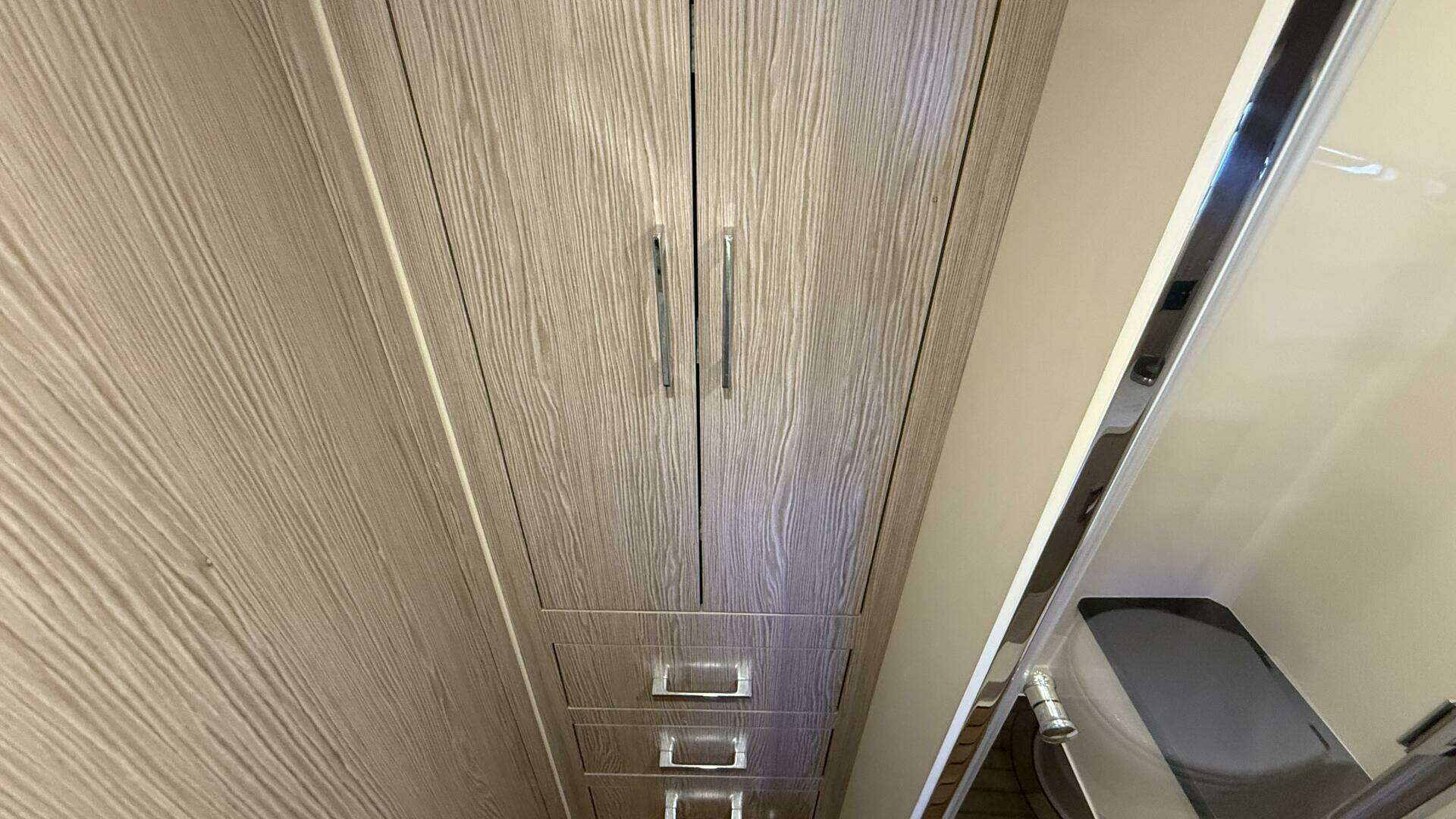

• Nr. 2 wardrobe with shelves on both sides
• TV antenna predisposition
• Dimmered lights
• Nr. 2 reading lights
• Courtesy lights
• LED spotlights
• Nr. 2 wall lights
• Roman curtains
• Nr. 2 scenic windows with one porthole each

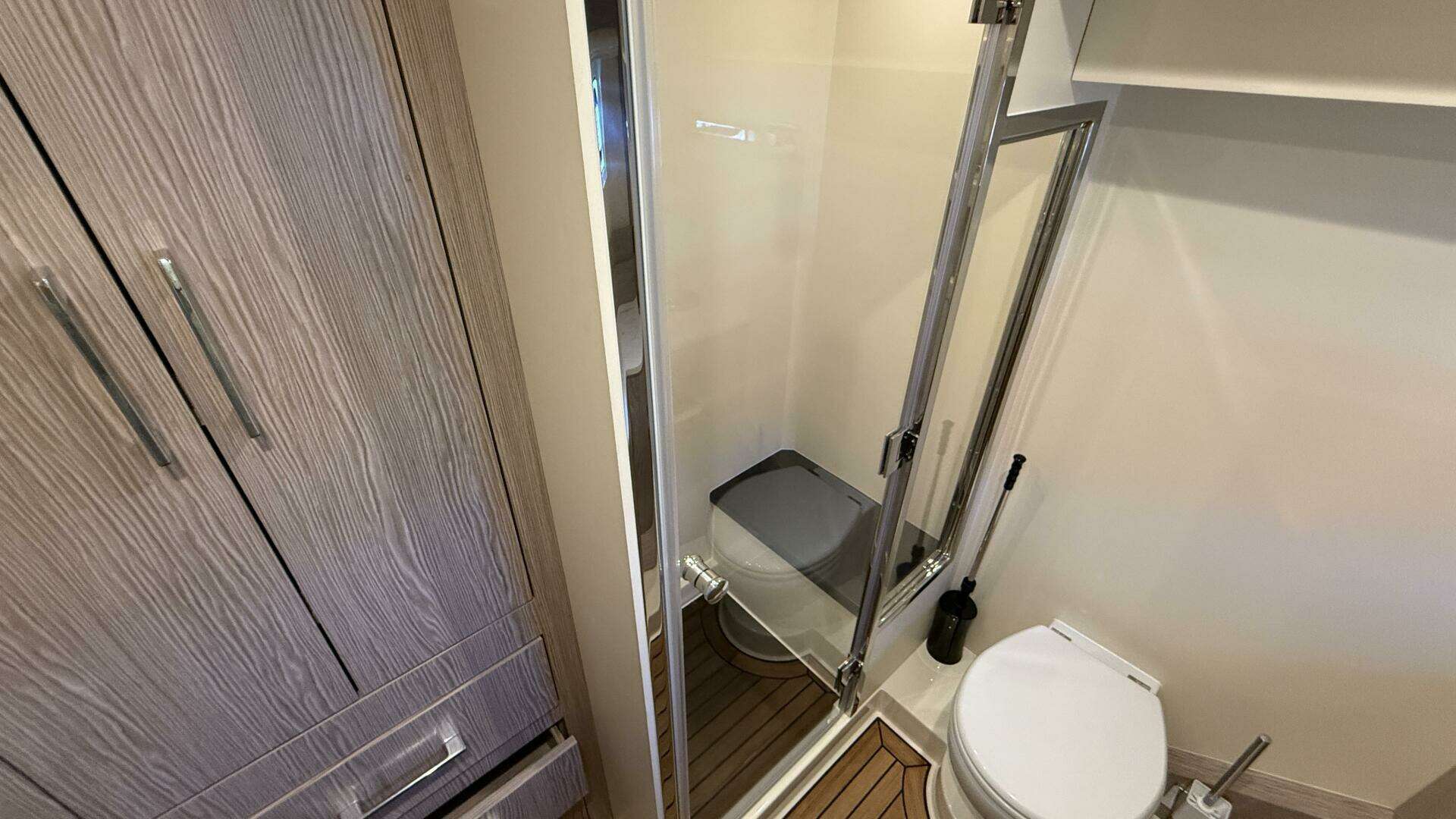

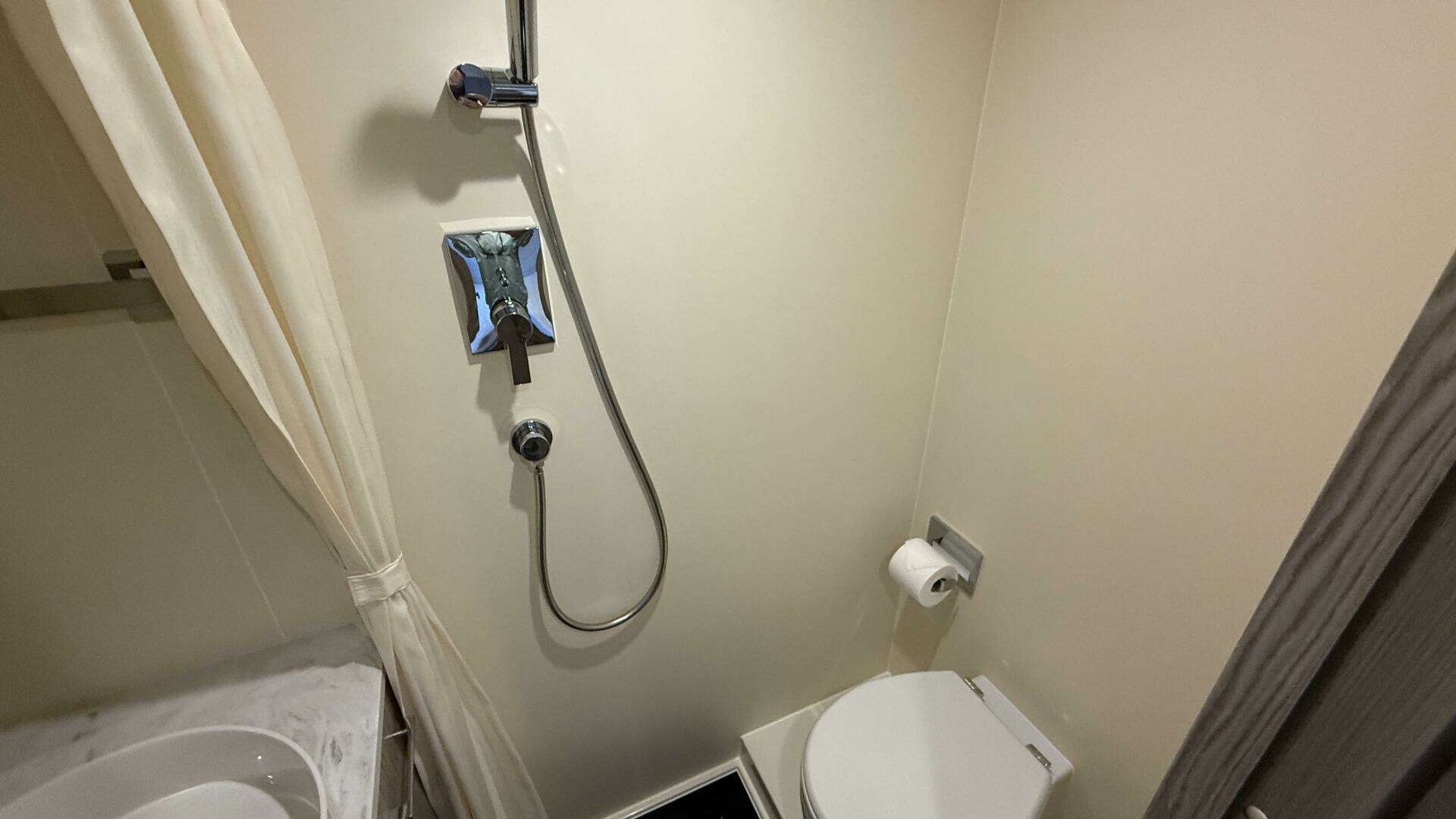

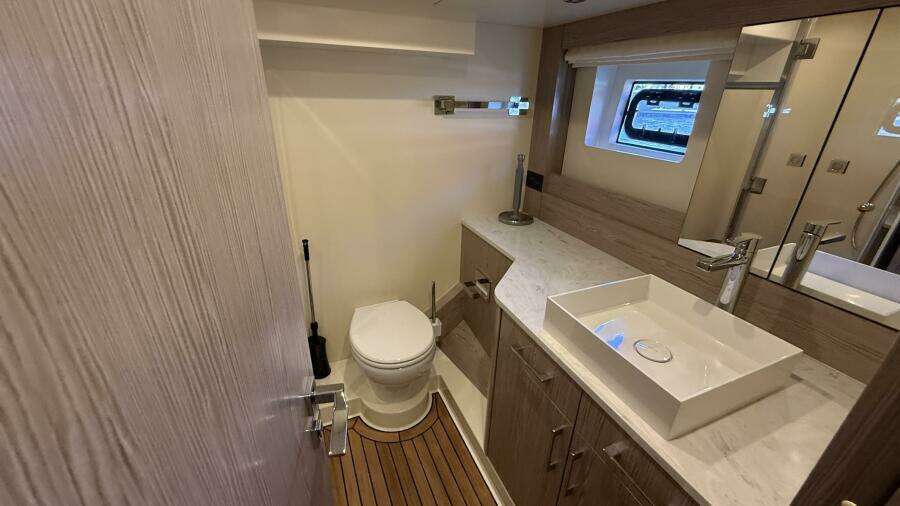

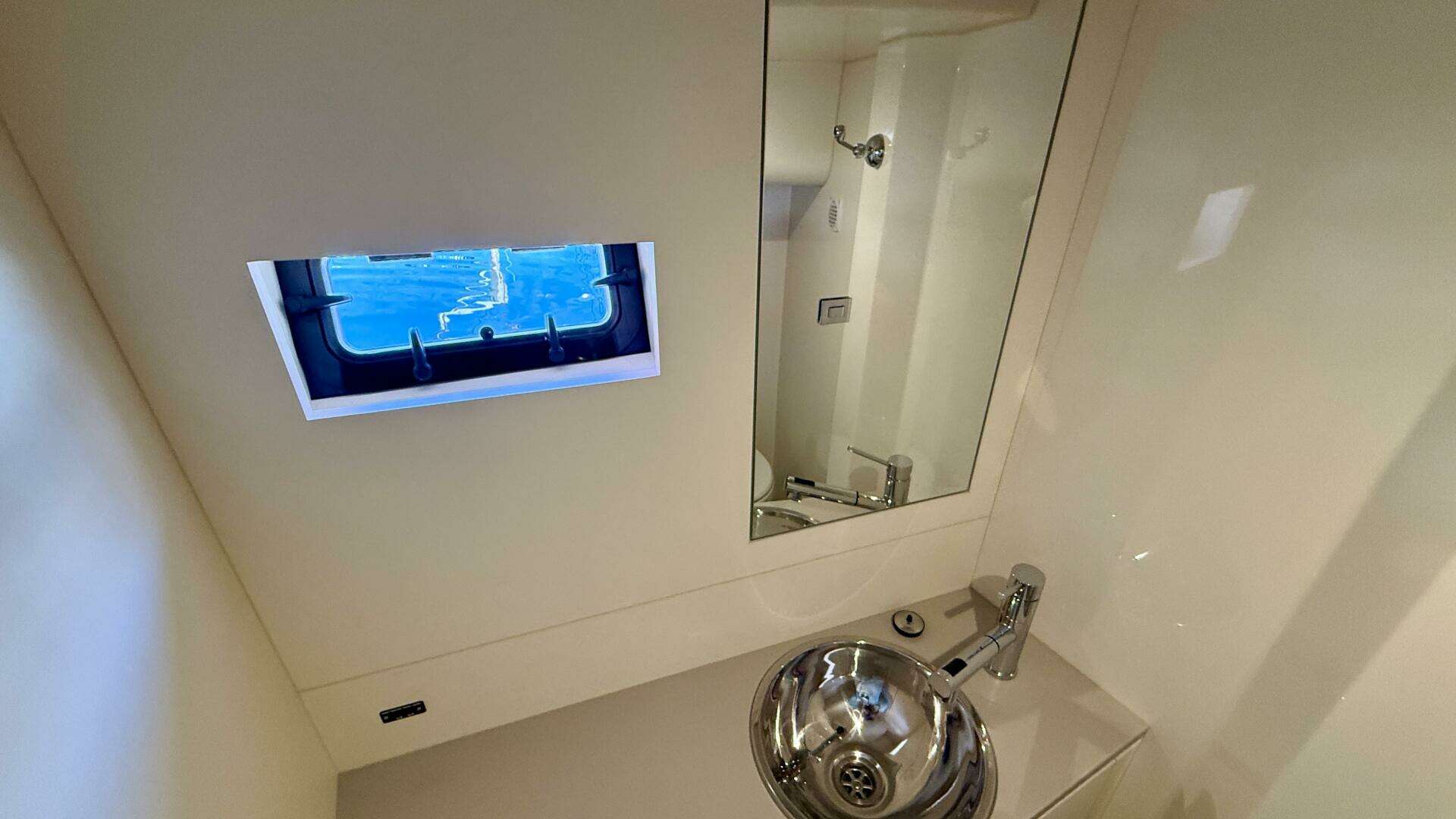

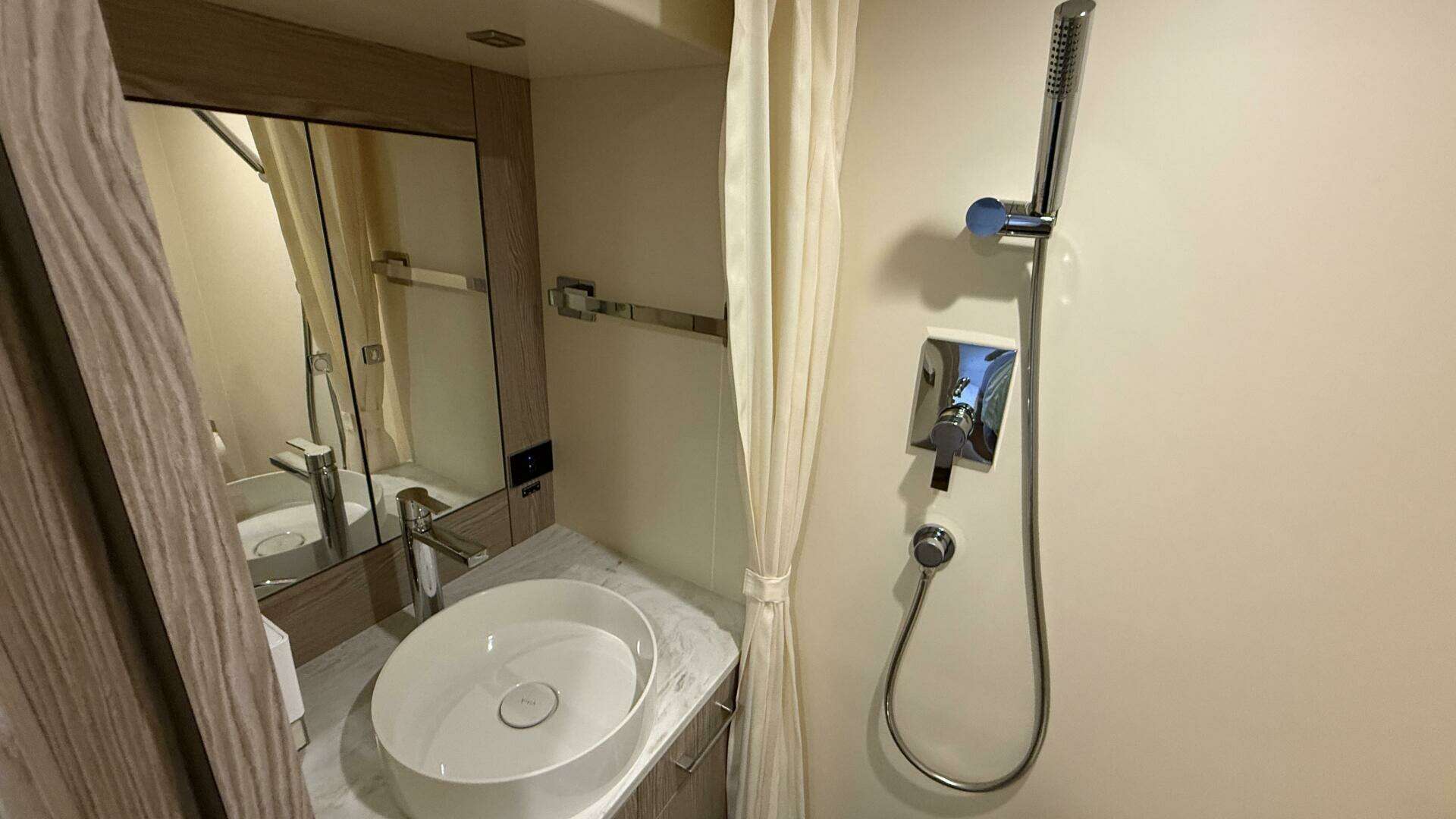

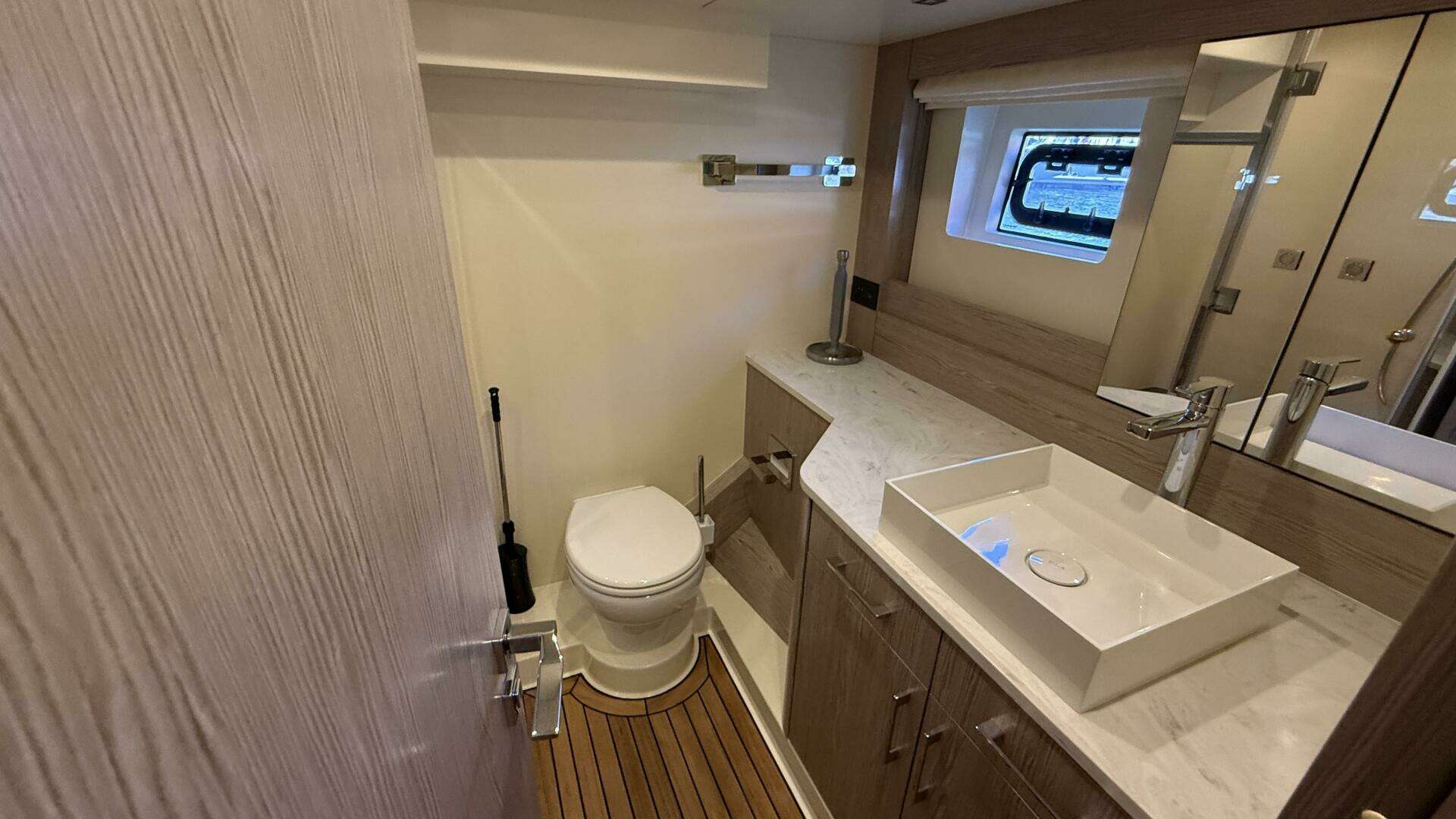

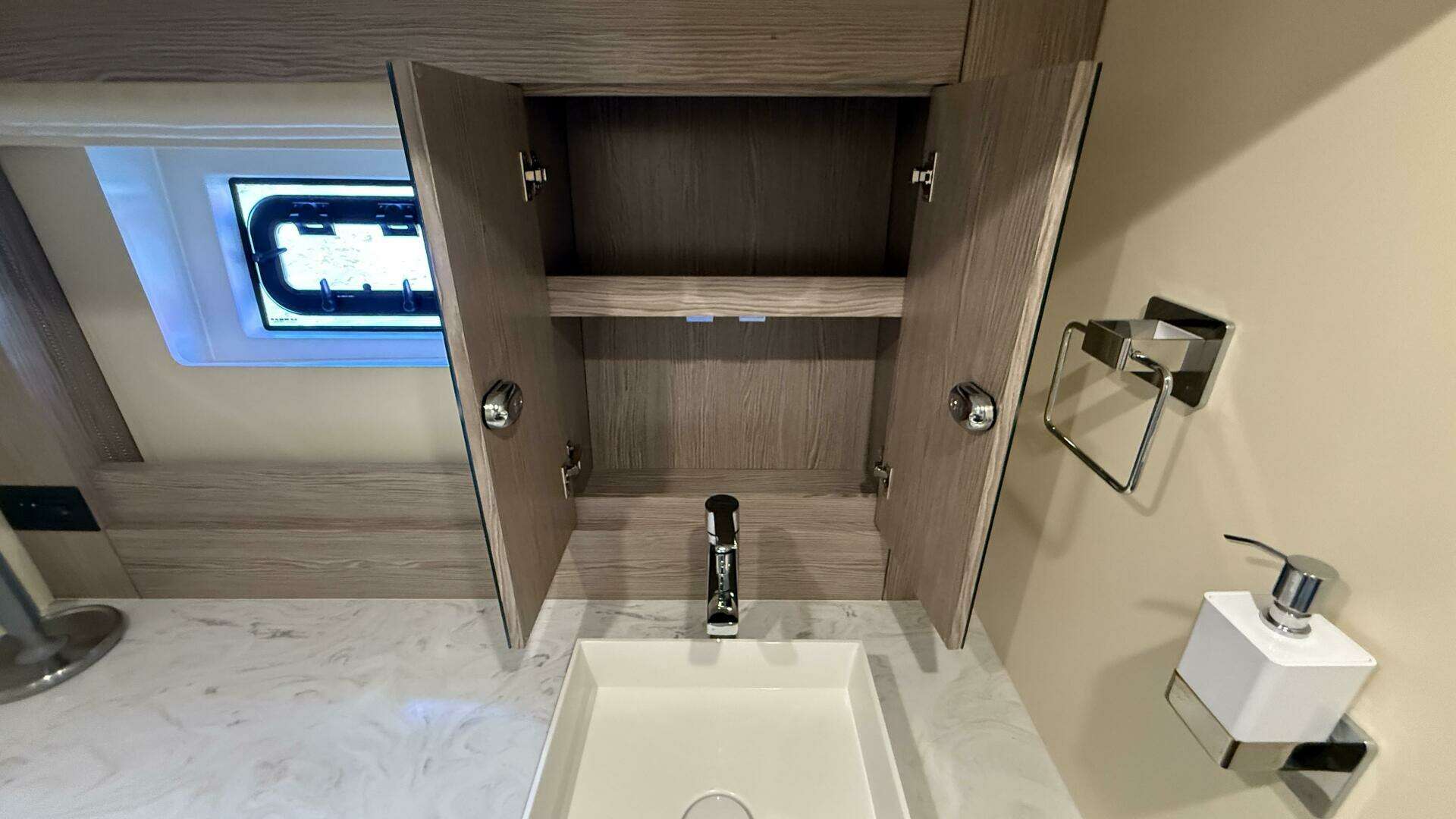

VIP CABIN HEAD

• Located on starboard side with private access from VIP cabin
• Corian flooring in head
• Corian flooring in shower area
• Toilet
• Shower area with Plexiglas® door
• Showerhead
• Shower support with adjustable height
• Shower mixer
• Washbasin
• Water mixer
• Bathroom counter top in Corian
• Mirror
• Cabinet underneath the sink
• Air extractor in shower
• LED spotlights
• Nr. 1 window with porthole
• Curtain
• AC socket with protection
• Toilet accessories

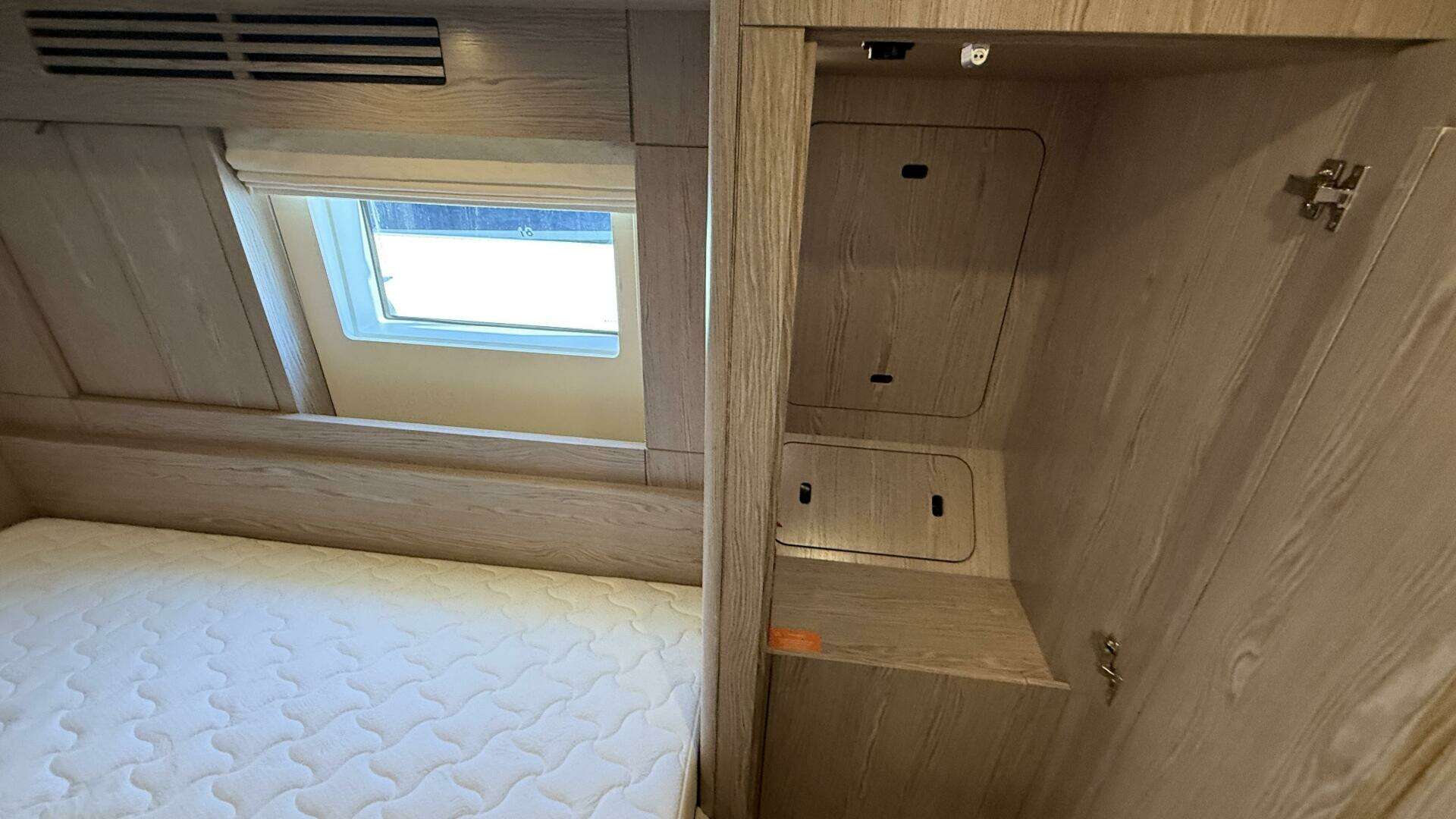

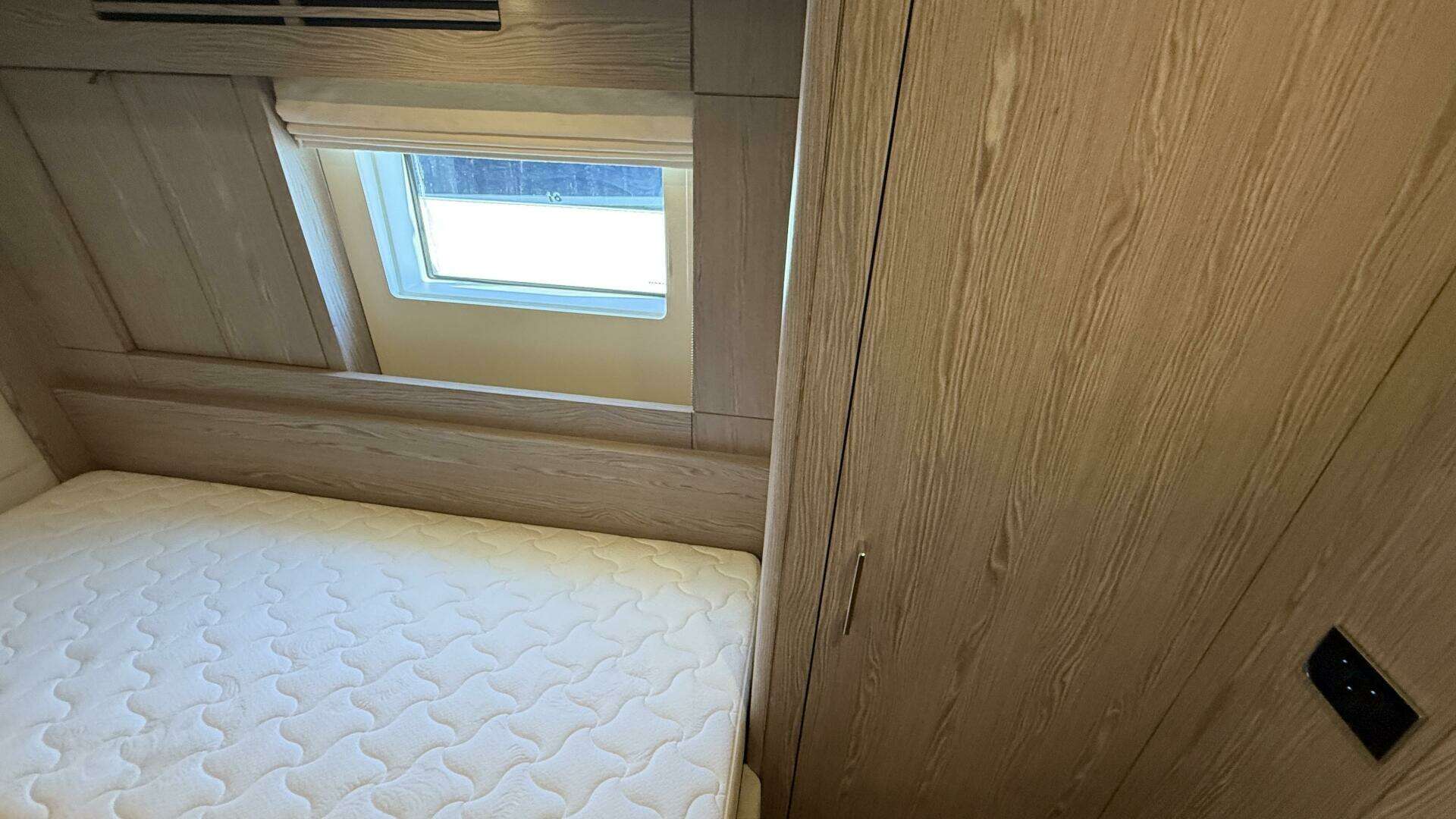

GUEST CABIN

• Located on port side
• Carpet flooring
• Direct access to day head

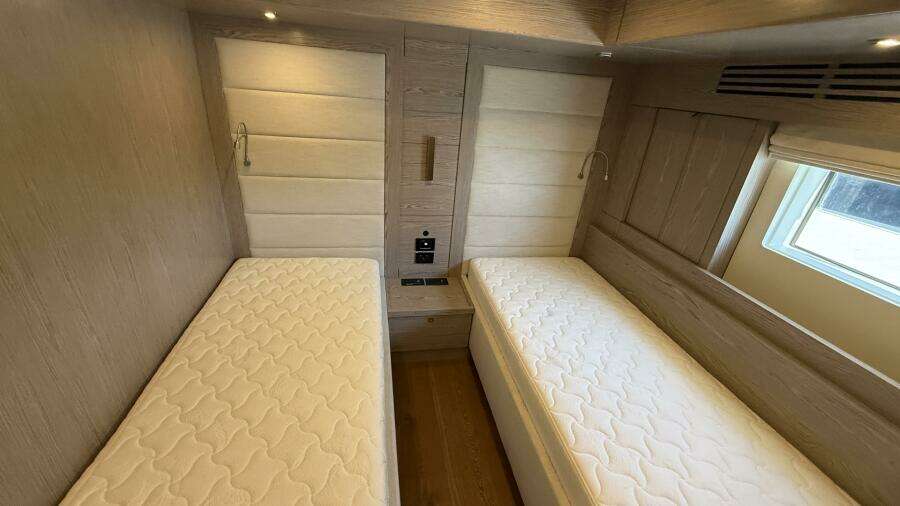

• Twin beds with underneath storages
• Mattress
• Nr. 1 nightstand between two beds
• Full size wardrobe with hanging space mirror and shelves
• One portlight and scenic window
• Roman curtain
• Dimmered lights
• Nr. 2 reading lights
• Courtesy lights
• LED lights
• Nr. 1 wall lights
• AC socket

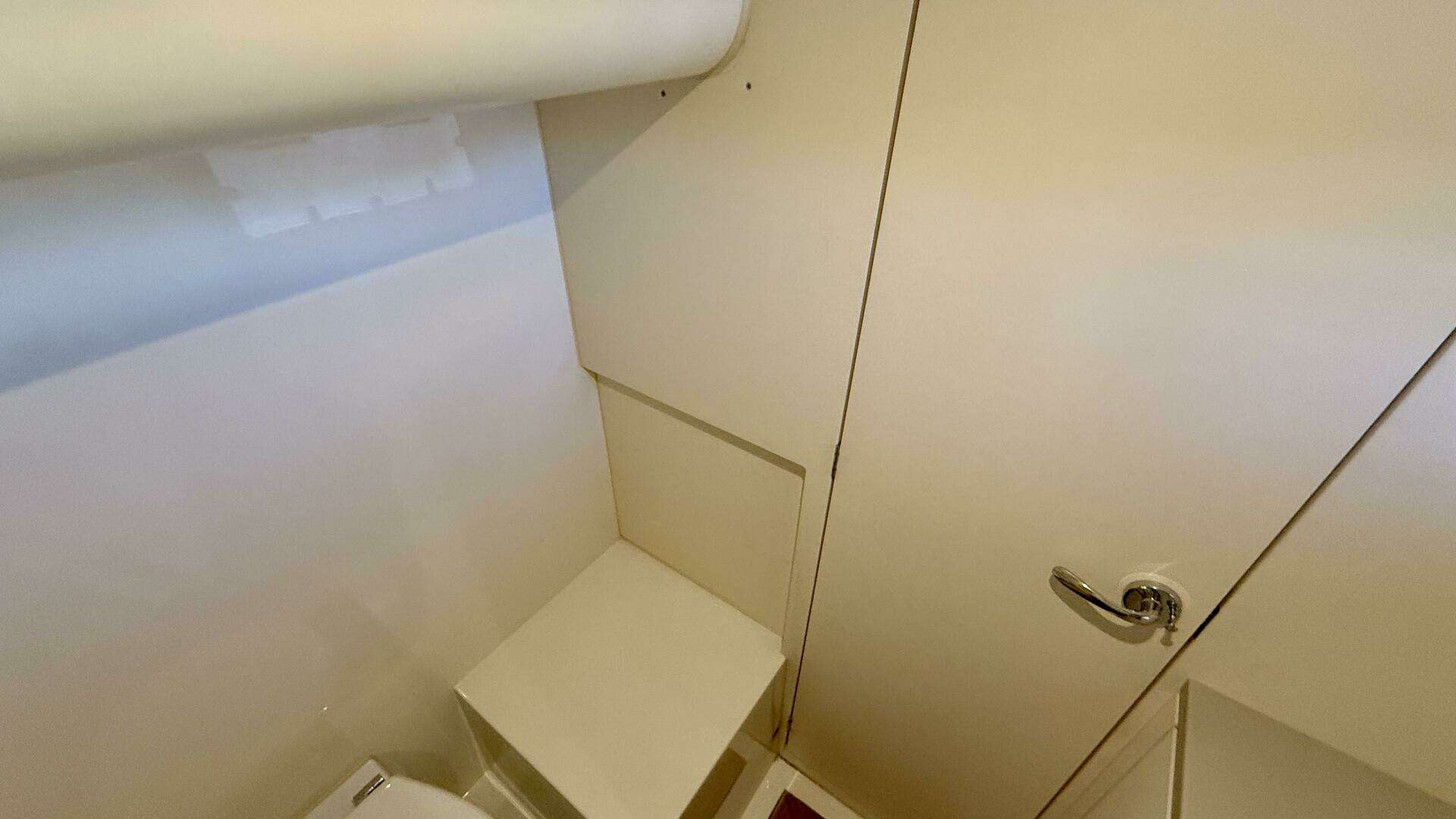

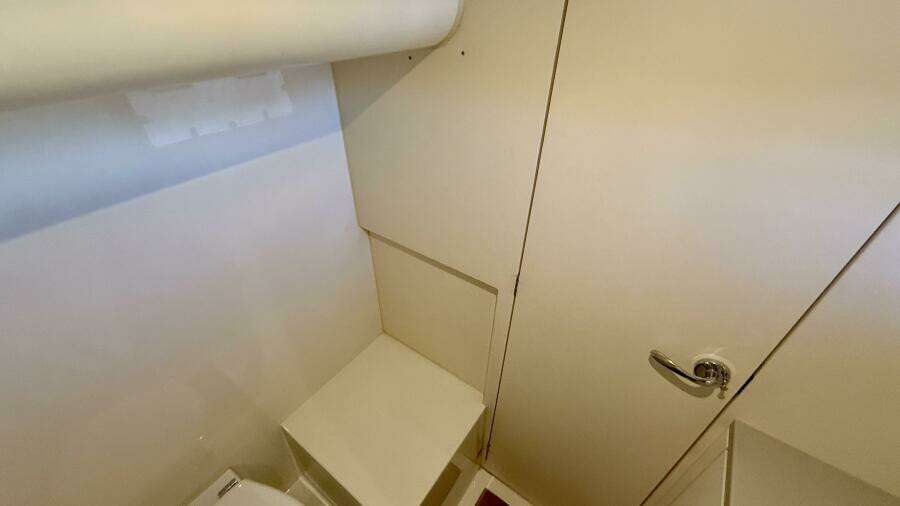

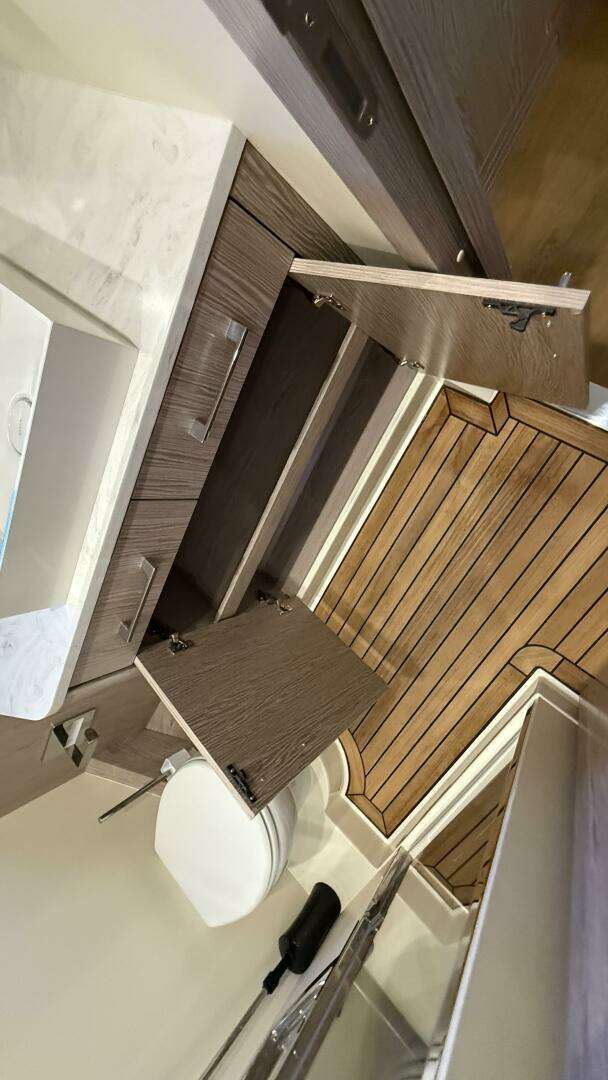

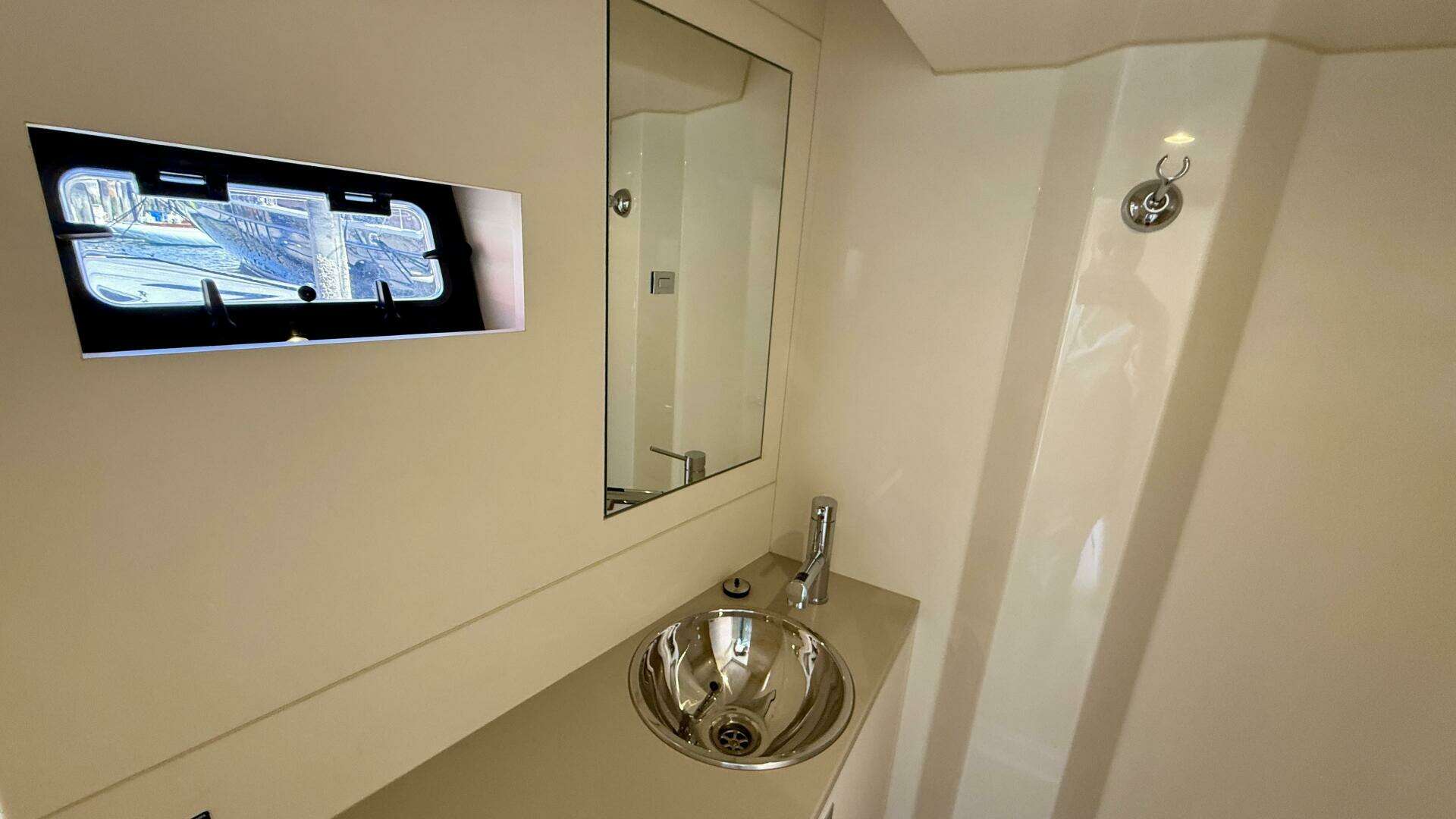

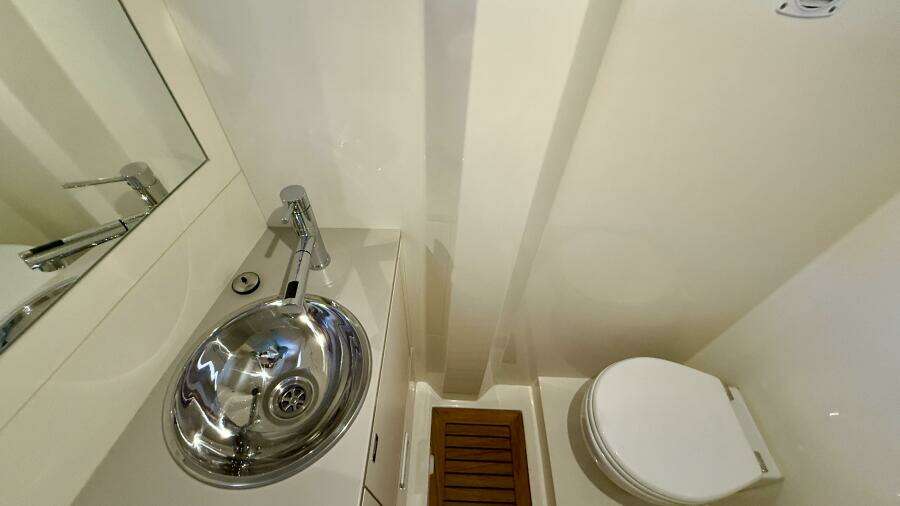

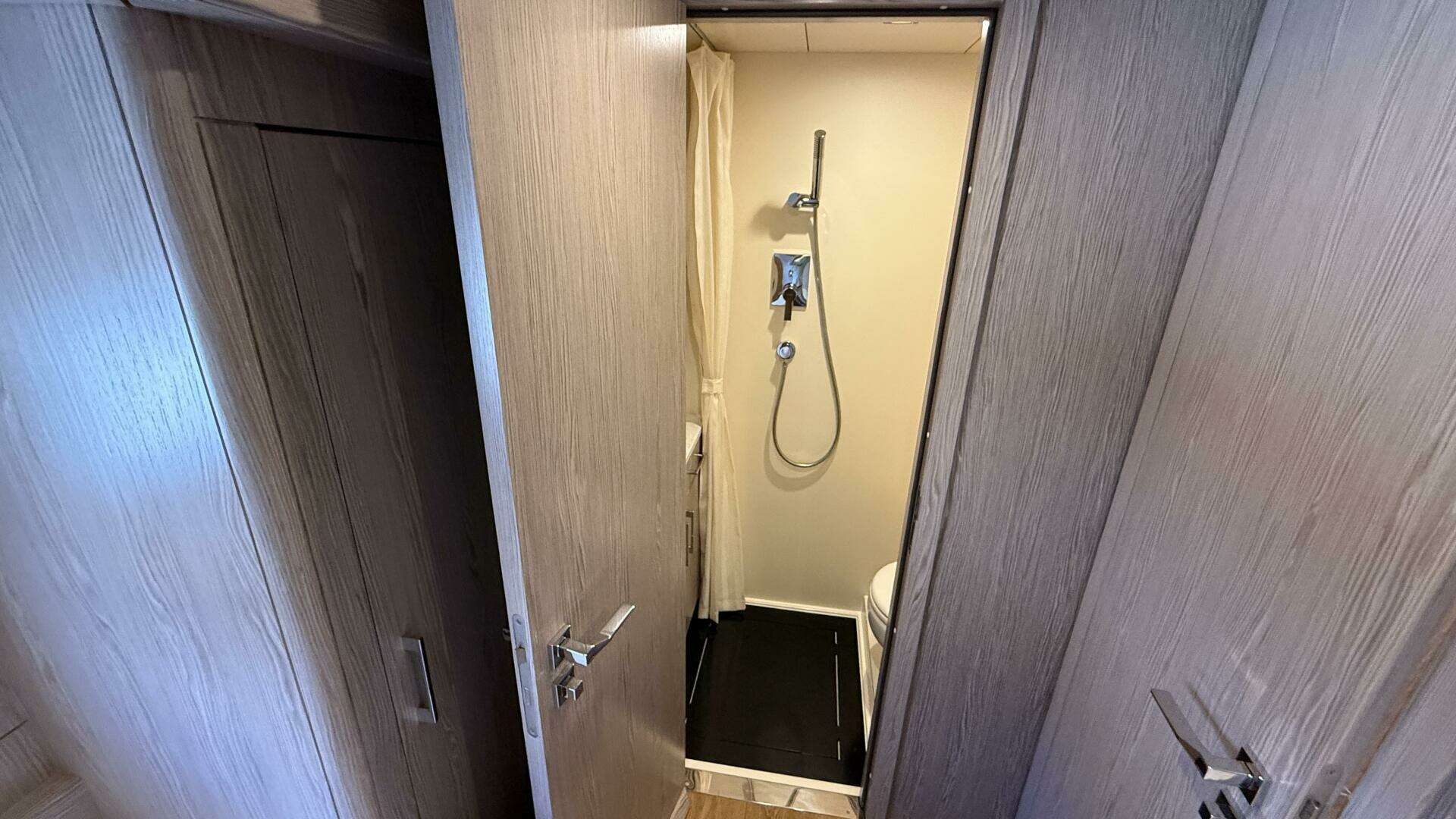

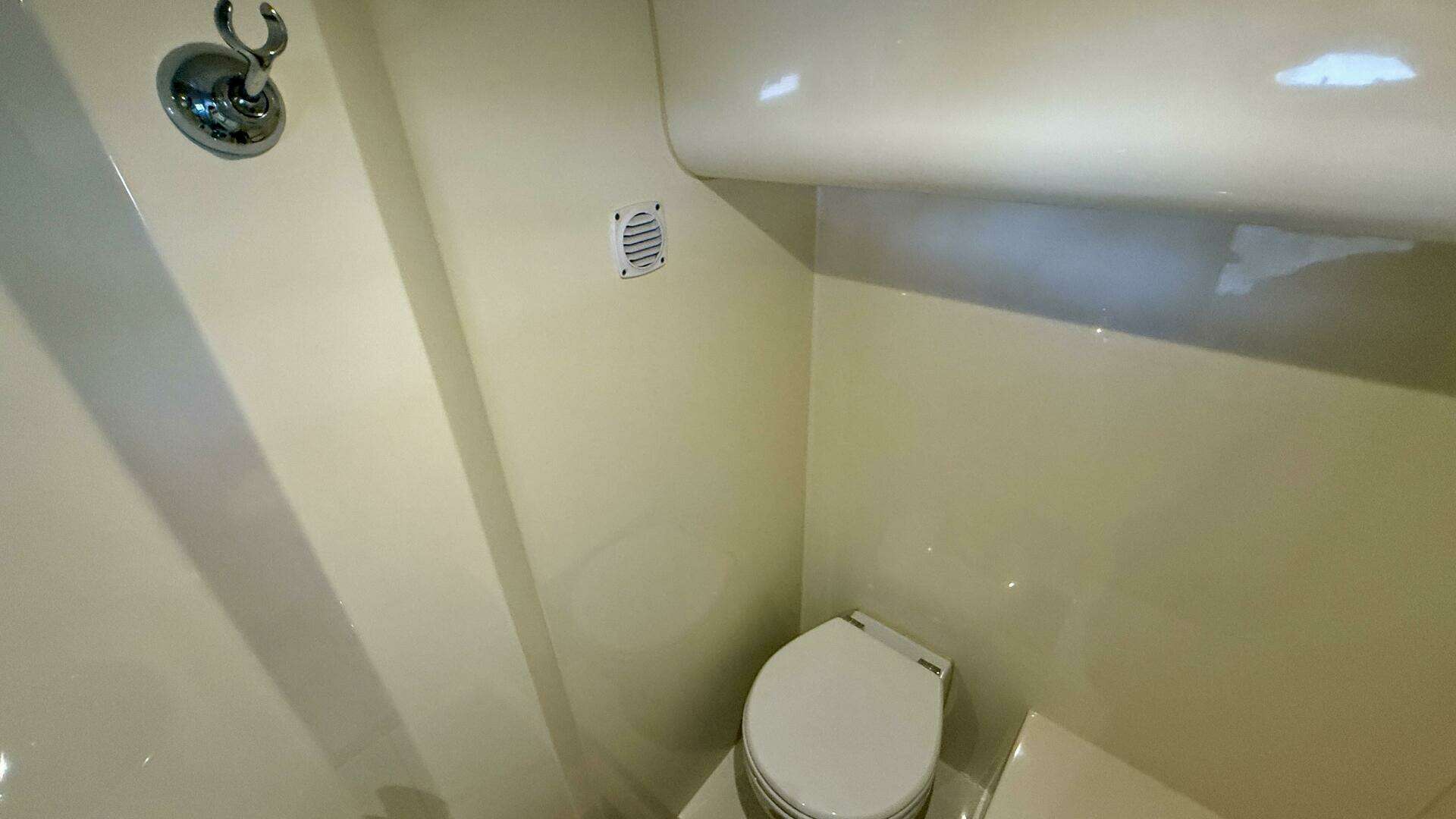

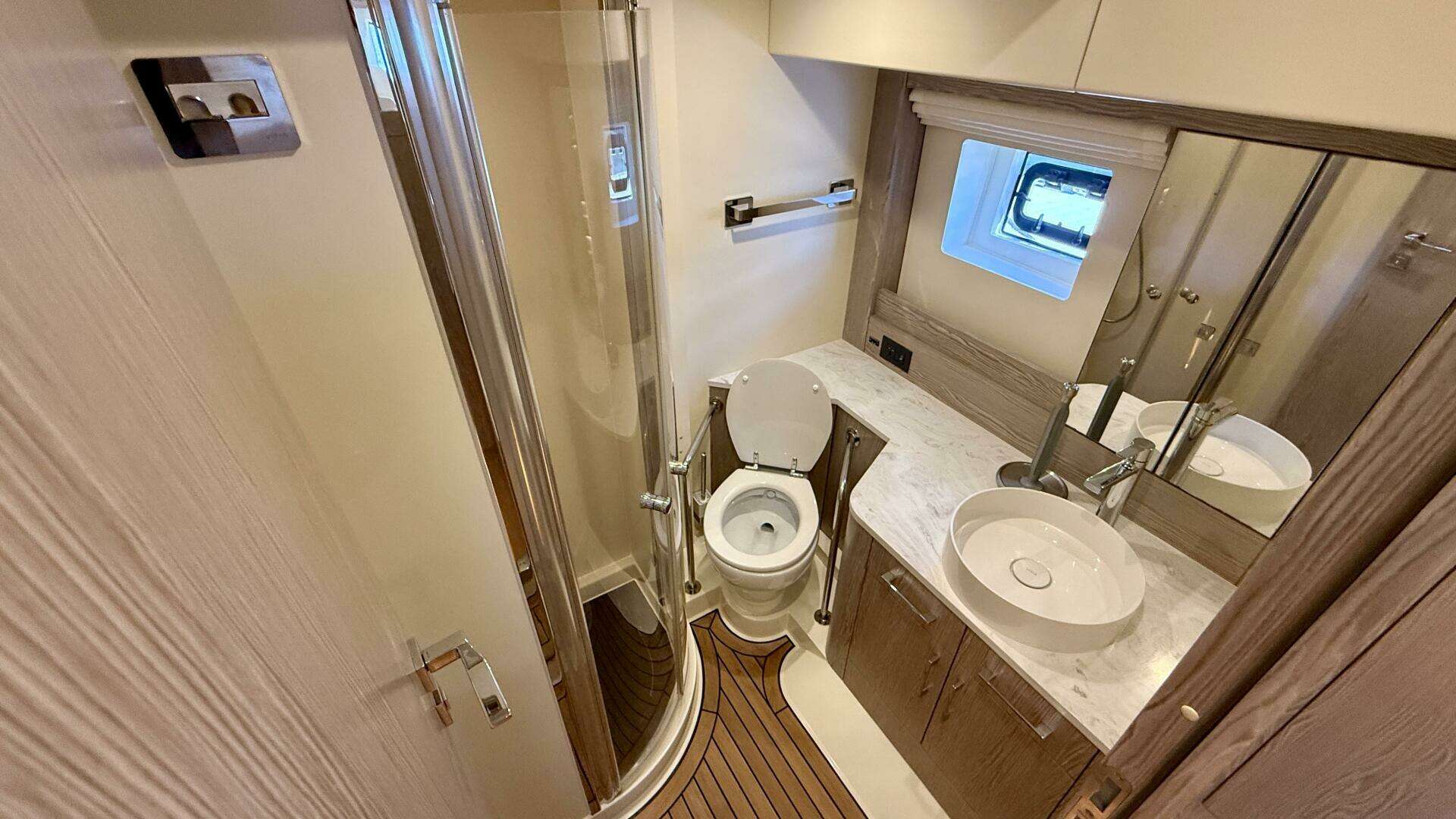

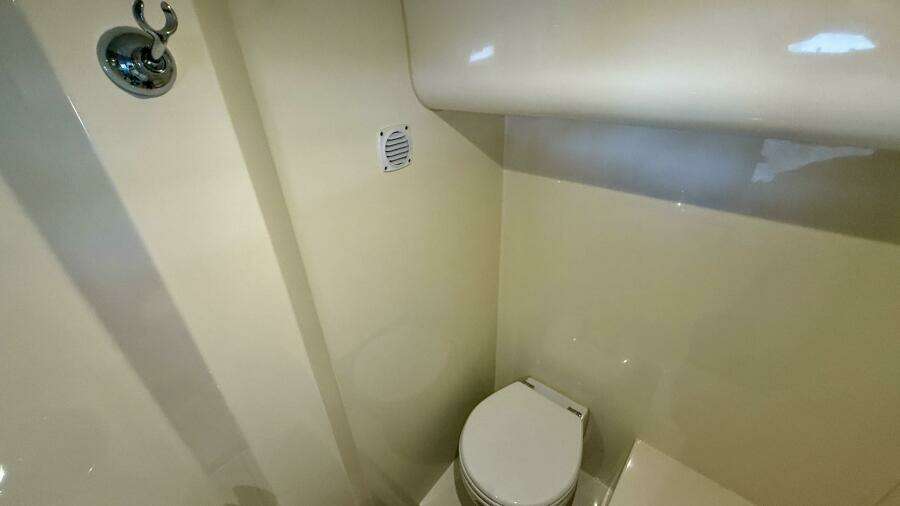

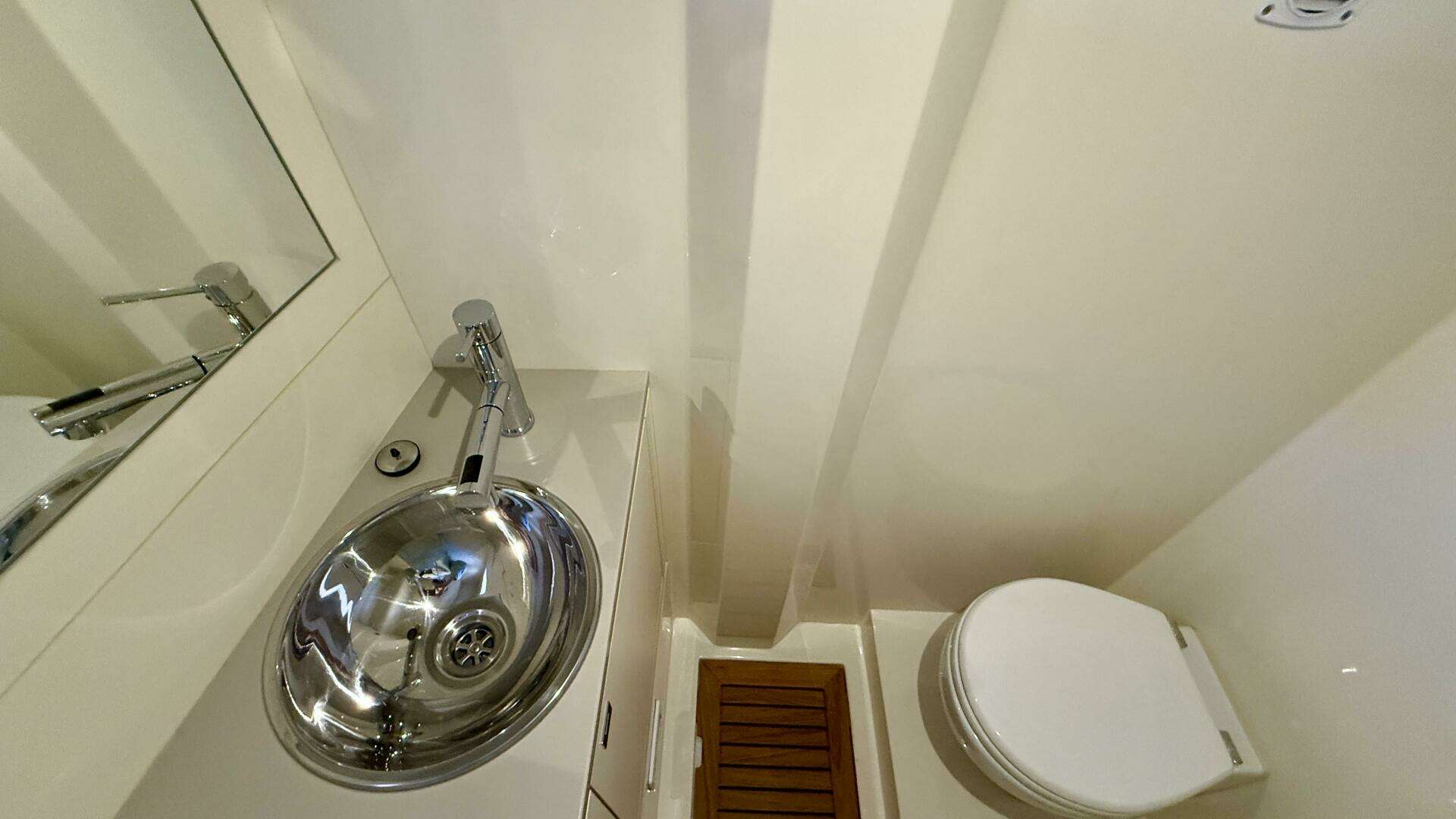

GUEST’S / DAY HEAD

• Located on port side
• Entrance from guest cabin and corridor
• Corian flooring in head
• Washbasin
• Water mixer
• Bathroom counter top in Corian
• Mirror
• Cabinet underneath the sink
• Air extractor fan
• Toilet
• Toilet accessories
• Shower solution
• LED lights
• AC socket with protection
• Window with porthole

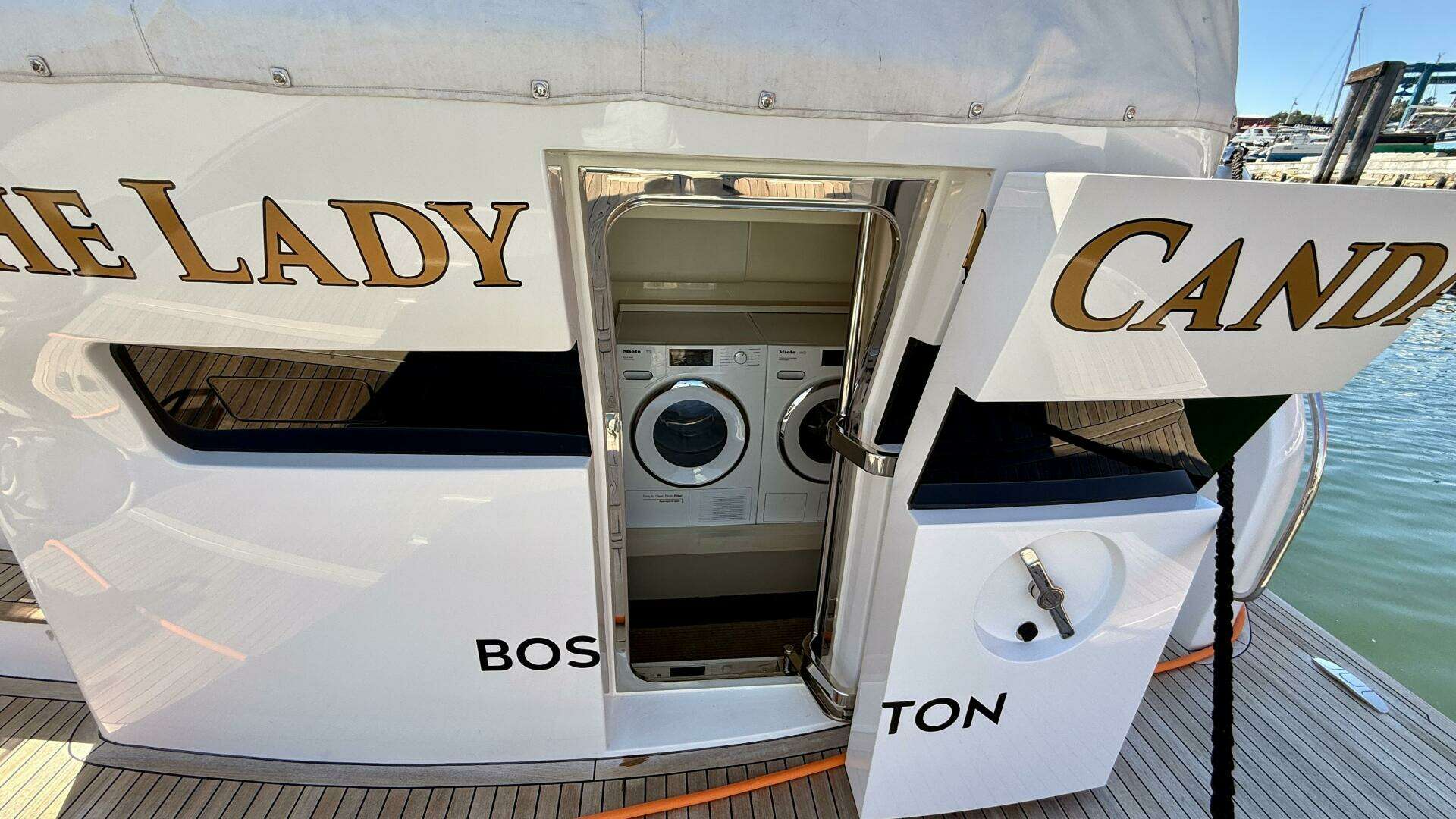

AFT STORAGE AREA (OPT. CREW CABIN)

• Access from aft cockpit via GRP hatch
• Free space for storage
• LED spotlight

ELECTRIC SYSTEM

• Halogen free and self-extinguishing cables
• Bounding system with 2 sacrificial anodes
• Grounding system
• Galvanic isolator and to prevent galvanic corrosion
• 115/230V AC - 60Hz with 2 x 63A shore connection
• 24V DC - 12V DC with negative grounded
• Inverter 2400W - 24V / 110V - 60Hz

SHORE POWER CONNECTION

• Shore power socket 230V - 63A
• Power lines protected by dedicated GFCI circuit breakers
• Shore power cable
• Glendinning cable master CM8

GENERATOR

• Nr. 1 Cummins onan generator 4kW - 50Hz (in the engine room)

AIR CONDITIONING

• CruiseAir zone controlled reverse cycle system - 99.000 BTU/h

PROPULSION SYSTEM

• VOLVO D11 670HP x 2
• ZF 325 IV gearbox (Ratio 2.037: 1)
• 2.5” diameter Duplex F51 shaft (shaft angle 8 degree)
• Aluminium bronze P bracket
• 800 x 830mm 5 blades Teignbridge propellers
• PSS shaft seal

STEERING & MANOEUVERING SYSTEMS

• Servo electric power assisted steering system and autopilot system
• Garmin autopilot system
• Rudder blade in aluminium bronze
• Dynamic automatic trim control via interceptors
• 8kW bowthruster - 24 DC, 9.8” diameter

BATTERIES

• Nr. 8 x 95Ah batteries for service
• Nr. 4 x 180Ah batteries for engine start
• Nr. 1 x 95Ah battery for generator start
• Nr. 1 battery charger - 24 V/80A for service
• Nr. 1 battery charger - 24 V/30A for starting batteries
• Nr. 1 battery charger - 12 V/15A for generator battery

BILGE SYSTEM

• Nr. 1 x 24 V electrical bilge pump in engine room
• Nr. 1 x 24V automatic electrical Bilge pump 24V in the accommodation area
• Nr. 1 manual bilge pump located at aft deck under mooring area. Two suction areas through a valve, one suction at accommodation area, one suction at engine room
• Nr. 4 Bilge level alarms
• Nr. 2 Bilge high level alarms
• Engine room emergency pump through a diverting valve fitted on engine seawater cooling line
• Each electric pump can be manually activated by switches placed in the helm station

FIRE EXTINGUISHING SYSTEM

• Seafire Novec manual ad automatic extinguishing agent in the engine room
• Automatic shut down system
• Alarm paneles on helm station and flybridge dashboards

FUEL SYSTEM

• Nr. 2 x stainless steel tanks (total 950 gal) located in the engine room
• Fuel level indicator for each tank on monitoring system
• Visual level gauge on port and starboard tanks
• Nr. 1 single separation filter for generator
• Nr. 2 single VOLVO separation filters for engines

FRESH WATER SYSTEM

• Nr. 1 HDPE tank (210 gal)
• Self priming fresh water pump
• Tank level indicator and empty status integrated in the monitoring system
• 16 gal water heater 110V - 1200W
• Hot and cold water in all head rooms, galley, cockpit, flybridge sink and fly shower
• Cold water outlet in engine room
• Filling cap on the side-walking
• Shore fresh water connection

BLACK WATER SYSTEM

• Nr. 1 HDPE tank 120 gal capacity
• Tank level indicator integrated in the monitoring system
• 3/4 and full tank indication in the heads
• Fresh water toilet flushing
• Holding tank discharge via suction on deck
• Overboard discharge of waste water via a dedicated line at the exit of the holding tank

GRAY WATER SYSTEM

• Nr. 1 HDPE tank 60 gal capacity
• 3 sump tanks under masterhead
• 3/4 and full tank indication in the heads and galley
• Water drainage from showers and sink into tank
• Level sensor integrated into the monitoring system
• Water drainange via manifold (24V membrane pump)
• Manual/automatic overboard discharge

SEAWATER SYSTEM

• Nr. 2 seawater intakes with filters and valves for engine cooling system
• Nr. 1 seawater intake with filter and valve for generator cooling system
• Nr. 1 seawater intake with filter and valve for chain wash and deck wash system
• Water maker predisposition

ENGINE GAS EXHAUST SYSTEM

• Water-cooled engine exhaust, thermal-insulated stainless steel manifolds
• Fiberglass muffler integrated into the hull structure, submerged outlets, and bypass line on hull sides

VENTILATION / EXTRACTION

• Air inlet and outlet openings with a GRP cover on hull sides.
• Nr. 2 24V air inlet fans at port side ventilation channel
• Nr. 4 24V air extraction fans at port side ventilation channel
• Mist eleminator at each channel

OTHER EQUIPMENTS

• Nr. 4 40’ mooring lines in 3/4’ diameter
• Nr. 8 fenders with 8mm diameter lines
• Fender covers with Sirena Yachts logo
• Owner’s manual
• CE certificate
• Nr. 2 leather fender hook

Main System Options

• Variable Speed Stern Thruster
• Oil Change System
• Fresh Water Deck Wash System
• SeaKeeper 9000NMS Gyro Stabilizer

Electronics Options

• Garmin Platinium Package (Nr.2x 7616 16" Chartplotter, Open Array 4kw SHD)
• KVH SAT TV system TracVision TV6

Exterior Options

• Hull bootop paint in different colour
• Varnished teak top of exterior tables (each)
• Aft electric sunshade awning
• Electrically operated glass sunroof
• Electrically operated glass sunroof blinds
• Teak on platform
• Electric searchlight with a control in main helm
• Courtesy and pop-up lights on main deck
• Two bi-color underwater lights on stern
• Teak flag pole at the aft of hardtop
• Cradles in teak for tender - not installed
• Two electric capstan in cockpit
• Cockpit starboard side single GRP unit with storage
• Cockpit port side single GRP unit with storage
• Electric BBQ in cockpit GRP unit
• Icemaker in cockpit
• Refrigerator in cockpit
• Sink-faucet unit on cockpit port side single GRP unit
• Fixed cockpit table with teak top
• Folding chair for cockpit (each)

Interior Options

• Pantograph door on stern
• "3 cabin layout with forward master cabin and private entrance from fore deck"
• Saloon side entrance pantograph door
• MIELE Dishwasher in galley

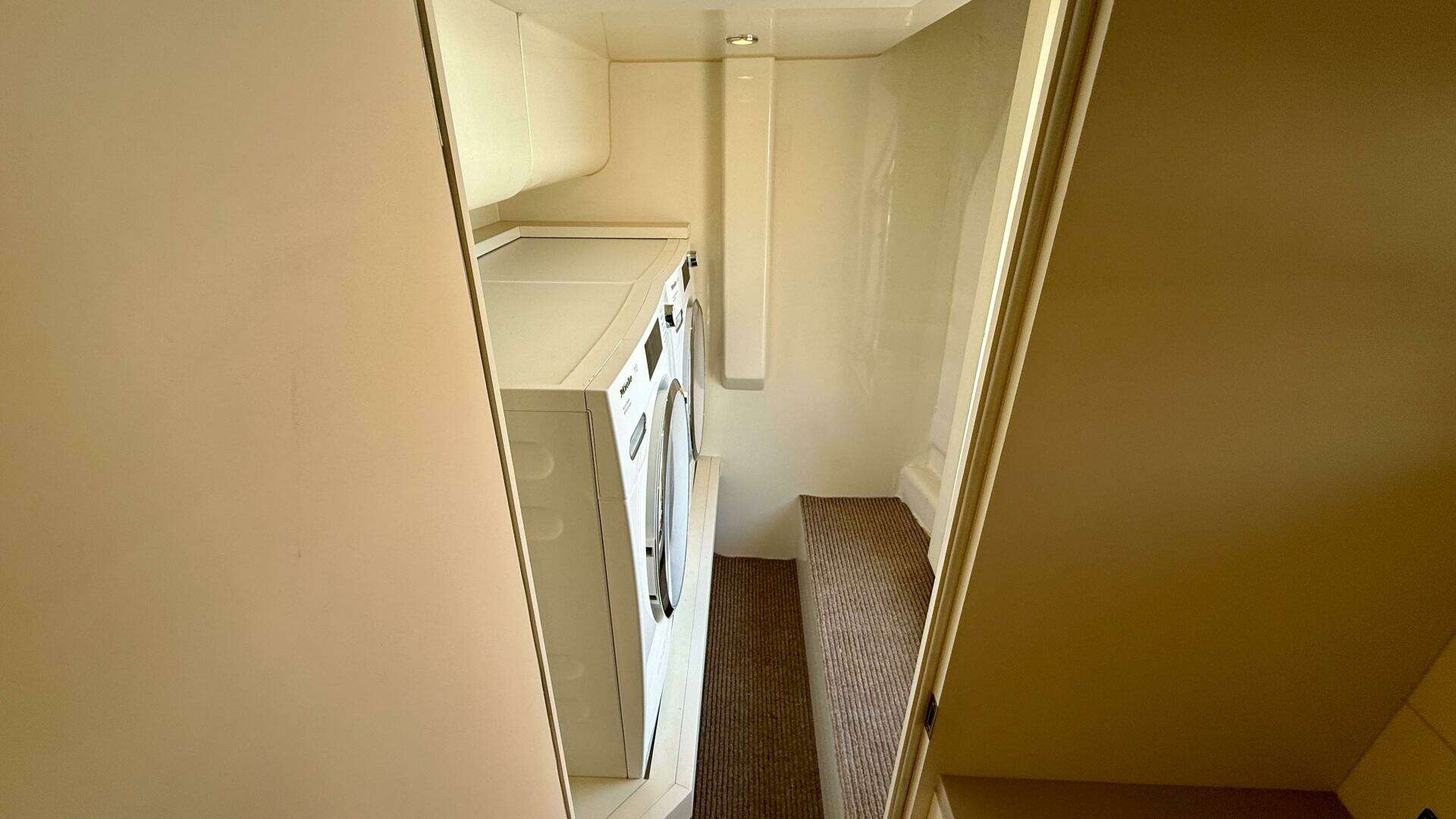

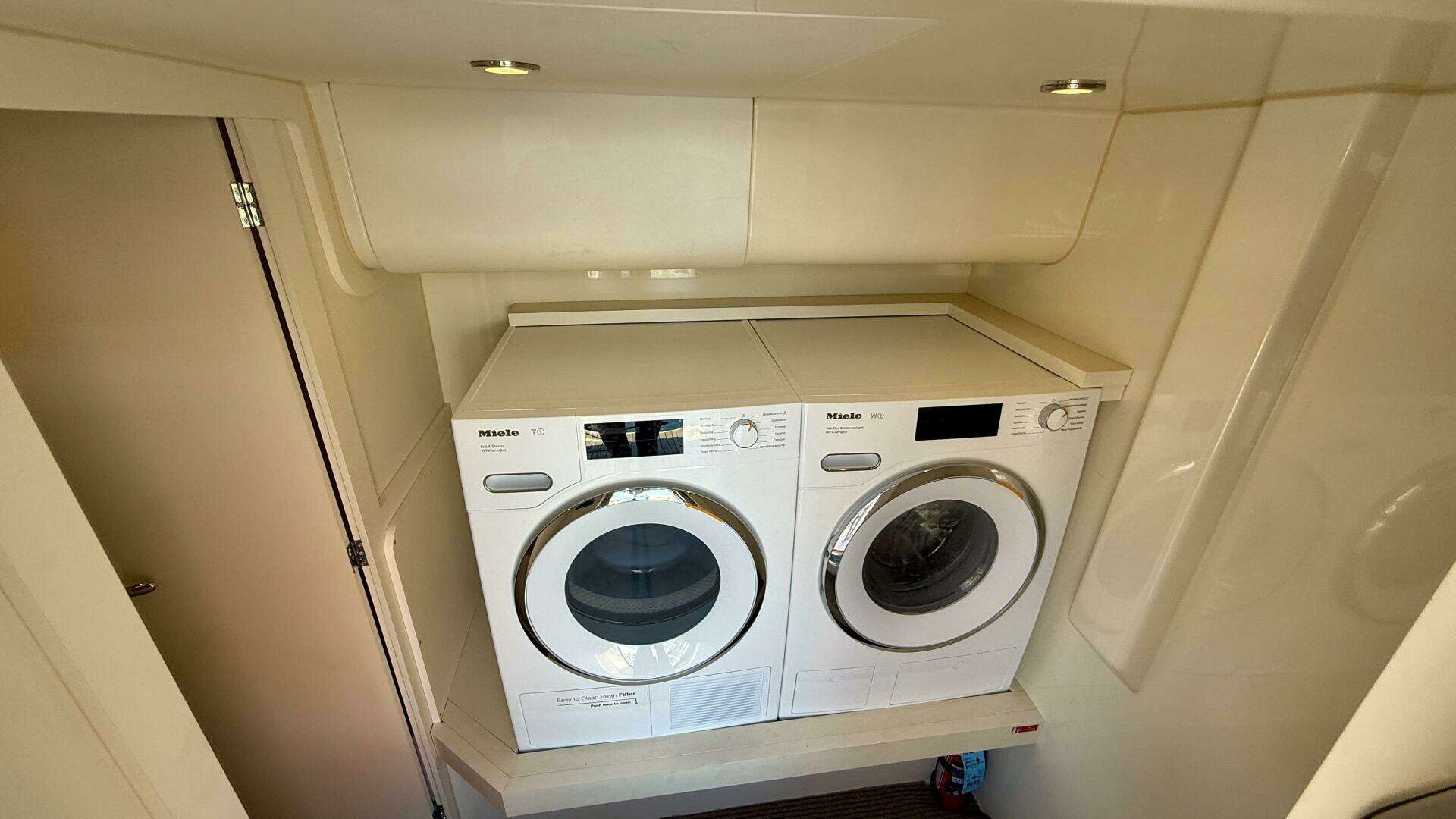

• MIELE Washer-dryer
• Safe in master cabin
• 110V extra socket (each)

Video-TV-HiFi

• 43'' LED TV for master cabin
• 50'' LED TV for saloon
• Fusion RA205 audio system for foredeck
• Bowers & Wilkins audio/video system in saloon

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
