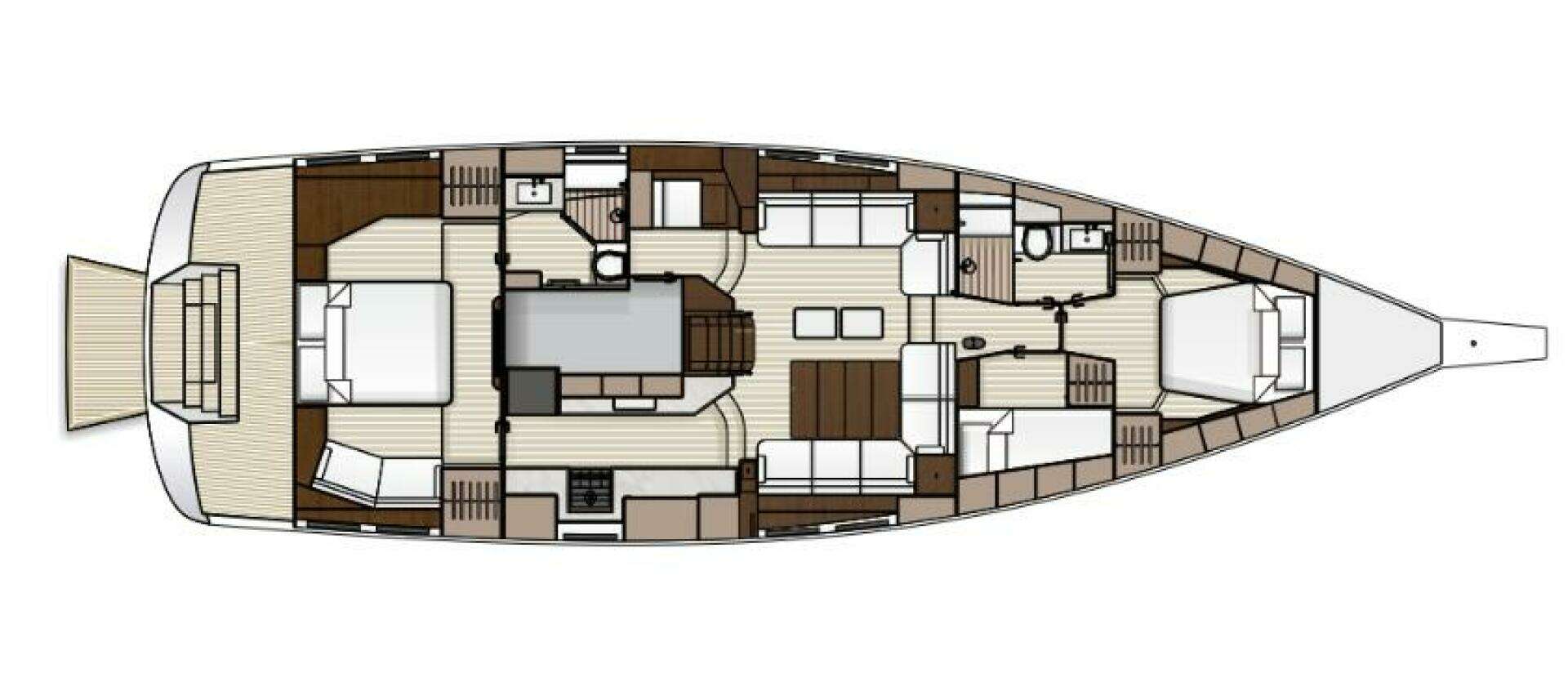

Additional Information

Accommodation

• Three cabins, two heads
• Aft master stateroom with centerline queen, private head, separate stall shower
• Forward VIP cabin with centerline berth
• Forward guest cabin with single bunk (also suitable as workshop, laundry, or storage)
• Forward head with separate stall shower, accessible from VIP and passageway (day head)
• Passageway galley to starboard
• Forward-facing navigation station to port
• VIP Forward Cabin
• Forward Guest Cabin
• Forward Head
• Main Saloon
• Galley
• Master Cabin Aft
• Aft Head
• All berths and saloon settees include lee cloths
• Total: (3) cabins, sleeps (5) plus saloon

Interior Comforts & Amenities

Master Stateroom:

• Queen size centerline berth (mattress optional)
• Drawers port & starboard beneath berth
• Double lounge seat (starboard), storage (port)
• Extra large cedar-lined hanging lockers, port & starboard
• Nightstands with fiddled surfaces on both sides
• Mirror-faced aft (on aft head door)

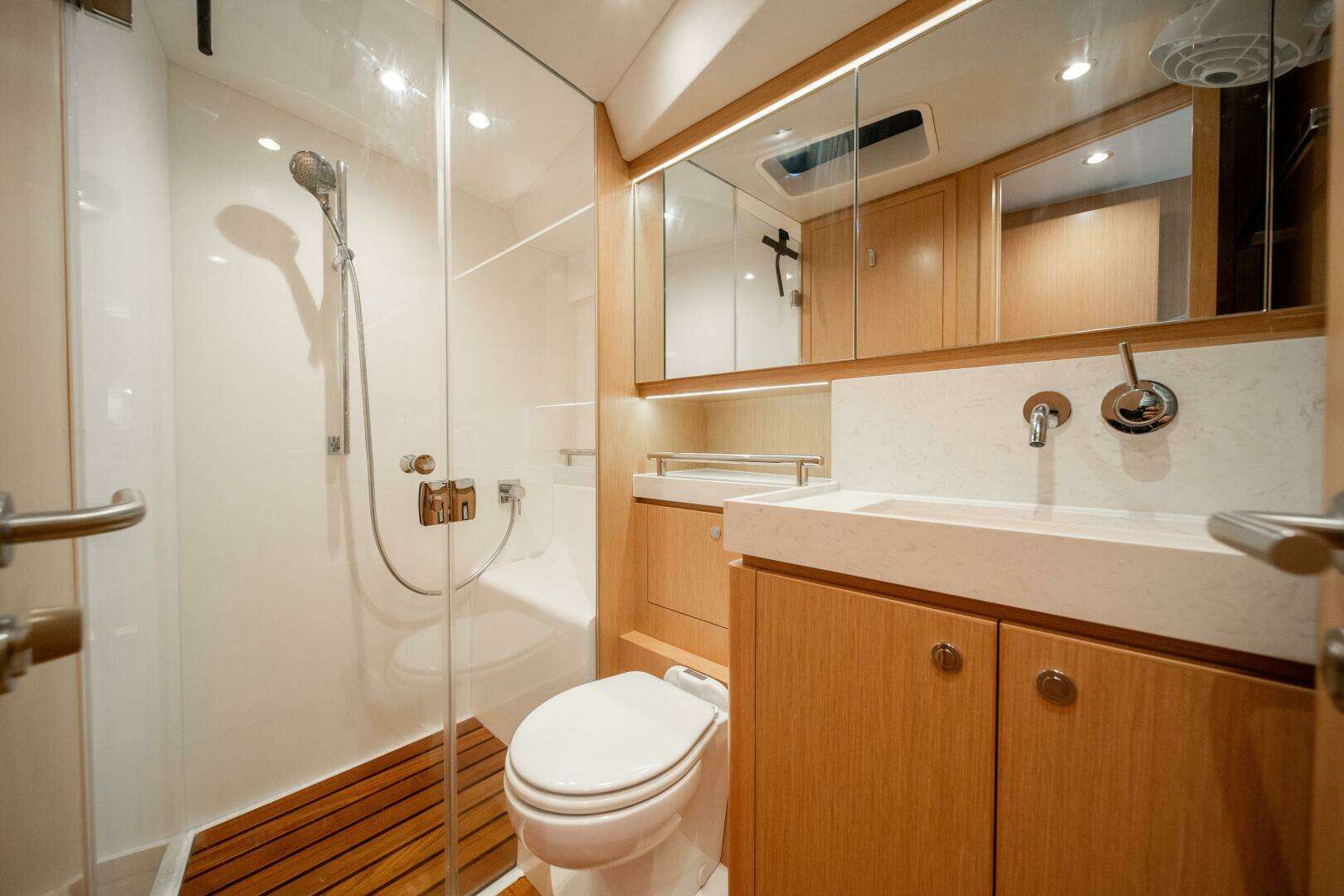

Master Head:

• Raritan #221HS02406 Marine Elegance toilet (24VDC, sea/fresh water inlet option)
• Self-priming Dometic Sealand “TW” macerator pump
• White fiberglass base, Meganite countertops with fiddles
• Hylas white sink, Dornbracht faucet
• Mirror-faced medicine cabinet above sink, double-door cabinet below
• Teak floor
• Separate stall shower with tempered glass door, molded seat, varnished teak floor, Keuco fixture
• Accessories: towel rack, hook, toilet paper holder
• Second engine room door & tall cabinet beside

Galley:

• Ocean Chef 3-burner glass door oven (G1010G)
• Meganite countertops (alt. surfaces optional)
• GN Espace Gastronorm A sink + Dornbracht faucet
• Vitrifrigo DW360 BTX fridge/freezer (steelock flush latches)
• Microwave: Panasonic NN-CD87KS (or similar)
• Countertop built-in knife rack
• Small cabinets above sink

Freshwater System:

• Total: 260 gal. (two 130 gal. 316L stainless steel tanks)
• Threaded inspection + maintenance ports
• Sensotex tank gauges at nav station
• Dual Marco UP14/E 24V pumps (redundancy)
• Torrid 17 gal. water heater (110V & engine-driven)
• Spectra Newport 1000c Watermaker (under VIP berth)
• Headhunter 4.4 gal. pressure accumulator

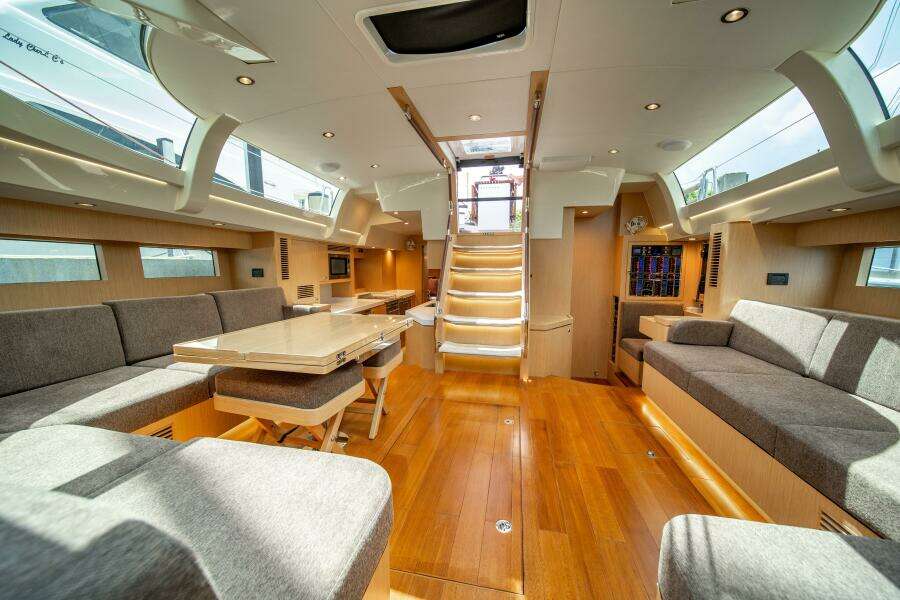

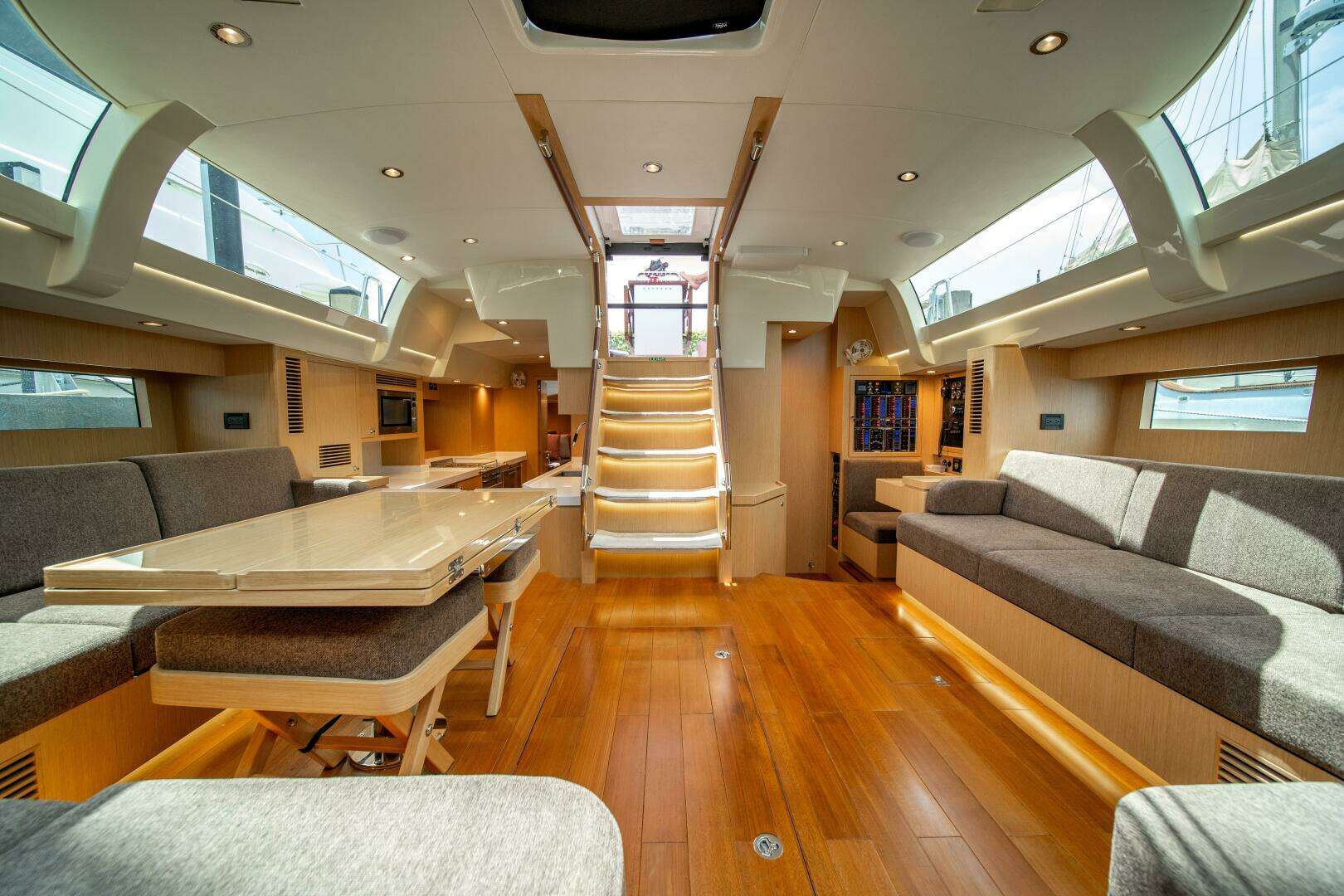

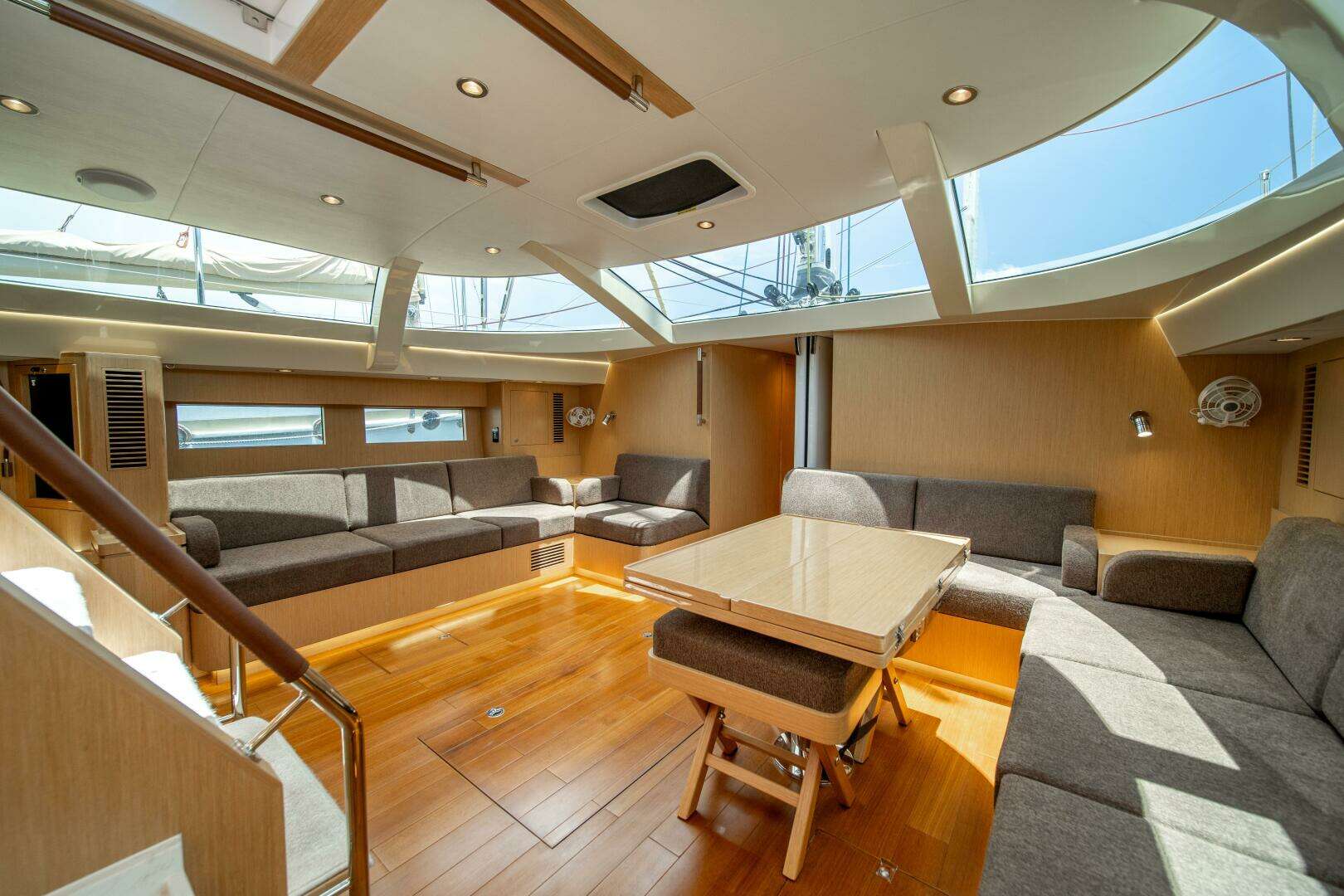

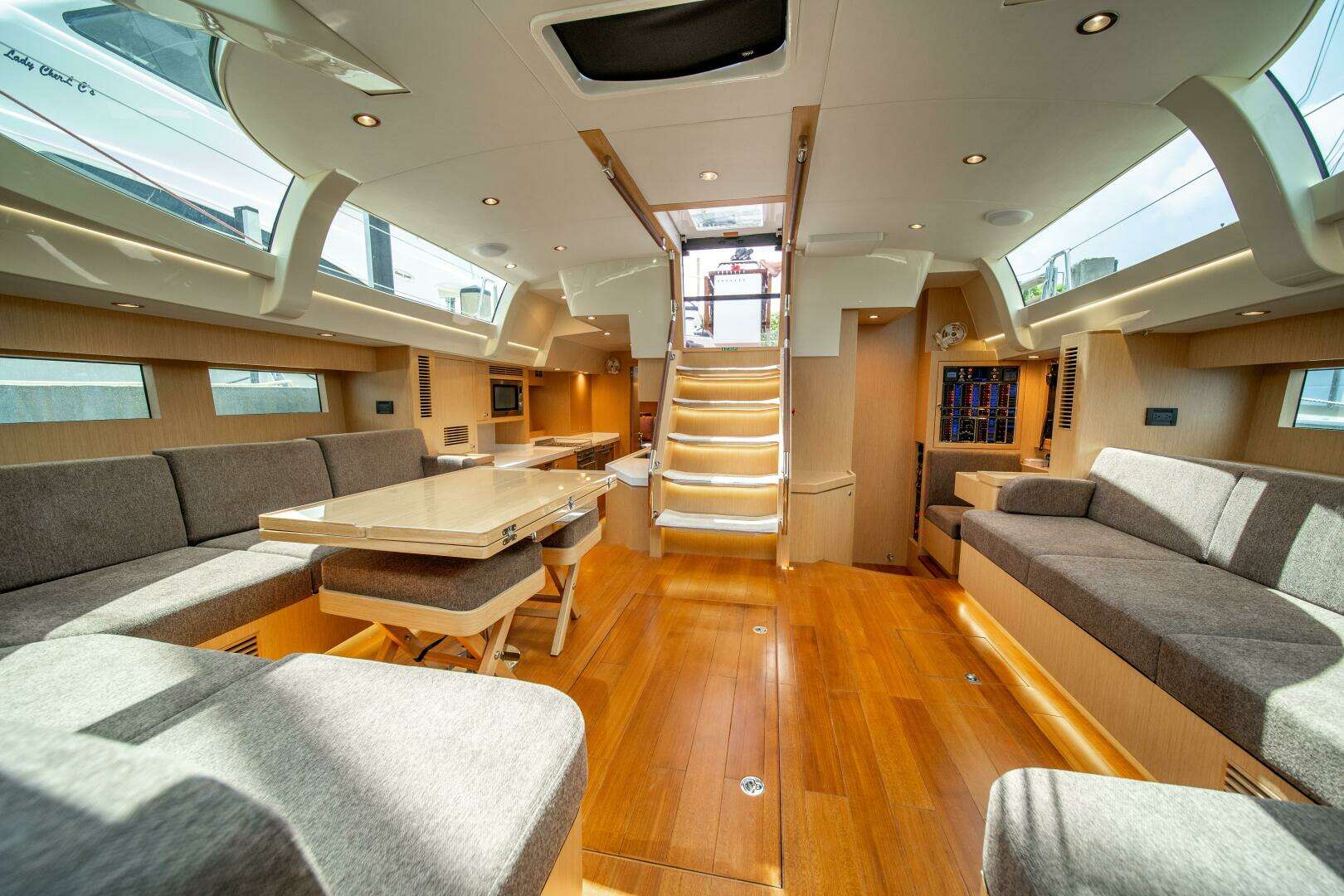

Main Saloon:

• Five panoramic 3D laminated curved safety glass windows
• Lounge seats: single (port), double (starboard) aft-facing
• Varnished teak table with folding leaves, end tables with fiddles
• Cabinets above seating, ample storage under settees
• Overhead stainless steel handholds with leather wrap
• Two folding stools (convert to cocktail tables)
• Manual lifting dining table → coffee table
• Companionway with 5 non-skid stairs + stainless steel/leather handrails

Navigation Station:

• Forward-facing desk with fold-top chart table
• Upholstered bench seat
• Instrument & electrical panels with hinged access
• Chart light & 12V DC outlet

Forward Guest Cabin:

• Single bed (mattress optional), storage under bunk
• Convertible space for washer/dryer
• Vent & fan for hydraulic system
• Overhang locker, cedar-lined hanging locker

Forward VIP Cabin:

• Centerline double berth (storage under, mattress optional)
• Drawer beneath berth
• Cedar-lined hanging lockers (port & starboard)
• Large cabinets outboard/above berth
• Mirror-faced aft on head door

Forward Head:

• Raritan #220HS02406 Marine Elegance toilet (24VDC, angled back, sea/fresh water inlet)
• Dometic Sealand “TW” macerator pump
• White fiberglass base, Meganite countertops with fiddles
• Hylas white sink + Dornbracht faucet
• Mirror-faced medicine cabinet, double-door cabinet below
• Teak floor
• Separate stall shower with tempered glass door, molded seat, varnished teak floor, Keuco fixture
• Accessories: towel rack, hook, toilet paper holder

Electronics & Navigation

• Displays & Radar

• Raymarine Axiom 16” XL HybridTouch displays (integrated high CHIRP sonar) at both helms

• Raymarine 4kW 48nm HD color radar + cabling

• Instruments & Autopilot

• (3) Raymarine i70 displays (companionway) + (1) at each helm

• Raymarine EV-400 Sail autopilot with P70 displays at both helms

• Raymarine RS150 72-channel 10Hz GPS receiver

• Compasses & VHF

• 5” Ritchie Globemaster FD-500-EP flush mount compass (red LED backlight)

• Raymarine Ray73 VHF with AIS receiver, DSC, and loudhailer

• Raymic 60/70 handheld VHF mic (helm)

• AIS & Loudhailer

• Raymarine AIS 700 transceiver (Class B AIS, antenna splitter)

• VHF loudhailer function M95435 with mast speaker

• Audio

• Fusion RA770 stereo (AM/FM, Bluetooth, SiriusXM, Aux)

• Stereo speakers: (2) master stateroom, (2) saloon, (2) cockpit

Electrical Systems

• Wiring & Shore Power

• Tinned copper wiring, numerically labeled/traced

• 50A shore power at bow (access plate + sail locker outlet)

• DEI Max Galvanic Isolator GI-50/60A-FSM

• Copper grounding strips integrated into bonding system

• Generator

• Northern Lights 9kW generator + water separator

• Dedicated Racor 500 fuel/water separator with flame guard

• Generator control panel (nav station)

• Battery Banks & Charging

• 24V house bank: (3) Xantrex Lithium Ion, 615Ah total

• Engine start: 12V Lifeline AGM GPL-27T, 100Ah

• Generator start: 12V Lifeline AGM GPL-24T, 80Ah

• 12V service bank: Lifeline GLP-31XT AGM, 125Ah

• Victron Orion-Tr Smart DC-DC charger (24/12-30, 360W)

• Mastervolt 24V 110Ah alternator + 3-stage regulator

• 12V 180Ah alternator (service bank + start batteries)

• (2) Xantrex Freedom SW 3000W Inverter/75Ah chargers (24V)

• (1) Xantrex TrueCharge2 12V 40A charger

• Power Distribution

• Hylas Signature electrical distribution panel

• BEP Marine AC/DC monitors

• BEP heavy-duty battery switches (12V & 24V)

• Blue Sea ML-RBS remote isolators (thruster, engine, winches, etc.)

• Blue Sea e-Series parallel switch for emergency start

Deck & Hull Equipment

• Hull Construction

• E-glass laminates + closed-cell foam core (vacuum infused)

• Solid laminate reinforcement at chainplates

• Watertight bow & stern sections

• Limber holes for drainage

• Non-metallic thru-hulls & sea-cocks below waterline

• 5 epoxy barrier coats (osmosis protection)

• 12 flush-mounted oversized portlights (4 master, 1 head, 1 galley, 4 saloon, 2 VIP)

• Integrated SSB grounding plane

• Keel & Transom

• External lead keel with 3% antimony

• (14) M30 + (2) M16 stainless keel bolts, transverse backing plates

• Walk-through transom with 3 teak steps, stainless handrails

• Swim ladder + port flag pole

• Deck

• E-glass laminate, Airex core, vinyl-ester resins, carbon reinforcement

• Reinforced solid laminate in stress zones (mast, winches, hardware)

• White isophthalic gelcoat finish

• Substantial hull-to-deck joint (laminated monolithic)

• Molded cap rail with raised bulwark

• (8) Seasmart 12.6” pop-up cleats

• 32” high stanchions, Dyneema lifelines, double gates

• Stainless pulpits, handrails, and mid-ship ladders

• Stern quarter seats with teak slats

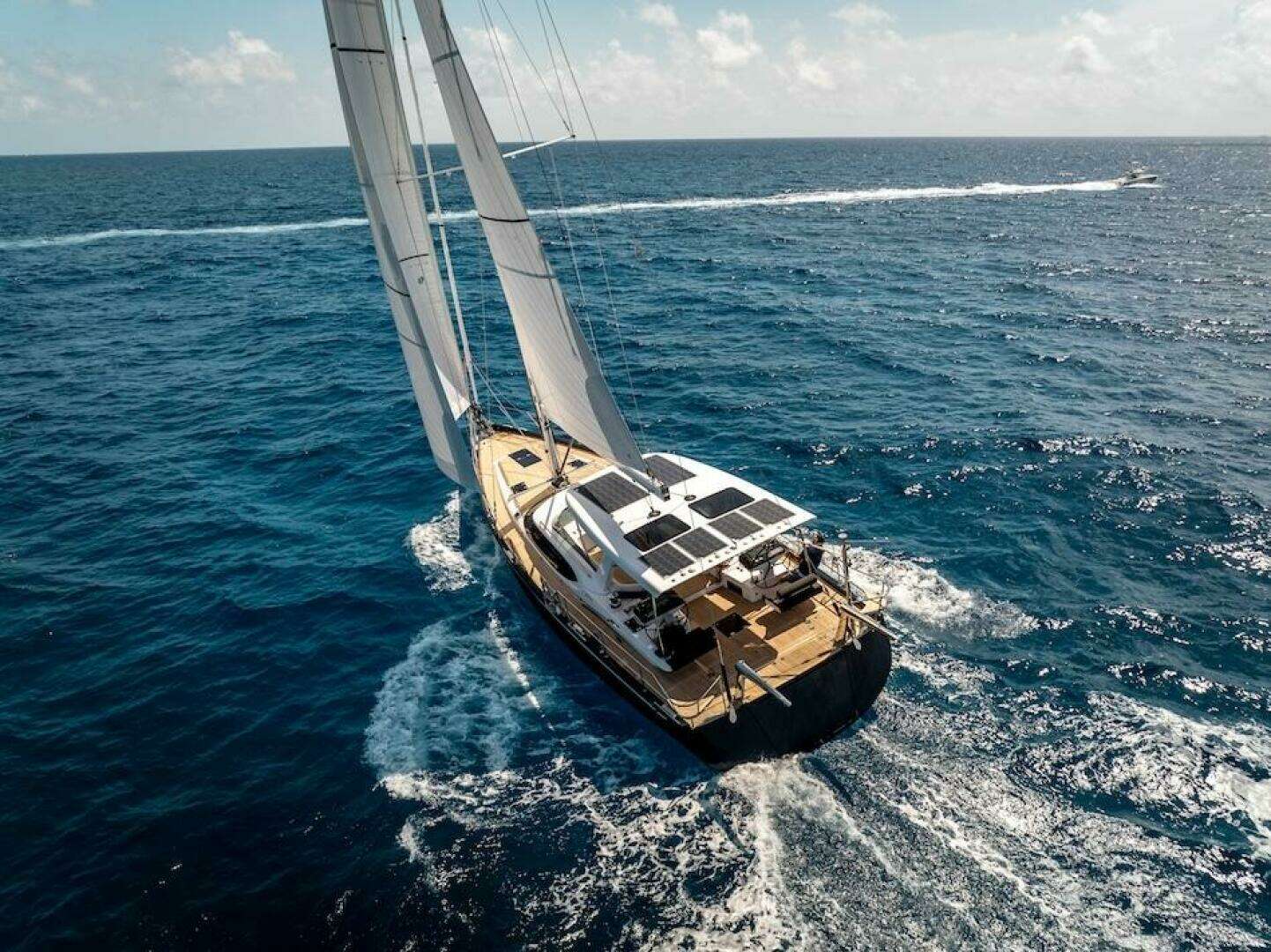

• Cockpit

• Center cockpit, twin helms, separate lounge area

• Bonded 3/8” teak sole + seating

• Solid teak cockpit table with cooler

• Oversized self-bailing scuppers

• White reinforced arch with stainless supports

• Handholds & jacklines, winch/helm covers

• Lockers & Plumbing

• Forepeak locker (chain, rode, sail storage)

• Full-beam lazarette with watertight latches + bilge pump

• Transom garage (integrated into steps)

• Liferaft locker, LPG locker, deck hatches (Manship)

• Hot/cold transom shower

• Freshwater & saltwater washdowns (bow/stern)

• Shore water connection (transom)

• Ground Tackle

• Maxwell RC12 24V windlass (foot controls + helm controller)

• Ultra UA45 (100 lb) stainless anchor + 300’ 3/8” G4 chain

• FRP bowsprit with dual self-launch rollers

• Premium dock lines & (4) Taylor fenders

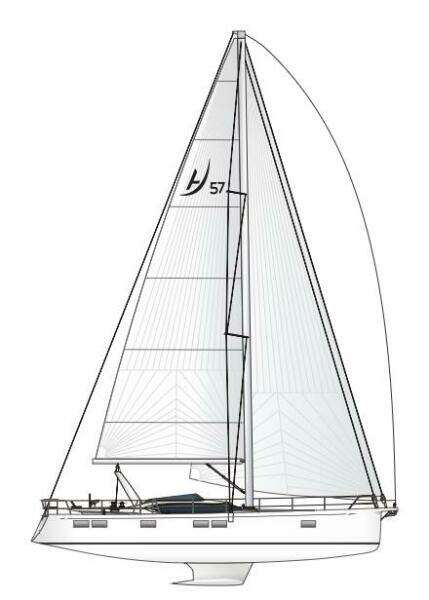

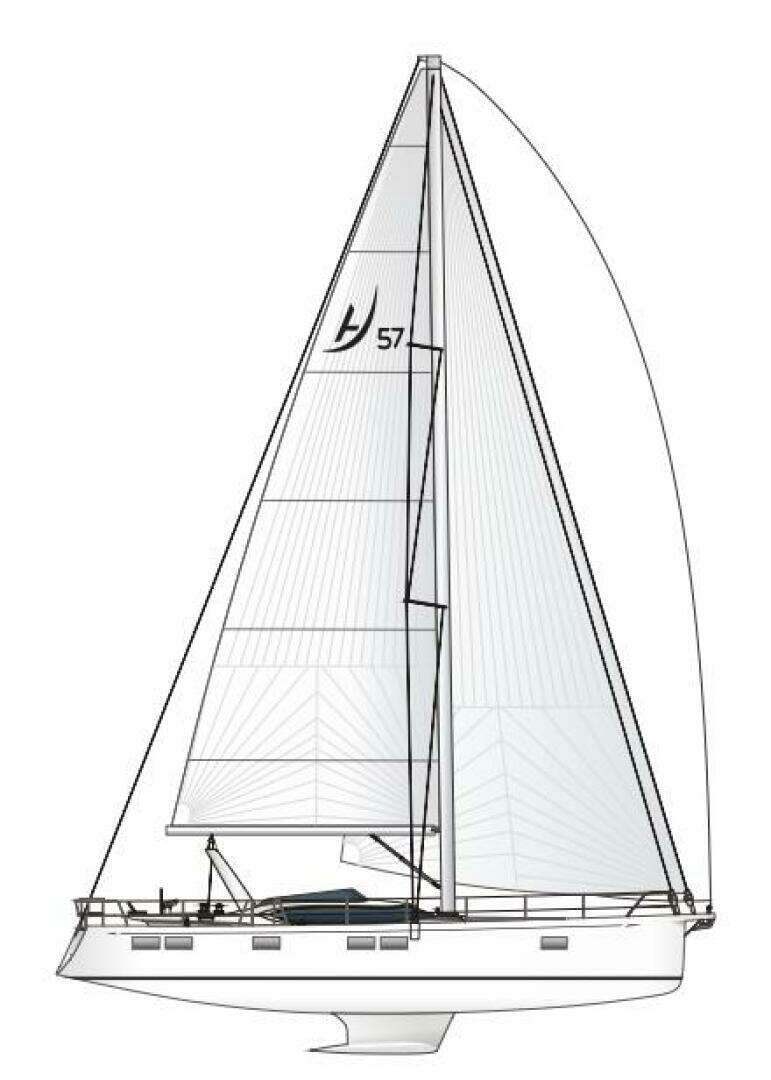

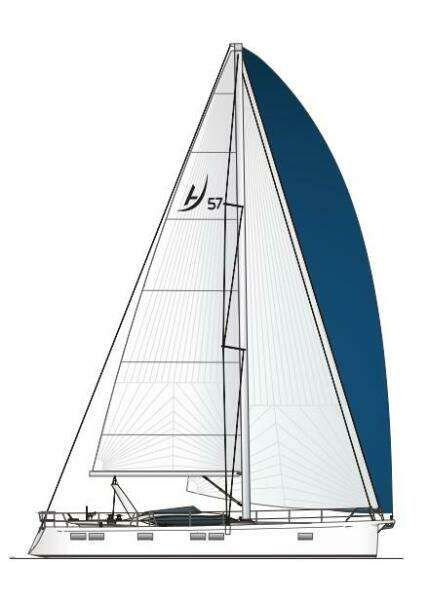

Sails & Rigging

• Spars

• Solent rigged Seldén mast (aluminum, 2 spreaders, hydraulic in-mast furling)

• Seldén boom with internal conduit & navigation lights

• Hydraulics

• Twin hydraulic backstay tensioners

• Hydraulic boom vang

• 4-function cockpit hydraulic control panel

• Furling Systems

• Seldén Furlex 414H hydraulic genoa furler

• Seldén Furlex 412H hydraulic jib furler

• Standing Rigging

• 316 stainless 1x19 wire, Sta-Lok fittings (discontinuous)

• Running Rigging

• Side-sheeting configuration

• Spectra-cored halyards & sheets

• Harken hardware (blocks, tracks, fairleads, winches)

• (2) Antal 66 XT electric primaries, (2) Antal 66 XT electric secondaries

• Antal 52 XT electric cockpit winch

• Push-button winch controls

• Sails (North Sails NPL Tour Xi)

• In-mast furling mainsail (partial vertical battens)

• 140% furling genoa

• Furling solent jib

• White Sunbrella UV covers

Mechanical Equipment

• Engine Room

• Full-height access from nav station

• CE fire-retardant & noise-dampening insulation

• Dual Jabsco engine room extraction blowers

• Hydraulics

• Seldén Double Powerpac (dual pumps, 14L reservoir, control box)

• Thrusters

• Side-Power SEP170KG/250TC 24V bow thruster (variable speed, 10.7hp)

• Controls at both helms

• Environmental

• Termodinamica HVAC: 36,000 BTU saloon + 18,000 BTU forward cabins + 18,000 BTU aft cabin

• Condensation plumbed into grey water tanks

• Bilge System

• Rule 4000 GPH pump + float switch, high water alarm, manual override

• (2) Whale Gulper 320 (bilge + transom garage)

• Whale Gusher 10 manual pump (cockpit)

• Rudder & Steering

• Twin spade rudders (protected above keel plane)

• Jefa torque-tube steering

• (2) Jefa autopilot drive units (148 ft-lbs torque)

• Fire & Safety

• Fireboy automatic engine room system + remote panels

• (1) Fireboy Halotron handheld, (3) Hygrapha dry chemical handhelds

• Fire blanket in galley

• Fireboy-Xintex propane fume detector

• Smoke & fire detector in galley

Engine

• Volvo Penta D3-150, 5-cyl, 2.4L, 150hp (common rail, VGT turbo)

• US EPA Tier 3 & EU compliant

• HS Hydraulic 2.43:1 reduction gearbox

• Dual Racor 500 filtration with vacuum gauge & alarm

• Electric oil-change pump (engine/generator/transmission)

• Raised exhaust elbow (flooding protection)

• Bruntons Varifold 4-blade 24” folding prop

• Aqualoy A22 1.75” shaft + PYI dripless seal

• Nickel Aluminum Bronze P-Bracket

Tankage

• Fuel: 286 gal. (2) 143 gal. 316L SS tanks, inspection & maintenance ports, Sensotex gauges

• Water: 260 gal. (2) 130 gal. 316L SS tanks, Sensotex gauges, water heater

• Black Water: (2) fiberglass holding tanks (23 gal. fwd, 40 gal. aft) + vent filters

• Grey Water: sump collection system with Gulper pumps (forward, galley, aft)

• Anchor & sail locker drains go direct overboard

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
