2027 McConaghy Boats 56'
17.07 m
2027 McConaghy Boats

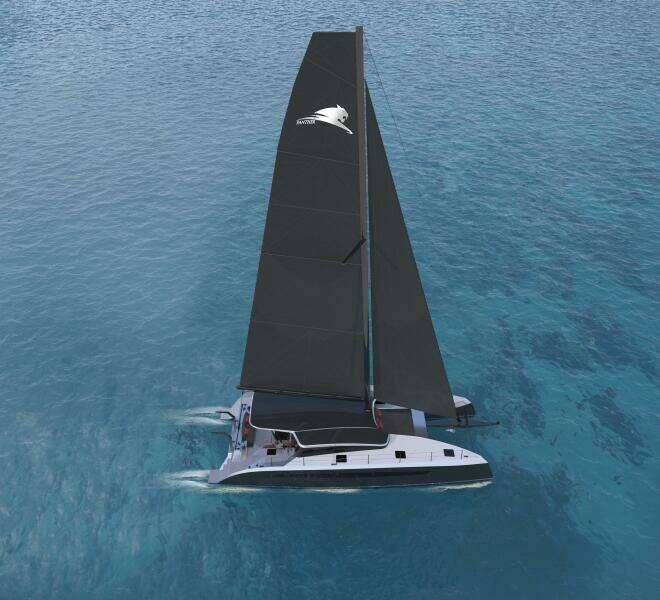

56' (17.07 m) Panther56
-McConaghy Boats is proud to present the Panther56 Unleash the future of sailing with the Eco Panther Series by McConaghy Boats - A revolutionary line of full-electric yachts designed for ultimate performance and sustainability.
| FEATURES: |
|---|
| Catamaran |
| Electric Power |
| Sailboat |
| New Construction |
| Customizable |
| Notable Upgrades: -Carbon mast with a Carbon boom with lazy jacks and sail cover - Equipped with a fully battened mainsail, headsail, and flying sail, providing exceptional sailing capabilities - Features a McConaghy RIB with a 20hp Yamaha 4-stroke outboard for reliable propulsion when needed - The primary electrical system of the yacht operates at 48 volts, powering the propulsion and all other high-load features such as winches, windlass, line-driver, watermaker, and more. The rest of the yacht, including the navigation lighting system and pumps, runs off a 12-volt system. Additionally, the yacht is equipped with a 5 kW Quattro inverter charger to power the electric three-burner induction hob and convection microwave, ensuring efficient operation of onboard appliances. The yacht also has 110/230V outlets and USB-C charging ports throughout, providing ample power for all your devices. |
$ 2,380,000 USD
€ 2,309,476 Euros
$ 3,426,617 CAD
£ 1,945,043 GBP
Description
Introducing McConaghy Boats' Panther56 - Full Electric | Eco
Unleash the future of sailing with the Eco Panther Series by McConaghy Boats - a revolutionary line of full-electric yachts designed for ultimate performance and sustainability. This groundbreaking series consists of Panther 40, 48, and 56, with the 68 and 78 under development. The Panther series redefines your experience on the water, offering exhilarating speed and unmatched agility in a lightweight vessel that turns heads with its striking black topsides and sleek silver sheer lines.
The Eco Panther Series embodies sophistication and innovation, allowing you to embrace a greener lifestyle with a clean, modern interior. Designed to merge sustainability with cutting-edge performance, these yachts promise to redefine your adventures on the open water, offering exhilarating speed and unmatched agility in a lightweight vessel that turns heads with its striking black topsides and sleek silver sheer lines.
Eco-Friendly Design and Performance
By keeping the yacht simple and lightweight, the Eco Panther Series achieves the capability of being fully electric and eco-friendly. Motoring at 7.5 knots, it uses only 16.11 kilowatts of power in total. The yacht boasts an impressive 124 square meters of solar panels; however, given the vertical surfaces and shadows of the hull, achieving 100% efficiency is not feasible. Therefore, we have taken a conservative approach and calculated a maximum output of 14 kilowatts on a good day instead of the full 18 kilowatts available.
Regeneration Capabilities and Range
This yacht, with regeneration capabilities at 7 knots, is capable of charging 1,680 watts, enhancing its efficiency and sustainability. Yacht range under motoring varies, but if we ignore hydro regeneration and solar, running off the stored 62 kWh of batteries and operating the generator at 5.2 knots, you can achieve a range of approximately 800 nautical miles with a sea margin.
Electrical System
The primary electrical system of the yacht operates at 48 volts, powering the propulsion and all other high-load features such as winches, windlass, line driver, water maker, and more. The rest of the yacht, including the navigation lighting system and pumps, runs off a 12-volt system. Additionally, the yacht is equipped with a 5 kW Quattro inverter charger to power the electric three-burner induction hob and convection microwave, ensuring efficient operation of onboard appliances. The yacht also has 110/230V outlets and USB-C charging ports throughout, providing ample power for all your devices.
Ventilation and Bright Living Spaces
Yacht ventilation has been thoughtfully considered, with every cabin featuring overhead hatches and portlights to ensure plenty of airflow. The saloon is equipped with two forward-opening flush hatches, two side ports, and an aft sliding window, along with a sliding saloon door, all contributing to a bright and airy living space.
Enhanced Performance Features
While the Panther Series is designed to be simple, it comes with a host of extras built into the yacht, ensuring a luxurious and convenient experience. One standout extra is the full carbon mast with a carbon boom with lazy jacks and sail cover, which enhances performance while keeping the overall weight down. The yacht also comes equipped with a fully battened mainsail, headsail, and flying sail, providing exceptional sailing capabilities. Additionally, it features a McConaghy RIB with a 20hp Yamaha 4-stroke outboard for reliable propulsion when needed.
Steering and Navigation Systems
The steering system is designed for performance, utilizing a lightweight race yacht chain and rope setup, complemented by a chain-driven auto-pilot for precise handling and control. The navigation system includes a comprehensive B&G package featuring two 12-inch touchscreen displays for routing, wind, speed, heading, and more, ensuring seamless and intuitive operation.
Deck Gear and Maneuverability
We’ve carefully considered the deck gear layout to reduce the amount of deck gear for weight savings and ease of maintenance. This yacht is primarily designed for short-handed sailing, so we opted for a single power winch located under the deck, forward of the mast. This keeps everything clean and efficient for hoisting sails and reefing. Additionally, two winches are positioned aft for sail handling, along with a traveler line driver. The yacht also features easy-to-operate daggerboards, with ropes led back to the two aft winches and locked off on clutches.
Innovation Anchoring and Sailing Design
In our design, we use a carbon fiber longeron with no cross beam for further weight saving, and the anchoring system is integrated with an anchoring bridal for streamlined functionality. Thanks to the self-tacking headsail and line drive, the yacht makes tacking upwind incredibly easy, allowing you to perform maneuvers without even leaving the helm chair. For long-range cruising, the autopilot can maintain a head-to-wind position for hoisting sails, and the yacht can sail under autopilot, making it suitable for single-handed sailing or easy handling with a couple. Once friends are onboard, this yacht has the power to be let loose and run.
Modern Interiors and Luxury Features
The interior features an ultra-modern design, complete with soft lighting under lightweight floating furniture and a sophisticated blend of satin black interior finishes with carbon highlights. This is elegantly combined with grey soles and lightweight liners, creating an inviting and stylish atmosphere that will appeal to both young and older clients. Adding to its sophisticated design, the Eco Panther Series also features ultra-modern EVA half-deck and foredeck finishes, which help maintain a lightweight structure while providing a refined and contemporary appearance. The foredeck is equipped with plush sundeck cushions, creating the perfect space for bathing, entertaining, and relaxing with a nice glass of champagne and nibbles.
Outdoor Social Spaces
The large aft cockpit offers a spacious area for socializing, featuring a comfortable lounge to port and a dining space to starboard, all sheltered from the elements by a generous overhang from the cabin top. This design ensures guests can enjoy outdoor living in comfort, whether dining or lounging.
Basic Specifications Include:
62kW h 48v batteries
Full carbon epoxy boat
Sails - Fully batten main sail, headsail, and A-sail
Solar - approx 100sqm
Twin helm stations - Carbon helm seats, Carbon wheels
Fwd cushions√Carbon champagne and glass holders√Carbon canape tray
Carbon rig and boom, longeron
Home appliance - Water maker, Fridge, Freezer, Electric stove, Convection microwave
Fenders, docking lines, and anchoring
Tender with 7.5hp electric outboard
2 electric scooters
Onboard green Ozone cleaning system - detergent-free yacht
Tool kit + toolbox
Lightweight 11kw generator - backup generator
LOA58'
LOA Inch10''
LOA17.94''
Beam26'
Beam Inch10''
Draft Max Feet8'
Draft Max Inch2''
Draft Min Feet3'
Draft Min Inch11''
Fuel Tank (Gallons)105.67
Fuel Tank (Liters)400
Fresh Water (Gallons)105.67
Fresh Water (Liters)400
TypeSail
ConditionNew
Specifications
58'10" (17.94 Meters)
Sail-New
2027
26'10"
8'2"
3'11"
3
Electric
Carbon Fiber
Catamaran
105.67 Gallons (400 Liters)
105.67 Gallons (400 Liters)
10
Yes
McConaghy Boats
Engines
Engine 1
- Engine TypeEngine Type: Electric
- Power HPPower HP: 20.12
- Power KWPower KW: 15.00
Engine 2
- Engine TypeEngine Type: Electric
- Power HPPower HP: 20.12
- Power KWPower KW: 15.00
Full Details
Construction
Full carbon hull, deck, and structure vacuum-infused epoxy core cell construction
Daggerboards
Carbon composite straight daggerboards with manual purchase sytem for lifting.
Longeron
Carbon composite longeron with integrated anchoring system
Exterior
Hull outboard topsides and fwd inboard topsides are covered with satin black finish solar panels
Hull shear will be painted in metallic silver
Hull bottom will be Sea Hawk antifoul (black) roller finished.
Side decks will be covered with nonslip satin finish solar panels
Foredeck will be covered with EVA foam
Aft cockpit and stairs will be covered with EVA foam
Cabin Top,Port & STBD will be covered with satin finish solar panels, Center will be covered with satin black solar panels
Cabin top edge will be painted in high-quality two pack polyurethane coating in metallic silver Boat's name and country/port of registration on stern
Accommodation Overview
3 Stateroom Option
Two guest cabins in the port hull, with shared head and shower in midship
Master cabin in starboard hull, with enormous storage room, head and shower fwd
Interior
All joinery is custom-built and finished to McConaghy's uncompromising high-quality standards and under the expert guidance of interior designers
Main Deck Overview
Fwd deck: Sunbeds
Saloon: Large relax/dining area with table, galley
Aft deck: L shape settee with table on stbd side, sofa in port and aft area, helm stations on side decks
Aft Main Deck
PMMA sliding door and window between saloon and aft deck
Tramsom steps, port and starboard, with discreet lighting
Aft deck built-in settee with winch pods Location for liferaft under aft settee
Traveler on aft cockpit
Floating lounge at port and starboard aft deck
Table on starboard aft cockpit, clear carbon finish
Cushions for seating area - Sunbrella & Weathermax foam
Handheld aft deck shower with hot/cold mixer tap
Two (2) Built-in carbon davits (painted in black) with purchased system and clutch
One (1) McConaghy 3.6m RIB with aluminium hull inflatable fenders in ORCA Hypolon tube with 7.5ehp electric Mercury outboard engine
Courtesy lighting under furniture
Shore Power plug recessed in aft cockpit 32A
Two (2) hatches on aft cockpit port & stbd
Downlights
Aft Deck Helm Stations Port & Stbd
Stairs to helm stations
Two (2) McConaghy Carbon racing helm seats with EVA foam
Two (2) McConaghy carbon steering wheels with Ocean type carbon pedestals
Instruments mounted to aft of Cabin Top
Two (2) Lewmar Ultra low-deck hatches

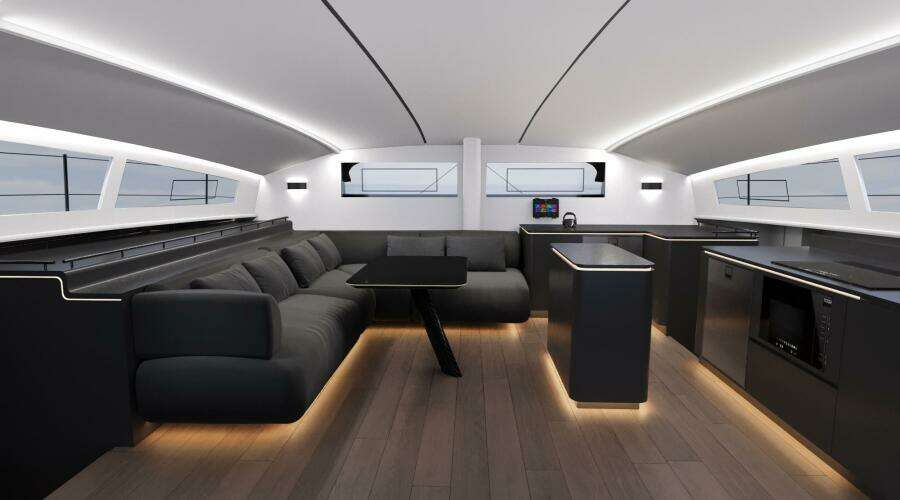

Saloon
Manually opening sliding door
L- shaped settee
Fixed dining table(not foldable)
Under seating storage
Stairs to port & starboard hull
Two (2) electric fans
Headliners
Laminated soles
Electric blinds for side window
Manual blinds for forward window
Two (2) Lewmar Size 3 Flush Mitre Portlights for port windows
Two (2) Lewmar Size 3 Flush Mitre Portlights for STBD windows
Two (2) Lemar Flush Mitre Portlight 270x900 for fwd windows
Two USB sockets, type C sockets and one 220V/110V socket
Indirect headliner lighting
Courtesy lighting under floating furniture
Galley
Satin black finish countertops
Twin stainless steel sinks with Mixer tap hot/cold (black)
One (1) Induction hob (2 zones) Smeg
One (1) Built-in convection microwave oven Smeg FMIA125B3
One (1) Isotherm Ocean single-door fridge CRUISE 130 Drink Inox
One (1) Isotherm Ocean single door Freezer CRUISE 90 Freezer
One (1) USB socket, Type C socket and Two (2) 220V/110V sockets
Side Deck & Forward
Walk way with EVA Foam from side deck port & stbd to fwd cockpit
Two (2) Fwd side deck lockers PRT & STBD with Lewmar Ultra low deck hatches
Six (6) composite hatches for storage One(1) Carbon champagne and glass holder &
One (1) carbon canapes tray
Sunbrella and weathermax foam cushions/sunbed for fwd deck
Port Hull - 2 Guest Cabins, 1 Bathroom including, Shower and Head
Forward Guest Cabin
Double bed
One (1) hagging locker
Two (2) Reading lights
Indirect downlights
One (1) electric fan
One (1) Ulta low profile Deck hatch Lewmar
One (1) Lewmar Size 1 Flush Mitre Portlights
Laminated sole
Hull liner and headliners
One USB socket and Type C socket next to bed
MId Shower and Head
Shower with quality fittings Painted sole, wall, and ceiling in showering room
Electric toilet Vanity sink with cabinet
Mirror Downlights
One (1) 220V/110V power socket
One (1) electric fan Daggerboard box
One (1) Escape hatch under stairs
One (1) Ulta low profile Deck hatch Lewmar
One (1) Lewmar Size 3 Flush Mitre Portlights
Laminated sole, painted wall and ceiling
Aft Guest Cabin
Double bed One (1) hagging locker
Two (2) Reading lights
Indirect downlights
One (1) electric fan
One (1) Ulta low profile Deck hatch Lewmar
One (1) Lewmar Size 1 Flush Mitre Portlights
Laminated sole Hull liner and headliners
One USB socket and Type C socket next to bed
Starboard Hull - Master Cabin, Storage, Shower and Head
Forward Shower and Head
Shower with quality fittings
Painted sole, wall, and ceiling in shower room
Electric toilet
Twin sinks with cabinet
Mirror
Downlights
One (1) 220V/110V power socket
One (1) electric fan Daggerboard box
One (1) Escape hatch under stairs
One (1) Ulta low profile Deck hatch Lewmar
One (1) Lewmar Size 3 Flush Mitre Portlights
Laminated sole, painted wall and ceiling
Mid Storage
Inboard floating hanging lockers
Outboard cupboards
Daggerboard box
Indirect downlights
One (1) electric fan
One (1) Ulta low profile Deck hatch Lewmar
One (1) Lewmar Size 3 Flush Mitre Portlights
One (1) Escape hatch under stairs
Laminated sole, hull liner, and headliners
Aft Master Cabin
Double bed
One (1) hagging locker
Two (2) Reading lights
Indirect downlights
One (1) electric fan
One (1) Ulta low profile Deck hatch Lewmar
One (1) Lewmar Size 1 Flush Mitre Portlights
Laminated sole
Hull liner and headliners
One USB socket and Type C socket next to bed
Systems and Machinery
Dual Oceanvolt ServoProp 15 Electric Propulsion system
Electric motor 15 kW, ServoProp variable pitch sail drive x 2
Dual Control Lever with display x 1
Fischer Panda AGT-DC 11000-48V x 1
MG LFP Battery 25.6V/304Ah/7800Wh (house use capacity included) x 8
MG Master LV 24-48V/1000A x 2
MG SmartLink MX x 1
Victron Energy Quattro-II 48/5000/70-50/50 230V x 1
Victron Energy Digital Multi Control GX x 1
Victron Energy Cerbo GX x 1
Victron Energy GX Touch 70 x 1
Victron Energy Lynx Distributor x 3
SMARTSOLAR MPPT 150/35 x 14
DCDC converter Scotty 3kW 48-12V x 1
AGM Super Cycle battery 60Ah x 1
Victron Blue Smart Charger 230/12V- 15A x 1
Generator start battery AGM Super Cycle battery 60Ah(12v 60AH) x 1
Solar
Hull Outer Topside composite solar (satin finish)
Hull inner Topside at fwd bow composite solar (satin finish)
Side decks solar panels (nonslip satin finish)
Lower cabin top solar panels ((satin finish)
Upper cabin top solar panels ((satin finish)
Navigation
One (1) Jeffa Sprocket Autopilot 12V
One (1) NAC-3 Autopilot Core Pack
Two (2) 12" Zeus™ S 12 Chartplotter with C-MAP cartography
One (1) WS310 (wired) wind sensor
One (1) HALO20+ Radar
One (1) ZG100 Antenna with built-in rate compass
One (1) DST 810 Depth/Speed/Temp Sensor.
One (1) B&G V60 marine VHF radio with DSC and AIS receive
One (1) Navico 1720 VHF antenna
One (1) NEP-2 Network Expansion Port
Tankage
Two (2) fuel tanks total 400L with one Marco fuel transfer pump: VP45-N VANE PUMP 11 GPM-45L/MIN (12 VOLT)
Two (2) freshwater tanks total 400L
Two (2) black water tanks 60L each
Power Supply
Power Supply DC
Intel NUC minic computer x 1
BEP switch remote control panel x 1
BEP navigation power panel x 1
DC-12V Loads panel x 1
Power Supply AC
Shore power inlet 32A x 1
Mastervolt Mass GI 7 32A Isolation Transformer x 1
AC panel 8 circuits x 1
Plumbing
Twelve (12) Rule automatic bilge pumps
One (1) Marco fresh water pump 26L/min 12V
One (1) Isotherm water heaters – 40L
One (1) Water maker 53Lph- Spectra CATALINA-340C 48V
One (1) Aqueous Ozone O3Clean detergent machine from tap water
Two (2) 12V electric toilet Tecma Silence Plus 2G
Two (2) Black water tanks (approx. 60L)
Two(2) Fresh water tanks total approx. 200 liters each
Two (2) Freshwater Level Sensor
Deck Equipment
Winches: Three (3) electric winches
Hardware: Sufficient for mainsail, jib, reefing, and Gennaker(Nylon sails only)
Main traveler electric line feed
Misc Deck Hardware
Composite stanchions
Dynema steel lifelines
Two (2) deck water fillers
Two (2) deck fuel fillers
Two (2) deck waste pump-out
Two foldable electric scooters
Foredeck trampolines in black
Rudder and Steering
Balanced spade twin rudders
Self-aligning bearings
Rope & Chain steering
Emergency tiller
Rig
Standard Modulus Mast clear carbon finish
Standard Modulus Boom with lazy jack stack pack
3 reef
Luff reef padeyes with strop
Dyform rigging including martingale
Profurl manual Headsails furler
Profurl manual flying sail furler
Mast & Boat running rigging
Anchoring
One (1) Lewmar electric windlass V3
32kg Galvanized Anchor
80m 10mm Galvanized chain
Six (6) inflatable fenders (1500 x 450mm) with covers, portable electric pump, and fender lines
Carbon fiber boat hook
Six (6) 18mm mooring lines, cored, spliced, looped, and whipped
Anchor Bridle, 25mm with chain hook
6 x Nomen folding cleats 250mm
Chain counter
Doyle Sails
Performance CruiseTri-Radial Mainsail
Performance CruiseTri-Radial Self Tacking Staysail
Performance Cruise Full Radial Screecher
C-Tech Battens
Anomoly Headboard
Safety Equipment
Crash boxes and watertight bulkheads
Two Escape hatches in inboard hulls under stairs
Two (2) lifejackets
Five (5) fire extinguishers
Additional Specifications
Mast Height: 20.91m above waterline
Standard Power: 2 x 15kw
Headroom Saloon: 2.0m - 2.3m
Headroom Hulls: 2.0m - 2.3m
Certificate: CE-Category A-Ocean
Mechanical Disclaimer
Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
Contact
For more information about this yacht, please contact Andrew Troyer We look forward to working with you!
For more information about this yacht, please contact Andrew Troyer. We look forward to working with you!
For more information about this yacht, please contact Andrew Troyer.
Andrew Troyer
President / Yacht Broker
1279 W Palmetto Pk Rd
PO Box 273873
Boca Raton FL 33427 USA
