Overview

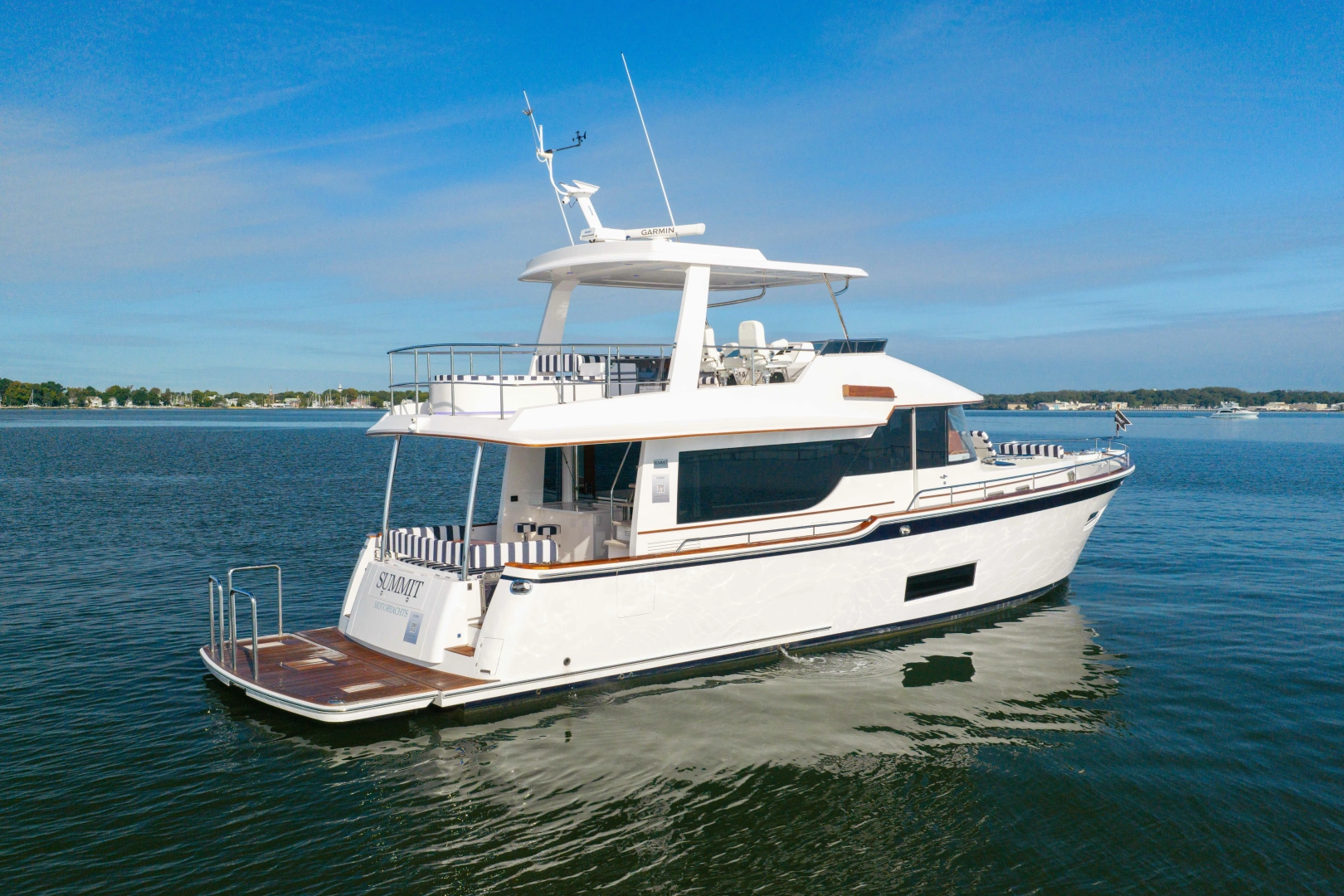

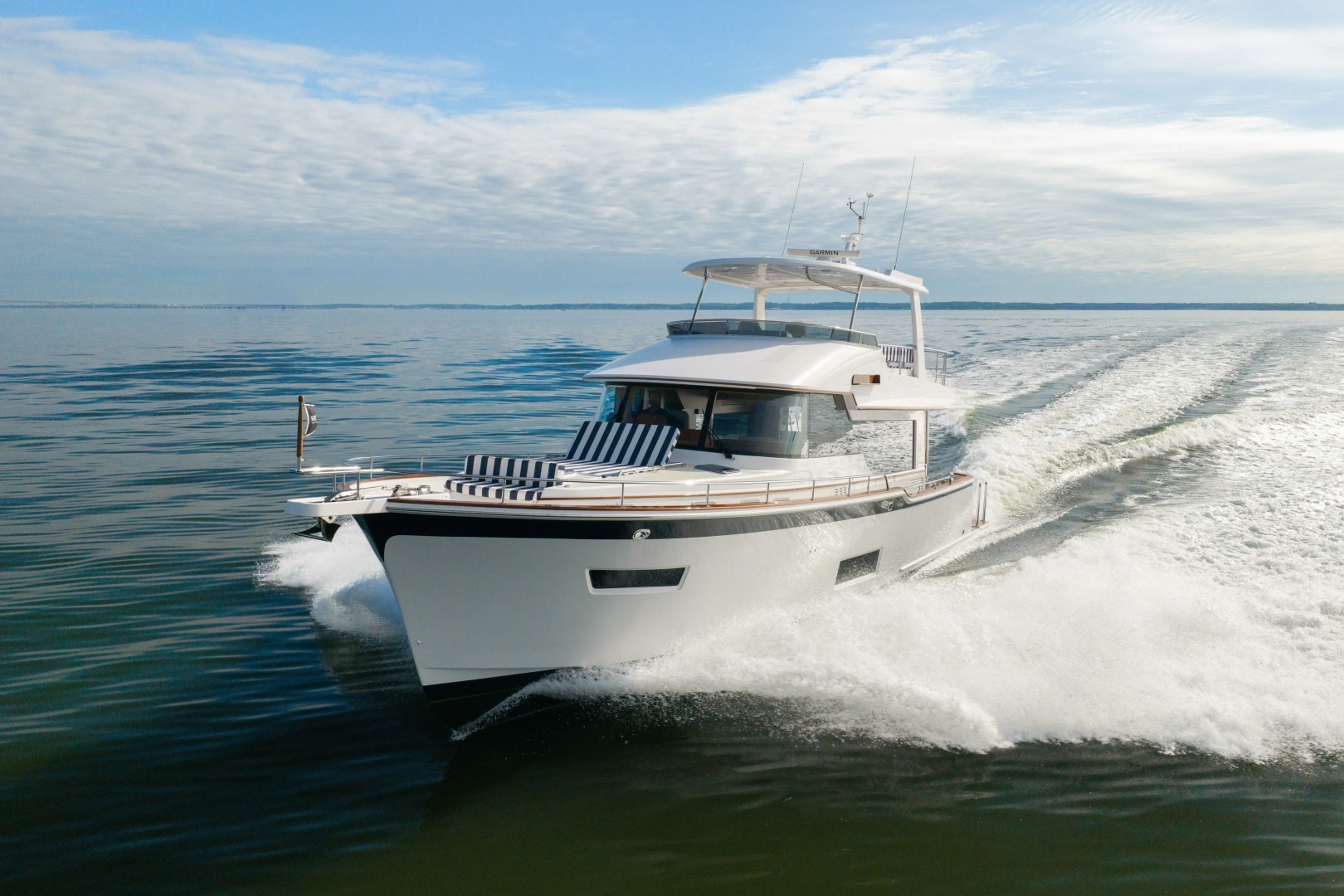

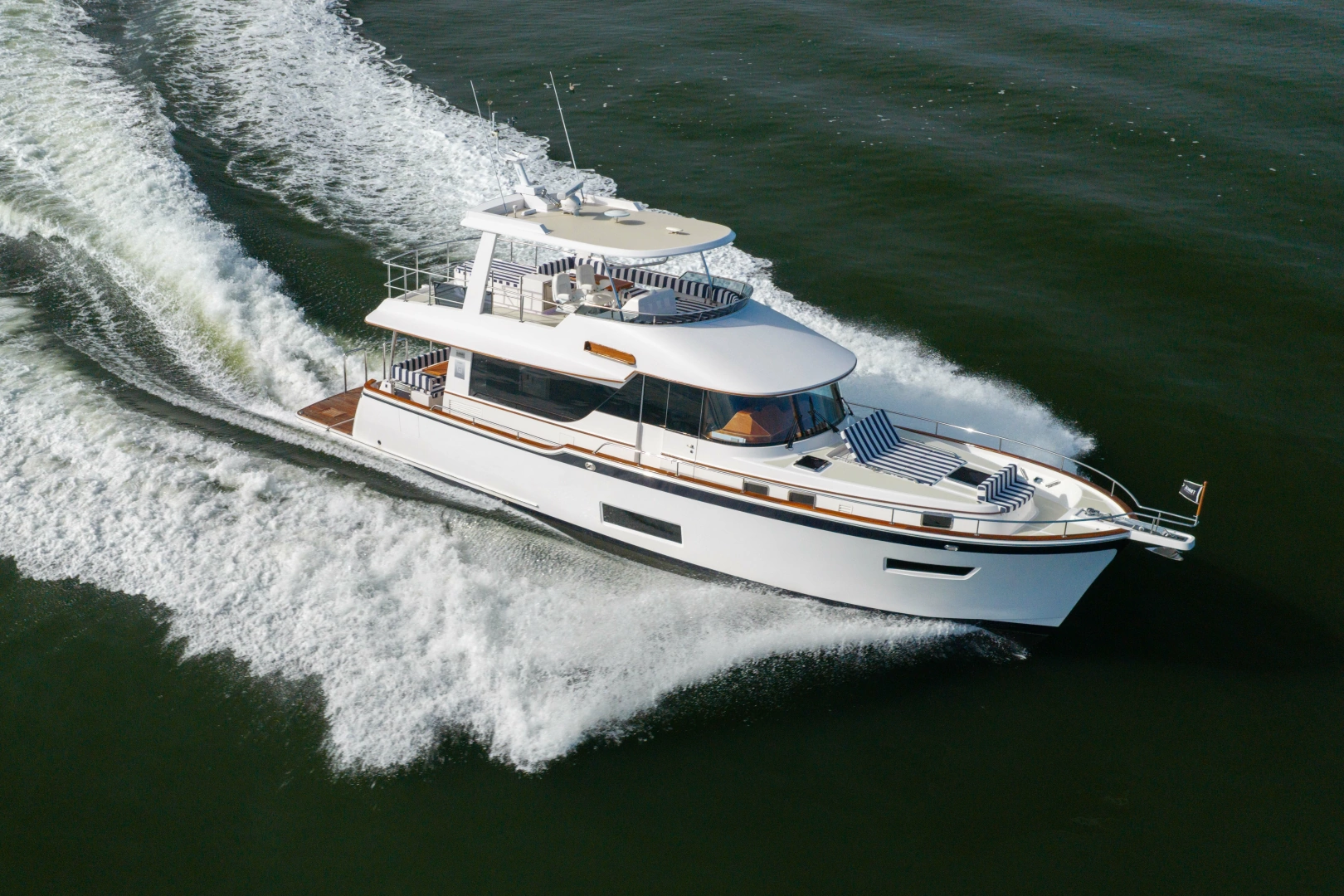

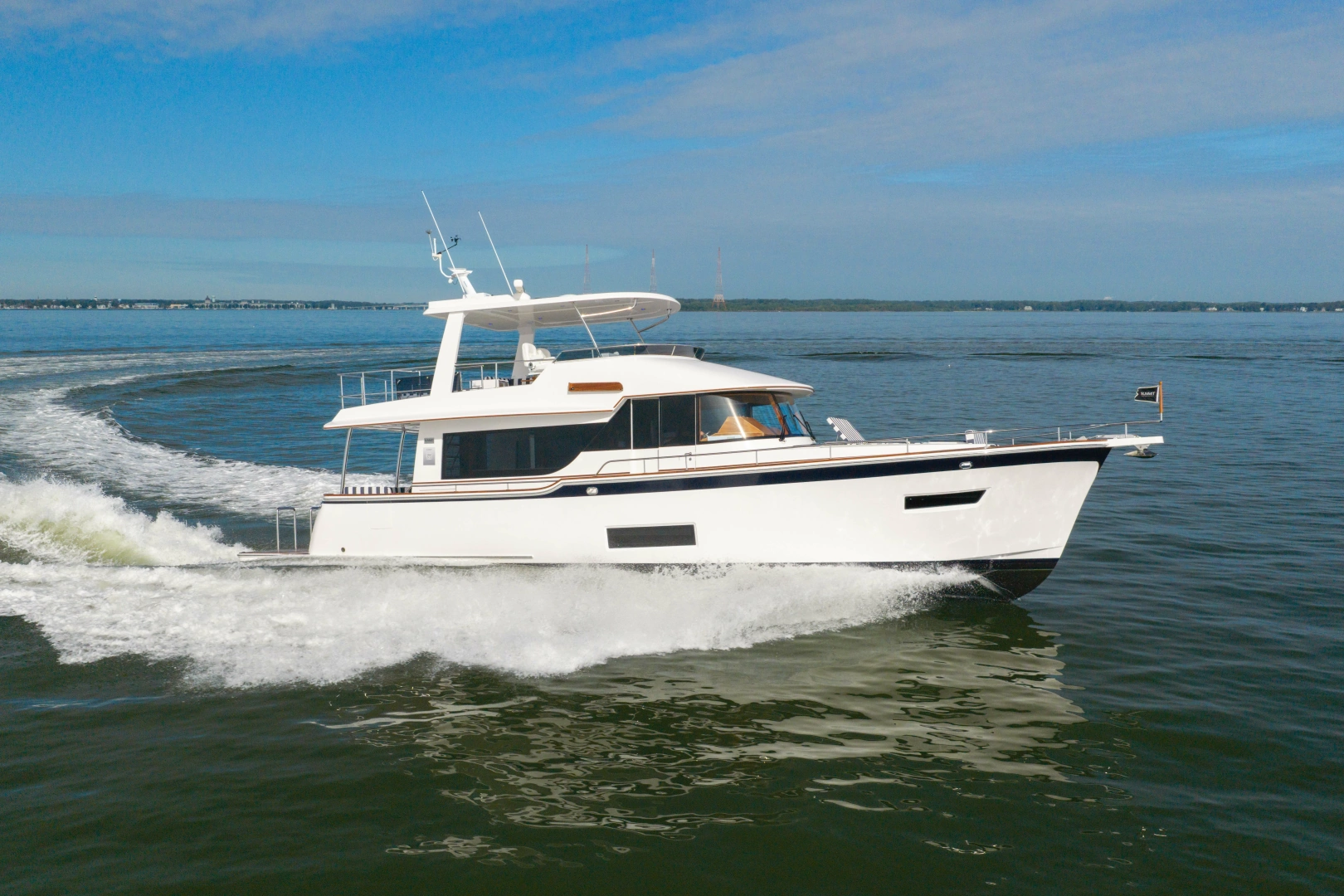

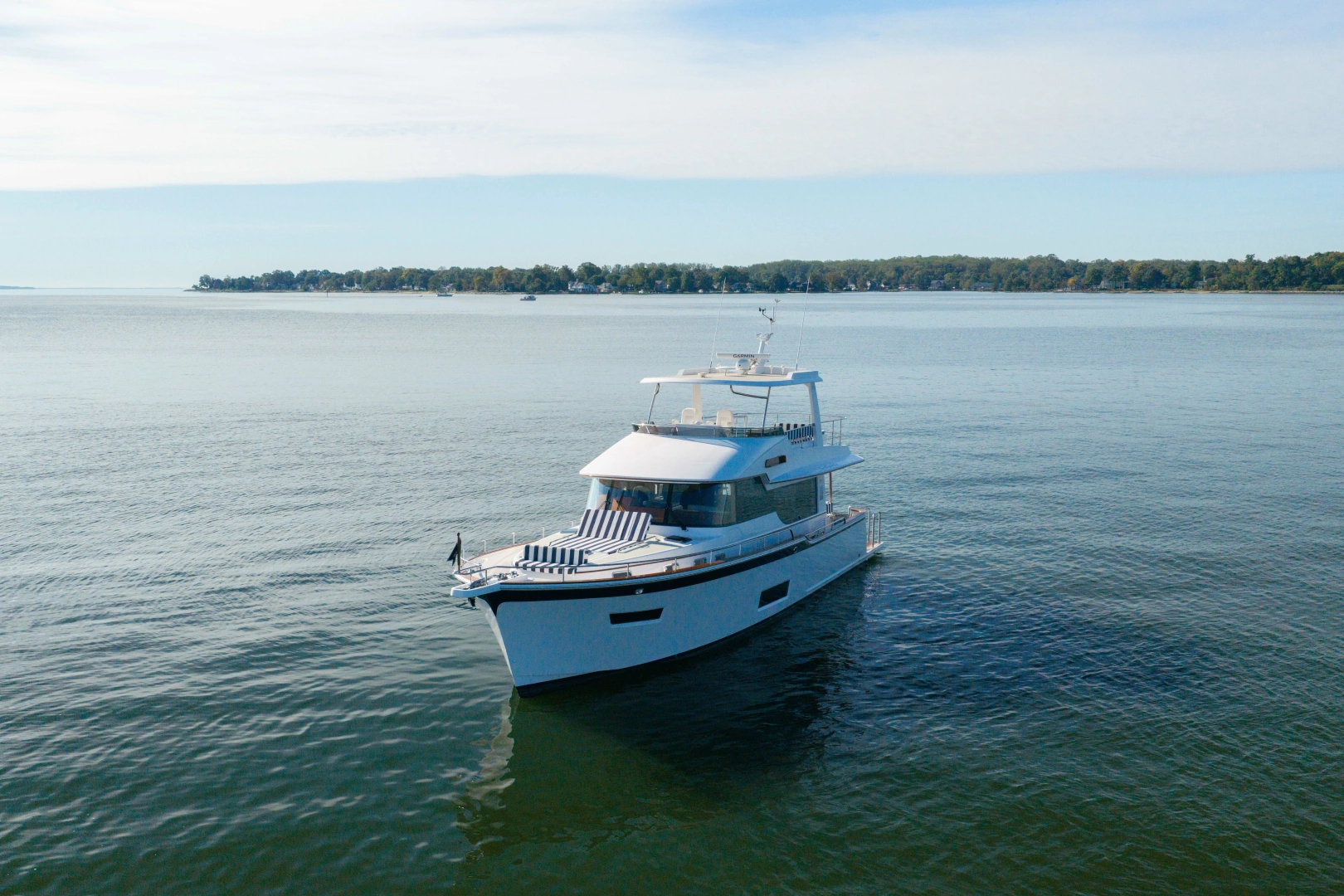

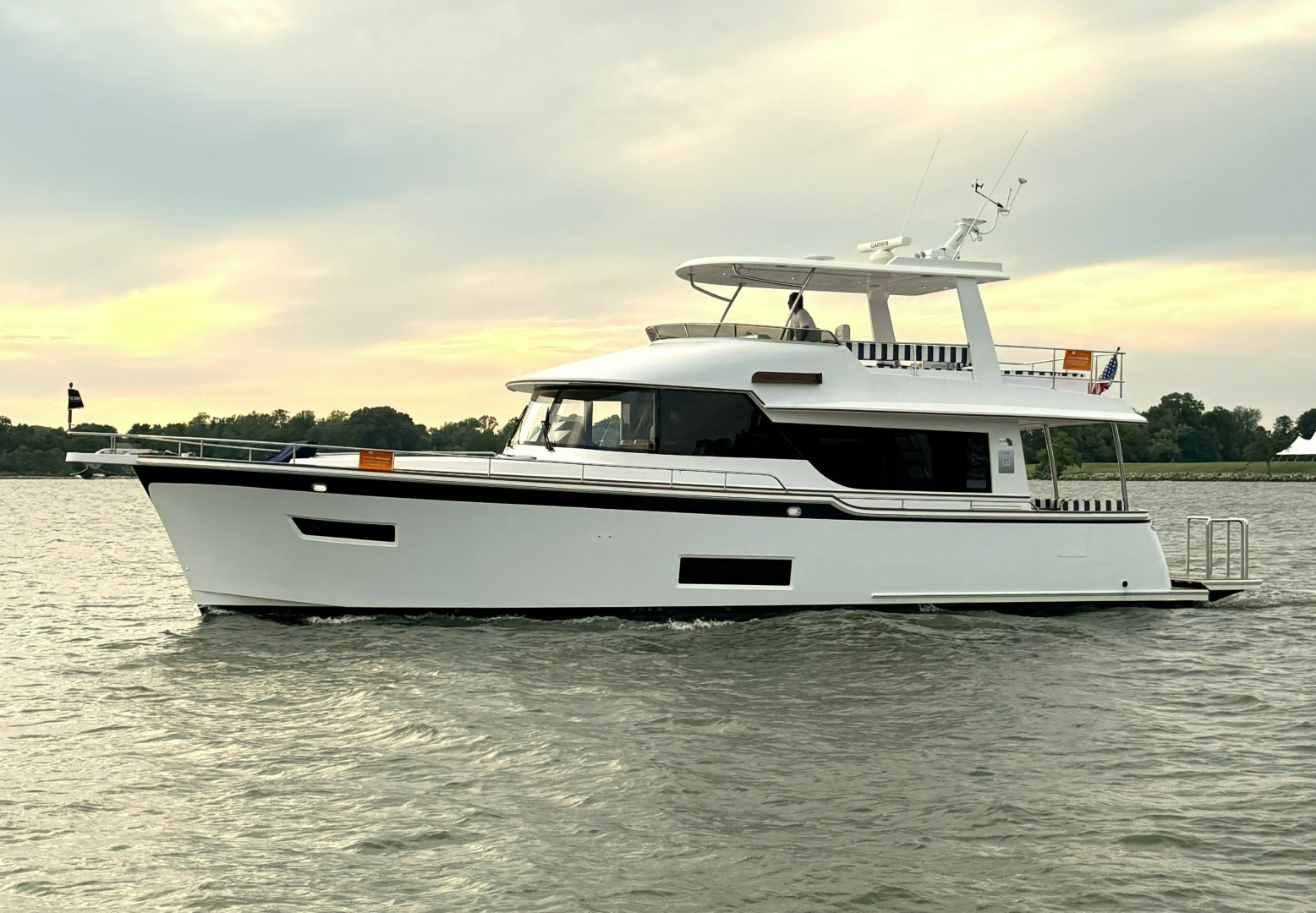

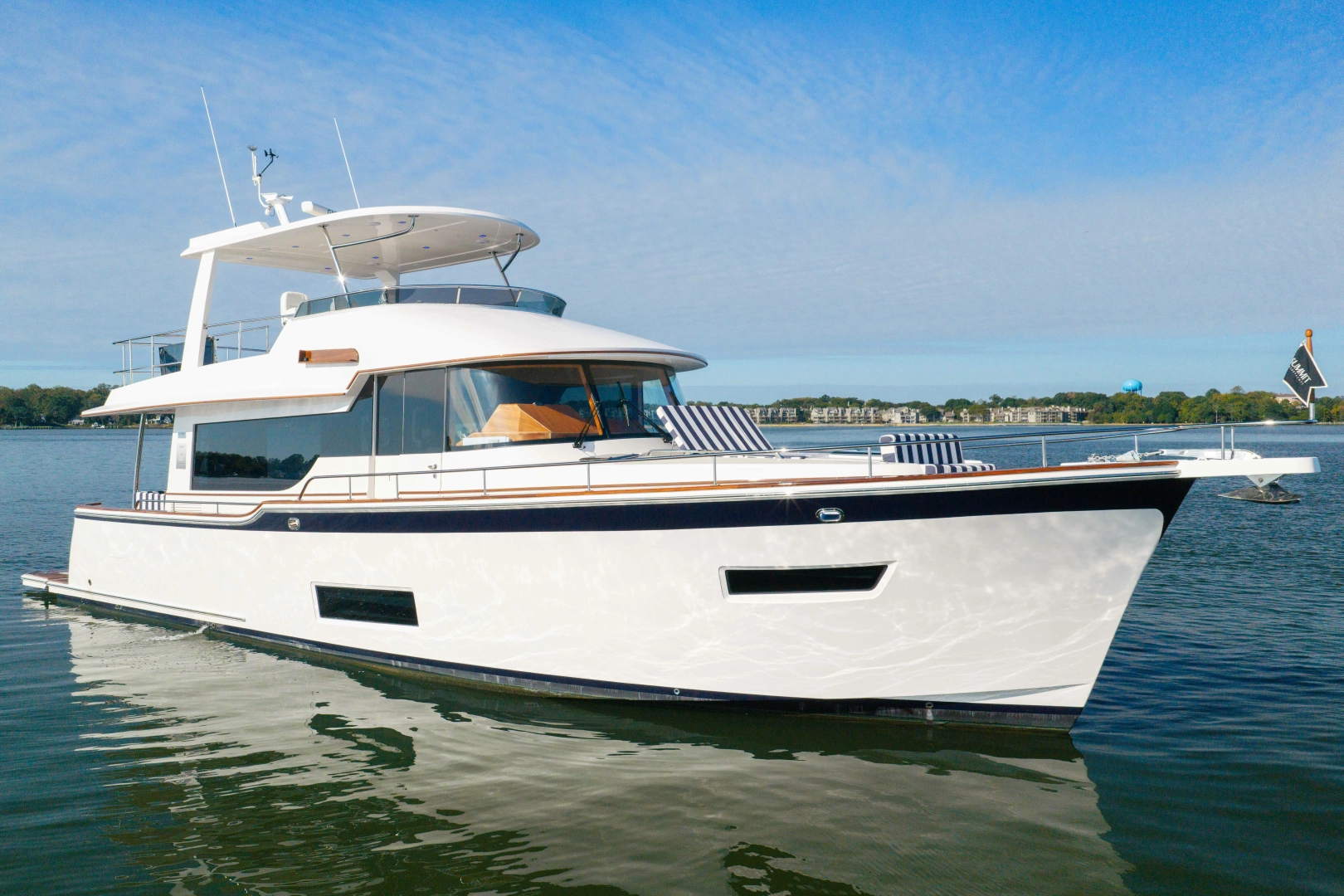

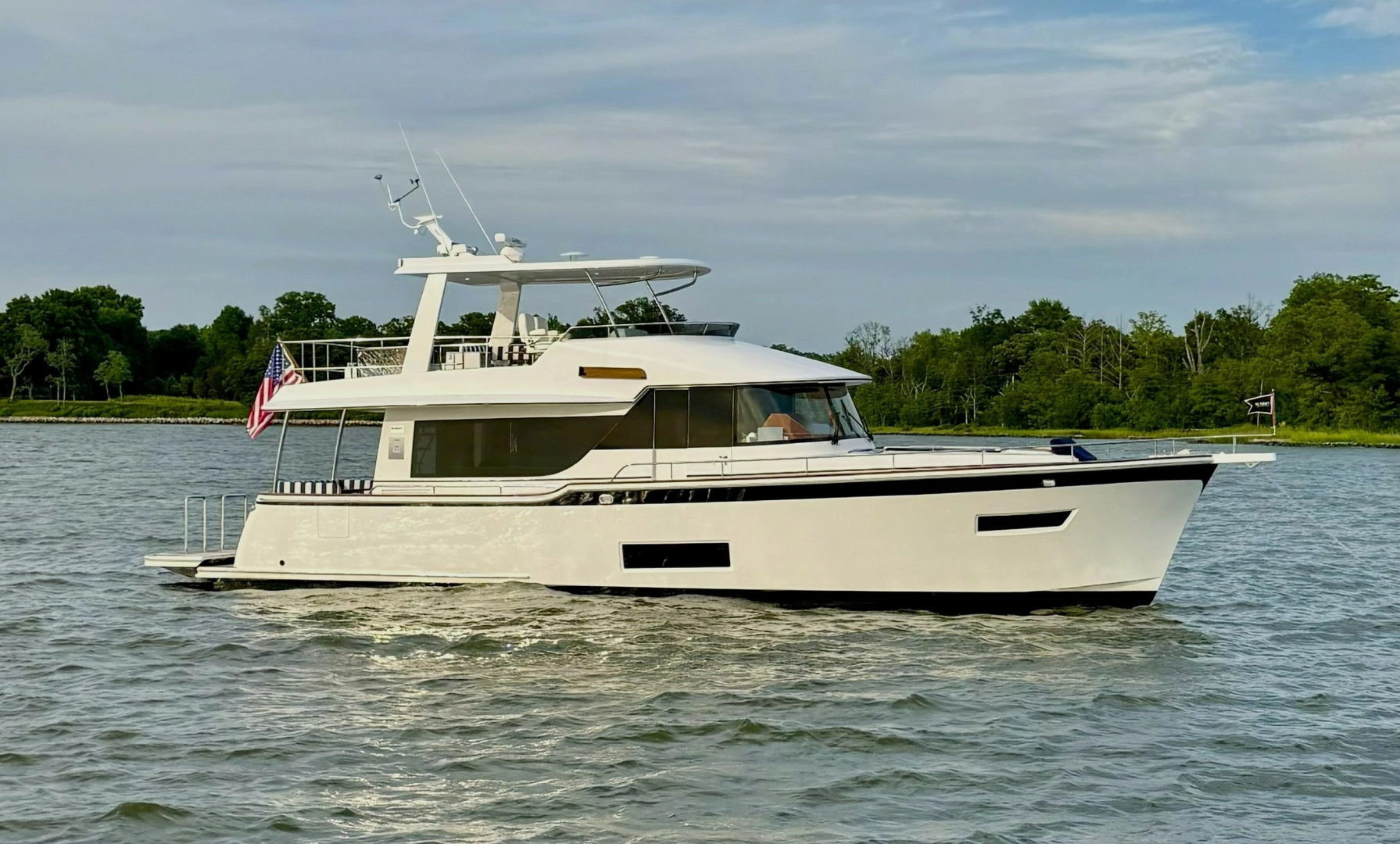

The Summit 54 Flybridge was designed for the whole family to enjoy the Open Air and the Sea! The one level from the large aft cockpit into is completely open with the Galley and Saloon so that everyone feels together instead of broken up in groups by the obstacles of the ship. Large, wide side decks lead to a sunlounge and bench seating on the bow for at least 6 and then up the stairs to the flybridge deck which is also all on one level with sun lounges forward and aft and an L shaped settee for 6-8.

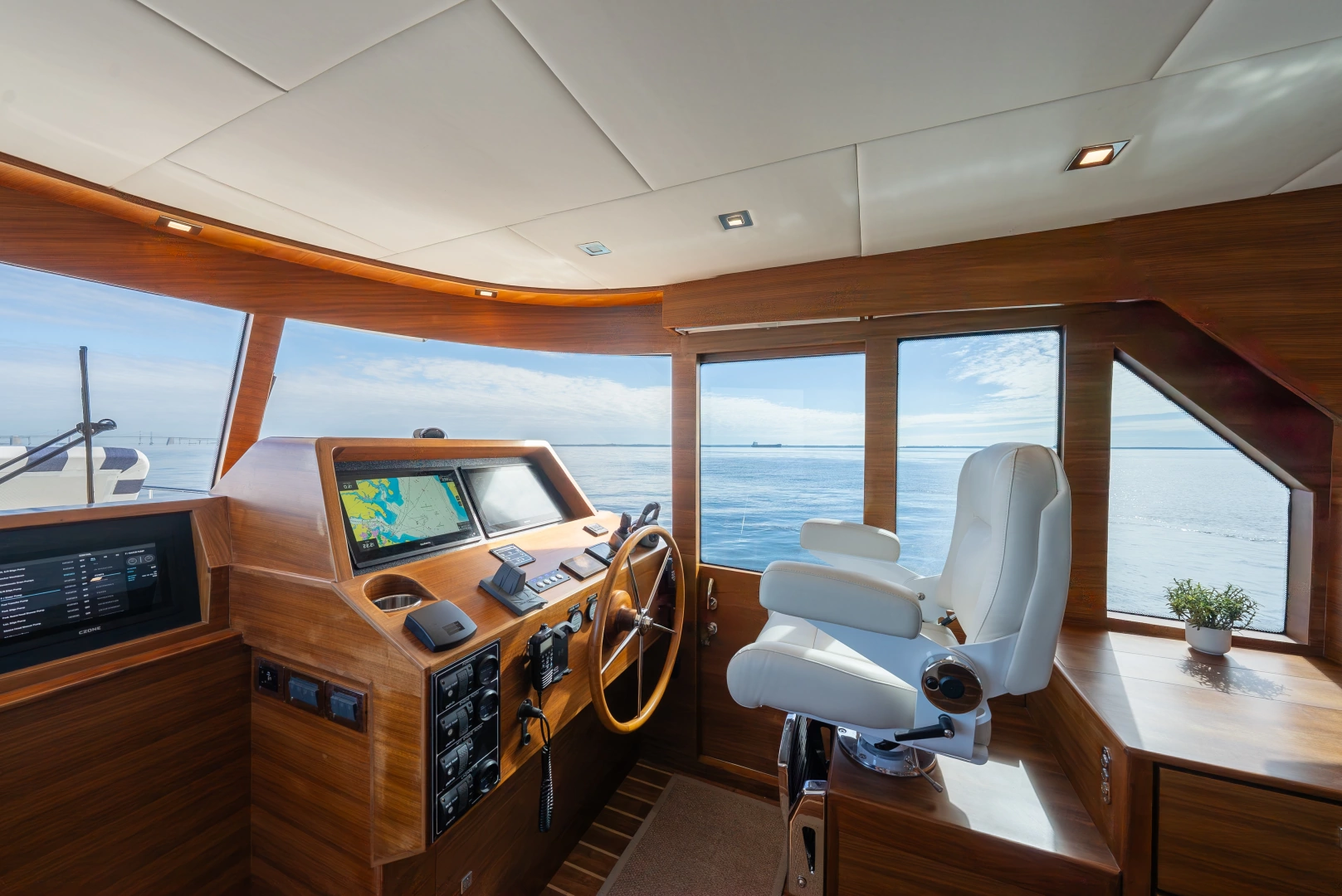

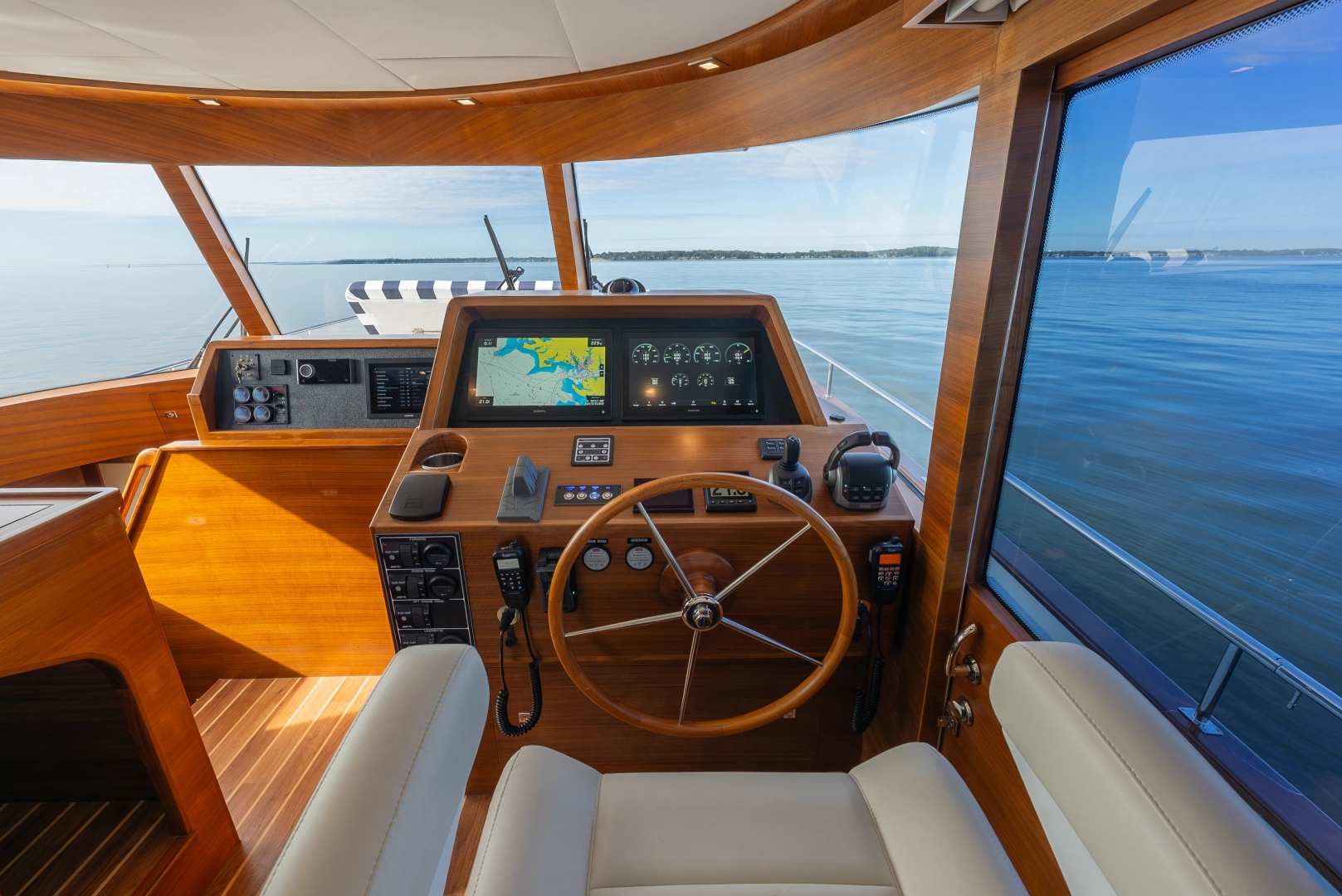

The large helm allows the captain full views and instrumentation without being isolated from the guests.

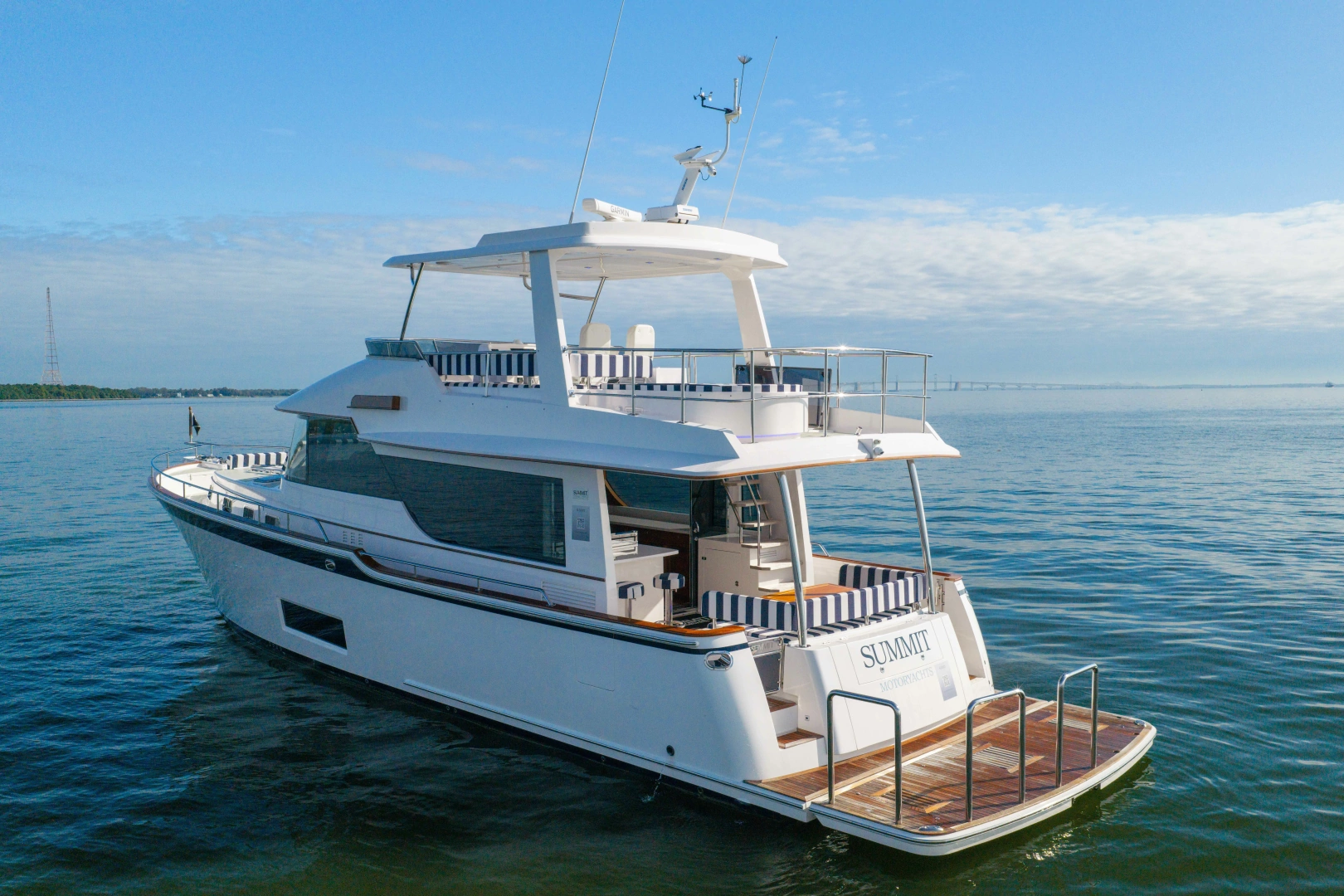

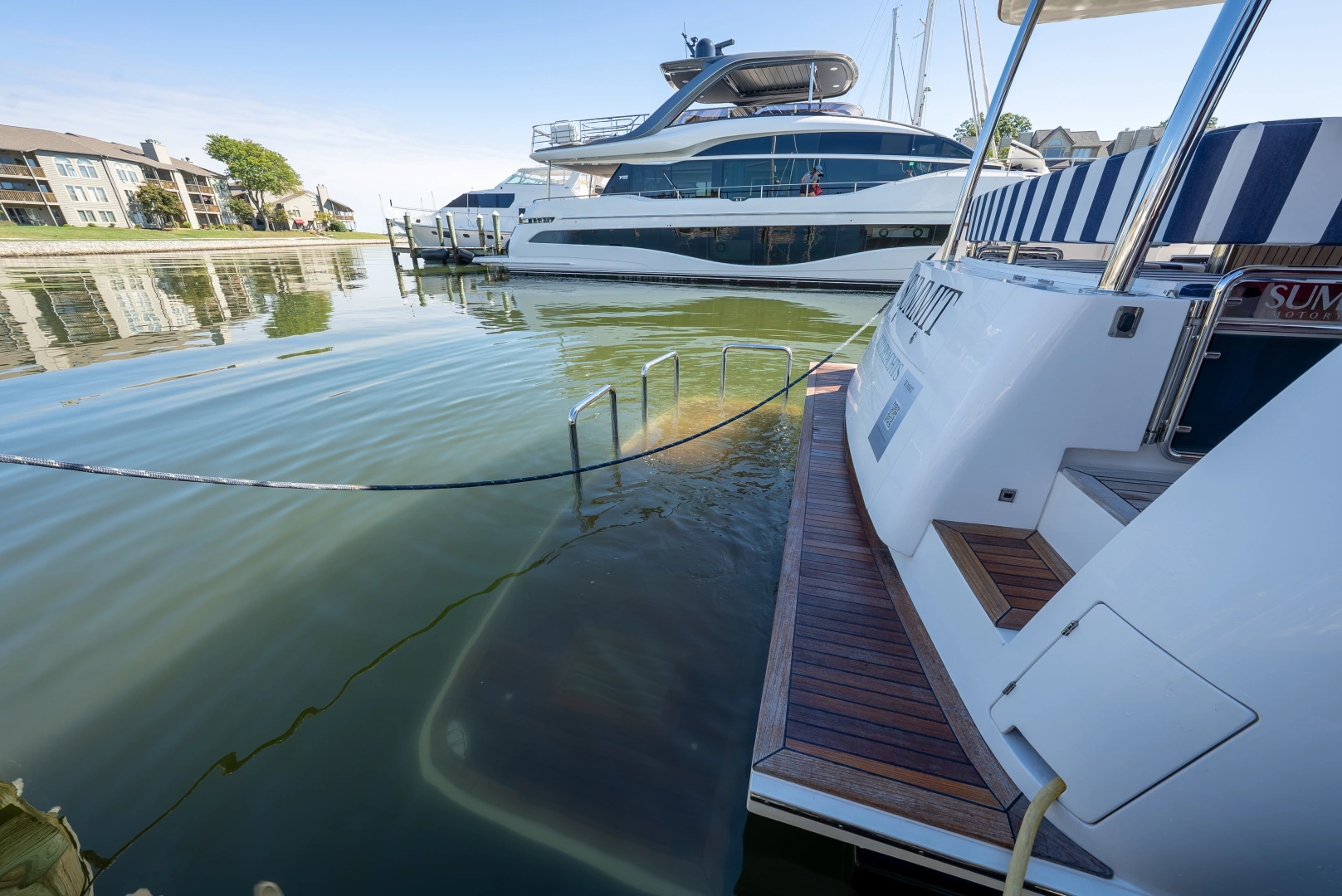

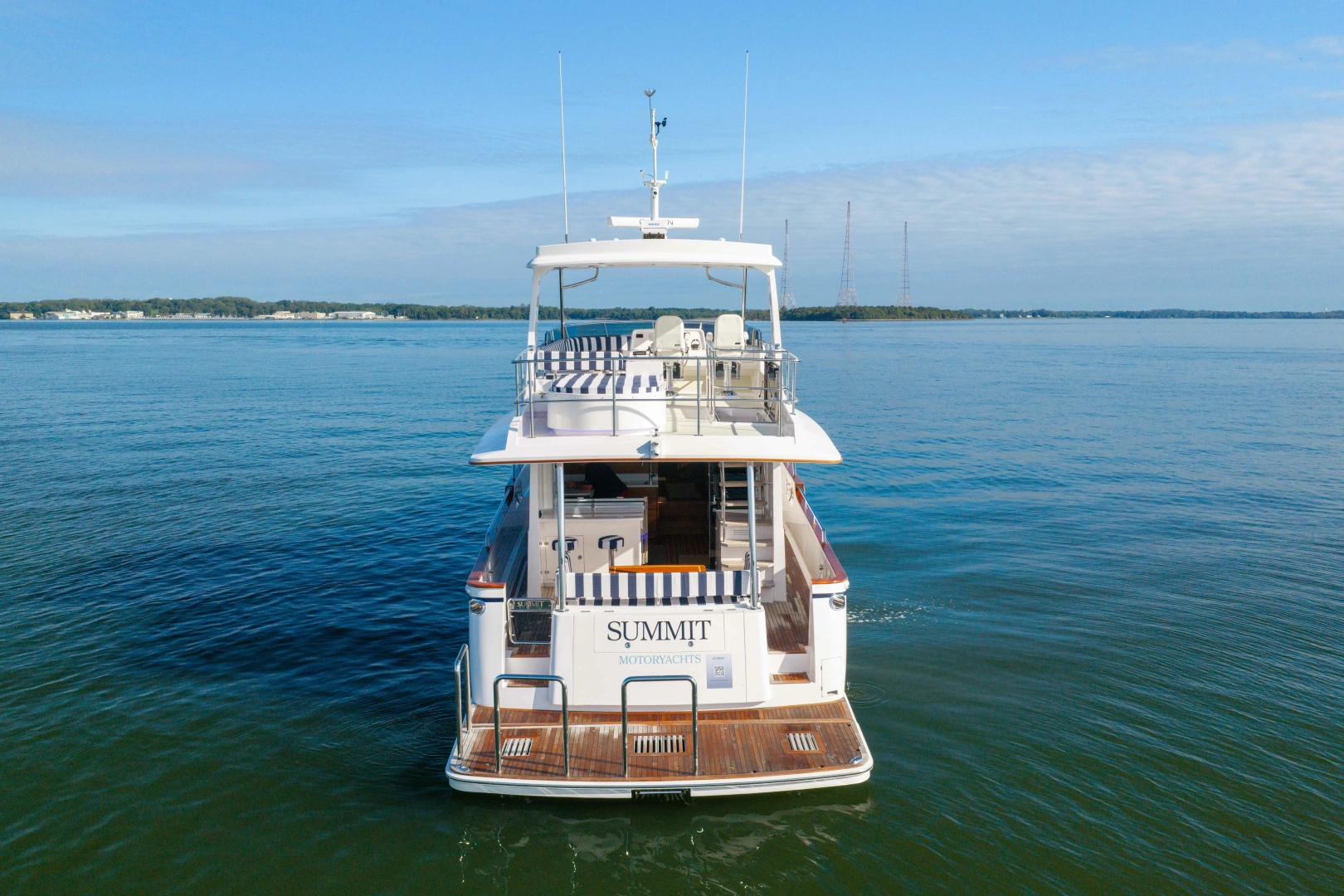

Aft, the oversized, hydraulic swim platform will lift and launch your tender, Jet-ski or Grandkids and dogs with ease! This is the ultimate family and friends design that lives like a motoryacht and runs like a sportfish!

General

• Overhead Lighting: i2 Systems® LED with Vimar switches
• Courtesy Foot Lighting: Quick® LED
• Wall and Reading Light Fixtures: Quick® LED
• Amtico® luxury marine flooring throughout yacht
• Four Zone Air Conditioning

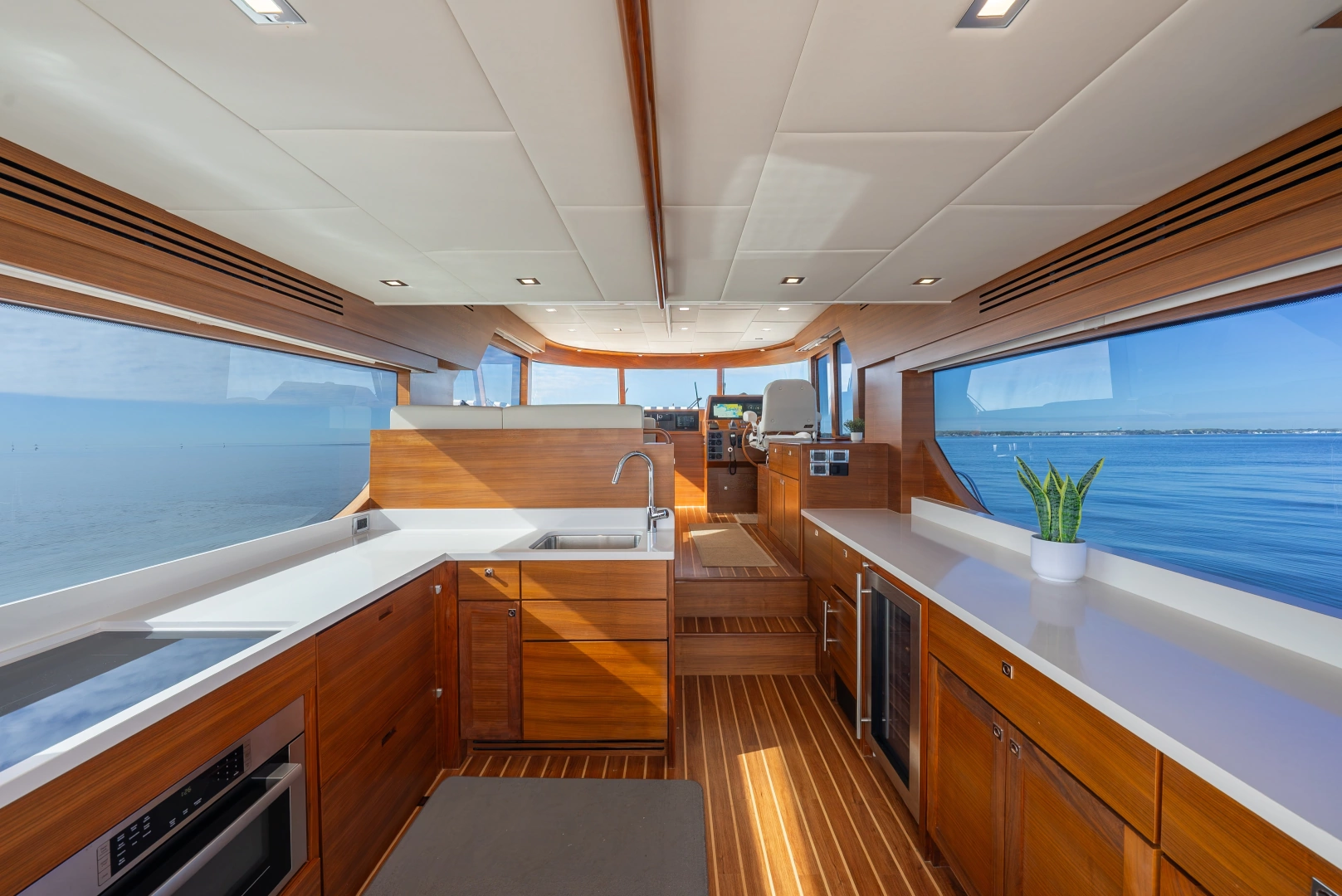

Galley Lounge

• Settee to starboard with storage below
• Settee Cushions: Ultraleather®, KKG standard selections
• Teak table, fold-out top with high/low base
• Countertops: Silestone® ZEUS.
• Galley Sink: Elkay®, stainless steel
• Grohe® faucet
• Galley Appliances, Walnut Finish
• Refrigerator/Freezer: 2 x Isotherm® with double drawers
• Convection Microwave/Oven: Miele®
• Cooktop: Miele®
• Icemaker: Uline®
• Dishwasher: Fisher & Paykal®

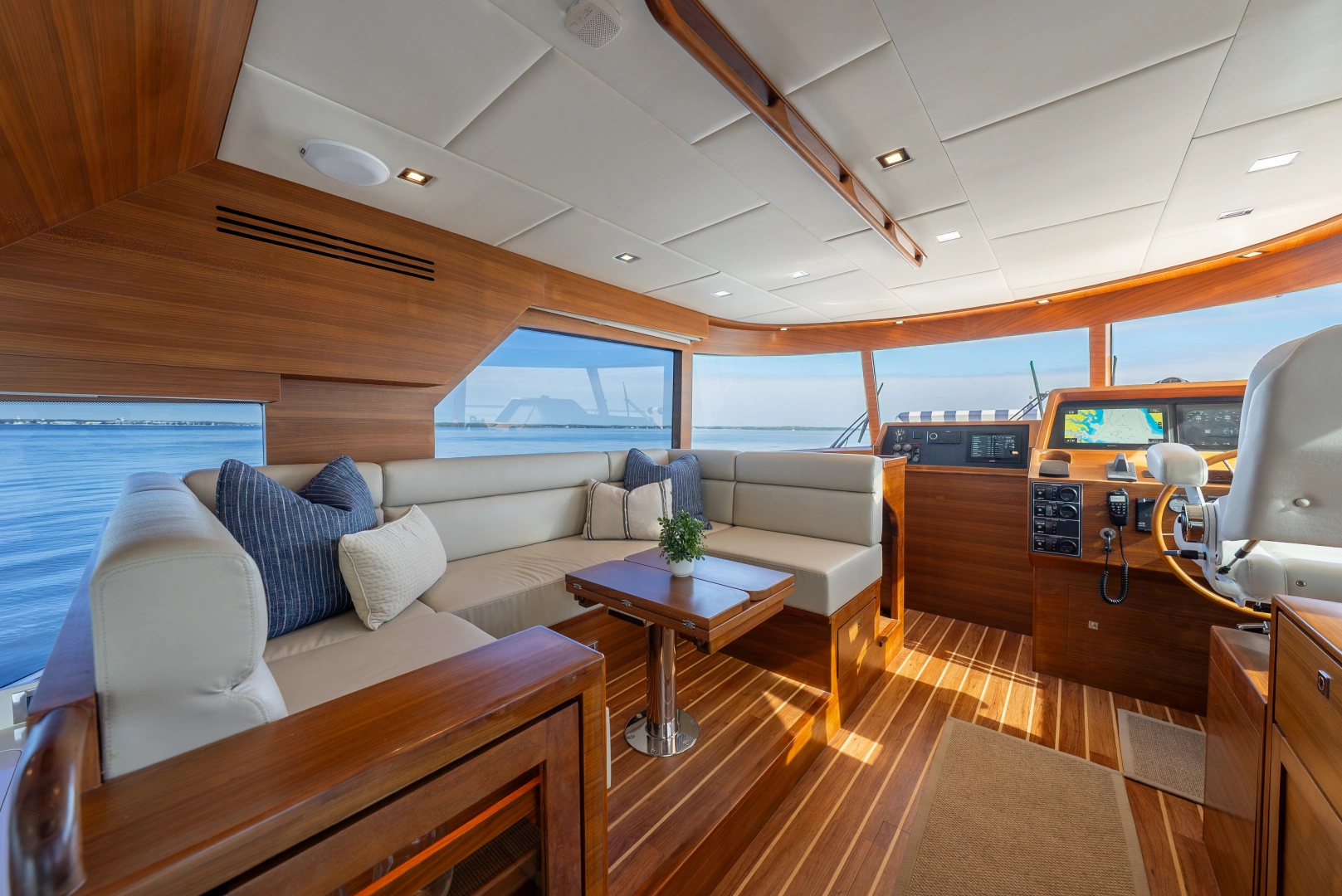

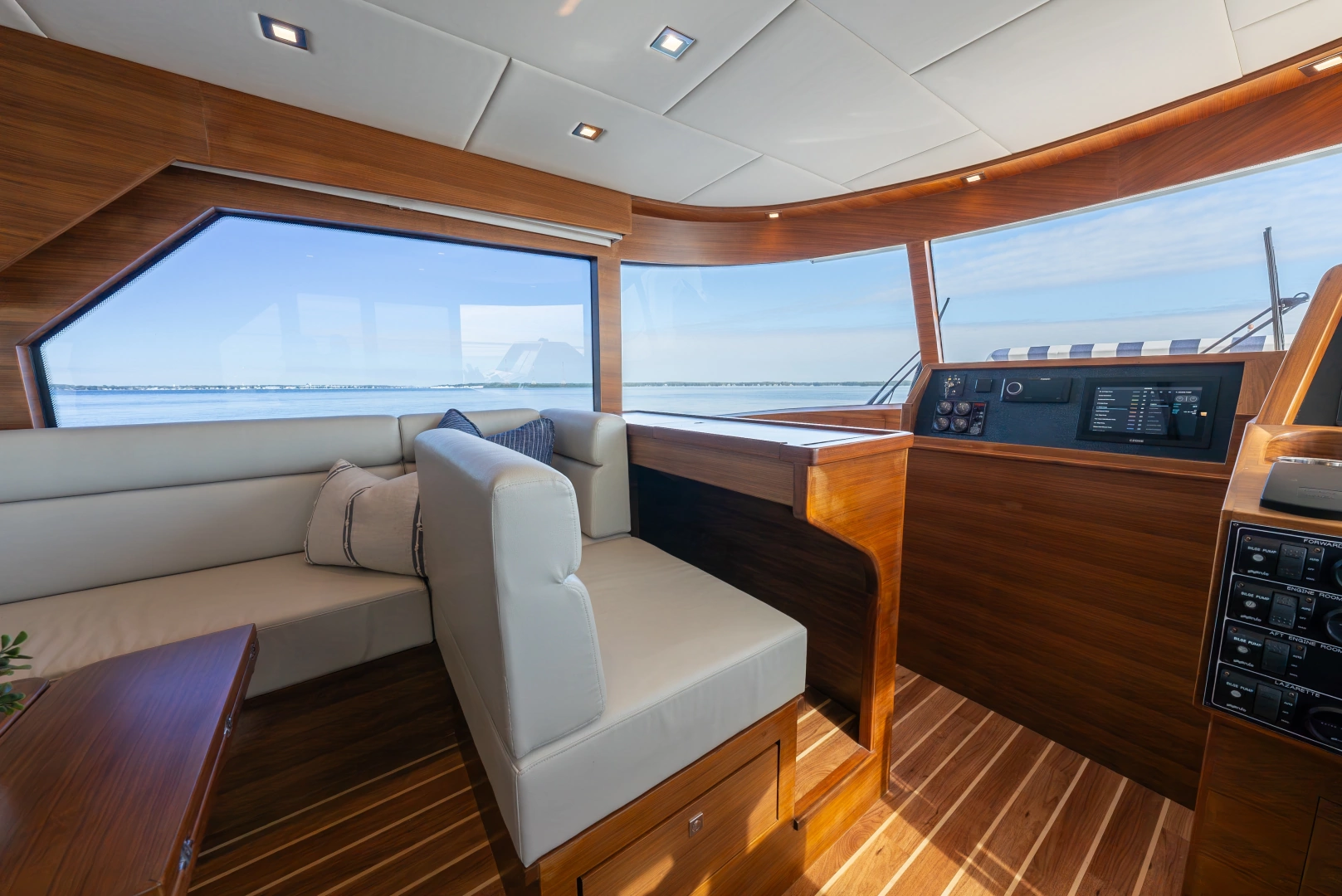

Helm Deck

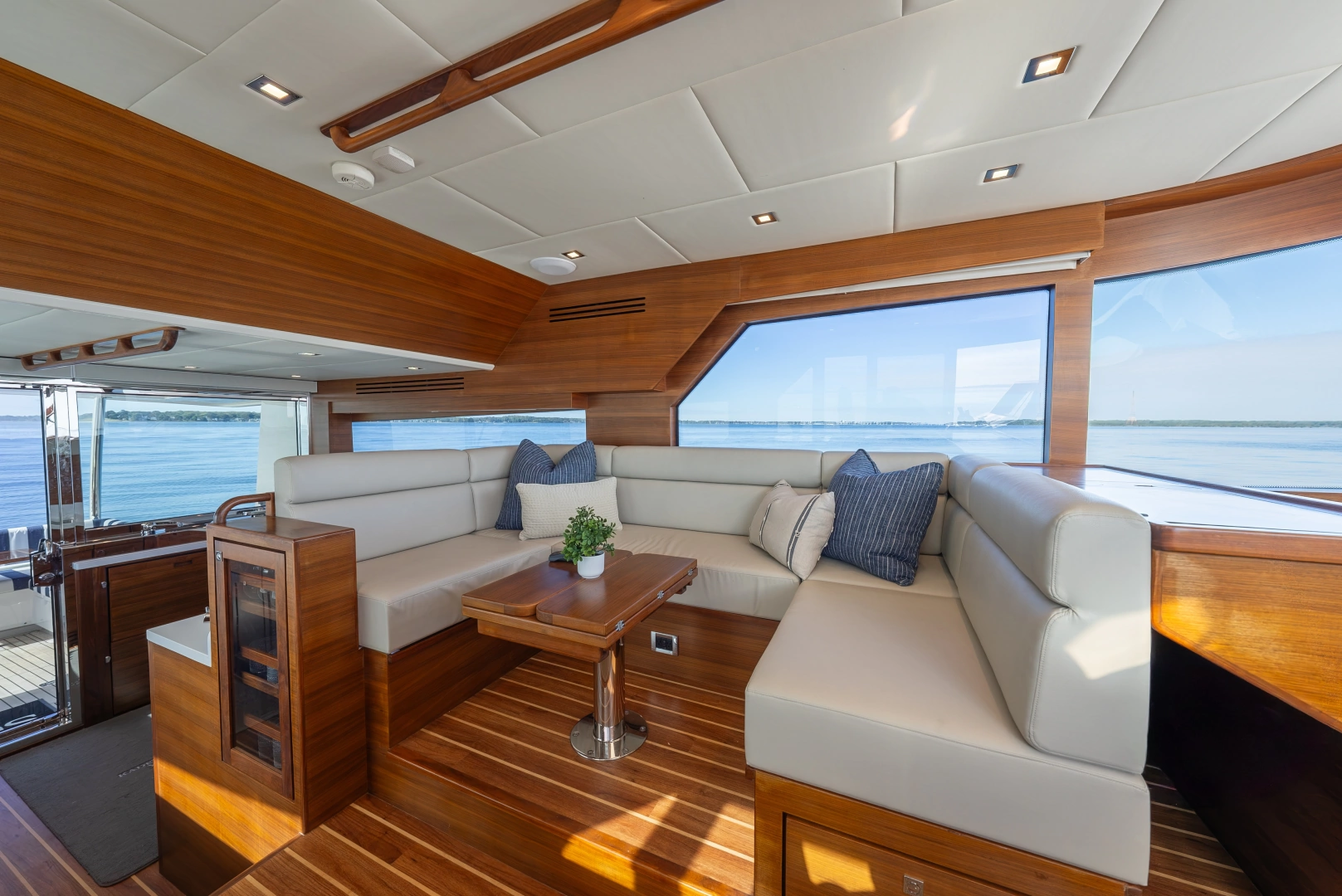

• U-shape settee to port with storage below
• Settee Cushions: Ultraleather® KKG standard selections
• Teak table, fold-out top with high/low base
• Countertops: Silestone® ZEUS

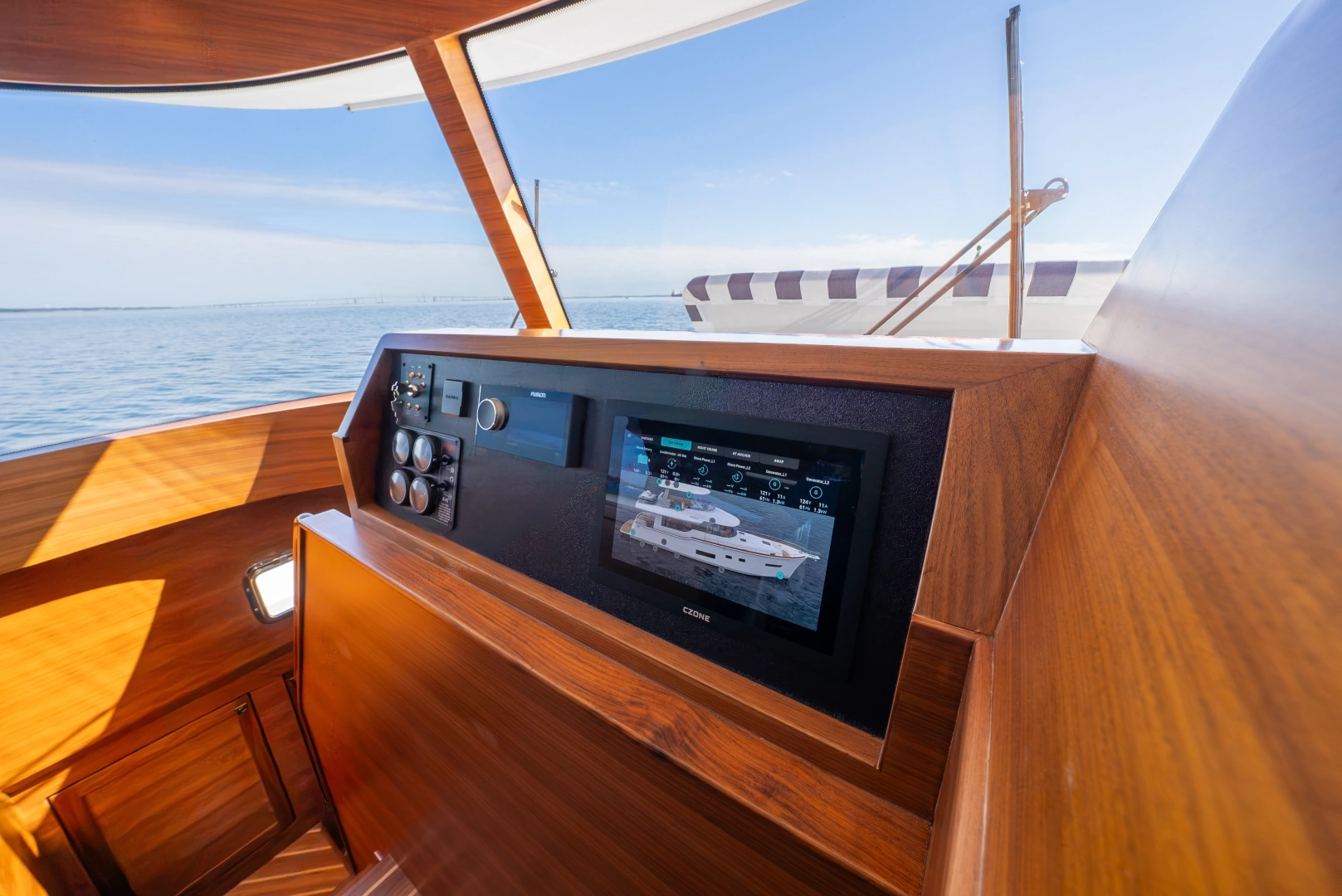

• Electronics Console: Walnut
• Helm door to starboard
• Helm Seat: Stidd®
• Windshield Wipers with Washers: 3 x Imtra®

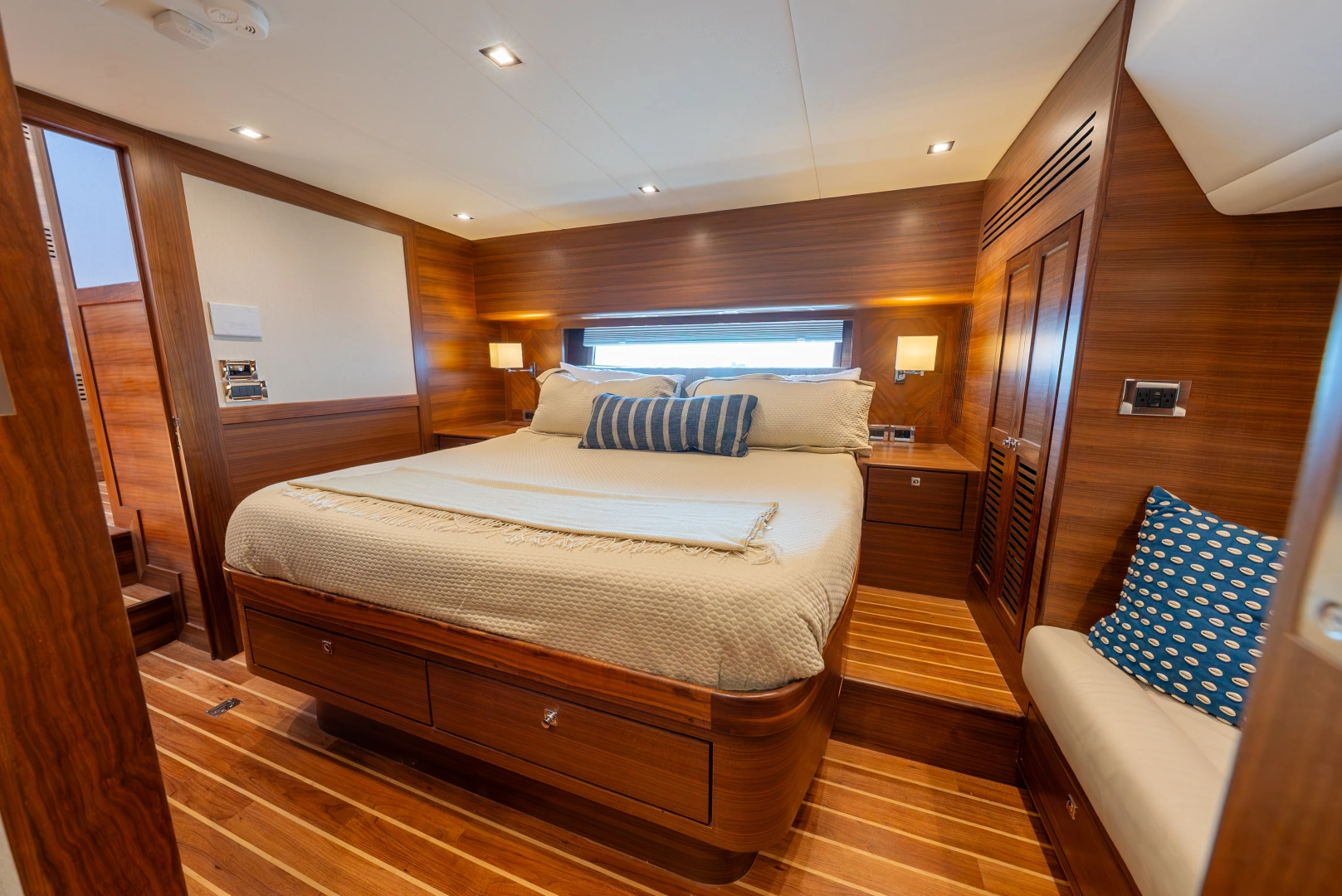

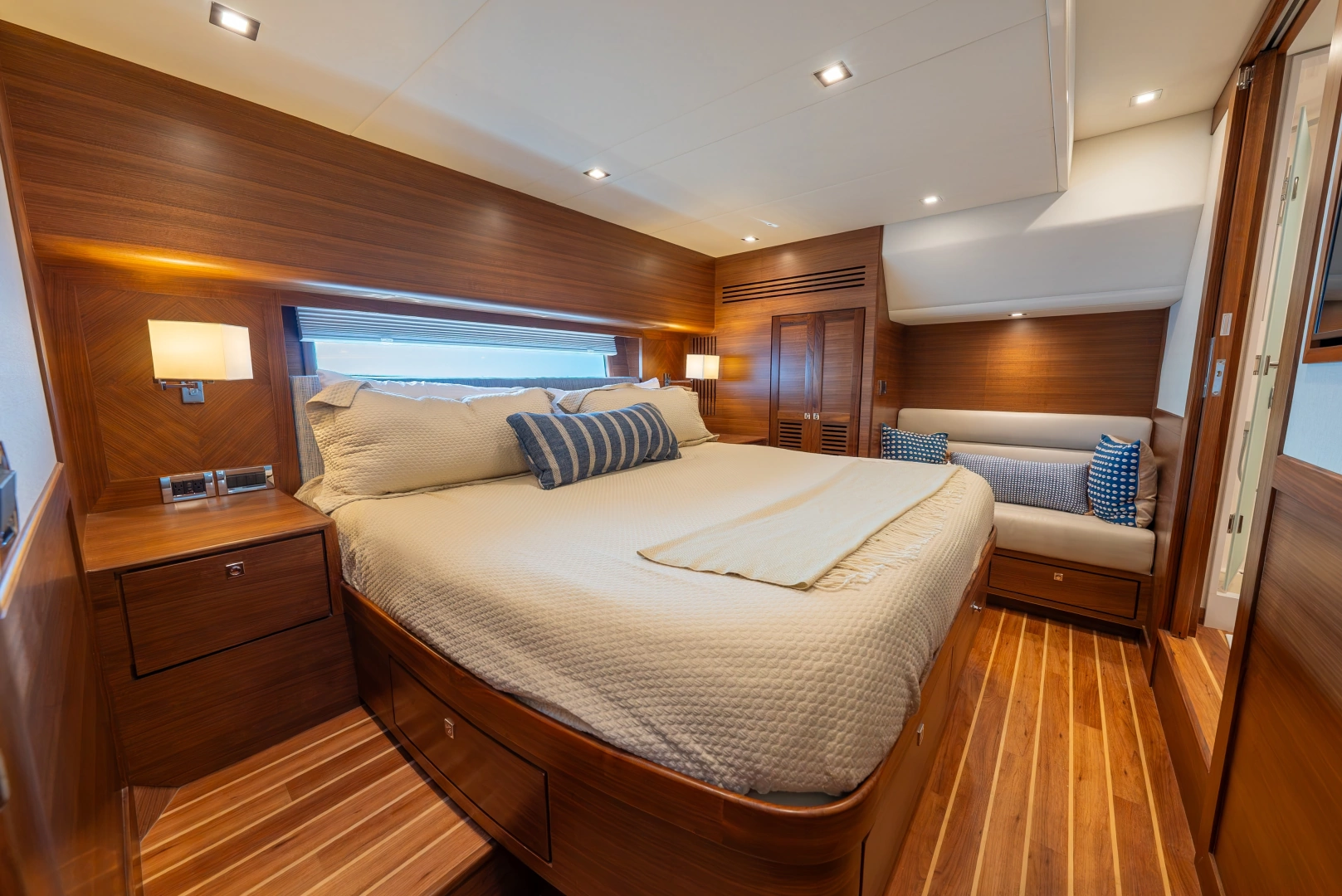

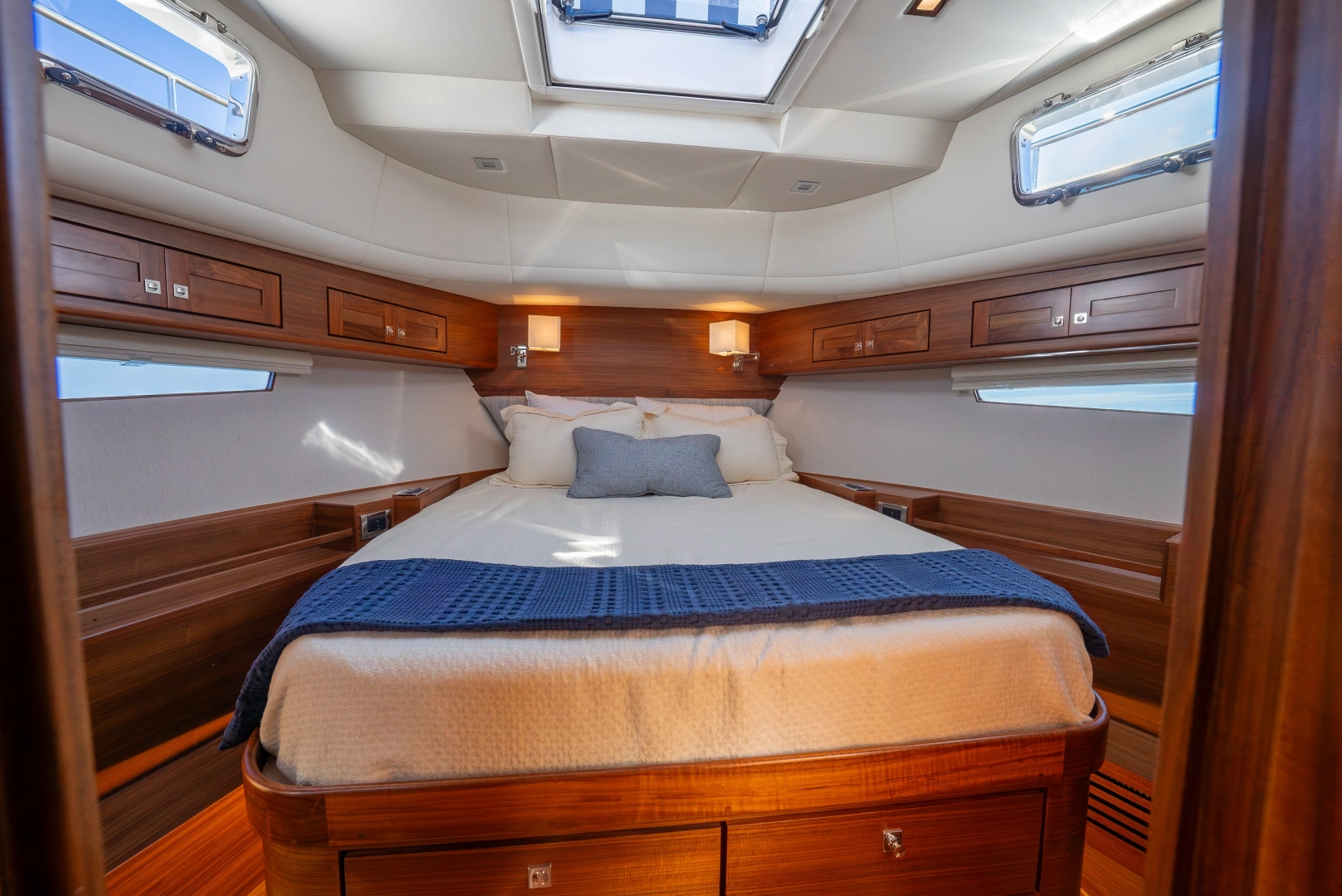

Owner Stateroom

• Vanity/desk with mirror and LED fixtures
• King berth with drawer storage below
• Hanging locker
• Overhead Lighting: Dimmable LED with Vimar® switches
• Wall Lighting: 2 x Quick® with shades

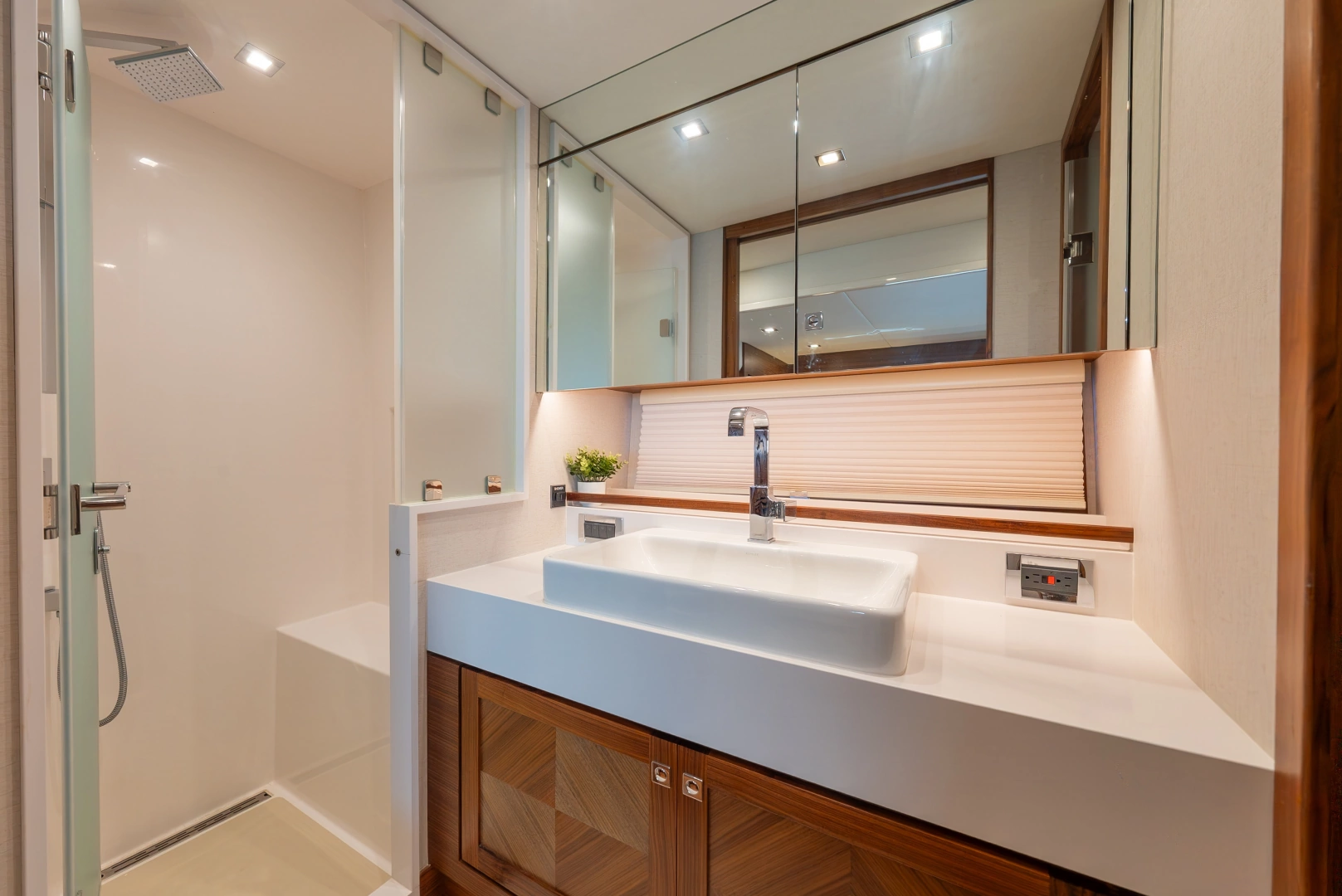

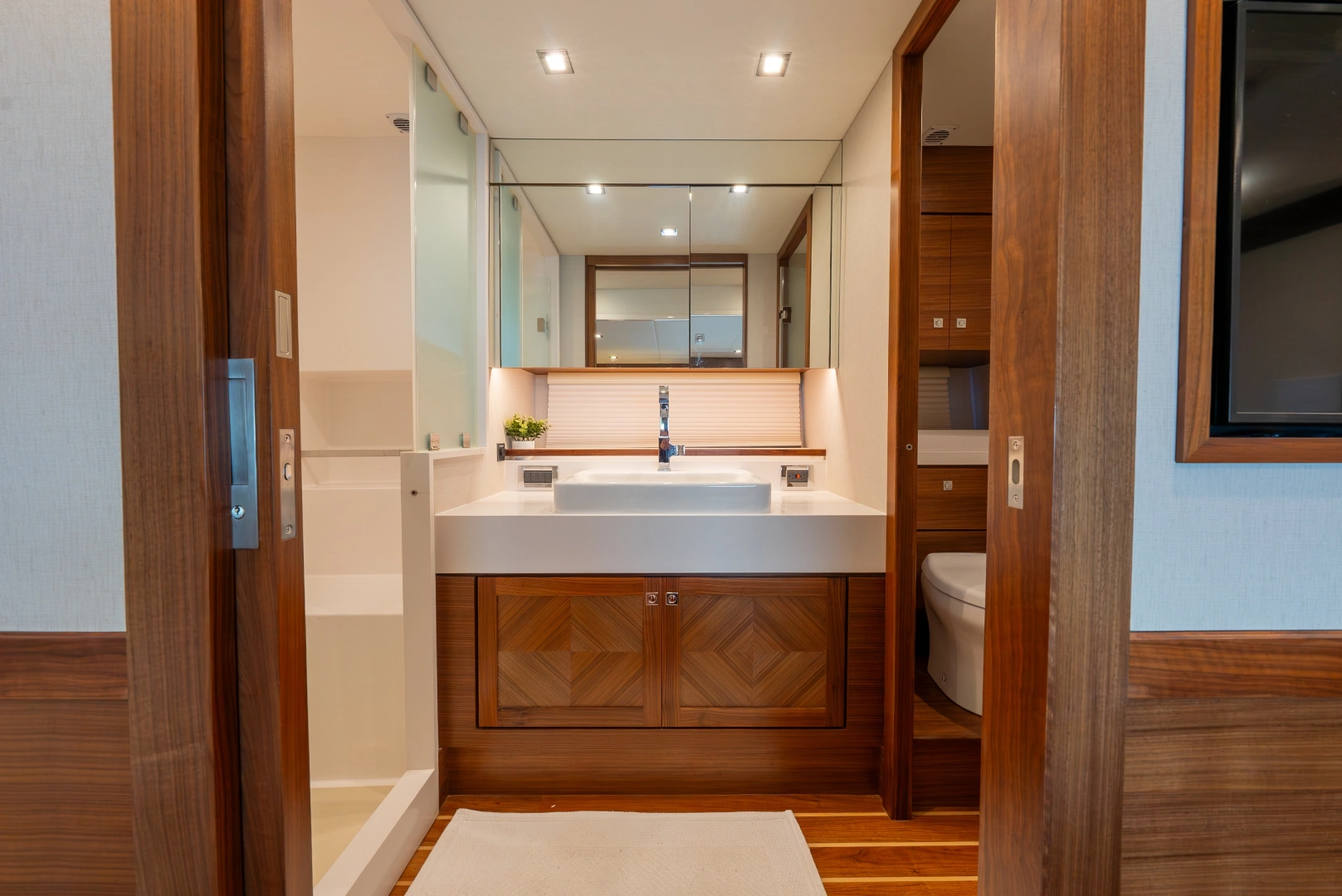

Owner Head

• Toilet: Dometic® Master Flush with status panel
• Shower: Molded fiberglass with tempered glass door
• Counter Tops: Silestone® ZEUS
• Sink: Kohler®
• Ventilation fan
• Fixtures: Grohe®
• Vanity with mirror and LED lighting
• Overhead Lighting: LED with Vimar® switches

VIP Stateroom

• Queen berth with storage below
• Hanging locker
• Pneumatic lift struts on bed to access additional storage
• Overhead Lighting: Dimmable LED with Vimar® switches
• Reading Lights: Quick® LED

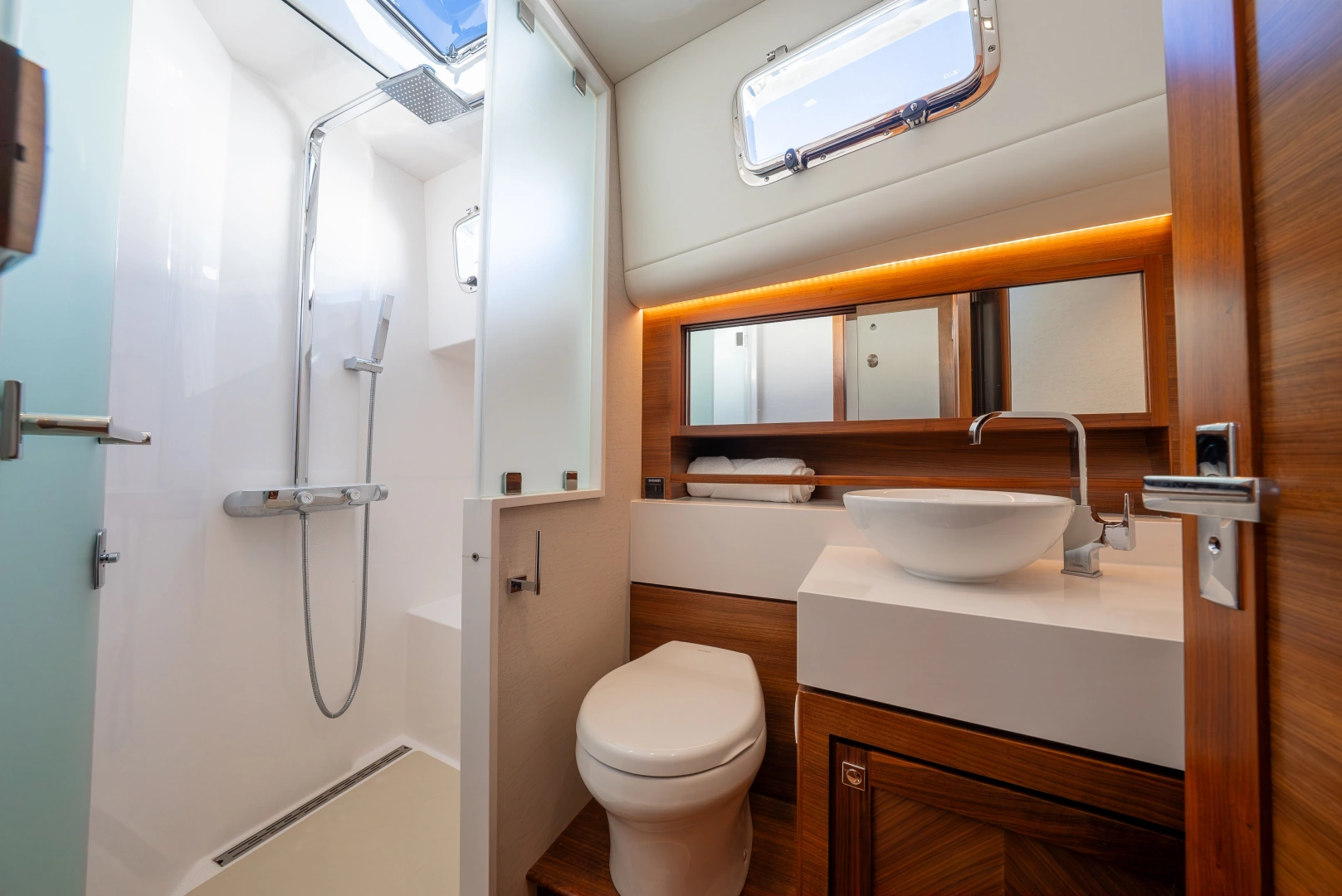

Guest Head (Ensuite Access to VIP)

• Toilet: Dometic® Master Flush with status panel
• Shower: Molded fiberglass with tempered glass door
• Counter Tops: Silestone® ZEUS
• Sink: Vessel Style
• Ventilation fan
• Fixtures: Grohe®
• Vanity with mirror and LED lighting
• Overhead Lighting: LED with Vimar® switches

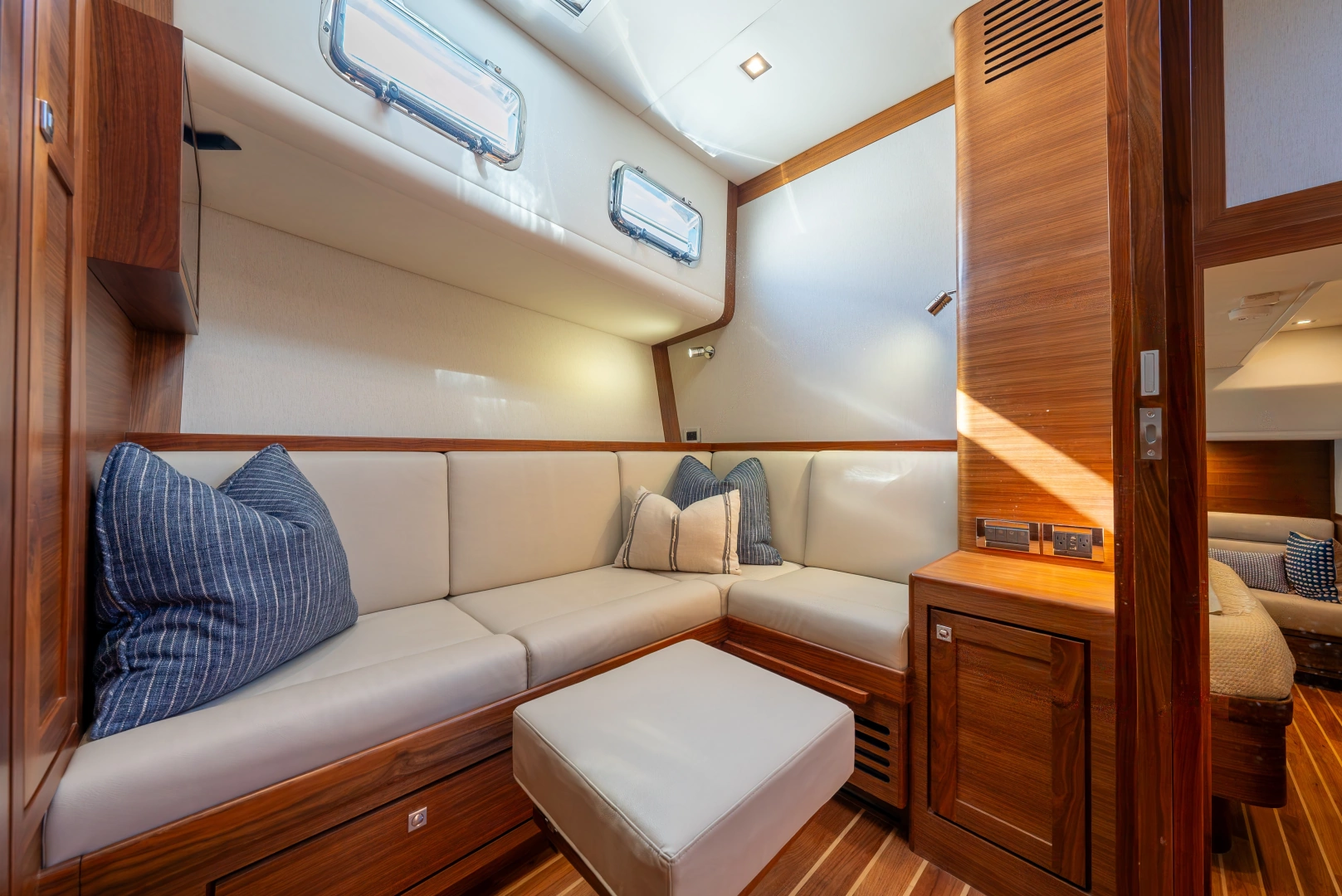

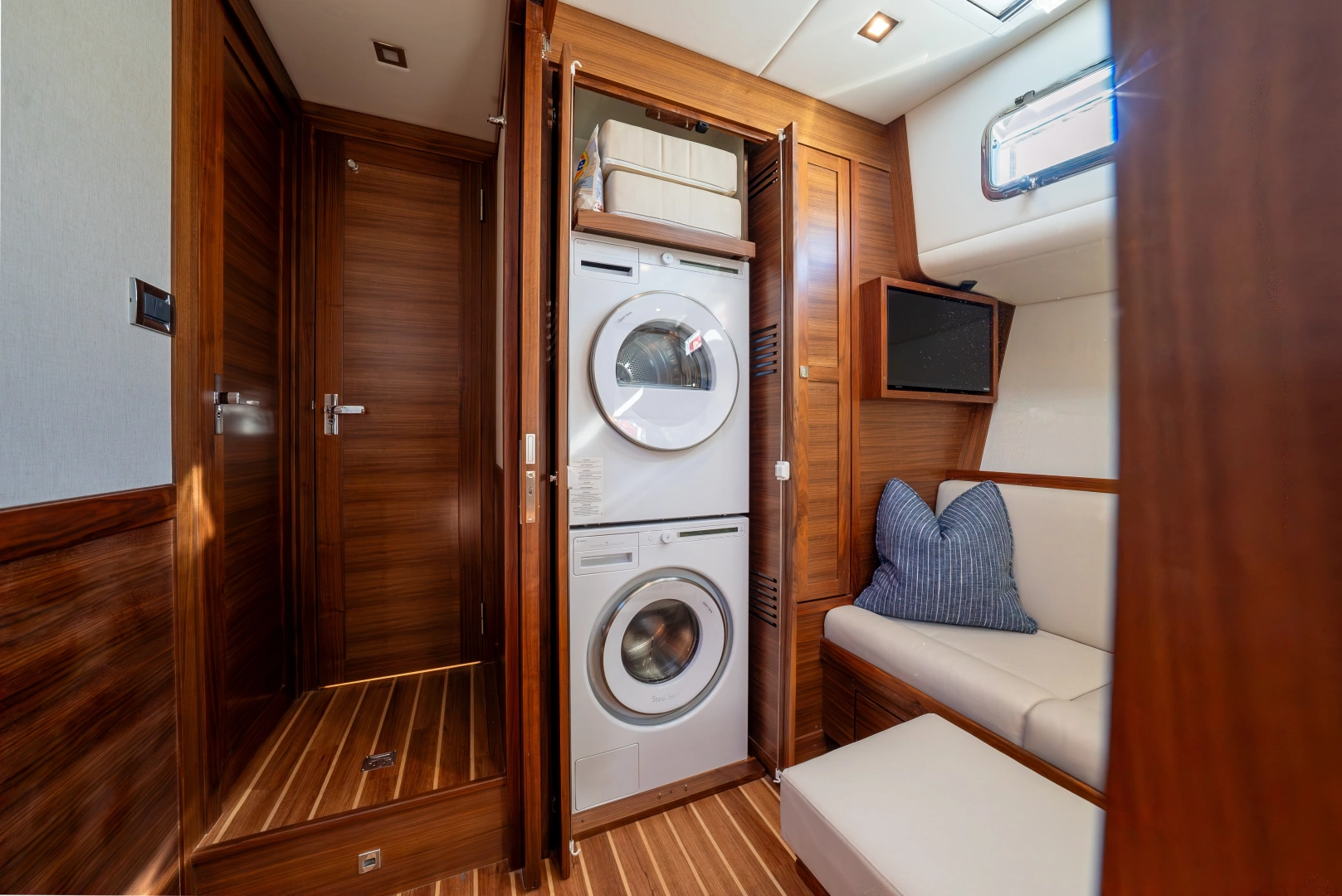

Guest Stateroom

• Convertible Settee with table
• Hanging locker
• Overhead Lighting: LED with Vimar® switches
• Washer/Dryer: Asko®

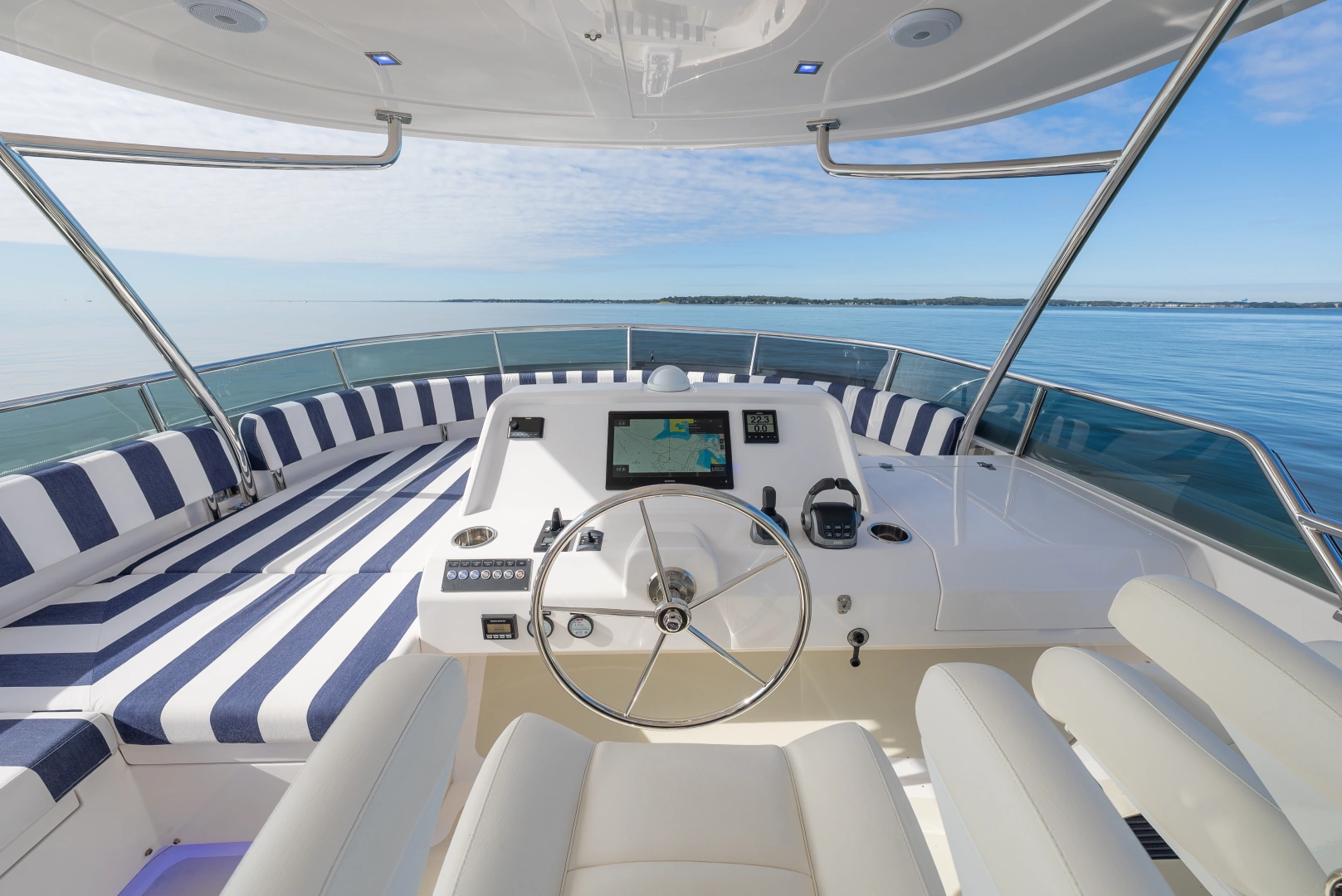

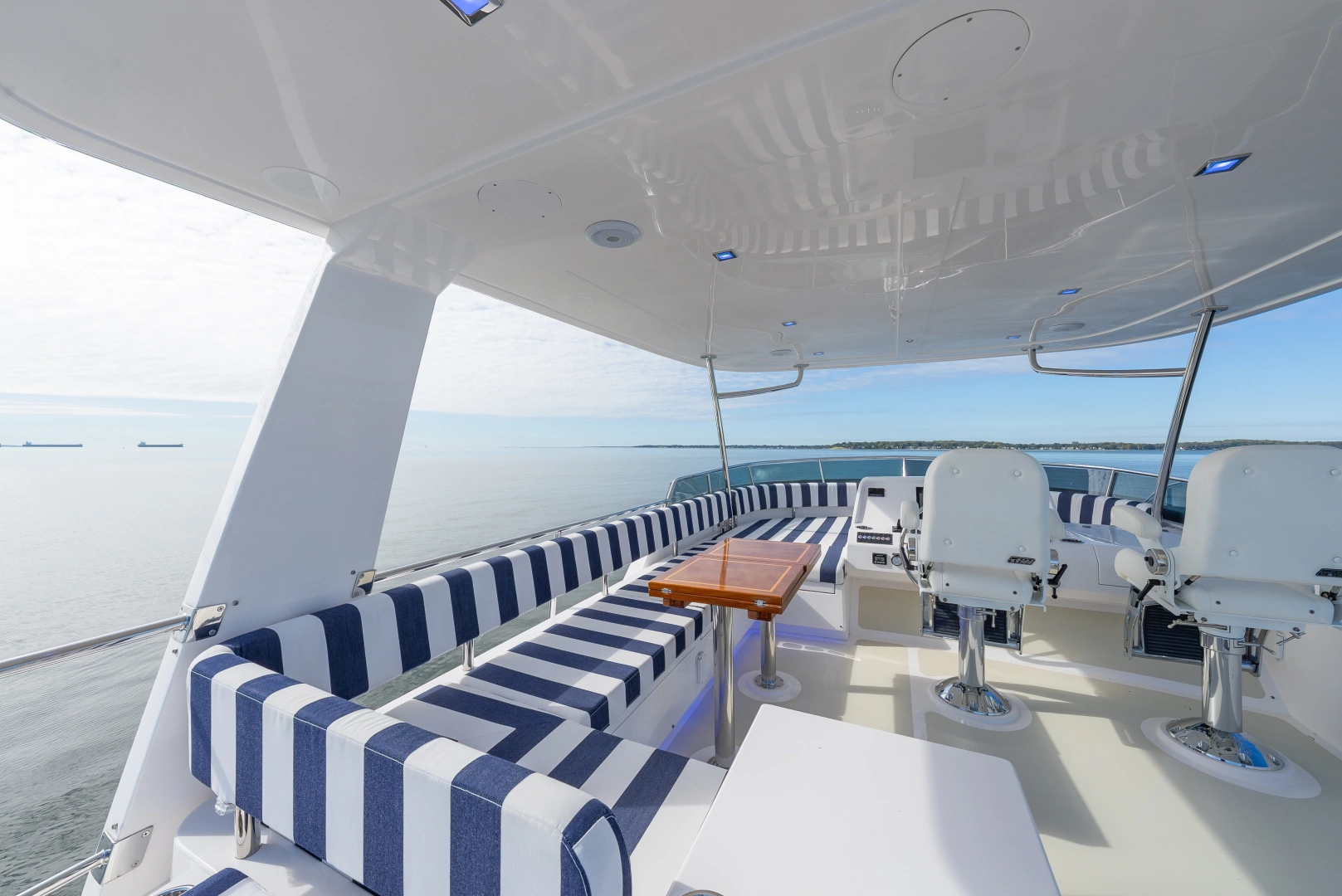

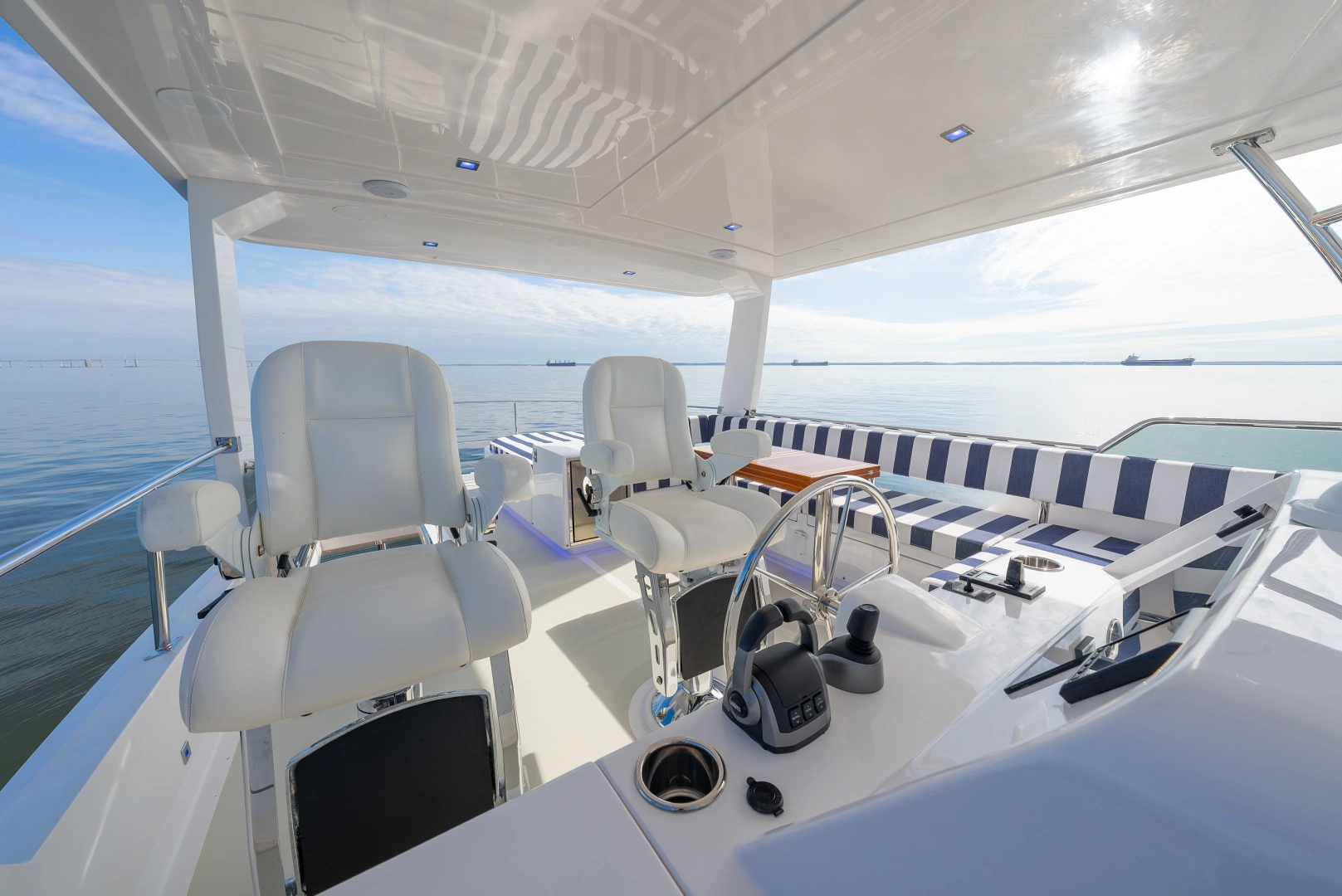

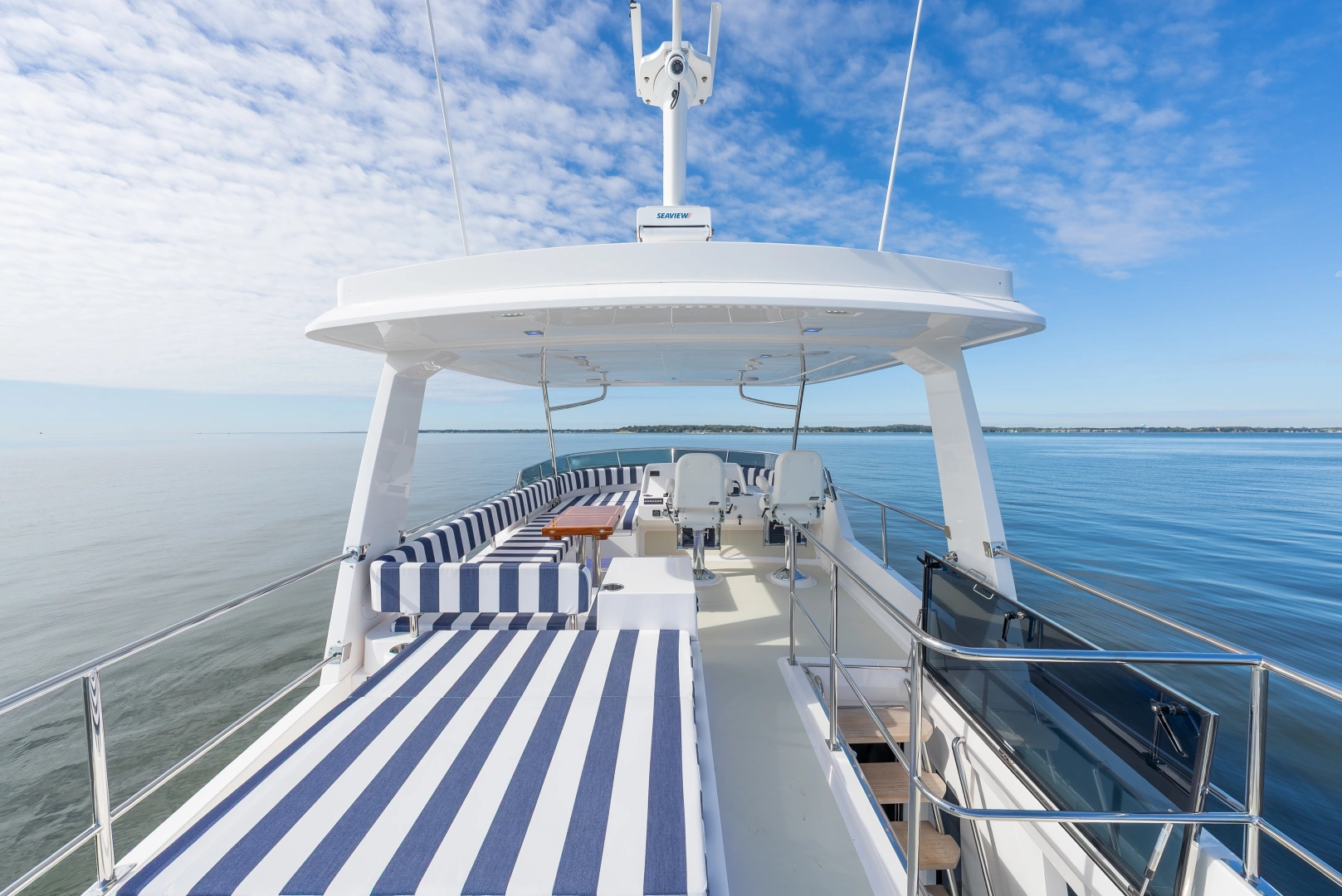

Flybridge

• Radar arch with masthead, steaming and deck lights
• Tinted plexiglass windscreen
• Helm Chair: Stidd®
• Davit: Steelhead®
• Refrigerator: Isotherm®
• L-shape settee to port with teak table
• Sun/lounge pad forward
• Settee Cushions & Sun Pad: Marine Grade Sunbrella®, KKG standard selections

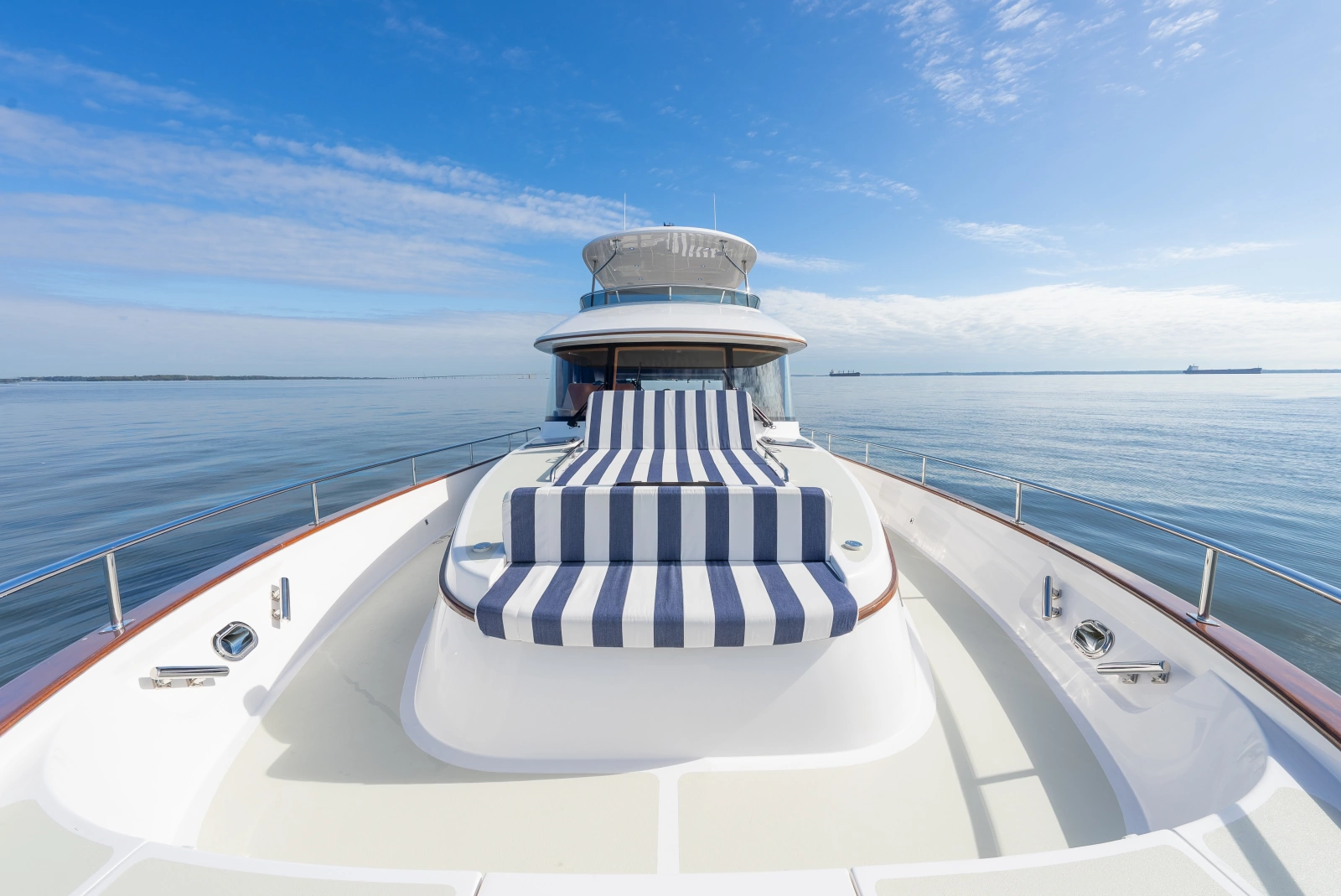

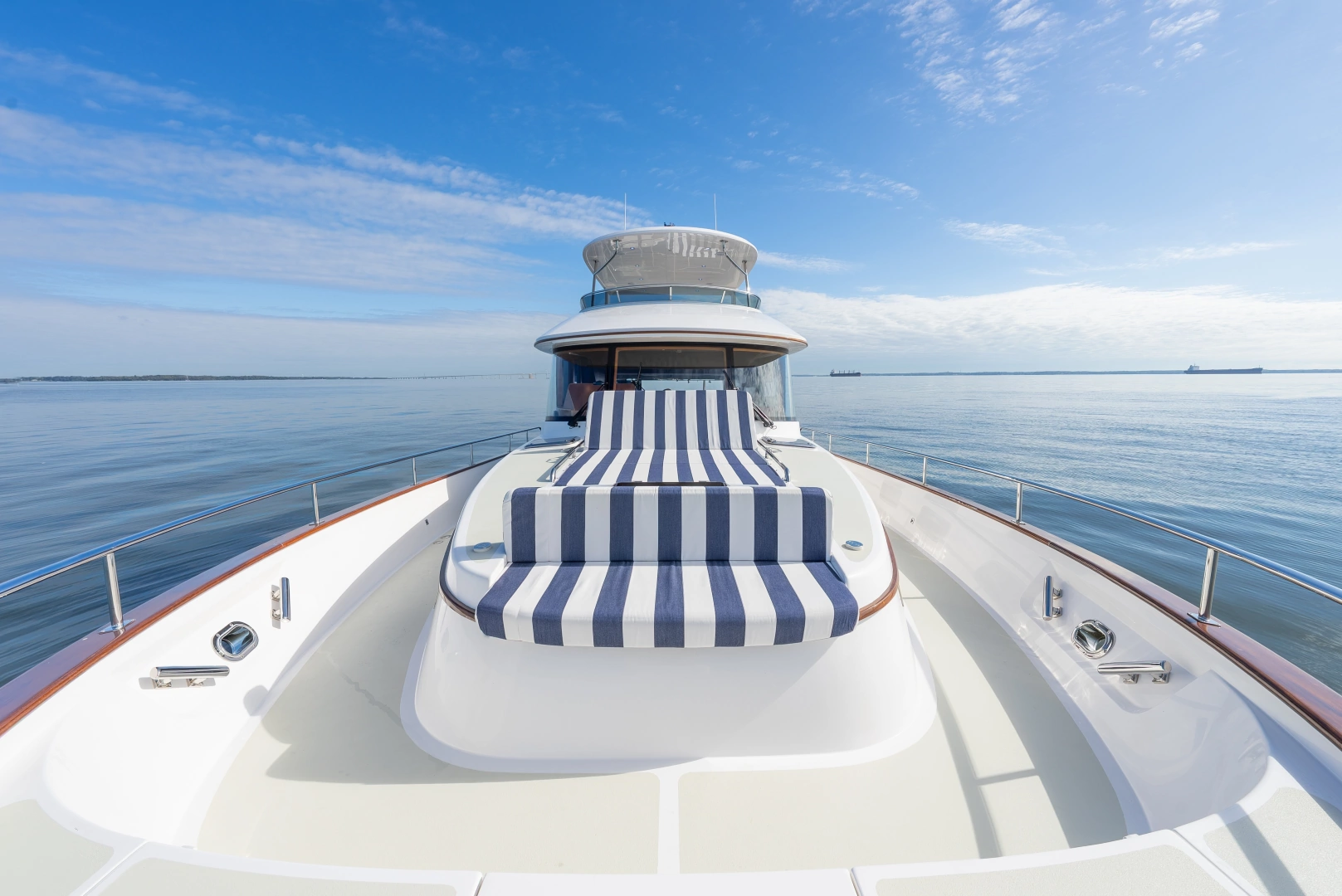

Bow

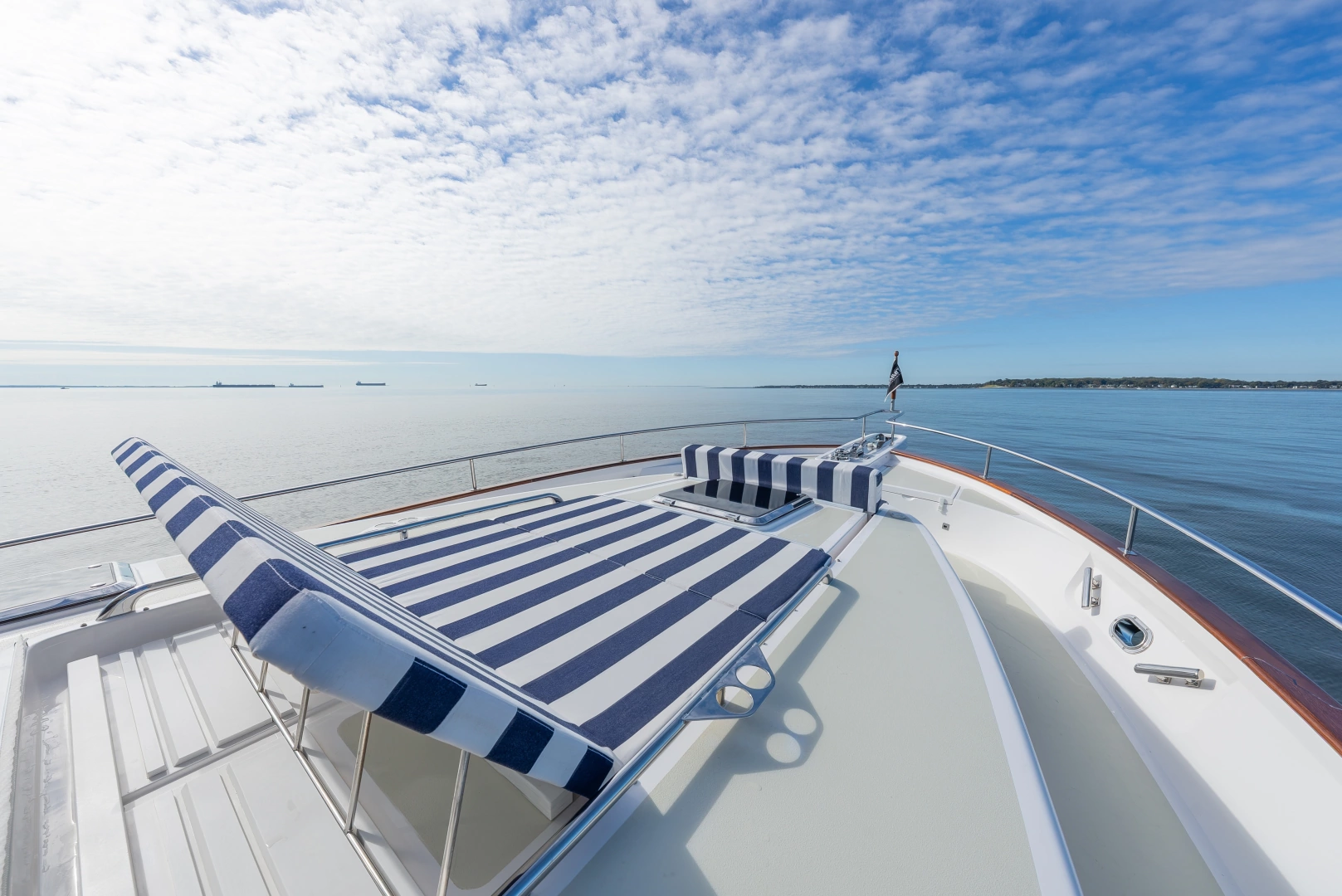

• Sun/lounge pad. Bow seat
• Bowsprit with anchor roller
• Anchor: Norestar Stainless steel
• Windlass: Maxwell® VWCLP 1500 Maxwell 24-volt DC with 300’ 3/8” HT chain
• Anchor Washdown: ShurFlo®

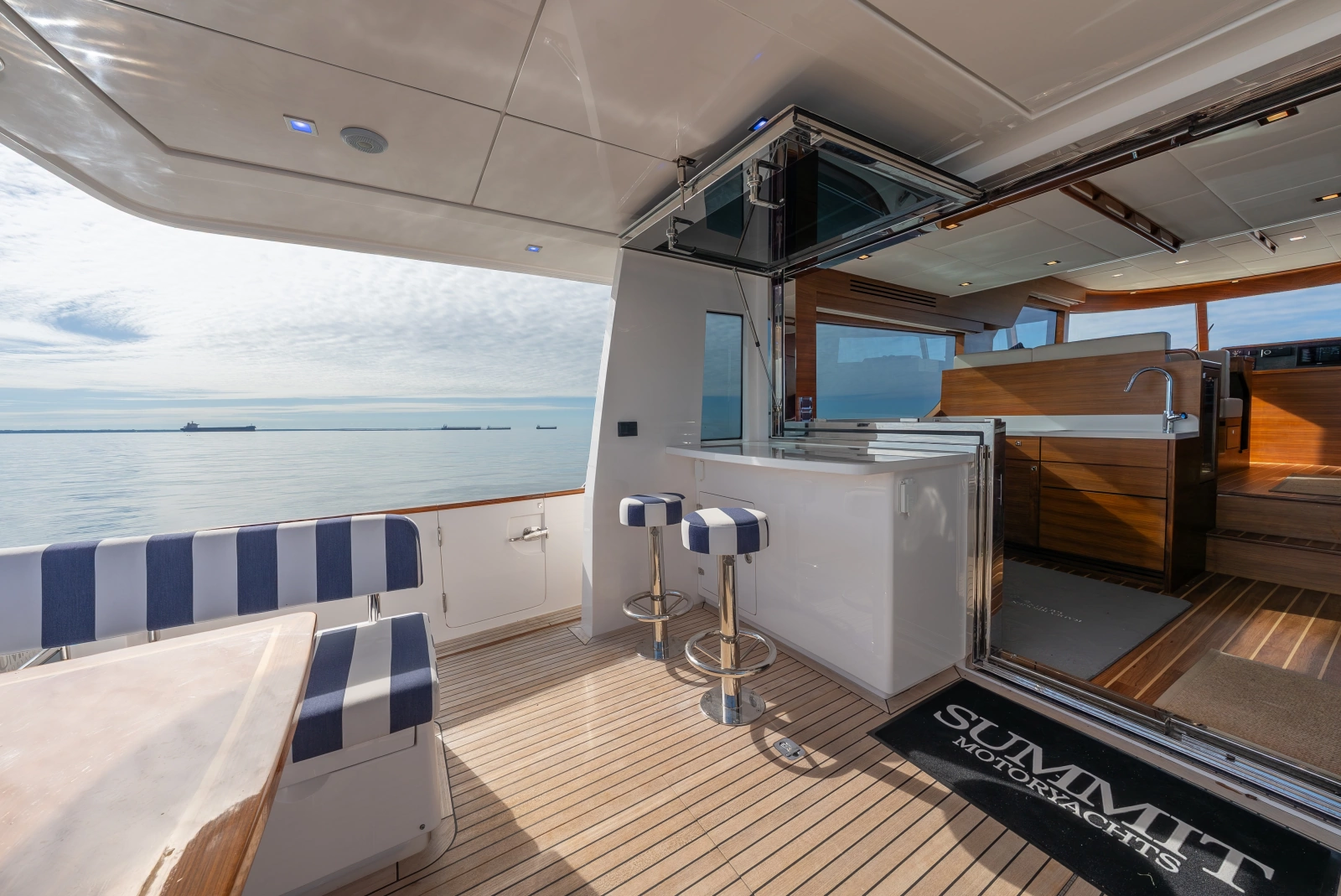

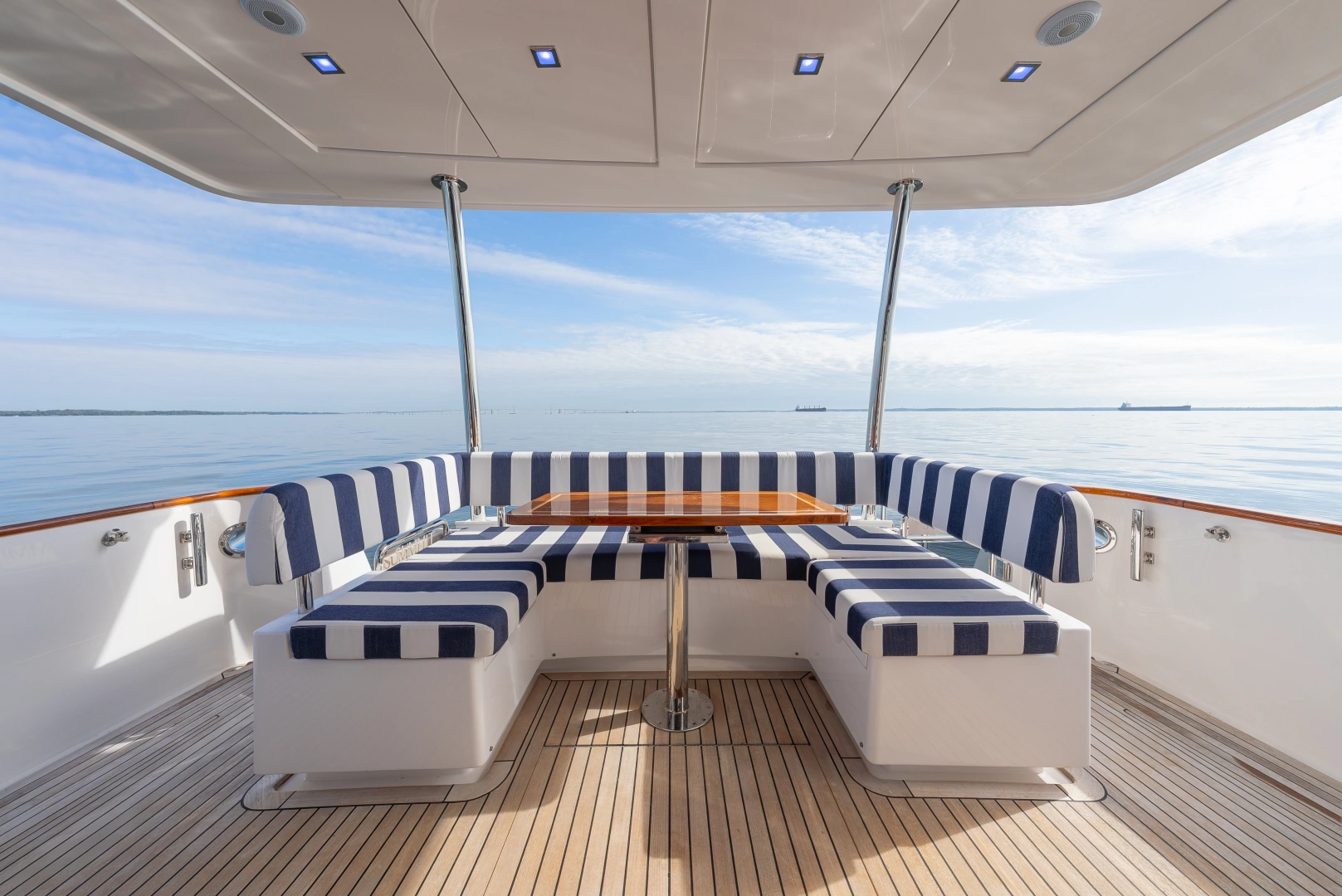

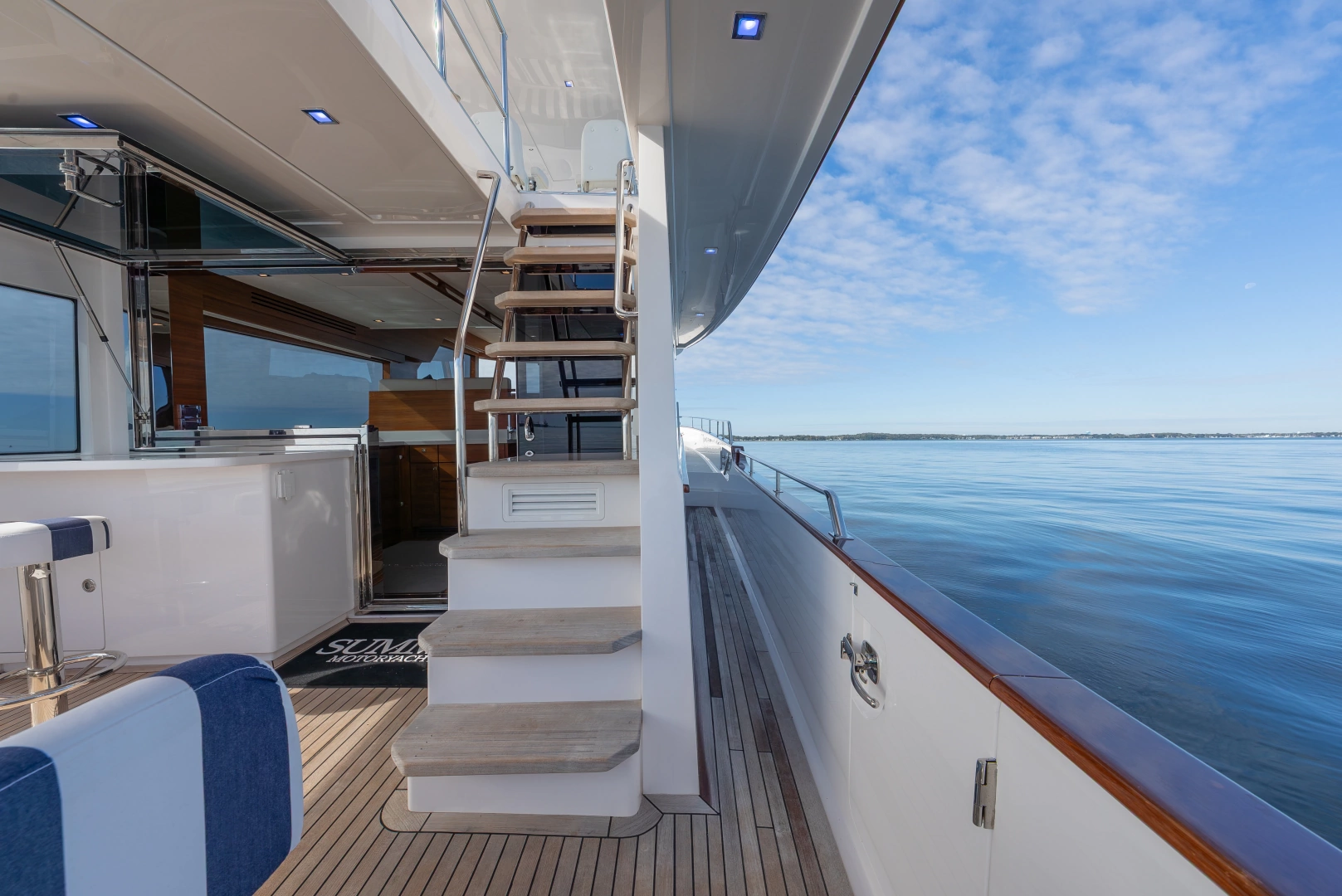

Aft Deck

• Cockpit with teak decking
• U-shape settee with teak table
• Settee cushions: Marine Grade Sunbrella®, KKG standard selection

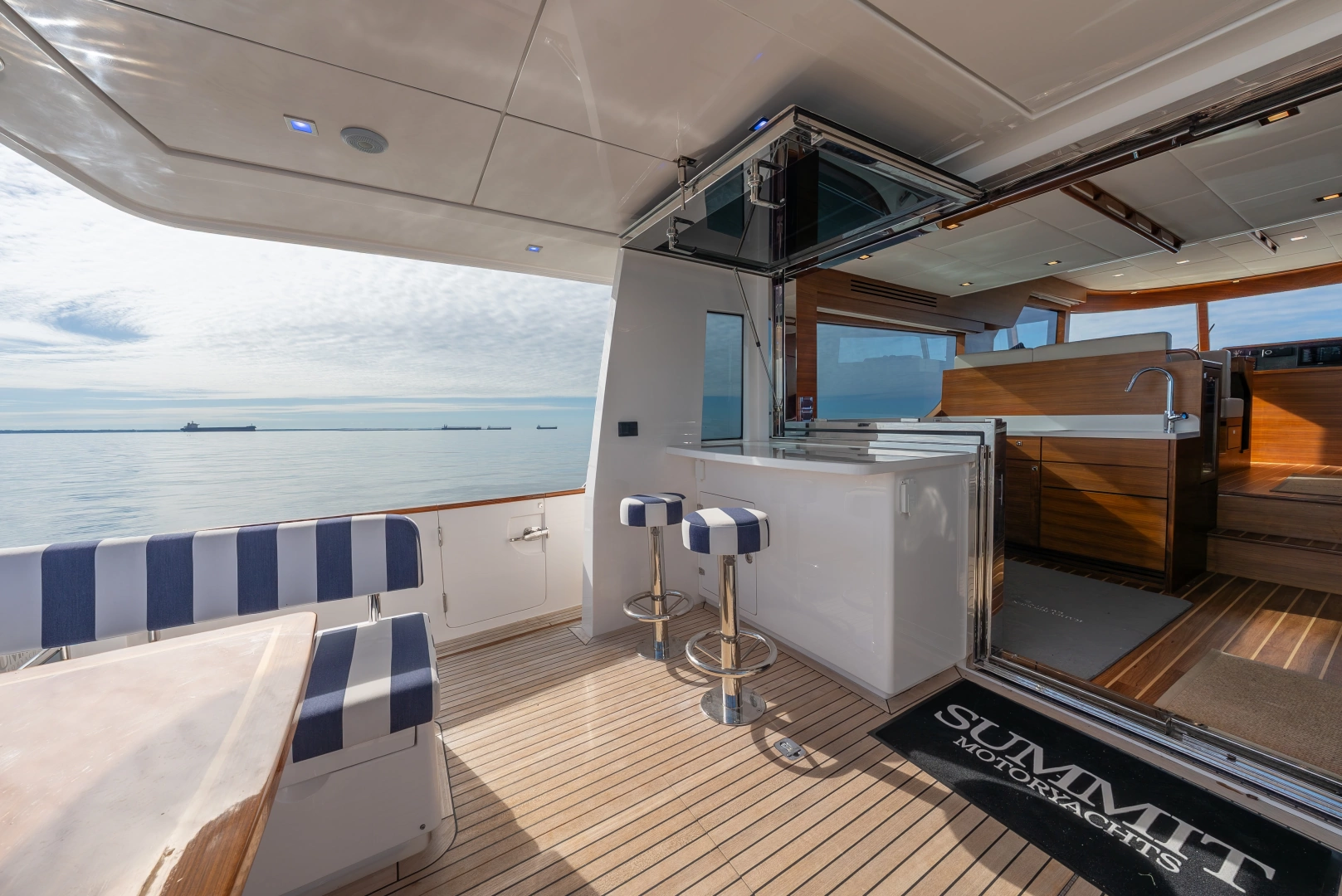

• Bar counter with pass-through service window to/ from galley
• 2 x Stainless steel bar stools, standard Sunbrella® upholstery
• Overhead LED blue/white combination lighting

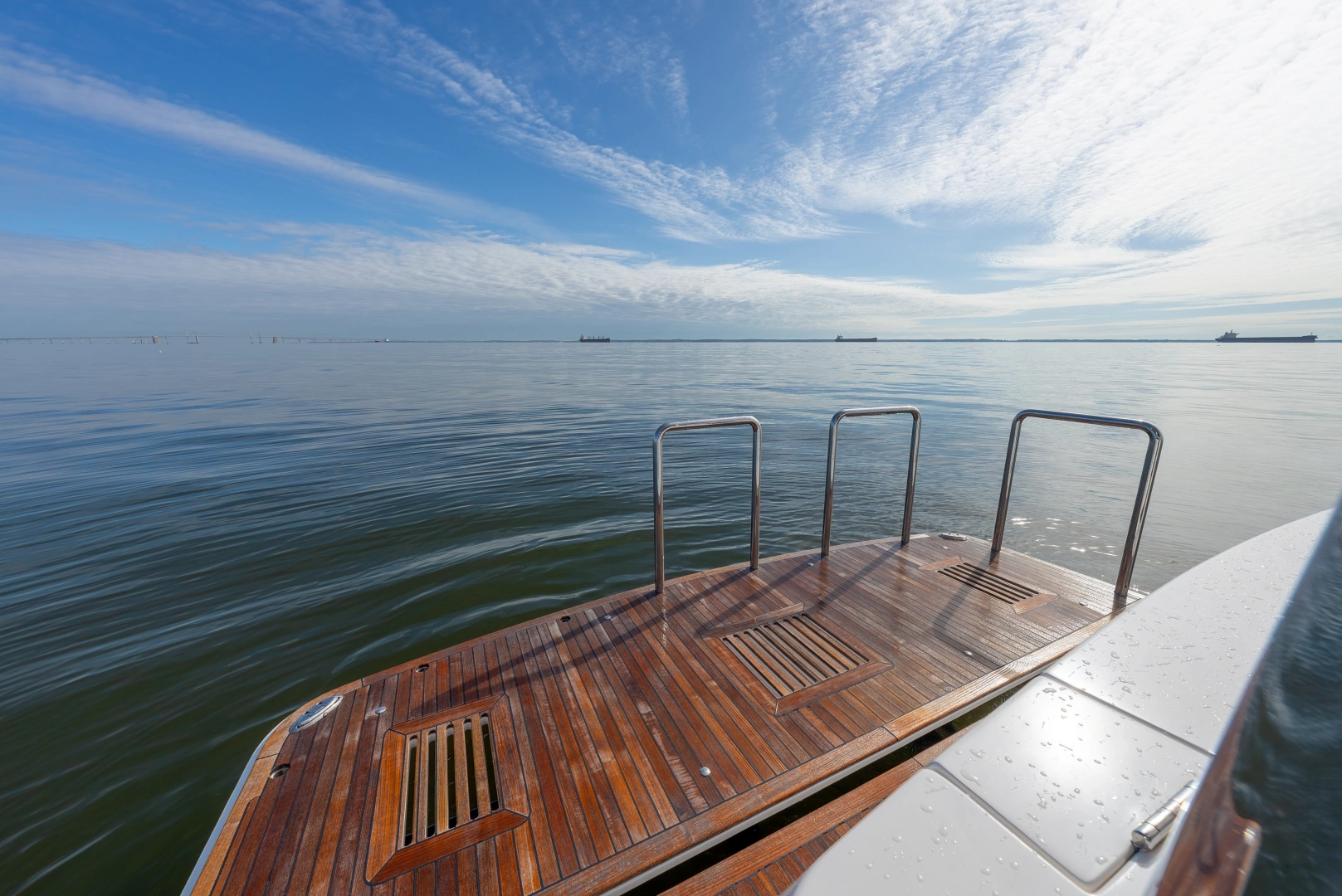

• Swim platform with swim ladder and 2 x folding cleats and stern staples
• Lazarette access hatch with ladder
• Transom Shower: Scandvik® hot/cold fresh water

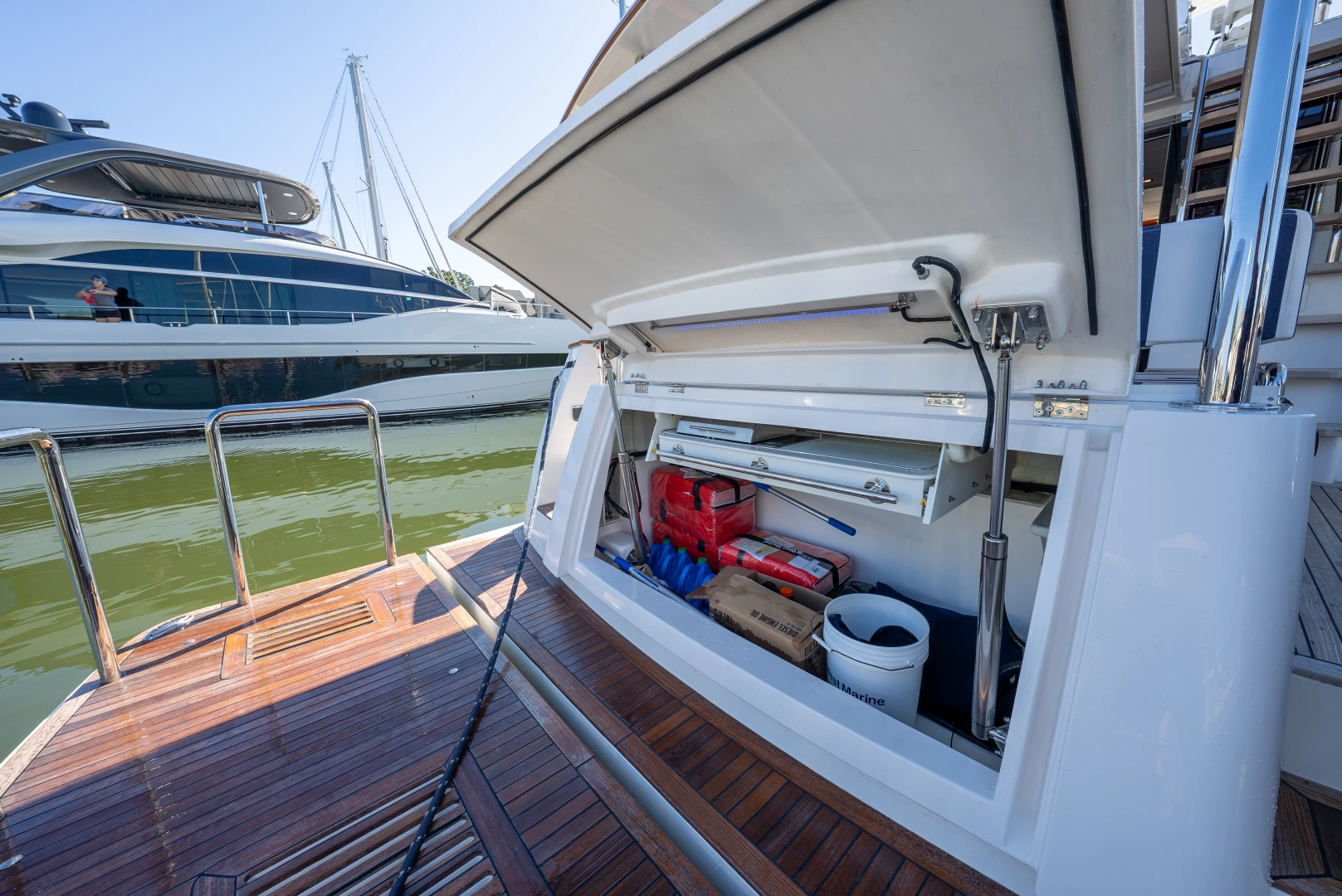

• Transom Garage Storage

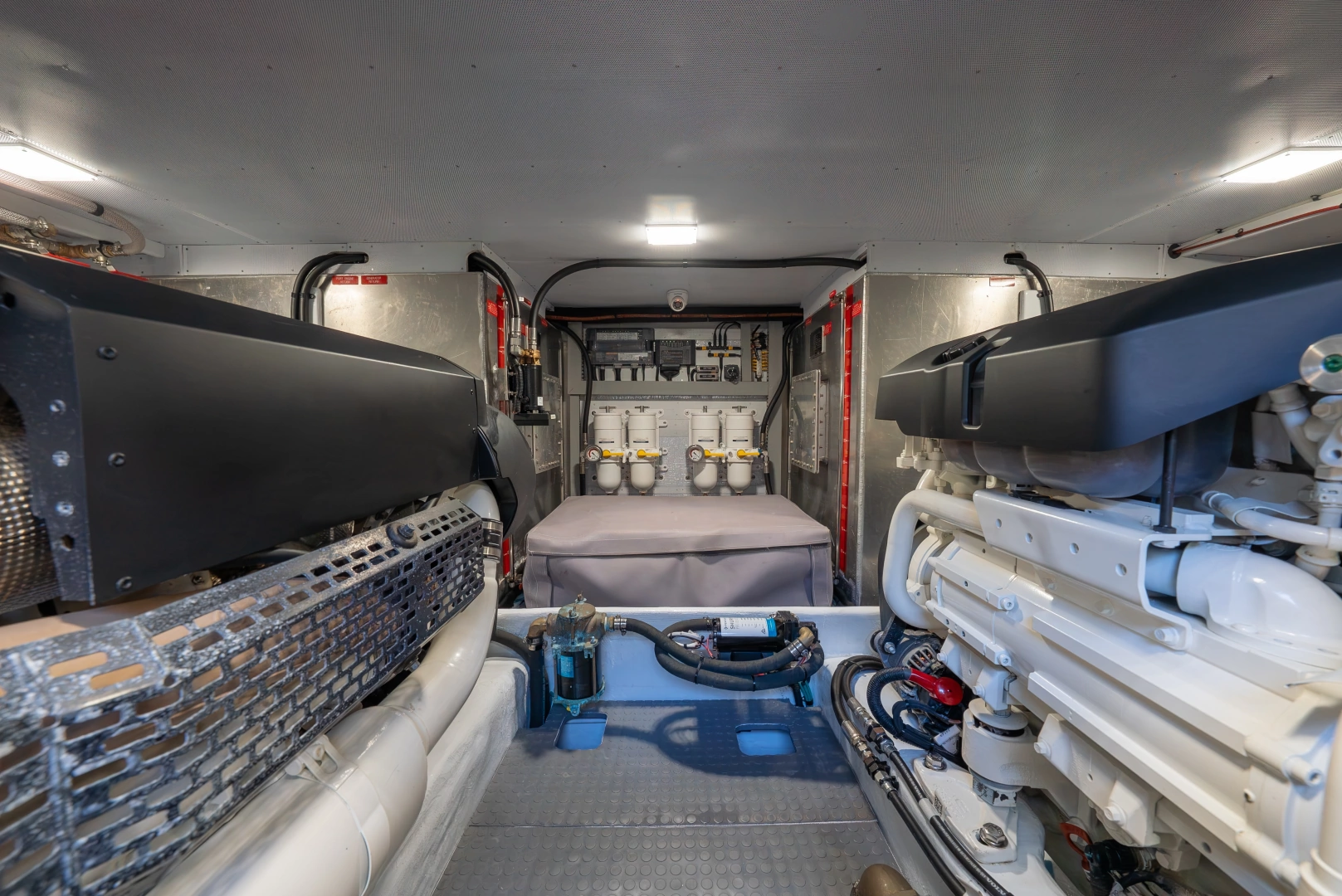

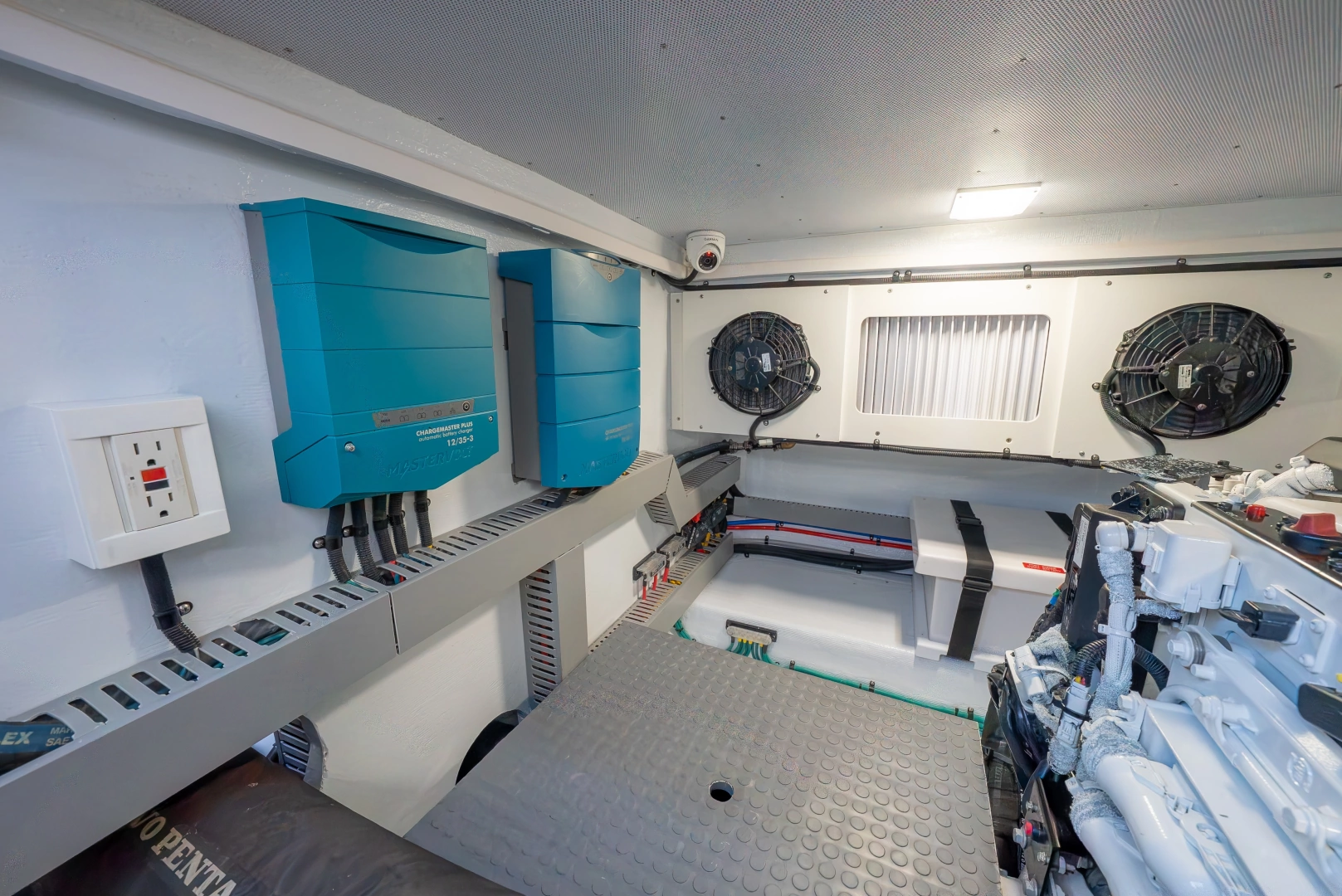

Machinery

• Engines: 2 x Volvo D8 IPS800 625hp
• Shafts: 2 x Aquamet® 22, 2-1/4” diameter
• Propellers: 2 x Hung Shen®, bronze, 4-bladed, 26” diameter, 28” pitch
• ZipWake® Dynamic Trim-Control System
• Generator: Northern Lights® with sound shield – 12KW
• Bilge Pumps: 3 x Rule®, @ 3,700 gallons-per-hour with high water alarm
• Controls: Cummins® SmartCraft (2 stations, 2 displays per station)
• Engine room intake and exhaust fans with moisture eliminators
• Lube Oil Change System: Reverso®

Electrical

• Electrical Panel: 110/220-volt AC and 12/24-volt DC, with digital switching and touch screen interface
• Batteries: Mastervolt® AGM 2 x 12/190 for engine starting, 1 x 12/190 for generator starting
• 2 x 12/225 wired in series for 24-volt DC ship service
• Inverter/Battery Charger: Magnum Energy® 2400-watt, 75-amp charger
• Battery Charger: Mastervolt® 60 amp
• Isolation Transformer: ANG

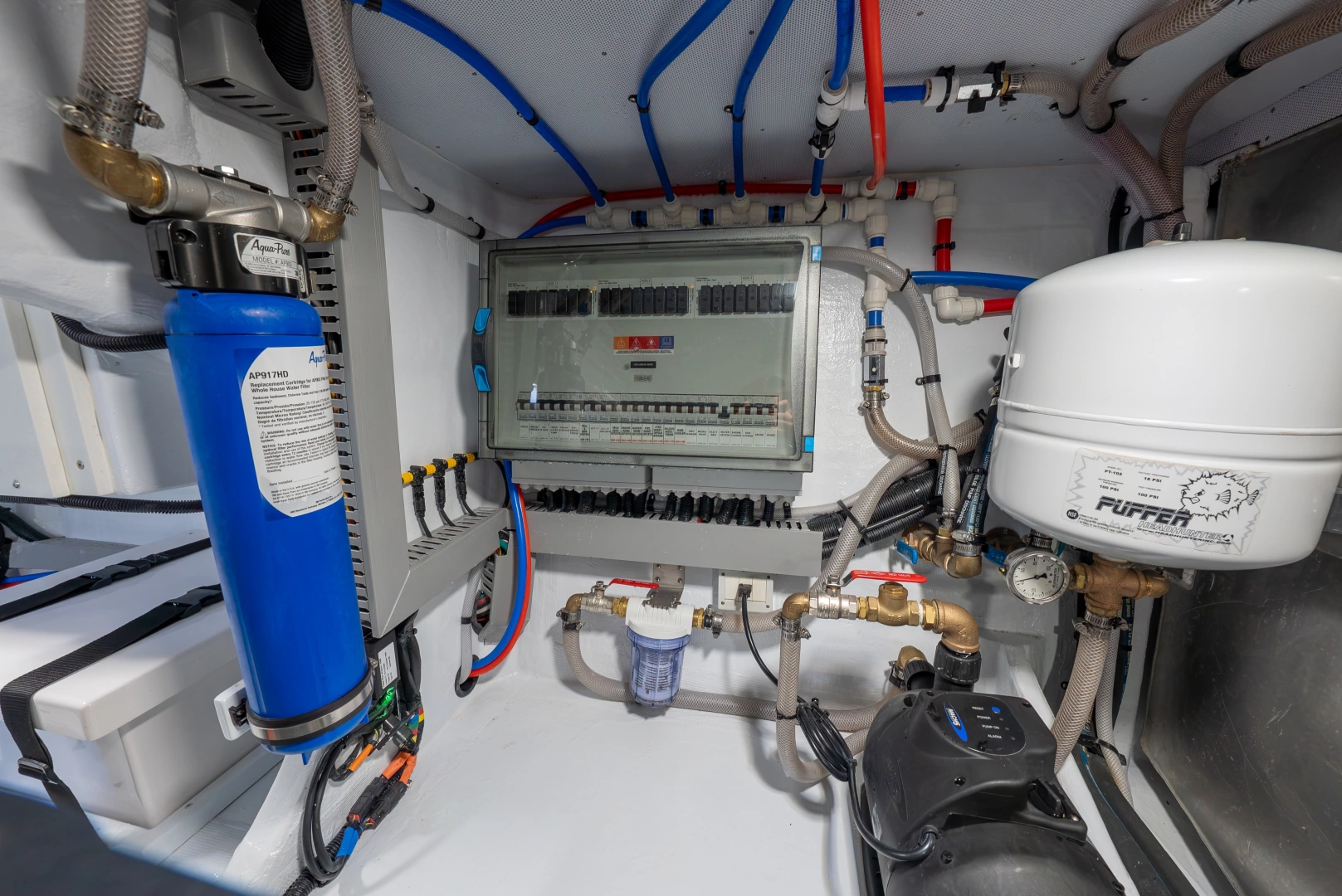

• Fresh Water System: Headhunter® Mach 5
• Water Heater: Raritan®, 20-gallon capacity
• CO Detectors: Fireboy®-Xintex®
• Fire Detection System: Fireboy®-Xintex®
• Bow Thruster: SidePower®, 15hp, 24VDC
• Engine Room Fire Suppression System: Seafire®

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
