Technical Details

Length: 54 ft/16.4 m

Beam: 16.9 ft/4.6 m

Weight: 48,000 lbs/22 t

Draft: 3.2 ft/1 m

Air Draft: 13 ft/3.98 m

Fuel Capacity: 528 gallons/2,000 liters

Water Capacity: 100 gallons/400 liters

Max Speed: 46 knots

Engines: (2) MAN i6-850

Passengers: 16

Options & Upgrades

• Opacmare three-step hydraulic swim platform
• Dupont metallic paint
• Bow and stern shade awnings with carbon fiber poles
• Interceptor trim tabs
• Variable Quick Marine stern thruster 24V
• Empirbus system for both management
• Prospeed application to props and JDM drives
• (3) RGB Lumishore underwater lights
• Onaled RGB strip lighting for interior and exterior
• Mive Echo engine silencers
• Seakeeper

Hull & Deck

• Fendercare fully integrated wrap-around fender system
• Ecodeck composite decking
• Seasmart quick release smartlock system
• (6) Anodized pop-out cleats
• Windscreen wiper
• Rollbar with carbon fiber T-top
• Swim platform shower
• Marinco 50A shore power
• Engine room hatch with hydraulic rams
• Deck courtesy lighting
• Seasmart anodized grab handles and hinges
• Build process: vacuum infusion of sandwich and single-skin composite
• Build materials: GRP (fiberglass) + PVC core + Vinylrester resin
• Windscreen in tempered layered crystal sovit, with stainless steel details with Maori logo
• Fuel intakes (2) at amidships, Seasmart and water intake (1)
• Hull glasses in tempered laminated crystal, fumè; Sovit
• (2) Drawer fridge (35L), stainless steel, Vitrifrigo
• Cockpit air conditioning

Seating & Sunbathing

• (2) Pilot chairs with electric bolsters
• Bow sunbed and "hot tub" style seating area
• Cockpit dining with "L" shaped sofa. Dining table comfortably seats 6
• Cockpit lounger to port of captain seating
• Folding dining table with Linak electric leg
• Large stern sunbed
• FMG fabric for cushions

Mooring Equipment

• Trefoil stainless steel AISI-316 20 kg anchor
• 75 m of stainless steel chain with chain roller, safety snap shackle, and swivel joint
• Seasmart anchor launching system with Quick Marine, windlass and waterproof control
• Flush stainless hull protectors for lines

Cabin

• Manual sliding cabin door
• Alcantara liners
• Condaria air conditioning
• Bow custom bed and "L" shaped sofa with storage
• Floor hatches with storage and inspection

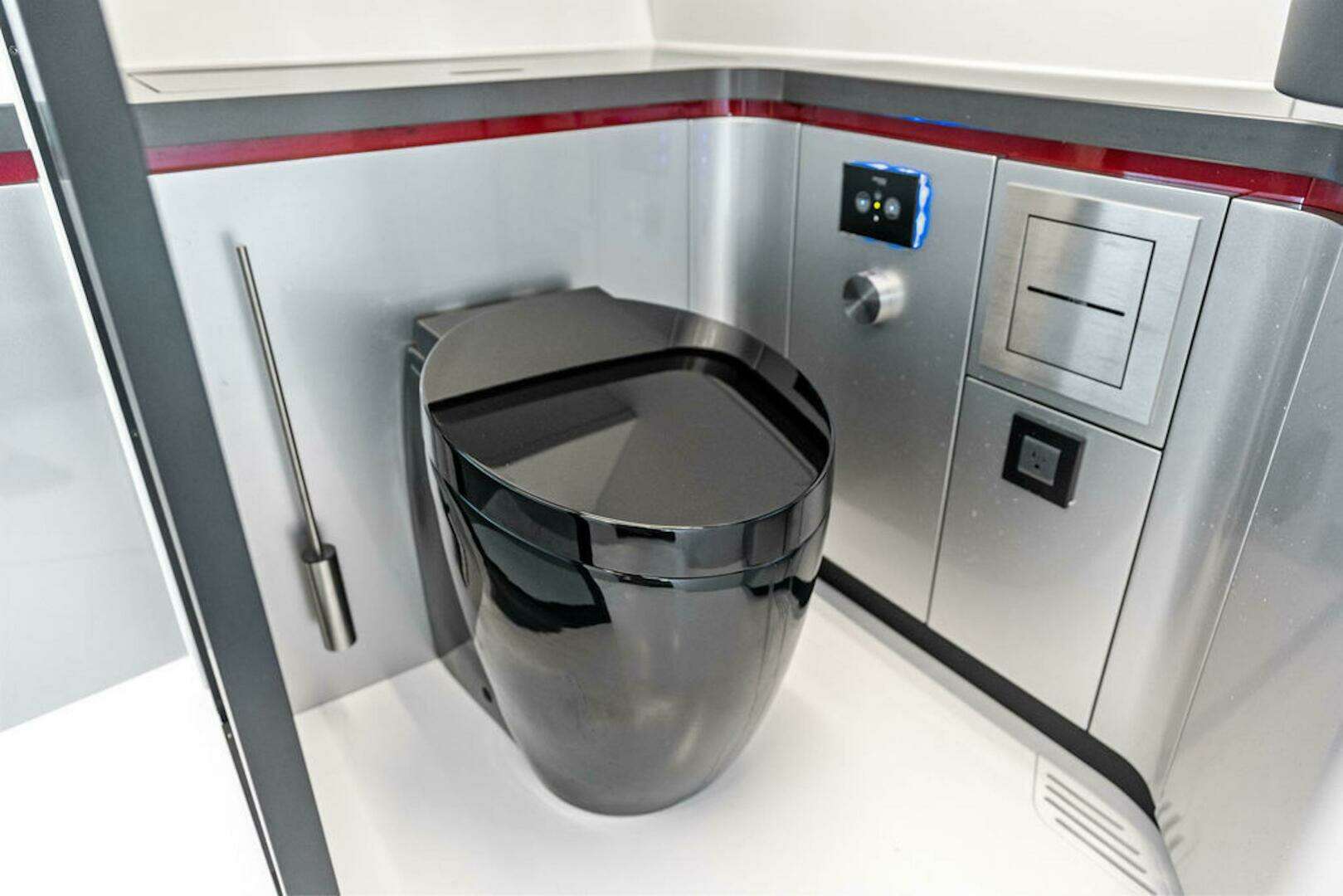

• Dedicated bathroom with sink and mixer, Tecma toilet, handheld shower and custom mirror, air extraction
• Desk in veneered wood

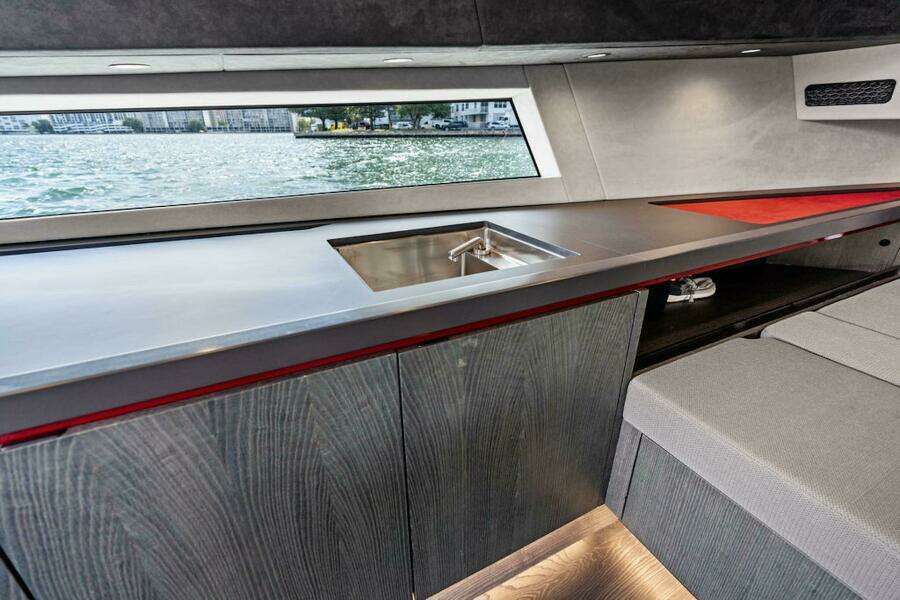

• Galley with Vitrifrigo fridge and freezer
• Quick Marine ceiling lights and lower strip lighting in LED
• Soft touch reading lights
• Induction cooktop

Helm, Navigation & Electronics

• (3) Garmin 16" multifunction display with chart reader
• Garmin VHF radio, depthsounder and GRF10 rudder feedback
• Lopolight navigation and anchor lights
• Onan 230V/50HZ genset with dedicated Mastervolt 24V battery charger system, parallel and galvanic protection
• Fusion Apollo radio unit with JL Audio sound system and subs
• Garmin Autopilot
• Garmin Radar

Safety Systems

• Fixed engine room firefighting system with automatic and manual activation from pilot console
• (3) Automatic 24V rule bilge pumps in each compartment
• Bilge level sensors with alarm in the PLC
• Backup manual bilge pump with valves and suction lines
• Smoke sensors in engine compartment
• Battery cut-off switches
• Galvanic protection by sacrificial anodes
• Emergency fuel shut-off valves

Plumbing & Tanks

• Structural fresh water tank with food grade interior coating
• Outboard vents and overflows
• Isotherm 40 L, 230V hot water heater
• 75 L black water tank with 24V macerator pump
• 100 L grey water tank with 24V discharge pump
• Underwater waste discharge and dockside discharge
• Tank levels sensors on all tanks reported on PLC
• 2,000 L fuel tank
