Notable Options and Electronics

• 1,000 hour CAT engine service to include NEW after-cooler cores May 2025 done by Thompson Tractor
• Volvo Penta Trim Tabs
• Upgraded (2) GARMIN 8616 XVS Multi-Function Displays
• GARMIN CM 599 LHW Low and High Chirp
• Furuno NavNet 3D 12.1" Multifunction displays (GPS/Plotter)
• Furuno NavNet 3D 8.4" Multifunction display
• Furuno BBWGPS WAAS/GPS Receiver Antenna
• Northstar 6000i GPS Plotter
• Furuno 6' Ultra High-Definition Digital Open array Radar Antenna, 12kw
• Furuno Dual frequency digital fishfinder sounder
• Nite Track Marine NITE-TRACK-WH Nite Track Marine HD Night Vision Camera System
• M260 1,000 watt transducer (50/200 kHz)
• SAT weather antenna and receiver
• SAT radio antenna and receiver
• GARMIN Autopilot
• Simrad IS15 Depth
• Furuno RD30 Digital Depth Remote Display
• Twin ICOM M604 VHF radio with remote mounted mic's and hailer horn
• 17'6" Shakespeare antennas
• Engine room camera
• Cockpit camera
• Fusion MS-UD650 Pandora, Sirius XM Ready, Bluetooth, NEMA 2000, JL Audio Speakers
• ACR RCL 100 Remote spotlight mounted on hardtop
• TV 5 Trac Vision KVH SAT TV Antenna
• Bow and Stern Thruster helm controls with handheld remote control (2015)
• Cherry high gloss interior wood
• Lift up coaming gate
• Carpet runners in salon, steps and companionway
• Spare fuel transfer pump plumbed and wired
• Plexi mirrored ceiling in both heads
• Freshwater back-up pump AC
• Starboard stateroom pocket door
• Exterior Paint - Cloud White
• Stateroom lamps (3)
• Numerous interior decor upgrades
• Salon Cocktail table - Mapel Burl with Compass Rose
• Bow Stateroom Art
• Headhunter waste gauge
• Kahlenberg Horns
• Transom hawse pipes
• Polished stainless steel anchor and swivel
• Salon Amtico floor at entrance
• Freshwater washdown on bow
• Helm seat covers
• Spare waste, water and fuel caps
• Bow pulpit and windlass
• Aluminum Bow rail
• Custom Aluminum flybridge ladder
• American Bausch Hardtop (polished pipe aluminum, hardtop hatch, molded in spreader lights(4) and Nav lights, under hardtop lights, inside piping design, and under mounted u-shaped grabrail.
• Second Glendinning cable re-coiler in cockpit (one is standard)
• Wireless remote for re-coilers
• Bow stateroom upper hull side cabinets
• Salon Ice Maker
• Central vacuum system
• Watermaker’s Inc Watermaker
• Dometic Eskimo Ice Chipper
• Upgraded HVAC Dometic units for, Salon, Master Stateroom, VIP Forward, Flybridge
• Clearline Electrosea
• Custom Starboard Eskimo ICE dump molded in tackle center
• Custom transom live-well, blue with window
• Release Marine Battle Saddle
• Pipewelders Triple Spreader Outriggers
• New 4-Sided Enclosure with yellow tin to support HVAC unit
• Hull sides painted
• Updated Upholstery Flybridge cushions

Exterior Finish/Construction

• Isophthalic gelcoat, exterior layer, white
• Blister-resistant vinylester resin in hull bottom skin coat
• Hull and superstructure linear polyester/polyurethane coating
• Polymer/copper-based anti-fouling bottom paint
• Boot stripe, linear polyester/polyurethane coating
• Decks, non-skid surface, polyurethane paint with polymeric beads
• Solid fiberglass hull bottom
• Hull sides and superstructure laminated with PVC foam core
• Fiberglass stringers
• Steel laminated in stringers at key locations to bolt engine mounts
• Engine room bulkheads and decks of resin-infused composite construction using PVC foam core with layers of fiberglass laminate on each side

Hardware and Miscellaneous

• Wood bulkheads, cabinetry and trim with a polyester high gloss finish
• All hardware polished chrome with brushed chrome in galley
• Anchor line and deck hawse pipe with anchor tensioner
• Polished stainless-steel anchor cleat, through-bolted in aluminum backing plate
• Two polished stainless-steel stern cleats and hawse pipes, through-bolted in aluminum backing plate
• Four Polished stainless steel springline cleats with chafing strips, through-bolted in aluminum backing plate
• Polished stainless-steel bow cleats and chocks with chafing strips, through-bolted in aluminum backing plate
• Polished anodized welded aluminum rails on bow, side-deck and flybridge, drilled and tapped in aluminum backing plates
• Powder-coated grab rails on cabin side and flybridge interior
• Polished anodized welded aluminum flybridge ladder with acrylic steps
• Zincs on rudders and shafts
• Interceptor trim control
• Manganese bronze struts
• Stainless-steel rudders with zincs
• Nibral high performance propellers
• Alloy 22 high-strength propeller shafts, 3-inch, with zincs
• Manganese bronze dripless rudder seals with thrust bearing on rudder shaft
• Bow deck access to rope storage locker
• Deck plates for fuel and water fills and waste pump out
• Heavy-duty bronze engine couplings
• Dripless shaft seals with spare seals

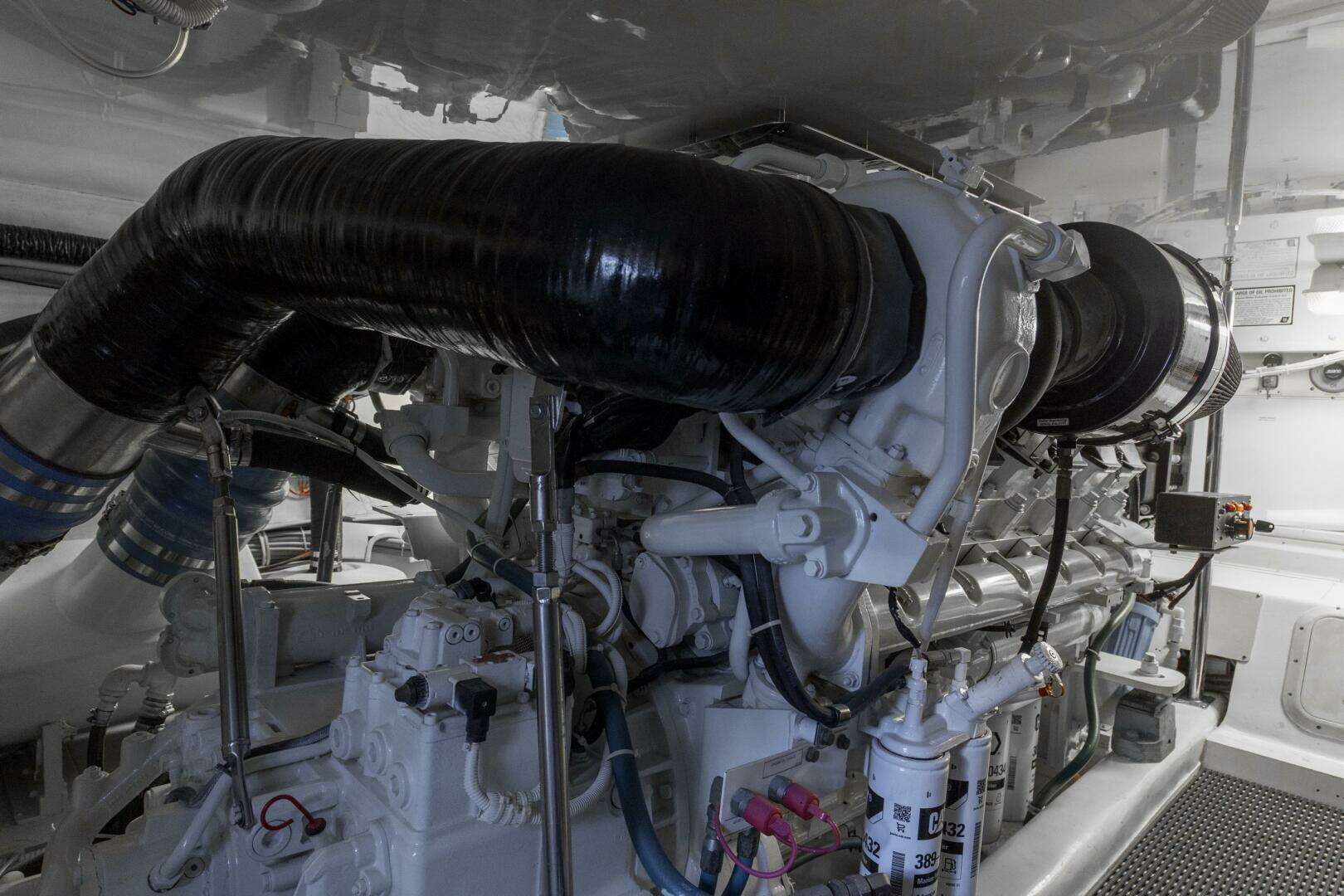

Engine Compartment and Bilge

• Water manifold with centralized shut-off valve for sinks and showers
• AC fluorescent lights
• DC lights
• DC exhaust blowers
• Twin diesel, freshwater-cooled main engines with electrically controlled marine gears, neutral interlocks, exhaust silencers, engine hour meters, alternators, fuel filters and seawater strainers
• 21.5kW freshwater-cooled Electronic Quiet Diesel Onan generator(D) with shock mounts, seawater strainer, remote start, fuel/water separator, hour meter, water lift muffler and sound enclosure
• Variable-speed forced air induction system for engine combustion air with two 15” vane axial fans ducted to cockpit and controlled by pressure and temperature (single fan reversible for flow-through ventilation)
• Polyethylene water lines
• FM200 fixed fire extinguishing system for engine compartment with automatic and remote manual controls, plus audible and visual discharge signals
• Pressurized 24-volt DC freshwater pump (new in 2018) with central charcoal freshwater filter and back-flush capabilities
• 230-volt AC 20-gallon electric water heater
• Freshwater fill hose for engines and generator
• 24-volt DC bilge and sump pumps: three at 3700 gph, two at 2000 gph and four at 1100 gph, with heavy-duty float switches and protective guards
• Auxiliary emergency bilge pump, 150 gpm in lazarette
• Bronze/chrome plated ball-valves through bolted in solid fiberglass on all underwater through-hull fittings with electrical bonding throughout
• U.L. Marine-listed fiberglass fuel tanks constructed with fire-retardant resin and bronze fittings, and coated with fire-retardant paint
• Fiberglass holding tank with bronze fittings
• Fiberglass water tanks, constructed with bronze fittings
• Sewage holding tank with 24-volt DC sewage pump, plumbed for dockside pump-out, with 3/4 full display and alarm as part of systems monitor programmable logic controller
• U.L. Marine-listed fuel filter/ water separator, generator
• U.L. Marine-listed duplex fuel filters/water separators with bypass manifold, engines
• Digital monitoring for main engines in battery panel with start/stop switches
• 24-volt DC oil changing system for engines, gear and generator with Hatteras patented quick disconnect
• Electric fuel transfer system with filtration and dry tank protection for pump
• United States Coast Guard type A1 U.L. Marine-listed fuel lines
• Seawater pressure system with DC pump
• Air conditioning compressors and pumps
• Painted polyurethane engine room and bilges
• Isolated discharge sea chests
• Transducer well, glycol filled
• Sealed shower sump
• Pultruded fiberglass rudder shelf
• 1” stainless-steel steering tie bar with pivoting self-aligning ball joint connection at all cylinder and tie bar connections
• Insulation in deck
• Pick-up sea chests

Electrical Systems

• Two 24-volt banks of heavy-duty, 12-volt marine batteries mounted in fire-retardant fiberglass boxes
• Gel/lead acid compatible 240-volt automatic/ programmable battery charger, 50/60 Hz
• Automatic battery paralleling system with switch at control console
• Air conditioning, 43,000 BTU, with reverse cycle heating, with A/C compressors, individually controlled by SMX controls
• One 240-volt, 50-amp, transformer connected fused shore cord with over-current protection
• One 240-volt, 50-amp, transformer connected retractable shore cord with over-current protection
• AC and DC light fixtures
• AC dimmable lights in master and salon/galley
• AC duplex outlets with ground fault protection
• Battery control panel with fuses and isolation switches
• DC distribution panel with magnetic circuit breakers
• DC distribution panel with magnetic circuit breakers (engine compartment)
• DC electronics panel with magnetic circuit breakers (bridge)
• AC distribution panel with magnetic circuit breakers
• AC switching panel with voltage source selector switches, voltmeter, ammeter, frequency meter, generator start/stop controls, interlock selector breakers and voltage boost switch
• Systems monitor with programmable logic controller readout, visual and audible signals for engine, alternator, high bilge water, fire warning in engine compartment, fire extinguisher discharge, AC power loss, smoke detectors, battery voltage, 3/4 full holding tank monitor and carbon monoxide detectors
• Ground fault protection on AC receptacles and lighting circuits
• Navigation lights
• CATV inlet
• Omni-directional TV antenna
• U.L. 1426 listed boat cable, tin-coated with insulation

Flybridge

• Systems monitor with visual and audible signals for engines and gears, steering cooling pump, high bilge water, fire warning in engine compartment, fire extinguisher discharge, and AC power loss
• Molded fiberglass top-loading insulated drink box
• Two bench seats with removable vinyl-covered polyfoam cushions and storage underneath
• Rod storage space in port bench seat
• Additional storage areas beneath athwartship seat and console
• Neutral interlock switches allowing engine to start in neutral only
• Polished anodized welded aluminum rails and stanchions
• Powder-coated grab rails
• Control station with all necessary switches and dimmable lighted instrument panel
• Engine synchronization control
• Compass with dimmable light
• Pod console with custom wheel and single-lever clutch and throttle controls (electronic) with emergency back-up and electric trolling valve control switches
• Hydraulic power-assisted steering
• Twin Murray Sea-19 adjustable teak helm chairs with stainless-steel hardware and footrest, and backing plate
• Electric fuel level gauges
• AC weatherproof receptacle
• 24-volt DC distribution panel
• Power-actuated electronics console

Cockpit

• Molded fiberglass, 126 square feet including 13 square feet of seating
• Seating with cushions across upper mezzanine
• ISO standard scuppers in cockpit and cockpit hatches
• Polished anodized aluminum ladder to flybridge with acrylic steps
• Transom door
• One 50-amp shoreline electrical inlet and retractable shore cord
• One 50-amp shoreline electrical inlet and fixed shore cord
• Seawater and freshwater wash down outlets with Hatteras patented quick disconnect
• Shore water connection with pressure-reducing valve and Hatteras patented quick disconnect
• Bait and tackle drawers, upper starboard mezzanine
• 5.4-cubic-foot bait freezer, port mezzanine
• Bait and tackle drop-in box, lower starboard mezzanine
• Two 14-gallon storage tubs, lower port mezzanine
• Removable 80-inch fish box with macerator, flush in deck
• Hatch with chrome-plated brass lock to engine compartment
• Storage in steps to deckhouse with chill box in top step
• Hinged glass door to deckhouse
• Fiberglass cockpit boarding step box with storage
• DC overhead lights under flybridge overhang
• Aluminum mounting plate laminated in deck for fighting chair
• CATV inlet
• Polished stainless-steel rod holders, flush mount, set of 4
• Polyplanar stereo speakers with volume control

Salon

• Carpeting
• Removable upholstered headliner
• Wood bulkheads, cabinetry and trim with a polyester high gloss finish
• Fluted wood valances with duette blinds
• Fixed frameless windows with tinted safety glass
• Telephone outlet
• AC and DC light fixtures
• AC dimmable lights
• AC duplex outlets
• Electric panels
• Surround-sound speakers
• Entertainment center including 32” LCD TV with omni-directional antenna, AM/FM“surround sound” stereo receiver with DVD/CD player behind doors
• L-shaped lounge with rod storage, loose cushions, arm rests and double needle stitching
• Throw pillows
• Polished stainless-steel threshold at salon door
• Air conditioning dispersed through fluted valances, port and starboard
• Smoke detector
• Hinged glass door to cockpit
• Carbon monoxide detector

Galley/Dinette

• Amtico vinyl-strip flooring
• Removable upholstered headliner
• Fluted wood valances with duette blinds
• Fixed frameless windows with tinted safety glass
• Solid-surface countertops, under-mount sink and storage cabinets made of genuine wood to match interior finish
• Twin AC under-counter Sub Zero refrigerator and freezer drawer units with ice maker
• AC four-burner ceramic cooktop
• Microwave/convection oven covered by cabinet door
• One-half hp continuous feed garbage disposal
• L-shaped dinette with storage under seat
• Electric water level gauge
• AC and DC light fixtures
• AC dimmable lights
• AC duplex outlets
• Telephone outlet
• Air conditioning dispersed through fluted wood valances, port and starboard
• Drawers (2) in galley fascia, (4) in upper cabinets behind doors
• Genuine wood inserts to match interior finish on appliance fascia

Companionway

• Carpeting
• Removable upholstered headliner
• Wallcovering
• DC light fixture
• Flush-panel genuine wood doors to match interior finish with door stops to master stateroom, guest stateroom and guest head
• Steps to salon
• Access to port/starboard storage with DC light

Master Stateroom

• Carpeting
• Removable upholstered headliner
• Wallcovering
• Wood cabinetry and trim with high gloss finish
• Fluted wood valance
• Padded covering on hullside
• Pocket door to stateroom
• Queen-sized tapered berth with upholstered headboard and cedarlined storage underneath accessed via pneumatic cylinders
• Upholstered berth base
• Polyfoam mattress, spread, throw pillows, pillows, pillow shams, mattress pad and sheets
• Cedar-lined hanging locker with doors, shelf and automatic light
• Nightstands with drawers
• Dresser with drawers
• AC and DC light fixtures
• AC dimmable lights
• AC duplex outlets
• 20” LCD TV
• AM/FM audio access with local DVD/CD changer and a one-touch master universal remote with RF control
• Speakers
• Telephone outlet
• Full-length mirror
• Clear plexi-mirror (aft bulkhead)
• Private access to head with door stop
• Carbon monoxide detector
• Outboard storage cabinets
• Air conditioning dispersed through fluted valance
• Smoke detector
• DC low-voltage lights under berth
• SMX HVAC compartment controlled

Guest Stateroom (Starboard)

• Carpeting
• Removable upholstered headliner
• Wallcovering
• Wood cabinetry and trim with high gloss finish
• Side by side twin berths with storage underneath outboard berth via pneumatic cylinder
• Upholstered berth bases
• Polyfoam mattresses, spreads, throw pillows, pillows, pillow shams, mattress pads and sheets
• Double cedar-lined hanging locker with doors, shelf and automatic light
• Air conditioning dispersed through fluted wood valances
• Carbon monoxide detector
• Nightstand with drawers
• Full-length mirror
• AC and DC light fixtures
• AC duplex outlet
• Audio system control, LCD keypad and a pair of speakers
• Private access to head with door stop
• Smoke detector
• Mirrored aft bulkhead
• SMX HVAC bow compartment controlled

Guest Stateroom (Bow)

• Carpeting
• Removable upholstered headliner
• Wallcovering
• Wood cabinetry and trim with high gloss finish
• Whisperwall padded panels on hullside
• Queen-sized tapered berth with upholstered headboard and cedarlined storage underneath accessed via pneumatic cylinders
• Upholstered berth base
• Polyfoam mattress, spread, throw pillows, pillows, pillow shams, mattress pad and sheets
• Carbon monoxide detector
• Cedar-lined hanging/storage lockers with automatic light
• Upper port and starboard hull side cabinets, optional
• Screened overhead hatch with privacy cover
• Nightstands with storage accessed by hinged lids, port and starboard
• AC and DC light fixtures
• AC lights
• AC duplex outlets
• Full-length mirror
• Audio system control, LCD keypad and a pair of speakers
• Clear plexi-mirror (forward bulkhead)
• Washer/dryer
• Private access to head with door stop
• Smoke detector
• DC low-voltage lights behind valance
• Air conditioning dispersed through fluted wood valances, port and starboard
• Linen storage, port
• SMX HVAC compartment controlled

Master Head and Guest Head

• Amtico vinyl-strip flooring
• Removable upholstered headliner
• Wallcovering
• Solid-surface countertops with solidsurface backsplash, sidesplash and integral sink over storage cabinet made of genuine wood to match interior finish with bowed fronts
• Linen storage cabinets (master)
• Hardwood base boards
• Stall shower with seat, door and automatic enclosed sump pump
• Storage cabinet with mirror
• Screened overhead ventilator hatch with privacy cover
• Towel bar
• Headhunter freshwater toilet
• 120-volt AC air freshener blower
• AC and DC light fixtures
• AC duplex outlet
• Plexi-mirror around upper cabinet
• DC low-voltage lights under toe kicks (master head only)
• Air conditioning discharge
• Holding tank 3/4 full indicator lights

Broker's Remarks

"Lady A" was originally a two owner, freshwater Hatteras that has spent her life on Lake Michigan from May until October each year and then in the Owner's private indoor heated storage building for the rest of the season. In 2018 the current owner purchased her and relocated her to Orange Beach, AL. At the time of relocation that boat underwent many upgrades and additional equipment added to get her fish rigged and ready. This is a classic 54 Hatteras with the ideal CAT C32 1550hp engine package, recent 1,000 hour service with aftercooler cores just completed by Thompson Tractor May 2025. If you’re in the market for a clean Hatteras 54 Convertible don’t wait long because this one shouldn’t last long on the open market. Contact listing broker to discuss all the recent upgrades and details of “Lady A”.
