Overview

Builder: Marlow

Model: 53E

Year: 2020

Construction: GRP

LOA: 61 ft

Beam: 17.25 ft

Draft: 4.42 ft

Displacement: 66,000 lbs

Fuel Capacity: 1,200 gallons

Water Capacity: 300 gallons

Engines: Twin 750 hp John Deere 6135SFM

Top Speed: 22.6 knots at WOT (71 gph; 382 nm range)

Cruising Speed: 16.3 knots (44.3 gph; 442 nm range)

Economical Speed: 9.7 knots (12.8 gph; 837 nm range)

Long-Range Speed: 7.6 knots (1,600 nm range)

The yacht's fuel efficiency and range are tailored for long-distance cruising, ensuring both performance and economy.

KEY BUILD UPGRADES & NOTES

• Engine package John Deere model 6135SLM @ 750 hp
• Engine room air conditioning (12k BTU)
• Teak and holly satin floors throughout
• All satin teak wood work
• After deck docking station (3rd station)
• Larger Cummins 17 kW generator
• Air compressor
• Extra large lazarette storage
• (2) extra intercoms at helms
• Port salon settee change
• Starboard settee double berth option
• Hi-lo teak table
• Pocket door to master head
• Glassware storage
• Teak decks deleted
• Forward windshield for bridge making an excellent helm even in the bluest of water
• Helm air condition
• VIP extra bunks
• Laundry room fridge added
• Aft cockpit seating storage
• Upgraded railings
• Added forward boarding doors
• Grill
• Custom covers for: Windlass, windshield, upper helmet, dingy, Flybridge stuff helm chair, all exterior tables, all exterior cushions and the grill
• 3-Sided Flybridge enclosure in excellent shape from factory
• Cockpit enclosure
• Extra anchor chain
• Spare engine and generator kits
• Spare set of propellers 600 gps Bluewater water maker
• Spare pumps fora all systems including AC. chillers and spare parts in general (call for inventory)
• Garmin electronics premium level package - very complete and well thought out by her owner (call for complete list and build specs)
• Garmin CCTV camera system with 4 cameras
• Starlink internet, 2023
• HD KVH SAT TV HD7 system
• Backup wireless nearshore internet system
• FLIR thermal night vision camera

CONSTRUCTION

• Teak and holly soles, with rich teak veneers for cabinetry and walls
• Ultraleather overhead panels and furniture for a luxurious interior
• Sustainable wood sourcing ensures grain matching and environmental protection

INTERIOR LAYOUT

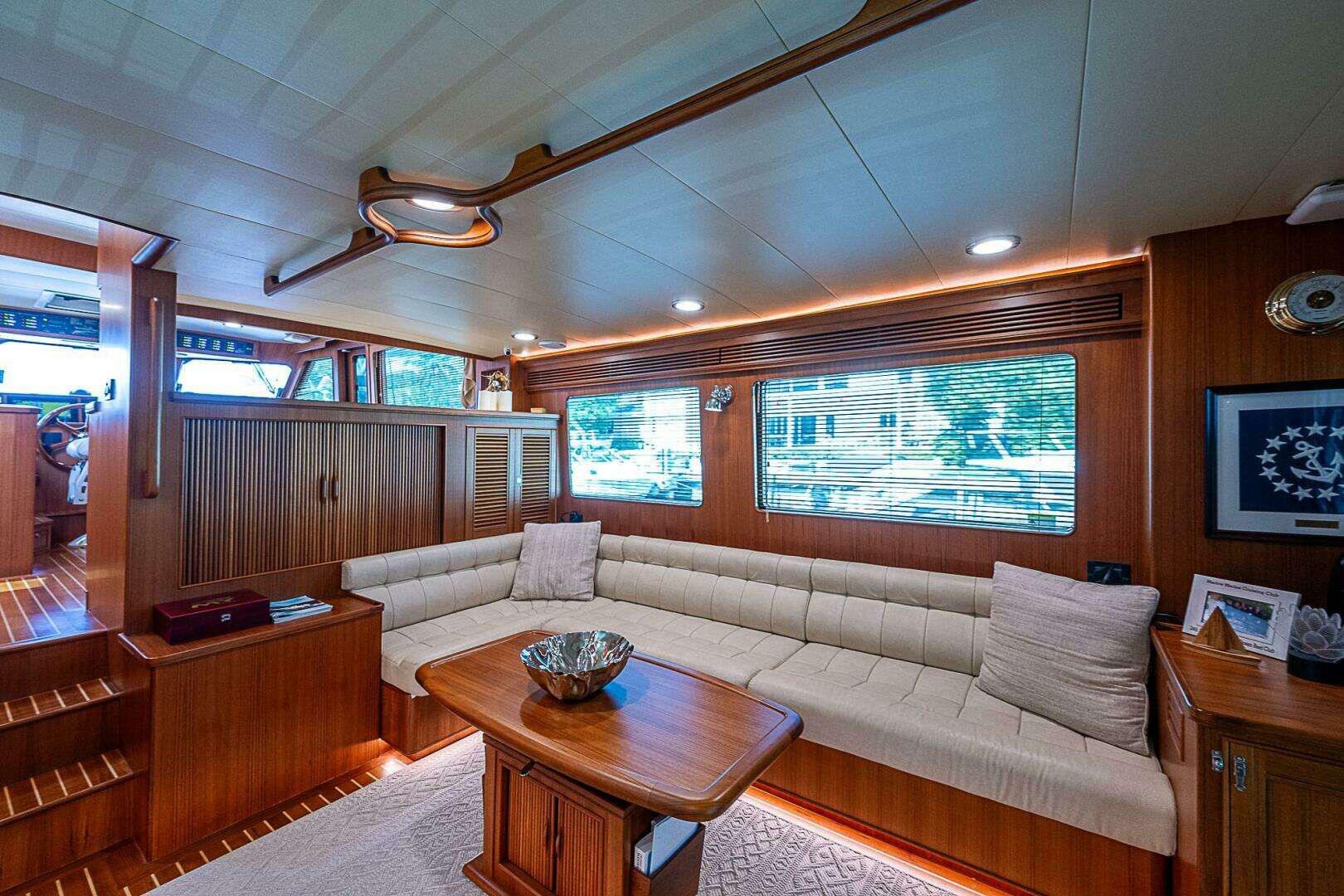

SALON

• Seating: L-shaped Ultraleather sofa to starboard and a straight built-in sofa to port
• Entertainment: A 46-inch TV concealed in a teak buffet with sliding tambour doors
• Aesthetic: Warm tones from teak veneers, coffee tables, and cabinets enhance the inviting atmosphere

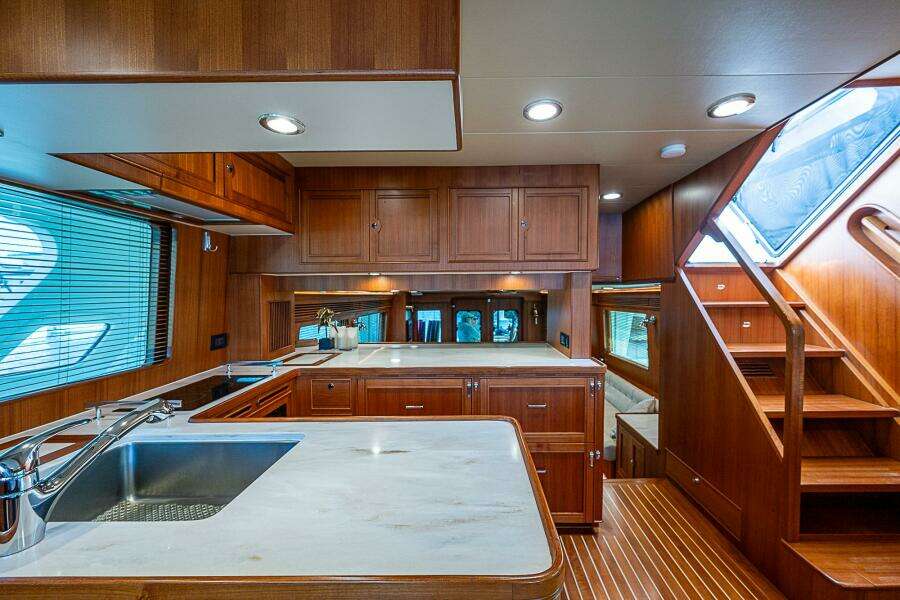

GALLEY & DINETTE

GALLEY

• (4) Sub-Zero fridge/freezer drawers
• Dishwasher, two-burner cooktop, microwave, and stainless sink

DINETTE

• U-shaped with a teak table, positioned under forward windows, offering a great spot for meals or chart planning.

LOWER HELM

Fully equipped with Garmin electronics:

• Twin 16-inch multifunction display
• Autopilot, radar, sounder, VHF radio, bow and stern thrusters
• Naiad roll stabilizer controller
• Visibility through three windshields and a galley cutout allows excellent situational awareness

MASTER STATEROOM

• Full-beam, amidships with an athwartship queen-sized berth
• Ensuite head with pocket doors and separate shower stall
• Engine room and laundry room access (washer and dryer included)

VIP STATEROOM

• Forward with a centerline queen berth and an ensuite head
• Overhead bunks

GUEST STATEROOM

• Twin berths for additional accommodations

EXTERIOR LAYOUT

FLYBRIDGE

• Seating: Bench seat to port and L-shaped settee with a fiberglass table to starboard
• Helm Station: Twin Stidd chairs and full controls with dual Garmin displays
• Amenities: Optional grill, sink, fridge, ice maker, and lounge chairs for outdoor relaxation

AFT DECK

• Alfresco dining area with a transom bench seat and table
• Flybridge overhang for protection from sun and rain
• Dual doors to the salon enhance flow between spaces

DECKS & ACCESSIBILITY

• Full walkaround decks for easy handling of lines and movement during docking
• Portuguese bridge with built-in seating adds functionality and comfort
• Twin aft staircases from the swim platform provide convenient boarding

NOTABLE ENGINEERING

• Semi-enclosed bridge design integrates the windshield framing into the hardtop for reduced windage and additional protection
• Optional side curtains and climate control for all-season use
• Engine room with standing headroom and walkaround access for maintenance
• Davit with 775 lb capacity

INSANITY epitomizes Marlow’s dedication to creating yachts that balance luxury, practicality, and performance. Designed for owner-operators, it excels in visibility, maneuverability, and range, making it a perfect choice for extended cruising. The 53E continues Marlow’s tradition of refining what works, ensuring every new hull is better than the last.

Let me know if you'd like further details or help planning your experience with the Marlow 53E!
