CONSTRUCTION

Fiberglass/Foam Core Hull and superstructure, teak decks

DIMENSIONS

General

Length Overall (L.O.A.):

• 50.00 feet
• (15.24 meters)

Beam (molded):

• 17.8 feet
• (5.43 meters)

Draft (loaded):

• 4.50 feet
• (1.37 meters)

Tonnage:  47 gross

Capacities

Fuel Capacity:

• 920 US Gallons
• (3,558 liters)

Water Capacity:

• 240 US Gallons
• (757 liters)

Speed

Maximum:  35.0 knots

Cruising:  25.0 knots /  400 nm with 13% reserve

Economical: 8.0 Knots   850 nm

MACHINERY

Main Engines

Engine Type:

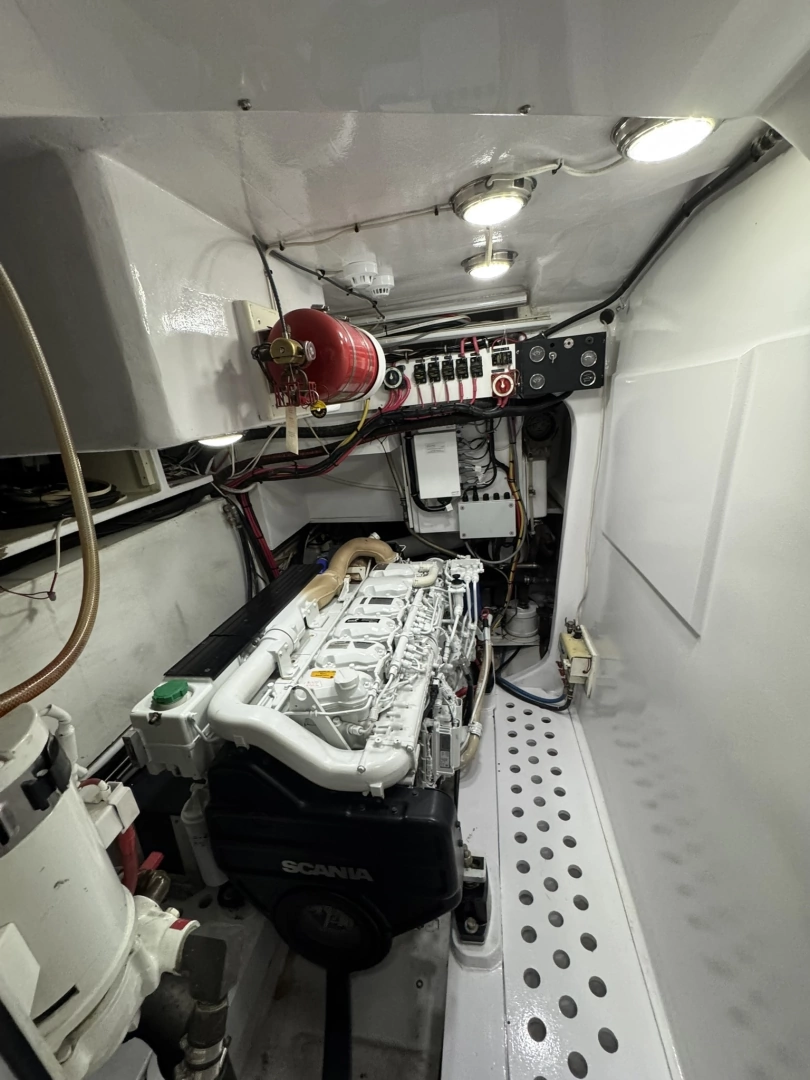

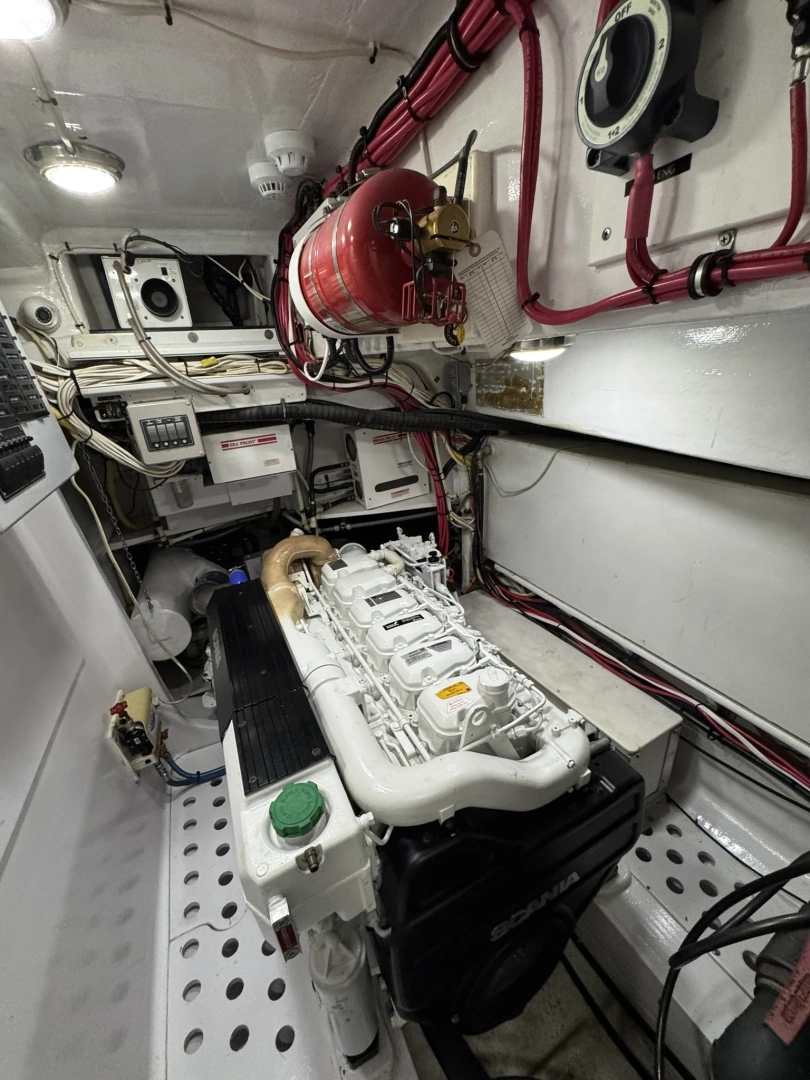

• NEW (2) Scania DI1 13-304 inboard @ 900 Hp each w/ 380 Hours
• Serviced April 2026 - filters, oil, anodes, and routine maintenance

Drive:

• 5-Blade 31.5 x 39 fixed type Veem NIBRAL
• Twin Disc

Ratio: 1.92 : 1

Other:

• NEW Steel longitudinal engine rails
• NEW Flex motor mounts six points

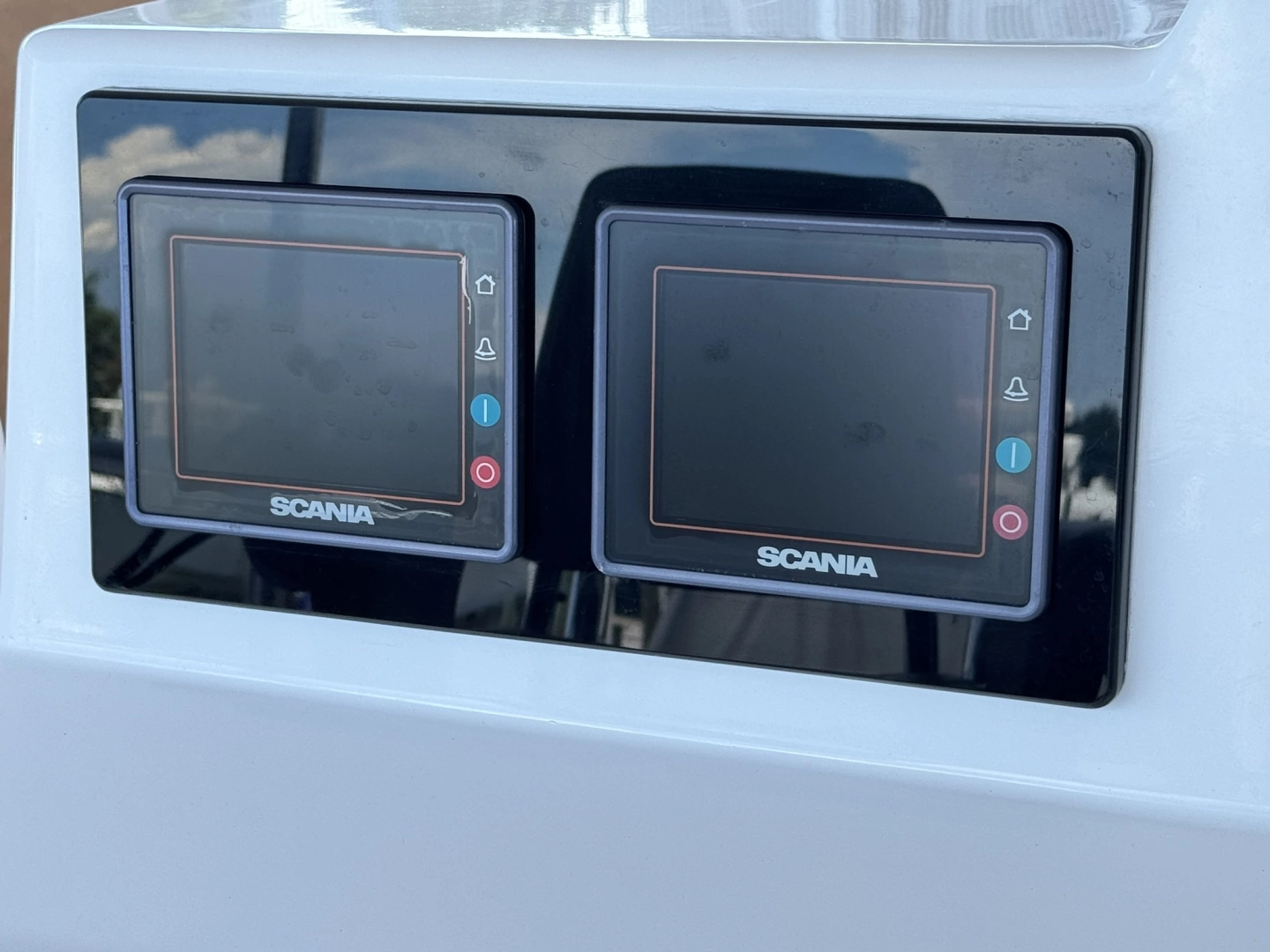

• Scania Digital LCD display engine monitor system. NEW with engine install

Generators & Electricity

Generators: 23Kw

Shore Power:  50A - 120/240 VAC

Panels: NEW 2023 AC electrical distribution panel with components in engine compartment added to original AC service NEW 2023

Batteries:

• Bank 1: (4) 4D - 12 VDC Wet Cell - House service
•  Bank 2: (2) 4D - 12 VDC Wet Cell-Engine start
• Bank 3: (2) 4D - 12 VDC Wet Cell-Engine start
• Bank 4: (2) GRP 27 - 12 VDC AGM-Windlass

Battery Chargers:

• Victron Energy 24 VDC – 60A battery charger
• ProMariner ProSport20, 12 VDC – 20A battery charger
• NEW Victron Energy Multi Plus inverter / charger: 12 VDC 160A – charger and 120/ 3000 watt-inverter
• NEW PowerMax 110 VAC – 24 VC - 30A inverter

Air Conditioning

Type:  NEW 2023 4 - Dometic 120/240 VAC Ships Service

Refrigeration: NEW Dual thru hull and dual high volume raw water pumps

Raw Water Protection:  NEW 2023 Electro Sea sea strainer

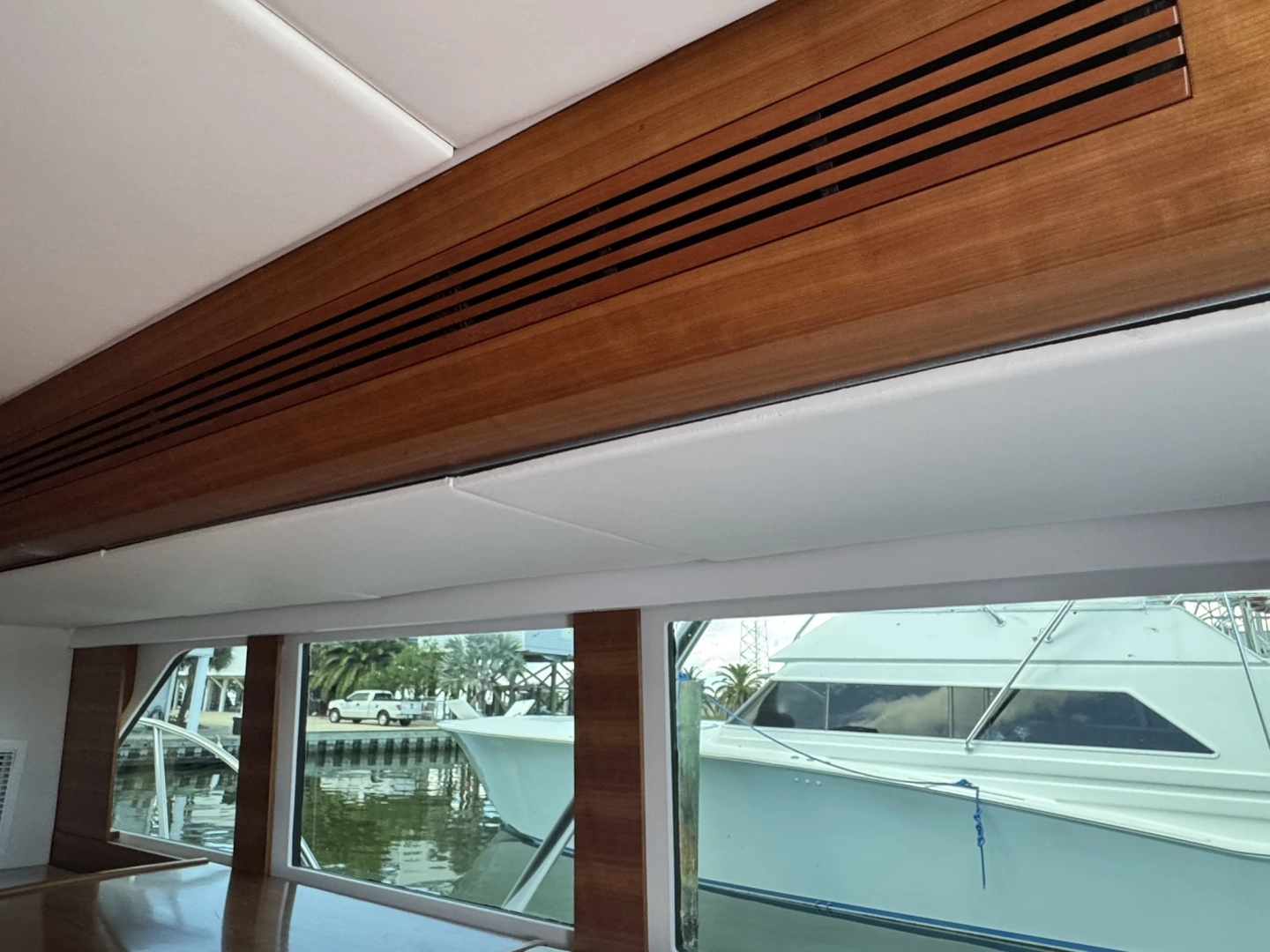

Vents: NEW 2023 Custom Cherry covered Vents offering ice cold salon and state room comfort

Other Machinery

Steering System:

• Hynautic manual hydraulic steering system
• Single helm unit
• NEW Glendinning electronic dual-lever engine and transmission controls at the helm

Fuel Separator & Filtration: Dual Duplex Racor 1000 with vacuum gauge

Sewage System: (2) Dometic

Fresh Water System: NEW (2) Head Hunter Mach 110 VAC

COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

Communication Systems

VHF:

• NEW (2) Standard HS-90
• NEW (2) Above Help Ceiling Mounted Speakers
• NEW 8 ft. Fiberglass reinforced plastic VHF antenna on ratchet mount

Navigation Systems

Radar:  NEW Open Array

Magnetic Compass:  3”

Satelite Compass: GarminMSC 10 Satelite Compass

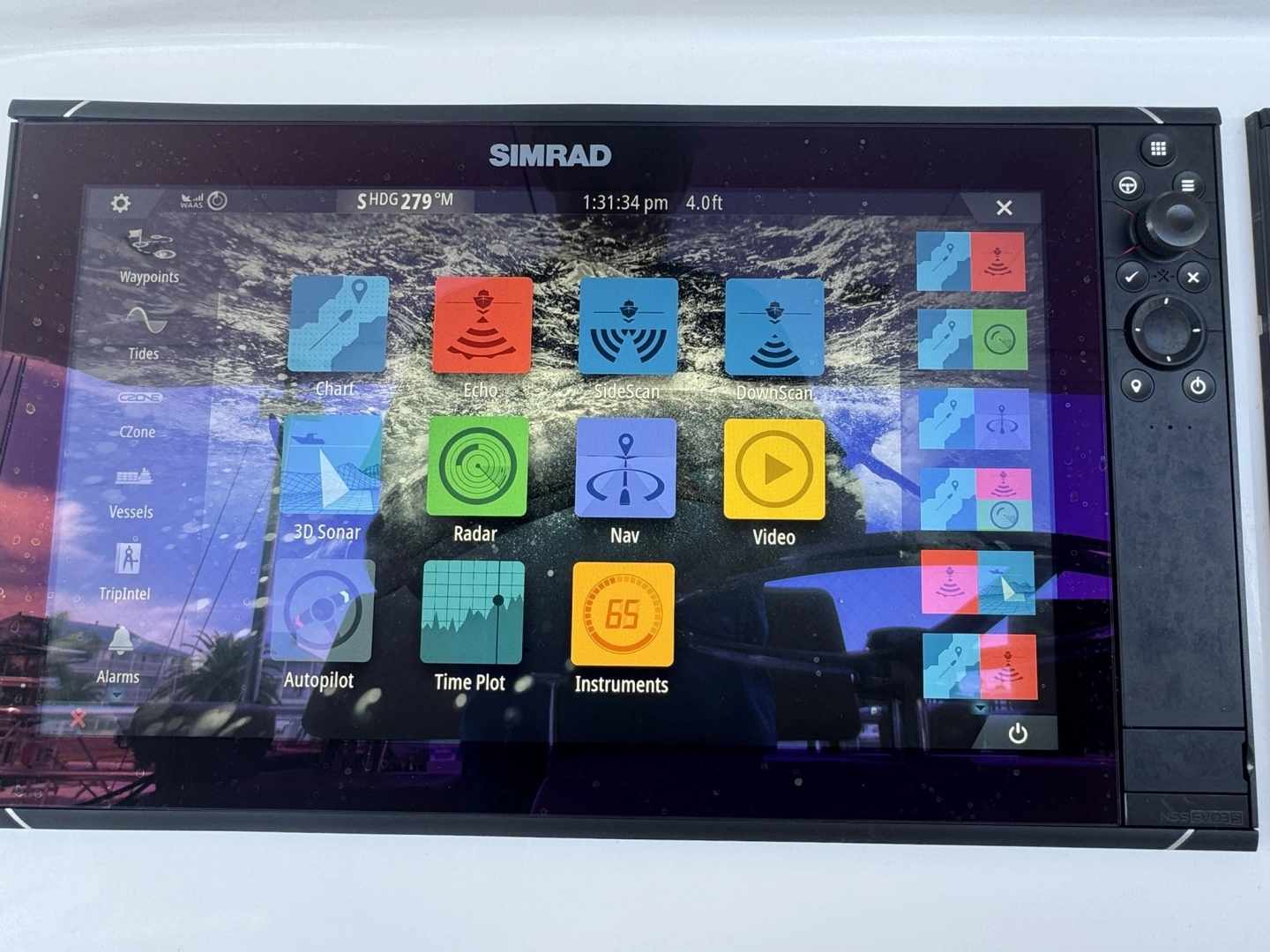

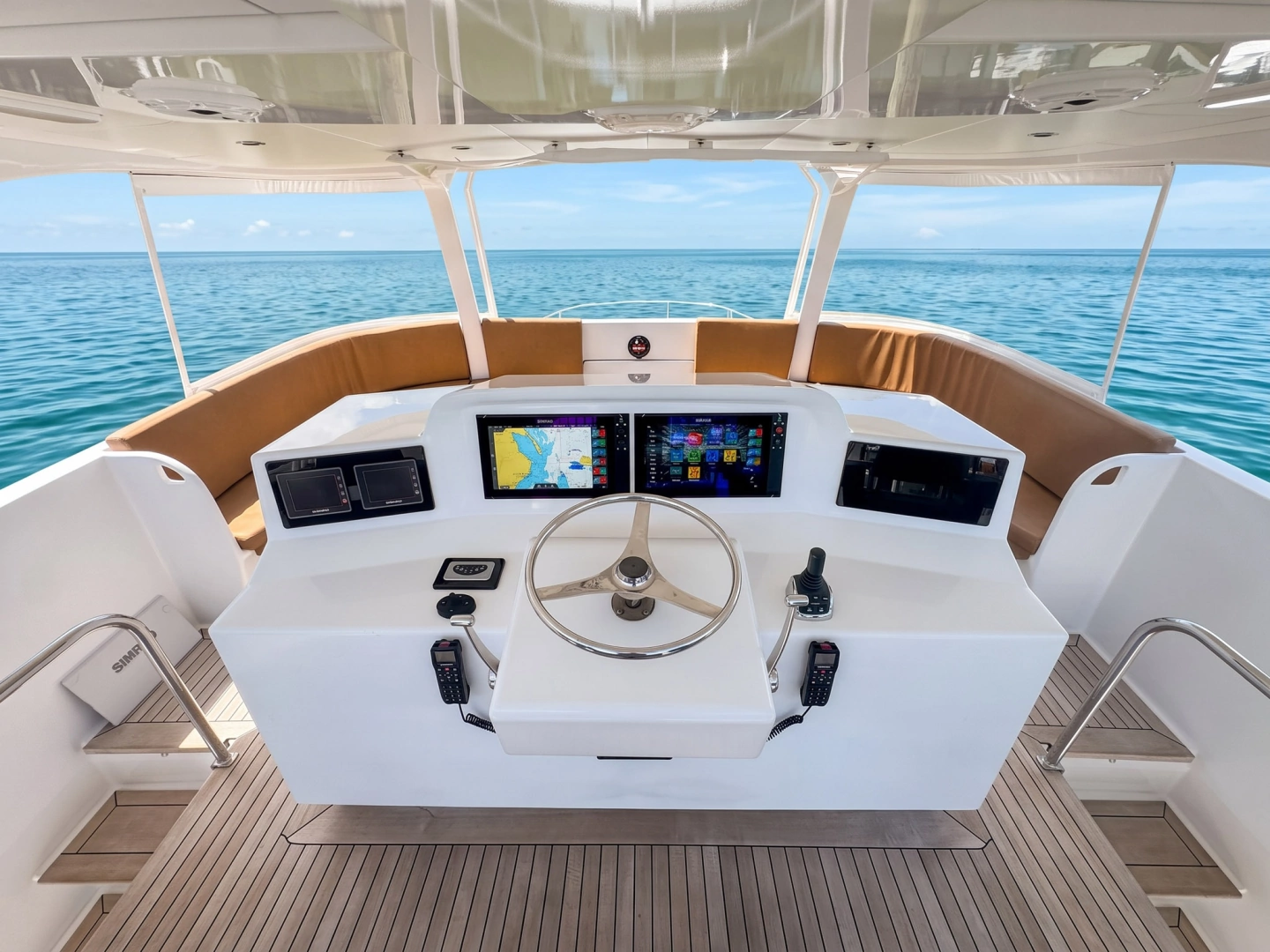

Chart Plotter:  NEW (2) Simrad NSS 16 EVO 3, 16” Color LCD Multifunction displays

Auto Pilot:  NEW Simrad system with hydraulic unit Served with GPS

Other:  NEW CCTV system- 6 cameras

Entertainment System:

a.   Video Equipment

   TV’s:

• NEW 42” Vizio in Salon
• (2) 24’ Vizio in Saterooms

b.   Audio Equipment

•  NEW BT automotive style stereo and Amplifier
• Surround sound speaker systems for TV system
• 3 Bridge with Woofer and 2 Cockpit JL Speakers
• Amplifier/Tuner is a JL Audio MediaMaster MM105 HR 120watt with 4 channels

GALLEY & LAUNDRY EQUIPMENT

Main Galley Equipment

Cooking Equipment:

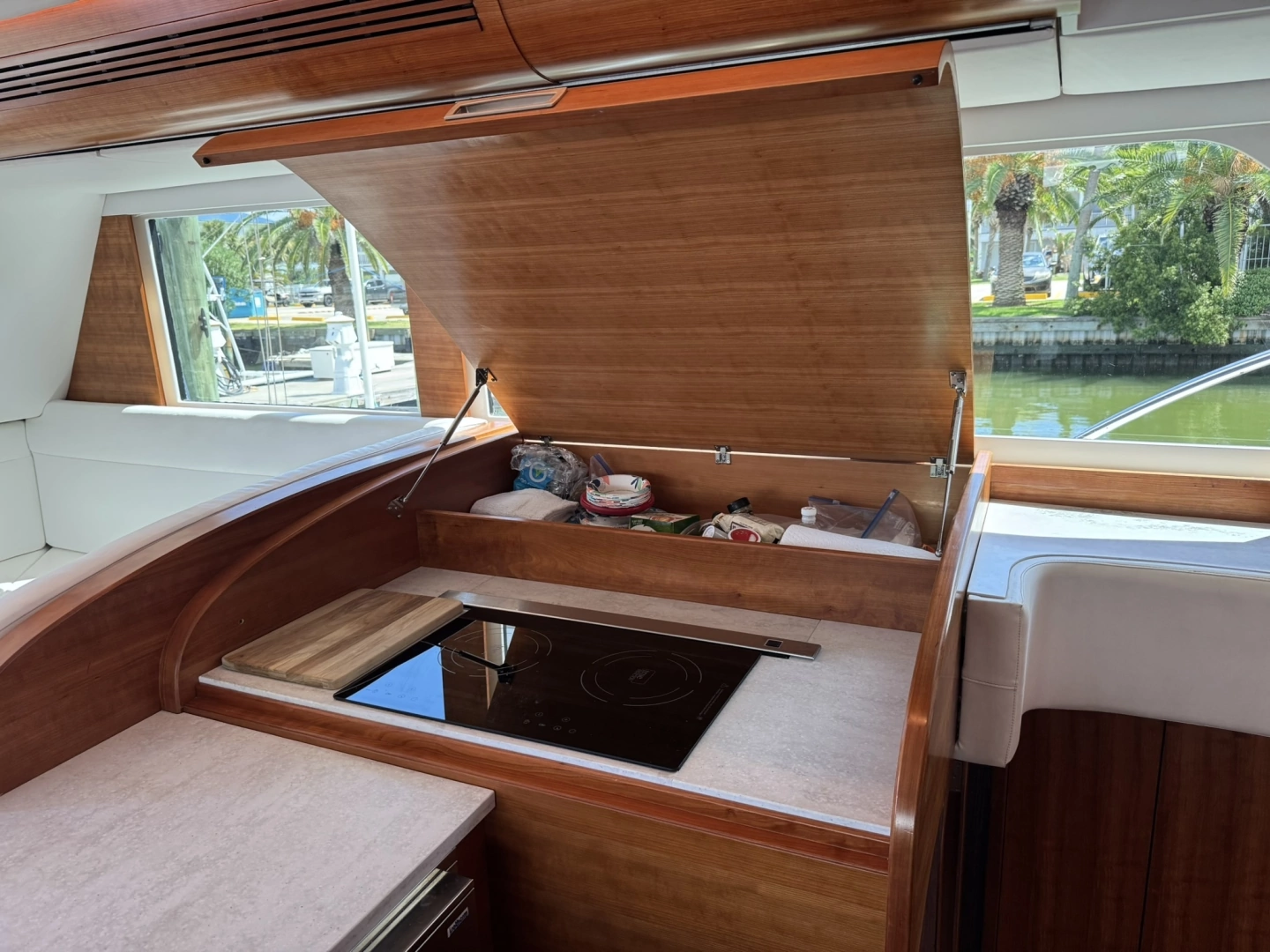

• NEW 2-Burner AC Electric induction cook top
• NEW Samsung microwave

Refrigeration/Freezer:  NEW Isotherm 2-drawer refrigerator

Cockpit Equipment

Refrigeration/Freezer:

• NEW Sea Frost refrigerated cockpit drink box and bait freezer
• NEW Eskimo Ice Flake ice maker way of mezzanine fish box
• NEW Sea Frost refrigerated cockpit Fish Box

FISHING EQUIPMENT

Extensive Offshore Fishing Equipment Package, including Winthrop Adjusta-Butts, Okuma Makaira SEA 50W big-game reels, custom snapper rods with Makaira 15 SEA reels, and two Lindgren-Pitman electric reels with dedicated swordfish rods.

Gulf Reef and Pelagic permits also available for purchase.

Outriggers:

• Rupp Tournament Flybridge release
• 41’ Triple spreader outriggers aluminum poles

Teaser Reels:  NEW (2) Miya Epoch US-9, 24 VDC teaser reels

Fighting Chair:   Release Marine 130# Class pedestal mount

Rod Holders:

• NEW (8) Cockpit gunnel mounts
• (6) Flybridge handrail mounts

Fish Storage:

• Mezzanine fish box with refrigeration
• Fiberglass reinforced plastic modular refrigerated drink box
• Mezzanine ice box with Eskimo ice maker
• Fiberglass reinforced plastic modulate bait freezer
• (2) Gunwale mounted DC plugs for Electric Reels

DECK & EQUIPMENT

Anchor Windlass System:   NEW custom-built anchor horizontal with helm controls

Anchors:  NEW – single roller at bow with safety lanyard/chain stopper

Other:

• NEW Hard top fiberglass reinforced plastic with pilster supports aft and modular support stanchion forward
• NEW Hardtop structural redesign

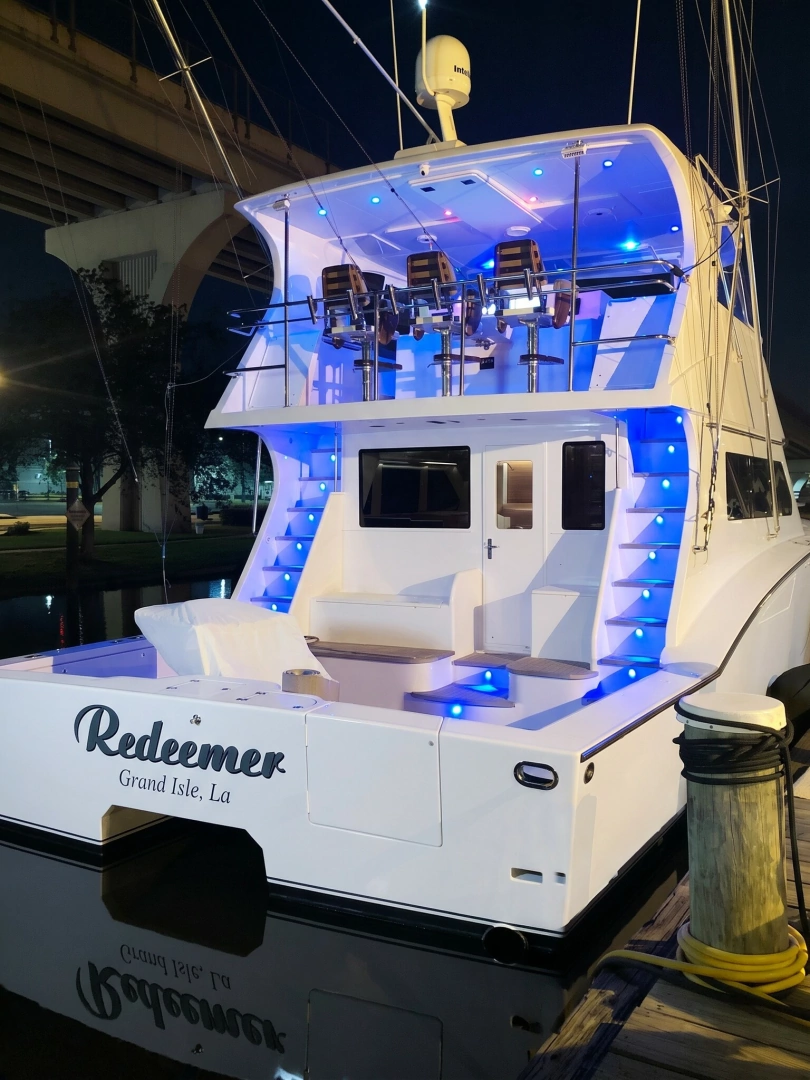

• NEW (2) 12 VDC LED underwater lights transom.
• NEW 2026 Stratoglass 3-sided enclosure curtains serving Flybridge
• Bow docking lights
• Tuna/transom door

SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

Security Equipment

Cameras:   NEW CCTV system- 6 cameras with 15 day DVD recorder

Fire Fighting Equipment

Fire Control System:  Fire box fixed automatic/manual discharge fire suppression system

Fire Extinguishers:   (4)

Alarms:  Yes

Safety Equipment

Life Rafts:   Ocean Safety Valise Case 10-Man

EPIRBS:   ACR RLC-37 EPIRB

Flares:   Yes

Medical Equipment:   Yes

ACCOMMODATIONS

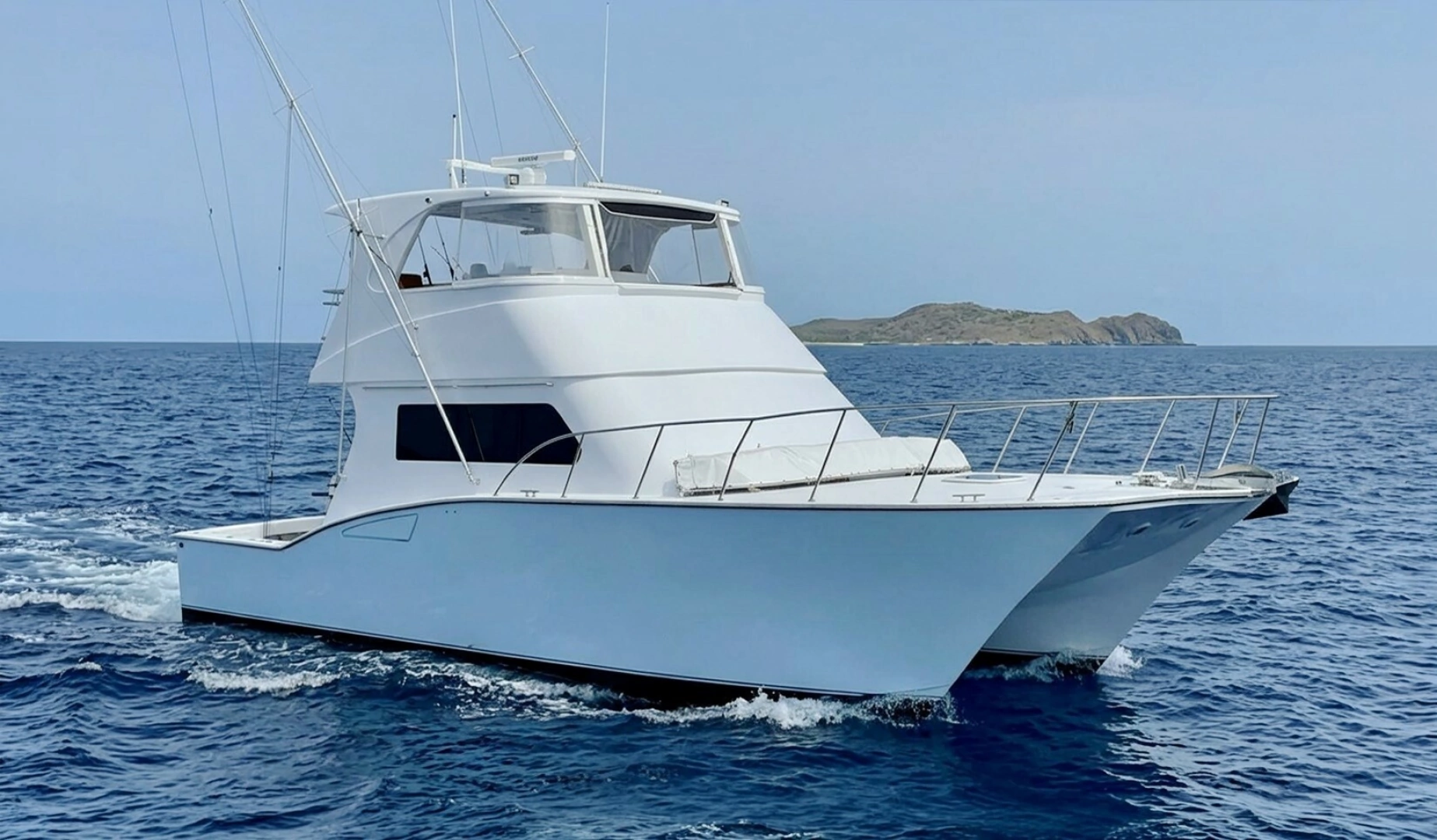

REDEEMER’s 50' sportfish catamaran design and 17'7" beam provide an exceptionally spacious and functional layout. Entering from the cockpit, the main salon features generous U-shaped seating to port with a sofa to starboard exhibiting beautiful custom cherry wood cabinetry and integrated rod storage.

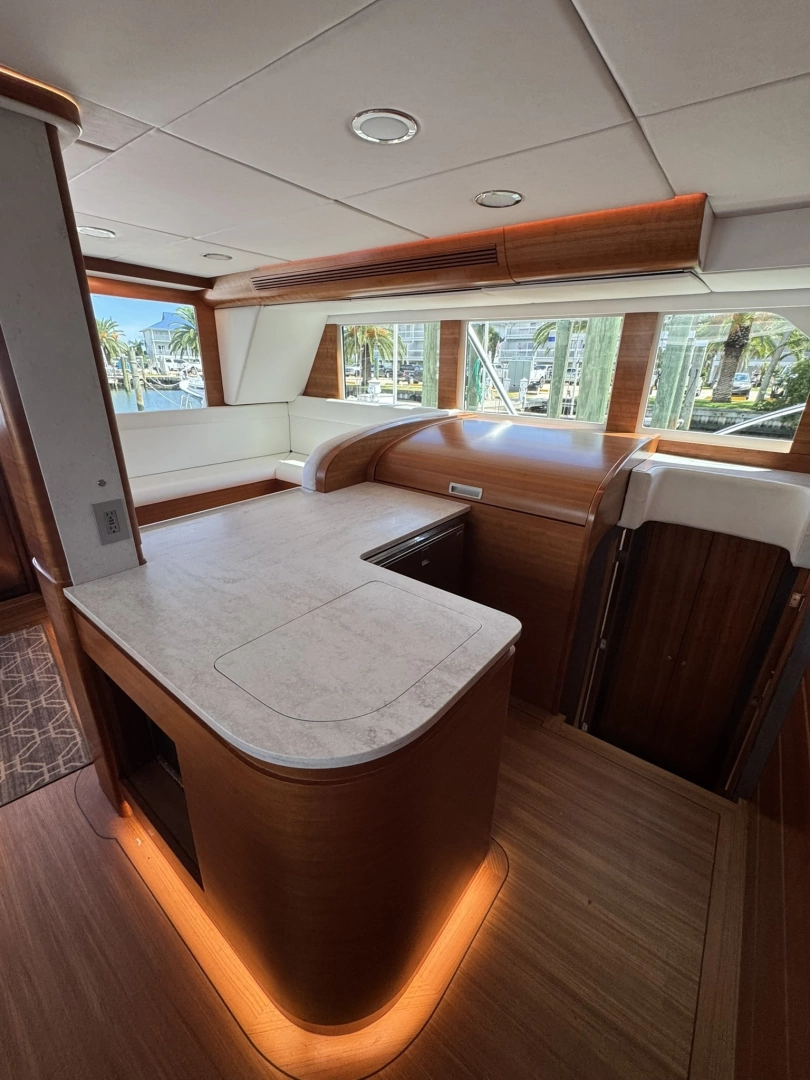

Forward, the open galley is located to port, with additional food-prep and storage space opposite to starboard. Separate stairways lead down into the port and starboard hulls.

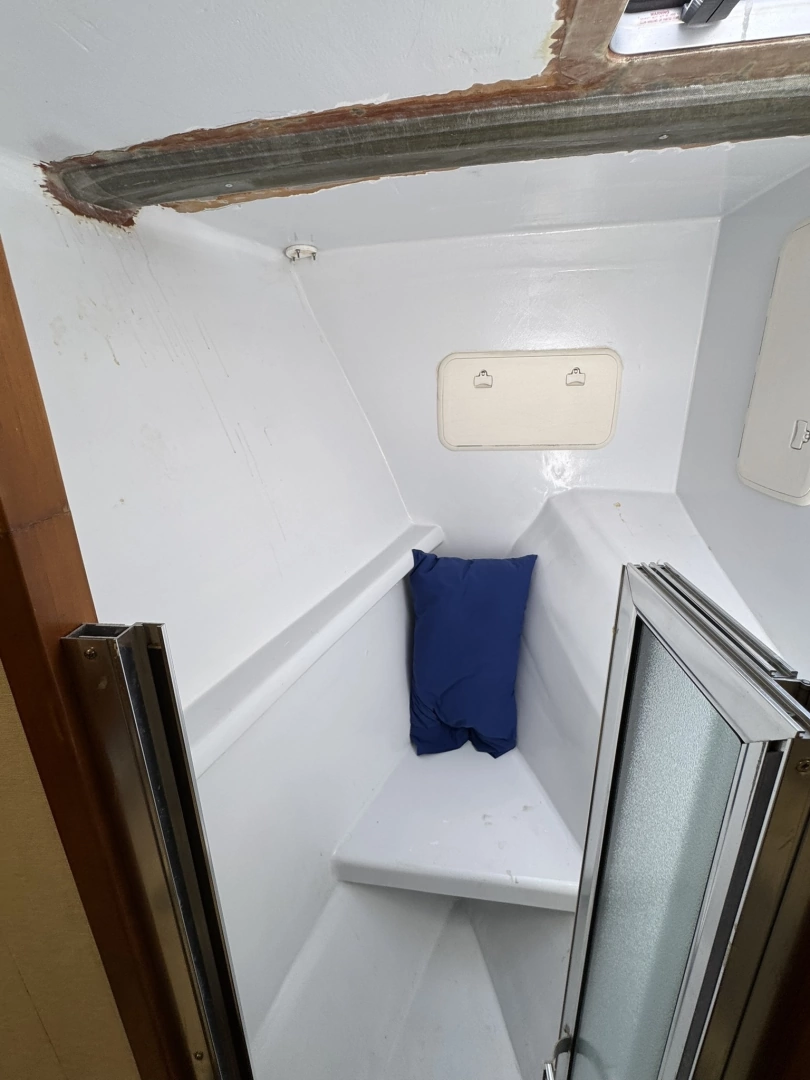

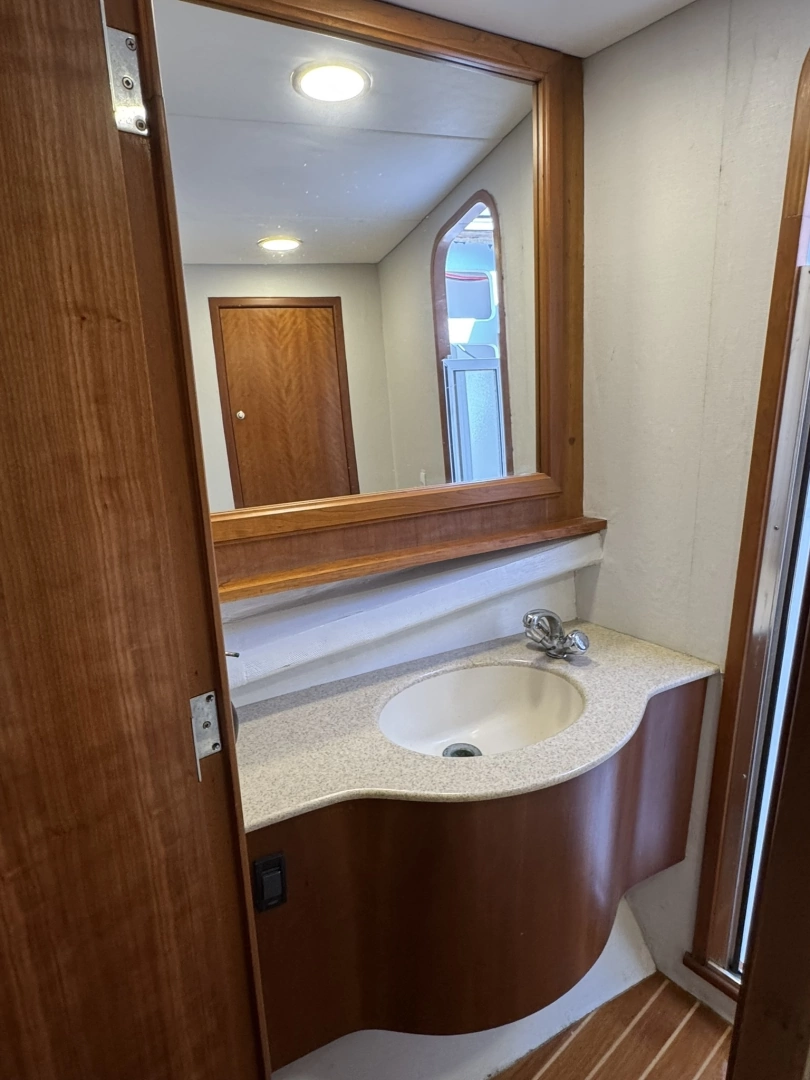

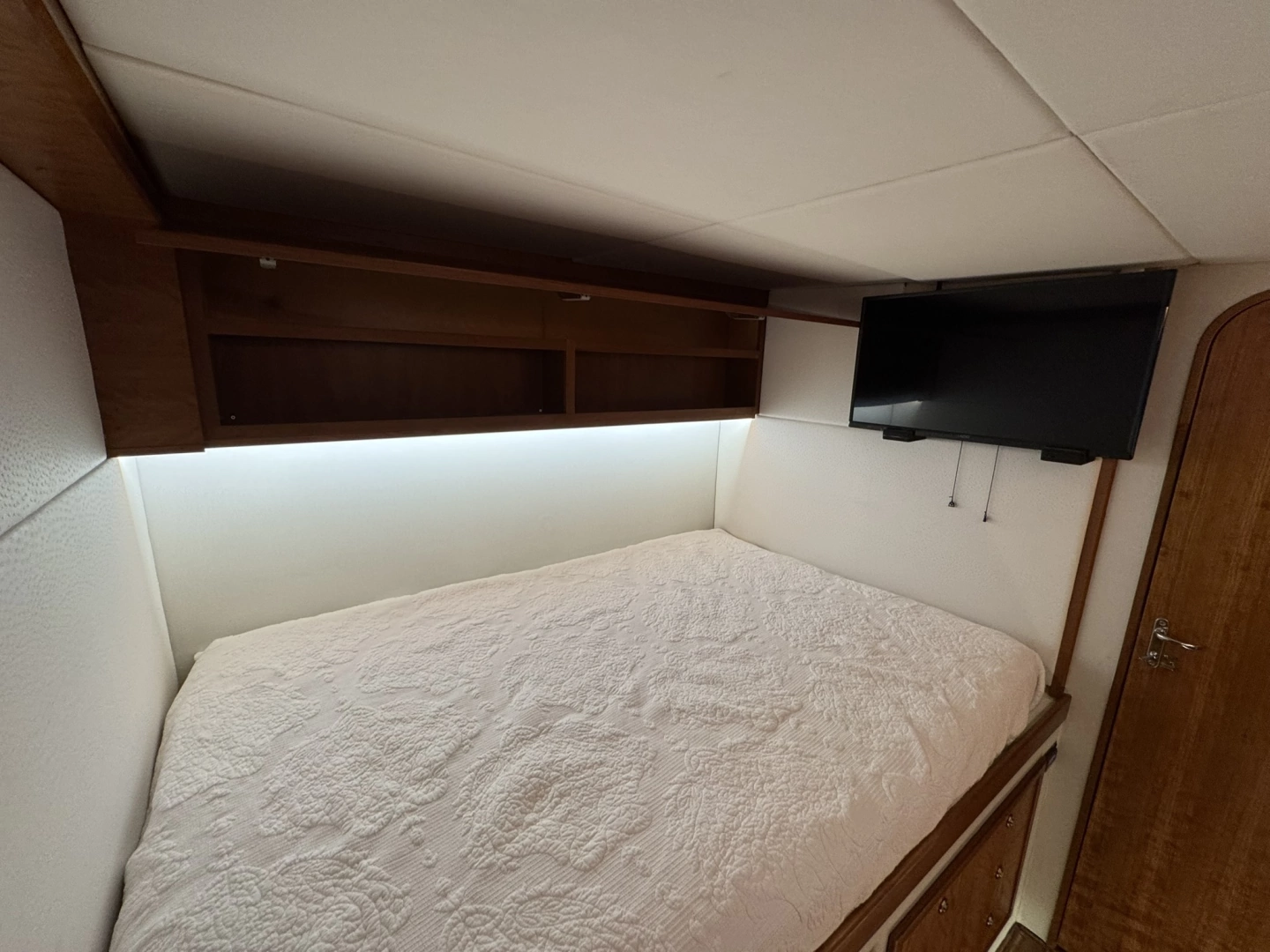

Each hull offers a private stateroom with a full-size berth and an enclosed head with vanity, electric toilet and large separate shower. Additional tackle, mechanical and storage areas are located aft, providing excellent separation between the accommodations and machinery spaces.

The result is a comfortable, private and highly practical layout equally well suited for serious fishing, extended cruising and entertaining.

COMMENTS

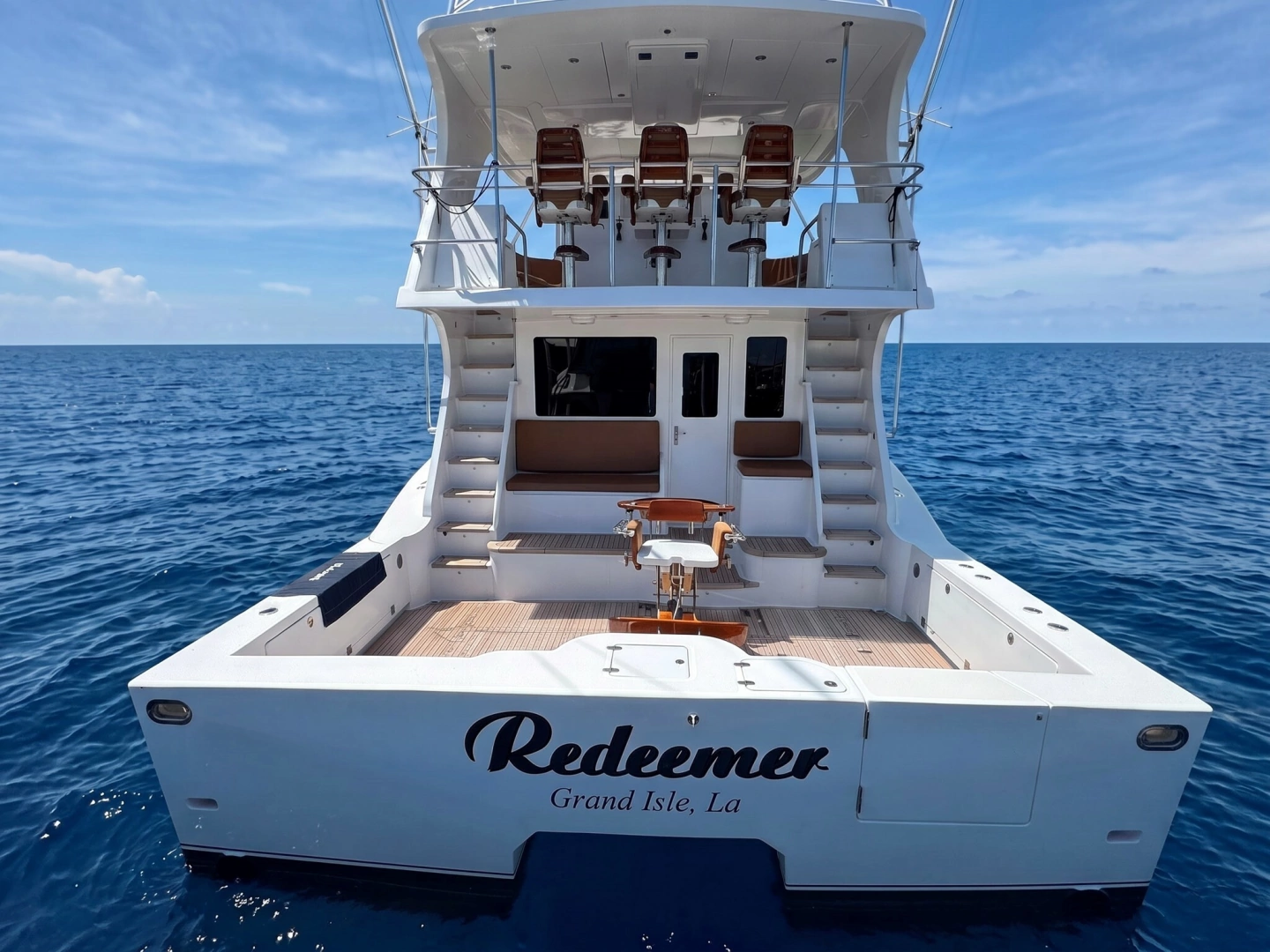

Built for serious offshore fishing, REDEEMER combines the stability and seaworthiness of a catamaran with exceptional space and comfort. Following an extensive rebuild and refit, she features twin Scania 900 HP engines with just 364 hours in stand-up, easy access engine rooms, a huge open flybridge with seating for up to 15, a large cockpit that can accommodate 7 bottom fishing anglers, updated electronics and an impressive offshore fishing equipment package.

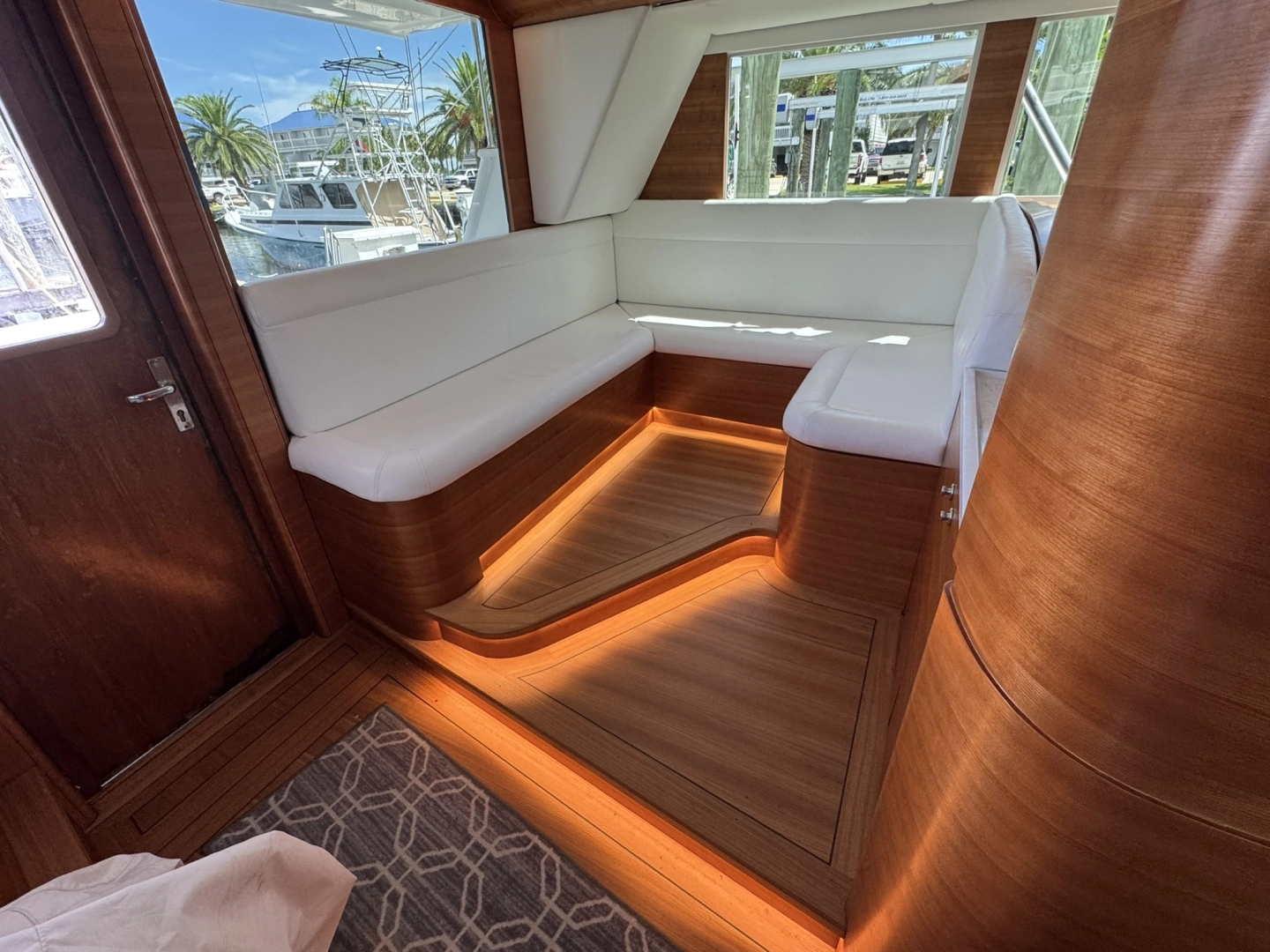

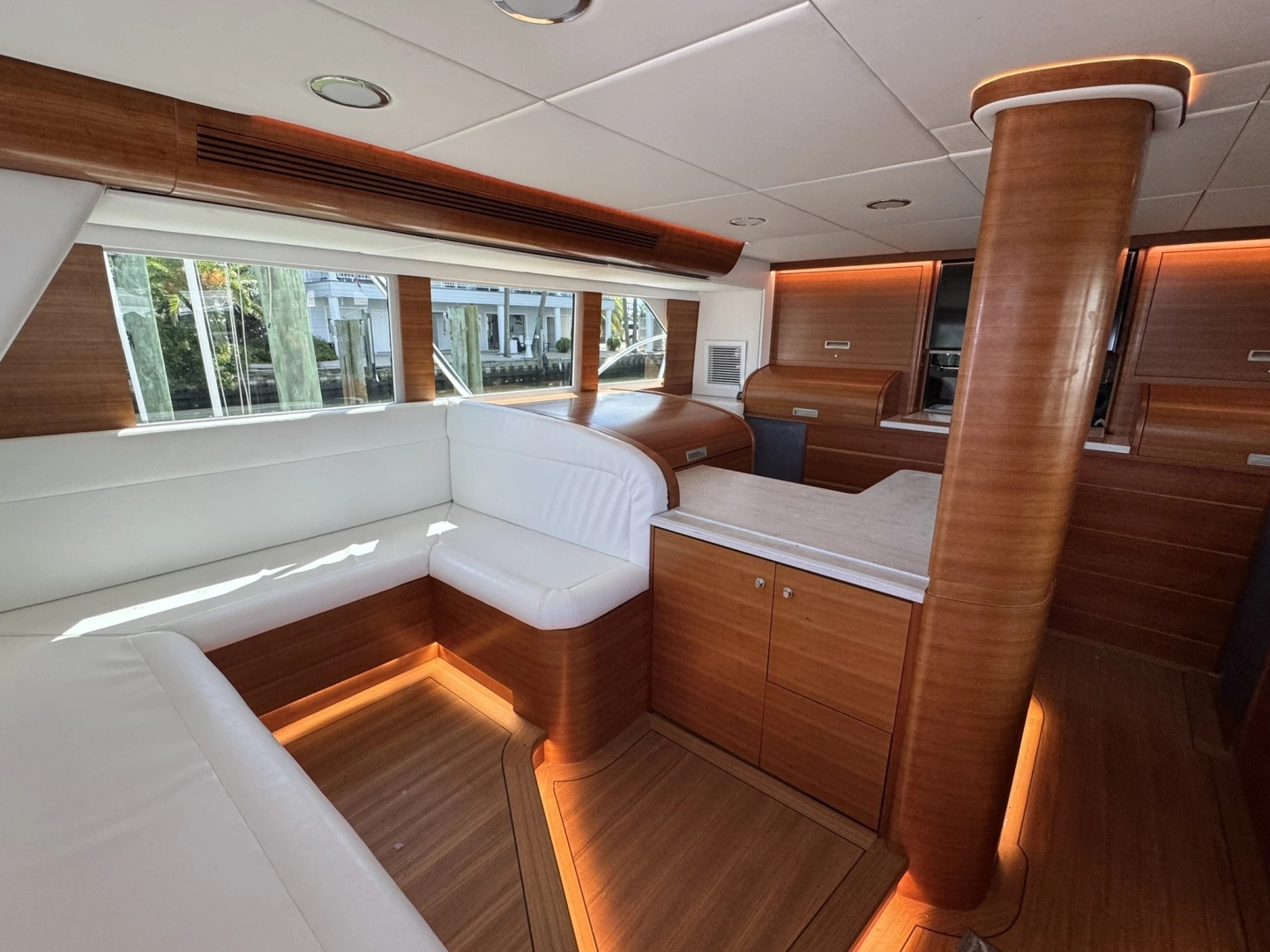

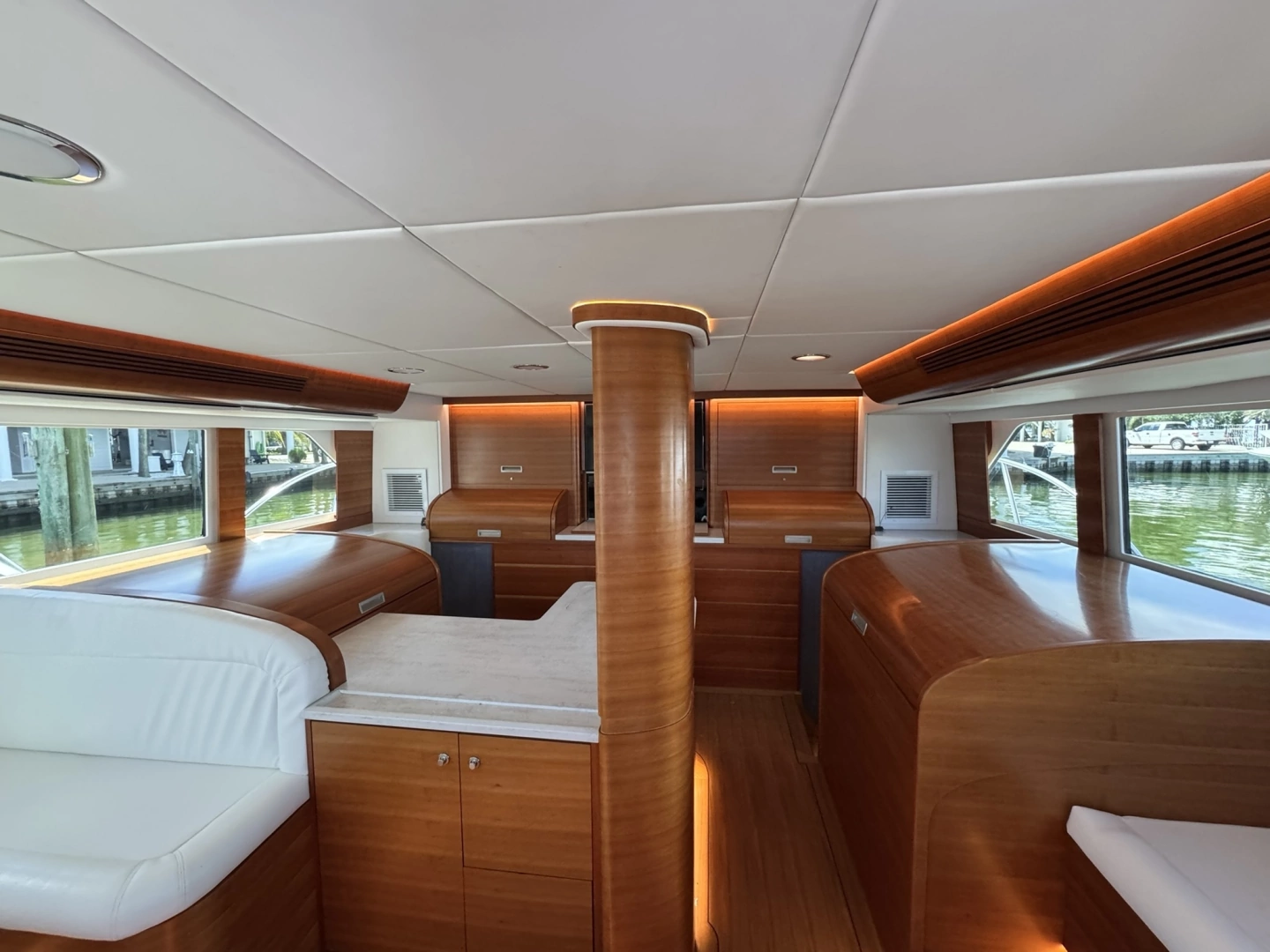

Inside, REDEEMER offers a spacious open salon and galley with custom cherry wood cabinetry, along with comfortable accommodations for six guests, including two private staterooms with full-size berths and two enclosed heads with separate showers.

Located in Grand Isle, Louisiana and ready for her next owner.

KEY FEATURES:

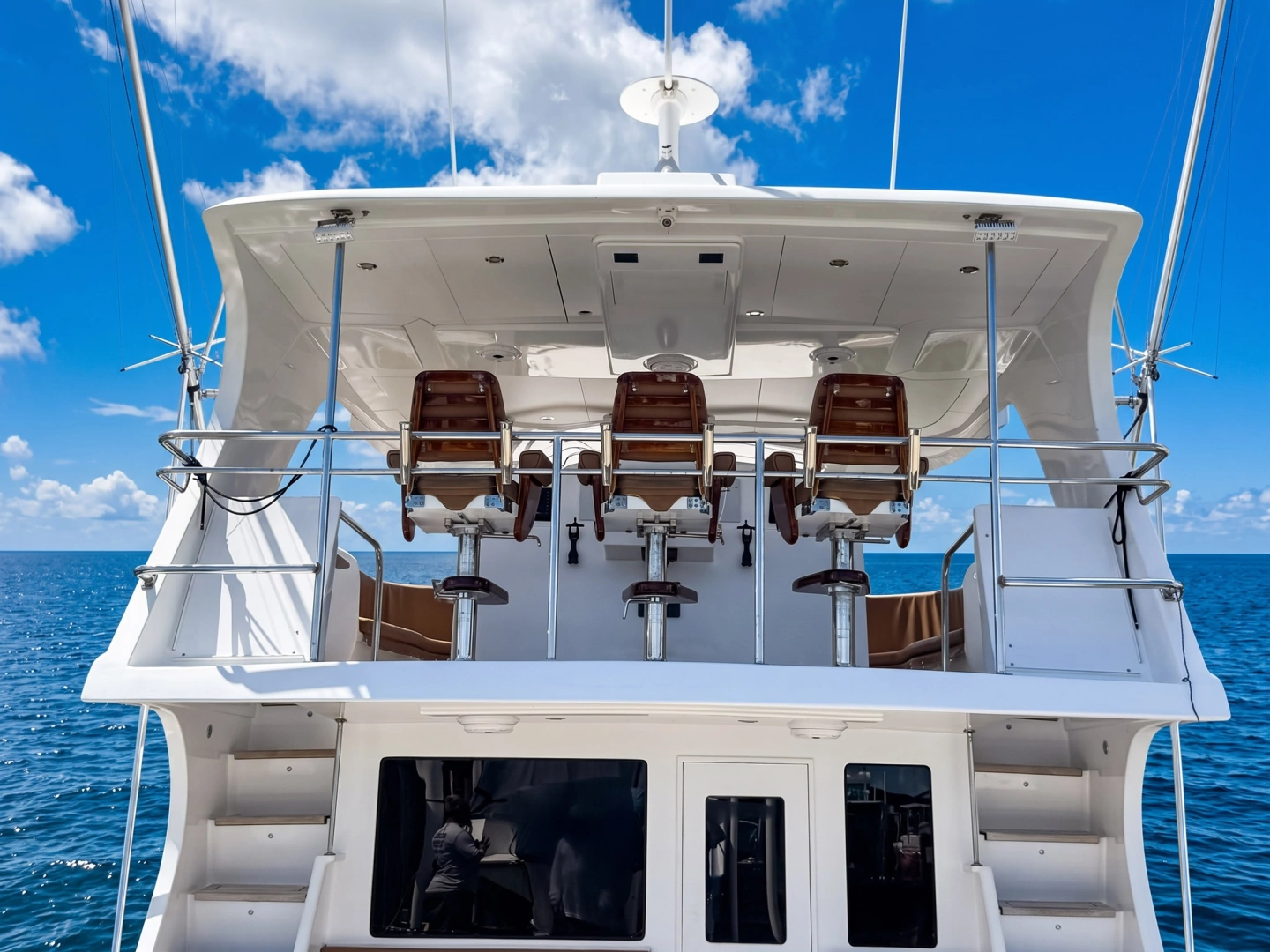

• Huge Open Flybridge with Seating for Up to 15

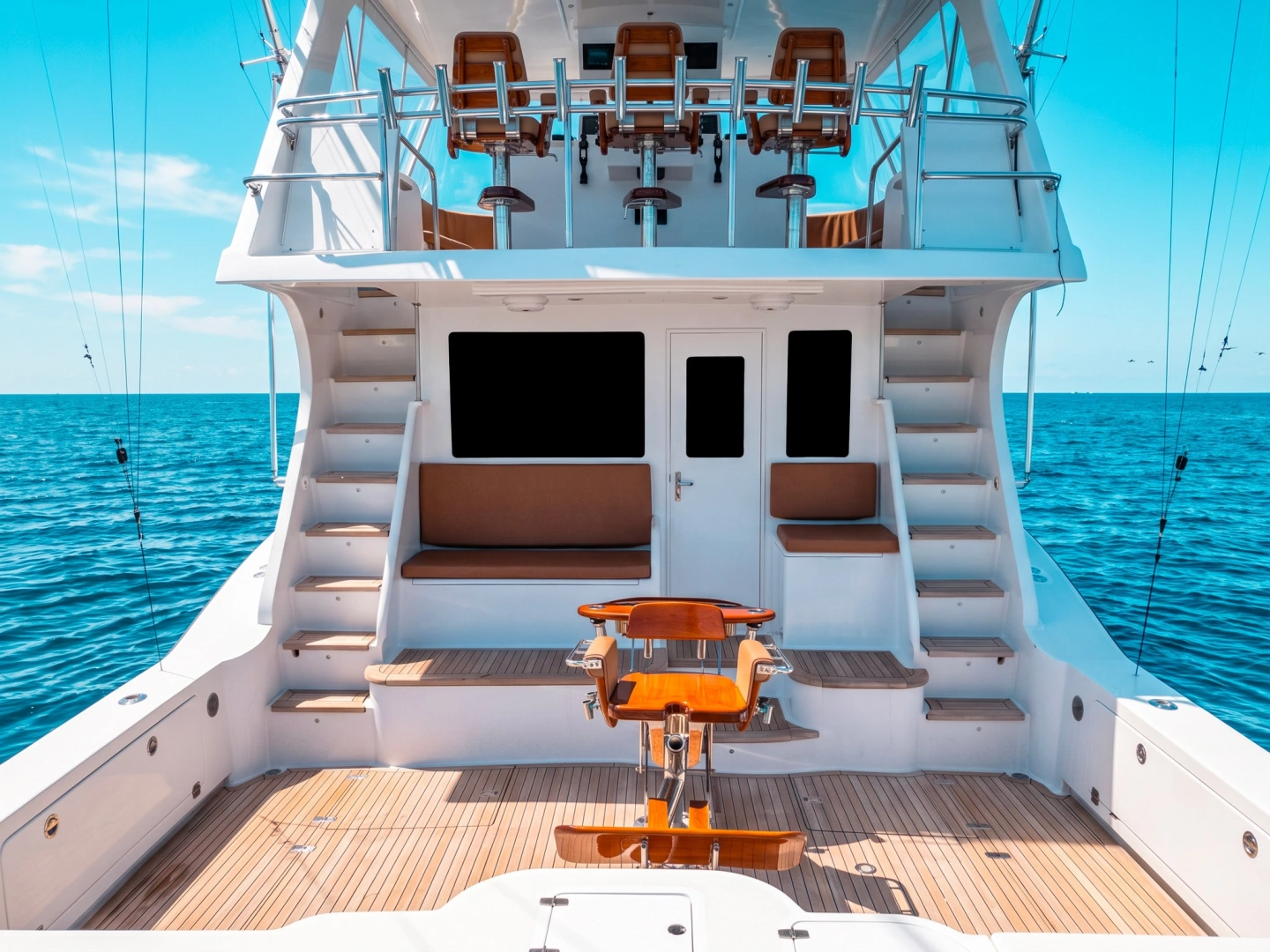

• Large Open Fighting Cockpit
• Seaworthy & Stable Catamaran Hull with Dry Running Hull

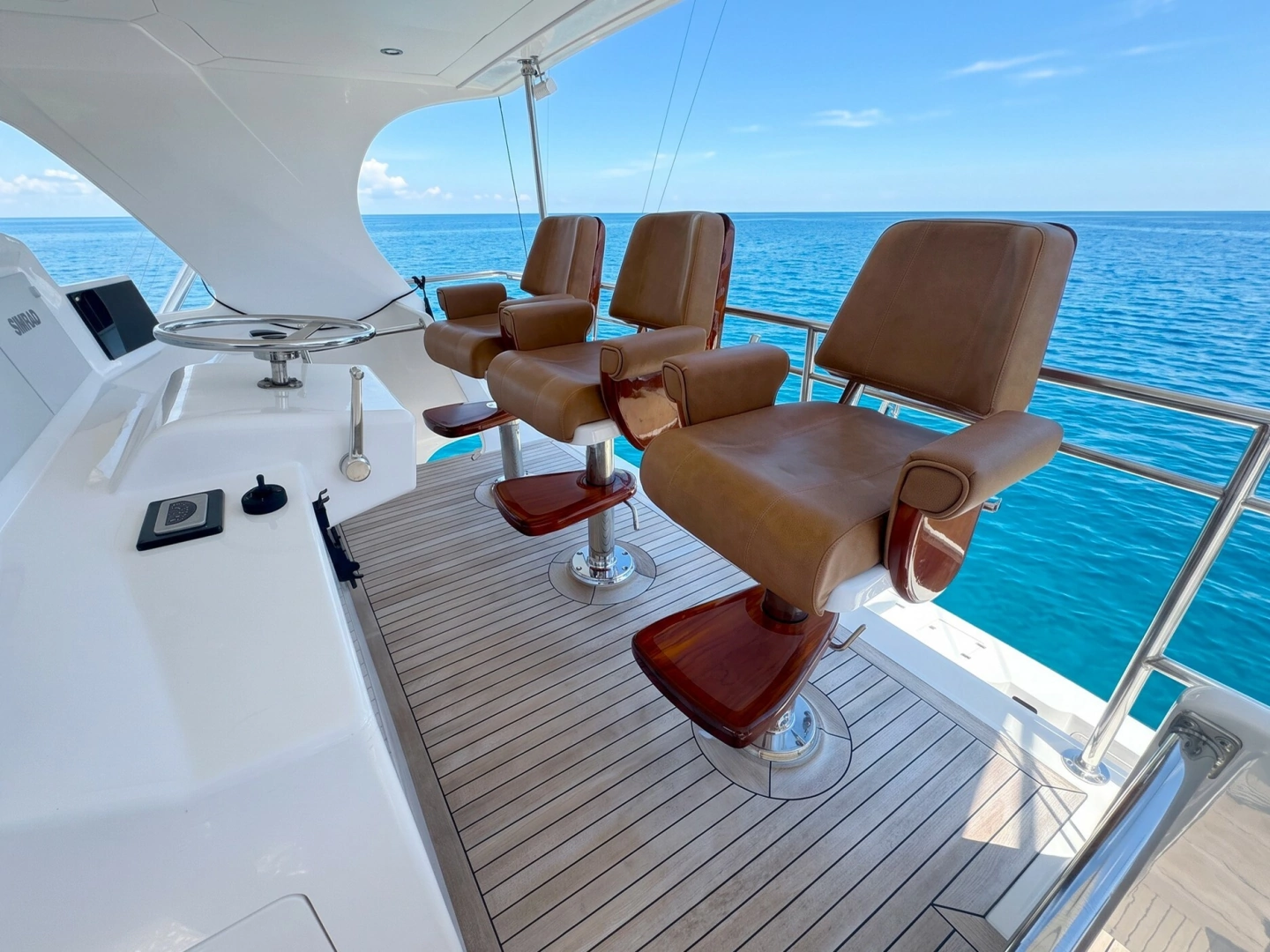

• Three Release Marine Helm Chairs
• Release Marine Fighting Chair
• Rupp Tournament Outriggers

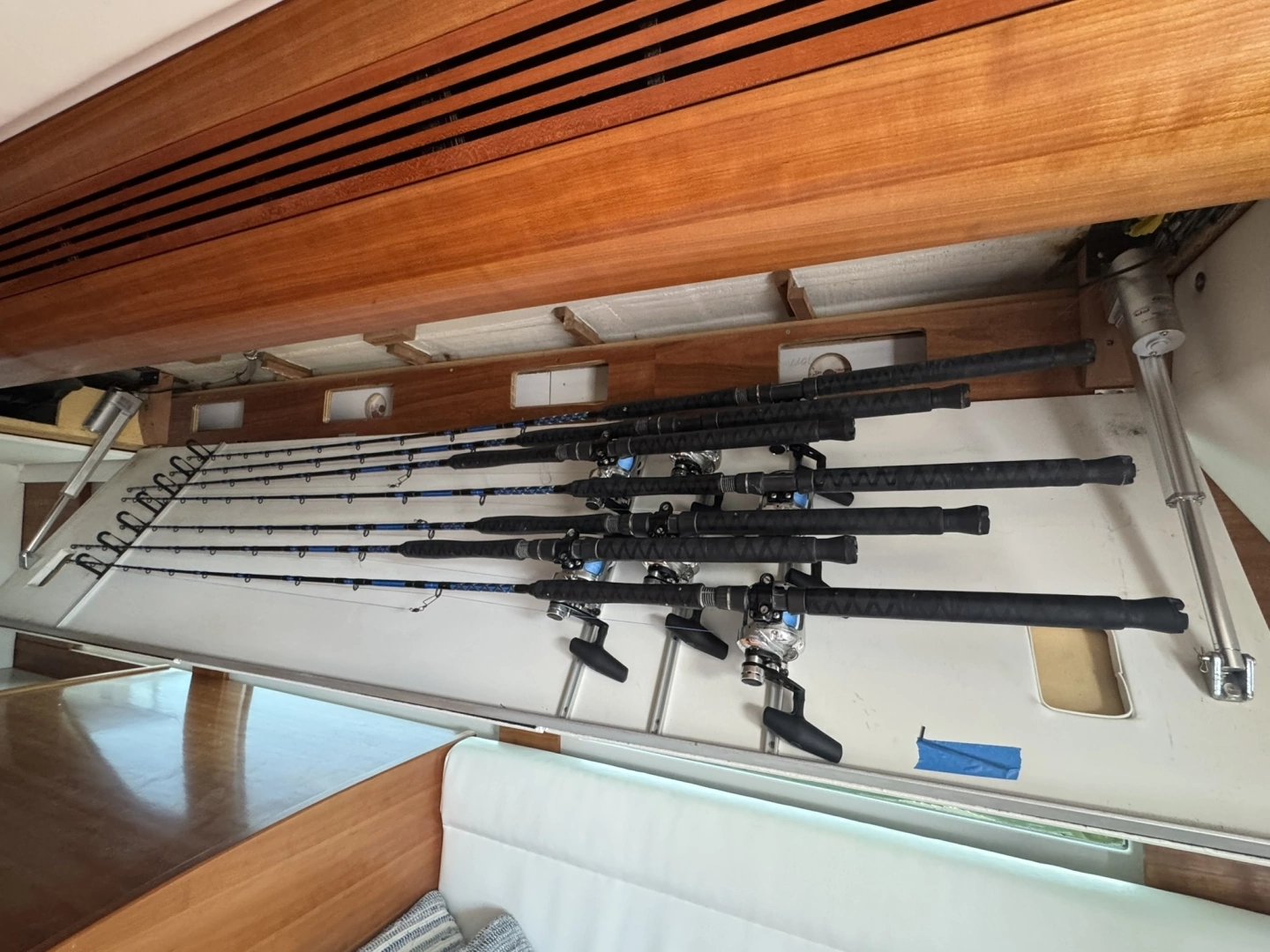

• Two Concealed, Ceiling-Mounted Rod Storage Lockers

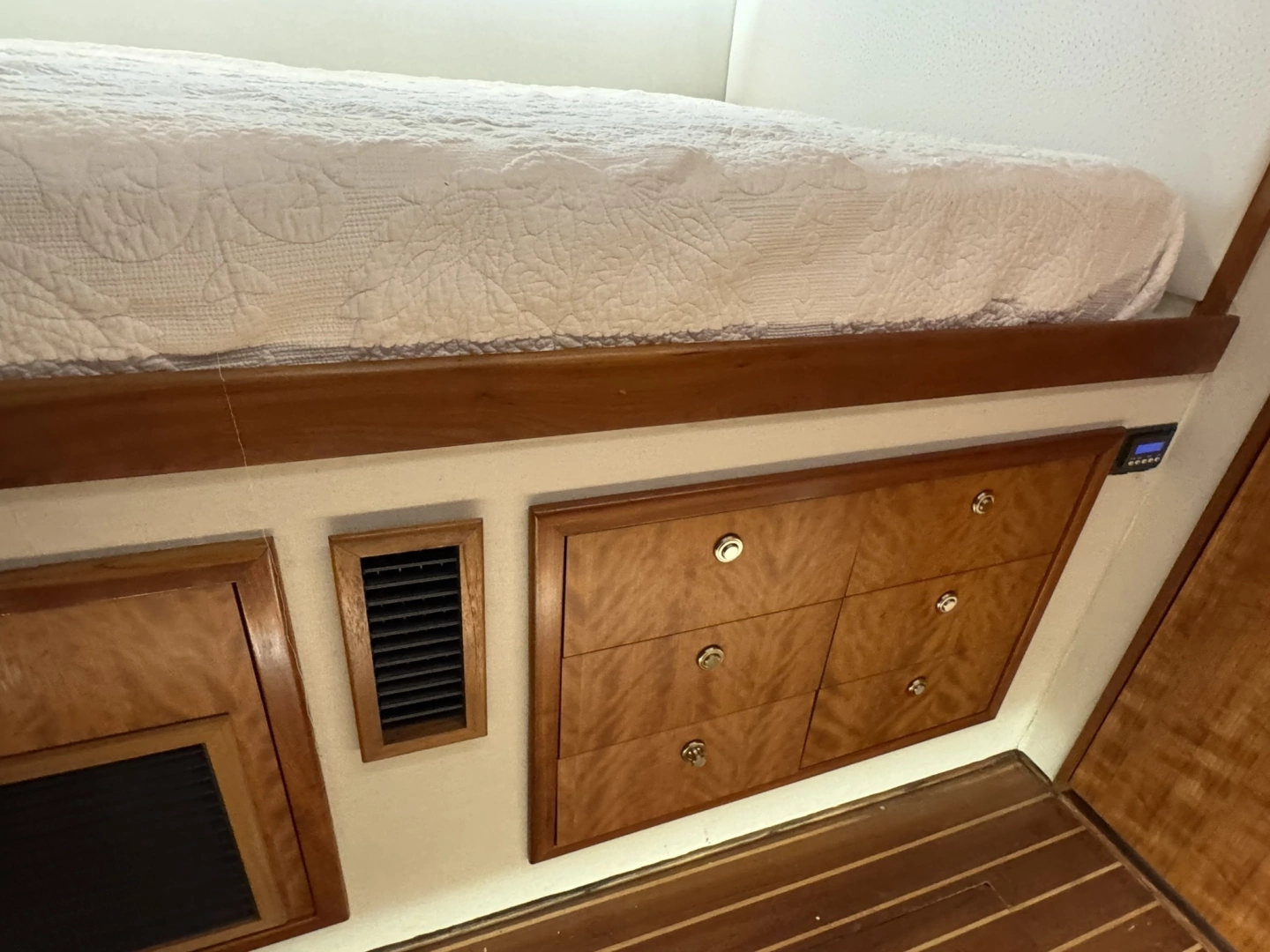

• Custom Cherry Veneer Cabinetry Throughout the Salon & Staterooms
• New Salon, Cockpit & Flybridge Cushions
• Tuna/Transom Door
• High Bow & Substantial Offshore Hull Design

REFIT AND UPGRADES

•   Main engines replaced in 2023 with twin Scania DI113-304 900 HP diesel engines.

•   Original Twin Disc transmissions rebuilt and reinstalled with the new replacement engines.

•   All-new engine wiring and engine instrumentation installed with the engines.

•   New Glendinning electronic engine controls with dual backup system.

•   AC and DC electrical systems extensively upgraded and rewired throughout the vessel.

•   Bonding system wiring throughout the vessel renewed with #4 AWG wiring.

•   Raw and Fresh water pump systems renewed including hot water tank, potable water, air-conditioning cooling water, wash down, toilet, gray-water and livewell systems.

•   Hull sides, superstructure and decks repainted approximately 2020.

•   Fiberglass flybridge hardtop reworked in 2020 with new port and starboard support pilasters.

•   Flybridge helm console renewed in 2020.

•   New L-shaped companion seating installed forward on the flybridge, port and starboard.

•   Teak decking on the flybridge, stair sets and cockpit new in 2021.

•   New high-quality faux-leather cushion sets for flybridge settees and helm chairs.

•   Interior extensively rebuilt beginning in 2020; original cabinetry, joinery and bulkheads reportedly removed and rebuilt with custom cherry wood cabinetry, joinery, woodwork and trim.

•   Two new 2025 foredeck fuel tanks installed and plumbed.

Detailed New Equipment & Systems

Hull, Deck & Exterior

•   New main rub rail with stainless-steel half-oval cap.

•   New teak strip decking in the cockpit and flybridge.

•   New stainless-steel fixed horn cleats.

•   New stainless-steel plow-style anchor with stainless-steel chain and line rode.

•   New custom-built horizontal reversible DC anchor windlass with helm controls.

•   New single bow anchor roller.

•   New molded fiberglass flybridge stairways with teak treads.

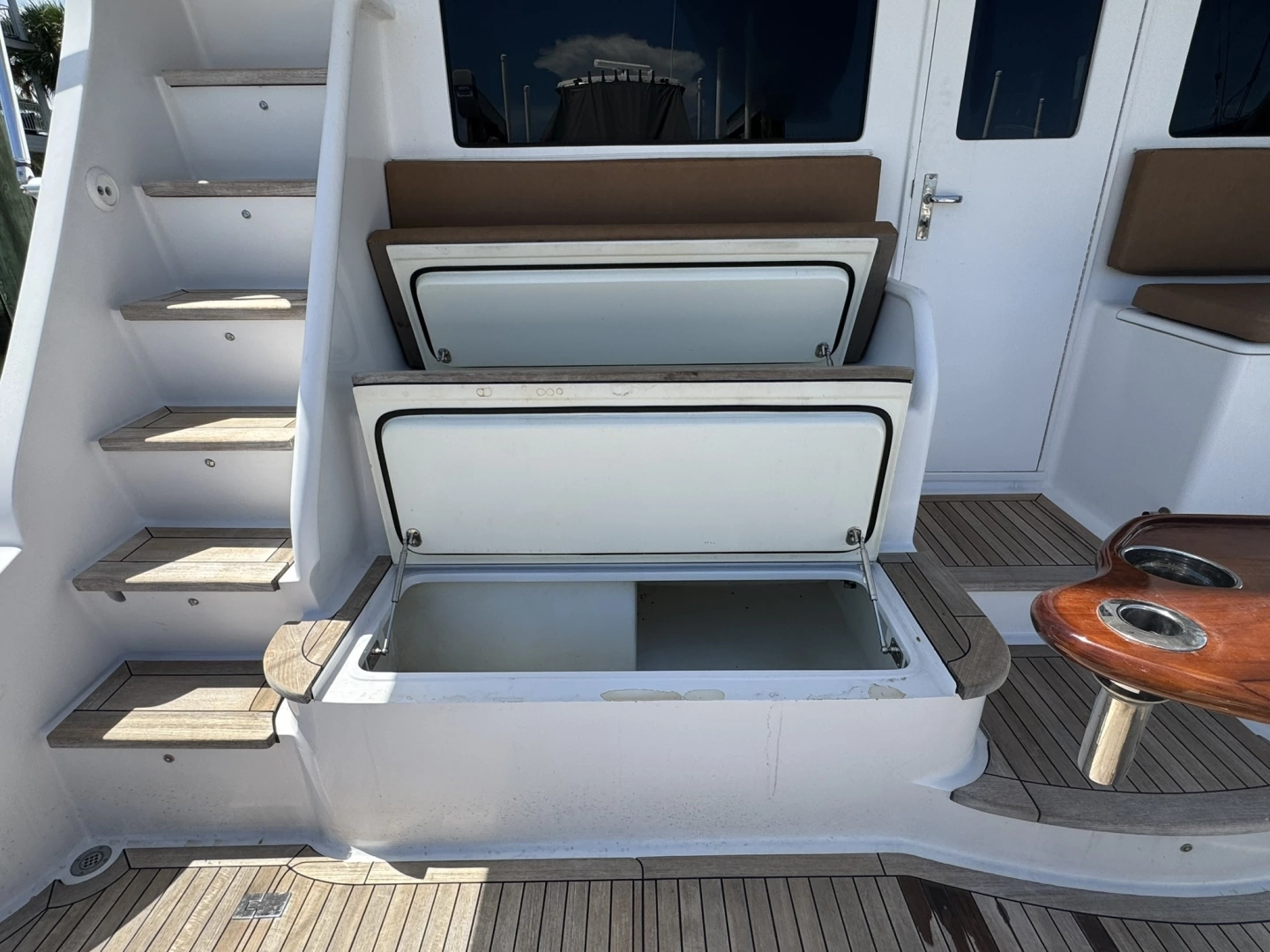

•   New cockpit mezzanine arrangement including refrigerated fish box, cushioned ice chest seat supplied by an ice maker, bait freezer with cushioned seat, and refrigerated drink box.

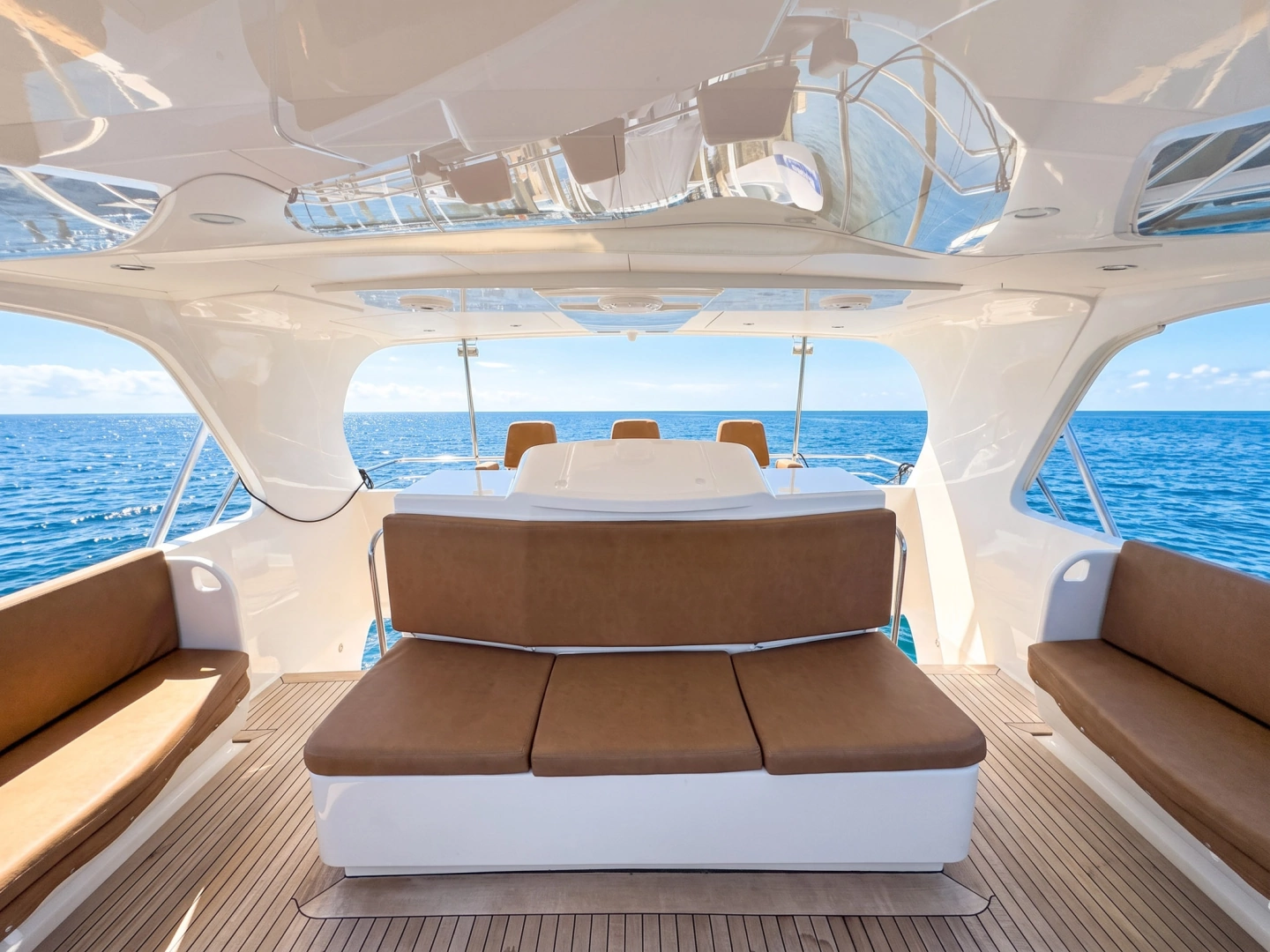

•   New flybridge seating including a full-size forward cushioned settee and port/starboard L-shaped settees.

•   New fiberglass flybridge hardtop.

•   New three-sided Strataglass flybridge enclosure curtains.

Engines, Controls & Running Gear

•   New steel longitudinal engine beds.

•   New six-point flexible motor mounts.

•   New Scania digital LCD engine monitoring/gauge system installed with engines.

•   New Glendinning dual-lever DC electronic engine and transmission controls at helm.

•   New dual backup engine control system.

•   New 5-blade 31.5 x 39 Veem NIBRAL propellers.

Through-Hulls & Underwater Systems

•   All new bronze below-waterline through-hulls with valves – 2020.

•   New bronze above-waterline through-hulls – 2020.

•   New ElectroSea ElectroStrainer Pro system serving air-conditioning cooling-water pumps.

•   New dripless prop-shaft packing glands/seals – 2024.

•   All new bronze 1/4-turn through-hull ball valves – 2020.

Electrical

•   New Victron Energy MultiPlus inverter/charger: 12 VDC, 160A charger and 120V/3,000-watt inverter.

•   New PowerMax 110 VAC to 24 VDC, 30A inverter.

•   Main DC distribution panel and components renewed; battery switches and high-amperage circuit breakers rewired and renewed – 2023.

•   New AC electrical distribution panel and components in engine compartment added to original AC service – 2023.

•   All interior and exterior lighting converted to LED – 2020.

Fuel & Fresh Water Systems

•   Two new aluminum foredeck fuel tanks.

•   New fuel selector/shutoff manifolds in each engine compartment.

•   Two new fiberglass potable-water tanks totaling approximately 240 gallons – 2020.

•   Potable-water system replumbed with new PEX hot- and cold-water service – 2020.

Pumps & Plumbing

•   Ten new submersible DC bilge pumps with automatic switches – 2020.

•   Two new Headhunter Mach 110 VAC freshwater demand pumps - 2020.

•   Two new 12 VDC macerator-style MSD discharge pumps.

•   New PAR Max 12 VDC raw-water washdown pump.

•   Two new 12 VDC self-contained automatic shower sump pumps.

•   Two new 110 VAC air-conditioning cooling-water pump assemblies.

•   Two new 12 VDC fuel-transfer/polishing pumps.

•   Two new Dometic 12 VDC toilet pumps.

•   New 110 VAC livewell pump.

•   New 110 VAC macerator fish-box drain pump.

Air Conditioning & Water Heating

•   All air-conditioning units renewed from original – 2020.

•   New dual air-conditioning cooling-water pump assemblies with redundancy.

•   New 15-gallon 240 VAC water heater.

•   NEW 2023 Electro Sea sea strainer.

•   NEW 2023 Custom Cherry covered Vents offering ice cold salon and state room comfort.

Galley

•   New 2-burner AC electric induction flush-mount cooktop; survey notes it was not wired into the panel at the time of survey.

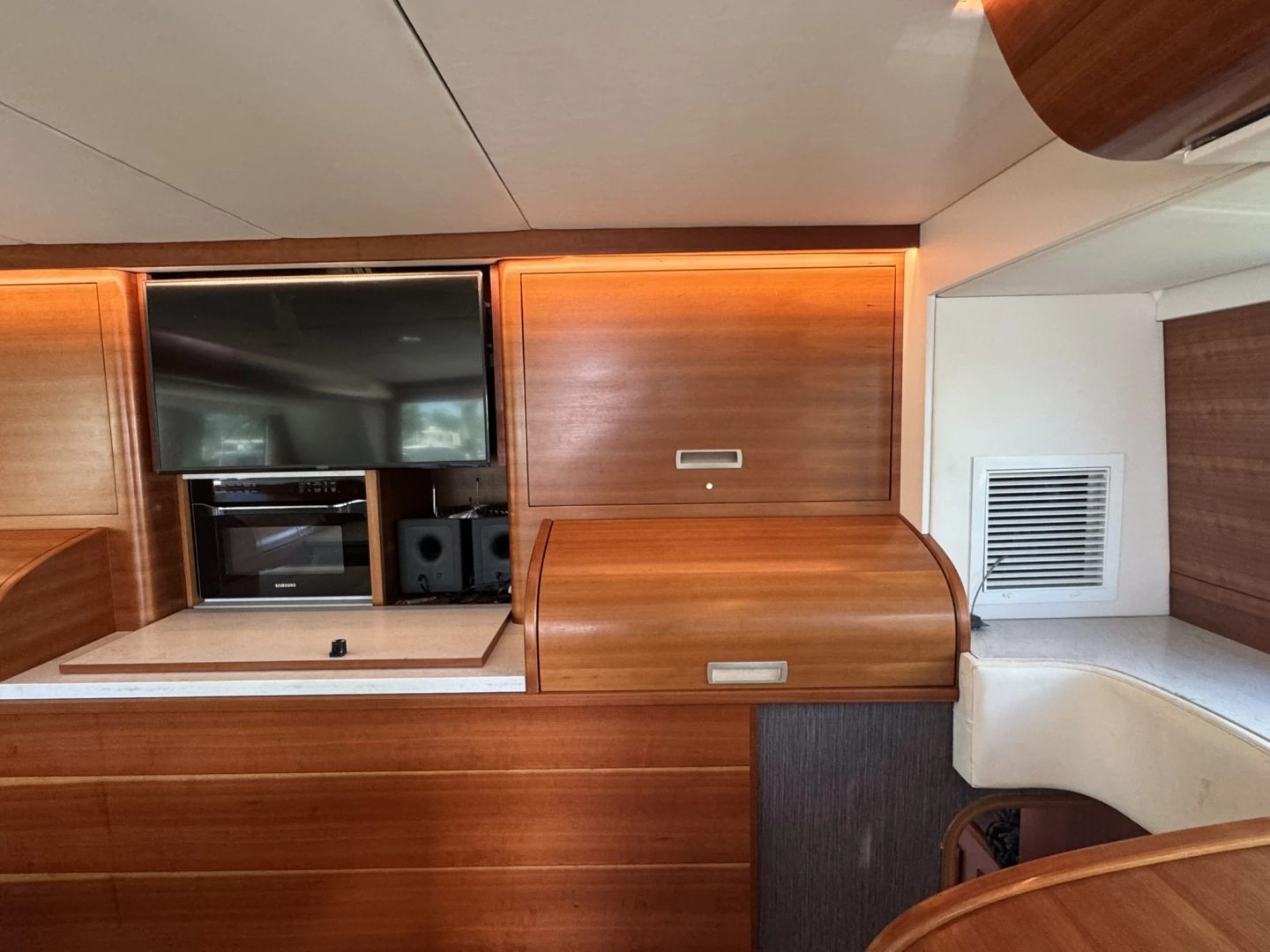

•   New Samsung built-in microwave.

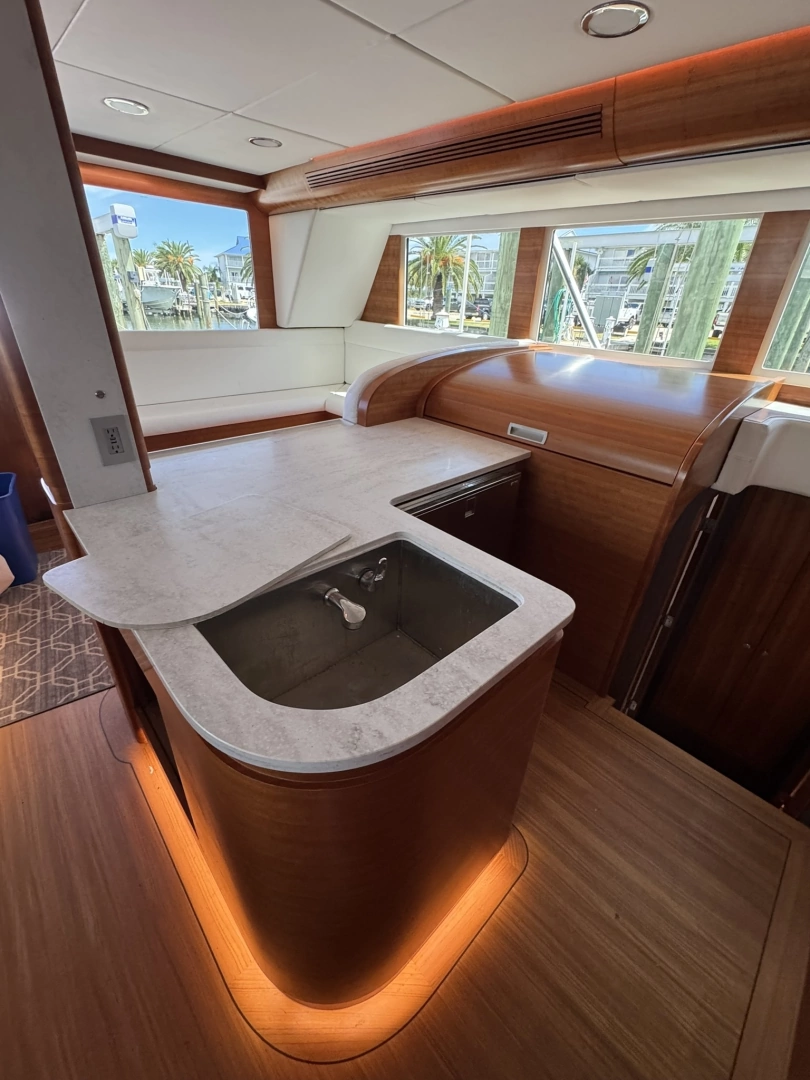

•   New stainless-steel sink with hot- and cold-pressure faucet.

•   New full potable-water filtration system, pre-tank.

•   New Isotherm 2-drawer refrigerator/freezer, Model DR160 AC/DC.

•   New Sea Frost refrigeration serving cockpit drink box and bait freezer.

•   New Eskimo ice-flake maker serving the mezzanine fish box.

Machinery Ventilation

•   Two new 4-inch 12 VDC blowers serving machinery and engine compartments.

•   Two new 8-inch pancake 120 VAC blowers serving machinery and engine compartments.

Navigation & Electronics

•   Two new Standard HS-90 VHF transceivers.

•   New 8-foot fiberglass VHF antenna on ratchet mount.

•   Two new Simrad NSS16 EVO3 16-inch color LCD multifunction displays.

•   New Simrad autopilot system with hydraulic unit.

•   Two new GoLight 12 VDC remote-control spotlights.

•   New CCTV system with six cameras and 15-day recorder.

Entertainment

•   New Vizio 42-inch television.

•   New 24’ Vizio in each Sate Rooms

•   New Bluetooth automotive-style stereo receiver.

•   New surround-sound speaker system for television.

•  Amplifier/Tuner is a JL Audio MediaMaster MM105 HR 120watt with 4 channels

Fishing Equipment

•   Two new Miya Epoch US-9 24 VDC teaser reels.

•   Eight new cockpit gunwale-mounted rod holders.

•   2 Gunwale mounted DC plugs for Electric Reels

Additional Equipment

•   Two new 12 VDC LED transom underwater lights.

•   New custom-built 12 VDC actuated drop-down rod-storage lockers, port and starboard in salon.

•   New fractional-HP air compressor serving horn and vessel systems.
