Power: Twin Volvo Penta IPS 600 | D6-435D-F w/ Joystick | Port Serial #: A328040 |

Stbd. Serial #: A328041

Genset: Cummins Model #: 11MDKBN – 5873G | Serial #: A140621481

Bow-Thruster: Quick THC 1042

Port Engine Hours: ? | Stbd. Engine Hours: ? | Genset Hours: ?

Specifications:

Overall Length (L.O.A) *: 49’6’’

• Hull length: 43’6’’

• Overall width: 14’2’’

• Hull Beam: 14’

• Light displacement (EC): 31,381 lbs.

• Air draft: 19’2’’

• Draft (min-max): 2’11’’ - 4’2’’

• Fuel tank capacity: 2 x 172 US Gal

• Fresh water capacity: 2 x 79 US Gal

• Maximum engine power: 2 x 435 HP

Notable Options & Upgrades:

o Starlink WiFi Panel

o Kenyon Electric Grill at Swim Platform & Kenyon Electric Cooktop at Galley

o Hull Shield HD 100 – Industrial Grade Acoustic Anti-Fouling System

o New Simrad NSS12 EVO3S at Upper Helm (1)

o New Simrad NSS16 EVO3S at Lower Helm (1)

o Volvo Penta Joystick Piloting & Bow-Thruster are controllable at Upper Station,

Lower Helm & Aft Control Station.

o Cockpit & Cabin A/C & Heat.

o Hydraulic Swim Platform with lift capacity up to 771 lbs.

o Glendinning Shore Power Cord Reel

CONSTRUCTION

Hull

 Grey/Blue and Cream Gelcoat

 Sandwich construction (polyester resin, fiberglass, balsa core)

 Structural hull counter molding in monolithic laminate (polyester resin, fiberglass)

 12 portholes (10 opening)

Deck

 White Cream Gelcoat

 Sandwich construction (polyester resin, fiberglass, balsa core)

 Diamond-tip non-slip surface

 Structural deck counter molded in monolithic laminate

DECK EQUIPMENT

 Stainless steel radar support

 Navigation lights

 LED courtesy lighting (gangways, steps, stern deck)

Mooring & Anchoring

 Stainless steel bow fitting

 24V electric windlass, 2000W

 Remote control (mooring locker and helm stations)

 2 mooring lockers

 8 stainless steel cleats (2 forward, 2 central, 4 aft)

 4 stainless steel fairleads (cockpit aft)

Additional Deck Features

 Stainless steel half-open pulpit with teak step & handrail

 Open pulpit (port & starboard)

 Stainless steel handrails (sidedeck steps and rear table)

 3 cup holders

 1 opening deck hatch, 1 fixed hatch

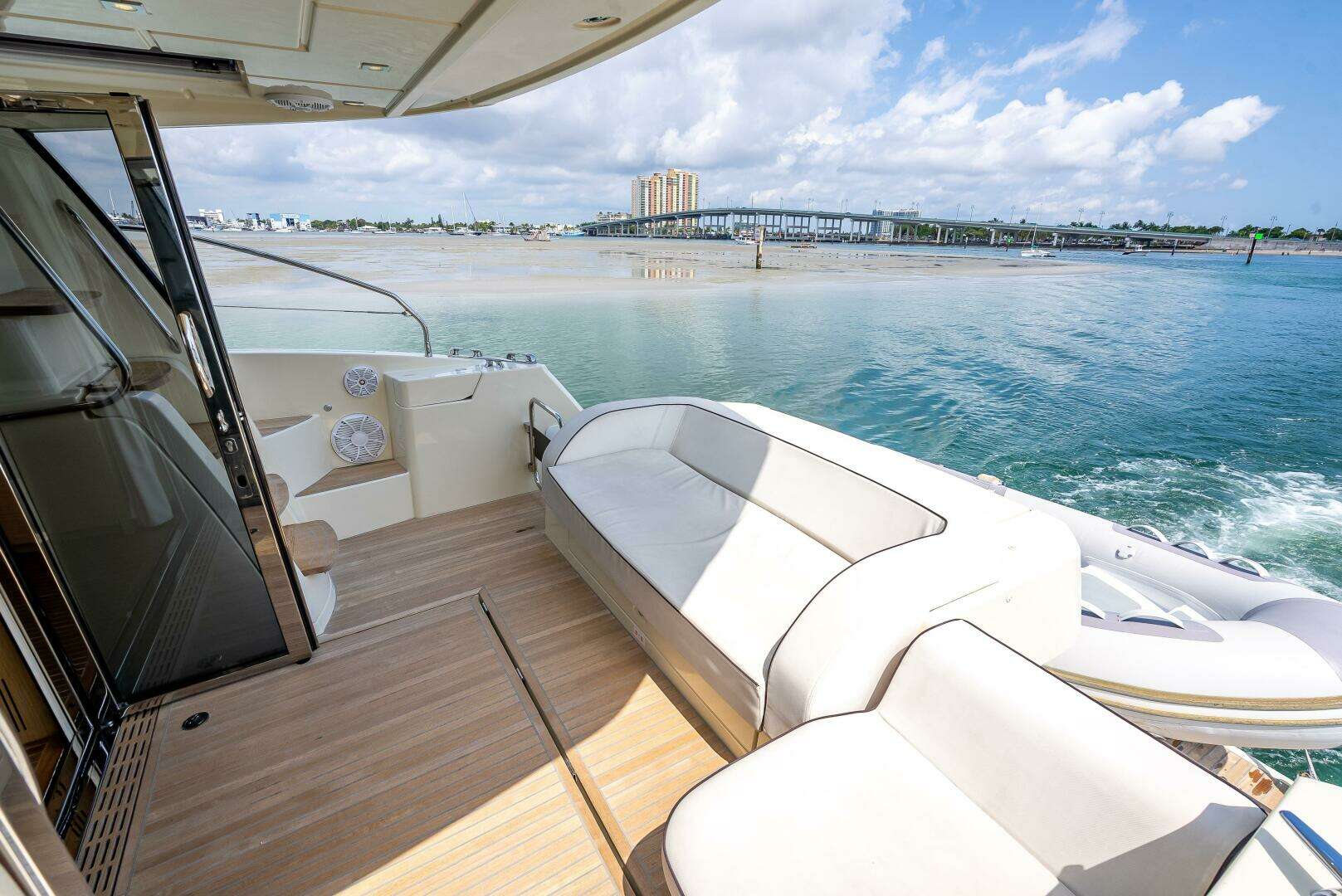

COCKPIT

 Starboard gate access

 6-person salon with leather upholstery

 Access hatch to engine compartment

 Hot/cold cockpit shower

 Flybridge stairway with built-in storage

 Retractable swim ladder (solid wood steps, stainless steel handrails)

 Direct and indirect LED lighting

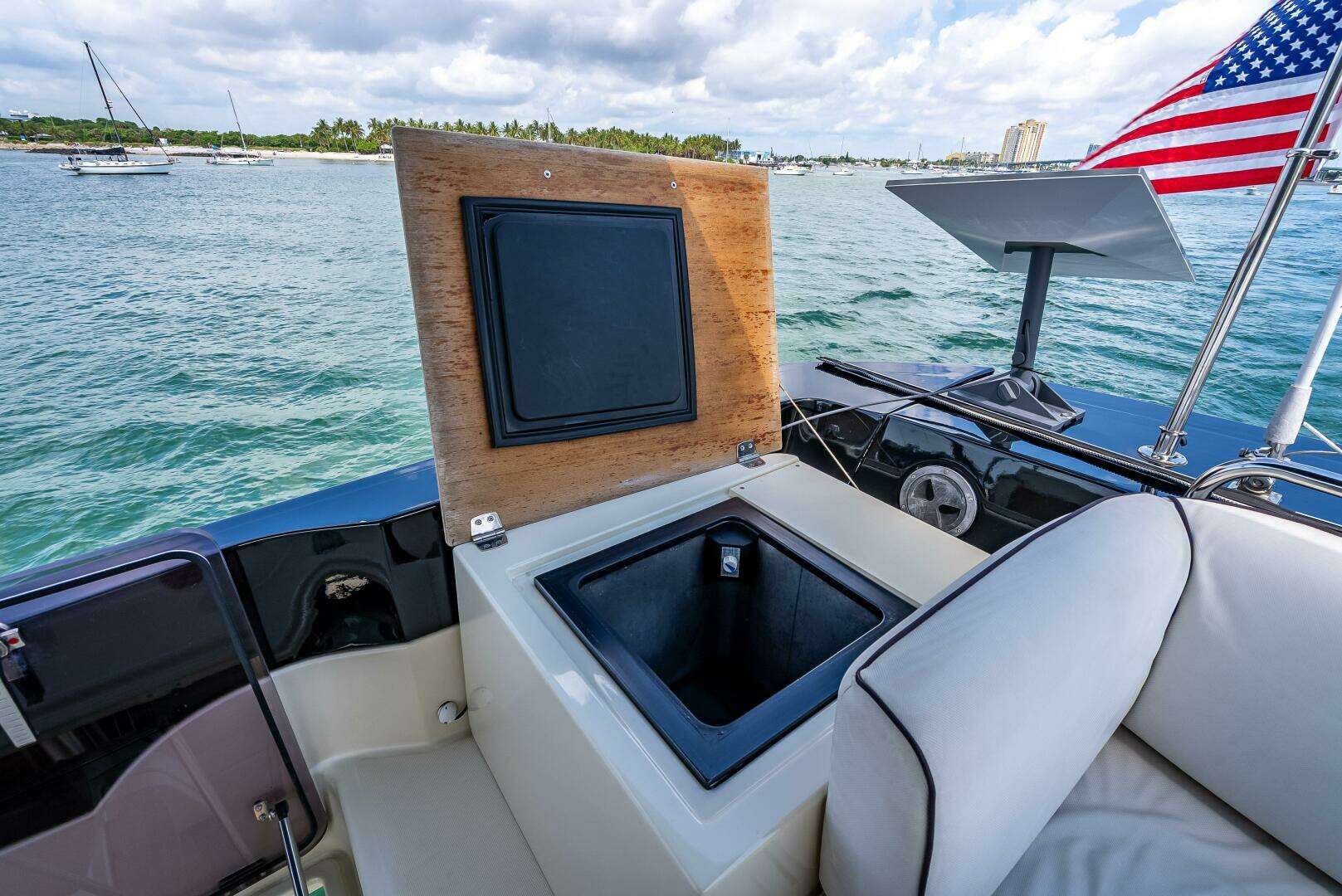

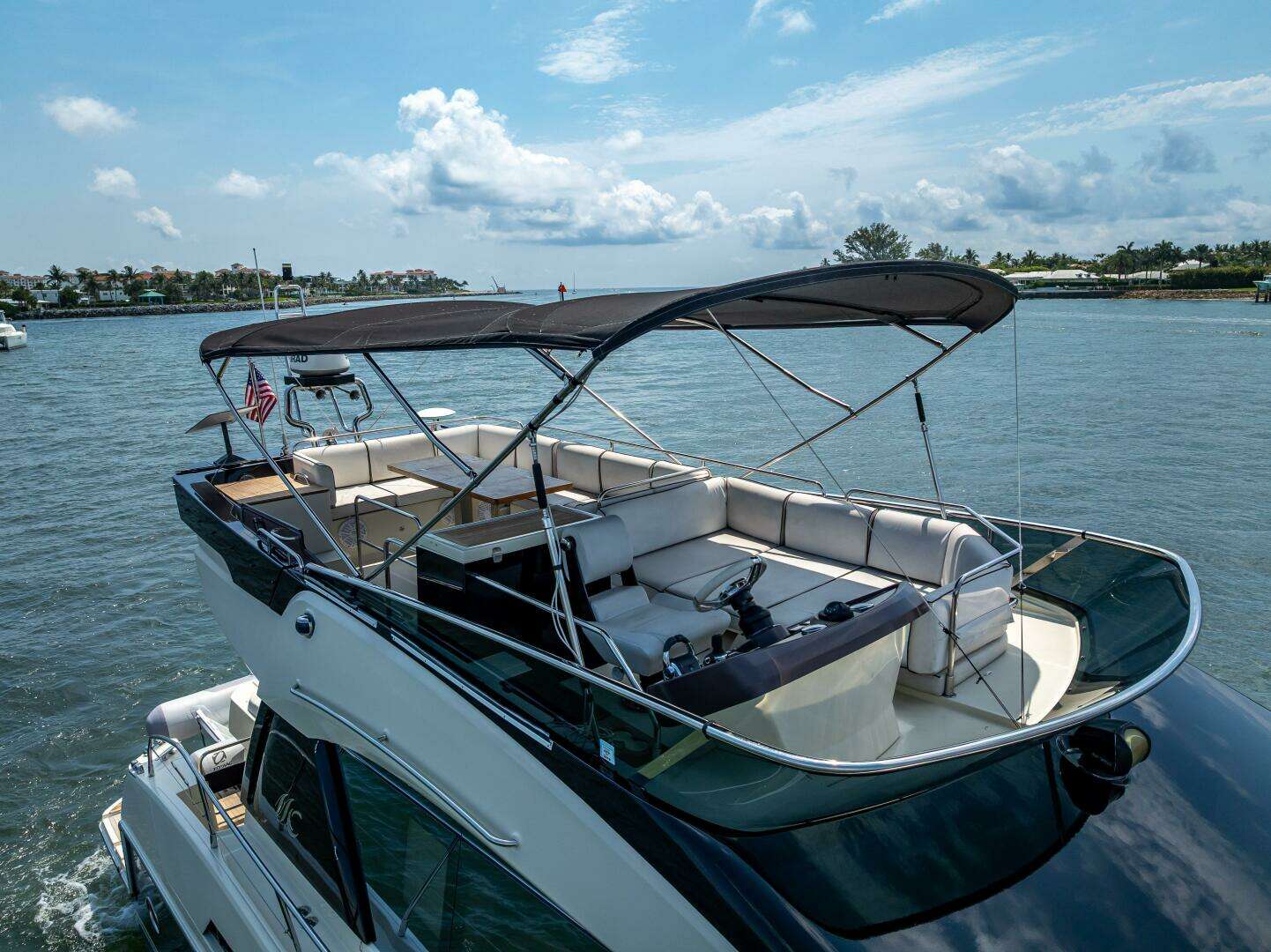

FLYBRIDGE

 Grey tinted windscreen with stainless steel frame

 Steering console with compass, wheel, engine controls, rudder indicator, fuel gauge, 12V

outlet, IPS joystick

 Controls: windlass, trim tabs, lighting, nav lights, bilge pumps

 Besenzoni pilot seat

 Co-pilot bench (convertible to sunpad)

 8-person salon

 Natural wood folding table with cup holders

 Galley unit with sink, electric grill, storage, garbage bin

 Radar hoop with aerials/lights in black lacquered polyester

 LED courtesy lighting

 Exterior upholstery: PVC Diamante Snow, piping in Diamante Espresso

 Electronics: 1x Simrad NSS 12" evo2, bow thruster control

WHEELHOUSE & HELM STATION

Wheelhouse

 Headroom: 6’6” (1.99 m)

 Mirror-tinted sliding glass door (1 opening, 2 folding) with curtains

 Cream Roman blinds

 LED lighting

 24V/110V electrical panel (starboard)

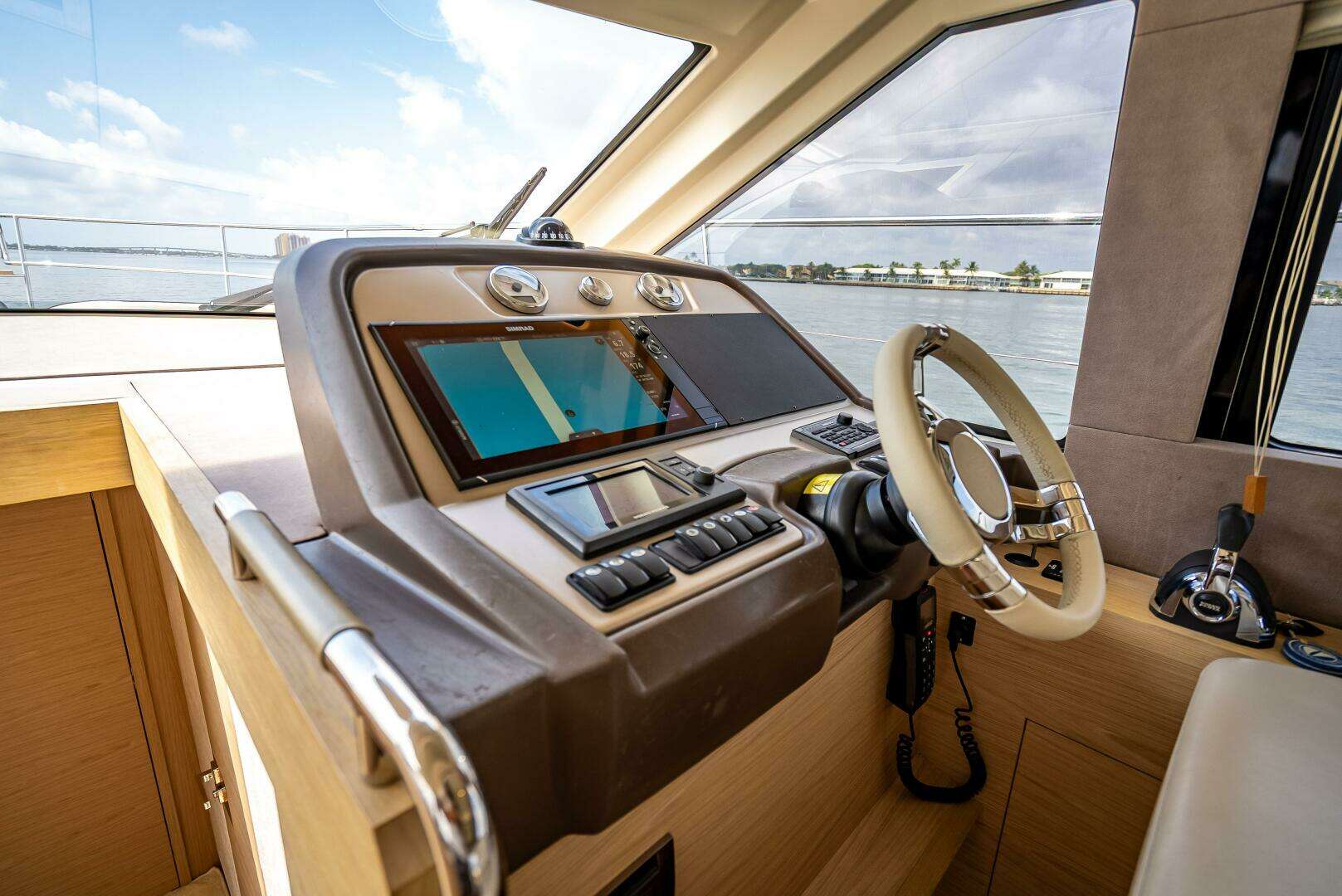

Steering Station

 One-piece non-tinted laminated glass windscreen

 Tinted side windows (2 opening)

 2 windscreen wipers with washers

 Defogging system

 Dual helm seating with bolster function (Grey-Beige leather)

 Clay metallic dashboard

 Electronics:

o 2x Simrad NSO 16” displays

o Simrad VHF with AIS receiver

o Simrad 4G Broadband Radar

o Simrad Autopilot

o Simrad WiFi module

 Volvo EVC screen, throttle, and IPS joystick

 Trim tab and rudder controls

 Glove box, 12V outlet

SALON & GALLEY

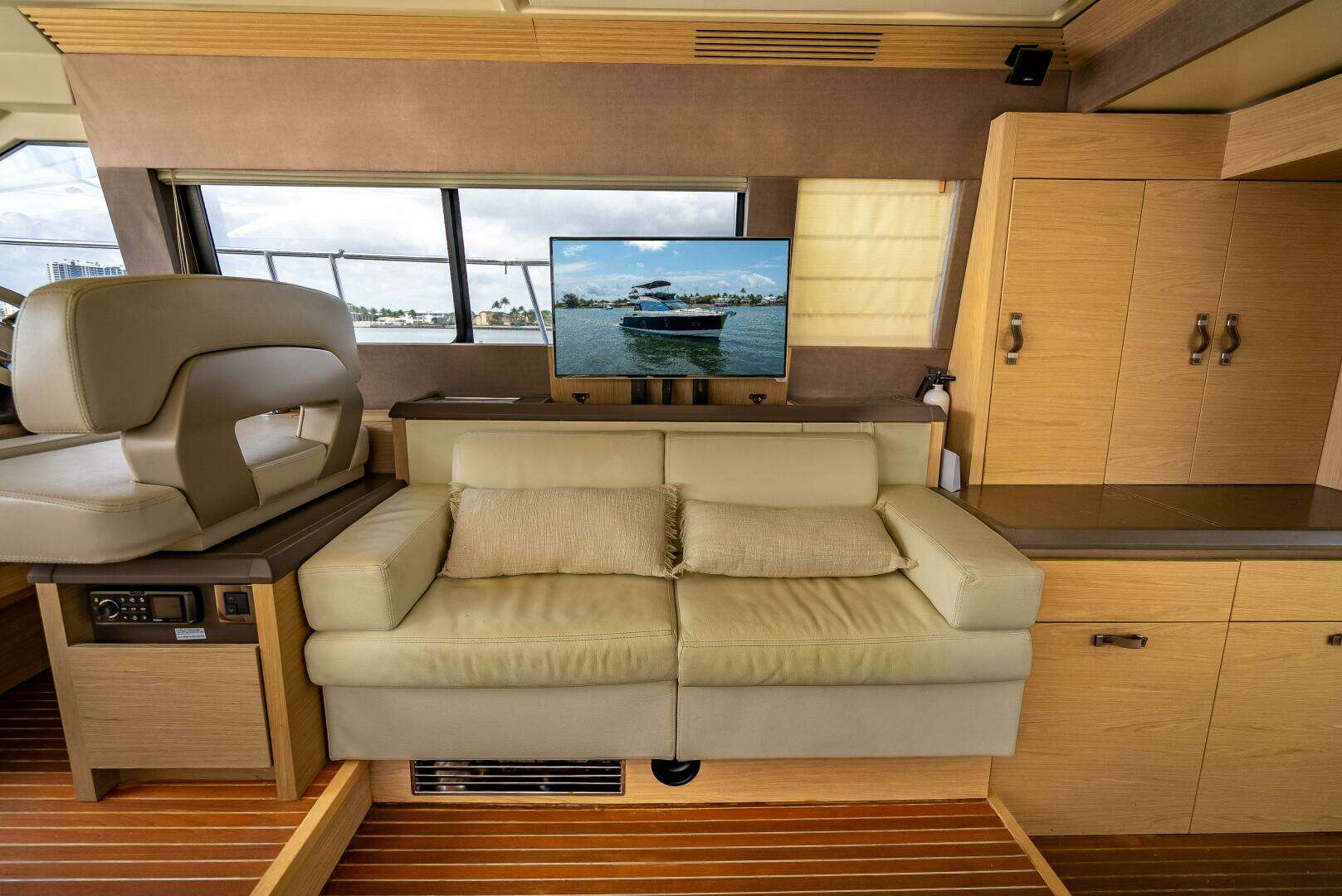

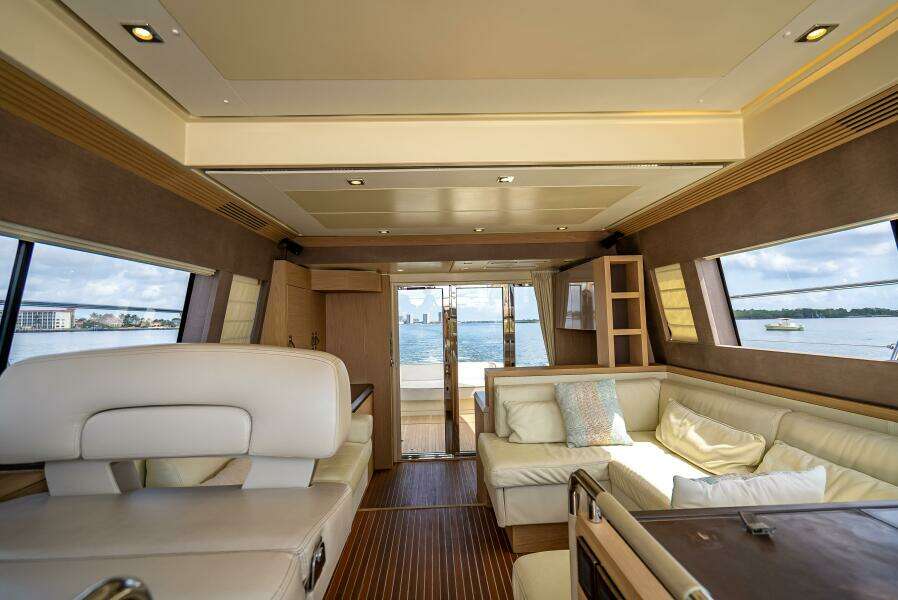

Salon

 Leather seating for 4–6

 Two opposing armchairs

 Foldable table with “Stonegrey” leather inlay

 3 under-sofa storage drawers

 Fusion 700 Audio/DVD system (iPod/Bluetooth/Remote/Cockpit+Flybridge speakers)

 32" Samsung TV with Blu-ray on lift

 110V outlet

Galley (Up)

 Corian countertop

 Stainless steel sink with mixer

 Kenyon 2-burner ceramic hob

 Lacquered cabinetry with "magic corner" storage

 Cutlery, glasses storage, garbage bin

 2x 110V outlets

High Cabinet Upgrade (Starboard):

 Dual-drawer refrigerator (145L)

 Drawer freezer with integrated icemaker (75L)

 Additional storage

ACCOMMODATIONS

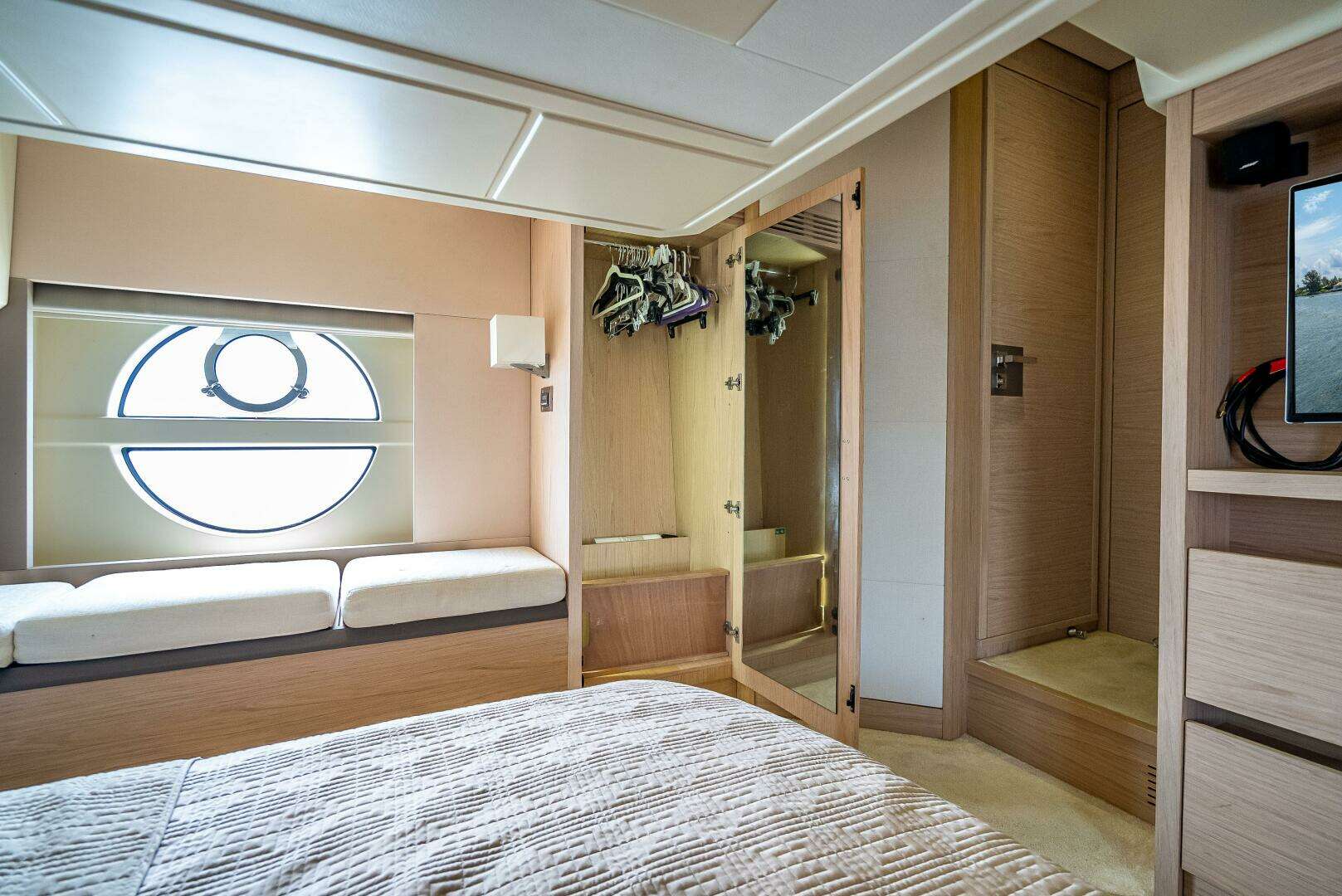

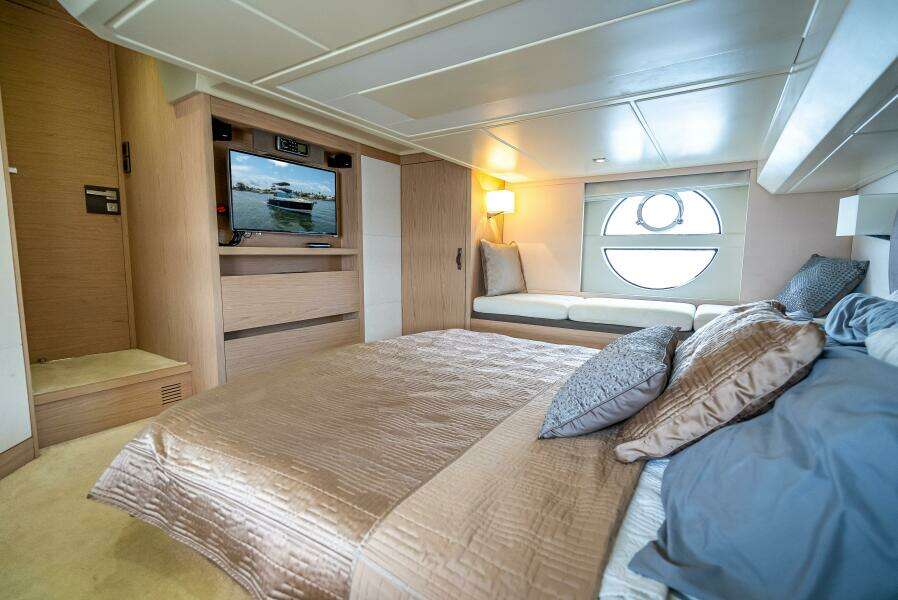

Owner Stateroom (Aft)

 Headroom: 6’1” (1.85 m)

 Full beam, double berth (6'8" x 5'1")

 Marine mattress, padded headboard

 2 bedside tables with lights

 2 illuminated wardrobes

 LED lighting

 2x 110V outlets

 2 opening panoramic portlights with blackout blinds

 32" Samsung TV with Blu-ray

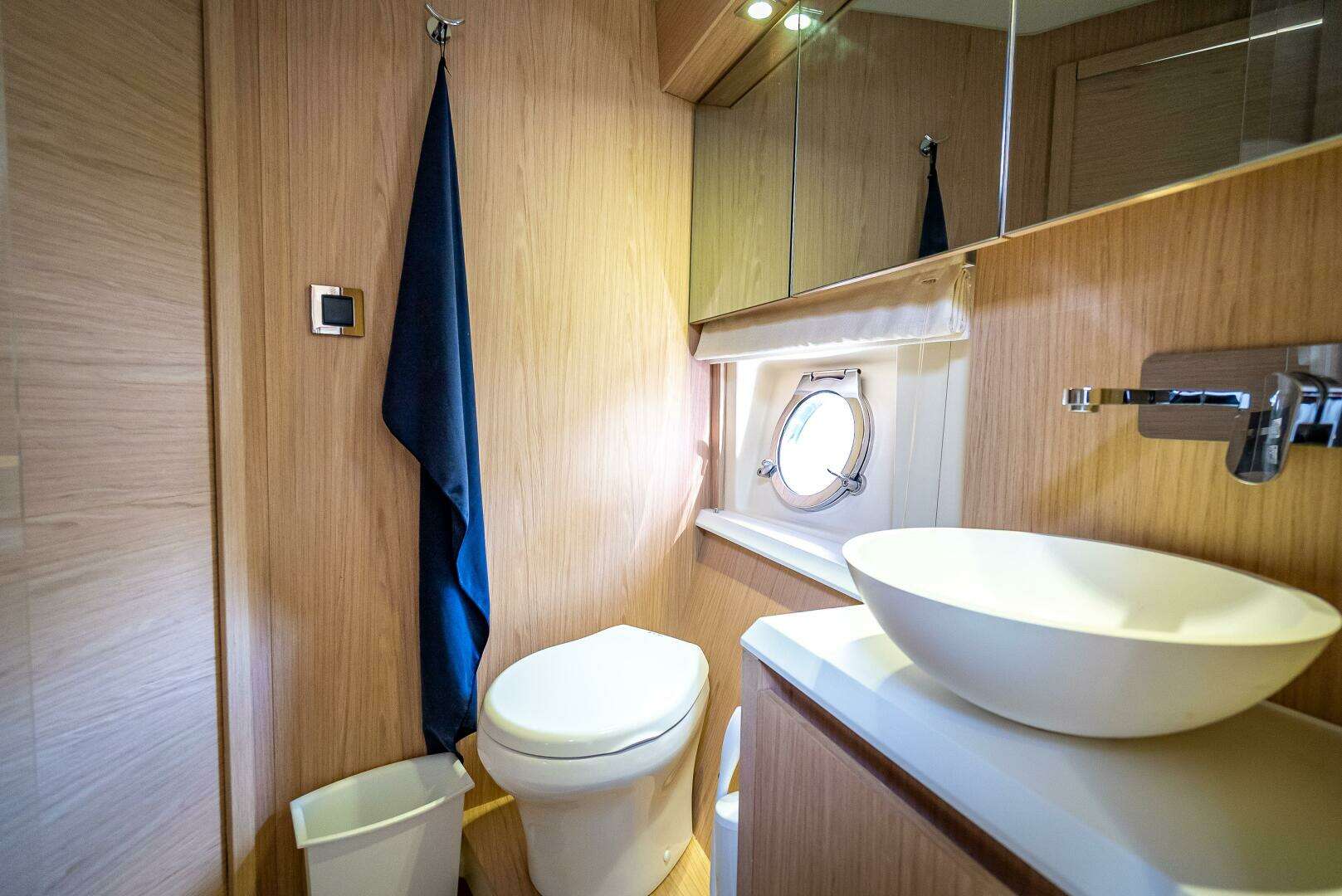

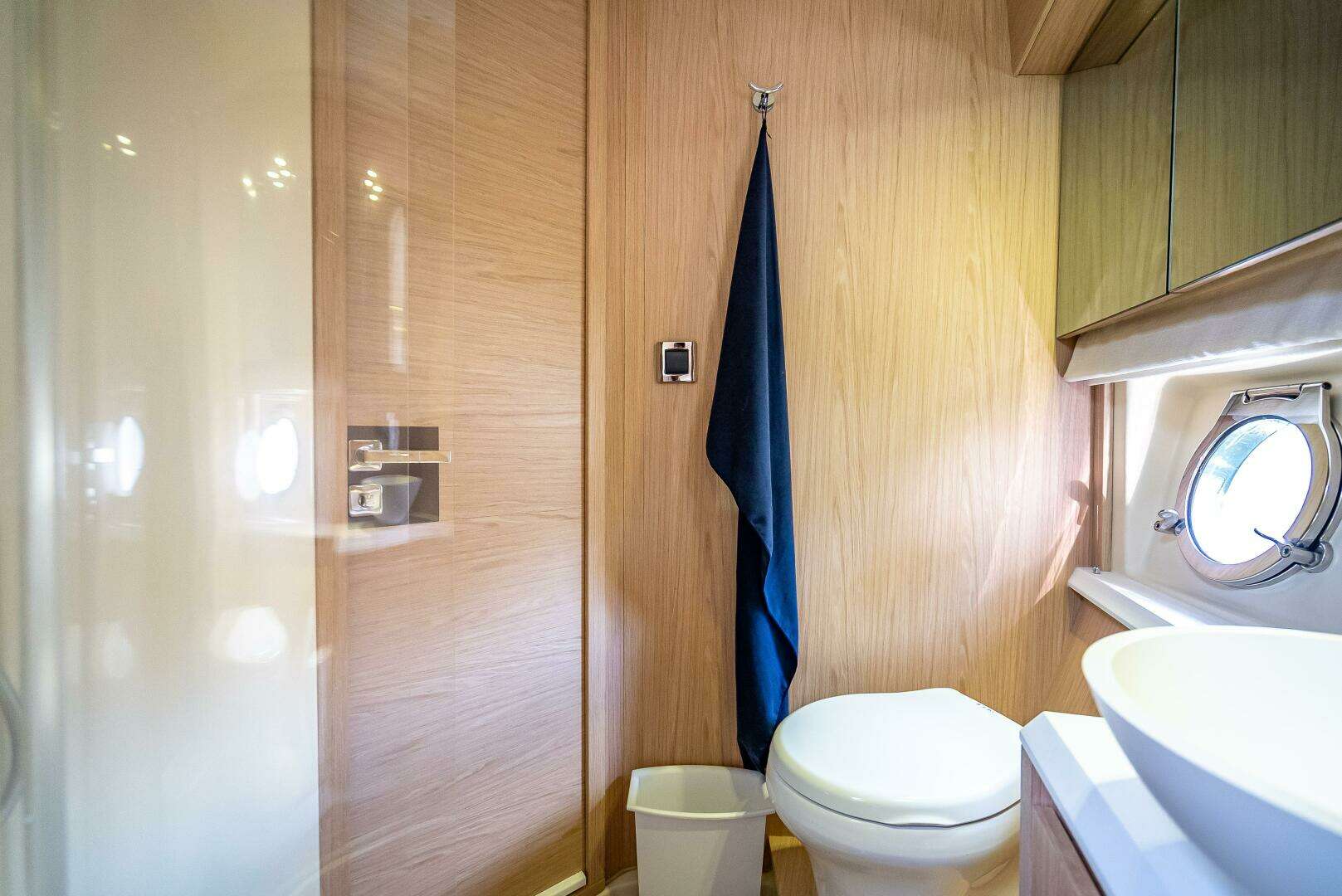

Owner Head

 Headroom: 6’7” (2.00 m)

 VacuFlush toilet, shared 150L holding tank

 Teak slatted shower seat

 Enclosed shower with stainless door

 Sink, mirror, and storage

 Gravity drain with 50L sump

 110V outlet, opening portlight with blind

VIP Guest Suite (Forward)

 Headroom: 6’4” (1.94 m)

 Double berth (6’5” x 4’11”)

 Marine mattress, padded headboard

 4 portlights, 1 deck hatch (with blinds and screen)

 2 wardrobes, underbed storage

 2x 110V outlets

 28" Samsung TV with Blu-ray

VIP Head

 Headroom: 6’7” (2.00 m)

 VacuFlush toilet

 Enclosed shower with circular door

 Sink, mirror, storage

 110V outlet, portlight with blind

 Gravity drain with 50L sump

Guest Cabin (Stbd. Side)

 Headroom: 6’6” (1.98 m)

 2 bunks (6’6” x 2’0” / 6’6” x 2’6”)

 Marine mattresses, padded headboards

 2 opening portlights with blinds

 Hanging locker with light

 Bedside table with drawer and light

 110V outlet

 28" Samsung TV with Blu-ray

ENGINES & STEERING

Propulsion

 Twin Volvo IPS 600 (D6 435 HP)

 Fuel and seawater filters

 Engine room ventilation and soundproofing

 Fire suppression system

 Dual 650L aluminum fuel tanks

Steering

 Electric steering

 Jackshaft-driven counter-rotating propellers

 IPS joystick at helm, flybridge, and cockpit

ELECTRICAL SYSTEM

 24V/110V electrical panel

 8 batteries (4x engine, 4x service)

 Wireless switches

 2x 110V 63A shore power (15 m cable)

 3 bilge pumps (2 electric, 1 manual)

 12V/110V inverter (2000 VA)

 Battery charger (24V 60A)

 13x 110V outlets

 12V outlets at helm

 LED interior/exterior lighting

 13.5 kVA generator (230V/60 Hz)

 Glendinning 30A shore power reel

PLUMBING

 2x 330L water tanks

 Stainless steel water fill

 Pressure water pump

 60L water heater (engine + 110V)

EXCLUSIVE TRIM LEVEL

 Electric side windows (helm)

 Leather-topped furniture

 Teak cockpit and galley floors

 Forward sunbed (adjustable, cover included)

 Transom galley (grill, sink, worktop)

 110V microwave, upper cupboard

 Hydraulic swim platform (350 kg capacity)

 Dinghy cradle

 Remote-controlled deck spotlight

 Dockside water inlet

 Freshwater deck wash
