EQUIPMENT

• Upgraded Volvo Package - D8 IPS 700s, 550 HP with 750 hours
• Seakeeper 5
• Hydraulic Swim Platform
• YachtController Docking System
• Volvo Automatic Interceptor Trim Tabs
• Volvo ACP
• Dynamic Positioning System
• Joystick Driving with Stidd Armrest Joystick
• Slow Speed, Single Lever, and Cruise Control Software
• Volvo Clear Wake Exhaust Bypass
• Reverso Oil Change System

CUSTOMIZED CREW QUARTERS

• AC Wine Cooler
• Separate Washer and Dryer
• Two Drawer Freezers
• Air Conditioned

ADDITIONAL FEATURES

• Windshield Cover
• Rear Seat Covers
• Custom Tint

ELECTRONIC

• (2) Garmin 8617 Volvo MFD with Separate SD Card Reader
• Autopilot
• (1) GPSMAP 942xS
• GMR Open Array Fantom Radar
• KVH HD7 Satellite TV System and Dummy Dome
• AIS System
• GXM 53 Sirius Weather Receiver
• Mast, Engine Room, Port, and Starboard Cameras
• Fusion Stereo System

HULL

• Modified Deep”V” Planing hull design, with pod drive tunnels.
• 14° deadrise at transom, 23° deadrise amidships.
• ISO NPG white gelcoat w/vinylester back-up resin.
• Bottom, topsides and transom VIP resin infused biaxial E-glass with Corecell SAN foam core.
• Stringer system biaxial E-glass with foam core.
• Resin Infused E-glass swim platform with molded-in anti-skid surface.
• Hull side rubbing strakes.
• White PVC rub rail with stainless steel cap.
• Painted (Urethane) double boot top.
• Gold recessed cove stripe.

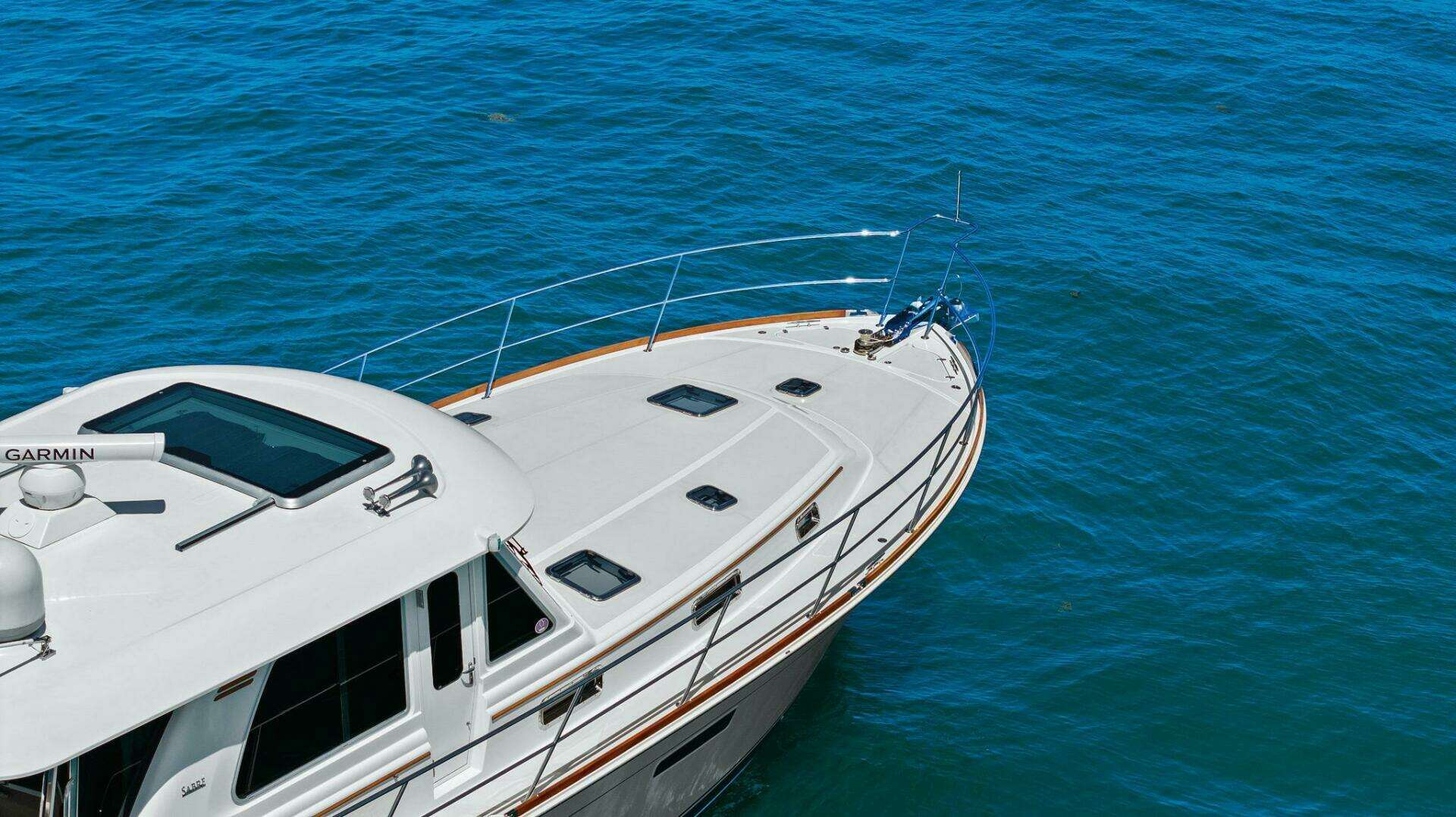

DECK and HARDTOP

• ISO NPG gelcoat.
• VIP resin infused biaxial E-glass with balsa core.
• Molded-in anti-skid deck surfaces.
• Companionway door to port.
• Sliding windows in salon on cabin sides. Electric opening window in salon aft bulkhead. Hinged access door to side deck at helm.
• Flush, outward opening, transom door with latch. Anchor locker with slam latch.
• Large lazarette/engine room access hatch in cockpit sole with compression latches.
• Integrated Sure Shade system over cockpit

DECK HARDWARE

• I ¼” Diameter type 316 stainless steel perimeter rail system.
• (6) 12" Stainless steel cleats (2 fwd, 4 mid ship)
• I0" Stainless steel cleat to starboard of windlass as anchor rode tie off
• (4) custom cast stainless steel mid-rail line chocks.
• Custom cast stainless steel skene chocks forward.
• Stainless steel bollard style mooring cleats aft
• (2) Stainless 12" cleats on cockpit coaming on centerline
• Custom stainless steel bow pulpit with dual anchor roller for 44# CQR or Delta anchor and "lunch hook''.
• Quick anchor windlass, electric rope-chain type. Teak flag staff and socket on taffrail.
• Burgee staff on bow pulpit.
• (6) Low Profile stainless steel hatches w/screens.
• (6) Custom stainless steel opening port lights. Teak toe rails.
• Teak cabin side eye-brow.
• Custom cast stainless steel "SABRE" medallion.
• Raw water washdown system at bow.
• Freshwater washdown at bow

HELM STATION

• Triple windshield wipers with washers.
• Ritchie Compass.
• Switch controls for horn, running lights, anchor lights, engine room blower and optional equipment.
• Stazo 400mm custom teak steering wheel with tilt helm and Sabre logo.
• (2) Stidd N Series helm seats with Ultraleather fabric, mounted on a cherry cabinet
• NEMA backbone installed

PROPULSION

• 120A, 12V alternators each engine.
• (2) Exhaust by-pass mufflers. Engine room blower.
• Engine room vent ducts.
• Engine room floor with FRP anti-skid.
• White gelcoated engine room
• Mylar face foam noise barrier.

FUEL SYSTEM

• (2) 263 USG diesel fuel tanks port and starboard.
• Dual Racor fuel filters with water in fuel probes.
• (2) 2" “Diesel" deck fill plates.

12VDC ELECTRICAL SYSTEM

• Two AGM Group 31 dedicated engine start batteries.
• Three AGM 4D deep cycle ship's service batteries. (Double the stock configuration)
• One AGM Group 24 generator start battery.
• Remote control battery switches with controls at helm.
• Manual emergency battery crossover switch.
• Illuminated main circuit breaker distribution.
• Digital battery monitor.
• Lighting:
• St. Maarten amber cabin reading lights.
• High output LED lights in the overhead. LED strip lighting in appropriate locations.
• LED engine room lighting.
• Tri-color lights over helm station, red, white blue
• Cockpit courtesy lights.
• Marine-grade, tinned wire throughout.
• I2VDC USB chargers at helm and in all cabins

120VAC ELECTRICAL SYSTEM

• Onan 13.5 Inv generator including:
• Onan E series display
• Dedicated start battery.
• Water drop muffler.
• Cooling water intake strainer. Sound shield.
• Transfer switch.
• 50A shore power service with Glendinning Cablemaster
• Isolation transformer
• Illuminated main circuit breaker distribution panel.
• Digital AC system monitor
• 120V GFCI protected outlets in each cabin end engine room
• 50amp, 3-bank battery charger
• Reverse cycle heat/ air conditioning with 4 zones. 1 10k BTU in forward cabin, 1 10k BTU in master cabin, 1 16K BTU in galley and 1 24k BTU in main salon Optional 6k BTU in crew quarters

MASTER STATEROOM AMIDSHIPS

• Spacious island berth athwartship layout with laminated trim
• Hull side deadlight over headboard
• Shoji style passageway and closet doors
• Shojo style portlight screen panels
• Cherry hull ceilings
• Drawers under berth and in bulkhead aft of berth
• (2) handing lockers fore and aft of bed
• Teak and holly sole
• Sound deadening soft headliner panels.
• Pocket door to master head compartment

MASTER HEAD

• Private access from master stateroom
• Custom tile in W/C and shower sole
• Glass vessel style sink
• High gloss finish over solid cherry counter
• Storage outboard
• Mirror above vanity, cherry framed
• Separate shower stall with clear bi-fold enclosure and glass tile accent wall within
• Electric shower sump pump
• Opening port to side deck
• Deck hatch with blind/screen overhead
• Ventilation blower
• Stainless Steel towel bars

GUEST STATEROOM

• Spacious island berth, with laminated trim.
• Cherry hull ceilings.
• Drawers under berth, AC return grille beside.
• Storage lockers, drawers and shelves.
• Teak and holly sole.
• Sound deadening soft headliner panels.
• Pocket door to passageway.
• Private access to forward head and shower

GUEST HEAD

• Stainless steel under mount sink.
• Shower stall with seat and locker outboard.
• Hot and cold pressure water
• Electric shower sump pump.
• Storage lockers.
• Solid surface vanity top with bull nose.
• Towel bars
• Soap dispenser
• Cherry wood trimmed mirror over sink.
• Ventilation blower.

GALLEY

• Solid surface galley counter top.
• Stainless steel under mount sink with cover and pull-out faucet
• Soap dispenser
• Stainless steel dual drawer refrigeration
• Touch control induction cooktop
• Convection microwave with stainless steel face
• Drawers and storage lockers below counter.
• Built-in waste basket Recycle bin below steps
• Pelican water filtration system for cooking
• Separate water filtration system for ice maker

MAIN SALON

• High Gloss finished table with hi-low pedestal and angled slide mechanism. Lowers to coffee table height.
• Sound deadening, soft headliner panels.
• Raised mates L-shaped settee to port of helm
• Stainless steel door to cockpit
• Electrically operated window an aft of L-settee
• Swing door at helm to starboard side deck
• Deep chart table forward of L-settee. Fiddles at nav station

FRESH WATER SYSTEM

• Water capacity 160 gals.
• Stainless steel, 20 gal. water heater, operates on I I0-VAC or engine heat.
• Temperature control valve on hot water supply.
• Hot and cold water pressure system 12V.
• Fresh water spigot in engine room.
• Transom shower, hot and cold.
• Shore waler inlet with filter.

WASTE DISPOSAL

• Polyethylene holding tank with 70 gallon capacity.
• Jabsco Quiet Flush fresh water MSD in guest head
• Tecmn Eco MSD in master head
• Diaphragm waste pump on holding tank.

UTILITY ROOM

• Workspace below salon with work bench, drawers and shelves
