DESIGN AND CONSTRUCTION

Built to Germanisher-Lloyd Yacht Plus Certificate standards.

The hull is epoxy laid composite, Corecell, quadaxial glass, vacuum bagged.

Bulkheads are glassed to both the hull and deck.

RIGGING & SAILS

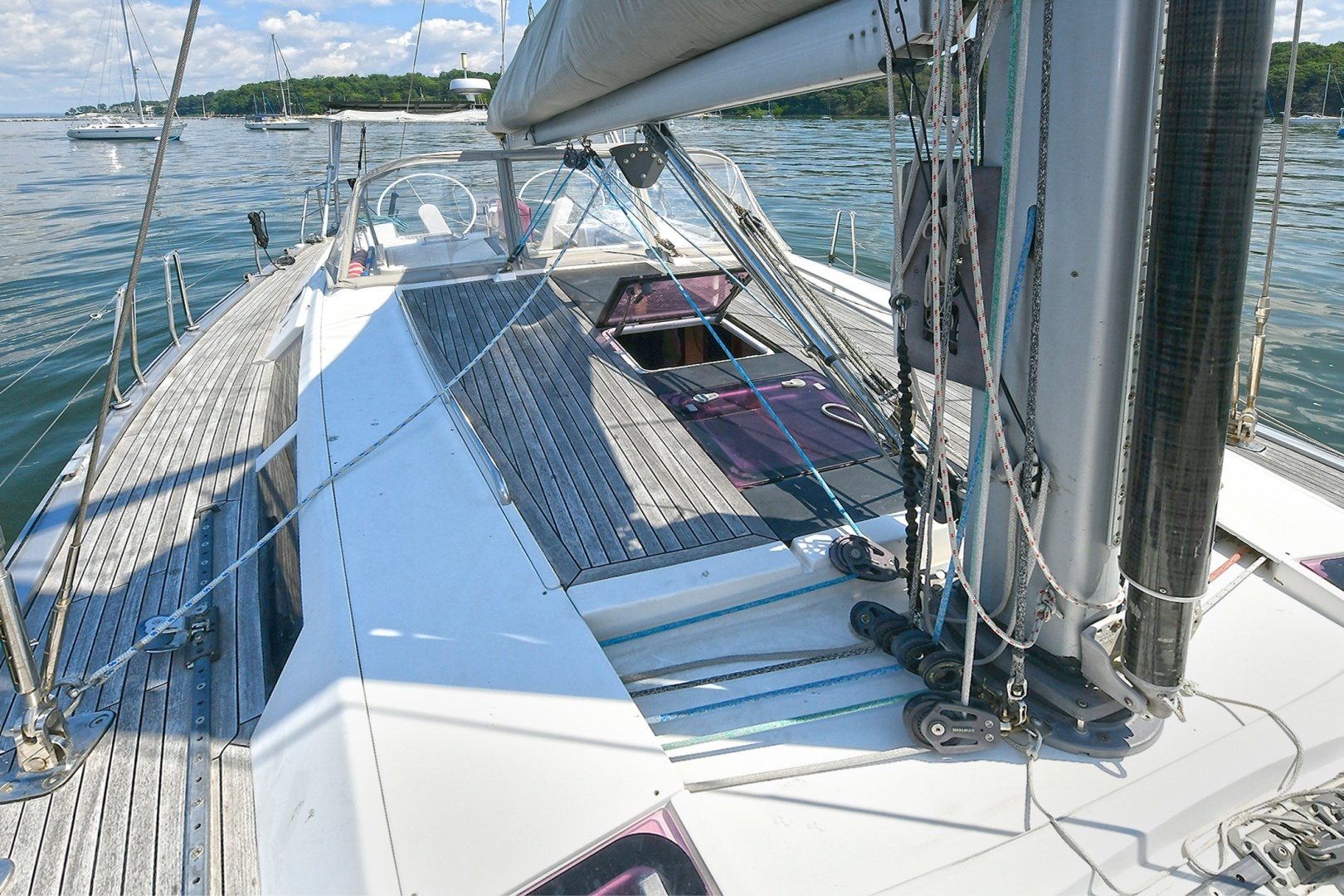

    Sparcraft Triple Spreader alloy mast - keel stepped

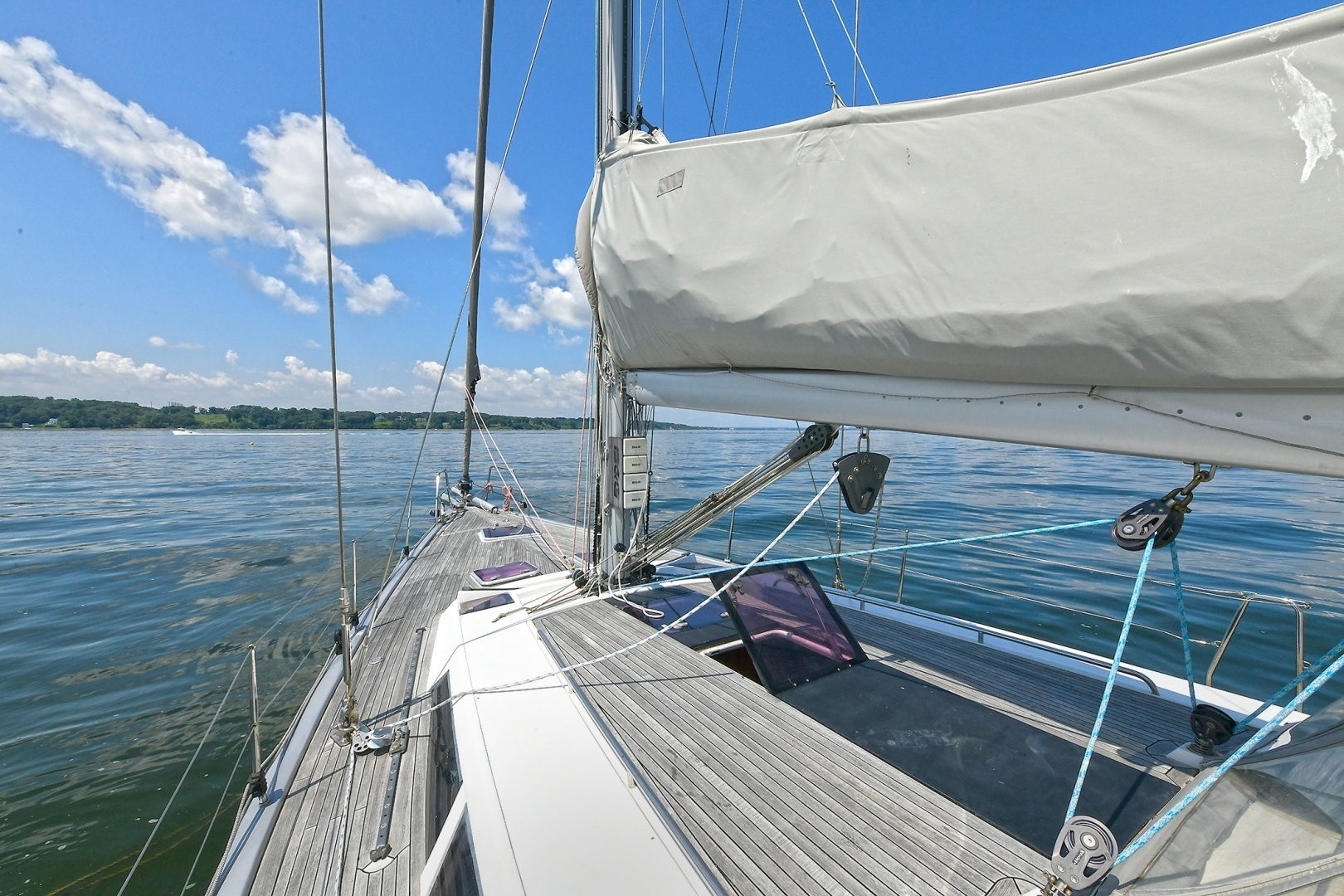

    Sparcraft alloy boom w/ 2 reefs, mid boom sheeting

    Sparcraft retractable asymmetrical Sprit w/ custom mounts

    Sparcraft Vang (2014)

    Inner forestay

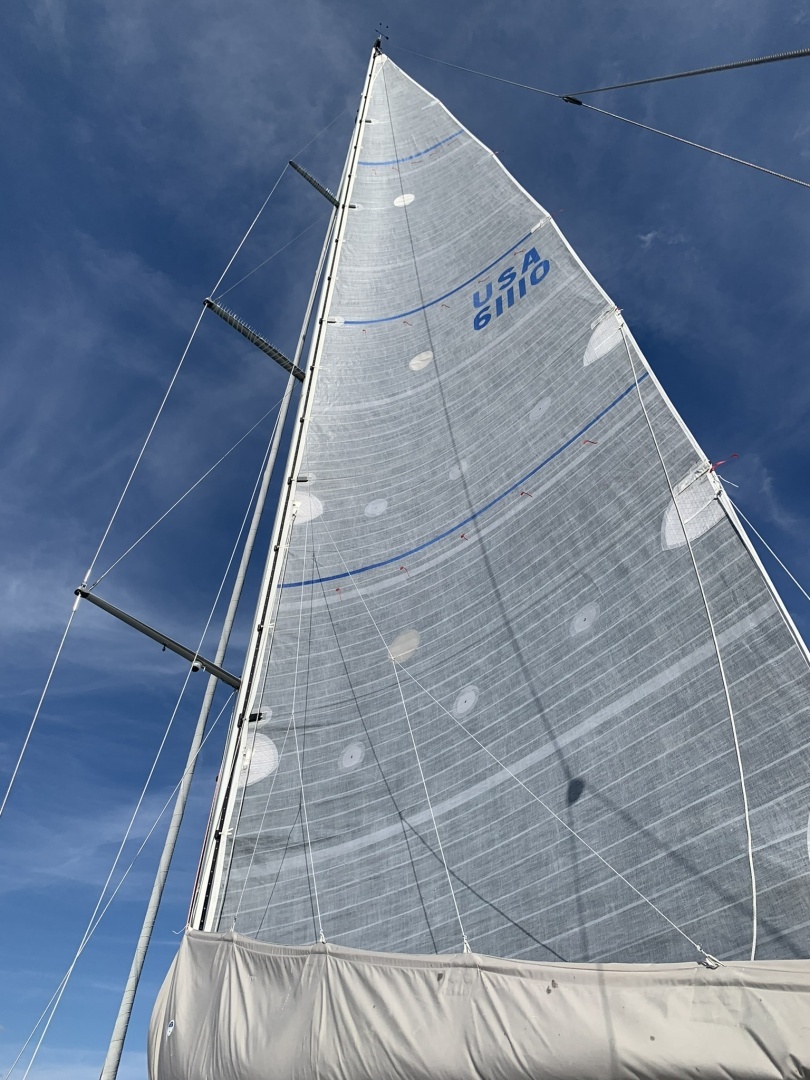

    3Di Mainsail (2018)

    3Di self-tacking Jib (2017)

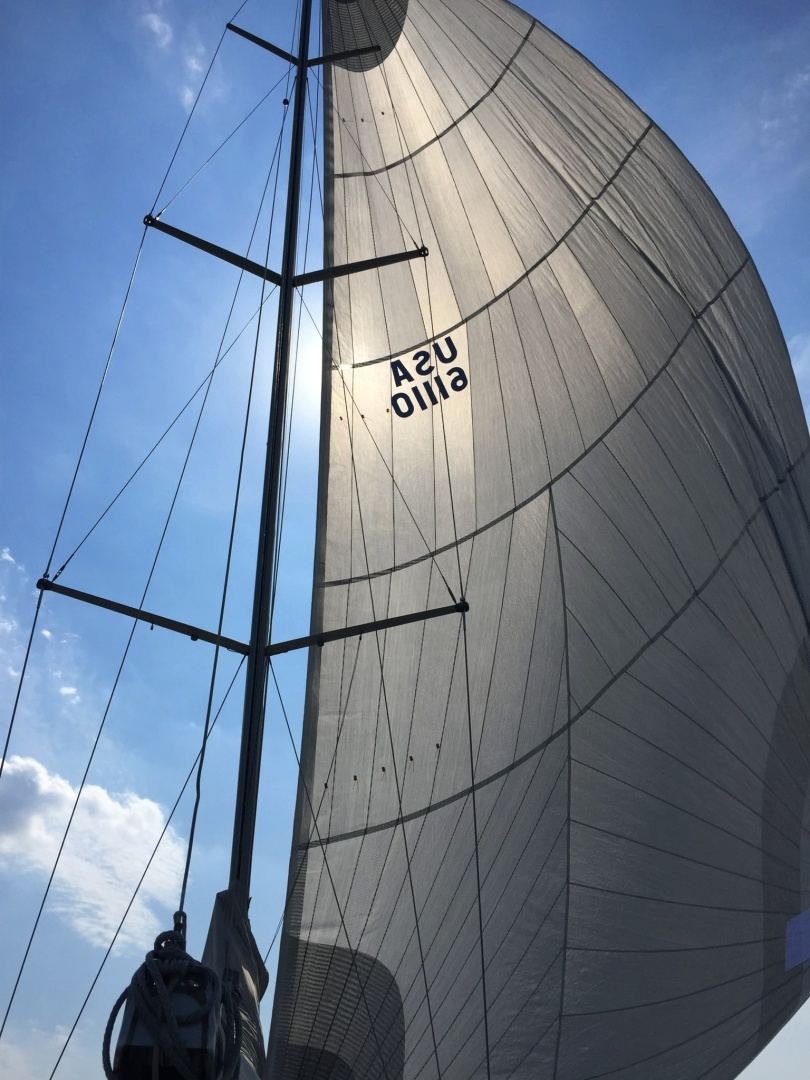

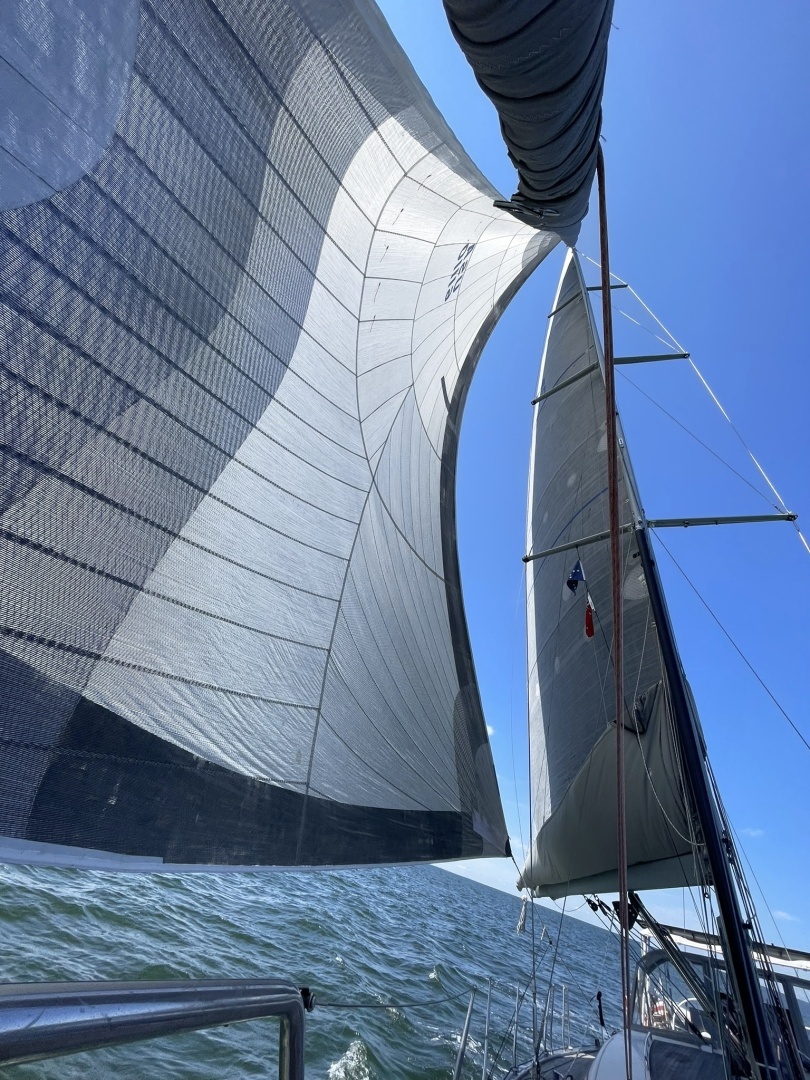

    Quantum A2 spinnaker (2015)

    Double-sided mainsheet, Lewmar 27 electric winch added portside (2019)

    Harken Hydraulic Backstay Tensioner (2017)

    Forte Carbon Fiber whisker pole with track on mast (2016)

    Top-Down Karver Furler (2018)

    Single Line reefing led aft to helm

    Extra pad eye's on toerail for runners

    Runners w/ Harken 75mm blocks, led to aft winches

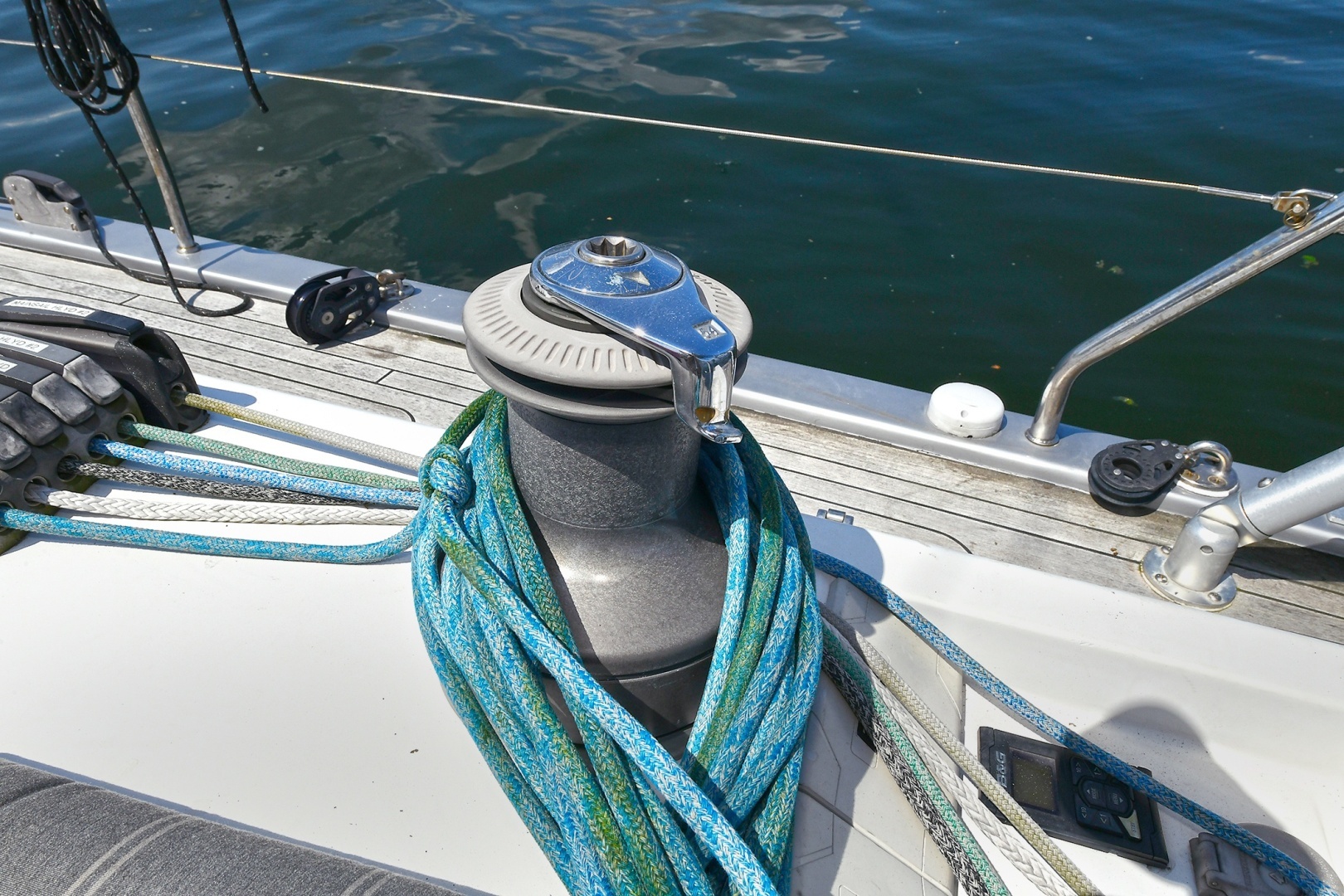

    Lewmar 54 Primary Self tailing electric winch to starboard

    Lewmar 54 Primary Self tailing electric winch to port

    2x Lewmar 46 secondary winches

    2x jib, 1x mainsail halyard, 1x spinnaker halyard

INSTRUMENTS & ELECTRONICS

B&G H5000 CPU Instrument system installed 2015 including:

• 4 H5000 Graphic Displays (each side of steering station)
• 4 H5000 20/20HV Displays (on mast bracket)
• H5000 Wind Speed/Direction Unit on 42” Vertical Masthead Unit with Ultralight Teflon Cable
• H5000 Motion Sensor
• H5000 Autopilot Computer
• H5000 Pilot Controller at Helm with Wireless Remote
• B&G Antenna Splitter and Network Hub

    Zeus2 12” (Helm), Zeus2 9” (Nav station)

    RC42N Rate Compass

    V50 VHF Radio with 2 Handsets on charger cradles (main cabin,& port helm)

    NAIS-400 Class B AIS

    RF25N Rudder Feedback

    4G Radar with Halo dome (2022)

    Gofree WiFi

    CellFi cellular booster and antenna (2022)

    Sonic Hub Server with Marine Fusion Remote Controls in cockpit and nav station

    10” Alpine Speakers in Cockpit, wall mount speakers in main cabin

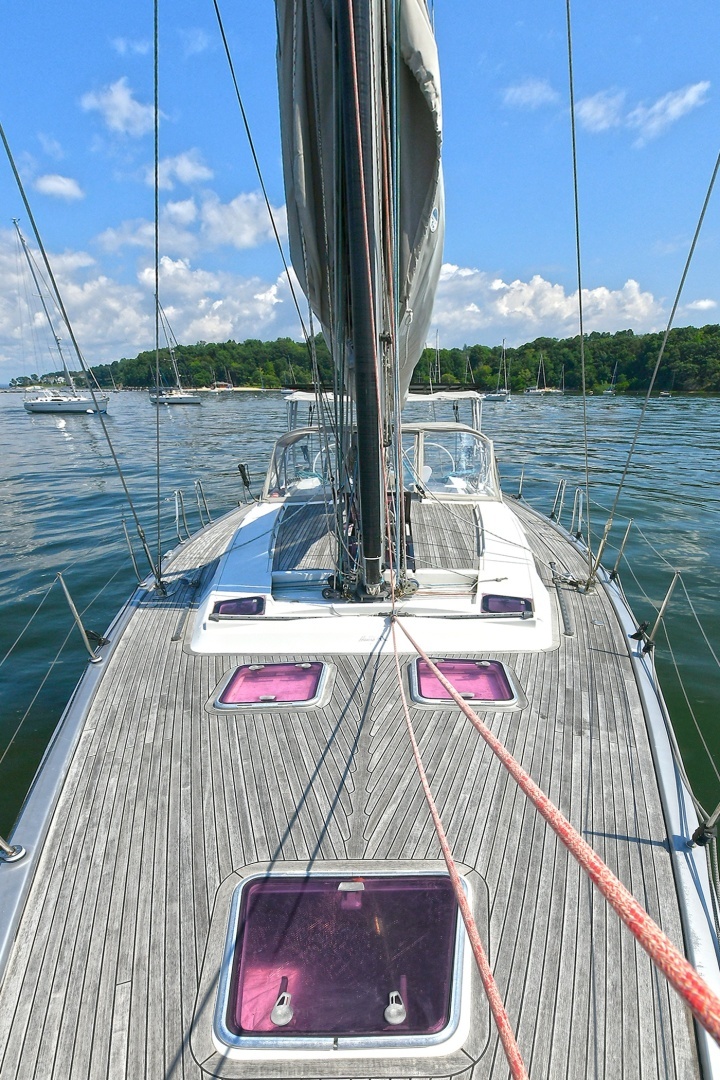

HULL & DECK

    Pettit Trinidad XSR antifouling (2024)

    AwlGrip top and hull sides repainted (2020)

    Strataglass dodger with zippered front and side panels (2021)

    Custom teak helmsman foot braces

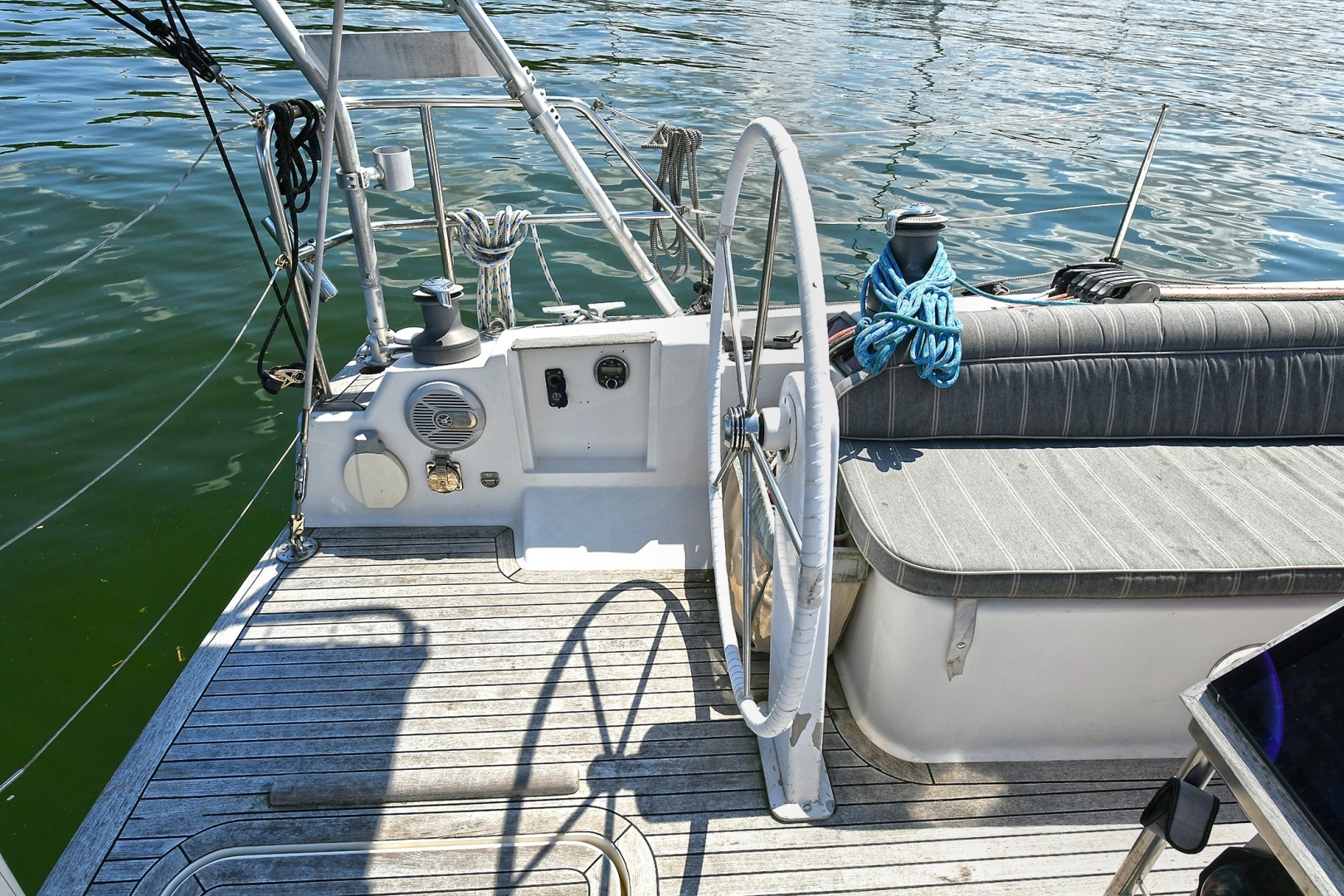

    Wrapped Steering Wheels (2021)

    Custom Lewmar V2 windlass mounted on deck (new remote 2024)

    66lb Lewmar anchor, new chain 30' 5/16" chain and 250' rode (2020)

    LED Cockpit lighting, Hella LED navigation lights

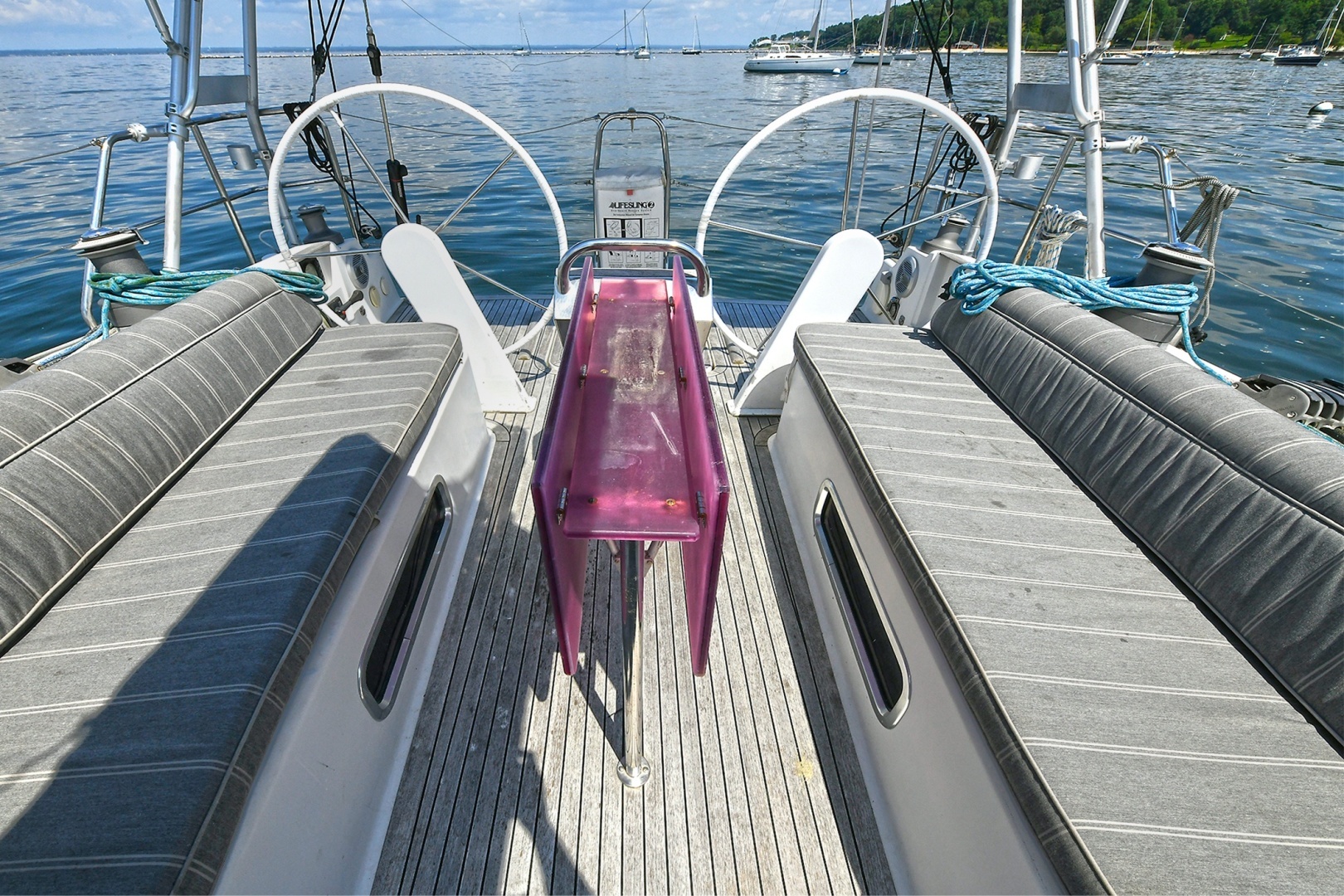

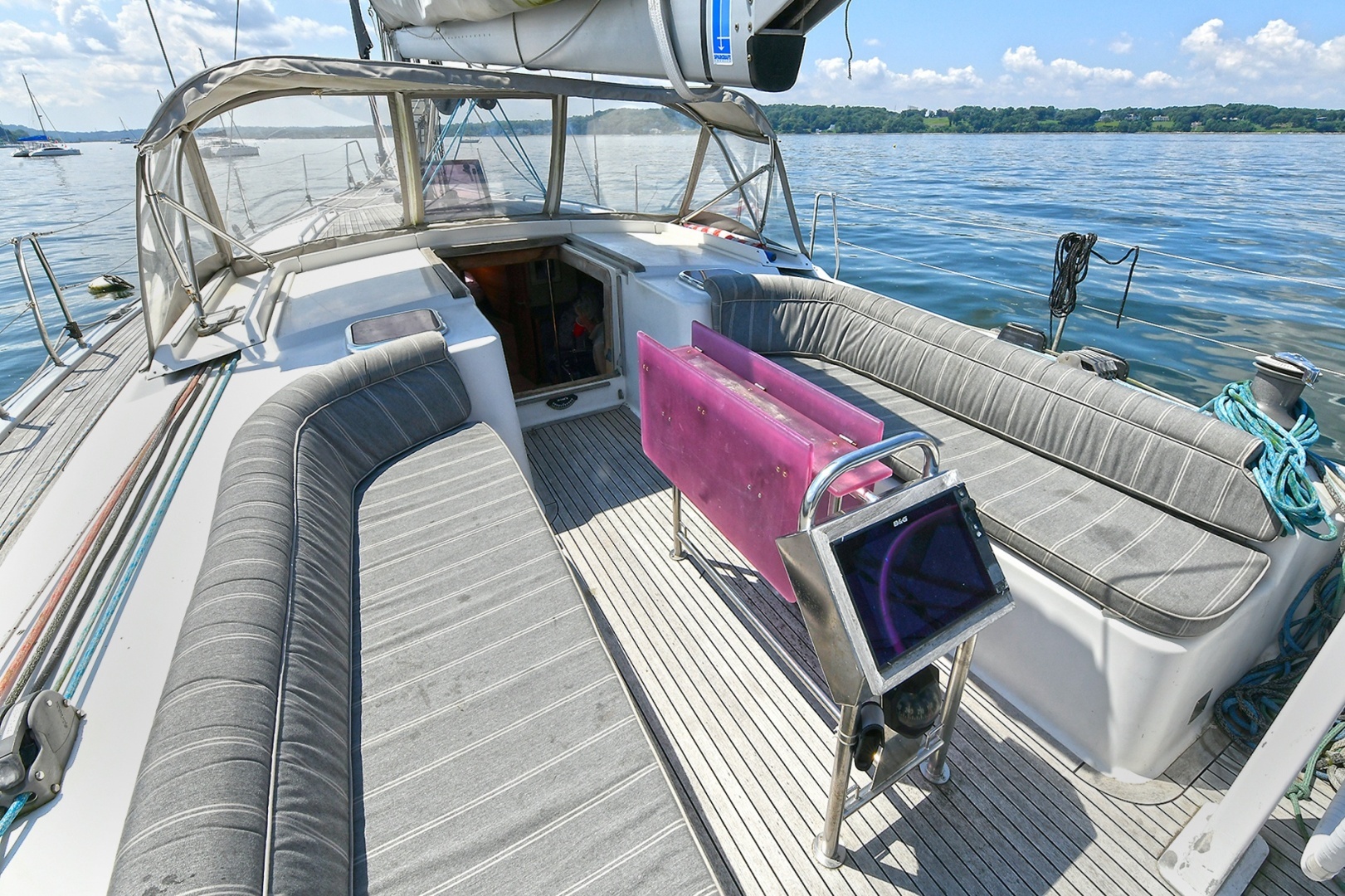

    Large SS cockpit table with acrylic leaves

    6x 12" retractable deck cleats

    Deck freshwater shower

    Transom swim platform

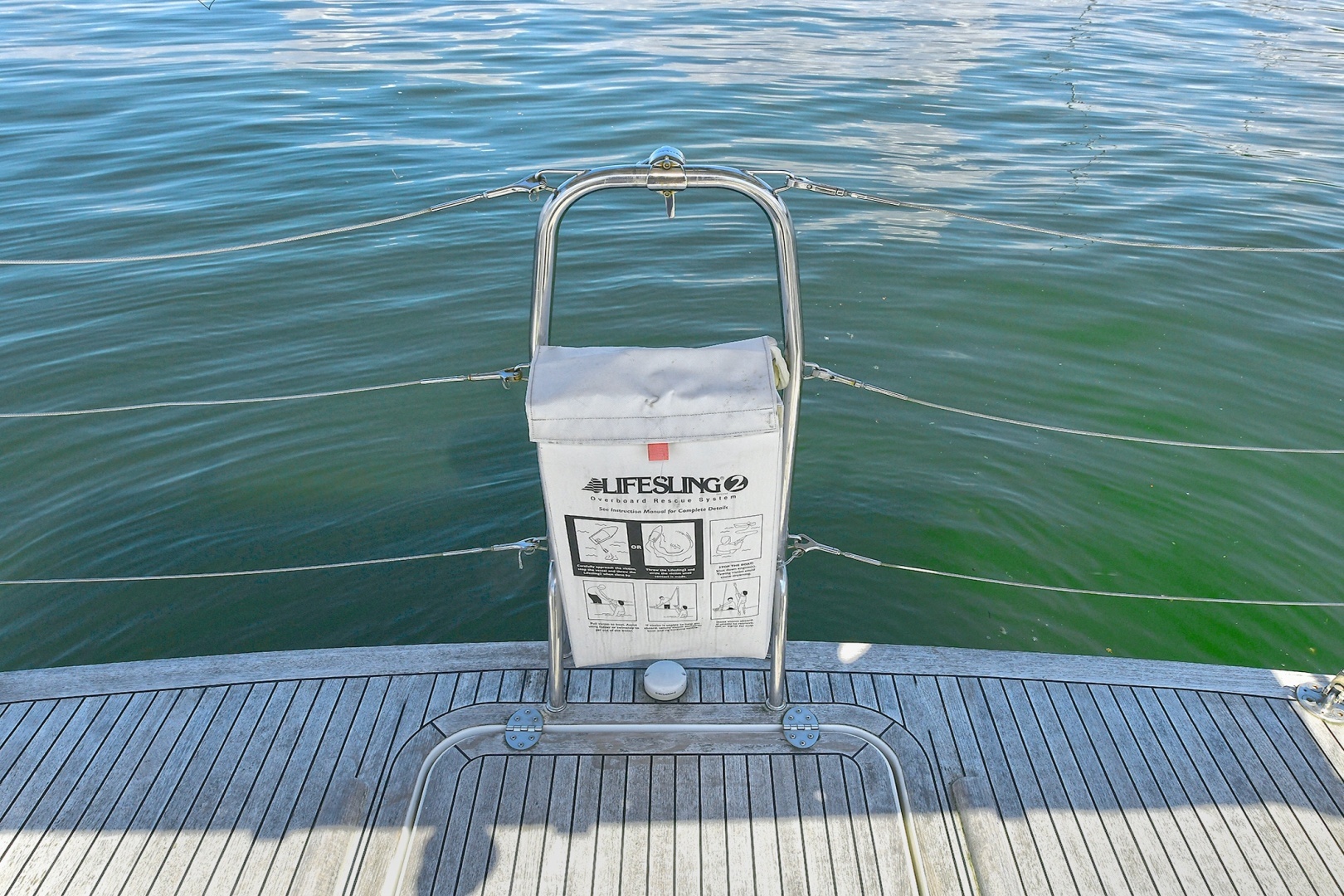

    Lifesling installed aft

    Emergency tiller

MECHANICAL & ELECTRICAL

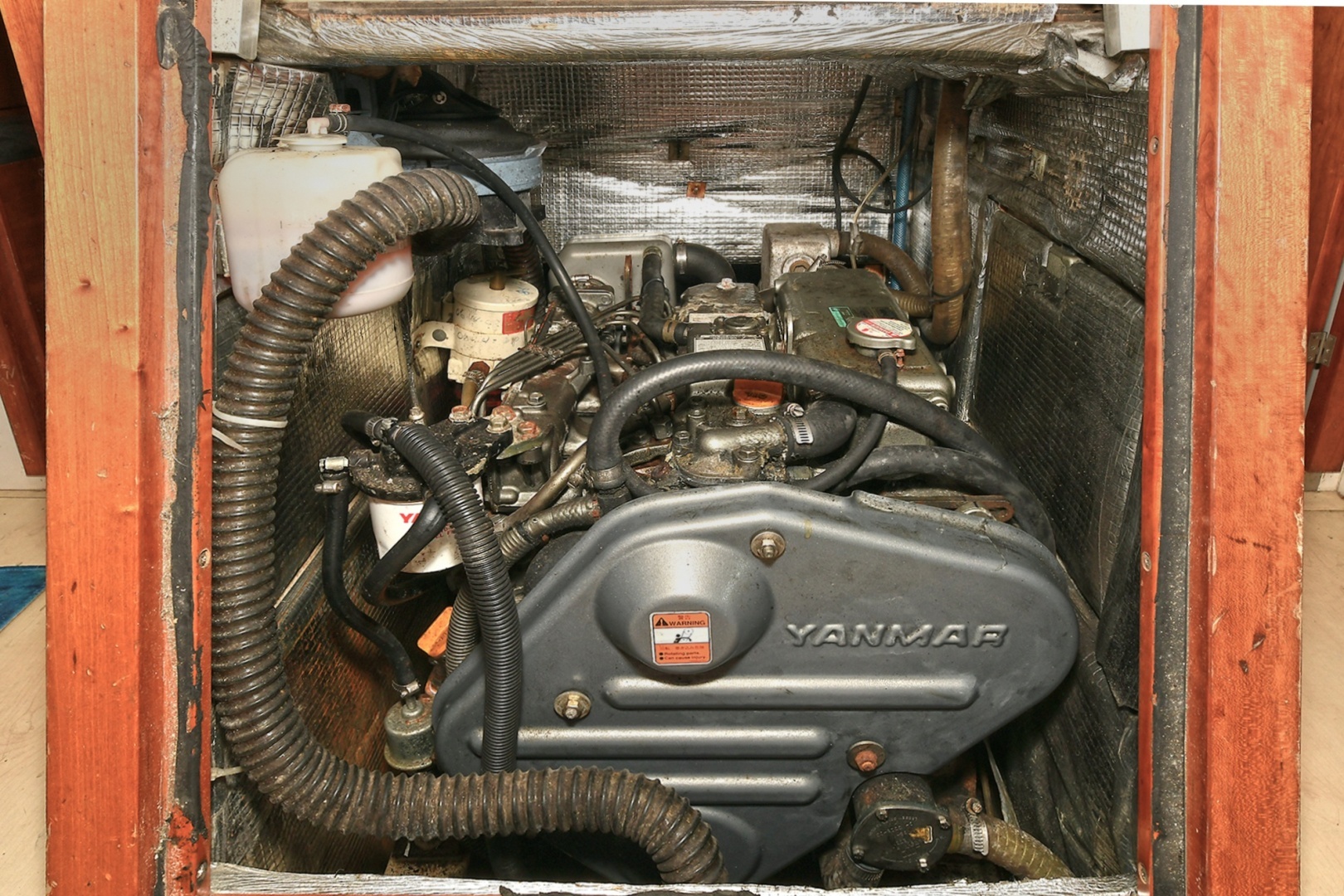

    Yanmar 4JH4 55hp diesel

    Sail drive replaced and cooling water inlet rerouted via a thru-hull to reduce electrolysis

    3 Blade Flex Fold folding prop

    Jefa steering w/ self-aligning rudder bearings

    FRP rudder w/ machined aluminum stock

    Fisher Panda 3.5kw generator (not functional *see notes below)

    House Battery bank 8x100AH AGM (2024)

    Starter Battery 105 AH AGM (2024)

    Victron Argofet 200-3 isolator and IP-43 DC/DC converter (2024)

    Victron 50/100 controllers (1/panel, able to double current capacity) (2020)

    Custom made radar arch with 400lb capacity davits

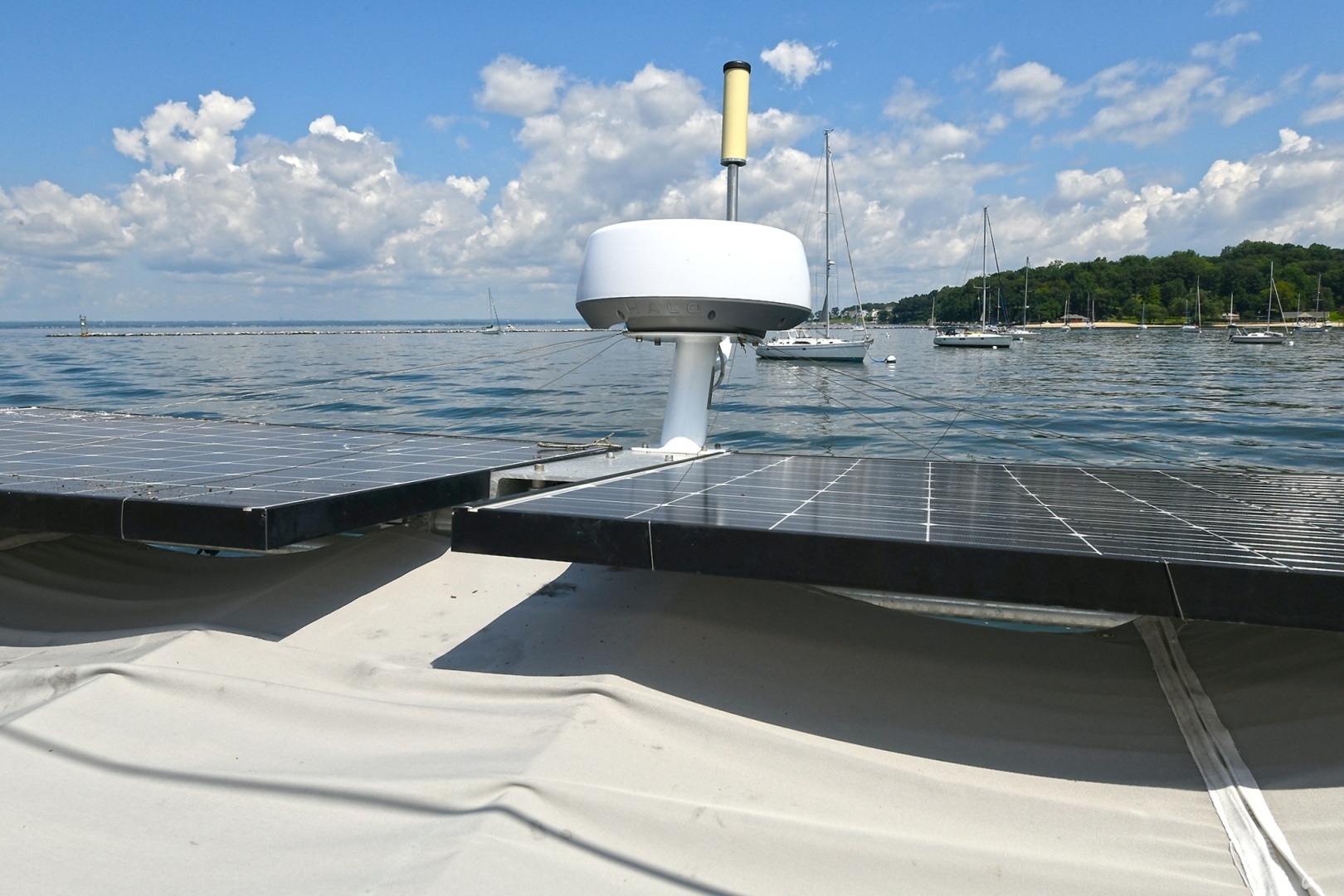

    2x 330W solar panels (space on arch to expand) (2020)

    Webasto FCF Platinum Reverse Cycle 16,000 BTU A/C units

    Racor dieselfuel pre-filter, and Yanmar, self-priming engine mount filter upgrade

    Manual below deck bilge pump w/ switchable intake

    1x 12 volt bilge pump w/ moveable intake

*Generator - The original generator is currently inoperative. Diagnostic work determined that repair was not practical. Rather than replace the unit, the current owner chose to reflect this in pricing, allowing options for the next owner to replace it or pursue another electric solution.

INTERIOR

The Hanse 470e offers a voluminous, light, and bright living space throughout the salon and staterooms with opening ports, top light from the overhead flush mound deck hatches and hull port lights, Cherry interior woodwork, Corian counters, and durable laminate flooring.

• Isotherm Water-cooled Refrigerator/Freezer (2020)
• Isotherm EL 130 Refrigerator (2014)
• All new wash pumps, shower heads and faucets
• Raritan Electric Toilets plumbed for fresh and salt water

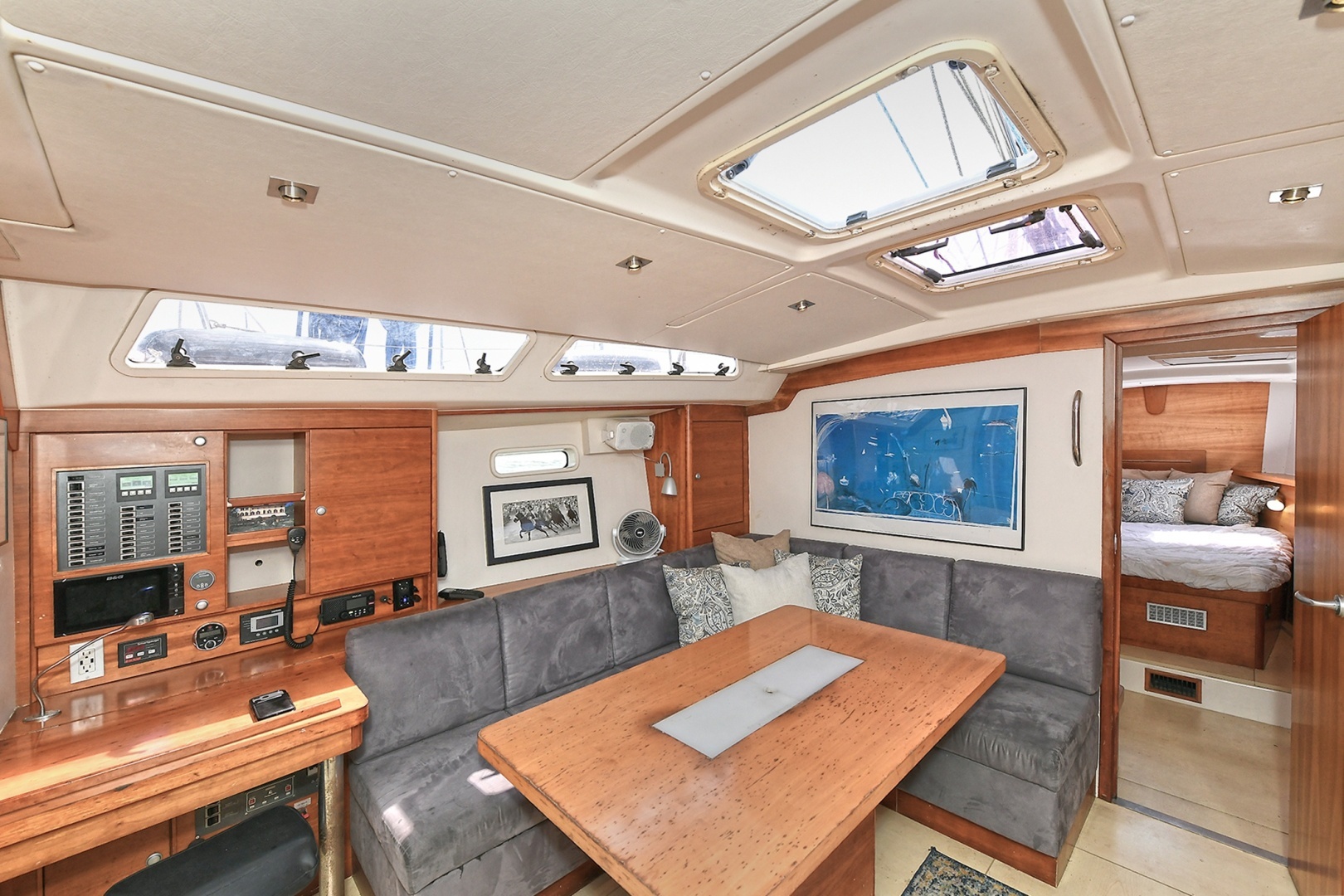

SALON

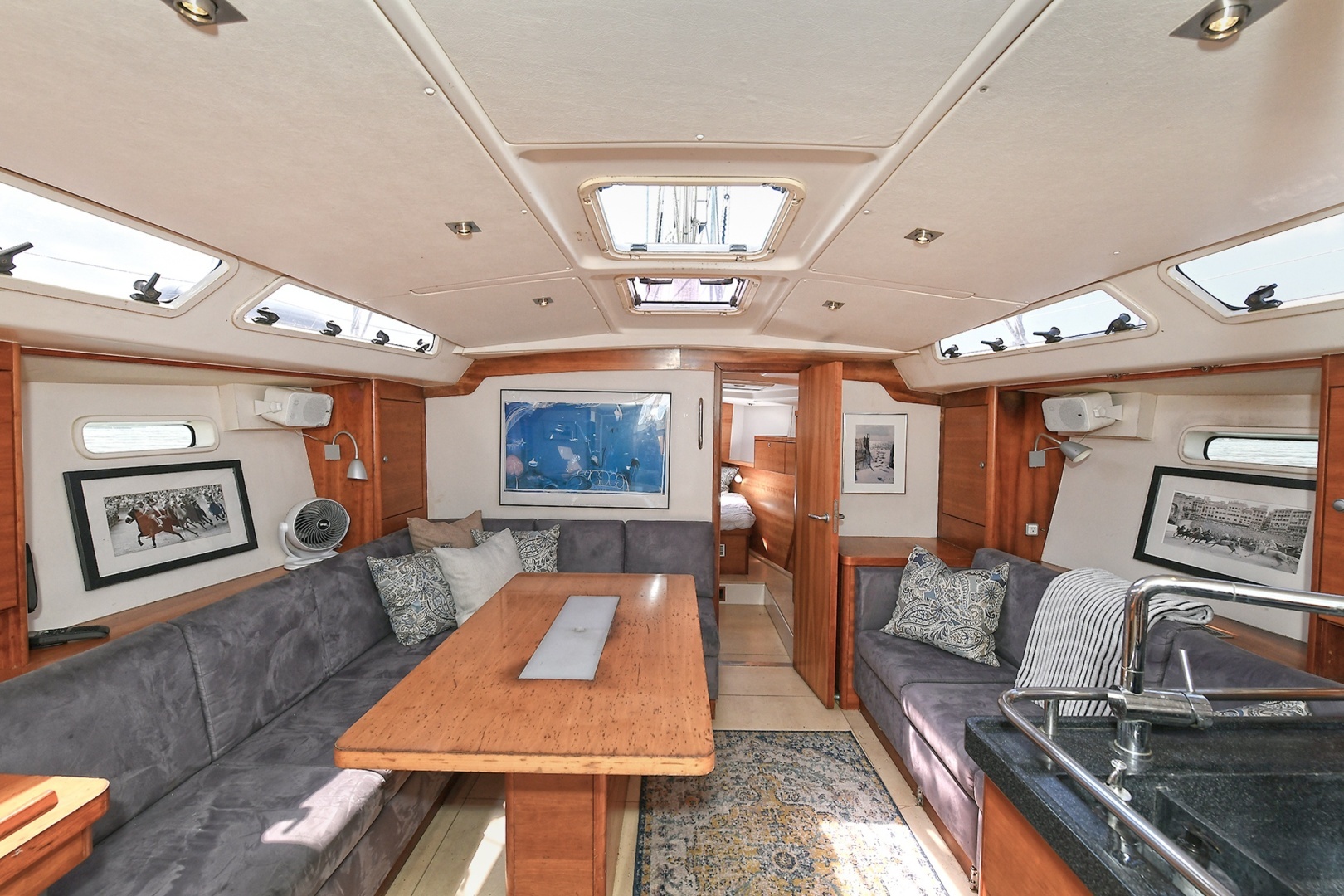

Step down into the comfortable and contemporary main salon featuring an L shaped settee and table to port. Aft of the settee is the nav station with chart table, 12v panel above, and 110v panel below.

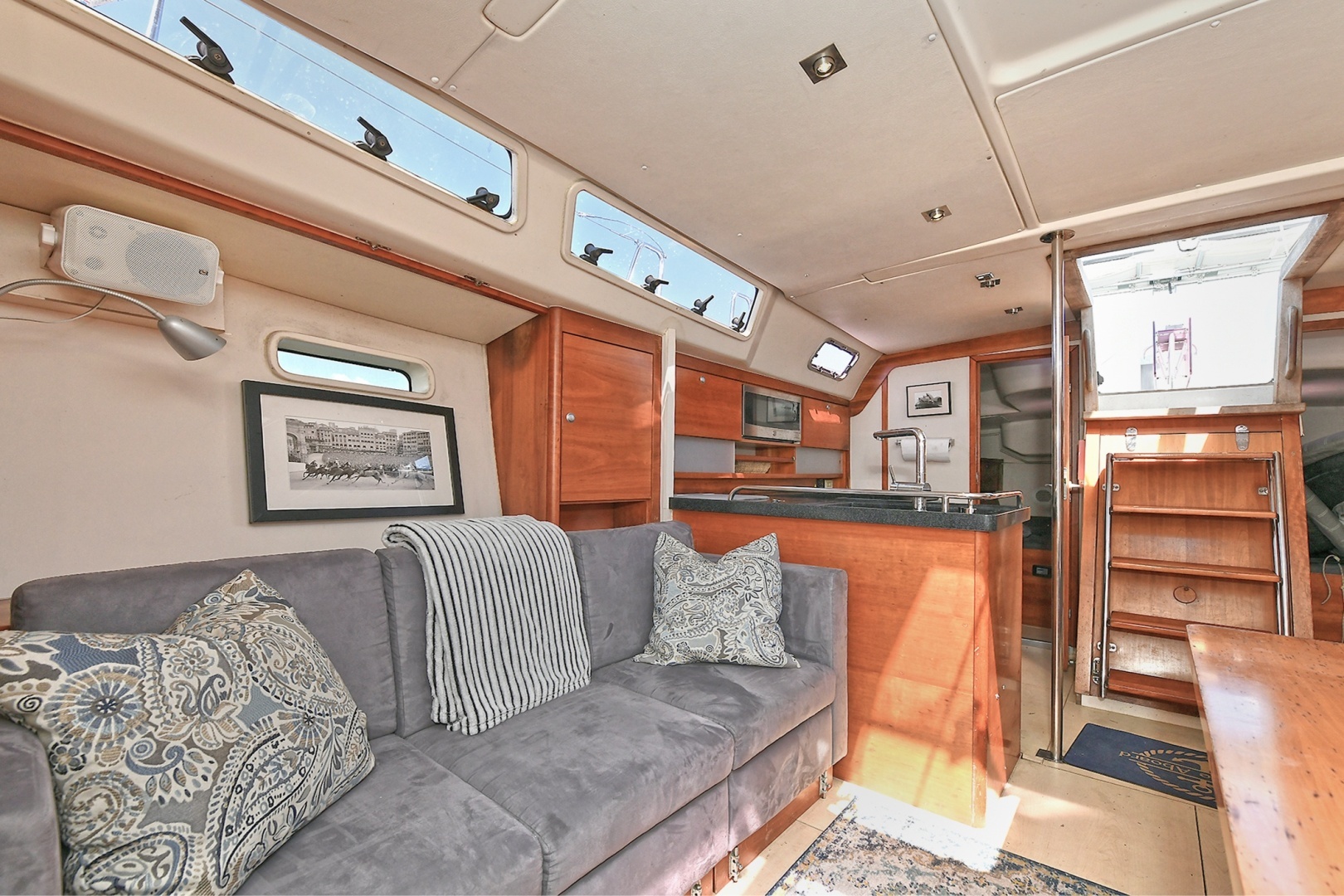

To starboard is the optional settee/sofa which rolls out for dining, 2 seats recline with pull-out foot rests. There is ample storage under the cushions and bottle storage in main table.

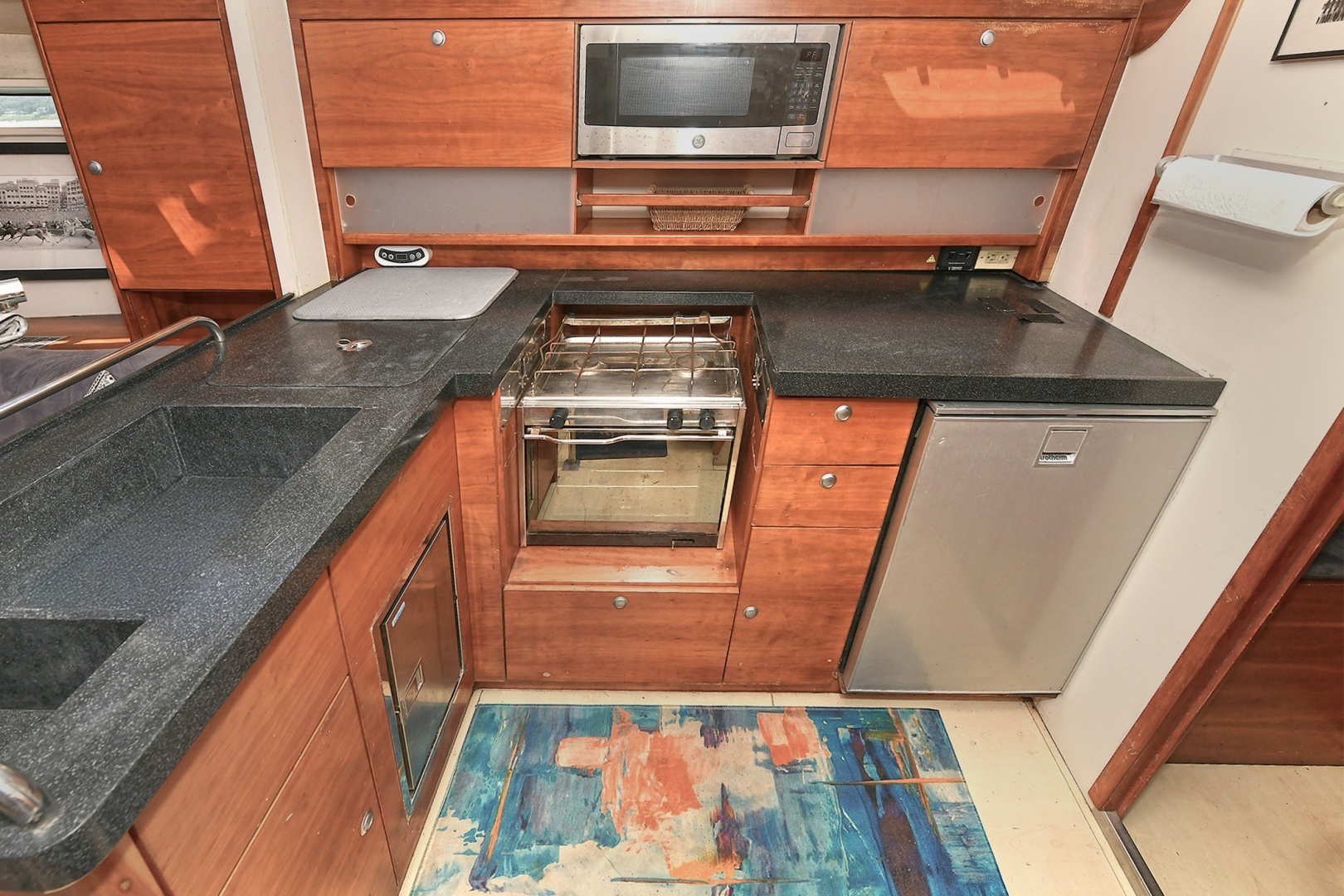

GALLEY

Aft starboard, has an open and functional layout with plenty of counter space for prep and cooking, double sinks, extensive stowage in the upper and lower lockers, a 2-burner SS gas stove & oven, and 12-volt Isotherm fridge and freezer units.

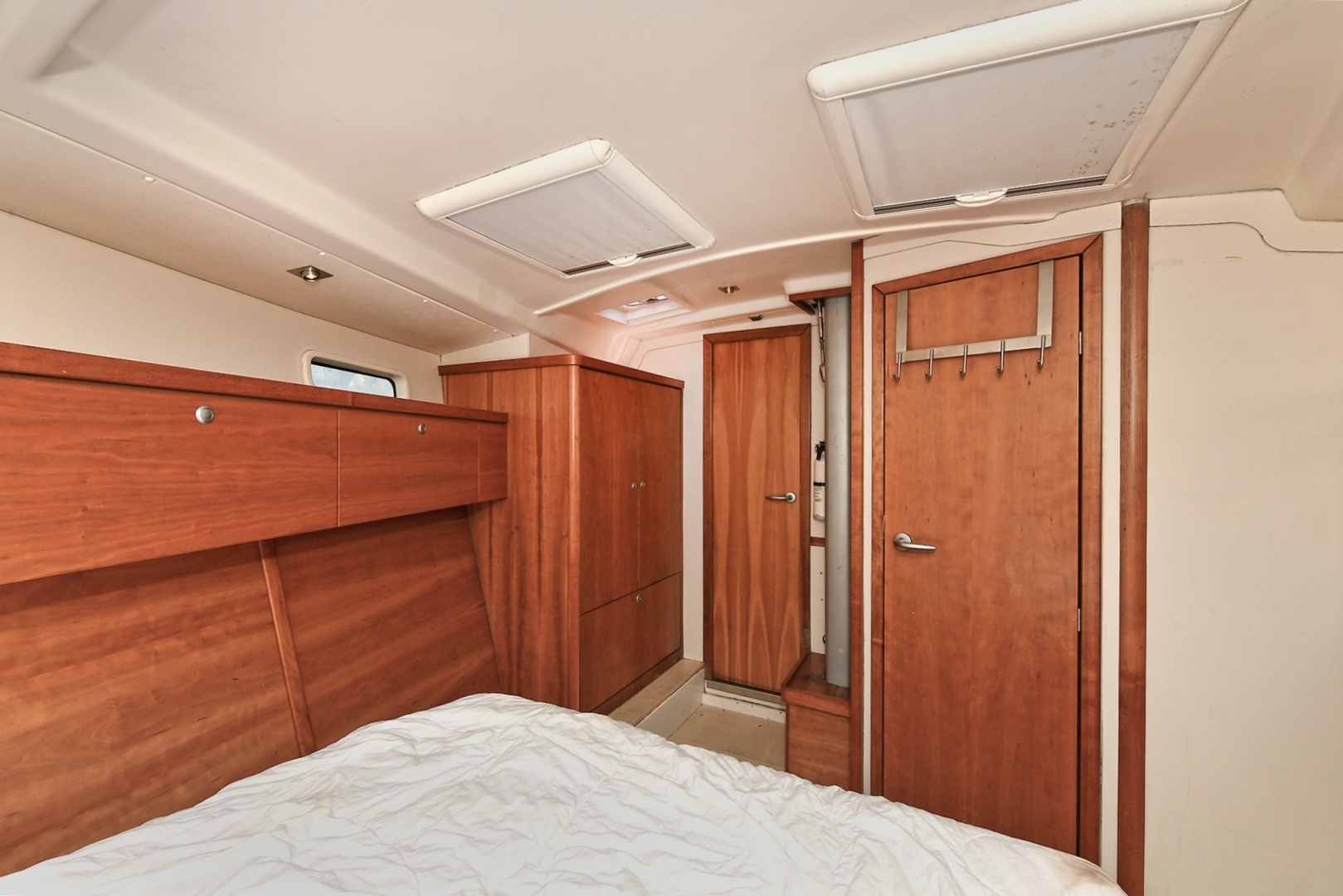

OWNERS CABIN & HEAD

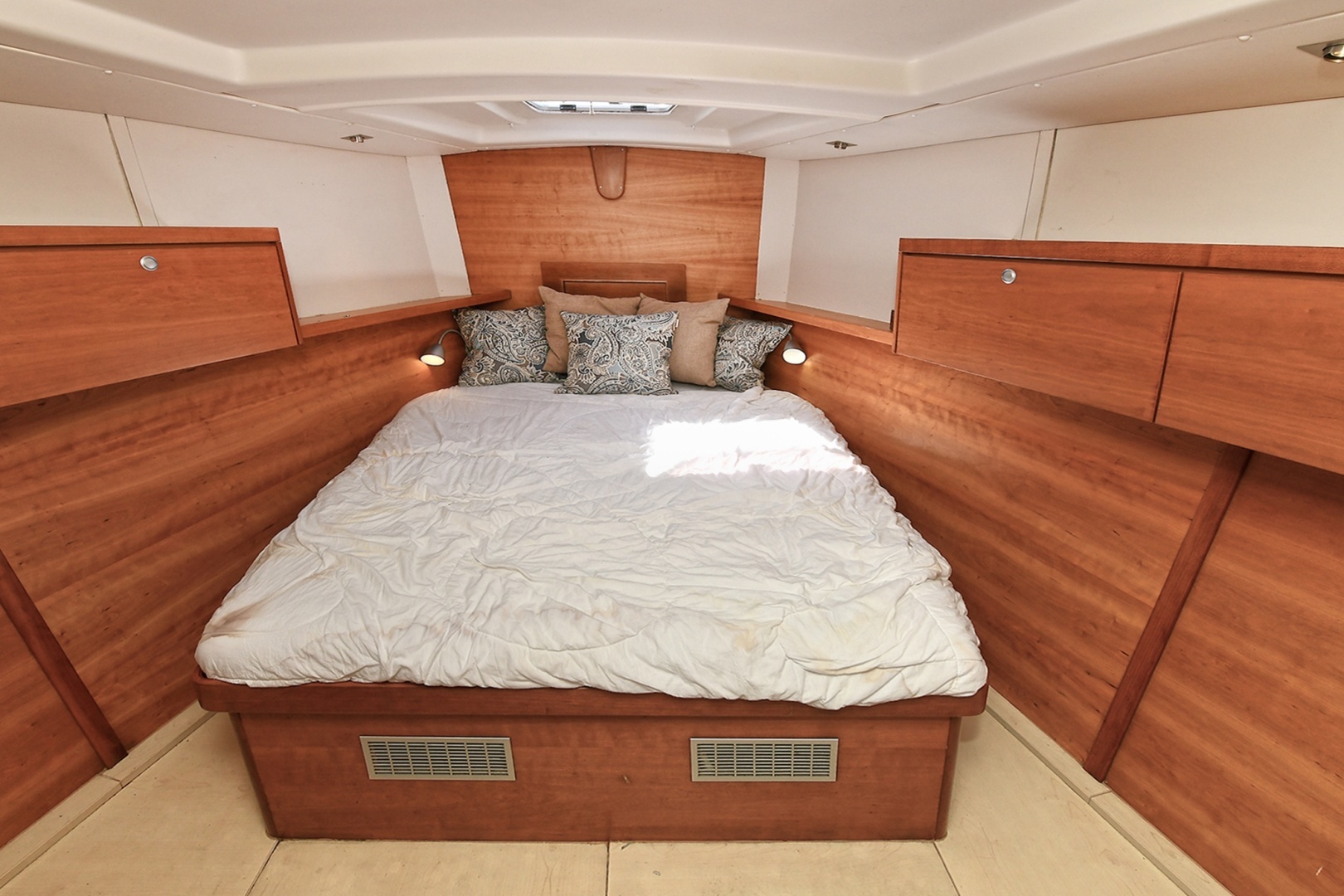

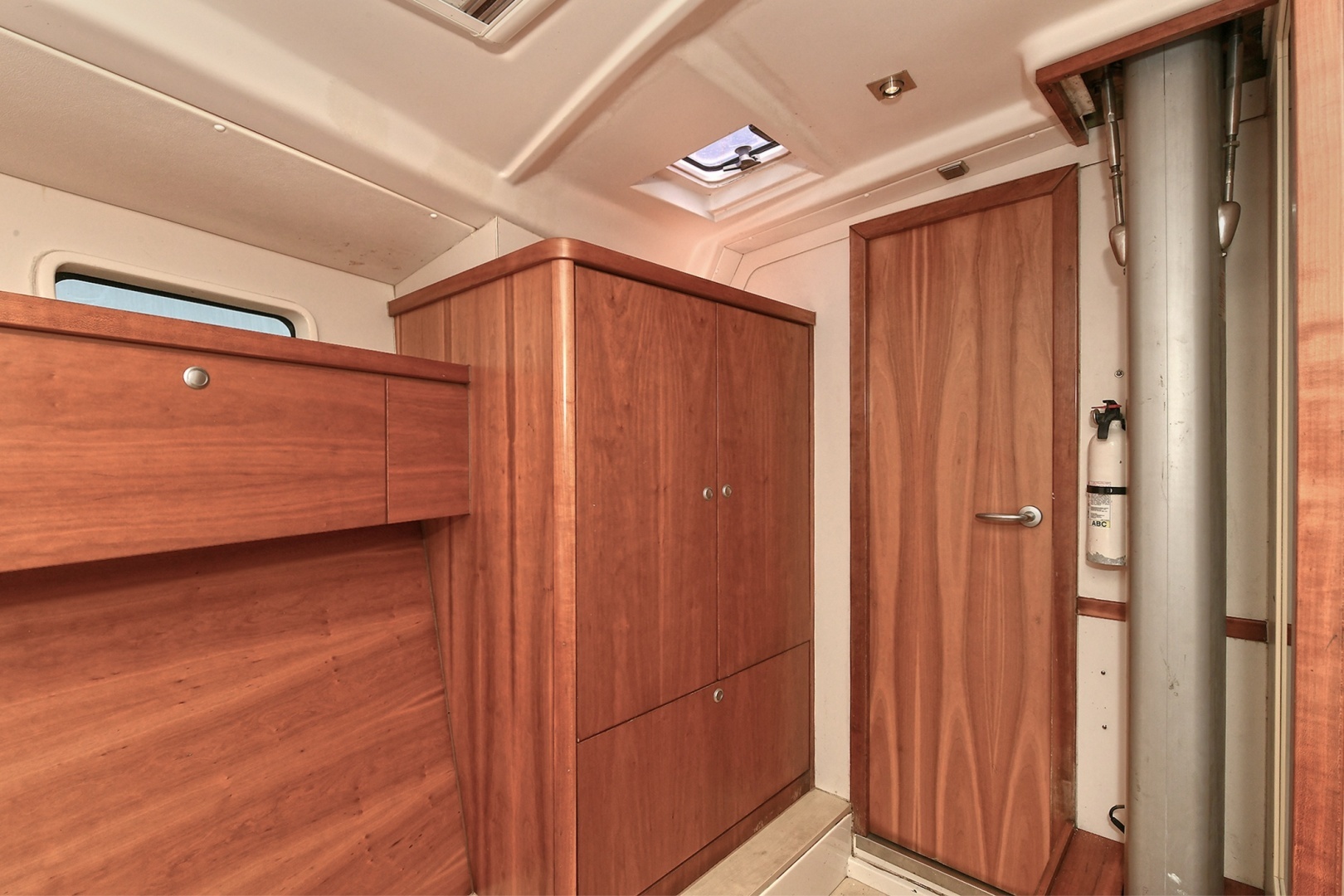

Forward is a spacious owner’s cabin with ample storage lockers along with a full wardrobe and desk. To port is the private head with undermount sink, stand up shower and head. An opening hatch provides light and ventilation.

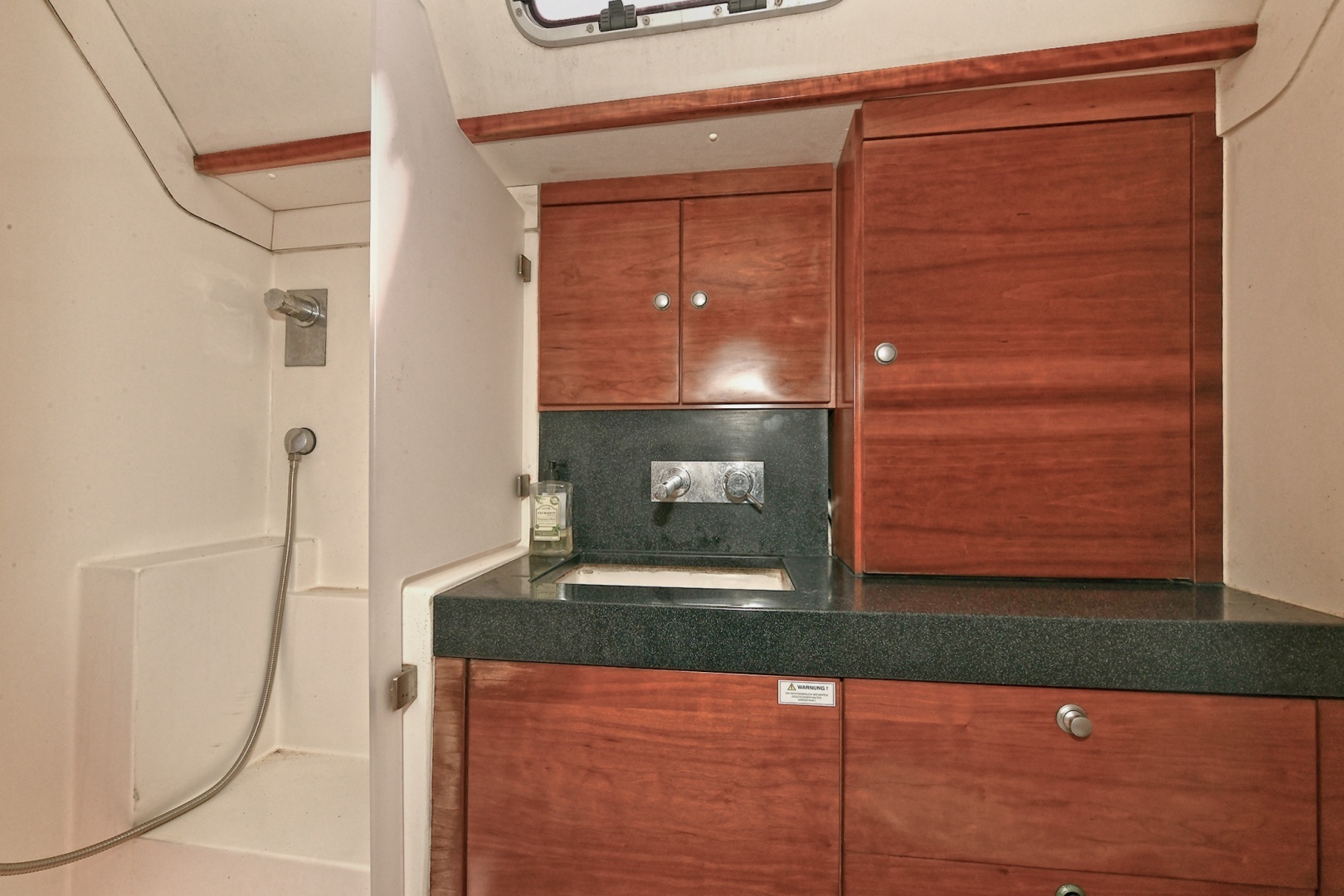

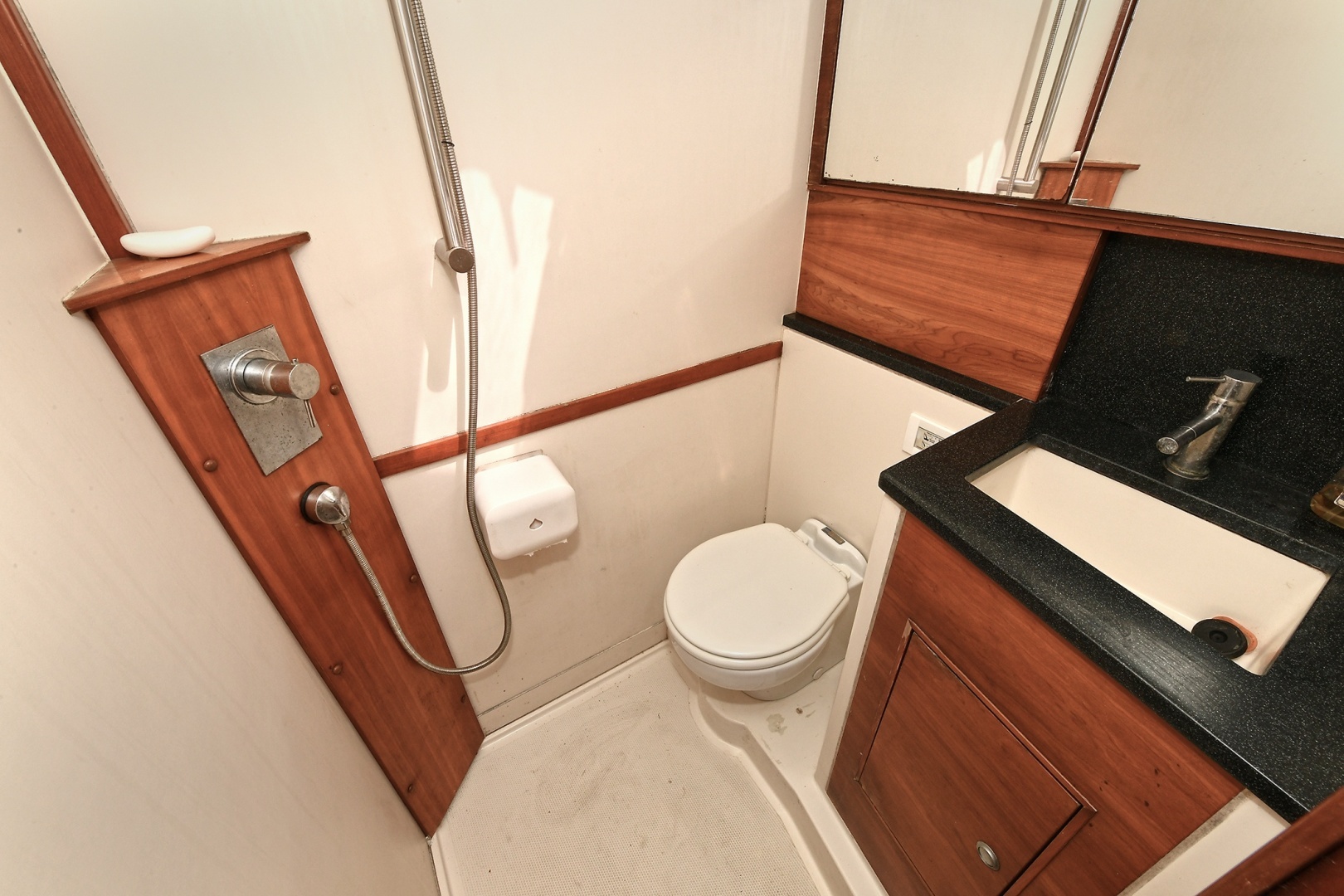

AFT GUEST/DAY HEAD: Across from the galley is the aft head, with undermount sink, and stall shower. There is a large fixed port and an opening port for ventilation.

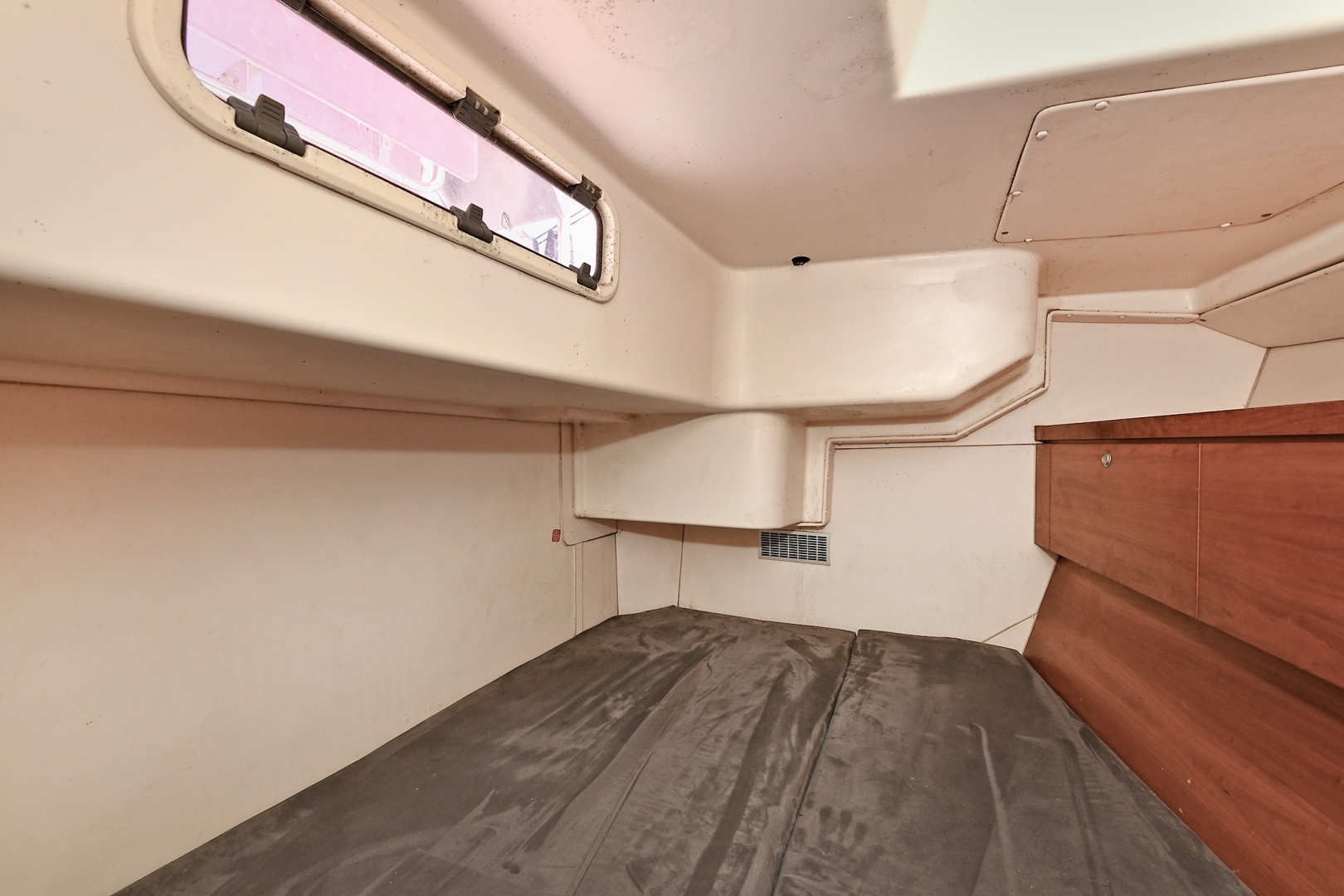

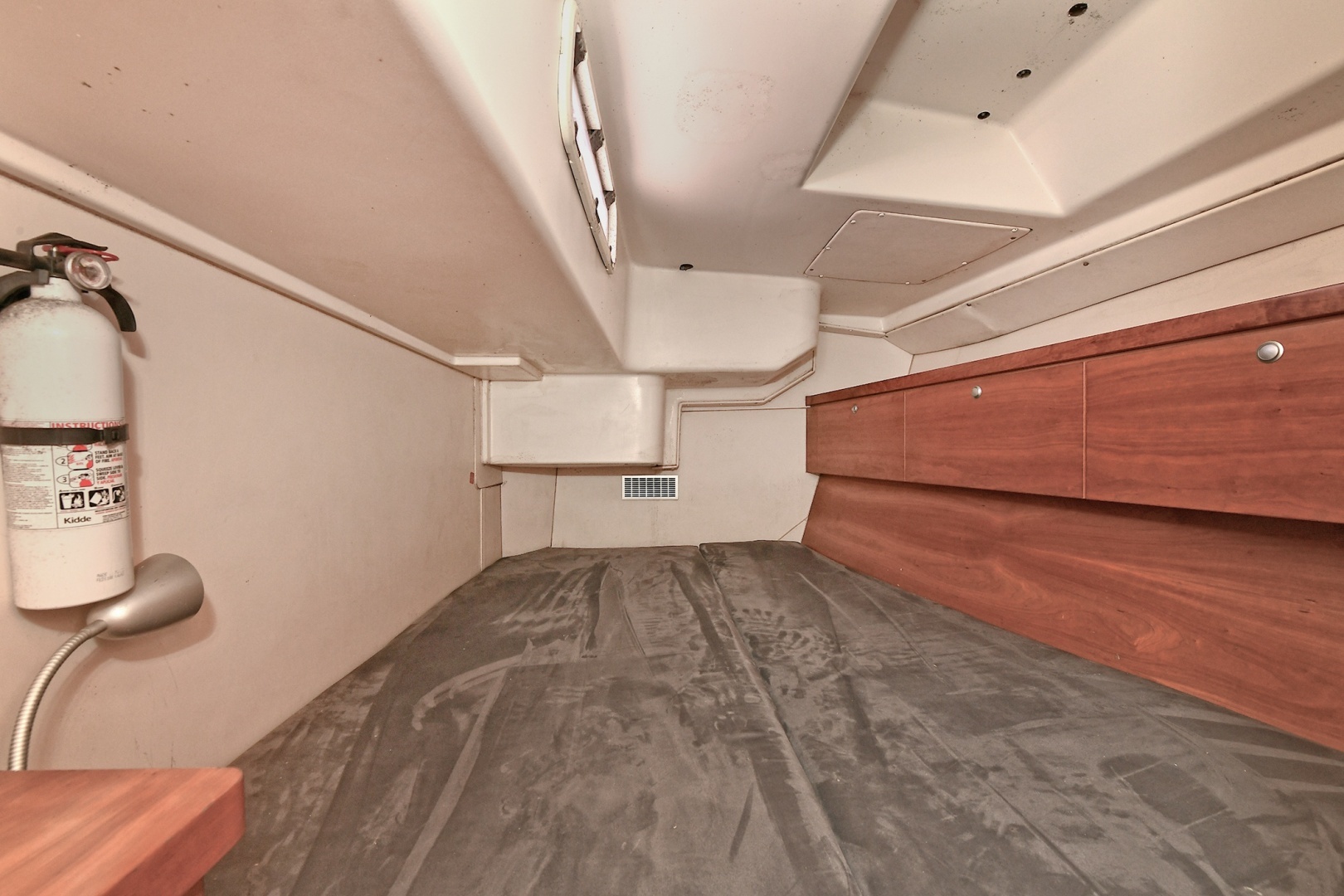

AFT GUEST STATEROOMS

The 2 aft cabins are mirror image, each feature lots of light from the hull and opening port lights, along with 3 large storage lockers and a hanging wardrobe per side.

EXCLUSIONS

Owner’s personal belongings and artwork.

MECHANICAL DISCLAIMER

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

DISCLAIMER

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
