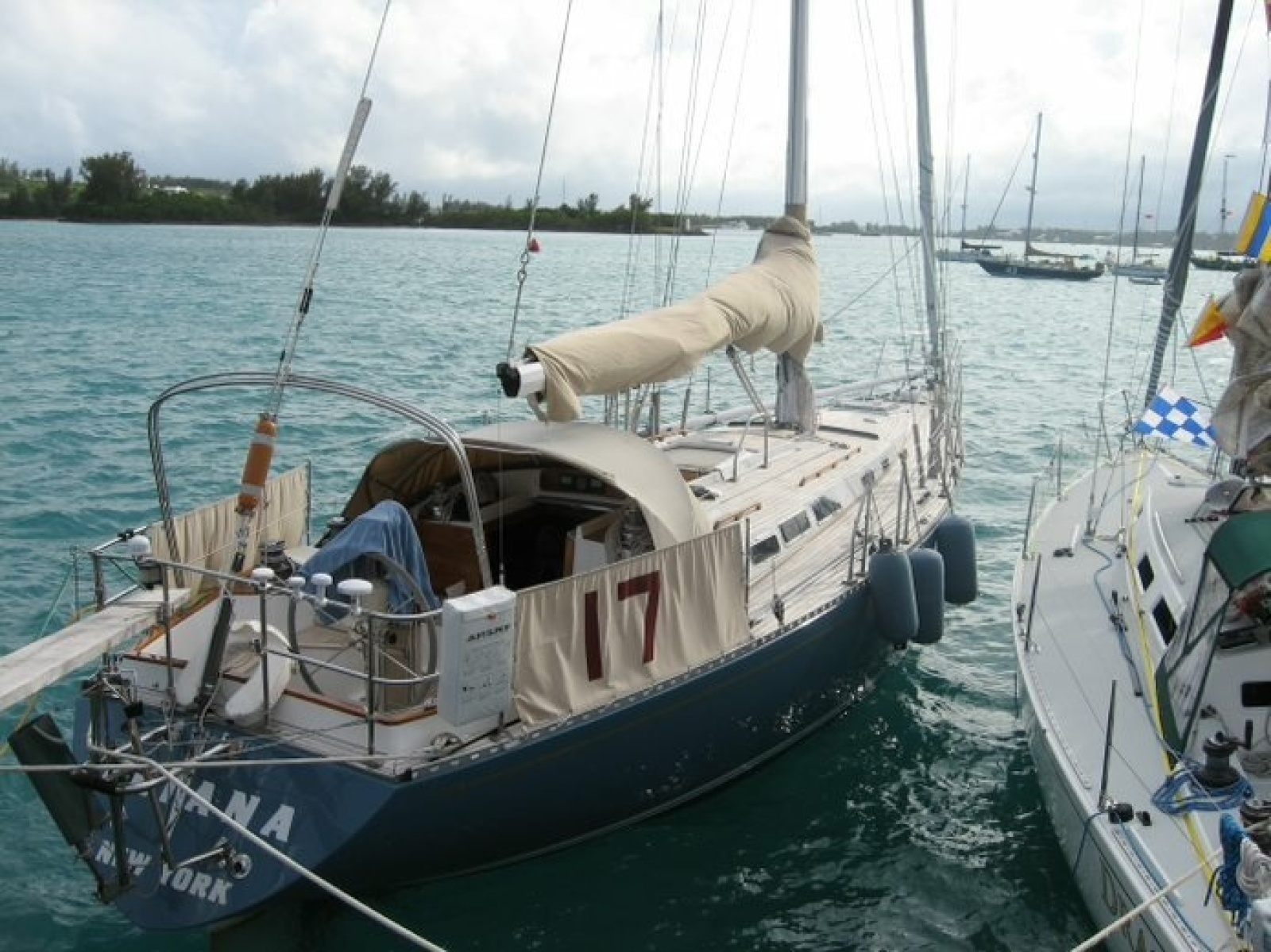

1987 Warwick 46'
14.02 m
1987 Warwick
46' (14.02 m) - Ariana
If you are looking for a truly fast , safe , and comfortable blue water cruiser that can handle just about anything Mother Nature can throw at you , then Ariana is the boat for you.
$ 162,000 USD
€ 151,486 Euros
$ 222,059 CAD
£ 128,195 GBP
Description
If you are looking for a truly fast , safe , and comfortable blue water cruiser that can handle just about anything Mother Nature can throw at you, then Ariana is the boat for you. Ariana was constructed under the supervision of the owner / surveyor and has many custom features like horizontal stringers every 12".
The present owner has lovingly and carefully methodically gone through the entire vessel, paying attention to every detail to ensure that she is ready to make offshore passages by just adding provisioning.
Details like good catches on all doors and drawers and lockers , so nothing opens accidentally in a sea way.
The sheer heavy displacement and stiffness ensures that she never pounds when coming off big waves, ensuring great confidence in the integrity of the vessel. Ariana can easily be sailed short handed , and whilst there is no water maker or generator she carries sufficient fresh water to be self sufficient for long periods of time at sea . The present owner raced her occasionally in offshore races with much success. He is selling her only because of his age now, and know that when you view her you will find it very hard to find any faults in the vessel.
History of Ariana :
She had been based out of New England until 2019 and now out of Antigua since then. The original owner had this vessel built at Sen Koh Shipyard in Taiwan and personally oversaw construction with a surveyor in 1987 and then she was shipped to the US 1n 1989 but had never been never fitted out when I purchased her in 1992. I have since owned her and have over 50,000 offshore miles with her including 12 trips to/from New England/Caribbean and 11 Bermuda 1-2 races where we always placed (Bermuda1-2.org...see the race archives). My personal best singlehanded B1-2 race to Bermuda is 77 hours, including 100 miles of light air at the end. She is a true ocean greyhound and can outpoint most boats. The teak deck and cockpit have been professionally refurbished using TDS system full depth re-caulking, selected plank replacement, and screw removal /replacement with epoxy and full depth bungs in 2021. The rudder was removed for internal inspection and professionally rebuilt with new foam, biax/epoxy layup and fairing in 2022. She sailed from Virginia to Antigua in November 2019 and was laid up ashore since June 2020, then launched and recommissioned in March 2023. All systems/electronics are commissioned and functional.
"I was looking for an offshore vessel that could support singlehanded offshore passages. Upon receiving the construction plans from the designer I knew this was the one. She was built at the Sen Koh Shipyard in Taiwan under the owner's supervision with a surveyor in 1987 and then was shipped to the US in 1989 and was never commissioned. i purchased the vessel in 1992 and delivered to New England. She is built of solid FG with FG hat stringers 12"OC and 2" FG floors 20" OC. All Bulkheads are properly glassed in with foam margins to eliminate hard spots. There are no liners which result in a quiet boat in a seaway. Her displacement and deep forefoot ensures no pounding and a comfortable ride offshore. All drawers, sole boards, and heavy equipment have positive fasteners and retainers for offshore passages. After over 50,000 offshore miles I can attest that she is still a great sea vessel ."
LOA46'
LOA14.02''
Beam13'
Beam Inch1''
Draft Max Feet6'
Draft Max Inch6''
Fuel Tank (Gallons)115
Fuel Tank (Liters)435.32
Fresh Water (Gallons)200
Fresh Water (Liters)757.08
TypeSail
ConditionUsed
Specifications
Ariana
CIC46016H788
Sail-Used
1987
13'1"
6'6"
3
2
Diesel
Fiberglass
115 Gallons (435.32 Liters)
200 Gallons (757.08 Liters)
28000
Engines
Engine 1
- Engine Make: Cummins
- ModelEngine Model: 4B3.3
- YearEngine Year: 1987
- Engine TypeEngine Type: Inboard
- Power HPPower HP: 65.00
- Power KWPower KW: 48.47
- Feul TypeFeul Type: Diesel
- HoursHours: 1689.00
Full Details
Additional Info
Interior Comforts and Ammenities
- One manual head
- Double stainless steel sinks
- Frigiboat 12v top opening refrigerator with (2) compartments and (2) plates 2017
- Manual fresh water
- Interior showers (1) with a separate stall
- Formica countertops
- Force 10 propane (4) burner stove with oven and grill (2016)
- Pressurized fresh water
- Water heater 6 gallon tank .
- Panasonic microwave 2017 700 watts
VESSEL WALKTHROUGH: (2 cabin / 2 head)
The interior is all beautifully varnished teak with teak and holly sole.

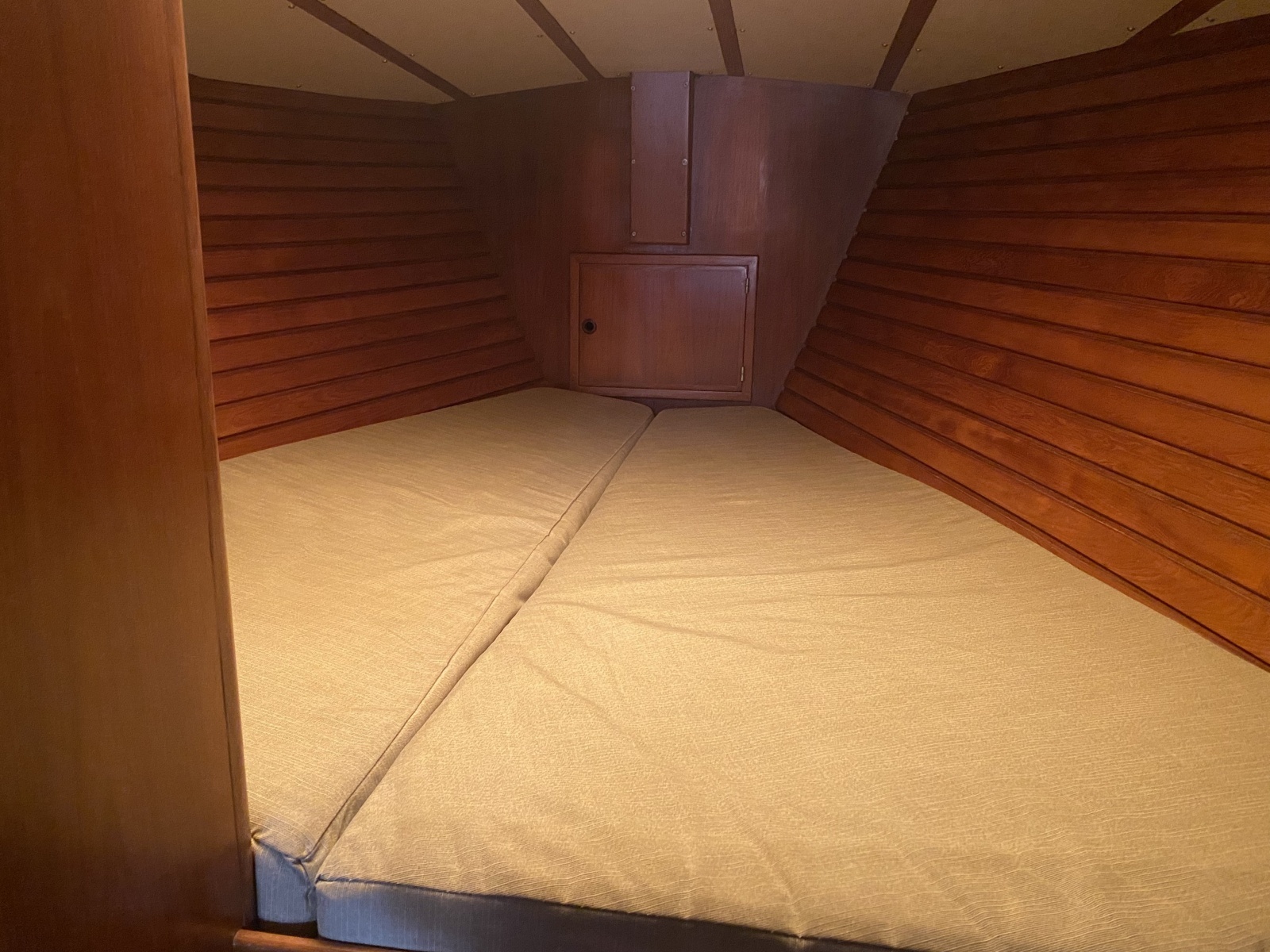

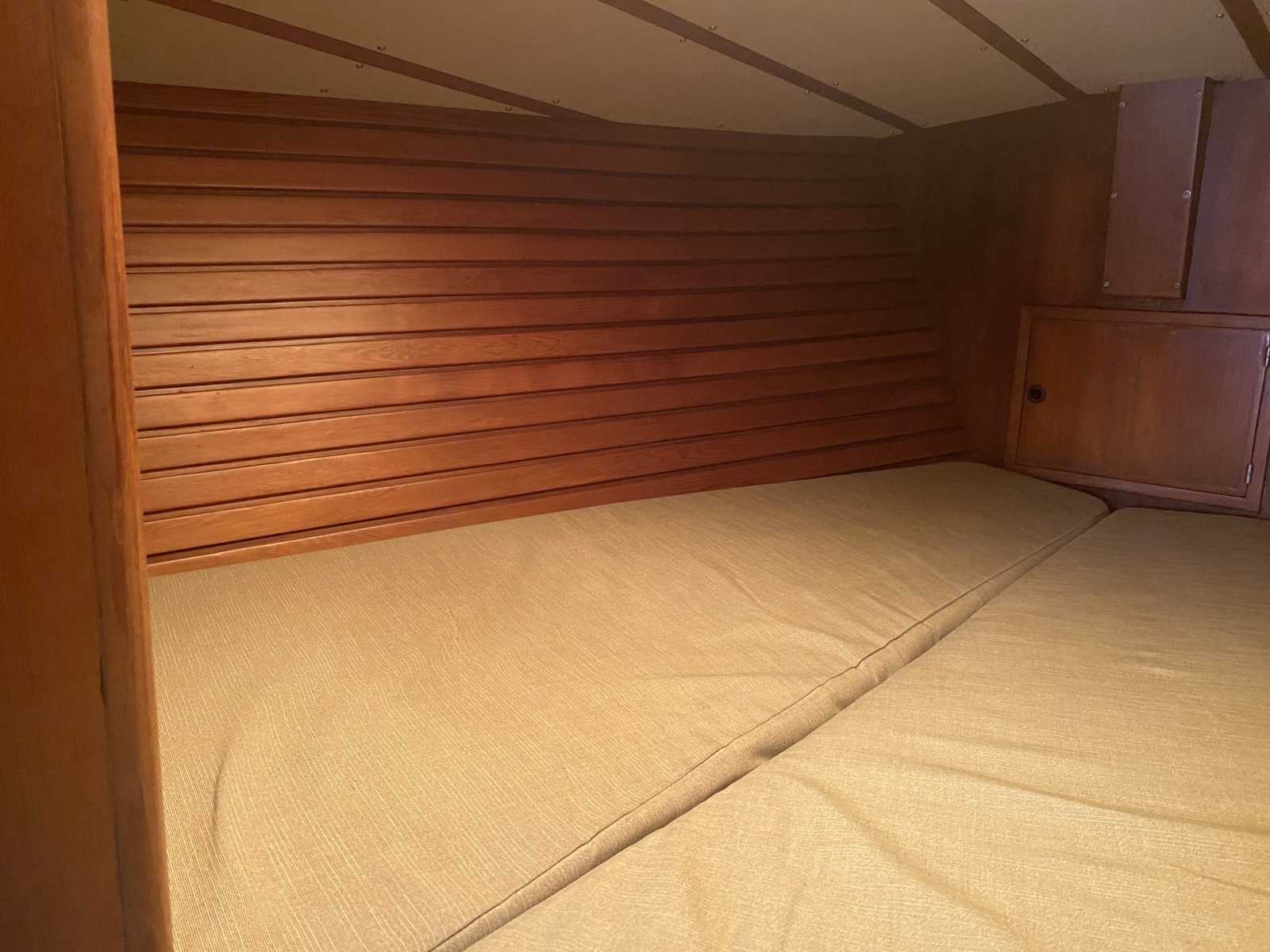

Forward is a stateroom with (dimensions of 74x 77x 25) including an ensuite head to port and small settee and large cedar lined hanging locker to starboard. The V berth has a large locker over the foot, book shelves on both sides, and lots of storage under.

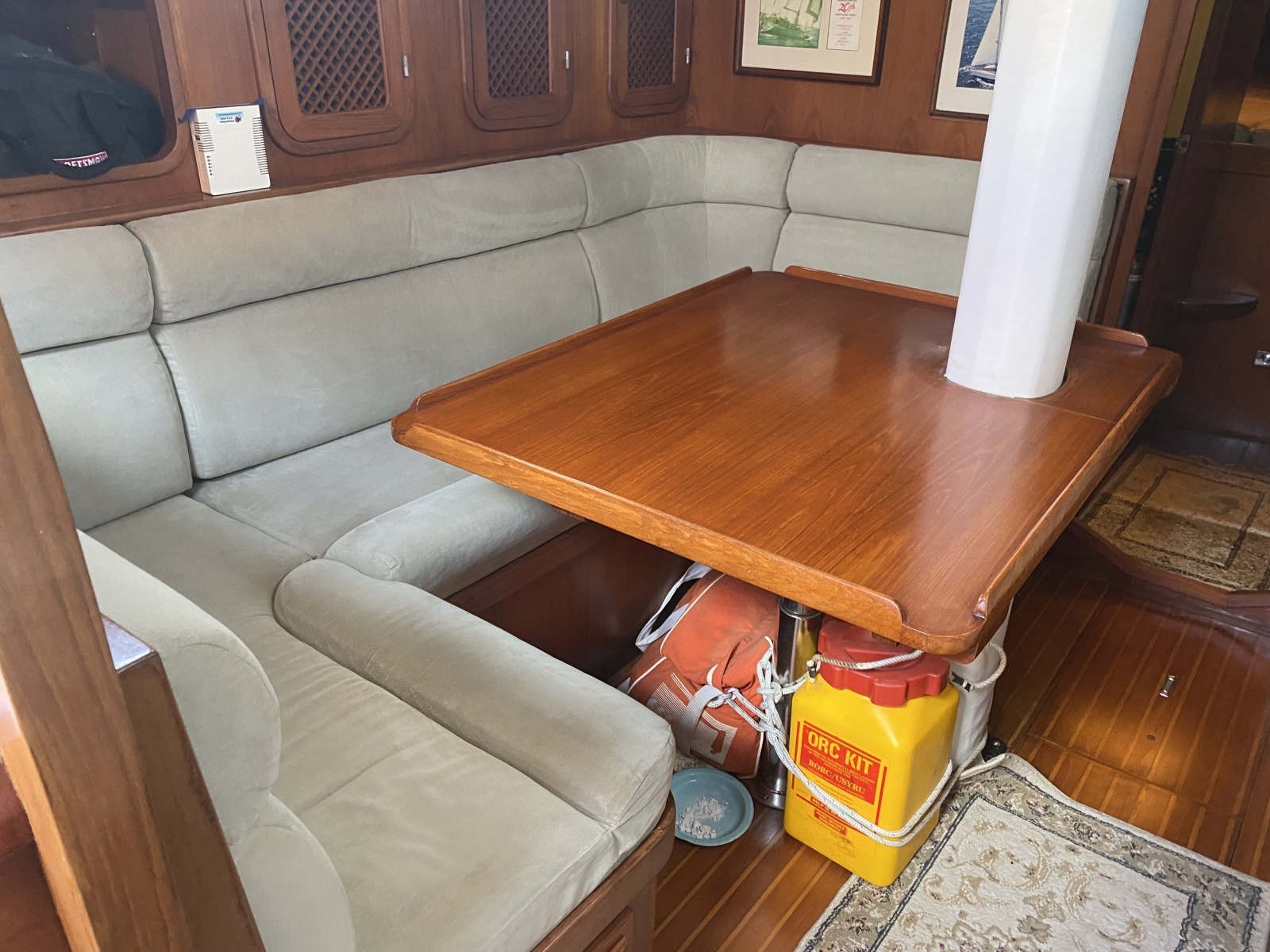

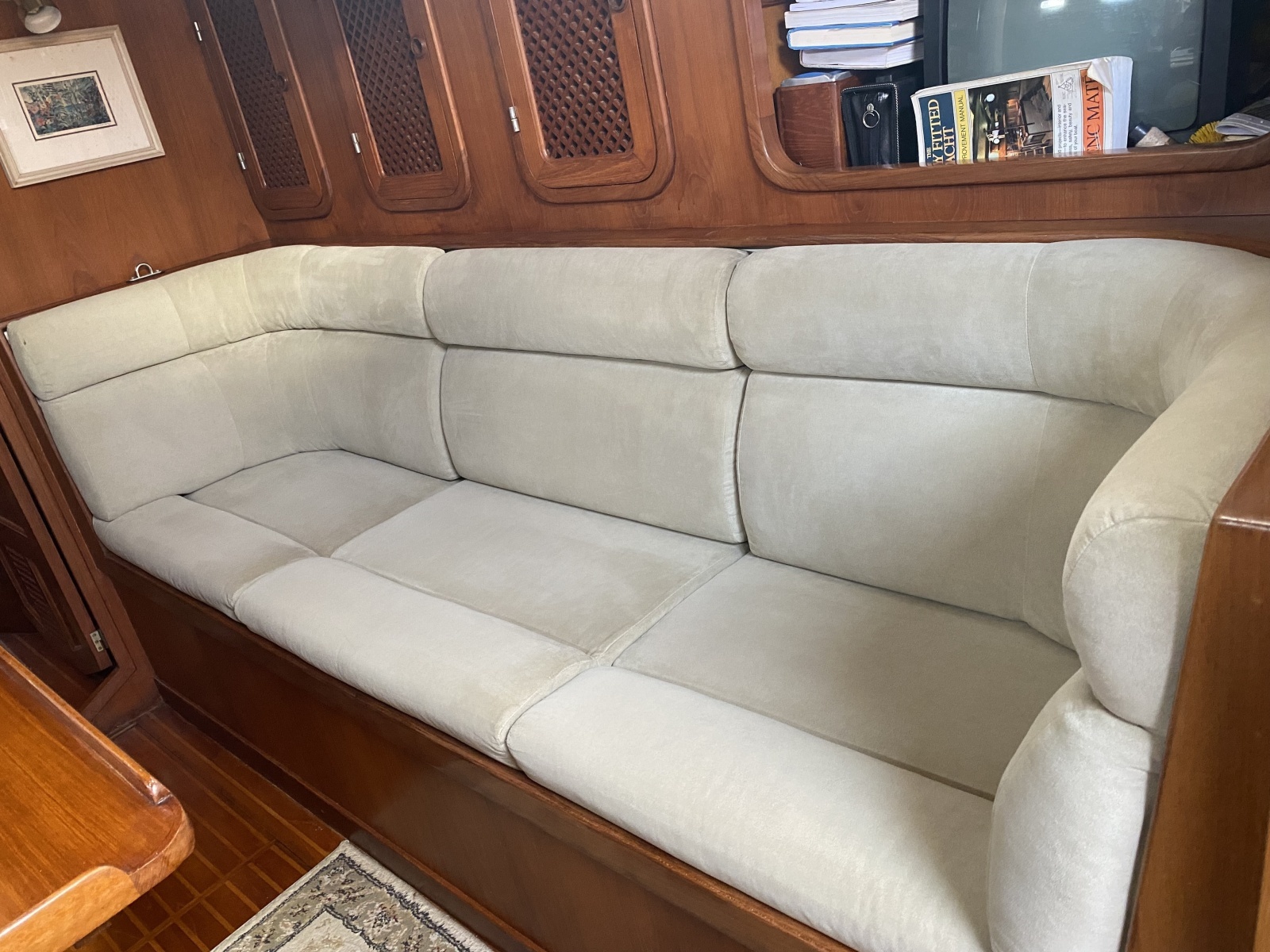

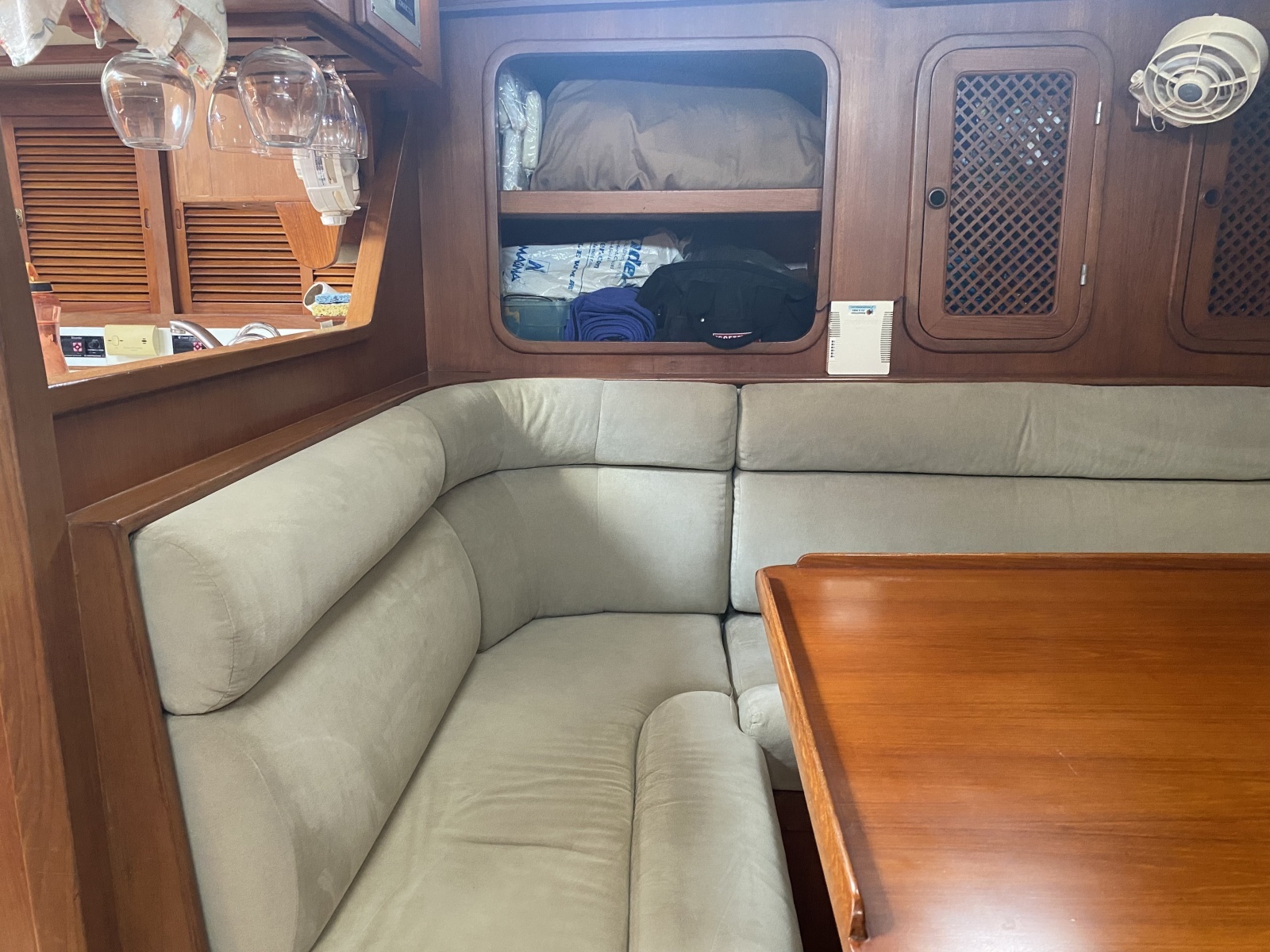

Aft of the forward berth is the main salon has a long settee to starboard and U shaped dining to port. Ultrasuede upholstery with foam replaced in 2017, in the salon and aft cabin with slip covers were replaced in 2007. Main salon can convert into (2) berths (dimensions: 37 x 74and 17 x 72) with the following storage: (6) outboard lockers, (2) large opening bins, (6) drawers and hanging locker.

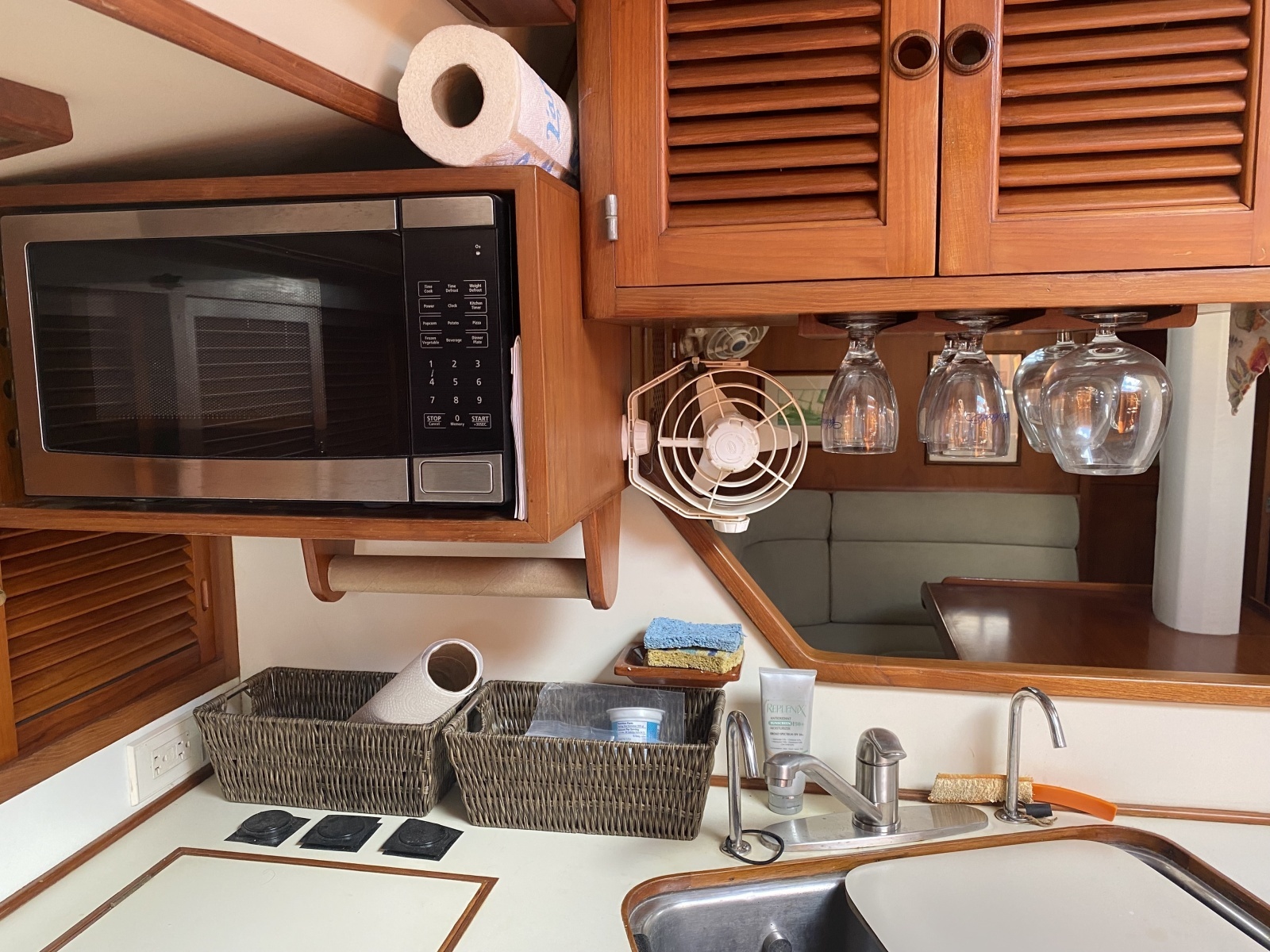

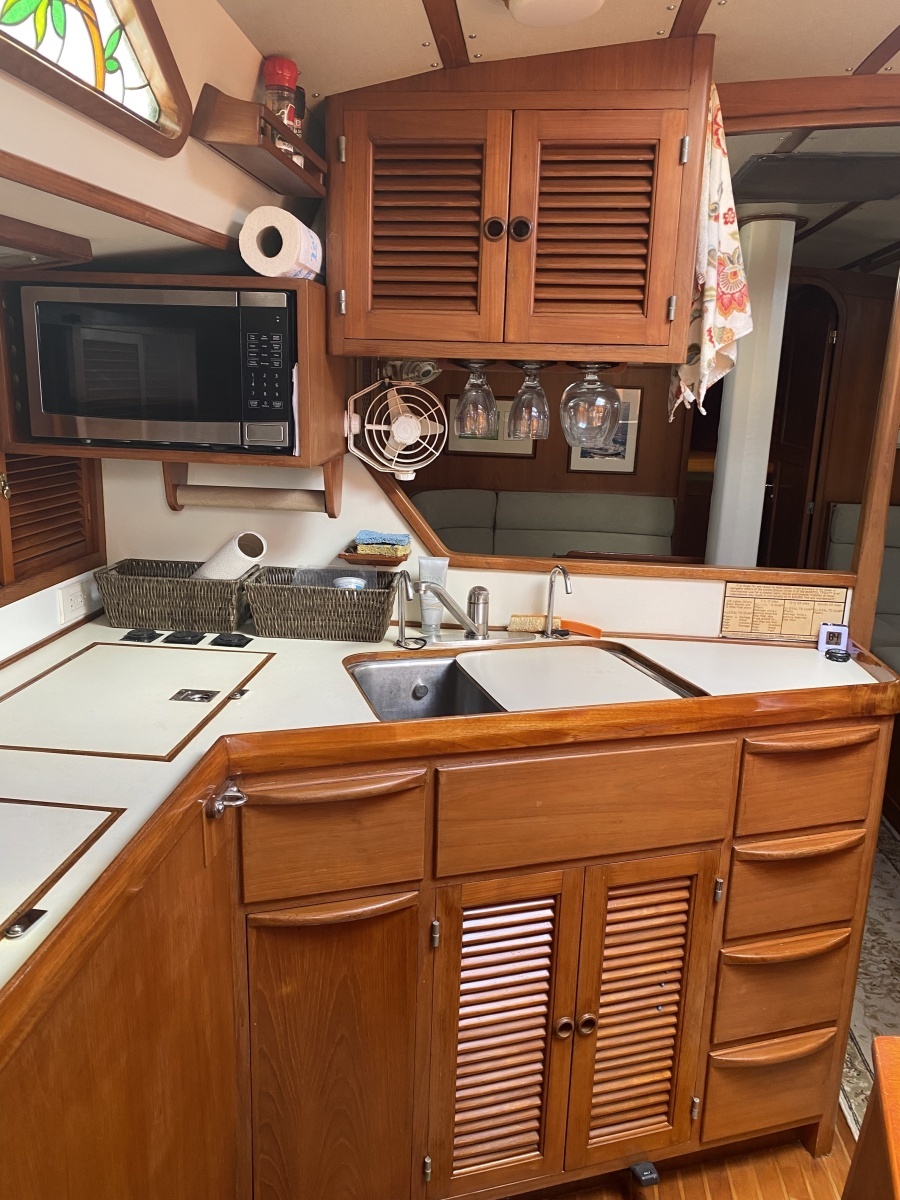

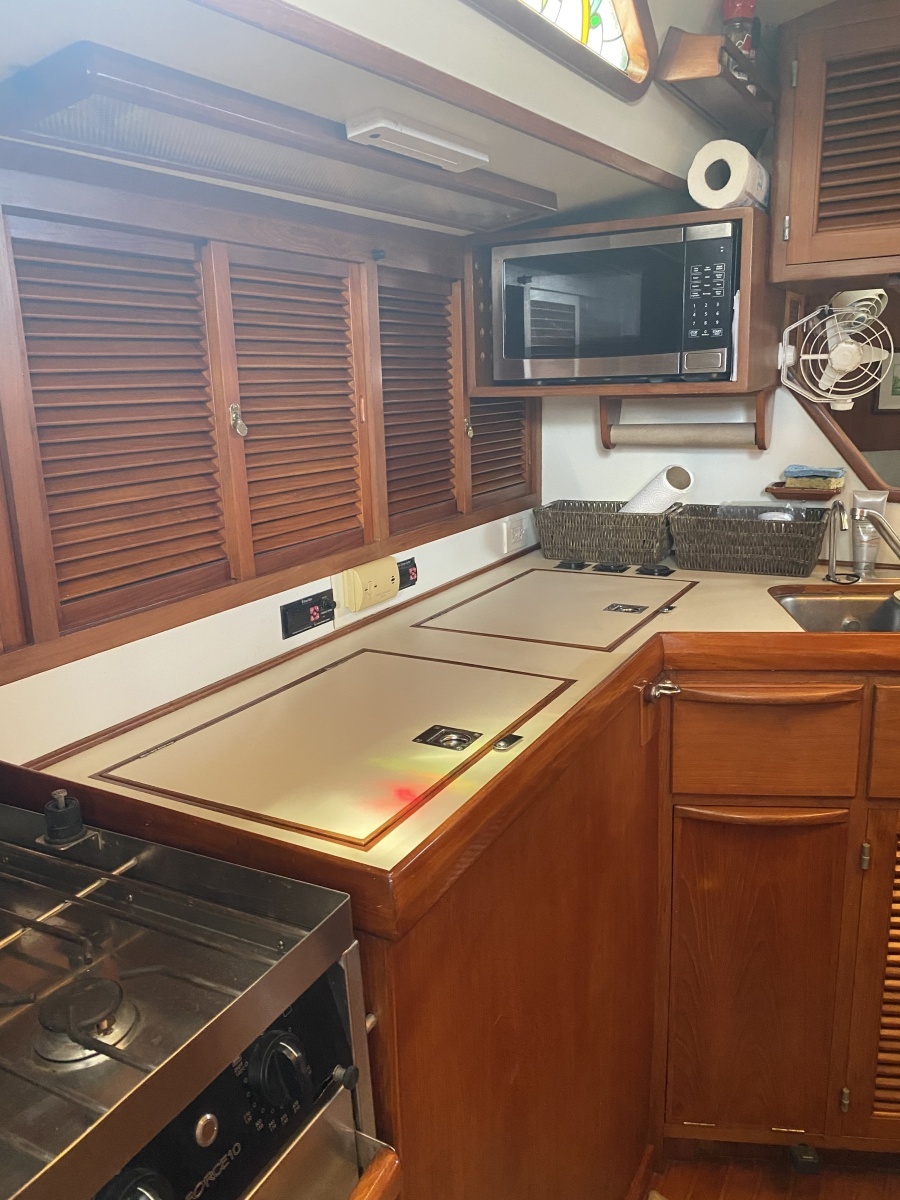

The L shaped galley is aft of the salon to port. The double stainless steel sinks are at a 45 degree angle for easier access. There are work surfaces outboard of the stainless steel sinks and the stove is outboard. Aft is additional work surface is above the top opening fridge. There are several cupboards above and below in the galley along with drawers beside the double stainless steel sinks to accommodate all equipment.

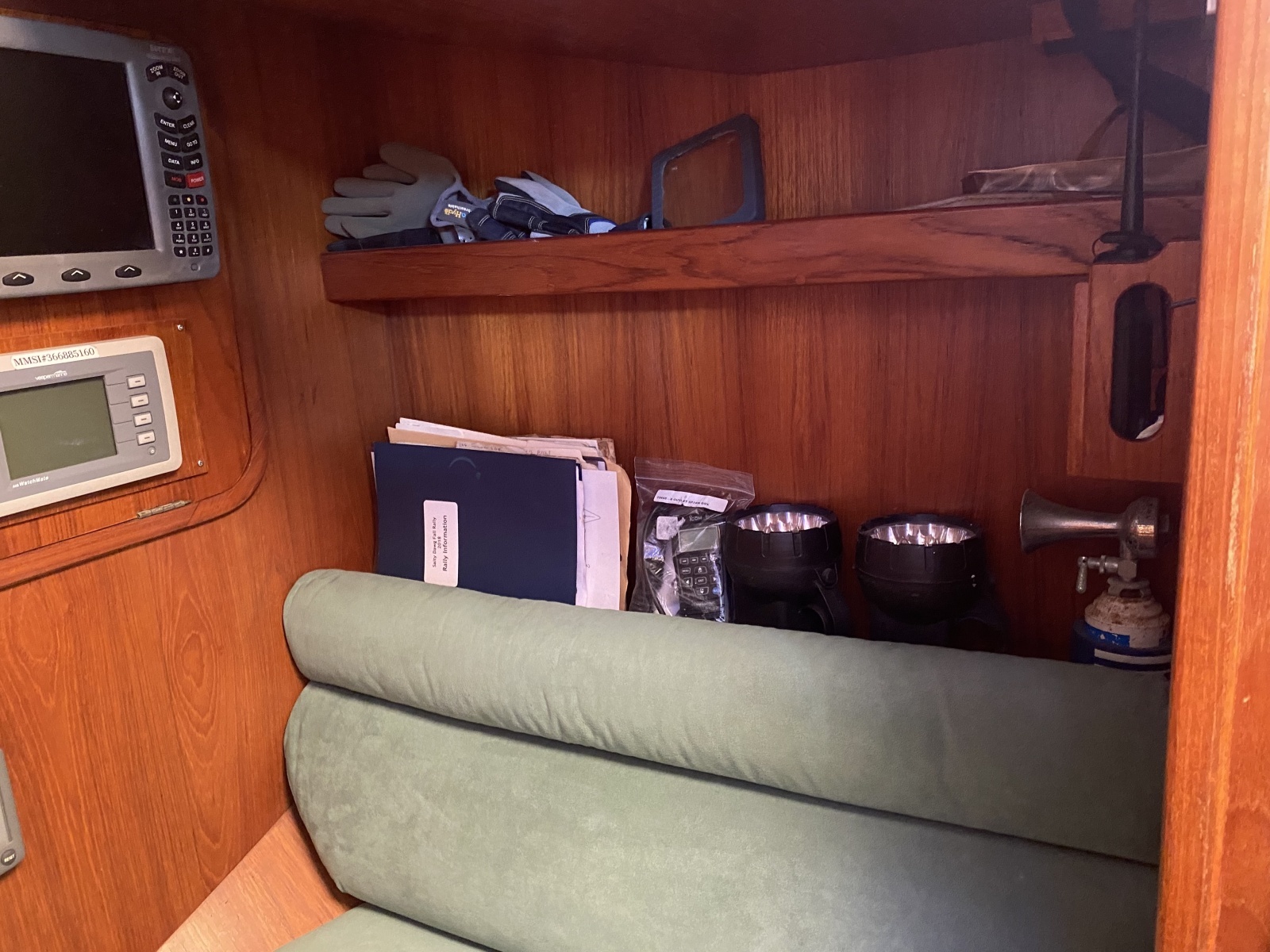

The forward facing navigation station is to starboard and includes a chart table, navigation and communication instruments outboard along with the breaker panel.
The companionway is in between the head and the navigation station.
To starboard is the large aft head with separate shower stall. Currently this has been converted to a work area with another electric refrigerator,
The aft cabin (dimensions 54? x 79?) includes a hanging locker and two drawers and ensuite head.
Additional engine details
Cummins commercial 65 hp engine develops maximum torque at 1800;RPM and consumes 1gph1689 hours
Transmission is commercial Borg Warner velvet drive hydraulic, rebuilt and reinstalled in 2017
Prop is an Auto-stream SS 3 blade feathering. Externally adjustable
Spare prop is bronze 3 blade fixed .
Electronics and Navigation
- Raymarine Evolution 400 with electric drive (2019) wired and wireless remotes
- Sitex Commercial Colormax Navstation 2017 primary
- Sitex commercial SVS 1010. 10? cockpit 2019
- Radar Furuno 1835 24 mile 2018
- Radar detector C.A.R.D. 2010
- AIS Vesper Marine Watchmate 2018
- Instrument repeater Raymarine ST-60 at Navstation 2016
- Depth sounder Raymarinei70 2018
- Speed and distance Raymarinei70 2018
- Wind Raymarinei70 2018
- SSB Radio Icom M802 2018
- Primary VHF radio Icom M506 w/ remote and loud hailer 2017
- Secondary VFH radio Icom M-73 handheld 2017
- Deck lights (1) 35W sealed beam
- Search lights Portable corded and cordless
Electrical System
- 12 volt DC
- 110v Shore power
- There is a spare Balmar 130 A and M 614 programmable regulator.
- Batteries
- House (4) 6 v Trojan T105 460 AH 2018
- Engine AC Delco grp 27 engine battery 3/2023

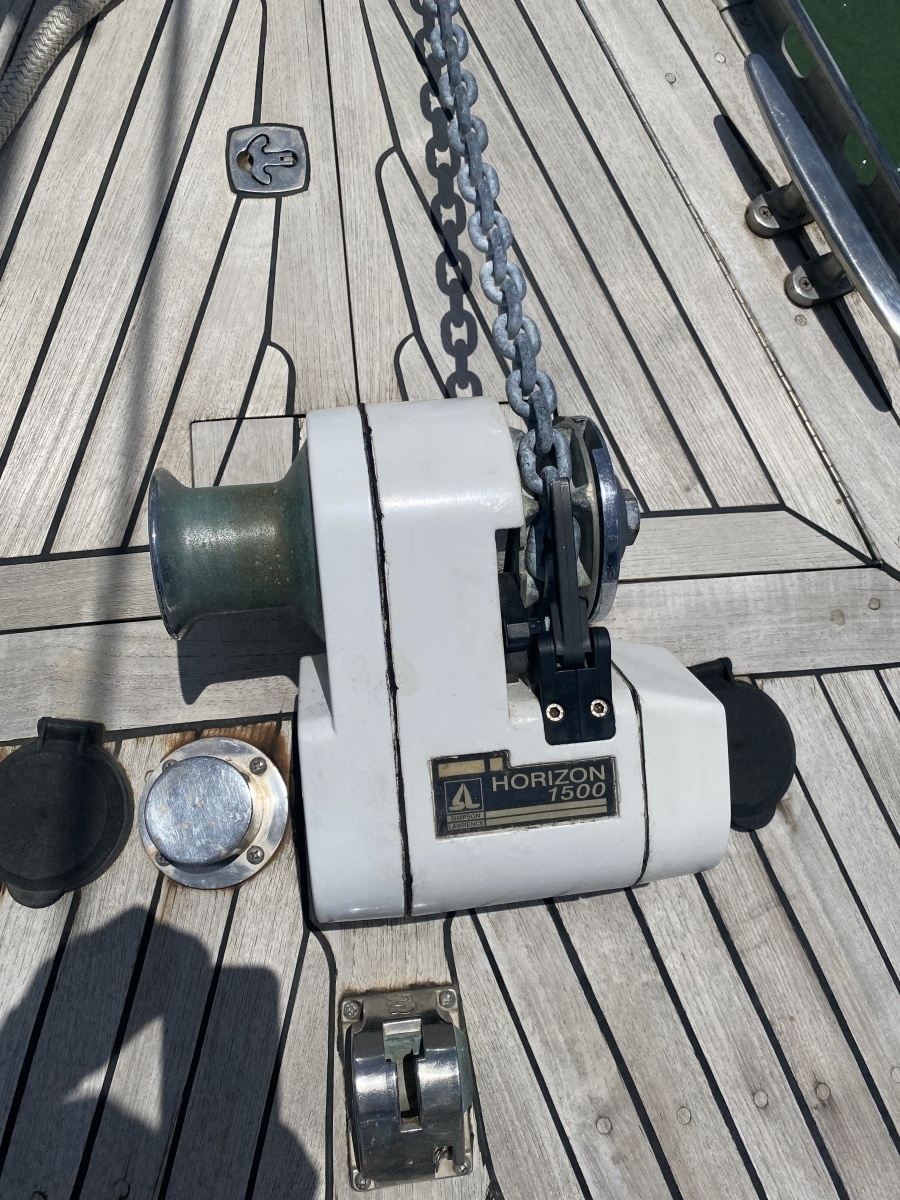

- Windlass Simpson Lawrence Horizon 1500 refurbished in 2022
- Solar Panels 480 W 2017-2019 w/mpptcontroller and monitor
- Wind Generator Leading Edge 300W 2017w/ monitor/ammeter
- Inverter Xantrex 4000W/100Amp charger 2019
- Shore power cord 30 amp 50' 120v
- Battery Monitor Xantrex link 2000R 2015
- Alternator Mark Grasser(custom) 185 ampw/surpentine drive and Balmar M-614 programmable regulator 2018
- LED lighting throughout
- LED navigation lights fitted
Mechanical Equipment
- Manual Bilge pumps (2)Whale Gusher 28 GPM
- Electric bilge pumps 1 Rule 1500
- Steering type cable/radial drive, new cables 2022
- USCG safety equipment yes
- Fire extinguishers 3 dry powder
- 2019 Monitor windvane w/spares kit and spare vanes.
- Additional Information on mechanical equipment
- Broutons Sigmadrive CV joint coupling 2018, PSS shaft seal 2019
Deck and cockpit Equipment
- Primary Anchors Bruce 30 kg (2015) w/ Chain : 200' 5/1" high test chain (2019) and 150' 5/8 8 plait nylon (2019)
- Secondary Anchor Bruce 20kg (2015) w/ 150' 5/16" high test chain(2016) and 5/8" 3 strand nylon (2015)
- Spare anchor Fortress FX-55 w/stow bag
- Windlass Simpson Lawrence horizontal 12 volt w/ rope and chain/rope gypsy refurbished (2022) w/new motor, switches, wiring, solenoids, and refinishing
- Anchor rollers (2) Bronze rollers
- Bimini top "Linen Sunbrella" w/ 6'6" headroom (2018)

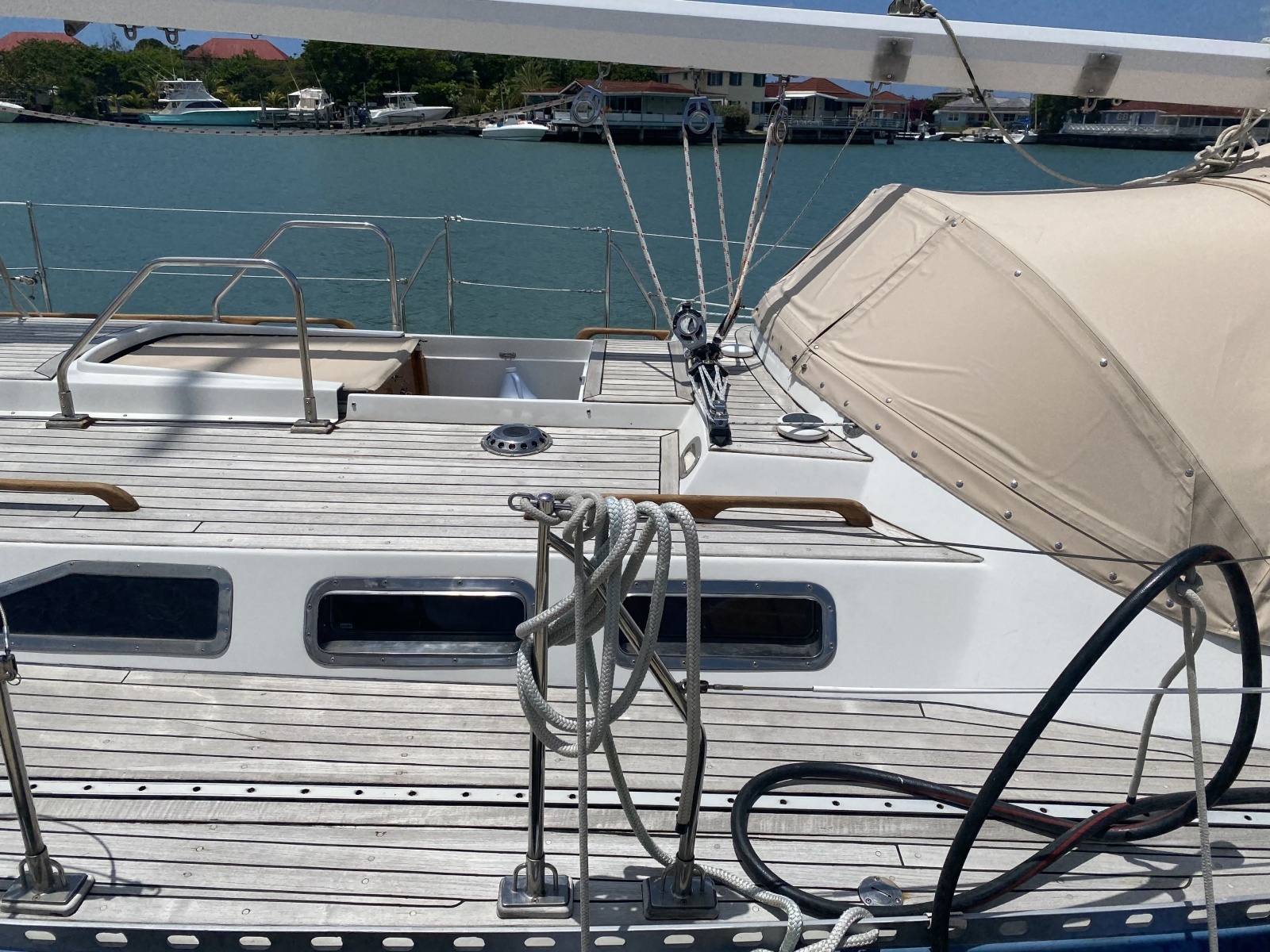

- Dodger Linen Sunbrella w/Isenglass and suncovers (2018)
- Cockpit cushions located in CT
- Cockpit table folding varnished teak (2019)
- Fenders and dock lines - (5) 10 x 30" w/fleece covers
- (6) double braid 5/8" dock lines.

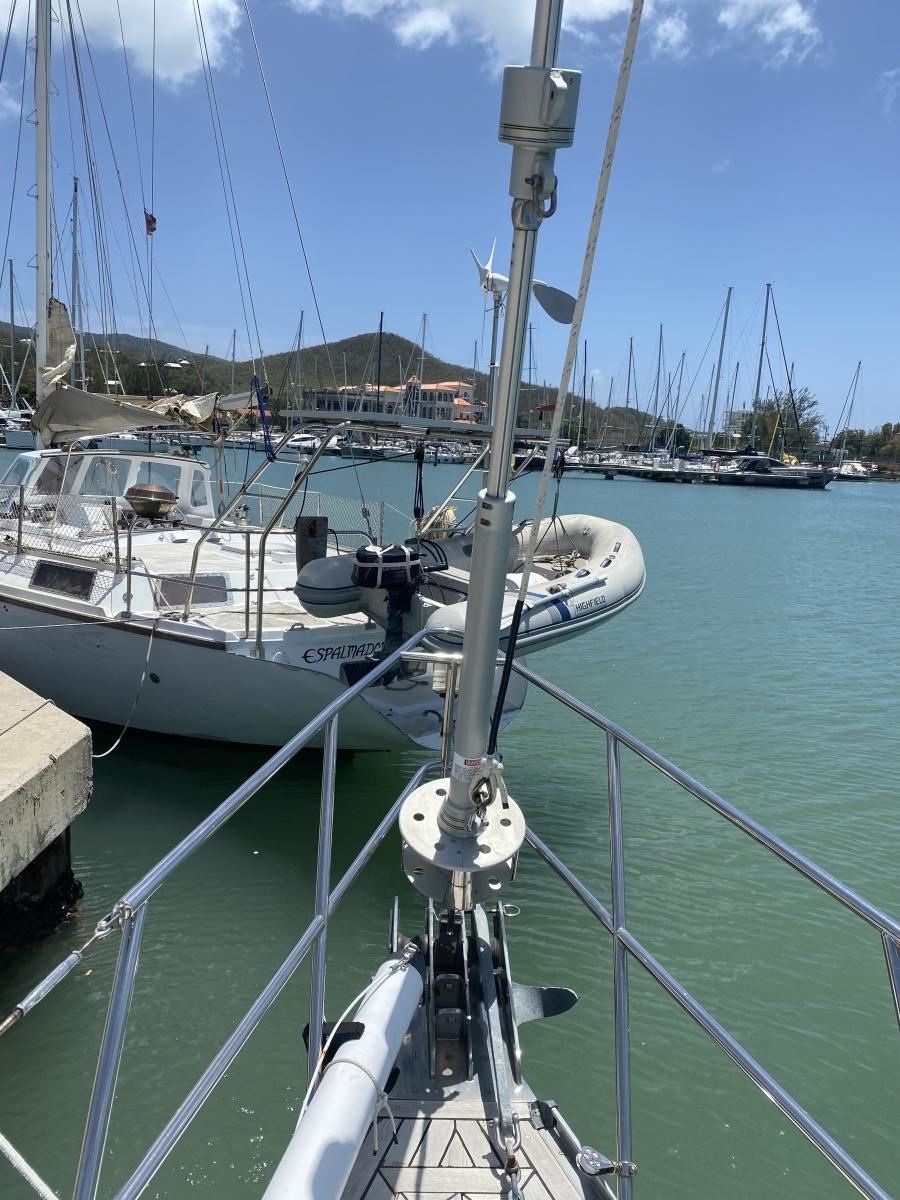

- Bow pulpit and rails 1" s.s.
- Swim,adder portable
- Lifelines replaced 2019
- Navigation lights LED
- Deck wash down system salt and fresh water

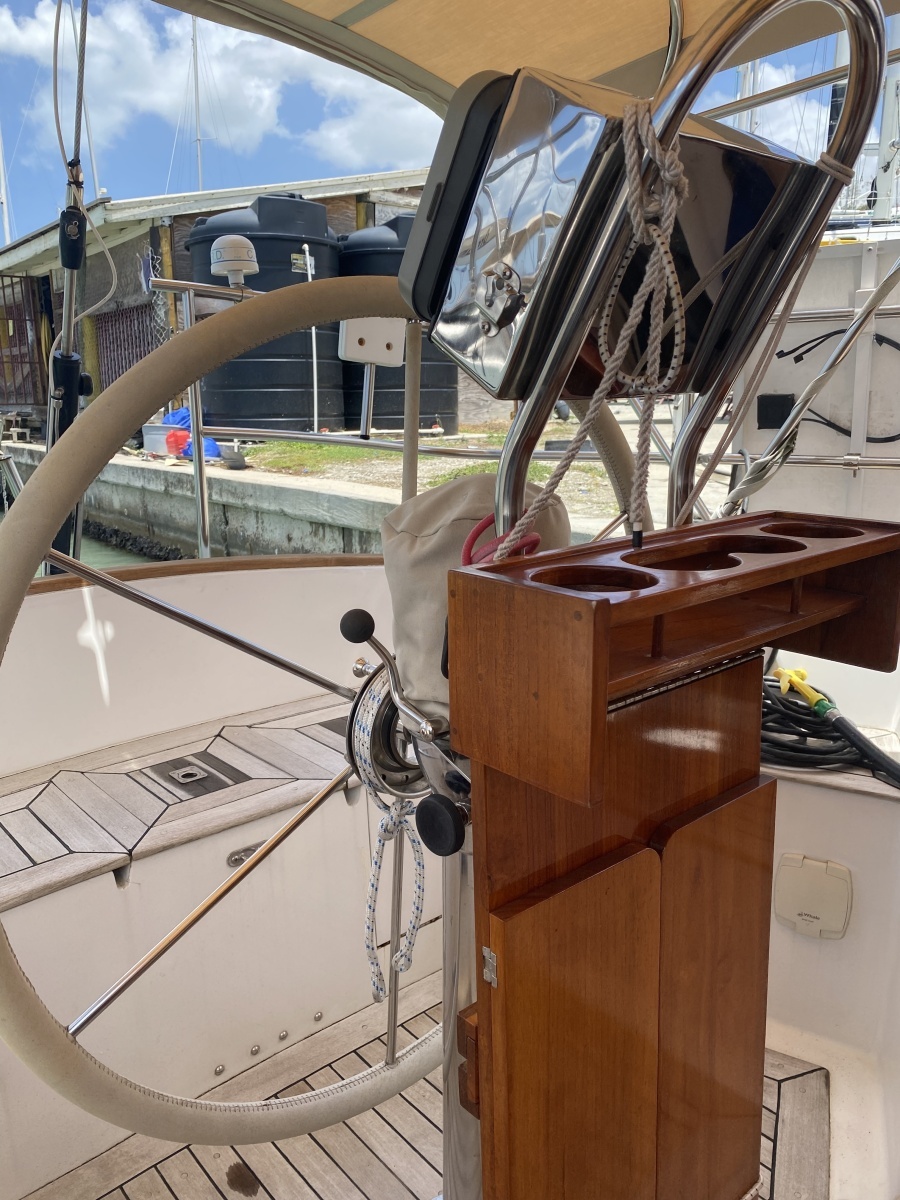

- Special feature Custom S.S steering pedestal w/varnished teak cockpit table (2019
- Aluminum steering radial casting replaced with custom built weldment (201)
- Steering cables replaced (2021)
- Selected through hull valves replaced ( 2021)
Sails and Rigging
- Mast Isomat aluminum w/ custom masthead weldment to replace original casting. refinished (2019)
- Roller furling Schaeffer 3000 replaced (2019)
- Harken mainsheet traveler
- Spinnaker pole carbon fibre (2016)
- Sail area 87 sq meters
- Hydraulic backstay adjuster Sailtec Hydraulic (2019)
- Boom vang soft 6 part manual
- Standing rigging 3/8" 316 replaced (2019) w/ Staylok terminals on lower and swaged on upper
- Chain plates 1/2" S.S removed, inspected, and rebedded (2019)
- Running rigging replaced in (2017-2018)
