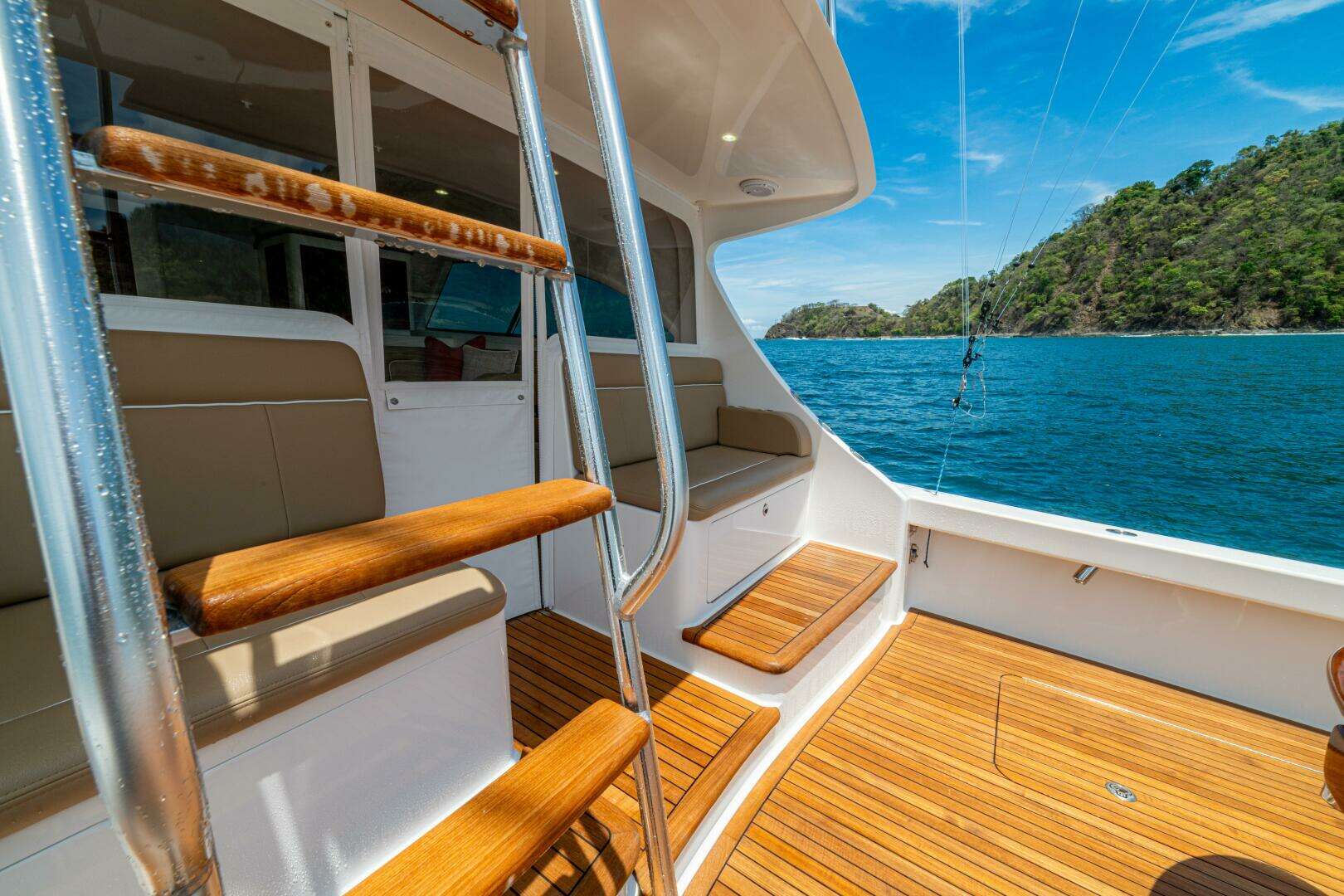

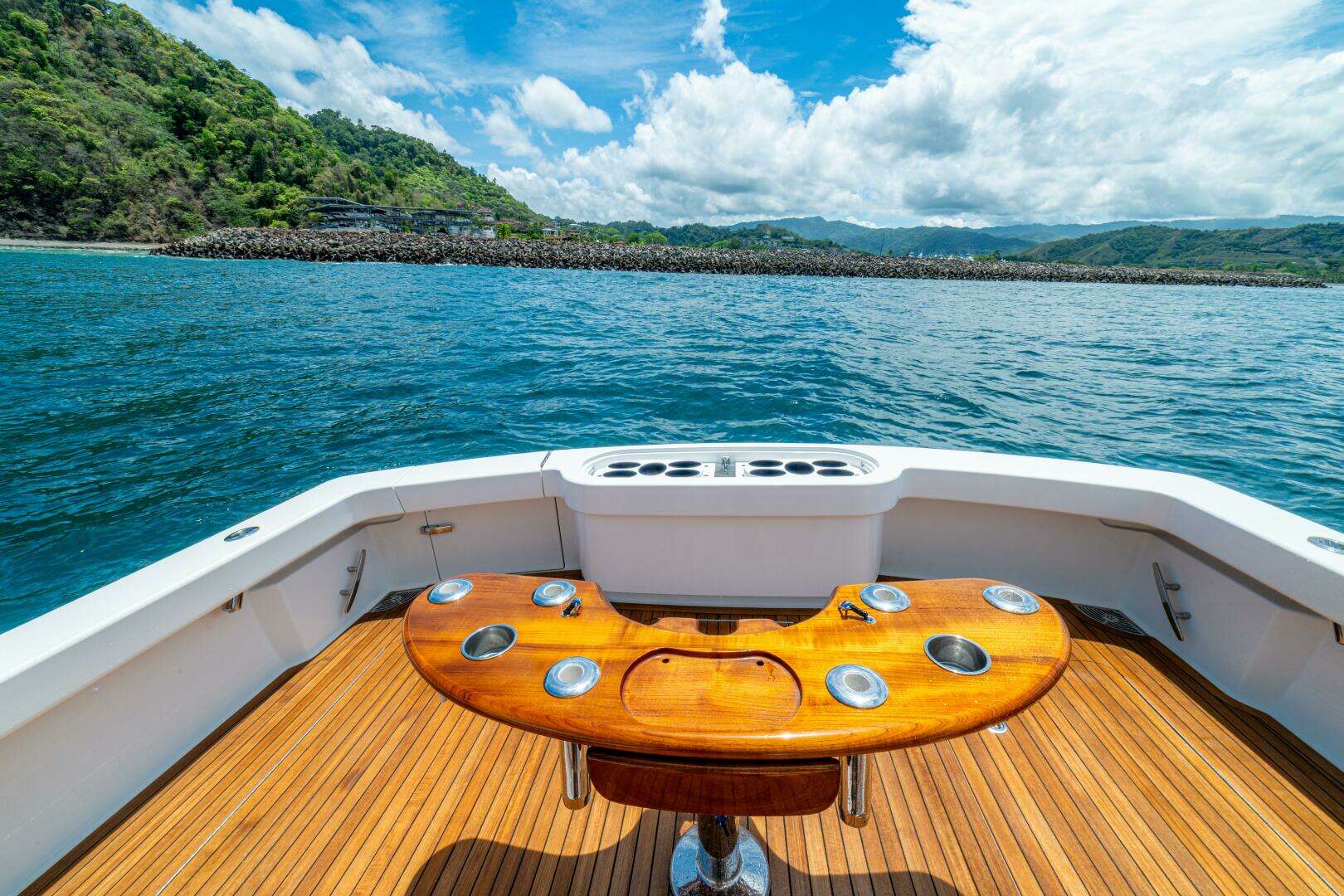

Cockpit

• Boarding box, fiberglass with nonskid, lift up top, and storage
• Cockpit bait freezer w/upper tray
• Dockside electric connection — 50 amp/220V electric, located under forward gunwale
• Dockside water connection with pressure reducing valve under forward gunwale
• Fishboxes, insulated, port and starboard, with hatches and drains plumbed to pump outs
• Freshwater wash down with hose bib located under forward gunwale
• Gaskets for all lids, doors and hatches
• Insulated storage in port mezzanine step
• Laminated mounting plate in deck for future fighting chair or table
• Lazarette hatch for inspection of aft bilge
• Live well in molded transom fishbox
• Nonskid deck
• Refrigerated storage in starboard mezzanine step
• Rod holders, (4) stainless steel, flush mounted
• Seat cushions on freezer and tackle locker
• Seawater wash down with pump in engine room and supply under
• forward gunwale
• Self-bailing cockpit with large cockpit scuppers
• Stainless steel cleats and hawse pipes
• Stainless steel gas pistons on deck hatches and lids
• Stereo speakers powered by interior stereo, same zone as the command deck
• Straps with padding to keep transom door and gate open
• Transom swim step at transom door
• Tricolor LED lighting under coaming and flybridge overhang
• Walk-through transom door with lift gate
• Rupp outriggers with spreaders
• Transom coaming with gate and fishbox
• Transom box
• Livewell
• Teak in cockpit and mezzanine
• ESKIMO Ice Machine EI540
• Additional Rod Holders
• Three (3) rod holders in haunch
• Two (2) 24v 30 AMP Outlets forward under coaming (one in each side)
• Teak cockpit sole
• AC in mezzanine
• Outriggers with non-collapsible back bar and pullies on
• Cockpit fly cover with the conversion kit
• Cockpit sunshades with stainless poles
• Automatic sump pump for port x-drain
• Clearcoat over transom airbrush
• Dockside cable connection in cockpit
• Drink bolsters in each mezzanine seats

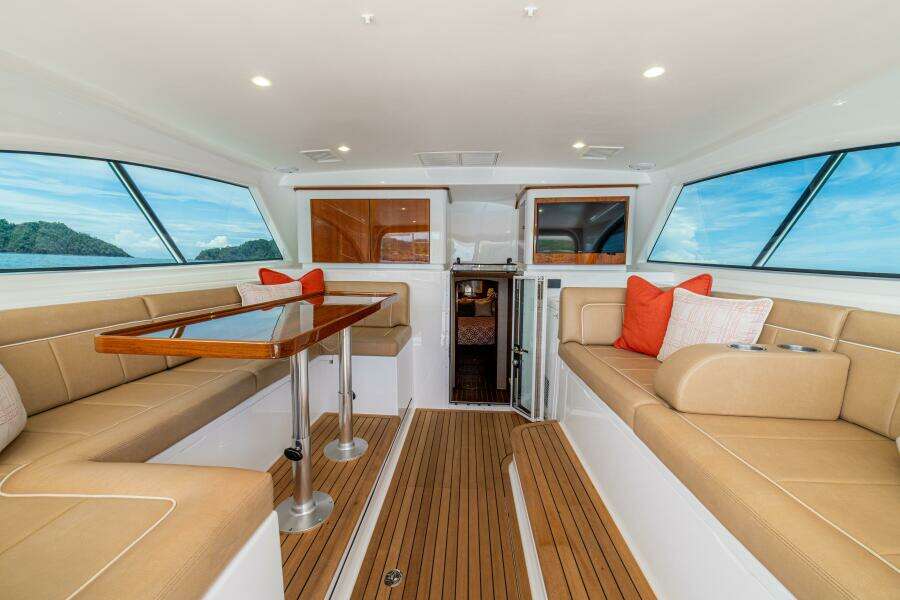

Command Deck

• A/C on command deck
• Costa Clear aft command deck enclosure
• Isotherm Ice Maker
• Teak in command deck sole
• One (1) drink bolster in command deck bench seat
• JL Speaker MX 6.5'' - Classic White 2.74'' Depth
• Overhead speakers forward and aft
• Fusion MS Wired remote MS-NRX300
• Teak table
• Center Engine Room Hatch

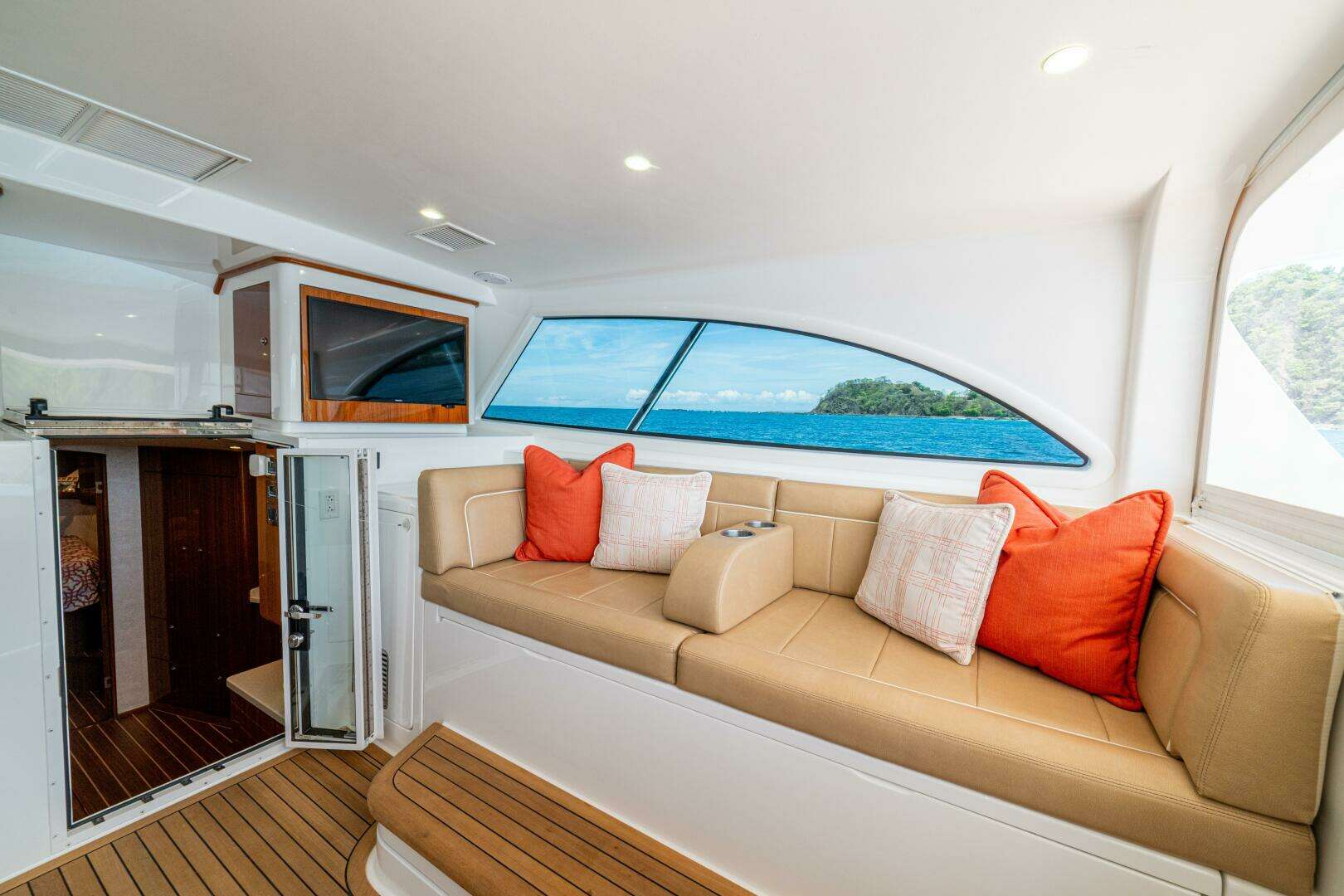

• Portside U-shaped lounge seating
• Starboard side bench seating with rod storage
• Stereo speakers, tied into stereo system in cabin

Galley

• Aluminum cabin door, access to command deck
• Countertop, polished sandalwood color Corian, stainless sink, with brushed nickel faucet
• Flooring, Amtico vinyl
• Headliner, Majilite, 1/8" foam & tricot backing
• Main electrical service panel, AC/DC, backlit for easy viewing
• Microwave/convection oven located in the upper galley cabinet
• Refrigerator/freezer, under-counter drawer style, with built-in ice maker
• Two (2) electric burner recessed stove
• Wood backsplash
• Satin nickel faucet
• Dimmer for overhead LED Lights
• Exhaust fan

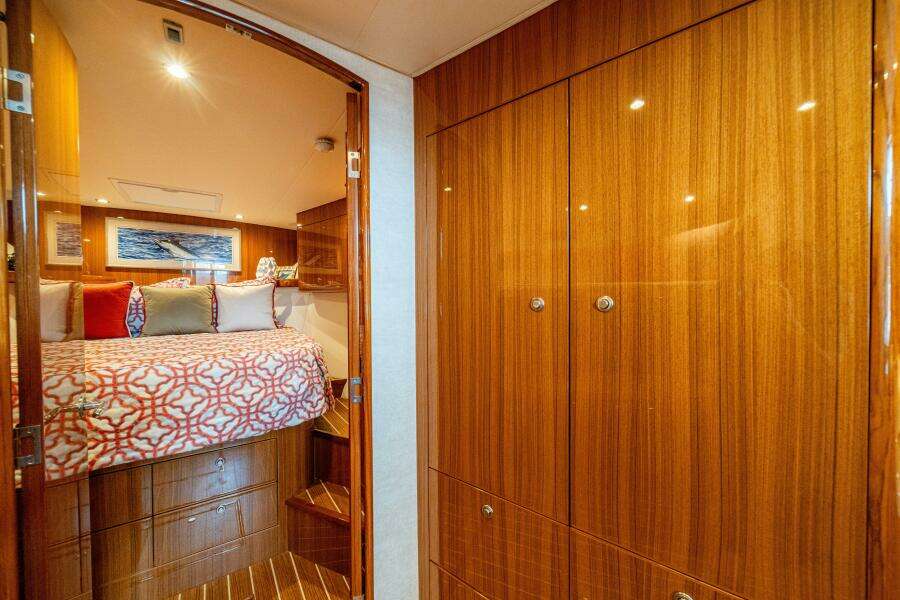

Forward Stateroom

• Air conditioning with reverse cycle heat and temperature control (services whole interior)
• Bed, island queen, with wrapped foam mattress, drawers in face, storage underneath
• Bedspread — quilted, designer style with pillows and shams (2), fitted sheet set
• Flooring, Amtico vinyl
• Hanging lockers (2), maple-lined, with drawer storage below
• Hatch, Bomar, foredeck hatch with OceanAir screen and shade system
• Headliner, Majilite, 1/8" foam & tricot backing, throughout
• Lighting, 24V, overhead recessed in headliner
• Starboard upper storage cabinetry
• Stereo system with speakers, CD/DVD player and flat-screen TV

Port Head

• Sealand head system
• Brushed nickel towel bars and rings
• Wood face on lower vanity
• Toilet white KM
• Air conditioning/heat with vent in soffit
• Countertop and sink, Corian, polished sandalwood color, with brushed nickel faucet
• Exhaust fan
• Flooring, Amtico vinyl
• Freshwater electric head with holding tank and overboard discharge
• Lighting, 24V, recessed in soffit and headliner
• Lower vanity with storage
• Receptacle, 120V, GFCI protected
• Shower light
• Stall shower, fiberglass with satin nickel fixtures, and drain to automatic sump pump in bilge
• Towel bars and rings brushed nickel
• Upper medicine cabinet with mirrored doors and storage

Decor

• One stateroom layout
• Gloss finish throughout
• Juno Teak interior wood
• Classic accessory kit
• Smart decor
• Custom color Corian tops
• Salon door catches on stateroom doors
• Custom wallpaper
• Brushed nickel hardware throughout
• Brushed nickel cover plates for switches and receptacles throughout
• Satin nickel interior light trim throughout
• LED interior lights throughout
• AMTICO teak and holly throughout
• All exterior cushions ultra leather
• Eclipse white headliner

Flybridge

• Fiberglass hardtop with molded-in spreader lights
• Five (5) rod rocket launcher
• Standard horns
• Center riggers
• Helm pod with teak finish fiberglass
• Three (3) sided Costa clear enclosure at back of helm
• Watermaker controller
• LED Floodlights on hardtop
• Freshwater outlet
• Horns mounted under bridge
• Zippered vents at top of front panel
• Rupp auto locks for outrigger in arms
• Riggid Industries SR-Series Pro White Light Bar 20'' Spot Flood combo (on hardtop)
• McMurdo Smart Find EPIRB Plus G8 (on hardtop in front of radar)
• Garmin Vision Charts -VSA002R G2 * South America West Coast /010-C1063-00
• Black acrylic helm panel for flush mount electronics installation
• Bocatech 12V switching with backlit switch labeling
• Compass, flush-mounted at helm, lighted
• Engine start/stop
• Fiberglass helm pod with stainless steel steering wheel and Palm Beach style controls and station active keypad
• Fire system control with automatic and manual discharge and override system located at console
• Furuno RD-33 depth/temperature gauge and ICOM VHF radio
• Helm chair, Release wood ladder back (1)
• Instrumentation based on standard engine package
• Radar pod
• Tricolor overhead lights at helm (2)
• Trim tab controls with LED position indicator at helm
• Two (2) radio boxes

Electronics

• VHF Radio ICOM-506
• Electric Teaser Reels 24V

SONAR

• Furuno Omni 8L

RADAR

• Garmin 2526 xHD2 25kW Radar w/6' array
• Garmin GPS Map 8617 17'' MFD
• Shakespeare 4365 GPS Antenna Mount
• Extender Snapav HDMI - CAT 5/6 HD Base

PLOTTER

• Garmin GPS Map 8617 17'' MFD
• Shakespeare 4365 GPS Antenna Mount

NETWORK

• Nmea 2000 network components

SOUNDER

• Garmin GSD-26 Chirp Video Sounder Module
• Airmar R409LWM Wide-Beam Chirp transducer

DIGITAL DEPTH/TEMP

• Garmin GMI20 Marine Instrument
• Airmar DT 820 BV-235-N2 Transducer
• Airmar ST 850 Speed and Temp Transducer

AUTOPILOT

• Garmin reactor 40 STD Corepack steer by wire

VHF

• ICOM 506-31 W/Nmea 2000- Rear
• ICOM MB75 VHF Flush mount F/502,602,802
• SIMRAD Simnet to Micro-C

STEREO

• Fusion MS-BB300R Marine black box
• JL Audio 12V M600/6 Amplifier
• JL M6 Marine 7.7'' White Coax Speaker

Engine Room

• Twin MAN I6 800HP
• 600 GPD Watermaker
• Seakeeper Gyro SK6

MECHANICAL

• 5 port oil exchange system, main engines, transmissions, and generator
• Air conditioning - direct expansion single zone with reverse cycle heat for interior climate control
• Bilge pumps linked into monitoring system and connected to float switches for automatic and manual operation
• D/C pressurized freshwater system with cockpit freshwater fill and dockside supply inlet with pressure reducing valve
• Deck pump out fitting and direct overboard pump out for holding tank
• Delta-T engine room ventilation system with supply and discharge fans for proper fresh air supply and water intrusion suppression
• External sea strainers, wedge type, for main engines
• Fire suppression system, automatically or manually operated and tied into main engine and generator ignition systems with override
• Freshwater supply in engine room for general maintenance and cleaning
• Fuel and oil lines, flexible, steel-reinforced USCG approved
• Generator muffler, lift muffler with gas/water separator
• Hour meters on main engines and generator
• Internal sea strainers, basket type, Awlgrip white - generators & air conditioning
• Main engine mufflers, double lift fiberglass with surge protection
• PEX plumbing, freshwater system plumbing with manifold system shut off in engine room
• Propellers - Class “S” pitch tolerance (ISO 484/2) and dynamic balancing. Advanced design cambered blade sections for optimum performance. Nibral alloy for maximum durability
• Racor fuel/water separators for main engines and generator clear bowl type, top-loading for easier maintenance
• Rudders, bronze, with composite rudder bearing and dripless thru-hull
• Seacocks, bronze, ball-type sea valves and strainers for all thru-hulls below the water line, Awlgrip white
• Shafts - Aquamet 22, double taper with machined keyway at main engine couplings
• Steering system, Seastar Optimus electronic steering system
• Struts, bronze
• Trim tabs, electric, with LED indicators at both helms
• Twin diesel engines with marine-grade reduction gears and trolling valves.
• Water heater, quick recovery, electric
• Y-valve emergency bilge pumps (2)

ELECTRICAL

• 24V DC ship’s service throughout
• 24V/12V power supply with breakers on flybridge for future electronics
• 110V outlet in engine room
• Anchor light/navigation lights
• Batteries, (2) independent 24V banks mounted in fiberglass storage boxes (2)
• Battery charger, dual output with thermal cutoff
• Battery distribution panel with battery cutoff and charging system breakers
• Battery parallel system for main engines and generator start
• Bonded electrical system with ground plate
• Color-coded labeled and numbered wiring system with corresponding drawings
• Dimmers, on interior lighting in select areas
• Engine room lights, DC with switch at helm
• Kohler Generator, diesel - 13.5kW
• Instrument panel backlights all electrical panels
• Lighting, LED, recessed in ceiling, 24V throughout
• Master electrical control panel located in galley with 24V and 120V circuit breakers, individual switching for shore, or generator supply and gauges for electrical supply, voltmeter, amp meter, and frequency
• Receptacles, 120V duplex with GFCI throughout
• Voltage stabilizer isolation transformer for more consistent, cleaner voltage

Hull and Decks

• Bow cleats fore and aft
• Salon forward window mask
• DC Bow thruster
• Hull Painted 2024
• Bottom painted Viking Blue -Dark blue-
• Non-metallic boot stripe
• Freshwater washdown at bow inside anchor locker
• Bow rail ABYC compliant
• Anchor bracket in anchor locker
• Underwater lights * Limited QT100W White -12/24vDC10000 Lumens
• Anchor — constructed with a high-tensile, corrosion-resistant aluminum magnesium alloy
• Anchor locker with access from foredeck
• Anchor rode, 300’ with 12’ chain
• Holding tank monitor
• Stainless steel bow, spring, and stern cleats thru-bolted to backing plates
• Sacrificial anode

CONSTRUCTION

• Ablative/copolymer anti-fouling bottom paint, 2 coats, primed
• Awlgrip bronze thru-hulls throughout
• Awlgrip anchor locker
• Blister resistant modified vinylester resin in entire hull skin
• Composite bulkheads — main engine room bulkhead, aft engine room bulkhead, rope locker bulkhead
• Custom blended polyester resin used in structural laminates, topsides, bridges, and hardtops
• Engine room, lazarette and forward bilge, Awlgrip
• Fiberglass side thru-hulls
• Freshwater tank, fiberglass
• Fuel tank, fiberglass infused with fiberglass baffles inside and balsa coring on sides for stiffness, sealed to hull with resin foam
• High gloss polyurethane boot stripe, premium paint
• High gloss wood interior finish throughout, with satin nickel hardware
• High-performance isophthalic gelcoat npg superior gloss, flexibility and outstanding
• weathering characteristics
• Holding tank, integral polyethylene
• Hull, molded fiberglass construction, using closed cell foam core and balsa in selected areas for optimized strength and stiffness while minimizing weight
• Molded fiberglass command deck floor/engine room ceiling with foam core for acoustic and thermal insulation
• Nonskid for traction and durability
• Stringers, fiberglass with integrated wire chases in select areas
