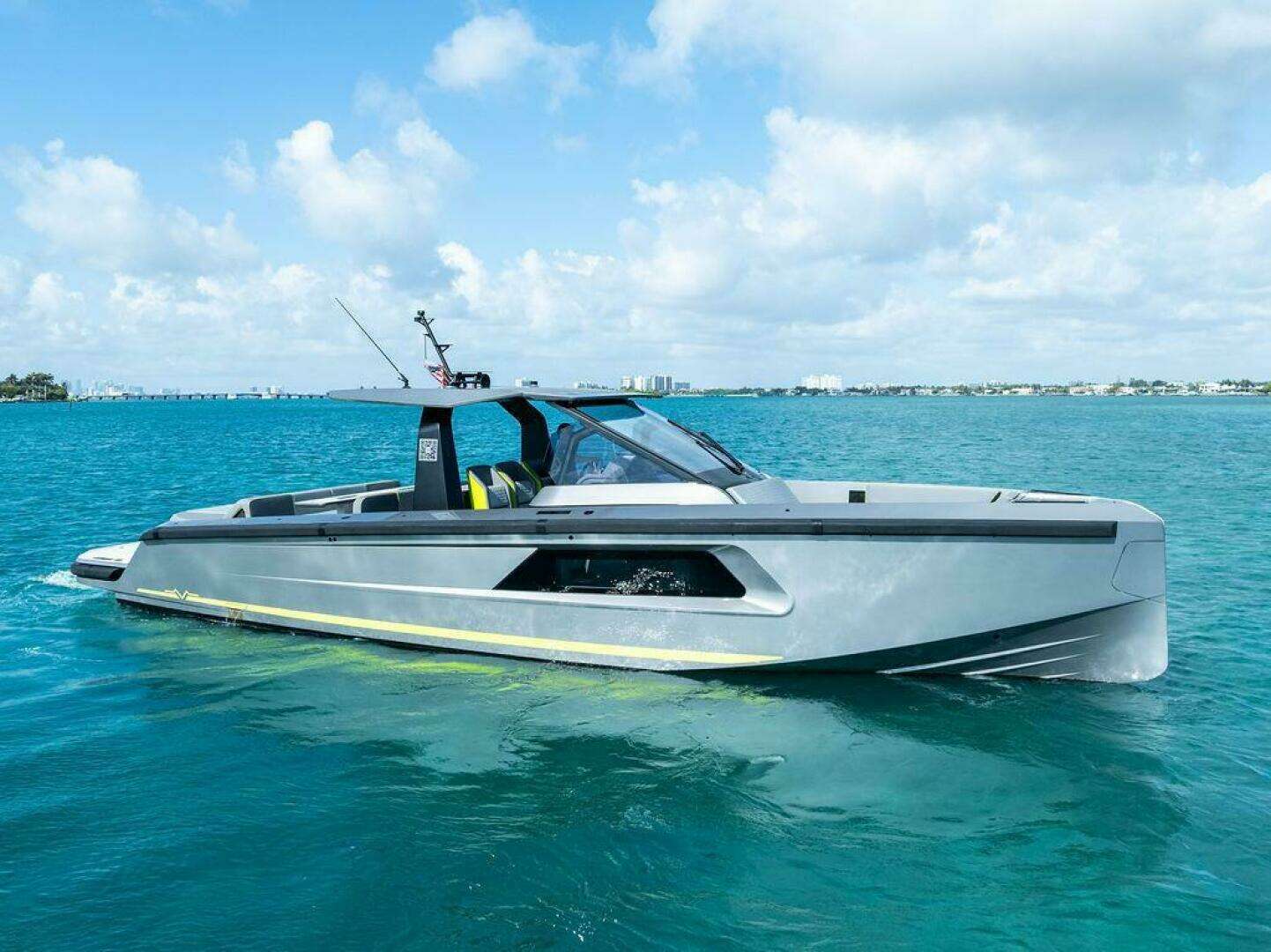

Technical Details

Length: 46 ft/14 m

Beam: 15 ft/4.6 m

Weight: 24,000 lbs/12 t

Draft: 3.2 ft/1 m

Air Draft: 12.4 ft/3.8 m

Fuel Capacity: 528 gallons/2,000 liters

Water Capacity: 92 gallons/350 liters

Max Speed: 60 knots

Engines: (2) Cummins QCS8.3 650 hp

Engine Hours: Port- 81.6/Starboard- 79.5

Generator Hours: 79

Passengers: 12

Options & Upgrades

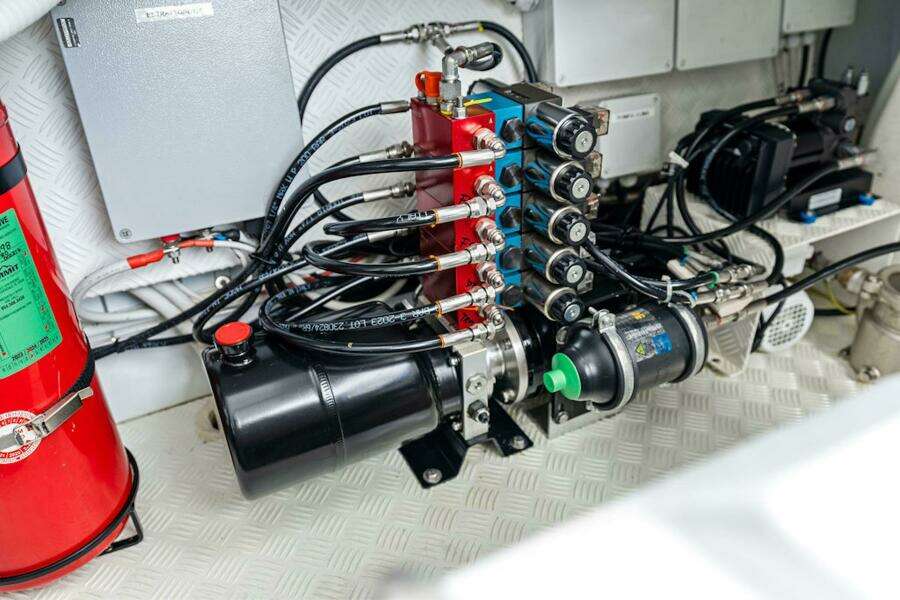

• Opacmare three-step hydraulic swim platform
• Dupont metallic paint
• Bow and stern shade awnings with carbon fiber poles
• Interceptor trim tabs
• Variable Quick Marine stern thruster 24V
• Garmin Autopilot
• Empirbus system for both management
• Prospeed application to props and JDM drives
• (3) RGB Lumishore underwater lights
• Onaled RGB strip lighting for interior and exterior
• Extended custom widescreen
• Mive Echo engine silencers

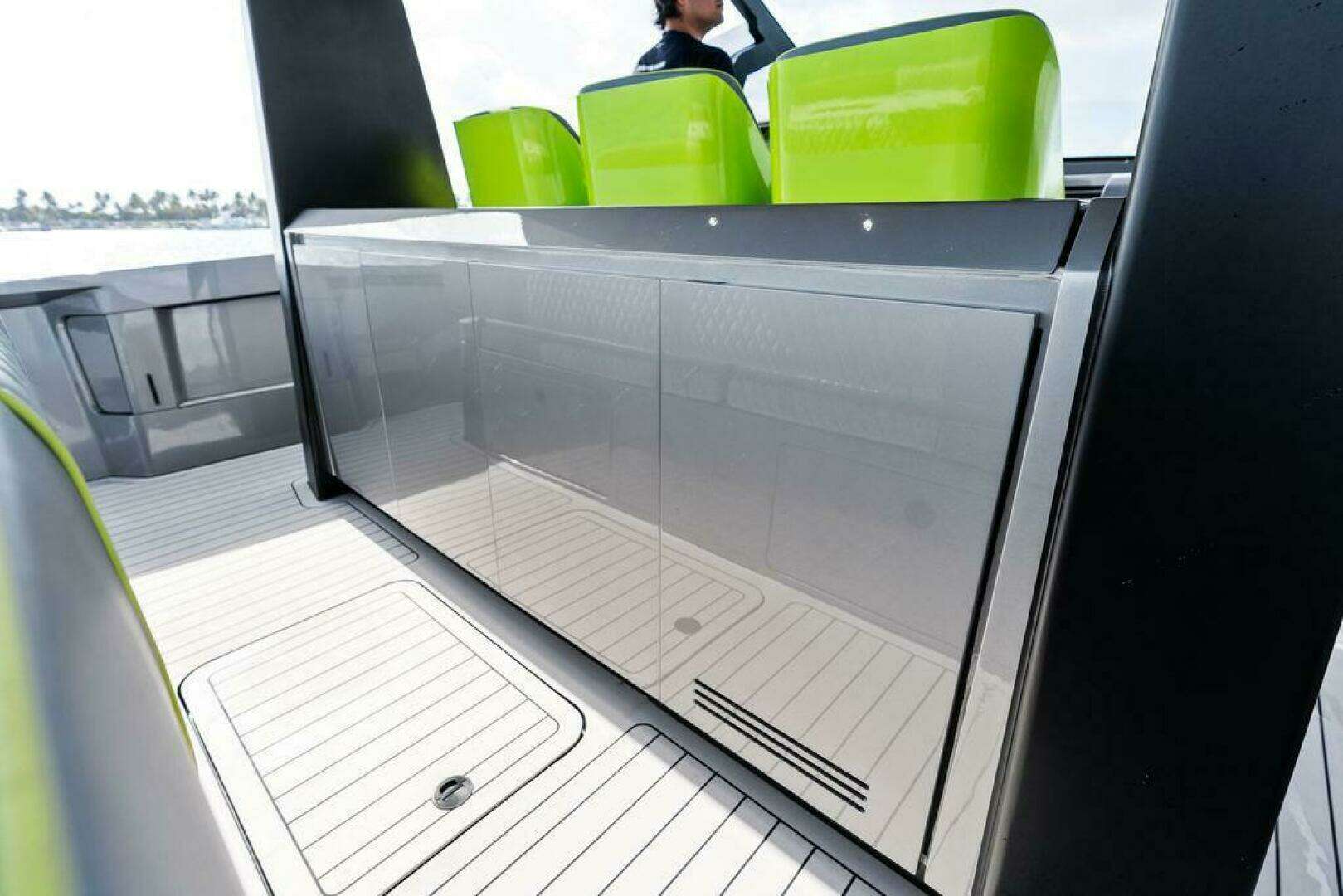

Exterior Galley

• Folding top painted in Dupont metallic
• Fridge, freezer and storage combo
• Stainless steel sink with foldable top
• Induction hob with two burners

Hull & Deck

• Fendercare fully integrated wrap-around fender system
• Ecodeck composite decking
• Seasmart quick release smartlock system
• (6) Anodized pop-out cleats
• Windscreen wiper
• Rollbar with carbon fiber T-top
• Swim platform shower
• Extended windshield
• Marinco 32A shore power
• Pincraft hydraulic swim ladder
• Engine room hatch with hydraulic rams
• Deck courtesy lighting
• Seasmart anodized grab handles and hinges
• Build process: vacuum infusion of sandwich and single-skin composite
• Build materials: GRP (fiberglass) + PVC core + Vinylrester resin

Mooring Equipment

• Trefoil stainless steel AISI-316 15 kg anchor
• 50 m of stainless steel chain with chain roller, safety snap shackle, and swivel joint
• Seasmart anchor launching system with Quick Marine, windlass and waterproof control
• Flush stainless hull protectors for line

Seating & Sunbathing

• (3) Pilot chairs with electric bolsters
• BOW SUNBEDBow sunbed, family version or double bow so far walk around version
• Central dining with (2) 4-seater sofas with storage underneath
• Large table convertible into sunbed with Linak electric legs
• Large stern sunbed

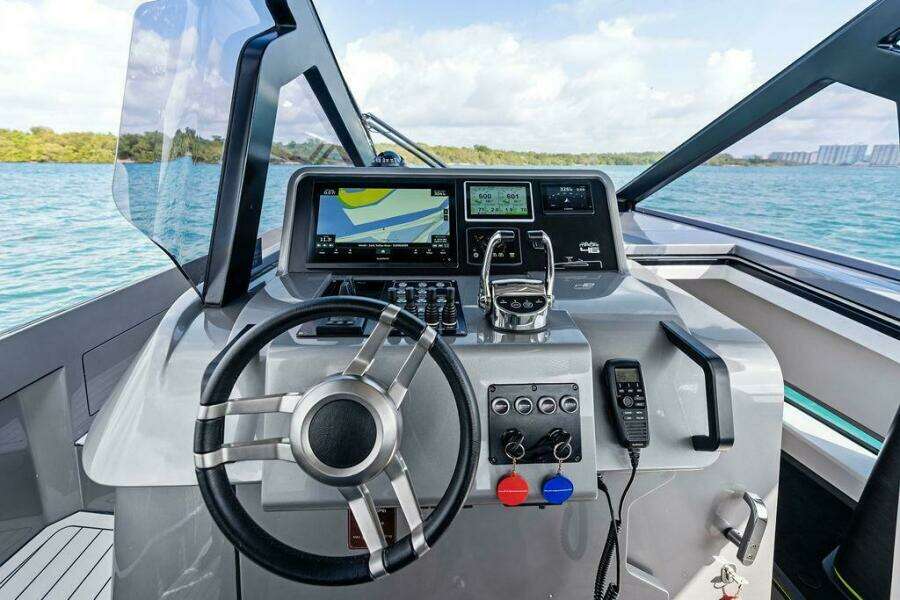

Helm, Navigation & Electronics

• Garmin 16" multifunction display with chart reader
• Garmin VHF radio, depthsounder and GRF10 rudder feedback
• Lopolight navigation and anchor lights
• Onan 230V/50HZ genset with dedicated Mastervolt 24V battery charger system, parallel and galvanic protection
• Fusion Apollo radio unit with JL Audio sound system

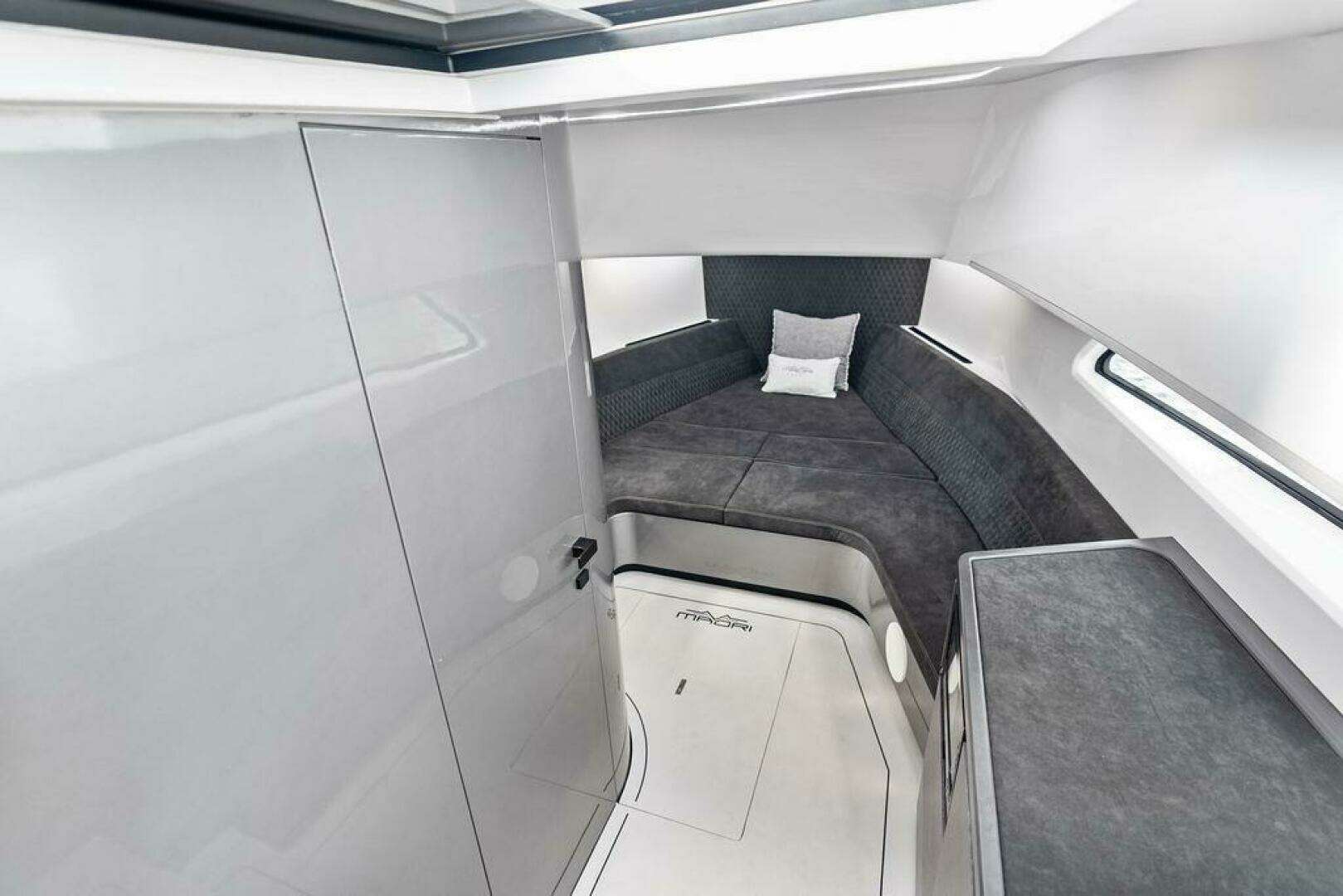

Cabin

• Manual sliding cabin door
• Side hull glass from tempered layered crystal, fume, sovit
• Condaria air conditioning
• Bow custom bed and sofa with storage
• Floor hatches with storage and inspection
• Dedicated bathroom with sink and mixer, Tecma toilet, handheld shower and custom mirror, air extraction
• Desk in veneered wood
• Galley with Vitrifrigo fridge and freezer
• Quick Marine ceiling lights and lower strip lighting in LED
• Soft touch reading lights

Propulsion & Control

• Quick Marine variable bow thruster, 24V 250 mm
• Jolly Drive (JDM) surface drives with hydraulic steering unit
• ZF Marine gearboxes
• Electronic throttles with data reporting and fuel economy on PLC
• Onboard monitoring system (PLC) with display inside cabin
• Three-layer insulation/sound proofing in engine and technical rooms
• Gianneschi blowers and extractor fans
• Stern engine exhaust
• Isotta steering wheel

Safety Systems

• Fixed engine room firefighting system with automatic and manual activation from pilot console
• Automatic 24V rule bilge pumps in each compartment
• Bilge level sensors with alarm in the PL
• Backup manual bilge pump with valves and suction lines
• Smoke sensors in engine compartment
• Battery cut-off switches
• Galvanic protection by sacrificial anodes
• Emergency fuel shut-off valves

Plumbing & Tanks

• Structural fresh water tank with food grade interior coating
• Outboard vents and overflows
• Isotherm 16 L, 230V hot water heater
• 50 L black water tank with 24V macerator pump
• 100 L grey water tank with 24V discharge pump
• Underwater waste discharge and dockside discharge
• Tank levels sensors on all tanks reported on PLC
