Structure

1. Composite FRP utilizing vinylester and polyester resin with triaxial or biaxial fiberglass fabrics
2. 100% Core-Cell Structural Core
3. Hull and Deck chemically joined with biaxial fiberglass tapes entire interior
4. All Bulkheads are composite Core-Cell cored
5. Bulkheads fiberglass taped to hull/deck
6. Molded-In Non-Skid two tone deck surfaces including cockpit sole
7. All Thru-Hull and Thru-Deck penetrations to have core removed within 1" of opening and back-filled with resin and glass mixture

Paint and Graphics

1. Sea Hawk epoxy barrier-coating system (Three Coats)
2. Two (2) Coats of Sea Hawk ablative premium bottom paint
3. Topsides and Wet Deck Awlgrip primed and painted with two topcoats - Color is Teal Gray
4. All Storage, Bilge, and Machinery Spaces to be painted white gelcoat

Interior

1. White Bulkheads with Cherry Trim
2. Headliners in the house are Bolta-Soft Vinyl over merantti plywood
3. Interior Topsides mid and forward and headliner in house covered with Bolta-Soft materials
4. Blind valence pocket on all salon windows in the house
5. Sunbrella Cushion Covers for the berths and cockpit cushions including
6. 5" Laminated memory foam standard at Berths
7. Amtico commercial teak and holly on all interior floors and steps going below

Cabinet Hardware

1. All Draws and Doors have a Push Button locking mechanism
2. Doors to each cabin have bumpers, hooks, and eyes or some other suitable means to hold doors in open position

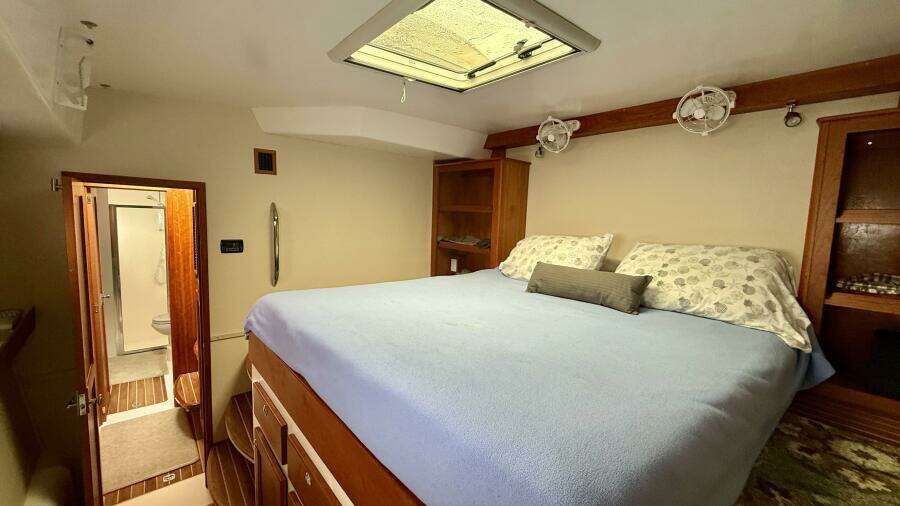

Master Cabin (Starboard Hull)

1. Headroom - 6'6" Minimum
2. Berth - 64" x 80" with walk around
3. Mattress is Laminated Memory Foam, 3" base plus 2" memory top
4. Cherry Bull Nose at foot of Berth to retain mattress in position
5. 'Walk-In' Hanging Locker in forepeak with Louvered Vent and Key Lock
6. Hanging Locker/ Storage Closet in Hallway with return air grill for AirCon
7. Full Length Cherry Valence and Cherry Grab Rail, with lighted valence
8. Three (3) Drawers Under Berth
9. Master Head with Large Separate Shower Stall
10. Aquatex Shower Door and Gulper Discharge Pump
11. Techma Electric Toilet with Freshwater Flush
12. Granicoat Countertop Vanity with Oval Sink and Single Handle Faucet
13. S/S Double Towel Bar, Robe Hook, and Toilet Paper Dispenser

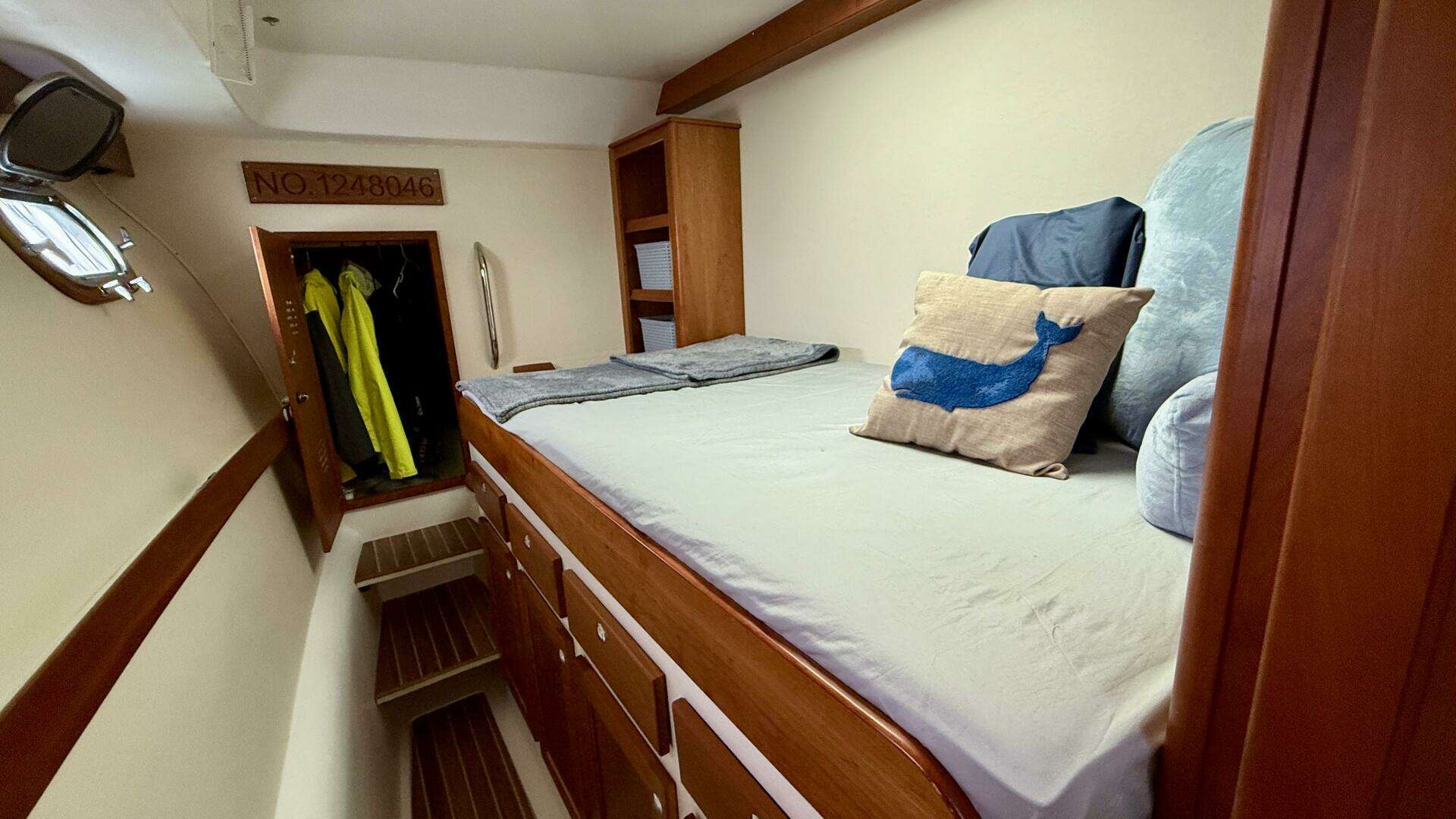

Guest Cabin Forward Port Hull

1. Headroom - 6'6" Minimum
2. Berth - 64" x 80" with Walk Around
3. Mattress is Laminated Memory Foam, 3" base plus 2" memory top
4. Cherry Bull Nose at foot of Outboard Edge of Berth to retain mattress in position
5. 'Walk-In' Hanging Locker in forepeak with Louvered Vent and Key Lock
6. Hanging Locker/ Storage Closet in Hallway with return air grill for AirCon
7. Full Length Cherry Valence and Cherry Grab Rail, with Lighted Valence
8. Four (4) Deep Drawers Under Berth
9. Bookcase at Foot of Berth
10. Head with Large Separate Shower Stall
11. Aquatex Shower Door and Gulper Discharge Pump
12. Techma Electric Toilet with Freshwater Flush
13. Granicoat Countertop Vanity with Oval Sink and Single Handle Faucet
14. S/S Double Towel Bar, Robe Hook, and Toilet Paper Dispenser

Galley

1. Galley-Up Arrangement on Bridge Deck Level with Upper Cabinets
2. Granicoat Composite Countertops
3. Double Bowl High Polish S/S Sink with Single Lever Faucet and Sprayer
4. Paneled Cherry Cabinet Doors, Varnished with Solid Frame
5. Scandvick SCA 10818 Soap Dispenser
6. Seagull IV Water Filter at Galley Sink
7. 12v Stove/Oven/Broiler 'Seaward Princess Black Glass Front 3375-1002'
8. 'Pantry' with Pull Out Draw below the Settee

Pilothouse

1. All Windows are by DSG and are operable and have screens (Except for 3 forward windshields)
2. Sole Elevated at Twin Helm Location for Better Visibility
3. The "U" Shaped Settee Starboard has an adjustable table, which converts to extra double berth
4. Cherry Bases w/ Storage Under

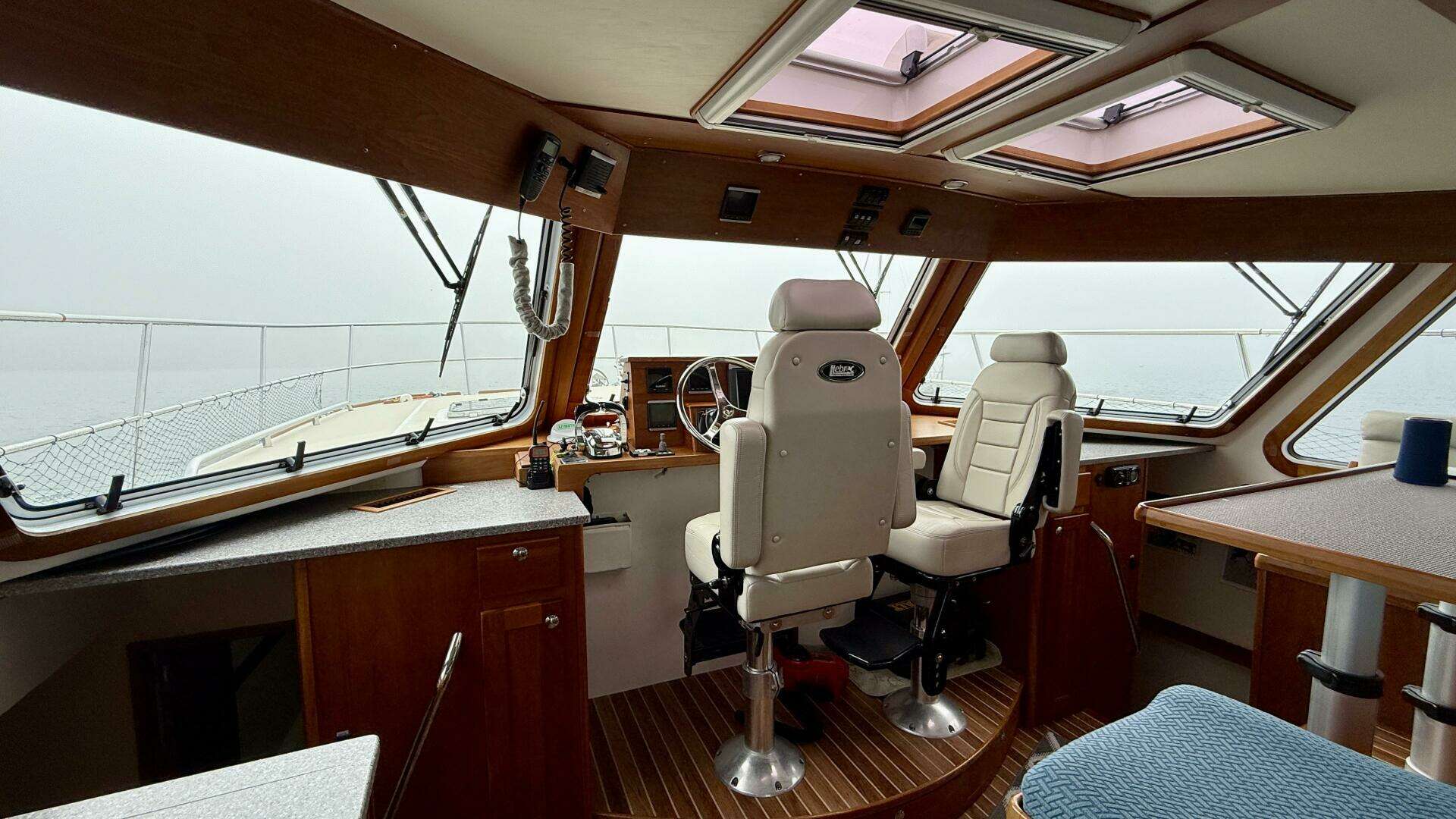

Helm

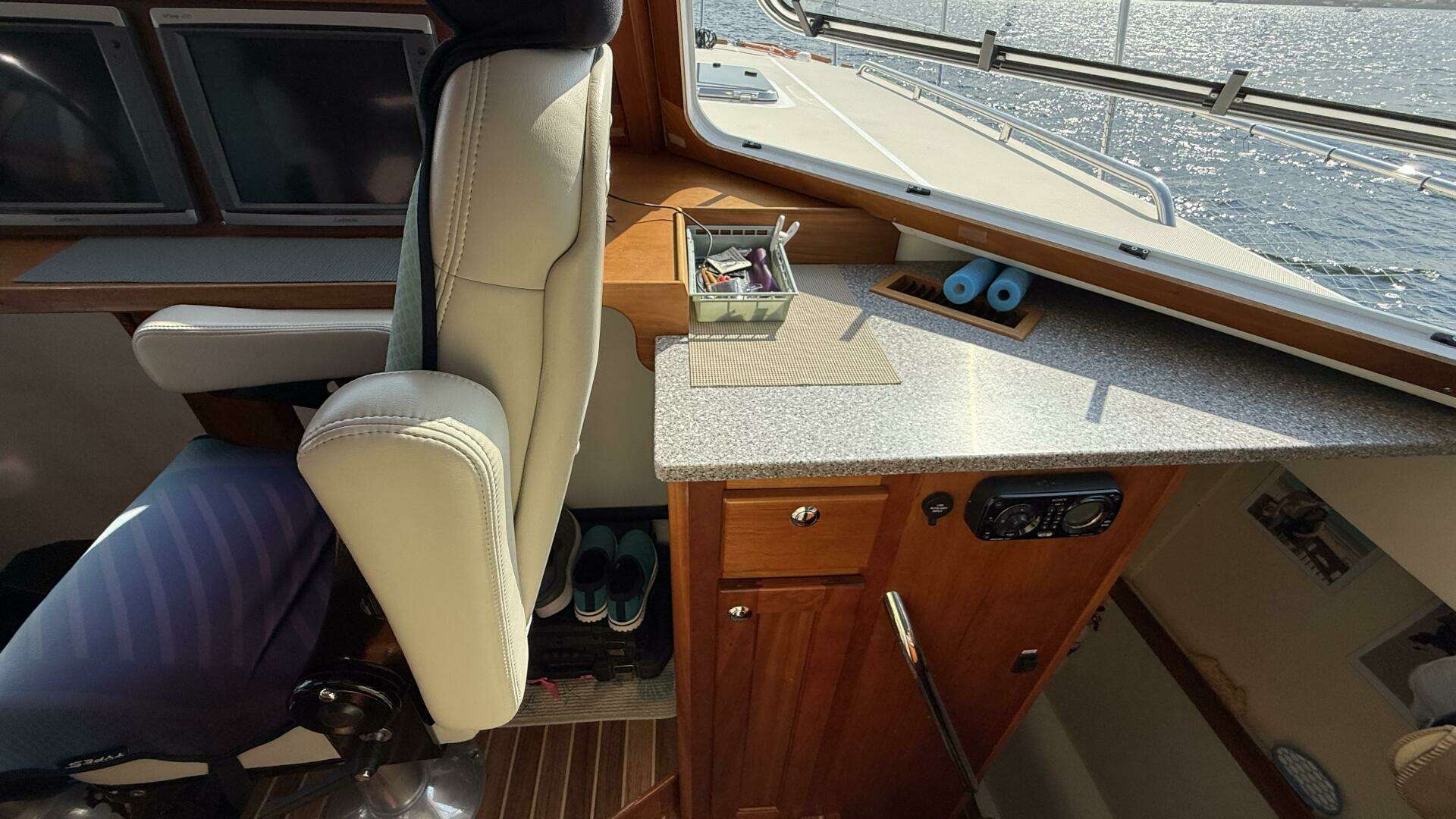

1. Helm Station with Tilting Wheel and Navigators Chart Table to Port

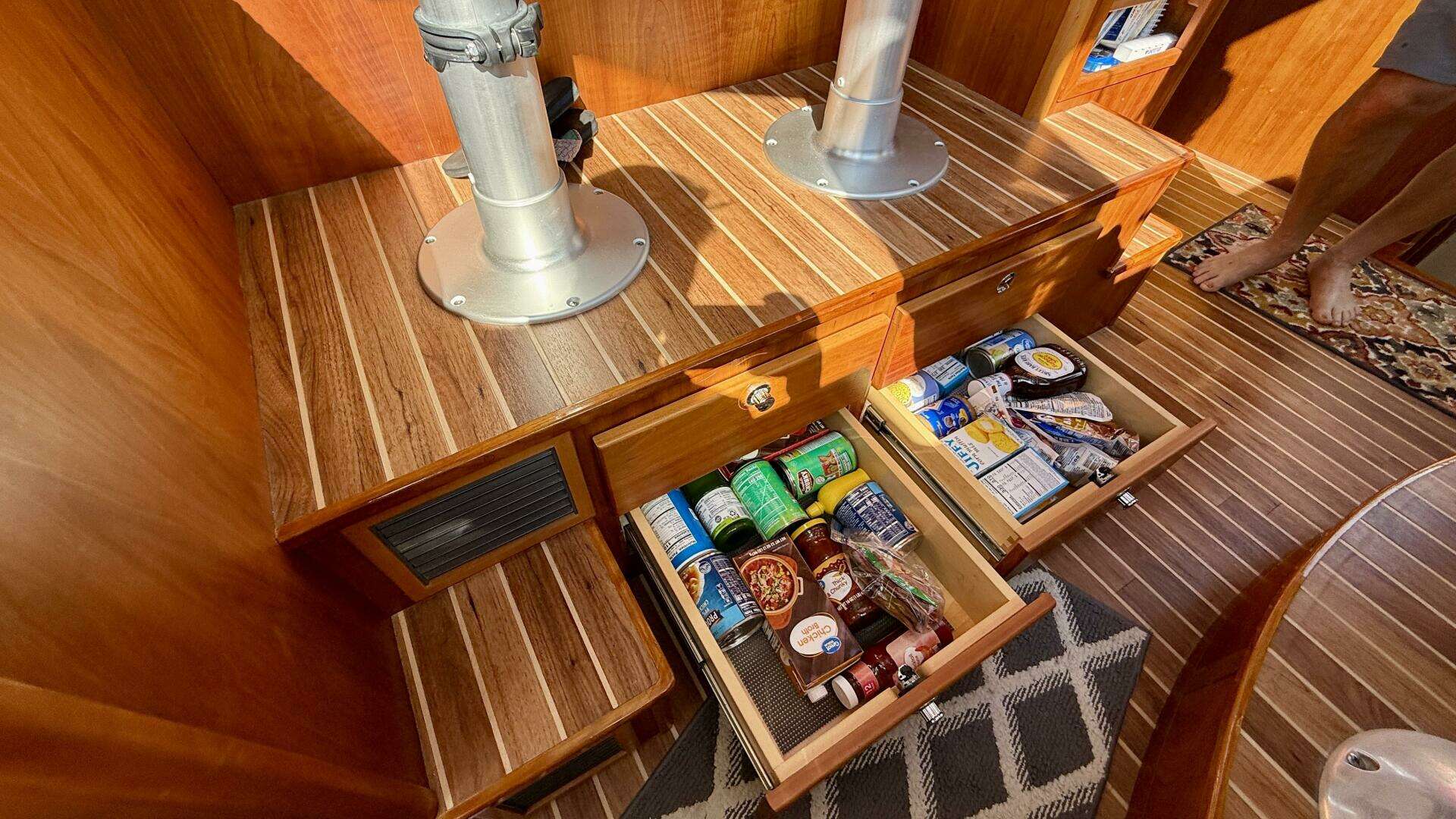

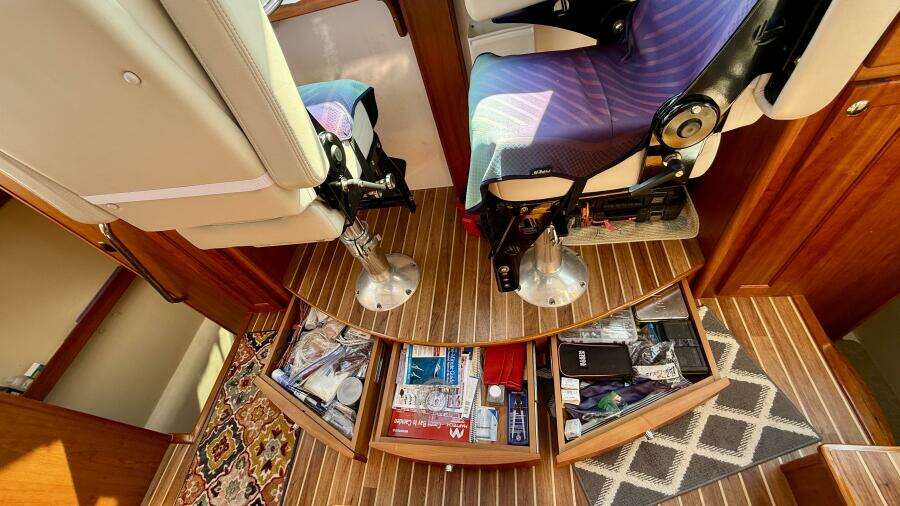

2. Three (3) Chart Drawers below the raised floor under the Helm Seat
3. Two (2) Adjustable Premium Helm Seats with Adjustable Height, Flip Up Arm, Seat Back and Head Rest Covered in Ultraleather
4. Chart Table on Dash with Large Storage Space under Port/Starboard Wing Cabinets
5. 'Docking Helm Station' with Throttle/Shift Controls and Bow Thruster in Aft Cockpit Starboard Side with GMI 10 Depth Display

Rub Rails, Safety Rails, and Deck

1. Large Profile Exterior Rigid Vinyl Rub Rail with Stainless Steel Insert at Shear and 12' of Lower Aft Quarters
2. Custom 30" High Solid Deck Railings 1-1/4" Diameter, Intermediate 1" diameter S/S, Full Perimeter, Aft of House and Across Bow
3. Mid-Ships Sliding Rail Gates Port & Starboard
4. S/S 316L Grab Rails on Hardtop, Cabin Top, and Aft House
5. Swim/Boarding Platforms each side with 32" High SST Grab Rail
6. Overhead and Side Grab Rails at Both Stairs to Berths, and Grab Rails in Berths
7. Molded Fiberglass vertical grab rails in house at steps leading out of cockpit towards the bow and on the back of the house

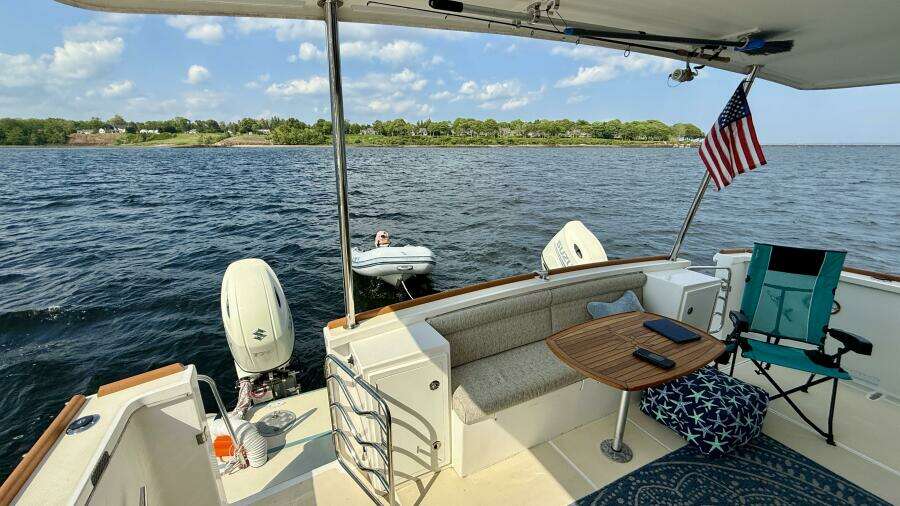

Cockpit

1. Stern Opening Port and Stbd S/S Gates in Transom
2. Custom, Double Walled 4-Step Stern Swim Ladder Port in Covered Compartment
3. Elevated 'Back Porch' to extend across center Transom area for Dinghy Storage
4. Custom DSG Aluminum Framed Door (Includes Key Lock)

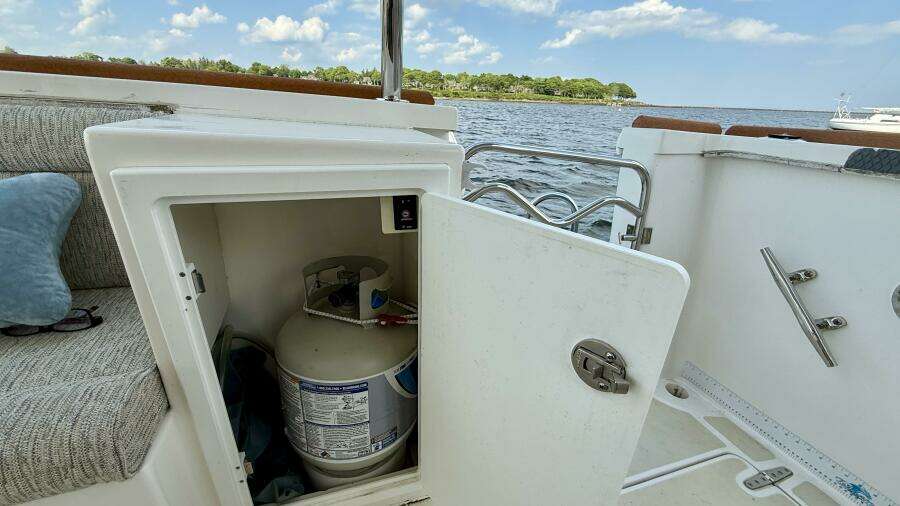

5. Bench with Cabinets on each end to store propane, and access Electric Jack Plate Controls
6. Flag Staff

Anchoring, Mooring Cleats and Hardware

1. Eight (8) Primary 12" Cast S/S Heavy-Duty Hollow Base Cleats (With FRP Backing Plates)
2. Four (4) each 11" Stainless Custom Chocks forward inboard and outboard
3. Double Ground Tackle includes 2 Bow Rollers
4. Rocna 55lb Anchor w/ 250' of 5/16" high strength Chain Rode with 150' of 5/8" Three-Strand
5. Custom Nylon Bridle which attaches to Chain
6. Fortress FX-37 Back-Up Anchor with 100' of Chain w/ 150' of 5/8" 8-Plait Nylon Rode

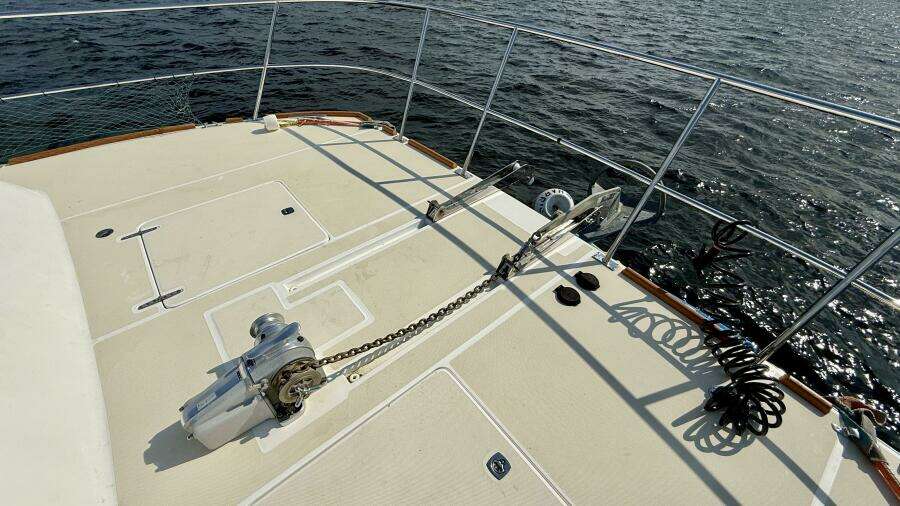

7. Lofrans Tigress Windlass with Local Controls and Remote Control from the Helm
8. Pad Eyes for bitter end of both Anchor Rodes

Forward Anchor Locker and 'Engine Room' Hatches

1. Two (2) Flush, water tight, fiberglass deck hatches over lockers with gaskets and dogs
2. Two (2) Flush, water tight, fiberglass engine room hatches with gaskets and dogs
3. Two (2) ladders for access to 'engine room' spaces

Doors, Hatches, Ports, and Windows

1. Six (6) Operable Windows in House by DSG

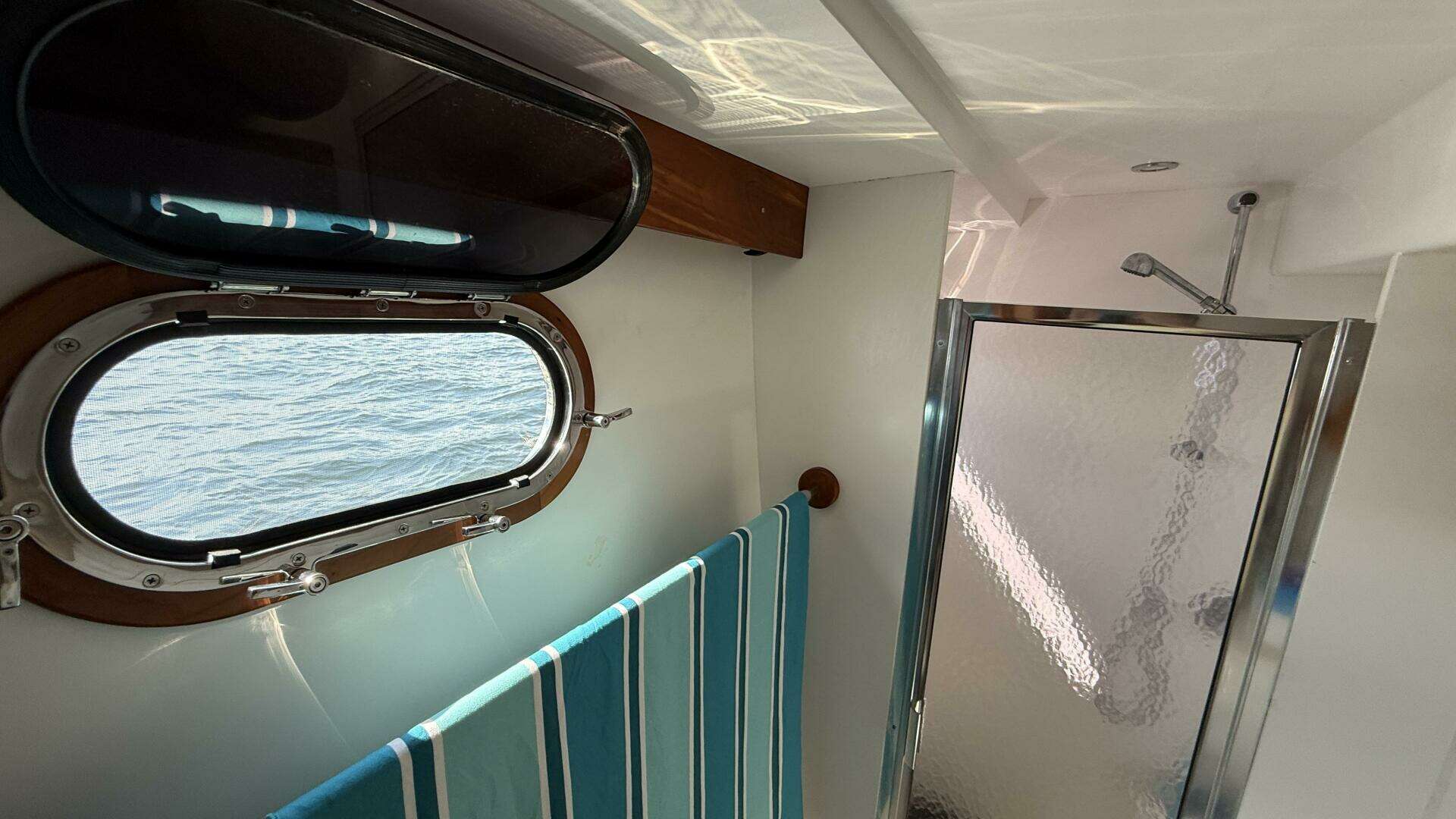

2. Eight (8) roughly 10" x 20" oval offshore rated Opening Port Lights w/ Screens
3. Four (4) Aluminum Framed Lewmar Pilot Sliding Hatches in House, with roller screen/shade, plus two (2) opening aft S/S Hatches, one over each berth, with roller screen/shade

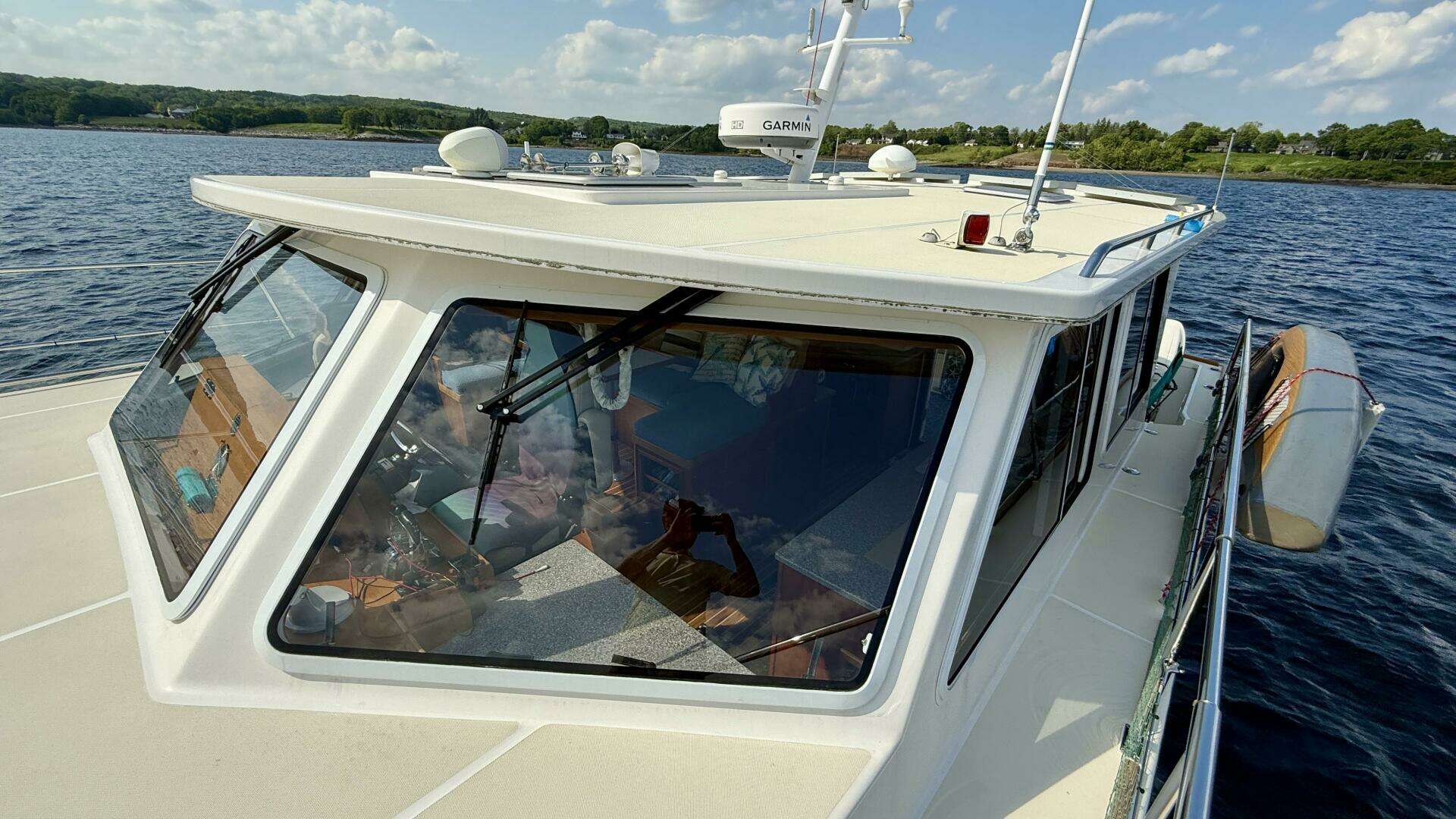

4. Three (3) Operable Windscreens of Tempered Glass at Helm, all with Wipers and Washers, no screens
5. Diamond Sea Glaze Cockpit Door

Electrical

1. Northern Light 12v 60Hz M673L3 6KW Generator in Port Aft Sound Insulated Engine Room, with Factory Sound Enclosure w/ transfer switch, remote display, single Racor fuel/water separator, and separate Generator Set Starting Battery
2. Blue Sea Custom '360' Main Distribution Panel DC/AC with extra spare breakers with backlighting and DC.AC Volt and Amp Meters
3. Victron 3000/120 inverter, charger, and remote controller
4. Four (4) each 8D AGM, total 1020aH
5. Imtra LED Lights added to 4 closets below decks w/ switches
6. LED Navigational Lights
7. Remote Spot Light with controls at Helm
8. Compass with Switched Light
9. Six (6) LED Lights on dimmer in House with 2 LED Red/White Lights over Helm
10. Two (2) LED over mirrors in each head
11. Four (4) LED Aft Cockpit and Swim Platform courtesy lights
12. One (1) LED light in each Shower
13. One (1) LED 'work' light in each 'Engine Room'
14. Eight (8) Flush Recessed LED lights in Soffits below deck outboard
15. Four (4) each 110w Hardtop Mounted Solar Panels
16. Two (2) Solar Controllers with current and voltage display
17. Six (6) total 12 VDC Outlets in Engine Rooms, Galley, Nav Station, and Berths
18. Wire Sizing and Over Current Protection per ABYC Standards
19. All circuits numbered and labelled
20. Empty conduit paths from each ER to Forward Cabin
21. Glendinning CRM-50 Electrical Cable Reel
22. Twelve (12) total AC Power in each Head, Nav Station, Berth, ER's, Salon, Cockpit, and Two (2) at Galley and Microwave
23. DEI Fail Safe Max Galvanic Isolator, Rated at 50a

Bow Thruster

Sidepower SE60 Electric Bow Thruster with Two Control Stations

Electronics

1. Two (2) Garmin 7215 Chart Plotter w/ 4KW HD 48-Mile Radar, with charts from Maine to Bahamas, XM Weather Overlay, PC Interface, with XM Antenna
2. Smart 'Triducer' for Depth, Temp, and Boatspeed
3. Windspeed Transducer
4. One (1) Each Garmin GMI10 Display Head at Helm and Docking Station
5. Garmin GHP10 Hydraulic Autopilot, rate gyro compass. Protected below deck location integrated to GPS and Chart Plotter, GHS20 Display
6. Garmin Marine 300DSC Distress Integrated VHF to GPS Hailer and Foghorn to External Speaker plus GHS20 Wireless Remote Handset
7. Sony AM/FM/CD Stereo System, Wireless Remote Control complete with 4 Bose tuned waterproof speakers, MPS and XM Satellite Ready
8. Garmin AIS 600 Transceiver
9. Provide for SSB including Grounding Plate
10. Provisions for Two (2) Future Satellite Antennas on Rear of House with Wire Path to Helm

Refrigeration

1. One (1) Vitrifrigo DW210RFX 24v Two-Drawer Refrigerator
2. One (1) Vitrifrigo DW180DTX Two-Drawer Freezer

HVAC

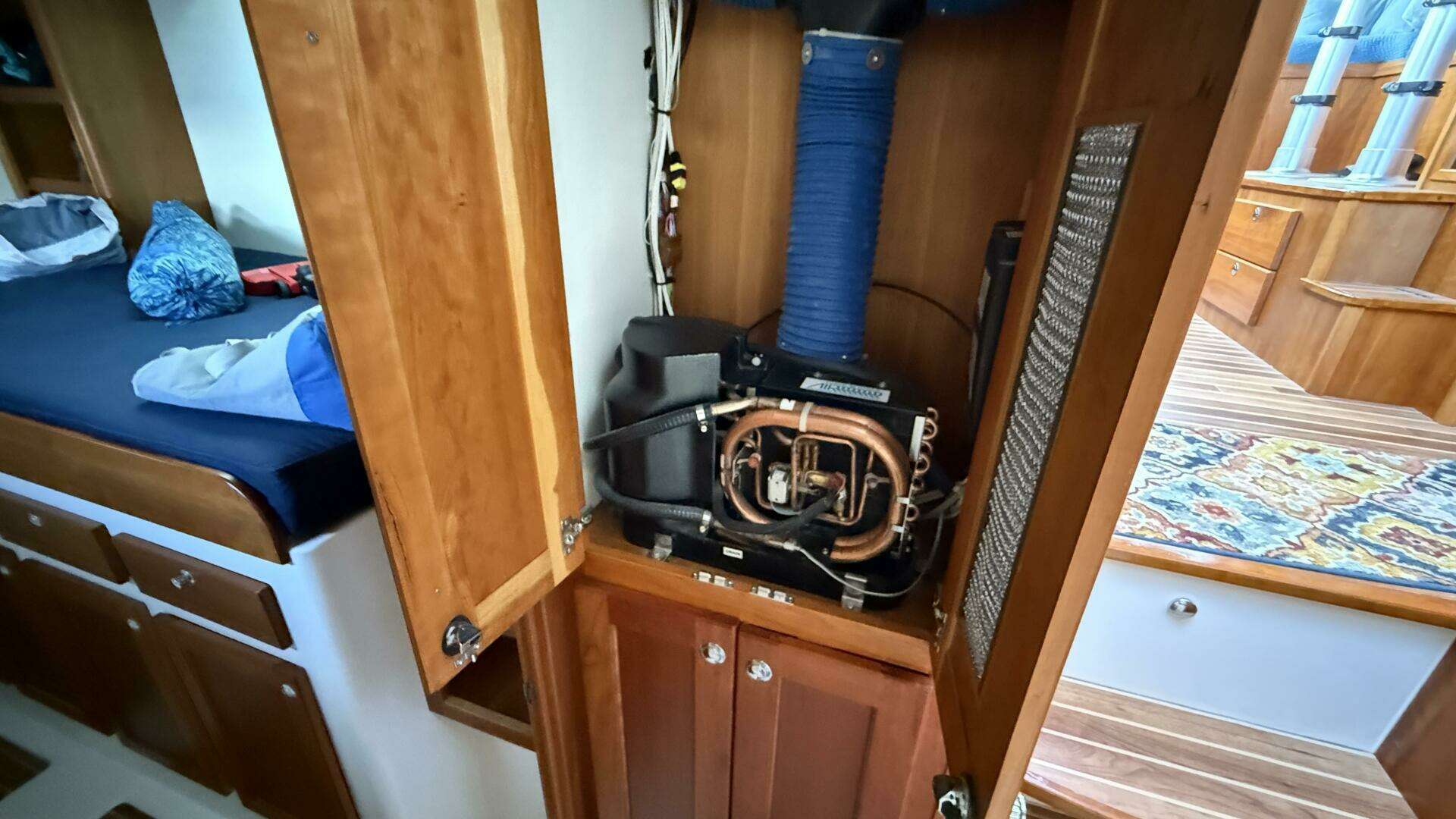

1. Three (3) MarineAir Airco seawater source heat pumps totalling 30,000BTUH. Smart Starts on all Three Aircon units
2. One for Main Salon
3. One for Master Stateroom
4. One for Guest Stateroom
5. Eight (8) 12v Caframo Sirocco, Three-Speed Gimbal Fans

Hot Water Heaters

1. Quick B3 30 12SL 8-Gallon Hot Water Heaters with Engine Coils and 120v AC element and thermostatic mixing valve kit

Waste Management

1. All Seacocks are non-corrosive reinforced Marelon by Forespar
2. Two (2) each 30-gallon holding tanks with full union ball valve gravity drain
3. Deck mounted pump-out connection fittings
4. Tecma Electric Toilet shall have a 3-Way full union ball valve to divert waste to tank or directly overboard
5. Lavatory and Sink Drains pass through the hulls as high as possible above the standing water line

Fresh Water

1. 80 Gallon Water Tank
2. All Plumbing to hot/cold faucets run in Sea-Tech Quick Connect 35 series Pex Tubing
3. Scandvik Faucets, Shower, Etc.
4. Hot/Cold Stern Shower on Port Swim Platform
5. Johnson Pump for Fresh Water Tank

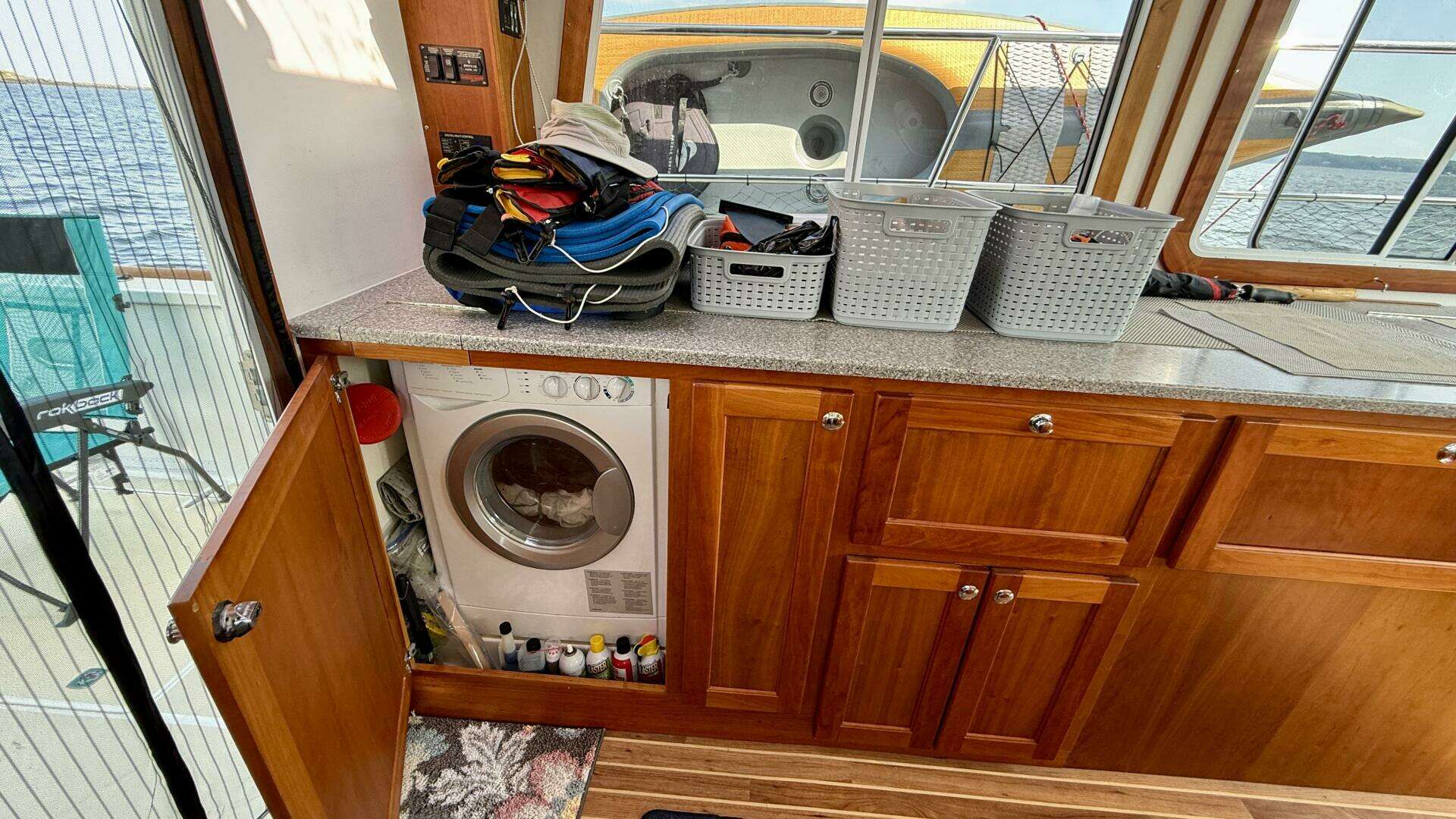

6. Splendide Combo Washer/Dryer with Vented Dryer

Sea Water

1. Salt Water Wash Down Pump, located on Foredeck with Quick Disconnect Fitting
2. Salt Water Spray at Galley using Scandvik pull-out spray from deck wash system
3. One (1) Salt Water Intake for all seawater uses (except for generator/engines)
4. Johnson 2200 Series HD Automatic Bilge Pumps (4 Total)
5. Each Hull and 'Engine Rooms'

Propane

1. Two Propane Tanks
2. Trident 1230-1411 Propane Manifold, Solenoid Valve, and Fire Boy
3. Xientex LPG Propane Gas Fume Detector 551501 Two Channel Propane Fume Detector with MS-2 Sensor and SV-1 Solenoid Valve, test buttons for each channel

Additional Equipment

1. Kidde Fire Extinguishers, Flares, Four 50' Docklines, Lifesling, and 4 Fenders
2. Steelhead WD600 Hydraulic Dinghy Crane on Aft Flatform, Rigid Chocks, Dinghy Tie Down Straps
3. 316L S/S Flush Rod Holders
4. Engraved Documentation Number Plaque
