Accommodations Direct from Catalina Yachts

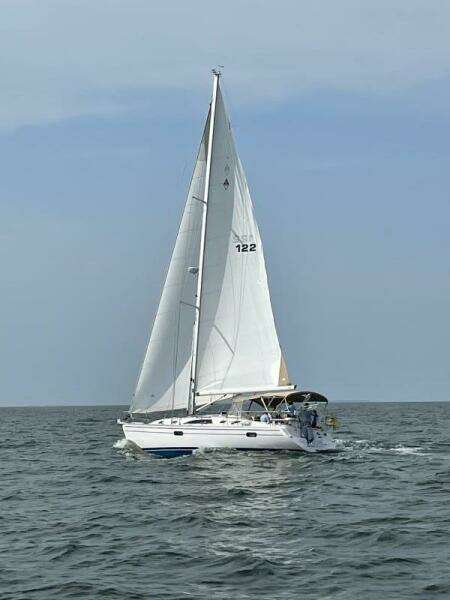

The 445 from Catalina incorporates crisp, contemporary styling with proportions and features that make Catalinas comfortable and secure underway and on the hook.

Based on a new hull design with a long waterline and moderate beam and freeboard, the 445 has excellent performance potential. The hull form is optimized to provide the gentle, predictable motion underway, which is so appreciated in other Catalina models.

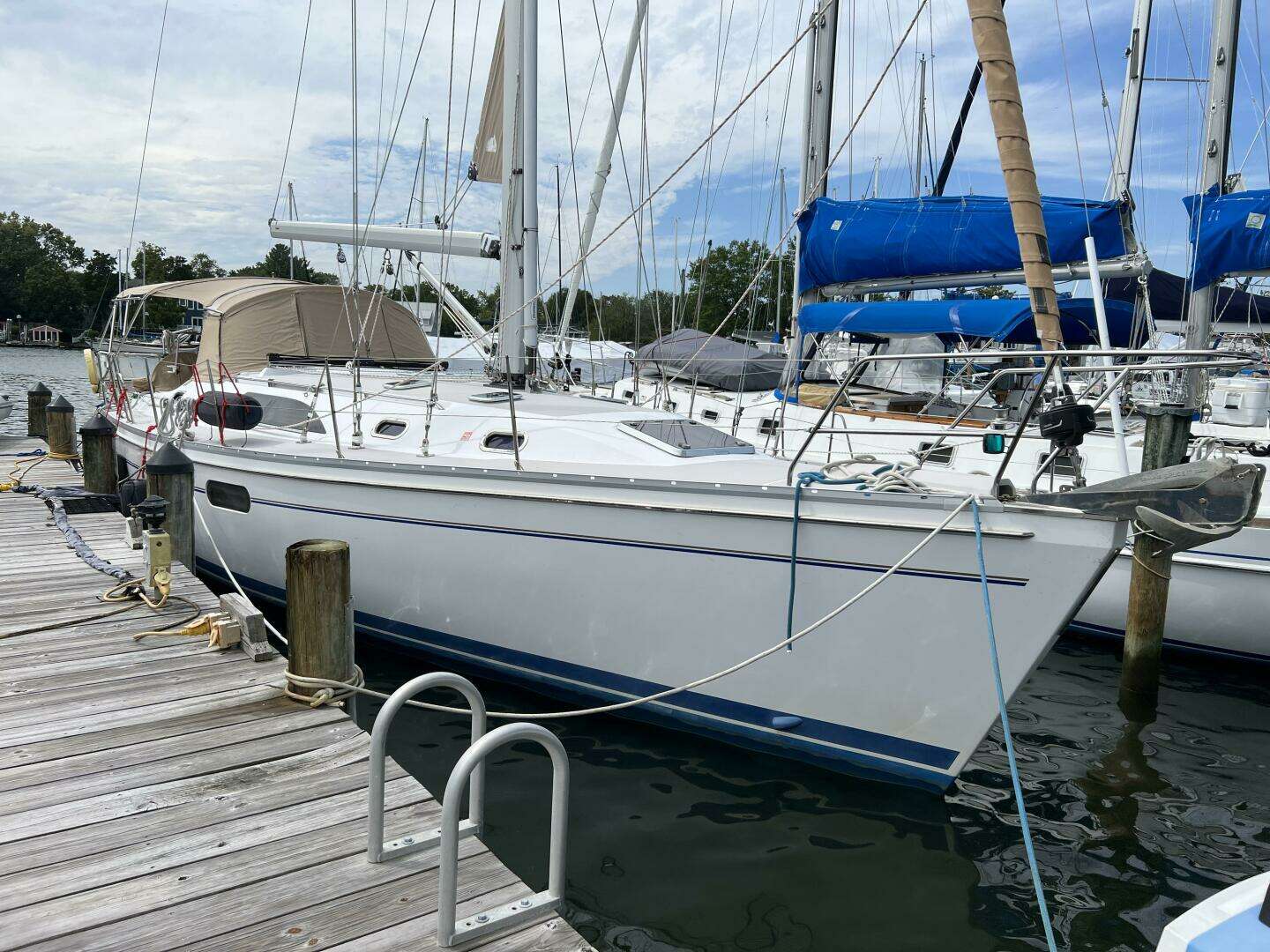

The deck is strikingly handsome with a low profile cabin structure, twin helm stations and a roomy cockpit with tall, secure, comfortable coamings and a cockpit table that seats 4-6. The deck is finished with a traditional diamond-patterned non-skid.

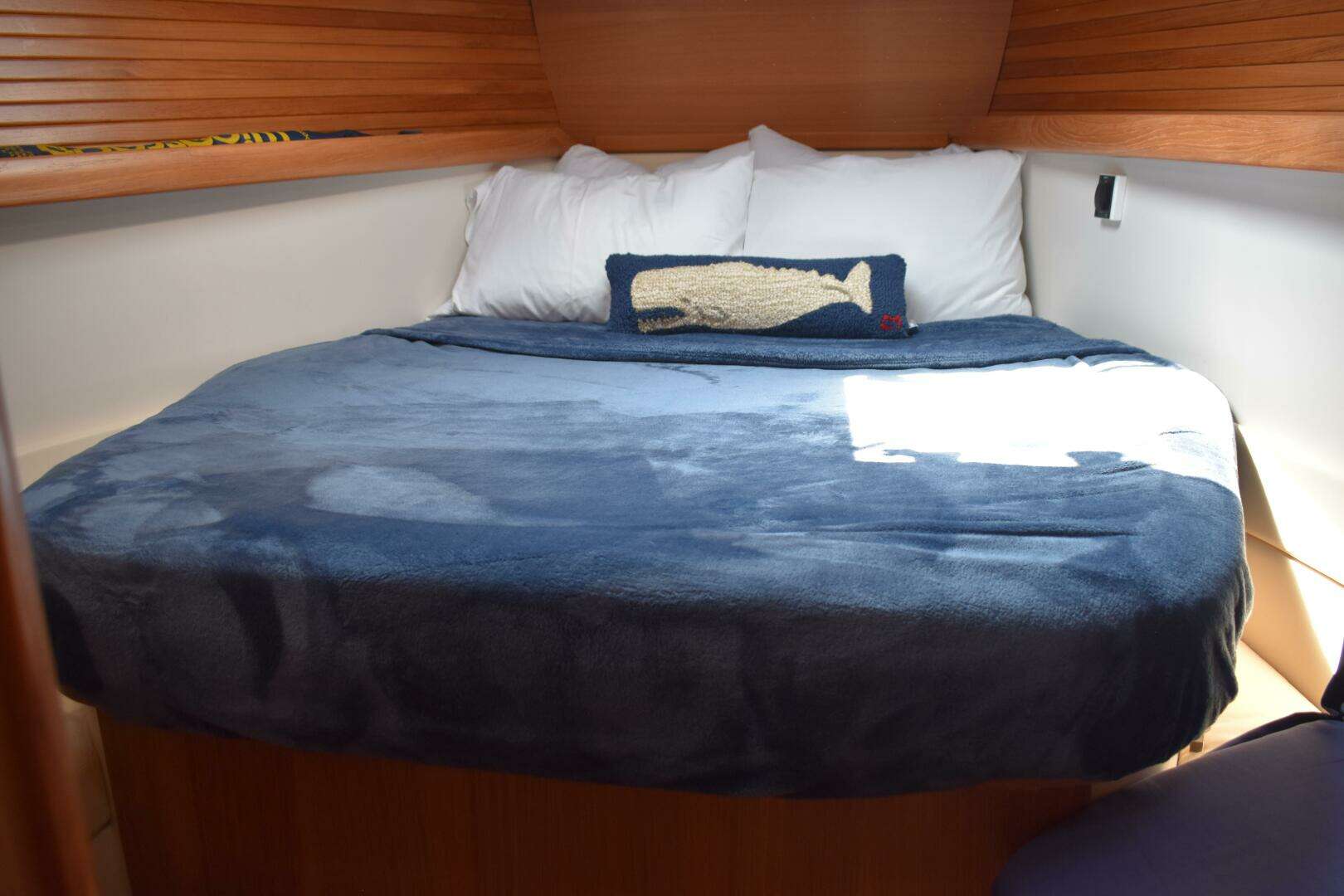

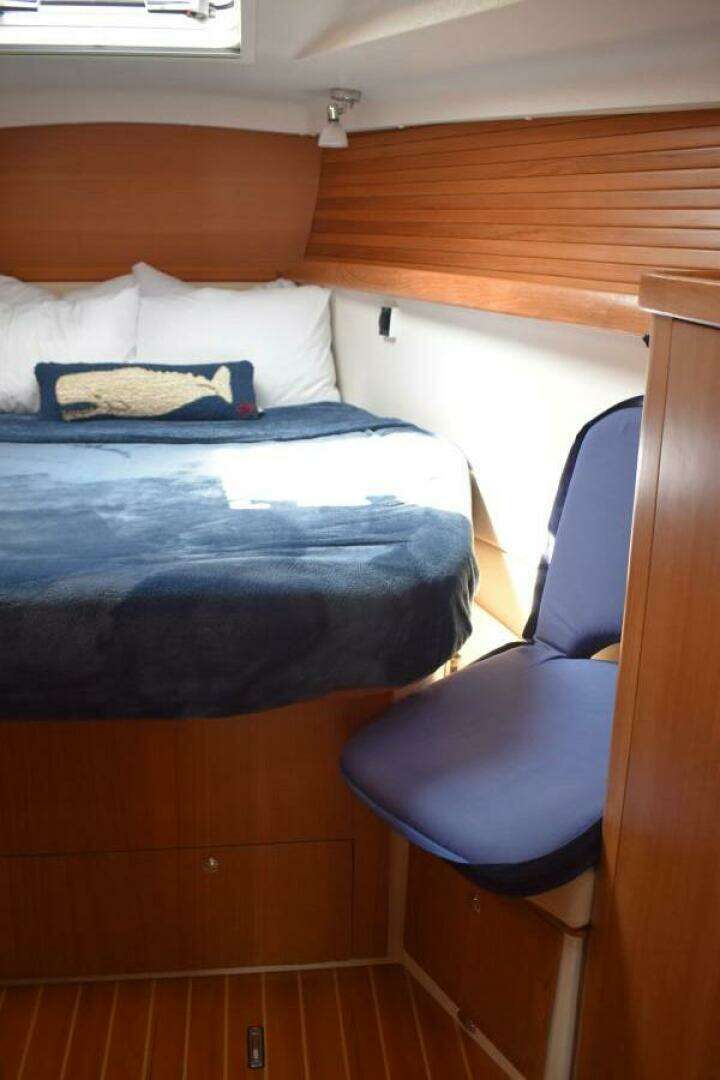

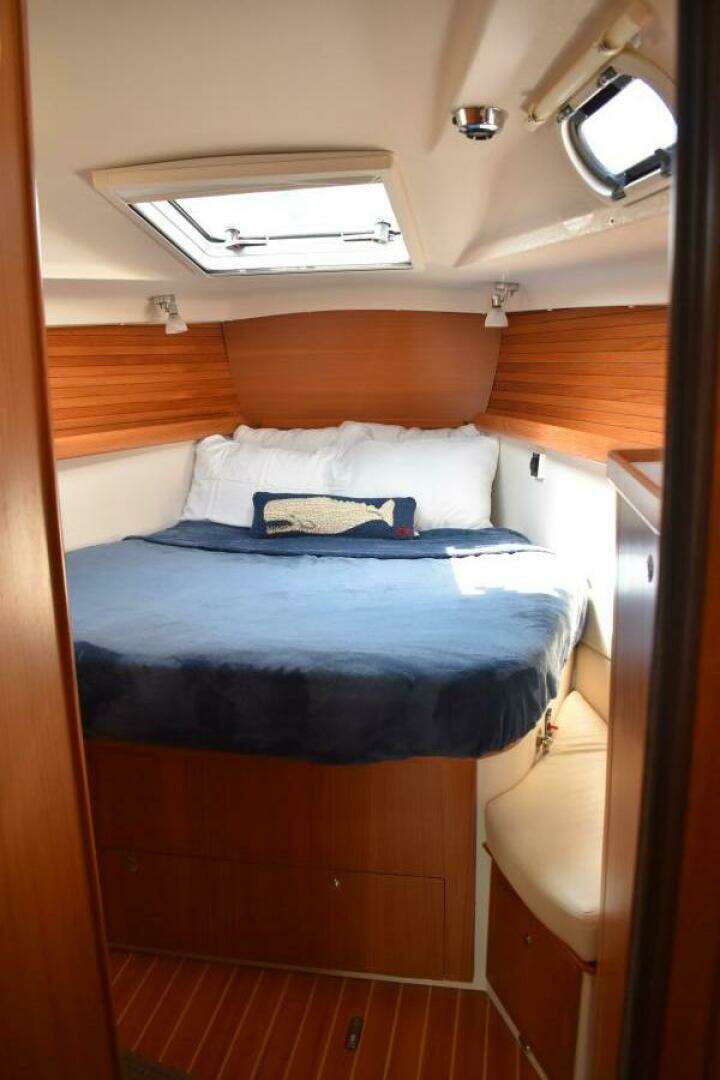

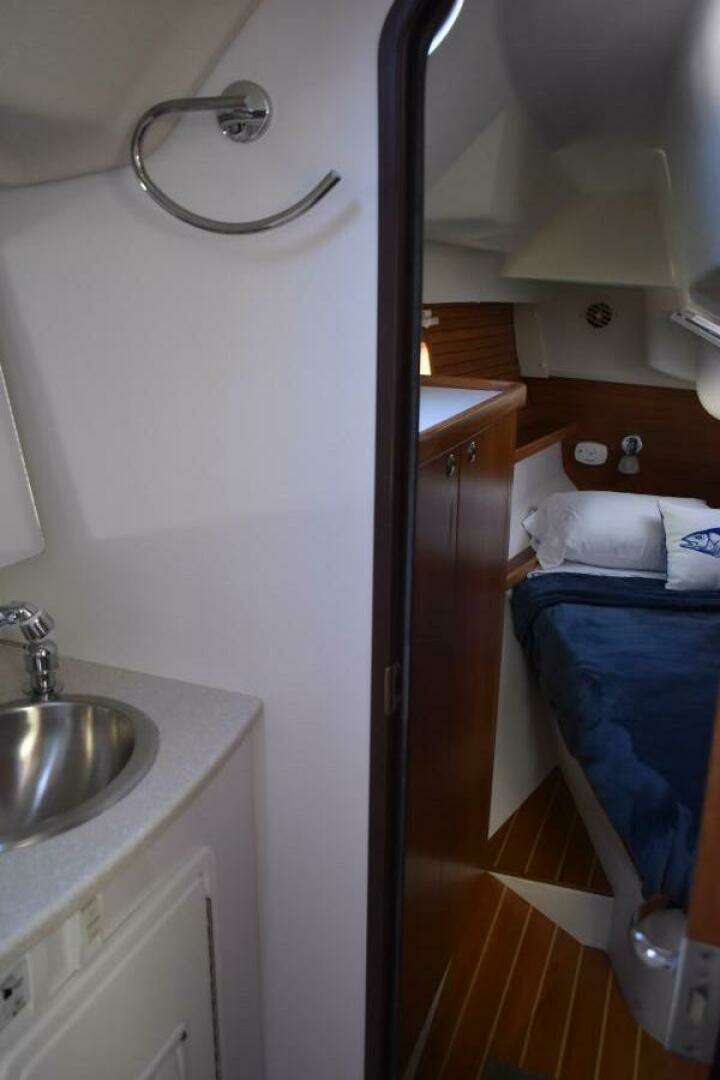

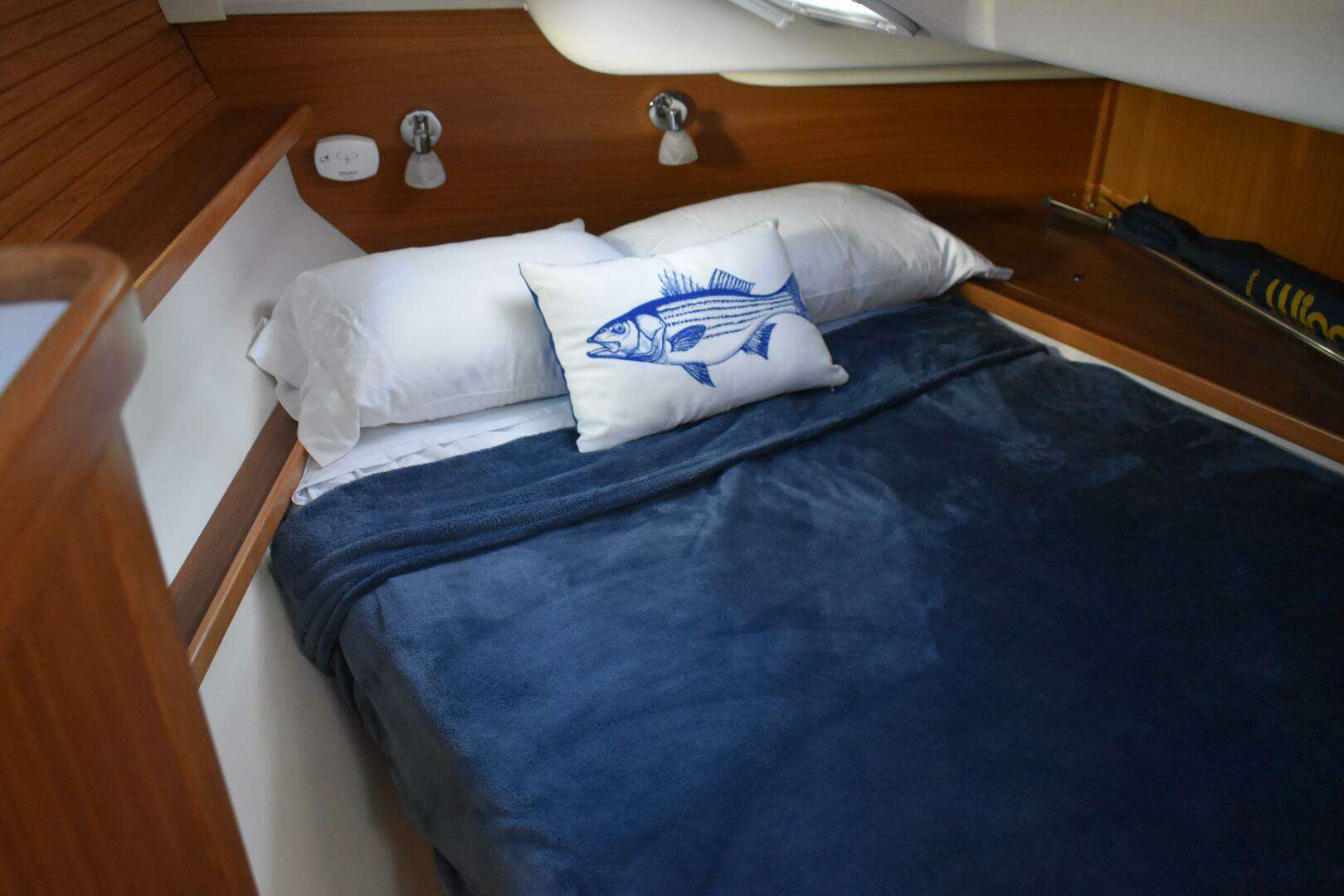

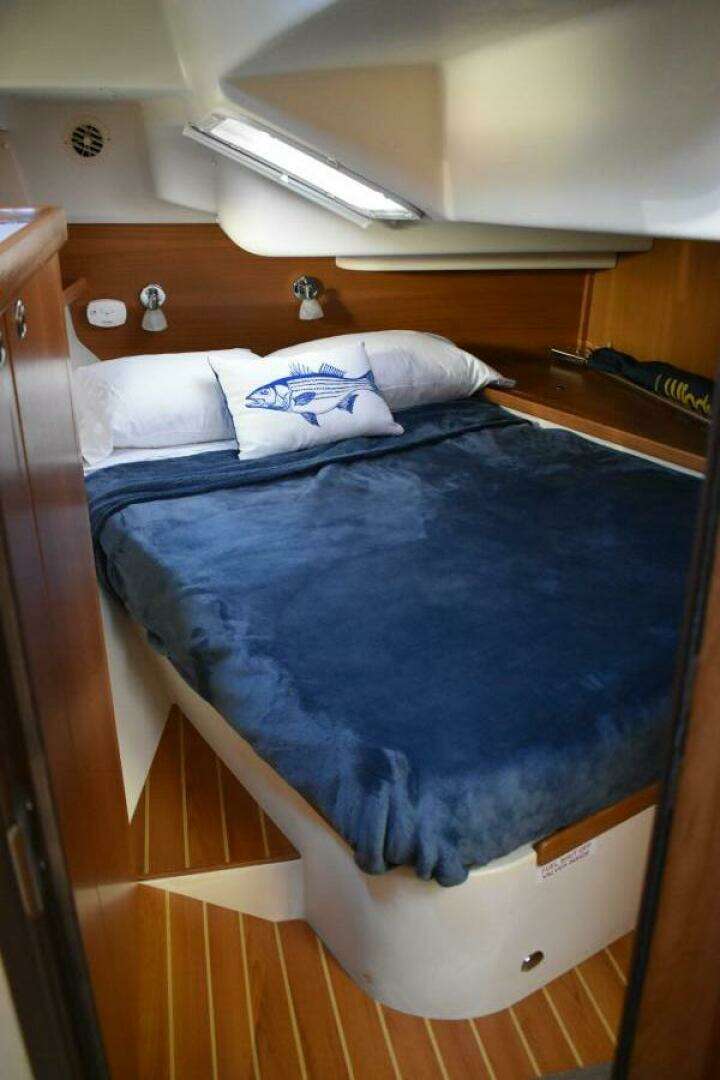

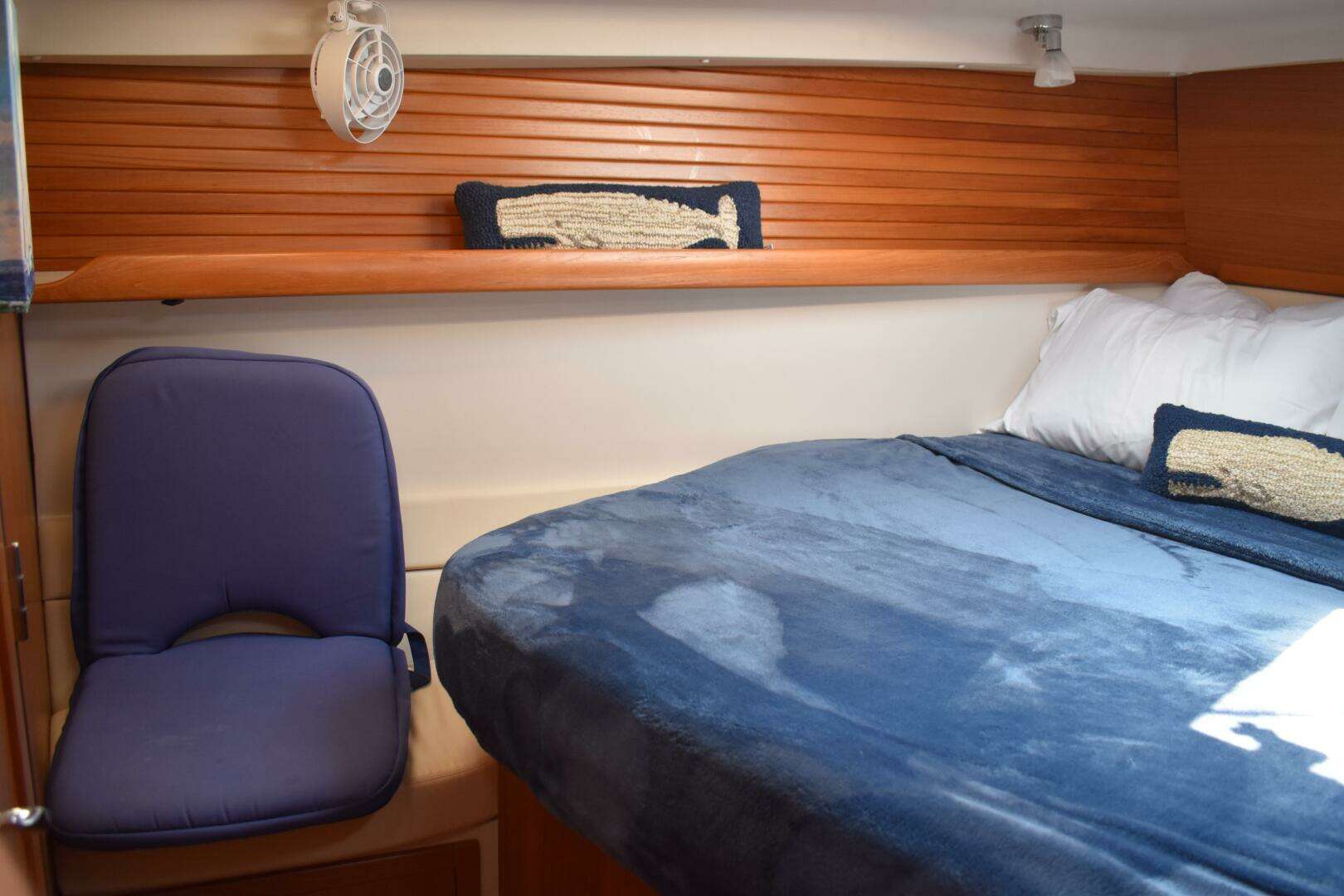

The owner’s cabin is forward for privacy and optimum ventilation. Private head access from the forward cabin along with an electric head and separate shower complete the forward cabin arrangement. The guest cabin is aft with a large comfortable double berth, angled for easy access and greater headroom.

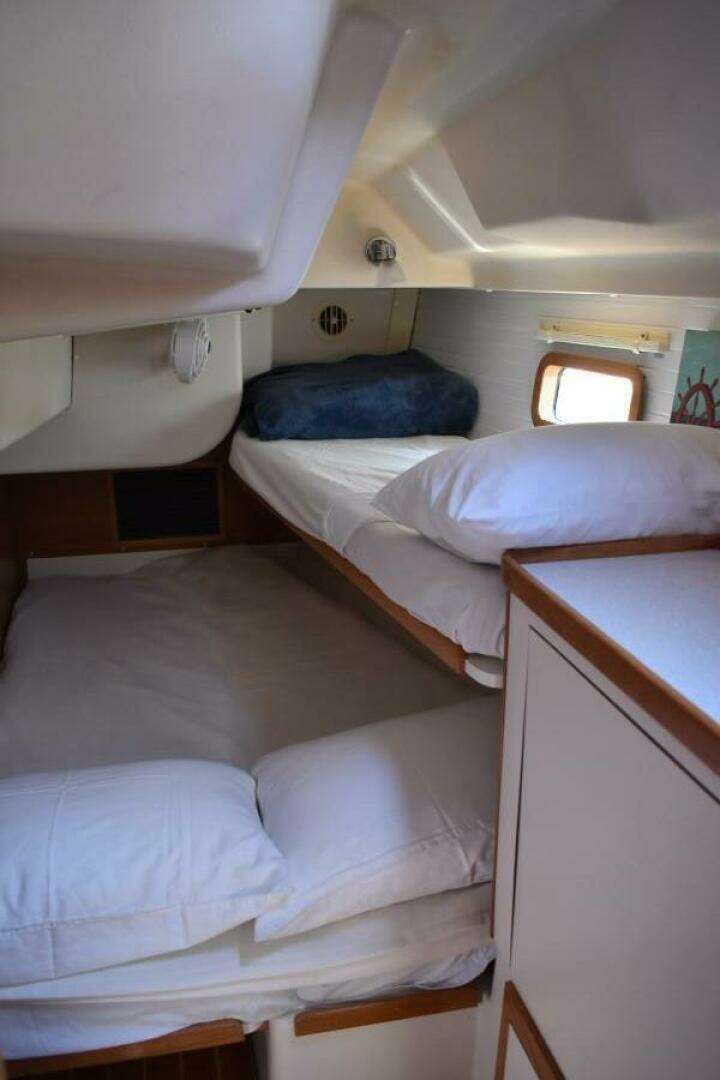

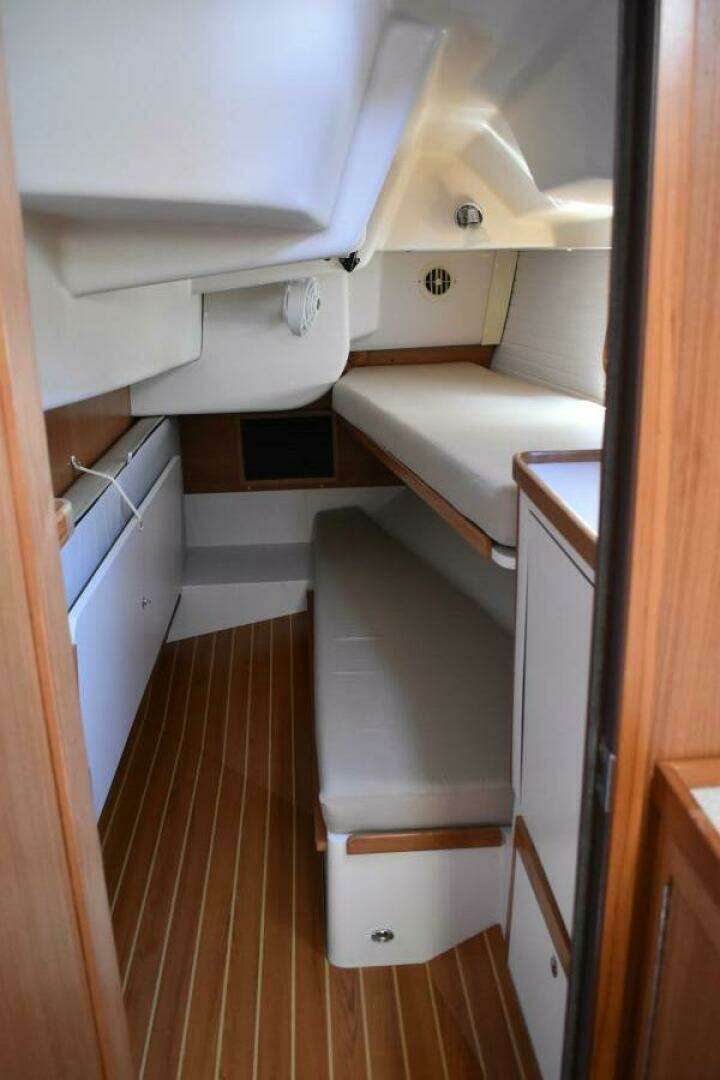

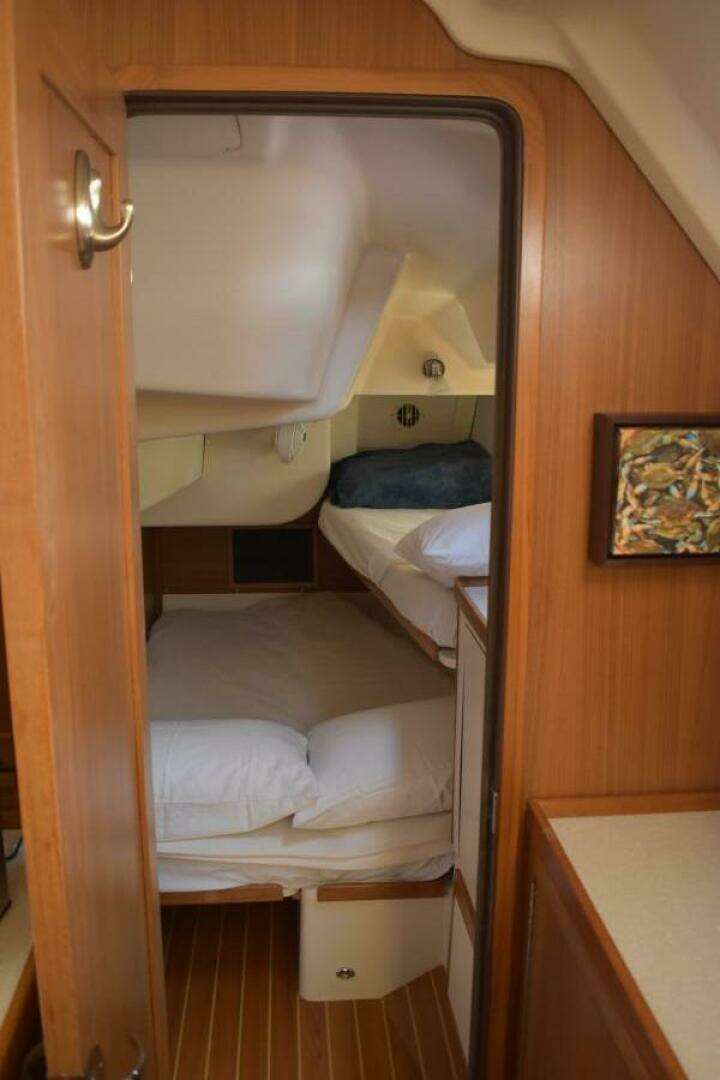

This design incorporates an innovative cabin on the port side. This cabin is a flexible space that can easily be converted to whatever your cruising style dictates at the time – sleeping quarters, storage, or a work room with a bench. One can create an additional double berth and single bunk without tools or additional parts, this is a great flex space for the extended cruiser.

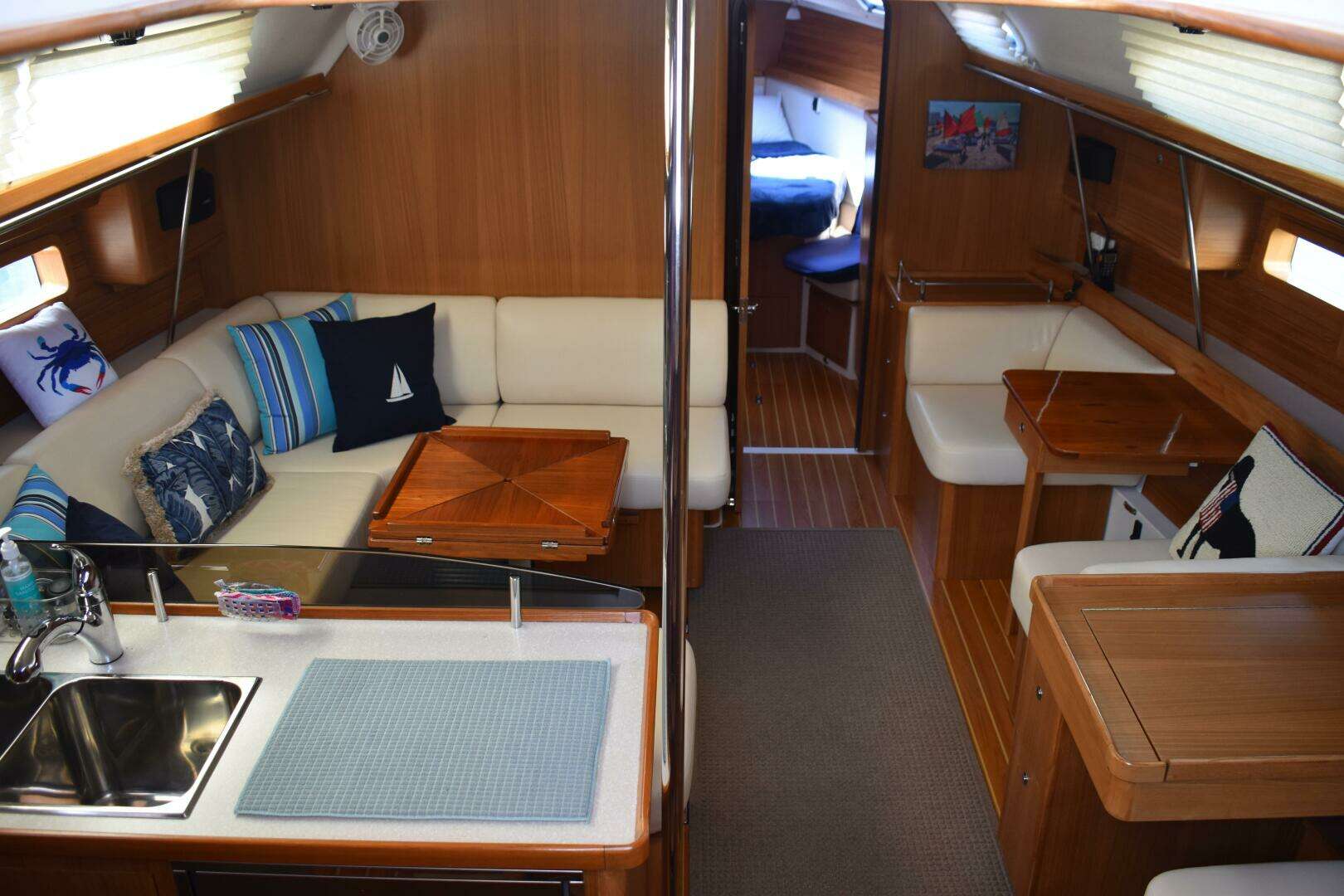

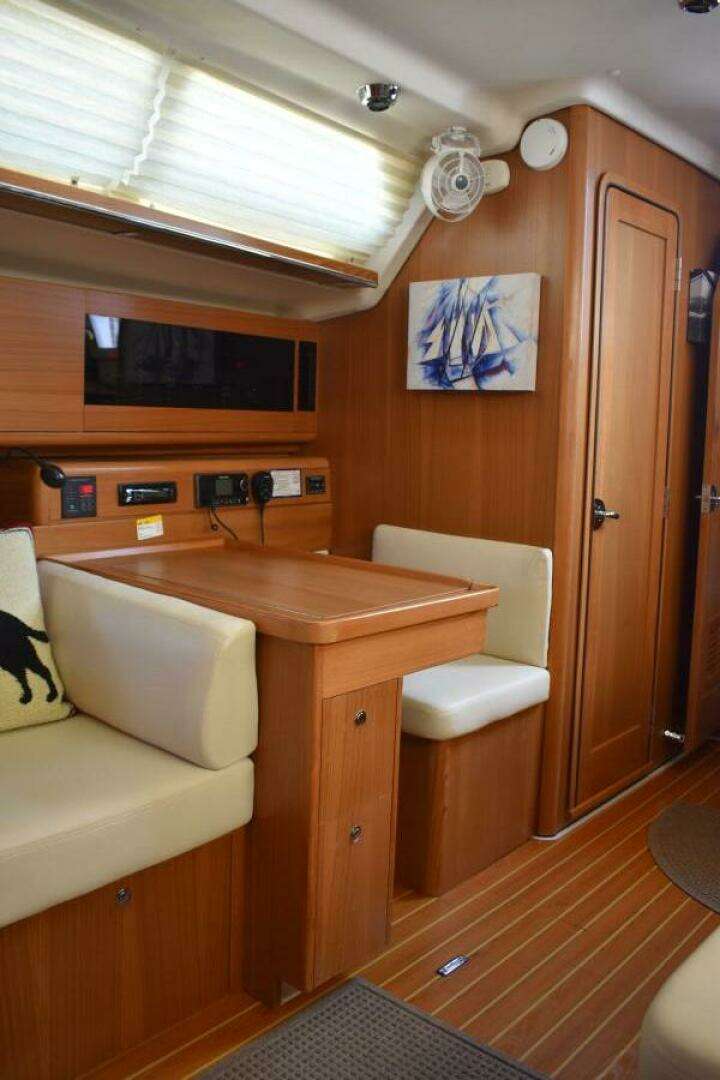

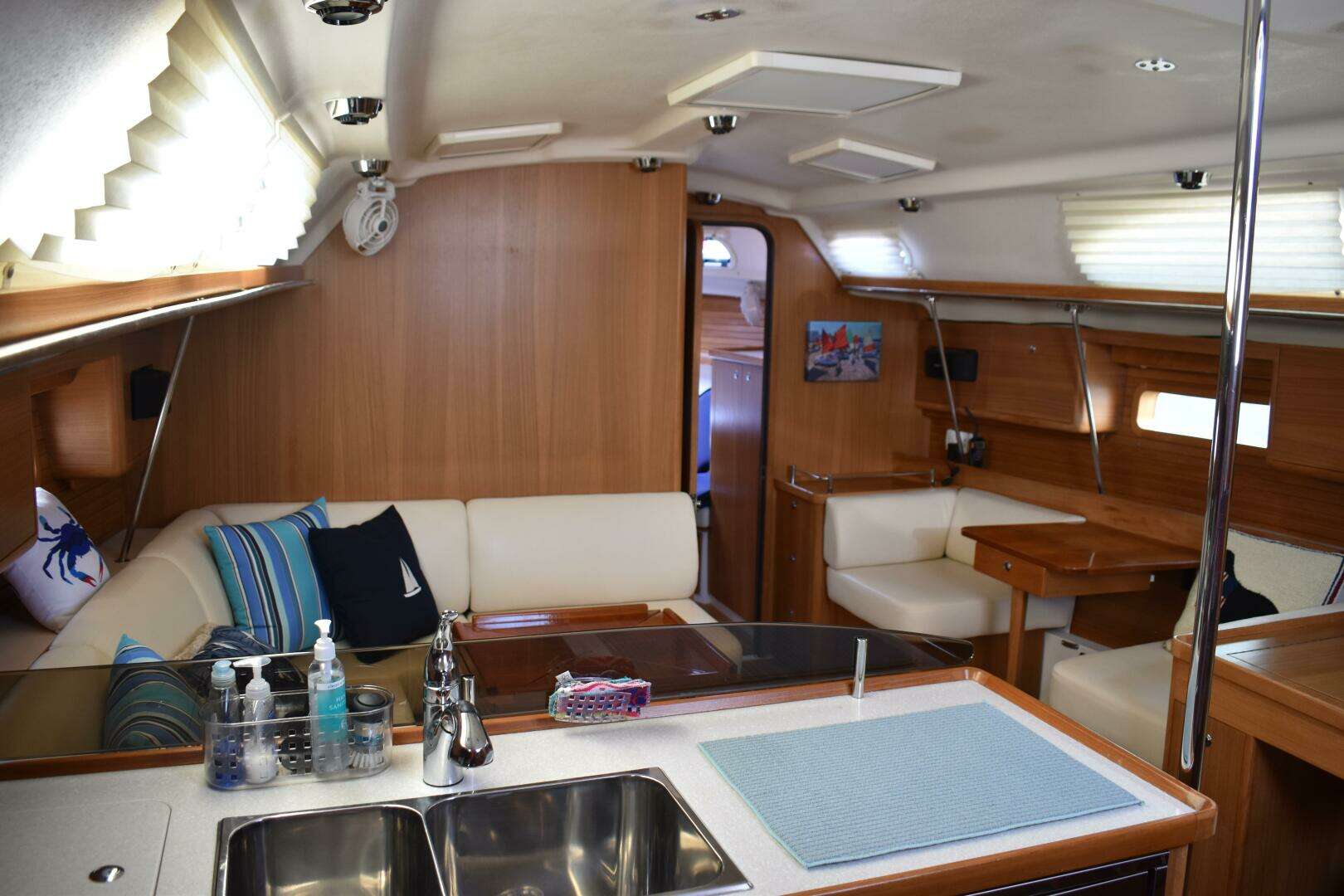

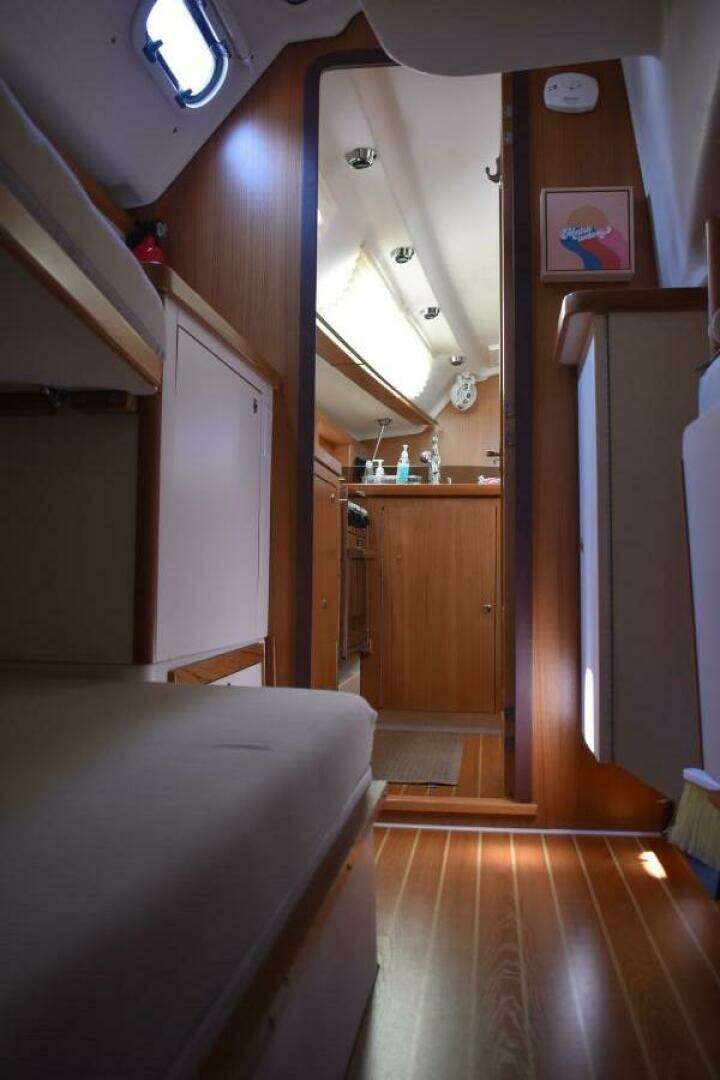

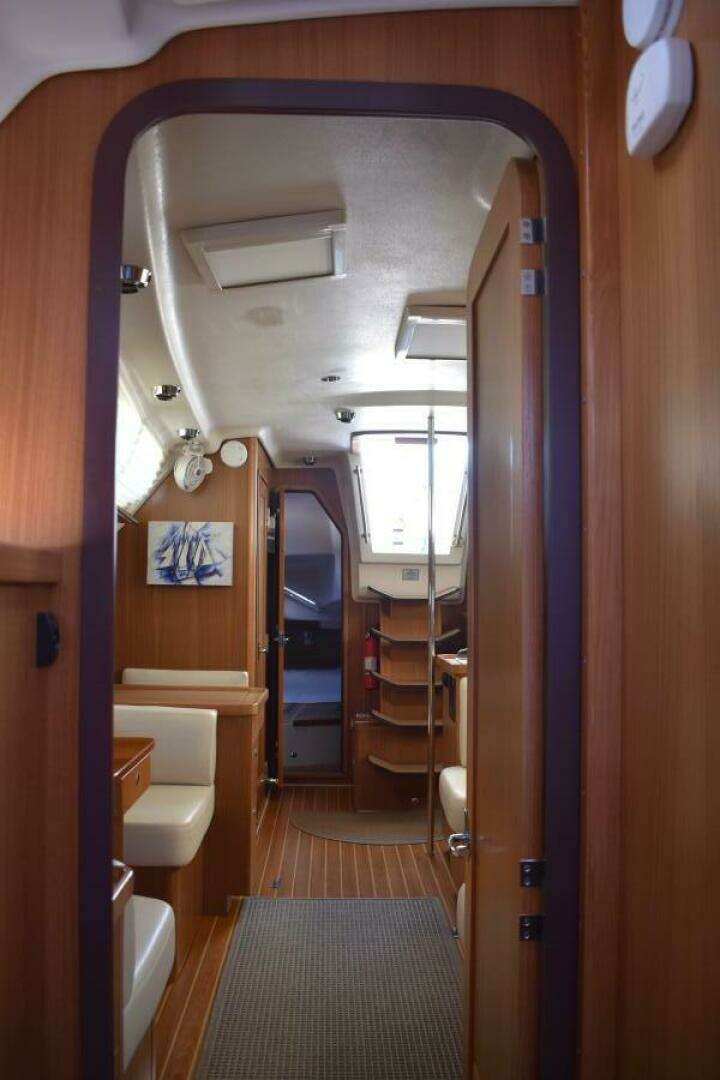

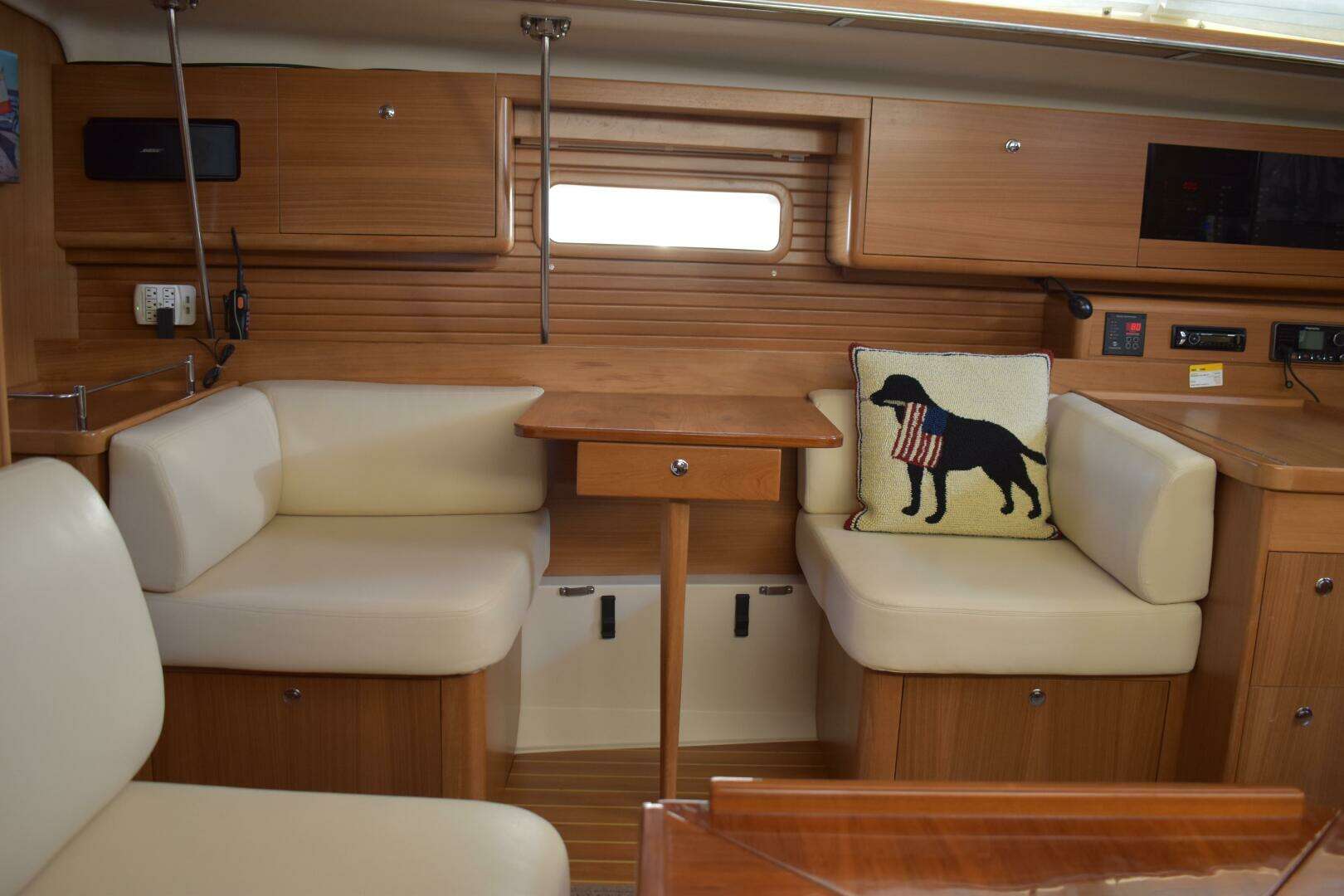

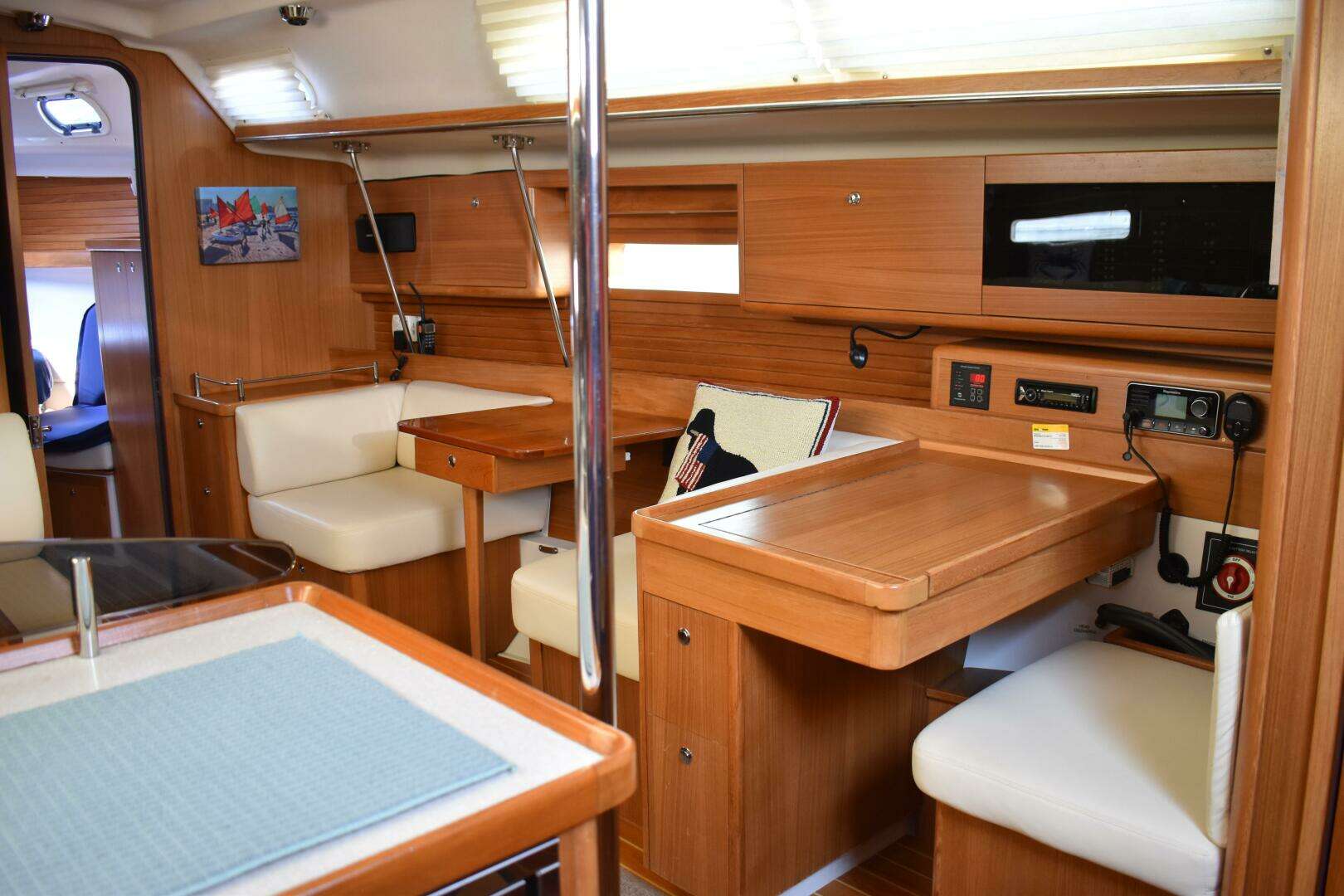

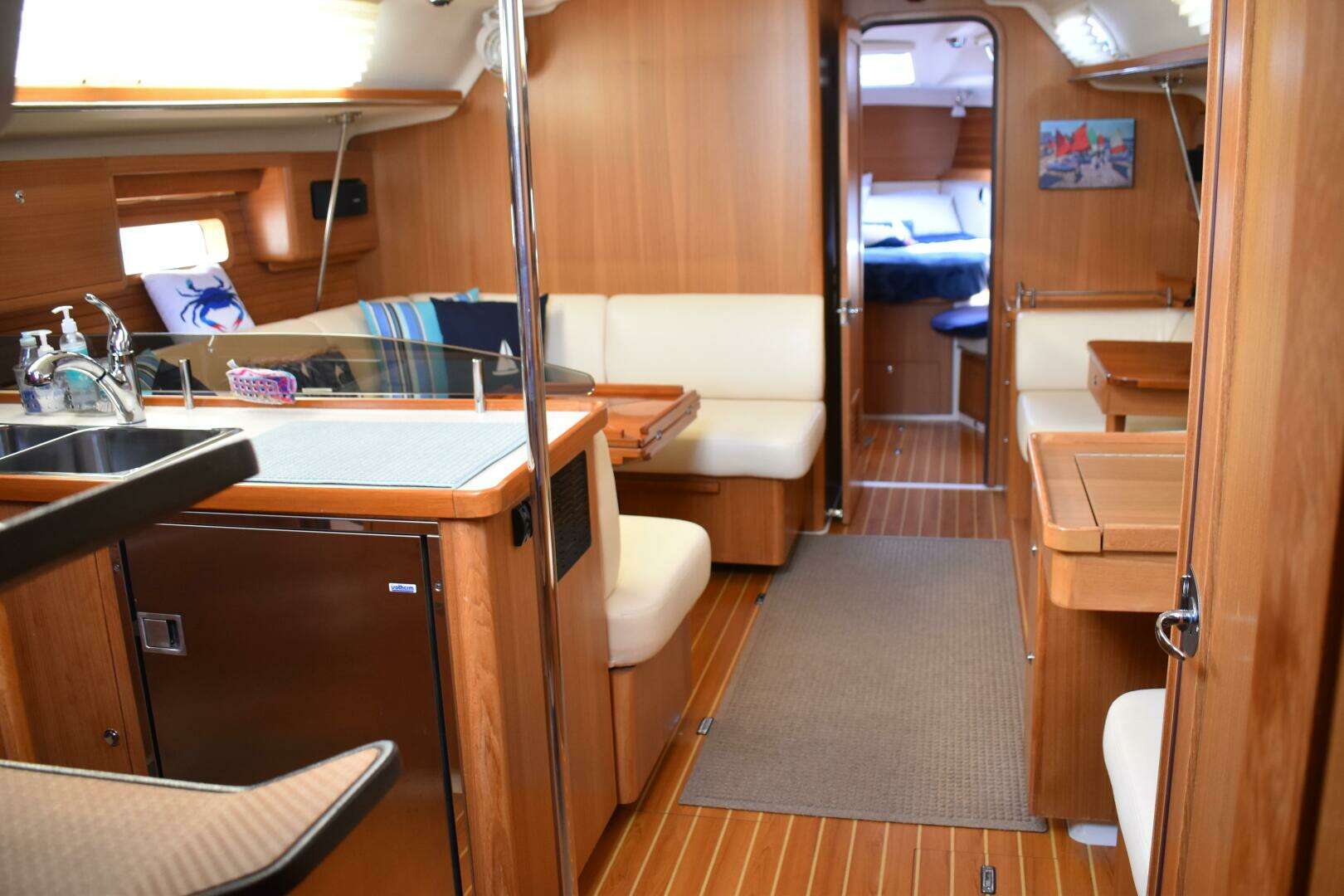

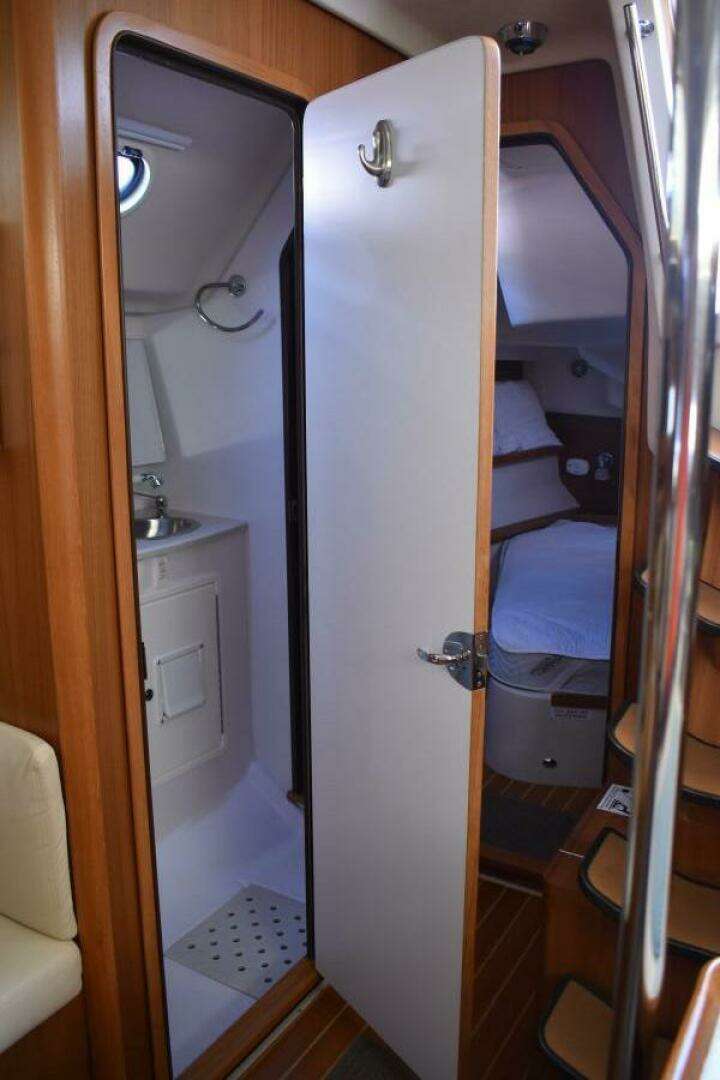

The interior is constructed of teak and teak veneers, hand-finished with durable clear varnishes, highlighting the natural beauty of fine woods. She has a large U-shaped dinette to port. This offers versatile dining table that converts from full dining size to cocktail dimensions with fold in leaves. Aft of the dinette is the L-shaped galley. There is a convertible split settee and game/cocktail table to starboard. aft of the settee is a forward facing chart table preferred by experienced navigators with dedicated space for PC. She has a composite teak and holly look cabin sole for maintenance free beauty. The second aft head offers an entrance from the guest cabin on starboard as well as at the foot of the companionway steps. Cream colored ultra-leather in the main salon add to her warm but light and inviting interior.

Galley

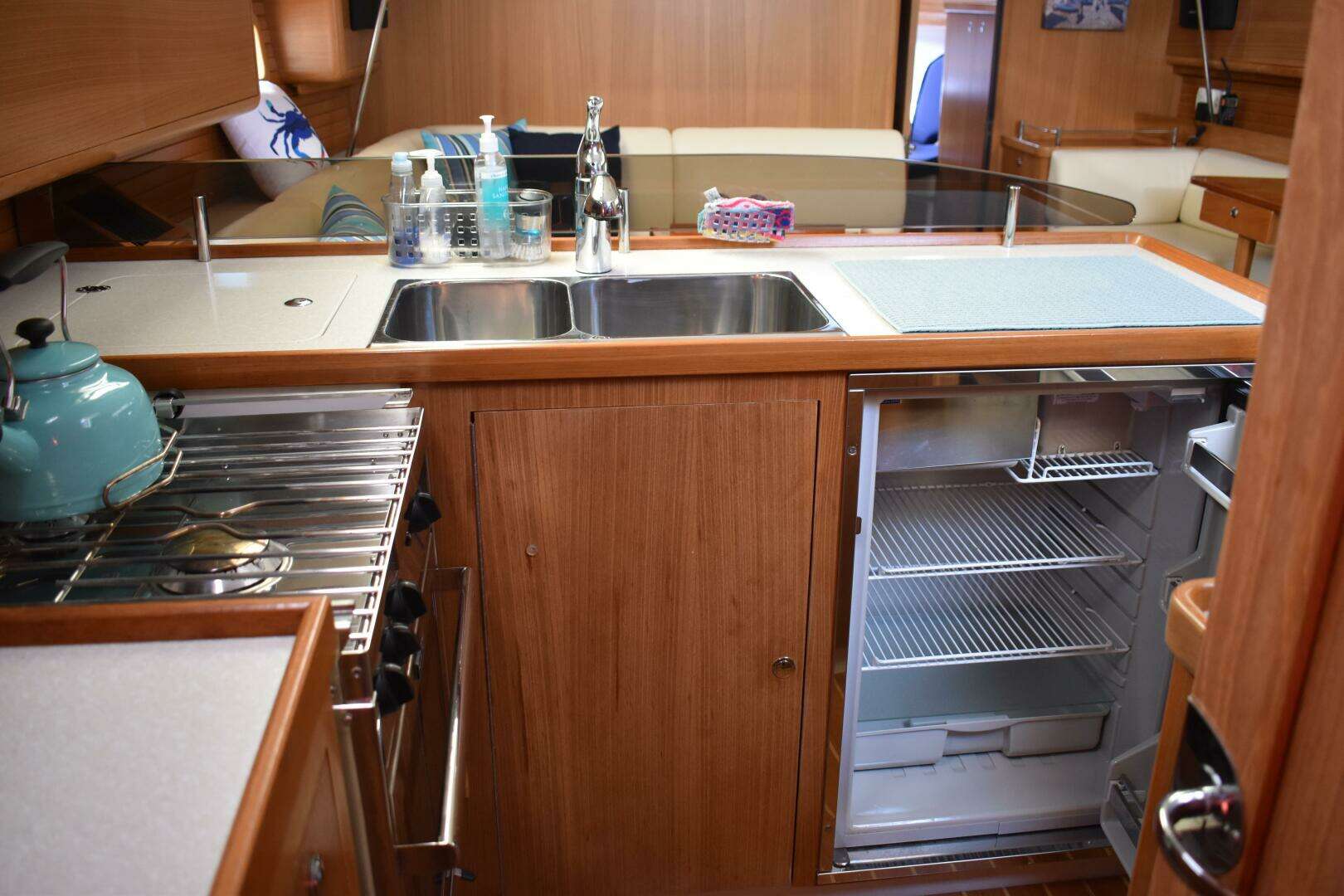

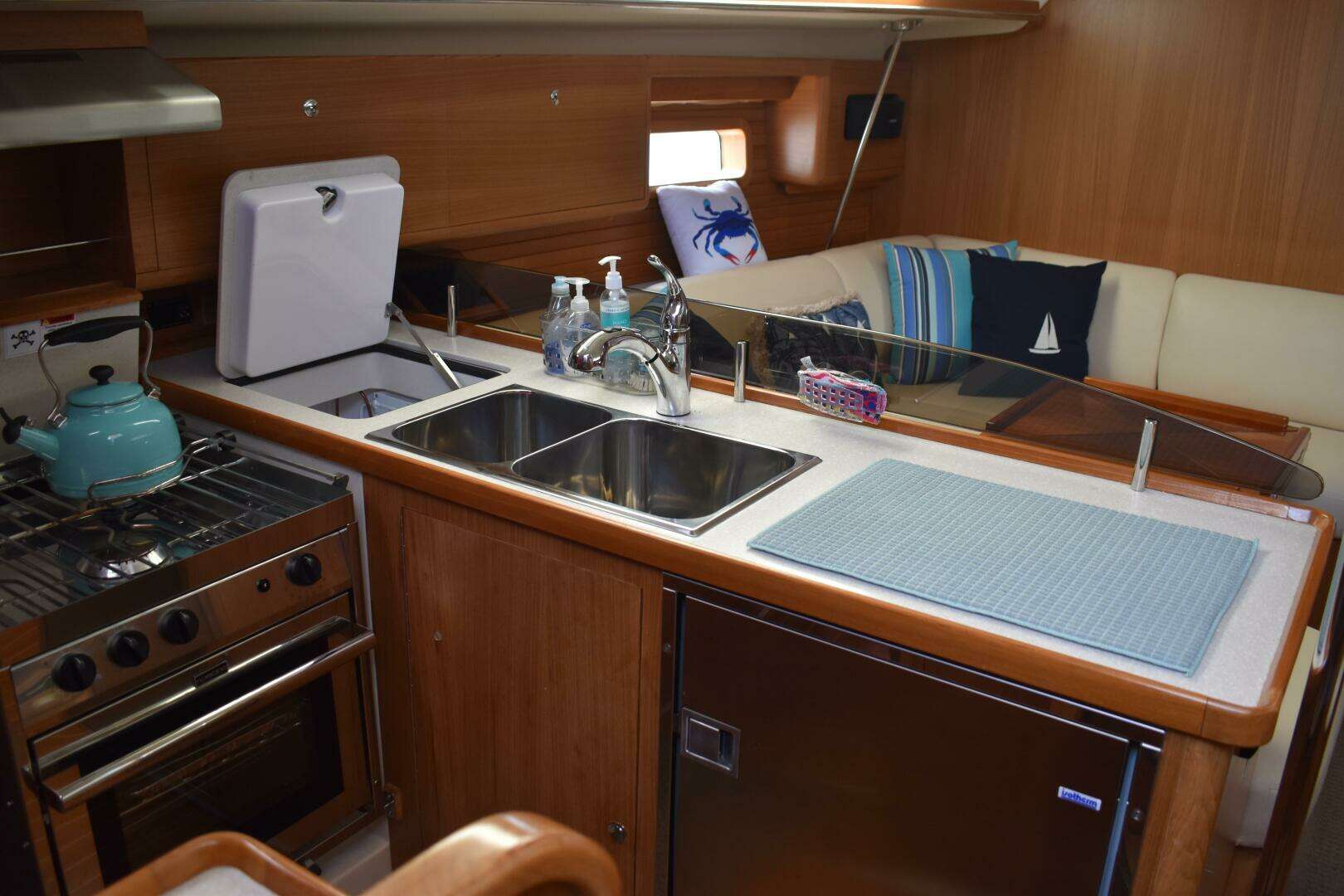

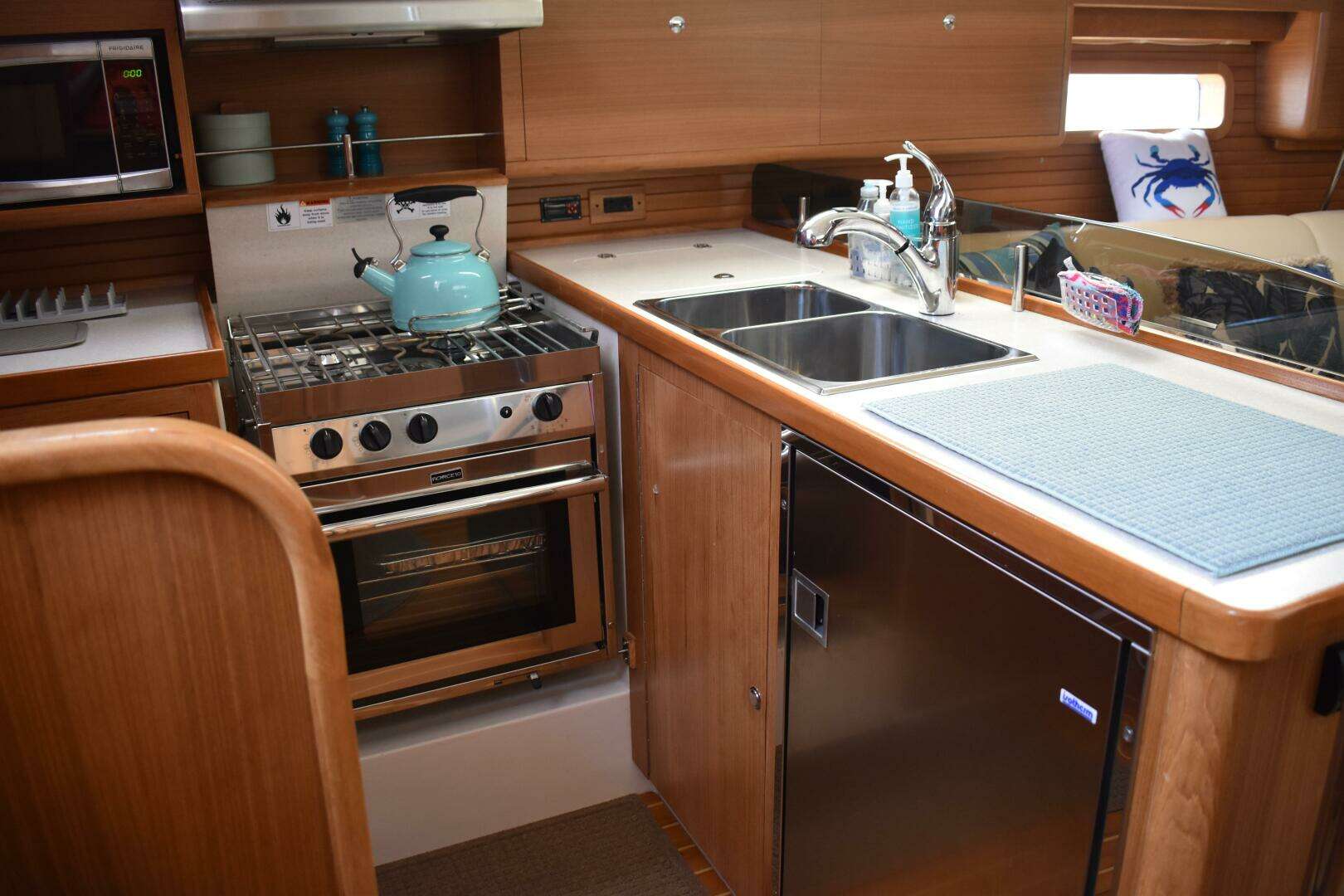

The 445 offers a large L-shaped galley conveniently located on the port side foot of the companionway steps.

• 12V front loading refrigerator
• 12V - 2nd refrigerator/freezer in insulated locker Top loading
• 110V Microwave oven
• Stainless steel gimballed 3 burner LPG stove with oven
• Range hood with light and recirculating air filter
• Double stainless steel sinks with hot and cold pressure water and sprayer
• Corian style countertops
• Plenty of counter space and storage space for long term cruising.
• Galley utensils convey with the vessel

Sails and Rigging

• In-mast Roller Furling Mainsail with Vertical battens
• Selden in Mast Mainsail furling system
• 2025 135% Furling genoa with UV cover
• Original 135% genoa - good as a back up
• 4 Lewmar winches -
• (1) Electric Lewmar #46 self-tailing main halyard and sheet winch on starboard cabintop
• )2) Lewmar #65 self-tailing primary (genoa) winches
• (1) Lewmar #46 self-tailing port cabintop winch
• Spare Jim/spinnaker halyard led aft
• Port and starboard adjustable genoa cars
• Carbon Fiber Whisker pole on mast track with deck chock

Electronics and Navigation

• Raymarine EV-400 Autopilot with T2 Linear Drive - Color Display
• Raymarine ES127 Color GPS and Chartplotter (12") on swivel pod at end of cockpit table (updated in 2024)
• Raymarine 24" HD Radar (4KW) on Mast Bracket
• Raymarine AIS650 Class B Transceiver
• Raymarine i70 Speed, Depth and wind transfducers
• (2) Raymarine i70 Displays at port helm
• (1) Raymarine i70 at starboard helm
• Raymarine 70 VHF w.cockpit 2nd station
• Sony 22" TV/DVD with dedicated inverter
• 2024 Large screen TV
• Majestic UFO-X TV antenna on masthead
• Cable TV inlet on transom

Mechanical and Engine Equipment

• 54HP Yanmar 4JH57CR Diesel with direct drive shaft
• 2 - 16BTU Air and heat system (2 zone - 32K BTU total)
• Dual Wheel Manual steering system and emergency tiller
• 2 Electric Prssure Freshwater flush maine toilets, deck pumpouts and holding tank system with saltwater flush option
• Electric Anchor Windlass with up and down switches
• Saltwater Washdown in anchor locker
• Stainless steel Extended Bow rollers for 2 anchors
• 3 blade Cruising Propeller on Stainless steel shaft
• Custom Pedestal Guards at each helm

Hull ad Deck

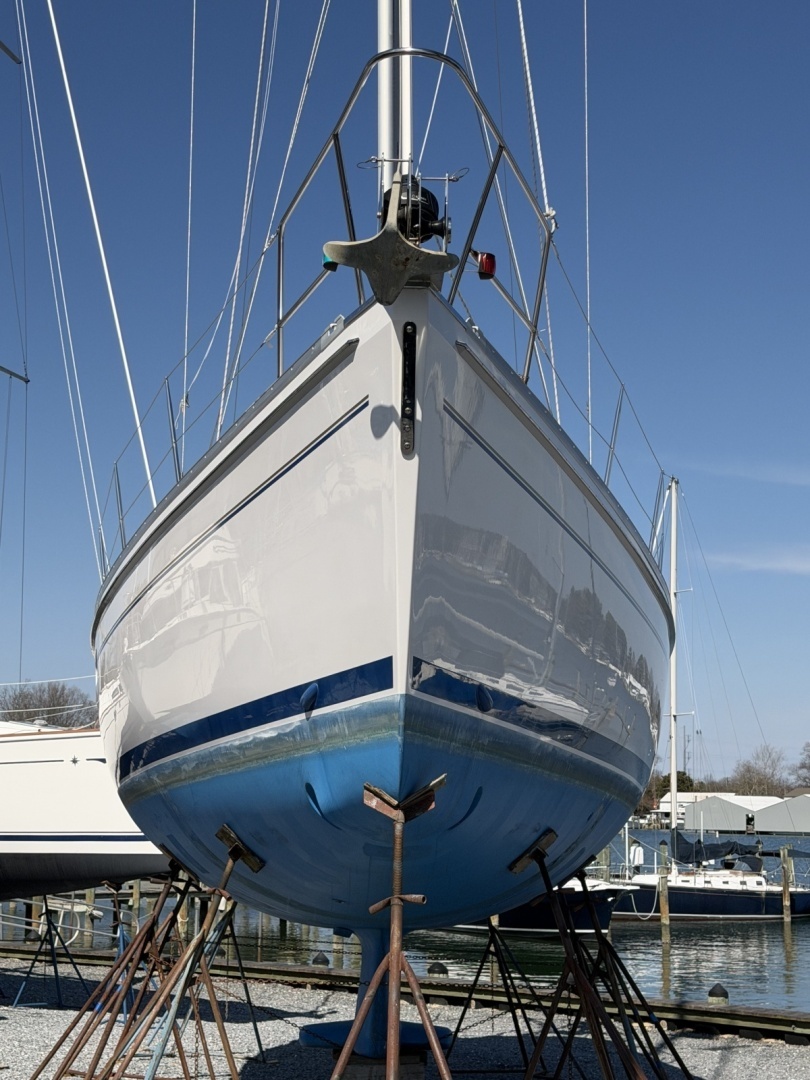

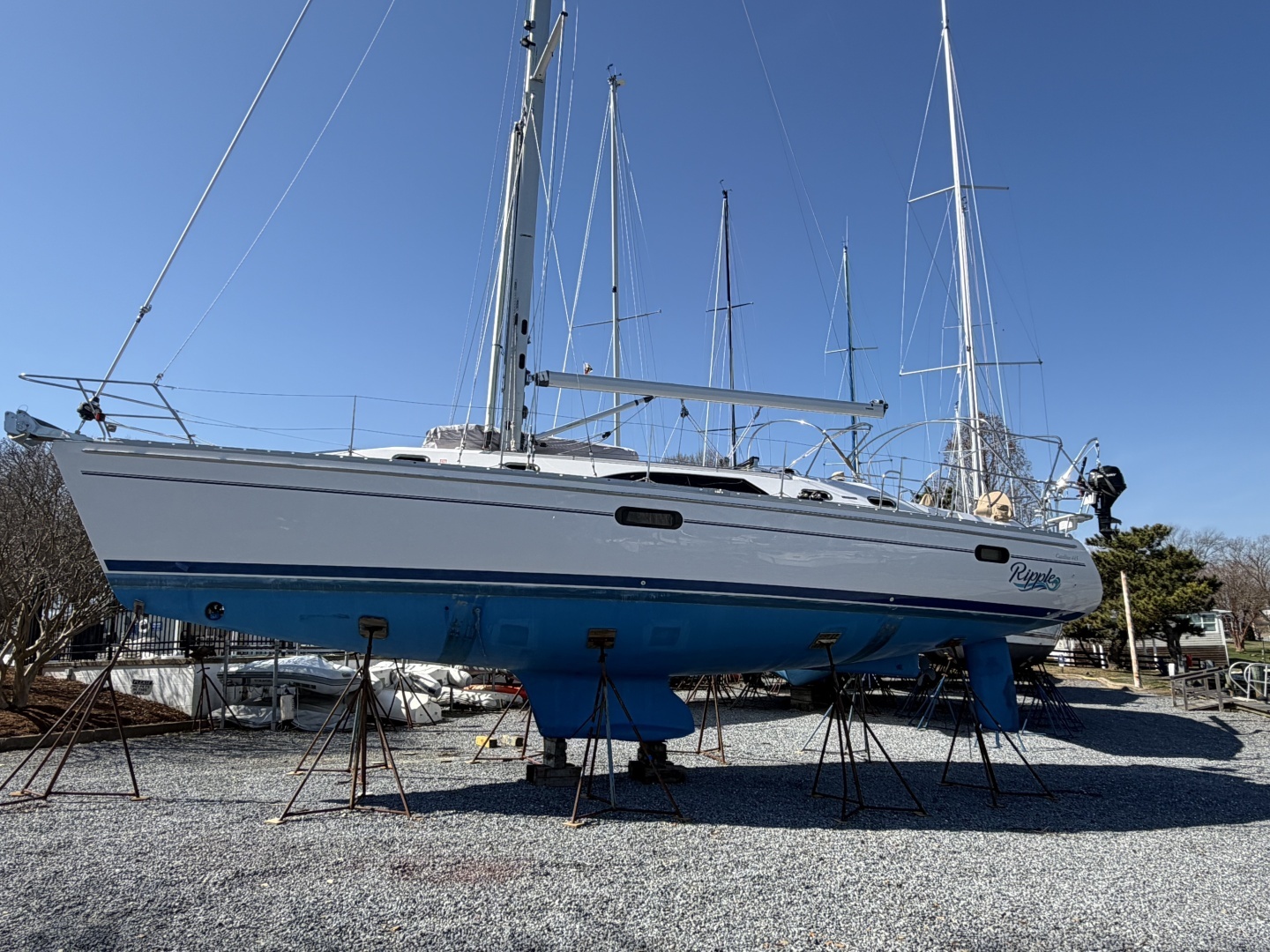

Based on a new hull design with a long waterline and moderate beam and freeboard, the 445 has excellent performance potential. The hull form is optimized to proved the gentle, predictable motion underway, which is appreciated in other Catalina models. The deck is strikingly handsome with a low profile cabin structure.

• Bruce Style Anchor with 120' chain and 100' rode
• 100' Additional chain (not hooked up)
• Docklines and fenders
• Lifesling II
• Rigid Rubrail with stainless steel metal rub strake

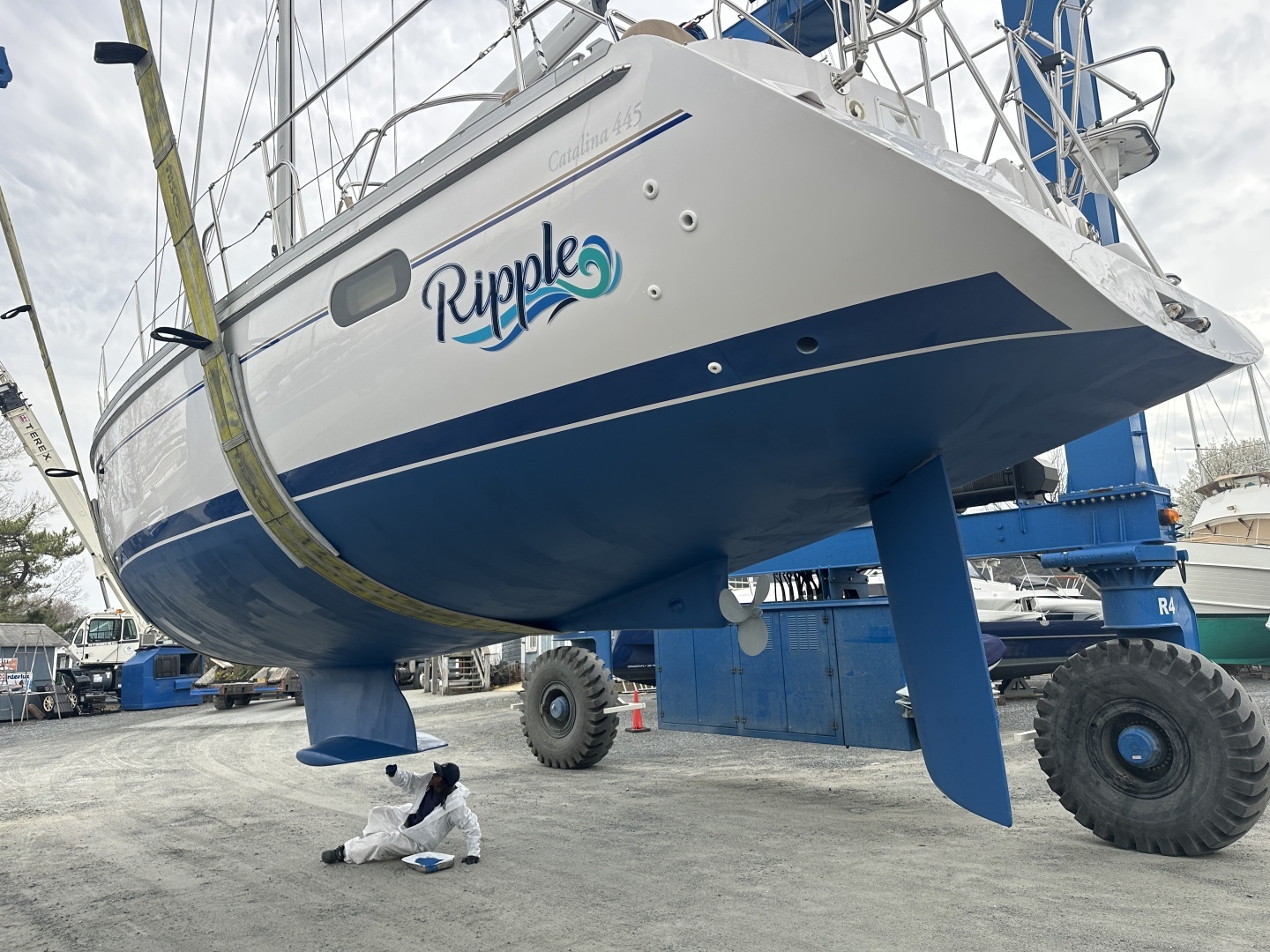

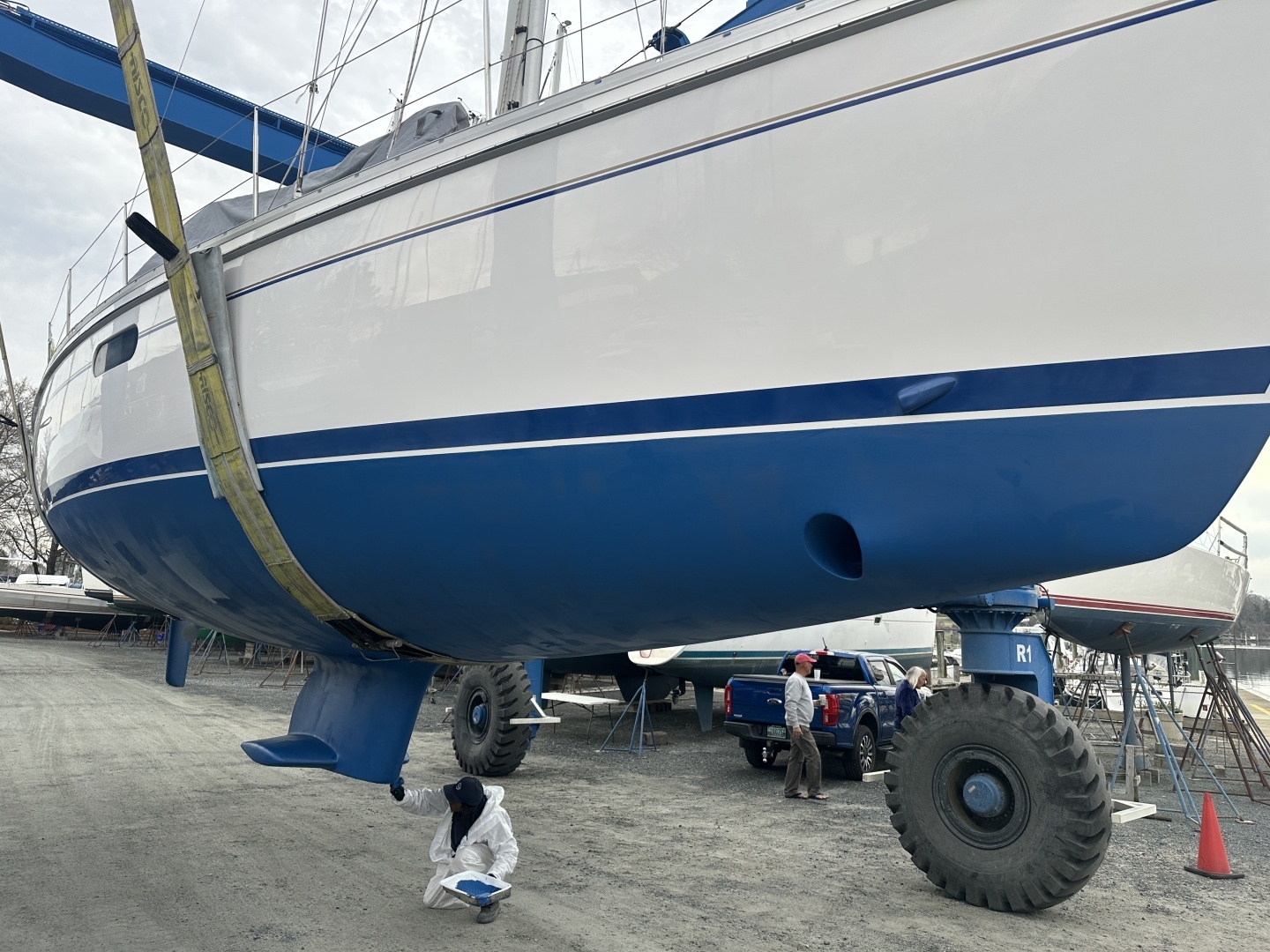

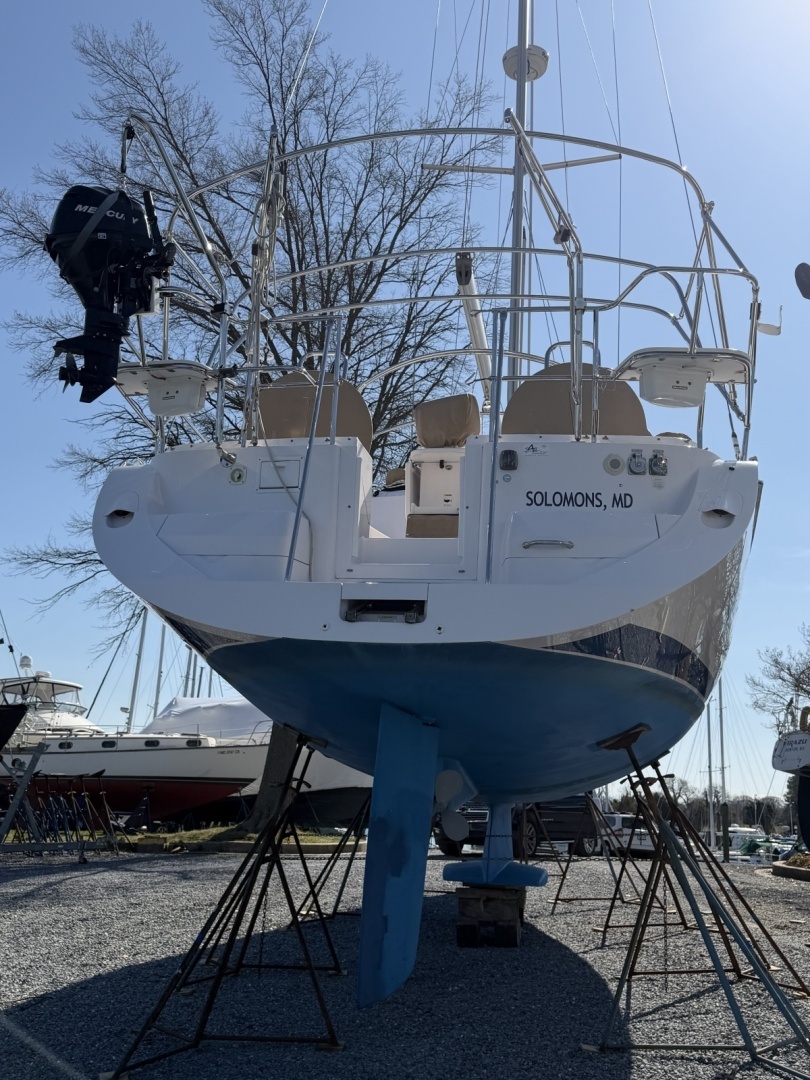

• Wing Keel
• White hull with blue stripes
• Twin helm stations
• Roomy cockpit with tall, secure coamings
• Fiberglass cockpit table with insulated storage bin and flip up leaves that seats 4 to 6.
• the deck in finished with traditional Catalina diamond-patterned molded non-skid
• Extruded aluminum toe rail
• LED anchor and rinning lights
• LED interior lights
• Outland Brand Hatch covers (exterior)

Electrical System

• (3) *D Lifeline AGM batteries with selector switch
• Dual 30A/110V shore power inlets on transom
• Single 50A/110V shore power inlet in anchor locker with transfer switch at Nav
• Galvanic islotators
• 12V Ships service with lighted panel and digital meter
• 110VAC Panel and digital meter
• (2) 50' shore power cords
• 50A to Dual 30A splitter

Cockpit Canvas

• Dodger with window covers, and removable sides
• Bimini top with trim windows and boot
• Solid Connector
• Full Plastic cockpit enclosure
• (2) Wheel and pod covers
• Cockpit cushions

Additional Equipment

• Dinghy Davits
• 2023 West Marine RIB 10' dinghy
• 9.9 Mercury outboard 2016
• Outboard motor crane and storage pad
• Pressurized freshwater flush for both toilets with seawater option
• Leather wrapped steering wheels
• City water hookup
• Basic Coast Guard Safety gear
• Bottom Epoxy Barrier Coated when new

Construction

• One-Piece Fiberglass Hull with End Grain Balsa Core Sandwich Construction Above the Waterline, and a Vinylester Integral Barrier to Resist Osmosis Blistering
•

• One-Piece Fiberglass Deck with End Grain Balsa Core and Molded-In Diamond Pattern Non-Skid Surfaces Finished in Two-Tone White and Grey
•

• One-Piece Fiberglass Deck Liner Finished in NonGlare Texture
•

• One-Piece Molded Fiberglass Structural Grid
•

• One-Piece Molded Fiberglass Hull Liner with Satin Finish
•

• Lead Fin Keel with 316 Stainless Steel Attaching Bolts

Riggin information from the builder

•

• Furling Mainsail with Vertical Battens
•

• 135% Genoa, with U.V, Protection, White
•

• Complete Standing and Running Rigging, 316 SS
•

• Internal Pre-Stretched Dacron Halyards
•

• PVC Wiring Conduit with Messenger in Mast
•

• Selden In-Mast Mainsail Furling System
•

• Selden Anodized Double Spreader Mast and Boom

Plumbing System from the Builder

• Pressure Water Distribution System with Filter at Pump and Tank Selection Valves for ( 3 ) Tanks
•

• 11 Gallon Hot Water Heater with Engine Heat Exchanger and 110V Electric Heating Element
•

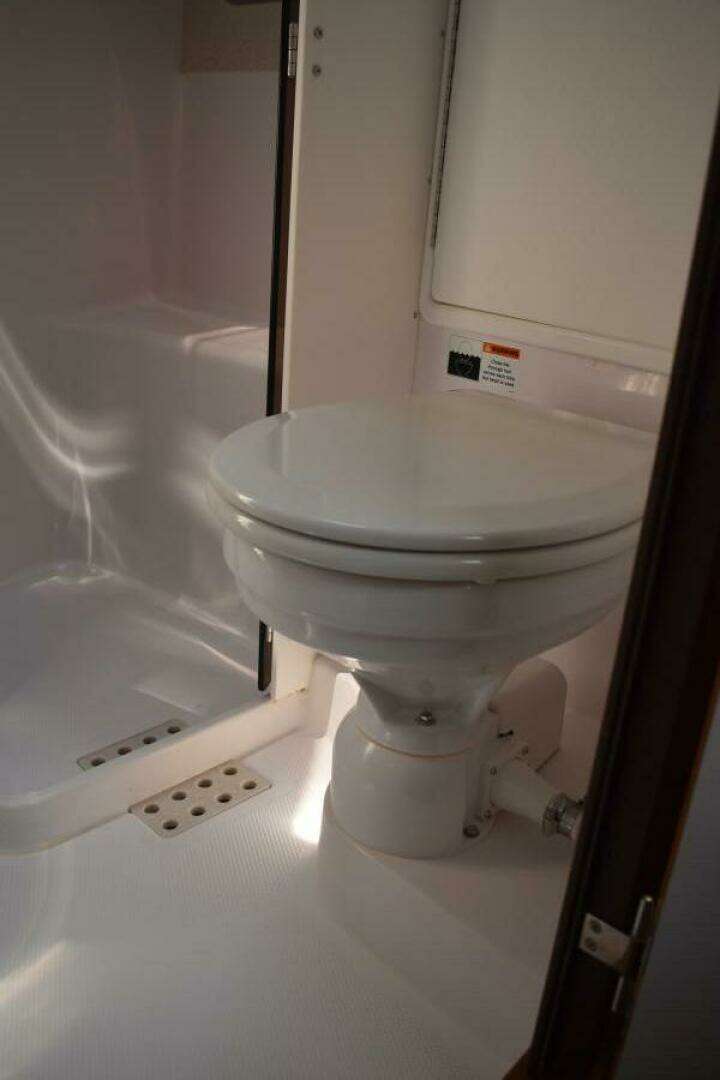

• ( 2 ) Electric Macerating Heads with Holding Tanks and Deck and Thru-Hull Outlets
•

• Electric Bilge Pump with Float Switch
•

• Manual Bilge Pump and Bilge High Water Alarm
•

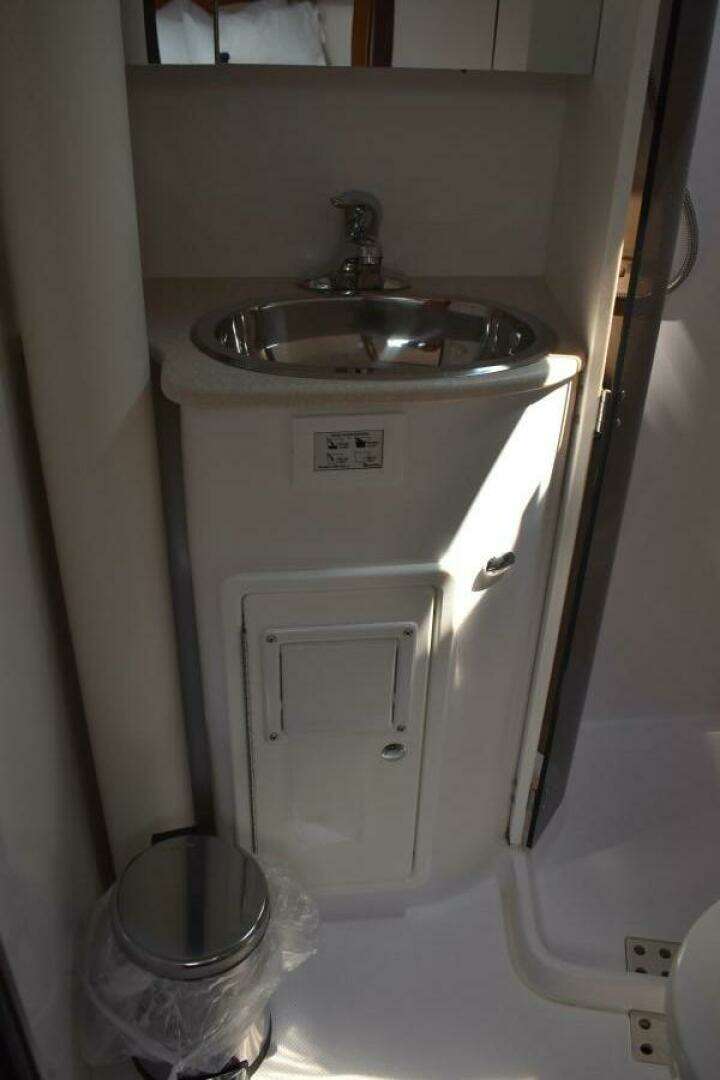

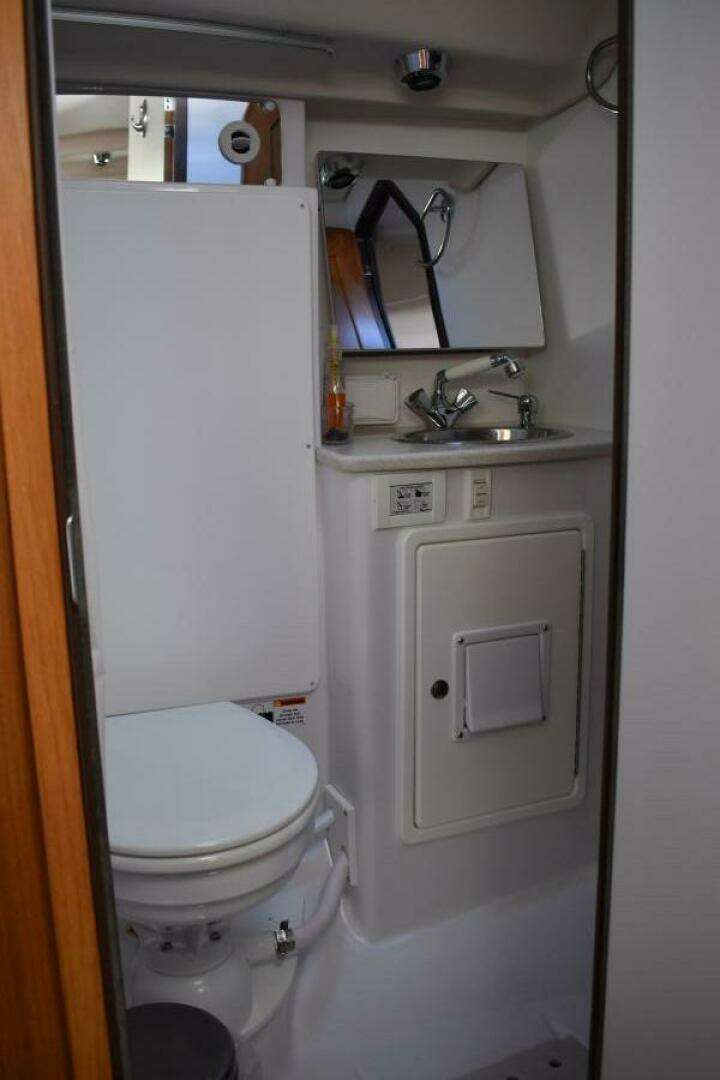

• Head Compartment Forward with Vanity Counter, Medicine Chest and Shower Compartment Stall
•

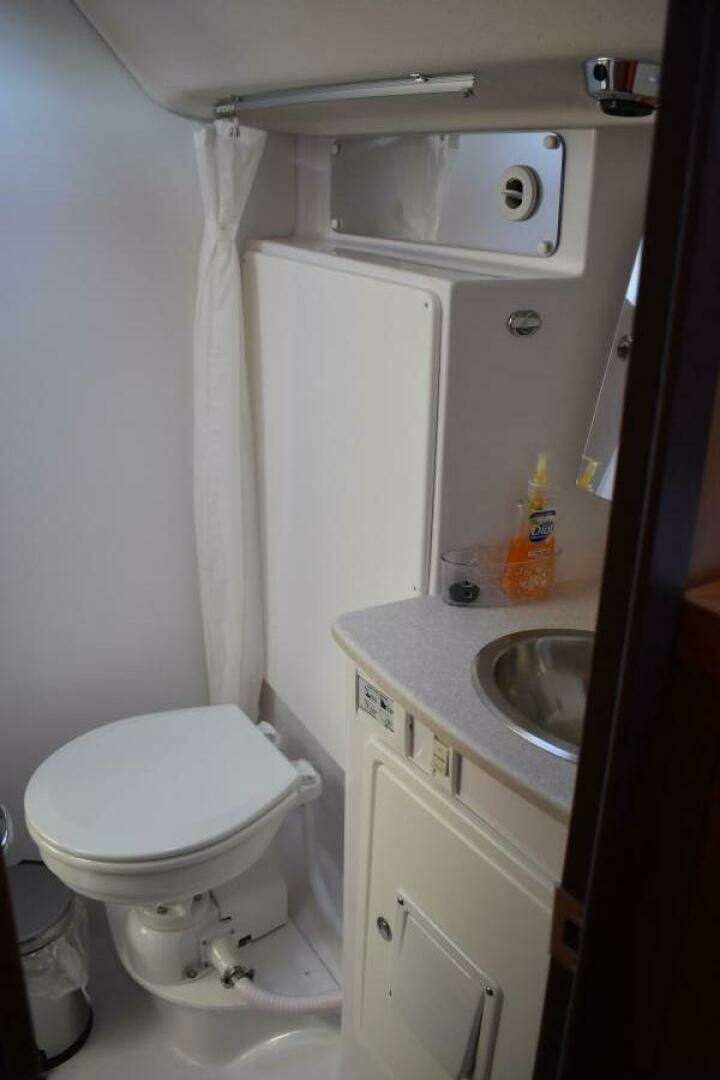

• Head Aft with Vanity, Sink, Medicine Chest, and Shower

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
