Construction

Vacuum infused hull

▫ Polyester and high quality anti-osmotic resin

▫ Low density Balsa cored sandwich hull

▫ Grey gelcoat hull [Ral 7004]

▫ Foam cored infujected sandwich deck

▫ PET foam cored injected sandwich roof

▫ PET foam cored infused bulkheads with UD reinforcement

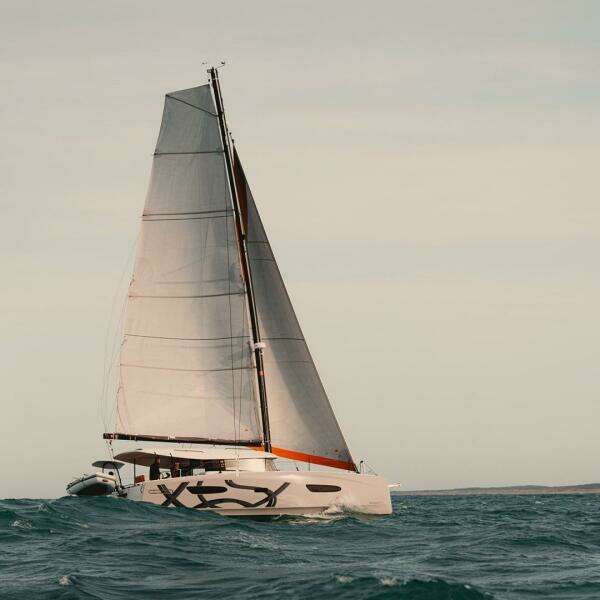

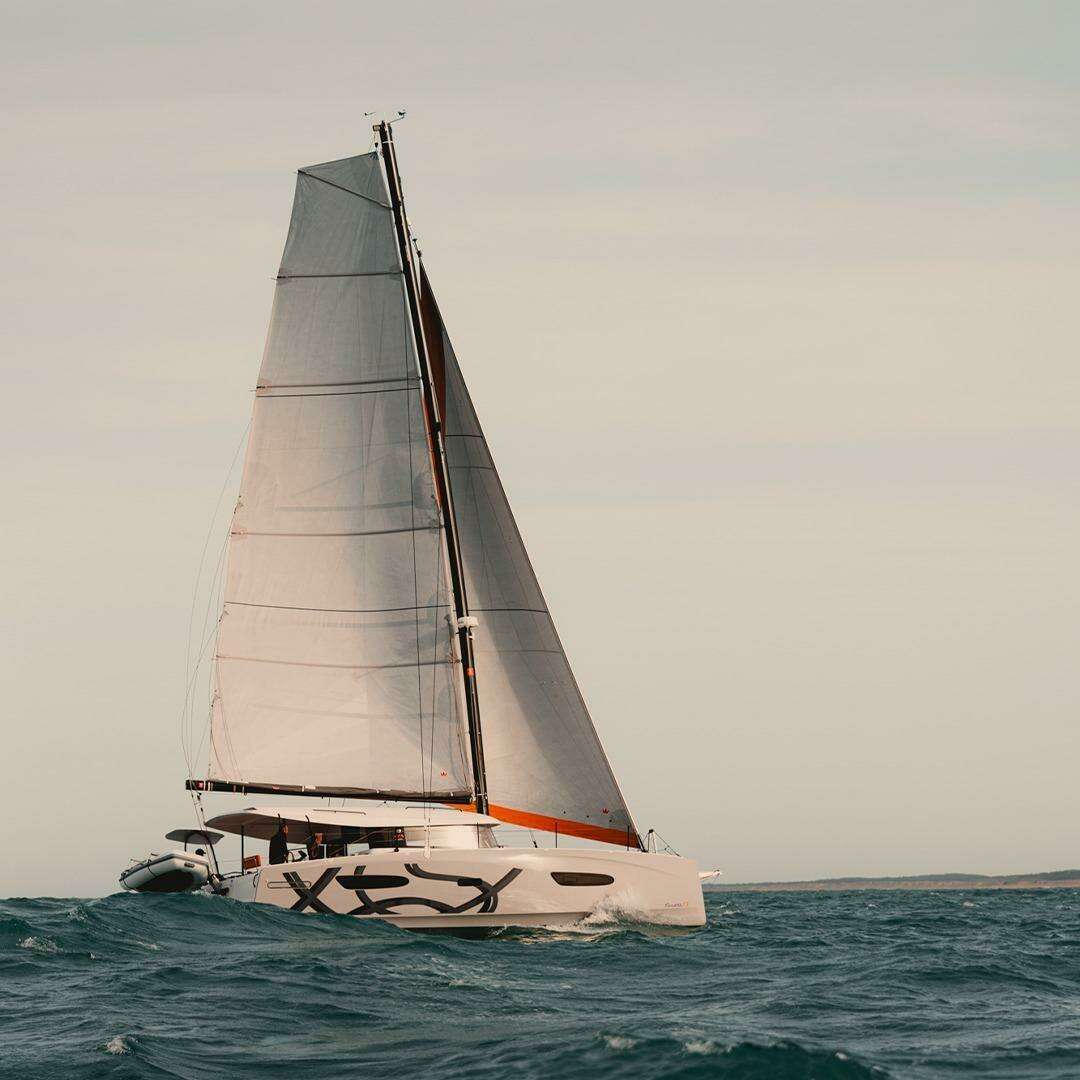

Sails and Rigging

Standard Sail Package

1 square-top full-batten mainsail in Dacron® [color: white], horizontal cut

▫ 1 overlapping genoa in Dacron® [color: white], horizontal cut on furler, with

orange UV cover

Rigging Package

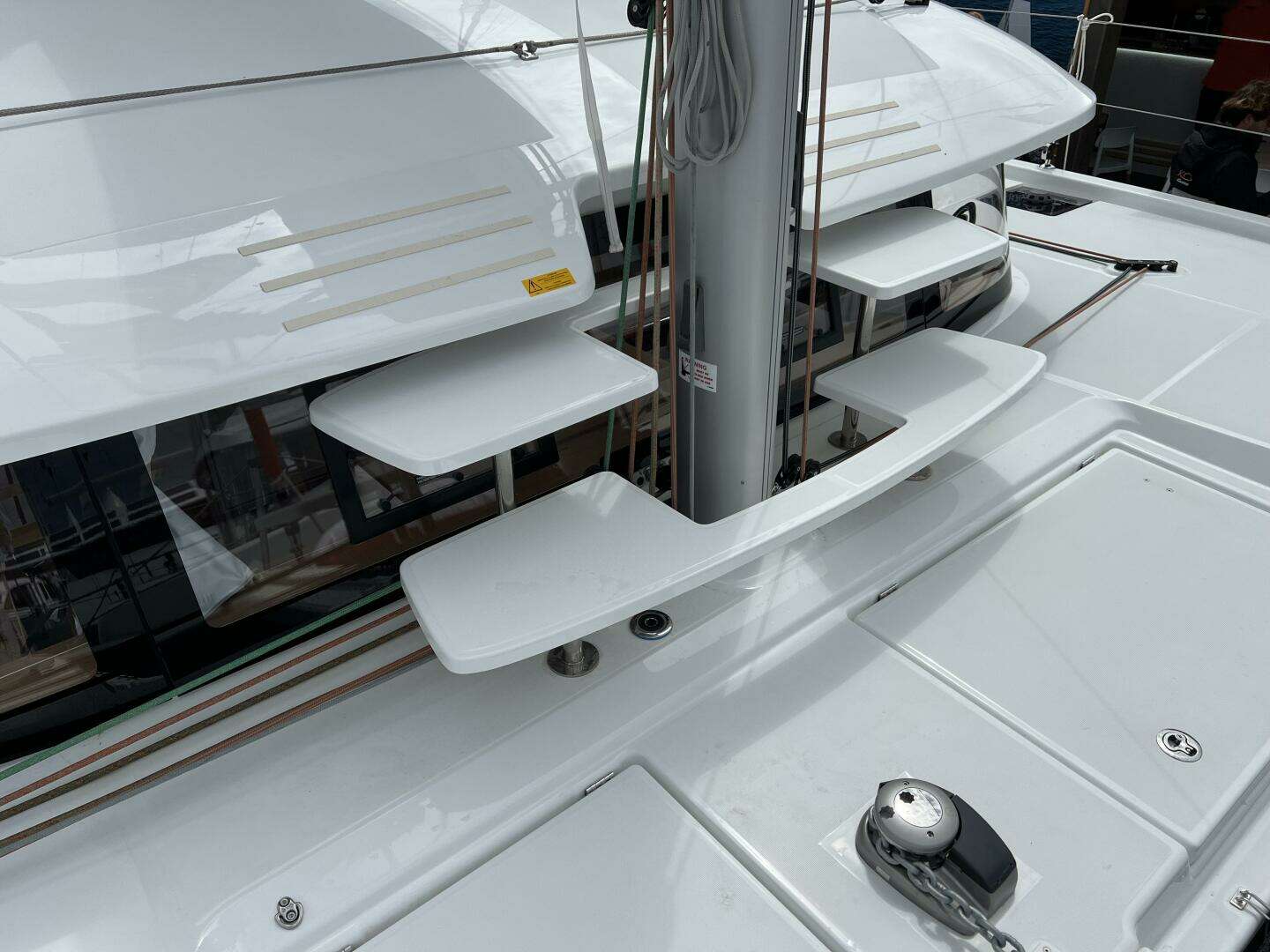

Deck-stepped anodized aluminium mast

▫ 2 spreaders sets

▫ Deck light and steaming light on mast

▫ Anodized aluminium boom

▫ Anodized aluminium crossbeam with fixing point for the forestay

▫ Coated upper and lower shrouds

▫ Forestay with genoa furler

▫ Adjustable lazy-jacks

▫ 2 shroud chainplates and 1 forestay chainplate on transversal beam

▫ Double braided 2:1 mainsail halyard - Dyneema®/Polypropylene core

[polyester cover]

▫ Double braided genoa halyard - Dyneema®/Polypropylene core [polyester

cover]

▫ Mainsail sheet, pre-stretched - polyester

▫ 2 mainsail traveller lines, pre-stretched - polyester

▫ 3 reef lines,– Pentex®/Polyester

▫ 2 genoa sheets, pre-stretched – polyester

▫ 2 genoa ring lines - Dyneema®

▫ 1 genoa furler line, pre-stretched - polyester

▫ 1 boom uphaul, pre-stretched – polyester

Deck Hardware

▫ 2 manual winches size 46.2 STA [starboard]

▫ Footblocks & clutches for halyards, reefing lines and sheets

▫ Main sail clew line lashing

▫ 1 mainsail track with ball-bearing trimmable traveler, leading blocks and clutches

▫ Blocks & clutches for genoa sheets

▫ 2 genoa sheet trimmable rings, with 3:1 purchase, leading blocks and clutch

▫ 1 block, fairleads & clutch on deck for furling genoa maneuver [starboard]

▫ Composite bowsprit [white] with integrated chain run, bow roller and mooring cleat

▫ 1000W electrical windlass [10mm chain]

▫ 8 mooring cleats

▫ 2 flush deck hatches T60 to access bow lockers

▫ 6 flush deck hatches T10 with vent

▫ 4 flush deck hatches T44 with vent

▫ Sliding door - 2 leaves

▫ 2 escape hatches under the stairs

▫ 1 GRP deck hatch for access to gas locker under cockpit seat

▫ 10 stainless steel stanchions - 600mm

▫ Double stainless steel lifelines

▫ 4 Stainless steel handrails on coach roof

▫ Stainless steel handrails on transoms

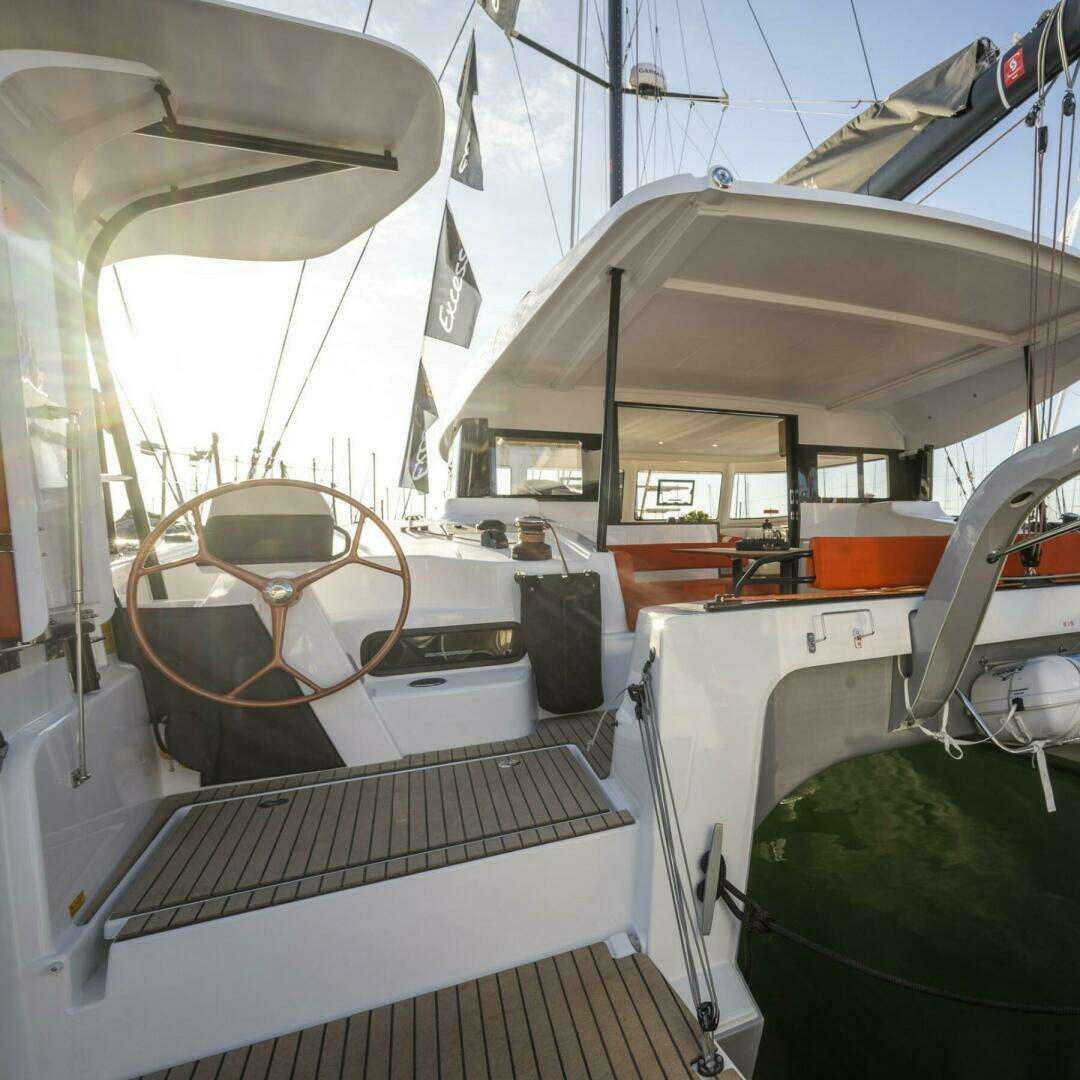

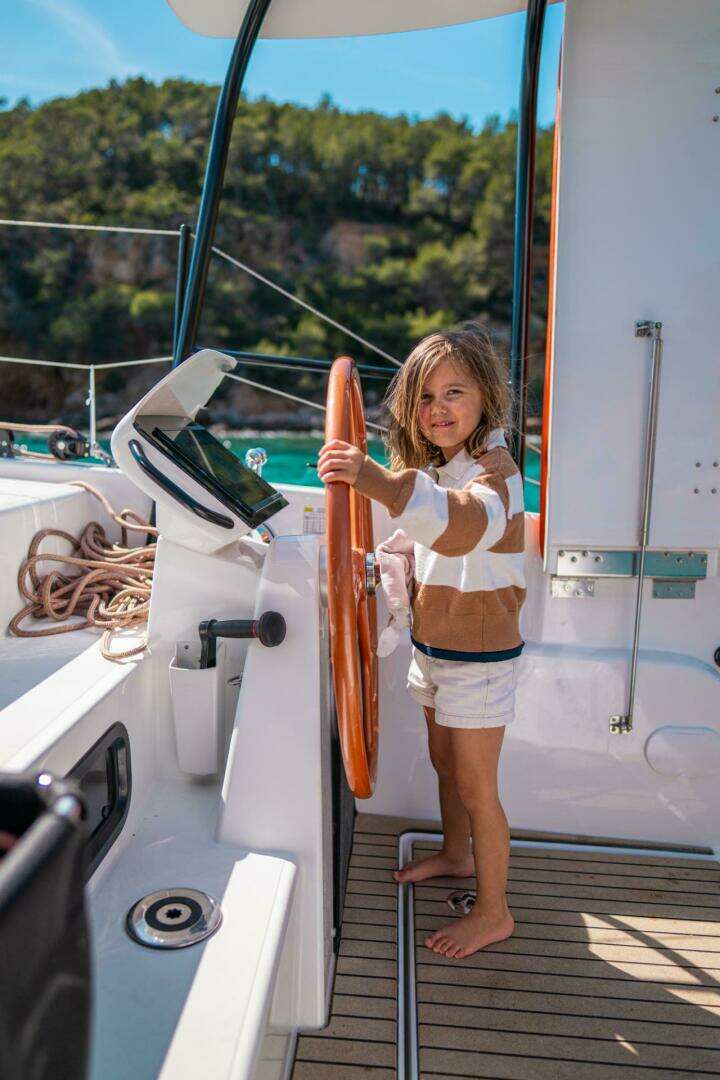

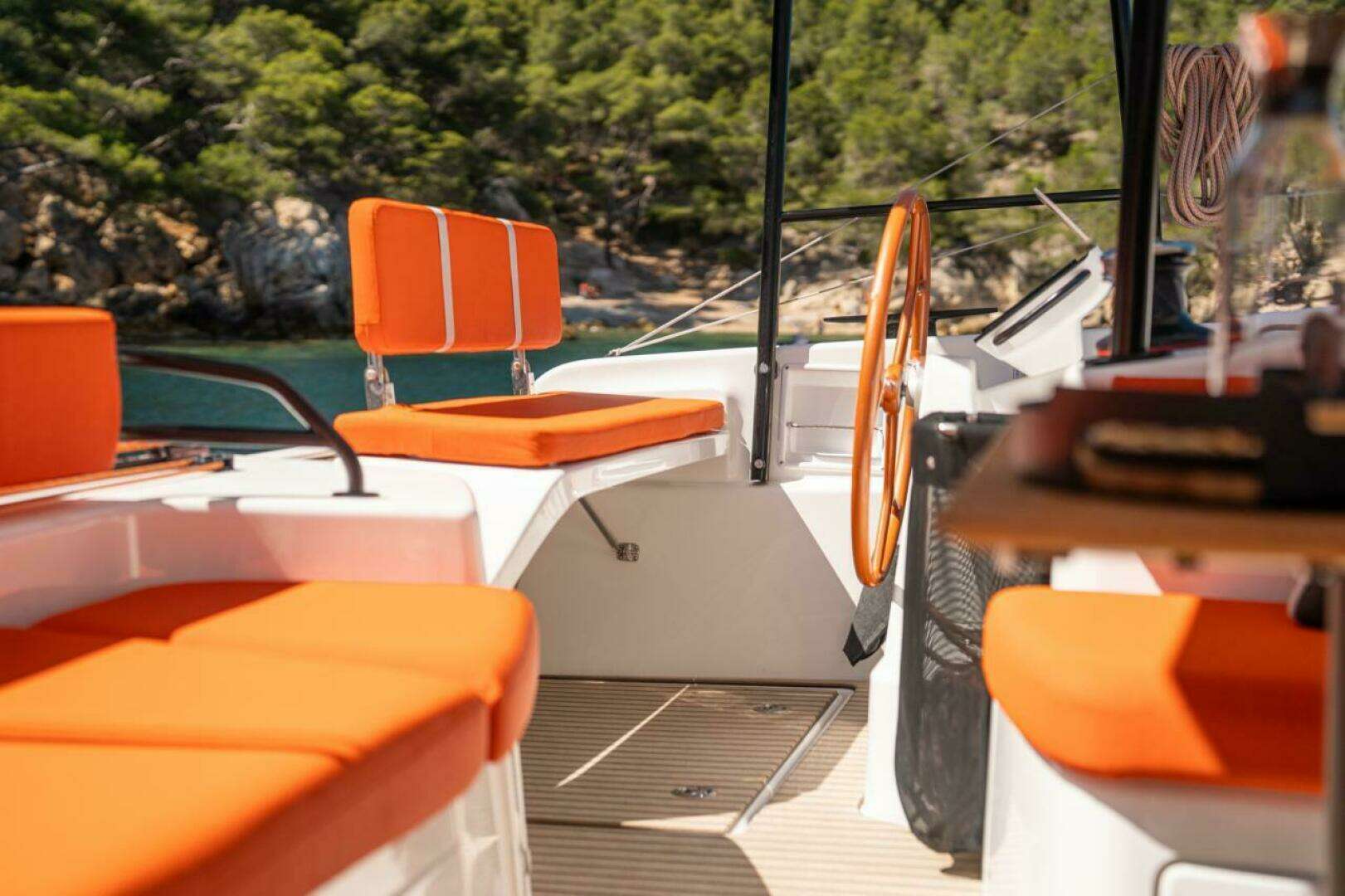

Helm Stations

▫ Main helm station on starboard:

- Leather covered stainless steel steering wheel with brake

[800mm]

- 2 engine panels

- Mechanical engine throttles

- Lines storage

▫ Secondary helm station on port:

- Leather covered stainless steel steering wheel [800mm]

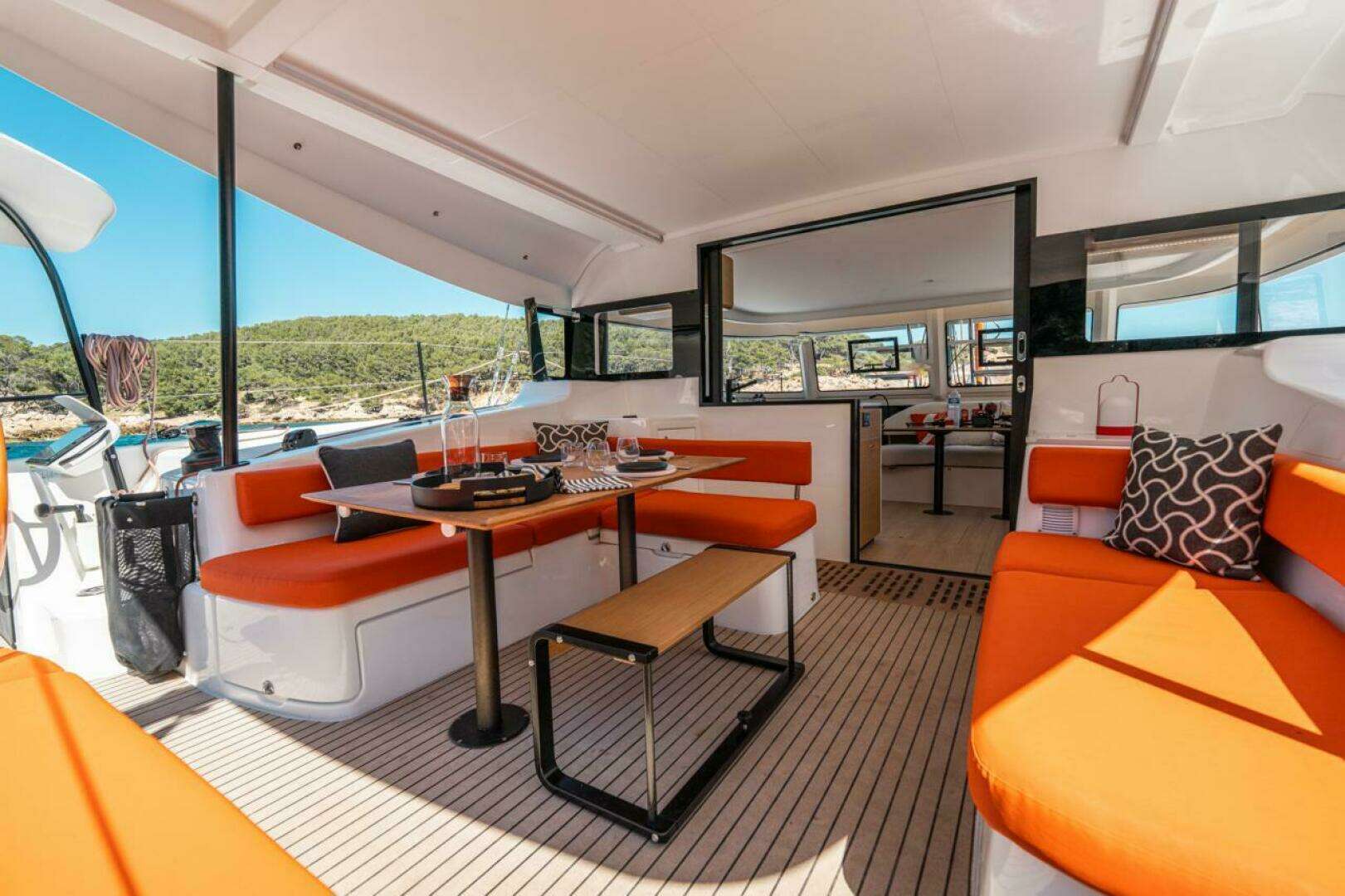

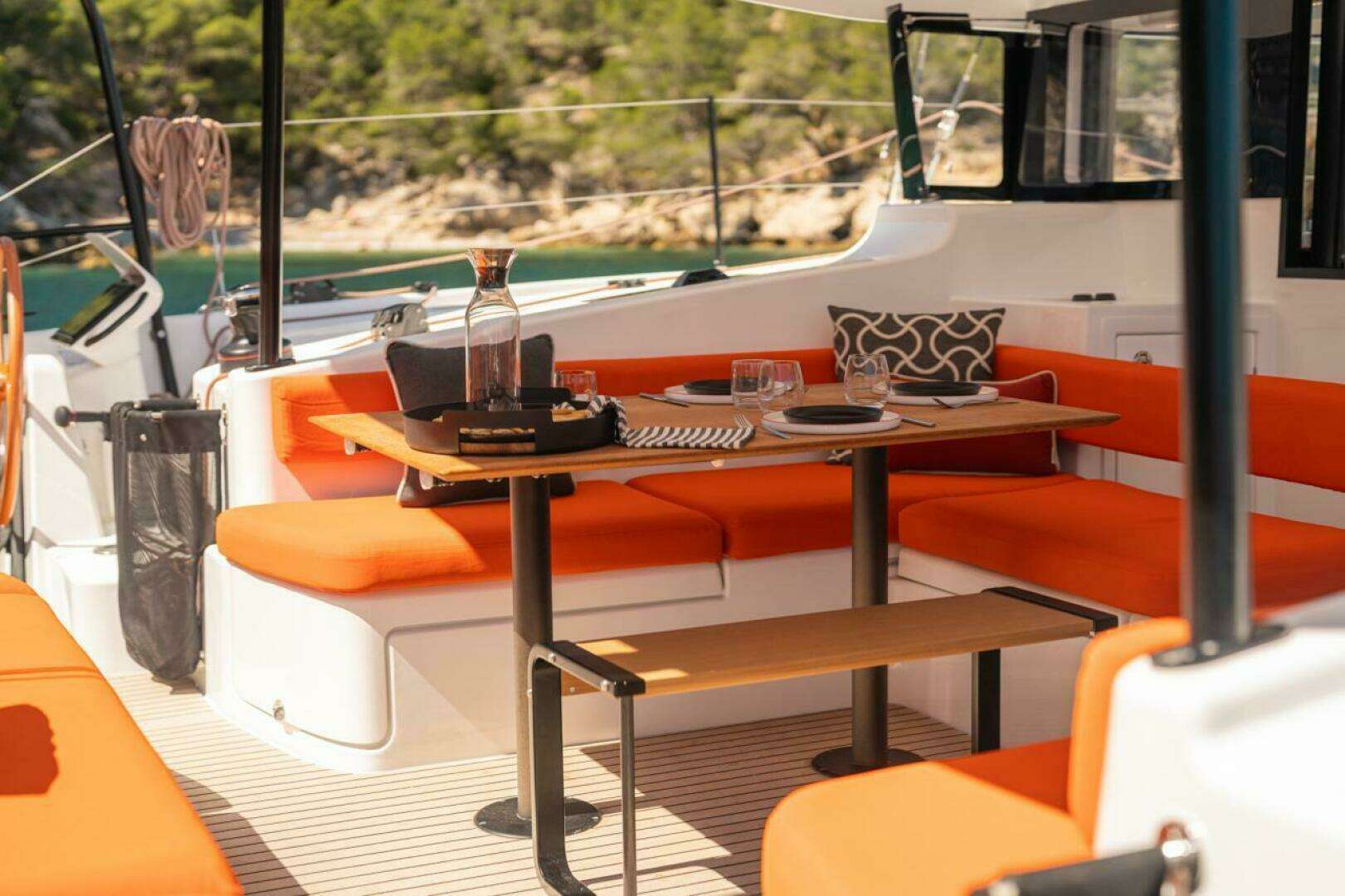

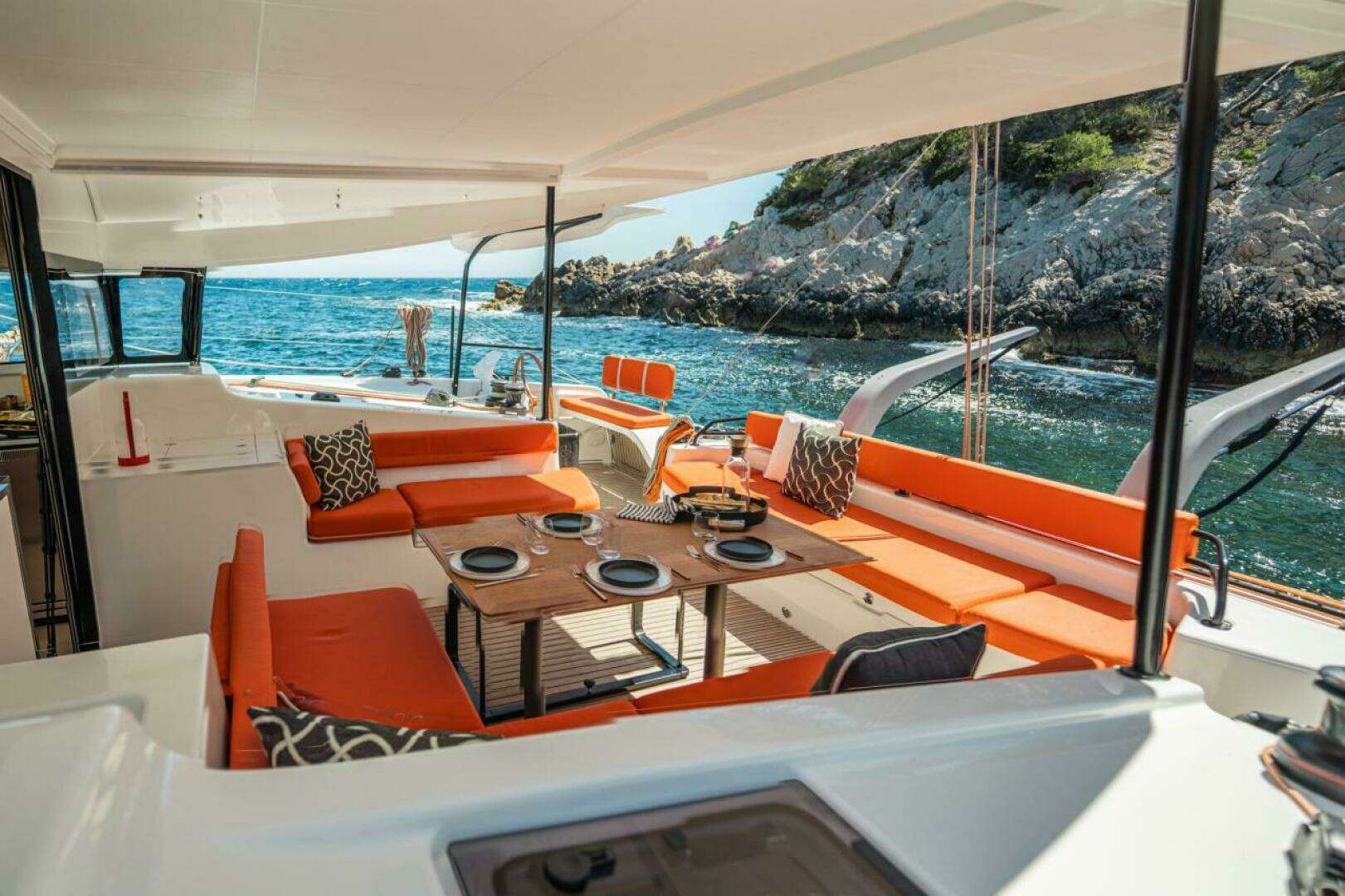

Aft Cockpit

▫ L-shaped bench on port, with drying storage locker

▫ Exterior access to galley, with en-suite storage

▫ GRP cockpit table with aluminium legs

▫ Daybed on starboard with storage locker

▫ Seat on aft beam with long storage locker

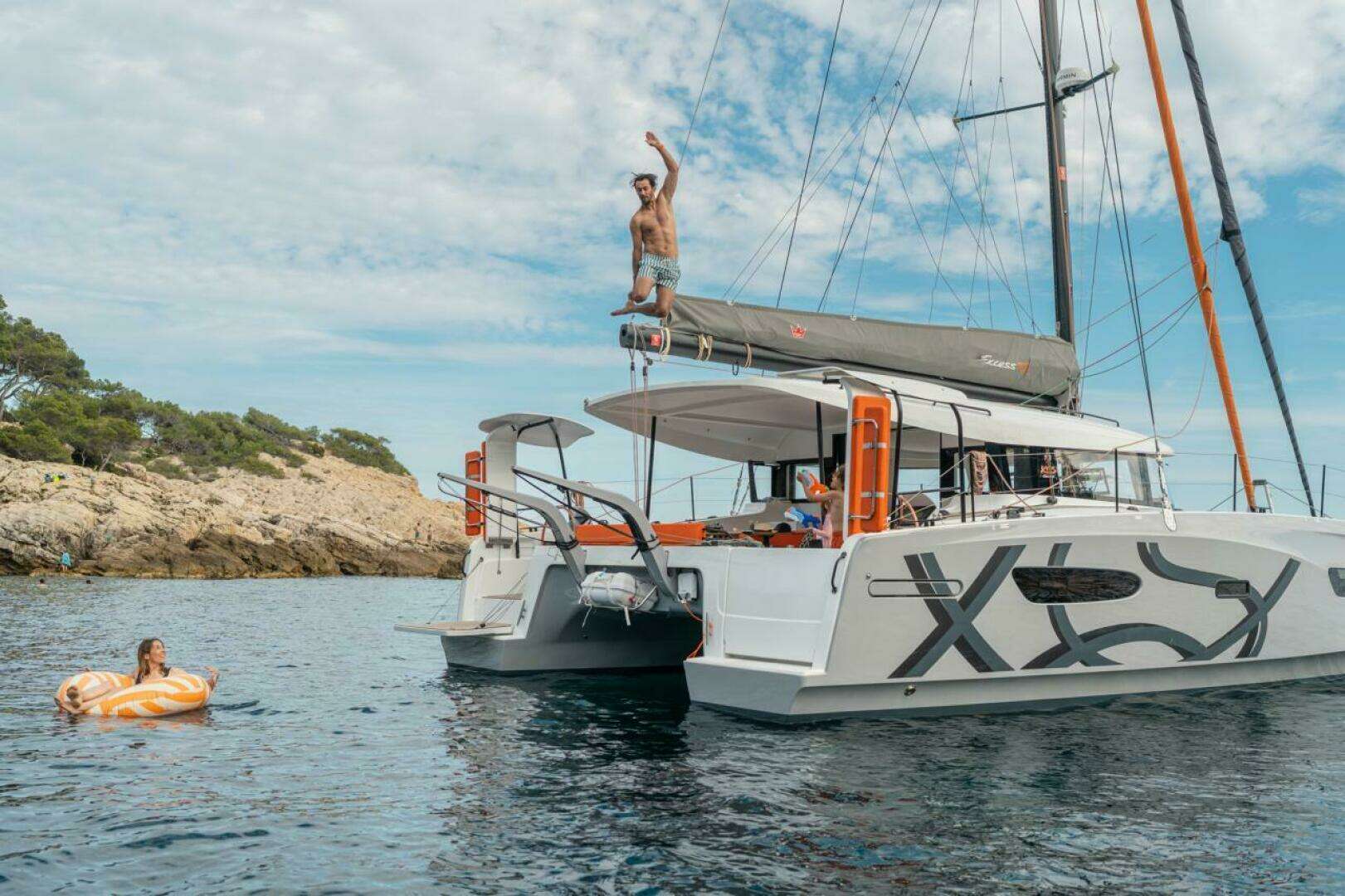

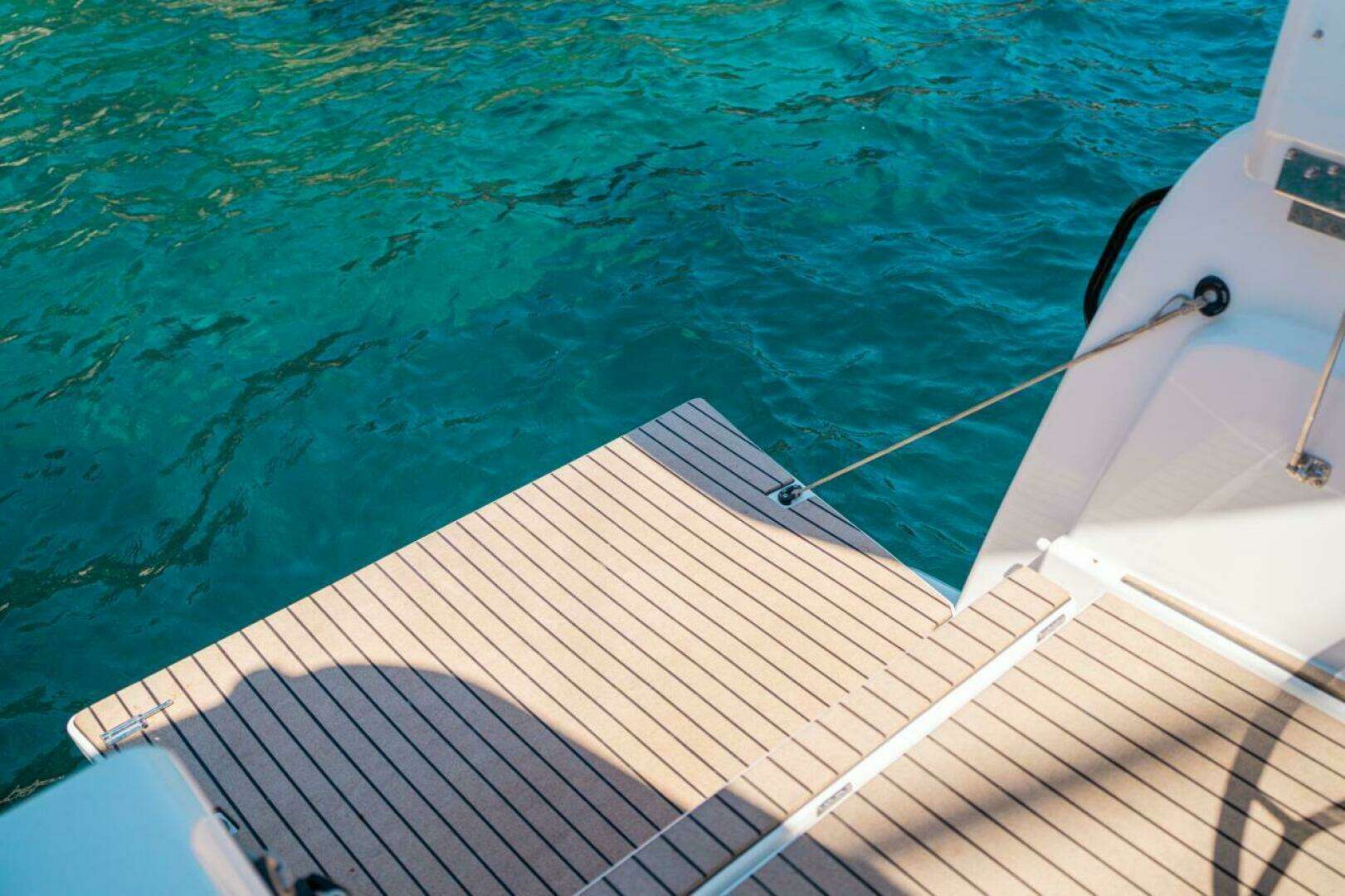

Transoms

▫ Stainless steel swim ladder [starboard]

▫ Hot/cold fresh water deck shower [starboard]

▫ 2 GRP hatches for engine compartment access

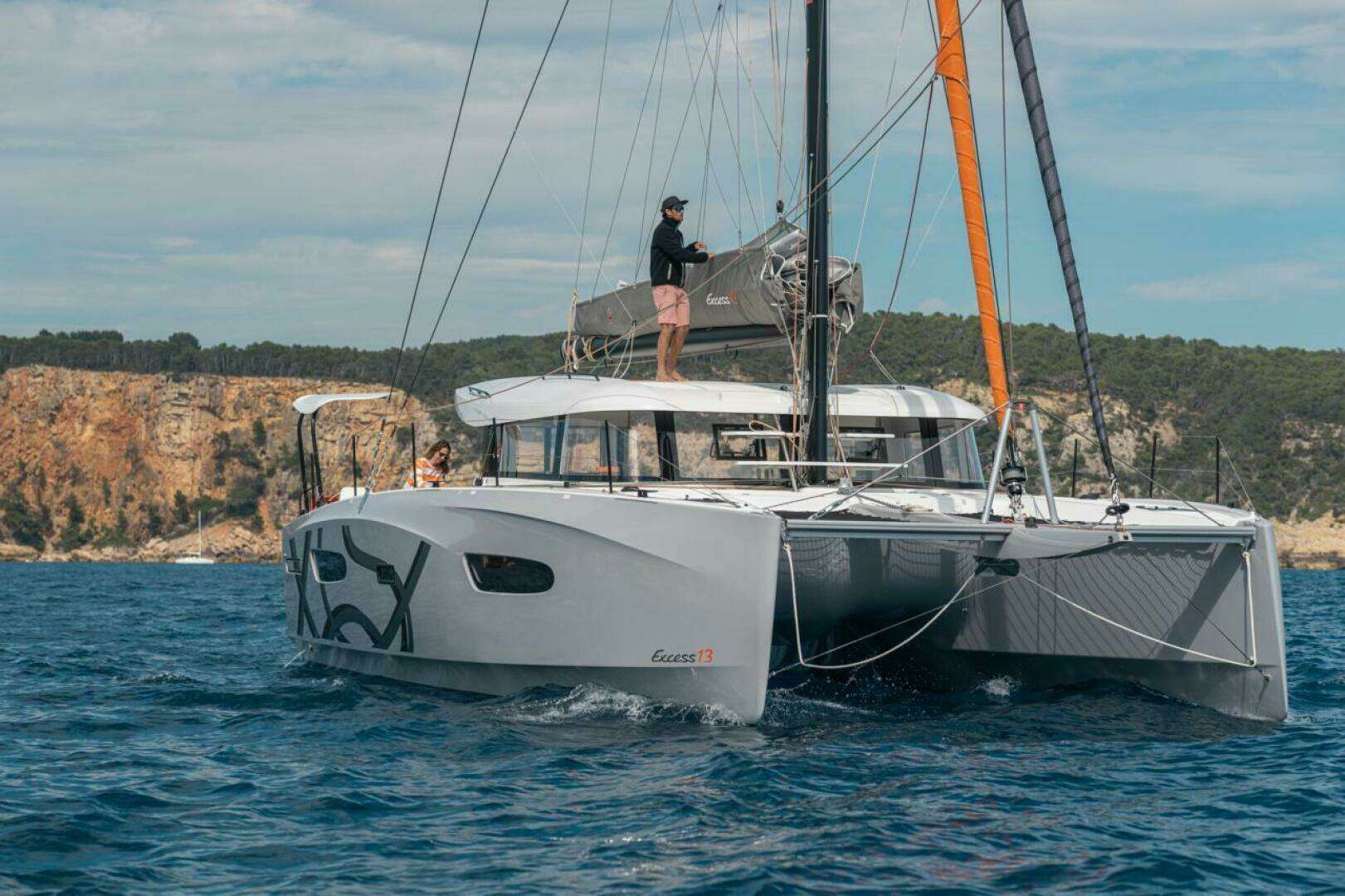

Forward Deck

▫ Trampoline with black nylon thread

▫ Large deck areas for Sun pads

▫ 2 large GRP hatches for storage and technical access

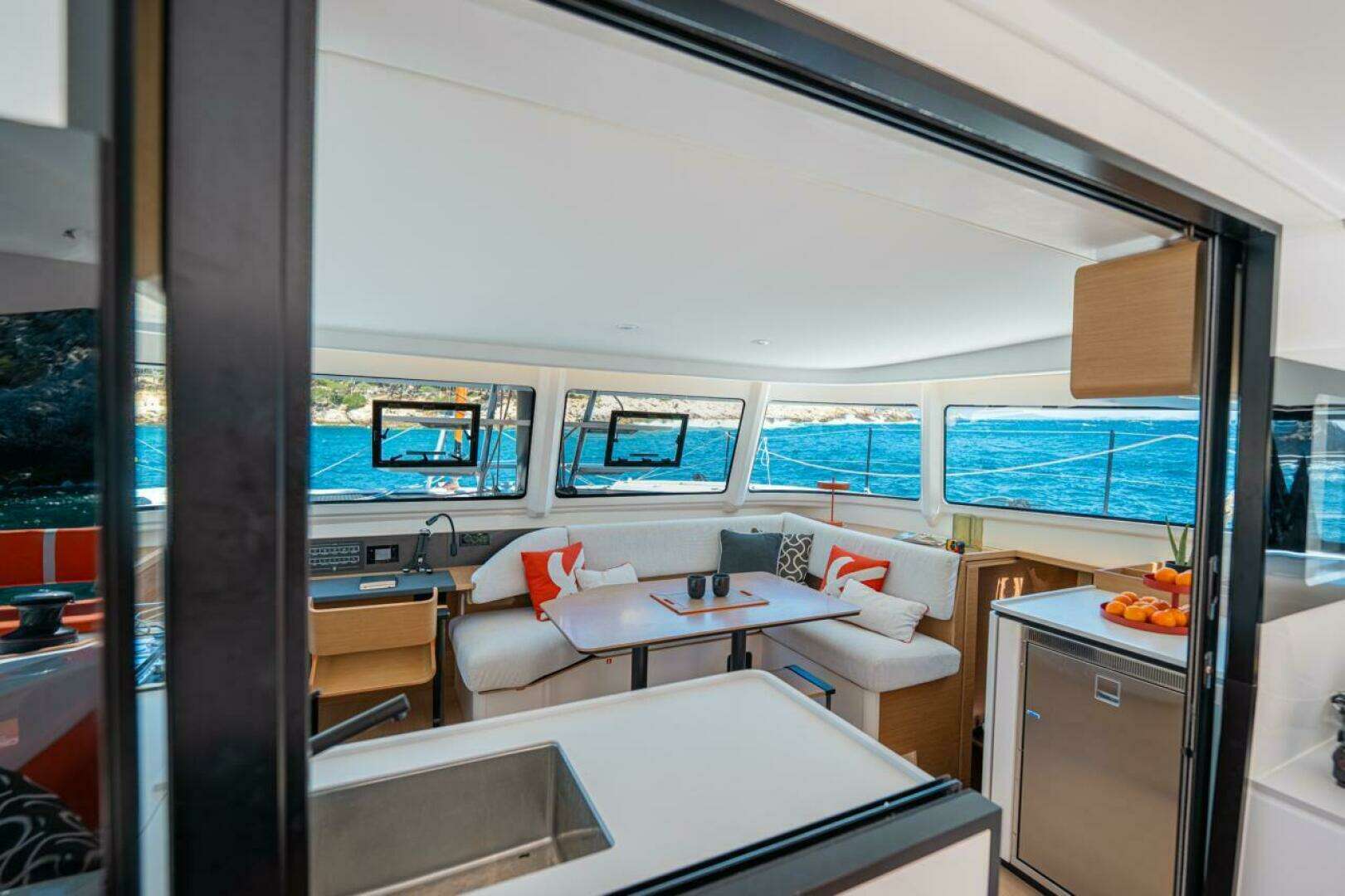

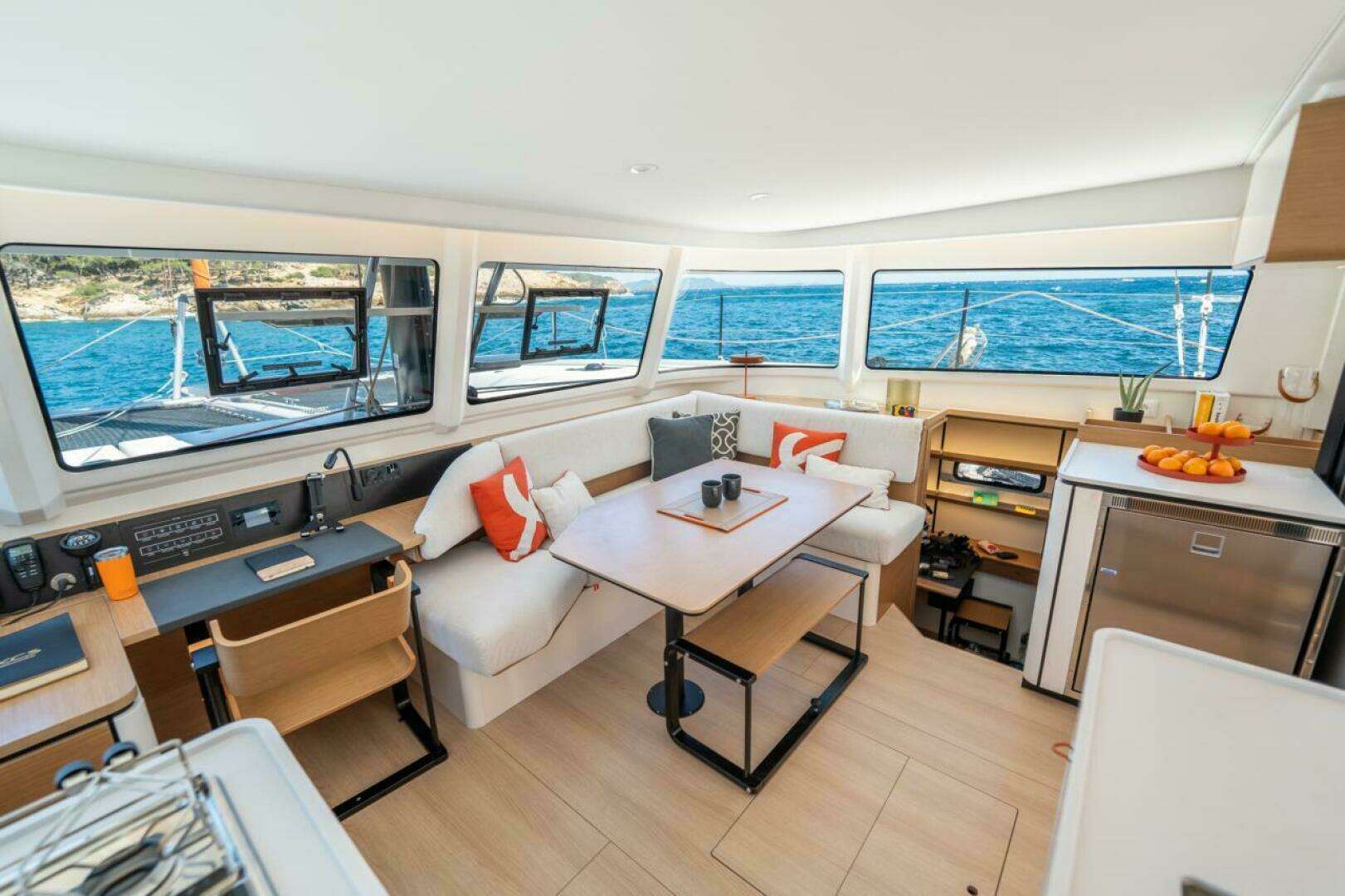

Main Salon

▫ Alpi Honey Teak woodwork [UV varnish]

▫ Plywork floor: Sand

▫ U-shaped sofa [storage under seats]

▫ Wooden saloon table

▫ Direct LED spots lighting

▫ LED indirect lighting

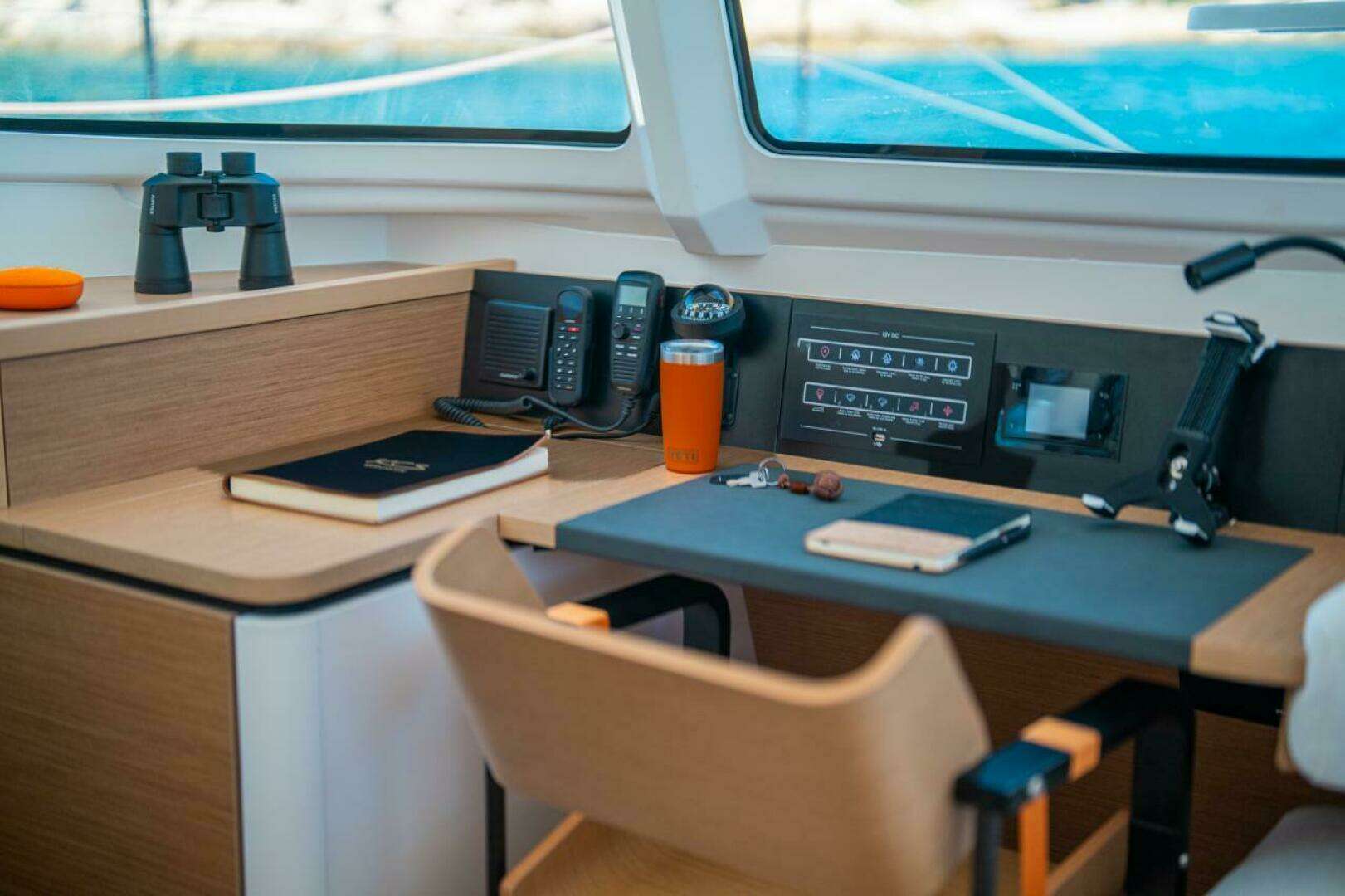

▫ Forward facing chart table with control panel, storage, red LED reading light

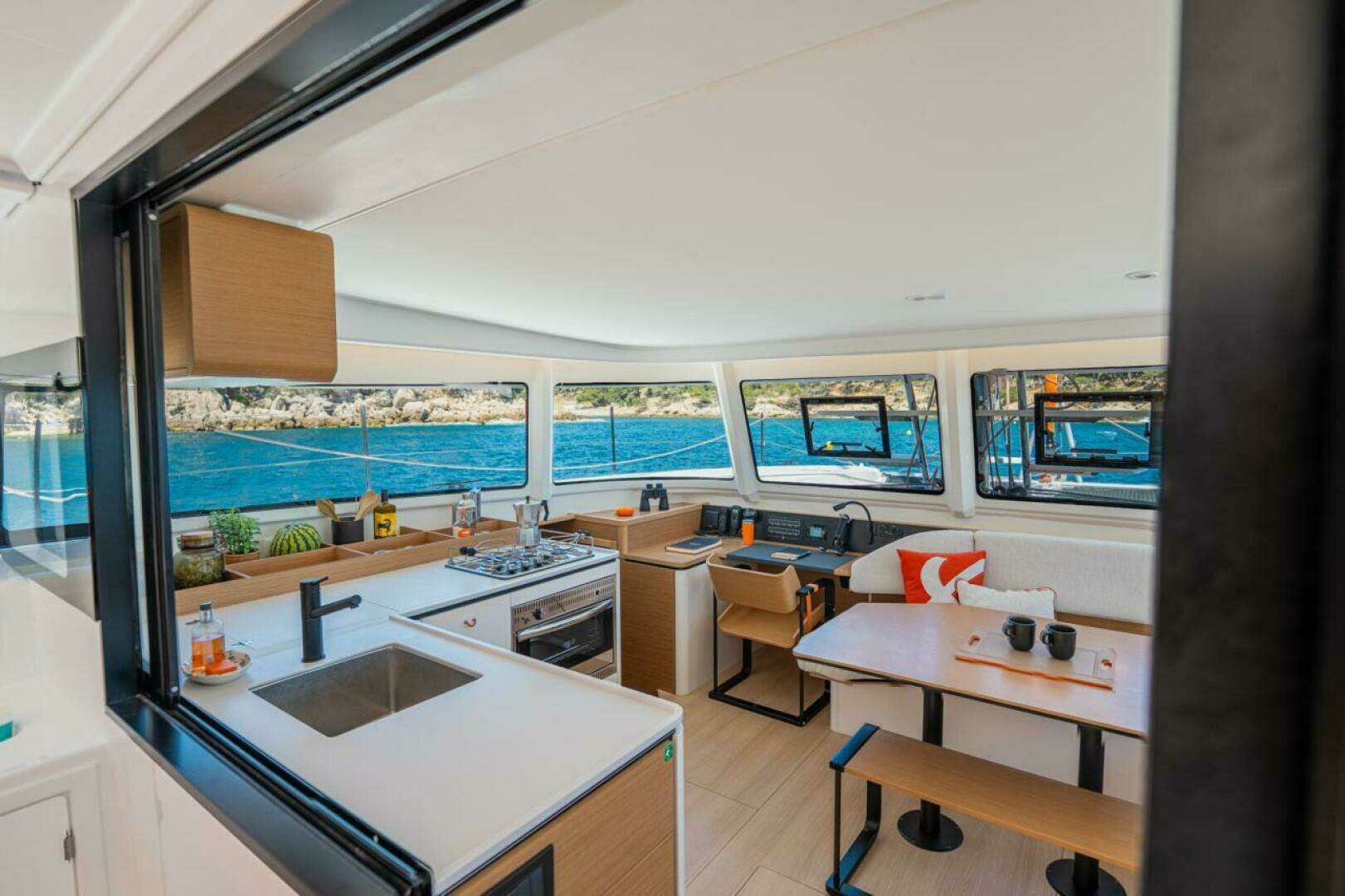

Galley

Port:

▫ Laminated countertop [color : Grigio Sasso]

▫ Large stainless steel sink

▫ 3-burner gas stove

▫ Built-in gas oven

▫ 2 trash bins

▫ Cutlery drawer

▫ Various storage (sliding, under sink, etc..)

▫ Cork-inlaid storage on countertop

▫ Upper locker with fiddles

▫ LED indirect lighting

▫ Under-floor storage

Starboard:

▫ Alpi Honey teak countertop

▫ Stainless steel fridge - 130L / 34US Gal - 12V

▫ Cork-inlaid storage on countertop

▫ Bottles storage

▫ Under-floor storage

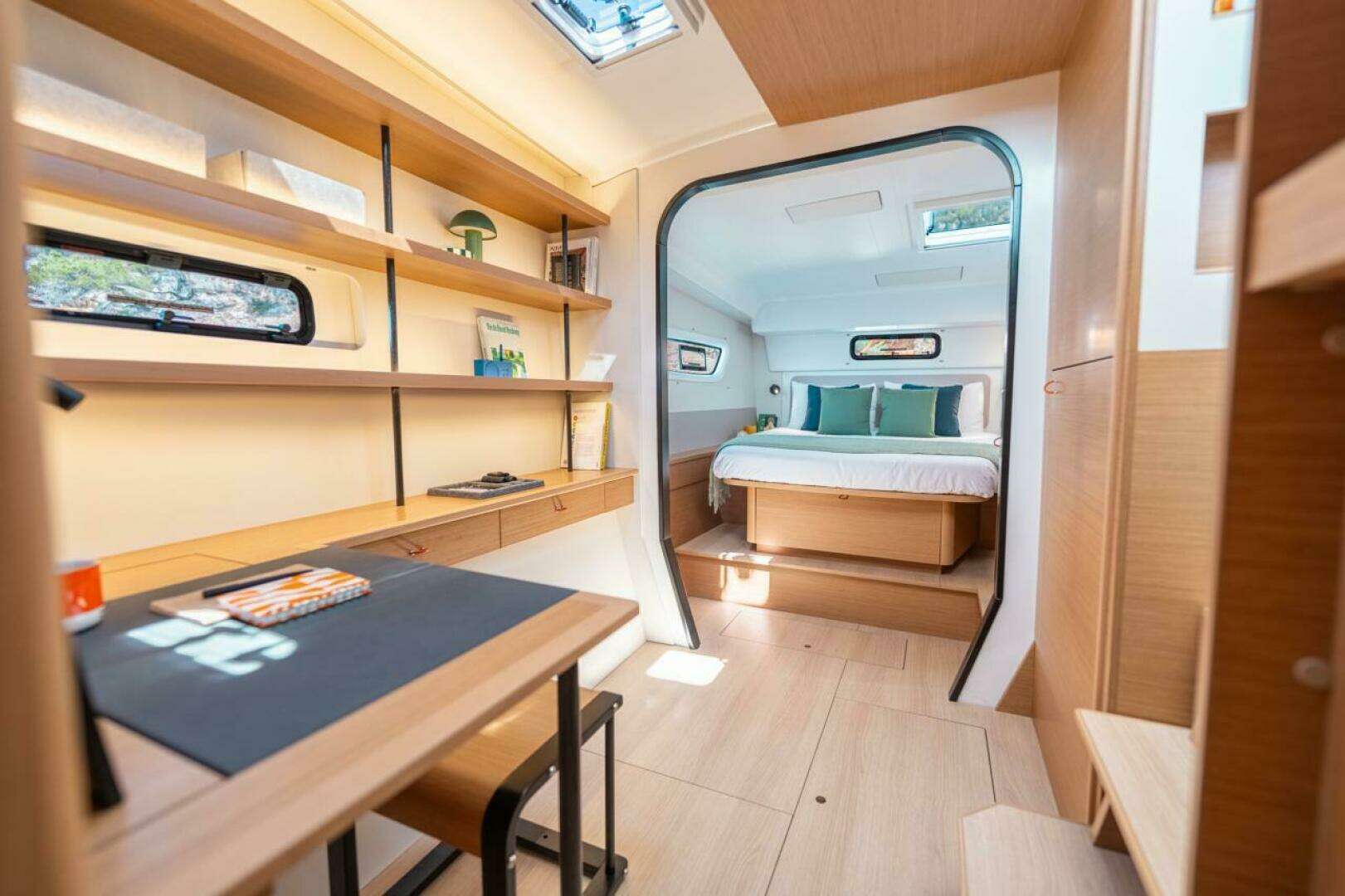

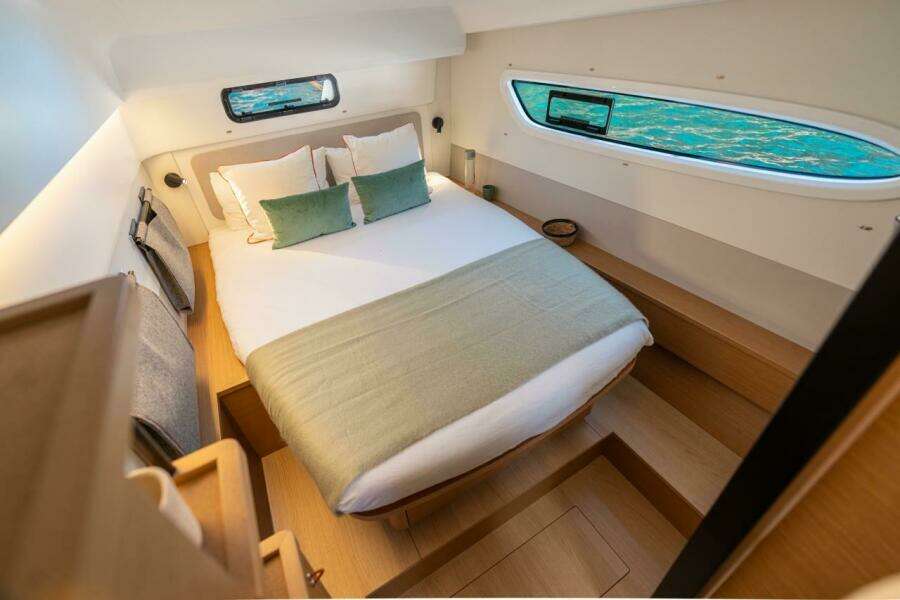

Owner's Suite (3 cabin version)

▫ Independent access directly from saloon

▫ Sliding door with storage

▫ Slatted bed with side accesses [2 x 1.60m]

▫ 2 reading lights with usb socket

▫ LED indirect lighting

▫ Bedside tables with cork inlays

▫ Side storage with 2 level opened shelves & carbon rods

▫ Large storage underneath mattress with front and top access

▫ Textile storages

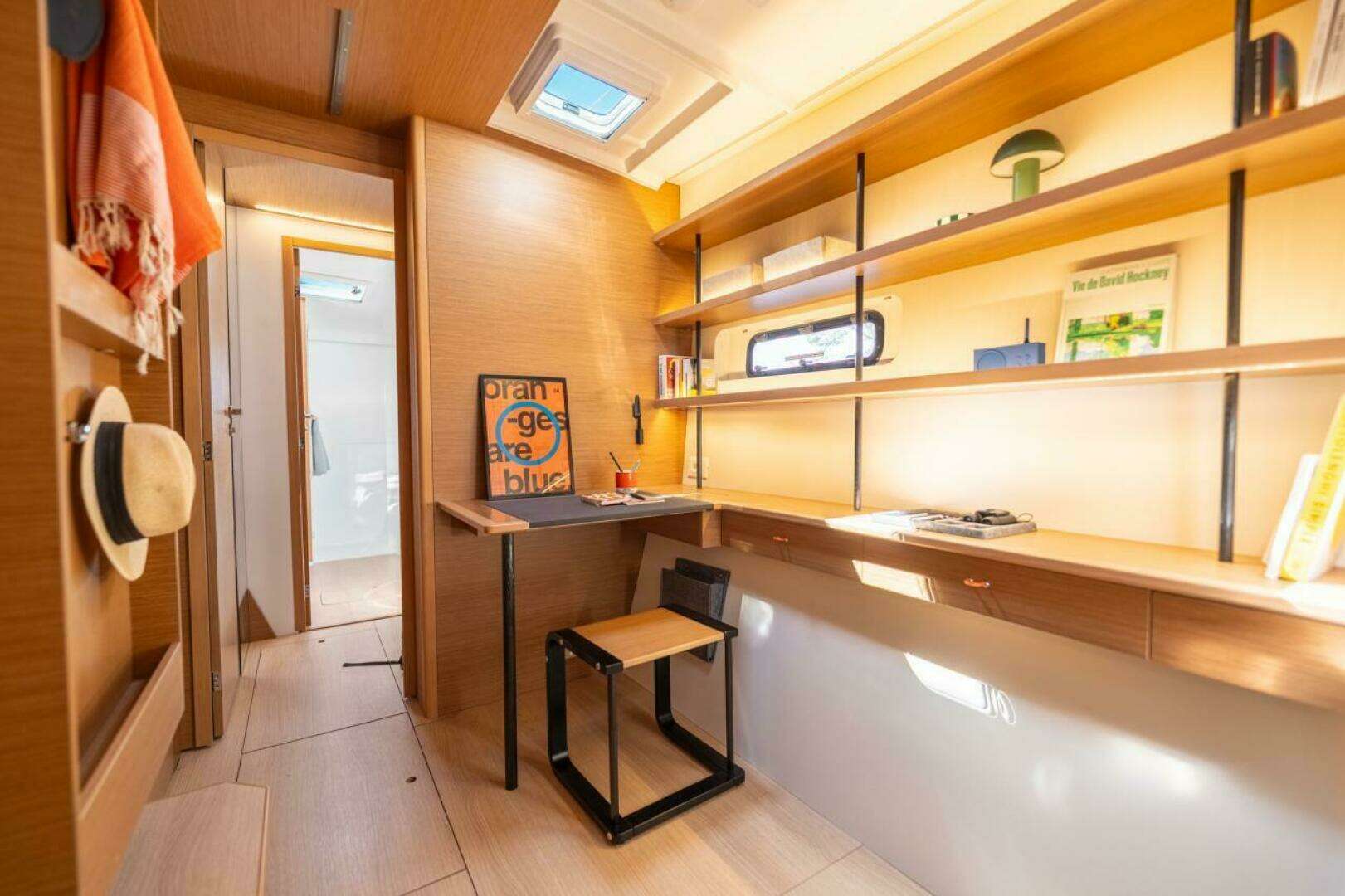

▫ Forward facing desk with leaterette writing board, drawers, top

acces storage, reading light with usb socekt

▫ 3 level bookcase with fiddles and carbon rods, LED indirect ligthing

& large opening porthole

▫ 1 stool

▫ 2-door locker & large drawer

▫ 2 panoramic hull windows with integrated opening porthole

▫ Shades for panoramic windows and ports

▫ Blinds and screens for deck hatches

▫ Full width walk-in dressing, access from the cabin through wooden

door

▫ Long opened hanging wardrobe, upper and lower lockers, 3 level

opened shelves with carbon rods, full height mirror

▫ Opened storage behind dressing entrance door

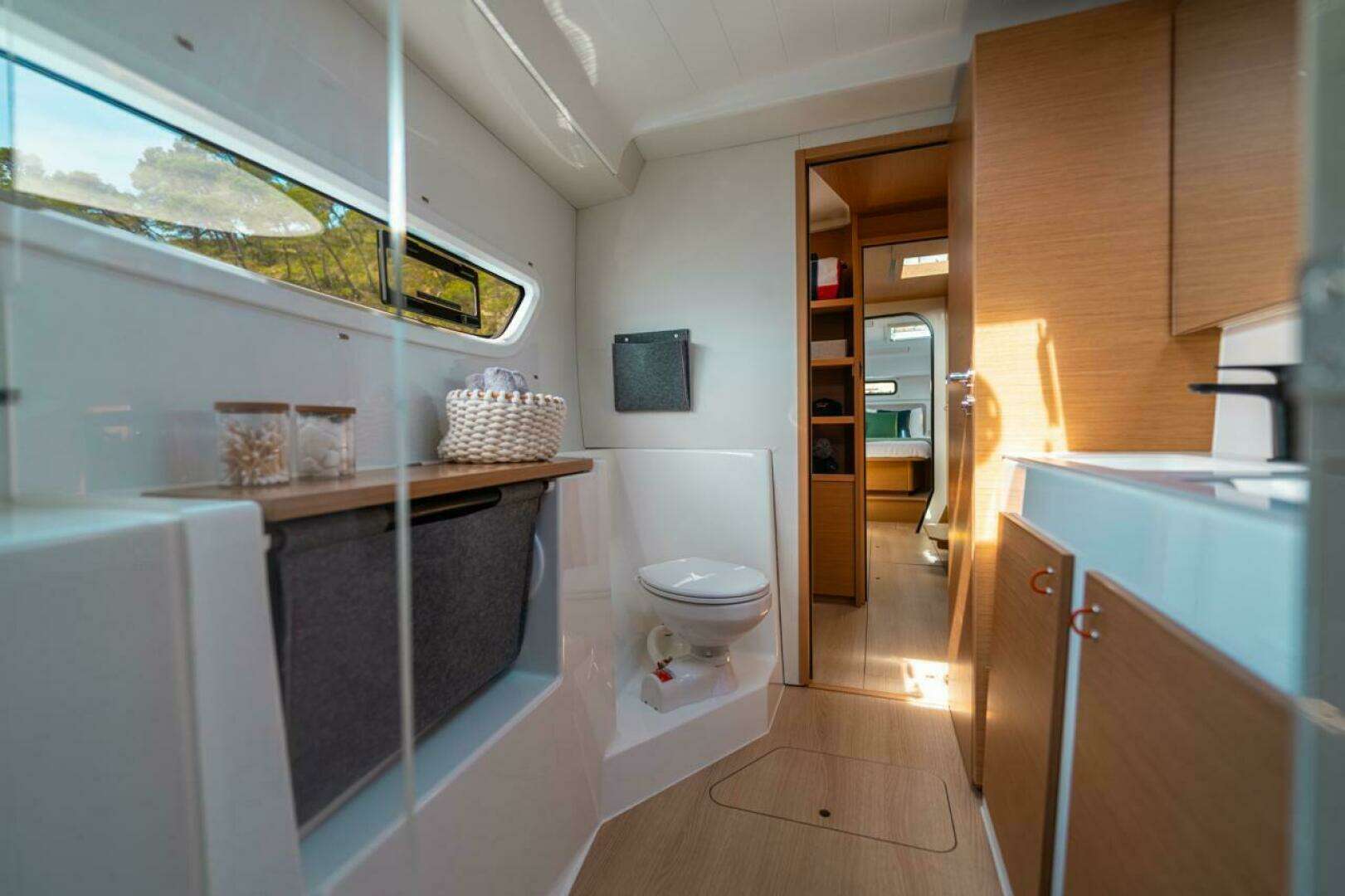

Owner's Head (3 cabin version)

▫ Forward head compartment with separate shower. Access

from the dressing through wooden door

▫ Long GRP sink with 2 hot/cold water taps

▫ Upper storage locker with fiddles & mirror, shelves, indirect

LED lighting

▫ Lower storage doors with access to valves

▫ Wooden countertop to starboard with textile storage

▫ Separate shower with Plexiglas door, shower tap

▫ Manual seawater toilet

Forward Cabins

▫ Slatted bed with front access [2 x 1.95/1.35m]

▫ 2 reading lights with usb socket

▫ LED indirect lighting

▫ Low storage onto hull side

▫ Large storage underneath mattress with front and top access

▫ Side storage with 2 level opened shelves & carbon rods

▫ Opened storage behind cabin entrance door

▫ Textile storage

▫ Panoramic hull window with integrated opening porthole

▫ Shade for panoramic window

▫ Blind and screen for deck hatch

▫ Dedicated access to head compartment through wooden door

Aft Cabins

▫ Slatted bed with side accesses [2 x 1.60m]

▫ 2 reading lights with usb socket

▫ LED indirect lighting

▫ Bedside tables

▫ Side storage with 2 level opened shelves & carbon rods

▫ Large storage underneath mattress with front and top access

▫ Opened storage behind cabin entrance door

▫ Textile storage

▫ Panoramic hull window with integrated opening porthole

▫ Shade for panoramic window

▫ Blind and screen for deck hatch

Port Side Heads

▫ GRP countertop and sink with hot/cold water tap

▫ Upper storage locker with fiddles & mirror, shelves

▫ Lower storage doors with access to valves

▫ LED indirect lighting

▫ Manual seawater toilet

▫ Shared shower for the two heads, with opaque Plexiglas doors,

black water tank access

▫ Blind and screen for deck hatches

Engines

▫ 2 diesel engines Yanmar 4JH40 [40HP] saildrive

▫ Propeller: 3-blade fixed propellers [18’’ x 15’’]

▫ Engine compartment air extractor - 12V

Steering Systems

▫ Textile transmission steering system

▫ Link tube between the rudders

▫ 2 Rudders with stainless steel stock

▫ Emergency tiller

Fuel Systems

▫ Rotomoulded tanks [2 x 200L / 53 US gal]

▫ Deck fuel fillers on aft beam [starboard and port]

▫ Fuel shut off valves under berths in aft cabins

Water Systems

▫ Rotomould fresh water tank [300L / 79 US gal] (additional tank available)

▫ Water pump - 12V

▫ Water heater - 40L / 10 US gal 230V with heat exchanger

▫ Shower pumps with automatic drain

▫ Black water tanks [2 x 80L / 2 x 21 US gal] with sea and deck drains

▫ 1 manual bilge pump per hull

▫ 1 automatic bilge pump per hull

▫ 1 Seanapps® connected bilge sensor per hull

Electrical System

▫ 2 alternators 12 V - 125 A

▫ 2 AGM starting batteries 12V - 50A

▫ 2 AGM service batteries 12V - 95A

▫ Service & engine batteries breakers in dedicated lockers in aft cockpit

▫ Engine batteries coupler - port/starboard

▫ Charge balancer

▫ Main DC panel at chart table - 12V

▫ Seanapps® connectivity - Direct access to batteries tension and GPS

positioning via mobile app

▫ USB socket integrated on main DC panel

▫ Monitoring tank levels - 2.4’ screen

▫ Exterior lighting LED - 12 V

▫ Interior lighting LED - 12 V

▫ Navigation lights LED

Safety

▫ Liferaft storage under aft beam

▫ Access to extinguisher nozzle port for engine compartments
