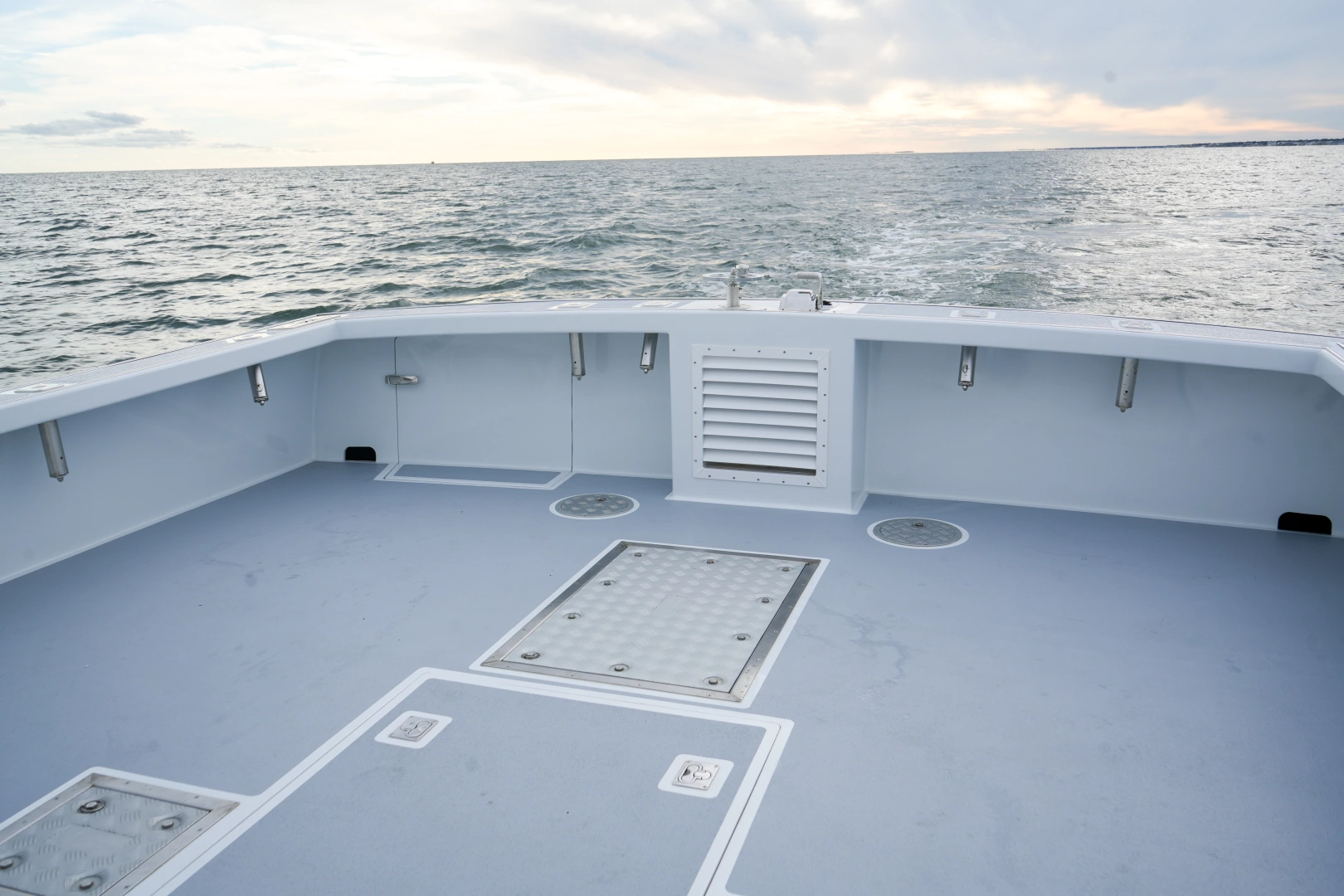

Cockpit & FIshing Setup

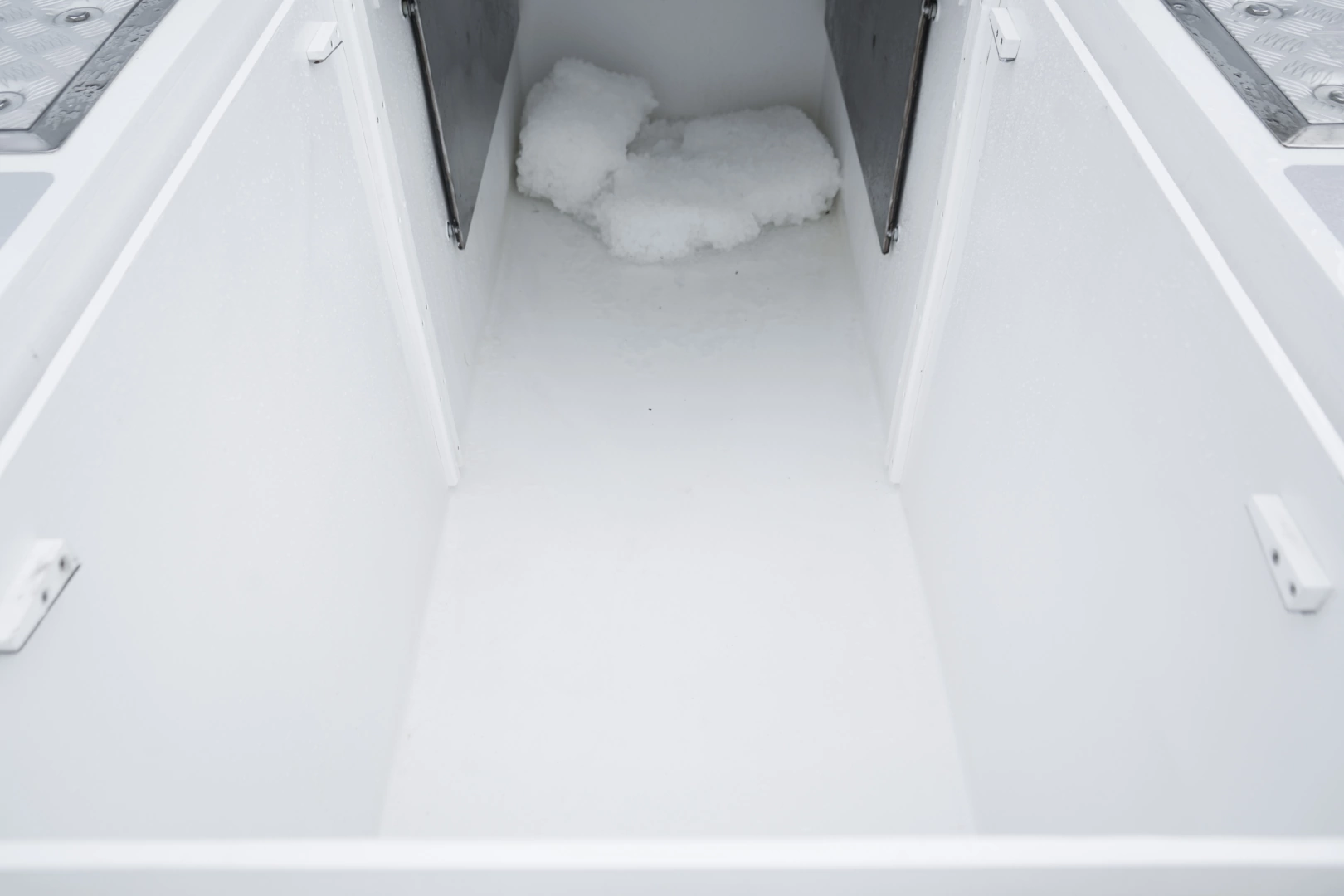

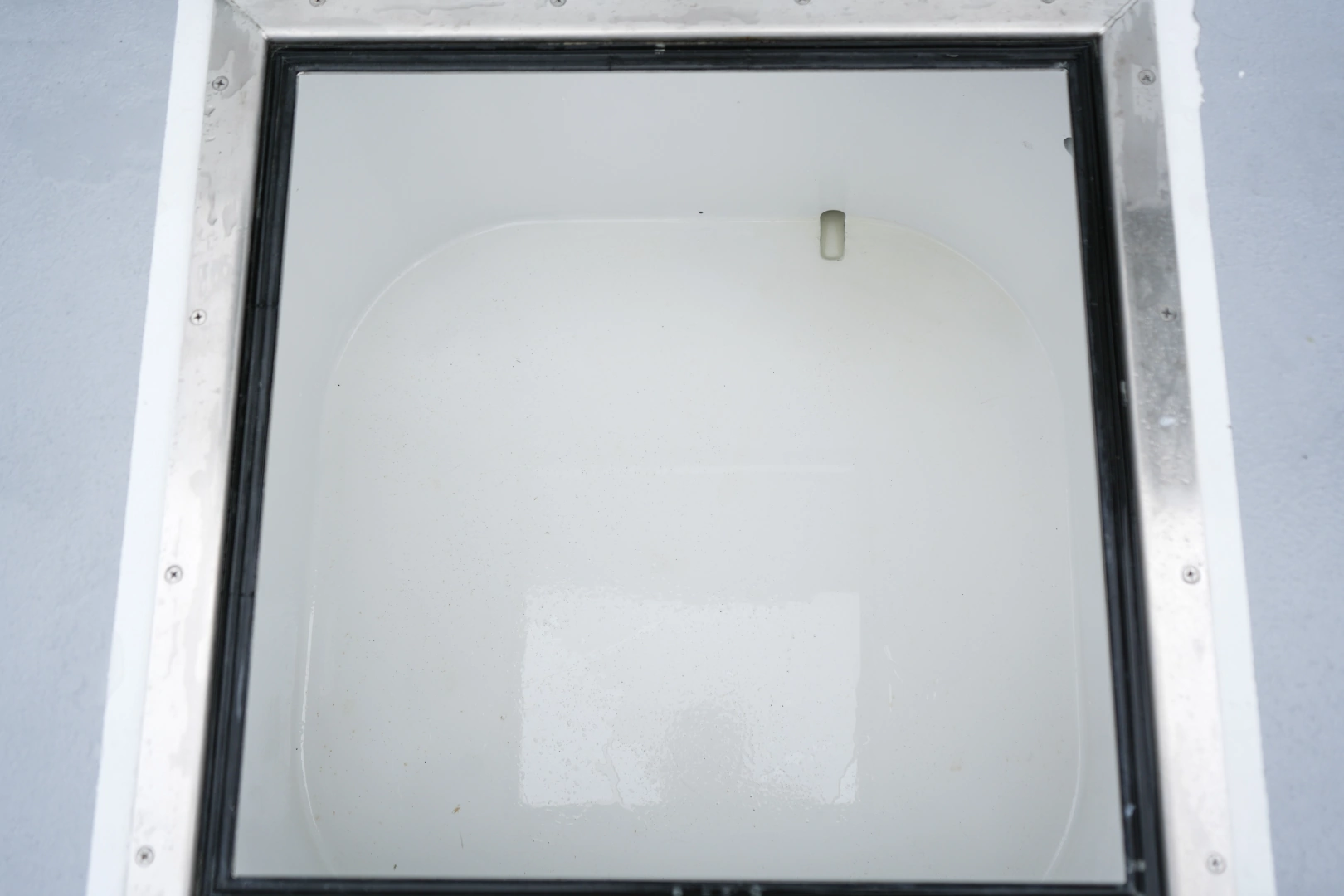

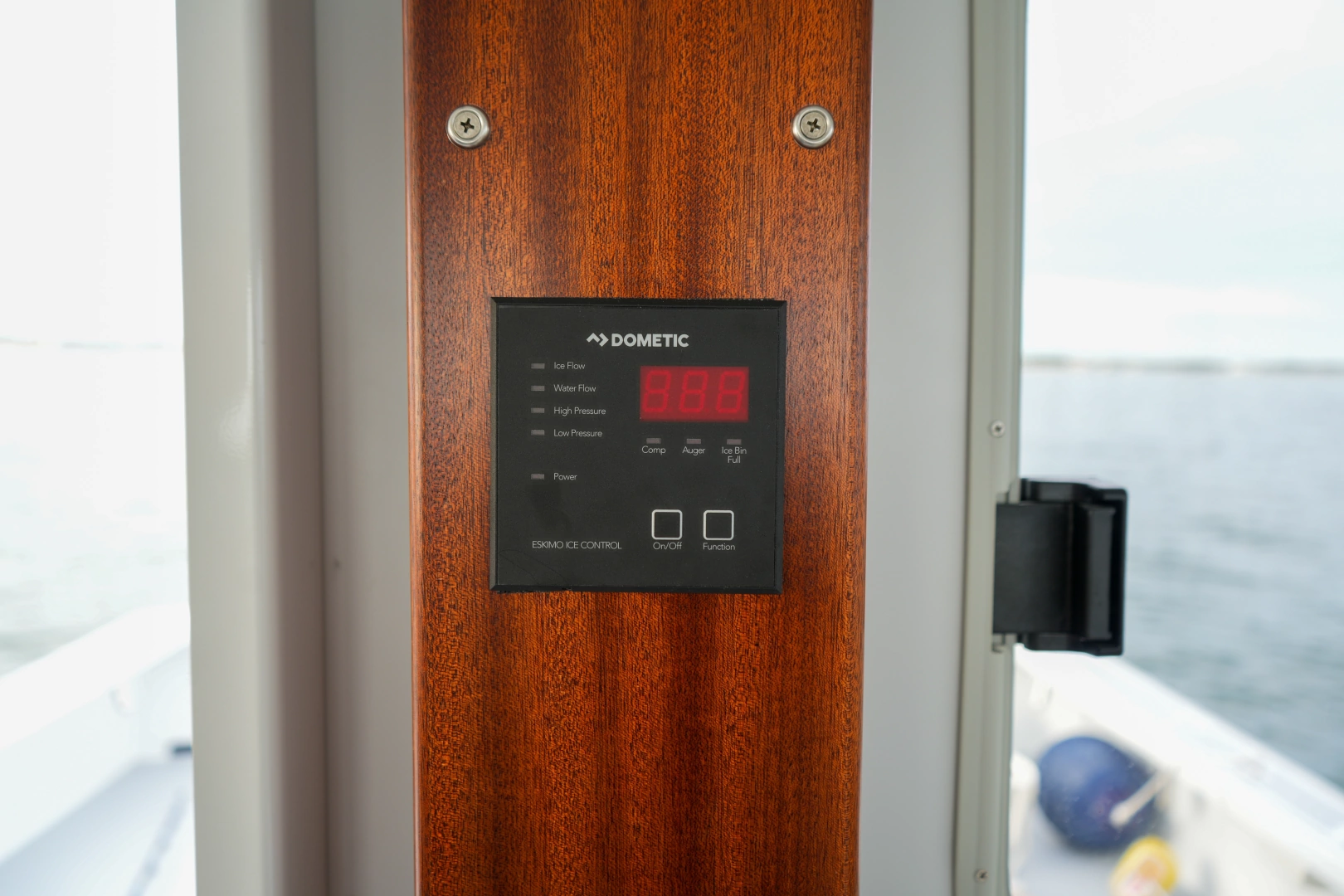

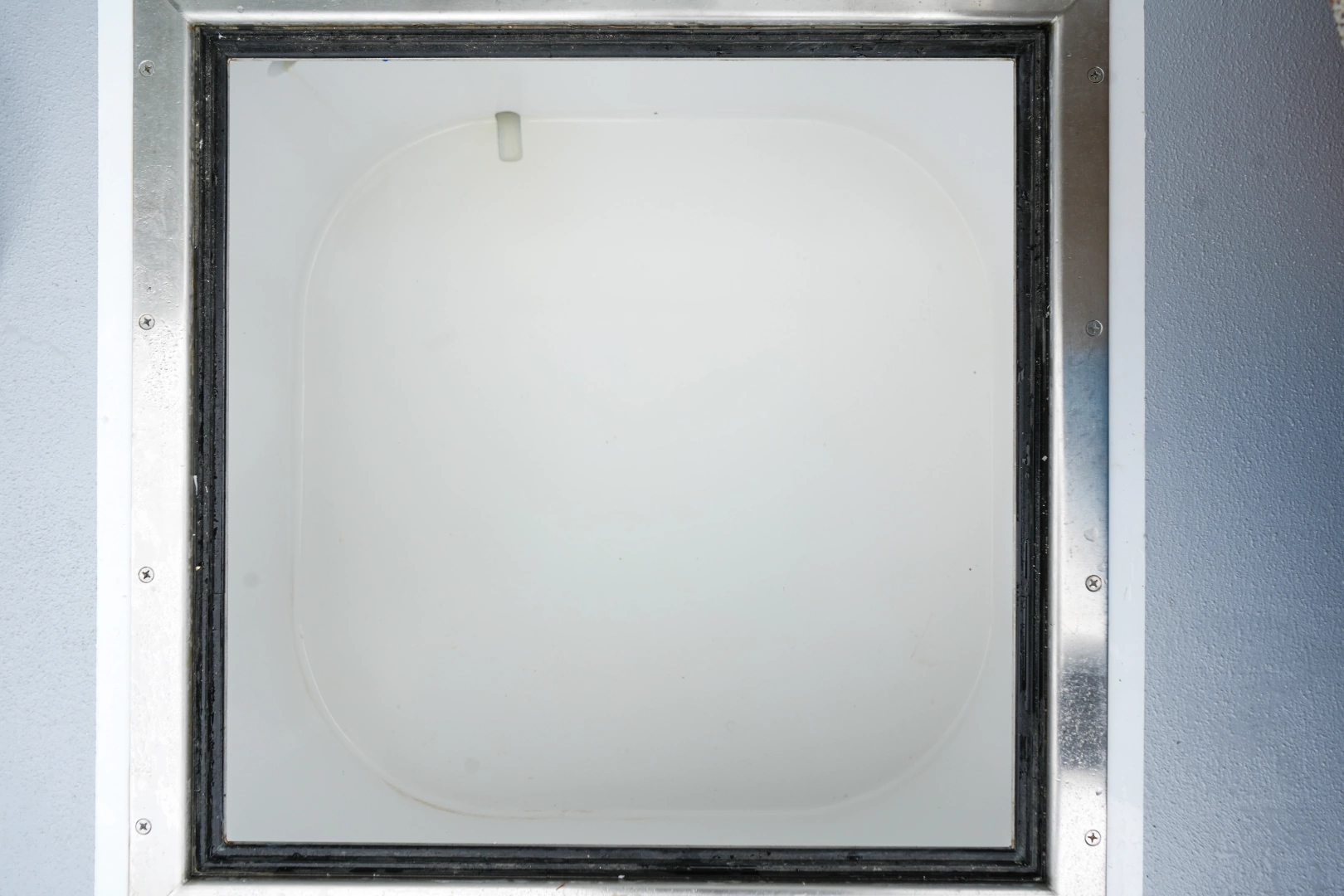

The working deck is set up around offshore fishing rather than unnecessary interior additions. A large insulated centerline fish hold measures approximately 4' x 4.5' x 8.5' and is equipped with freezer plates and an ice dump. An onboard ice maker feeds directly into the fish hold. Two fiberglass circulating bait wells are also fitted with freezer plates.

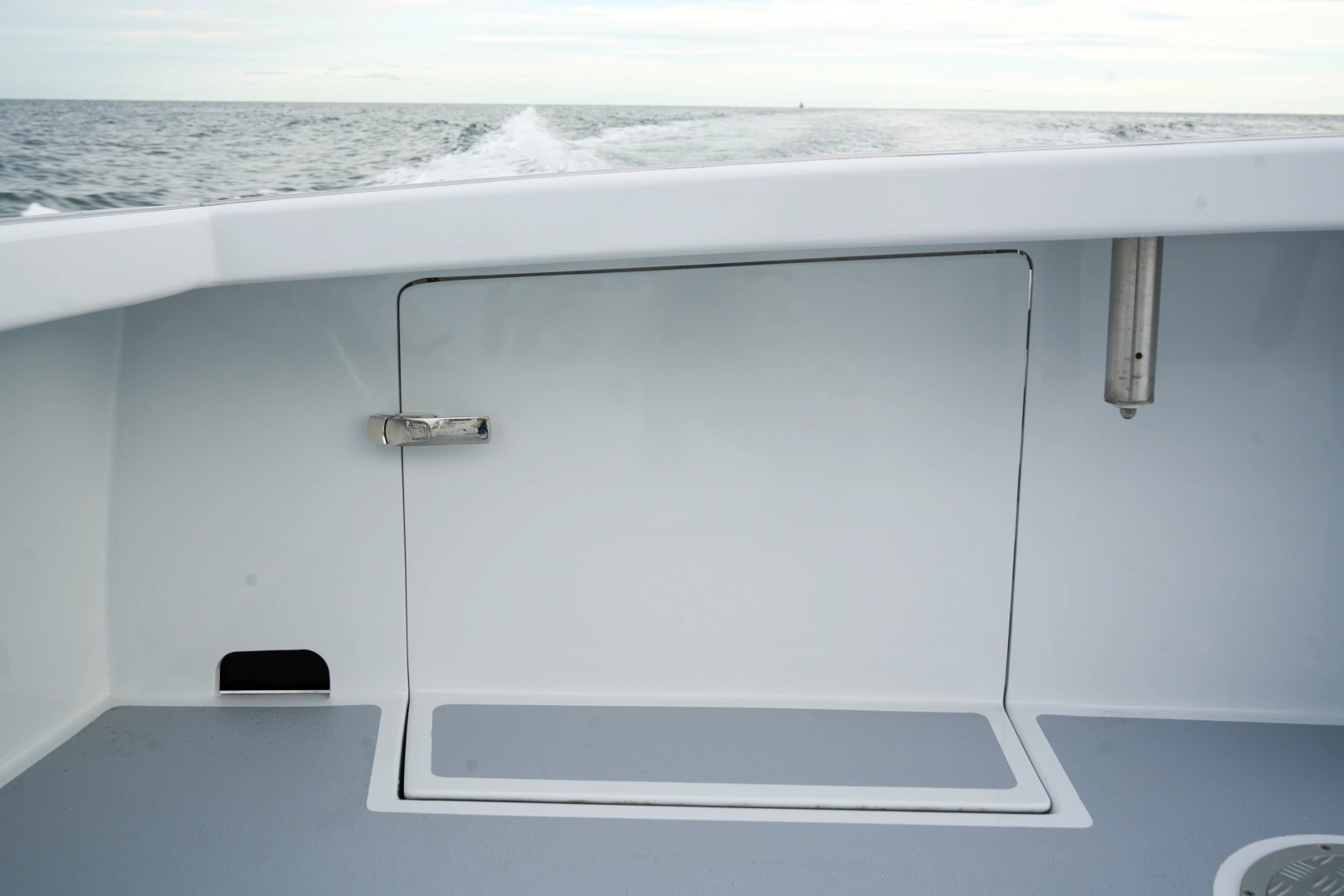

• Tuna door with ramp

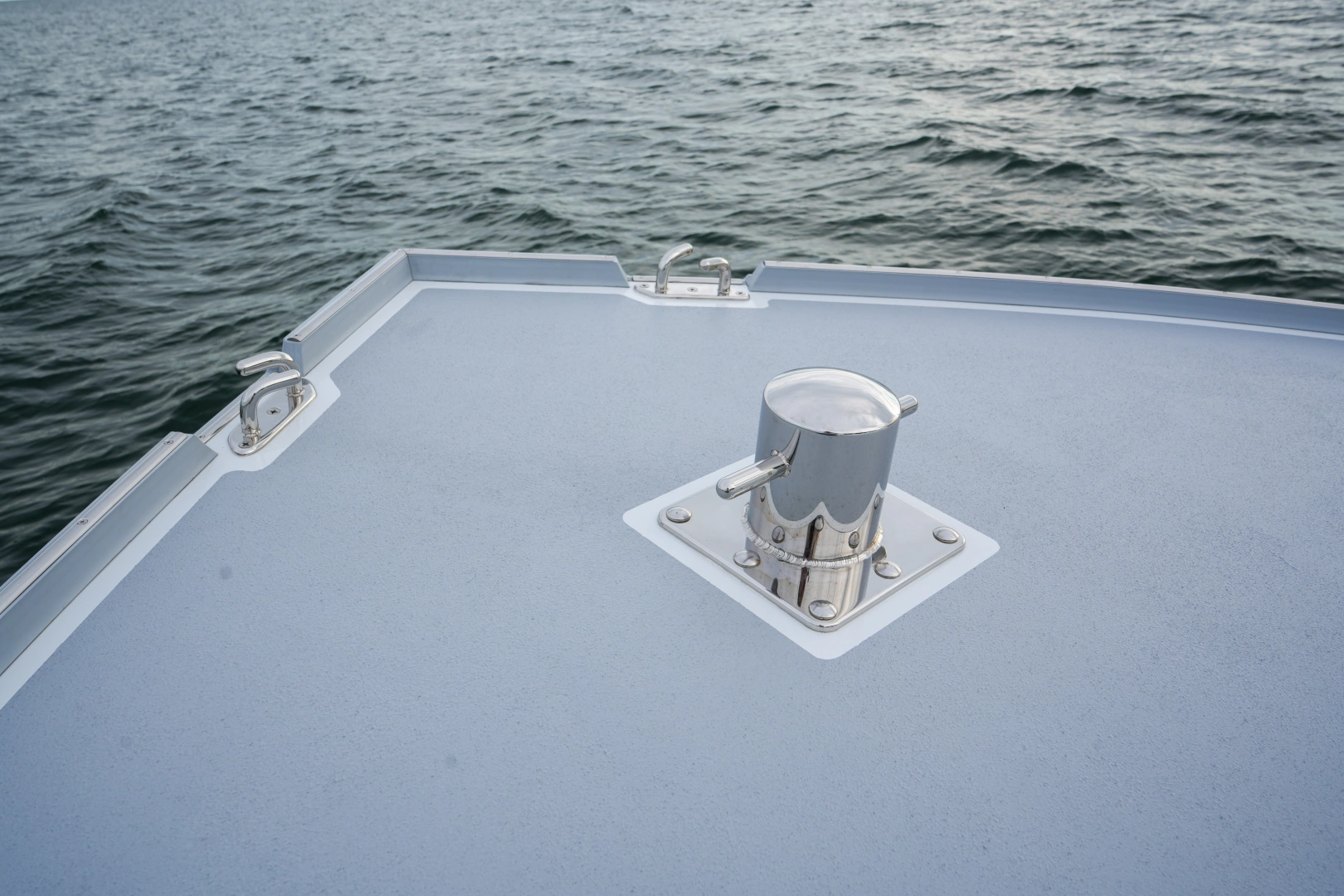

• Gemlux stainless outrigger bases
• LT Marine swivel rod holders with pins for fixed positioning
• Seafrost refrigeration system
• Hydraulic Jabsco washdown
• Hydro-Slave pot hauler
• Stainless steel davit

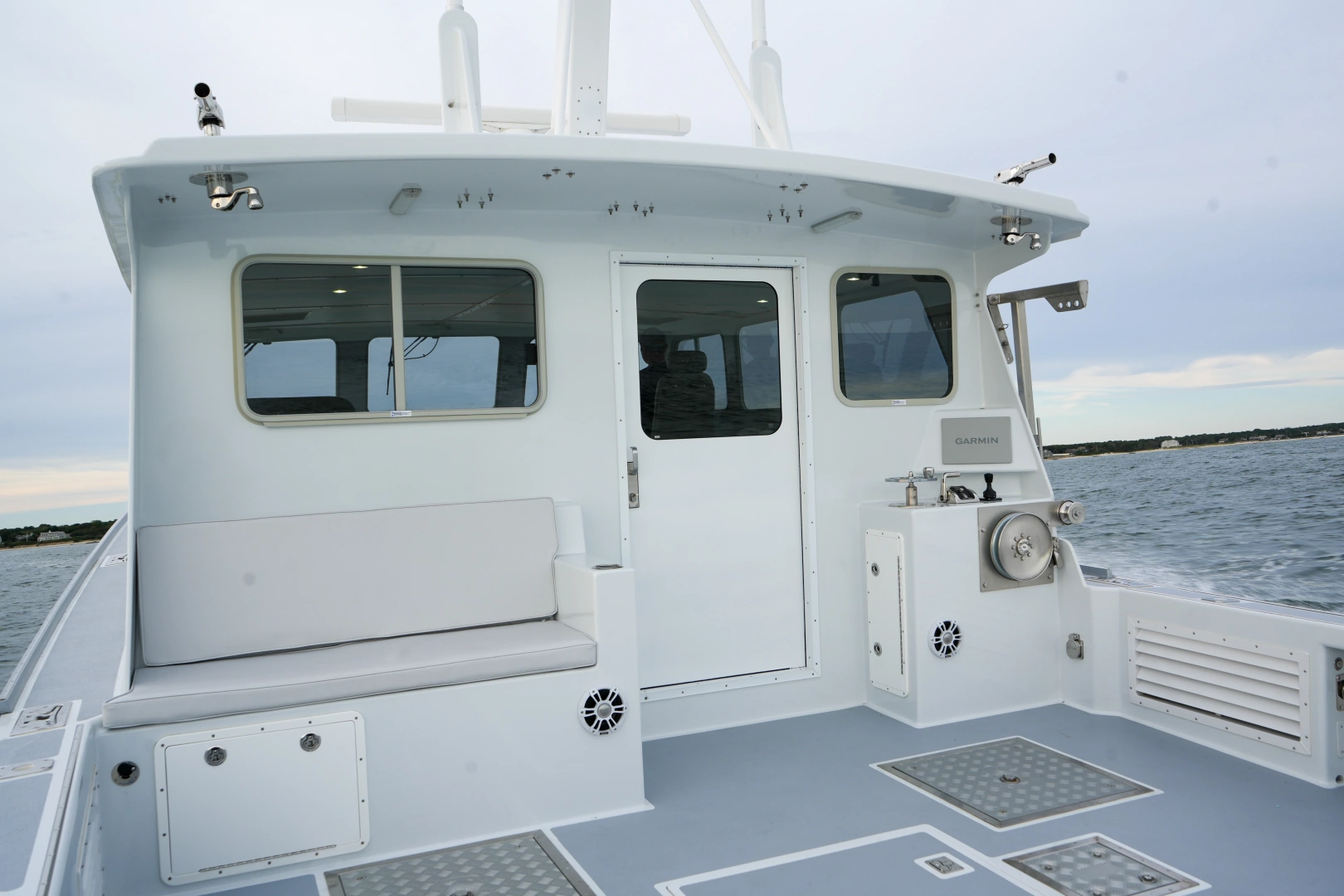

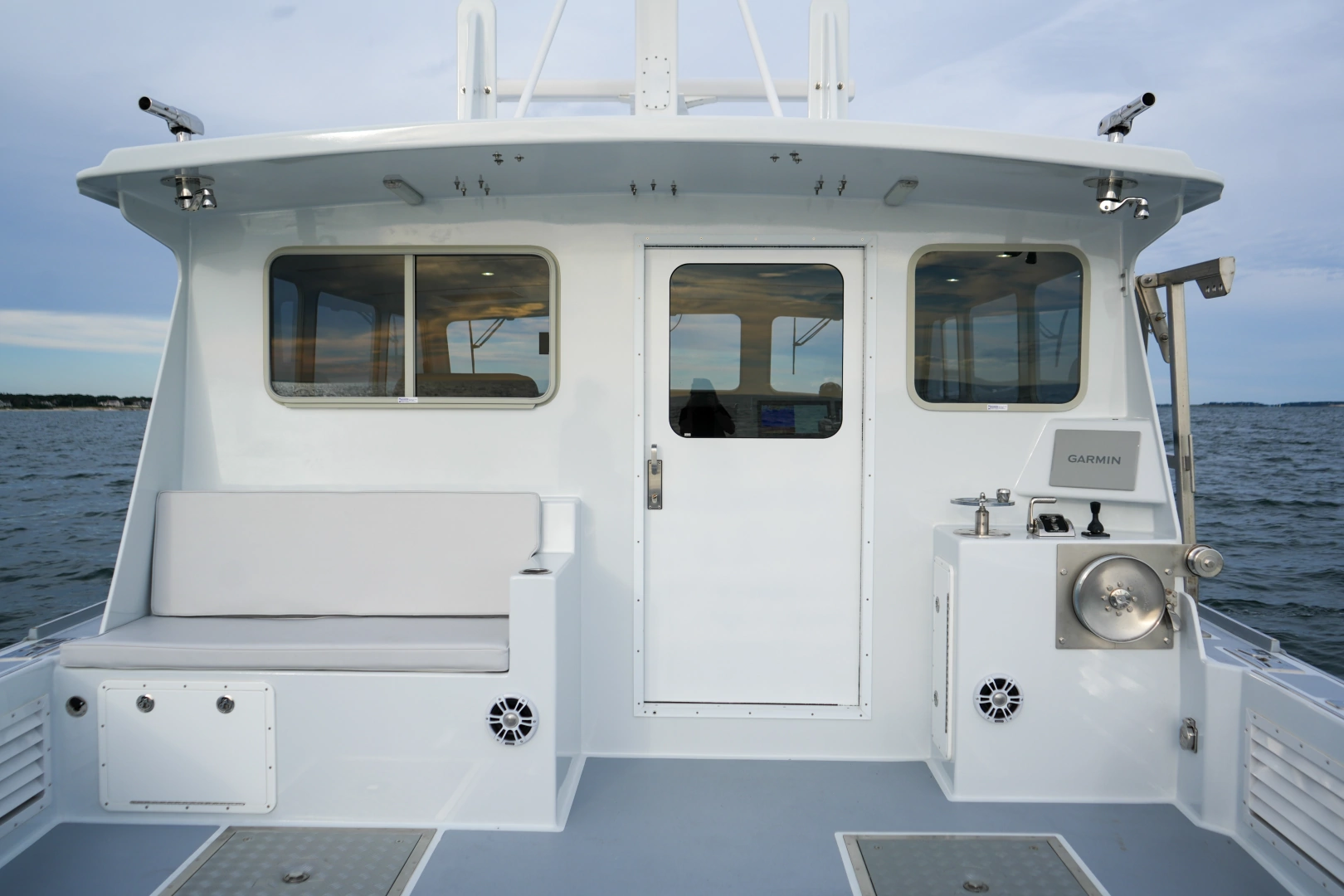

• Cockpit and stern control stations
• Danforth anchor with chain and rode
• Liferaft

Helm & Electronics

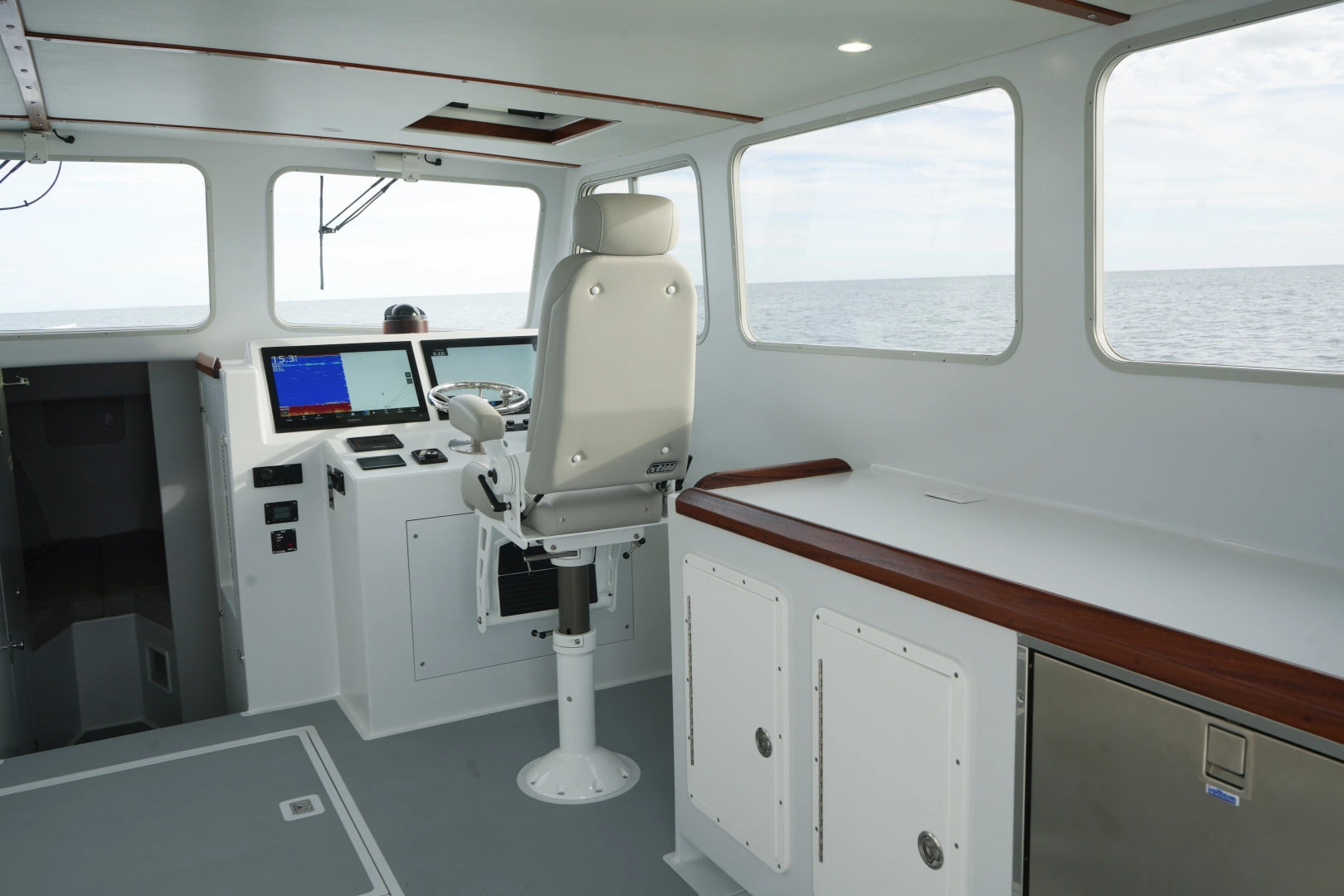

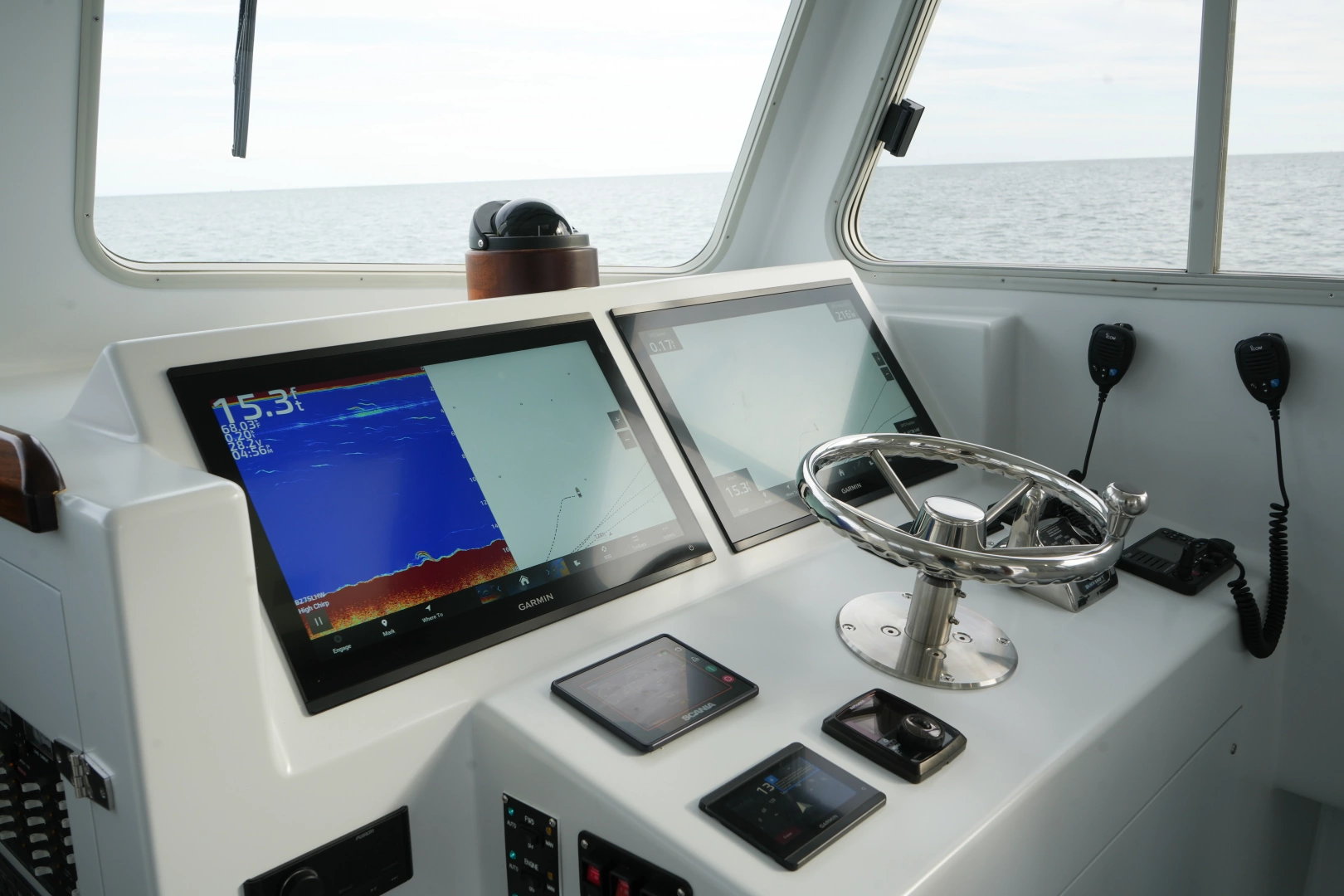

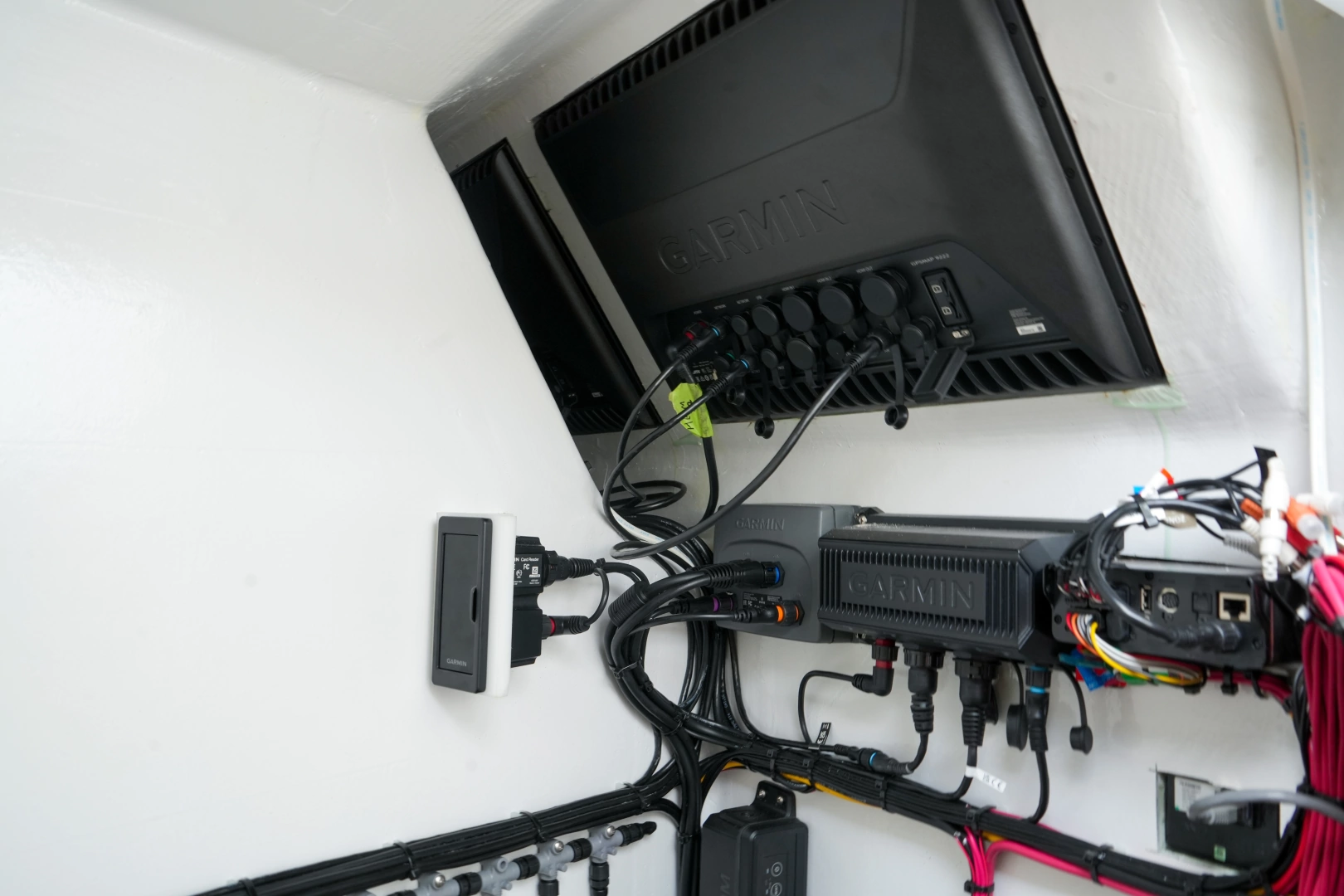

The main helm is offset to starboard with a custom navigation and electrical console. Electronics are centered around Garmin equipment, with two large displays at the main station and an additional display in the cockpit.

• Two Garmin 9222 multifunction displays - main helm
• Garmin 9212 multifunction display - cockpit

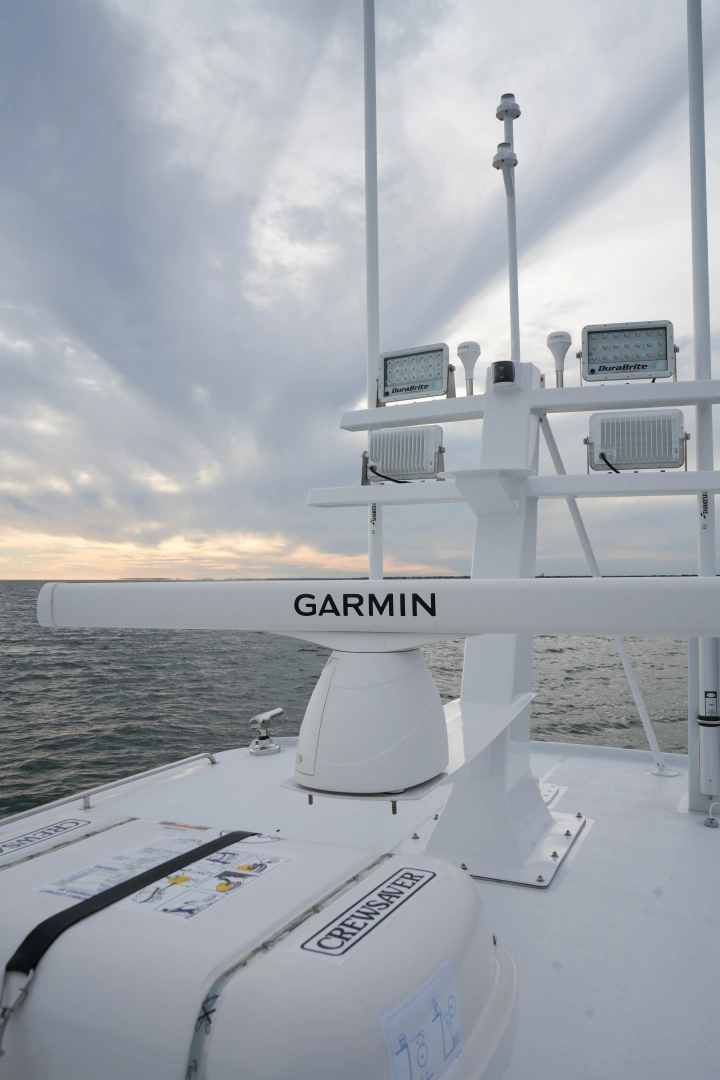

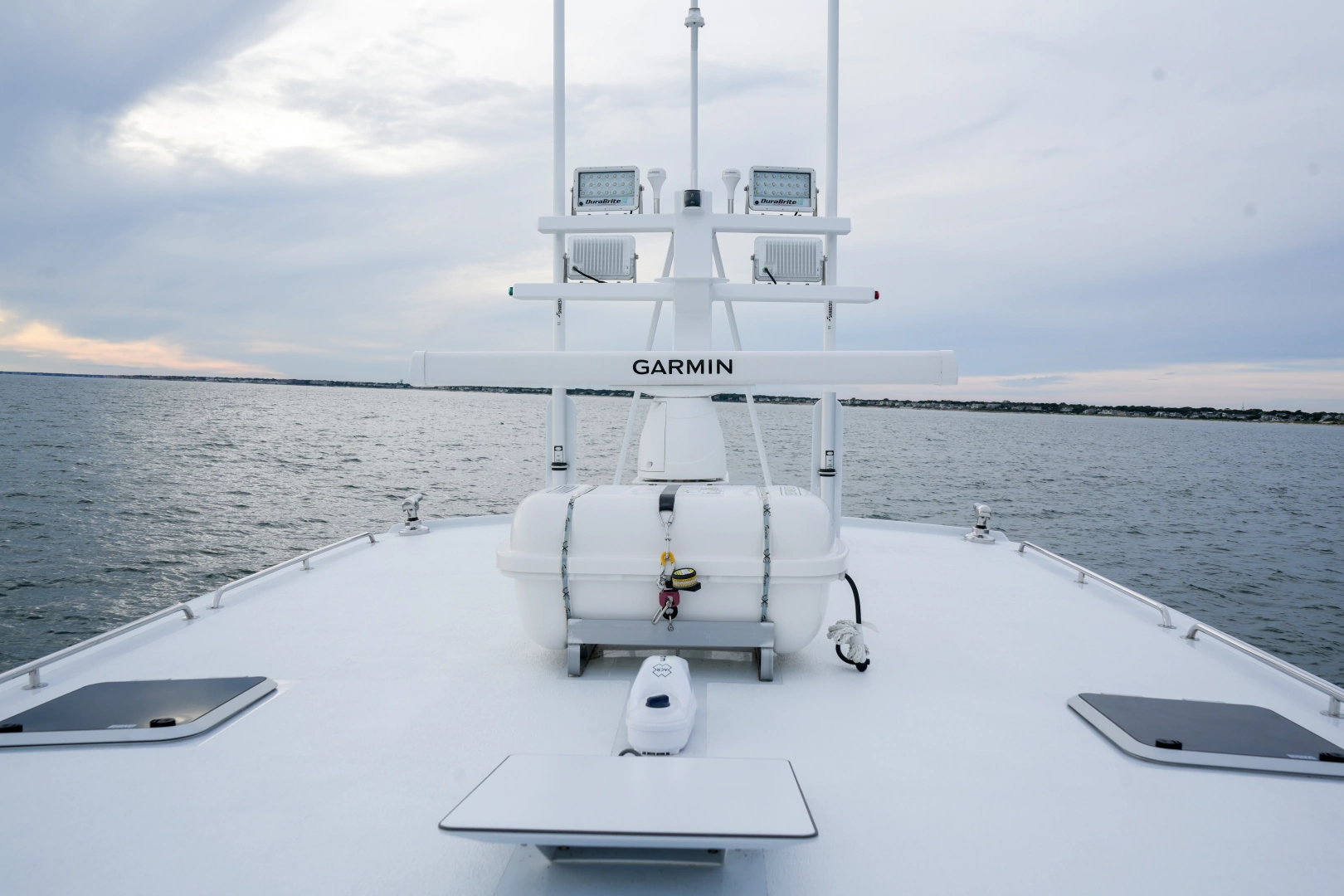

• Garmin 6-foot open-array radar
• Garmin autopilot

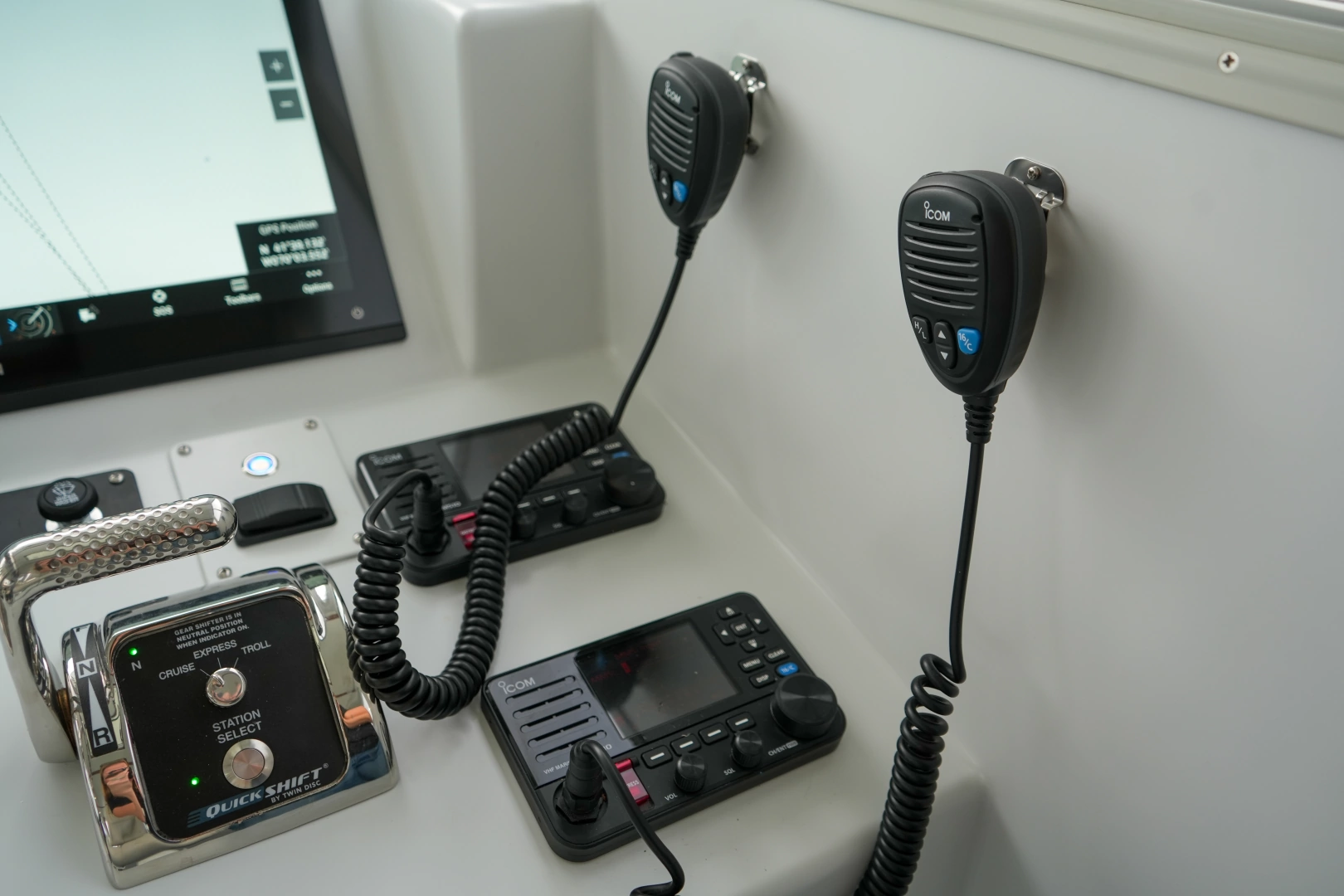

• Two ICOM IC-510 VHF radios

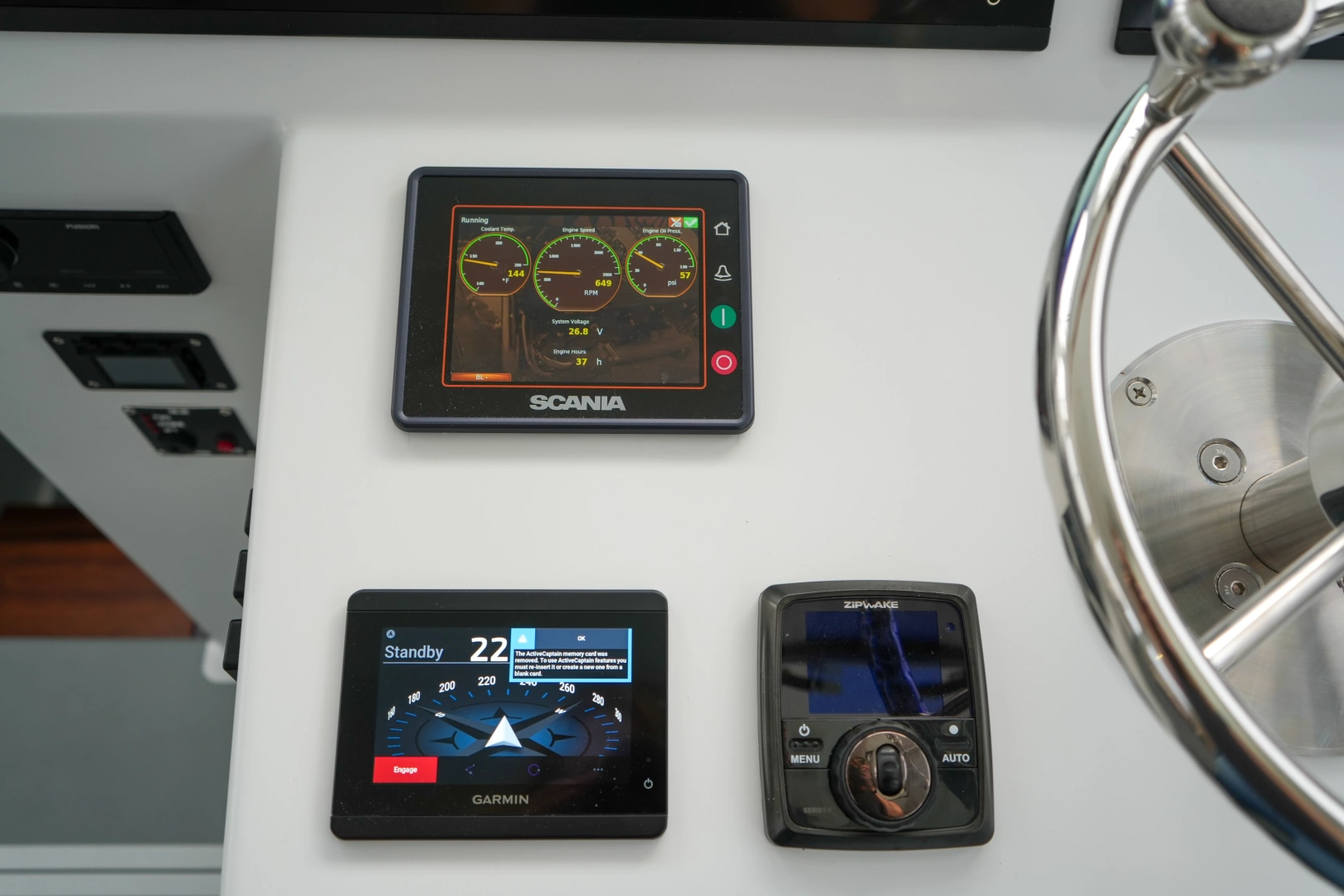

• Scania engine display
• Ritchie compass
• Starlink Wi-Fi
• Fusion stereo and speakers

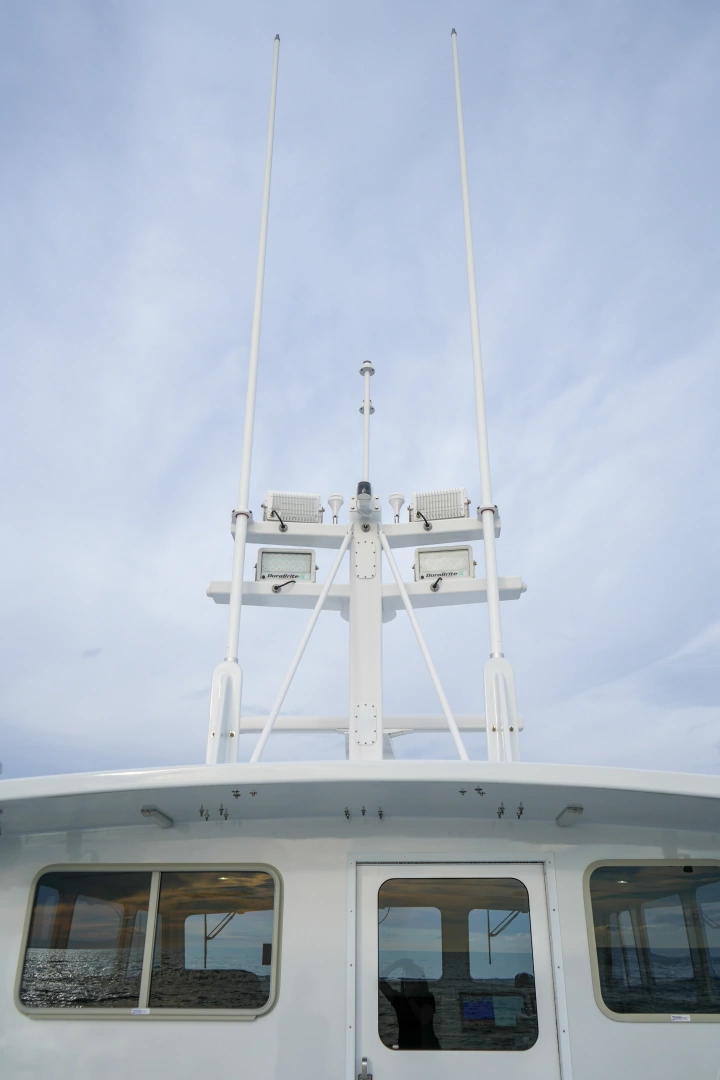

• Custom radar mast
• LED flood, courtesy and underwater lighting

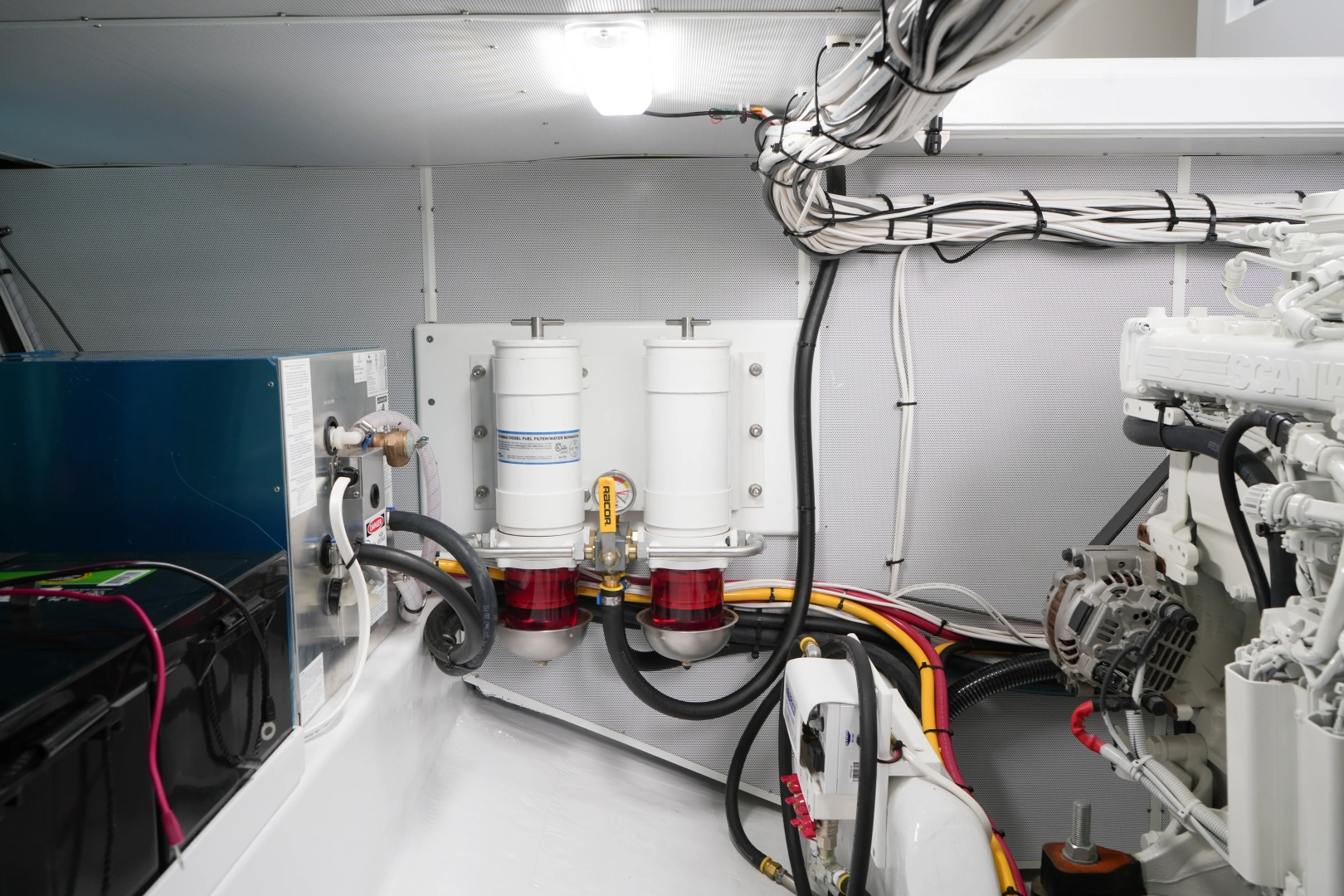

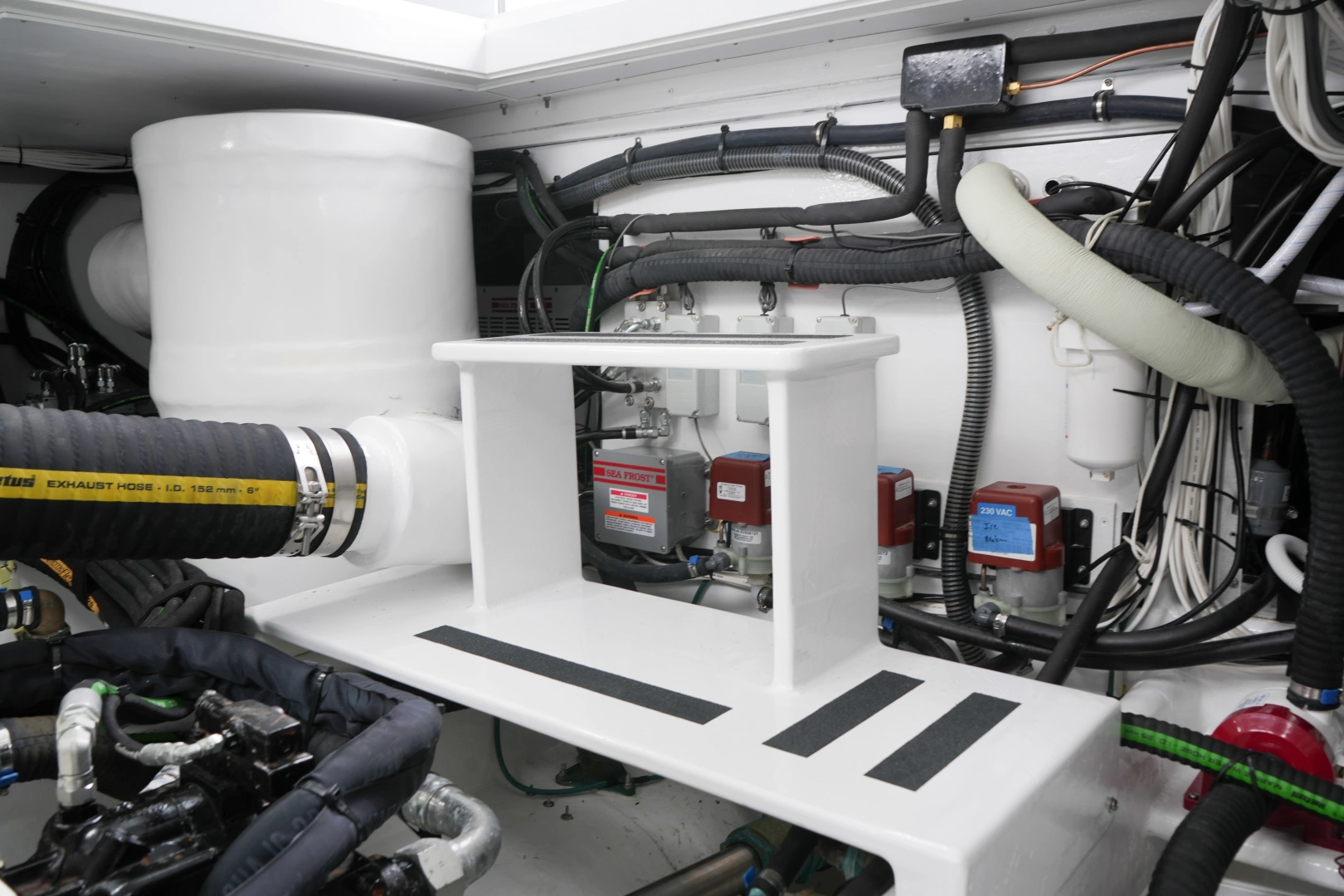

Machinery & Running Gear

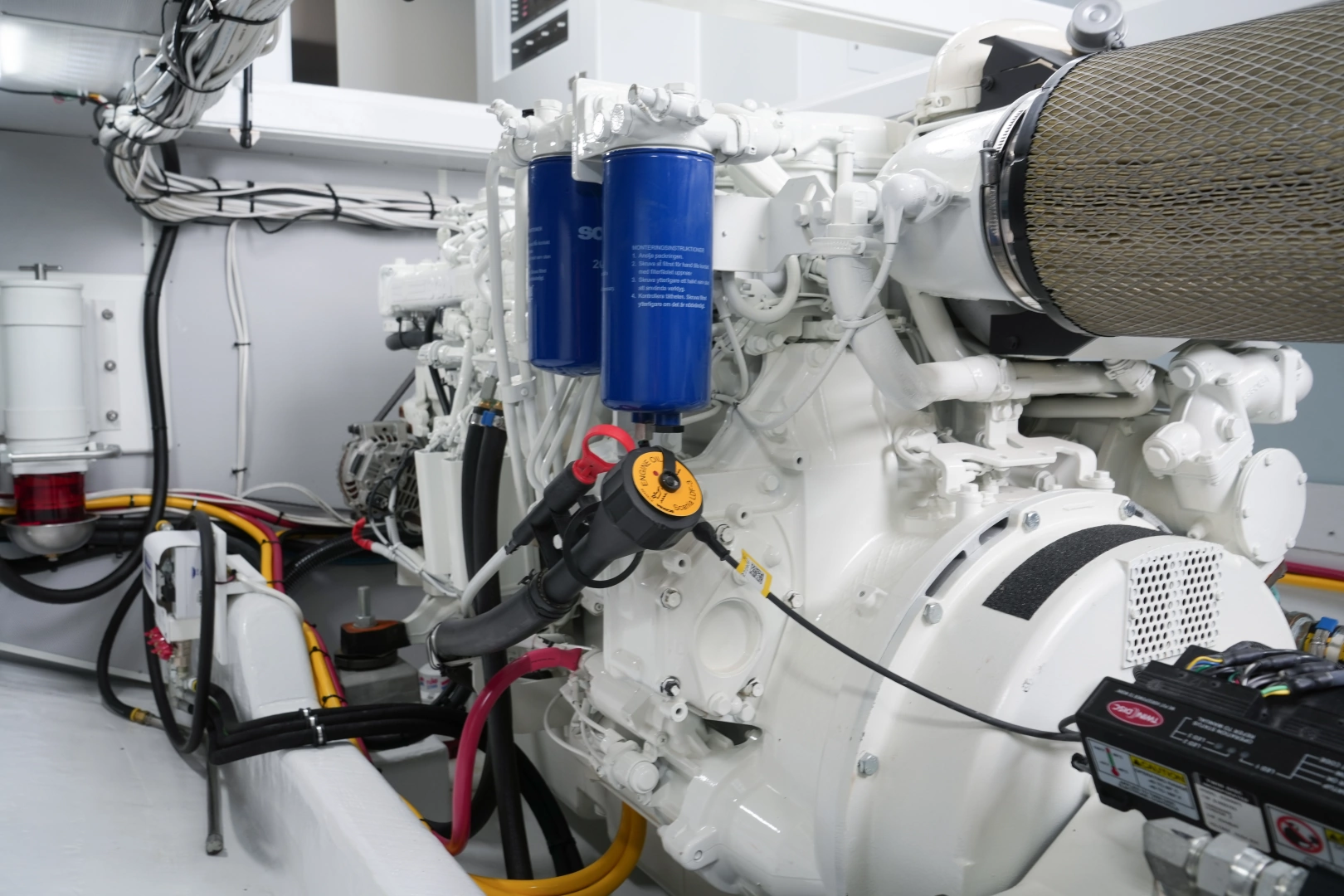

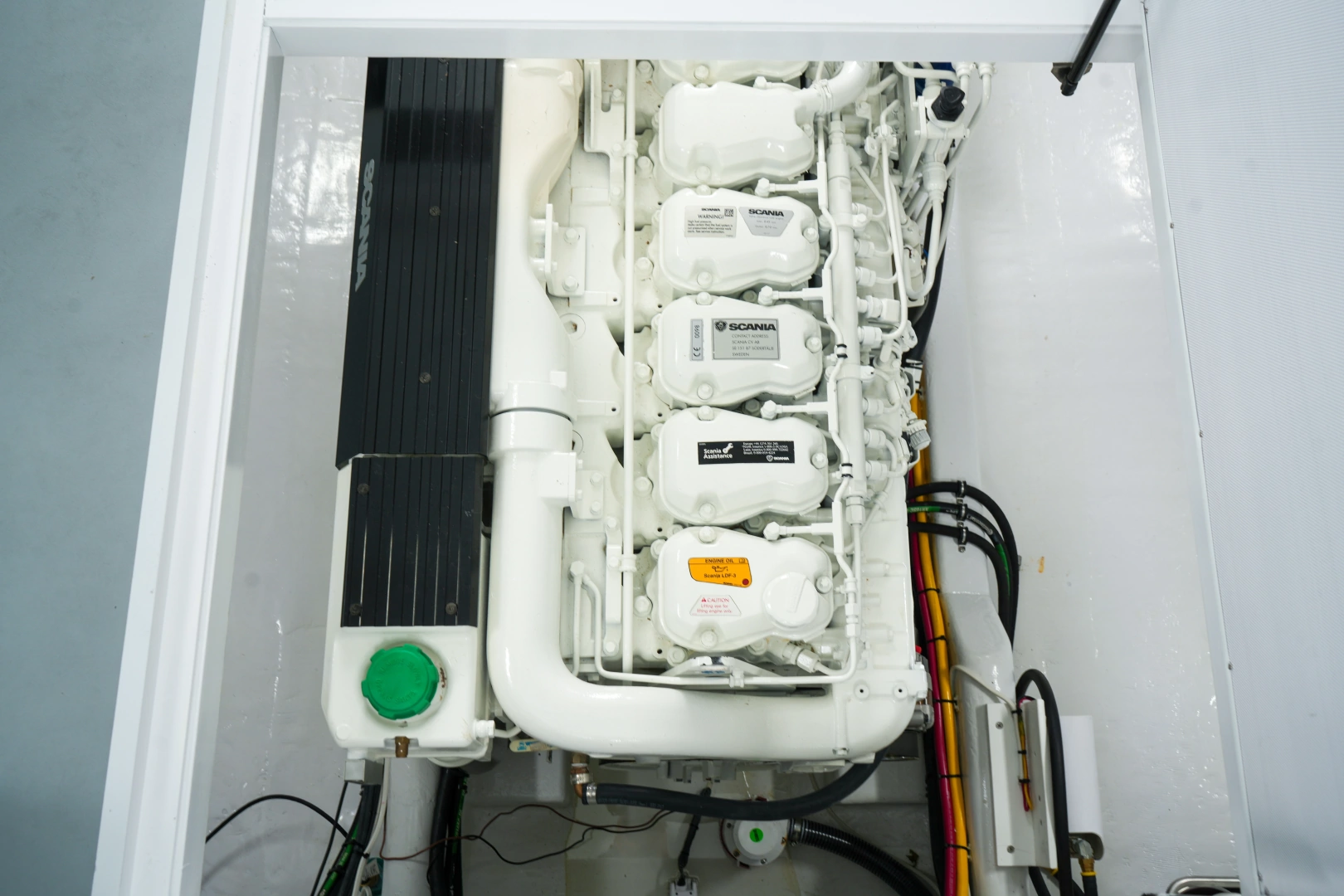

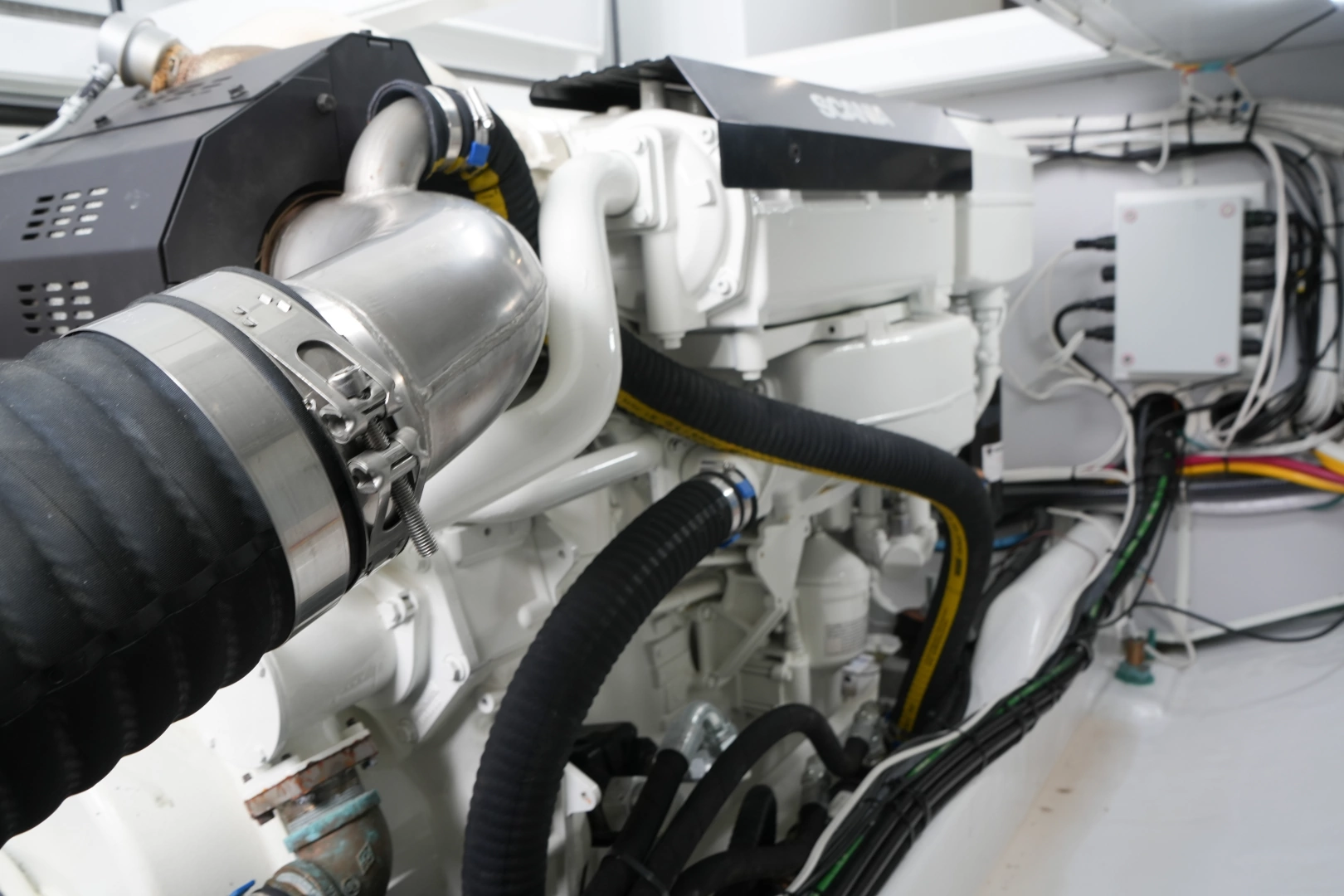

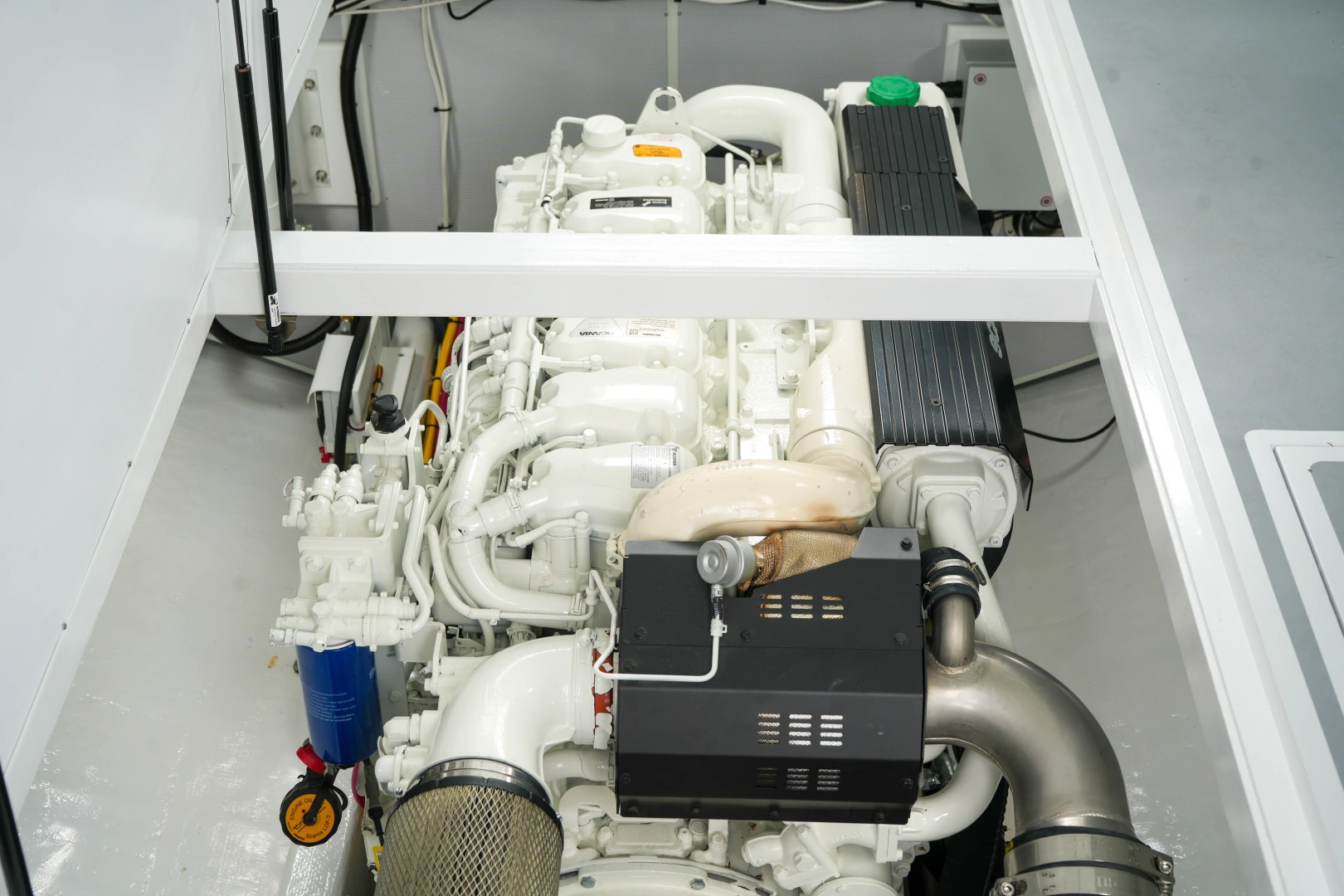

• Scania DC13 900 HP diesel - approximately 50 hours

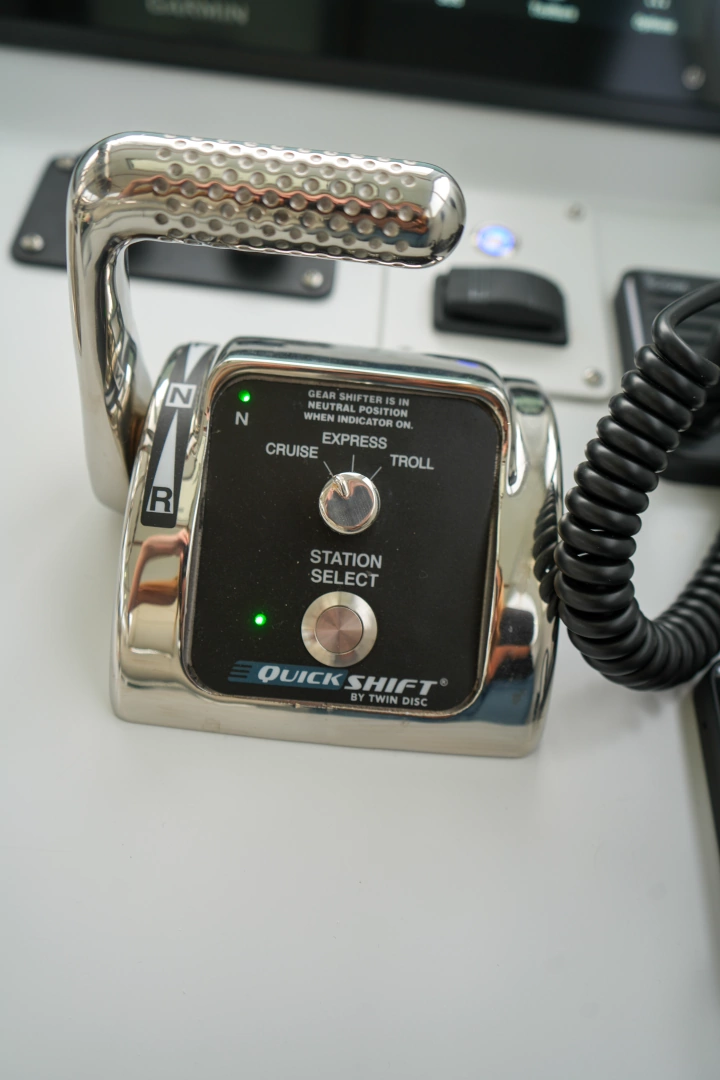

• Twin Disc QuickShift 2.04:1 transmission
• 2.5-inch Aquamet shaft with RE Thomas shaft seal
• 5-blade NiBrAl propeller
• Side-Power hydraulic bow thruster
• Zipwake trim tabs

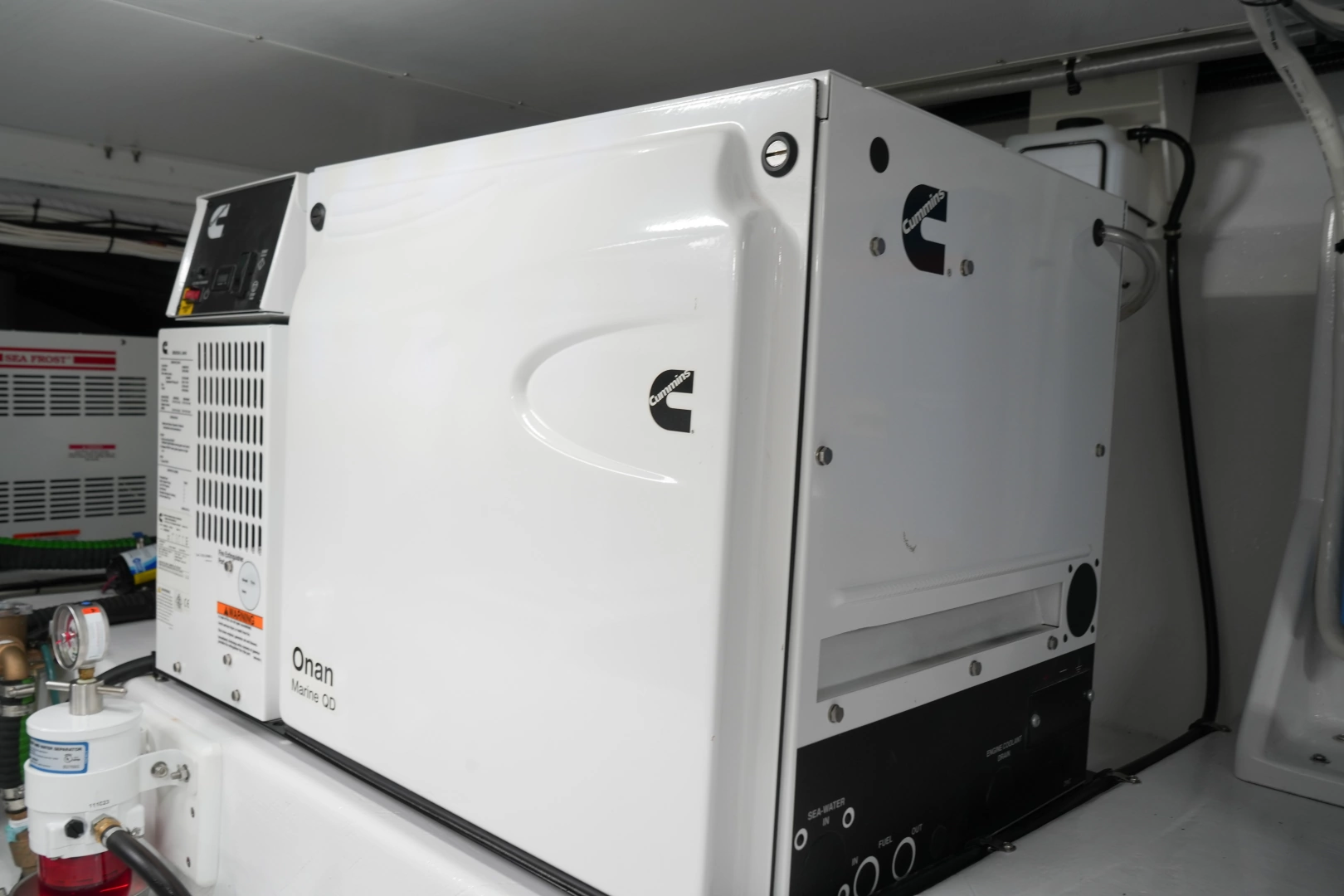

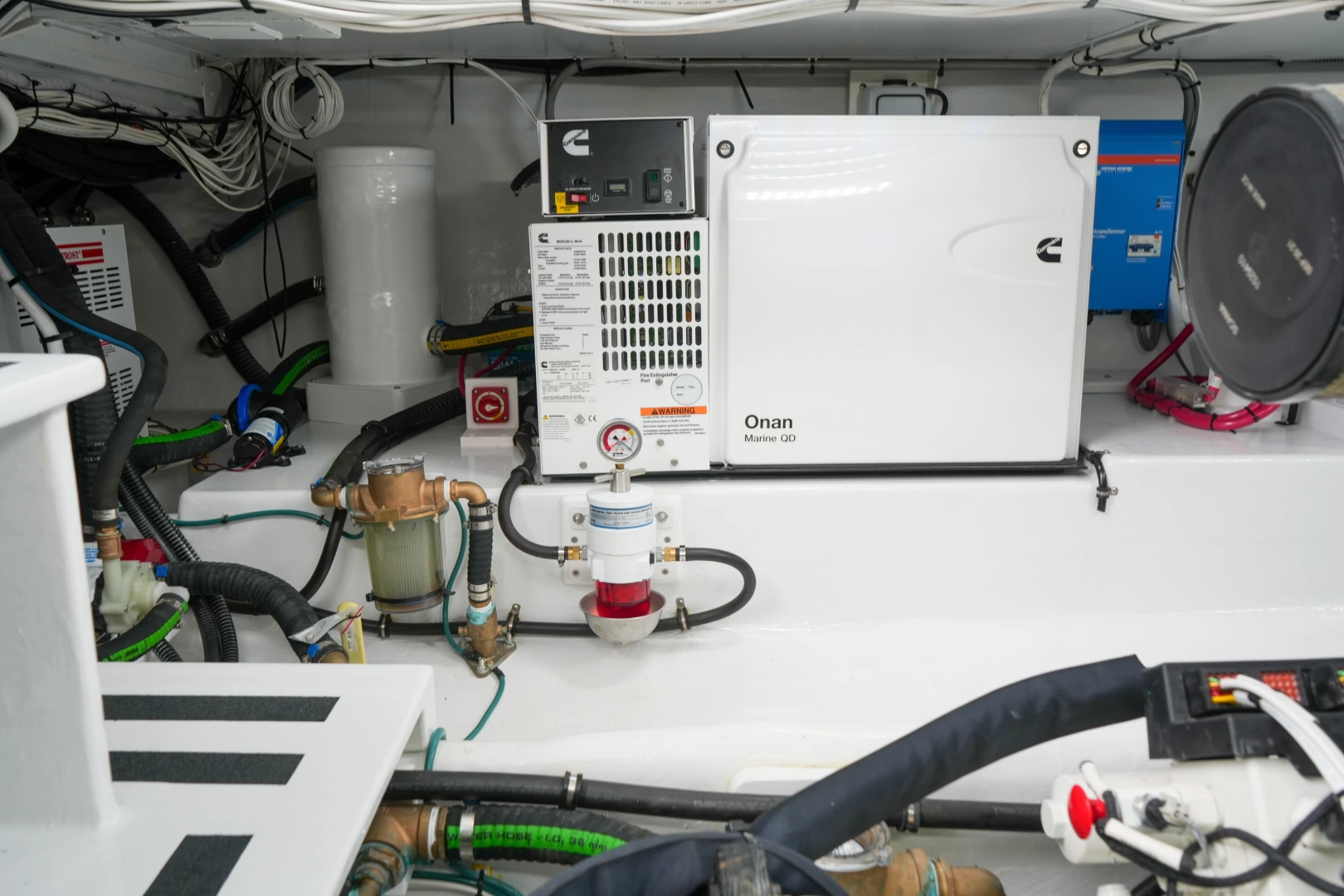

• Cummins 9 kW diesel generator - approximately 5 hours
• Three helm/control stations
• Two 375-gallon fiberglass fuel tanks - 750 gallons total

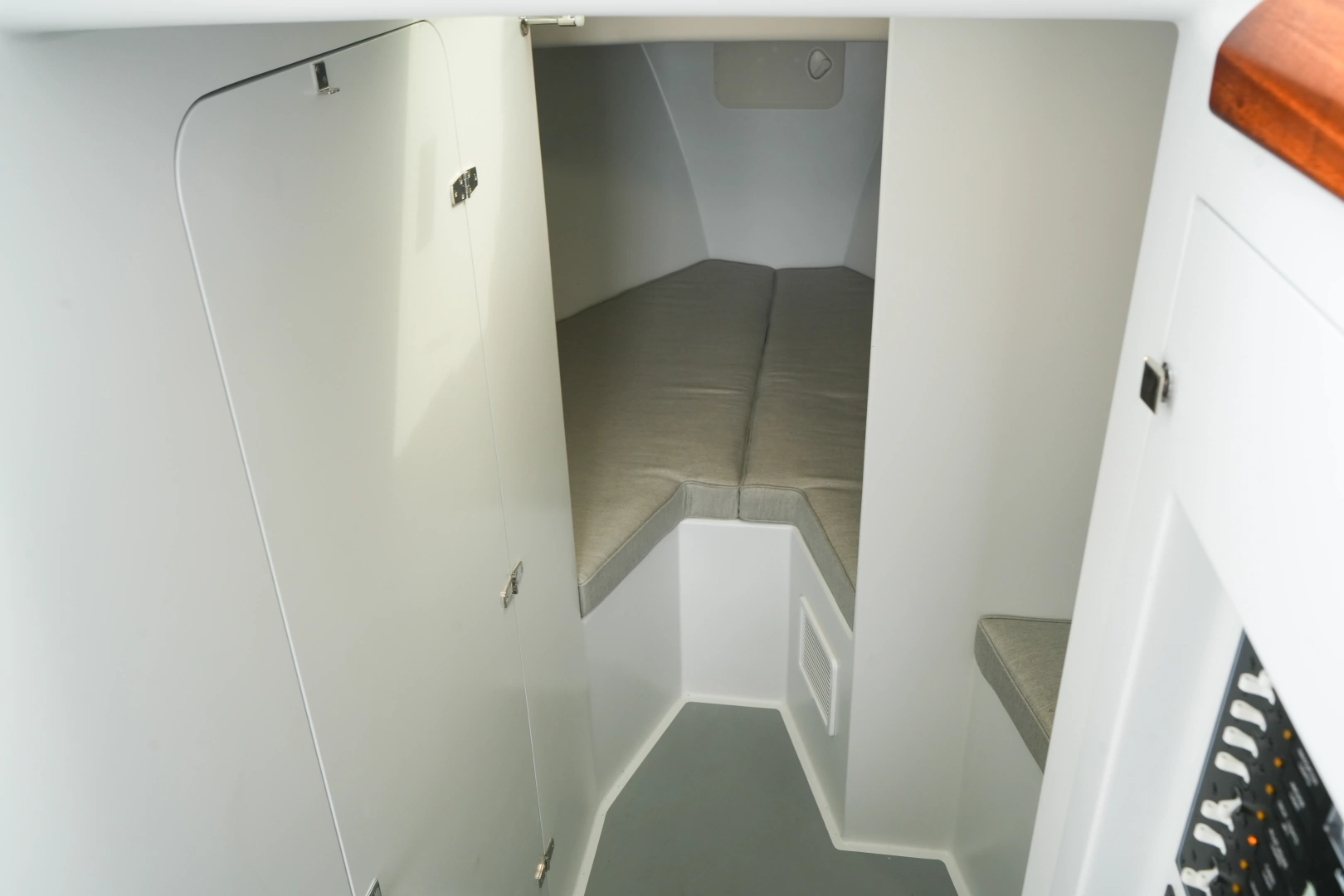

Cabin & Interior

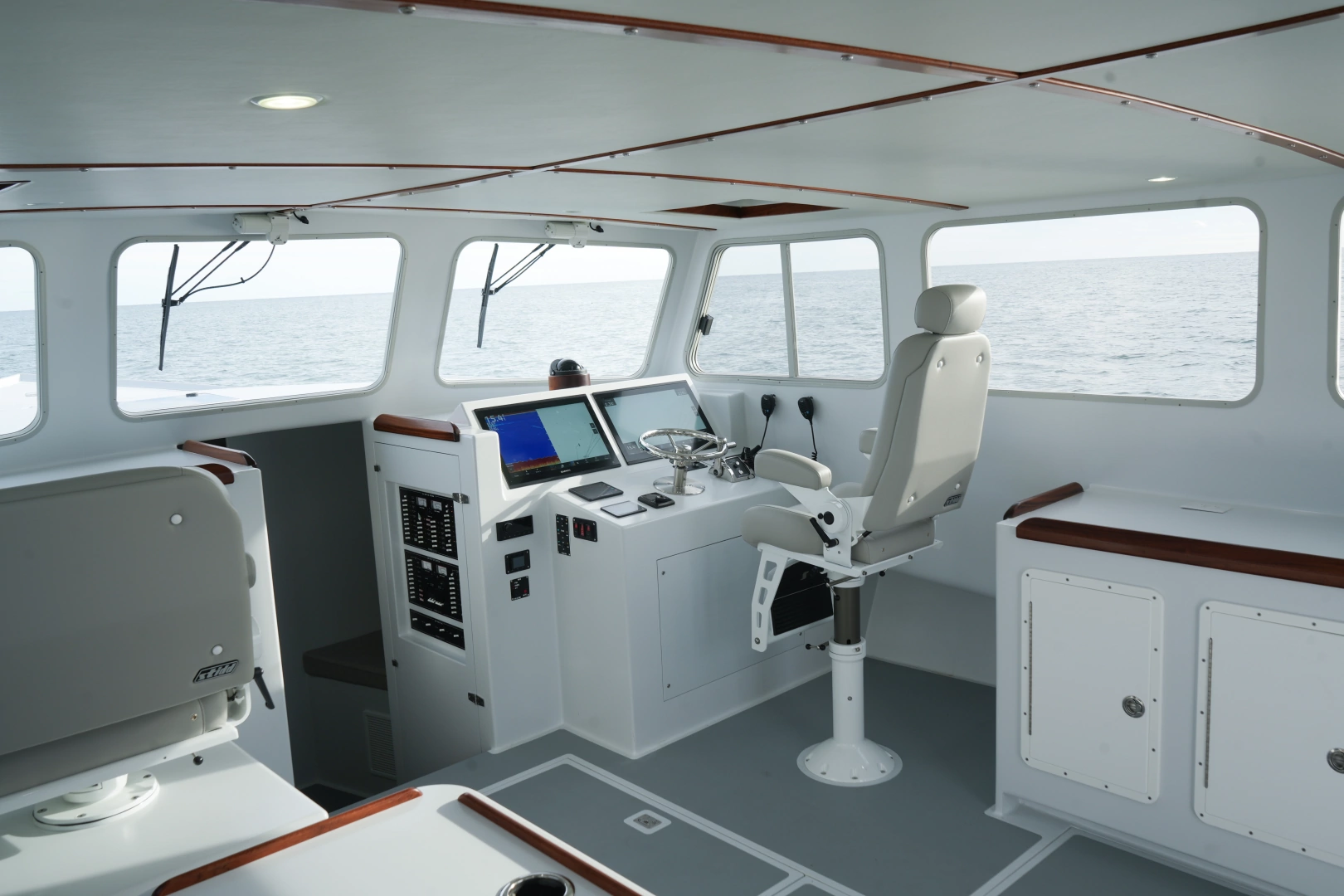

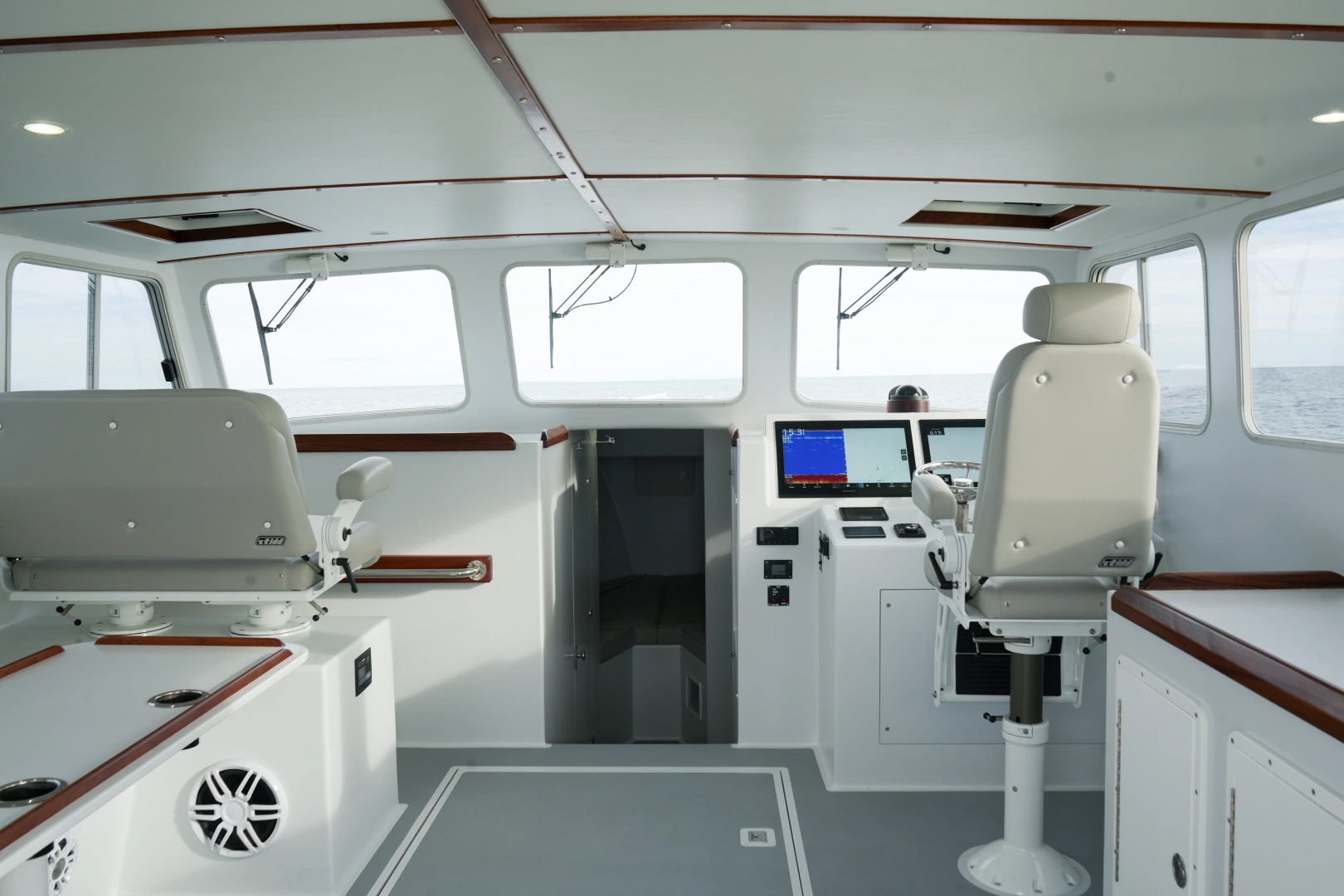

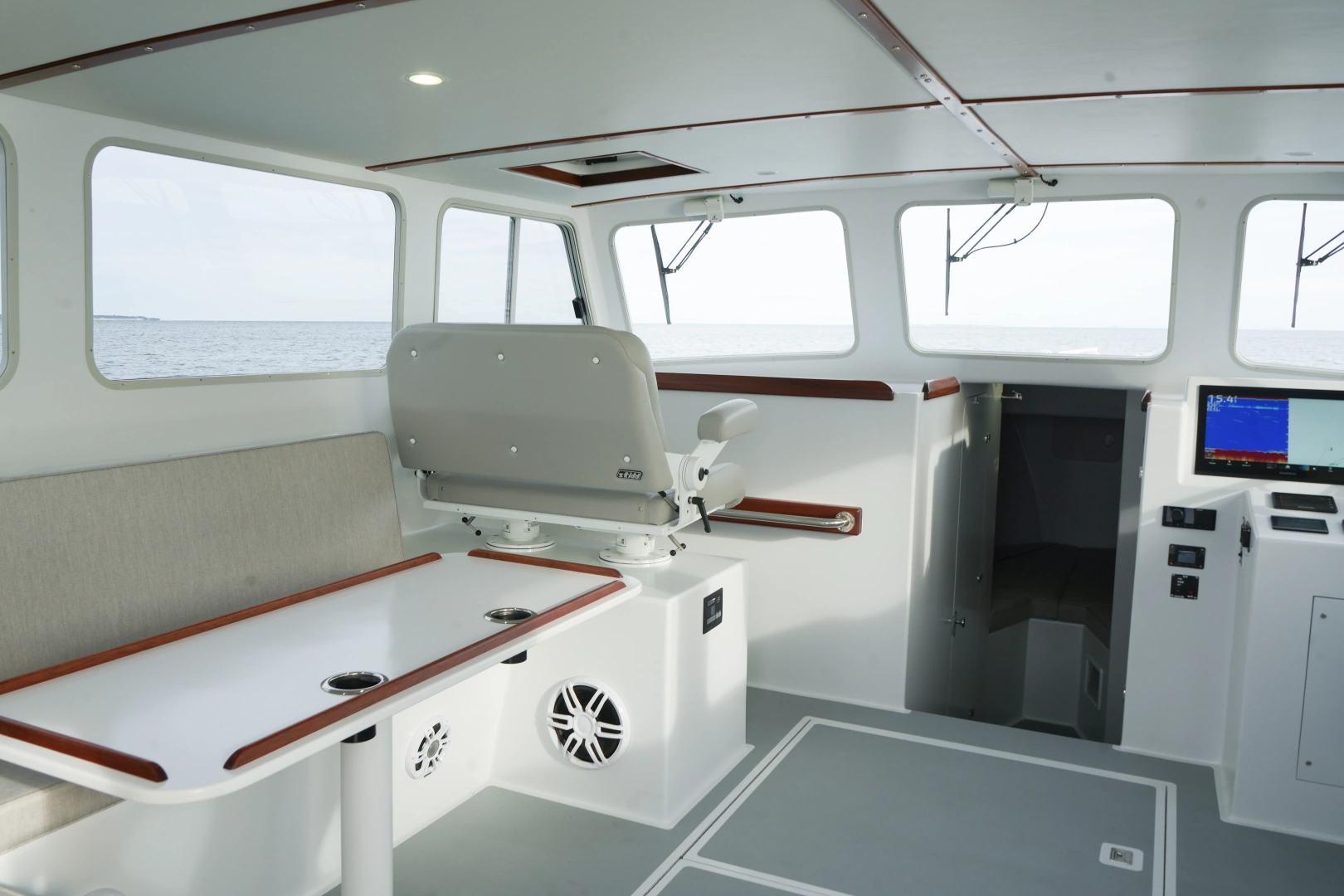

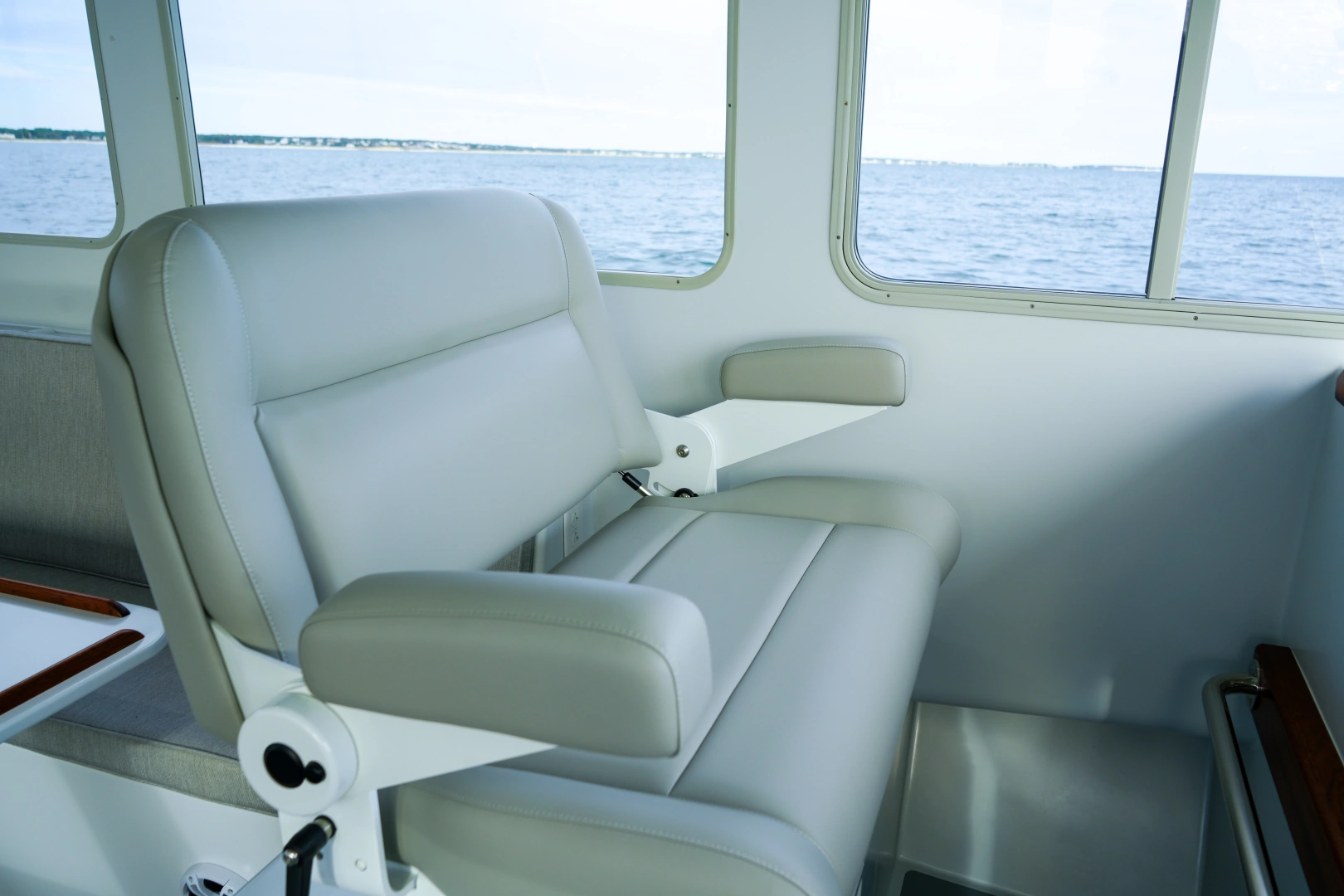

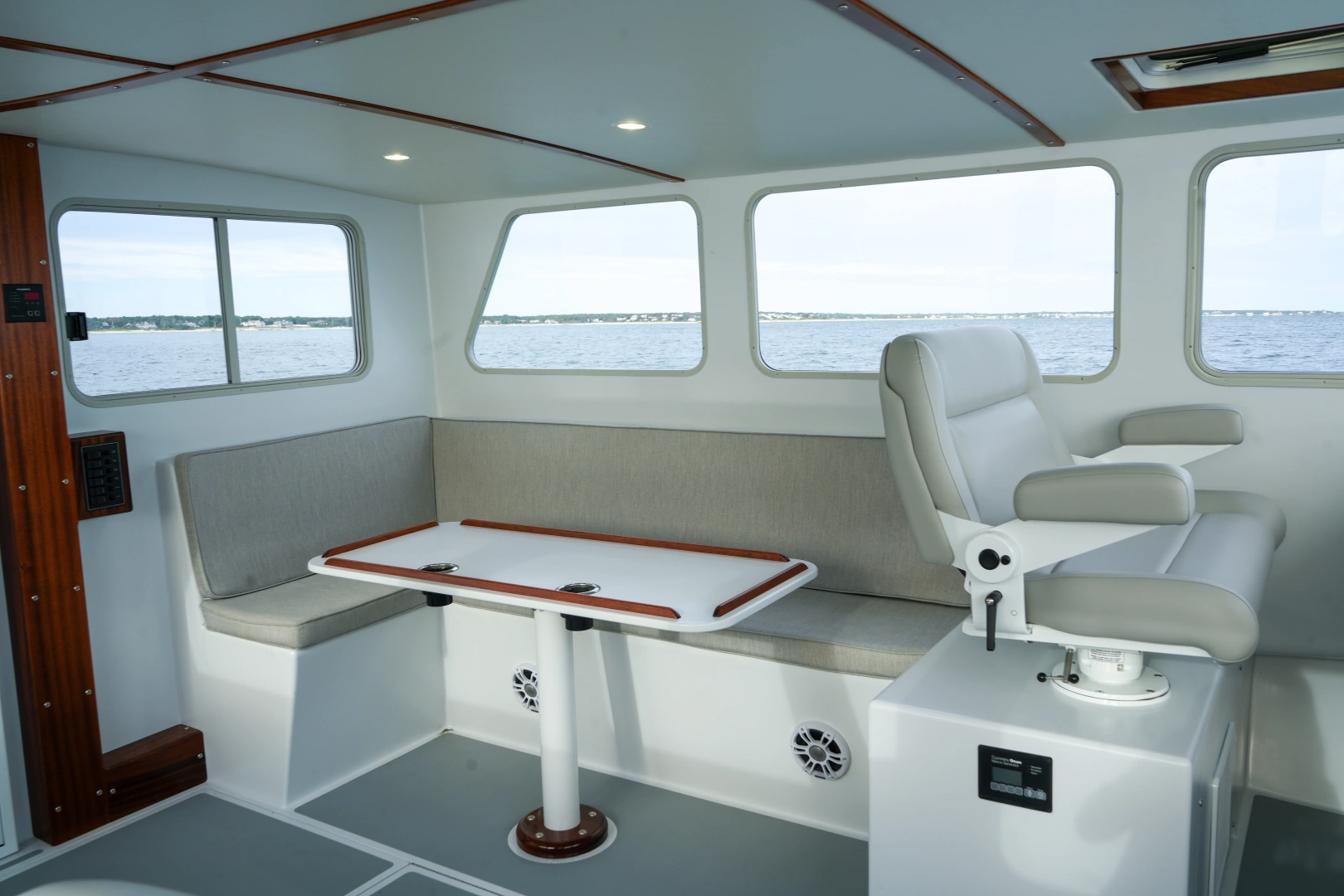

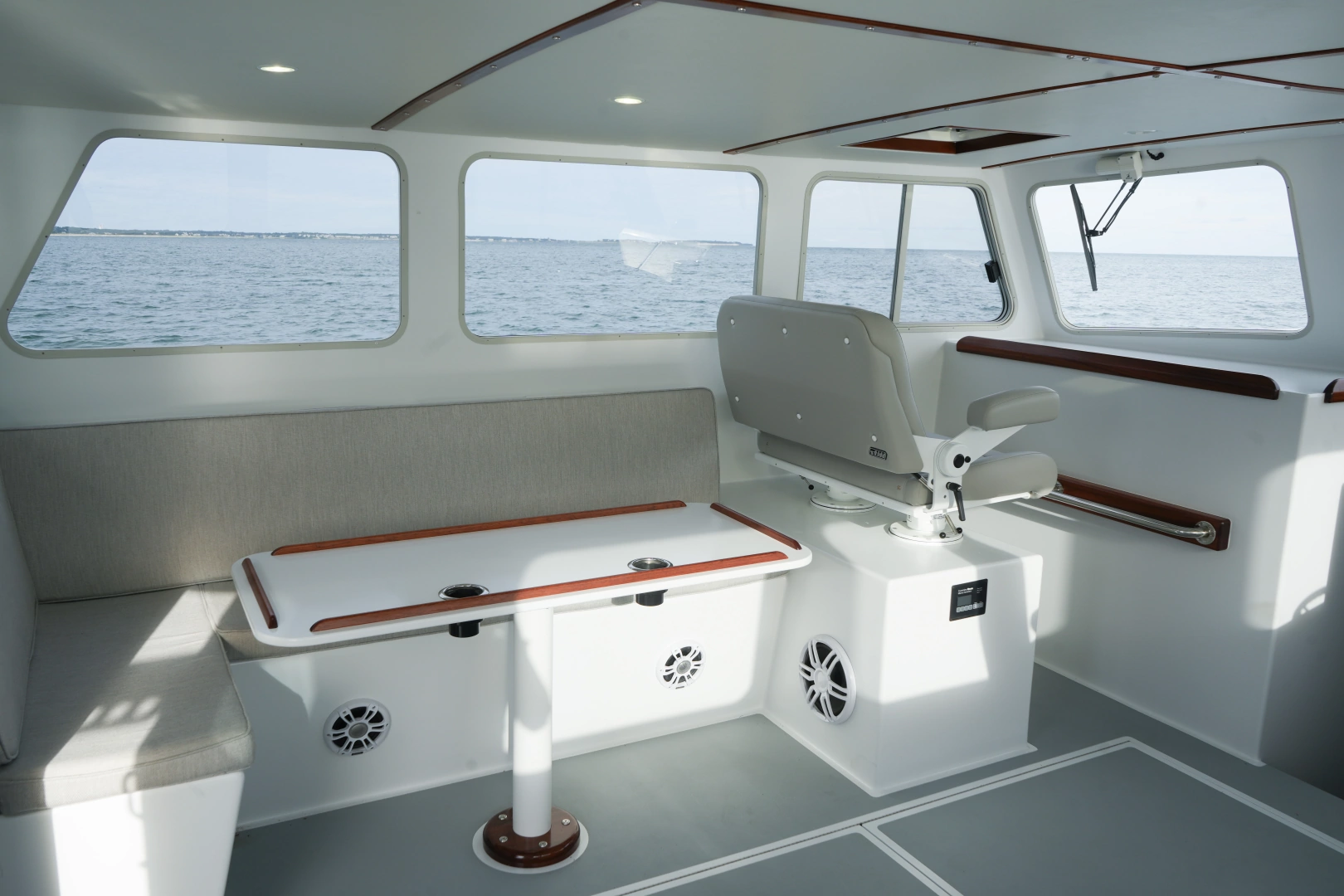

Inside, the arrangement remains straightforward and usable. The helm has a STIDD pedestal captain's chair and STIDD bench mate's seat. The galley is positioned to starboard and includes dual Isotherm refrigerator/freezer units.

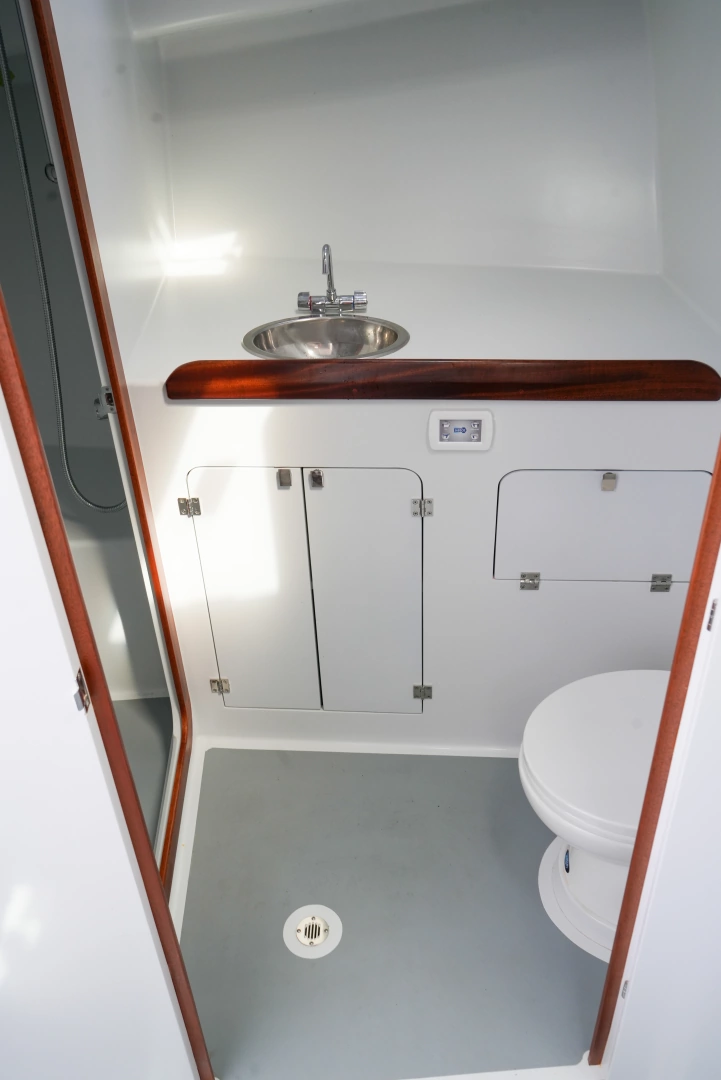

• Jabsco VacuFlush head
• 25-gallon holding tank
• Separate stand-up shower
• Starboard-side galley

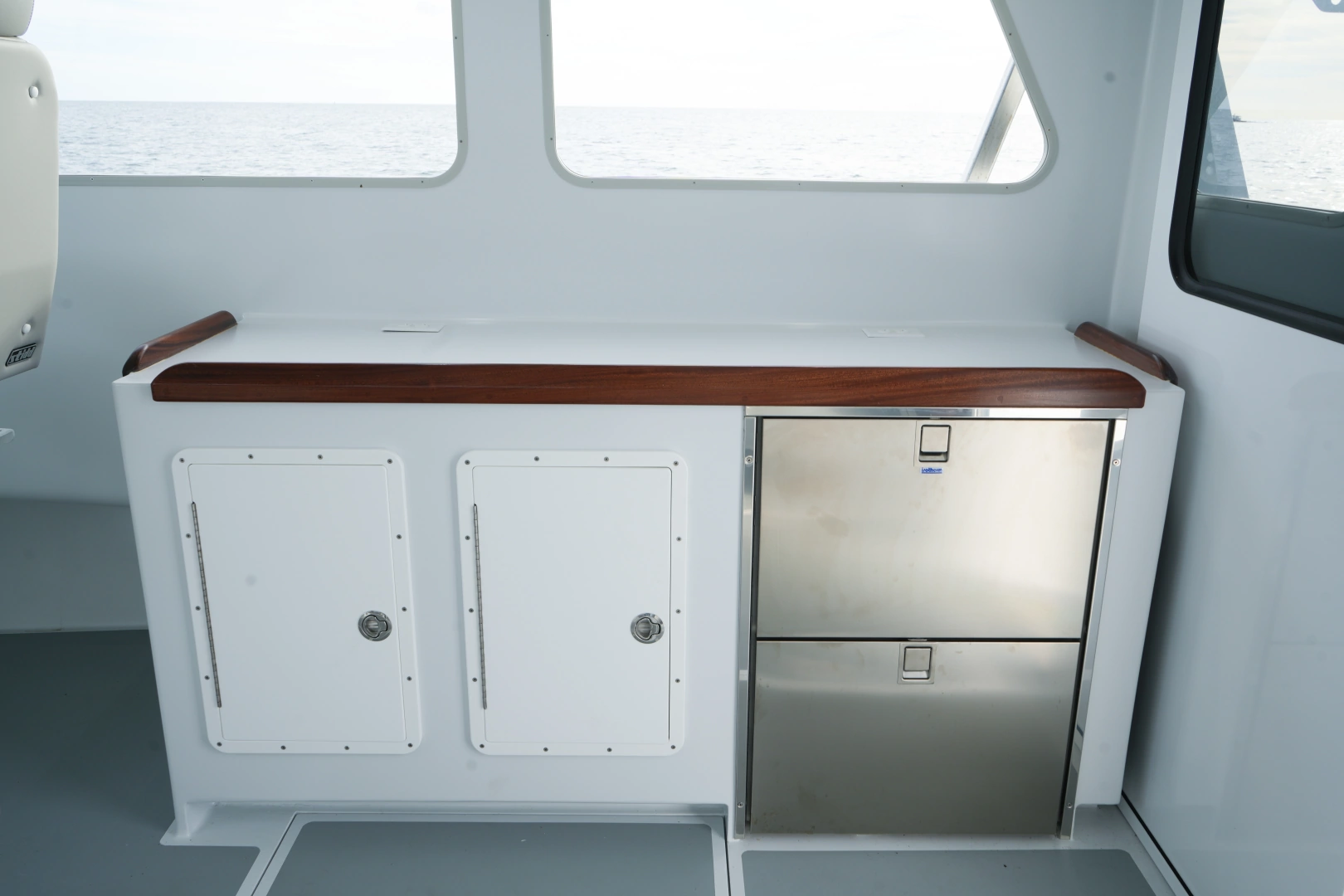

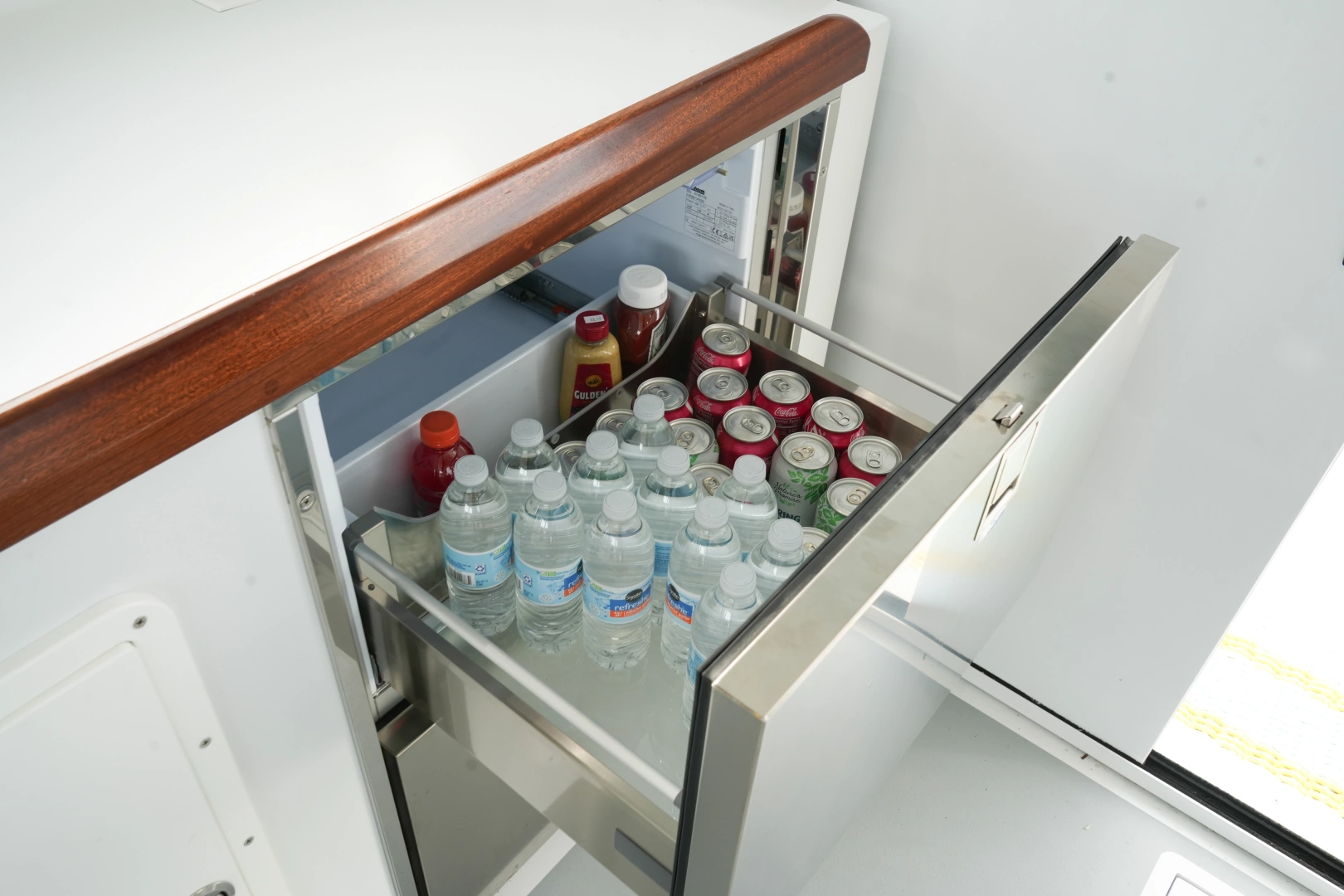

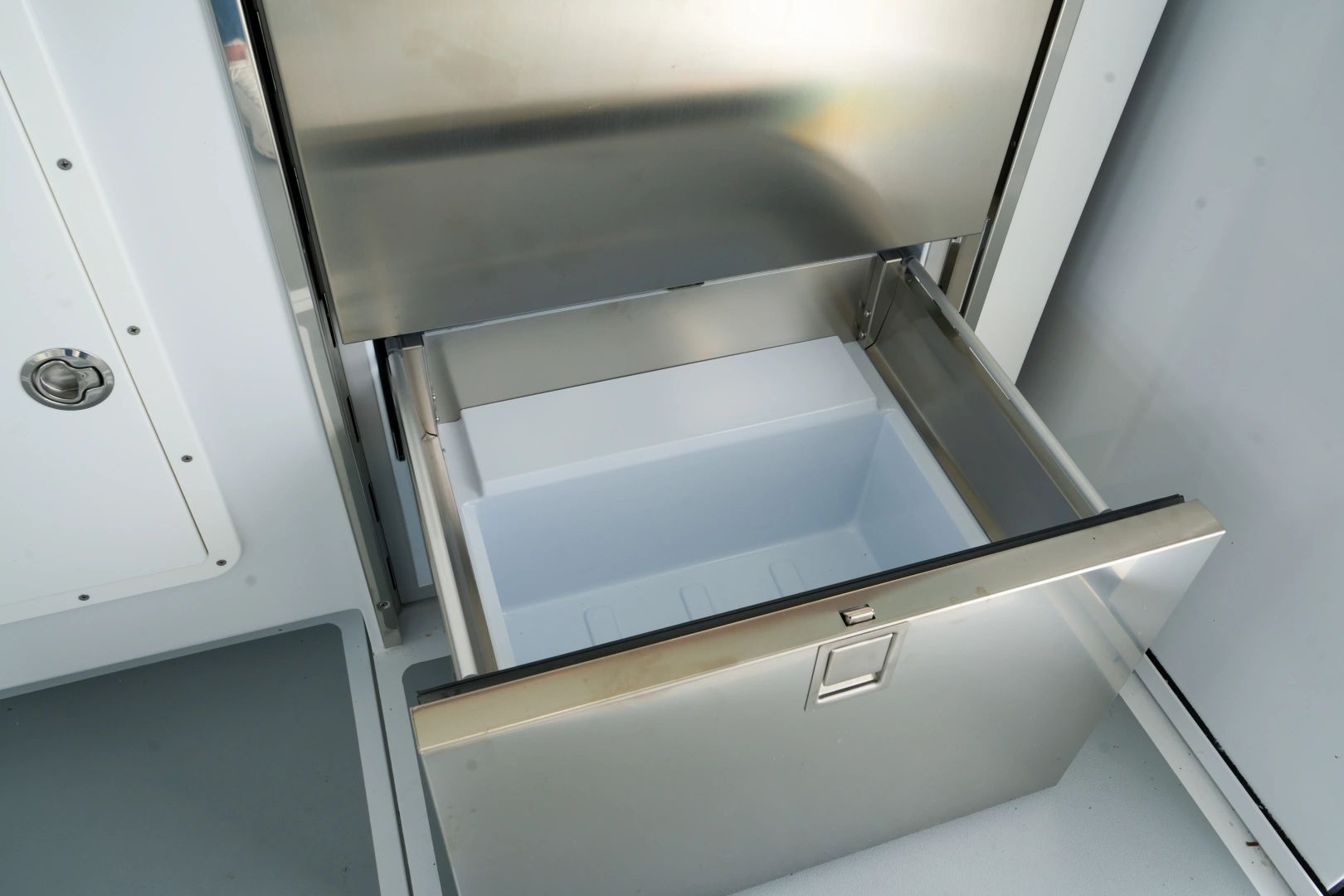

• Dual Isotherm refrigerator/freezer units
• White vinyl headliner with teak trim

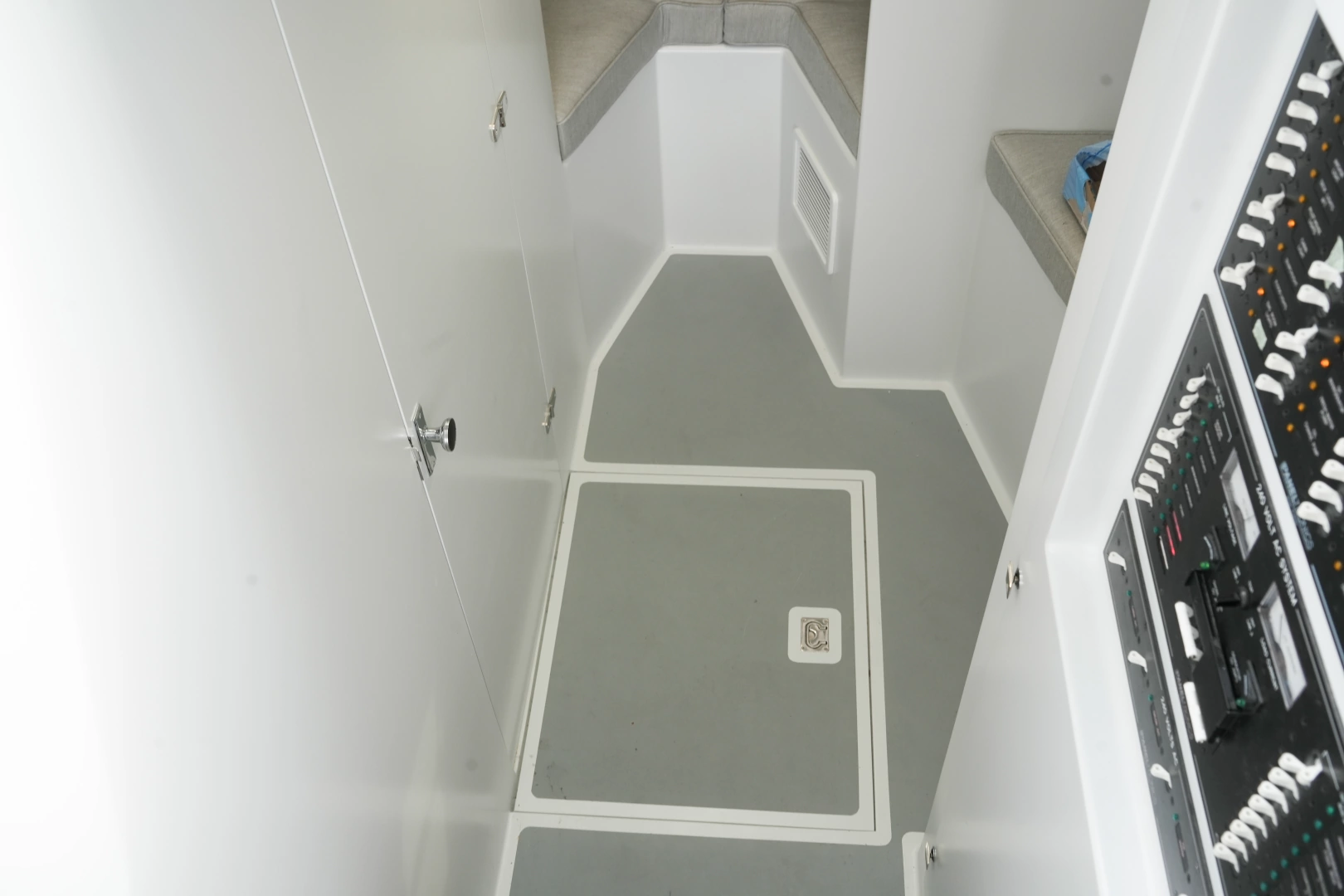

• Composite nonskid sole
• LED interior lighting

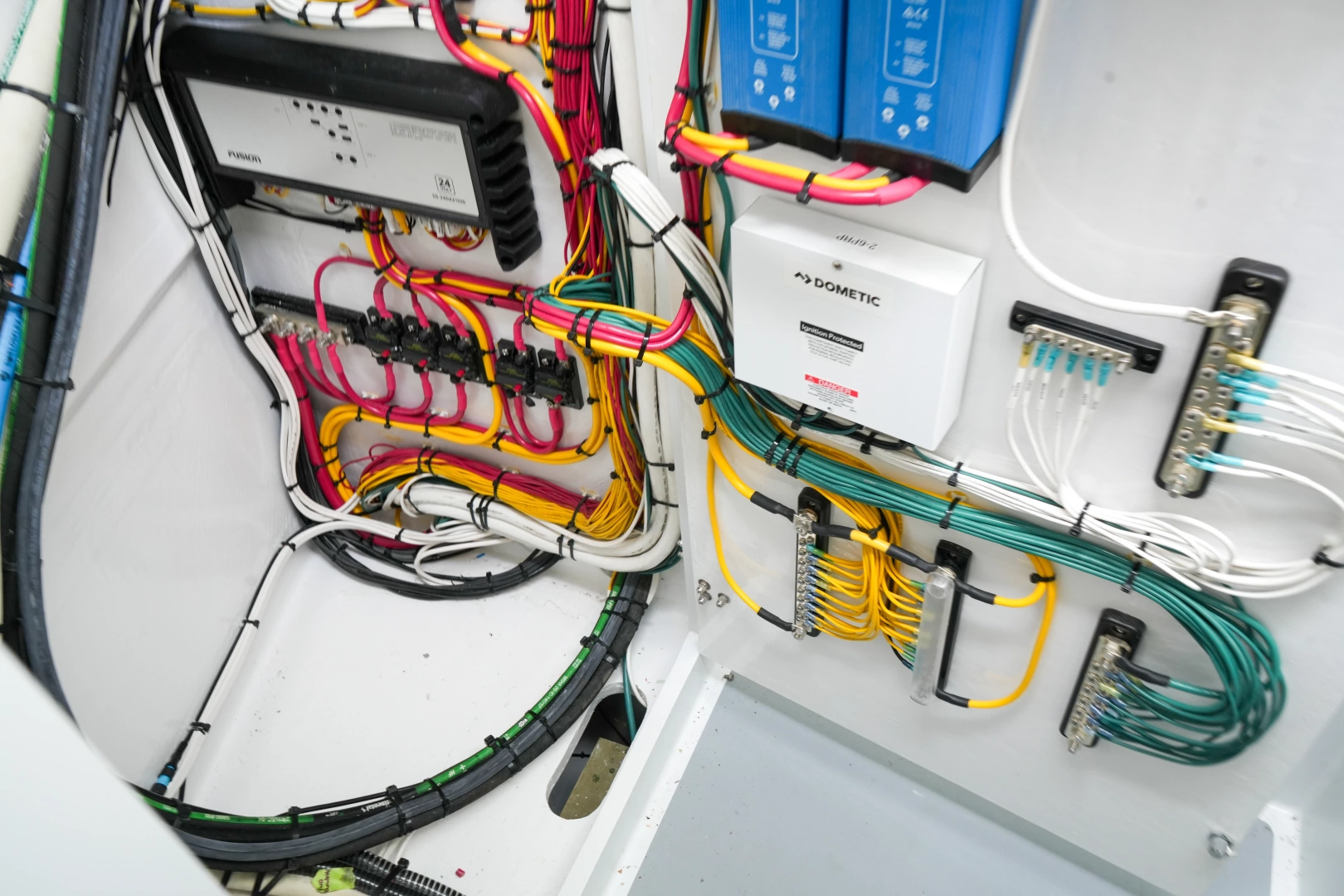

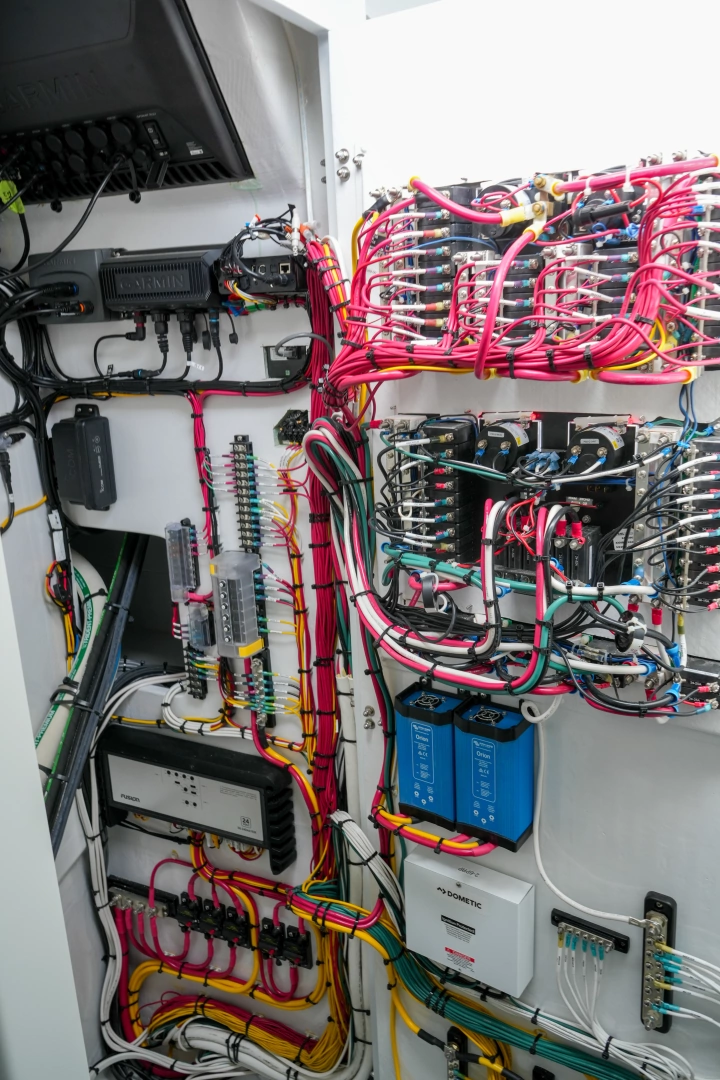

Electrical & Ship Systems

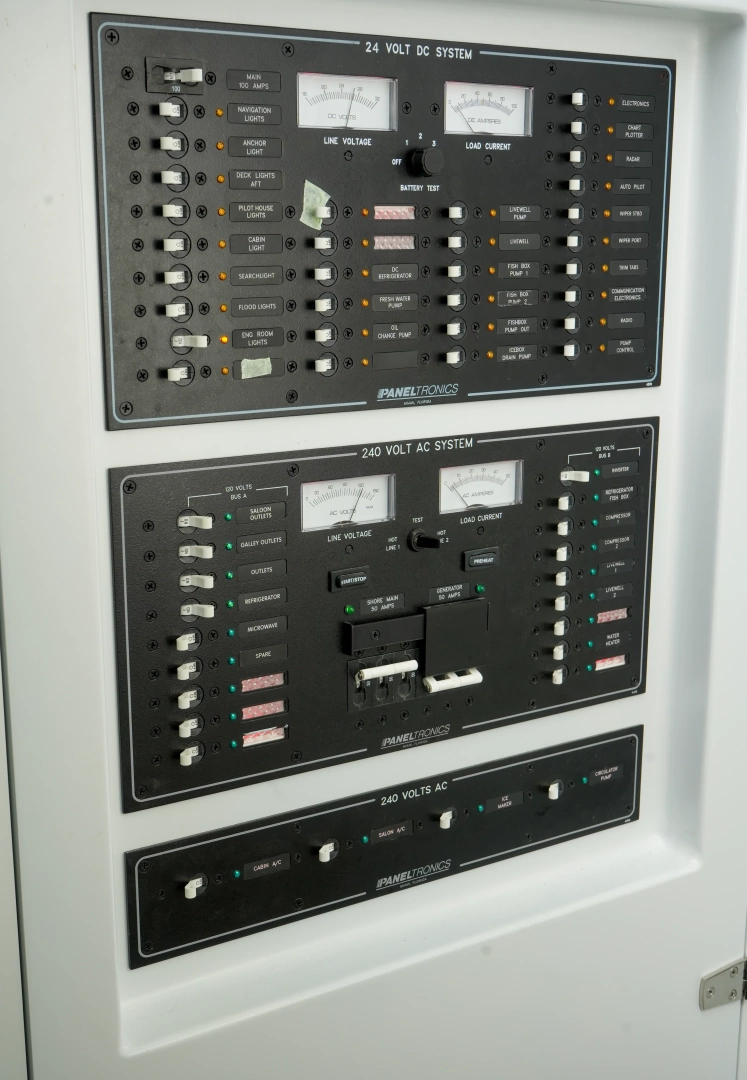

• 24V DC and 120/240V AC systems

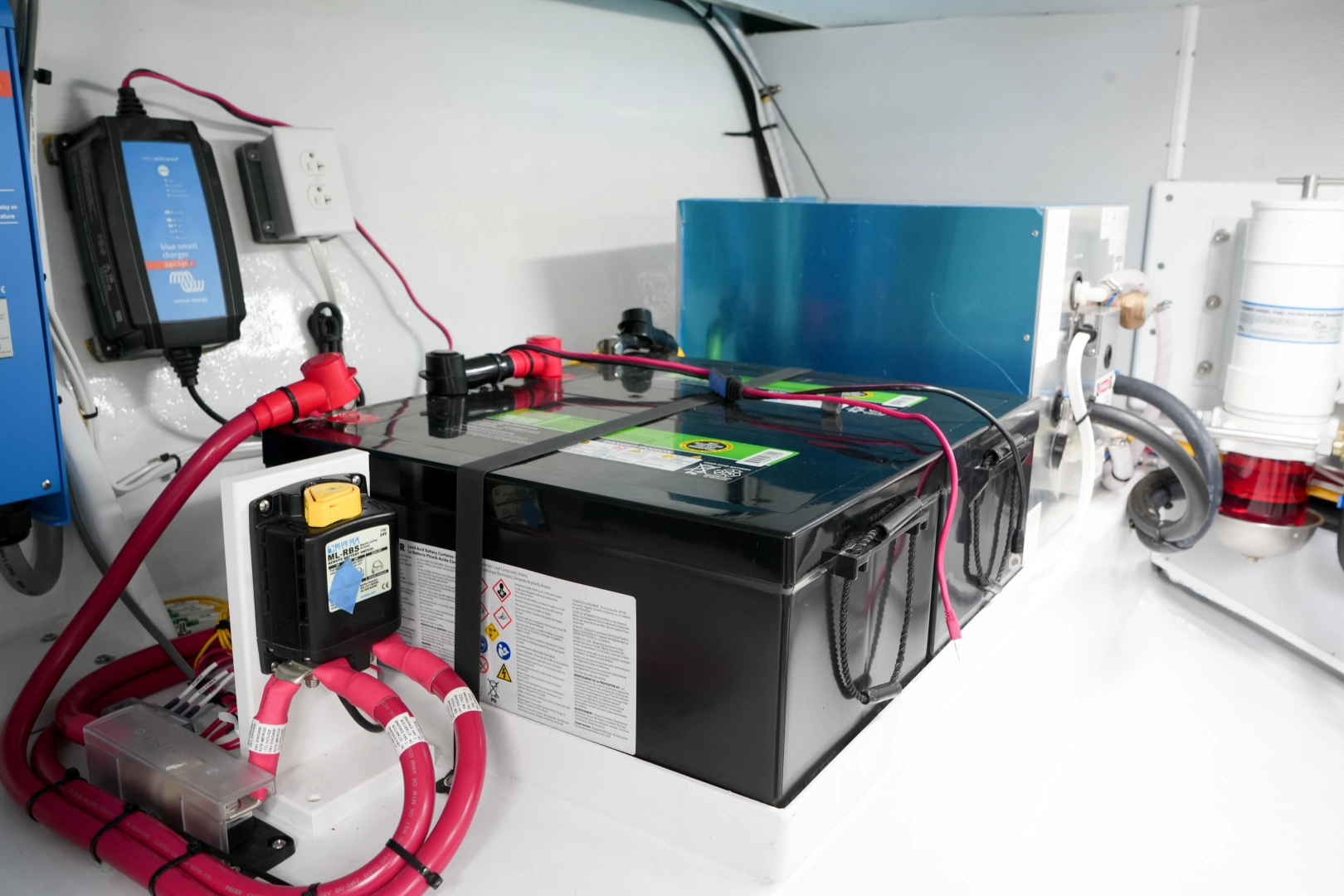

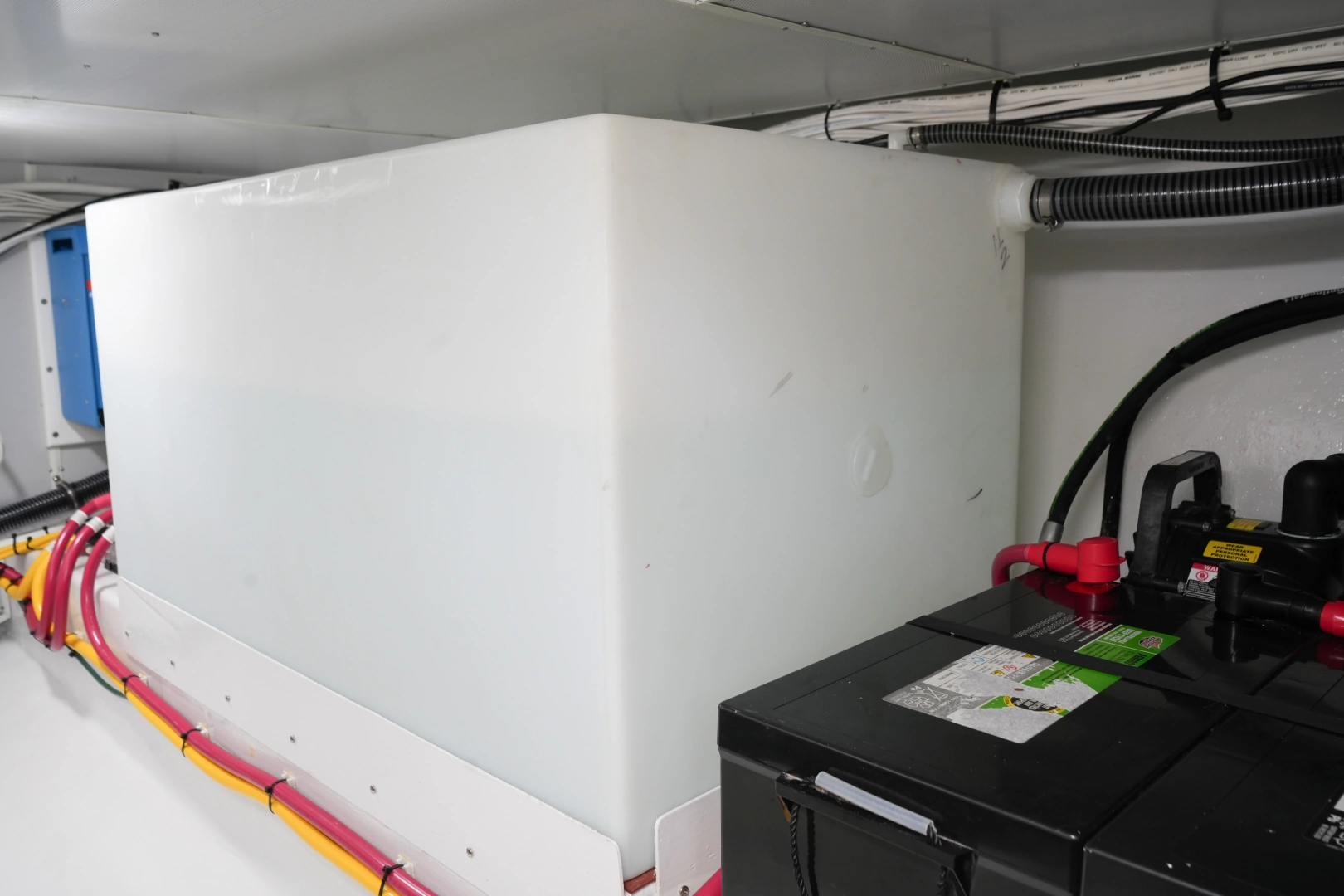

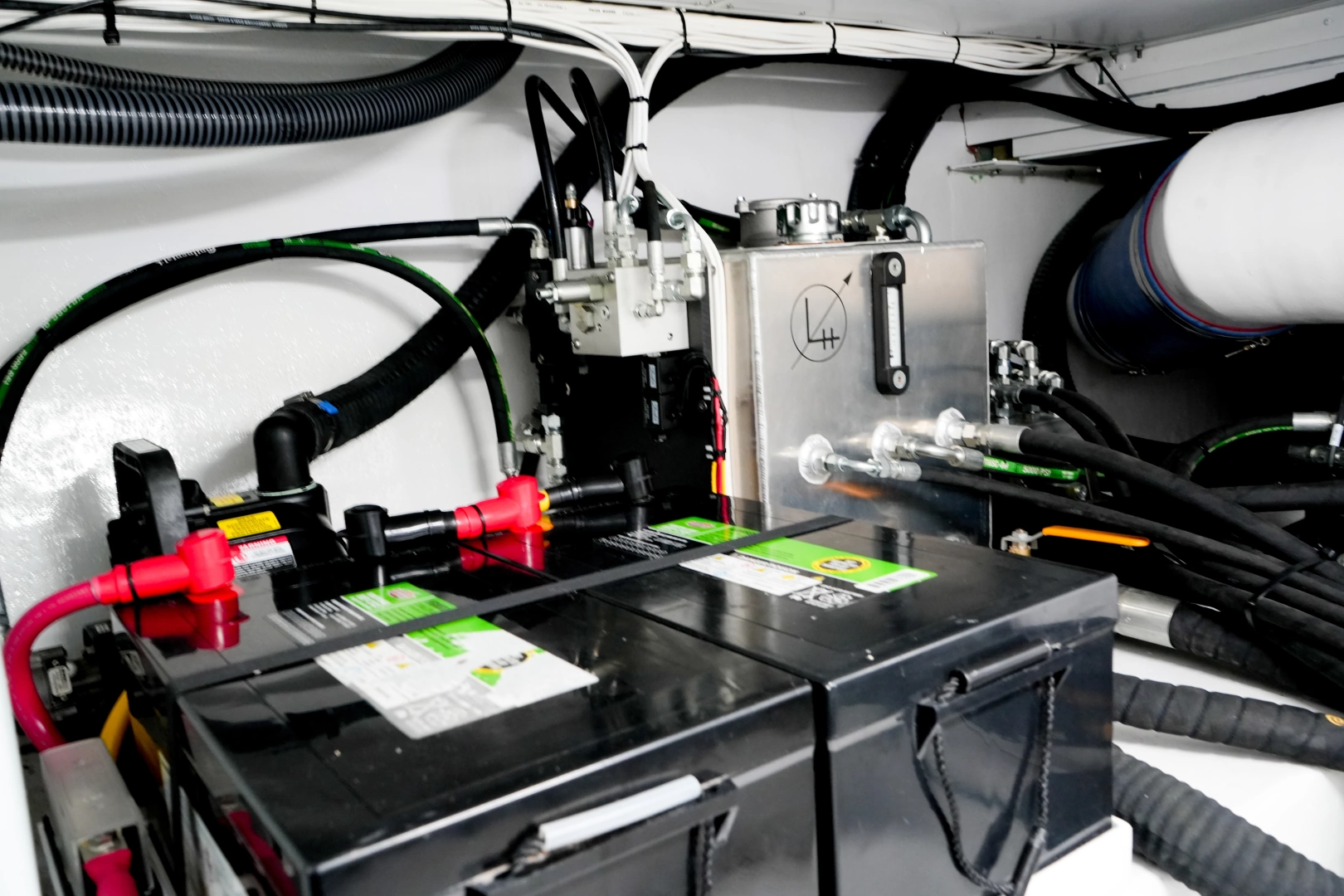

• Four 8D house batteries
• Group 24 generator start battery
• Victron inverter/charger
• Orion DC-DC converters
• Victron auto-transformer shore-power system
• 60-amp galvanic isolator

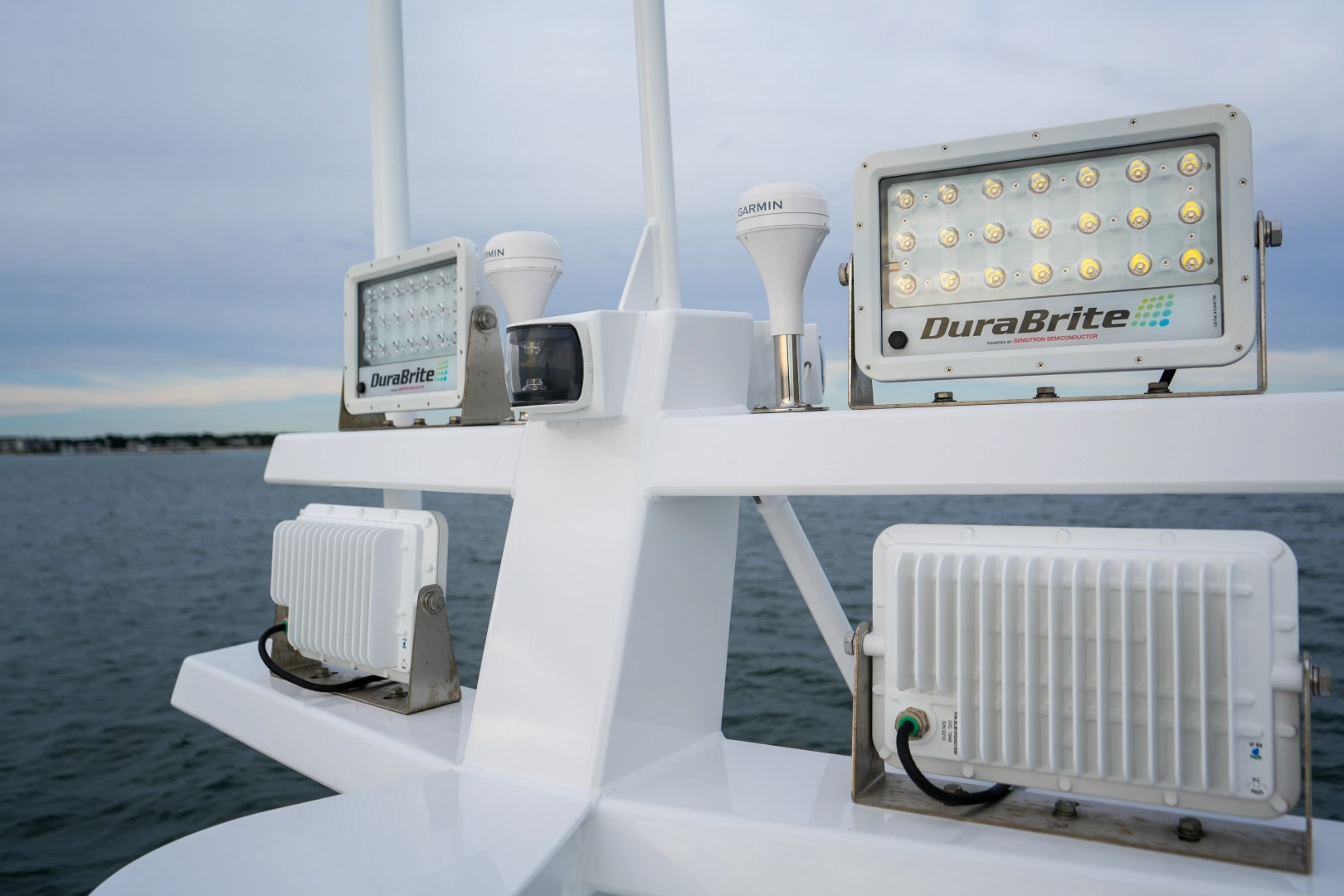

• Two forward Durabrite Mini lights
• Two Durabrite Mini spreader lights

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
