Overview

Manufacturers Comments

There’s no mistaking the rugged heritage of the Krogen 42′ trawler yacht. Her forebears were hardworking shrimp boats built to respect the sea and ride out any weather. While her profile is far more refined and her quarters the height of comfort, the Krogen 42′ is as salty and seagoing safe as those commercial fishing sister ships of yore.

The late naval architect and designer, James S. Krogen, was a master of merging the tried and true with fresh, innovative concepts, creature comforts and convenience. His near-three decades of commercial design gave extra dimension and distinction to his offshore pleasure craft. Outstanding performance is inherent.

The Krogen 42′ trawler yacht was designed and constructed for yachtsmen and women who prefer timeless to trendy and solid comfort to making waves. The wineglass transom of her full-keeled displacement hull rises out of the water for minimum drag, maximum efficiency. At 8 knots, her range is close to 2,000 nautical miles.

You can cruise from ocean to ocean or simply while away a weekend in a nearby cove. The whole world of water is securely yours in this stalwart lady.

Claire's Overview

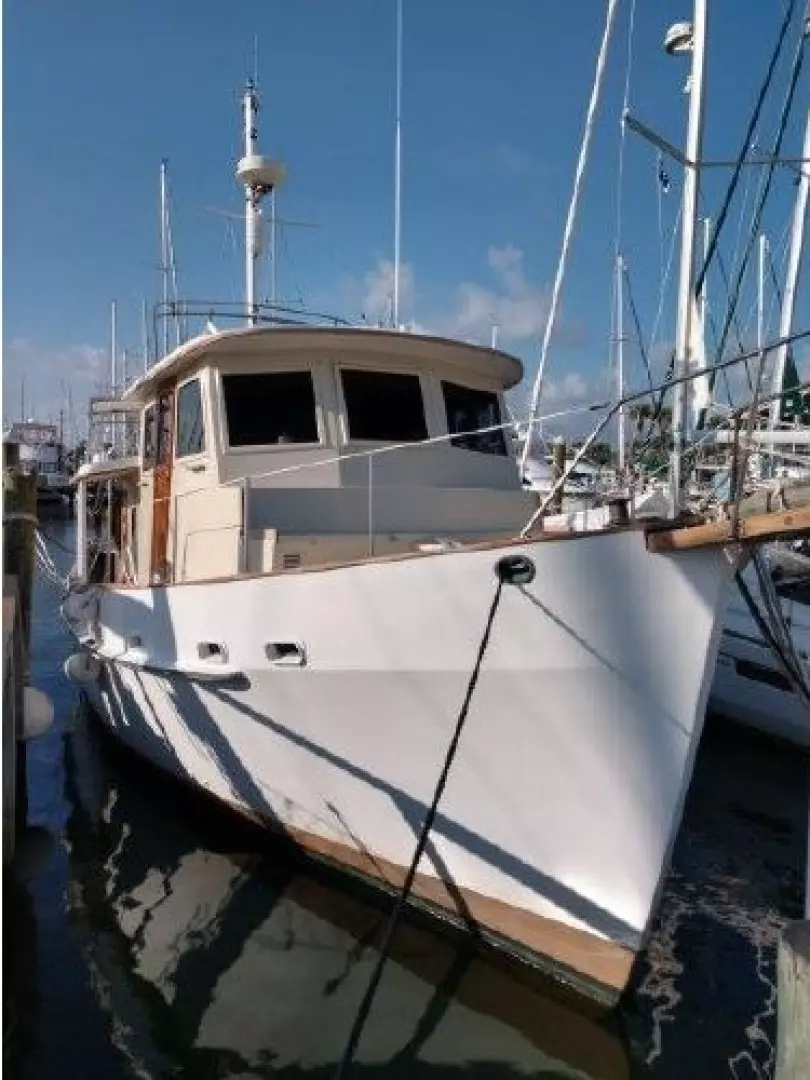

 Claire is an outstanding example of the popular Kadey Krogen 42 pilothouse trawler. She is currently owned by a retired New England boatyard manager who commissioned an extensive professional refit of all systems and finishes. She consequently shows and performs as a much newer vessel and must be seen to be fully appreciated. Claire represents a unique opportunity to acquire an essentially remanufactured pilothouse 42 in turn-key condition. Most recent survey valuation of $280K.

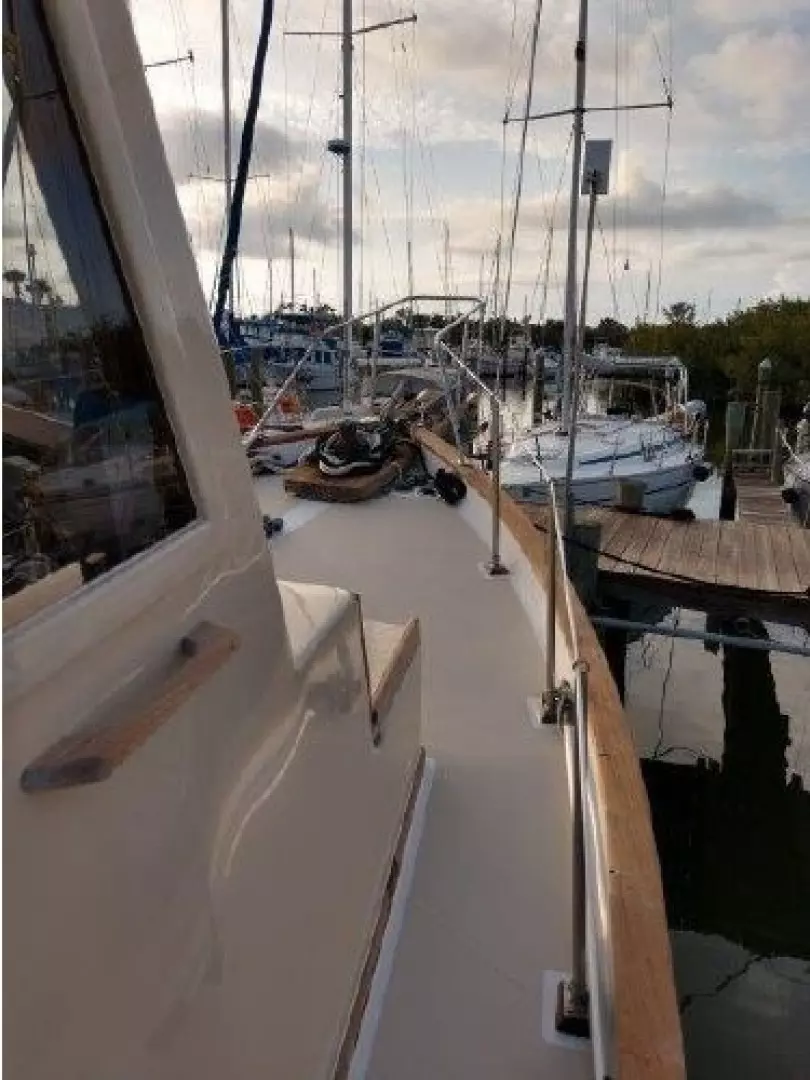

Claire is the two head version with the starboard queen in the master cabin. The salon furniture is not built in. The forward and upper decks are non-skid Awlgrip over fiberglass and the side and aft lower decks are planked teak over fiberglass. Most of the husky teak trim is left bare for ease of maintenance, with only the salon doors, window frames and nameboards varnished. Original low-hours Lehman 120 hp main and Onan 12KW generator have been constantly upgraded and are both in excellent running condition.

Claire is set up to function seamlessly at the dock, underway or on the hook. A powerful solar system with smart controller, massive battery bank and new inverter/charger means virtually no generator running time for normal refrigeration, lighting and entertainment loads when anchored or underway. At the dock you can run entirely off shorepower or you can run the starboard 120 VAC panel off solar/inverter and the port panel (with staterooms air conditioning) off shorepower.

Improvements in the last two years include a 960 watt solar system with sophisticated Midnight Solar smart controller and 1200 amp hour house bank, 2KW inverter/charger, 12” Axiom GPS/plotter with new backbone in pilothouse, 6” Constellation compass in pilothouse, microwave oven, 16000 BTU condensing unit and air handler, main engine exhaust elbow, hoses and clamps, bronze heat exchanger, smart TV/DVD in master cabin, smart TV in salon, toilet, propane controller, vented washer/dryer, laundry center lights and storage area, generator Racor filter with fuel feed piping and valving, electric fuel pump, all hoses and fuel injection pump, two 8D, one 4D and ten T-125 six volt batteries, two new battery boxes, all hoses and clamps throughout the vessel, TV antenna, battery box blower, and engine room exhaust blower and vent, fresh interior finishes, 60# HT Danforth storm anchor with mounts and 420’ rode, four 50’ spring lines, flybridge multi meter, plumbing fixtures, ¾” Starboard work bench, smoke alarms and much more.

Full Specifications

Galley

Sub-Zero refrigerator and Sub-Zero freezer (run on shore, generator or inverter)

Microwave oven

Force Ten 3 burner stove with oven and broiler

Dual deep sinks

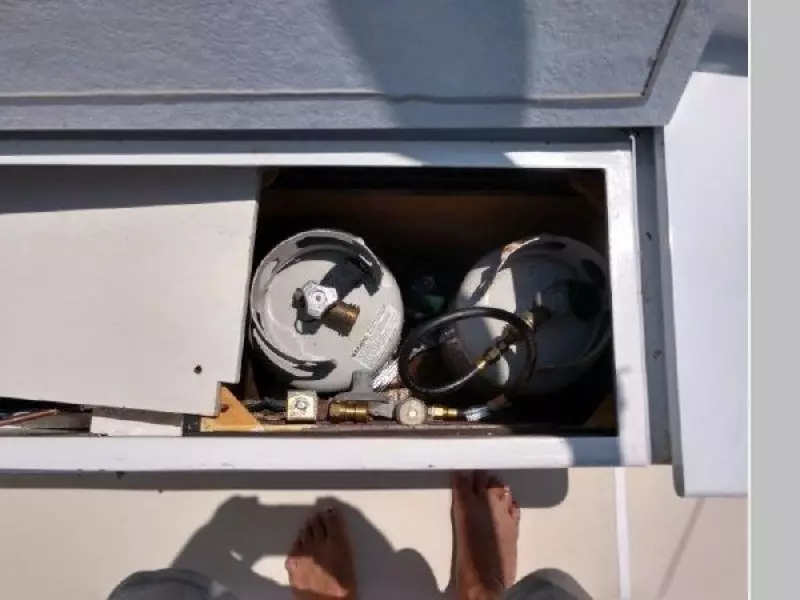

Propane controller with two tanks

Extensive storage

Large cutting board

Electronics;

12” Axiom GPS/Plotter in pilothouse

JRC 3000 Radar in pilothouse

Icom IC-M 422 VHF radio in pilothouse

Icom IC-M 304 VHF radio in pilothouse

Raymarine ST 60 depthsounder in pilothouse

Raymarine ST 60 knotmeter in pilothouse

Raymarine ST 8002 autopilot with control head in pilothouse and remote hydraulic drive

ACR Satellite 406 Epirb in pilothouse

6” Danforth White Constellation compass in pilothouse

Vetus bow thruster with controls in pilothouse and flybridge

Uniden VHF radio with antenna switch at flybridge

Raymarine C70 GPS/Plotter at flybridge

6” Ritchie compass at flybridge

Raymarine multi meter at flybridge

Digital powered TV antenna at flybridge

24” Sharp smart TV with antenna/cable feed in salon

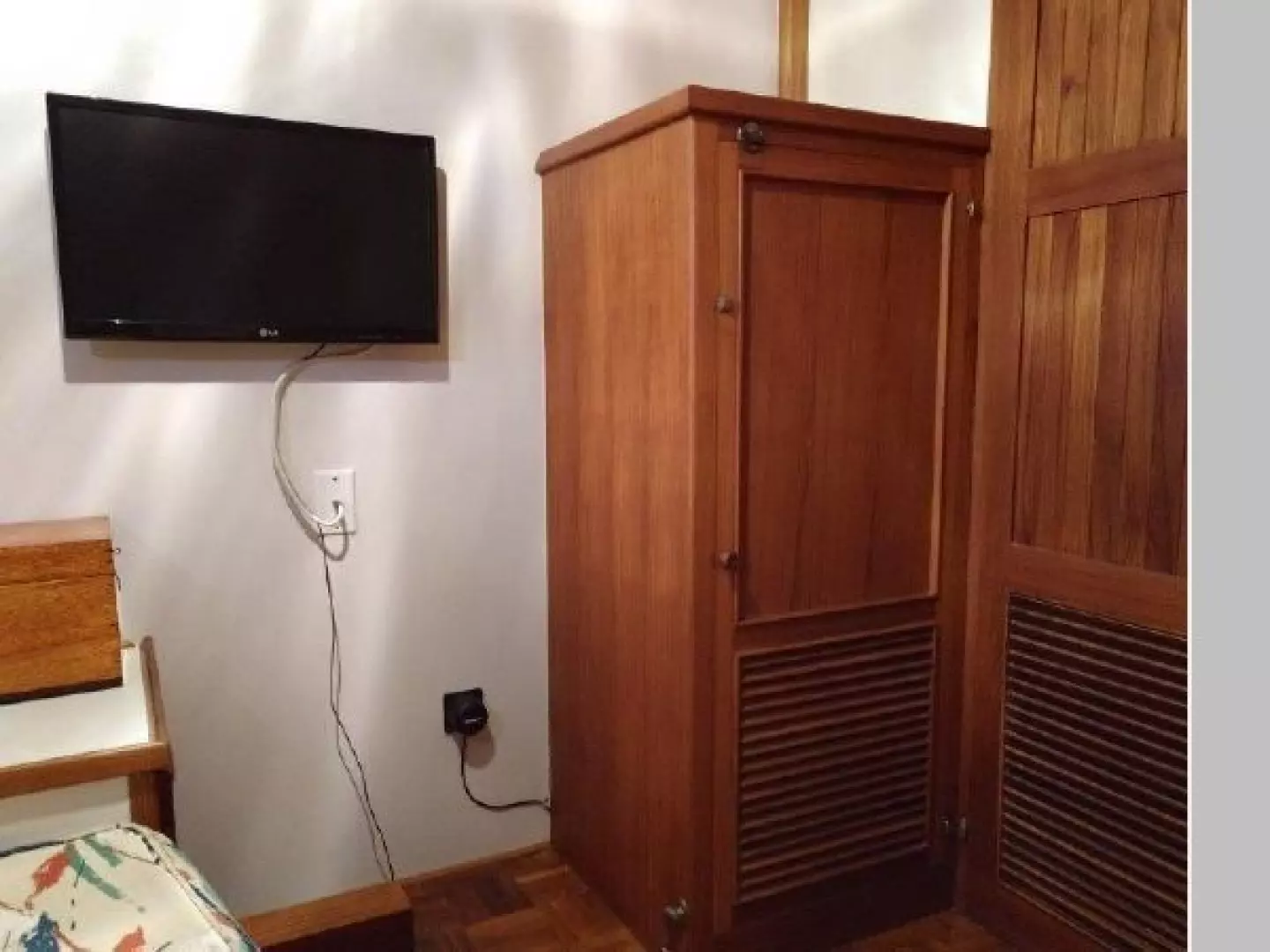

24” LG TV with antenna/cable feed in guest cabin

32” Insignia Smart TV with DVD player and antenna/cable feed in master cabin

Bose CD/Radio in main salon

Firdell Blipper radar reflector on main mast

Electrical Equipment;

12KW Onan generator with sound shield (1981 with low hours)

Wet batteries: two 8D (engine start), two group 24 (generator start), one 4D (thruster)

and ten Trojan T 125 240 AH six volt batteries (house/inverter).

All new oversized primary cabling, switches, breakers and fusing from batteries to panel

120 amp isolator/combiner

Kisae 2KW inverter/charger, controls, fusing, panel breakers and cabling

Four battery switches to achieve flexibility of directing power input and output

Recently new 120 VAC rotary source selector switch

New 12V light fixtures throughout

Eighteen 120 VAC GFCI outlets

Handheld searchlight

Engine room supply air blower, exhaust air blower and battery box blower

12V outlets at pilothouse and flybridge

Two 30 amp galvanic isolators

Seven 12V reading lights

Lightning protection cable from mast to engine block

Plumbing

Twenty gallon hot water heater (120 VAC or engine heat exchanger}

Two gallon water pressure accumulator tank

Dockside pressure water inlet/regulator

High capacity water pressure pump (60 PSI)

Winterizing manifold for bypassing hot water heater

Saltwater washdown pump and hose

Deck hose bib for freshwater washdown hose

New PEX piping, hose and clamps throughout

Waste macerator pump with wye valve and new hoses and clamps

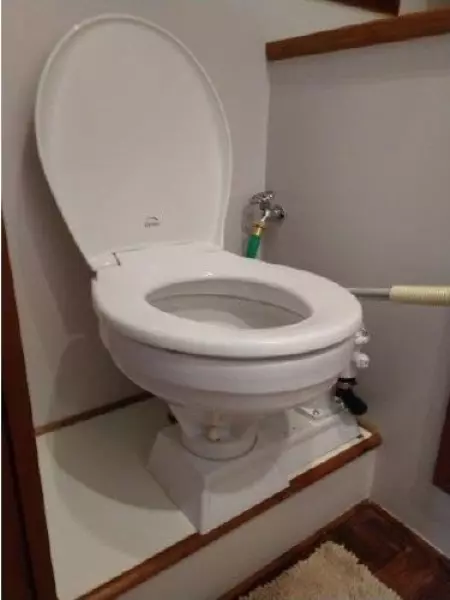

Aft head fresh or saltwater flush

Shower sump with float switch and pump

One forward compartment bilge pump and two aft compartment bilge pumps

Emergency engine raw water intake diverter valve, hoses and refuse screen

Snorkel type elevated inboard fuel tank vents

Boat deck and foredeck side drains and fittings (like KK 48)

Through hull fittings and seacocks are of bronze construction with wire reinforced hoses and double clamps. All through hulls are fully bonded. There are zincs on the shaft, rudder and thruster.

Drivetrain and Performance

Total Power: 120 HP

Brand: Ford Lehman (American Marine)

Year Built: 1981

Engine Model: 6D 380 Natural

Engine Type: Inboard

Engine/Fuel Type: Diesel with dual Racor 500 series fuel filter manifold with vacuum gauge

Engine Hours: 2232.5 hours

Propeller: Three blade bronze fixed

Drive Type: Direct drive with Velvet Drive and 3:1 reduction gear on 2” stainless shaft

Cruising Speed: 7.6 knots @ 2 GPH and 6.0 knots @ 1 GPH

Maximum Speed: 8.5 knots @ 3 GPH

Range: 4200 nm @ 6.0 knots, 2800 nm @ 7.6 knots

Interior Equipment

Four Type 10:ABC portable fire extinguishers in living spaces

Four Type 10:BC portable fire extinguishers in engine room and pilothouse locke

One halon fire extinguisher in engine space (certification not current)

Six PFDs in pilothouse locker

Visual distress signals

Portable oil change kit

Electric horn and bell

Bilge pump activation lights on pilothouse dashboard

Three smoke alarms in galley and staterooms

Two carbon monoxide alarms in staterooms

Emergency tapered wooden plugs

Emergency tiller

Teak handrails on pilothouse overhead and in stairwells

First aid kit

Liquid soap dispensers in headsq

Two fans at berths

Three insulated cellular shades in salon

Two 16000 BTU air conditioning/heating split systems with remote condenser units

Twelve opening bronze portlights

Opening center window in pilothouse

Sliding windows in salon

Sliding teak doors and pocket screen doors at stern of salon

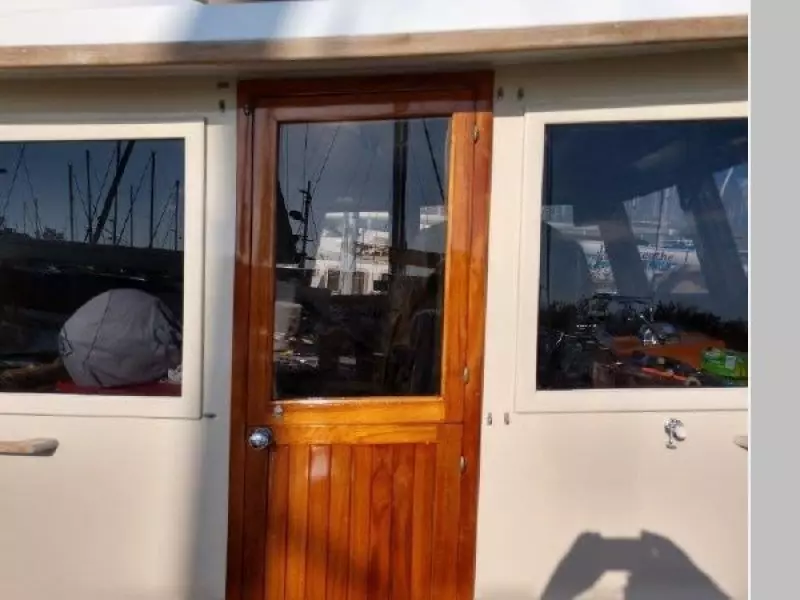

Dutch doors on sides of pilothouse

Two ventilators at front of pilothouse

All equipment manuals

Shaft packing gland wrenches

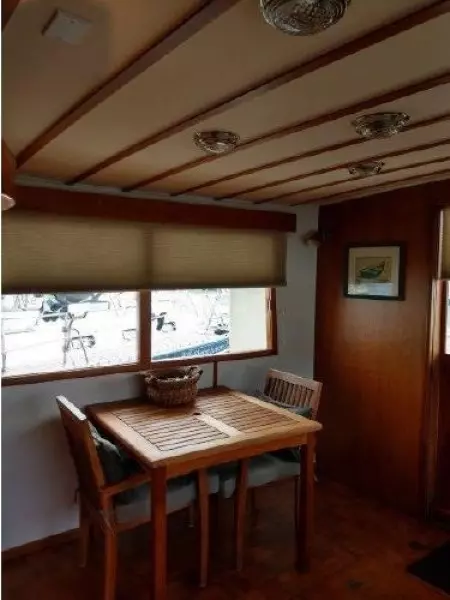

Salon couch, teak dining table and chairs

Helm stool and guest cabin stool

New mirrors throughout

Miscellaneous varnish, paint and Awlgrip finish materials

Miscellaneous engine, generator, plumbing and air conditioning equipment spares

Much more….

Exterior Equipment

65# Lewmar Claw primary anchor on roller with 300’ of 3/8” BBB chain

60# SAS Plow secondary anchor on roller with 200’ of ¾” nylon with 100’ 3/8” BBB chain leader

60# Danforth Hi-tensile storm anchor on deck mounts with 400’ 0f 1” nylon and 20’ ½” chain leader

One throwable 30” life ring with retrieval line and monkey fist

Throwable cushions in flybridge locker

Galley Maid vertical windlass with chain and rope gypsy and deck mounted switches

Two nylon snubbers with chain hook

Eight 7/8” nylon dock lines

Six 10” fenders two, 24” ball fenders and two fender boards

Flybridge bimini frame, canvas and cover

Sidedeck accent lights

Exterior door for refuse removal

Eight Stainless pad eyes on rails for fender tie points

Eight bronze mooring cleats with integral hawse holes

Full length rub rails with solid bronze caps

Two 50’ primary 30 amp power cables with 50amp/2X30 amp splitter

Two 50’ spare 30 amp power cables

Recent running lights with port and starboard lights on teak nameboards

Canvas covers for pilothouse windows, flybridge, bimini and nameboards

Flybridge seat cushions

Steadying sail (very effective in beam seas without the loss of safety, speed or fuel economy of stabilizers)

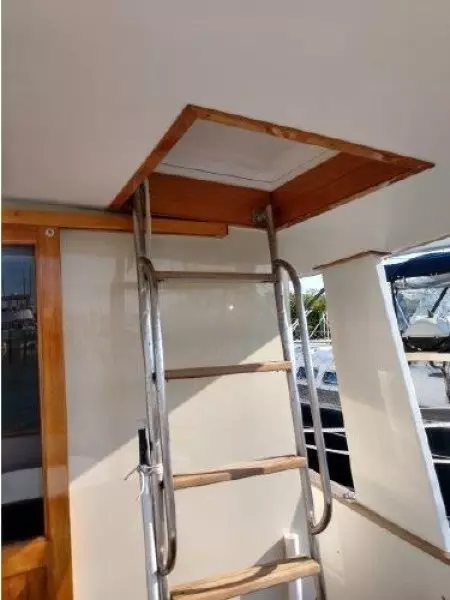

Bronze steps from pilothouse door to flybridge

SSB antenna and cabling to engine room (no SSB or tuner)

Oversized aluminum mast with tabernacle

Winches, blocks and running rigging for lifting boats and setting steadying sail

Large seat at front of pilothouse that houses storage locker and screened hatch over master berth

Avon 3.4M RIB hard bottom inflatable with lifting harness, tow line and bow line

RIB storage bunks and tie downs on boat deckRIB running lights, anchor, rode, pump, etc

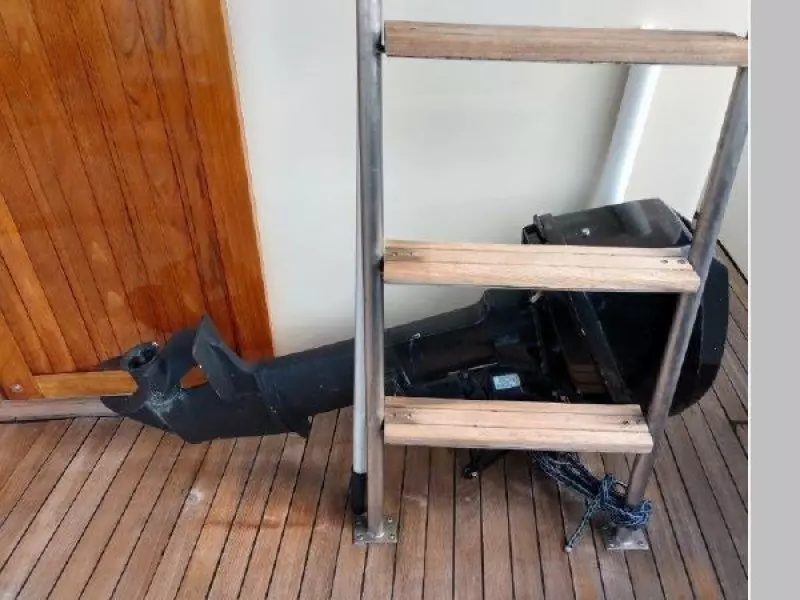

Mercury 15 HP outboard with fuel tank

Teak and stainless swim platform with stainless ladder

Transom door to swim platform

Two large refuse bins for aft deck storage

Two boat hooks

Soft and medium scrub brushes

Windlass emergency operating handle

Two winch handles

Teak flagstaff and US ensign

Teak flagstaff and burgee

2’X4’ Starboard cockpit workbench

Heavy weather dogs for aft sliding doors

Flybridge helm seat

Removeable lifelines on boat deck to facilitate boat launching and retrieval

Padeyes for belaying boom

Miscellaneous buckets and milk crates

Much more….

Exclusions

Artwork, wood boxes and marine models

Books, charts, guides and navigation tools

Tools and spares not related to this boat

Personal clothing, bedding, towels, and effects

Laptops and printer

Kitchen plates, cutlery, pots, pans, portable appliances and accessories
