Introduction

The IBEX is a 2001 model X-YACHTS 412 Cruiser-Racer. She's a "Mark III" Edition that was first introduced in 2000 and features the Classic (2) Cabin interior layout with (2) Heads. Designed by Neils Jeppensen and produced in Denmark, this X-412 was produced from 1990 through 2003; the IBEX is hull #175 of this very successful series out of a total of 252 examples built. The X-YACHT's are renowned for being exceptionally well-built & designed for performance sailing in an offshore environments where structural integrity .. as well as performance .. are key qualities.

This Owner purchased the IBEX in 2002 as a "nearly new boat". Over the past 21 years, she has benefited from the best of care as provided. The IBEX features a recent Dark Blue AWLGRIP finish and her teak decks are in well-above average .. if not superior .. condition. She's equipped for both Club Racing as well as cruising. The very low engine hours (under 500!) indicate a life of just limited usage over the years for light cruising and day-sailing by the IBEX's second Owner.

The IBEX is located at her Summer Slip in New Rochelle, NY. Given her exceptional condition and model features, this very nice X-412 certainly deserves a close look by qualified clients who can appreciate her overall superior upkeep, the X-412 design features. her excellent sailing performance and the reputation earned over the years for product quality by X-YACHTS and the X-412 in particular.

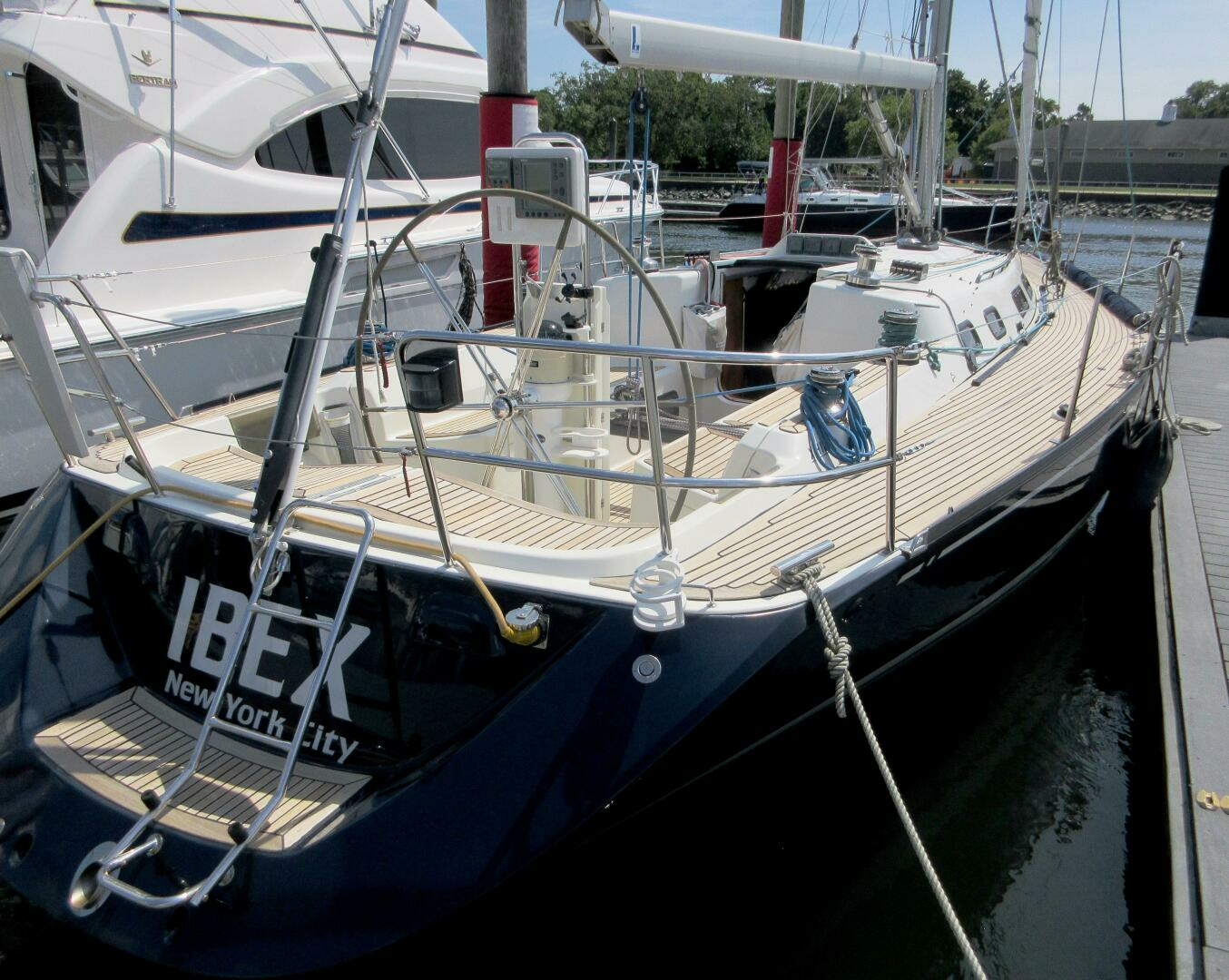

Hull & Deck

The X-YACHTS 412 was produced with a hand laid-up fiberglass hull with DIVINYCELL foam core material. There is an integral steel frame that supports the keel as well as the engine bed, mast chain plates and the keel.

• Dark Blue AWLGRIP hull finish (2018)
• Boot-tops, (3) WHITE (2018)
• X-YACHTS Cove Stripe, WHITE (2018)
• Bottom paint, BLACK
• "Scoop" Transom w/ recessed step w/ teak tread
• (2) Grab / Safely handholds at Transom, stainless steel
• Fin keel (lead) w/ ballast bulb
• Spade rudder

Deck

The X-412 is produced with 316-Grade stainless steel; it has a higher nickel content and is very resistant to corrosion. The welds for the hardware are nicely-finished & polished.

• Teak decks
• Aluminum toe rails, black anodized
• Bow pulpit, double-rail, stainless steel (note: "Butterfly" style/ integral teak seat / step,& 26" height)
• Stern rail, double-rail w/ gate w/ upper & lower sections, stainless steel (note: 26" height)
• Life lines, upper & lower, 1x19 wire, stainless steel (note: 25" height)
• (2) Life line gates, upper & lower lines, port & starboard, amidships
• (10) Life line stanchions, stainless steel (note: 25" height)
• (2) Deck grab / safety rails on Coachroof
• (6) Cleats, 10". stainless steel
• (4) Rode / line fairleads, forward & aft, stainless steel
• Chafe plates for lines, stainless steel
• (5) LEWMAR Deck hatches, opening (note: (4) small amidships & (1) large on Fore Deck)
• (1) Vinyl Sunshade, snap-in, for Foredeck hatch
• (6) Vinyl Sunshades, snap-in, for Cockpit opening ports & deck hatches
• (8) LEWMAR Opening ports for Salon
• (2) LEWMAR Opening ports (note: located in Cockpit well area, port & starboard)
• (1) Solar ventilator, stainless steel (note: "mushroom" low-profile style)

Cockpit

The X-412 has a "T" Cockpit that also has an integral well to accommodate the 60" wheel. The Helm Station seating is provided by (2) raised Lazarette hinged opening locker lids.

• Wheel steering, 60" WHITLOCK geared / mechanical system, stainless steel
• Elkhide wrap for the wheel
• Foot-blocks for the Helm Station, port & starboard, molded fiberglass
• Mainsheet Traveler (note: installed forward of the Helm Station
• Binnacle guard, stainless steel (note: w/ Electronics Console installed)
• Cockpit table w/ (2) folding leaves, fiberglass (note: folds up & installed in front of Binnacle)
• PLASTIMO Binnacle compass, 6" card
• (4) Safety tether attachment rings, stainless steel (note: installed in Cockpit area)
• (2) Lazarette lockers at Helm Station
• (2) Cockpit seat lockers, port & starboard (note: w/ hydraulic cylinder assists)
• Companionway hatch, PLEXI, sliding w/ Sea Hood
• Teak for the Cockpit sole, Helm Station / Lazarette locker lids, Cockpit seating & coamings
• Engine Instrument Panel, port side aft at Helm Station
• Engine Throttle Control, single-lever, starboard side at Helm Station

Rig, Rigging, Winches & Sails

Rig, Rigging

The X-412 is provided with an anodized aluminum spar and boom. The rig is a (3) spreader spar and it is keel-stepped. The halyards are internal.

The New England Base PHRF Rating for the X-412 is "60" (note: seconds per mile)

The Air Draft is approximately 61'

Rig / Sailplan Dimensions: I=54'4" (16.56m), J=15'11" (4.85m), P=51'8" (15.75m) & E=15'4" (4.70m)

• Triple spreader rig by SPARCRAFT
• Single-point chain plate system
• NAVTEC Rod rigging (note: discontinuous)
• (2) Mast steps, folding, aluminum
• "J" Hooks for Jiffy / Slab Reefing System at gooseneck
• Baby stay, adjustable
• PROFURL Roller-Furling System
• NAVTEC Hydraulic backstay adjuster
• SPARCRAFT Rigid Boom Vang (note: spring / oil type w/ control line led aft to Cockpit)
• FREDERIKSEN & HARKEN Deck gear
• Pad-eye on Foredeck, folding, stainless steel
• FREDERIKSEN Mainsheet Traveler System w/ ball-bearing car w/ cross-hauls (note: mounted in Cockpit & forward of the Helm Station)
• Mainsheet System, double-ended (note: aka "German Mainsheet System")
• Halyard System; (3) Forward w/ (2) Genoa & (1) Spinnaker
• Spinnaker gear (note: includes halyard, pole lift & downhaul, pole & spar track w/ adjustable car)
• Spinnaker pole spar mount track w/ custom track extension
• Halyards & lines led aft to the (2) ANDERSEN coachroof winches
• Line organizers, port & starboard
• (10) Line clutches (note: 2x banks of (5), port & starboard):

PORT: Cunningham - 1st Mainsail Reef - Main Halyard - Jib / Genoa Halyard 1 - Spinnaker Halyard

STARBOARD: Mainsheet - Outhaul - 2nd Mainsail Reef - Jig / Genoa Halyard 2 - Topping Lift

• (2) Genoa tracks, inboard, aluminum, black anodized
• (4) Genoa cars, adjustable (note: aft genoa cars adjustable via lines & turning blocks forward on the track from the Cockpit
• (2) Running backstays
• Spinnaker pole, carbon fiber w/ SPARCRAFT pole mount car & SUNBRELLA cover (note: can be stored vertically on the forward part of the mast for ease of storage & use)
• Whisker pole, carbon fiber w/ SUNBRELLA cover
• (2) Turning blocks aft
• (2) Standing blocks, amidships, port & starboard
• (2) Spreacher blocks aft

Winches (ANDERSEN)

• (2) A-52 CST Primary / Genoa self-tailing (2) speed
• (2) A-40 CST Secondary Spinnaker / Running Backstay self-tailing (2) speed
• (2) A-46 CST Halyard / Line self-tailing (2) speed (note: mounted on Cockpit coachroof aft, port & starboard)
• (2) Line bags at Companionway

Sails (U-K SAILMAKERS, City Island, NY)

The X-412 sail area total is 830.58 Sq / Ft (note: 100% Fore Triangle 432.2 Sq / FT & Main 398.38 Sq / Ft)

The sails are removed, cleaned, repaired as necessary & stored on an annual basis over the Winter Storage period.

• Cruising Mainsail, Full-Batten, Dacron w/ DUTCHMAN Sail Flaking System, (2) rows reef points (2001)
• Racing Mainsail (note: 2005 & reported by Owner as "light use over the years")
• Mainsail cover, Dark Blue SUNBRELLA
• #1 Genoa, Dacron "deck sweeper cut" (note: 2001 original inventory & reported by Owner as "rarely used")
• #2 Genoa, Roller-Furling, 140% Spectra Base, Aramid Tape Drive (2011)
• #3 Jib (note: 2001 original inventory & reported by Owner as "rarely used")
• Spinnaker, .75 oz. AP Symmetrical - 1350 Sq./Ft. w/ launching Turtle (2015) (note: per Owner, "like new .. used just several times")

Accommodations

The X-YACHTS 412 has the "Classic (2) Cabin" interior layout. There are two Staterooms that are located Fore & Aft as are the (2) Heads. .

The interior of the IBEX is in exceptionally good condition overall.

• Headroom: 6'4" (note: in the Salon by the Companionway to amidships)
• Interior Furniture; CHERRY Finish Veneer, varnished
• Cabin Sole; Teak & Holly Veneer, varnished (note: throughout)
• Upholstery is a BLUE Pattern decor fabric
• Curtains, WHITE Fabric for portlights
• Teak Valance supports, upper & lower, for the curtains
• Hull side areas for the Fore Cabin and the Aft Cabin are finished with a WHITE Vinyl covering that is foam-backed for insulation
• Hull side areas for the Salon are finished with a varnished CHERRY veneer paneling
• Removable access panels for cabin sole throughout (note: provided w/ positive securing latches, stainless steel)

Salon

There is a "U" shaped Settee area that's located to port and with a single Settee to starboard. The large Dinette table is also located on centerline & has (2) folding leaves to service both seating areas. The Nav Station is position forward of the Aft Cabin and to Starboard. The Galley is located to port and opposite the Nav Station.

• Companionway entrance w/ (4) large teak steps (note: curved for security)
• (2) Companionway pen board sections, PLEXI, tinted
• (2) Grab rails, port & starboard, teak
• Teak & Holly cabin sole, varnished
• CHERRY Finish interior joinery, varnished
• (3) Deck hatches for ventilation
• (2) Opening ports
• (4) Portlights, fixed, for ambient lighting
• Solar-powered ventilator
• Curtains for Salon ports (note: full length, fore & aft)
• Dinette table w/ (2) folding leaves & w/ storage via a lid access
• (4) Storage cabinets, port & starboard
• Storage areas behind the Settee vertical cushions
• Book shelves, port & starboard
• Decor wraps for the exposed lower aluminum spar section, WHITE
• Teak grating at the Companionway base, removable

Fore Cabin

• "V" Berth
• Hanging locker (note: starboard side aft)
• Privacy door entrance
• Opening hatch, large

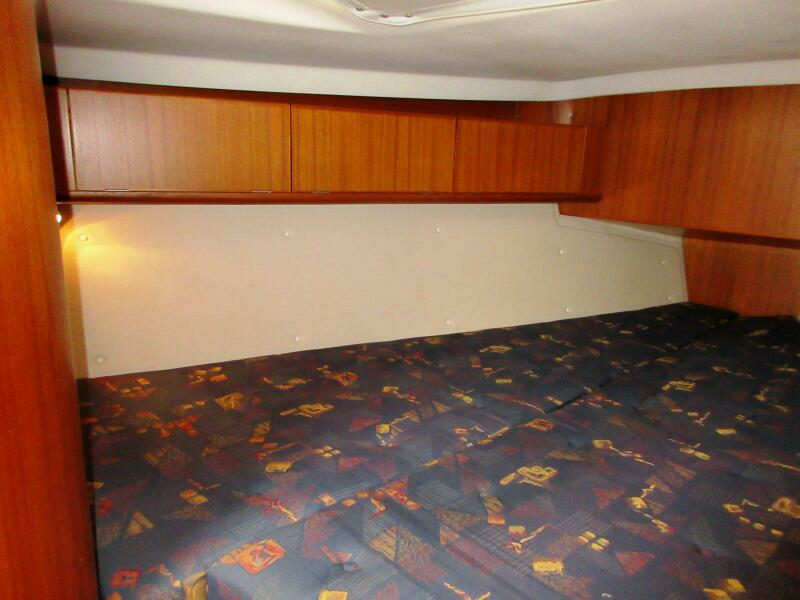

Aft Cabin

The Aft Cabin located on the starboard side, aft.

• Double berth
• Opening port for ventilation & ambient lighting
• (2) Hanging & storage lockers
• Engine access aft enclosure, teak, removable

Galley

The X-412 Galley is "U"-shaped and is located on the port side aft near the Companionway.

• Stove / Oven, (3) burner, gimballed, stainless steel
• Heat shield for the stove / oven top (note: folds up as a back-splash)
• Safety bar for stove / oven, stainless steel
• Propane (note: tank(s) located aft in Cockpit)
• Remote gas shut-off switch
• Refrigeration, 12 VDC
• (2) Sinks, polished stainless steel
• Hot & cold pressure water service w/ single-lever tap
• Fresh water pump, manual
• WHITE Countertops
• (4) Storage drawers under counter
• (3) Storage cabinets
• Storage locker under the sinks
• Teak cutting board (note: fits as cover for a round sink)
• Paper towel holder, teak

Heads

The X-412 is provided with (2) Head areas. Each has a shower & vanity w/ hot & cold pressure water service. the forward Head is accessed via a door located on the port side in the passageway forward. The Aft Head is accessed via a door on the port side aft of the Galley.

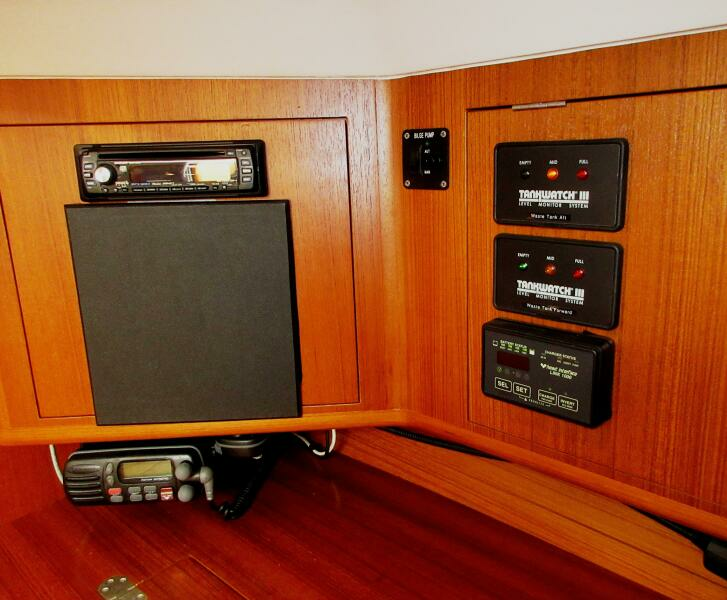

There are (2) DOMETIC Tank Watch III Waste Tank Monitoring Systems installed for both the Forward & Aft Holding Tanks. The displays are mounted at the Nav Station, starboard side

Heads

• (2) Marine toilets, JABSCO Type III MSD, manual, salt-water flush
• Holding Tank Capacity: (18) USG / 70 liters (aft) & (13) USG / 50 liters (forward)
• (2) Macerator pumps
• (2) "Y" Value assemblies for overboard discharge (note: where permitted)
• (2) Deck discharge pump-out plates (note: located port side)
• (2) Showers, hand-held
• (2) Shower sump pumps
• (2) Covers for the Heads, folding, fiberglass
• (2) Vanities w/ sinks, stainless steel
• Safe / Grab rails at Vanities, stainless steel
• Mirrors on cabinet panel doors
• Storage cabinets over & under the Vanities
• Foul weather gear locker in Aft Head
• Electrical outlets, GFI 110 VAC
• Teak shower gratings, removable

Nav Station

The Nav Station is located in the Salon, starboard side aft at the Companionway entrance and forward of the Aft Cabin.

• Large Nav table w/ opening top
• (3) Storage drawers
• Electric panel for AC / DC functions
• Electronics installations
• Recesses for storage

Electronics

The yacht's electronics are installed at the Nav Station, in the Console located at the Companionway and in a Console that is mounted on the Binnacle guard at the Helm Station.

The following (4) ST60 instrument displays are installed in the Console at the Companionway: Speed / Log, Depth, AWI / WS & TriData

Communication

• VHF; STANDARD Horizon

Navigation

The RL Pathfinder 70 & a TriData unit are installed at the Helm Station in a custom fiberglass console.

The RM Radar Radome is installed on a custom self-leving bracket mounted on the backstay.

• RAYMARINE ST60 Series TriData: Speed / Log & Depth
• RAYMARINE Pathfinder RL70 GPS
• RAYMARINE Pathfinder RL70 Radar

Performance

• RAYMARINE ST60 Series TriData: Speed / Log
• RAYMARINE Wind: AWI & WS

Autopilot

• RAYMARINE 6000+ A/P

Entertainment

• CLARION ProAudio Stereo w/ AM, FM, MP3 & CD functions (note: installed at Nav Station)
• (4) Speakers: (2) in Salon & (2) in Cockpit

Systems

Electrical

The X-412 has both a 12 VDC Ship's Service and a 110 VAC 30 AH Shore Power systems.

• Batteries, 12 VDC: (3) AGM (note: a) total 580 CCA, b) Engine Start: new 2023 & c) House: 2016)
• Polarity Indicator
• Charger / Inverter, HEART (XANTREX) Interface Freedom 10 Link 1000 (note: Charger 30 AH & Inverter 1000 Watts)
• Shore Power; 30 AH w/ 50' cord
• GFI 110 VAC outlets, interior (note: Nav Station, Galley & Heads)
• Electrical Panel for 12 VAC & 110 VAC functions

Lighting, Interior

• (10) Interior dome lights, overhead, recessed: (4) Salon, (2) Forward Head, (2) Aft Head & (2) Galley
• (6) Reading lights: (4) in Salon, (1) in Aft Cabin & (1) in Fore Cabin
• Navigator Flex Light

Lighting, Exterior

• Nav lights (LED)
• Masthead light, Tri-Color (LED)
• Steaming light
• Foredeck light w/ stainless steel protection cage)

Plumbing

• Fresh Water Capacity: 57 USG (216 liters) in (2) tanks
• Tank Material: stainless steel (note: single w/ deck fill plate, port side)
• Hot & cold pressure water service for Galley, (2) Heads
• Cockpit shower aft, cold water (note: installed at Helm Station area, starboard side)
• Hot Water Heater: (10) USG
• (3) Bilge pumps: (2) Manual bilge (note: (1) below at Aft Cabin entrance & (1) in Cockpit & (1) electric / automatic
• (2) Shower sump pumps
• (2) Shower pumps
• (1) Salt water washdown (note: located in bow anchor well)

Propulsion

The IBEX is powered by a YANMAR Model 3JH3E (3) cylinder FWC marine diesel that's rated at 39 HP at 3,680 RPM. The Saildrive unit is a Model SP31.

Saildrives installed on yachts of this size & displacement range offer significant reduced drag and result in approximately a 1/2-knot boat speed increase as well as improved fuel flow specs under power.

• Engine Hours: 500
• Fuel Capacity: 34 USG (129 liters), stainless steel
• Propeller; (2) blade, folding
• Primary & Secondary fuel filters
• Insulated engine compartment
• Engine access via Companionway steps, Aft Cabin & Aft Head panel
• Engine Controls at Helm Station, single-lever throttle & shift, starboard side
• Engine Instrument Panel at Helm Station, port side, w/ RPM - oil pressure - temperature - ignition (note: protected by PLEXI panel)
• Alarms for engine low oil pressure and high cooling system temperature

Inventory, Additional

Ground Tackle

• Anchor windlass, electric / mechanical w/ hand-held remote control unit)
• BRUCE Anchor, 20#
• Anchor rode; 150' x 3/4" nylon w/ chain section
• Swivel for rode - anchor attachment, stainless steel
• Bow anchor well (note: windlass w/ support platform)
• Bow anchor roller

Canvas (Dark Blue SUNBRELLA)

• Dodger (note: original with the IBEX but very lightly used)
• Binnacle / Wheel cover
• Compass cover
• (6) Winch covers (note: (4) Medium Blue & (2) Dark Blue)

Safety

• (2) Fire Extinguishers
• PFD's (note: Type II & III)
• USCG: portable horn, bell (note: no flares)
• SWITLIK MOM 8-A (Man Overboard Module) w/ lift sling (note: inspected & repacked 7-18-2018)
• LIFESLING Overboard Rescue System
• Jack / safety lines
• Life-ring, throwable

Misc

• Dock lines
• Fenders
• Outboard motor bracket (note: mounted on stern rail)
• Clock & Barometer set, brass finish (note: mounted in Salon, starboard side forward)
• Swim ladder, (3) steps, folding, stainless steel (note: installed at Transom, starboard side)
• Grab / Safety rail for Swim Ladder, stainless steel
• (3) HELLA Fans, 12 VDC throughout below (note: Salon, Fore Cabin & Galley)
