Overview

Accommodations

'Big Blue is very roomy below, with a large galley and dinette, navigation station, pilot berth, two staterooms and full-width head.

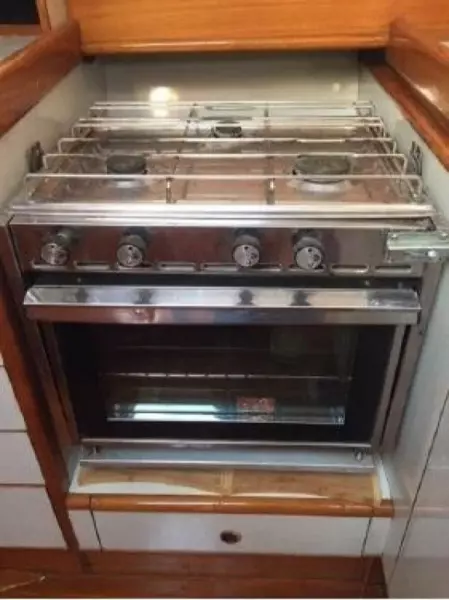

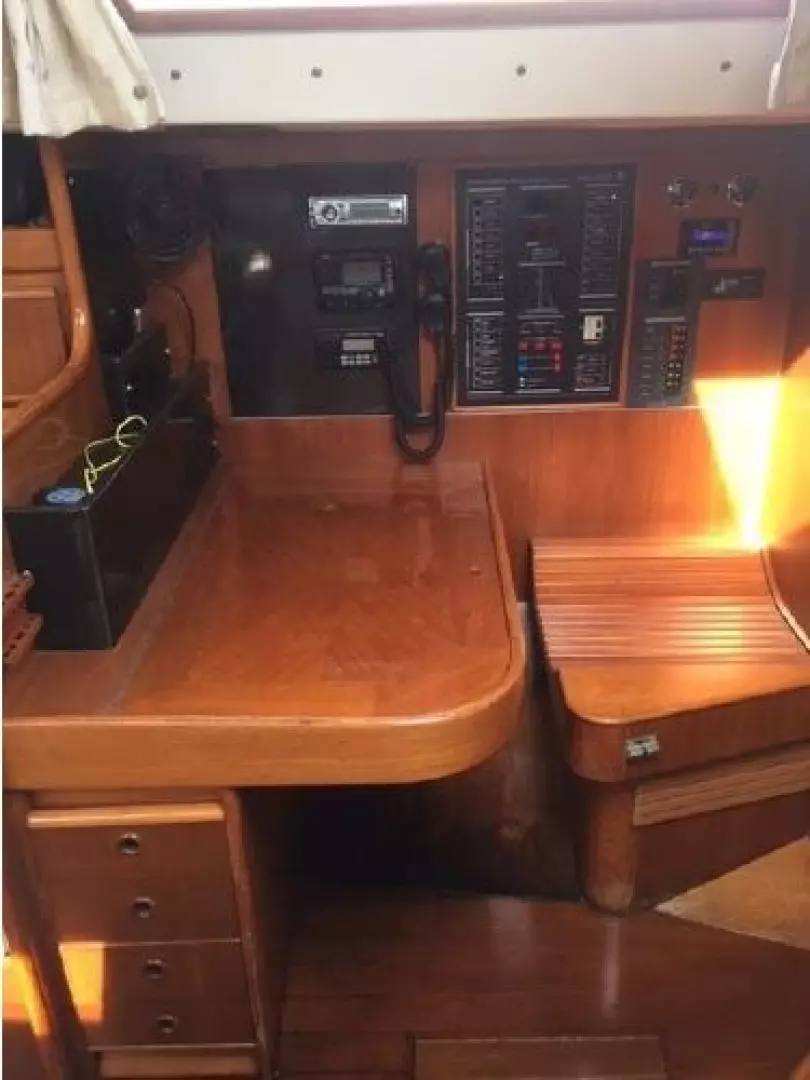

Starting forward, there is a V-berth with twin hanging lockers and a large overhead hatch for light and ventilation. Next aft is a full-beam head with macerating head and shower. A sink and vanity with spacious storage are to starboard and there is a teak grate in the shower. The main salon has a U-shaped dinette to port with a single pilot berth above. To starboard is a settee berth with storage lockers above and outboard. Aft of the settee is a forward facing Nav station with electric panel, VHF and storage beneath the chart table. The L-shaped galley is at the foot of the companionway to port. It is designed for convenient and safe operation underway, and features a double s/s sink, 4-burner propane stove with oven, 12 Volt refrigerator, ice chest, spacious counters and storage. The second stateroom is aft to starboard, with double berth and hanging locker.

All staterooms feature Hella turbo fans, LED lighting, and ample ventilation. All salon lighting is LED.

Deck and Hull

The cockpit is large, with molded transom steps and a fresh water shower. There is a deep and spacious port storage locker and life raft storage aft of the companionway.

Teak decks for traction and durability surround the white coach top roof.

Cut-away reverse transom with two-tiered swim platform (sugar scoop) and custom built 4-rung removable swim ladder.

Hull and deck are a mixed composite of carbon, fiberglass, kevlar and cored with Divinycell.

Keel and rudder were designed by Jim Taylor and modified by Waterline Systems to a deep elliptical rudder and addition of a keel shoe

Navy Blue topsides with silver cove stripe

12 Volt Stimson Lawrence windlass

35# CQR anchor with chain and rode

Electronics

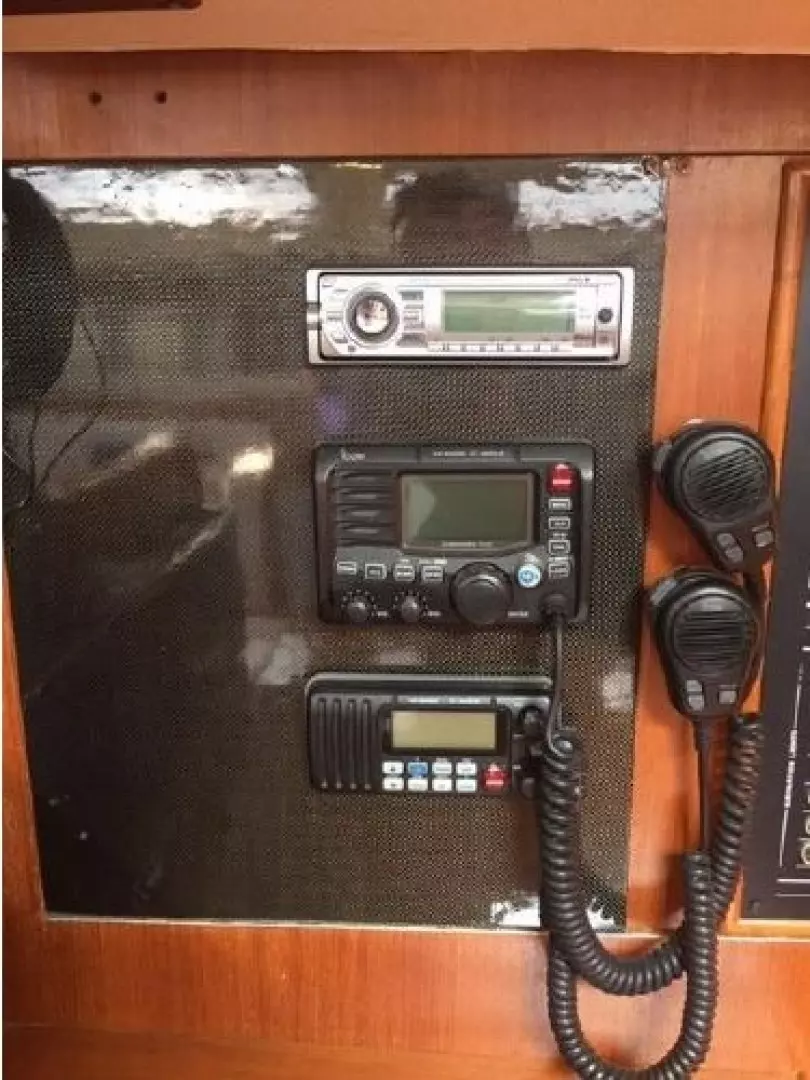

ICOM M504 fixed mount VHF with remote Command Mic II at helm

ICOM M422 fixed mount VHF at navigation station

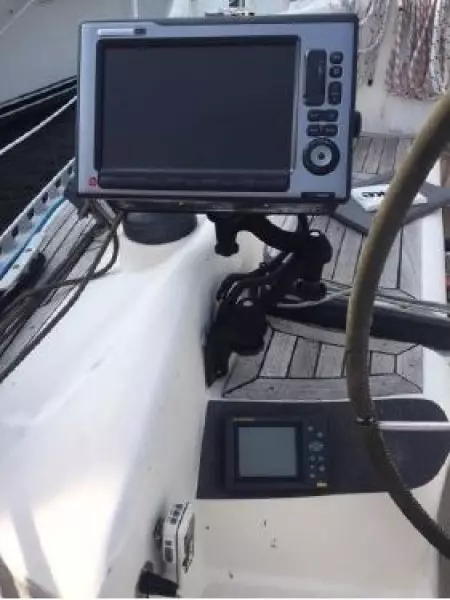

Raymarine E120W Hydro Touch chart plotter at helm

Raymarine GPS Antenna

NKE Gyropilot 2 Processer (autopilot)

NKE Gyropilot Graphic display

NKE Depth Transducer

NKE Paddle Wheel speed sensor

NKE Log/Sounder Interface

NKE Fluxgate Compass

NKE Carbon Wind sensor

NKE Gyropilot remote control / transmitter

NKE Hydraulic ram ? Type 32

NKE Wind Angle Analogue Display

NKE Performance Data Dispays (2)

NKE NMEA Topline Interface

NKE NMEA Output Interface

Sony stereo system with 2 speakers and iPod/iPhone interface

Panasonic Toughbook navigation computer with secondary GPS

NKE & Raymarine system fully integrated.

Note: A feature that makes Big Blue an exceptional boat for single-handing and couples is her nke Autopilot and its MOB function. The Pilot Remote Control is synchronized with the autopilot; it can, therefore, recognize when the person wearing the remote has gone overboard (the pilot instantly loses the signal from the remote when the remote is submerged or is at a preset distance from the computer). The loss of signal sets off an MOB alarm which turns the boat head to wind and HOLDs it there until (a) the skipper climbs back aboard and disengages the MOB function or (b) the remaining crew reads the nke displays for distance and bearing to the MOB and makes a successful retrieval. There are also programmable EPIRB and distress signal functions.

The NKE system installed is the same system found on boats like those in the Vendee Globe and cost in excess of $50K.

Engine and Mechanical

Yanmar naturally aspirated common rail diesel

Balmar 150amp alternator system

All new engine room insulation and sound abatement

Sterling Power Products Pro Split R digital automatic combiner

Racor filtation system

Automatic bilge pump

2-Blade Max Prop

Goiot Steering Pedistal

Sails and Rigging

(2) Barient 36 self tailing three-speed primary winches

(2) Barient 24 self tailing two-speed secondary winches for runners

(2) Barient 24 self tailing two-speed halyard winches on cabin top for halyards and reefing

(2) Barient 26 self tailing two-speed halyard winches on cabin top for halyards and reefing

All halyards lead aft on cabin top and have Spinlock clutches

Halyards include: primary main, secondary main, port jib, starboard jib, port spinnaker, starboard spinnaker

Spinnaker topping lift runs aft on cabin top and to Spinlock clutch

Balmar rigid boom vang with control line running along cabin top to clutch

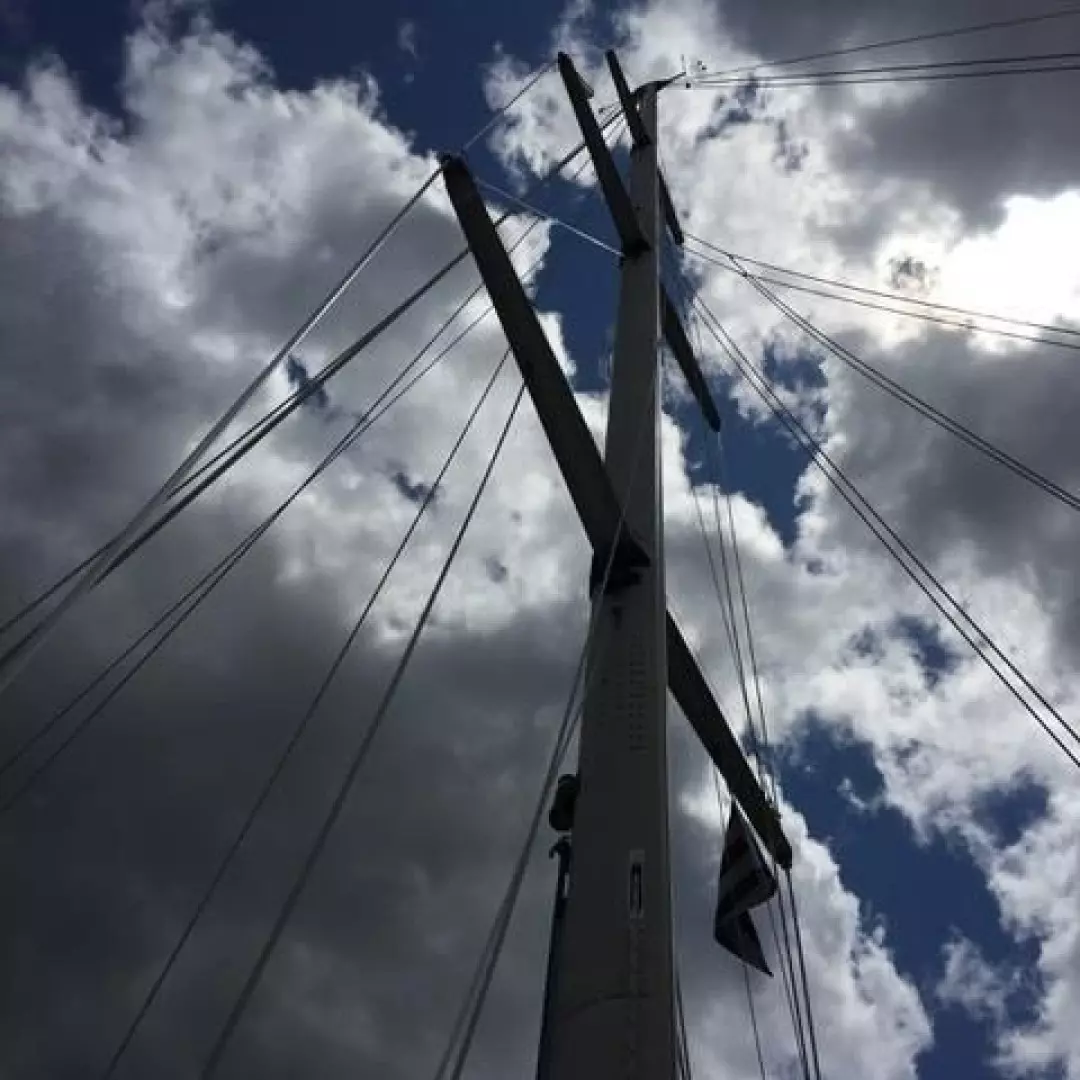

Anodized aluminum, triple spreader mast built by Kemp (Seldén)

Rod Rigging by Navtex (replaced in 2011)

Plastimo Tubular Radar Reflector

Anodized aluminum boom with internal reefing and outhaul built by Kemp (Seldén)

Anodized aluminum spinnaker pole with internal trip built by Kemp (Seldén)

Profurl two track roller furling headsail track

Harken mainsheet track with endless line

Antal course and fine main sheet adjustment

Harken headsail car tracks

Goiot toe rail

Hood cruising main sail with ronstain batten car system

Hood racing main sail

2 Genoas by Hood

1 Spinnaker by North Sails

Electrical

ProMariner ProNautic 12-40P Battery Charger

ProMariner ProNautic charger remote panel

Xantrex Pro AM1800 inverter

Xantrex inverter control and monitoring panel

WEMA tang gauges

Blue Sea Systems 120V AC

Additional Equipment

MOM8 Man overboard module

Life Raft in custom built locker

30 Amp / 110 Volt shore power with cord

Dock Lines

Inflatable Fenders

Boom Tent

Hatch Tent

Winch Handles

Life Jackets

Spares
