1985 Custom 40'
12.19 m
1985 Custom 40' Aluminum Barge
- 2024
- 12.19 m
- Gas/Petrol
- Power
- Barge
1985 Custom Aluminum Barge
Refit Year: 2024

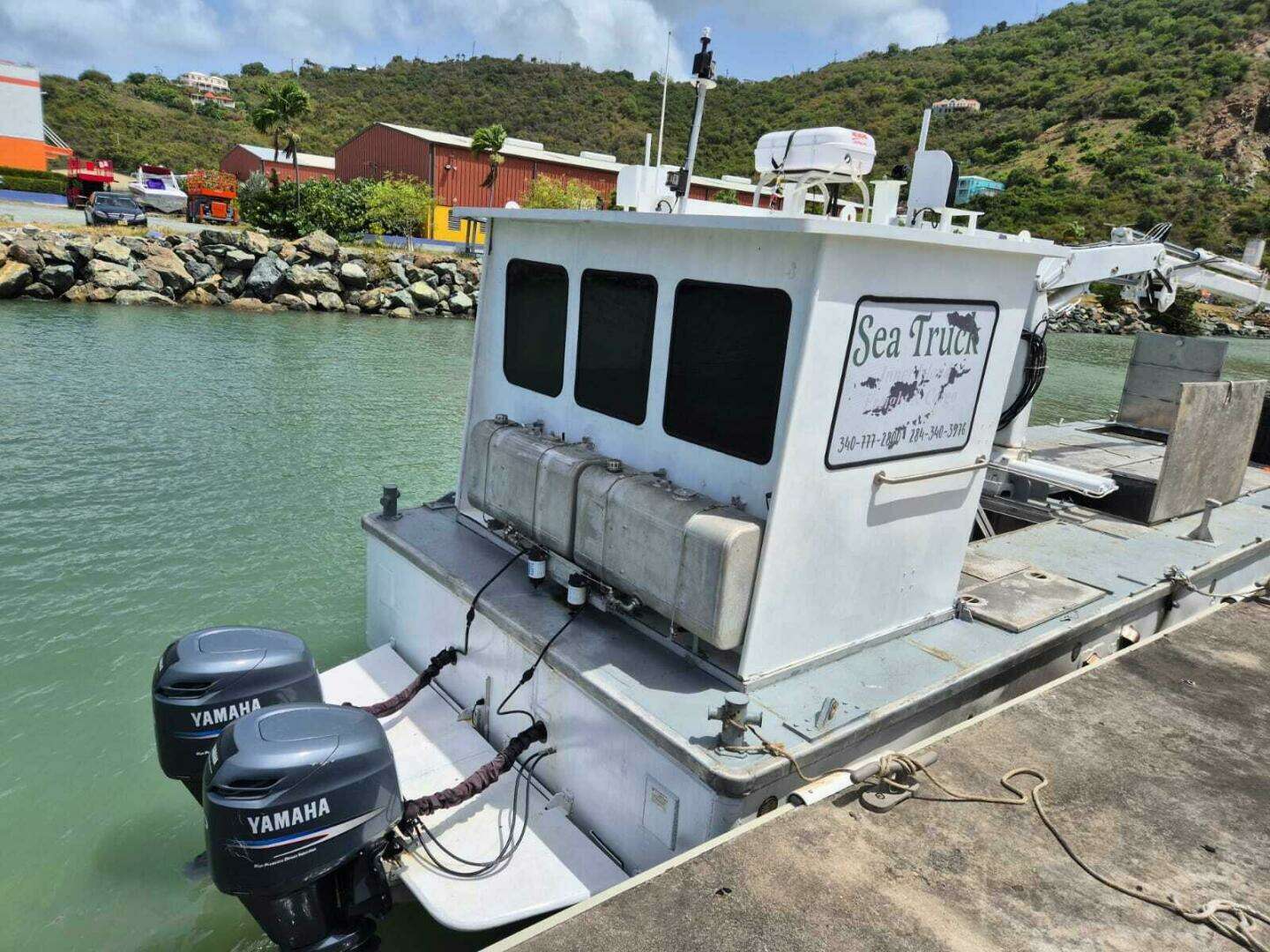

40' (12.19 m) Sea Truck
40' Custom Aluminum Barge with 2x 200HPO Yamaha engines, AC Wheelhouse, NEW 12Kw Kubota Generator, Hydraulic Knuckle Crane, Refrigerated Compartment & Removable Refrigerated box!
Flag of Registry: United States
Port of Registry: Galliano, LA
| FEATURES: |
|---|
1985 Custom 40' Aluminum Barge
- 2024
- 12.19 m
- Gas/Petrol
- Power
- Barge
$ 280,000 USD
$ 381,974 CAD*€ 238,209 Euros*£ 207,291 GBP*
Description

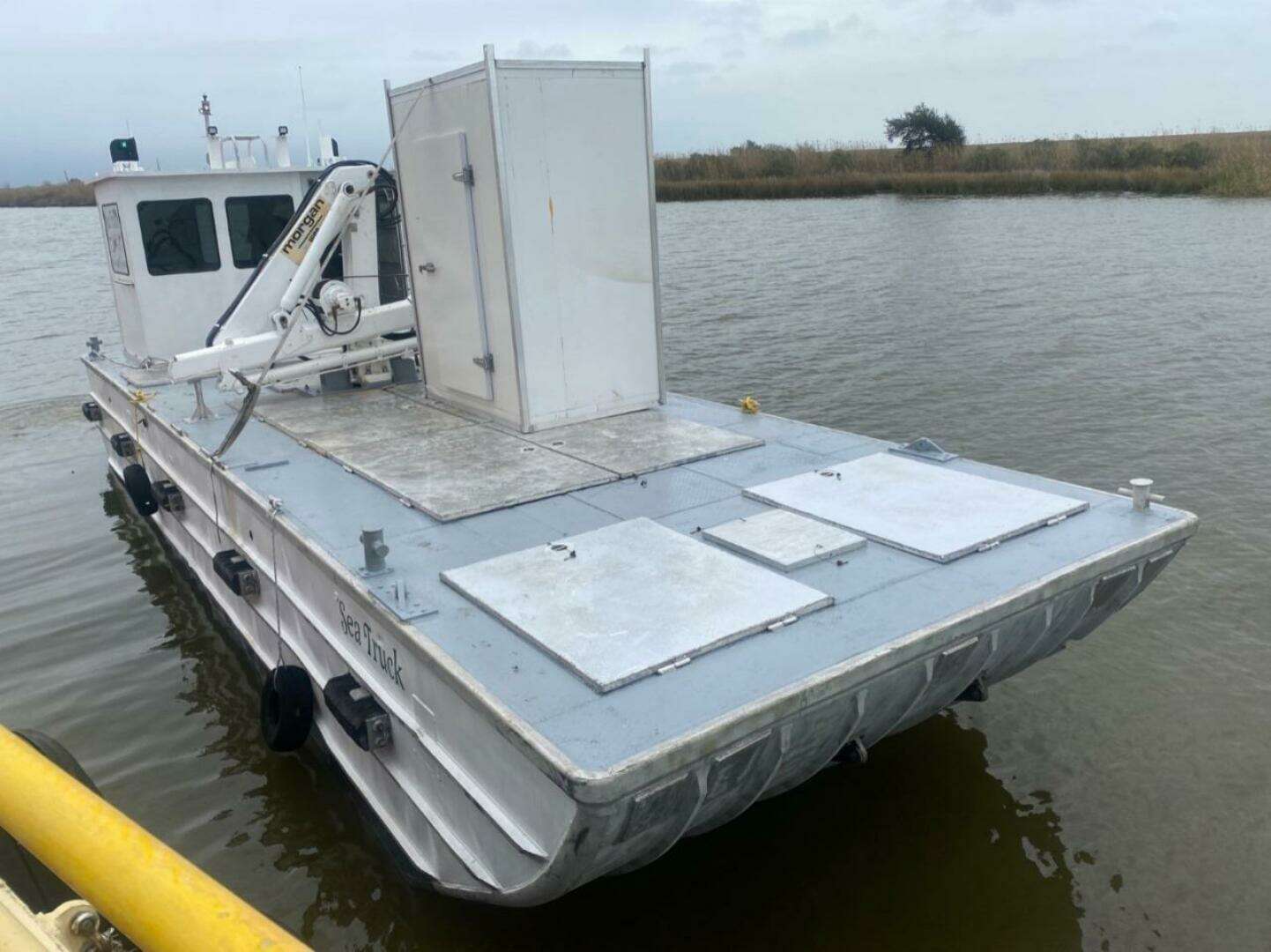

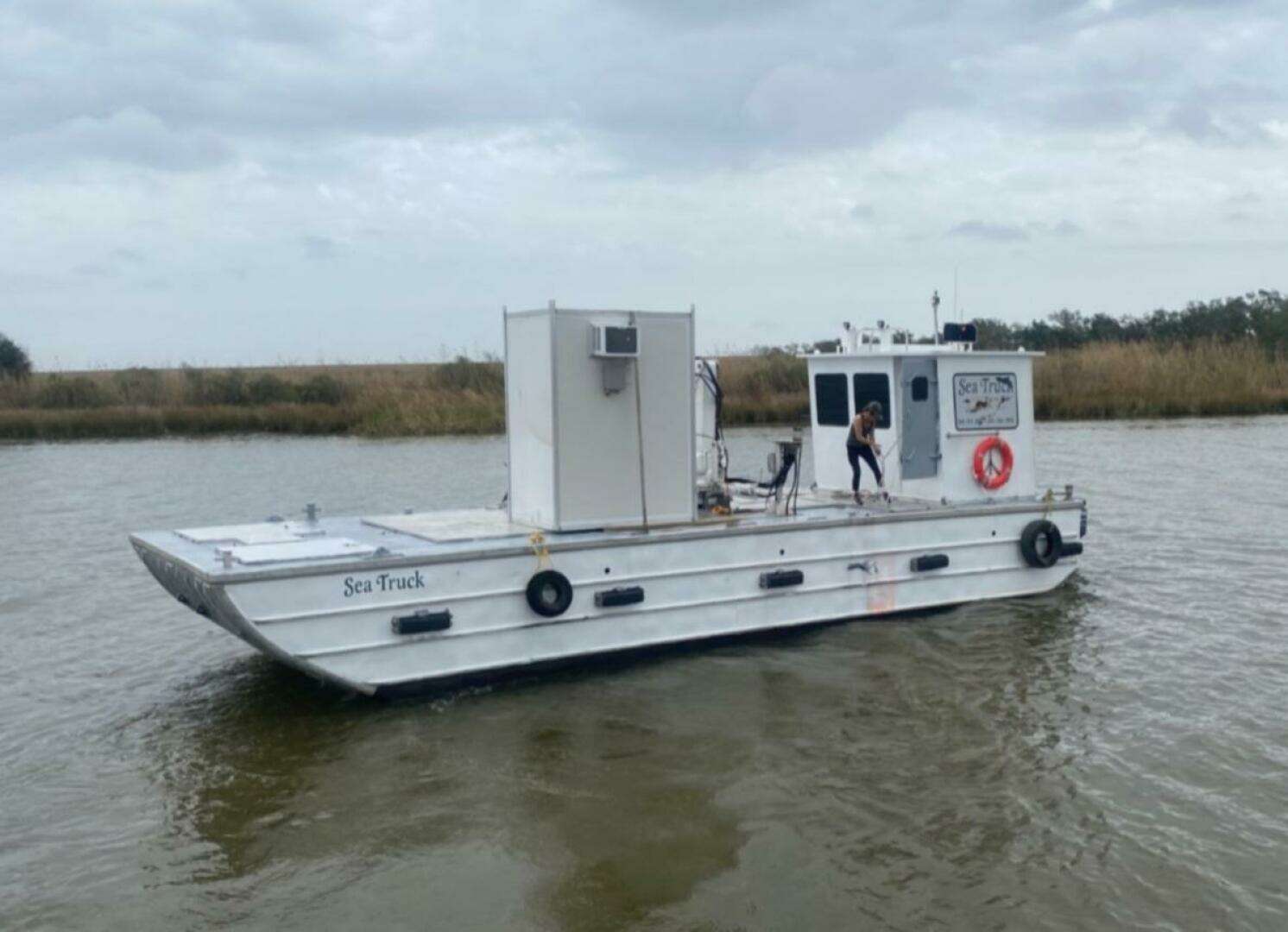

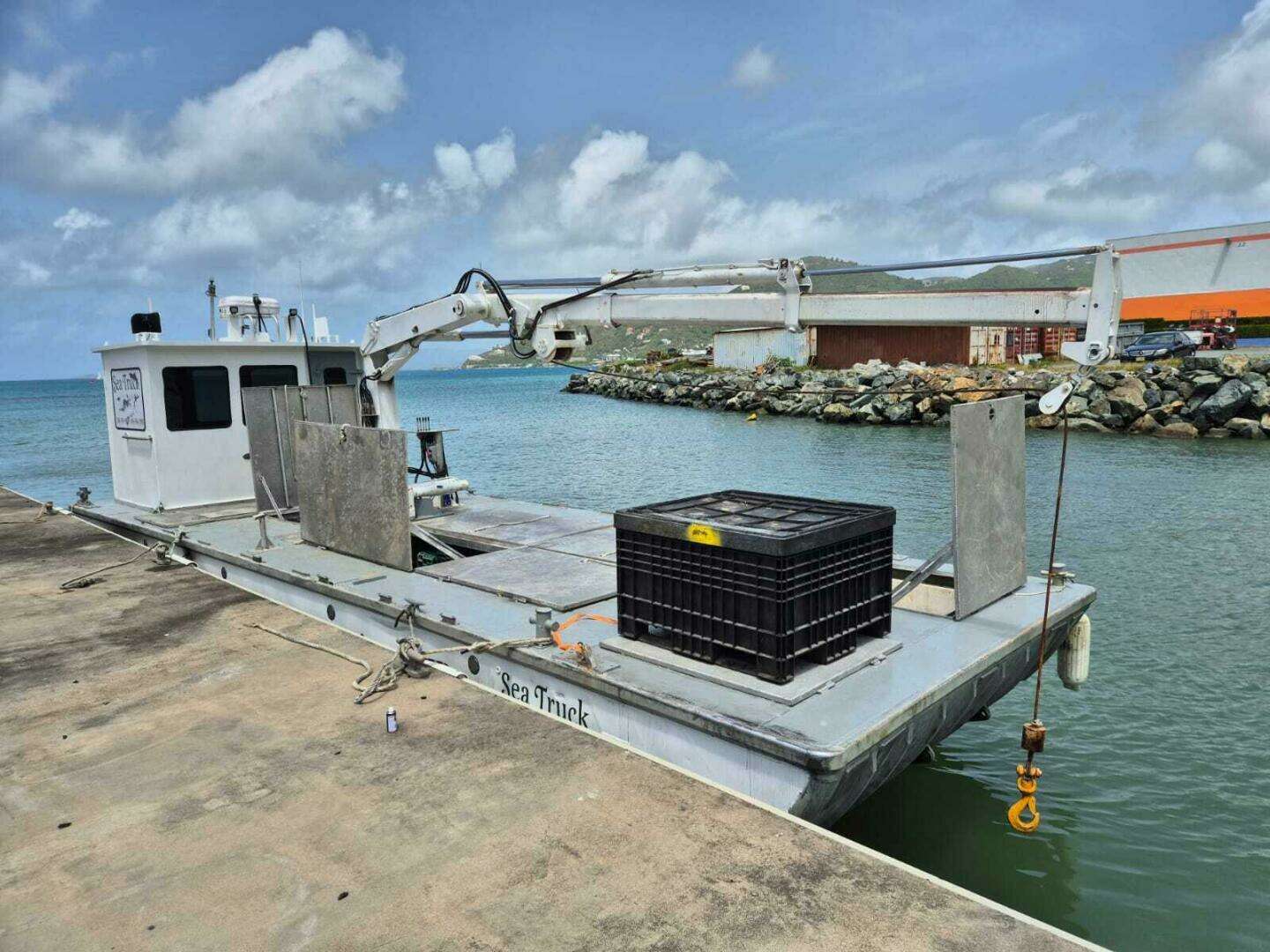

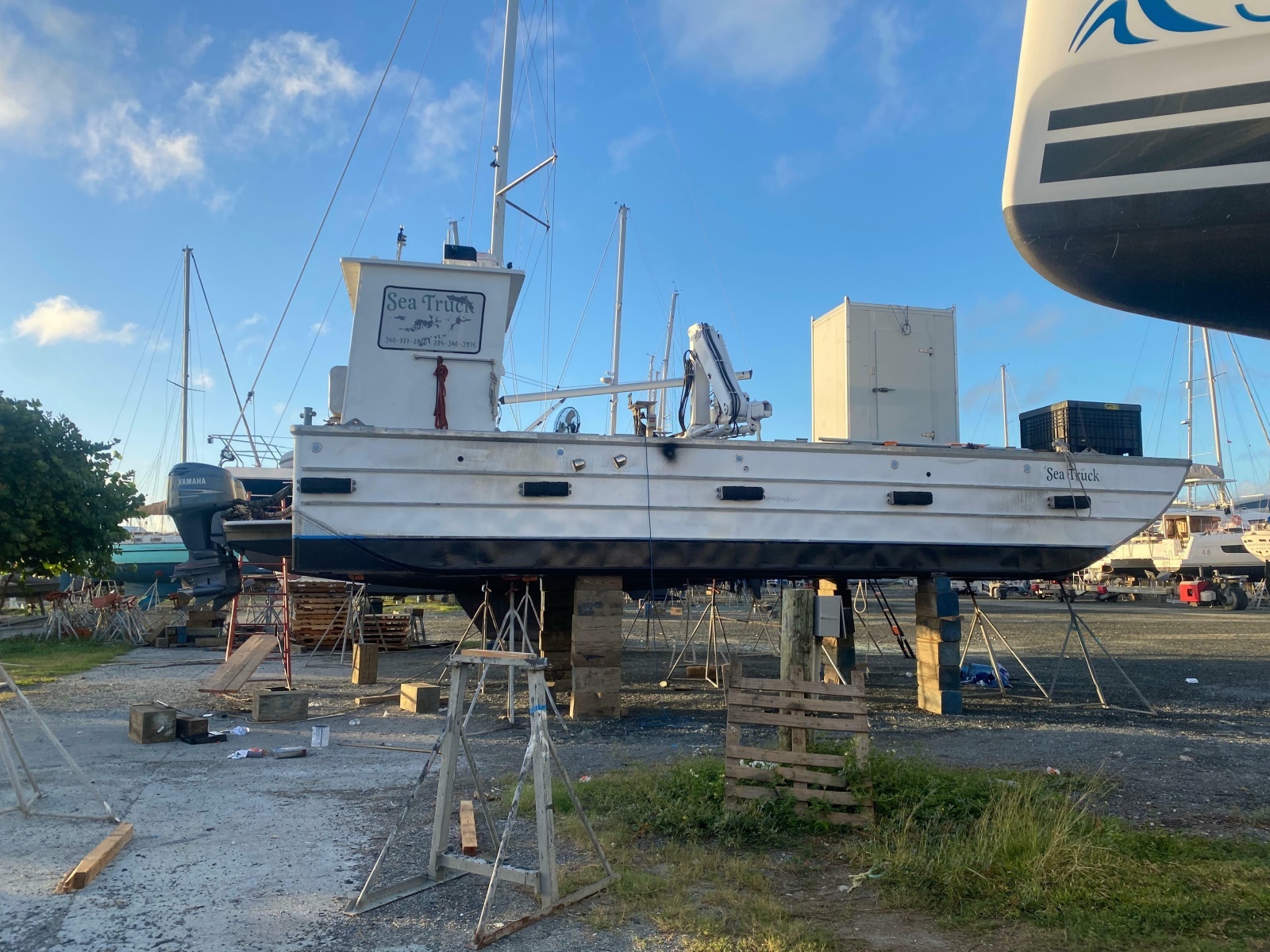

Introducing 'Sea Truck', an Aluminum Barge that was originally made for the military in 1985 that was fully Customized in 2024 and ready to make $$$ running goods from island to island. Fully imported to the BVI with Duty PAID! Even more importantly, she is USCG Documented and under the 15 gross tons mark which means she can legally carry cargo in between the US and BVI without the additional requirements that a USCG Inspected Vessel would require.
She is rated for Approx. 10 Tons, has 1000 ft.³ of storage below deck that can accommodate 12 full size pallets and just over 4' of head room. She has large insulated/refrigerated compartment below deck and an additional removable 4'x6'x8’ refrigerated compartment. She is also outfitted with a hydraulic knuckle crane that was professionally overhauled & ready to move cargo, Climate Controlled Helm station with a microwave and mini-fridge, 2x 200HP Yamaha HPDI 2 -Stroke engines with just over 1k hours and a brand NEW 12Kw Kubota generator to power everything.
The seller shipped and fully imported this vessel into the BVI with the intention for his business partner to run it as a business moving cargo between the USVI and BVI but plans have changed and he is hoping to find her a good home with someone with the work ethic to put her to work transporting goods. She is Turn-Key as is, but for a cash offer the owner will be willing to negotiate and/or accommodate by customizing the vessel to suit your needs. Reach out to get the conversation started and we can discuss the options and make this boat work for you!
LOA42'
LOA12.80''
Beam12'
Head Room Feet7'
Fuel Tank (Gallons)110
Fuel Tank (Liters)416.4
TypePower
ConditionUsed
Specifications
Sea Truck
LAZ79084G585
Power-Used
1985
2024
12 Knots
10 Knots
220
Gas/Petrol
Aluminum
Yes
110 Gallons (416.4 Liters)
16000
Engines
Engine 1
- Engine Make: Yamaha
- ModelEngine Model: Z200TXR
- YearEngine Year: 2006
- Engine TypeEngine Type: Outboard
- Drive TypeDrive Type: Other
- Power HPPower HP: 200.00
- Power KWPower KW: 149.14
- Feul TypeFeul Type: Gas/Petrol
- HoursHours: 1025.00
- Engine LocationEngine Location: Port
- Serial NumberSerial Number: 1005254
Engine 2
- Engine Make: Yamaha
- ModelEngine Model: Z200TXR
- YearEngine Year: 2006
- Engine TypeEngine Type: Outboard
- Drive TypeDrive Type: Other
- Power HPPower HP: 200.00
- Power KWPower KW: 149.14
- Feul TypeFeul Type: Gas/Petrol
- HoursHours: 1025.00
- Engine LocationEngine Location: Starboard
- Serial NumberSerial Number: 1029571
Generators
Generator 1
- Generator Make: Kubota
- Generator Model: V1505
- Generator KW: 12.00
- Generator Hours: 97
- Generator Date Hours Recorded: 07/01/2025
Full Details
Additional Information
Accommodation

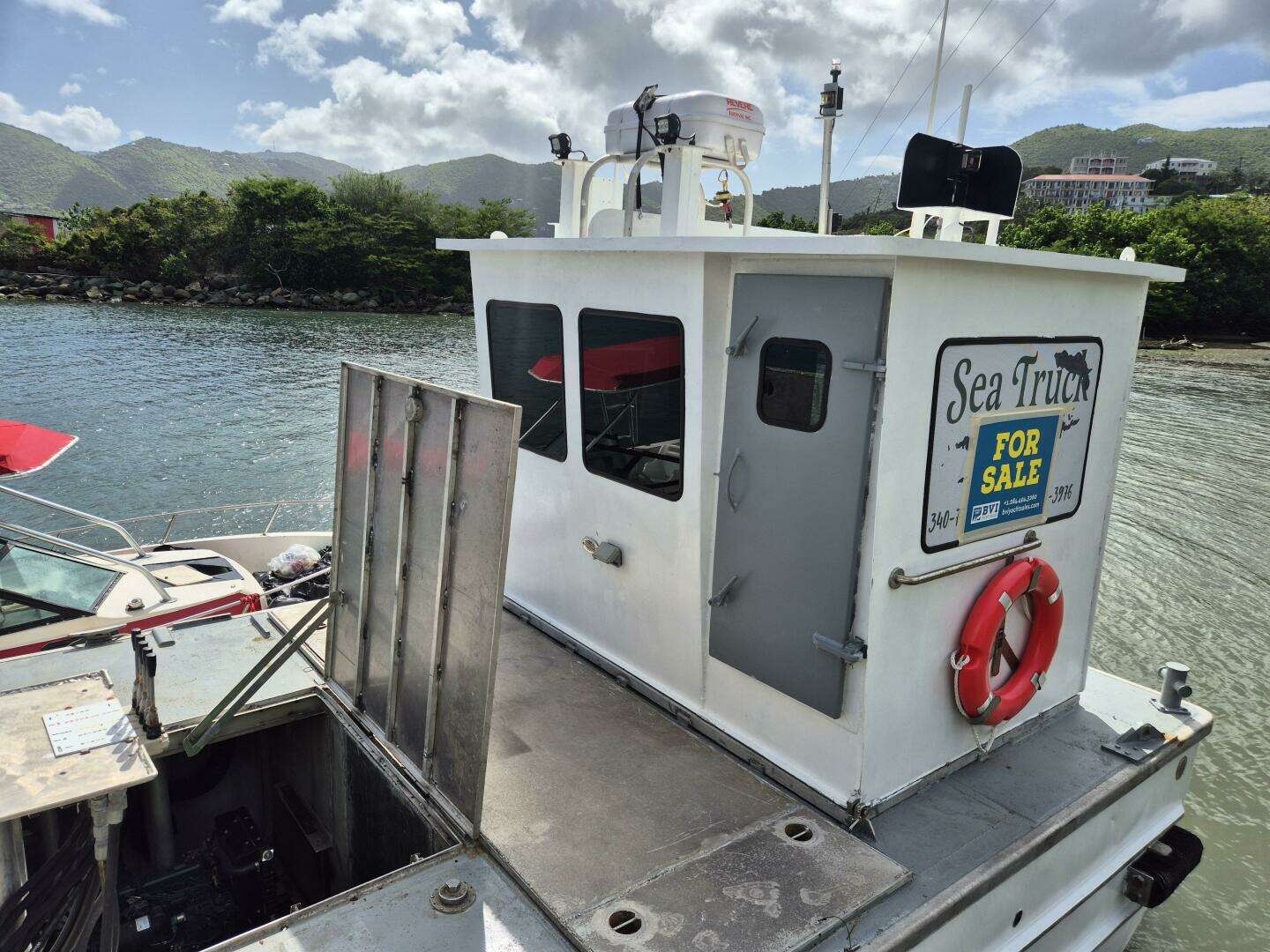

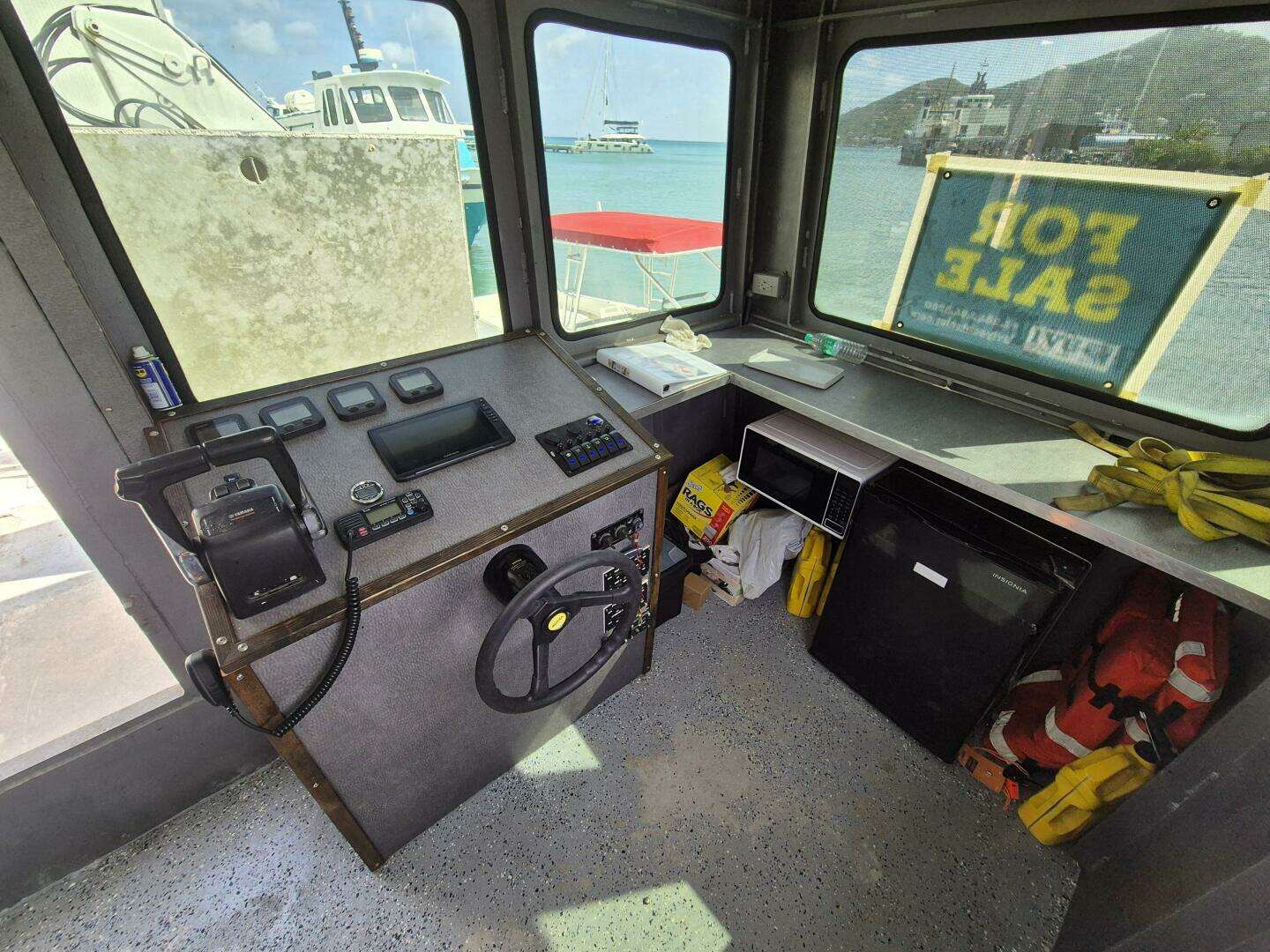

- 6’x 9’ Enclosed wheelhouse with a/c mini fridge and microwave

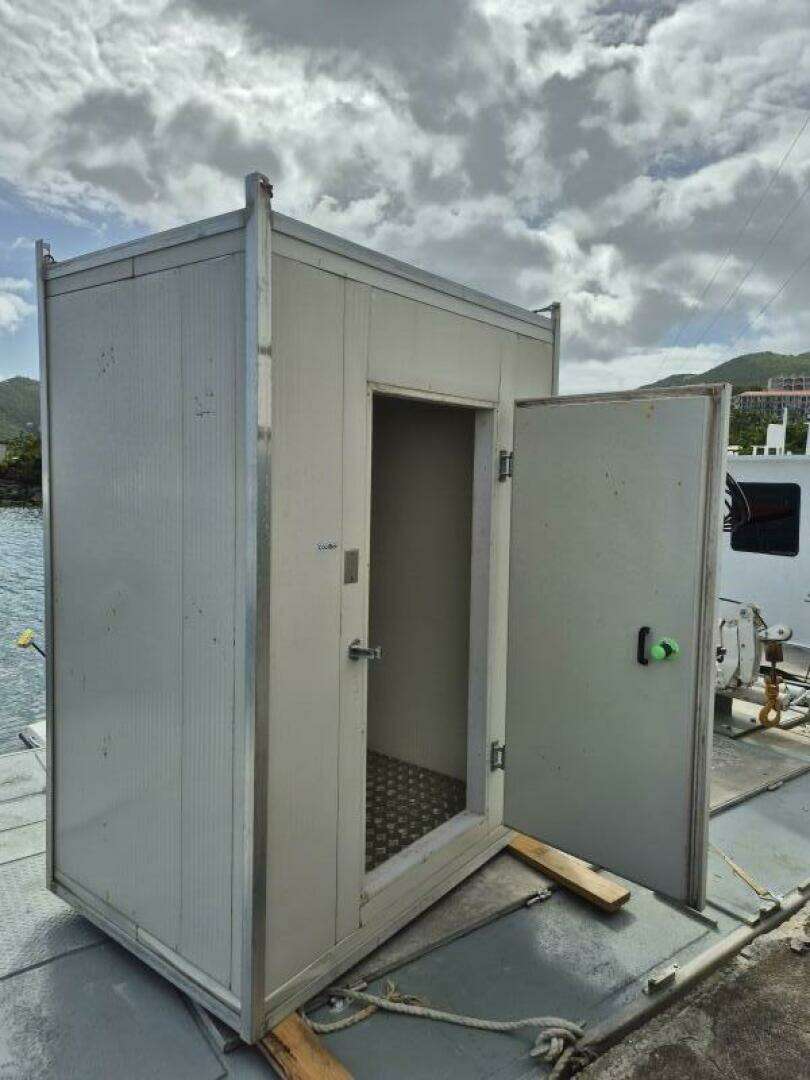

- 4' x 6' x 8’Removable Refrigerated cooler box
Aft compartment:
- Length: 6'
- Width: 7'11"
- Height: 5'
- (2) Maxzone Auto Bilge Pumps 1100 GPH Model: A02-111001

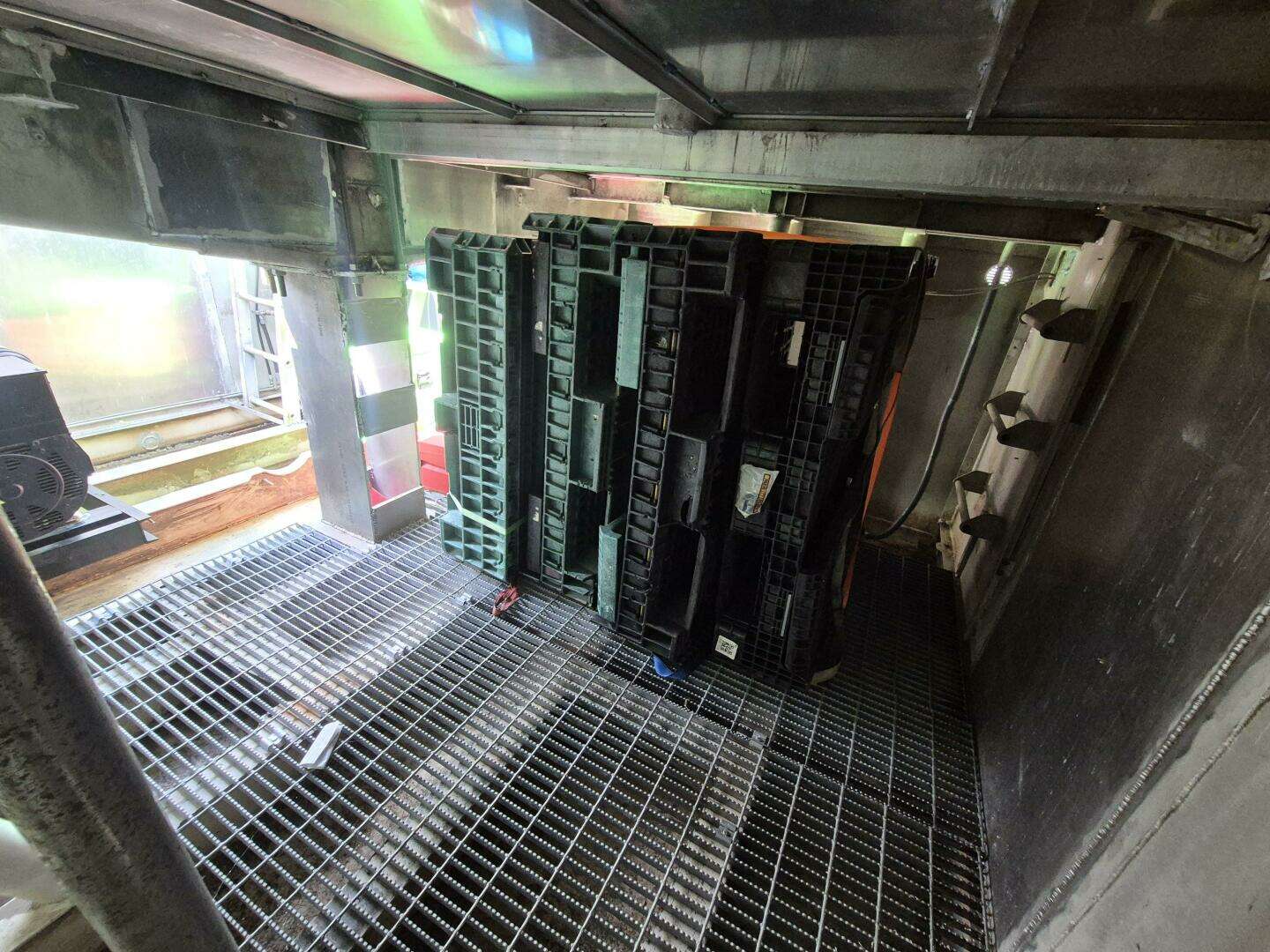

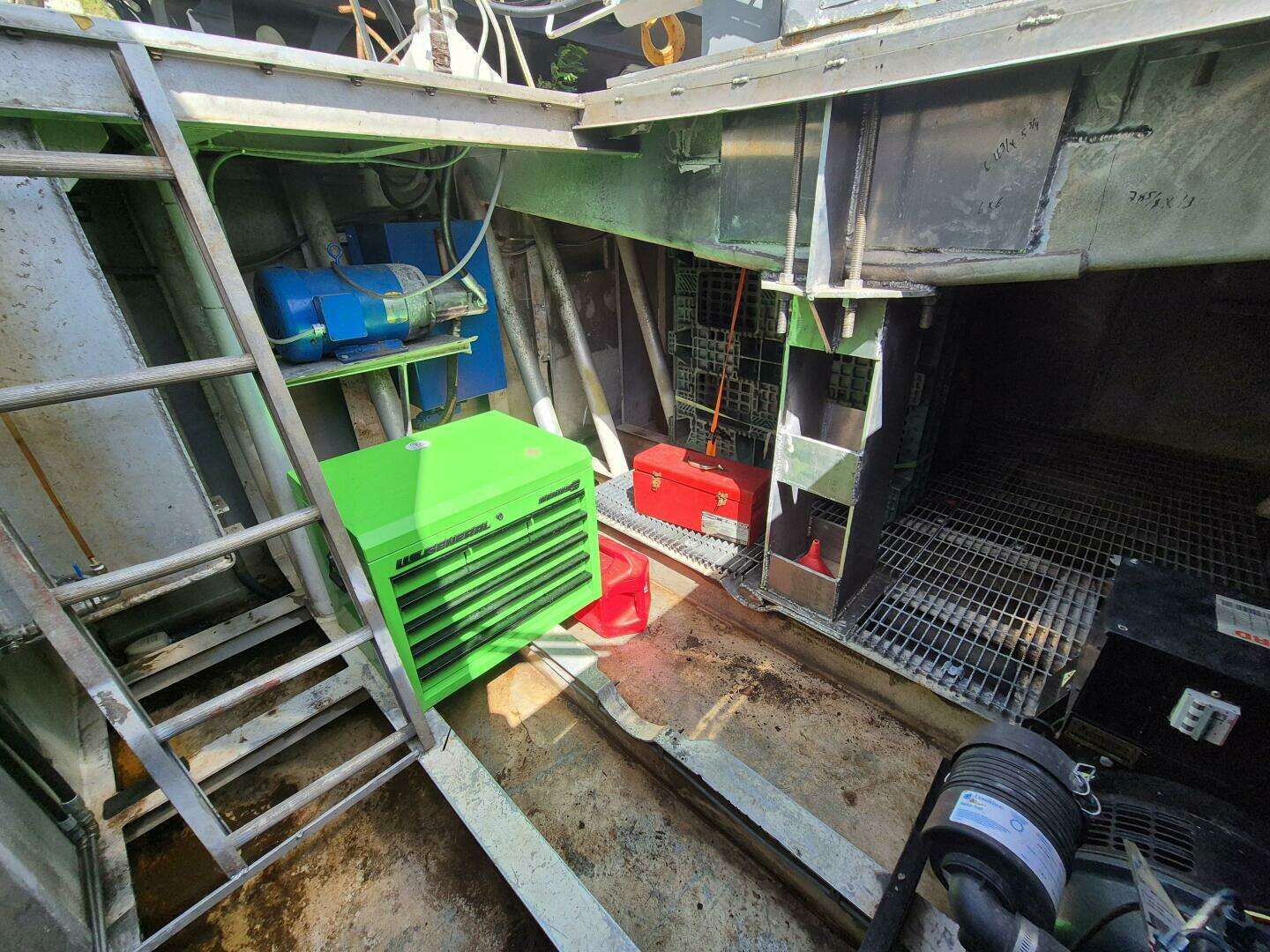

Middle compartment:
- Length - 9' from front to gen. 13' 6" overall
- Width: 7' 11"
- Cargo height 4' 4"
- *Additional 5' x 7' 11" cargo space if generator is relocated.
- (4) Maxzone Auto Bilge Pumps 1100 GPH Model: A02-111001
Forward middle compartment:

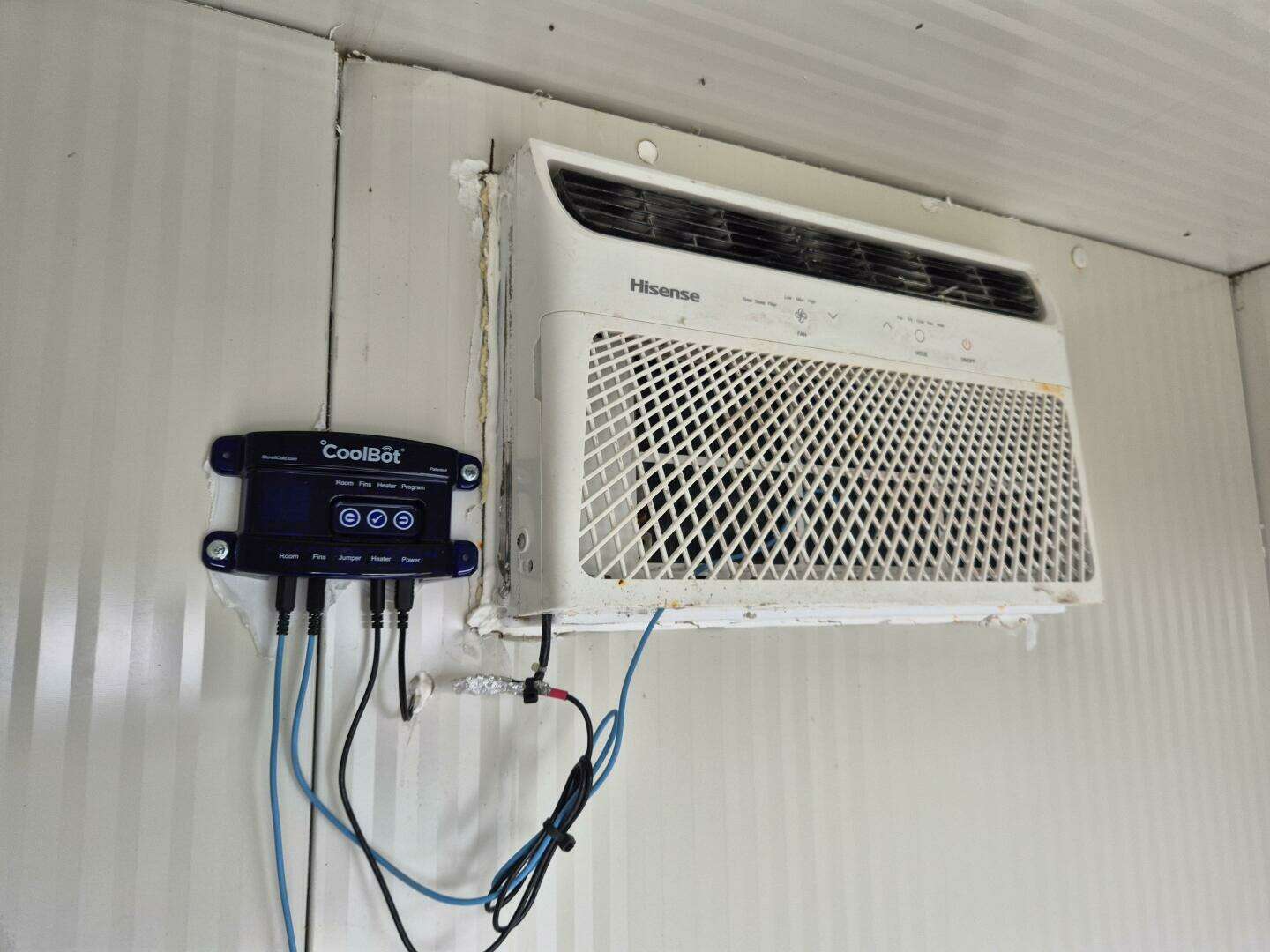

- Refrigerated & Insulated
- Cargo Dimensions:
- Length: 5'3"
- Width: 7'11"
- Height: 5'
Forward Compartment:
- (2) Approx 4'x4'x3' Storage areas for lines, fenders etc to port & starboard
- Center locker for anchor chain & rode
Interior Comforts and Amenities
- AC In the wheel house
- Microwave
- Minifridge

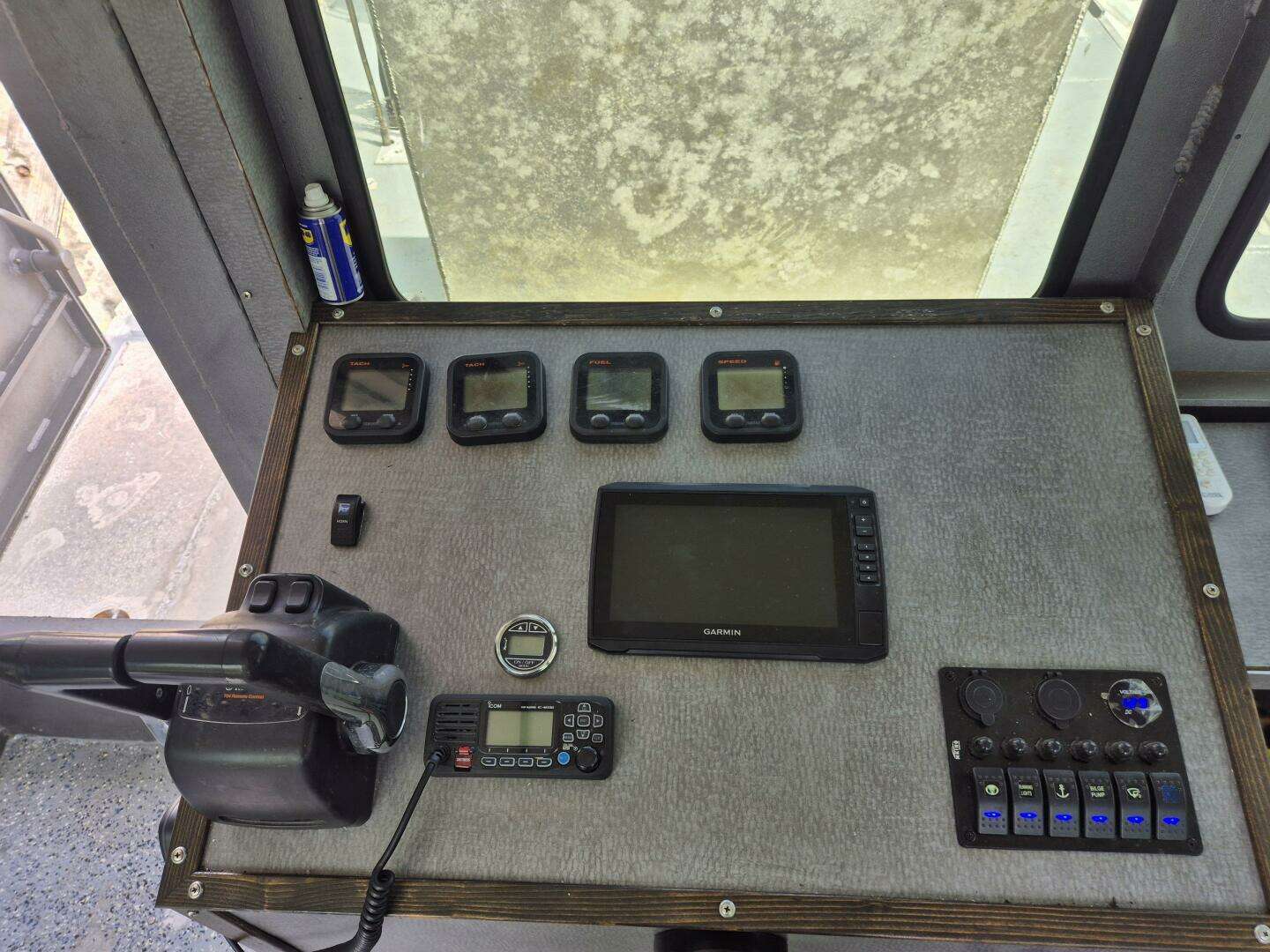

Electronics and Navigation
- 10" Garmin Chart plotter
- Airmar P79S Smart Depth Transducer
- iCom VHF
- Navigation Lights
- Horn
- Deck Flood Light
- (2) Rocker switch panels w/ Battery display & USB port
- (8) Man/Auto Switches for the Maxzone Auto 1100 GPH Bilge Pumps
Electrical Systems
- (2) Engine Batteries
- House Battery: 12V 101Ah Everstart Marine
- Generator Start Battery
- 12Kw Kabota Generator (97 Hours 7/2025)
- Victron Blue Smart 30 Amp12V Charger w/ Bluetooth
- Single solar panel on the roof
Deck and Hull Equipment
- (4) Collapsible pallet sized storage bins
- Pallet sized tote bin with lid
- Removable Refrigerated Box Dimensions: 4' x 6' x 8’

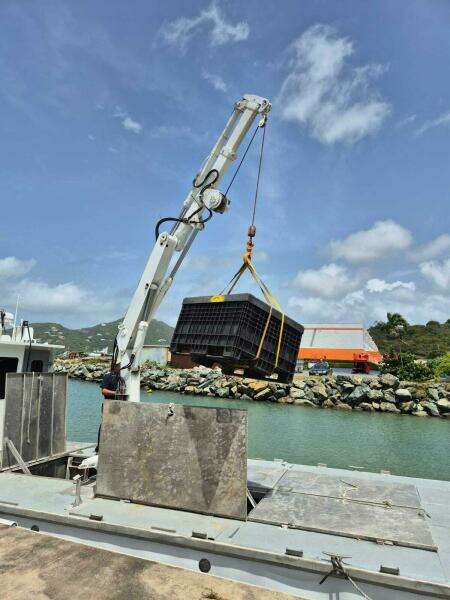

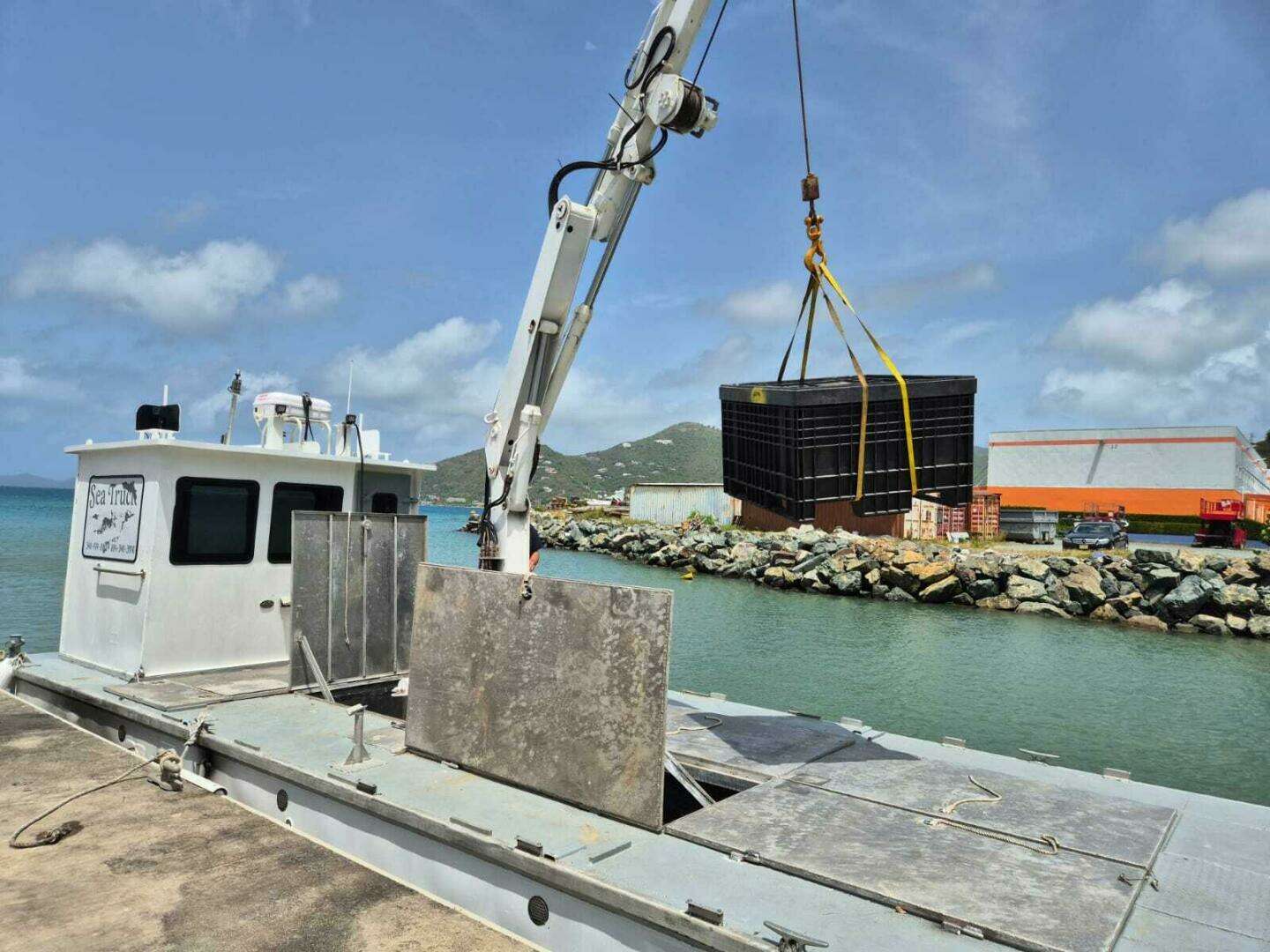

- Model 80 crane with an Braden BG6 Planetary Winch (this unit was made to mount on a stationary flat surface and be powered by an electric Hydraulic Power Unit)

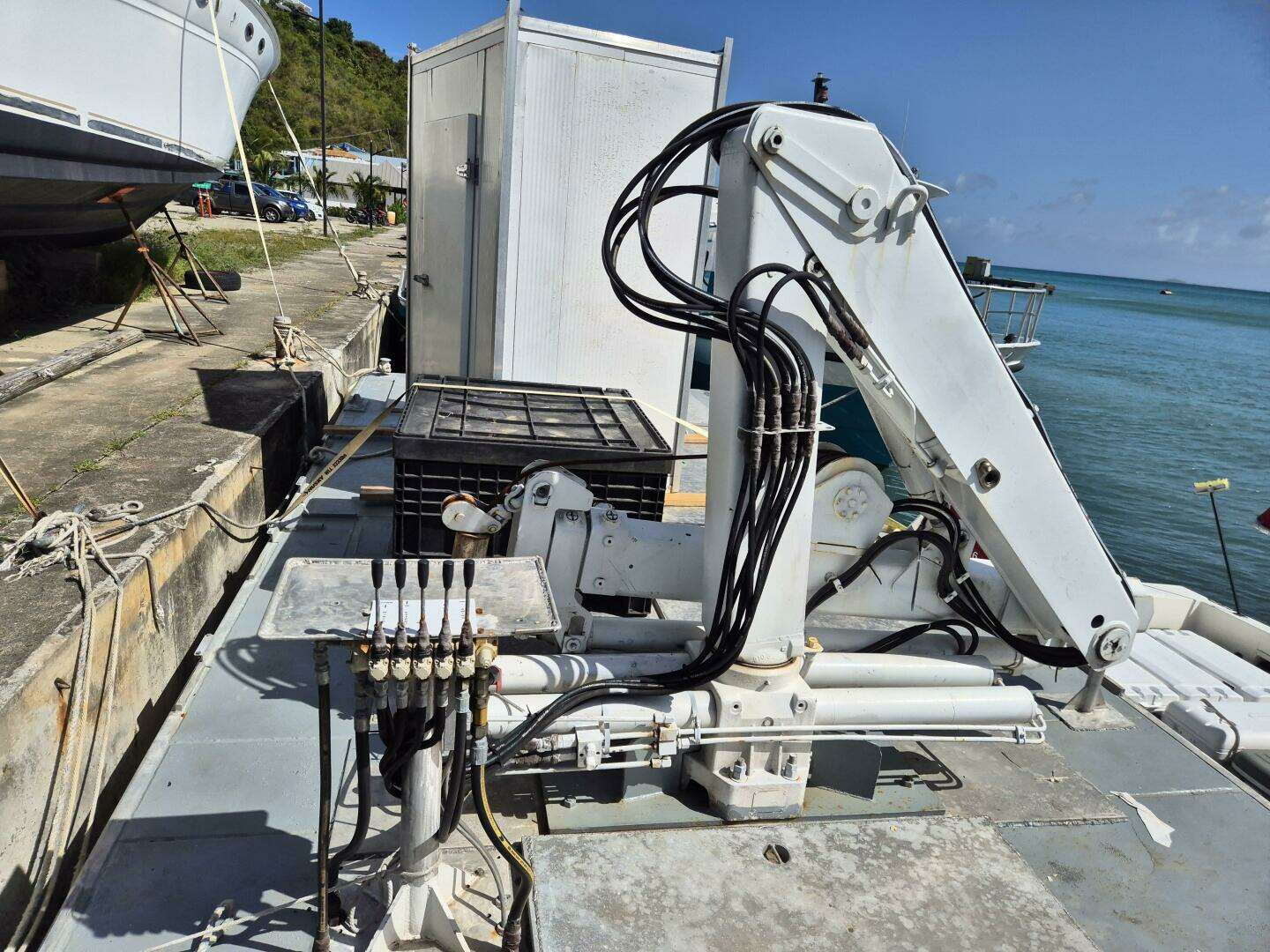

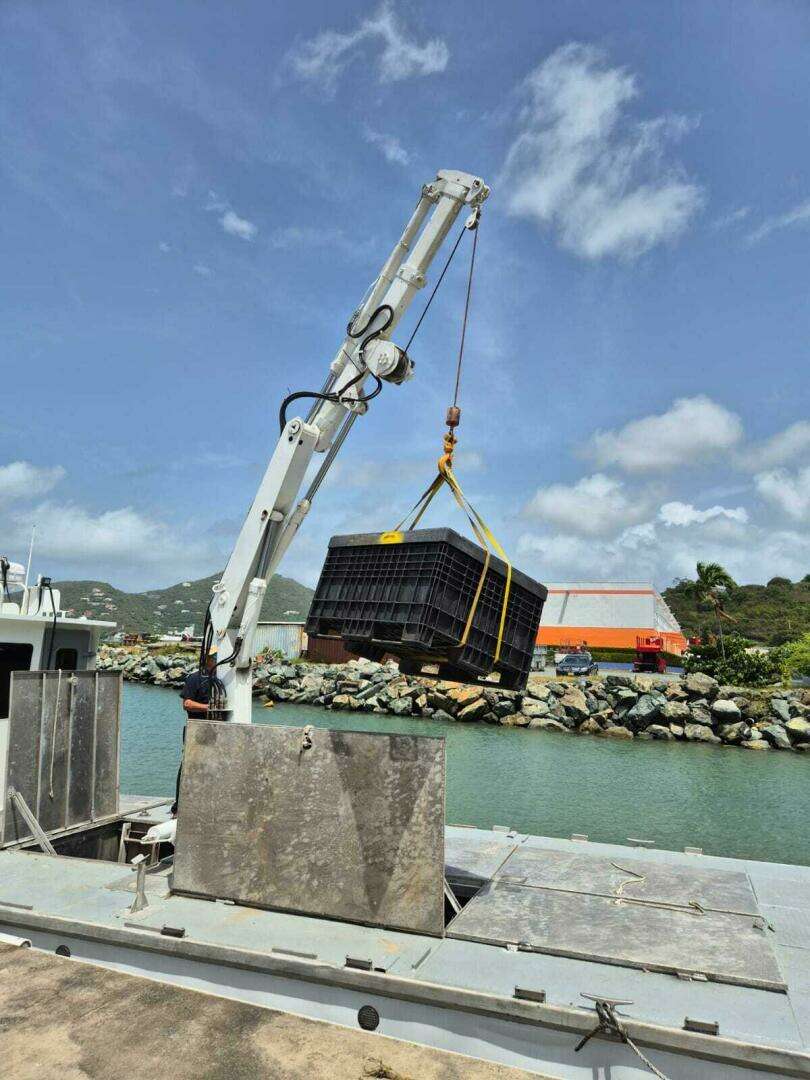

Crane Details:
- Morgan Model 80 Crane
- Rated Capacity 55,000 FTALBS
- 5.500 lbs @ 10
- 3,700 lbs @ 15
- 2.700 lbs @ 20
- 2.250 lbs @ 23'6"
- 400 Degree Rotation
- Weight 2,500 bs
- Hydraulic Winch 5,000 lb Planetary BG 6, including cable & load hook
- 6 Function Hydraulic Control Valvo, Looso for Remote Mount Hydraulic System Requirements 10 GPM @ 3625 PSI
- Hose end fittings on the crane are BSPP Flat Face, (European)
Safety Equipment:

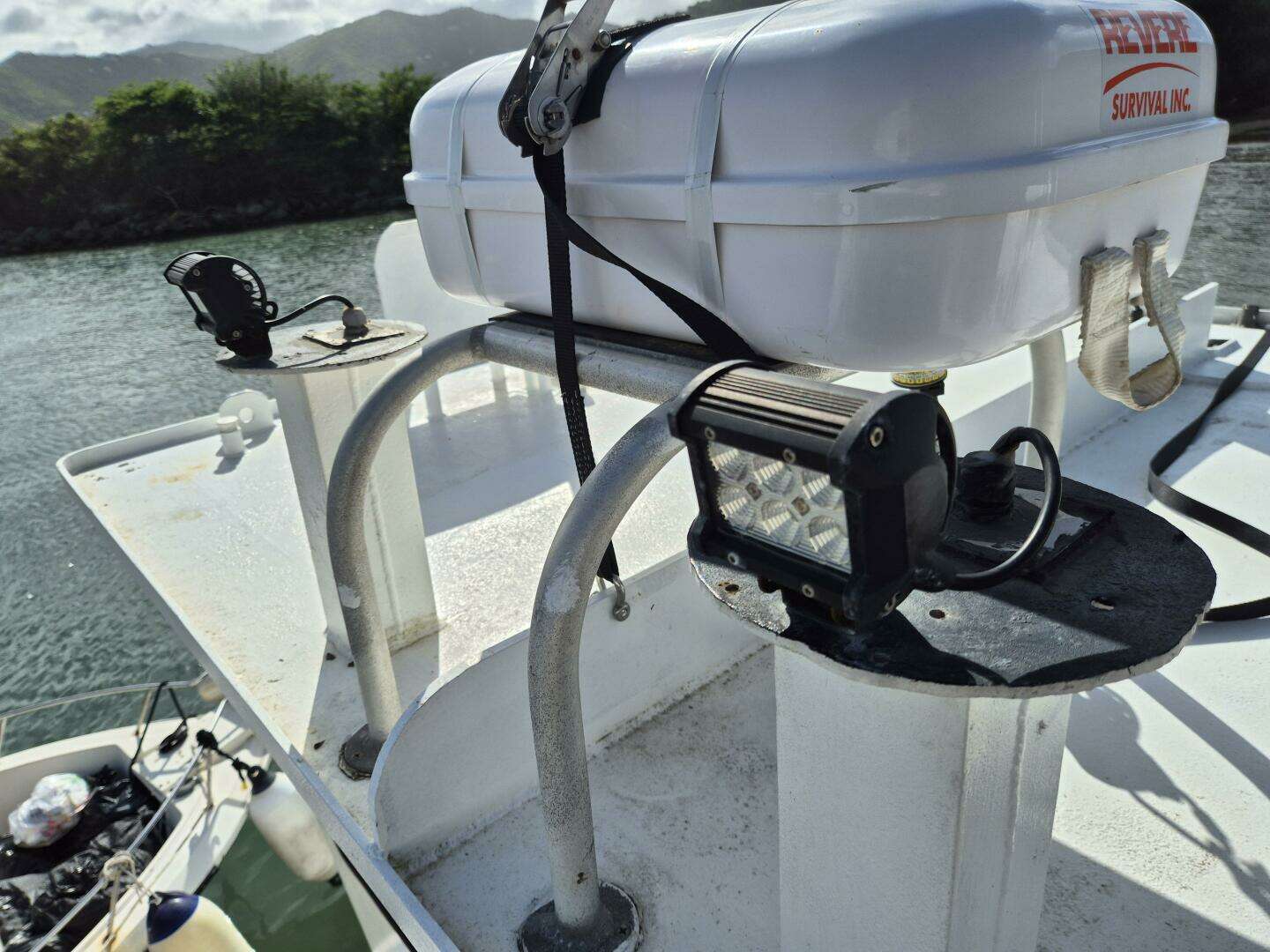

- 4 Person Life Raft
- Life Ring
- Fire Extinguisher
- (8) 1100GPH Bilge Pumps with integrated float switches
Mechanical Equipment

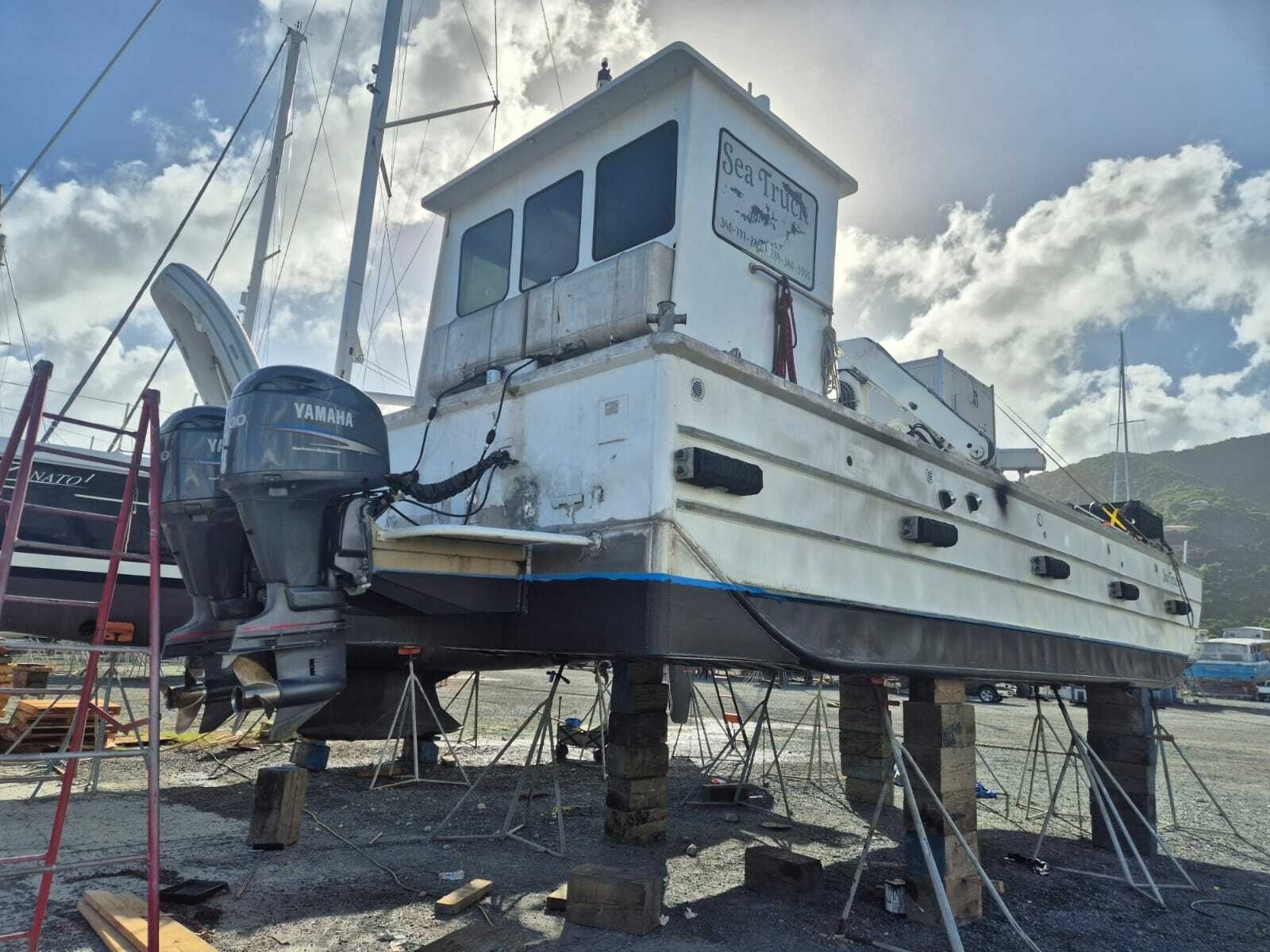

- Port Engine: Yamaha HPDI 200HP Model: LZ200TXR S/N:1005254 (1025 Hours 7/2025)
- Starboard Engine: Yamaha HPDI 200HP Model:Z200XTR S/N: 1029571 (1025 Hours7/2025)

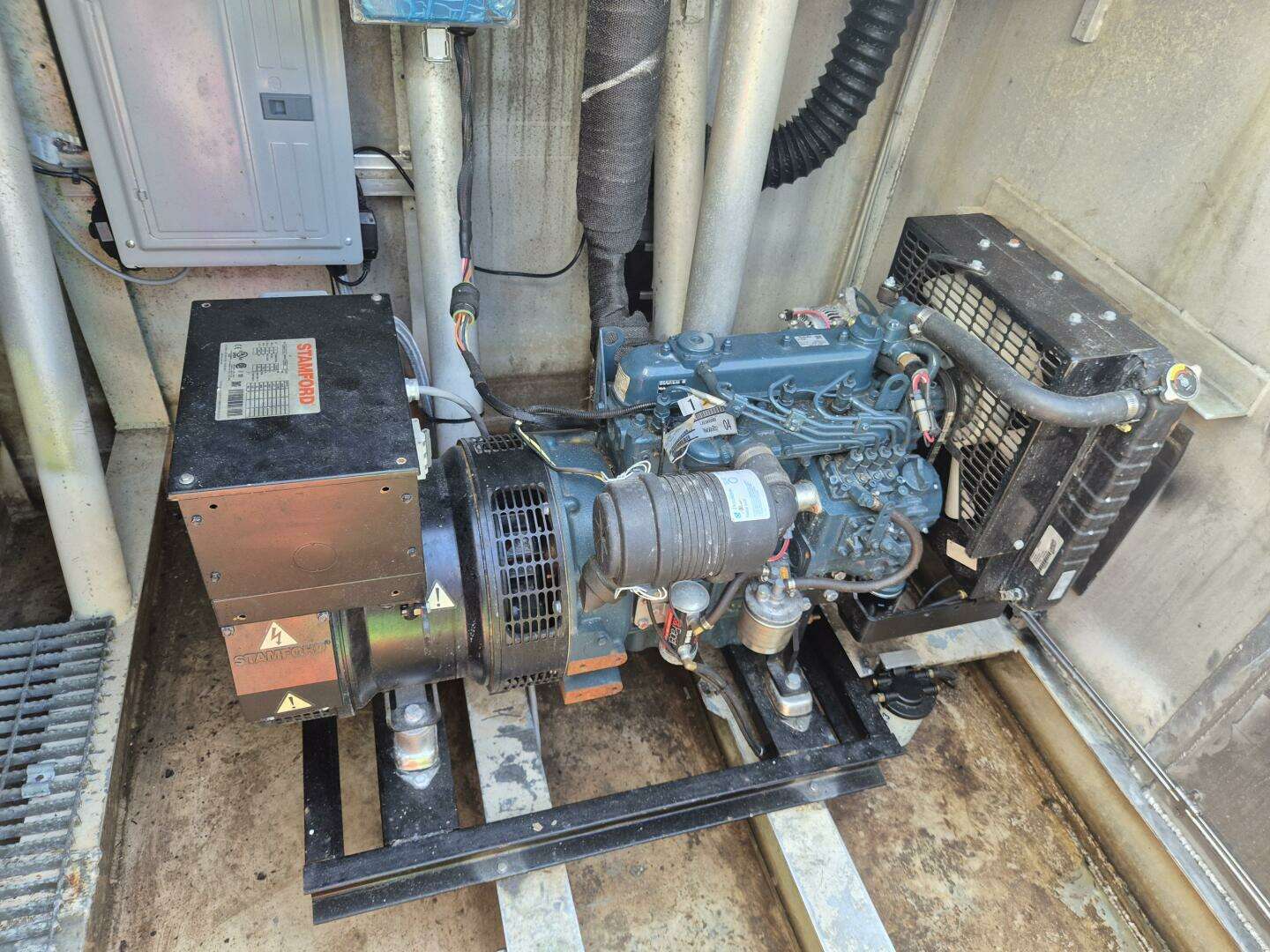

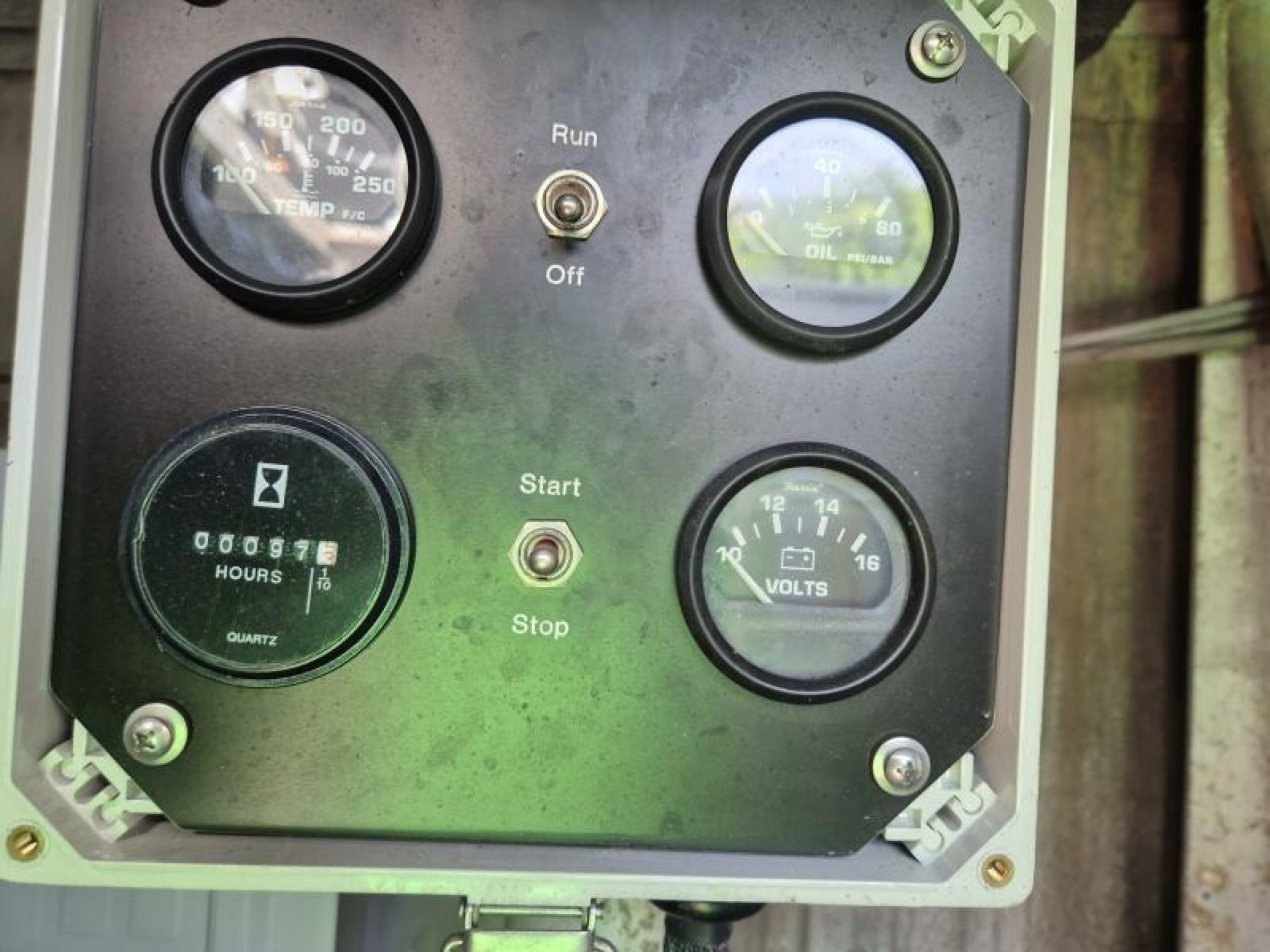

- Generator: Kubota 12Kw Model V1505 S/N: 1NG6502 (97 Hours 7/2025)
- Hydraulic Crane with an Braden BG6 Planetary Winch.
Tankage
- Gas Tank: 110 Gal. (2 x 55 Gal. Tanks Connected)
- Generator Diesel Tank: 30 Gal.
Owners Comments and Boat History
Vessel was originally a military barge used to move cargo and raft together to make bridges. Fully retrofitted and customized in Louisiana to be a cargo vessel in 2024. Shipped to the BVI and full import paid in May 2025.
