HULL COMPOSITE

“Vee” hull design with 24° deadrise amidships and 17° at the transom.

- VIP Resin Infused laminate with ISO NPG white gelcoat and blended vinylester resin.

- Knitted Biaxial Structural E-Glass Reinforcements

- SAN Corecell foam core in hull bottom and topsides.

- Foam cored fiberglass stringer system.

- Hull side rub strakes.

- PVC rub rail with stainless steel cap.

- Painted (Urethane) Double Boot Stripe - Gold Cove Stripe

DECK & HARDTOP COMPOSITE

- ISO NPG gelcoat.

- VIP resin infused knitted Biaxial Structural E-Glass Reinforcements with balsa coring.

- Molded-in anti-skid deck surfaces.

- Port and starboard transom gates

- Aft seating slides to expand cockpit dimension w/12v actuator

- Anchor lockers (2) with slam latches

- Large Aft hinged engine room hatch with gas struts and (2) 3” diameter compression latches for engine room access.

DECK HARDWARE

- 1 1/4" Diameter type 316 stainless steel perimeter rail system

- (6) 12” Stainless Steel Cleats: two forward, four mid-ship

- 10” Stainless Steel Cleat to starboard of windlass as anchor rode tie off.

- Windlass with combination rope/chain gypsy

- Custom stainless steel bow pulpit w/ anchor roller sized for 35# CQR or Delta

- Flagpole holder and teak flagstaff.

- Teak table in the cockpit - Burgee staff for pulpit

- Low Profile polished hatches w/blinds and screens: (2) #44 on the foredeck, (2) #10 port, and starboard. - Single-glazed salon windows.

- Custom stainless-steel opening ports.

- Teak cabin side eyebrow

- Custom stainless steel “SABRE” logo

- (2) Bollard cleats in aft transom corners.

- Raw water washdown forward.

- Swim platform with molded

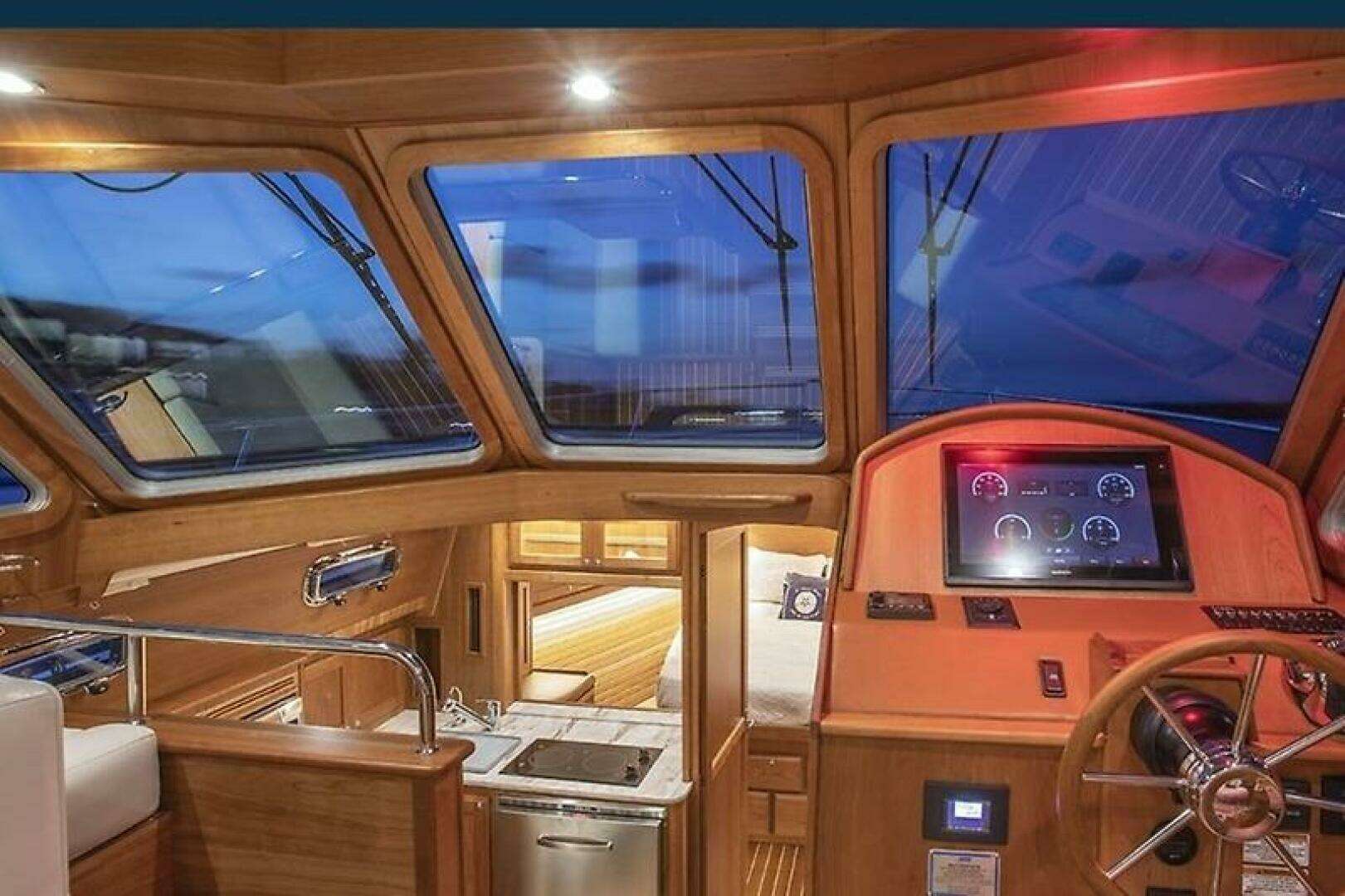

HELM STATION

- Single 8616 Volvo-Garmin Multi-Function Display w/ Separate SD Card Reader.

- Volvo-Penta Autopilot w/ Joystick Driving.

- Volvo-Penta IPS Plus Joystick Controller

- Twin Lever Shift & Throttle Control (EVC-E) w/ Single Lever & Cruise Control Software.

- Triple windshield wipers w/ multiple speed settings.

- Windshield washers plumbed from the freshwater system.

- Kahlenberg single chrome air horn

- Ritchie compass.

- Switch controls for horn, running lights, anchor light, engine room blowers, & bilge pumps.

- Stidd 500 N Series helm seat.

- Custom teak steering wheel w/ tilt helm & Sabre logo.

- Two overhead pilot hatches with shades/screens.

STD. VOLVO PROPULSION SYSTEM & ENGINE ROOM

- Twin Volvo-Penta IPS-450 with D6 340 hp engines.

- Integrated freshwater heat exchanger cooling system.

- Volvo-Penta Automatic Interceptor Trim Tabs.

- Dynamic Positioning System (DPS)

- Active Corrosion Protection System (ACP)

- Sabre exhaust by-pass system

- Groco raw water intake strainers & safety valves.

- Engine room ventilation system.

- White gel-coated engine room.

- Gloss white painted engines.

- Mylar-face foam noise barrier.

FUEL SYSTEM

- Twin 150 USG roto-molded diesel fuel tanks.

- Single Racor fuel filter per engine.

- (2) 2” Diesel stainless steel deck fill plates.

- Fuel level indicator at helm

120VAC ELECTRICAL SYSTEM

- Northern Lights 6kW Generator with water drop exhaust muffler.

- Two 30A AC shore power inlets and two 50 ft. cords

- Galvanic Failsafe isolator

- 120V outlets in each cabin and one in the engine room.

- All accessible 120VAC outlets GFCI protected.

- 50amp, 3-bank battery charger

- Reverse cycle heat/ air conditioning in 2 zones. 2/ea. selfcontained 16k BTU units

12VDC ELECTRICAL DISTRIBUTION SYSTEM

- Two dedicated Group 31 AGM engine starting batteries.

- Four 6 Volt AGM deep cycle ship's service batteries.

- One Group 24 AGM Gen-set start battery

- Battery Management panel including Emergency crossover switch. Remote Control Ships Power switch Remote Control Starting Battery switch

- Illuminated main circuit breaker distribution panel w/battery voltage gauge

- High-output, efficient LED lighting throughout boat.

- Dimmers in the forward cabin, galley, lower lounge, main salon, and cockpit

- Marine-grade, UL & ABYC standard tinned copper wire throughout.

- USB 12 VDC charging station at the helm and in cabins

ENTERTAINMENT MEDIA

- Fusion Apollo Stereo System with Bluetooth. Controls at helm and cockpit. Four speakers, two in the main salon, two in the cockpit

- 10” Fusion subwoofer

- Fusion amplifier NOTE: This stereo does not have a CD/DVD player.

- 32” Surface-mounted LED Television on an electric lift between the galley and stateroom.

- 32” LED TV on an electric lift inside the cabinet in the Main Salon.

- HDMI cables run from each TV to the storage area starboard of the lower lounge.

WASTE DISPOSAL

- Polyethylene holding tank with 40-gallon capacity

- Jabsco Quiet Flush freshwater MSD

- Diaphragm waste pump on holding tank.

FRESHWATER SYSTEM

- Water capacity 100 gals.

- 11 gal. Stainless steel water heater 110V

- Hot and cold water pressure system 12V.

- Shore water inlet with a filter.

- Transom shower hot and cold.

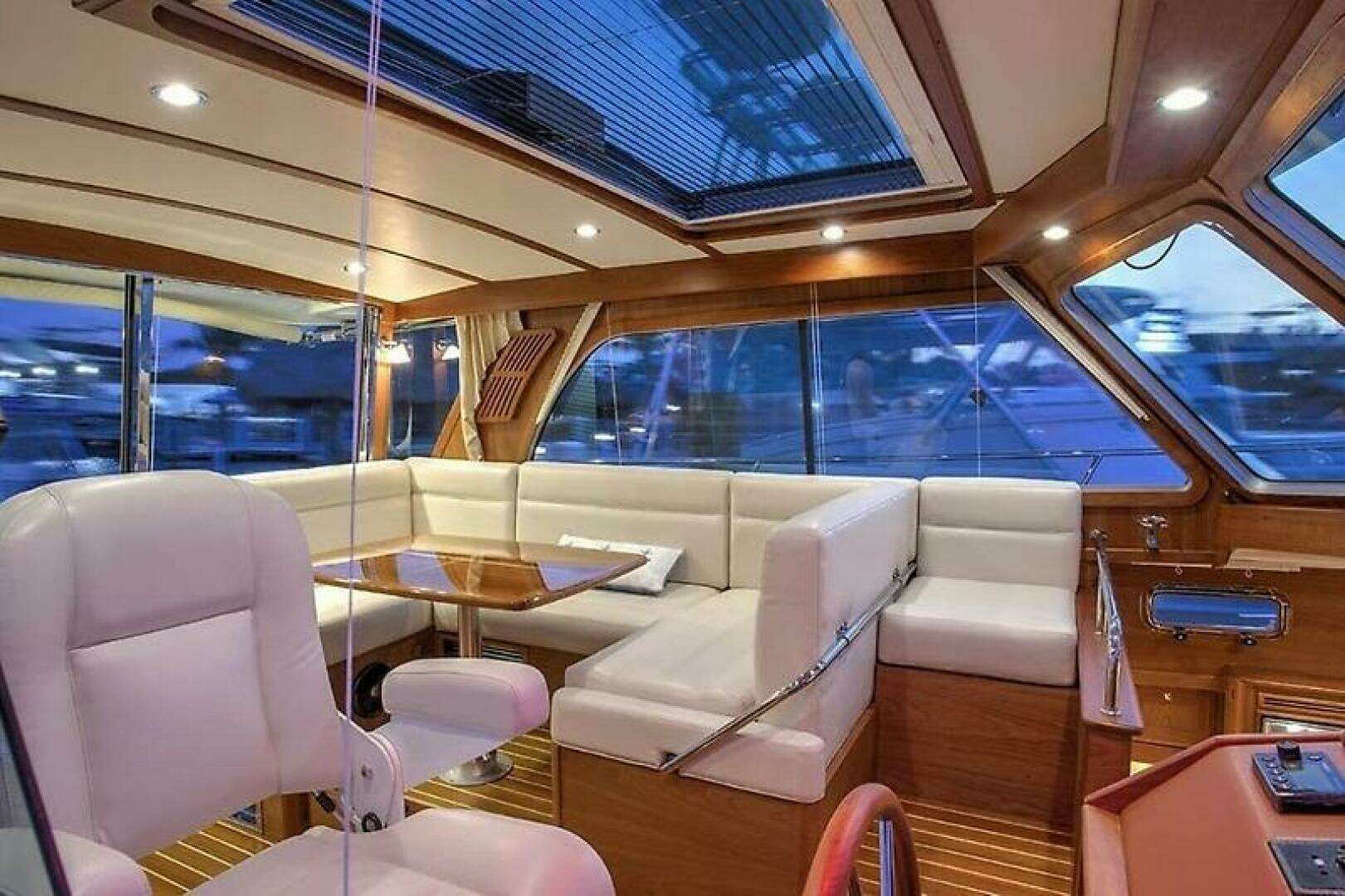

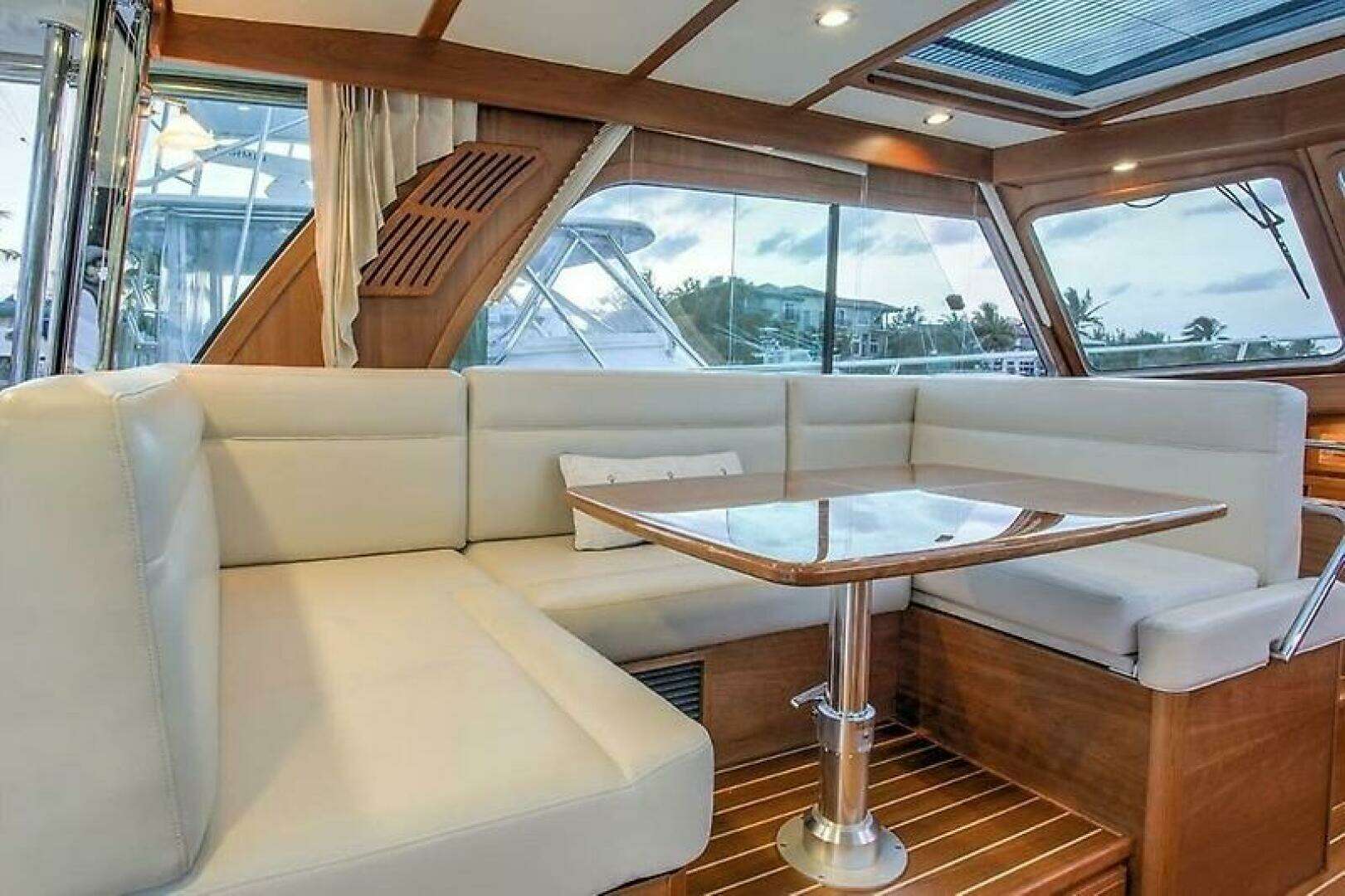

MAIN SALON

- Bifold stainless steel companionway door with electrically activated drop-down window to port

- Elevated "U" settee to port with a high-gloss table and storage beneath.

- Mates L-shaped settee forward, open to the galley with a stainless-steel handrail.

- Cabinet to starboard with storage and TV on an electric lift.

- Fixed salon table w/ starburst inlay & deep epoxy finish.

- Teak and holly sole w/ sealer.

- Sound deadening headliner panels.

- Option to convert settee and table into an additional berth.

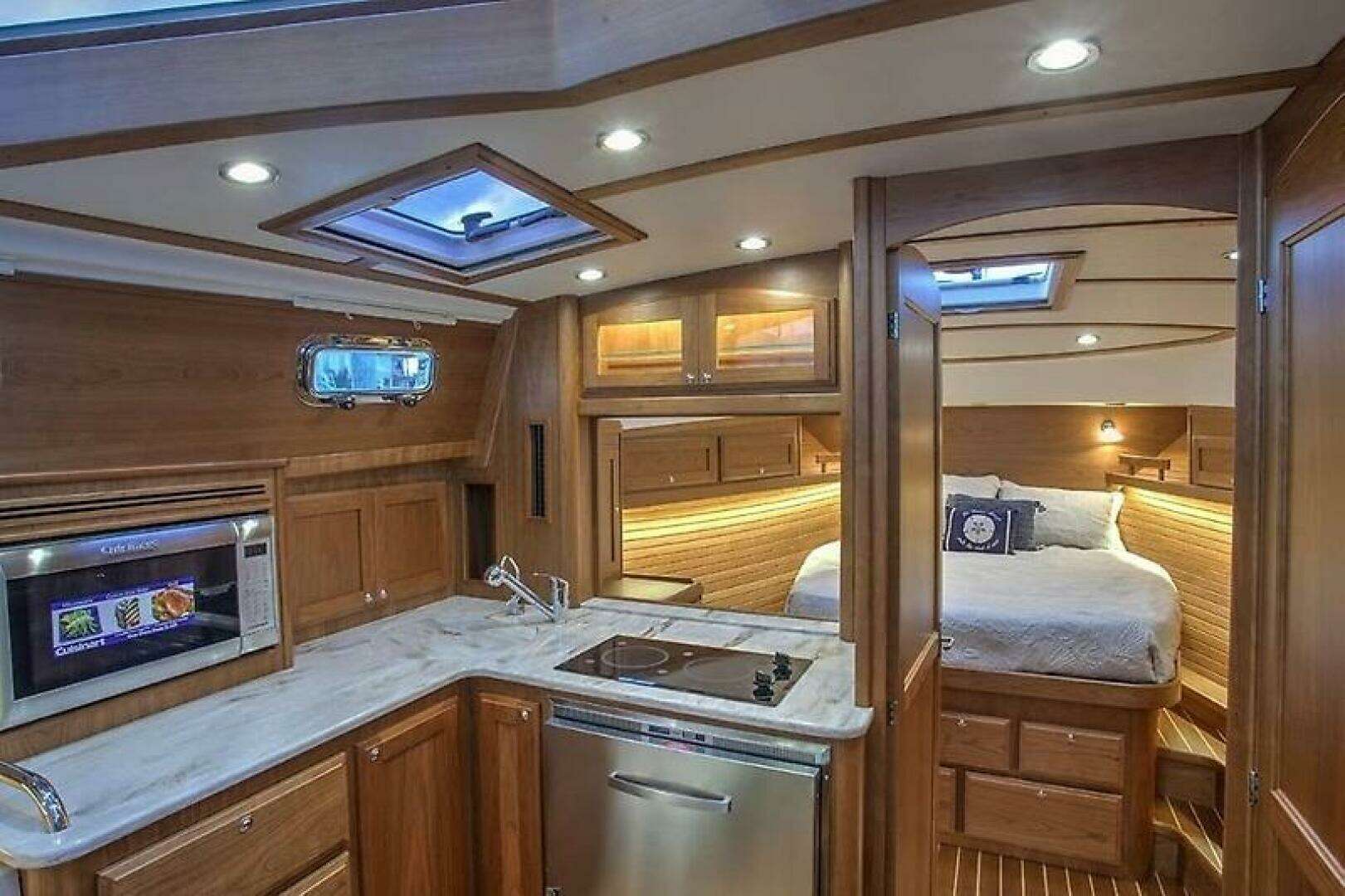

GALLEY

- Solid Surface counter.

- Stainless steel sink with faucet.

- Drawers and storage lockers below the counter.

- Storage cabinets outboard and above-counter

- Lockers above the stove.

- Two burner electric cooktop

- Stainless steel convection microwave oven.

- Stainless steel drawer-style refrigerator/freezer 12DC/120VAC

MASTER / FORWARD STATEROOM

- Spacious island berth layout with 6" mattress. ¾” laminated trim around berth top.

- Cherry hull ceilings.

- Storage drawers under the bed with A/C return grills.

- Upper storage to port and starboard with two enclosed lockers aft and fiddled shelves forward.

- Cedar lined large hanging locker to starboard.

- Bureau to port with enclosed locker above.

- Screen/Shade for all hatches.

- Teak and holly sole with two coats of sealer

- Soft headliner panels

- FRP Sport Yacht White headliner

LOWER LOUNGE

- L-shaped settee with pull out converts to double berth.

- Bookshelf outboard of Settee.

- Extra-large drawer below aft seating.

- Optional large 36” x 10” Hull Side fixed portlight.

- Optional Television for the lower lounge.

HEAD

- Sold Surface countertop.

- Vessel sink with faucet.

- Vanity cabinet below sink.

- Separate shower stall w/ clear acrylic divider.

- Hot and cold pressure water.

- Electric shower sump pump.

- Towel bars.

- Wood trimmed mirror over the sink

- Ventilation blower.

DÉCOR

- Varnished cherry interior finish.

- Screens on opening ports and hatches

- Optional Blinds in Soft White with Beige hardware.

- Laminated wood trims on shelves

- Dovetailed maple drawer boxes

- Accord shades on all opening ports

SAFETY

- Fire extinguishers, (4) at 2 1/2 lbs.

- Carbon Monoxide Detectors.

- Marelon sea valves on all below waterline fittings.

- Bonding system to safeguard against galvanic corrosion.

- Automatic fire extinguishing discharge system with override.

- Automatic 12V electric bilge pumps (3).

- High Water Alarms (3) for bilge.

OPTIONAL EQUIPMENT

Hull color: Flag Blue

Boot top color: Sport Yacht White

Cove Stripe color: Silver

Deck color: Sport Yacht White

Anti skid color: Smoke

Swim platform color and anti-skid: Fixed, Sport Yacht White with Smoke Anti-skid

Bang rail color: Gray

Rub rail color: White

Galley Corian: Carrara Lino

Head Countertop Corian: Carrara Lino

Head Sole Corian: Carrara Lino

Stidd Seat Upholstery: Ultrafabric Pumice Hail

Main Salon Upholstery: Ultrafabric Pumice Hail

Lower Lounge Upholstery: Ultrafabric Pumice Hail

Cockpit Seat Cushions: Tempotest - Michaelangelo - Silver White

Two-Tone Anti-Skid Color Locations: Fore & Side, Aft Cockpit, Swim

FIBERGLASS:

Anti-skid color: Smoke

Dark Hull Colors: Flag Blue

EXTERIOR & DECK:

Powered engine room hatch. Switch installed aft of settee in main salon.

Fixed hull side portlight, port side in lower lounge with a cover

Release Marine high gloss cockpit table

MECHANICAL:

Single Seagull water purifier at galley with separate spigot

Fresh water wash down forward

Reverso oil change system

ELECTRICAL:

9" Volvo-Garmin B9 display at helm

3 Zone Apollo stereo system. Cockpit, Main Salon and FWD Cabin

Auto generator start

Install Sabre electronics prewire harness

All-in-one single cabinet in utility room, DRW70 - freezer or refrig Vitrifrigo

Drawer refrigerator under port aft salon settee

Kahlenberg dual chrome horns

24" LED Television in lower lounge area

MAIN SALON & HELM:

Filler cushion and telescoping table base to create berth in main salon

Bottle storage in aft Main Salon cabinet with Corian cover on aft countertop

SEAT COVERS:

Aft Seat Covers

Aft Cockpit Seating Covers - Add Track to Forward Bulkhead

ELECTRONICS:

Garmin Package with Starlink

ADDITIONAL ITEMS

SAFETY KIT - Fender lines 1/2" x 15' (2), Docklines 5/8" x 25' (4), Docklines 5/8" x 35' (2), Fenders 10" x 26" (2), Fender covers (2), Fire Entinguisher 2.5 lb. Ty-B1 ABC (2), First Aid Kit (1), TY-II PFD's (6), Life vest storage bag (1), Flare kit (1), Throw cushion (1) white, Anchor S/S Lewman 0057220 - DTX, 44 lb (1), Anchor chain 3/8" x 250 (1), Shackles 3/8 (2), SS swivel 3/8 x 1/2 (1)
